Toyota Dyna

2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

16 part groups · 10 illustrations

Illustrations

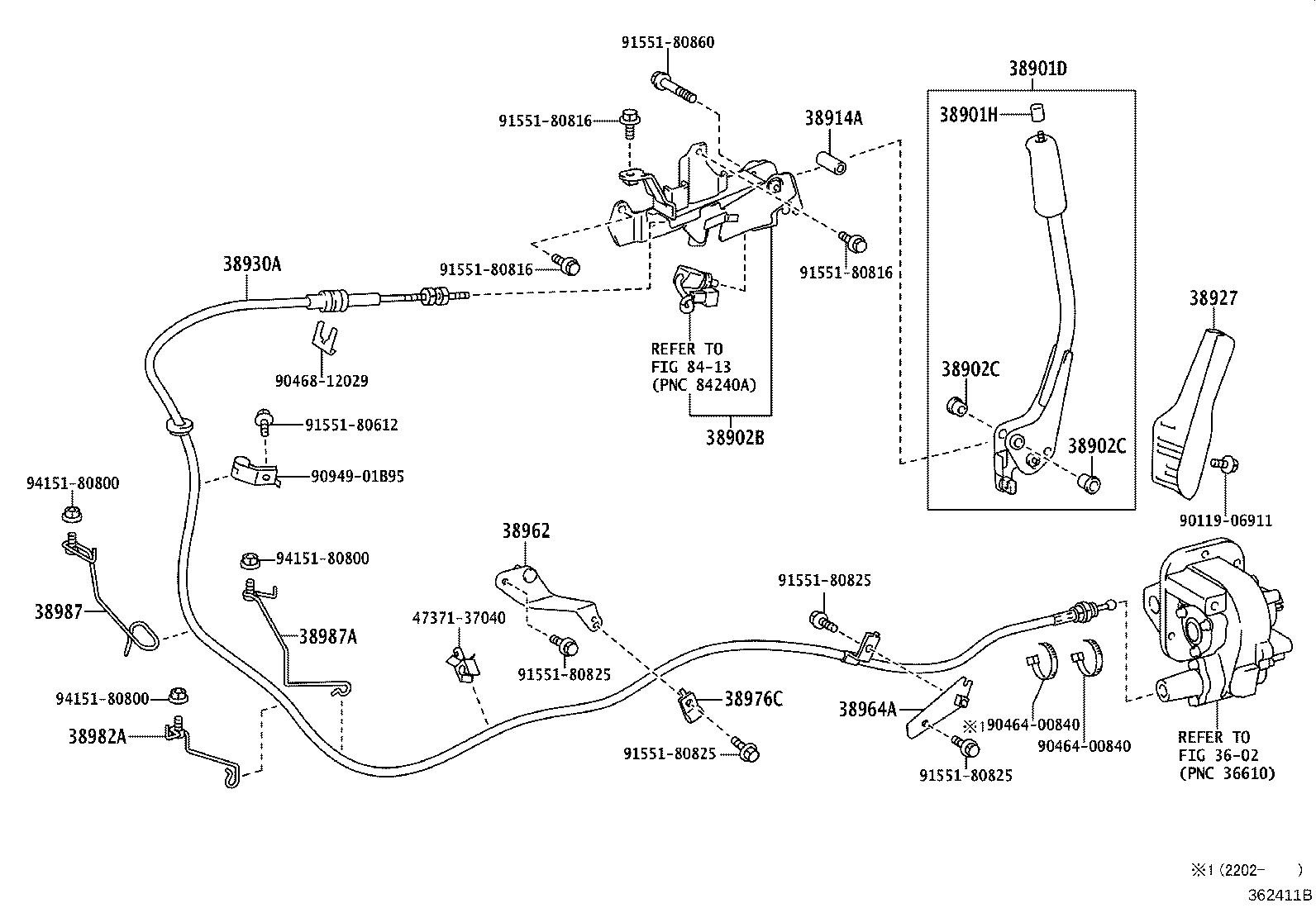

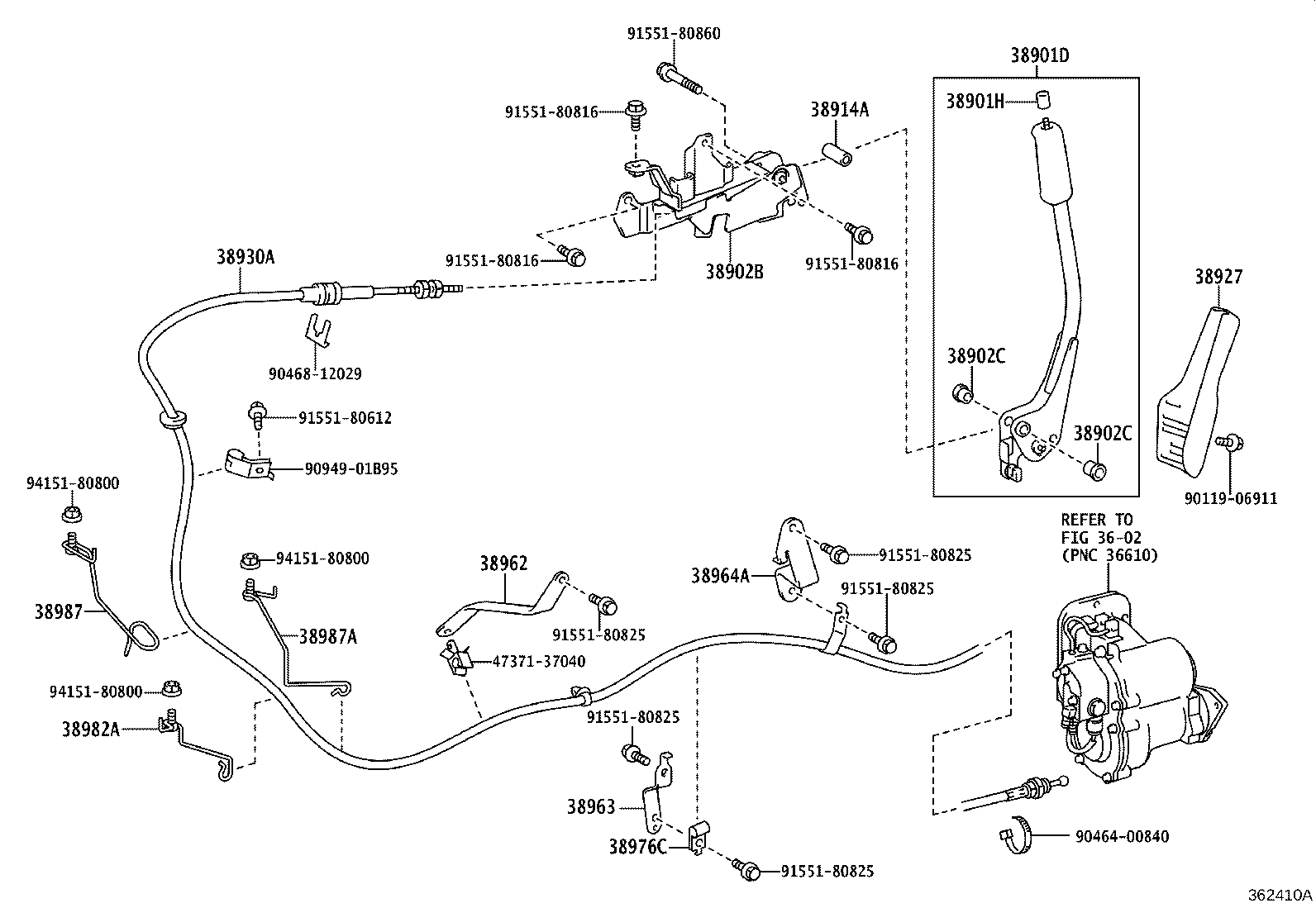

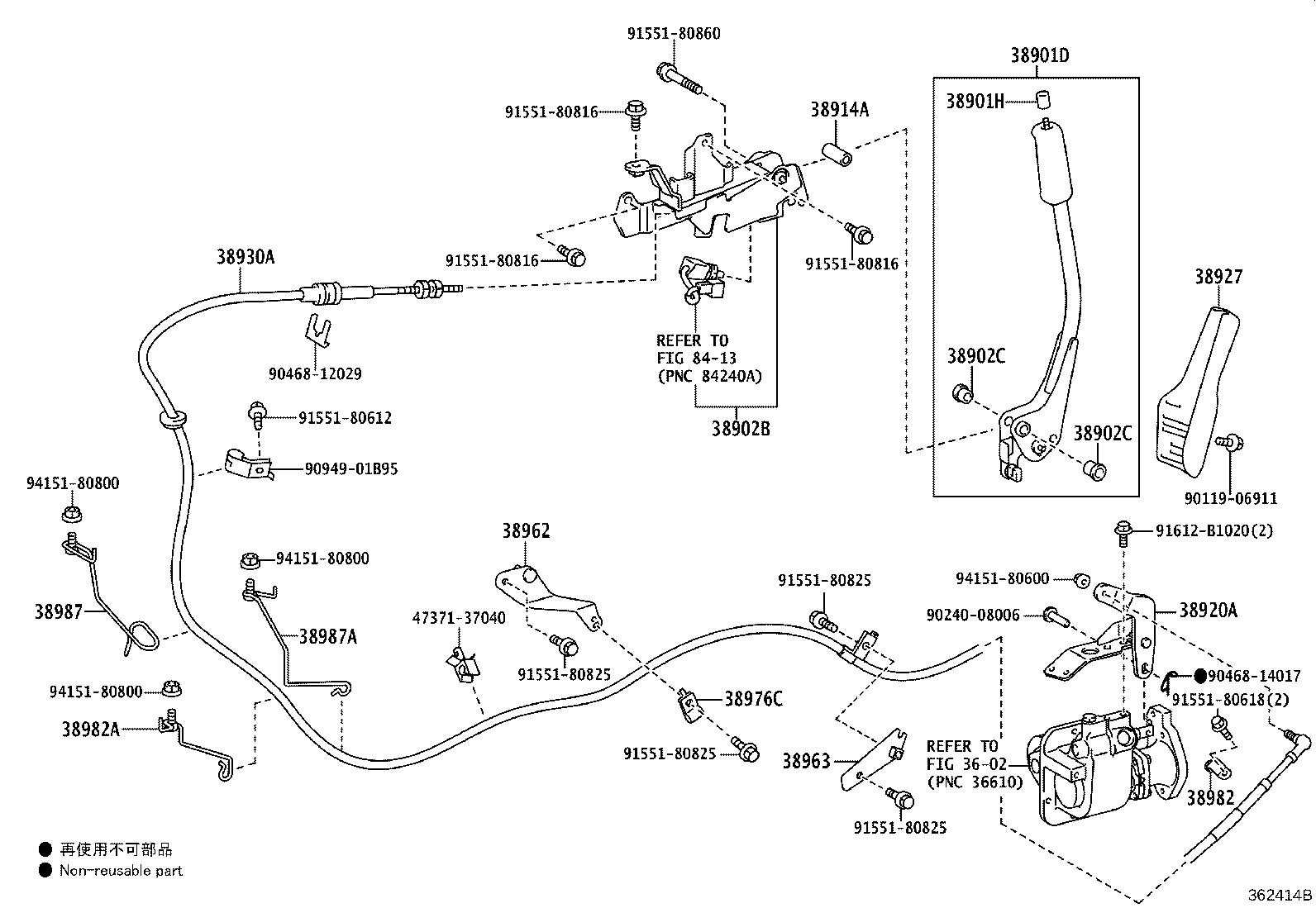

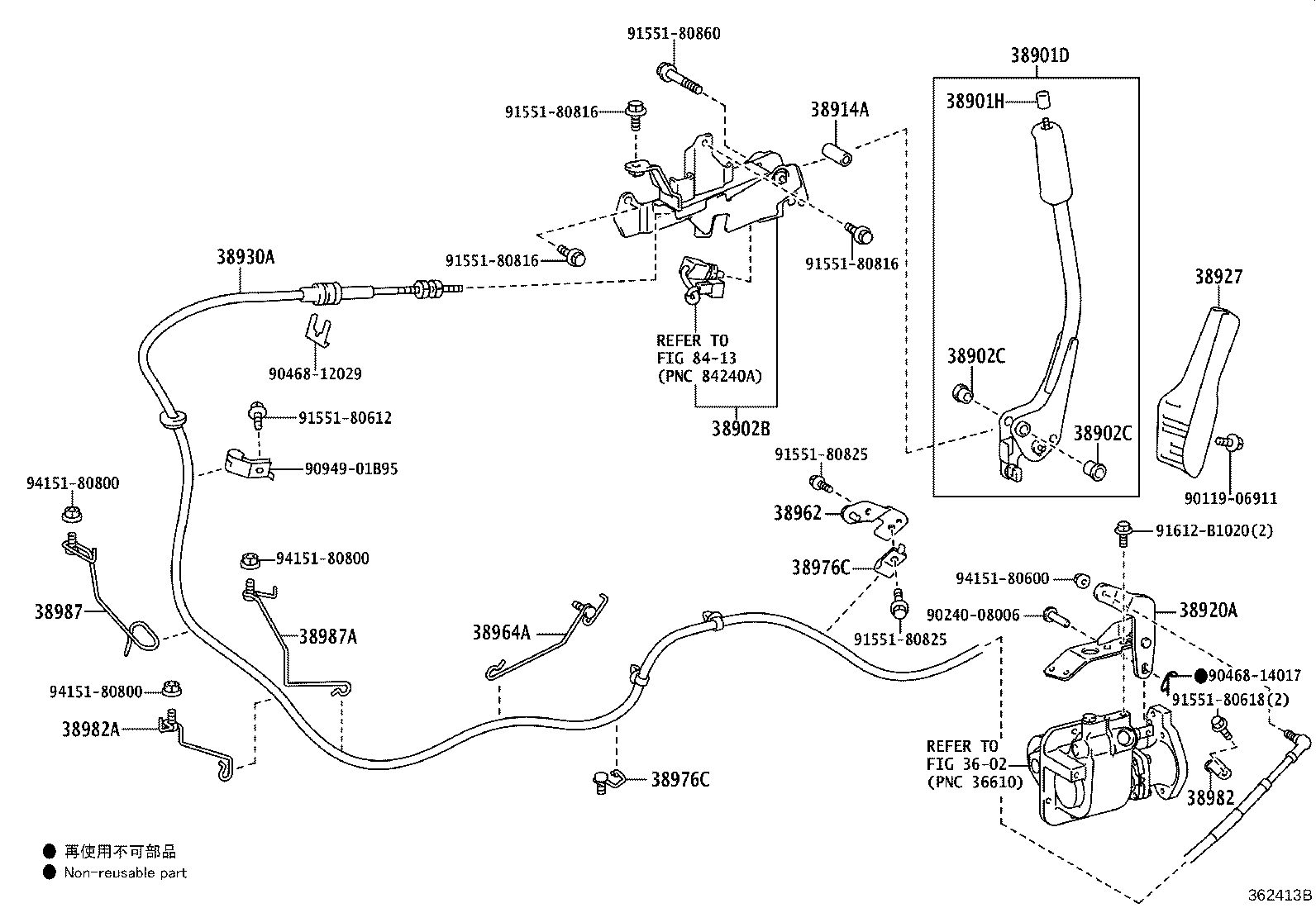

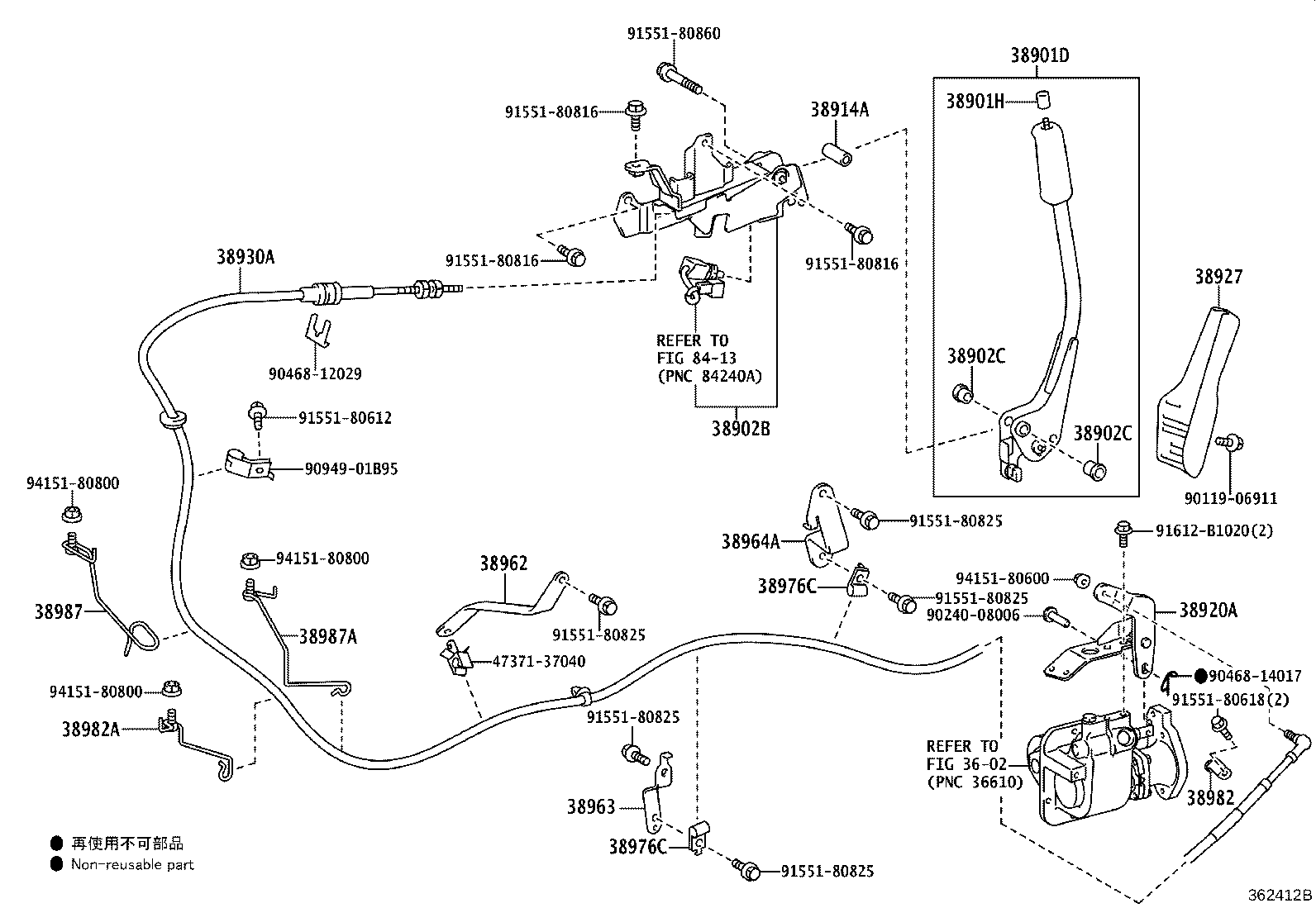

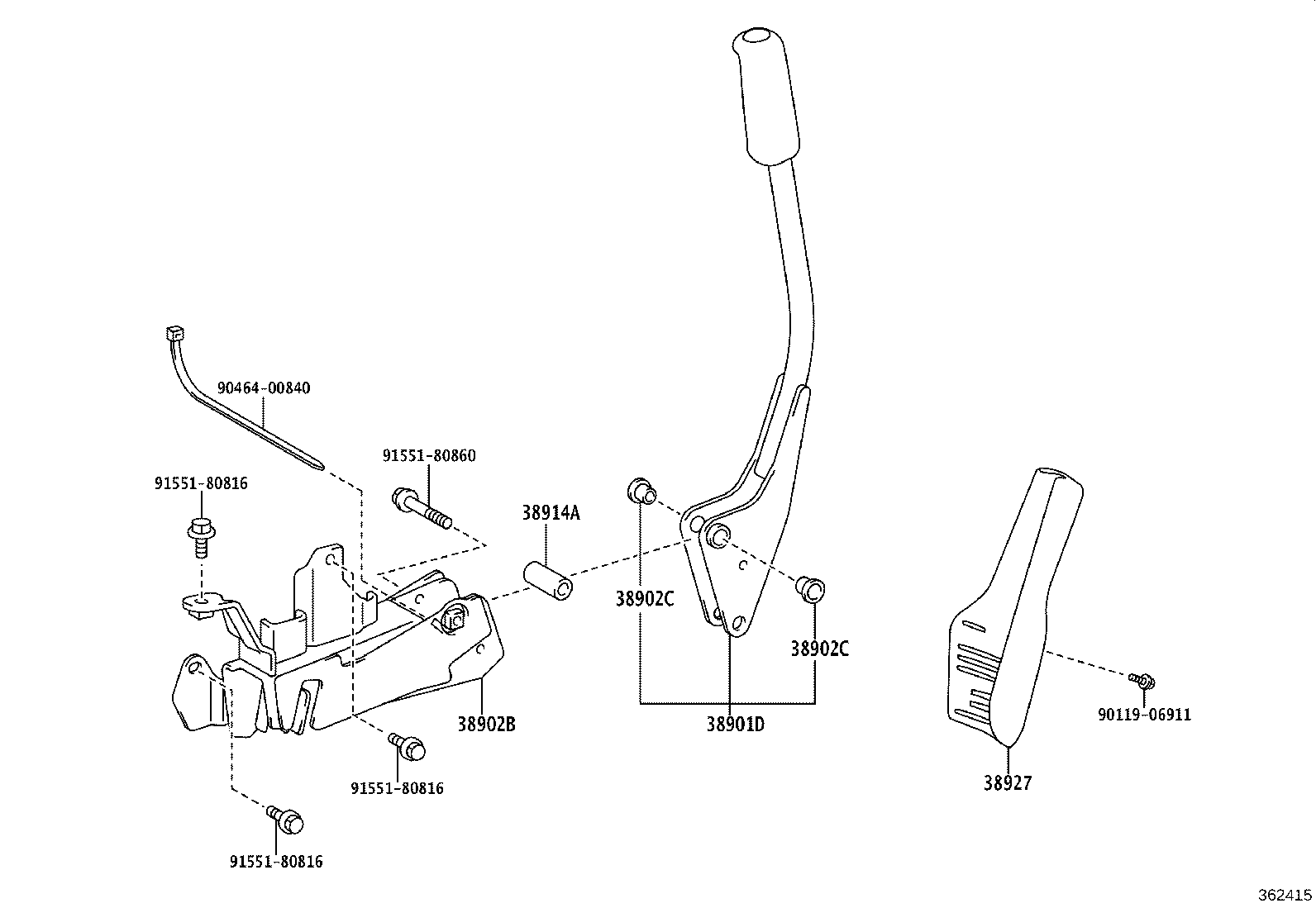

Figure 362409B 362409B 2021-03 → — Figure 362410A 362410A 2021-03 → — Figure 362411B 362411B 2021-03 → — Figure 362412B 362412B 2021-03 → — Figure 362413B 362413B 2021-03 → — Figure 362414B 362414B 2021-03 → — Figure 362415 362415 2021-03 → — Figure 362416 362416 2021-03 → — Figure 362416 362416 2021-03 → — Figure 362416 362416 2021-03 → —

Part groups

PNCDescription
38901D Lever Sub-assy, Valve Control
38901H Knob, Valve Control Lever
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38914A Pipe, Valve Control Lever
38920A Lever Assy, Power Take-off Control, NO.1
38927 Cover, Valve Control Lever
38930A Cable Assy, Push Pull
38962 Bracket, Cable Clamp, NO.2
38963 Bracket, Cable Clamp, NO.3
38964A Bracket, Cable Clamp, NO.4
38976C Clamp, Push Pull Cable
38982 Clamp, Push Pull Cable, NO.1
38982A Clamp, Push Pull Cable, NO.2
38987 Clamp, Cable Push Pull
38987A Clamp, Push Pull Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
