Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKC6##,XKU6## · catalogue 753120 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

42 part groups · 6 illustrations

Illustrations

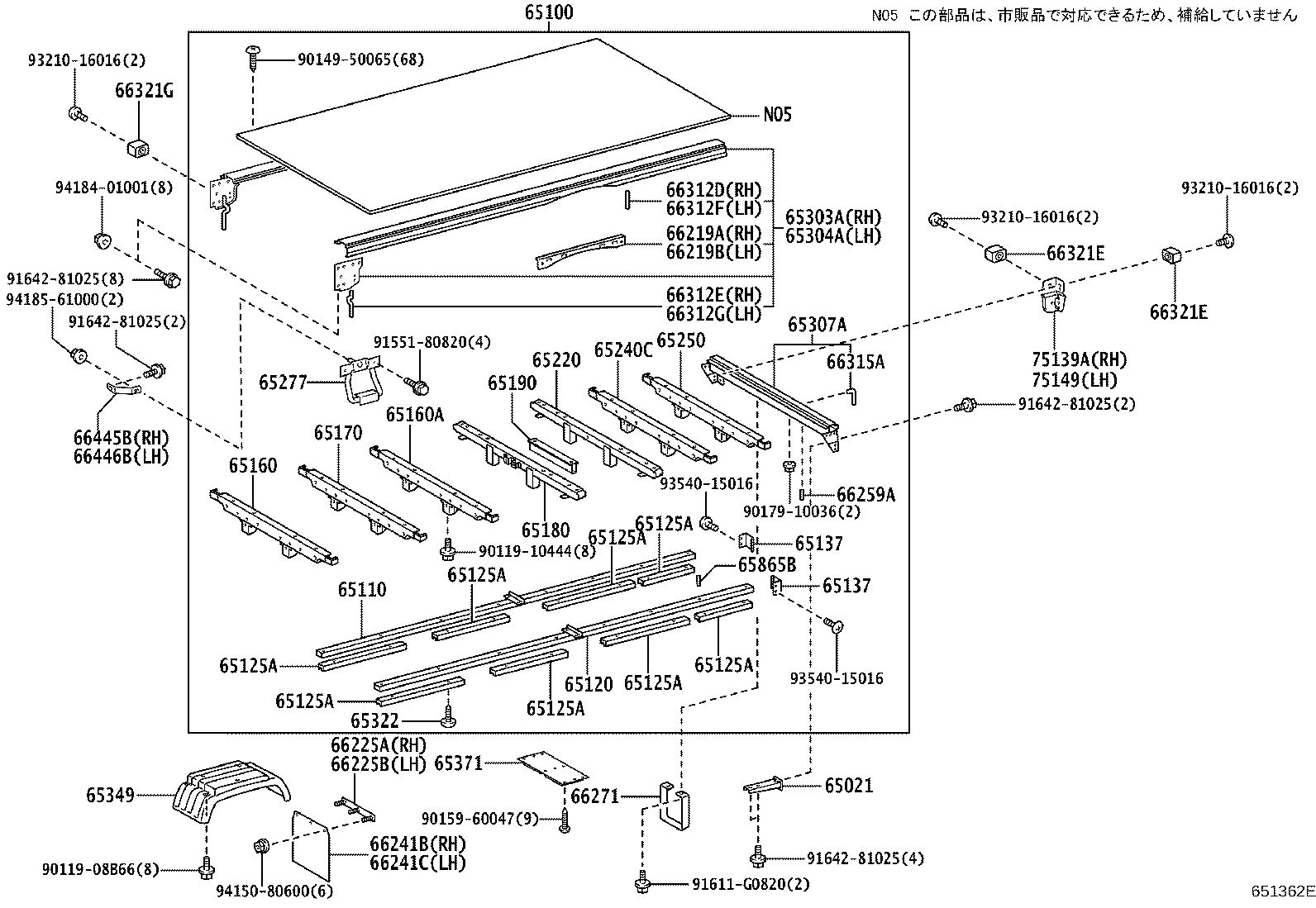

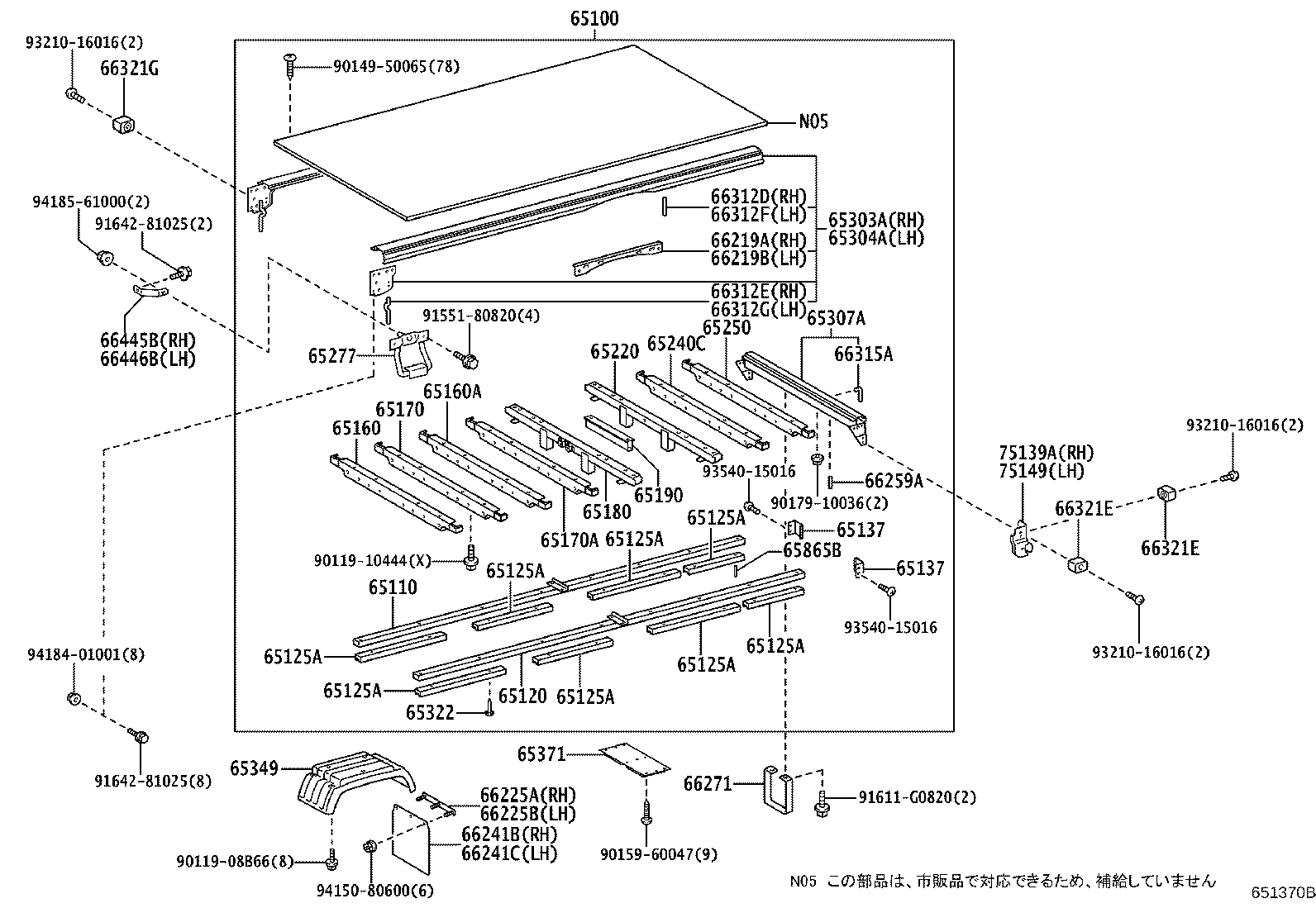

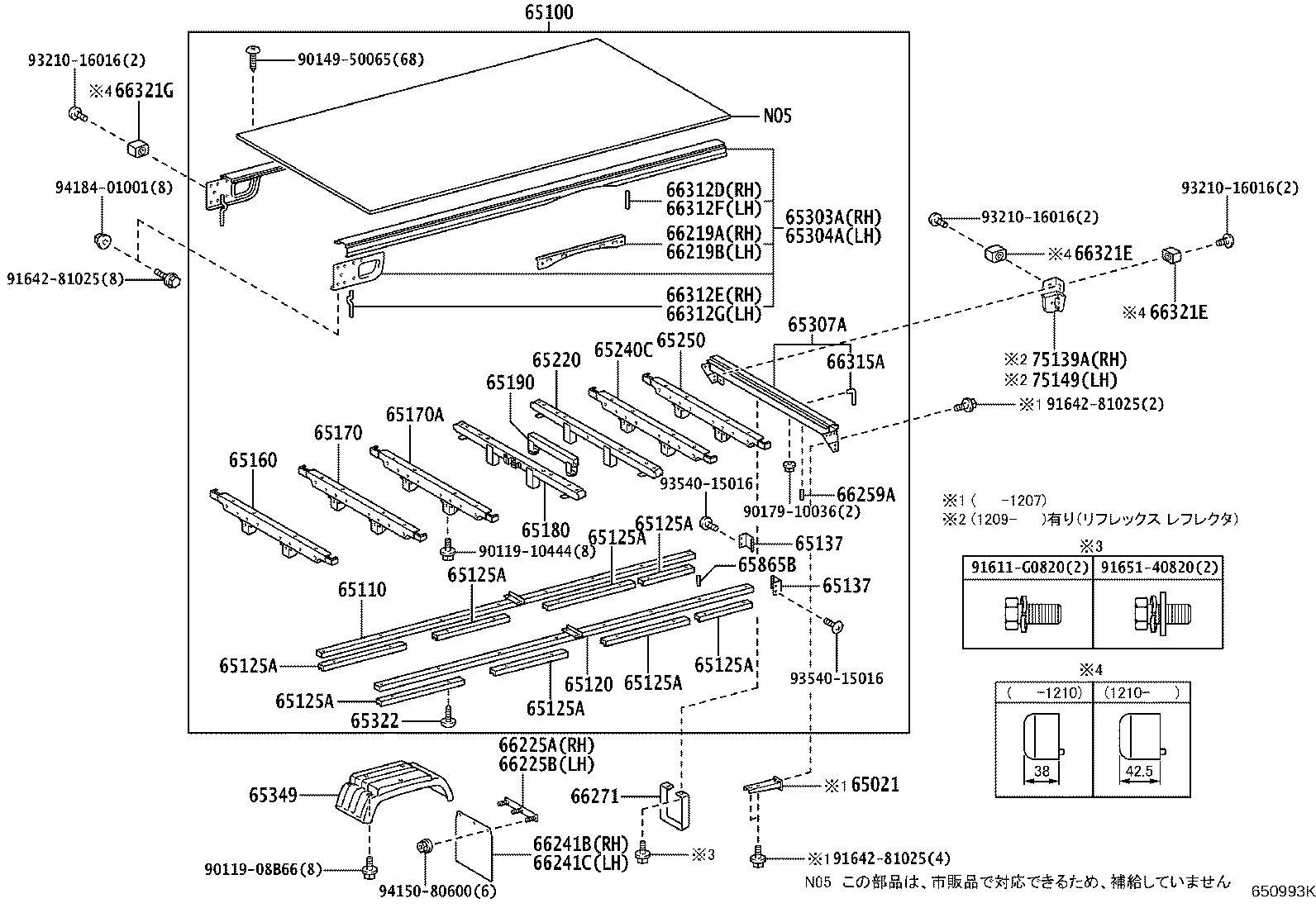

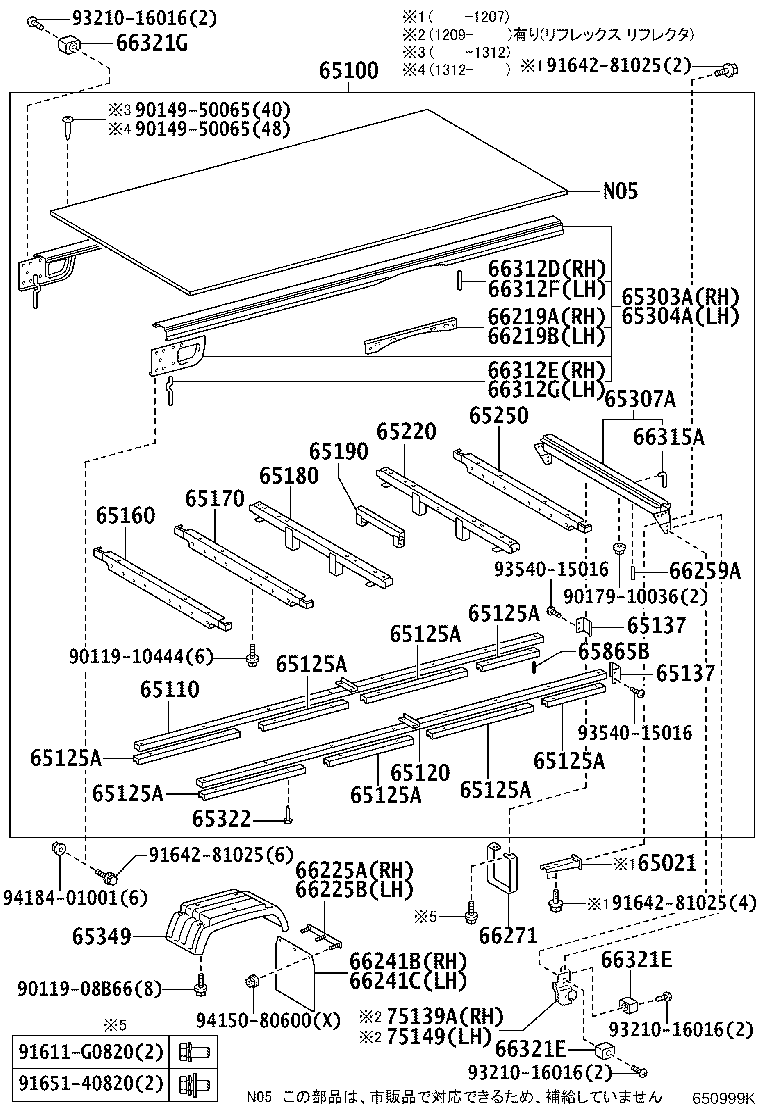

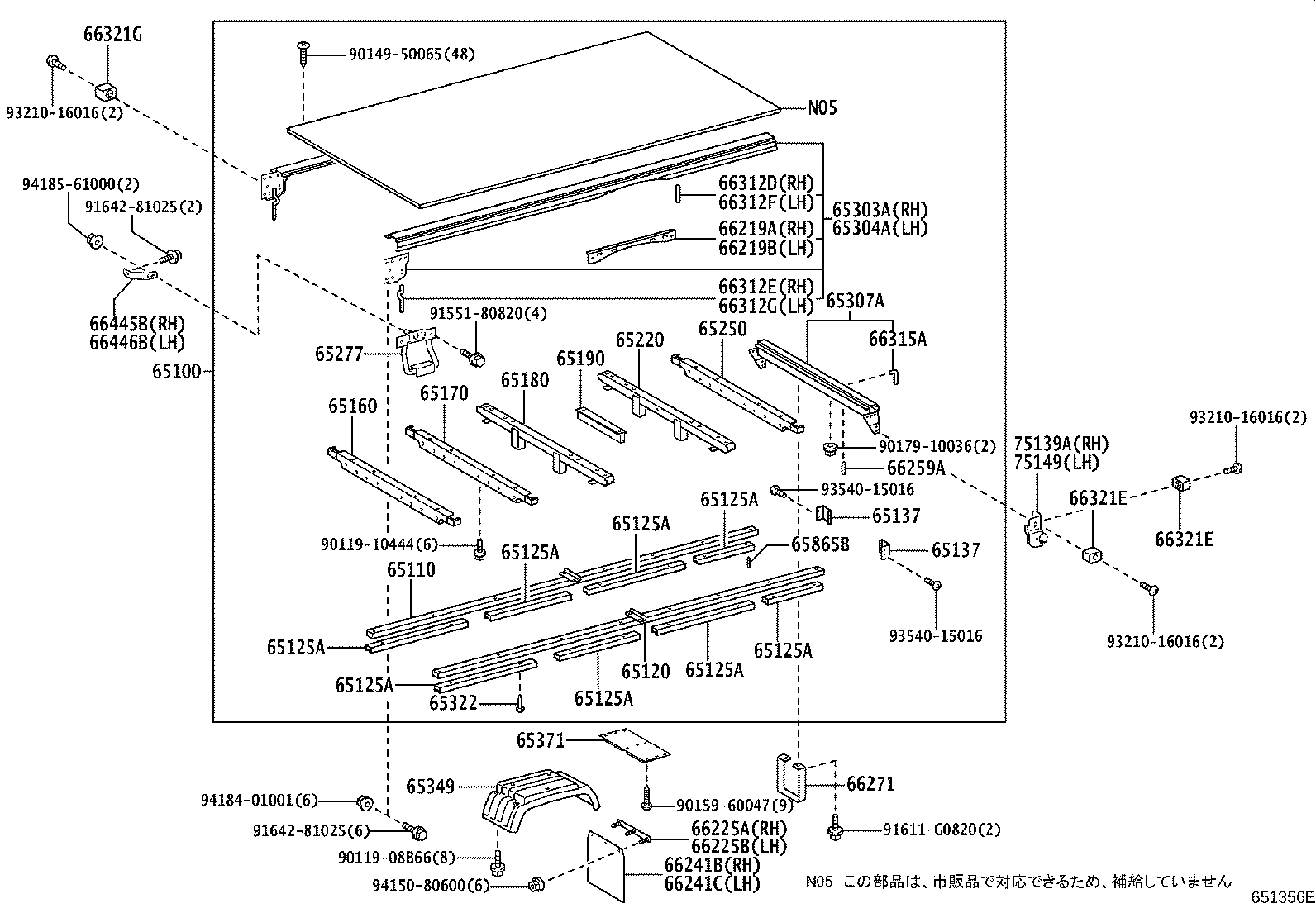

Figure 650986L 650986L 2011-07 → — Figure 650999K 650999K 2011-07 → — Figure 650993K 650993K 2011-07 → — Figure 651356E 651356E 2019-05 → — Figure 651362E 651362E 2019-05 → — Figure 651370B 651370B 2019-05 → —

Part groups

PNCDescription
65021 Bracket Sub-assy, Main Sill, Lower
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65277 Step, Side, Front
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307A Frame Sub-assy, Floor, Rear
65322 Nail
65349 Fender, Floor Side
65371 Insulator, Rear Floor
65865B Pin, Cover Top Guide
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66315A Hook, Rope
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66445B Brace, Frame TO Rear Body
66446B Brace, Frame TO Rear Body, NO.2
75139A Bracket, Reflex Reflector, RH
75149 Bracket, Reflex Reflector, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
