Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

41 part groups · 27 illustrations

Illustrations

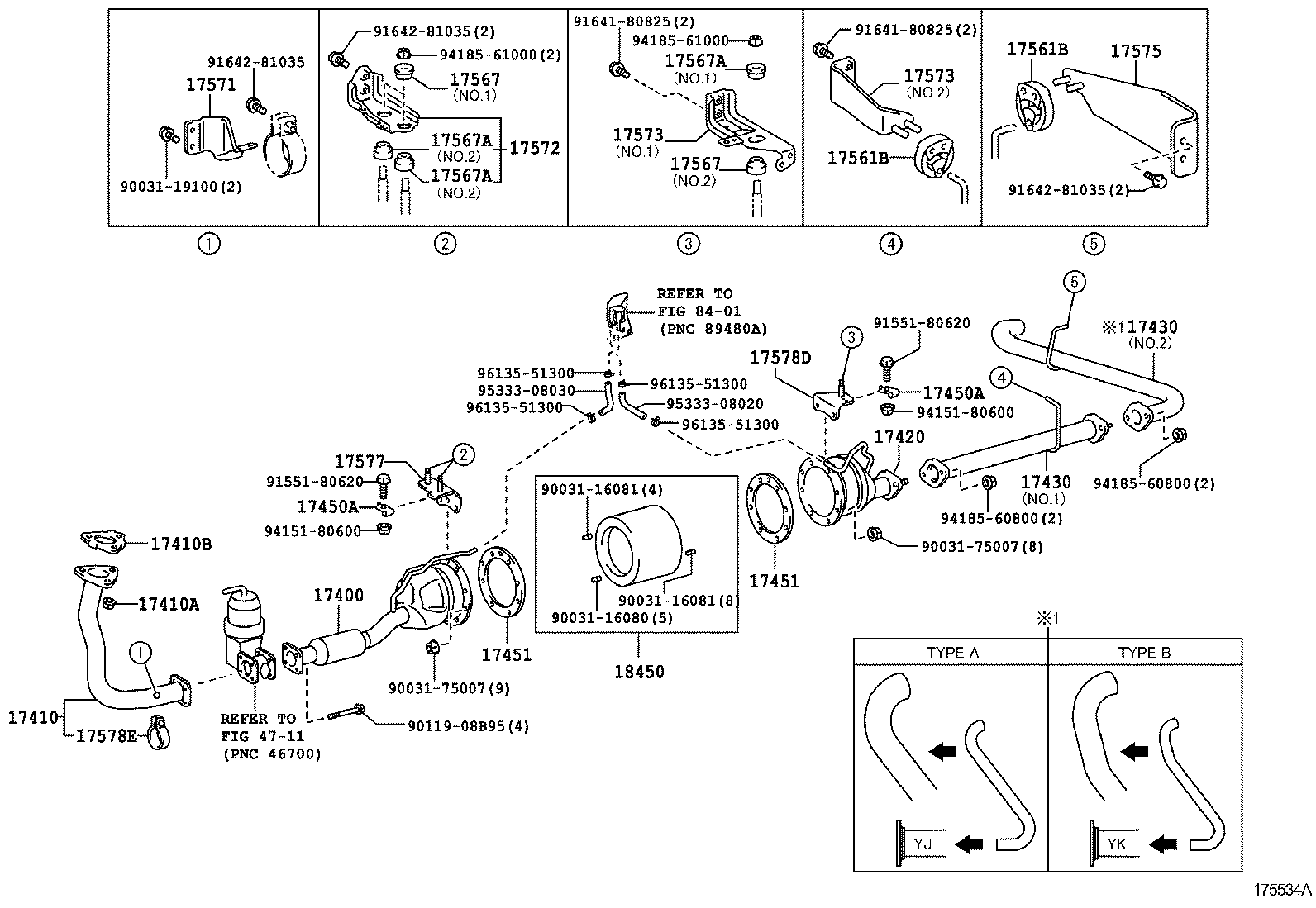

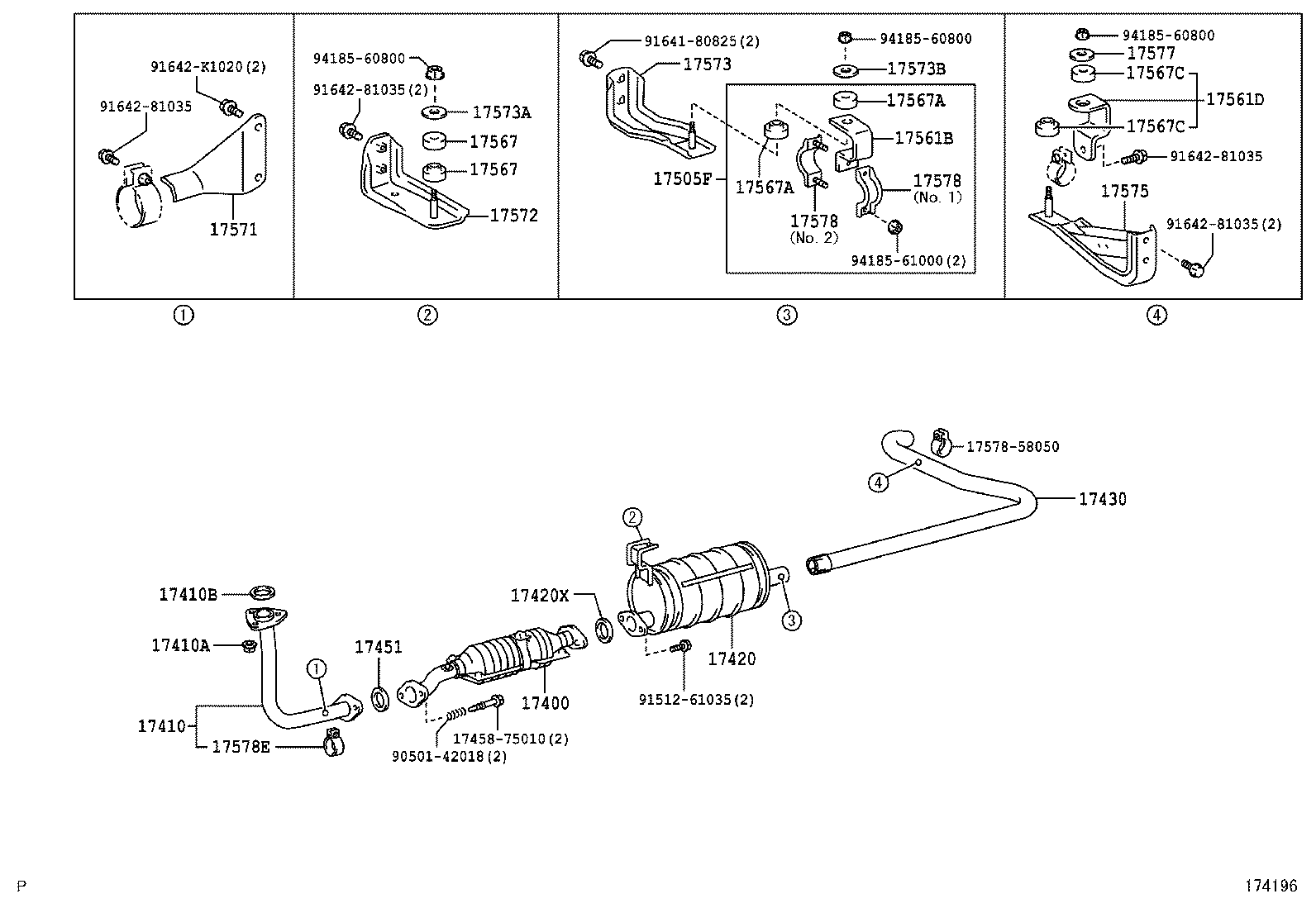

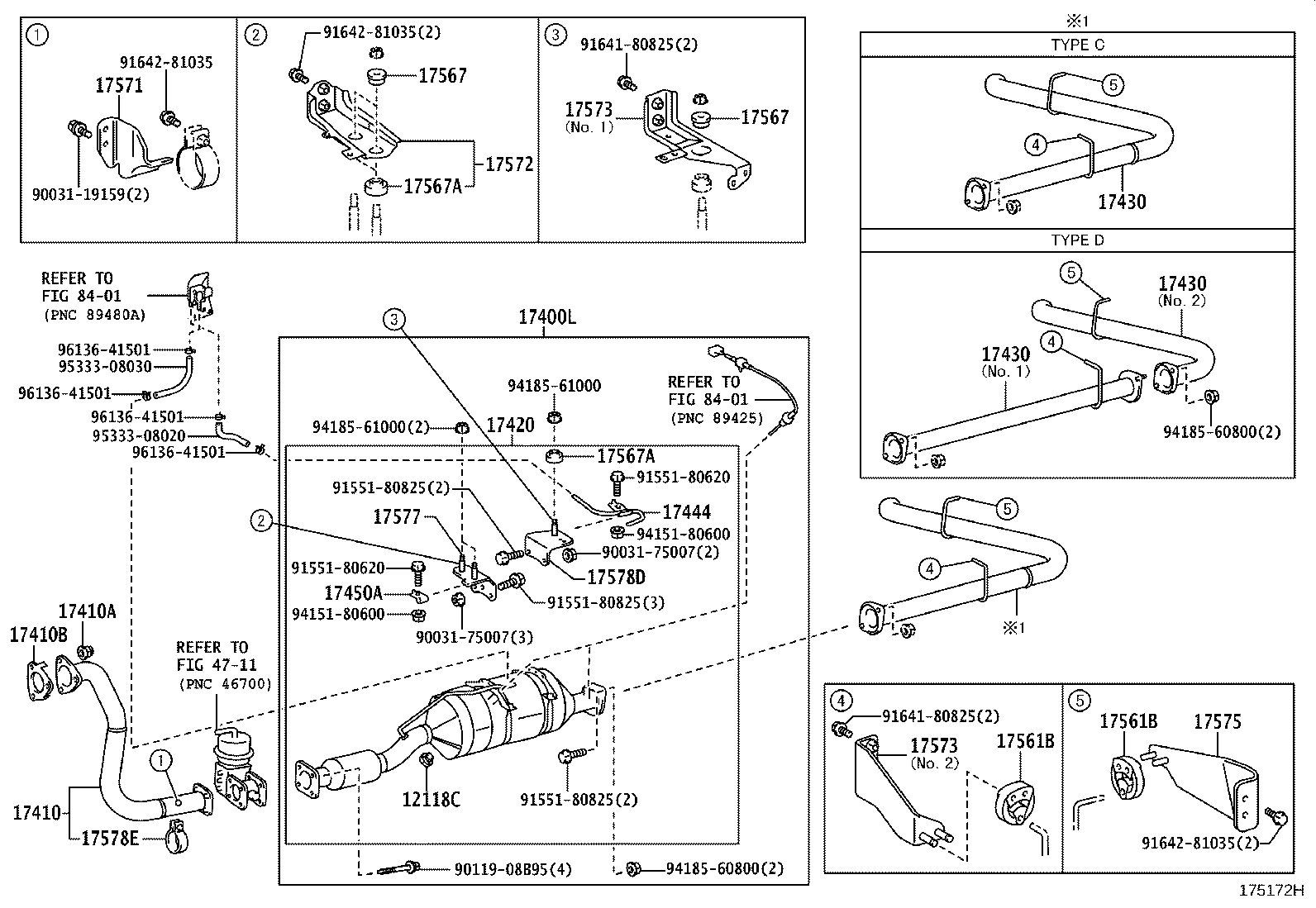

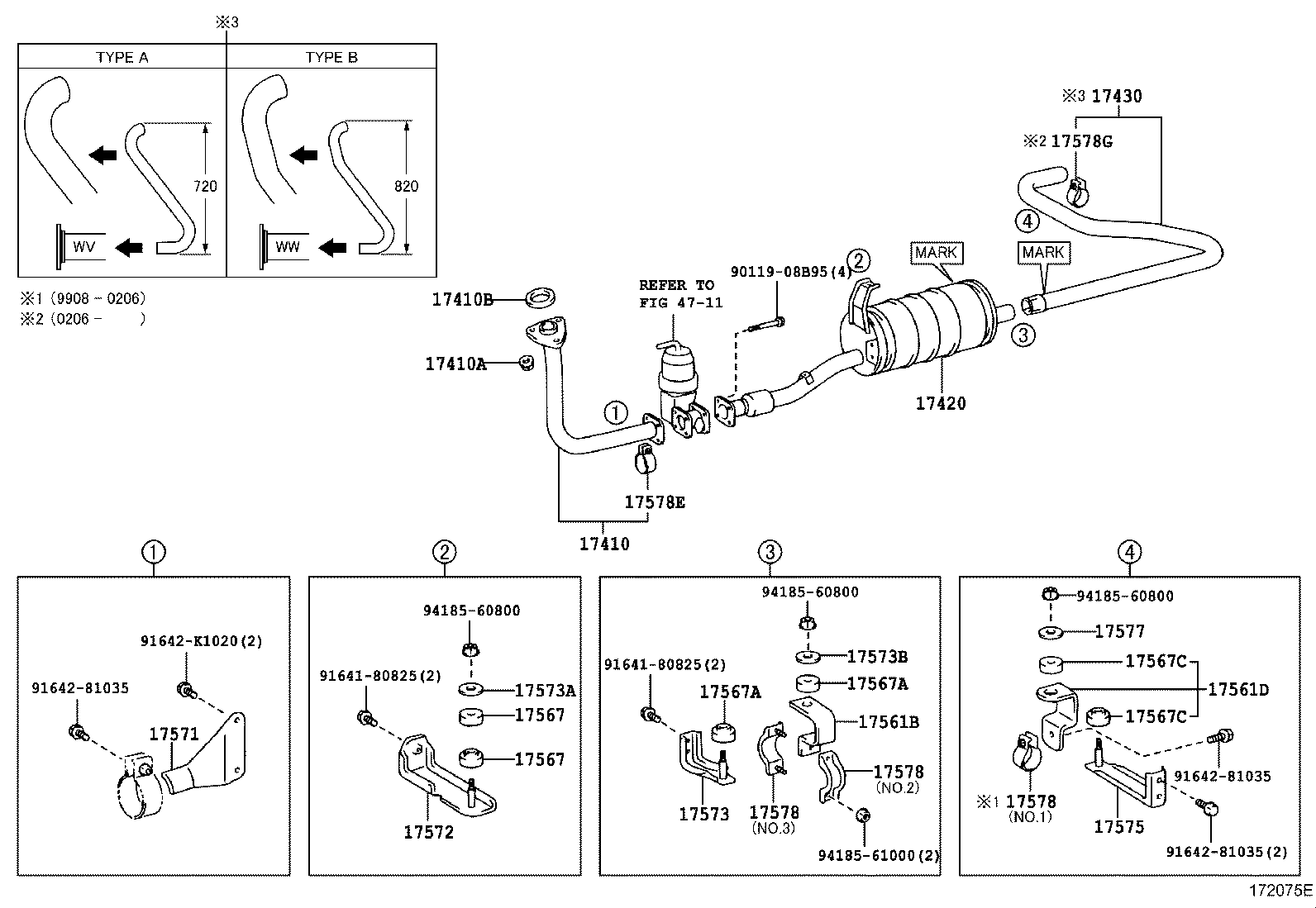

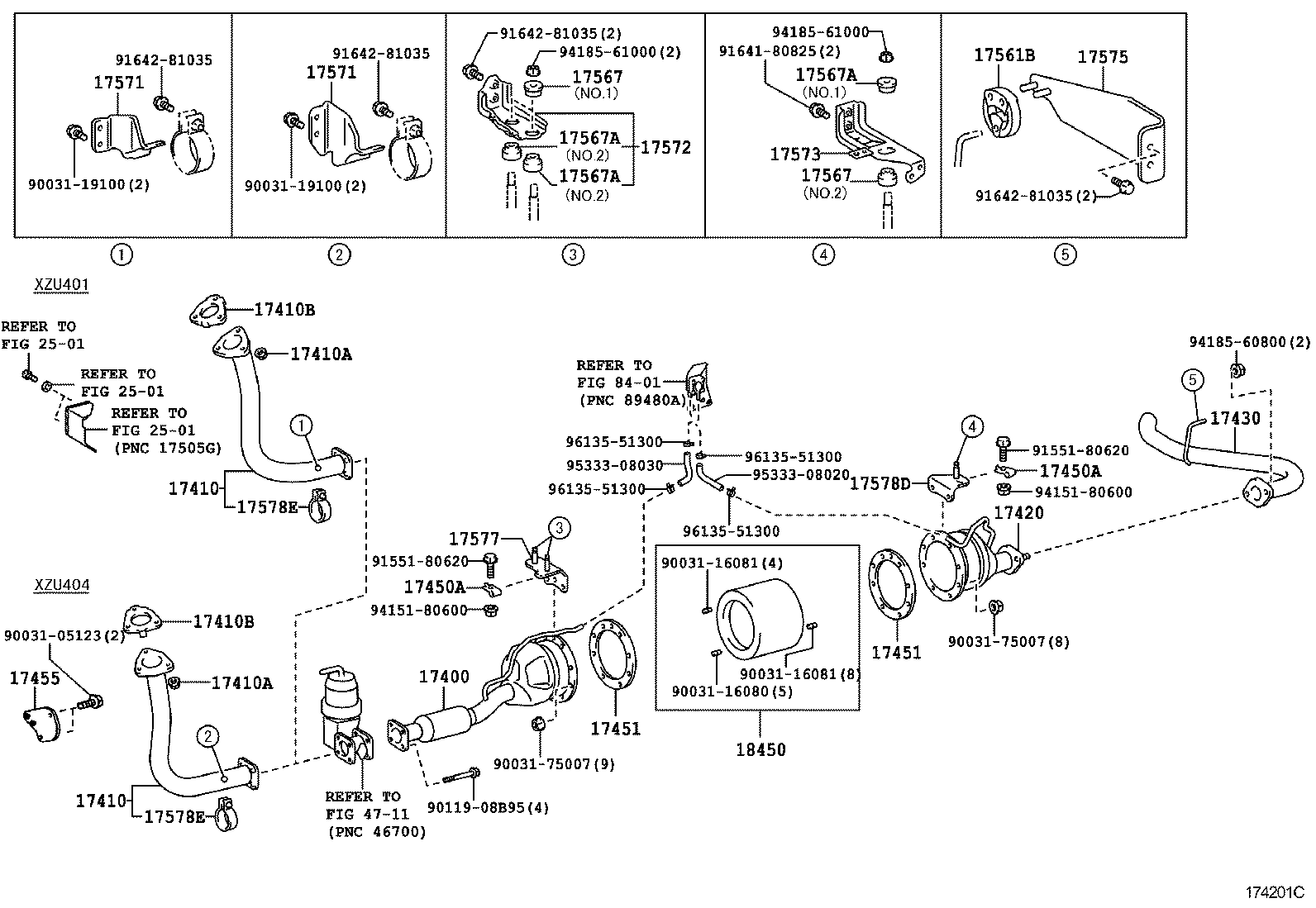

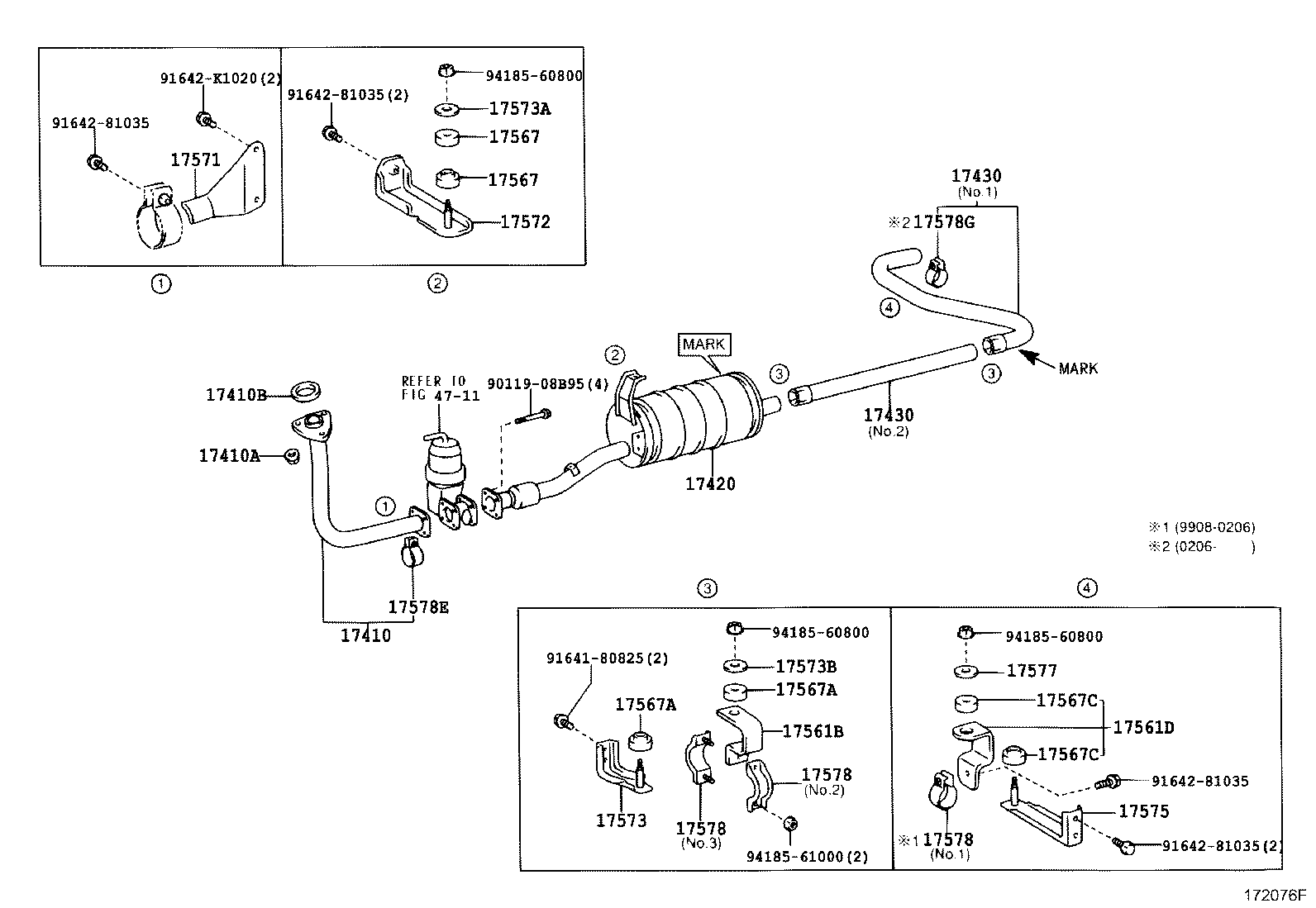

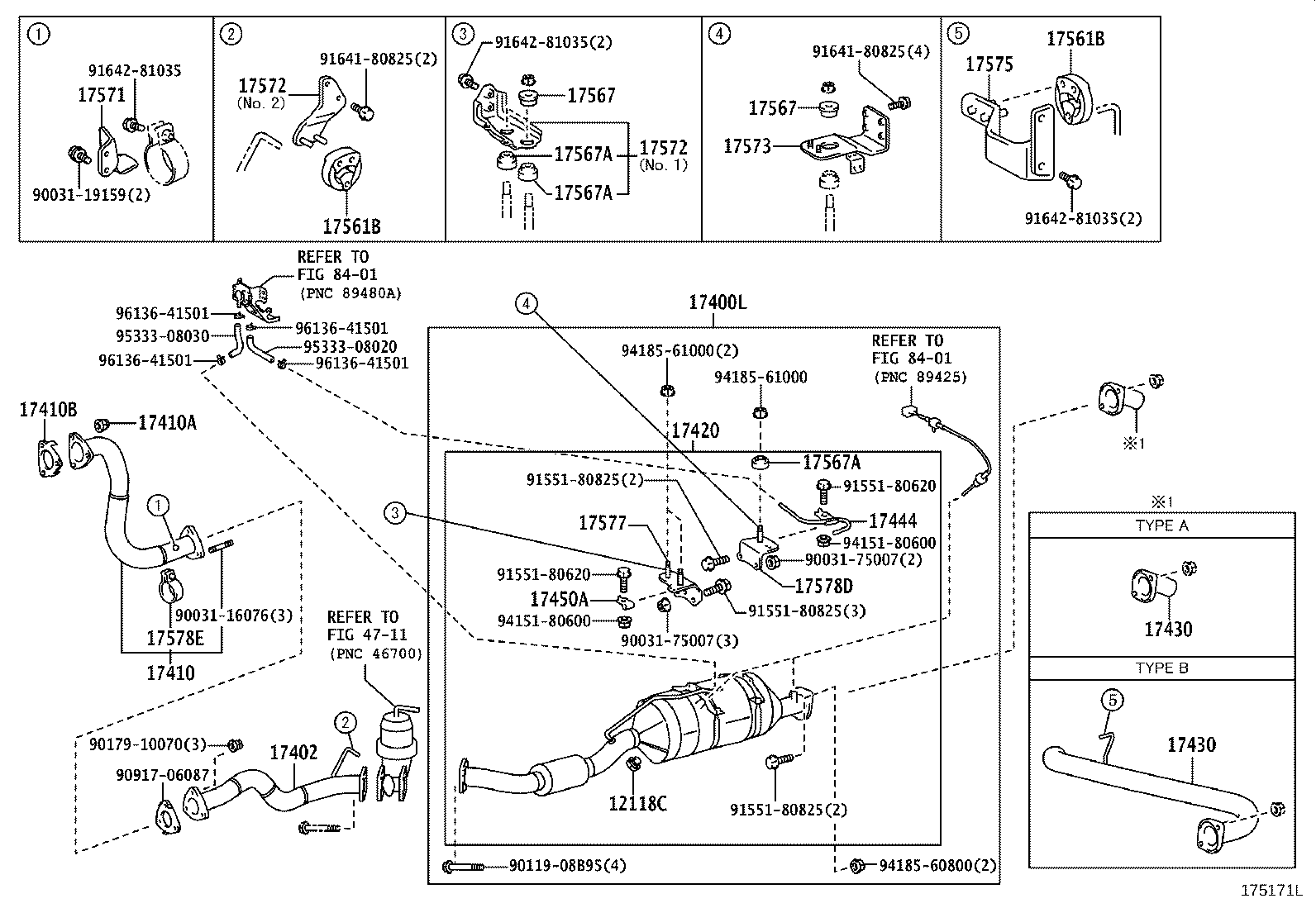

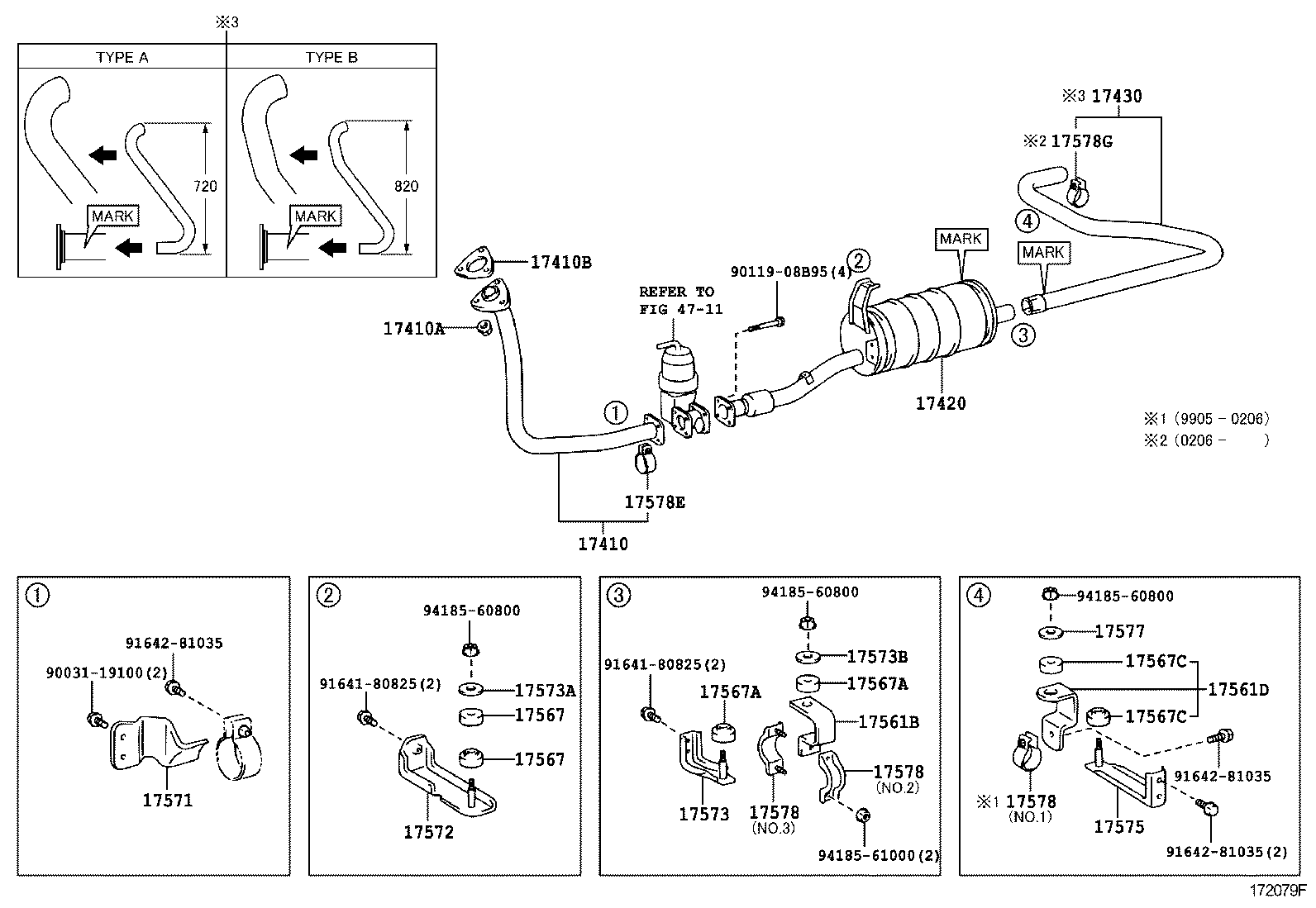

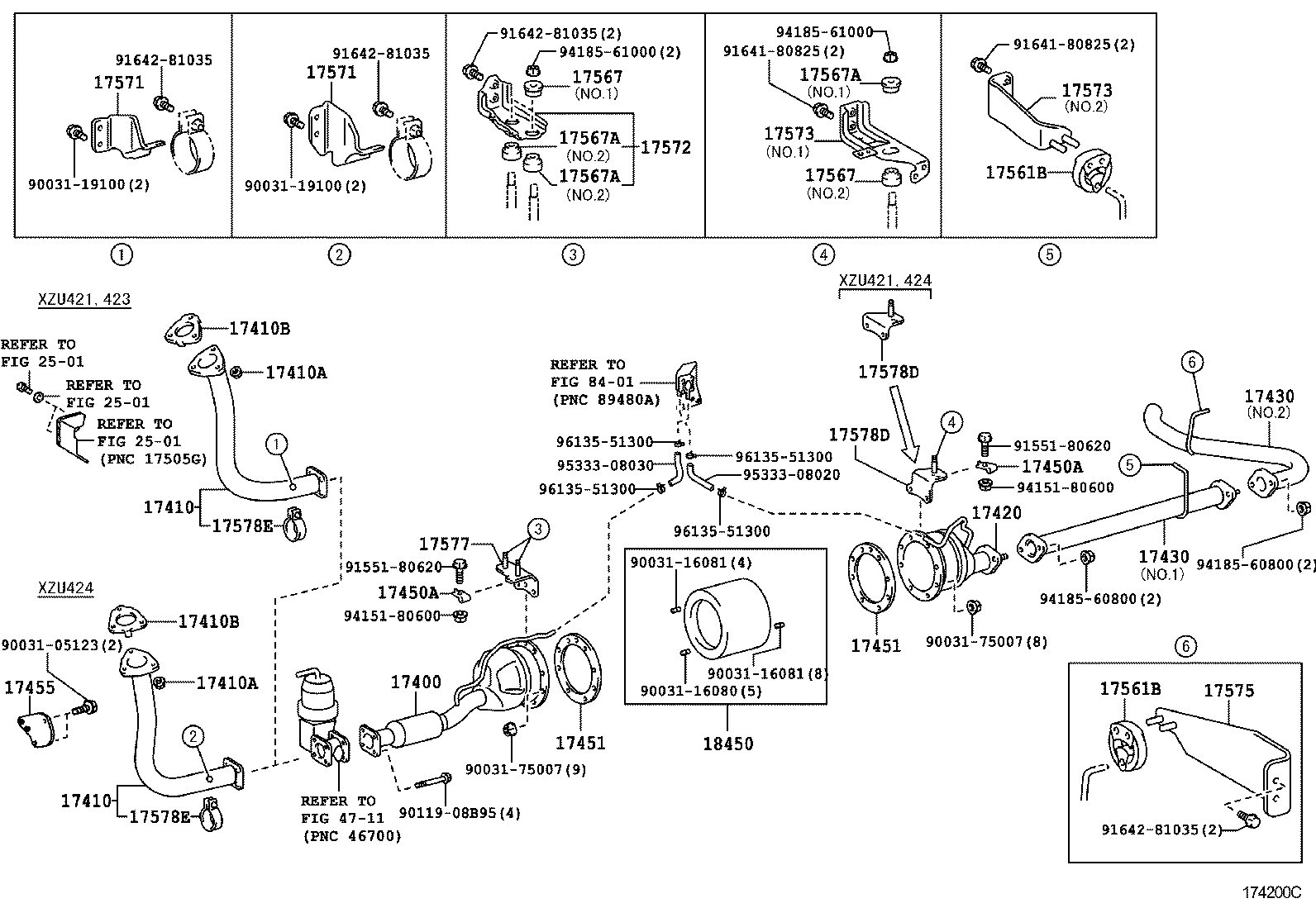

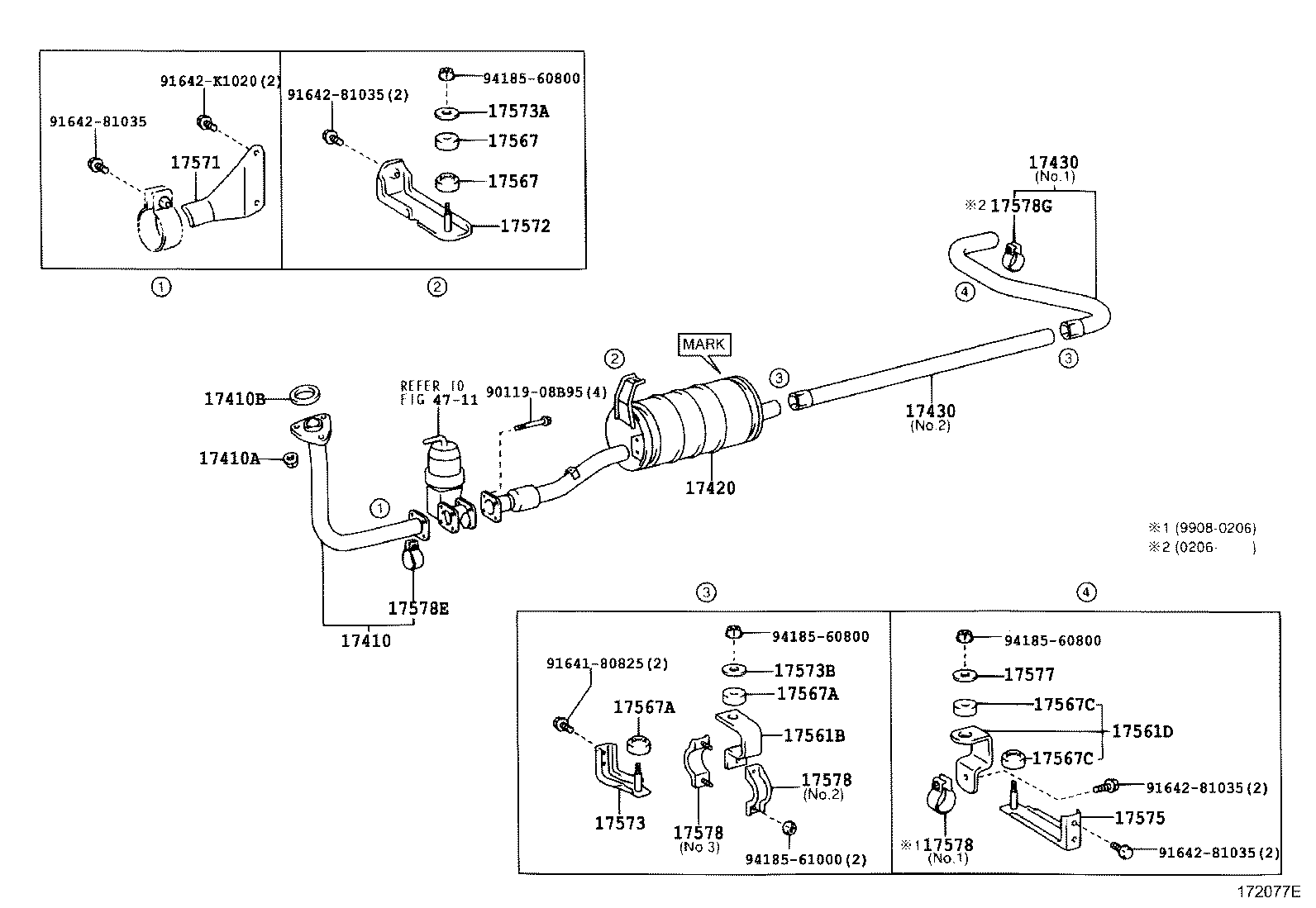

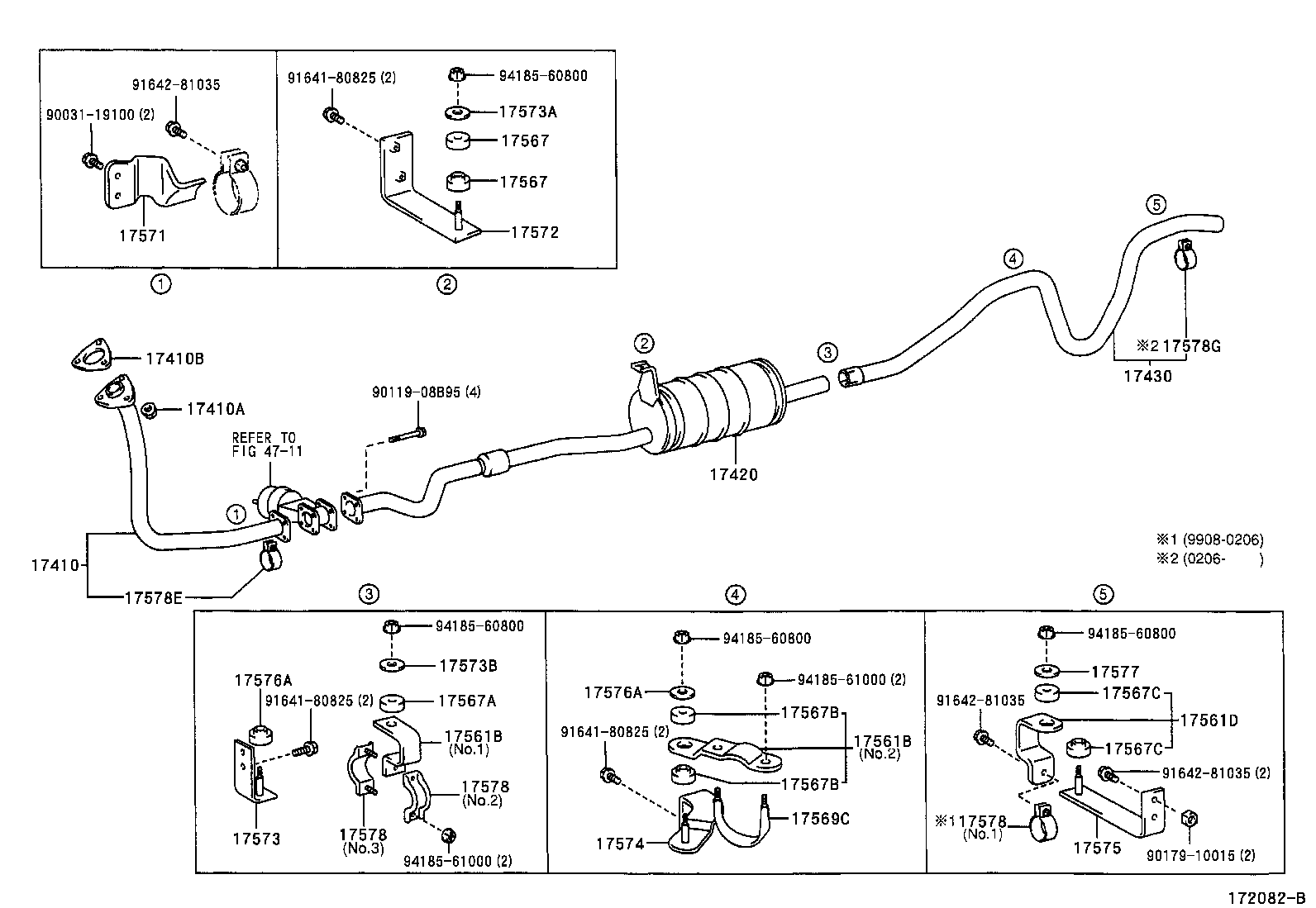

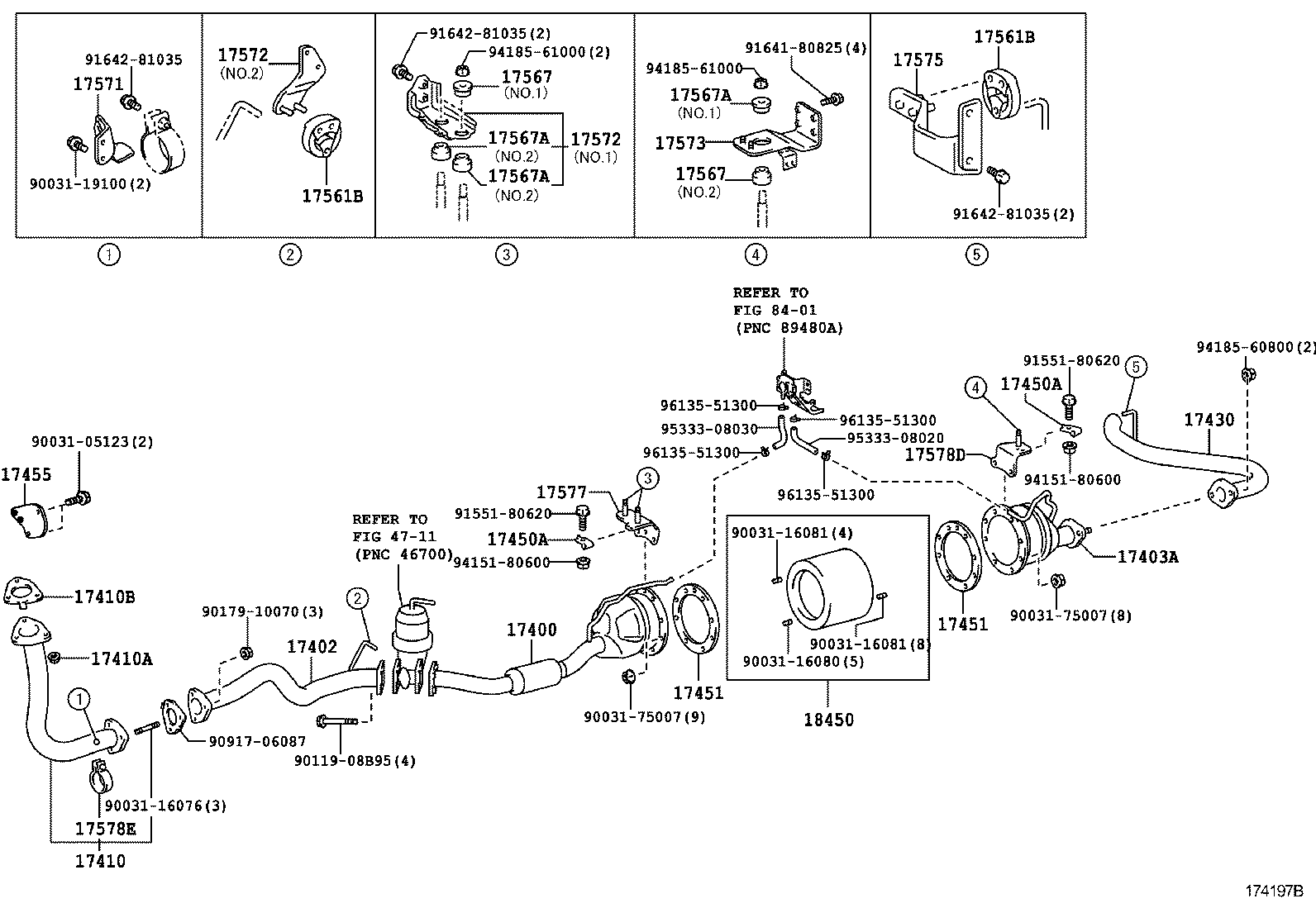

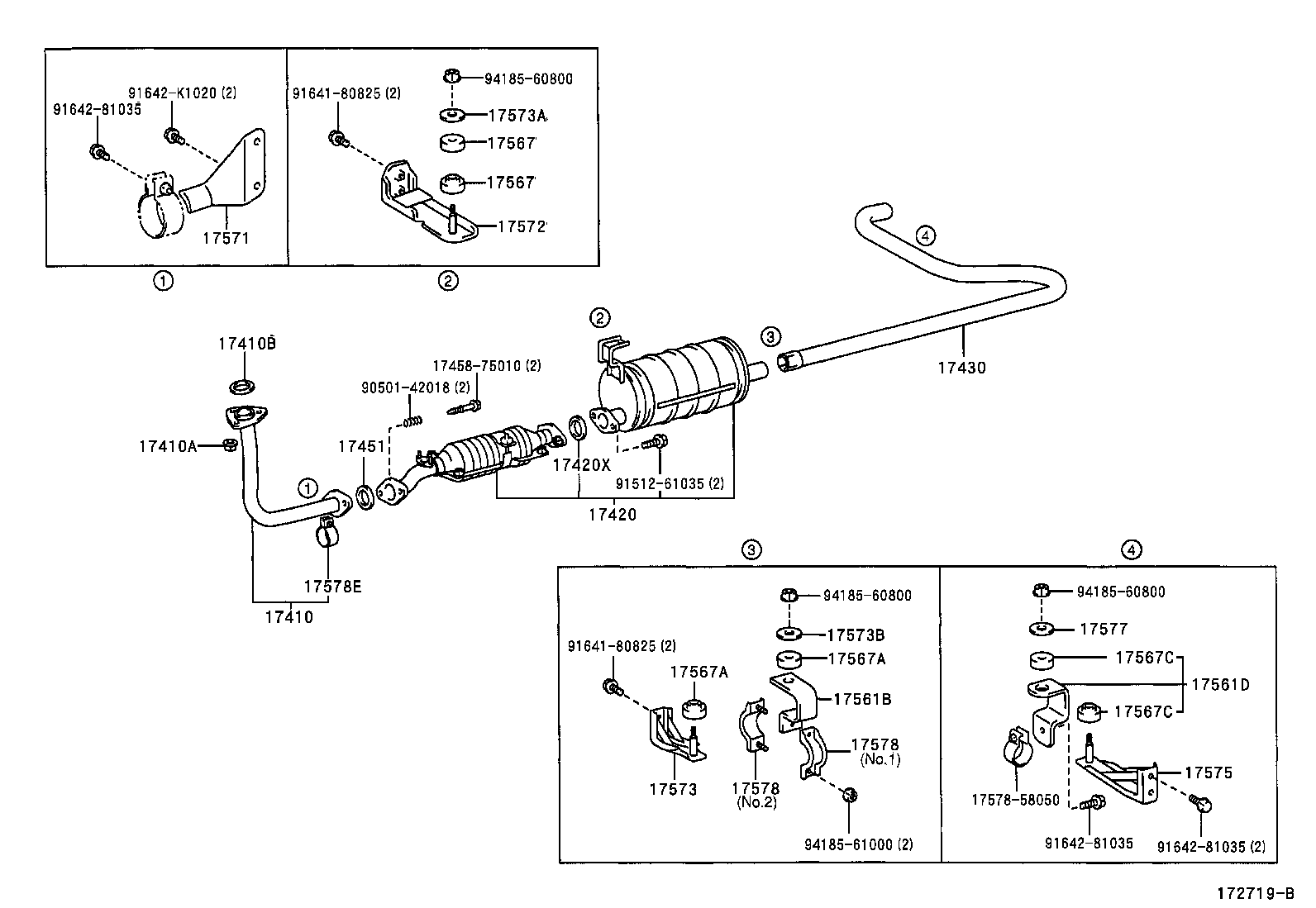

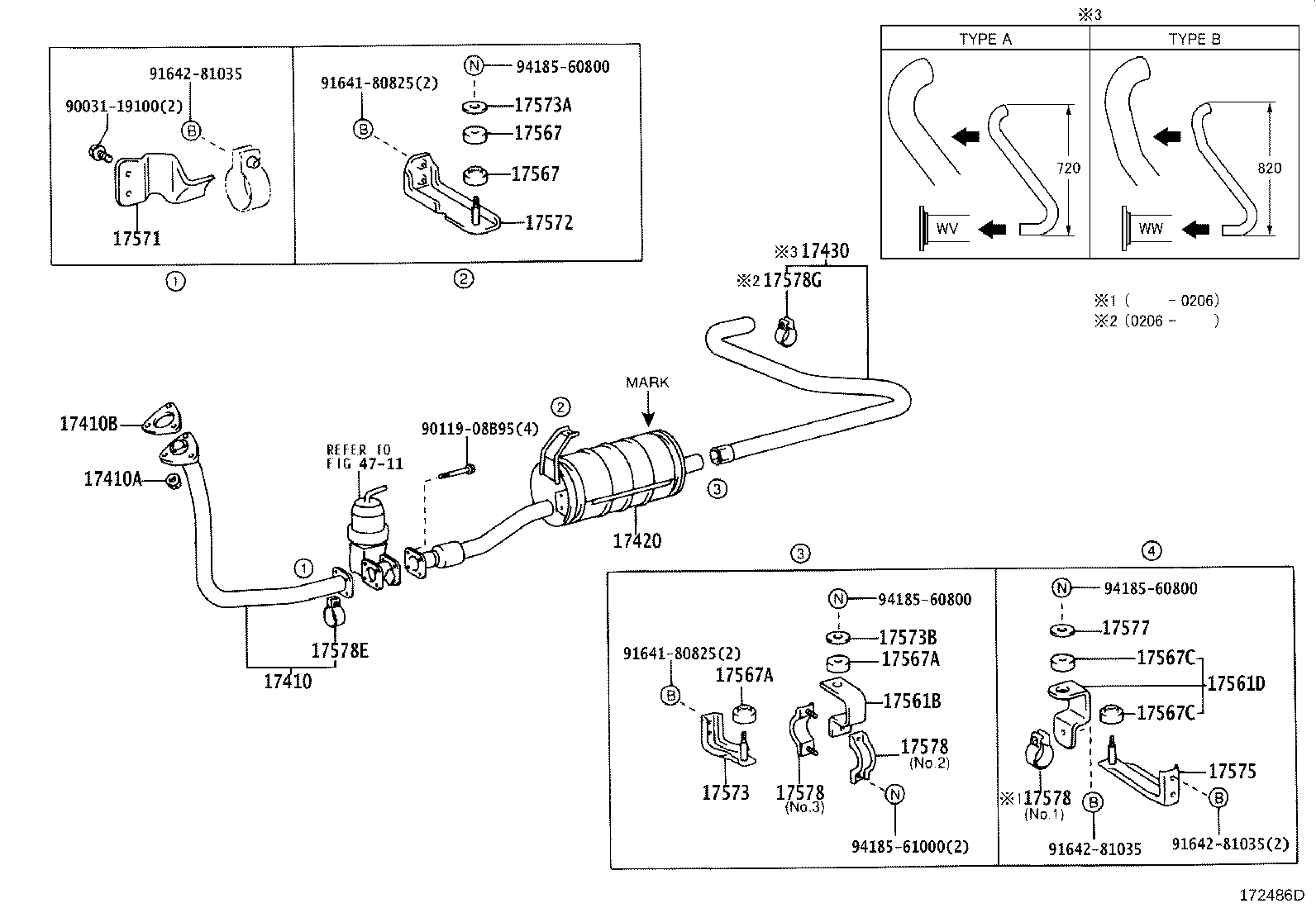

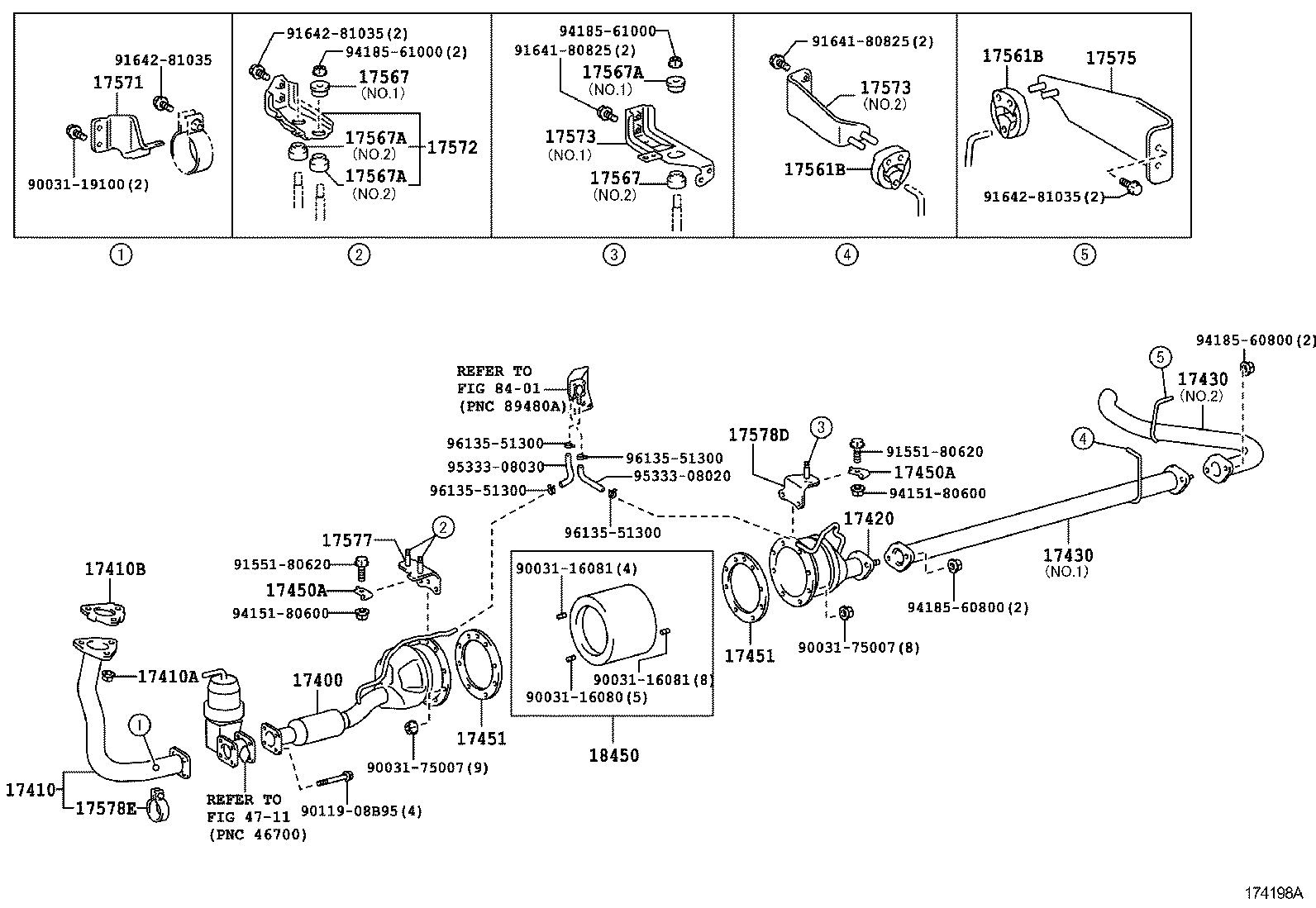

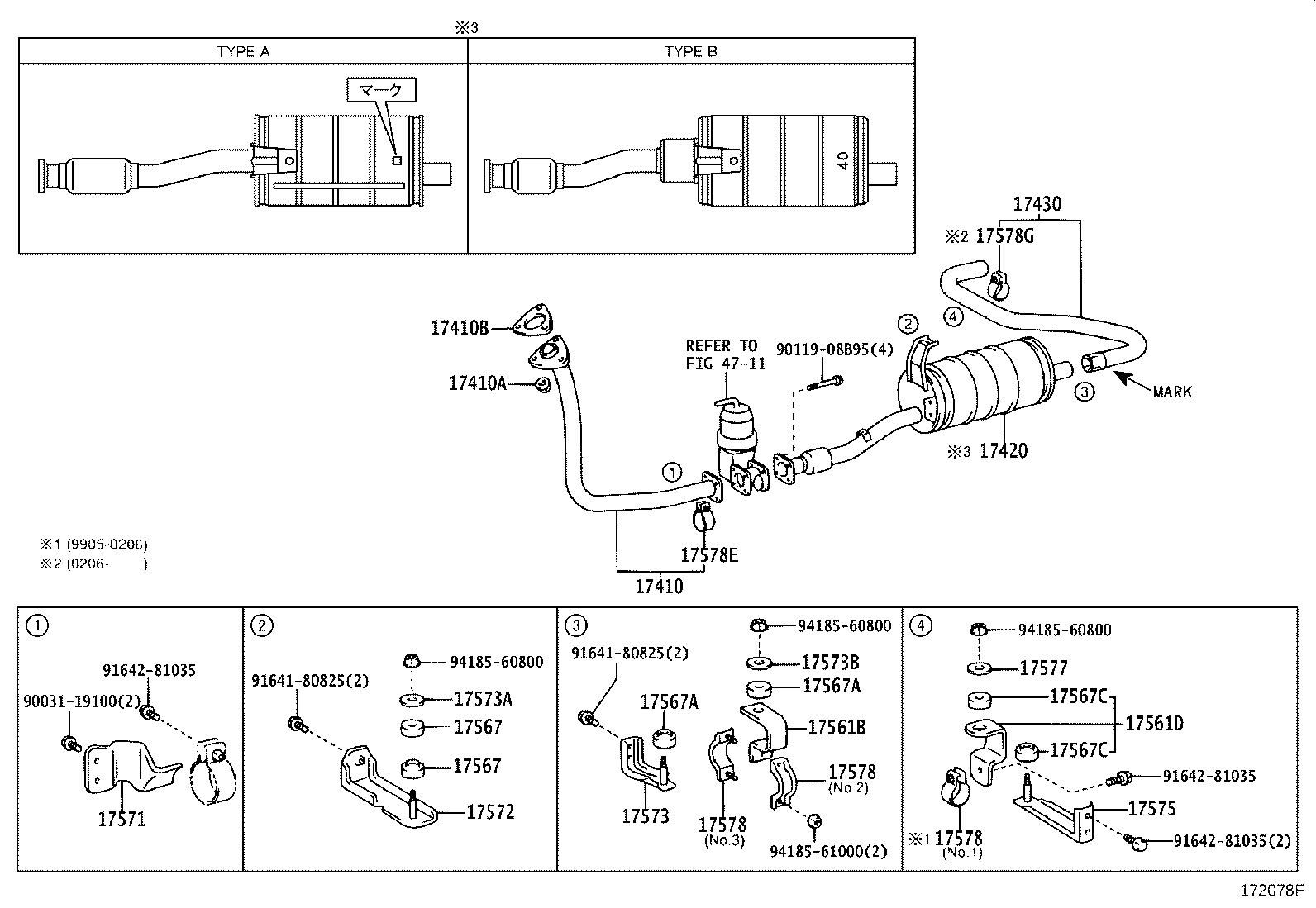

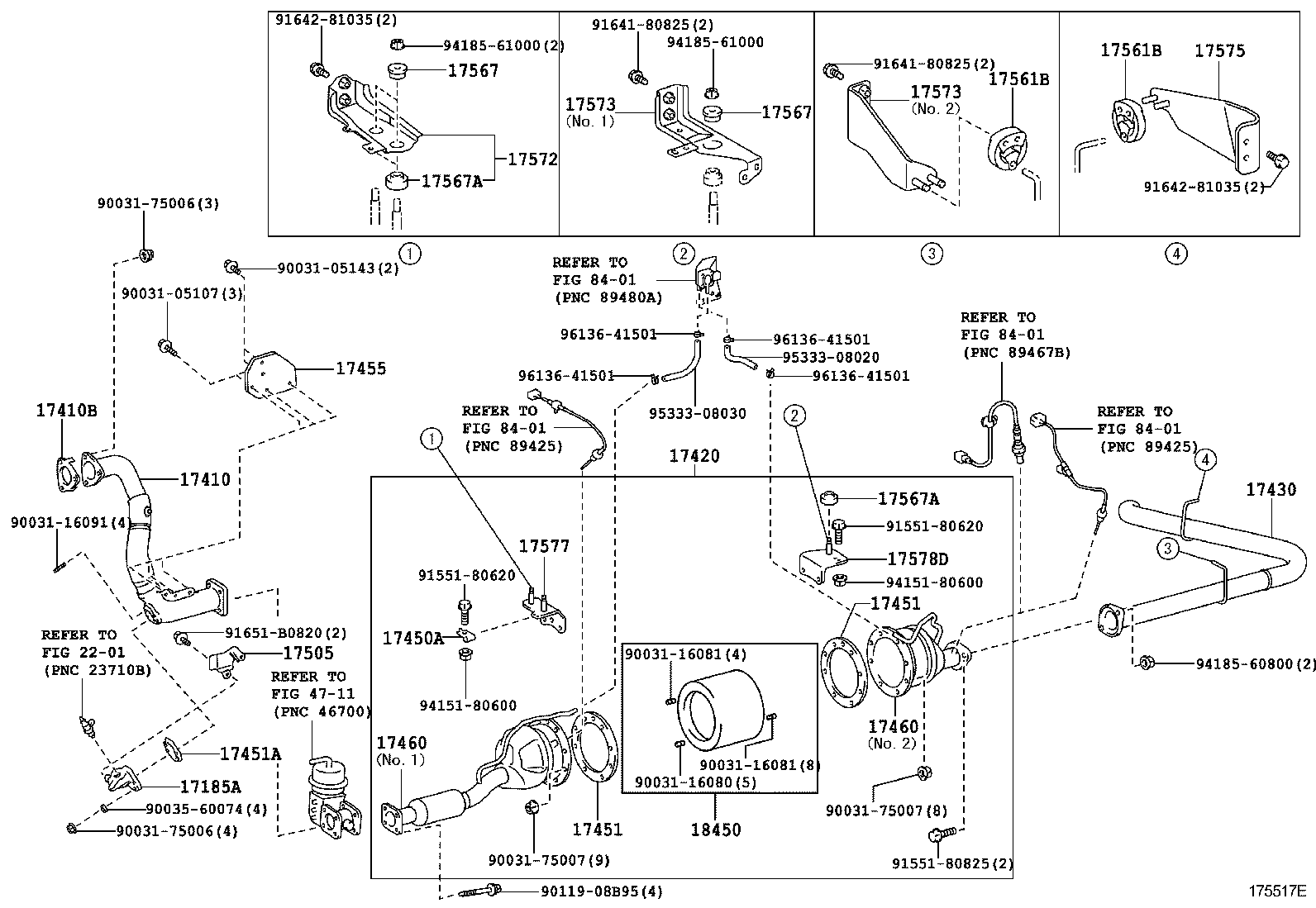

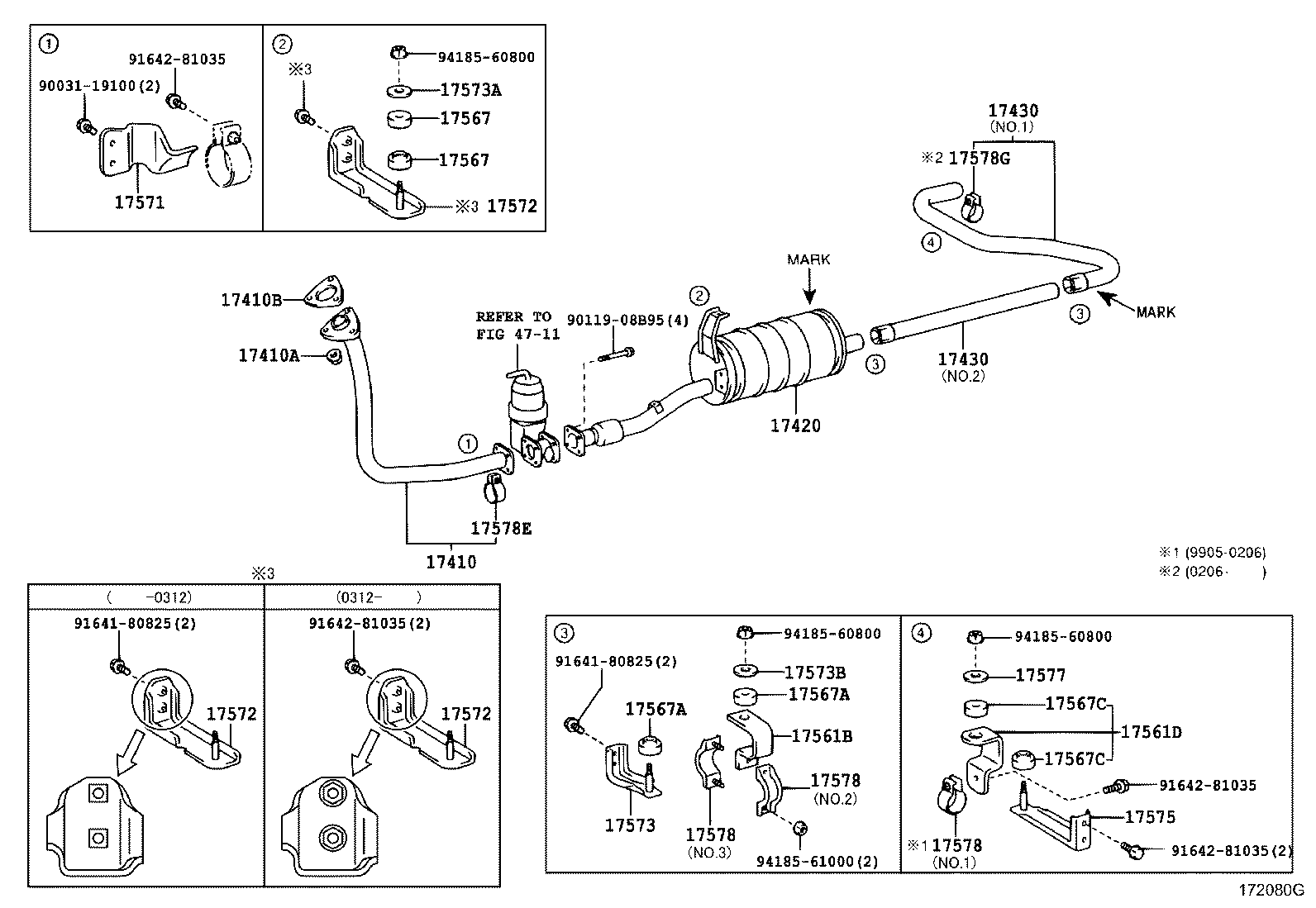

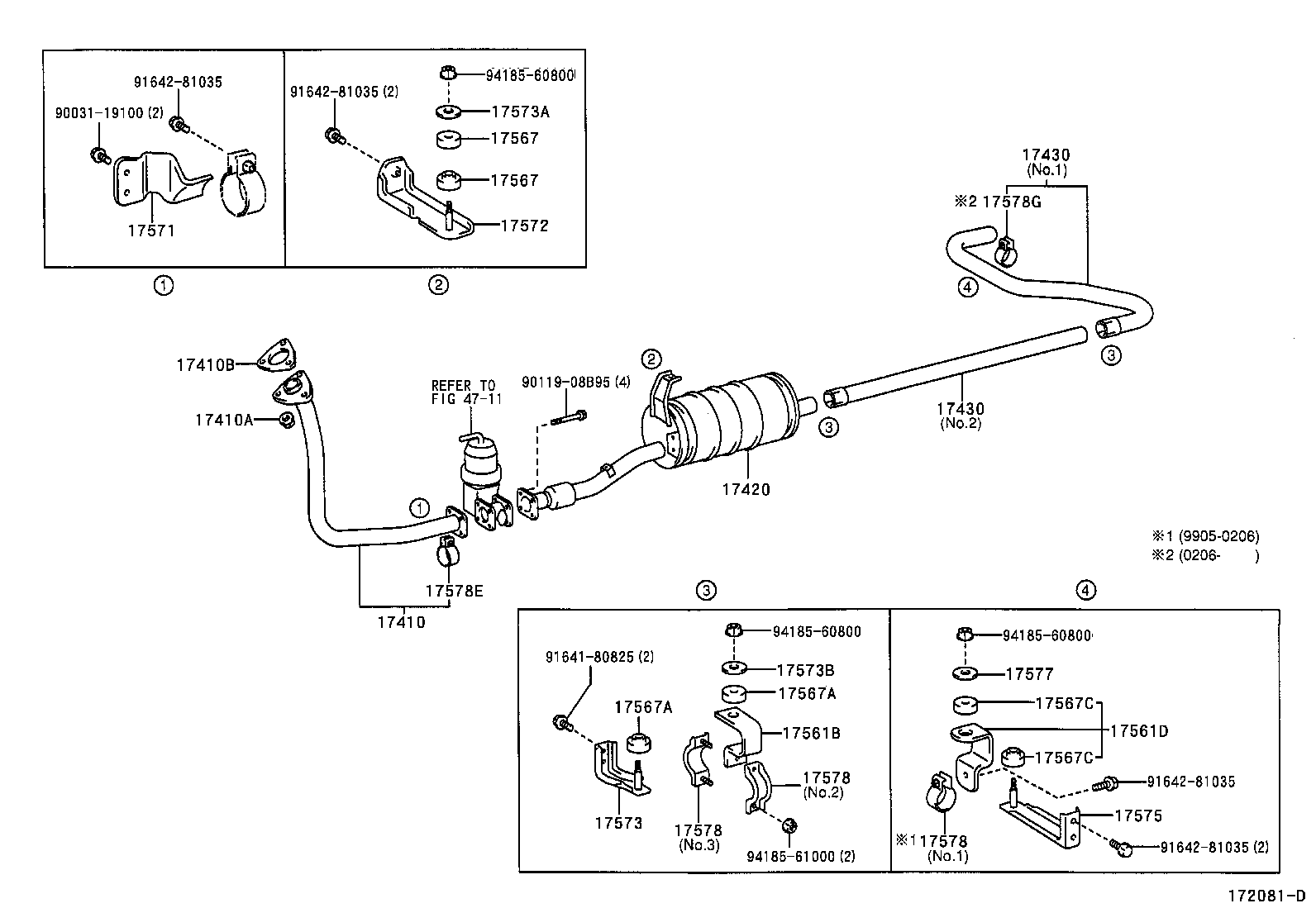

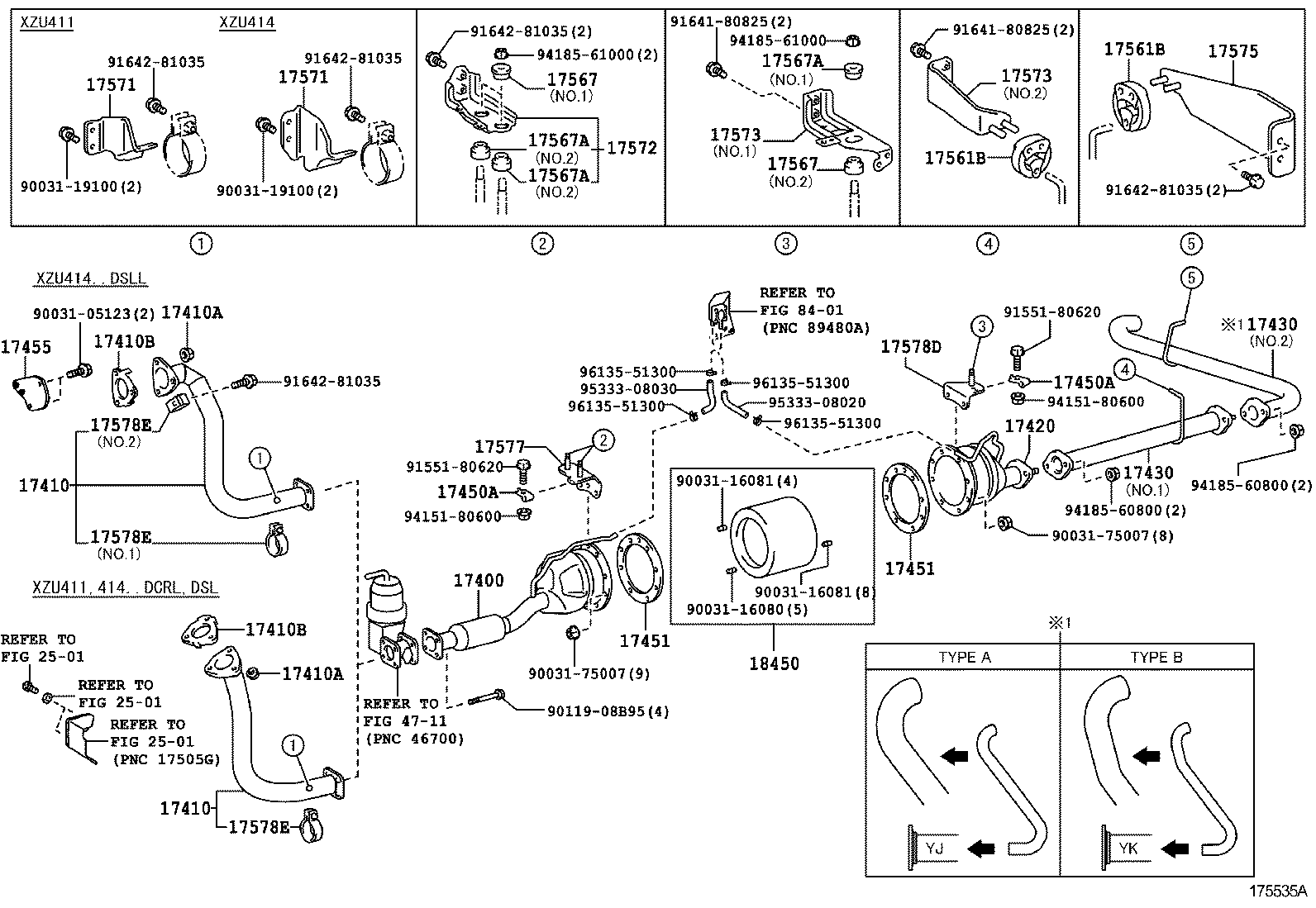

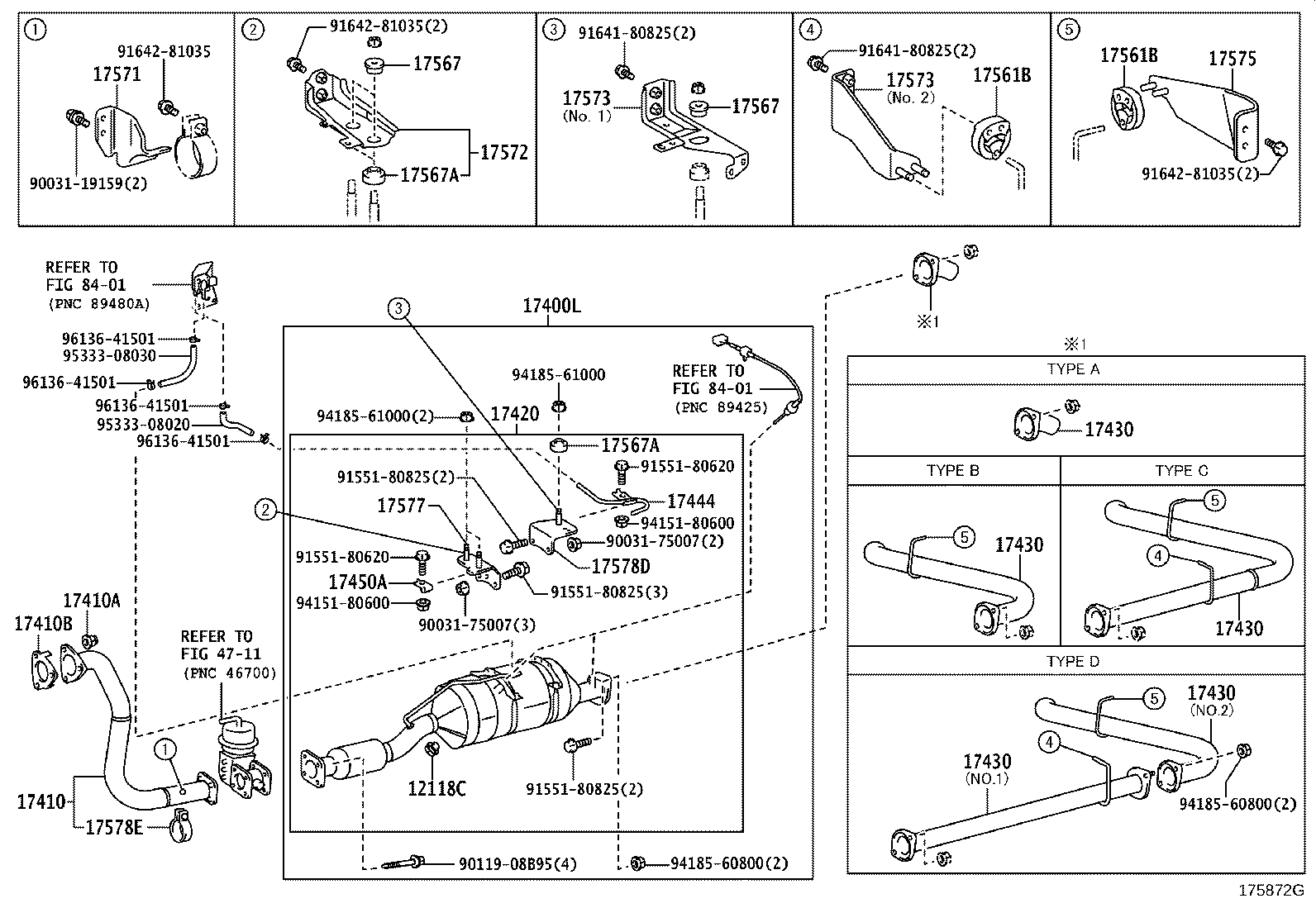

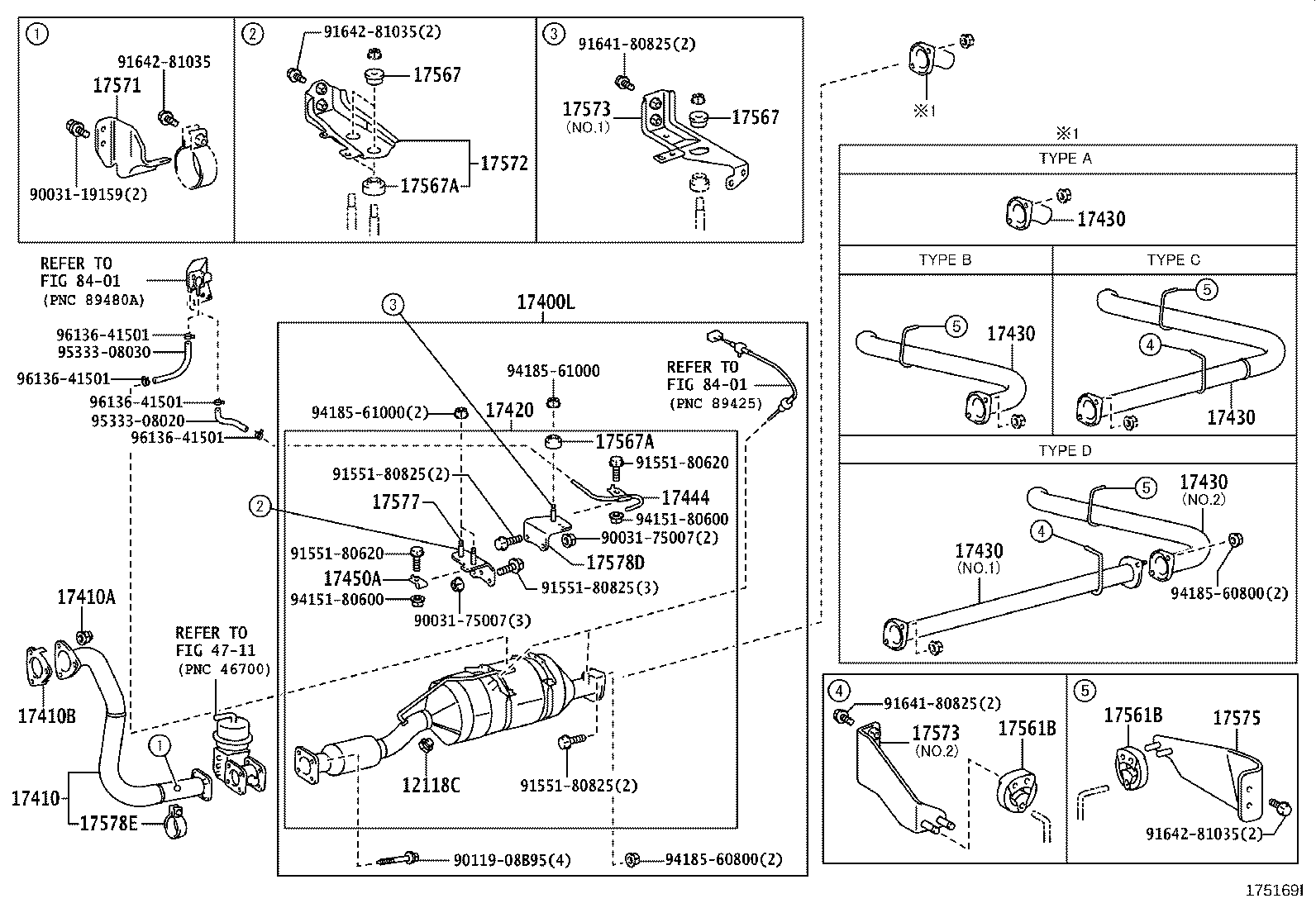

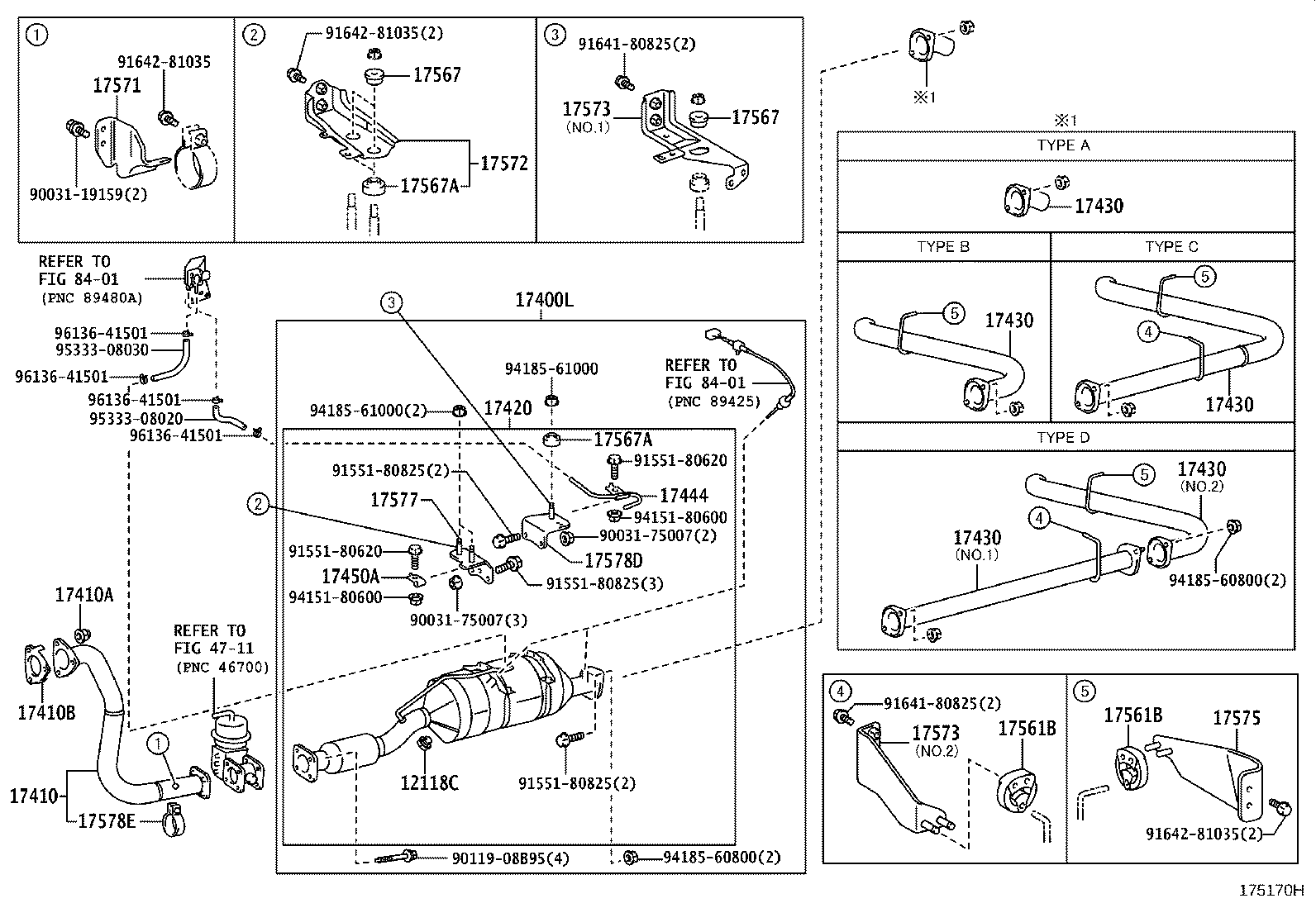

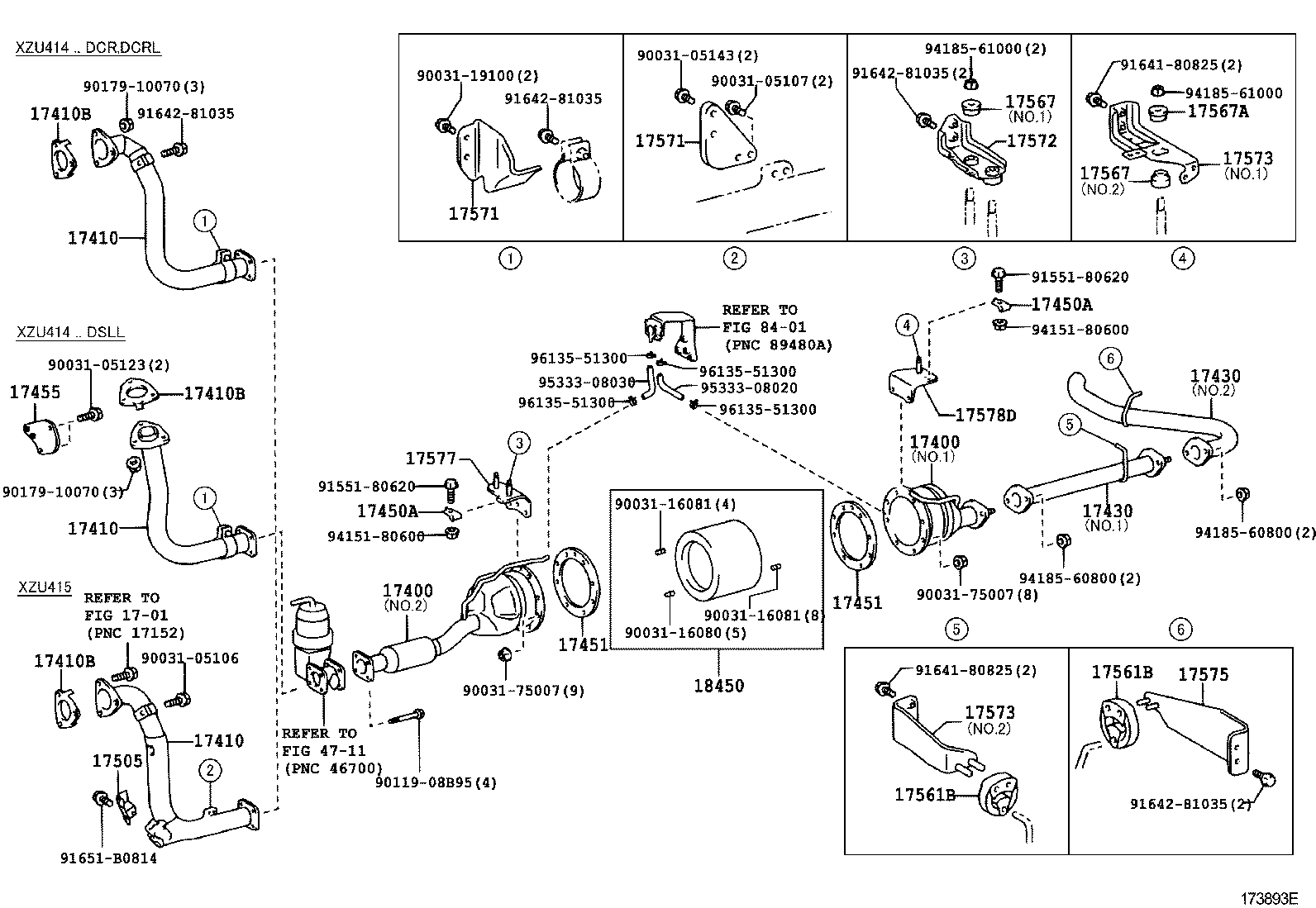

Figure 172074D 172074D 1999-08 → 2002-06 Figure 172075E 172075E 1999-08 → — Figure 172076F 172076F 1999-08 → — Figure 172077E 172077E 1999-08 → — Figure 172719B 172719B 2000-11 → — Figure 172719B 172719B 2003-06 → 2004-06 Figure 172078F 172078F 1999-05 → — Figure 172079F 172079F 1999-05 → — Figure 172486D 172486D 2000-05 → — Figure 172080G 172080G 1999-05 → 2004-06 Figure 172080G 172080G 1999-05 → — Figure 172081D 172081D 1999-05 → — Figure 172082B 172082B 1999-08 → — Figure 173893E 173893E 2003-10 → — Figure 174196 174196 2004-06 → — Figure 174197B 174197B 2004-06 → — Figure 174198A 174198A 2004-06 → — Figure 174201C 174201C 2004-06 → — Figure 175534A 175534A 2004-06 → — Figure 175535A 175535A 2004-06 → — Figure 174200C 174200C 2004-06 → — Figure 175169I 175169I 2006-10 → — Figure 175170H 175170H 2006-10 → — Figure 175171L 175171L 2006-10 → — Figure 175172H 175172H 2006-10 → — Figure 175517E 175517E 2007-05 → — Figure 175872G 175872G 2008-01 → —

Part groups

PNCDescription
12118C Plug, Drain
17185A Pipe, Exhaust Manifold Connecting, NO.1
17400 Converter Assy, W/Catalyst
17400L Pipe Assy, Exhaust
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17444 Pipe, Exhaust, NO.4
17450A Clamp, Exhaust Pipe, NO.5
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17455 Bracket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505F Support Sub-assy, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17569C Bolt, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
18450 Converter Assy, Monolithic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
