Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

44 part groups · 73 illustrations

Illustrations

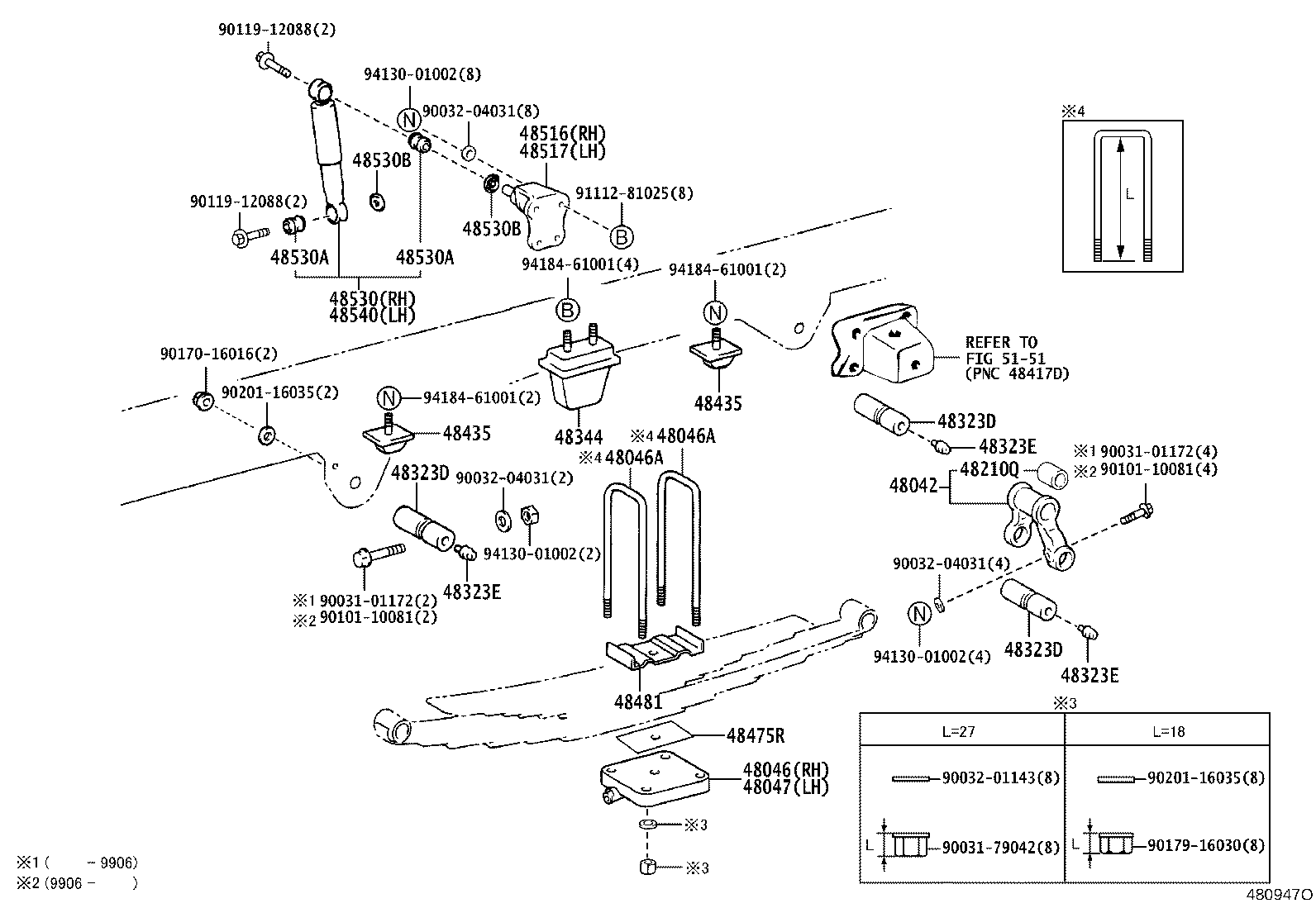

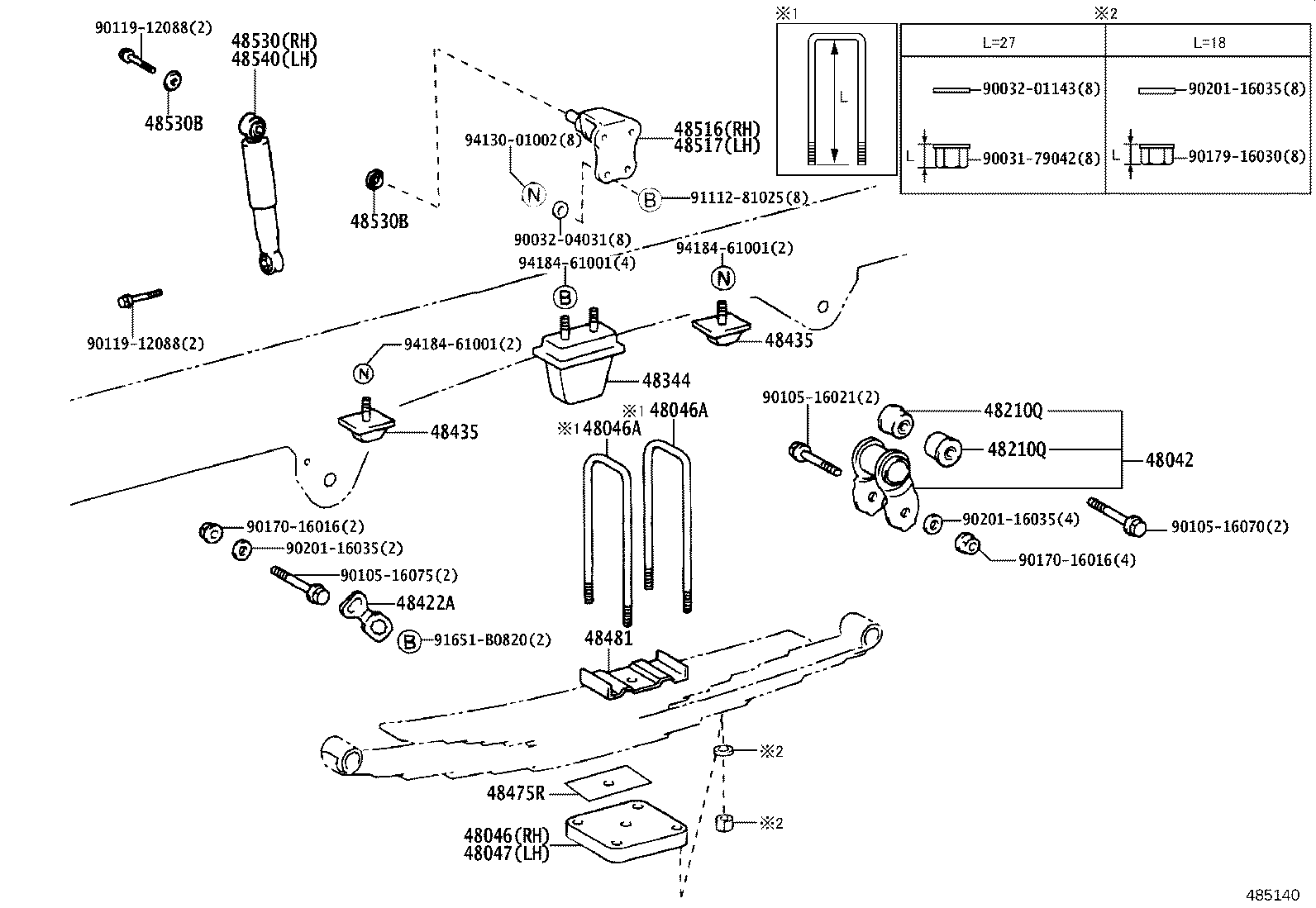

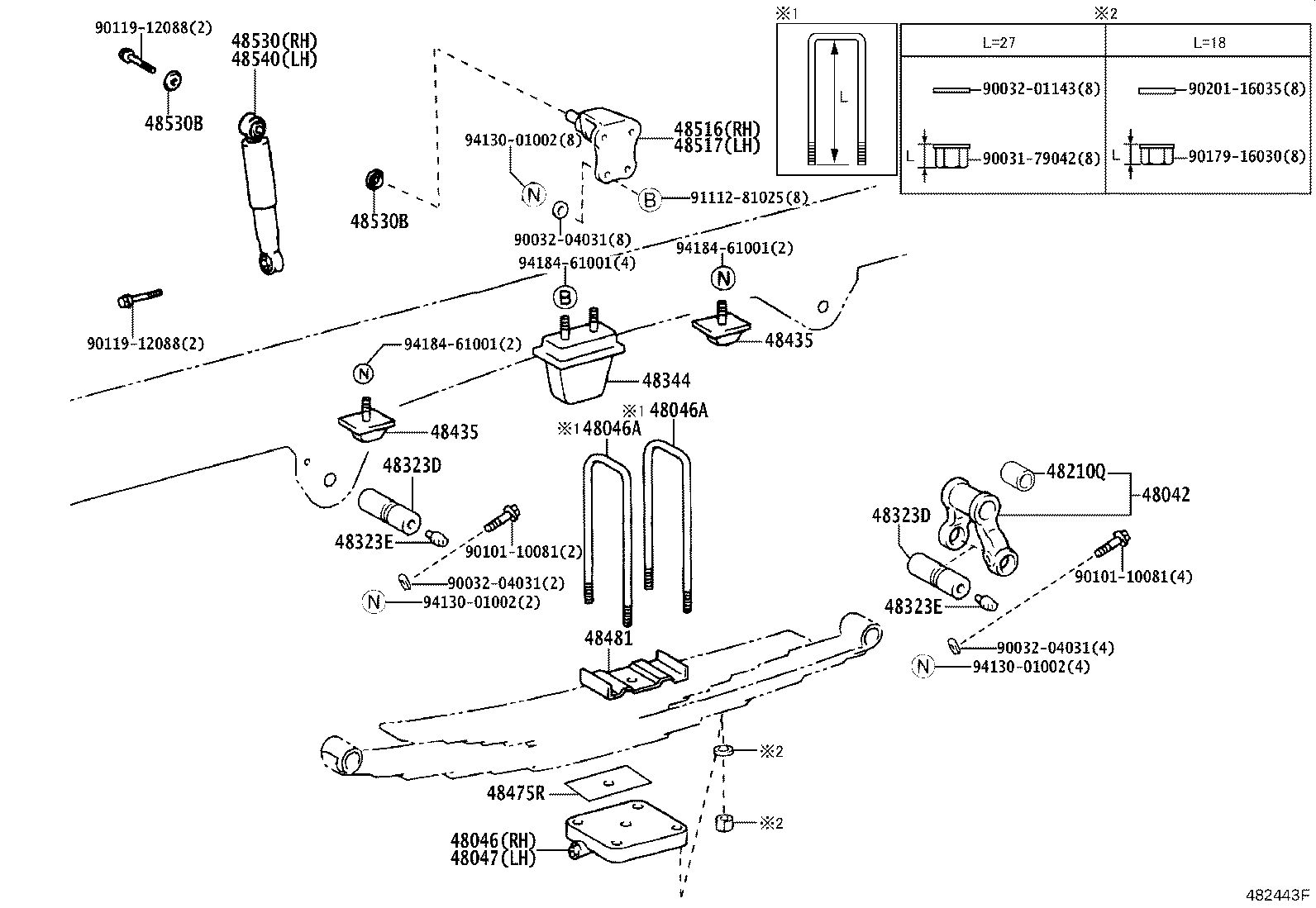

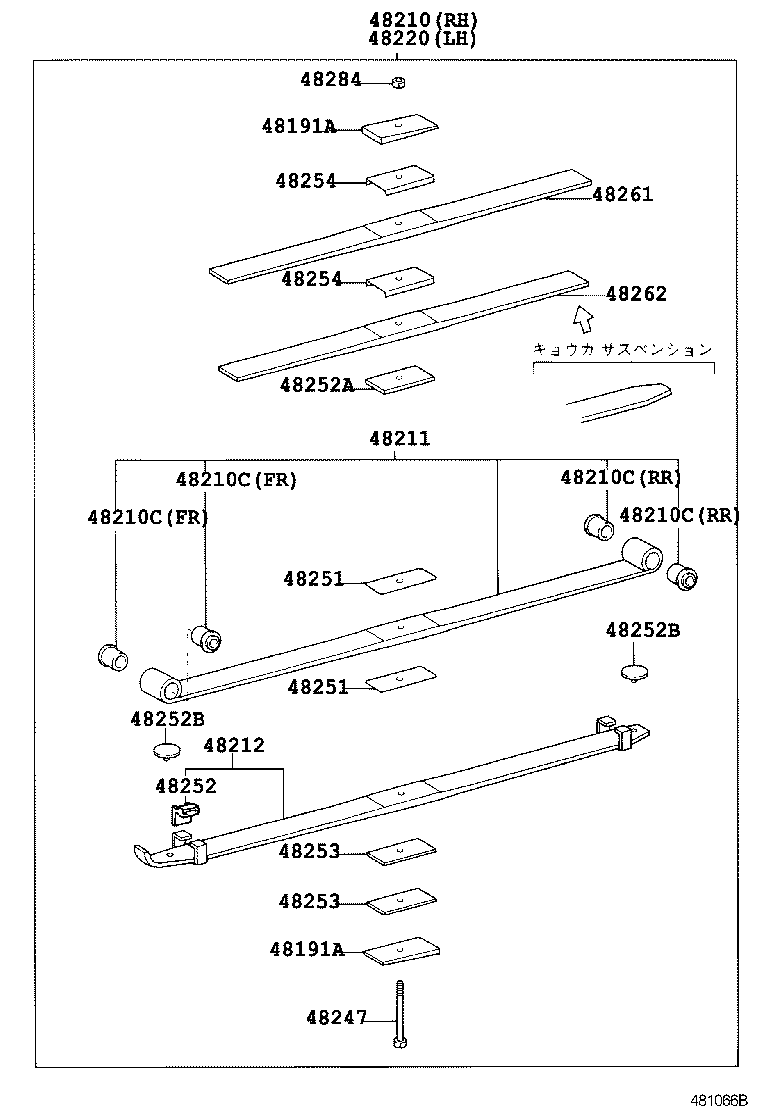

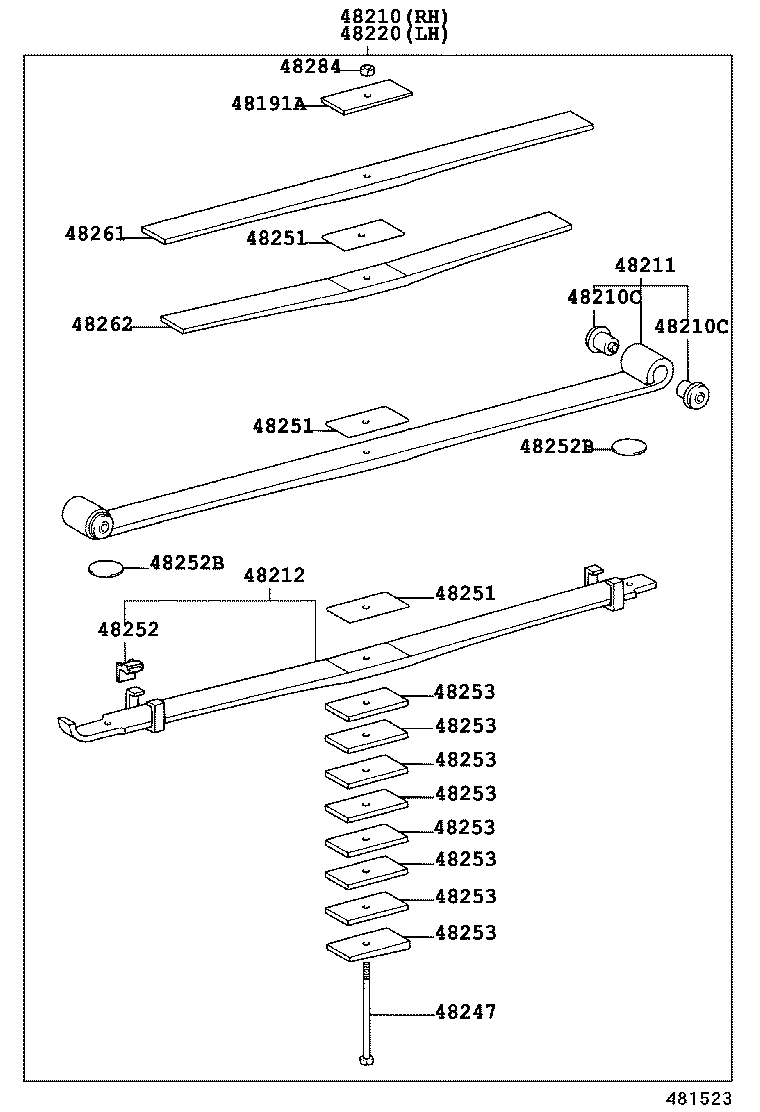

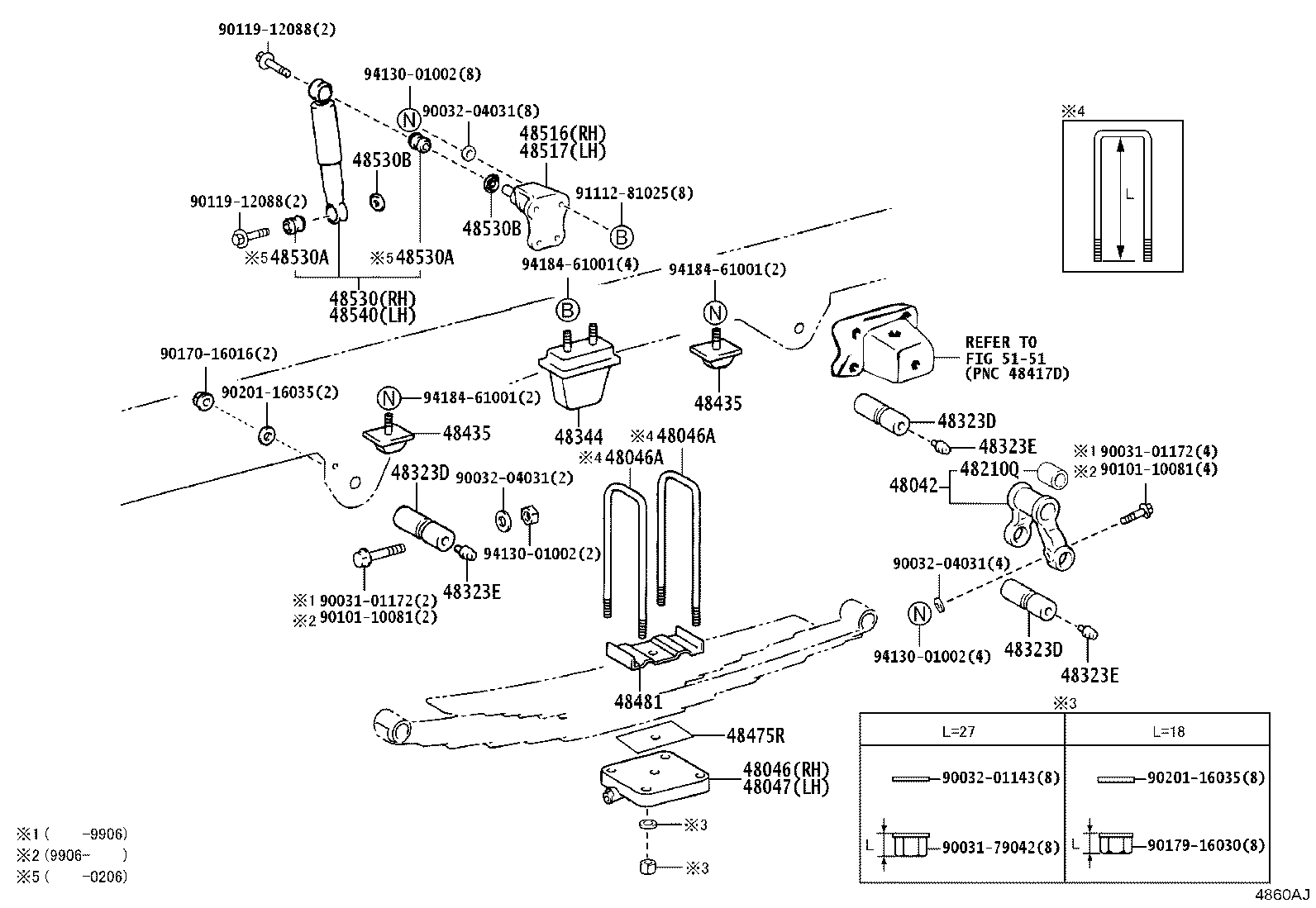

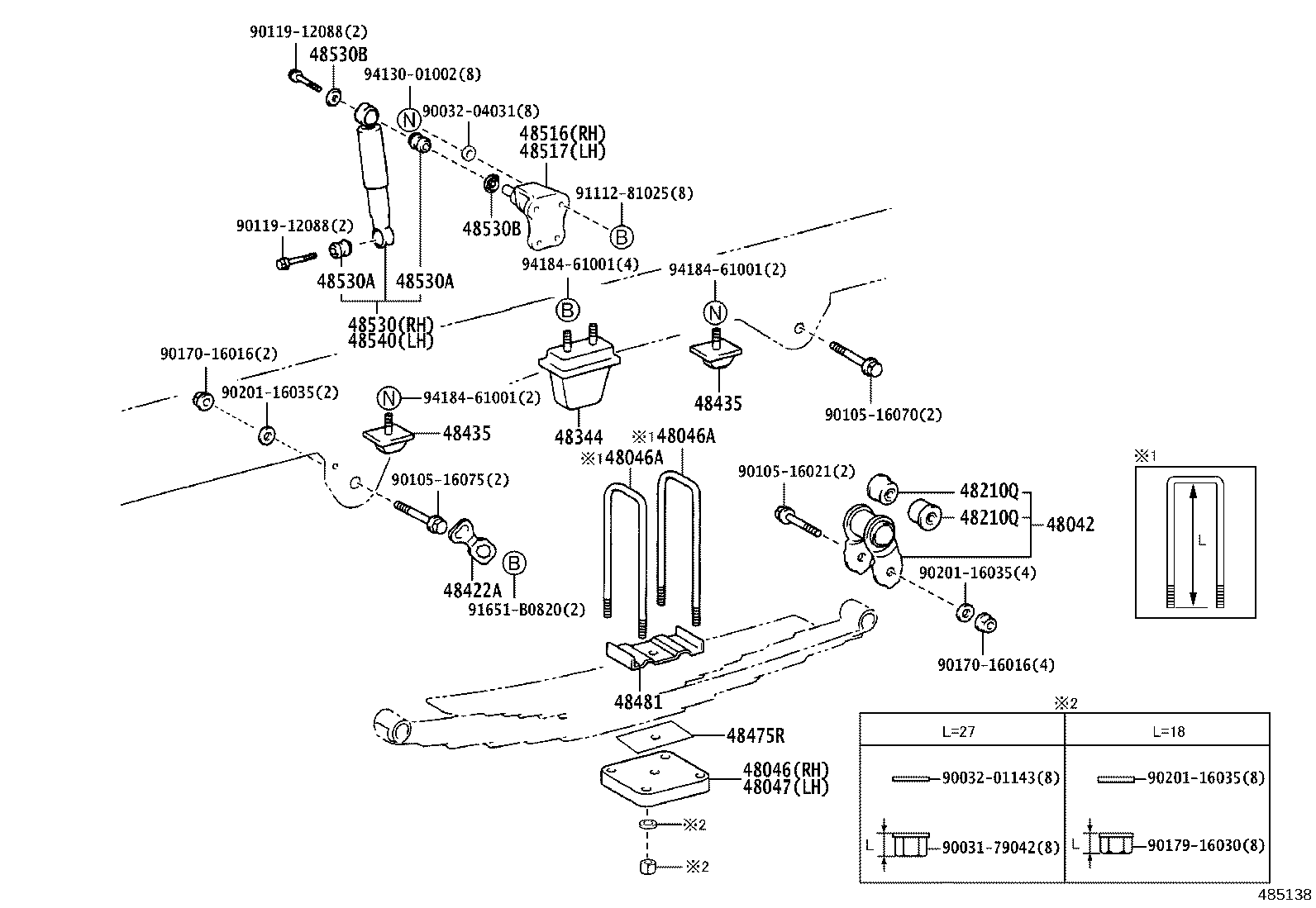

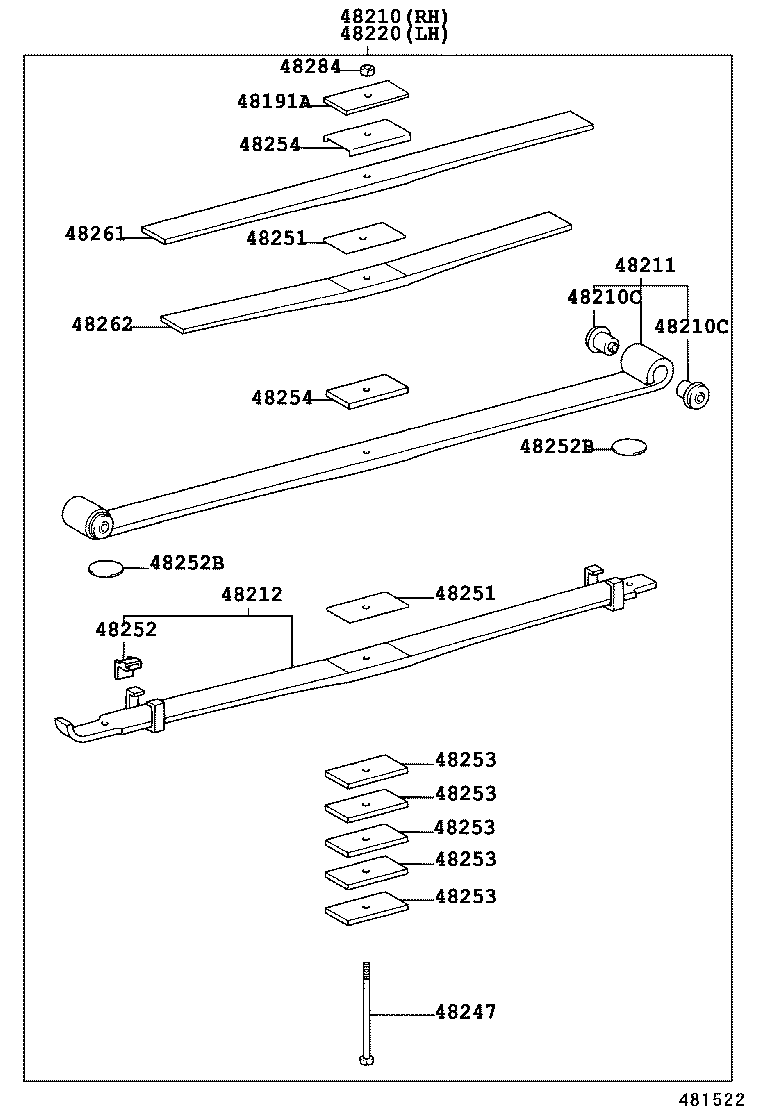

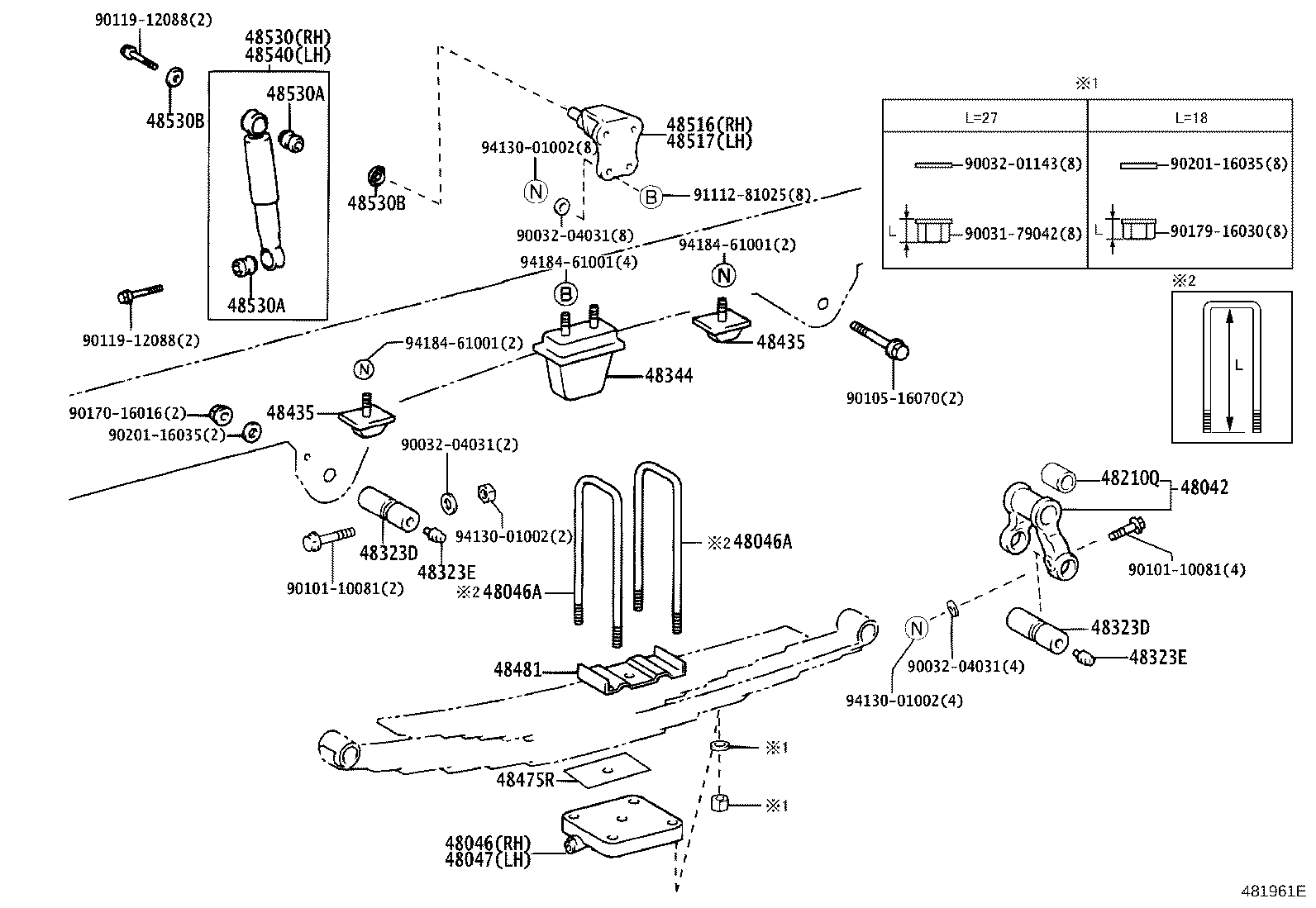

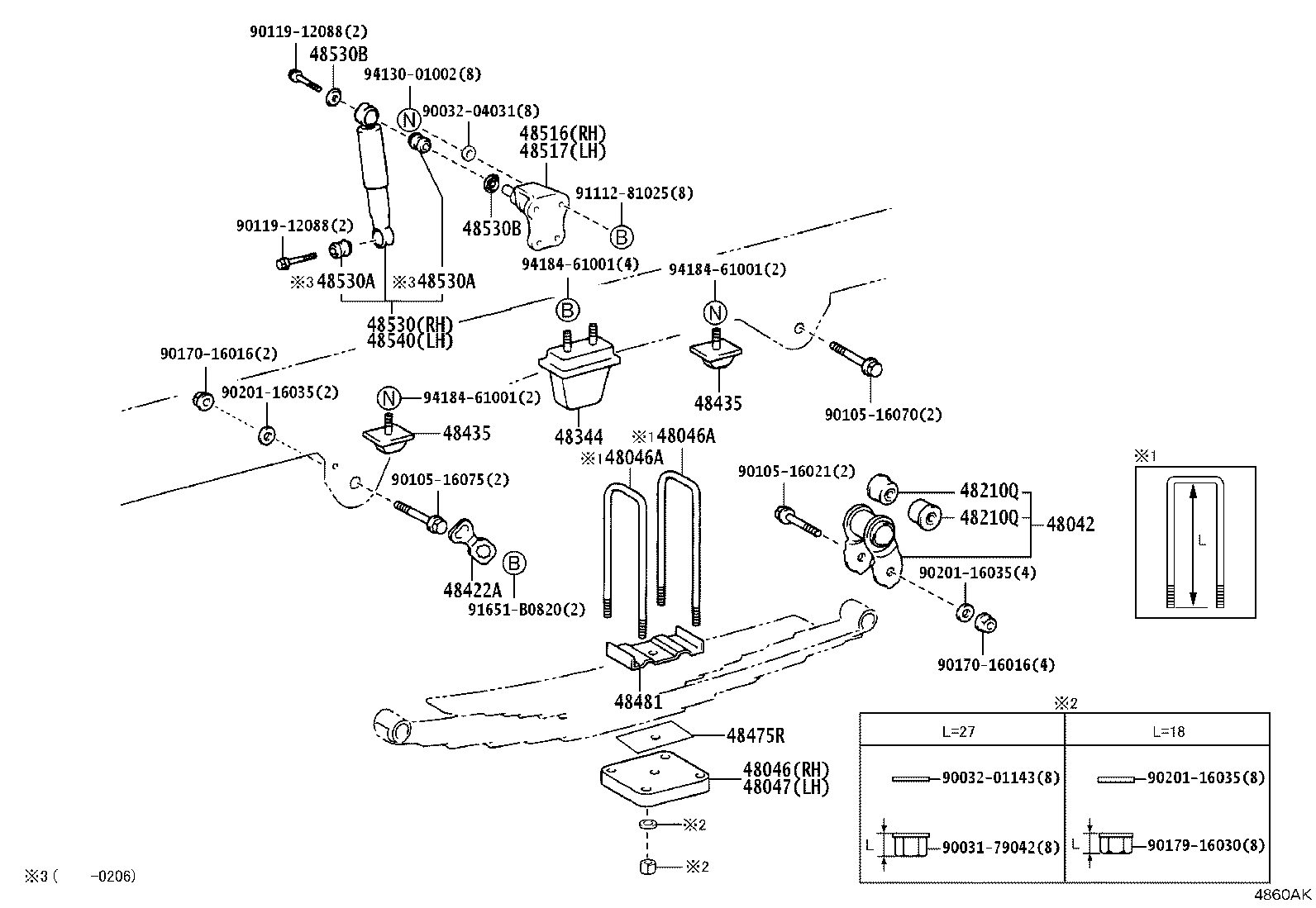

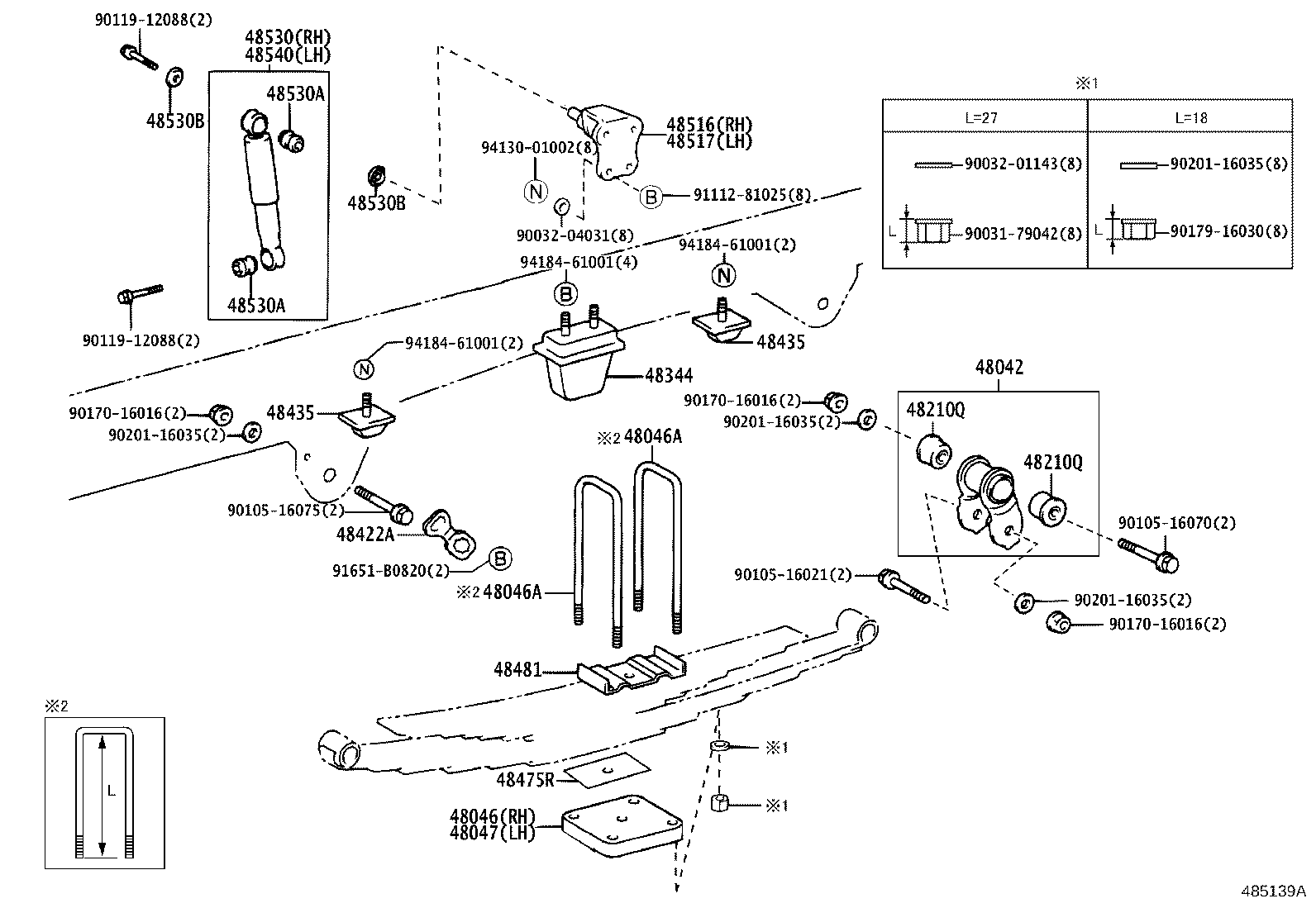

Figure 480925E 480925E 1999-08 → 2004-06 Figure 480925E 480925E 2004-06 → 2006-10 Figure 480925E 480925E 2006-10 → — Figure 480947O 480947O 1999-05 → 2004-06 Figure 4860AJ 4860AJ 1999-05 → 2004-06 Figure 4860AJ 4860AJ 1999-05 → 2004-06 Figure 485138 485138 1999-05 → 2004-06 Figure 4860AK 4860AK 1999-05 → 2004-06 Figure 4860AK 4860AK 1999-05 → 2004-06 Figure 481961E 481961E 2004-06 → 2007-05 Figure 485139A 485139A 2004-06 → 2007-05 Figure 482443F 482443F 2006-10 → — Figure 485140 485140 2006-10 → — Figure 481746B 481746B 1999-05 → 2004-06 Figure 481746B 481746B 2004-06 → 2006-10 Figure 481746B 481746B 2004-06 → 2007-05 Figure 481746B 481746B 2006-10 → — Figure 481587B 481587B 1999-05 → 2004-06 Figure 481587B 481587B 1999-05 → 2004-06 Figure 481587B 481587B 2004-06 → 2007-05 Figure 481587B 481587B 2004-06 → 2007-05 Figure 481587B 481587B 2006-10 → — Figure 481066B 481066B 1999-08 → 2004-06 Figure 481522 481522 2002-06 → 2004-06 Figure 481522 481522 2002-06 → 2004-06 Figure 481522 481522 2004-06 → 2006-10 Figure 481522 481522 2004-06 → 2006-10 Figure 481522 481522 2004-07 → 2007-05 Figure 481522 481522 2006-10 → — Figure 481522 481522 2006-10 → — Figure 481523 481523 2002-06 → 2004-06 Figure 481523 481523 2004-06 → 2006-10 Figure 481523 481523 2006-10 → — Figure 481524B 481524B 2002-06 → 2004-06 Figure 481524B 481524B 2004-06 → 2006-10 Figure 481524B 481524B 2004-06 → 2007-05 Figure 481524B 481524B 2006-10 → — Figure 481962B 481962B 2004-06 → 2006-10 Figure 481962B 481962B 2006-10 → — Figure 481525B 481525B 2002-06 → 2004-06 Figure 482533 482533 2004-06 → 2006-10 Figure 482533 482533 2006-10 → — Figure 482534 482534 2004-06 → 2005-05 Figure 482534 482534 2004-06 → 2006-10 Figure 482534 482534 2006-10 → — Figure 480934B 480934B 1999-05 → 2004-06 Figure 481286 481286 1999-05 → 2002-06 Figure 481286 481286 1999-05 → 2004-06 Figure 481430 481430 1999-05 → 2004-06 Figure 480933 480933 1999-05 → 2004-06 Figure 480933 480933 1999-05 → 2004-06 Figure 481067C 481067C 1999-08 → 2004-06 Figure 481963A 481963A 2004-06 → 2006-10 Figure 481963A 481963A 2006-10 → — Figure 482969A 482969A 2006-10 → — Figure 481071 481071 1999-05 → 2004-06 Figure 481071 481071 2000-05 → 2004-06 Figure 481072 481072 1999-05 → 2004-06 Figure 481072 481072 2000-05 → 2004-06 Figure 481073A 481073A 1999-05 → 2004-06 Figure 481073A 481073A 2000-05 → 2004-06 Figure 481073A 481073A 2004-06 → 2005-05 Figure 481073A 481073A 2004-06 → 2006-10 Figure 481073A 481073A 2006-10 → — Figure 482532 482532 2004-06 → 2006-10 Figure 482532 482532 2006-10 → — Figure 481074 481074 1999-05 → 2004-06 Figure 481074 481074 2000-05 → 2004-06 Figure 481074 481074 2004-06 → 2005-05 Figure 481074 481074 2004-06 → 2006-10 Figure 481074 481074 2006-10 → — Figure 482446A 482446A 2006-10 → — Figure 482447A 482447A 2006-10 → —

Part groups

PNCDescription
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)

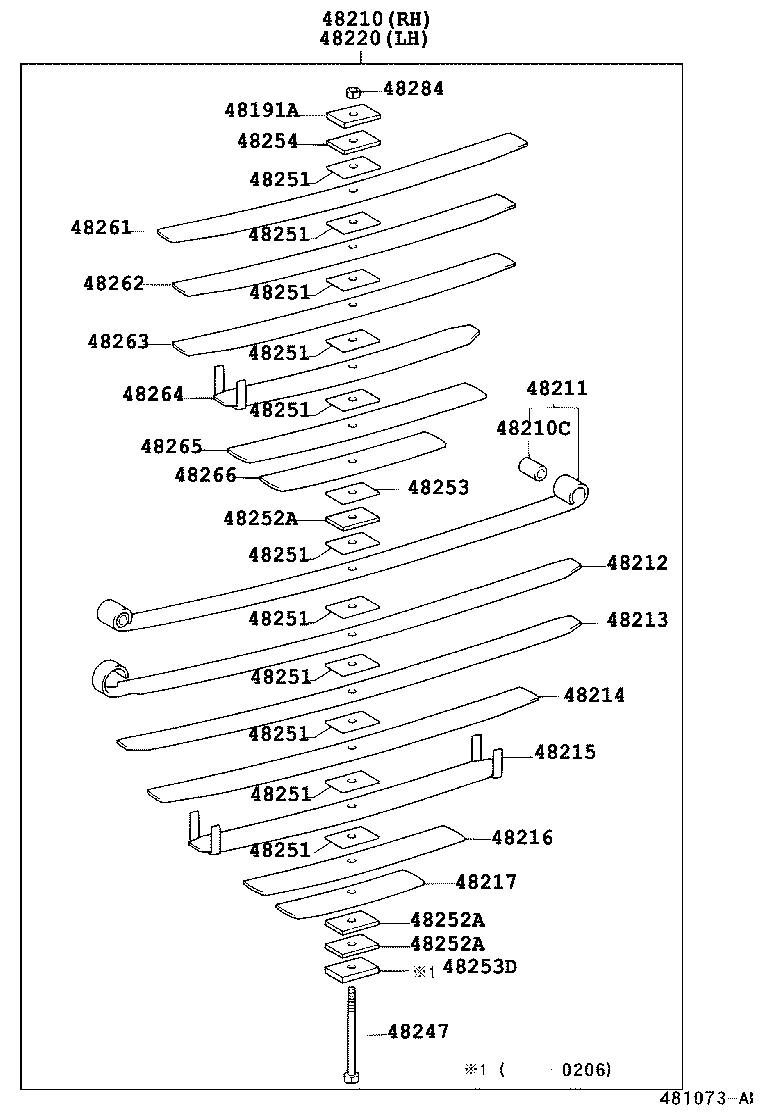

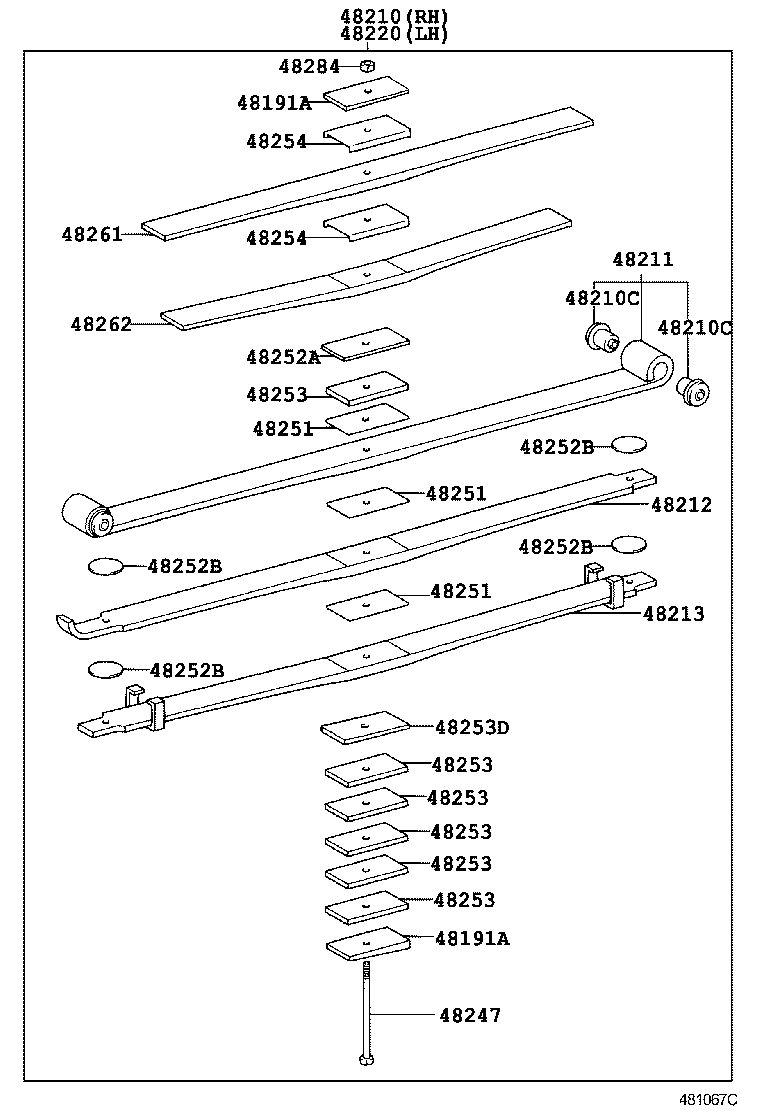

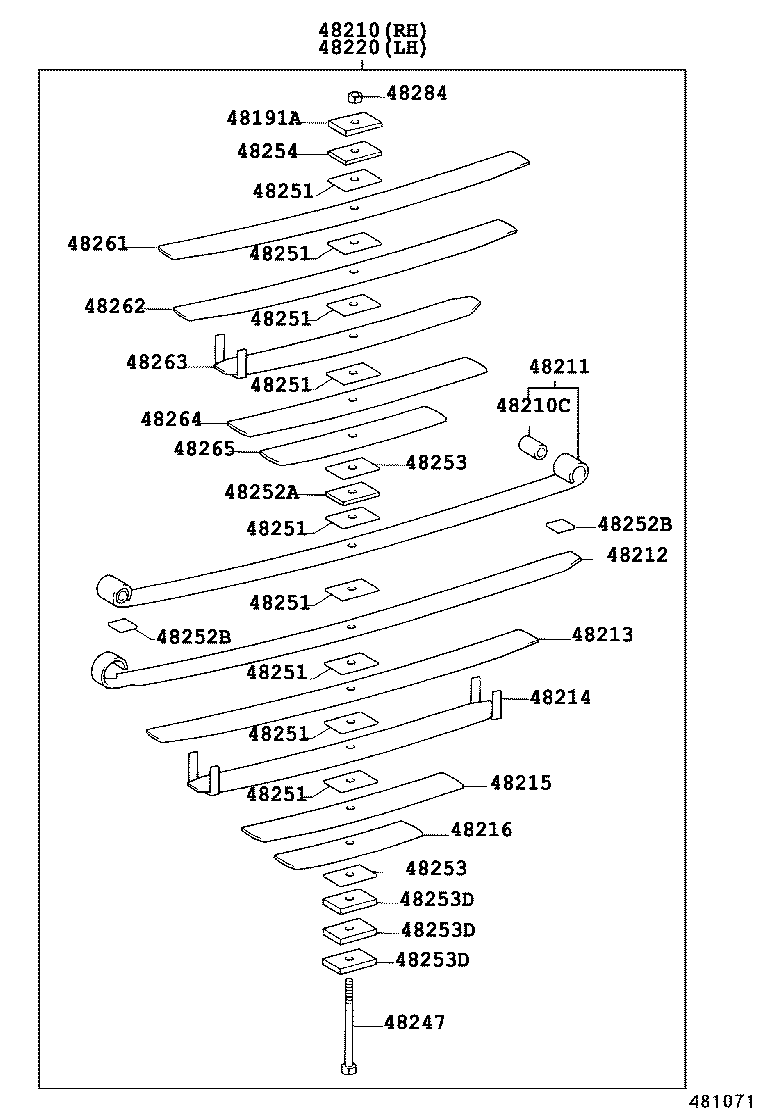

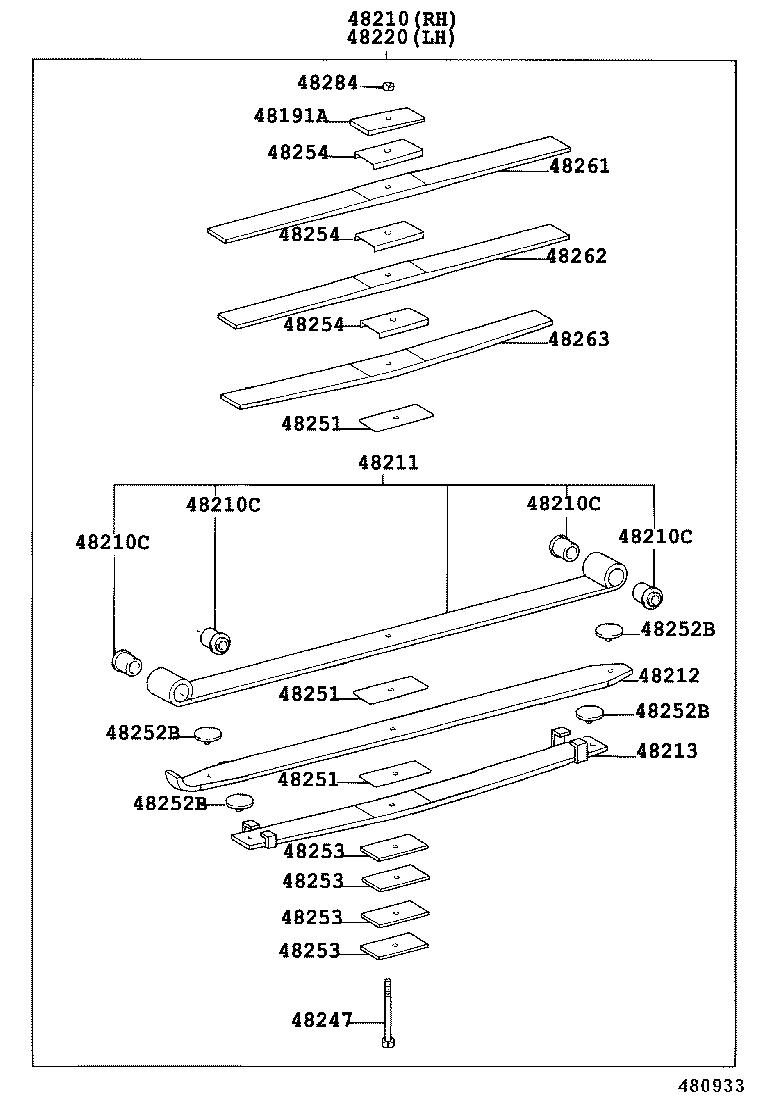

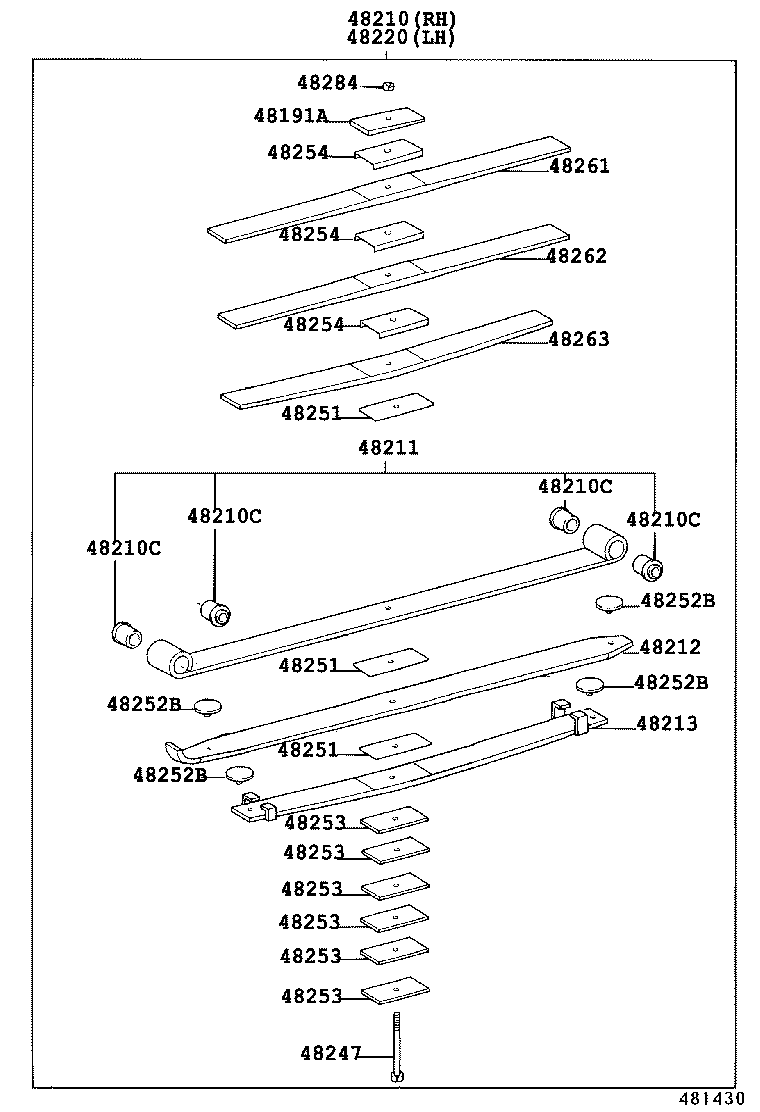

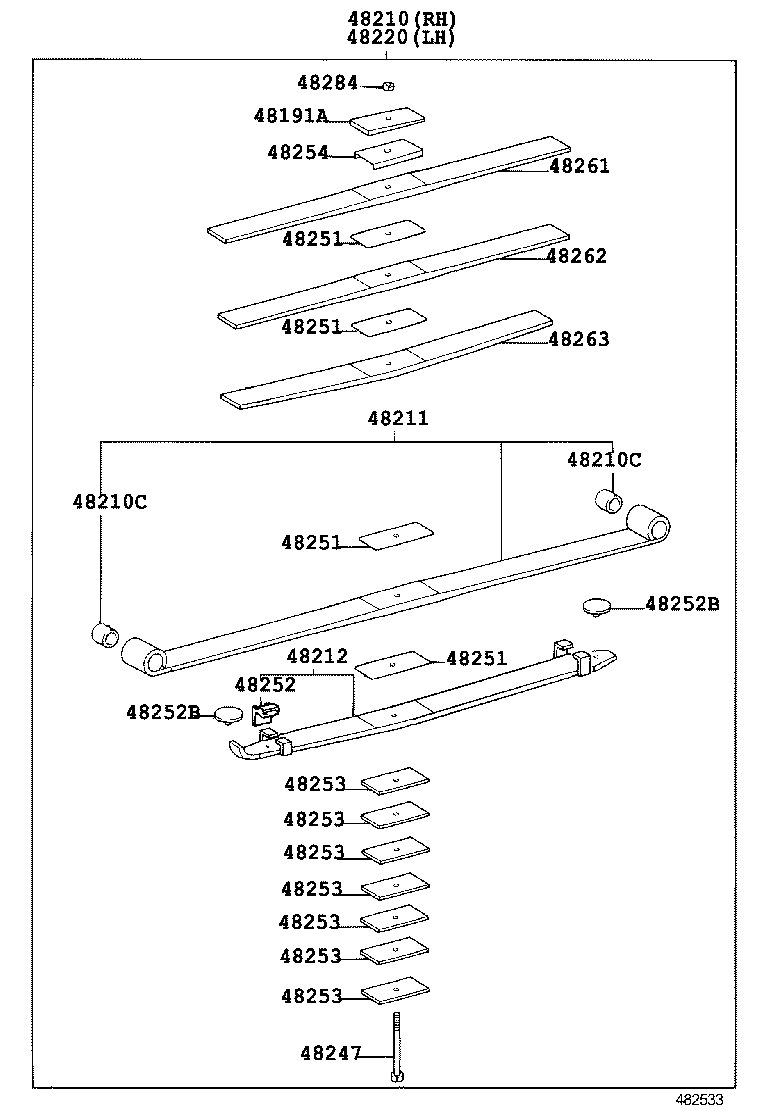

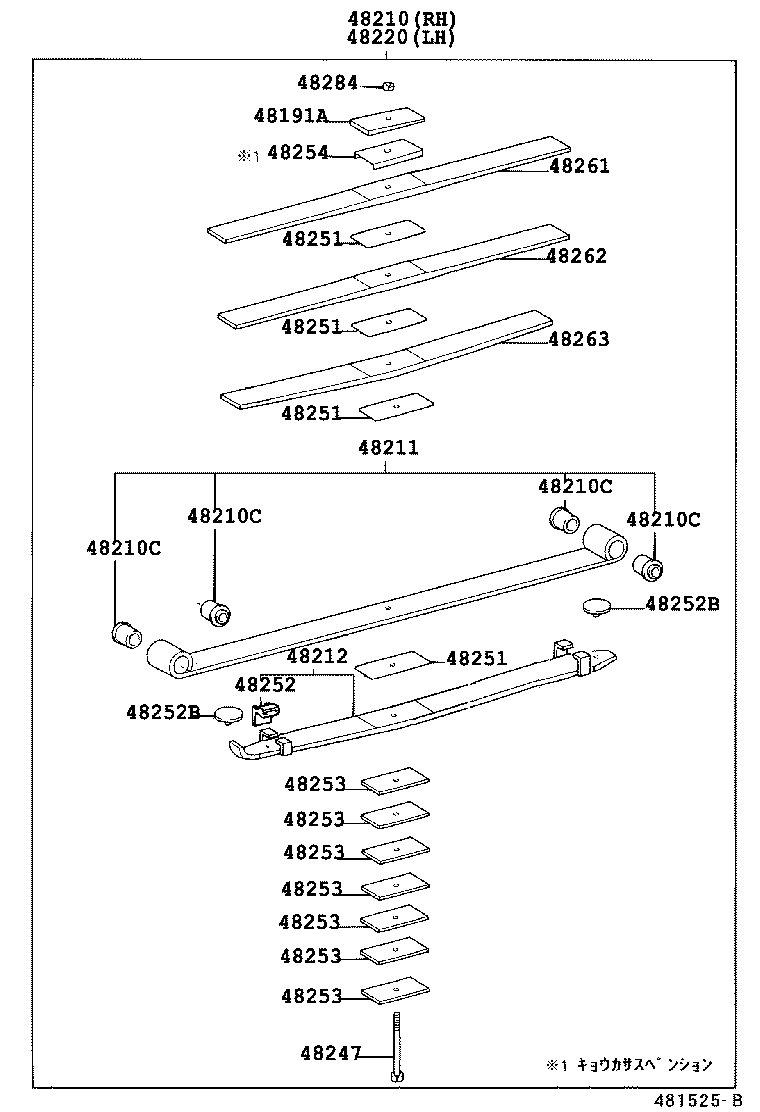

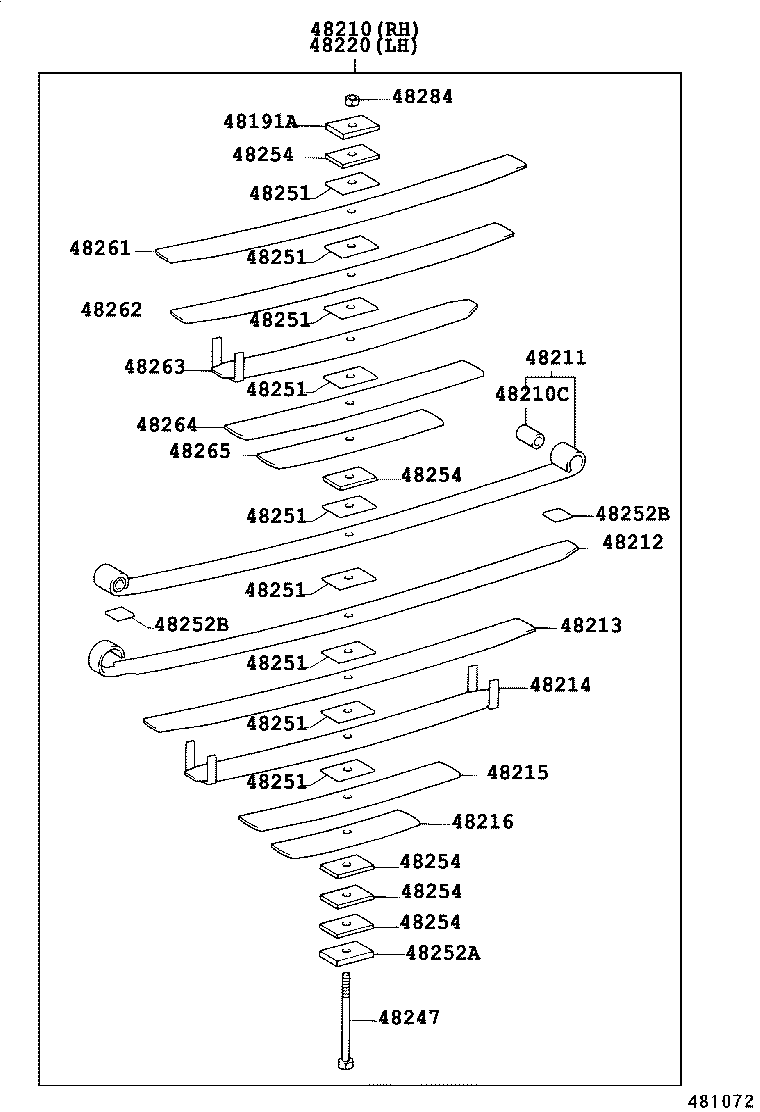

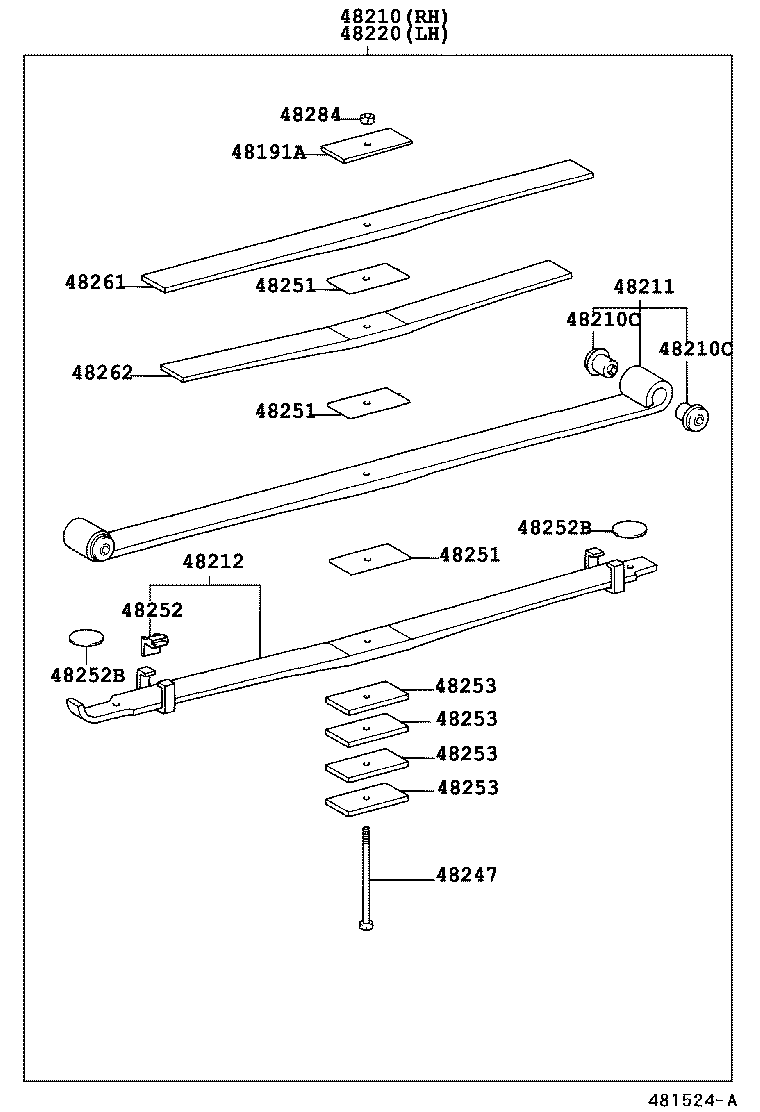

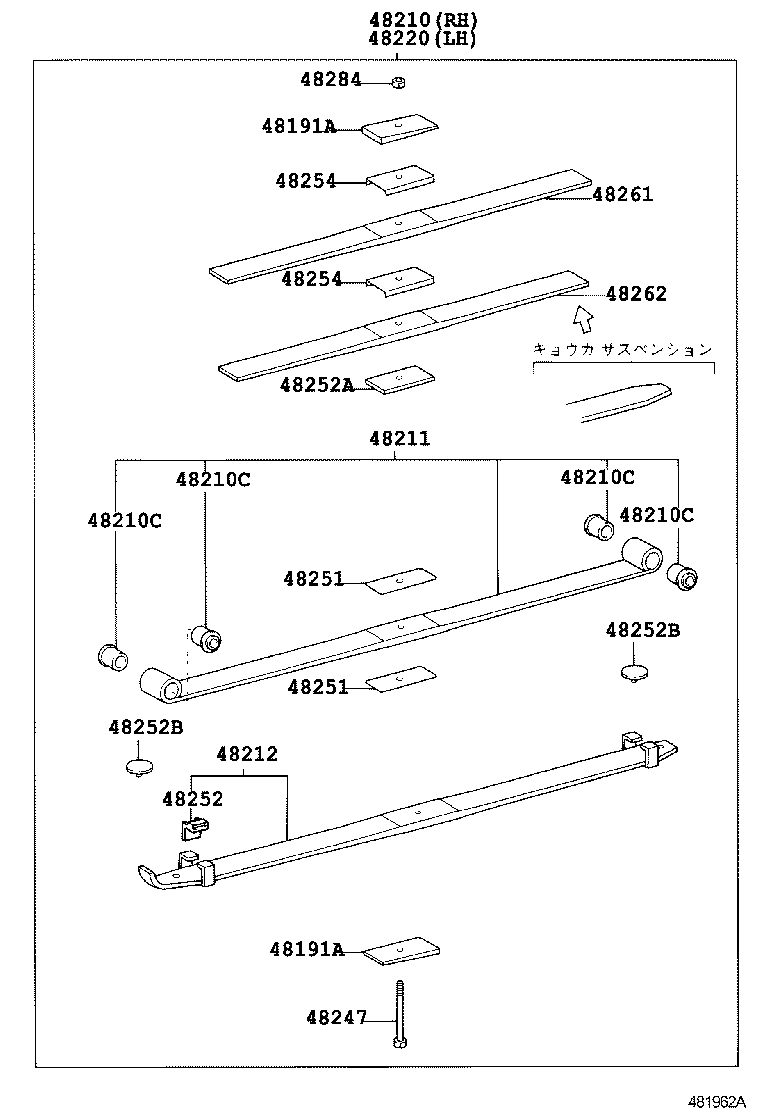

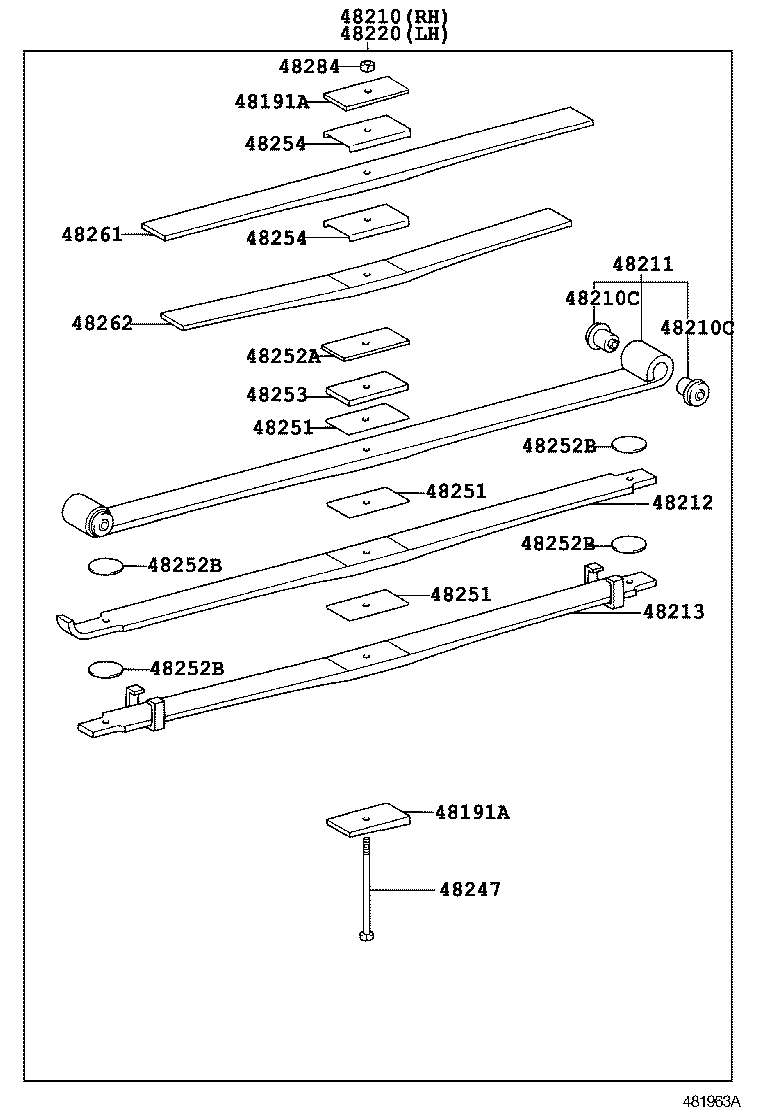

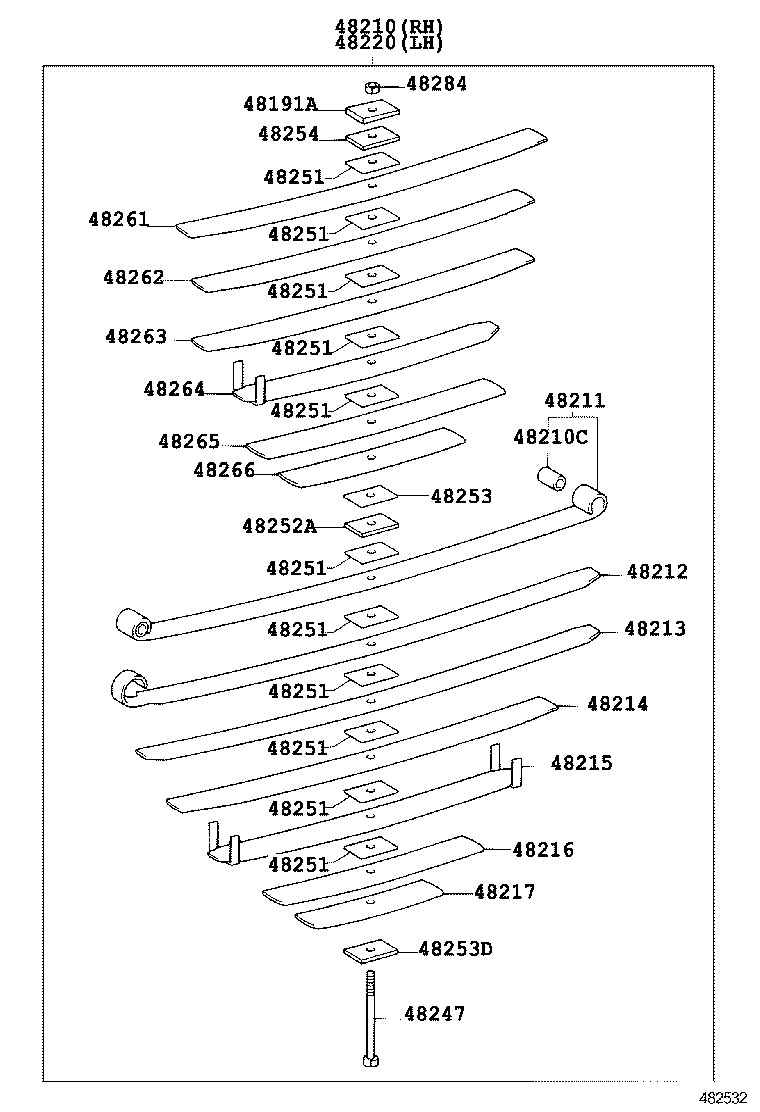

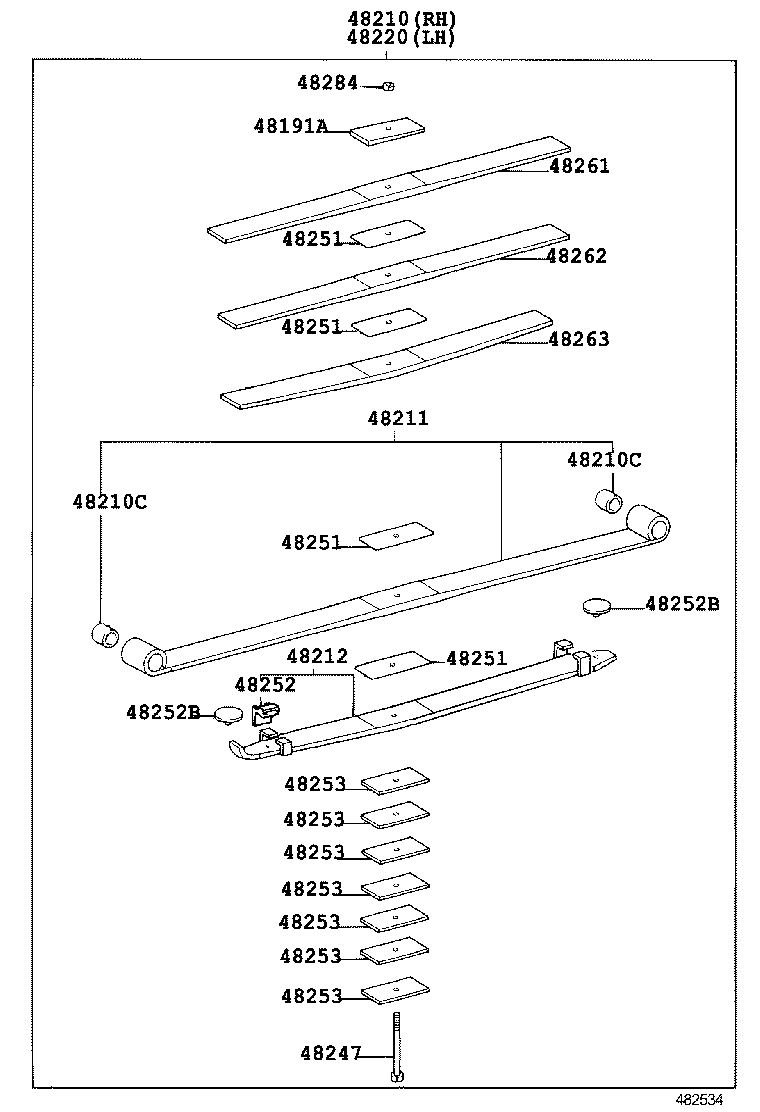

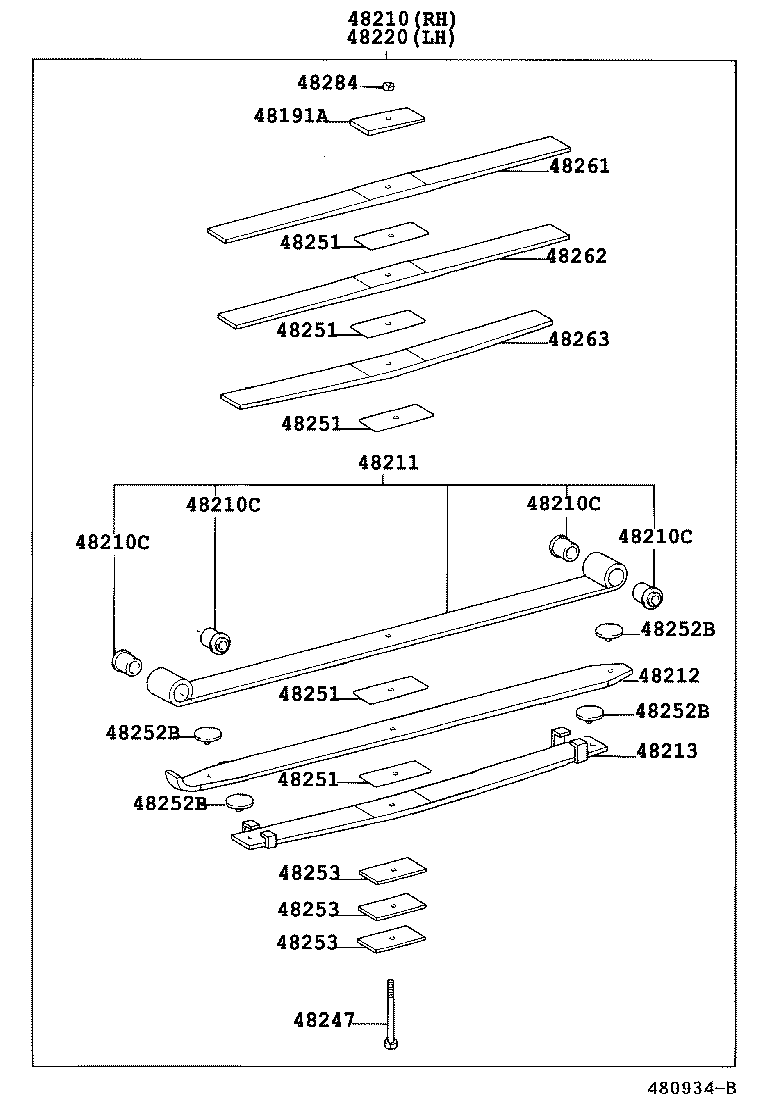

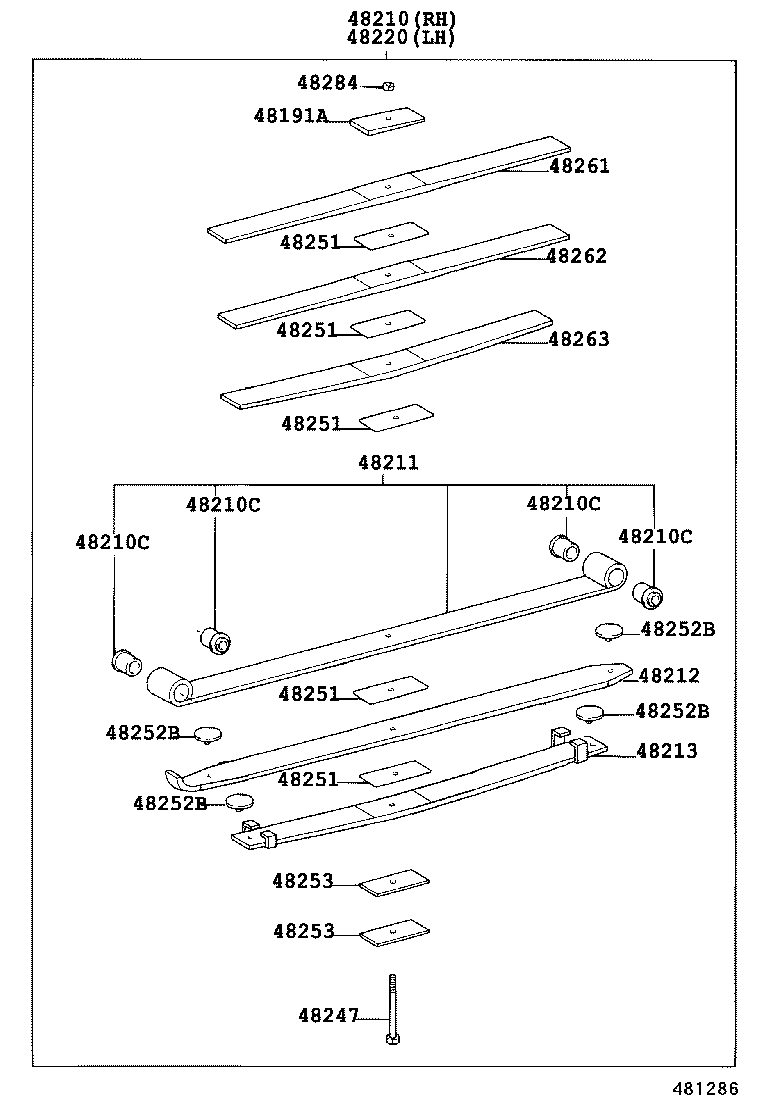

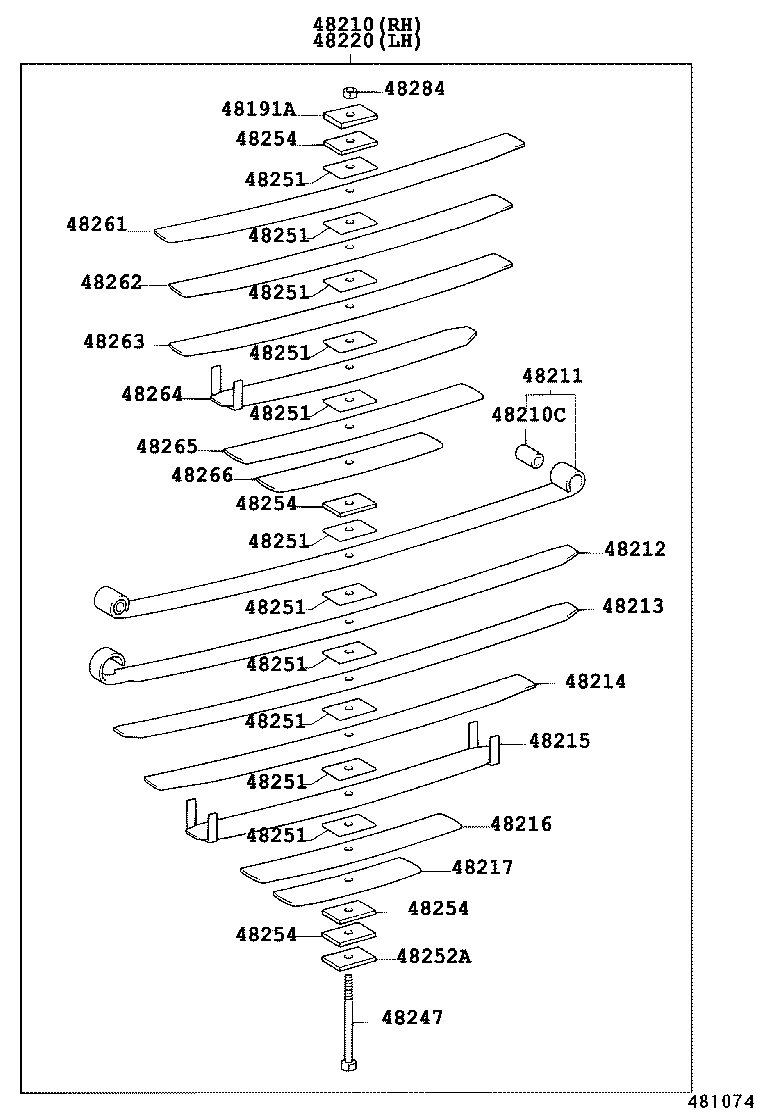

48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48284 Nut, Rear Spring Center Bolt
48323D Pin, Rear Spring Bracket
48323E Nipple, Grease(FOR REAR SPRING BRACKET PIN)
48344 Stopper, Bumper, Rear
48422A Support, Rear Spring Pin
48435 Attachment, Helper Spring Bracket, NO.1
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
