Toyota Dyna/Toyoace
2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan
Supported model
Data version 2022-07
Propeller Shaft & Universal Joint
25 part groups · 13 illustrations

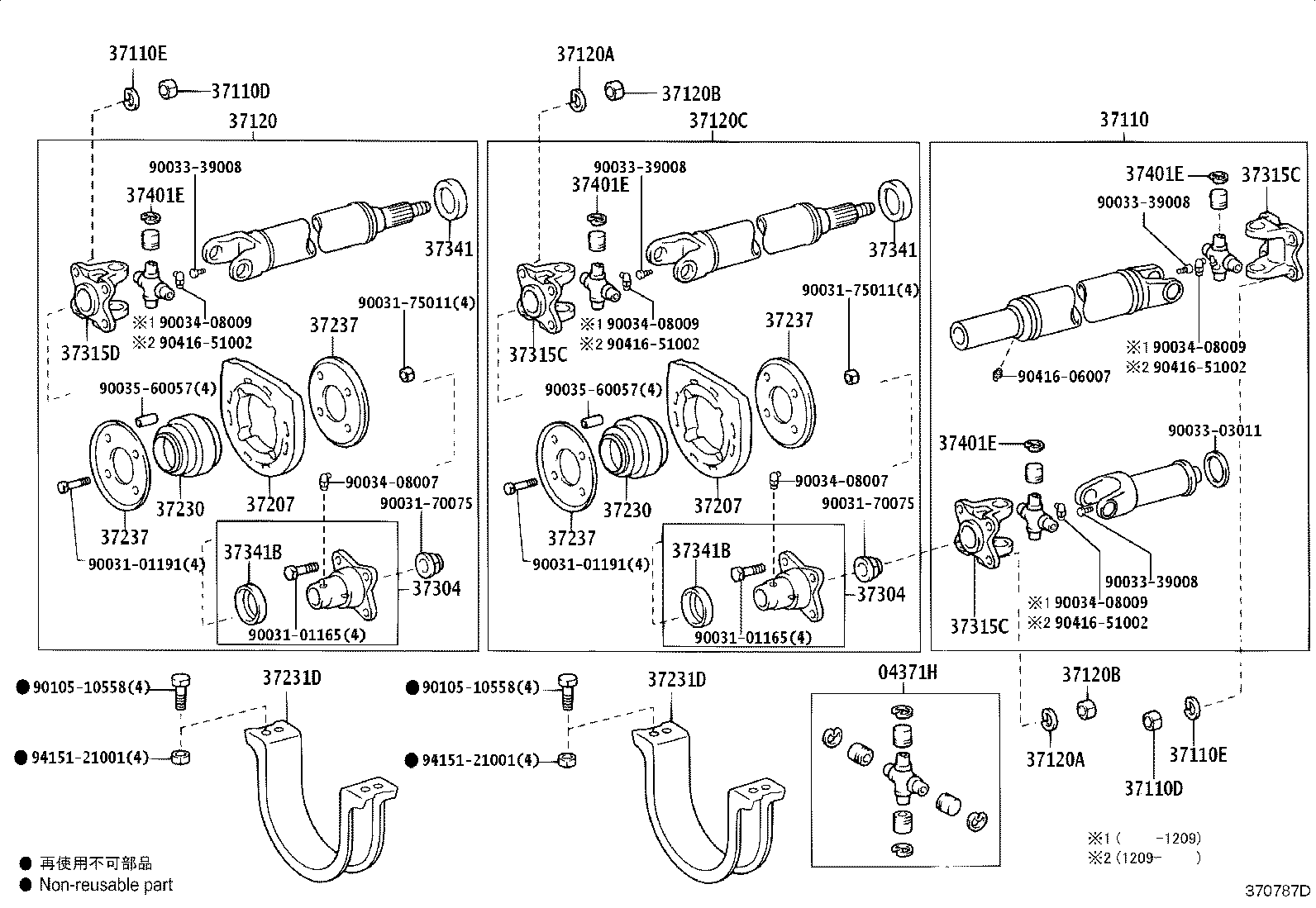

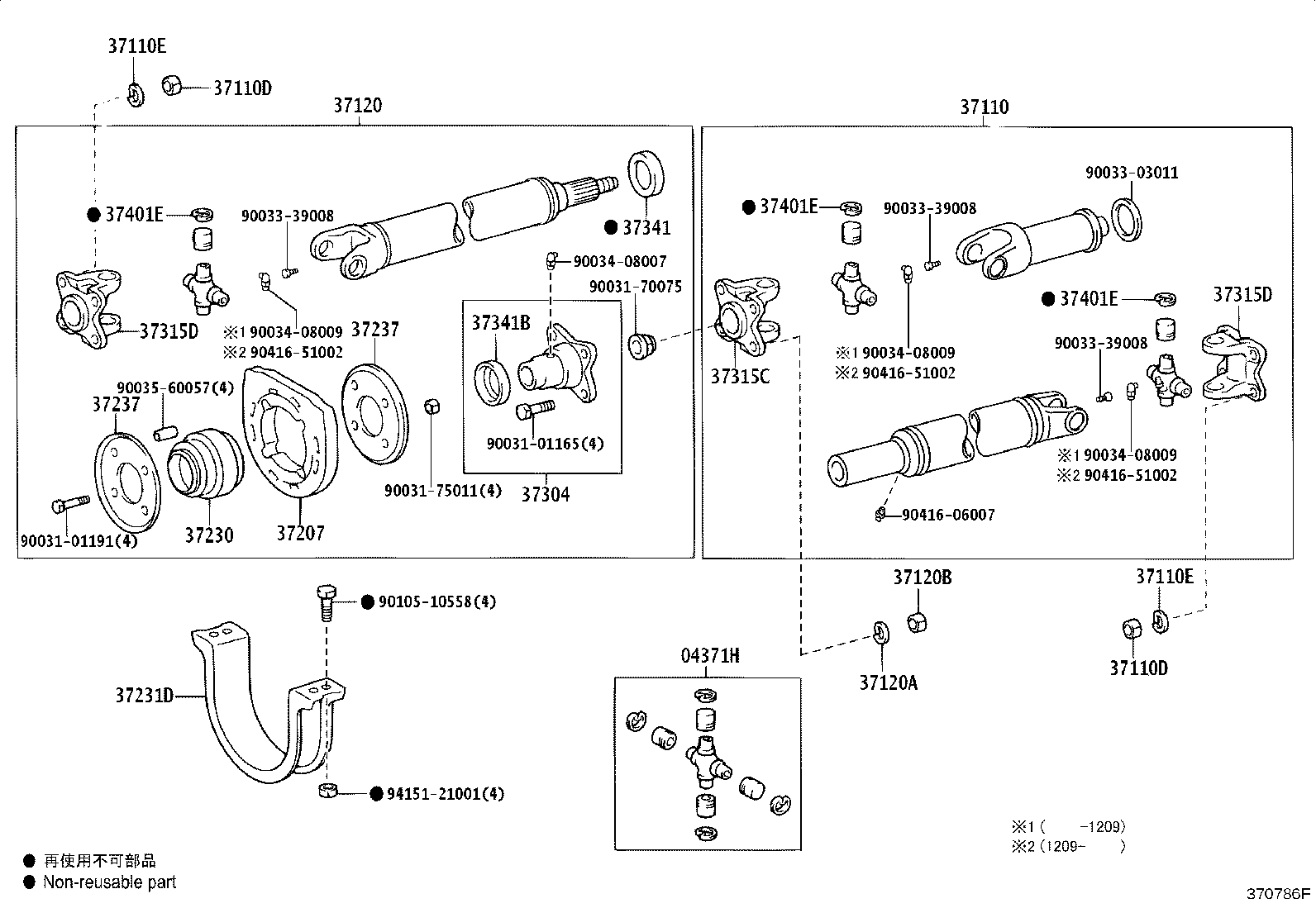

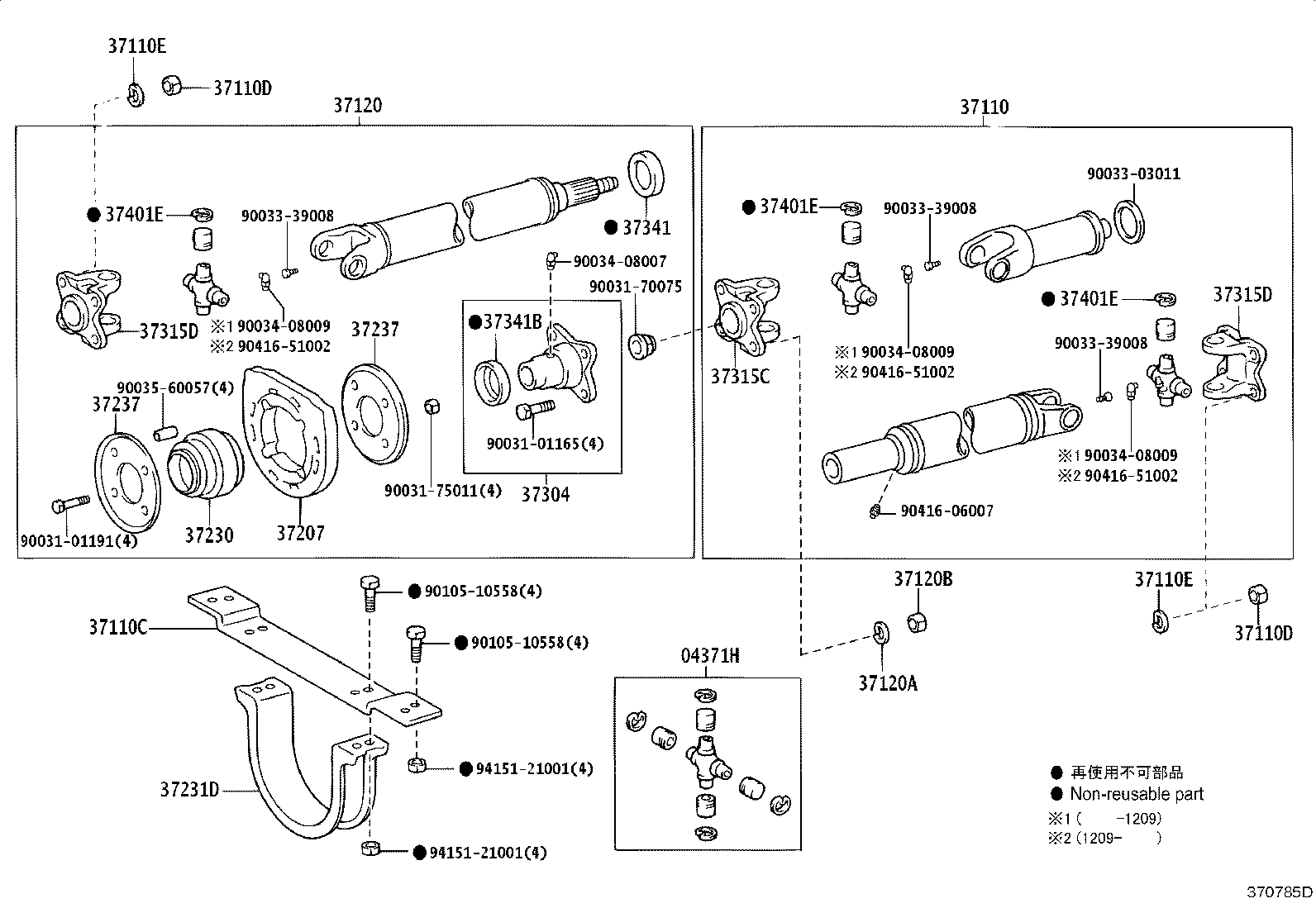

Illustrations
Part groups
| PNC | Description |
|---|---|
| 04371G | Spider Kit, Front Propeller Shaft Universal Joint |
| 04371H | Spider Kit, Rear Propeller Shaft Universal Joint |
| 37110 | Shaft Assy, Propeller |
| 37110C | Bracket, Propeller Shaft Guard |
| 37110D | Nut (FOR PROPELLER SHAFT) |
| 37110E | Washer (FOR PROPELLER SHAFT) |
| 37120 | Shaft Assy, Propeller Intermediate |
| 37120A | Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET) |
| 37120B | Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING) |
| 37120C | Shaft Assy, Propeller, Center |
| 37140 | Shaft Assy, Propeller, Front |
| 37140A | Bolt (F0R FRONT PROPELLER SHAFT) |
| 37140B | Nut (F0R FRONT PROPELLER SHAFT) |
| 37140C | Washer (F0R FRONT PROPELLER SHAFT) |
| 37207 | Cushion Sub-assy, Center Support Bearing, NO.1 |
| 37230 | Bearing Assy, Center Support, NO.1 |
| 37231D | Bracket, Center Support Bearing |
| 37237 | Plate, Center Support Bearing, NO.1 |
| 37304 | Flange Sub-assy, Universal Joint |
| 37315C | Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange |
| 37315D | Yoke, NO.2, Rear Propeller Shaft Universal Joint Flange |
| 37341 | Deflector, Propeller Shaft Dust, NO.1 |
| 37341B | Deflector, Propeller Shaft Dust, NO.5 |
| 37401D | Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) |
| 37401E | Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
