Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

75 part groups · 39 illustrations

Illustrations

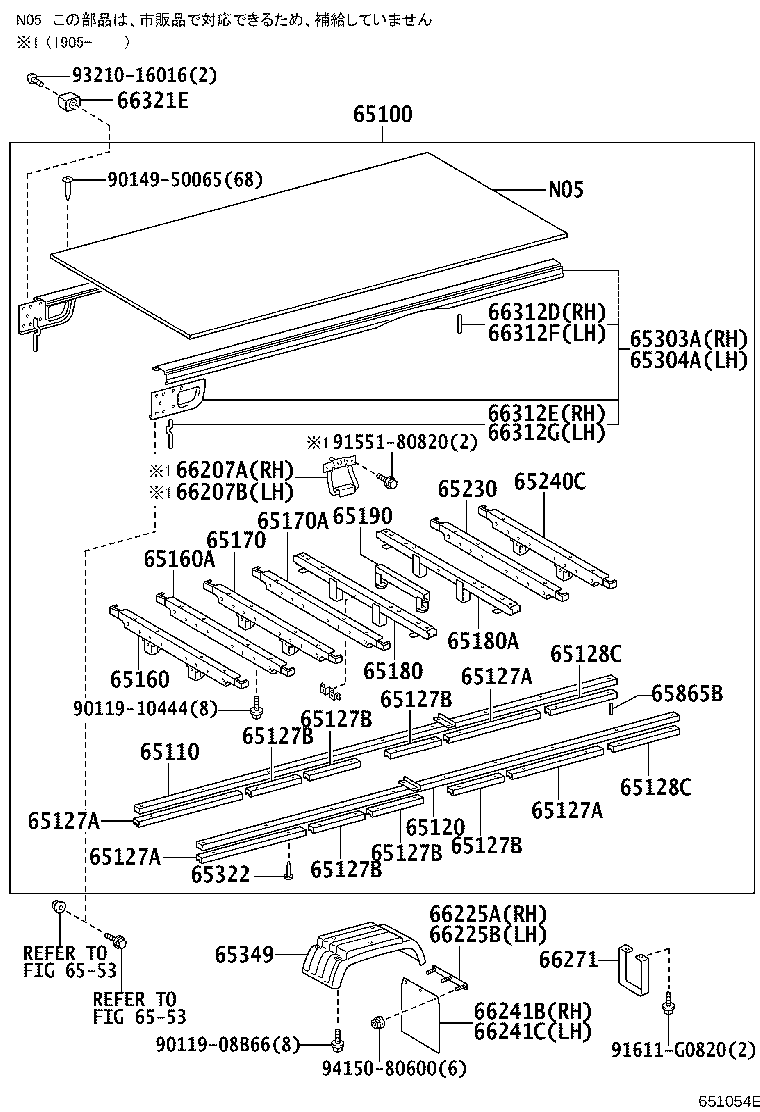

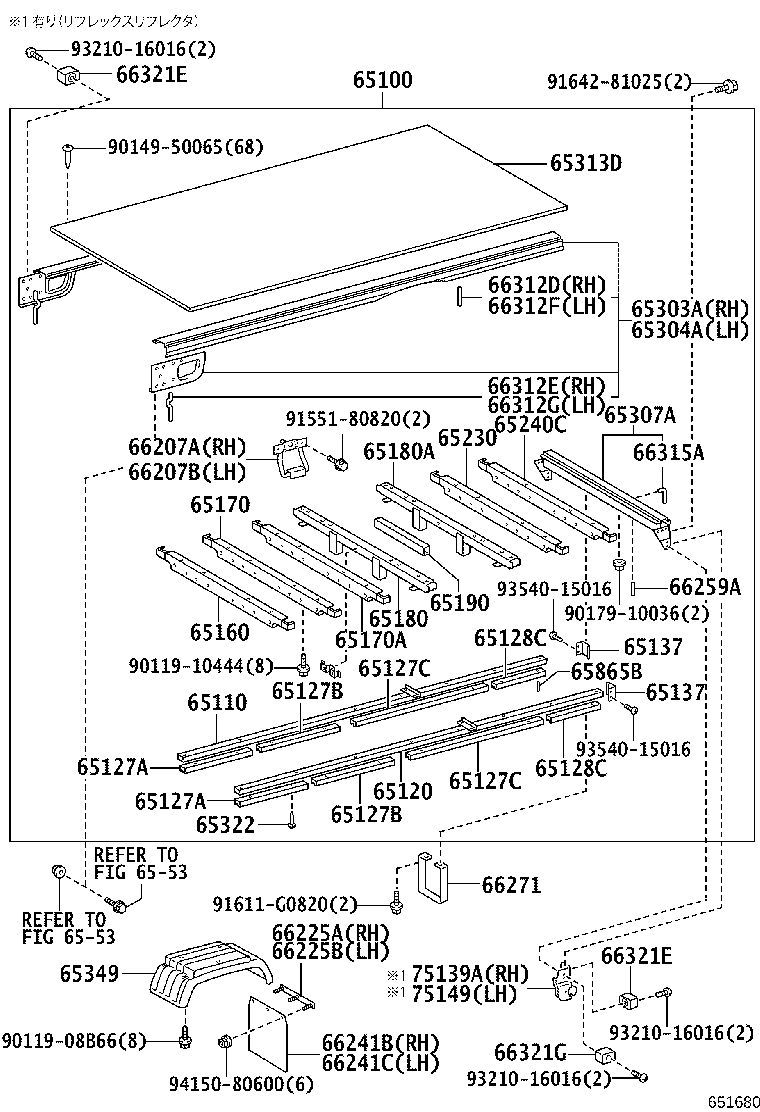

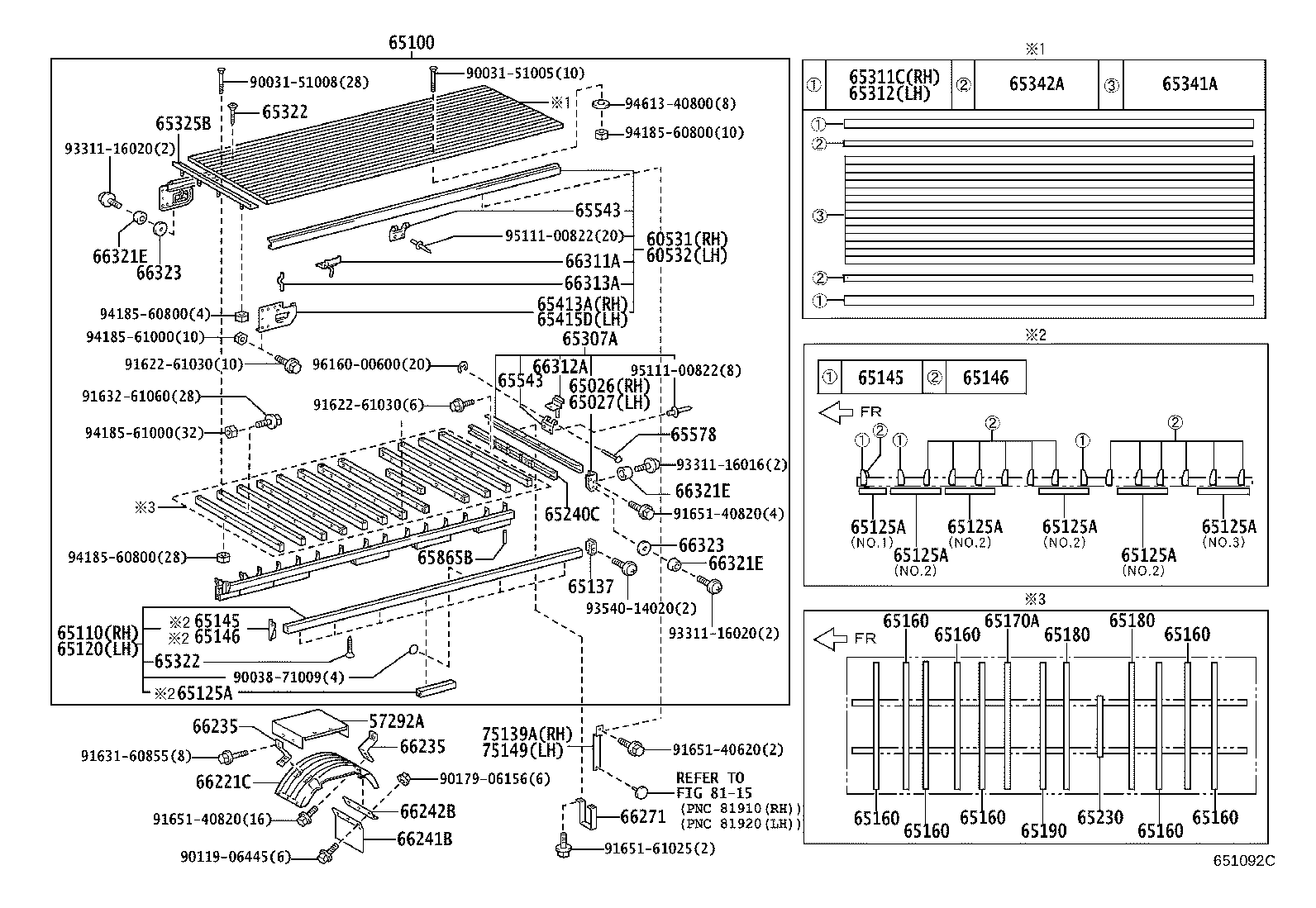

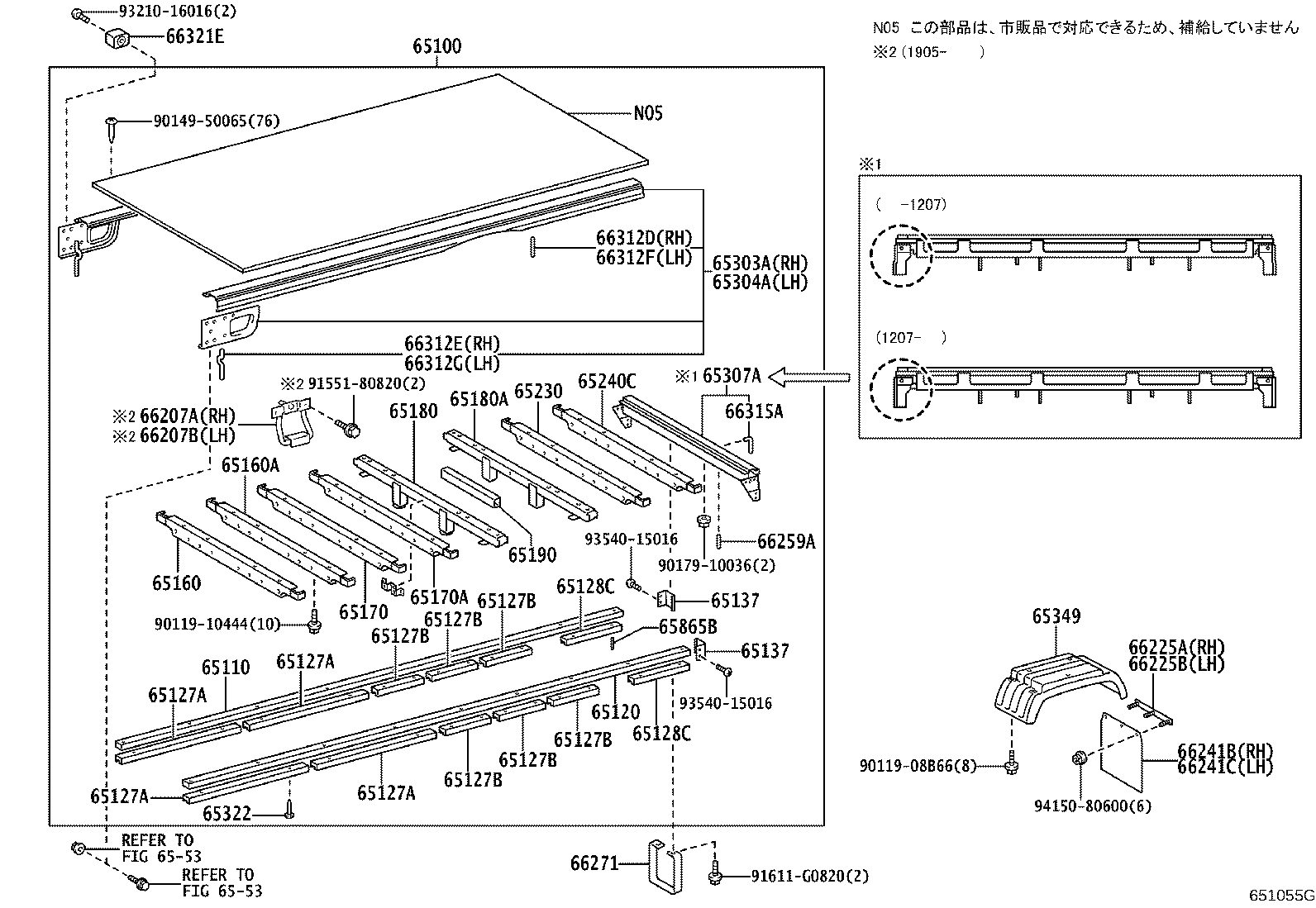

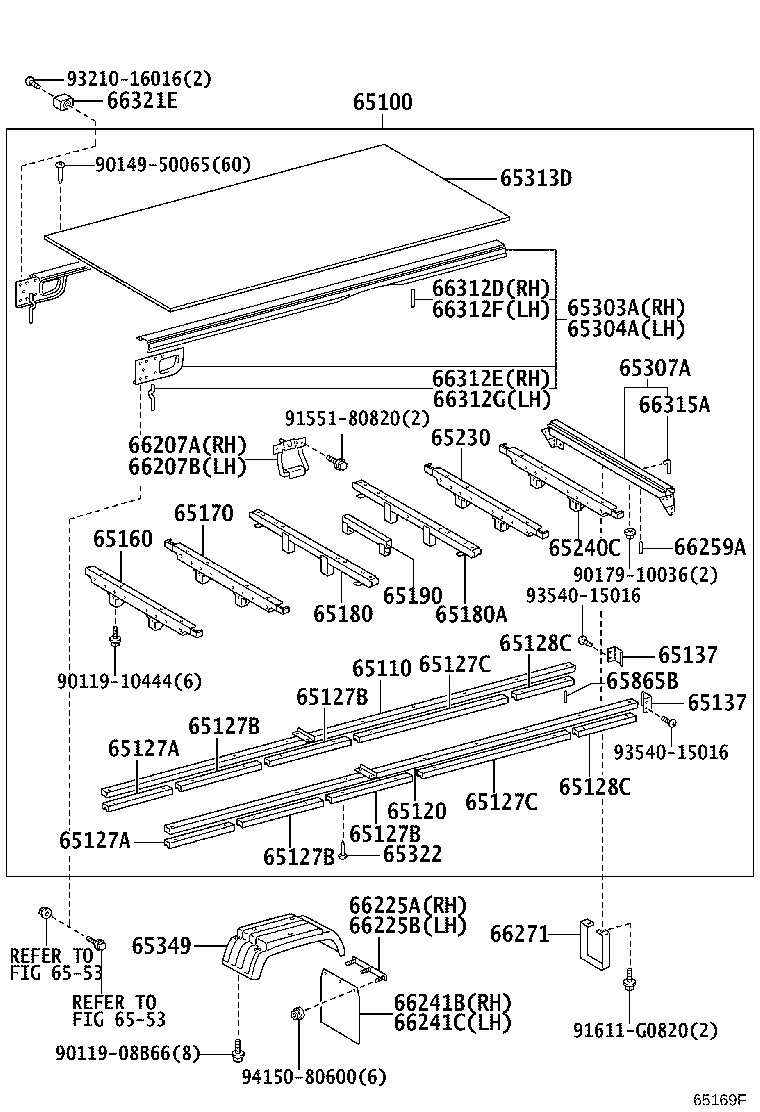

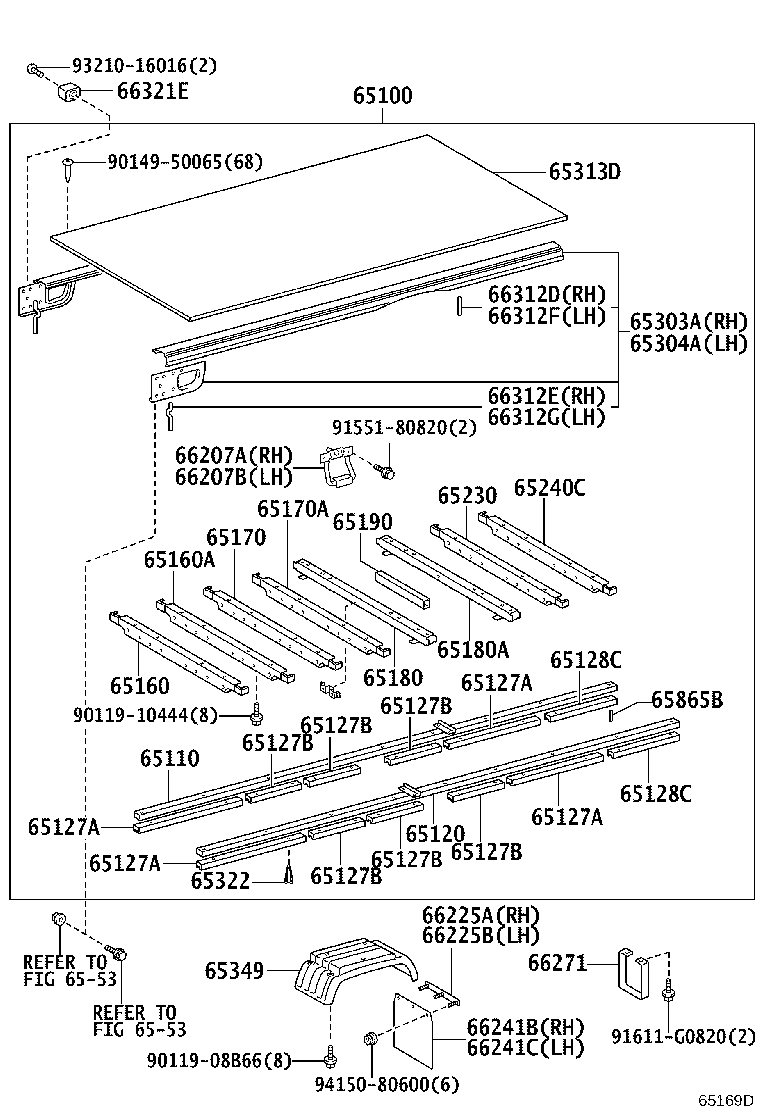

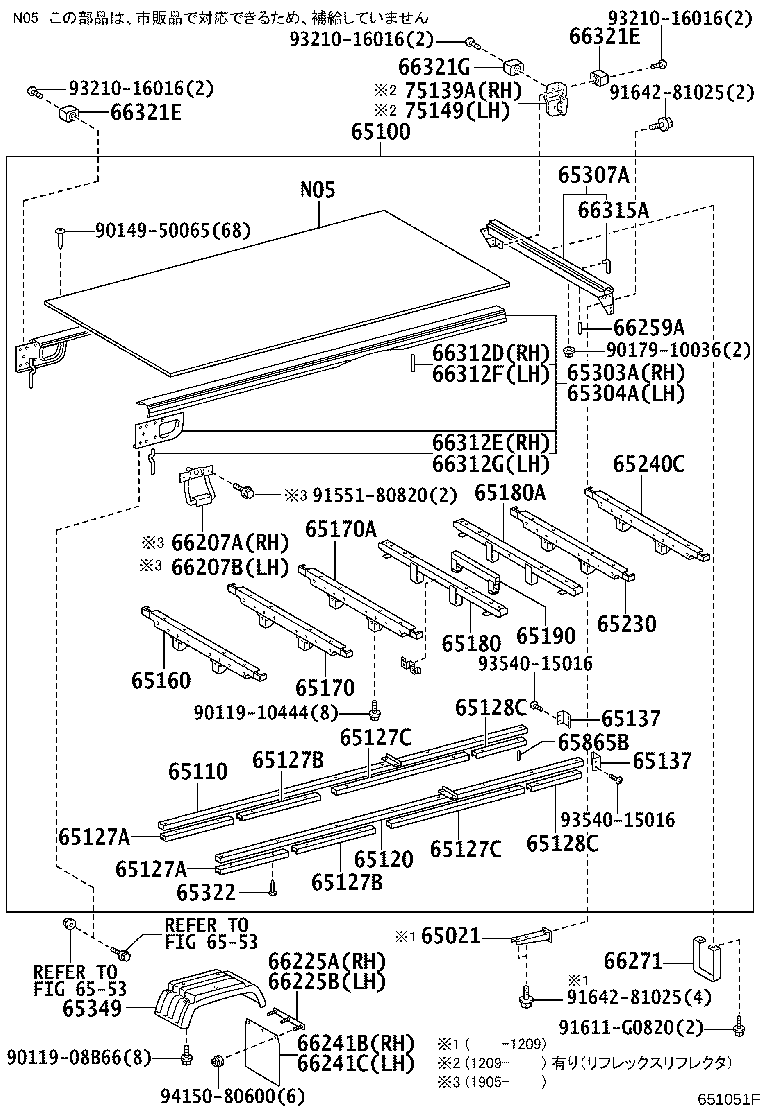

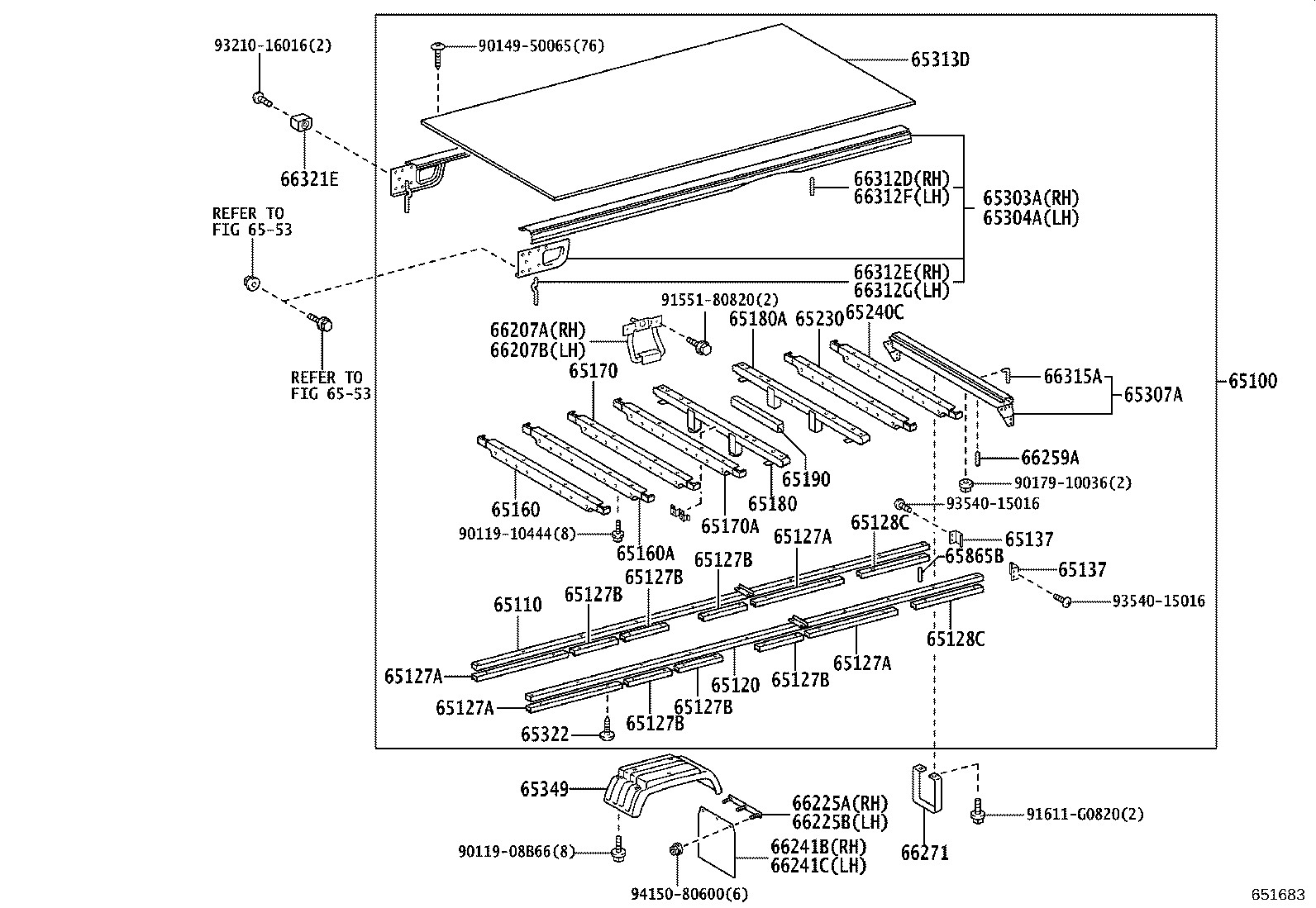

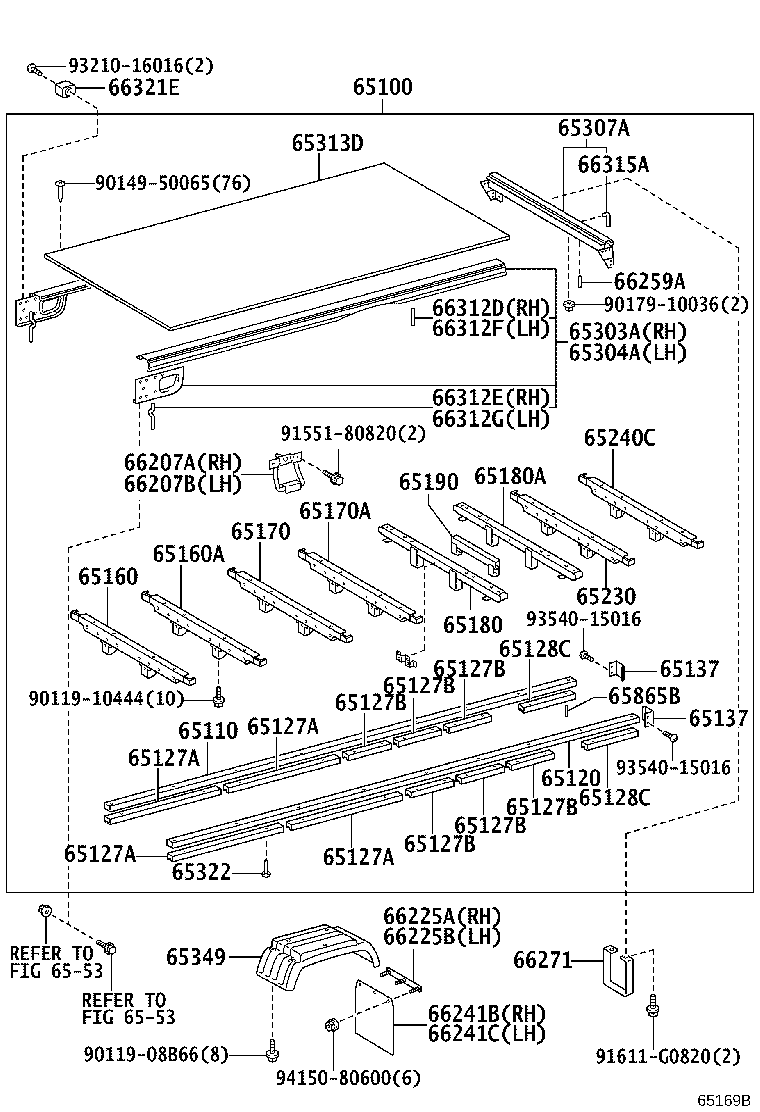

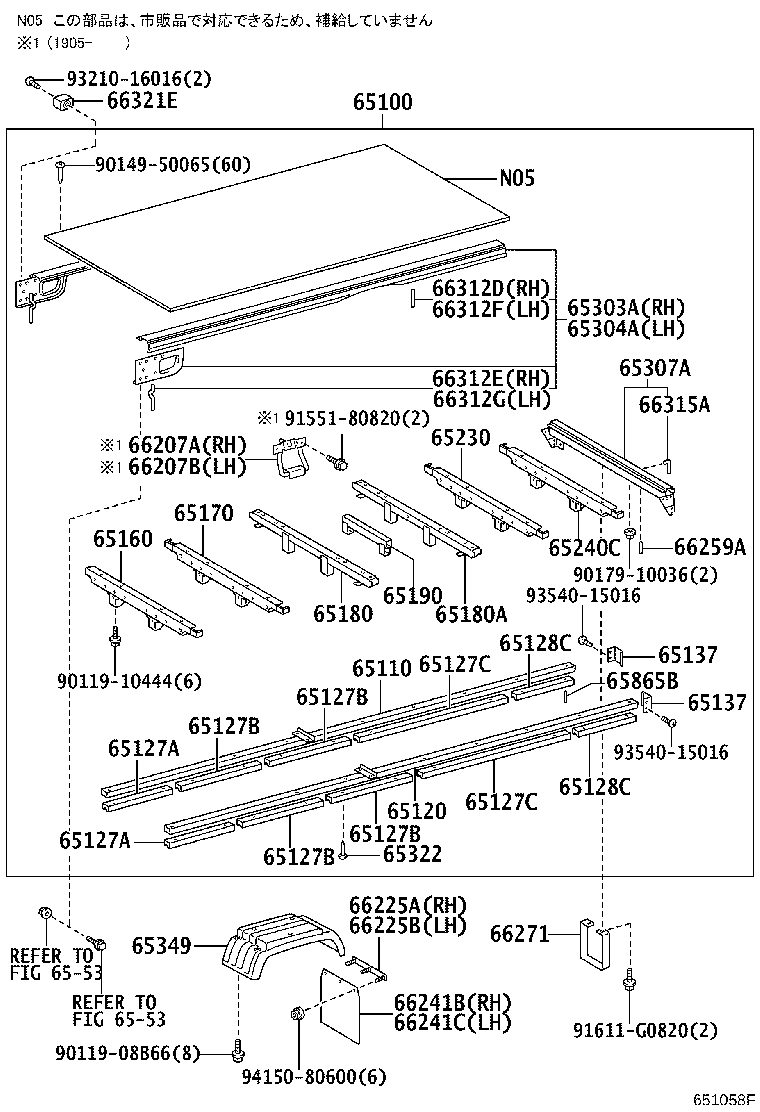

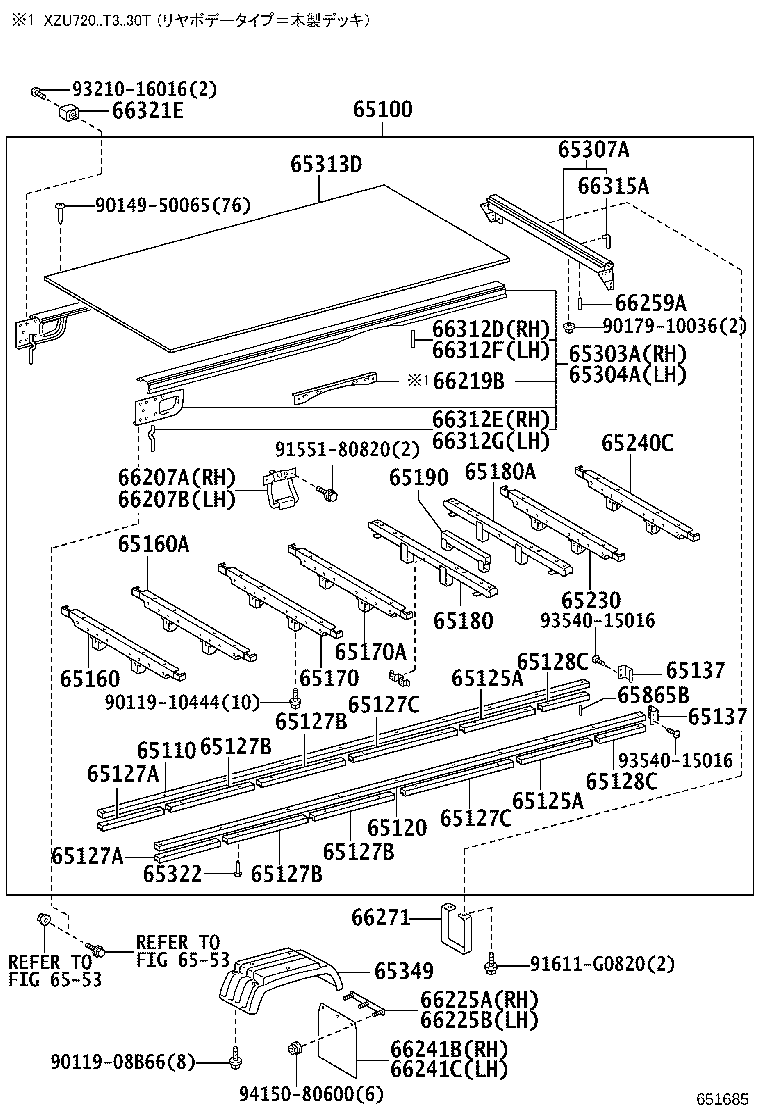

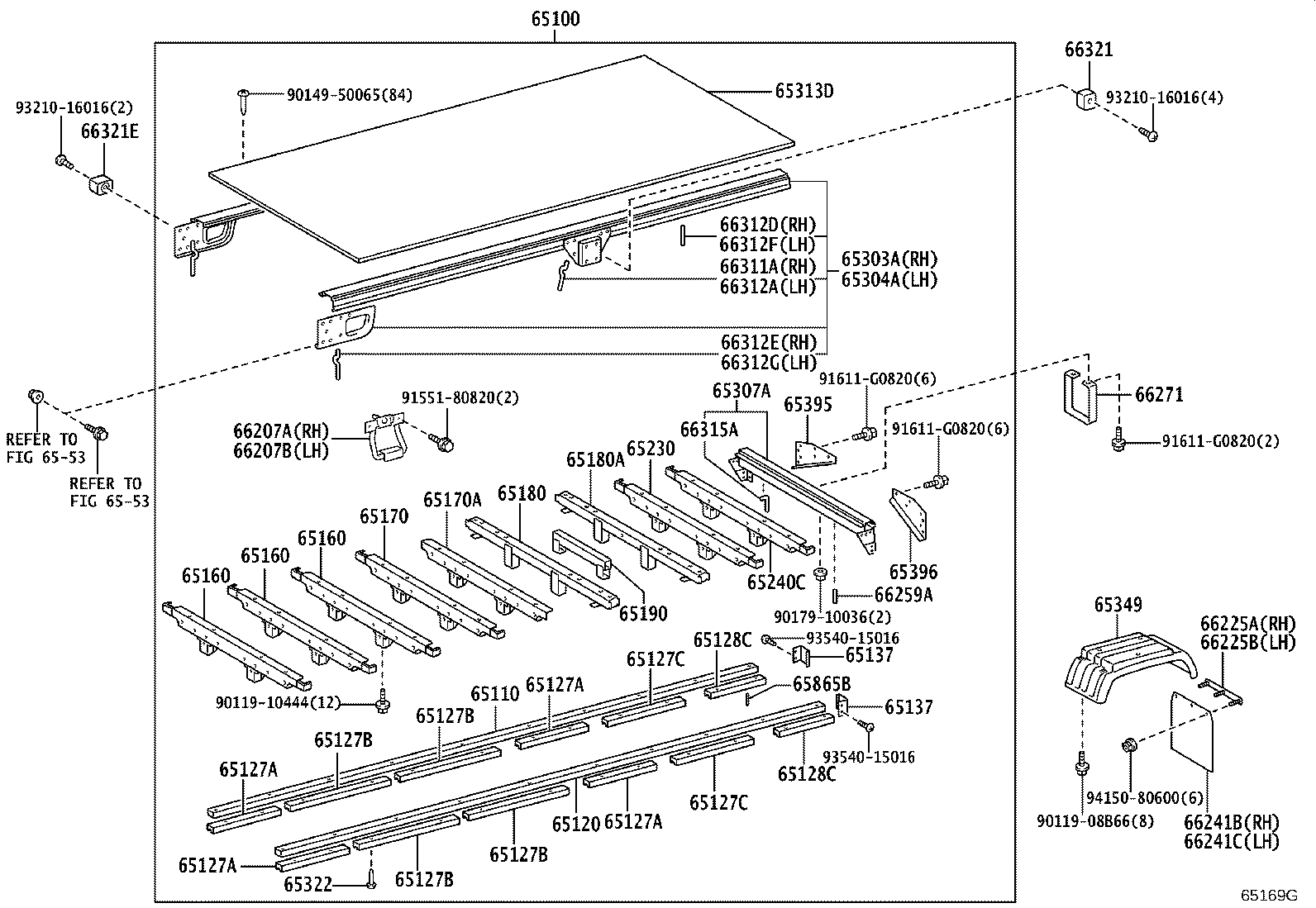

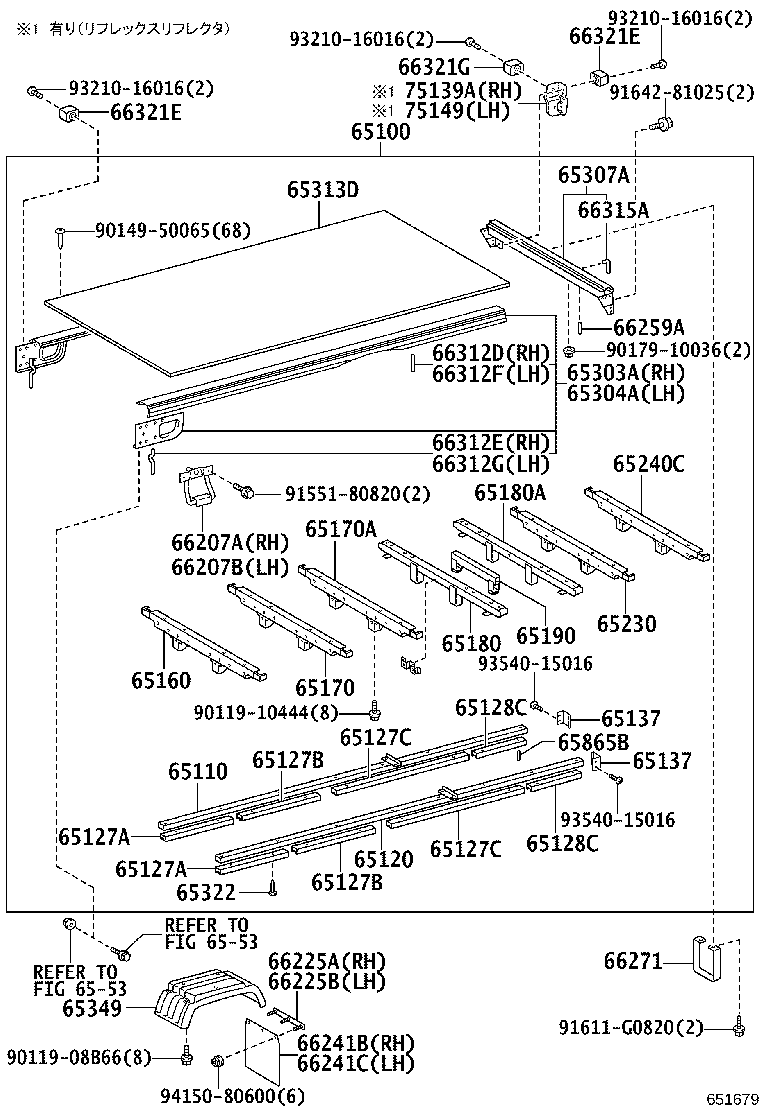

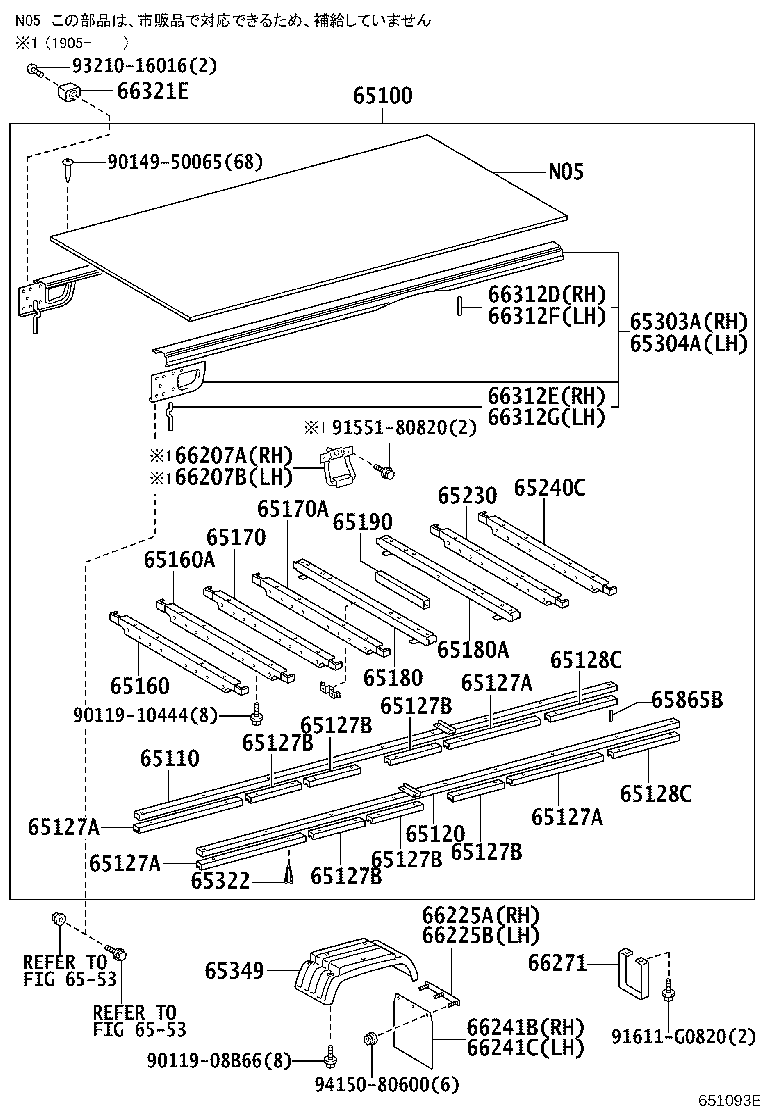

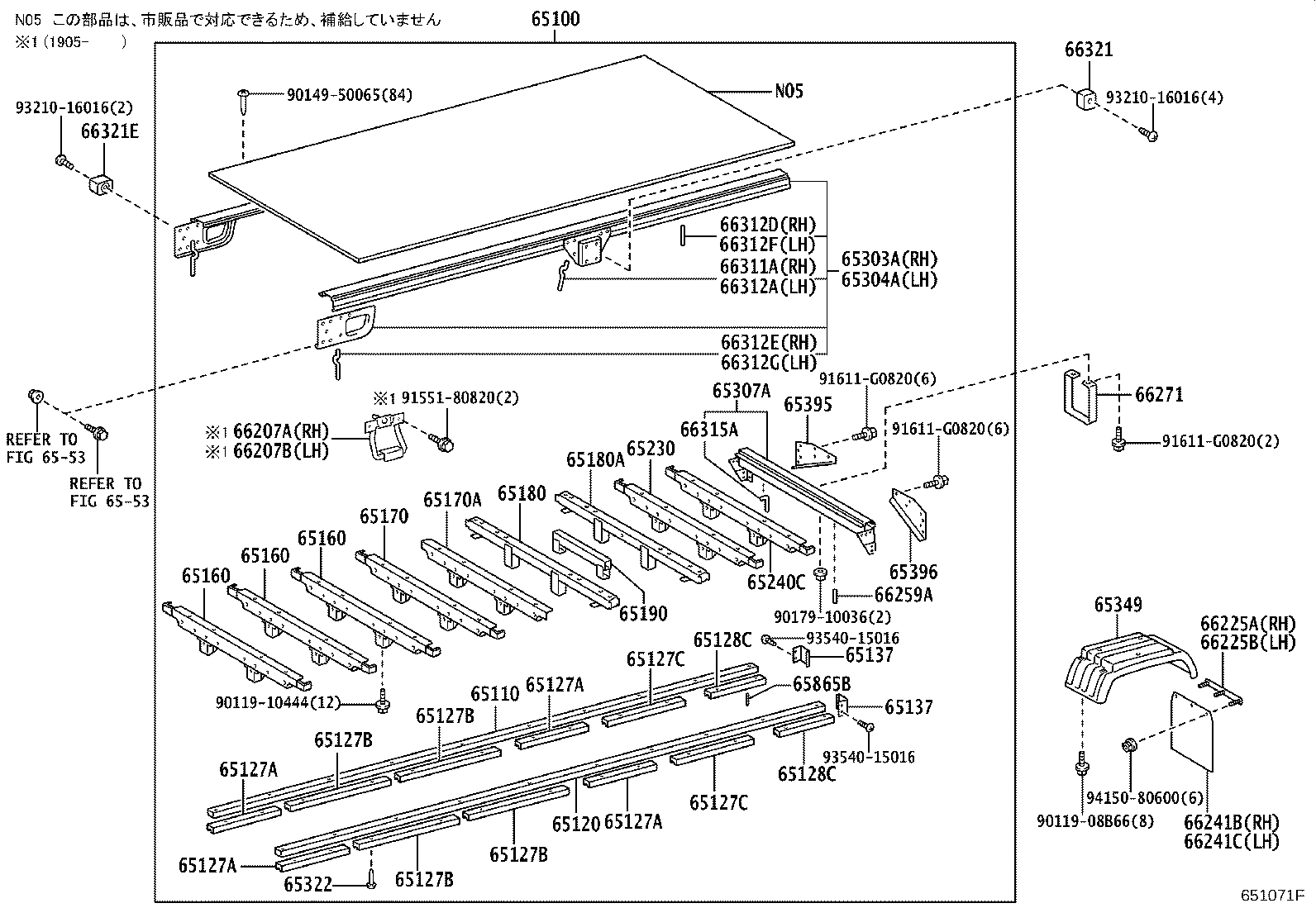

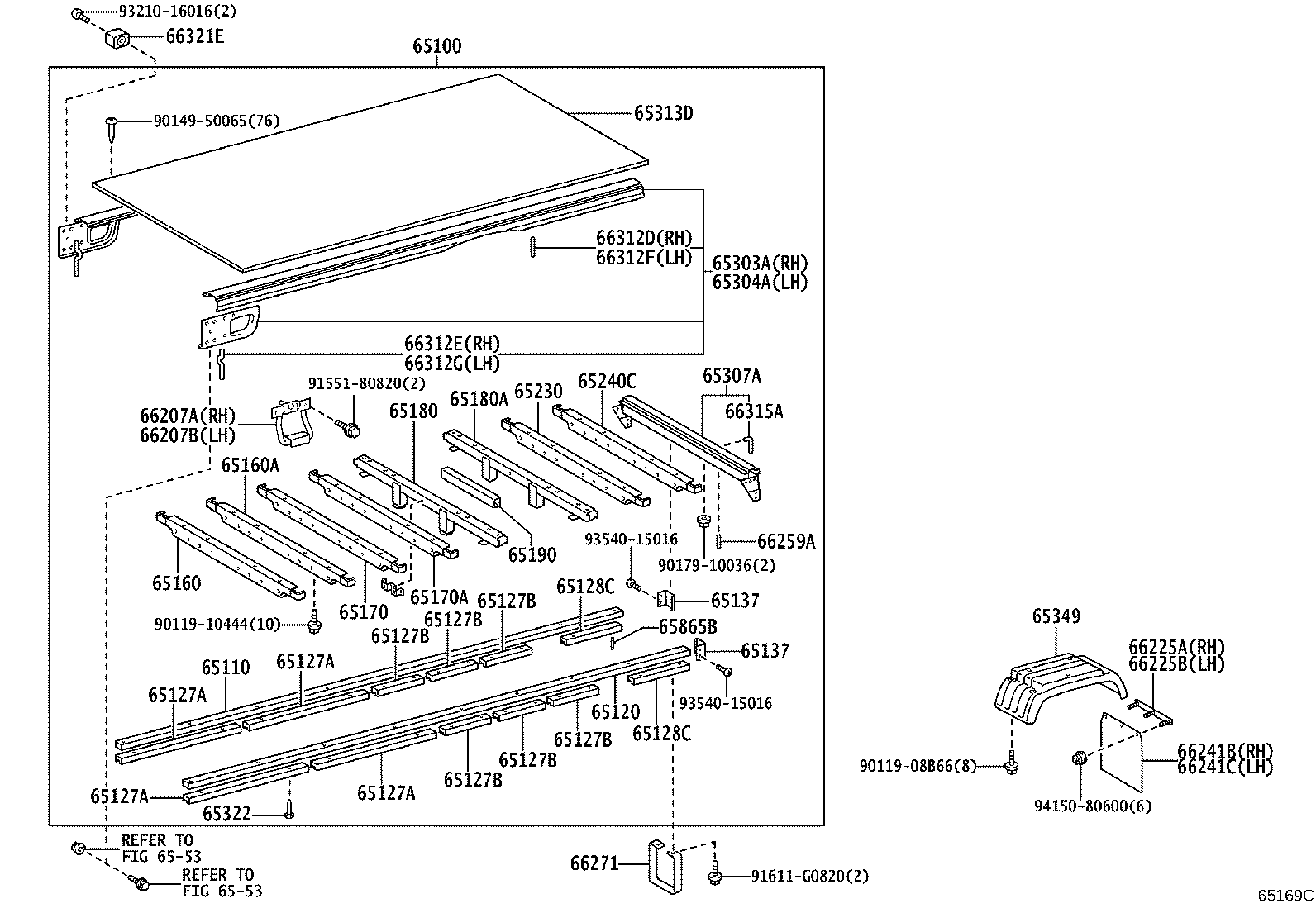

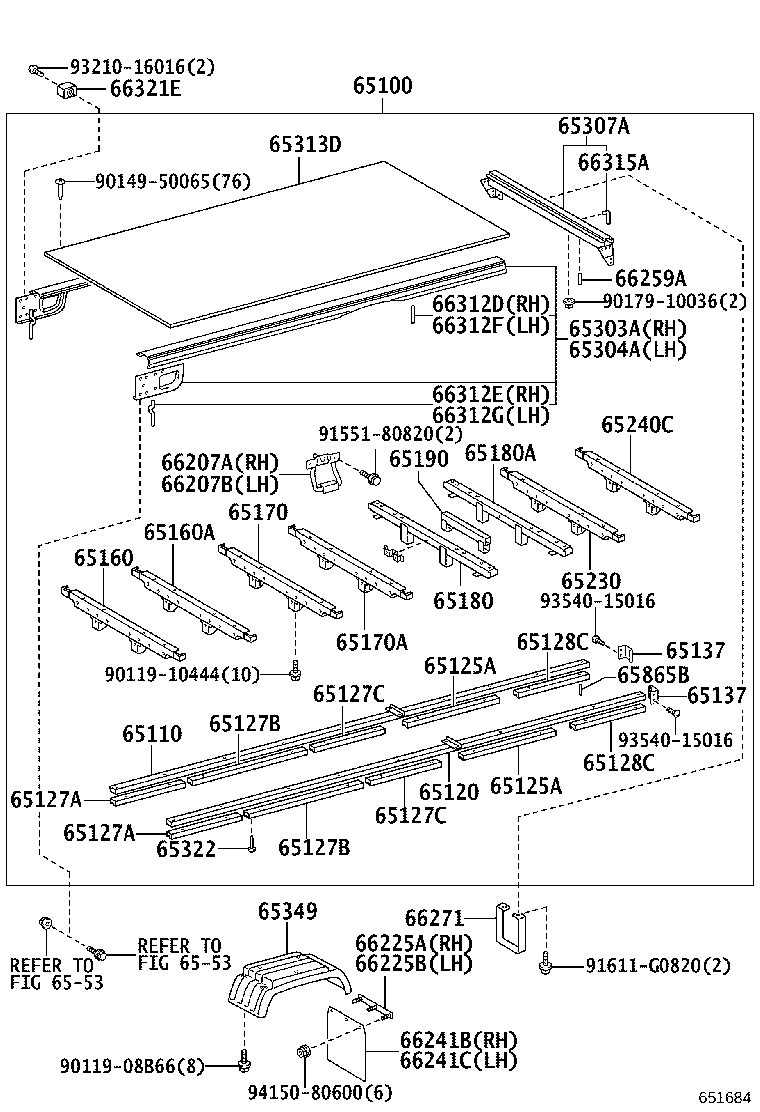

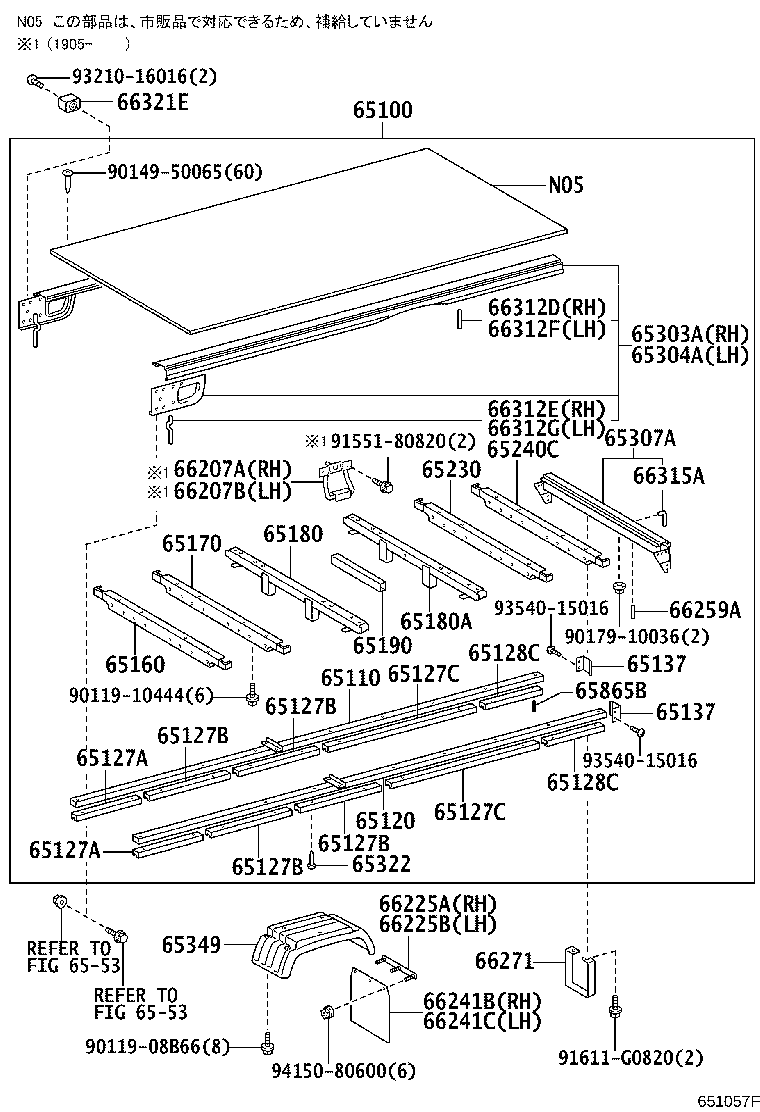

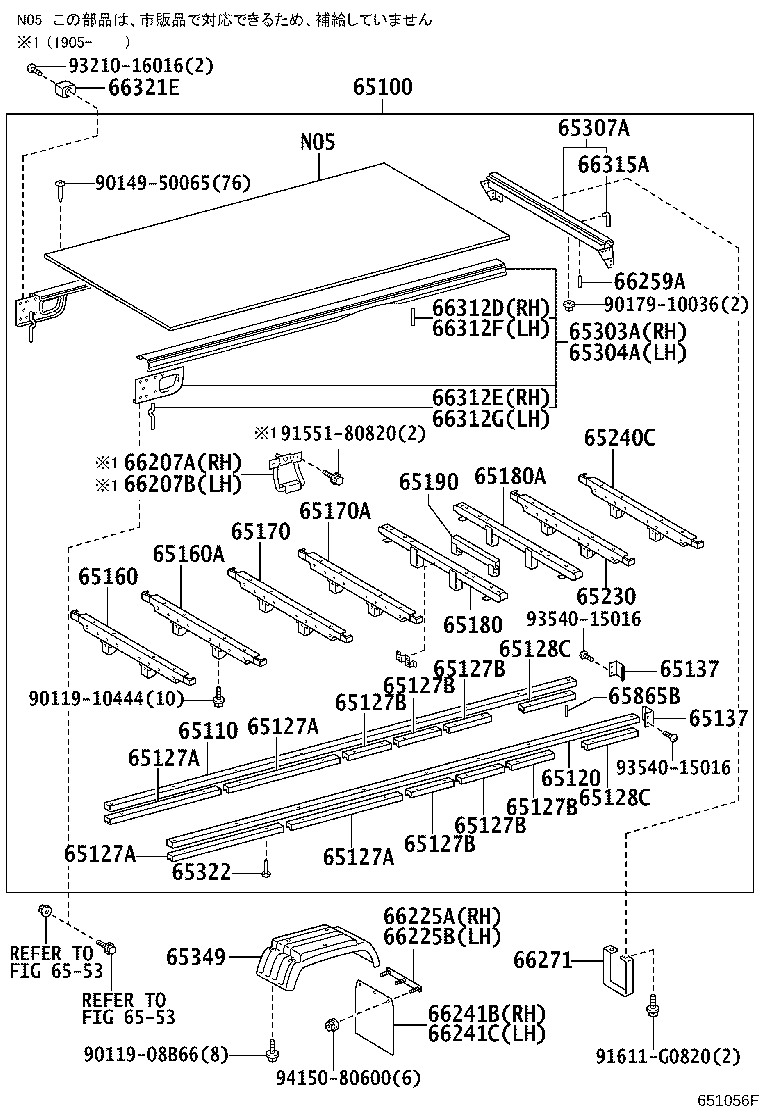

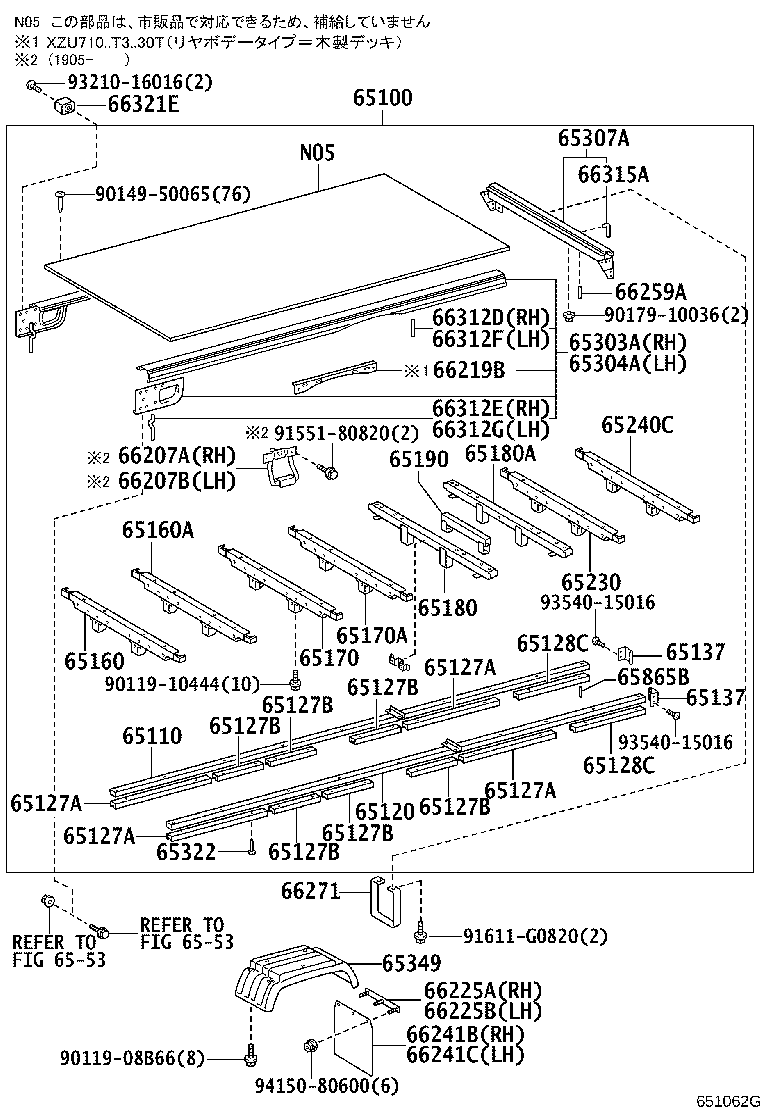

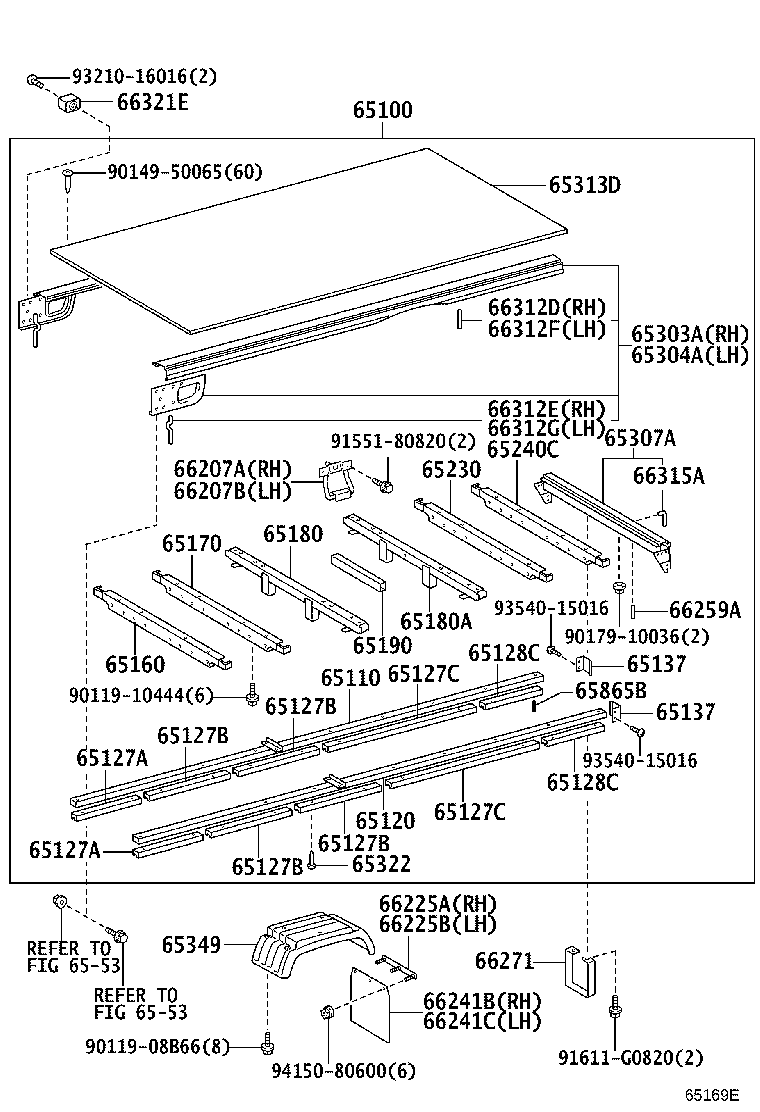

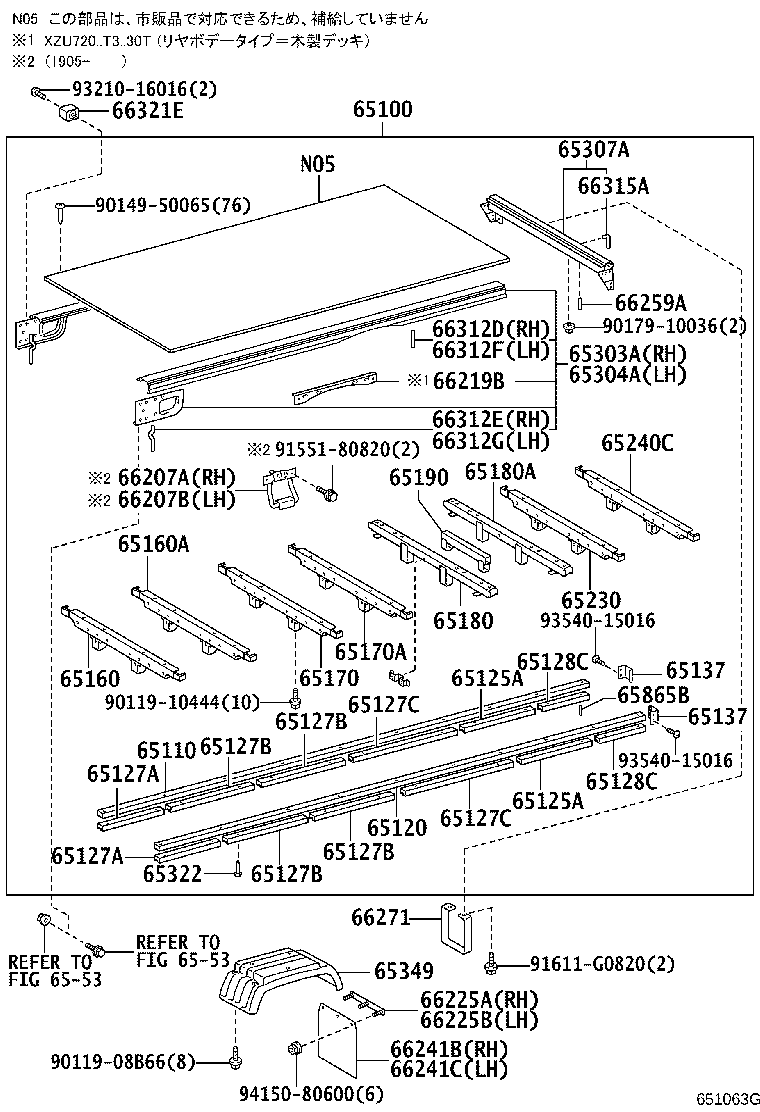

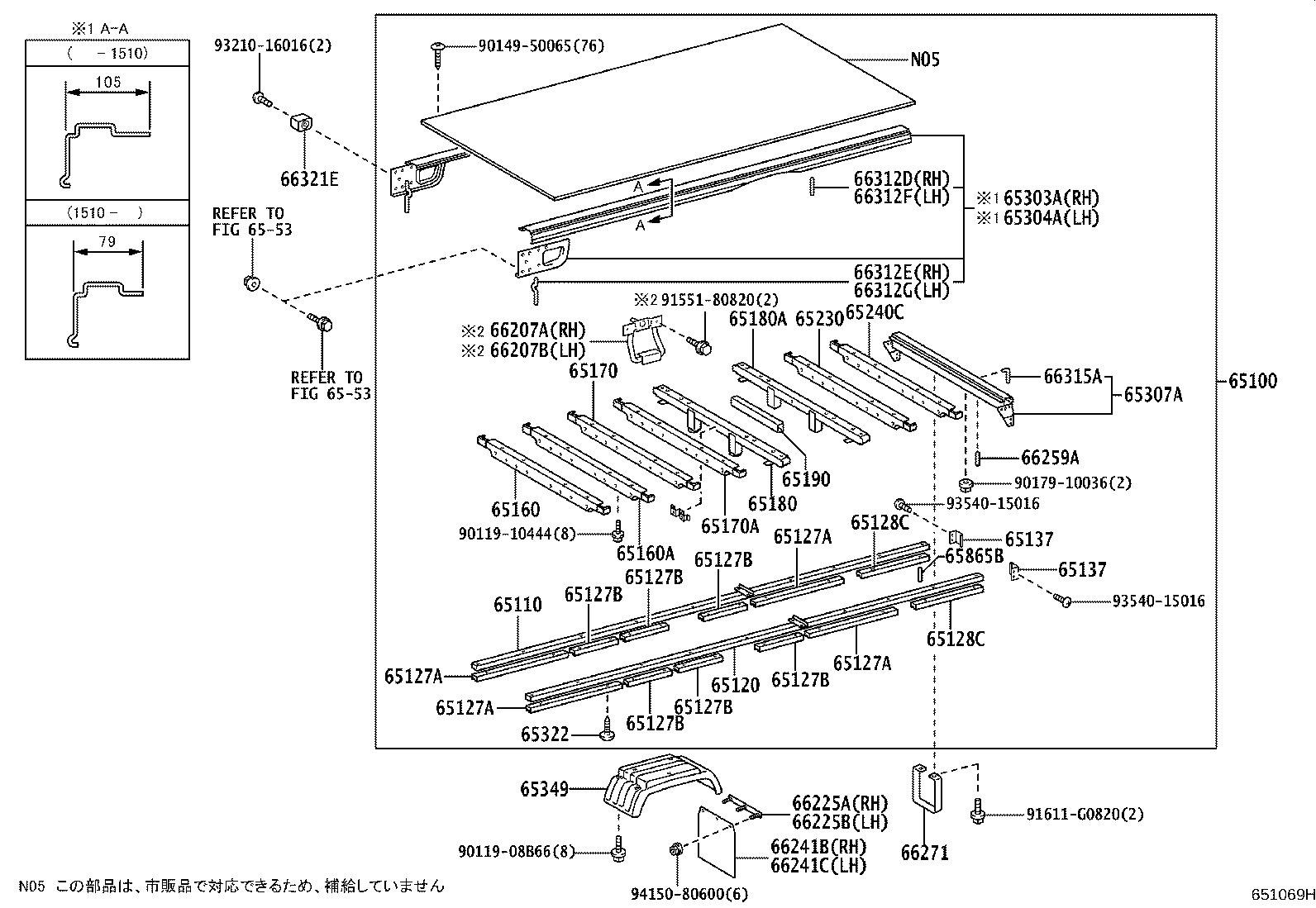

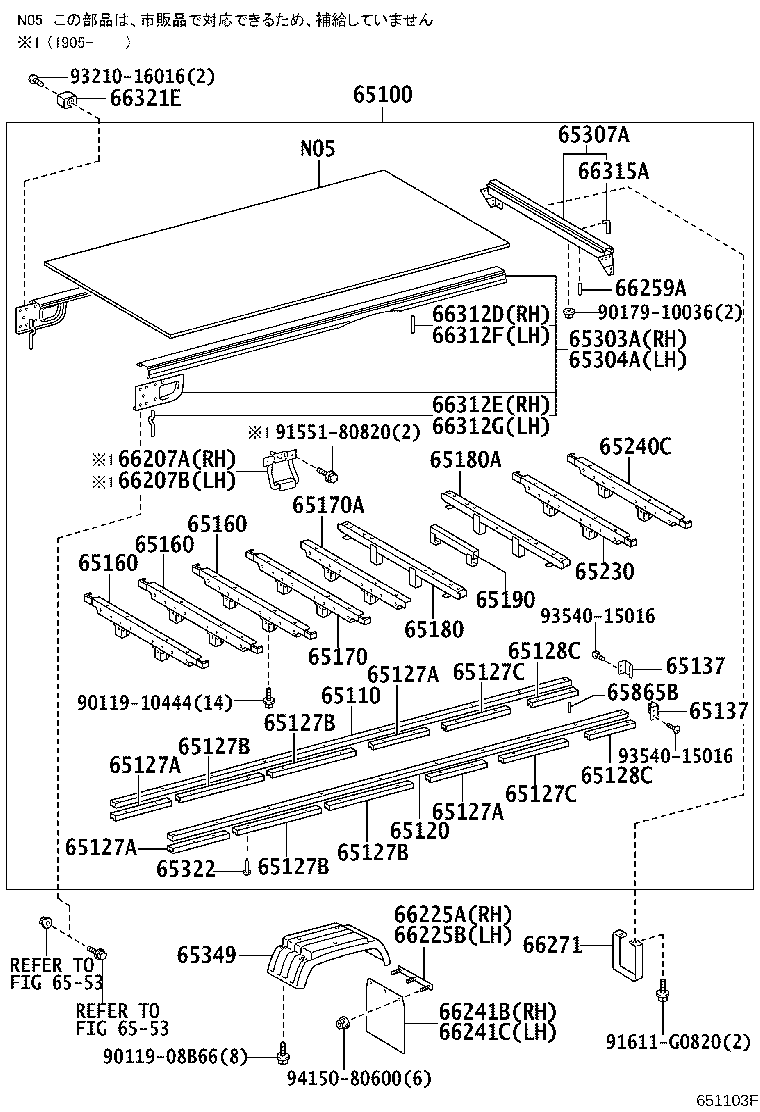

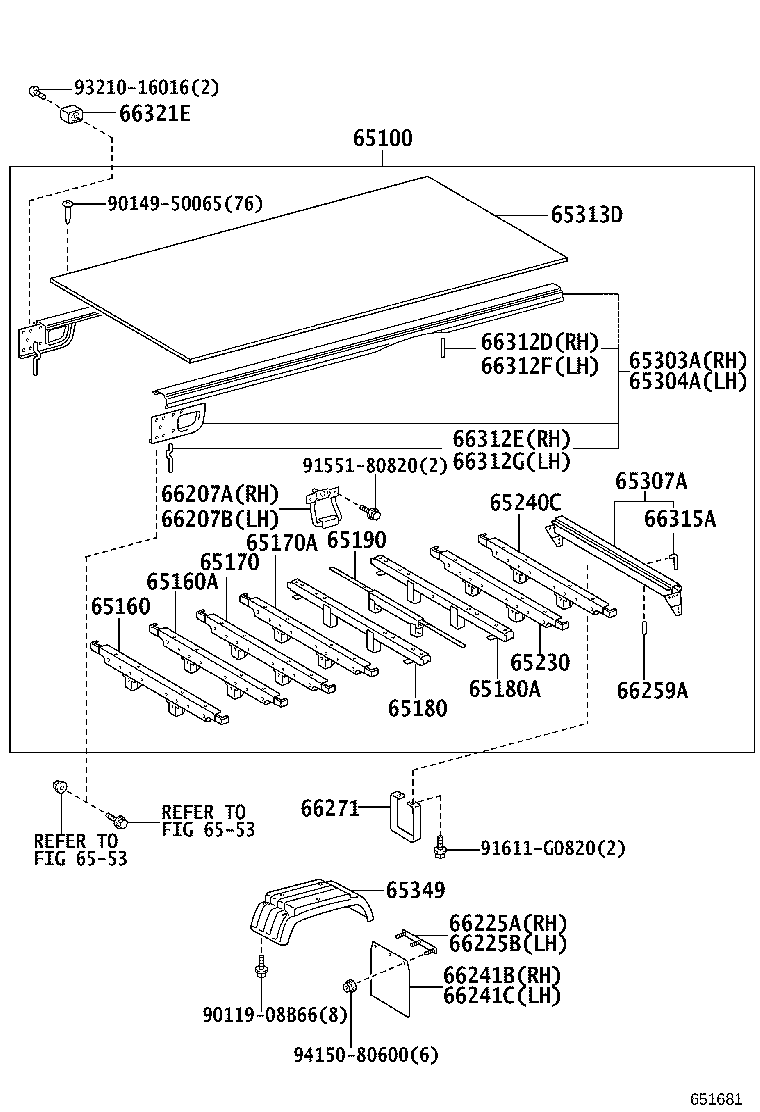

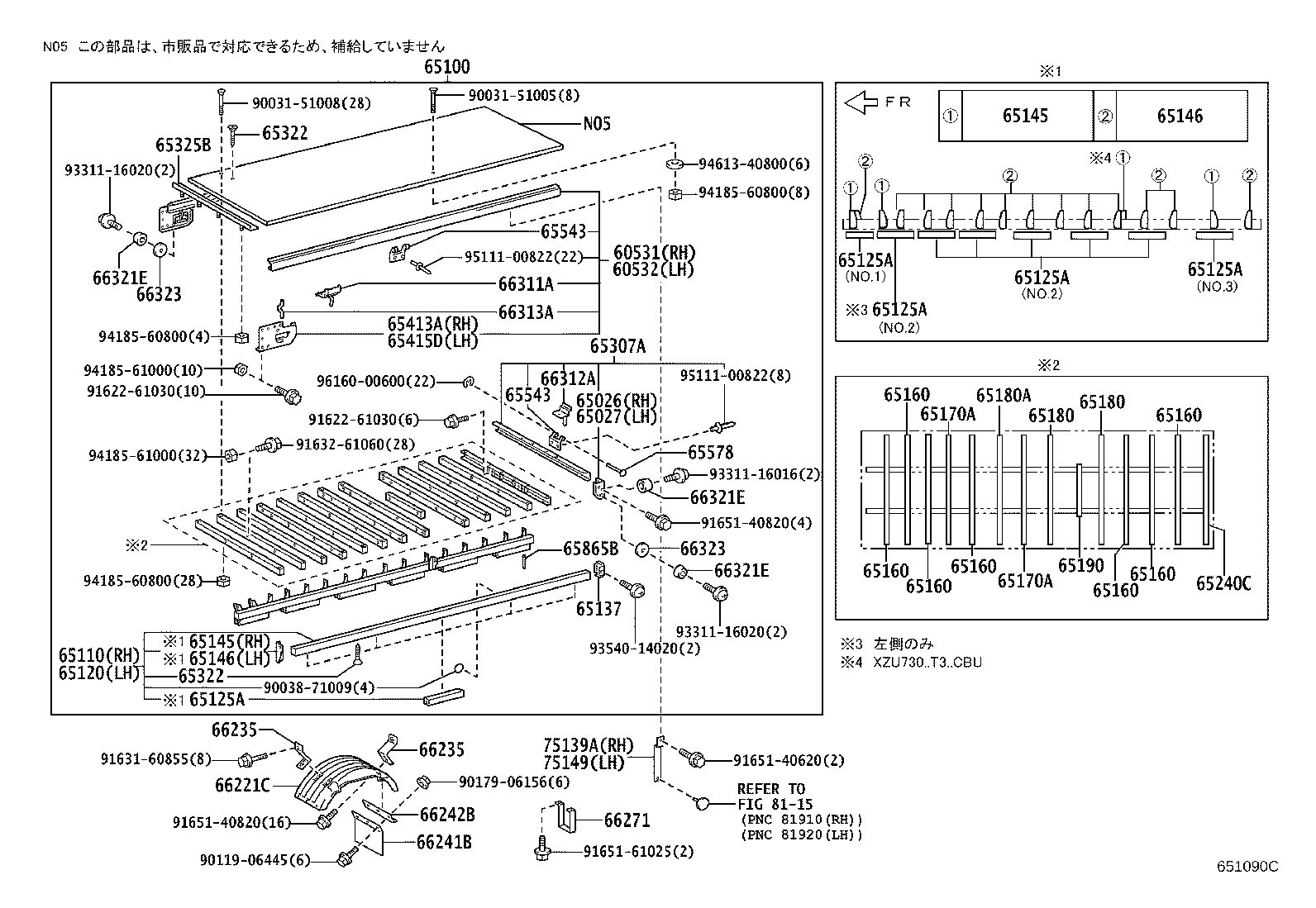

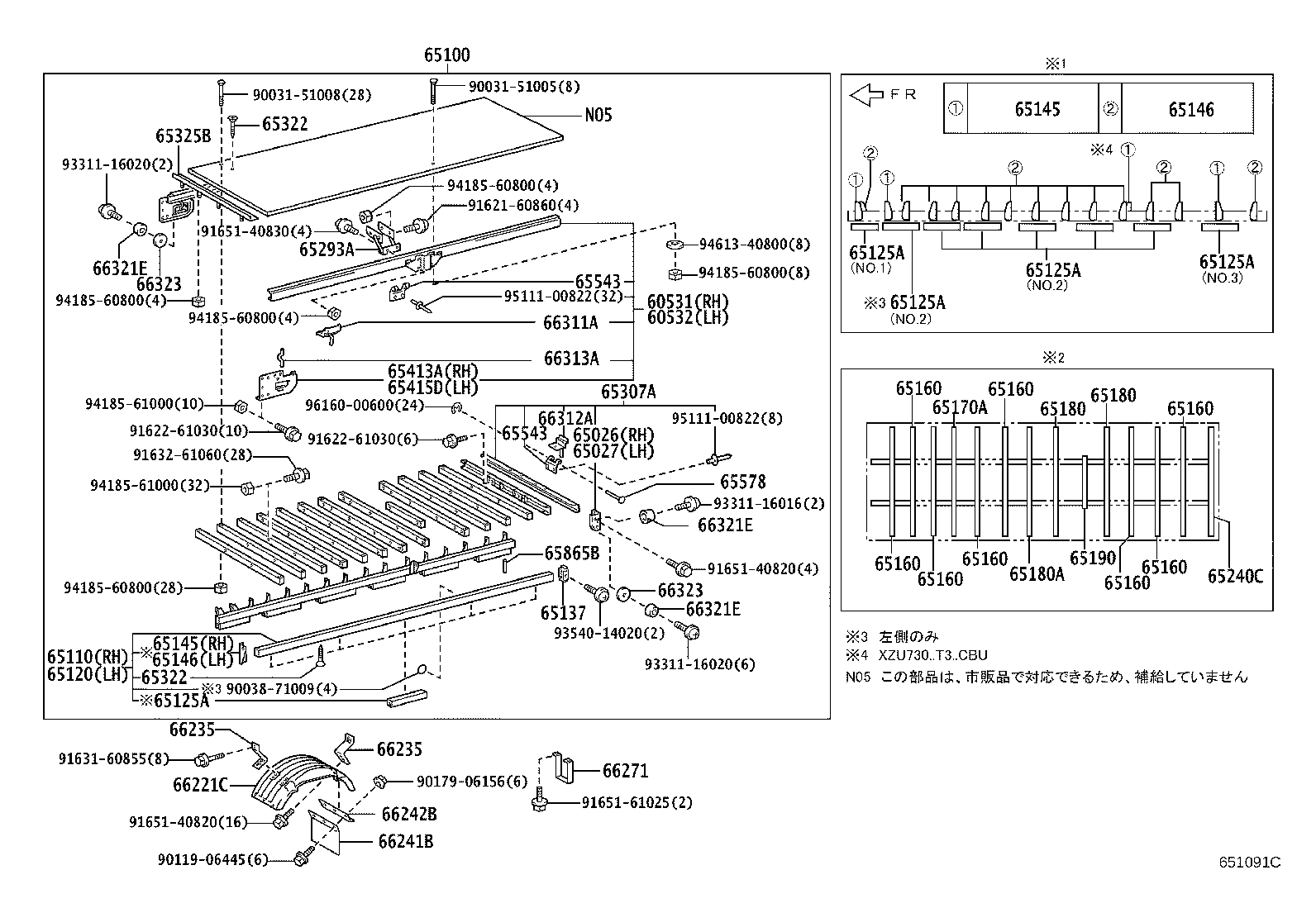

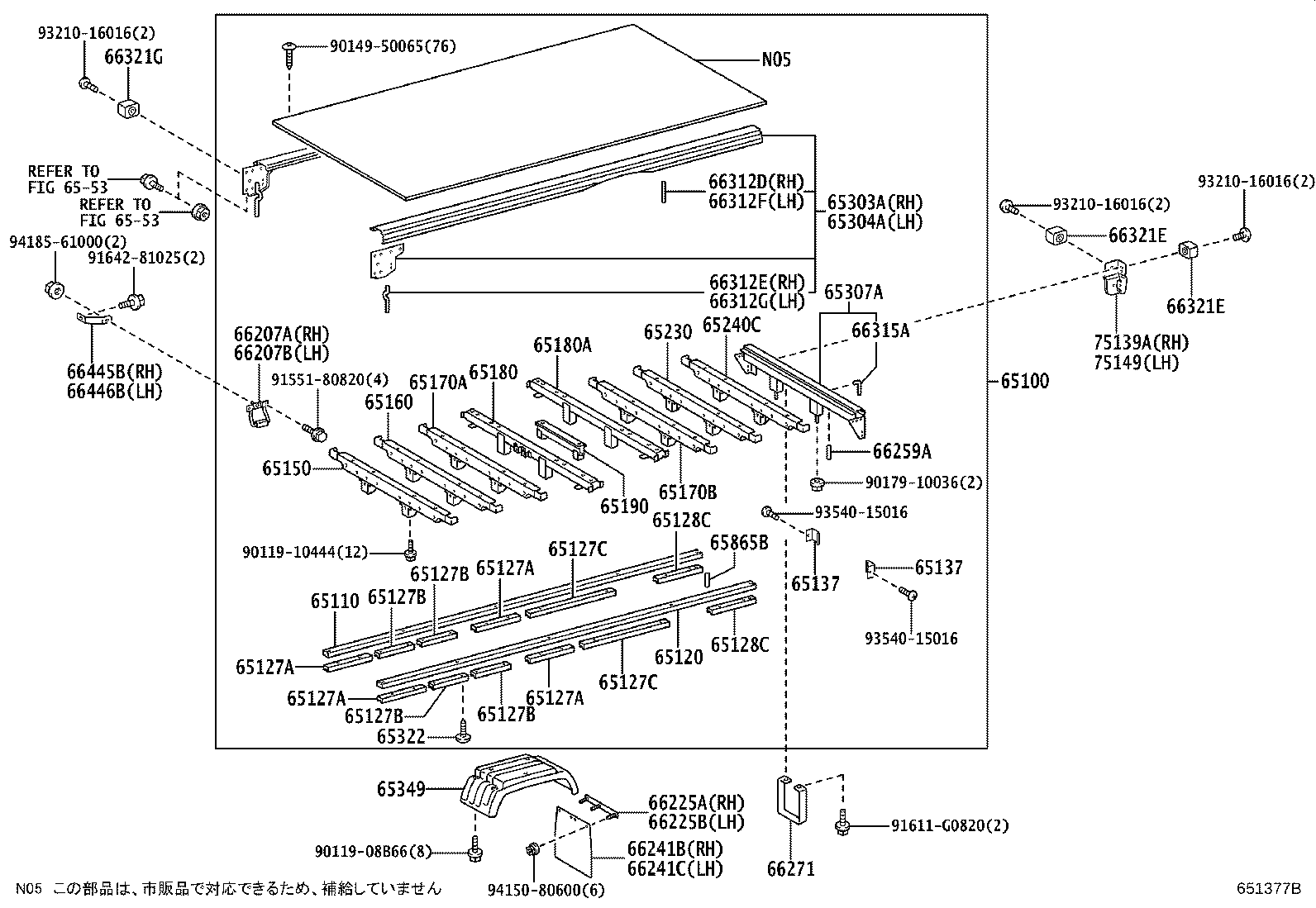

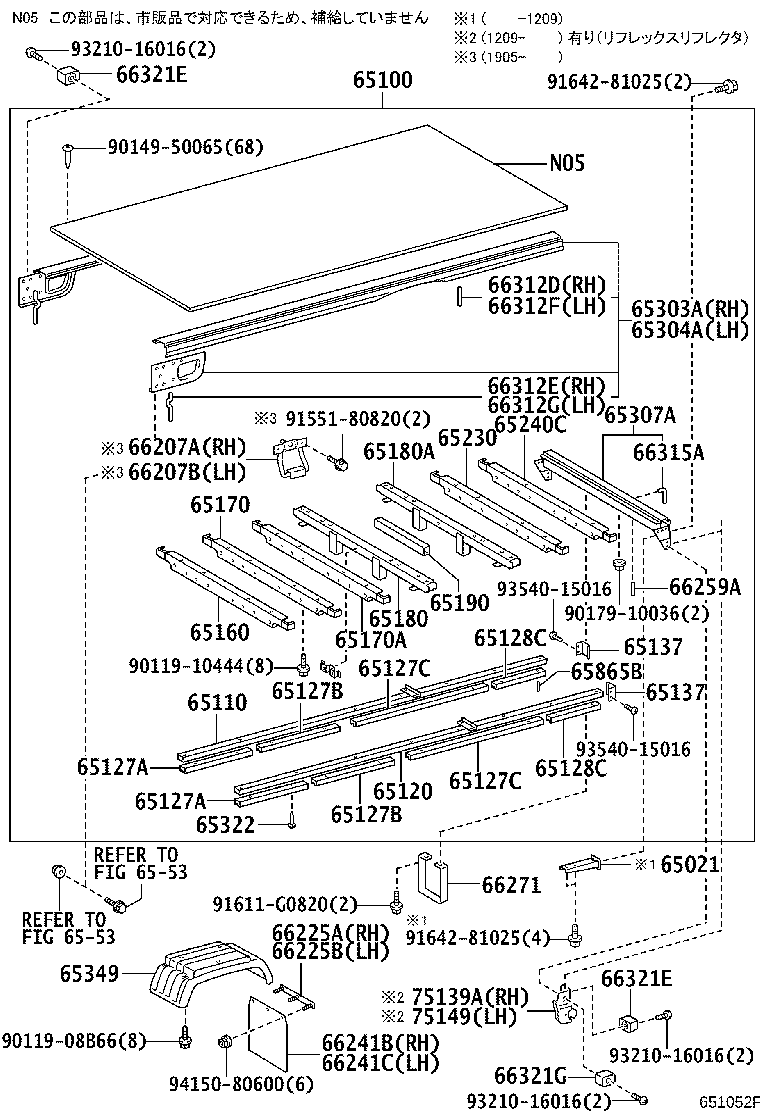

Figure 651059F 651059F 2011-07 → 2023-03 Figure 651051F 651051F 2011-07 → 2023-03 Figure 651052F 651052F 2011-07 → 2023-03 Figure 651062G 651062G 2011-07 → 2023-03 Figure 651068I 651068I 2011-07 → 2023-03 Figure 651069H 651069H 2011-07 → 2023-03 Figure 651069H 651069H 2019-05 → 2023-03 Figure 651069H 651069H 2019-05 → 2023-03 Figure 651063G 651063G 2011-07 → 2023-03 Figure 651103F 651103F 2011-07 → 2023-03 Figure 651071F 651071F 2011-07 → 2023-03 Figure 651093E 651093E 2011-07 → 2023-03 Figure 651055G 651055G 2011-08 → 2023-03 Figure 651056F 651056F 2011-08 → 2019-05 Figure 651056F 651056F 2015-05 → 2019-05 Figure 651056F 651056F 2019-05 → 2023-03 Figure 651057F 651057F 2011-08 → 2023-03 Figure 651058F 651058F 2011-08 → 2023-03 Figure 65169E 65169E 2023-03 → — Figure 65169F 65169F 2023-03 → — Figure 651681 651681 2023-03 → — Figure 651679 651679 2023-03 → — Figure 651680 651680 2023-03 → — Figure 651682 651682 2023-03 → — Figure 651684 651684 2023-03 → — Figure 651683 651683 2023-03 → — Figure 65169D 65169D 2023-03 → — Figure 651685 651685 2023-03 → — Figure 65169G 65169G 2023-03 → — Figure 65169B 65169B 2023-03 → — Figure 65169C 65169C 2023-03 → — Figure 651193C 651193C 2011-07 → — Figure 651054E 651054E 2011-07 → 2019-05 Figure 651054E 651054E 2017-05 → 2019-05 Figure 651054E 651054E 2019-05 → — Figure 651090C 651090C 2011-07 → — Figure 651092C 651092C 2011-07 → — Figure 651091C 651091C 2011-07 → — Figure 651377B 651377B 2019-05 → —

Part groups

PNCDescription
57292A Plate, Floor Board Set
60531 Frame Sub-assy, Floor Side, RH
60532 Frame Sub-assy, Floor Side, LH
65021 Bracket Sub-assy, Main Sill, Lower
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65127A Shim, Main Sill, Lower NO.1
65127B Shim, Main Sill, Lower NO.2
65127C Shim, Main Sill, Lower NO.3
65128C Shim, Main Sill, Lower NO.4
65137 Cover, Main Sill End
65145 Gusset, Cross Sill
65146 Gusset, Cross Sill
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65170B Sill Assy, Cross, NO.7
65180 Sill Assy, Cross, NO.4
65180A Sill Assy, Cross, NO.6
65190 Sill Assy, Cross, NO.5
65230 Sill Assy, Cross, NO.8
65240C Sill Assy, Cross, NO.9
65293A Holder, Center Post
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307A Frame Sub-assy, Floor, Rear
65311C Board, Floor, Outside RH
65312 Board, Floor, Outside LH
65313D Board, Floor
65322 Nail
65325B Plate, Floor Board, Front
65341A Board, Floor, NO.1
65342A Board, Floor, NO.2
65349 Fender, Floor Side
65395 Bracket, Center Post Outer, RH
65396 Bracket, Center Post Outer, LH
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
65543 Hinge, Side Gate Female
65578 Pin, Side Gate Hinge
65865B Pin, Cover Top Guide
66207A Step Sub-assy, Rear Body, RH
66207B Step Sub-assy, Rear Body, LH
66219B Extension, Rear Fender
66221C Plate, Rear Fender, Rear
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66235 Stay, Rear Fender, NO.1
66241B Baffle, Rubber
66241C Buffle, Rubber
66242B Plate, Baffle Rubber Set
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66312A Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66313A Hook, Rope, NO.3
66315A Hook, Rope
66321 Bumper, Gate Rubber
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66323 Spacer, Gage Rubber Bumper
66445B Brace, Frame TO Rear Body
66446B Brace, Frame TO Rear Body, NO.2
75139A Bracket, Reflex Reflector, RH
75149 Bracket, Reflex Reflector, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
