Toyota Dyna/Toyoace
2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan
Supported model
Data version 2022-07

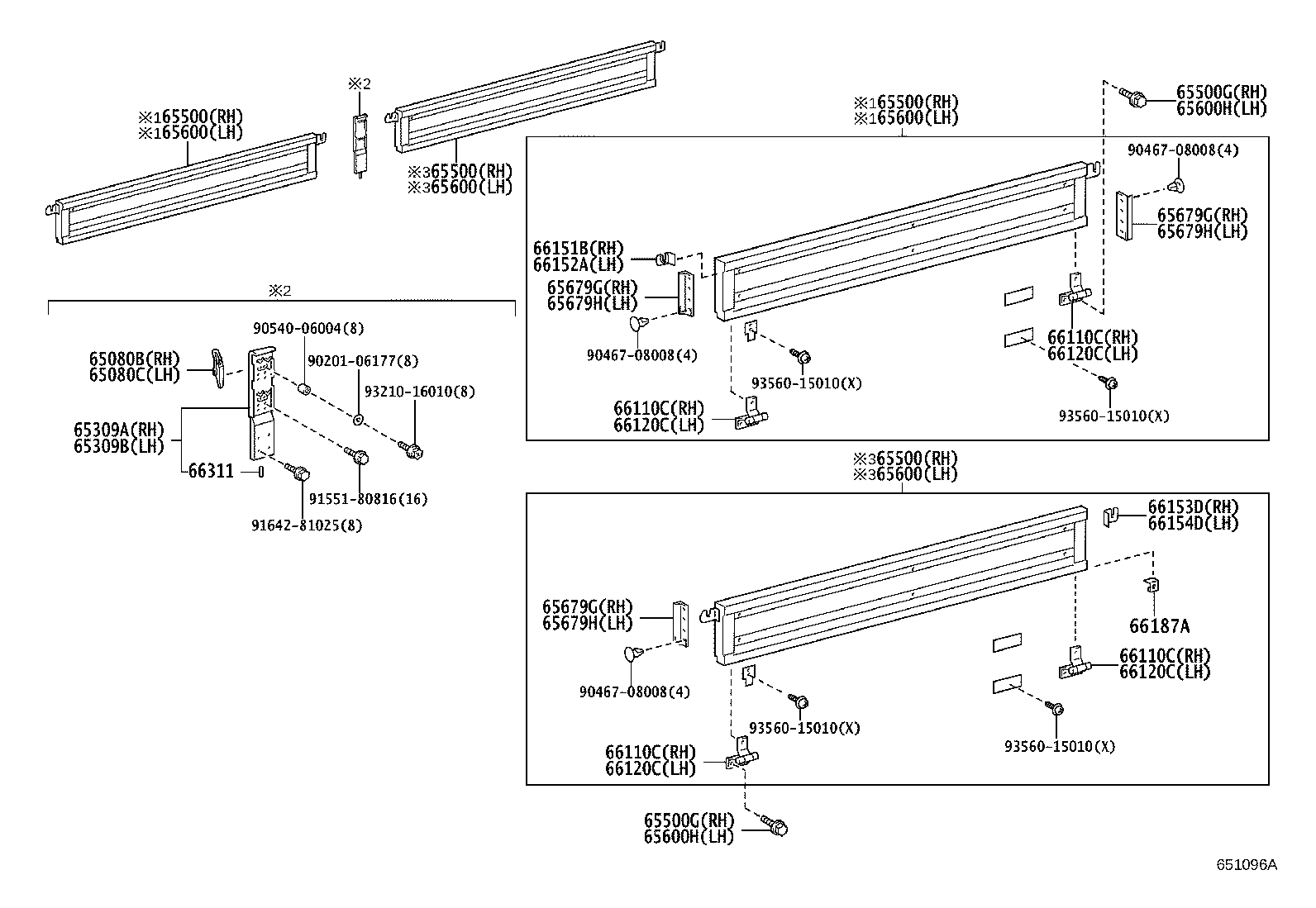

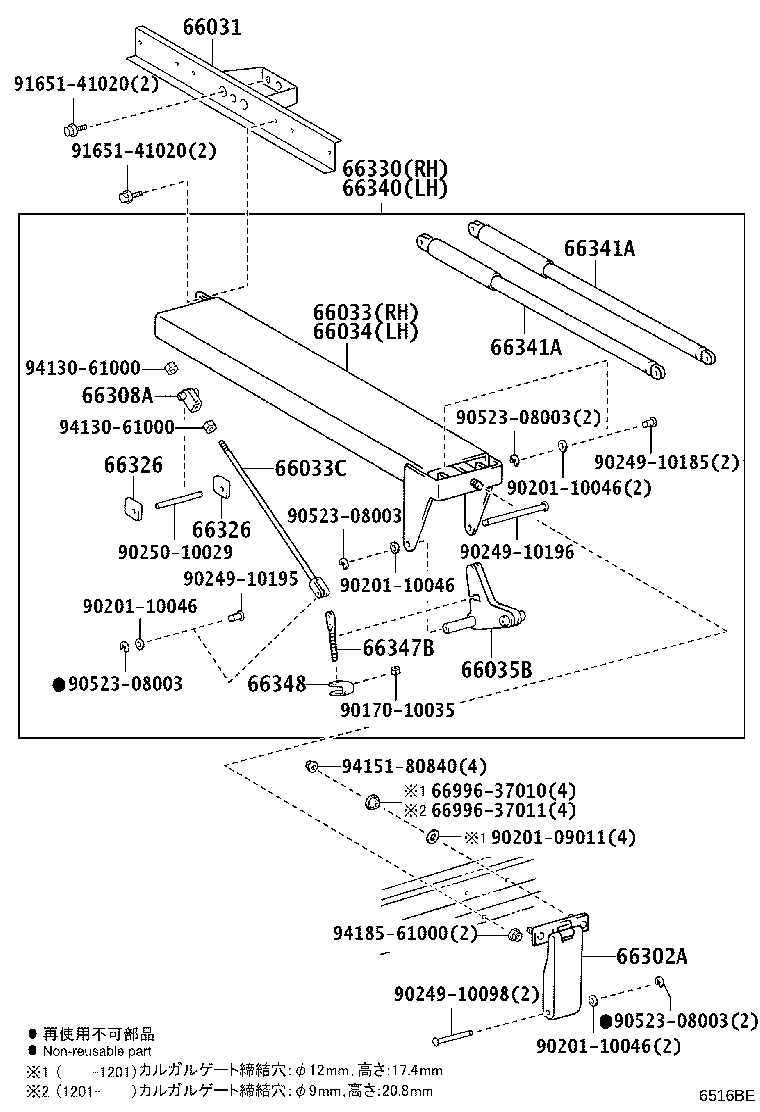

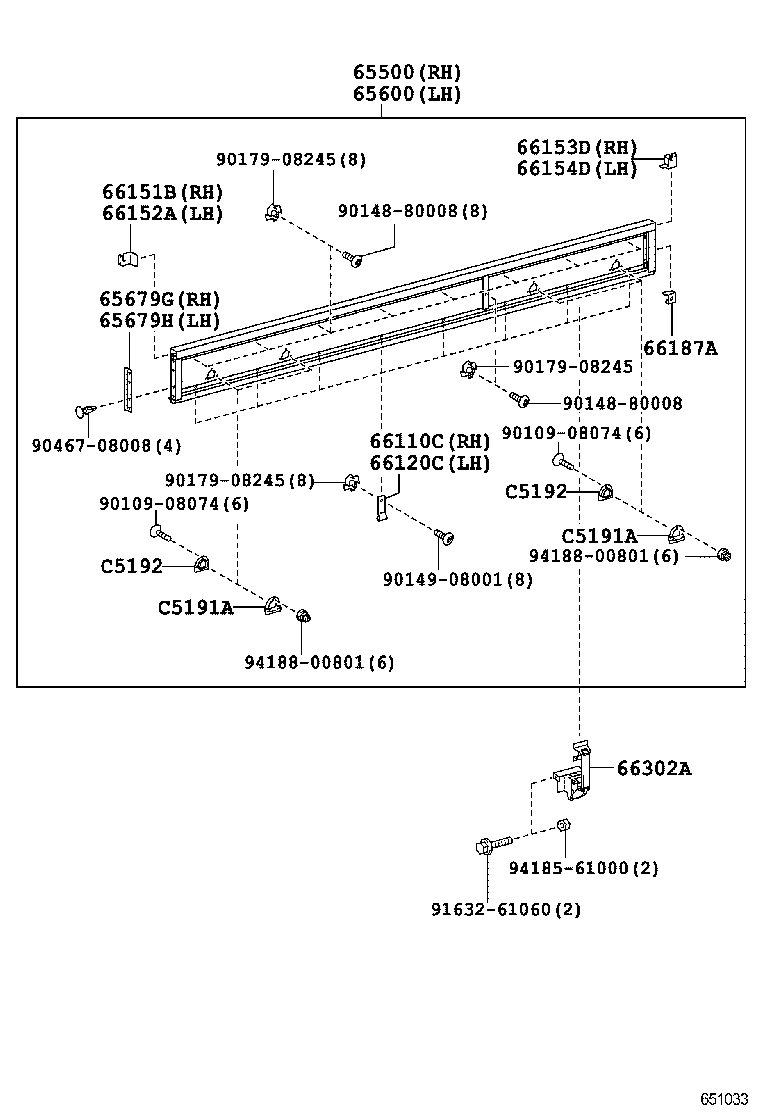

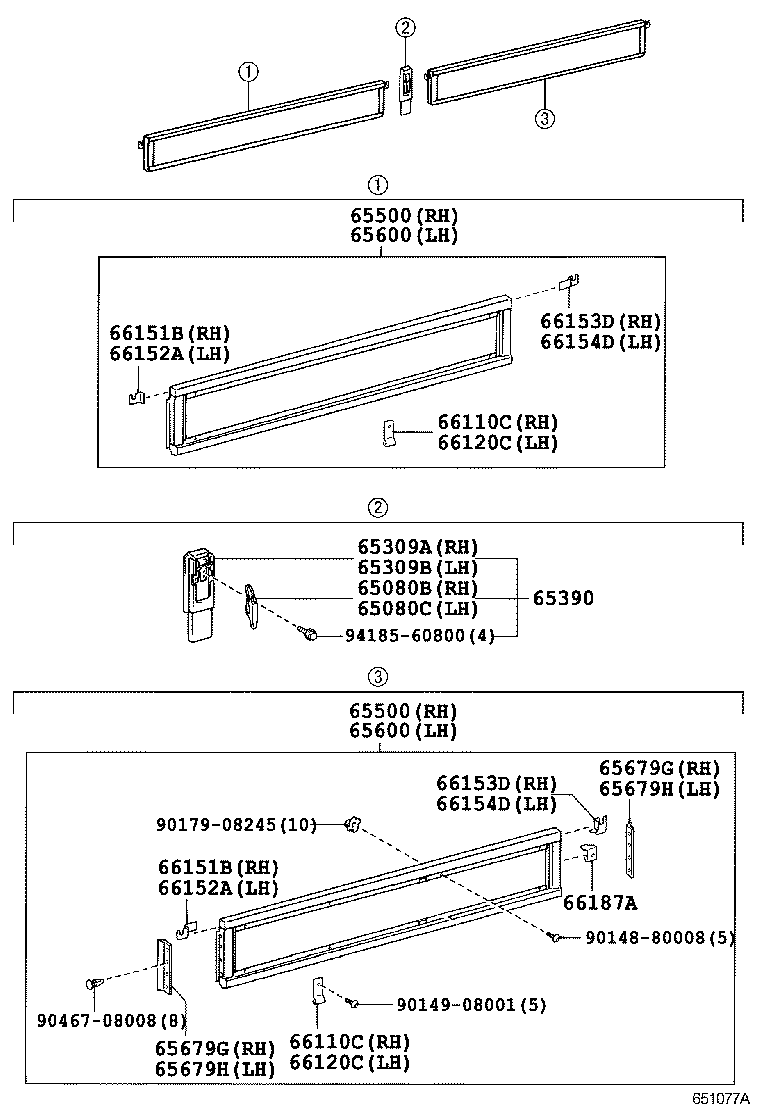

Rear Body Side Panel
39 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 65080B | Handle Assy, Side Gate Latch |
| 65080C | Handle Assy, Side Gate Latch |
| 65309A | Post Sub-assy, RH |
| 65309B | Post Sub-assy, LH |
| 65390 | Post Assy, Center |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65500G | Bolt, W/Washer(FOR SIDE GATE, RH) |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65600H | Bolt, W/Washer(FOR SIDE GATE, LH) |
| 65630B | Lock Assy, Side Gate, RH |
| 65630C | Lock Assy, Side Gate, LH |
| 65679G | Seal, Side Gate |
| 65679H | Seal, Side Gate |
| 66031 | Bracket Sub-assy, Gate Helper, NO.1 |
| 66033 | Bracket Sub-assy, Gate Helper, NO.3 |
| 66033C | Rod Sub-assy, Gate Helper Tension |
| 66034 | Bracket Sub-assy, Gate Helper, NO.3 LH |
| 66035B | Bellcrank Sub-assy, Gate Helper |
| 66110C | Hinge Assy, Side Gate, NO.1 RH |
| 66120C | Hinge Assy, Side Gate, NO.1 LH |
| 66151B | Latch, Side Gate, Front RH |
| 66152A | Latch, Side Gate, Front LH |
| 66153D | Latch, Side Gate, Rear RH |
| 66154D | Latch, Side Gate, Rear LH |
| 66187A | Latch, Side Gate Support |
| 66243B | Protector, Rear Body, NO.1 |
| 66243H | Protector, Rear Body, NO.1 |
| 66302A | Link Sub-assy, Gate Helper |
| 66308A | End Sub-assy, Gate Helper Rod, NO.2 |
| 66311 | Hook, Rope |
| 66326 | Slider, Rod Control |
| 66330 | Helper Assy, Gate, RH |
| 66340 | Helper Assy, Gate, LH |
| 66341A | Stay, Gate Helper |
| 66342A | Spacer, Gate Helper |
| 66347B | Bolt, Gate Helper Bellcrank Adjust |
| 66348 | Retainer, Gate Helper Bellcrank Adjust Bolt |
| C5191A | Plate, Gate Rope Through, Outer |
| C5192 | Plate, Gate Rope Through, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
