Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

42 part groups · 33 illustrations

Illustrations

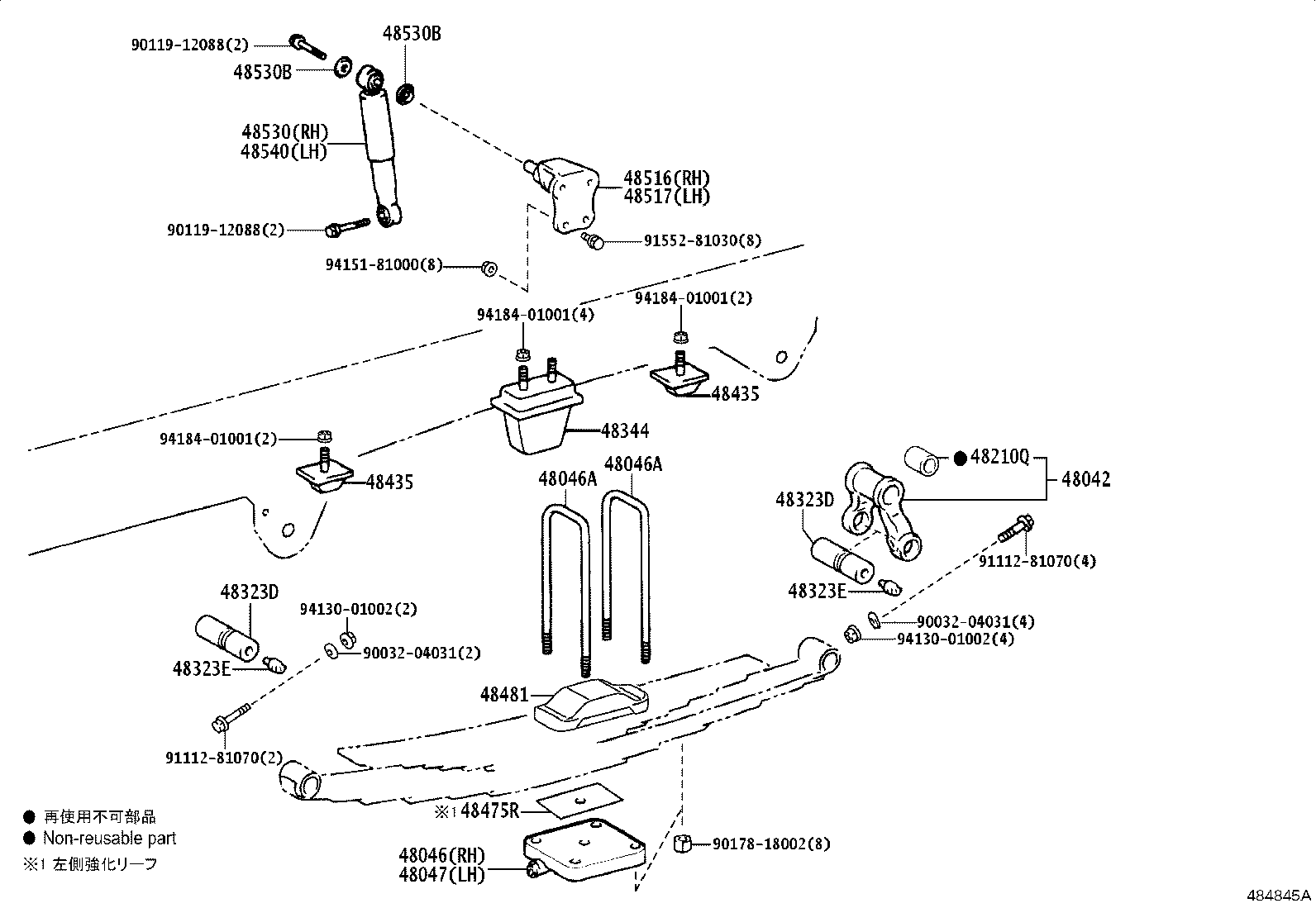

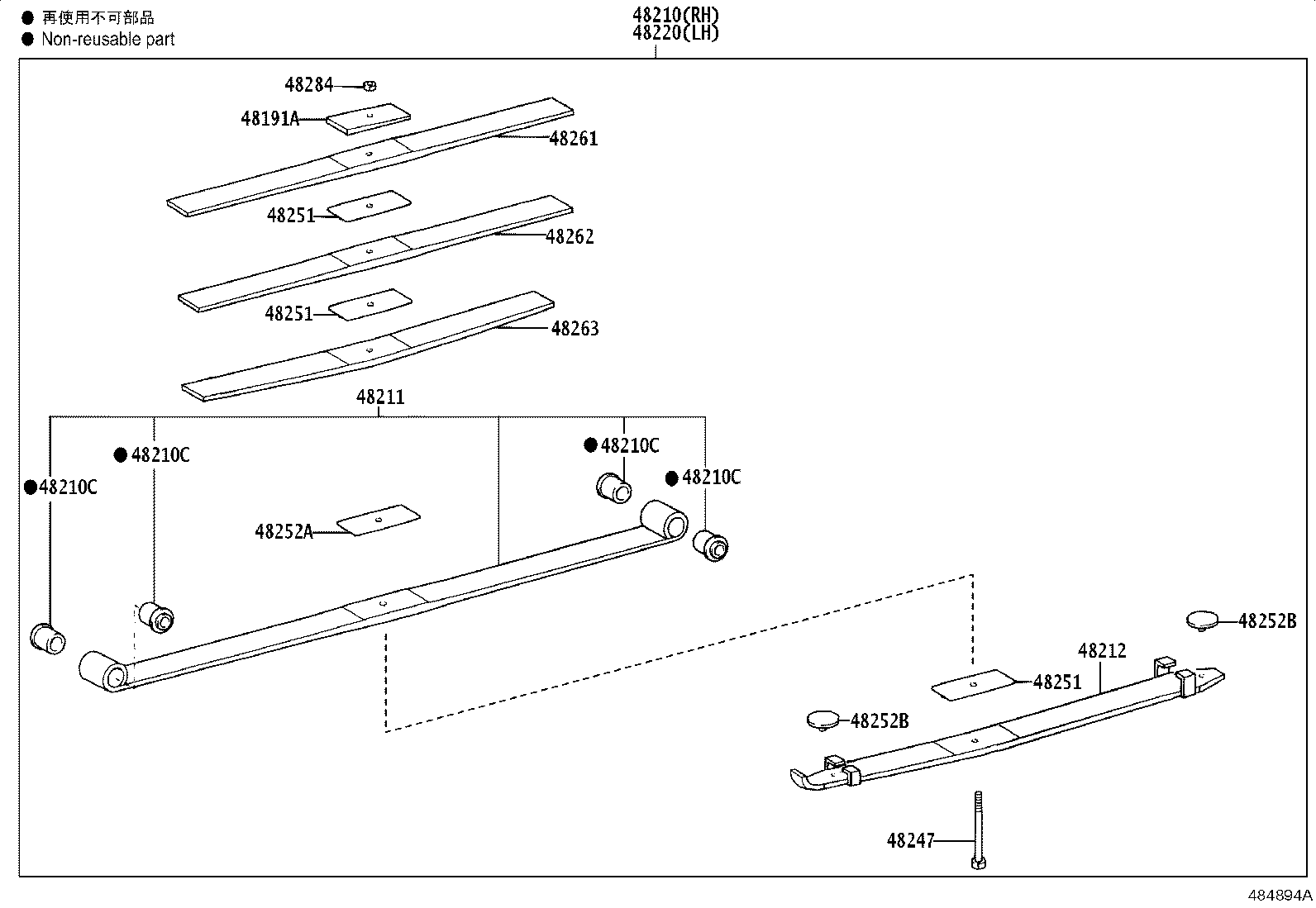

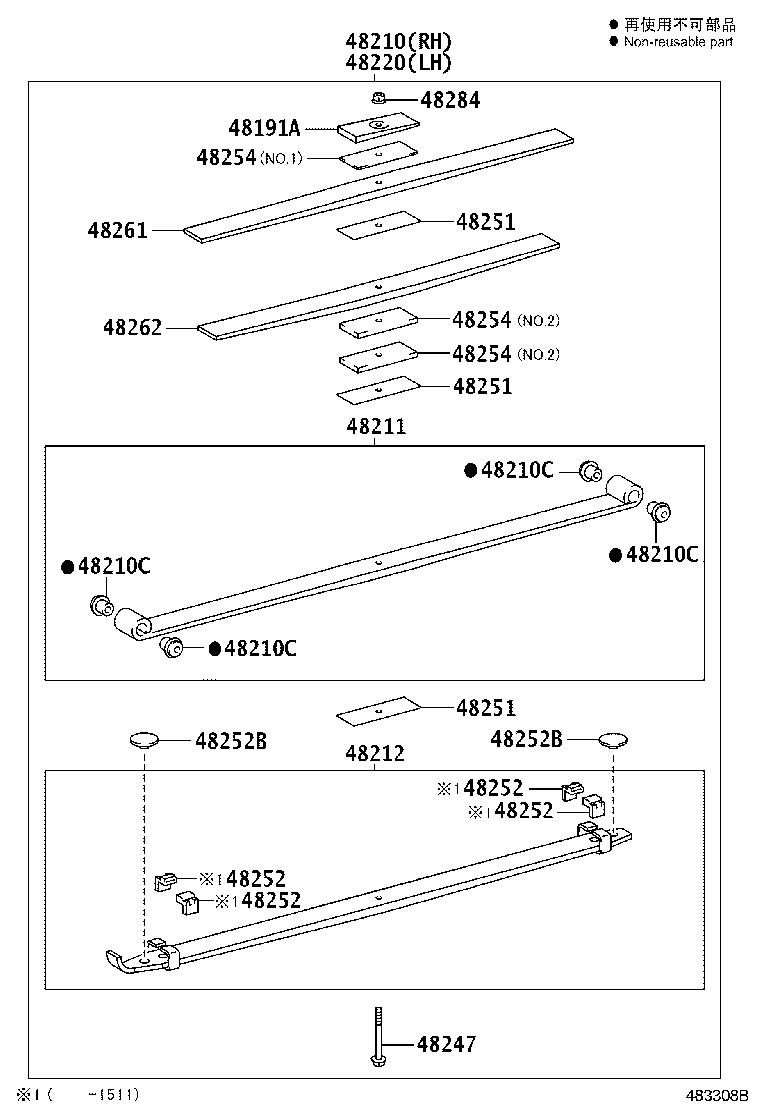

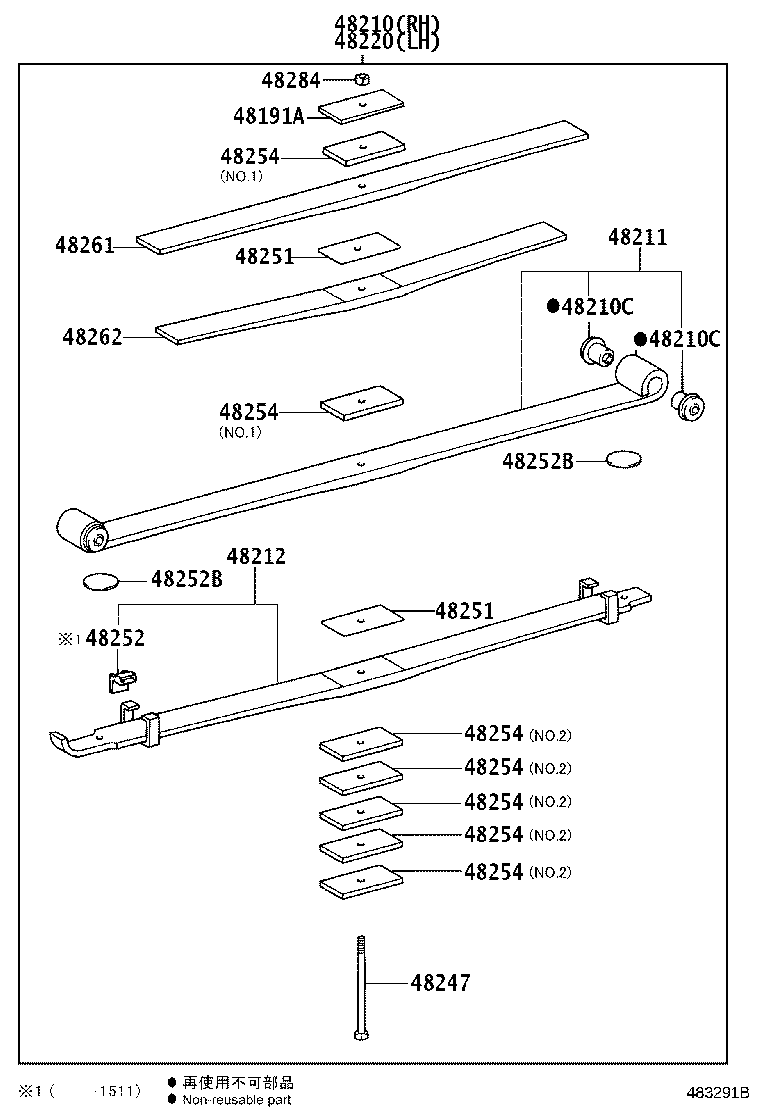

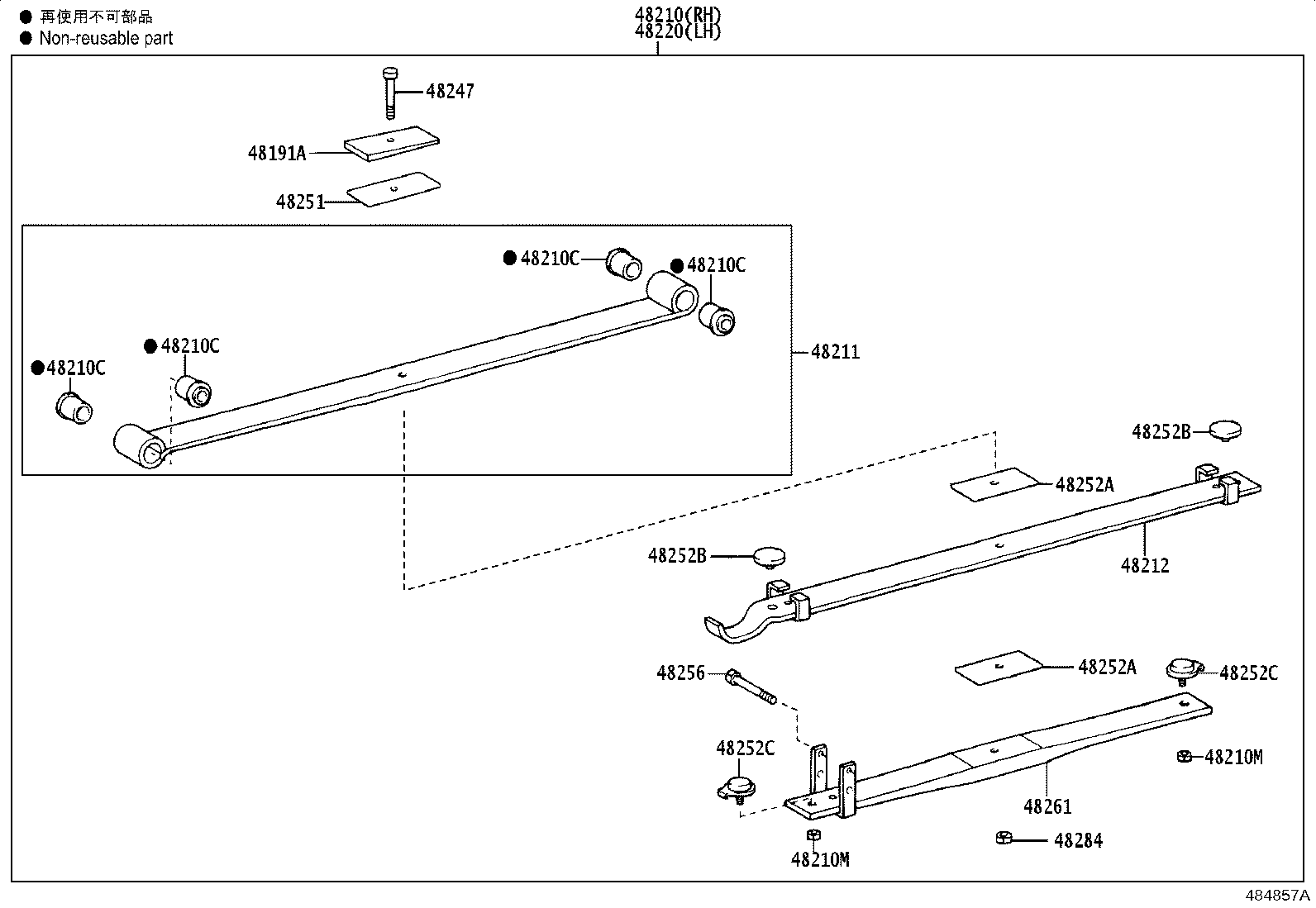

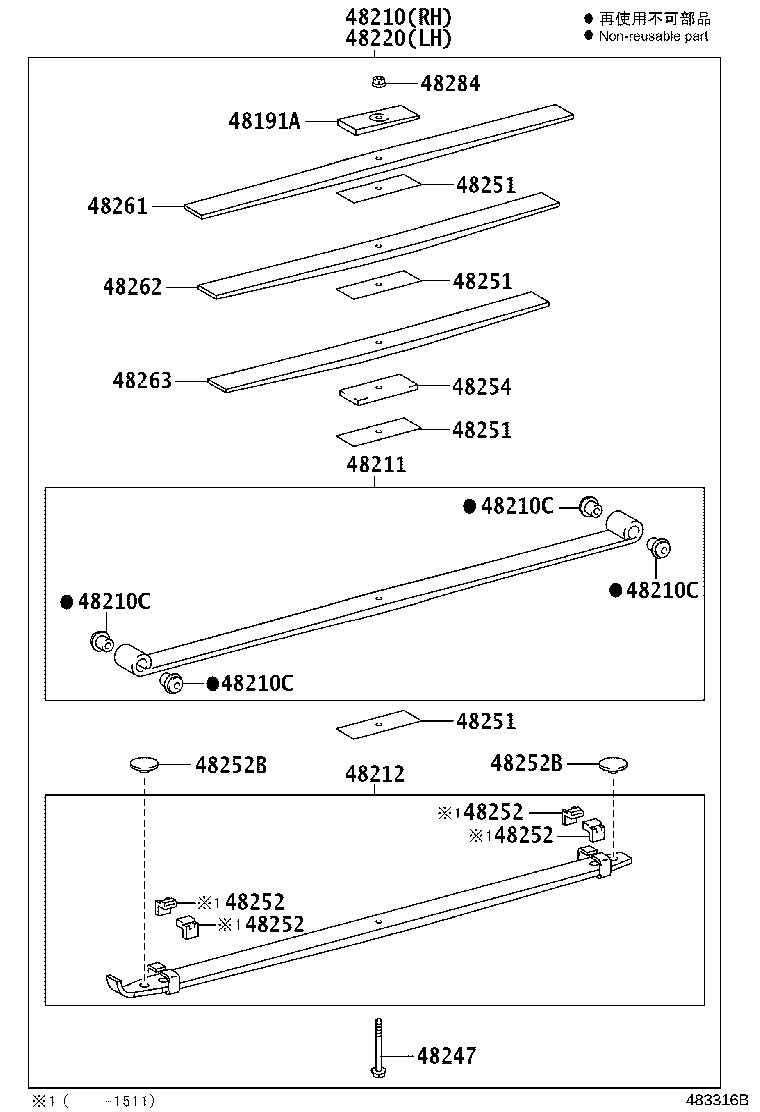

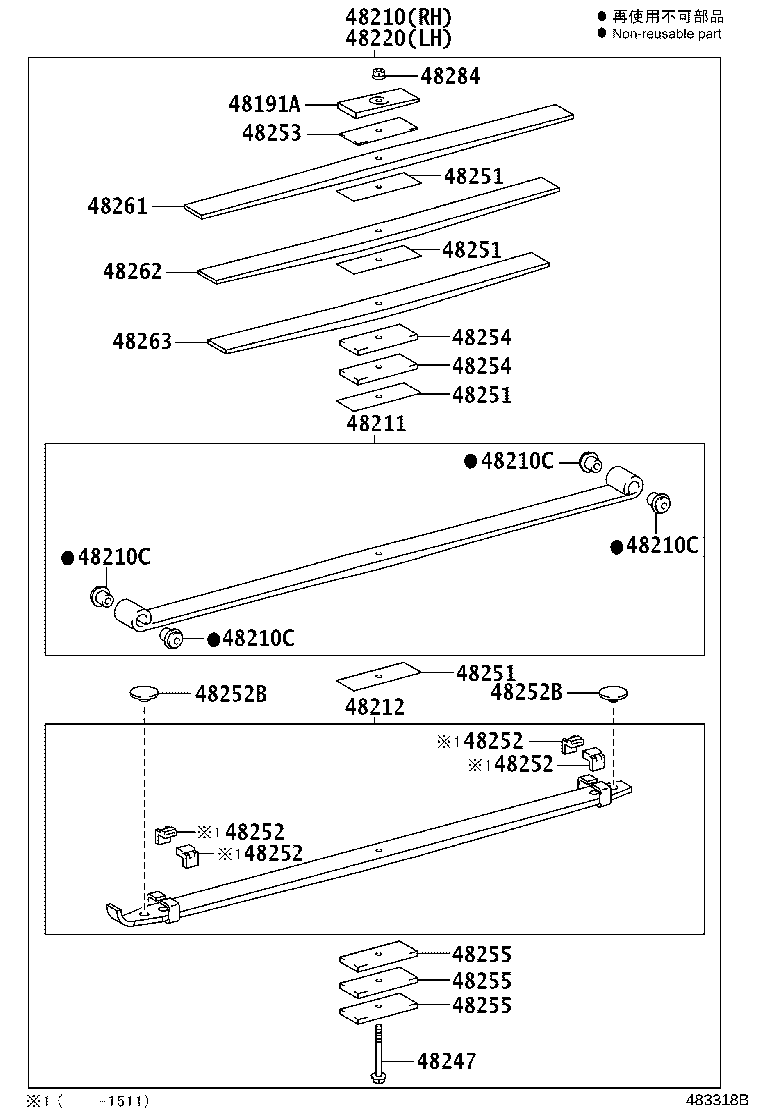

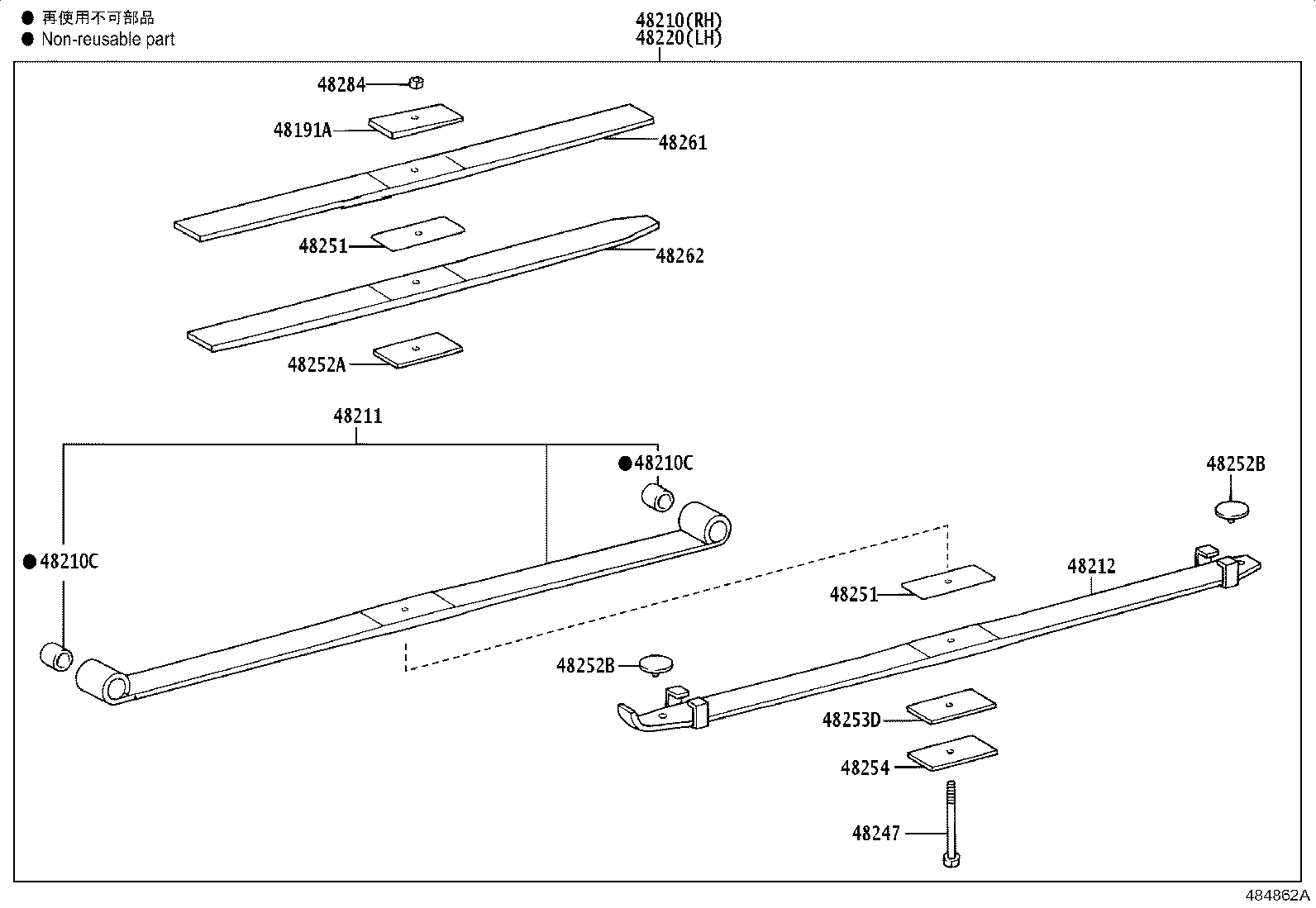

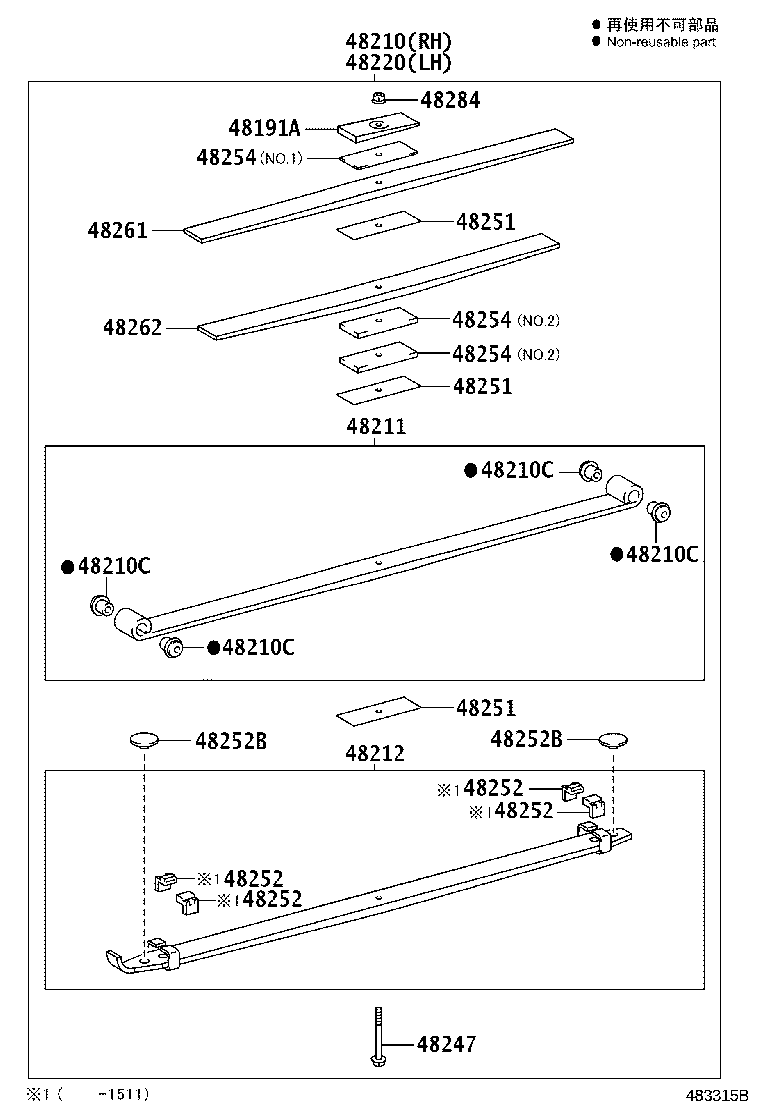

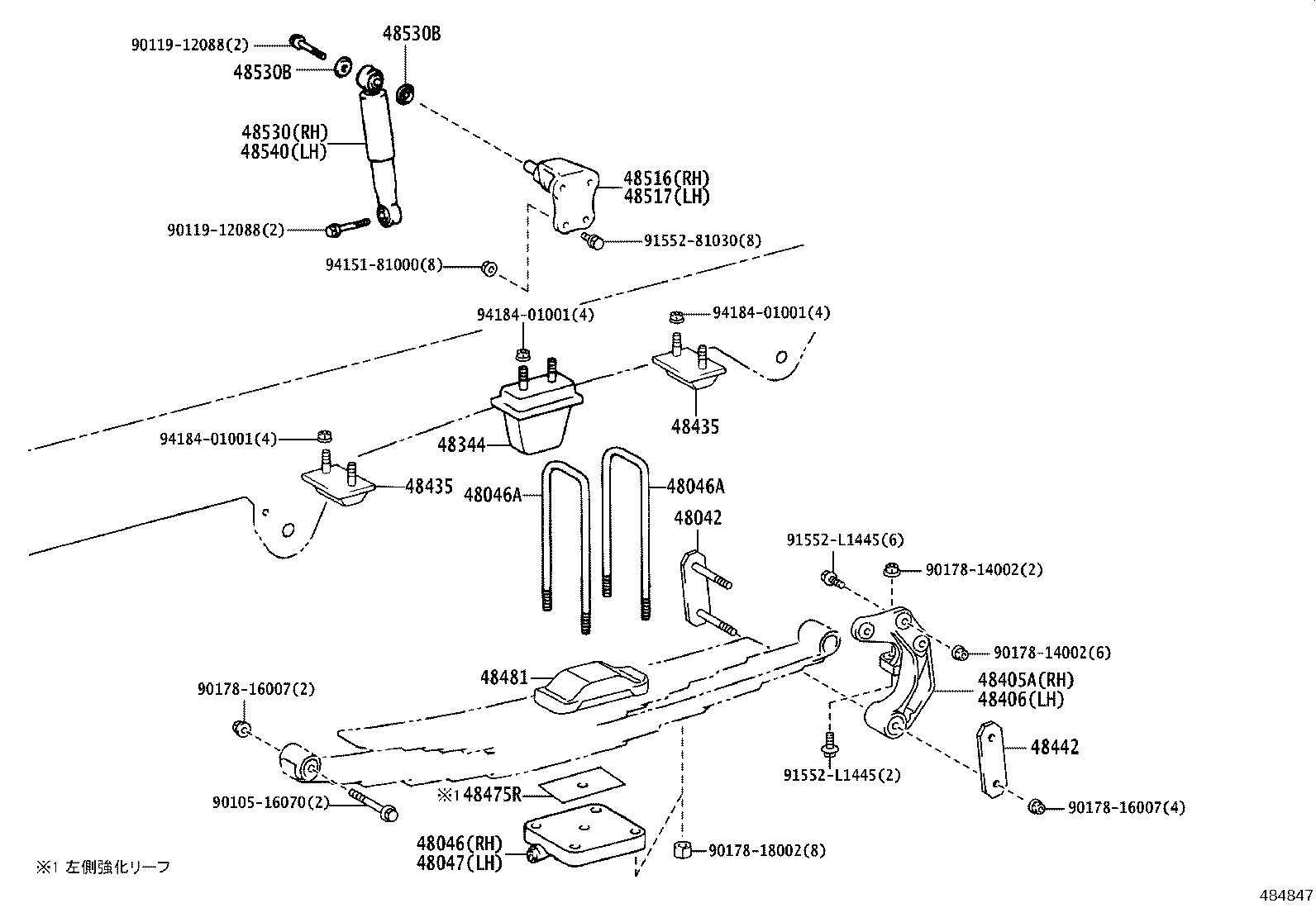

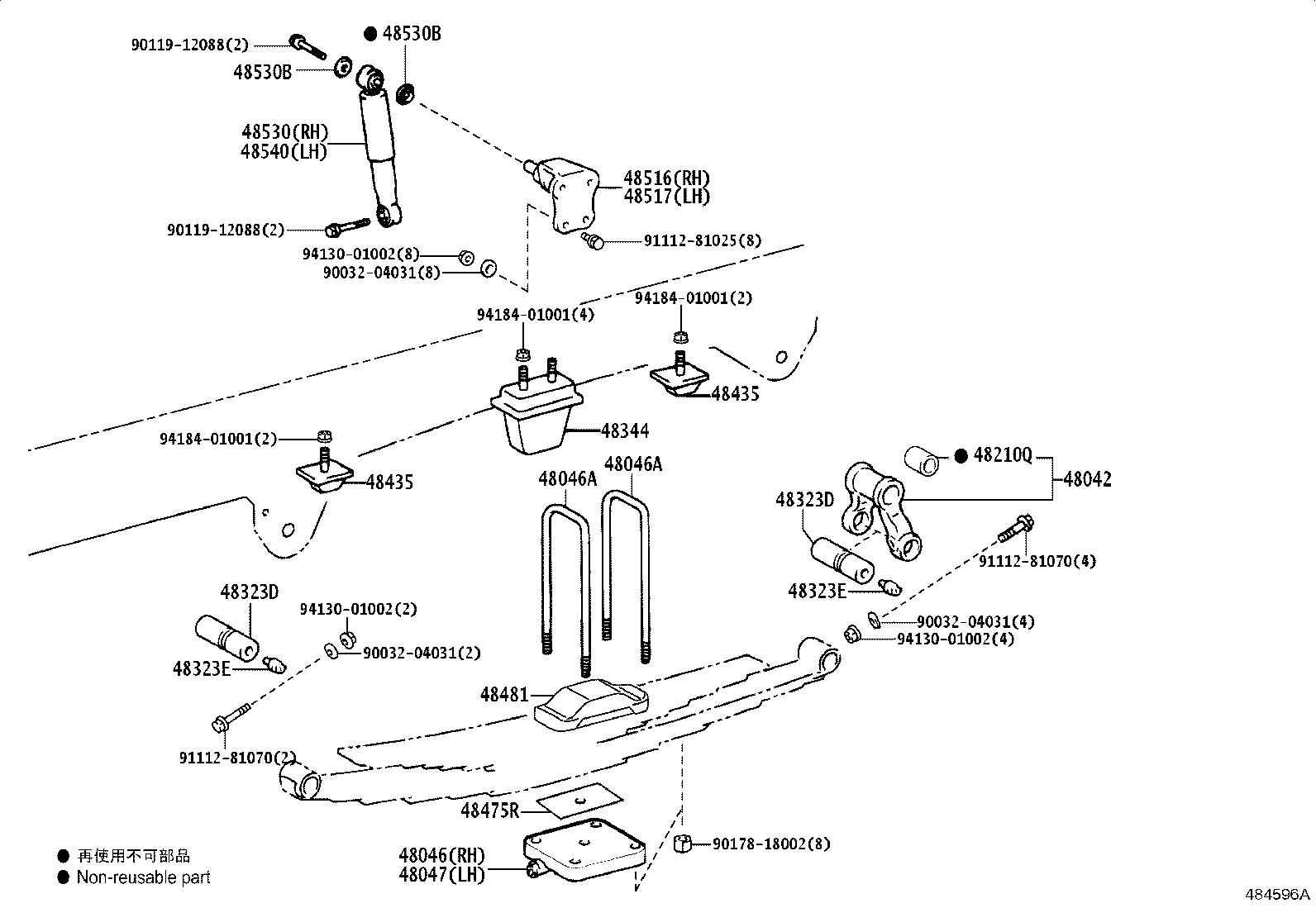

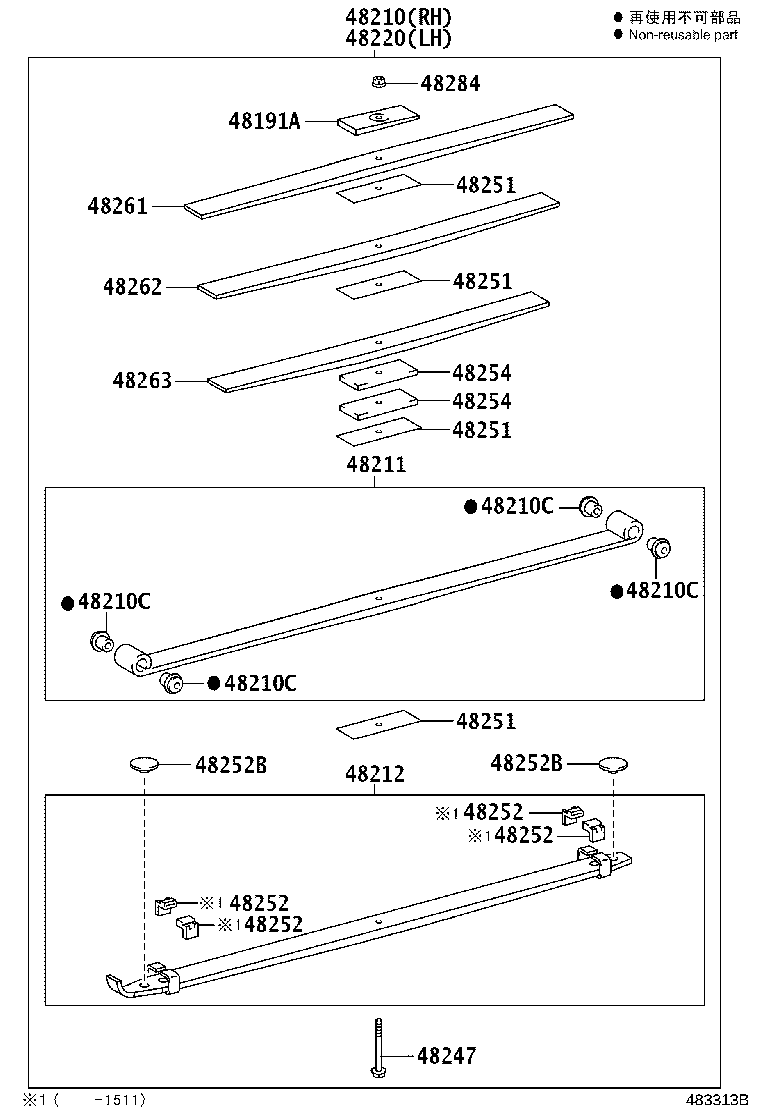

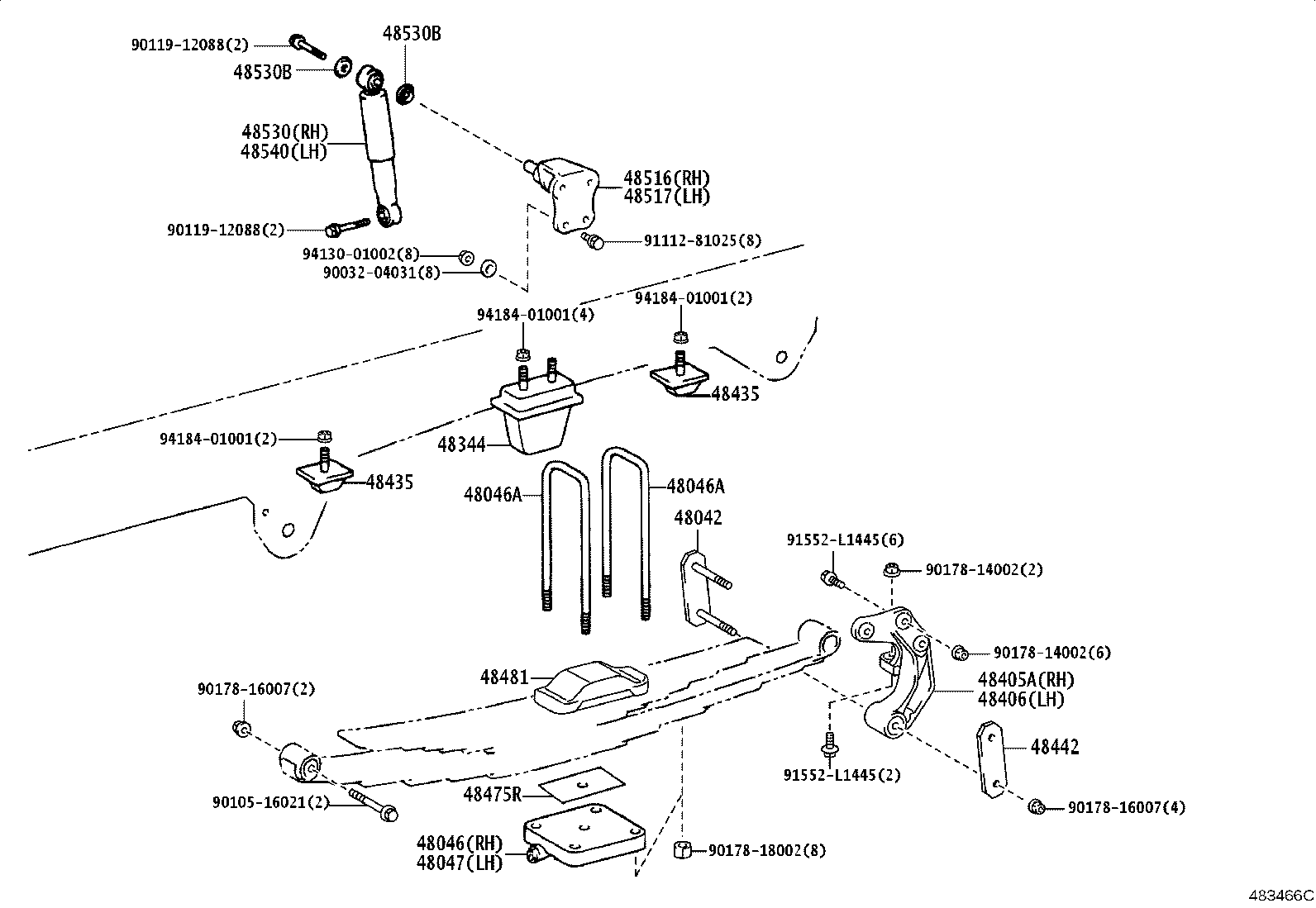

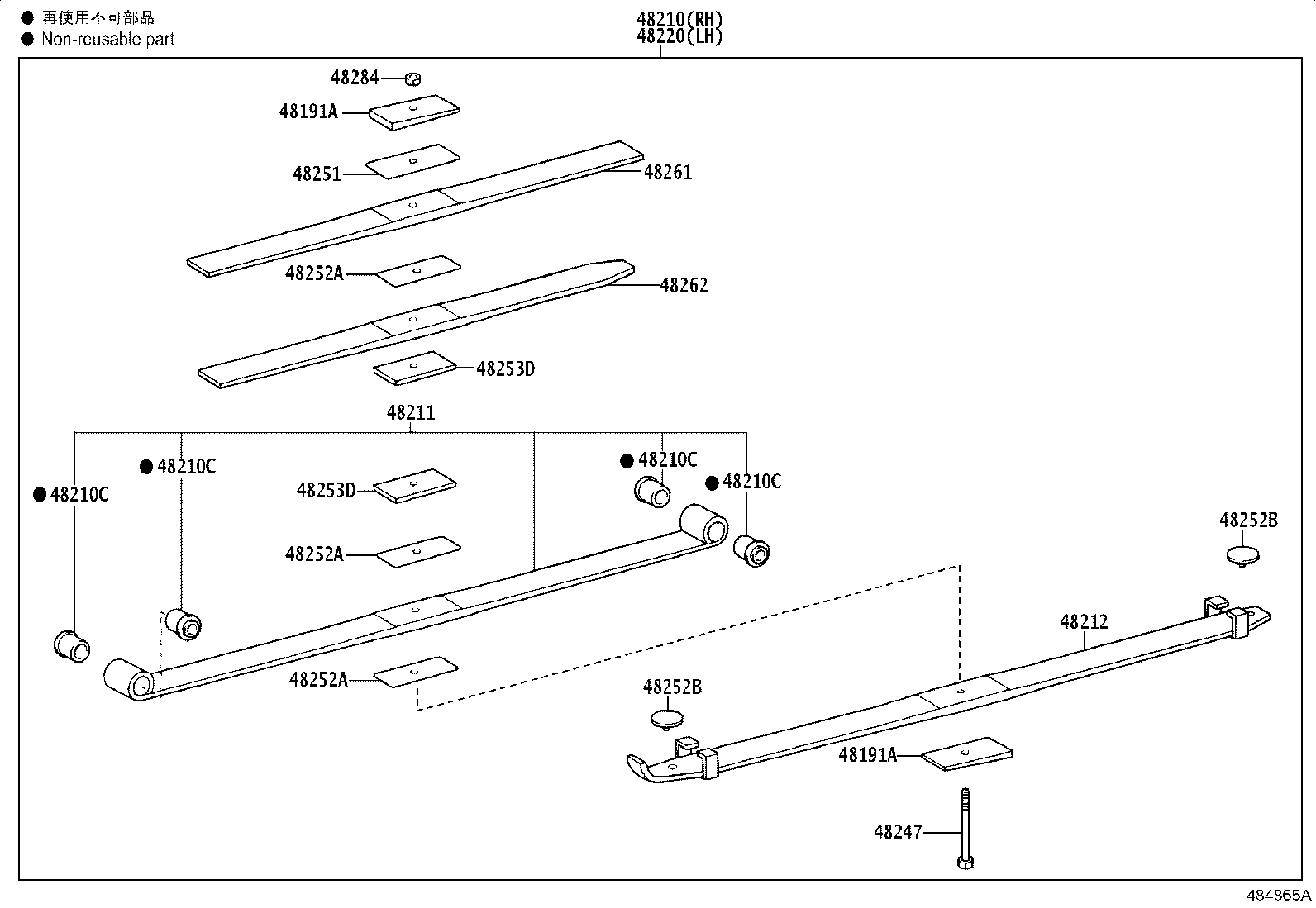

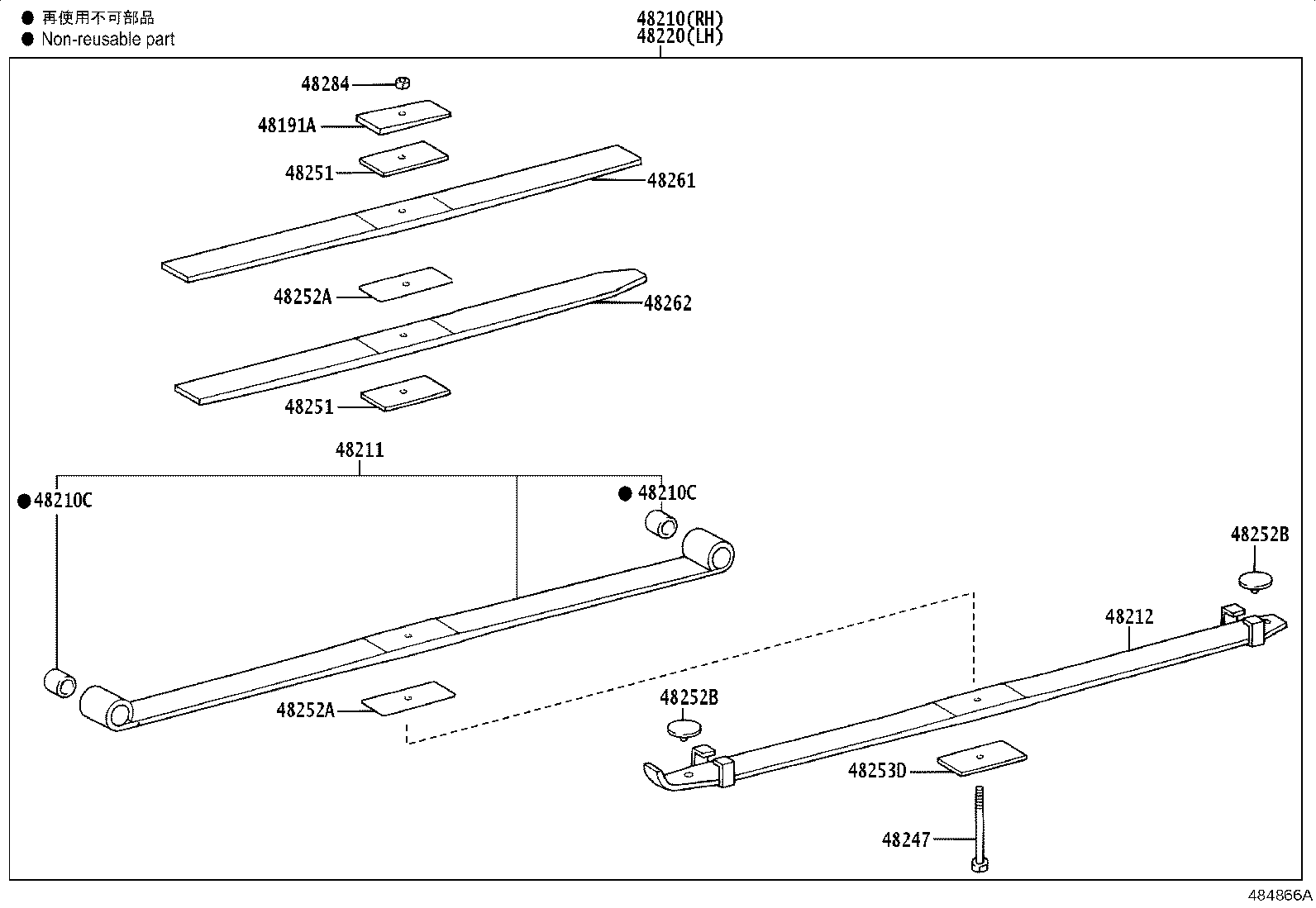

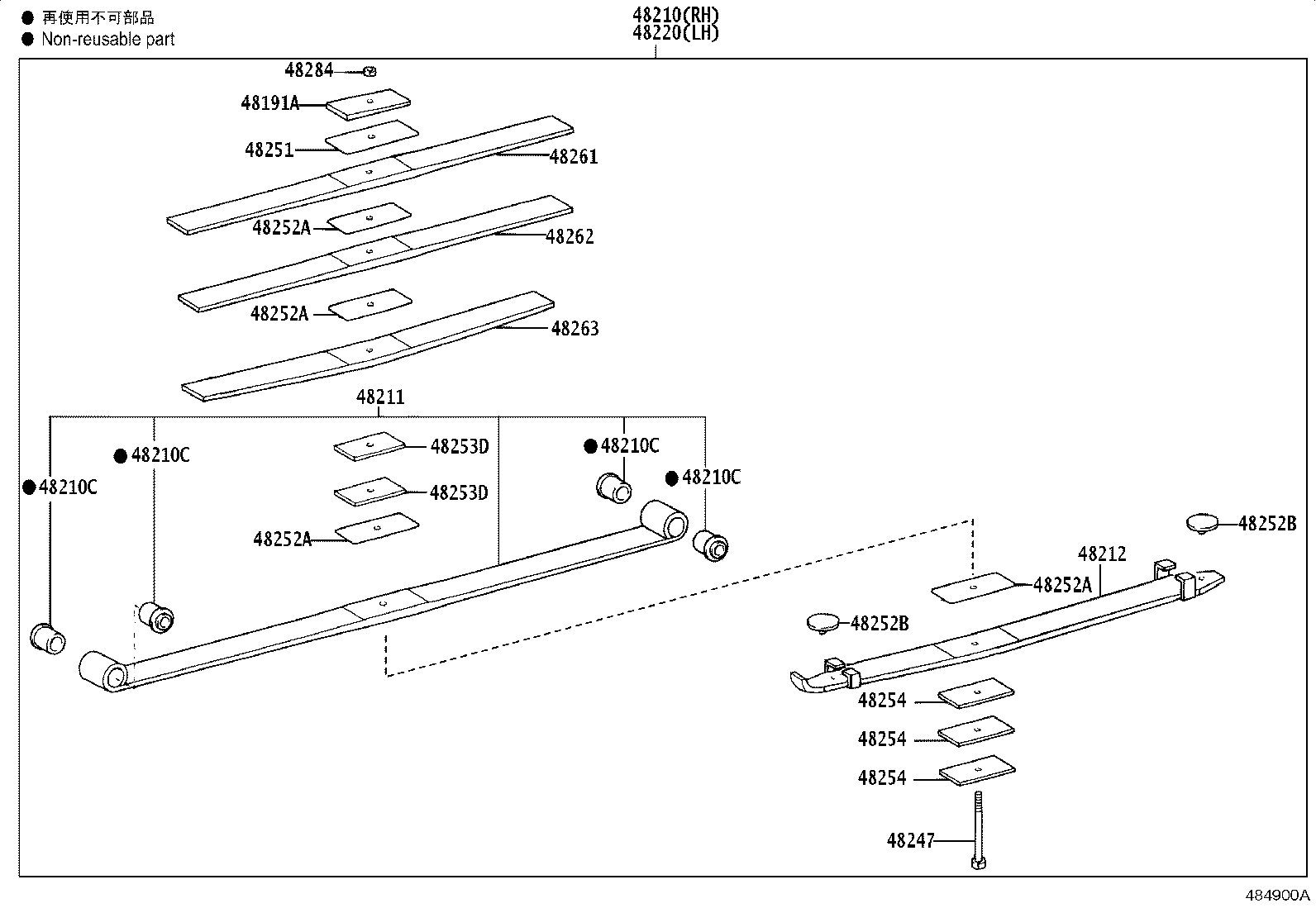

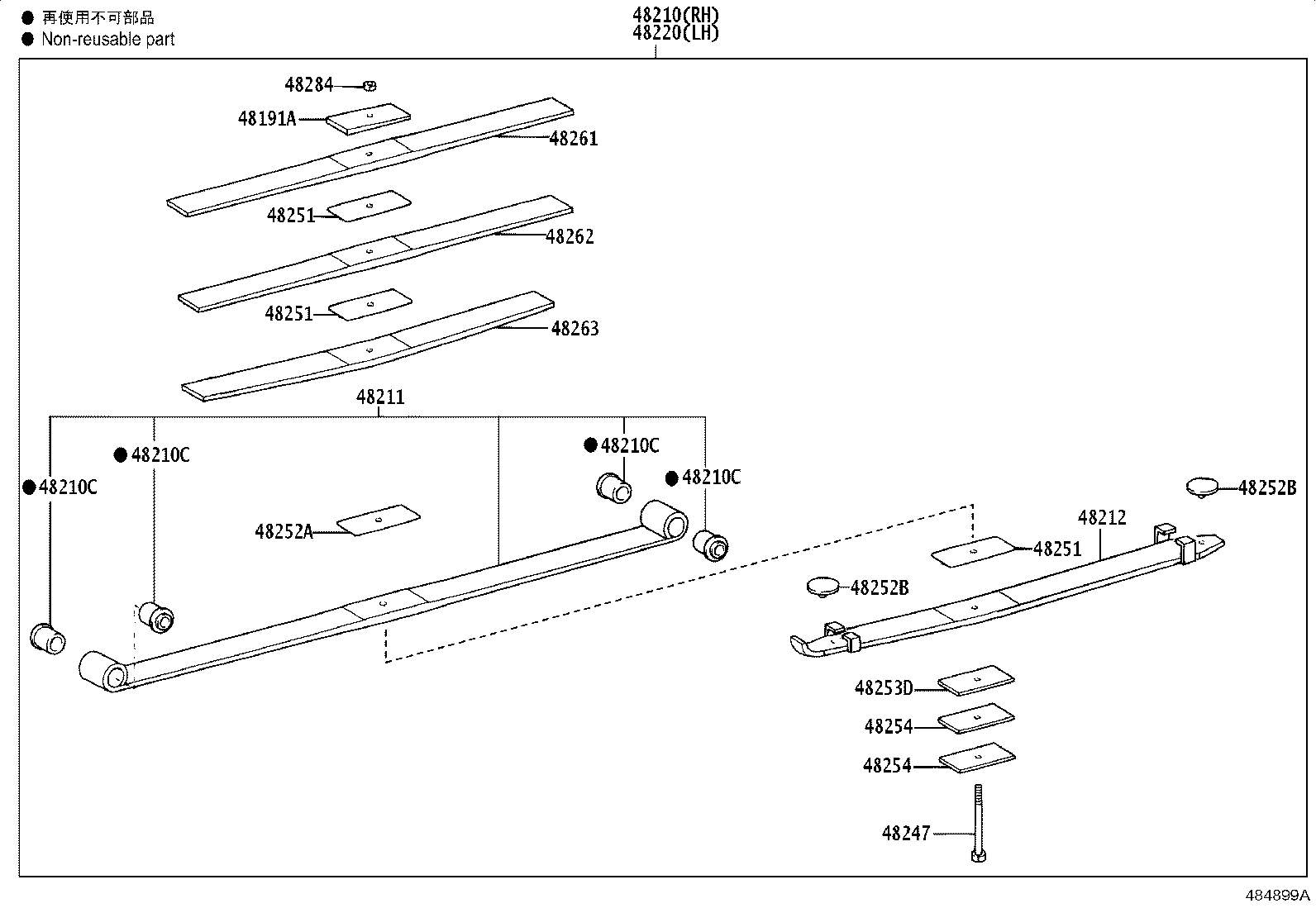

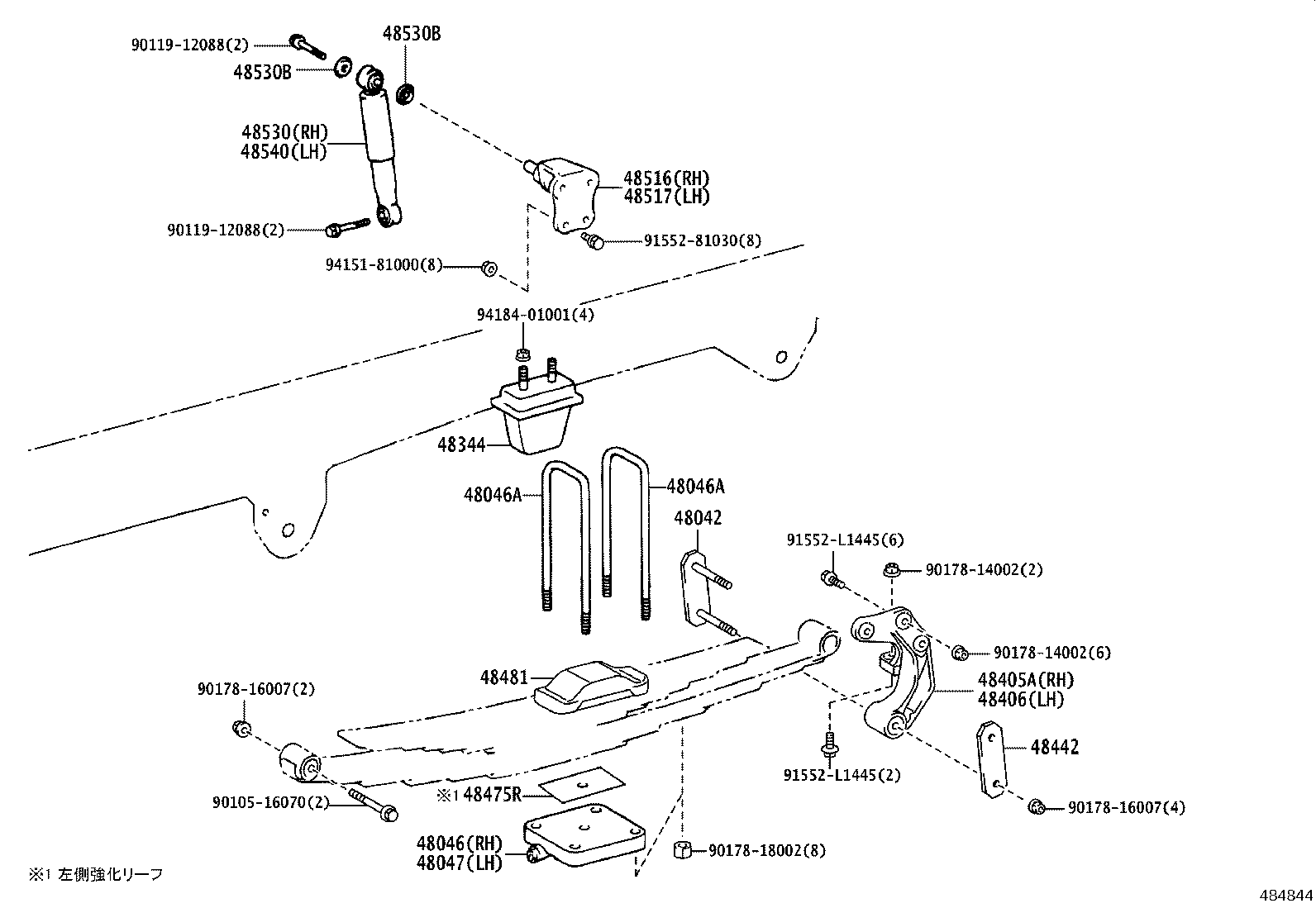

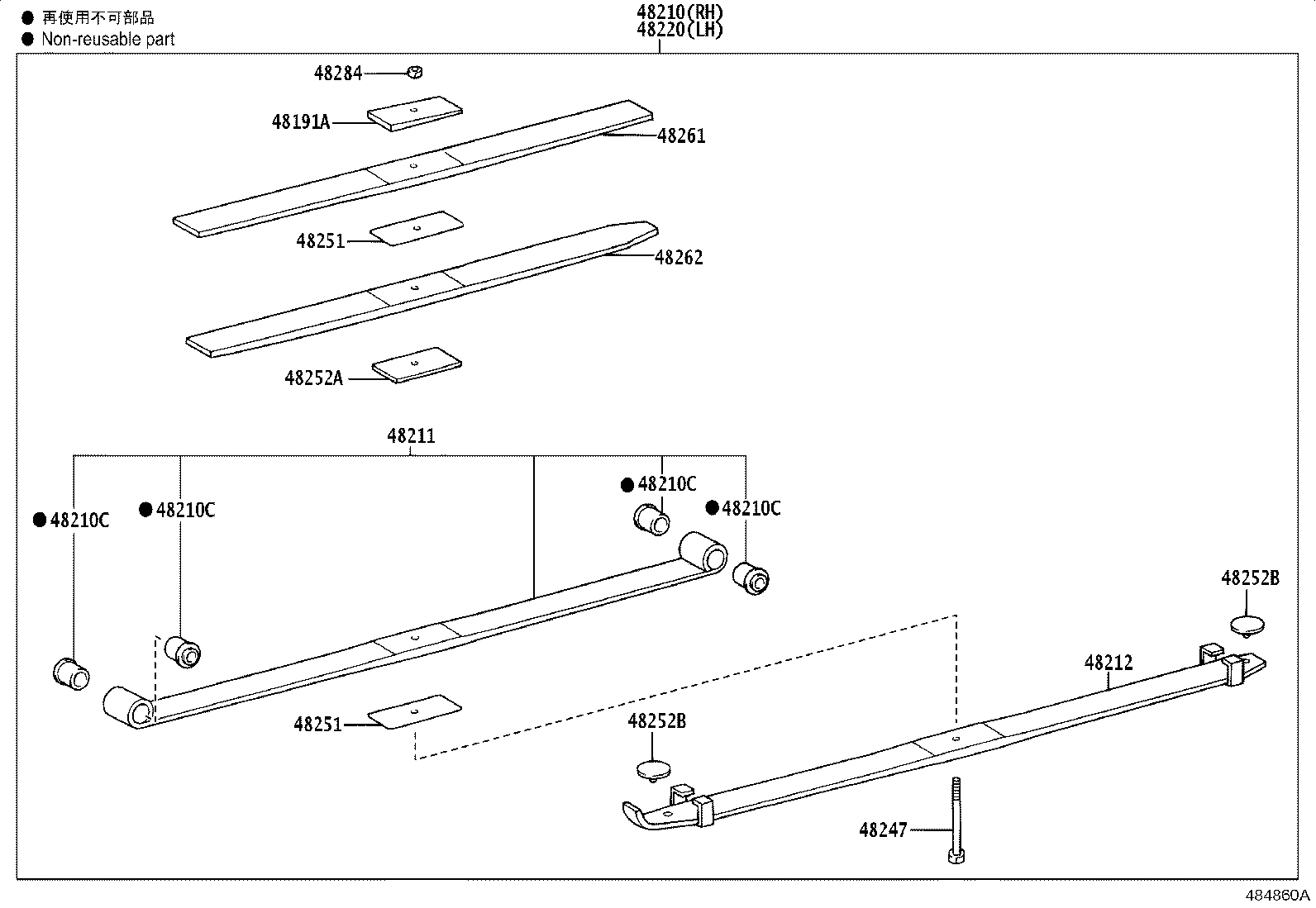

Figure 4860BI 4860BI 2011-07 → — Figure 484596A 484596A 2011-07 → — Figure 483466C 483466C 2011-07 → — Figure 484845A 484845A 2019-05 → — Figure 484844 484844 2019-05 → — Figure 484847 484847 2019-05 → — Figure 483295C 483295C 2011-07 → — Figure 483296B 483296B 2011-07 → — Figure 484857A 484857A 2019-05 → — Figure 483291B 483291B 2011-07 → — Figure 483299B 483299B 2011-07 → — Figure 483300C 483300C 2011-07 → — Figure 483307B 483307B 2011-07 → — Figure 483308B 483308B 2011-07 → — Figure 483314B 483314B 2011-07 → 2017-05 Figure 483315B 483315B 2011-07 → — Figure 483320B 483320B 2011-07 → — Figure 483320B 483320B 2019-04 → — Figure 484862A 484862A 2019-05 → — Figure 484866A 484866A 2019-05 → — Figure 484865A 484865A 2019-05 → — Figure 484860A 484860A 2019-05 → — Figure 483311C 483311C 2011-07 → — Figure 483313B 483313B 2011-07 → — Figure 483313B 483313B 2019-05 → — Figure 483316B 483316B 2011-07 → — Figure 483316B 483316B 2019-04 → — Figure 483316B 483316B 2019-05 → — Figure 483318B 483318B 2011-07 → — Figure 483318B 483318B 2019-05 → — Figure 484899A 484899A 2019-05 → — Figure 484900A 484900A 2019-05 → — Figure 484894A 484894A 2019-05 → —

Part groups

PNCDescription
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210M Nut(FOR REAR SPRING)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48284 Nut, Rear Spring Center Bolt
48323D Pin, Rear Spring Bracket
48323E Nipple, Grease(FOR REAR SPRING BRACKET PIN)
48344 Stopper, Bumper, Rear
48405A Bracket Sub-assy, Spring, NO.4 RH
48406 Bracket Sub-assy, Spring, NO.4 LH
48422A Support, Rear Spring Pin
48435 Attachment, Helper Spring Bracket, NO.1
48442 Shackle, Spring, NO.2
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530B Washer, Rear Shock Absorber Cushion, NO.1
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
