Toyota Lexus LX570

2015-09 → present · chassis URJ201 · catalogue 792160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

268 part groups · 10 illustrations

Illustrations

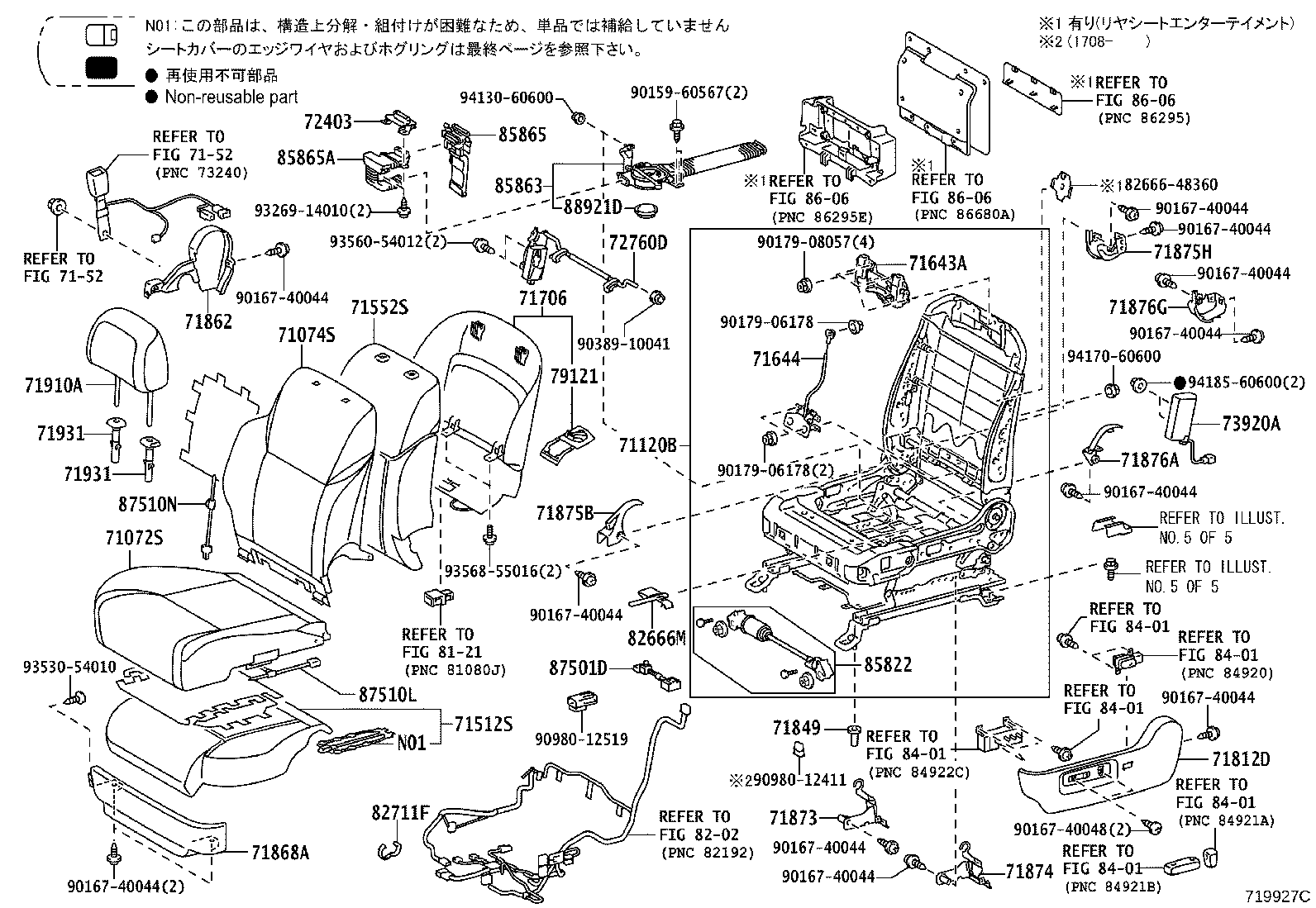

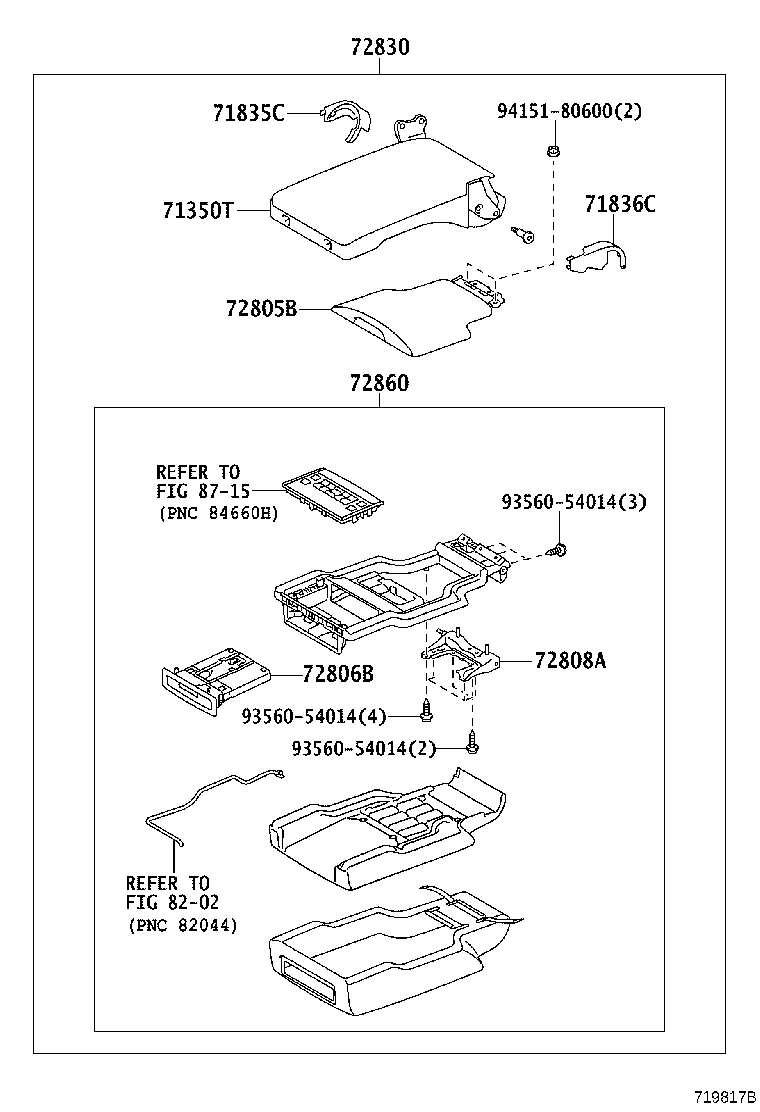

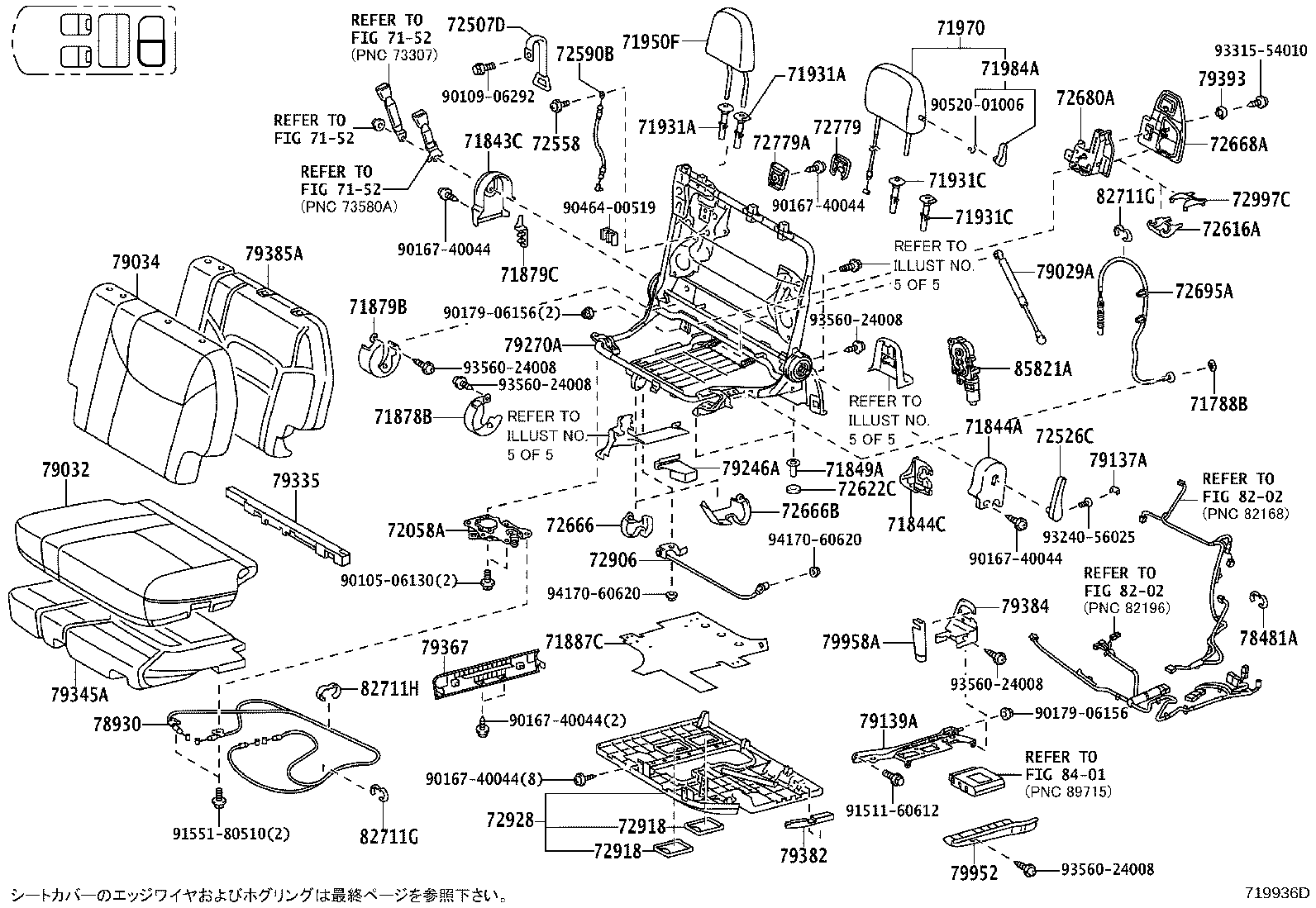

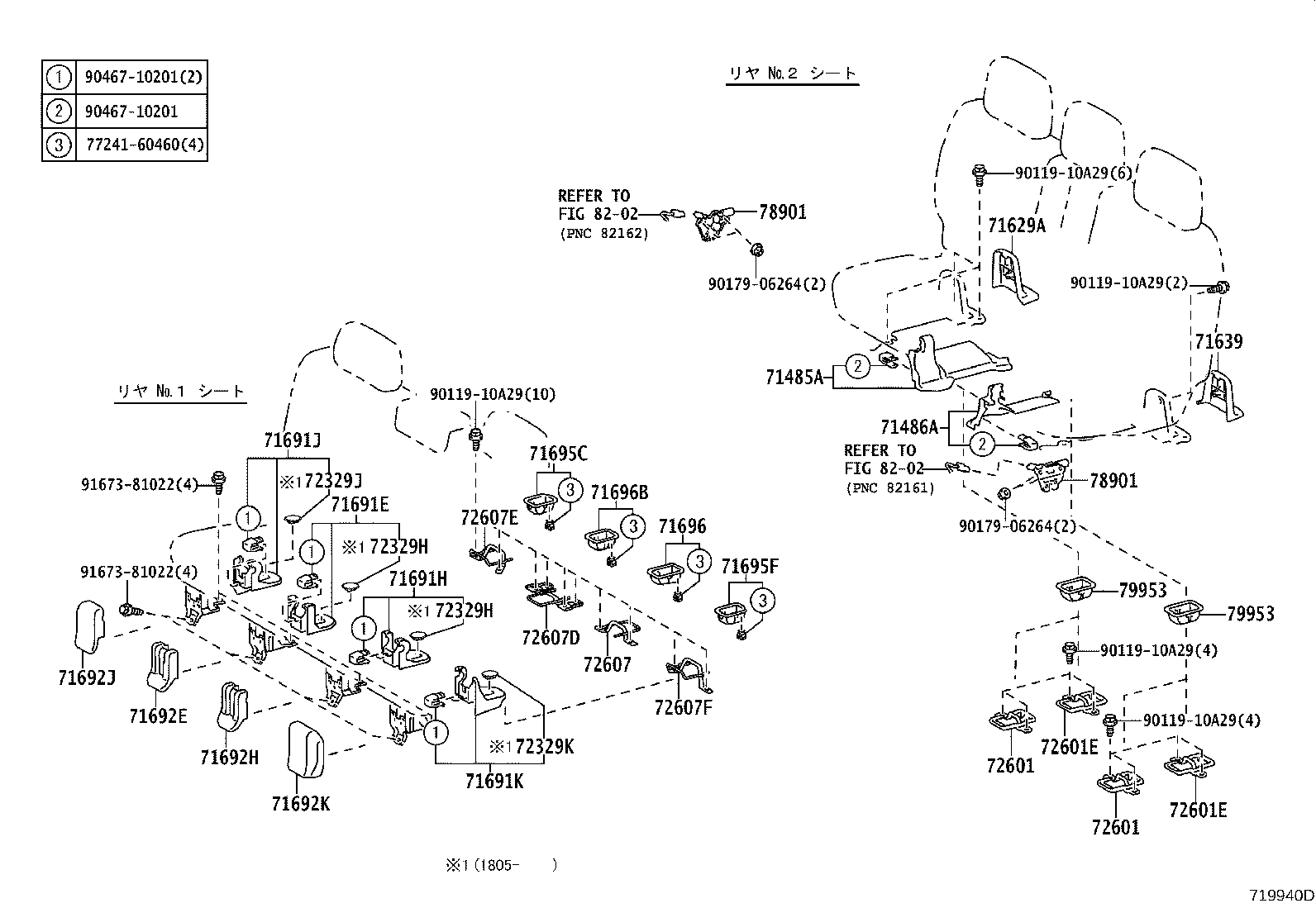

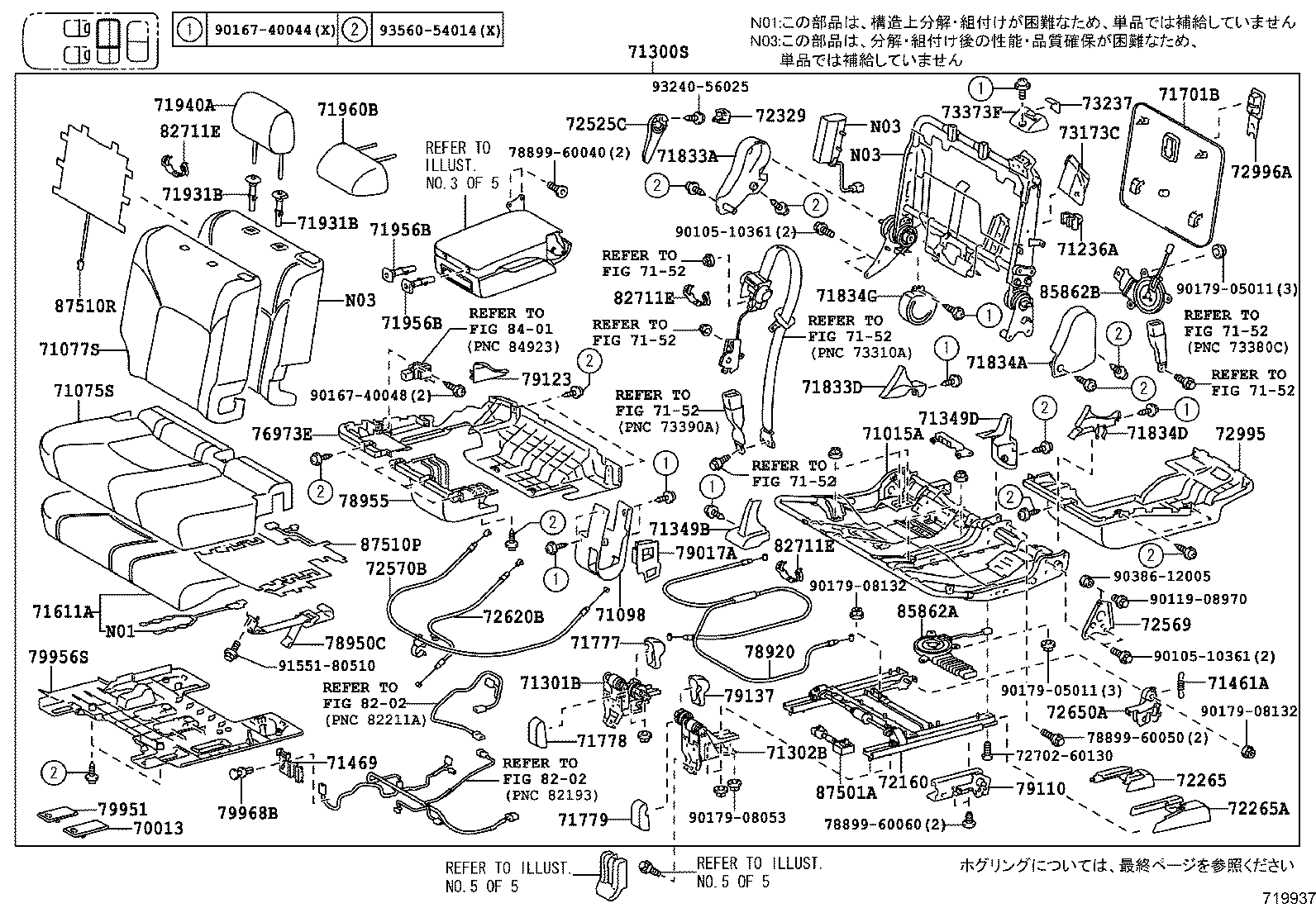

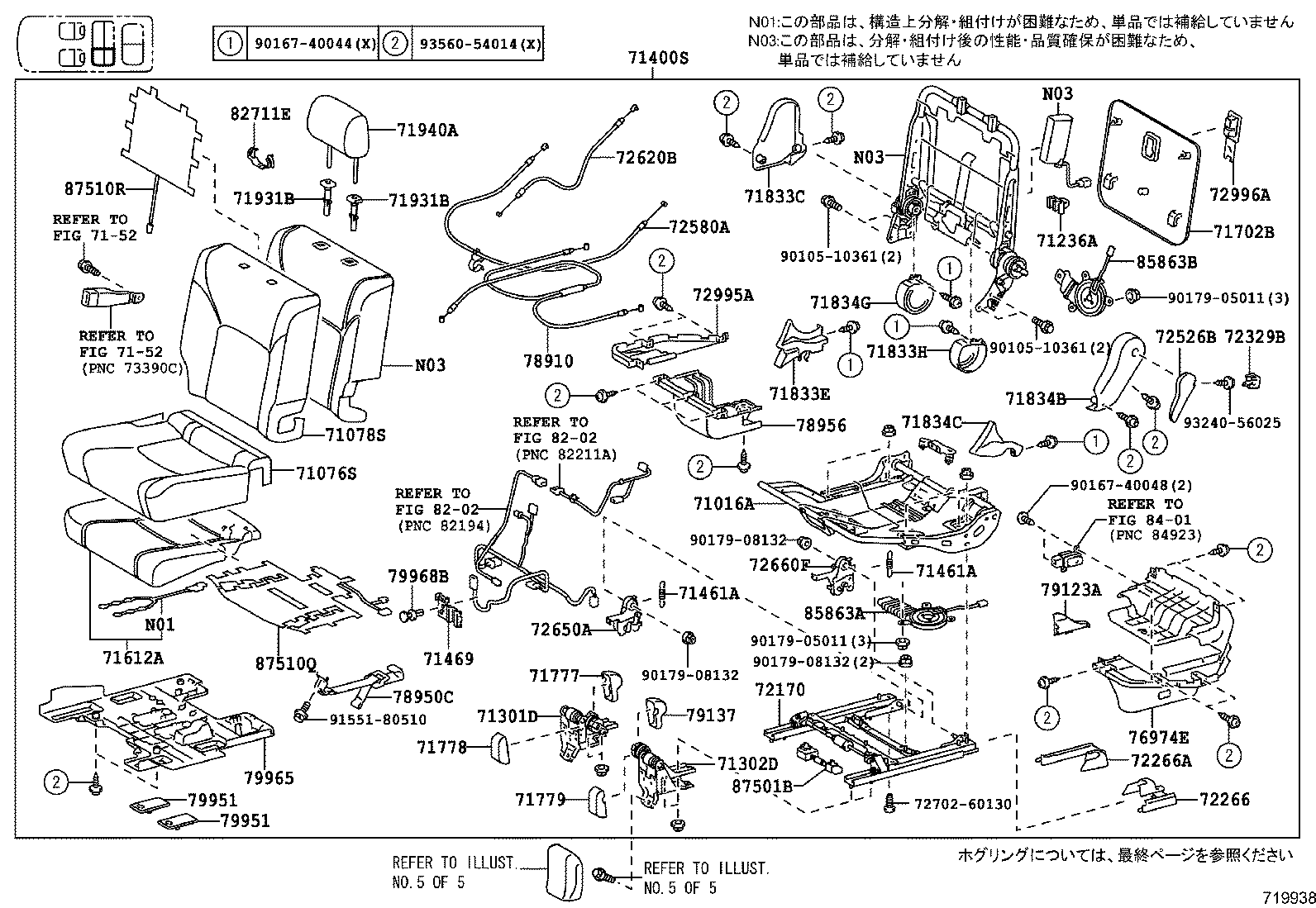

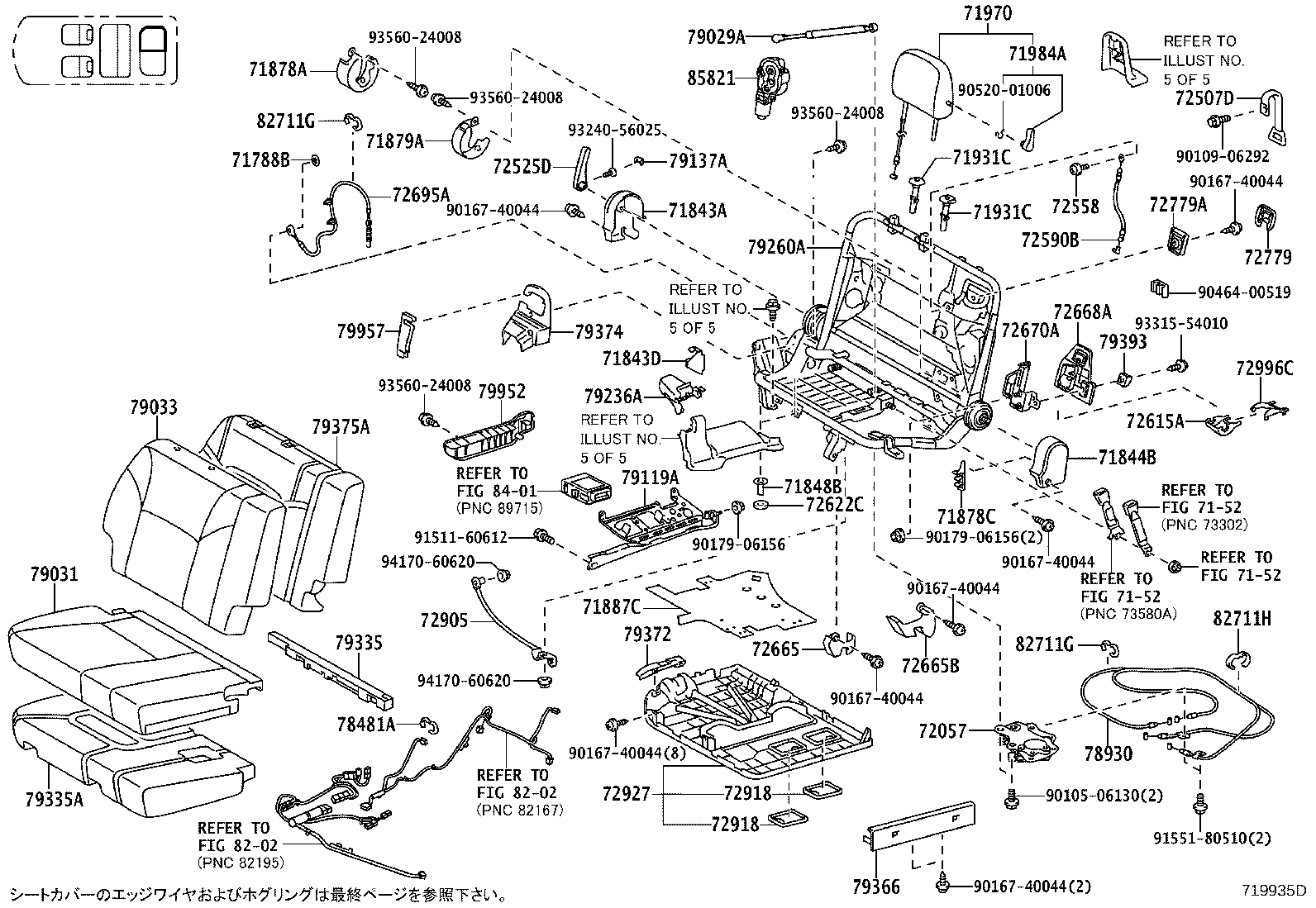

Figure 719926B 719926B 2015-09 → — Figure 719927C 719927C 2015-09 → — Figure 719937 719937 2015-09 → — Figure 719938 719938 2015-09 → — Figure 719817B 719817B 2015-09 → — Figure 719935D 719935D 2015-09 → — Figure 719936D 719936D 2015-09 → — Figure 719877 719877 2015-09 → — Figure 719940D 719940D 2015-09 → — Figure 719025D 719025D 2015-09 → —

Part groups

PNCDescription
70013 Cover Assy, NO.1 Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71098 Cover Sub-assy, Rear Seatback, Lower RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71236A Clamp, Rear Seat Cushion Spring
71300S Seat Assy, Rear RH
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71301D Hinge Sub-assy, Rear Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71302D Hinge Sub-assy, Rear Seat, LH
71349B Cover, Rear Seatback Stay, RH
71349D Cover, Rear Seatback Hinge, RH
71350T Back Assy, Center Seat
71400S Seat Assy, Rear, LH (FOR SEPARATE TYPE)
71461A Spring, Rear Seat Cushion, NO.1
71469 Protector, Rear Seat, NO.2
71485A Cover, Rear Seat Hinge, NO.2 RH
71486A Cover, Rear Seat Hinge, NO.2 LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71629A Cover, Rear Seat Cushion Hinge, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691H Cover, Rear Seat Cushion Hinge, NO.2
71691J Cover, Rear Seat Cushion Hinge, NO.3
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692E Cover, Rear Seat Cushion Hinge, NO.2
71692H Cover, Rear Seat Cushion Hinge, NO.3
71692J Cover, Rear Seat Cushion Hinge, NO.4
71692K Cover, Rear Seat Cushion Hinge, NO.5
71695C Protector, Rear Seat, NO.1
71695F Protector, Rear Seat, NO.1
71696 Protector, Rear Seat, NO.2
71696B Protector, Rear Seat, NO.2
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71777 Cover, Rear Seat Side Hinge Female
71778 Cover, Rear Seat Side Hinge Male, RH
71779 Cover, Rear Seat Side Hinge Male, LH
71788B Washer, Front Seatback Board Setting
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71833D Cover Rear Seat Reclining, RH
71833E Cover, Rear Seat Reclining, NO.3 RH
71833H Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834C Cover, Rear Seat Reclining, NO.3 LH
71834D Cover, Rear Seat Reclining, LH
71834G Cover, Rear Seat Reclining, NO.1 LH
71835C Moulding, Rear Seatback, RH
71836C Moulding, Rear Seatback, LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843C Cover, Reclining Adjuster, RH
71843D Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71844B Cover, Reclining Adjuster, LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71848A Cap, Seat Adjuster Cover, RH
71848B Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71849A Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875H Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878C Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71879C Cover, Rear Seat Reclining, Inner LH
71887C Carpet, Rear Seat Cushion
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71950F Headrest Assy, Rear NO.2 Seat, LH
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
71984A Handle, Rear Seat Headrest
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72138J Cover, Front Seat Track, LH Rear Outer
72157B Cover, Rear Seat Track Bracket, Inner RH
72158A Cover, Rear Seat Track Bracket, Inner LH
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72265 Cover, Seat Track Upper Rail, RH
72265A Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72266A Cover, Seat Track Upper Rail, LH
72329 Cover, Seat Adjuster Bolt
72329B Cover, Seat Adjuster Bolt, NO.1
72329H Cover, Seat Adjuster Bolt, NO.1
72329J Cover, Seat Adjuster Bolt, NO.2
72329K Cover, Seat Adjuster Bolt, NO.3
72403 Bracket Sub-assy, Seat Frame Set
72507D Handle Sub-assy, NO.2 Seat Reclining Release
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525D Handle, Reclining Adjuster Release, NO.2 RH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526C Handle, Reclining Adjuster Release, NO.2 LH
72558 Stopper, Reclining
72569 Plate, Seatback Stopper
72570B Cable Assy, Reclining Adjusting, RH
72580A Cable Assy, Reclining Adjusting, LH
72590B Cable Assy, Reclining Remote Control
72601 Striker Sub-assy, Rear Seat Lock
72601E Striker Sub-assy, Rear Seat Lock, NO.2
72607 Striker Sub-assy, Rear Seat Cushion Lock
72607D Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607E Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72607F Striker Sub-assy, Rear Seat Cushion Lock, NO.4
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72620B Cable Assy, Rear NO.1 Seat Lock
72622C Bush, Rear Seatback Protector Shaft
72650A Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72665 Cover, Rear Seatback Lock, RH
72665B Cover, Rear Seatback Lock
72666 Cover, Rear Seatback Lock, LH
72666B Cover, Rear Seat Lock, LH
72668A Bezel, Rear Seatback Lock, Lower
72670A Striker Assy, Rear Seatback Lock, RH
72680A Striker Assy, Rear Seatback Lock, LH
72695A Cable, Rear Seat Lock Control
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72779 Guide, Rear Seat Hinge Pawl
72779A Guide, Rear Seat Hinge Pawl
72805B Door Sub-assy, Rear Seat Center Armrest
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72808A Bracket Sub-assy, Seat Center Armrest
72830 Armrest Assy, Rear Seat, Center
72860 Box Assy, Rear Seat Center Armrest
72905 Link Sub-assy, 3RD Seat, RH
72906 Link Sub-assy, 3RD Seat, LH
72918 Cover, 3RD Seat Cushion Lock
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72995 Cover, Rear Seat Cushion, RH
72995A Cover, Rear Seat
72996A Cover, Rear Seatback
72996C Cover, Rear NO.2 Seatback, RH
72997C Cover, Rear NO.2 Seatback, LH
73173C Cover, Rear Seat Belt Hole, RH
73237 Cover, Shoulder Belt Anchor
73373F Cover, Rear Seat Shoulder Belt Hole
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
78481A Clamp(REAR SEAT)
78901 Lock Sub-assy, Fold Seat Leg
78910 Cable Assy, Fold Seat Lock Control, NO.1
78920 Cable Assy, Fold Seat Lock Control, NO.2
78930 Cable Assy, Fold Seat Lock Control, NO.3
78950C Band Assy, Fold Seat Stopper
78955 Cover, Rear Seat Under Tray RH
78956 Cover, Rear Seat Under Tray LH
79017A Pad Sub-assy, NO.1 Seatback, RH
79029A Stay Sub-assy, NO.2 Seat
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79110 Leg Assy, NO.1 Seat
79119A Bracket, Rear NO.2 Seat Leg, Rear RH
79121 Bracket, NO.1 Seat Cushion
79123 Plate, NO.1 Seat Cushion
79123A Plate, NO.1 Seat Cushion
79137 Cover, NO.1 Seat Hinge
79137A Cover, NO.2 Seat Hinge
79139A Bracket, Rear NO.2 Seat Leg, Rear LH
79236A Cover, NO.2 Seat Leg
79246A Cover, NO.2 Seat Leg, NO.2
79260A Spring Assy, NO.2 Seat Cushion, RH
79270A Spring Assy, NO.2 Seat Cushion, LH
79335 Pad, NO.3 Seat Cushion
79335A Pad, NO.3 Seat Cushion, RH
79345A Pad, NO.3 Seat Cushion, LH
79366 Cover, NO.3 Seat Leg, NO.1
79367 Cover, NO.3 Seat Leg, NO.2
79372 Cover, NO.3 Seat Front Bracket, RH
79374 Cover, NO.3 Seat Leg, Rear RH
79375A Pad, NO.3 Seatback, RH
79382 Cover, NO.3 Seat Front Bracket, LH
79384 Cover, NO.3 Seat Leg, Rear LH
79385A Pad, NO.3 Seatback, LH
79393 Cushion, Rear NO.2 Seatback
79951 Cover, NO.1 Seat Cushion
79952 Cover, NO.2 Seat Cushion
79953 Cover, NO.3 Seat Cushion
79956S Cover, Rear Seat Leg Side
79957 Cover, Rear Seat Rear Bracket, Rear
79958A Cover, Rear Seat Rear Bracket, LH
79965 Cover, Rear Seat Leg Side, NO.2
79968B Clip
82666M Holder, Connector
82711E Clamp, Wiring Harness
82711F Clamp, Wiring Harness
82711G Clamp, Wiring Harness
82711H Clamp, Wiring Harness
85821 Motor Assy, Power Seat
85821A Motor Assy, Power Seat
85821H Motor Assy, Power Seat Slide, RH
85822 Motor Assy, Power Seat Slide, LH
85862 Blower, Seat Climate Control, RH
85862A Blower, Rear Seat Climate Control, RH
85862B Blower, Seat Climate Control, RH
85863 Blower, Seat Climate Control, LH
85863A Blower, Seat Climate Control, LH
85863B Blower, Seat Climate Control, LH
85864 Controller, Seat Climate Control,RH
85864A Controller, Seat Climate Control, RH
85865 Controller, Seat Climate Control,LH
85865A Controller, Seat Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87501D Control Sub-assy, Seat Heater
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
88921D Filter, Air, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
