Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

329 part groups · 36 illustrations

Illustrations

610662M 1993-01 → 2002-03

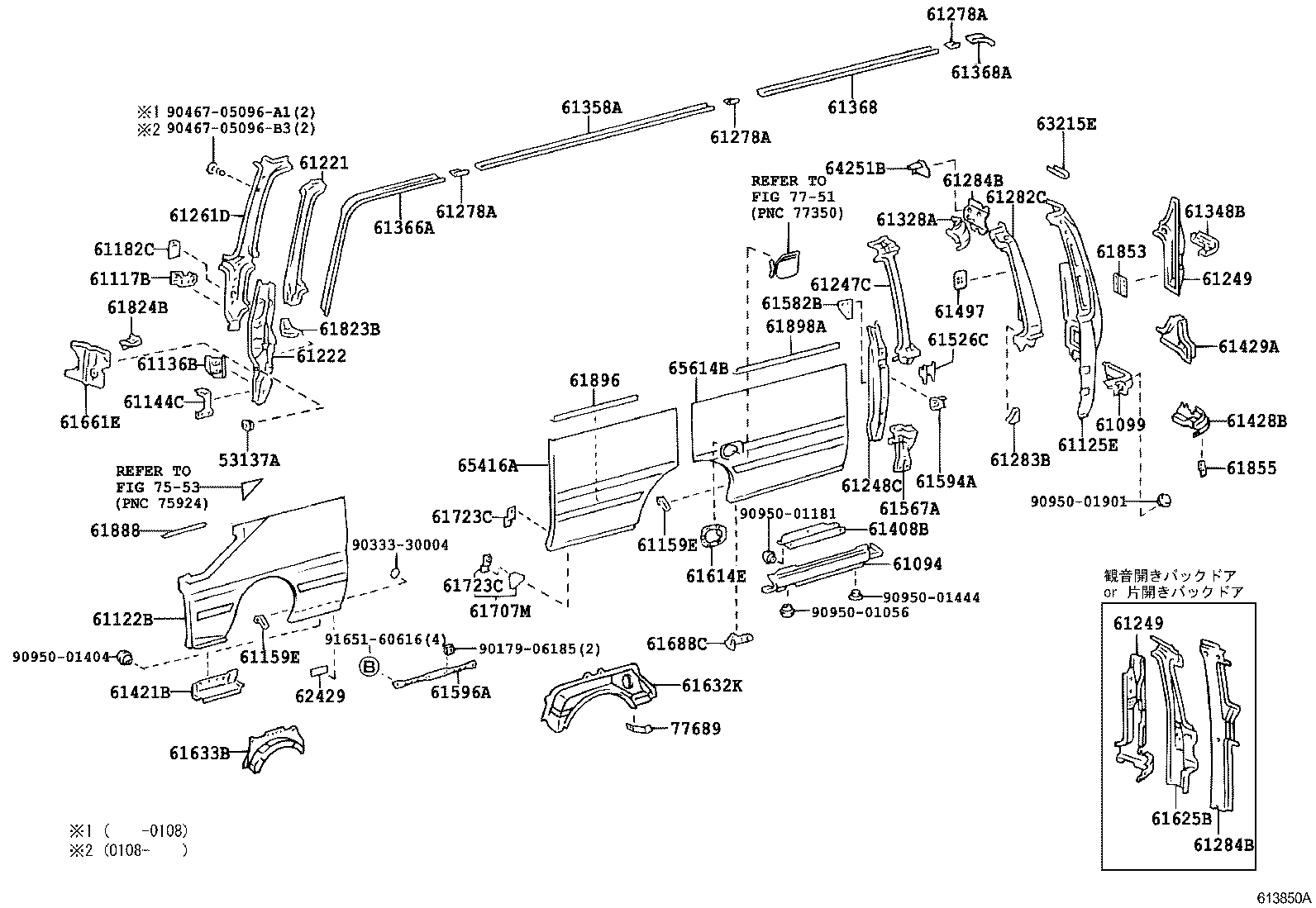

613850A 1993-01 → 2002-03

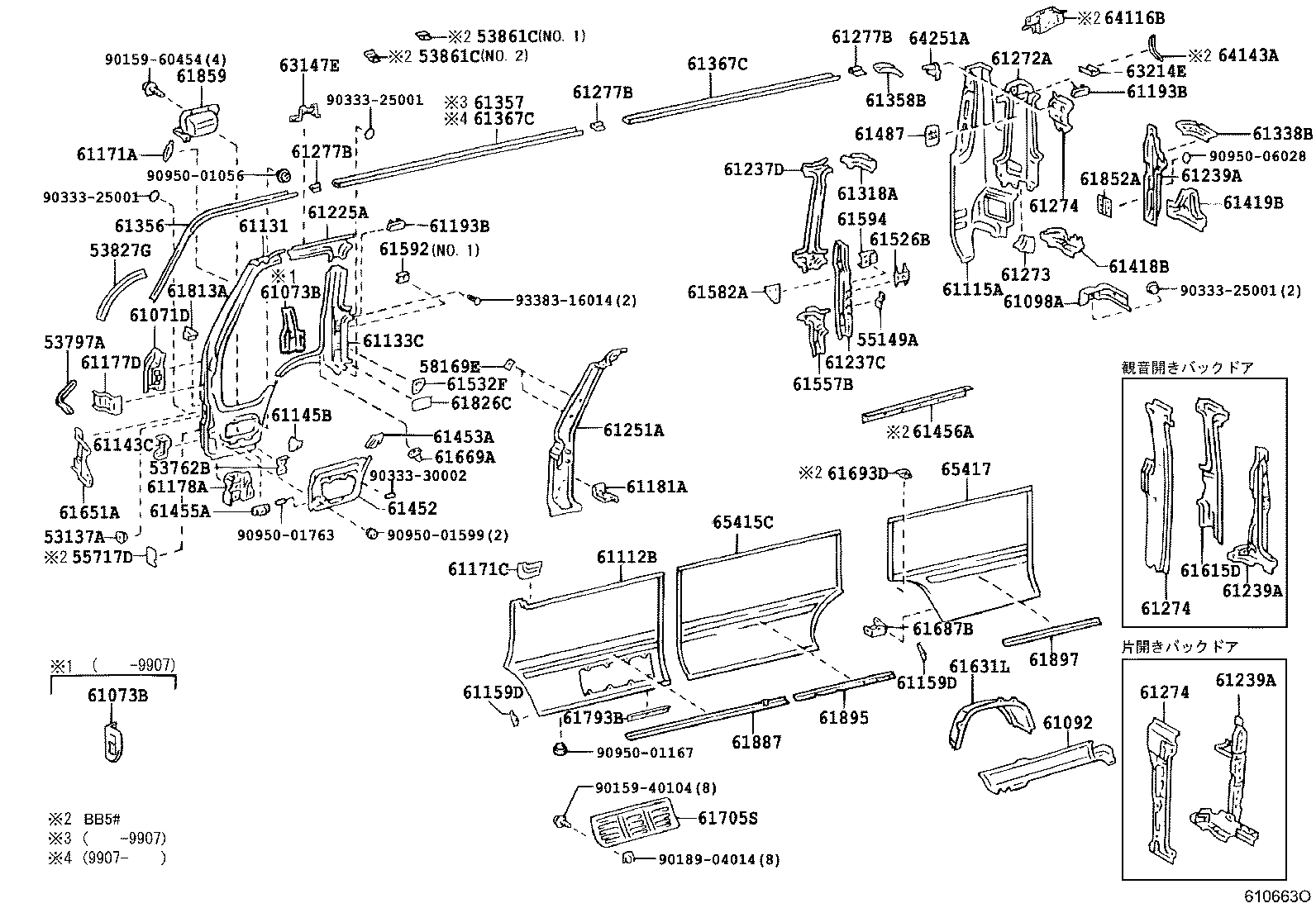

610663O 1993-01 → 2002-03

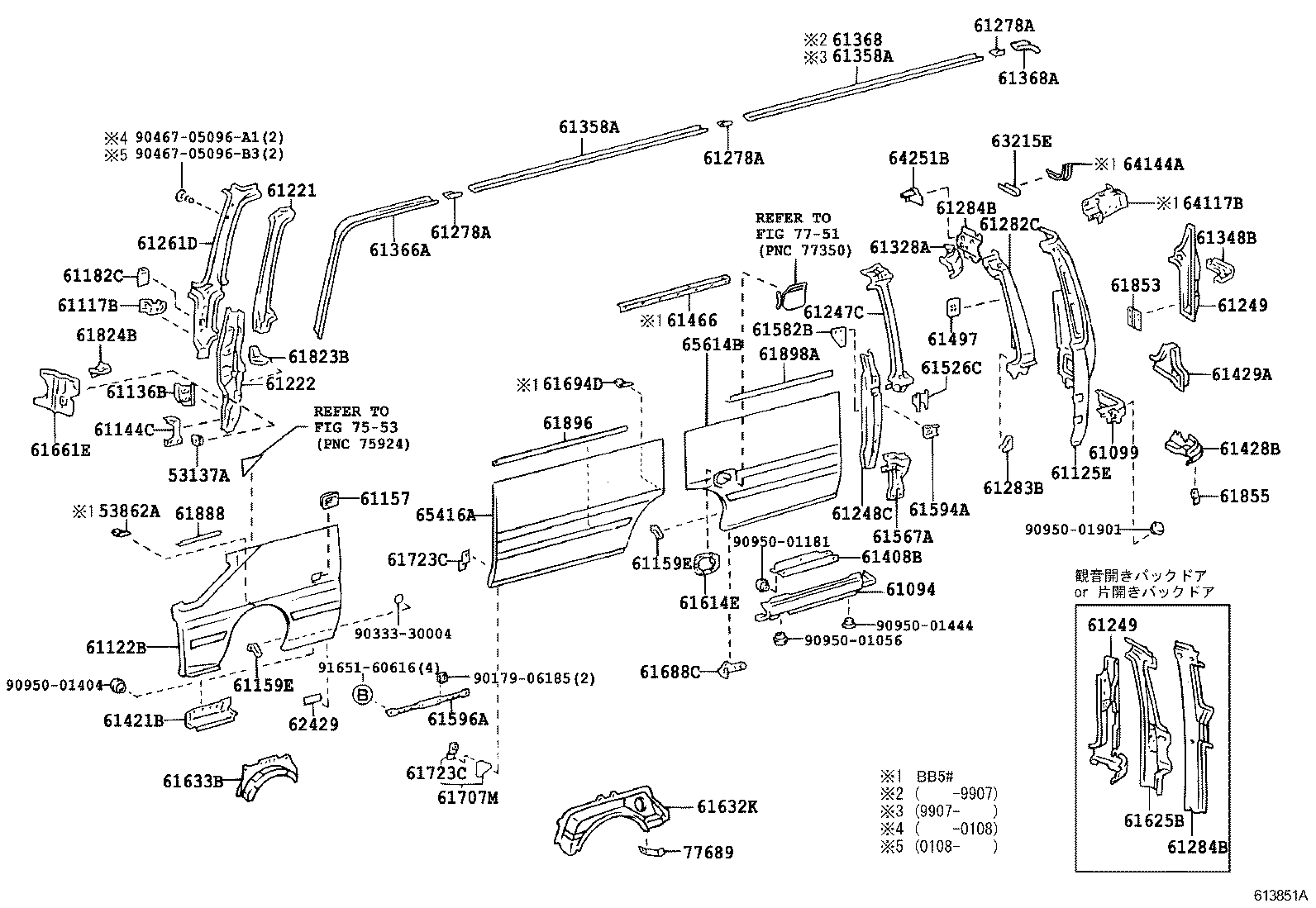

613851A 1993-01 → 2002-03

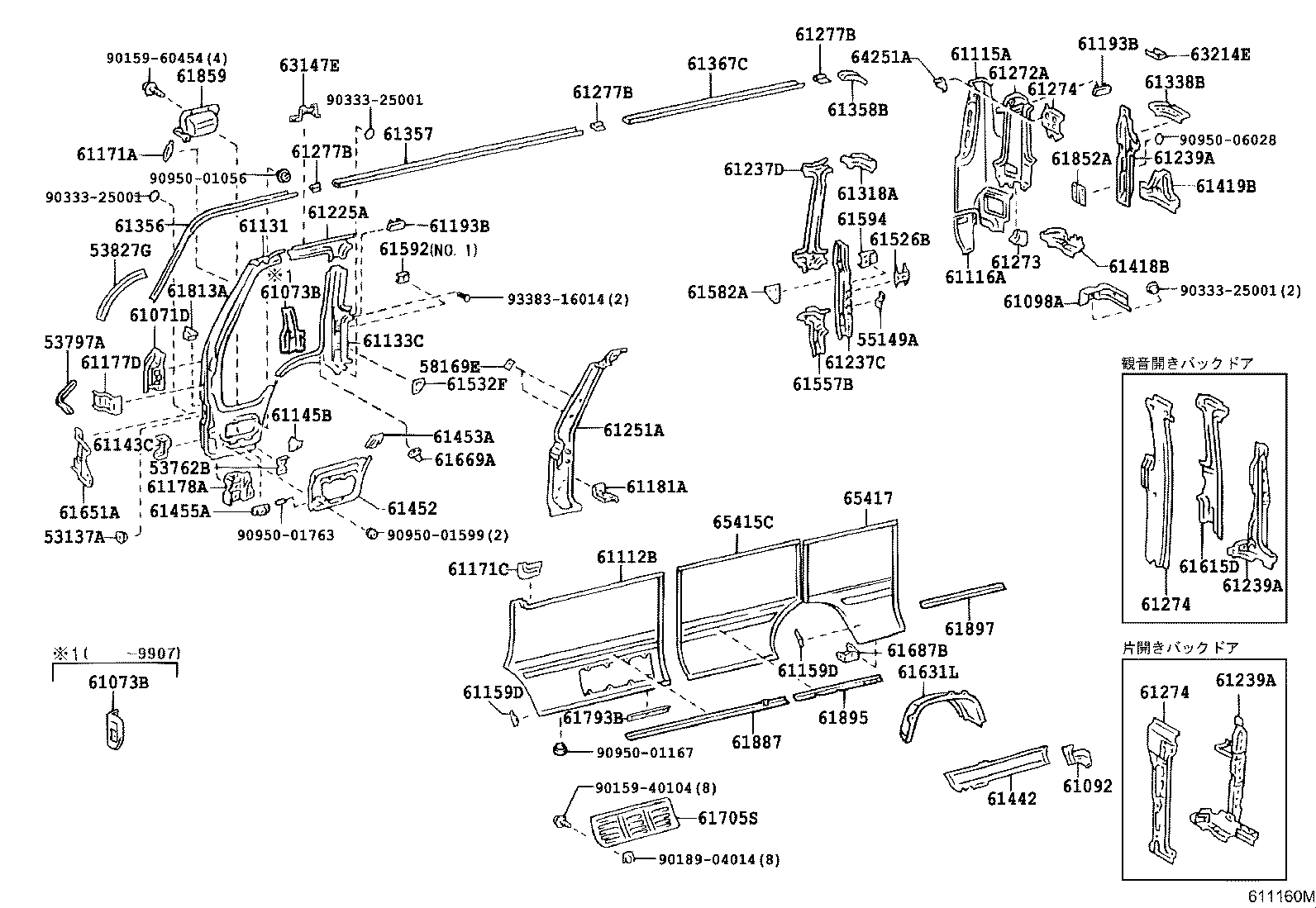

611160M 1999-08 → 2015-01

611160M 2002-11 → 2004-08

611160M 2004-08 → 2007-08

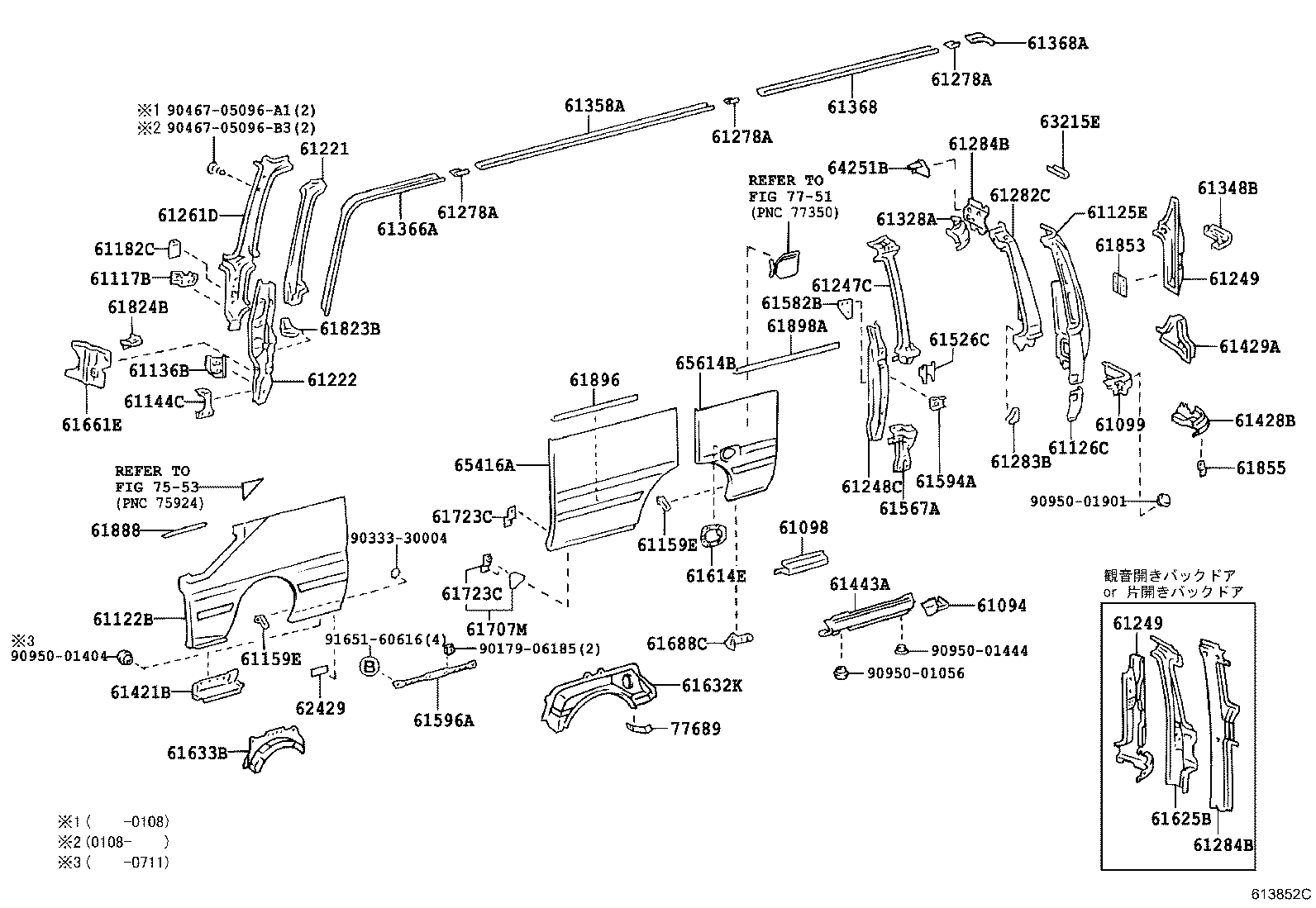

613852C 1999-08 → 2015-01

613852C 2002-11 → 2004-08

613852C 2004-08 → 2007-08

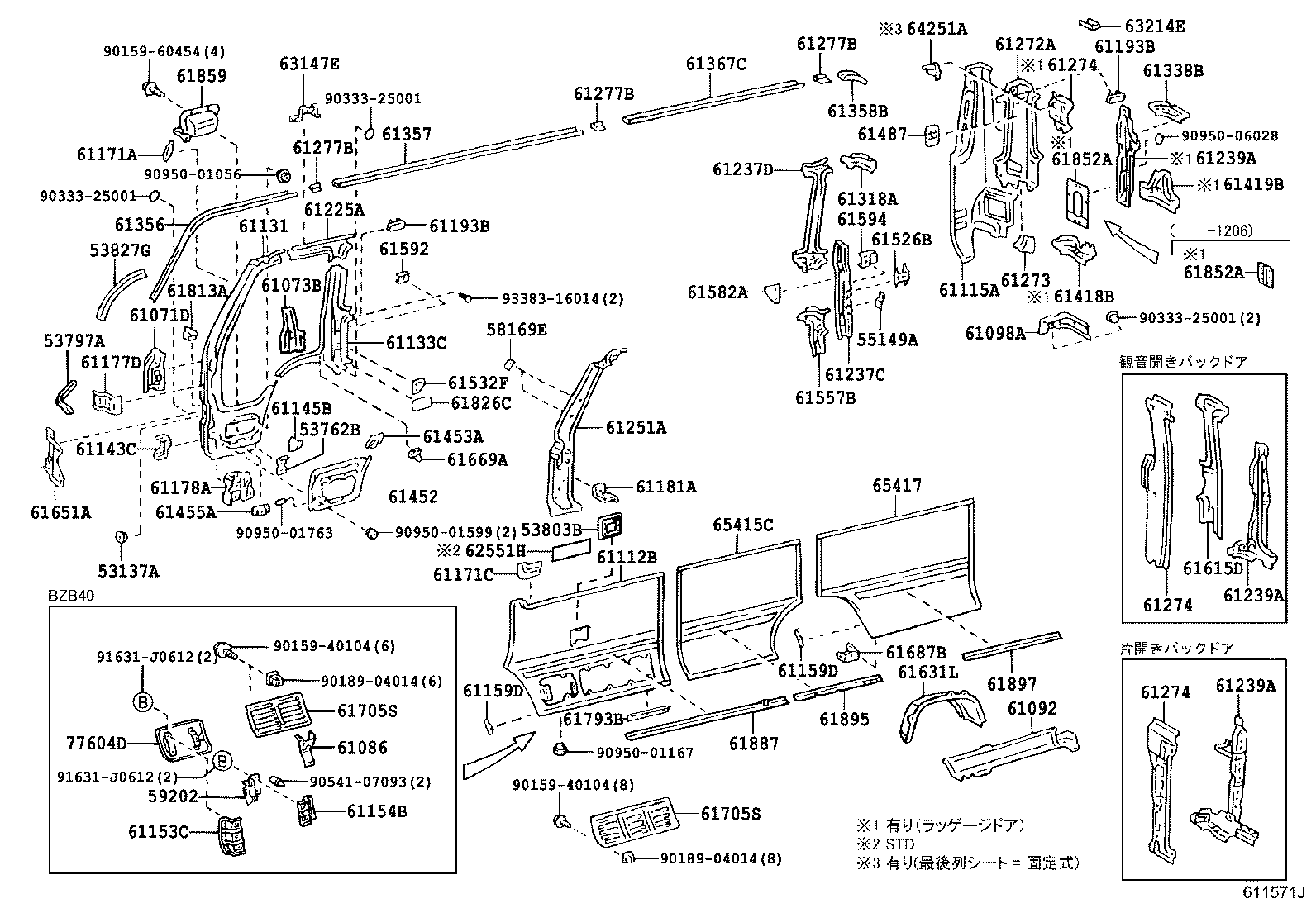

611571J 2002-03 → 2004-08

611571J 2002-03 → —

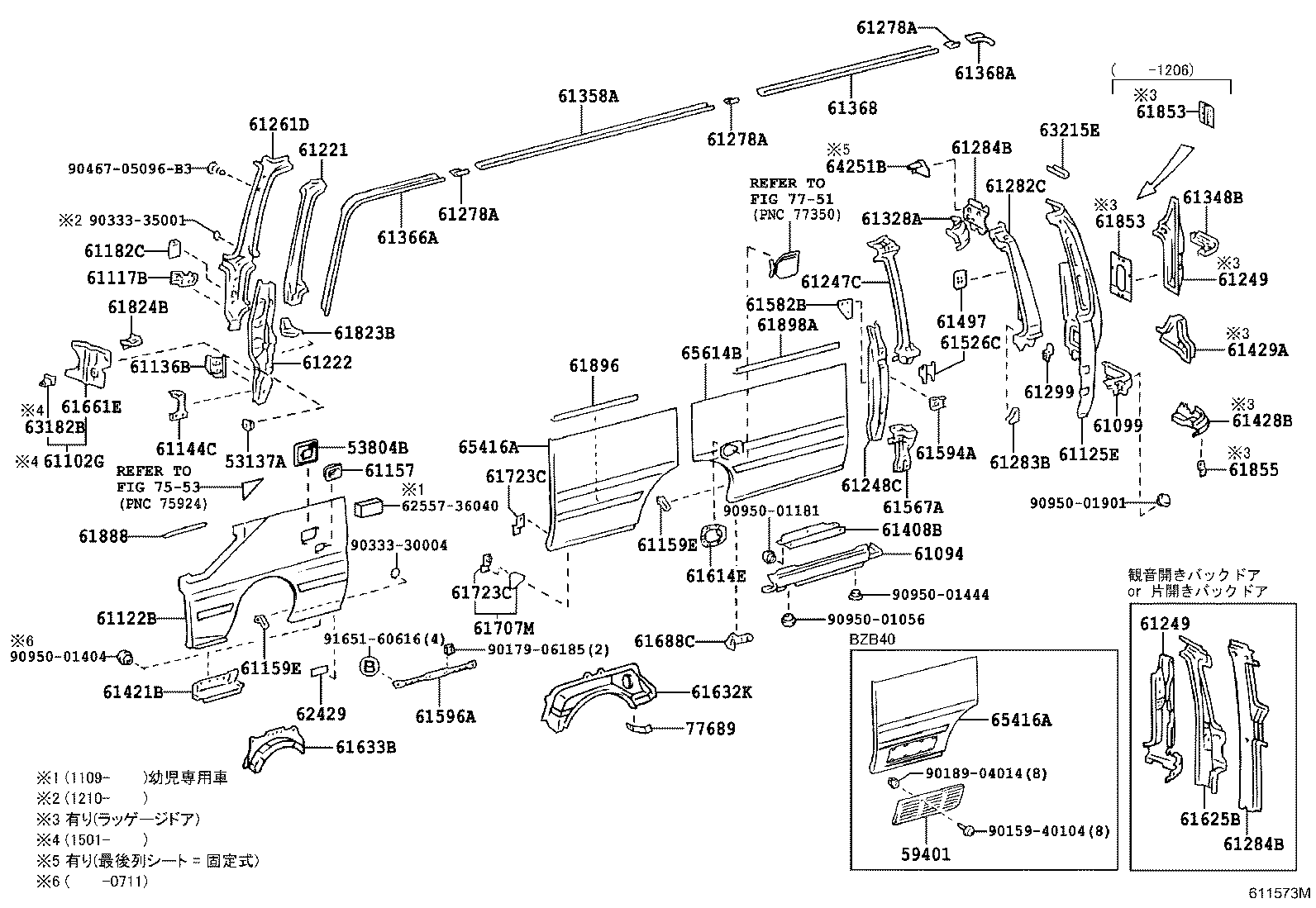

611573M 2002-03 → 2004-08

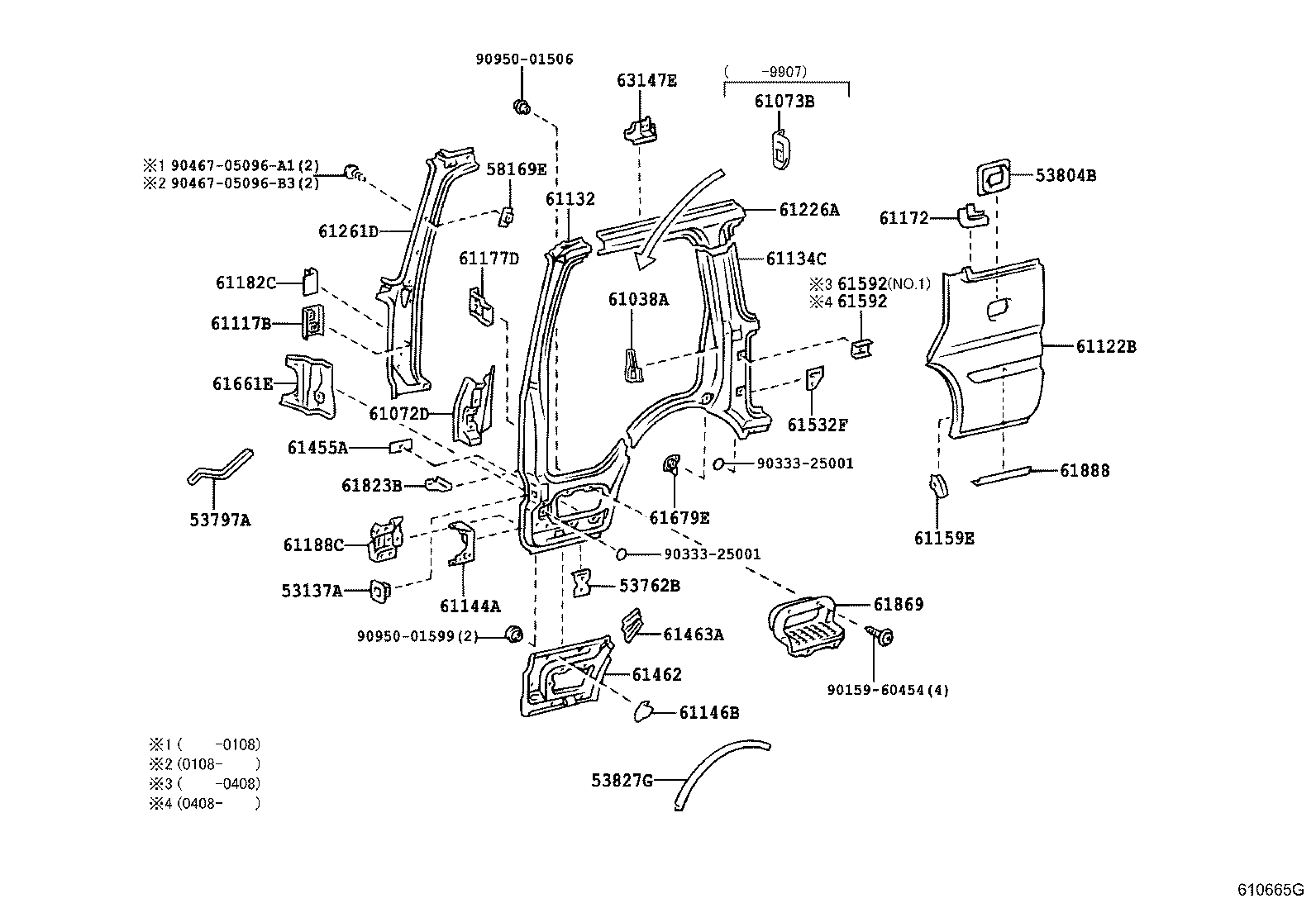

610665G 1993-01 → 2004-08

610665G 2004-08 → —

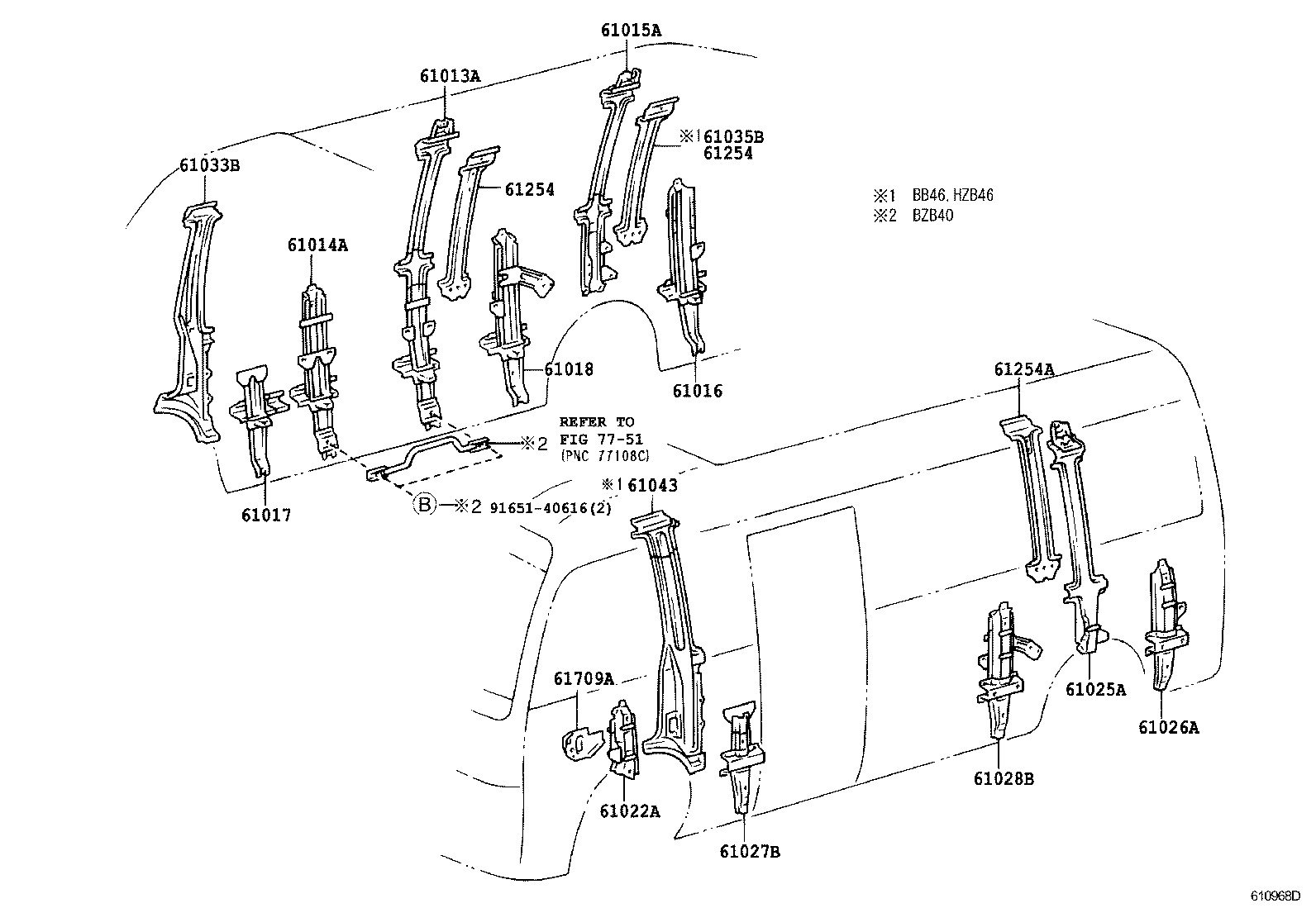

610968D 1993-01 → 2004-08

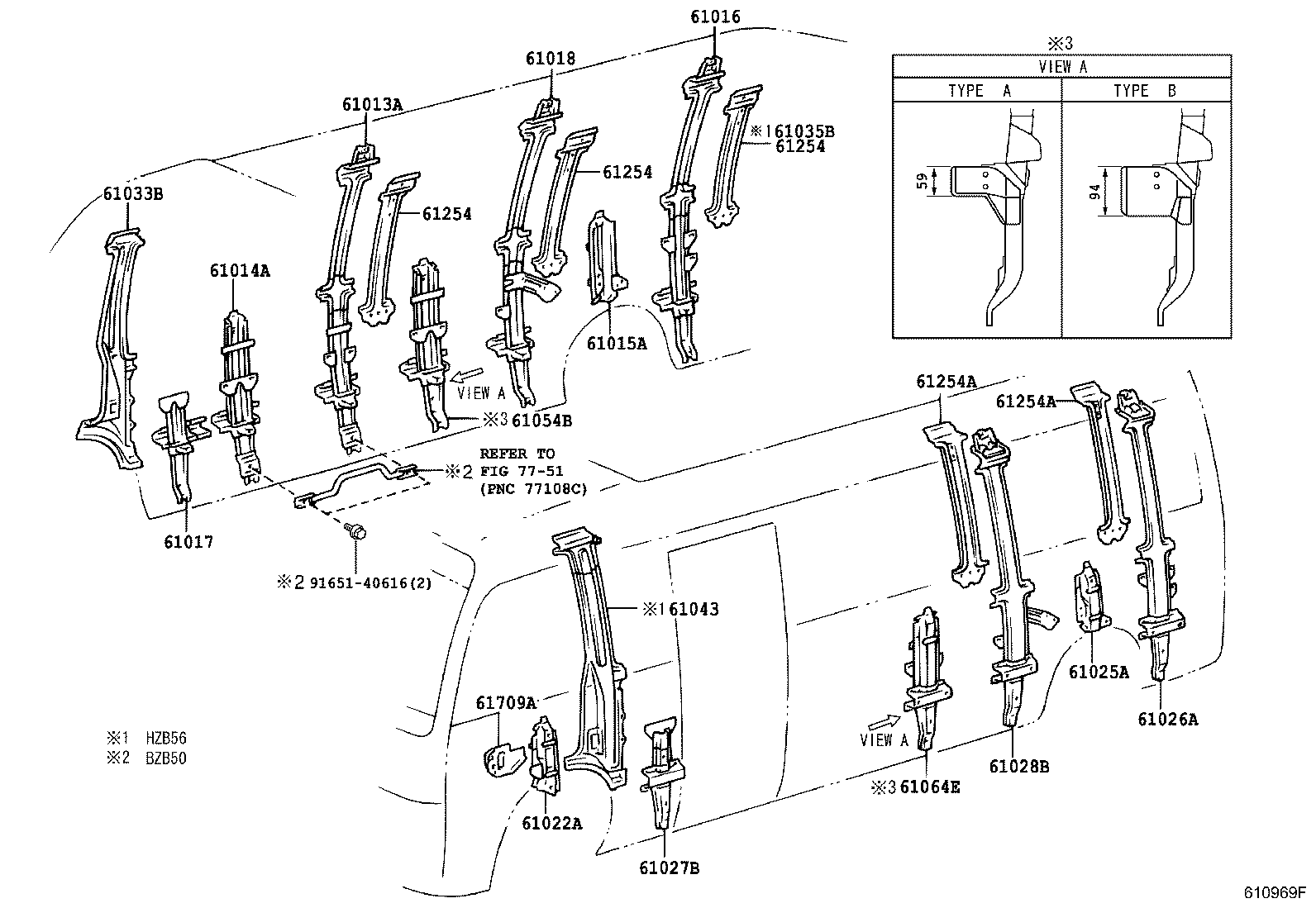

610969F 1993-01 → 2004-08

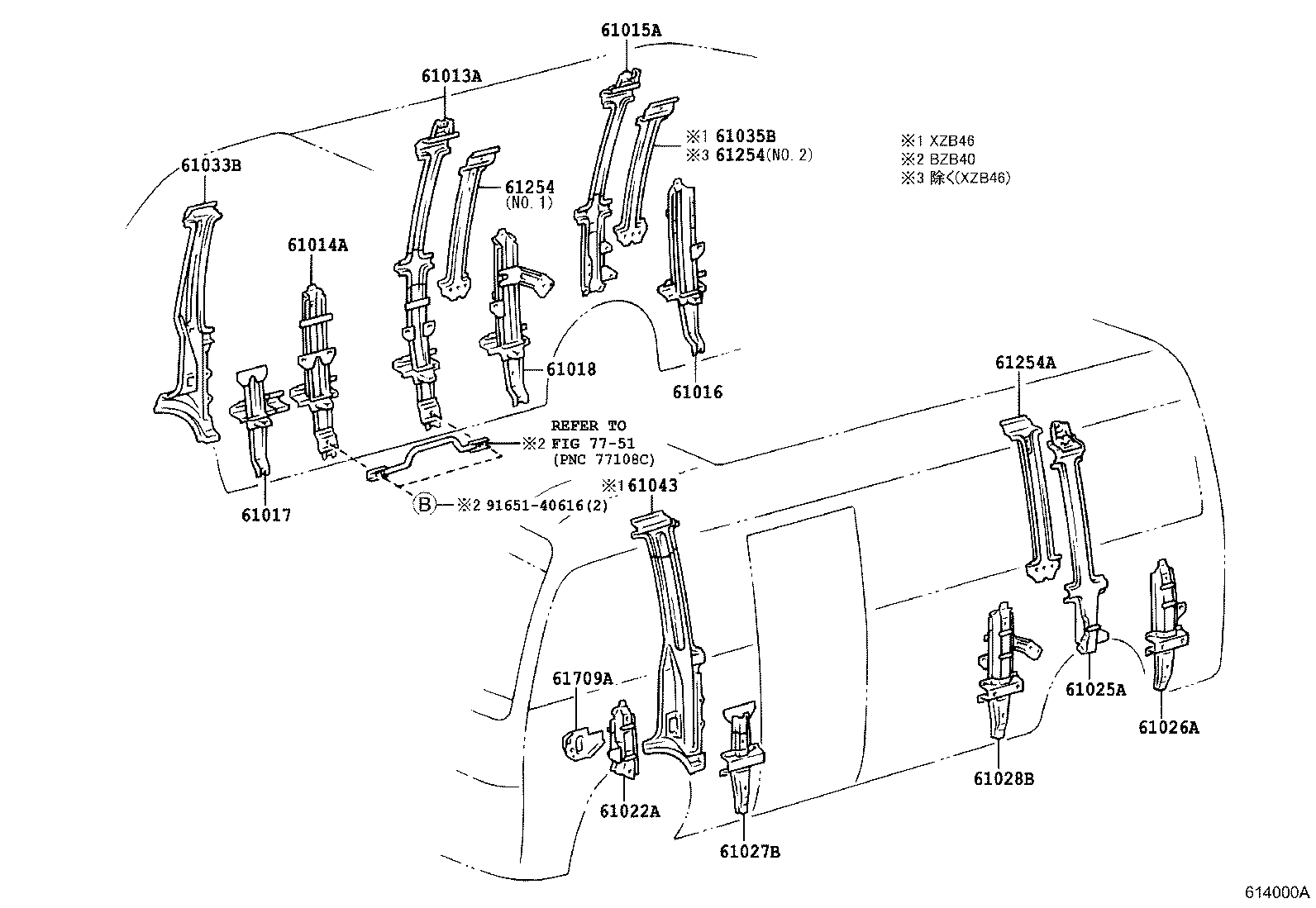

614000A 2004-08 → 2015-01

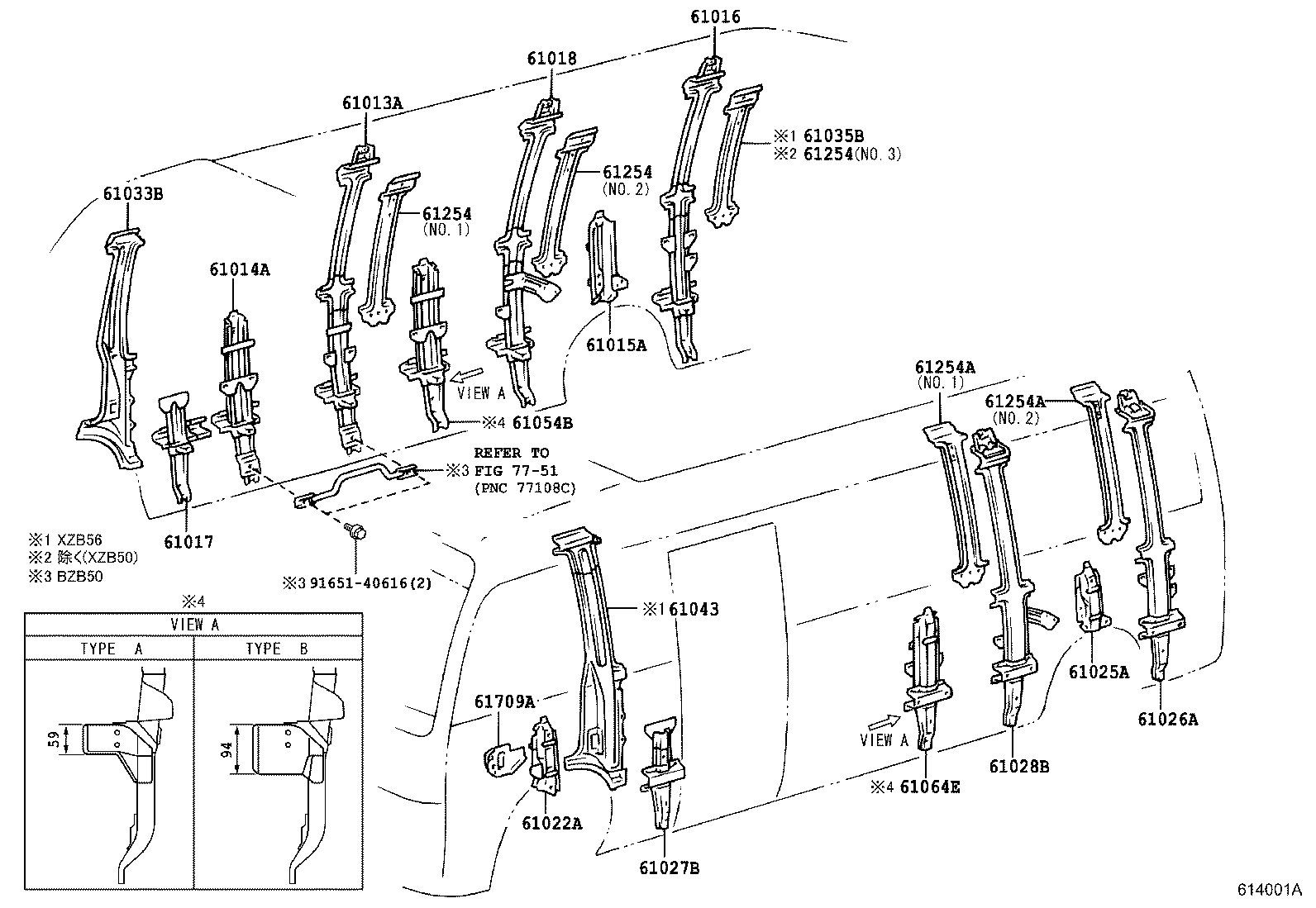

614001A 2004-08 → 2015-01

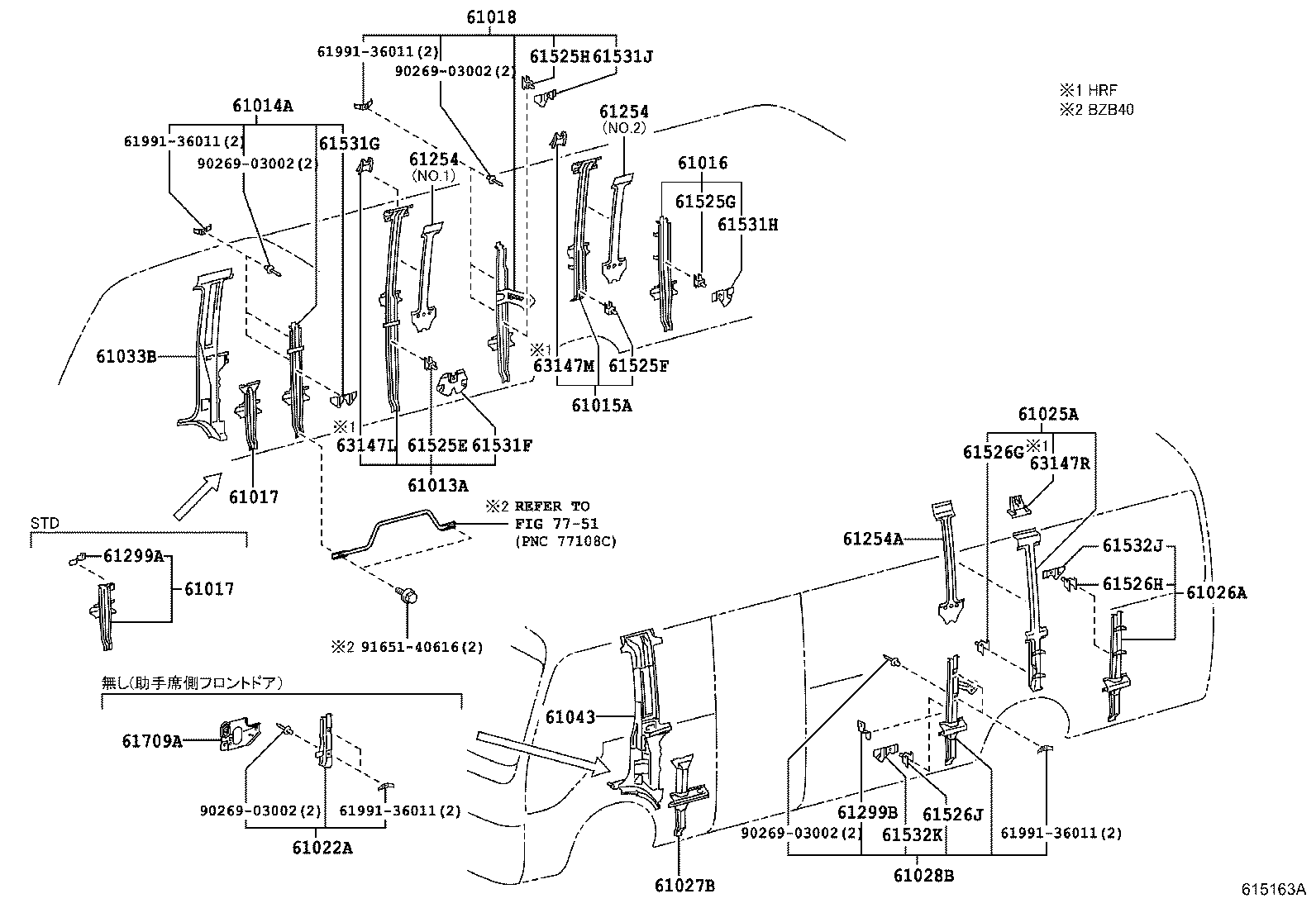

615163A 2015-01 → —

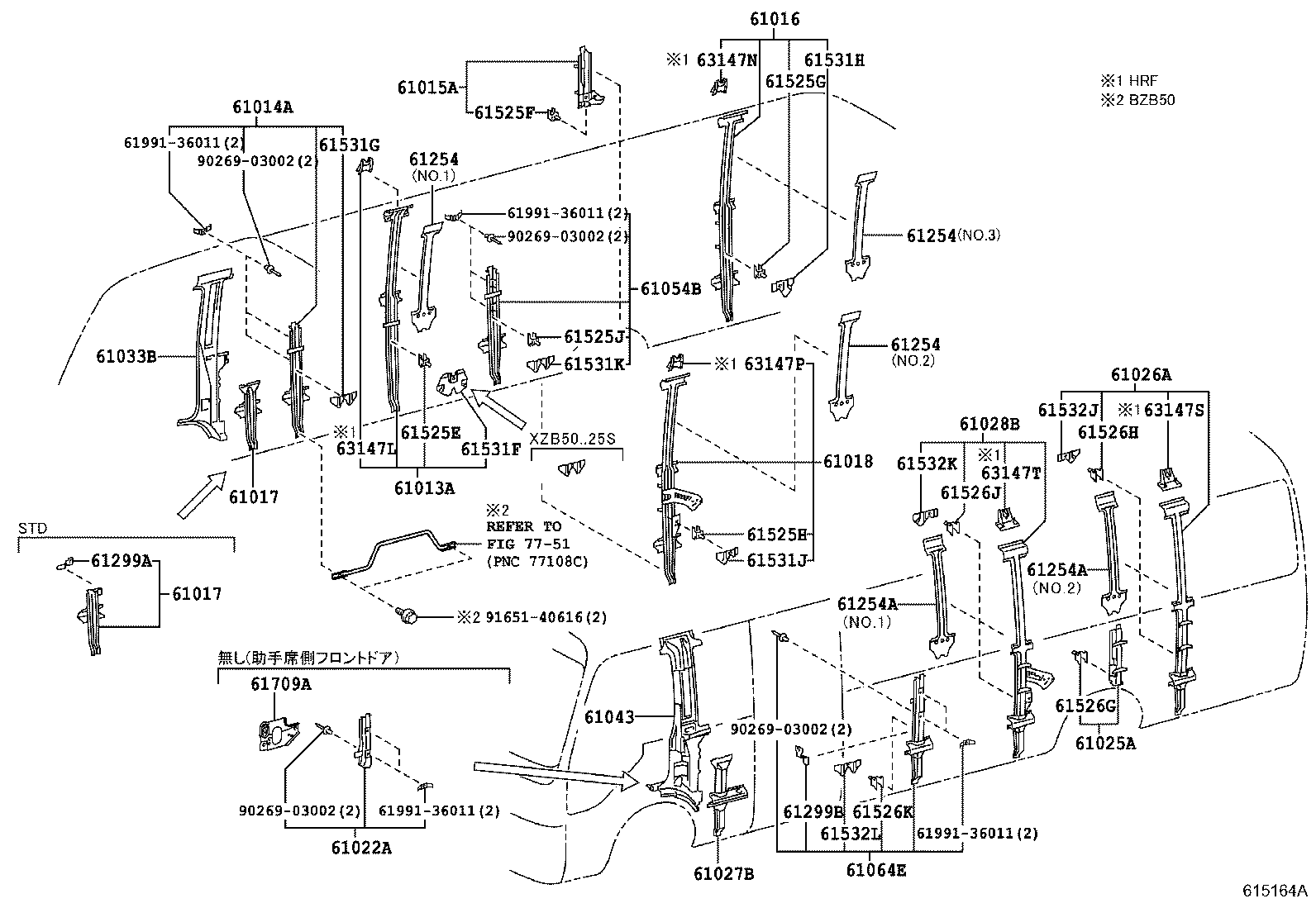

615164A 2015-01 → —

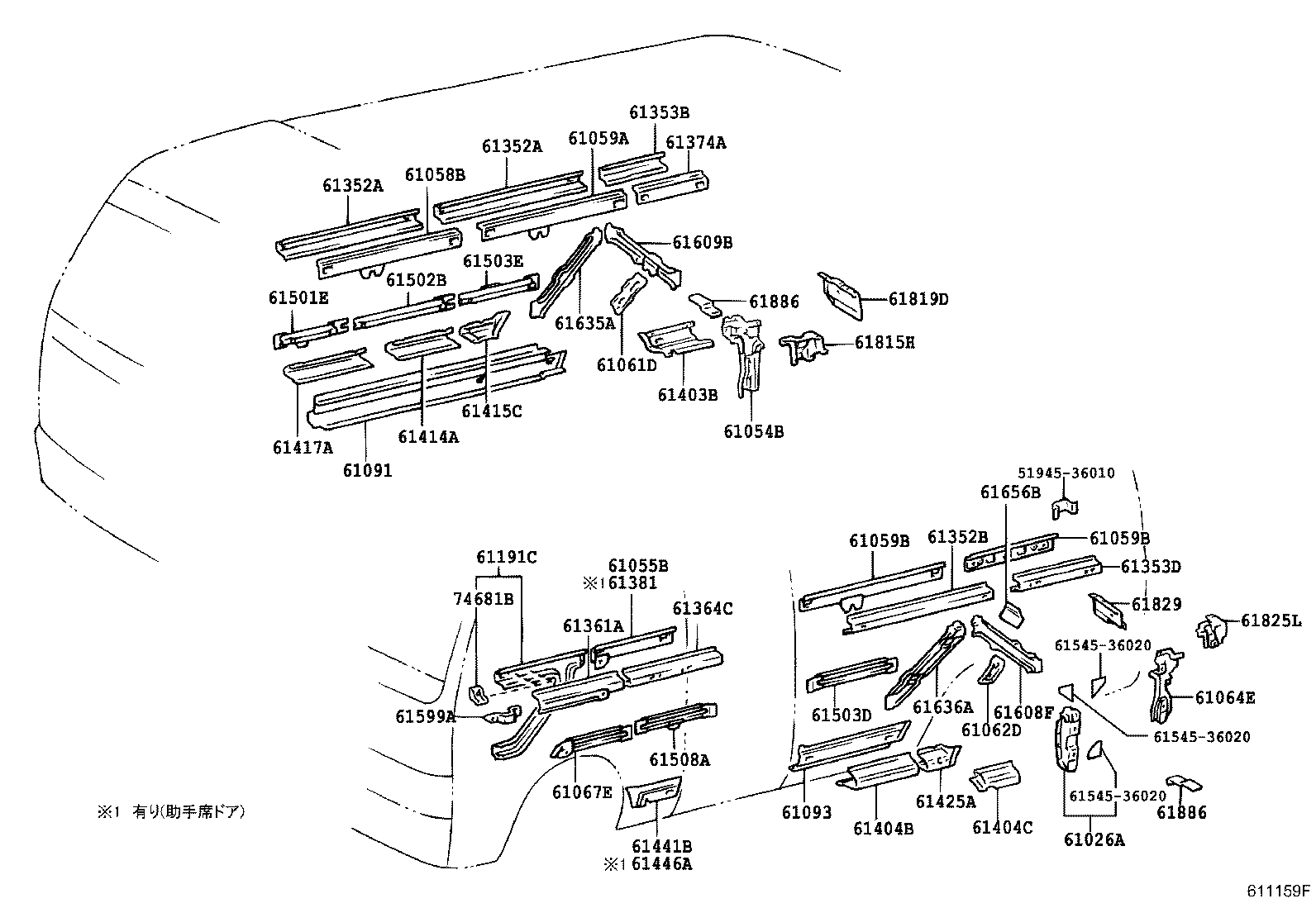

611159F 1999-08 → 2015-01

611159F 2002-11 → 2015-01

611159F 2004-08 → 2015-01

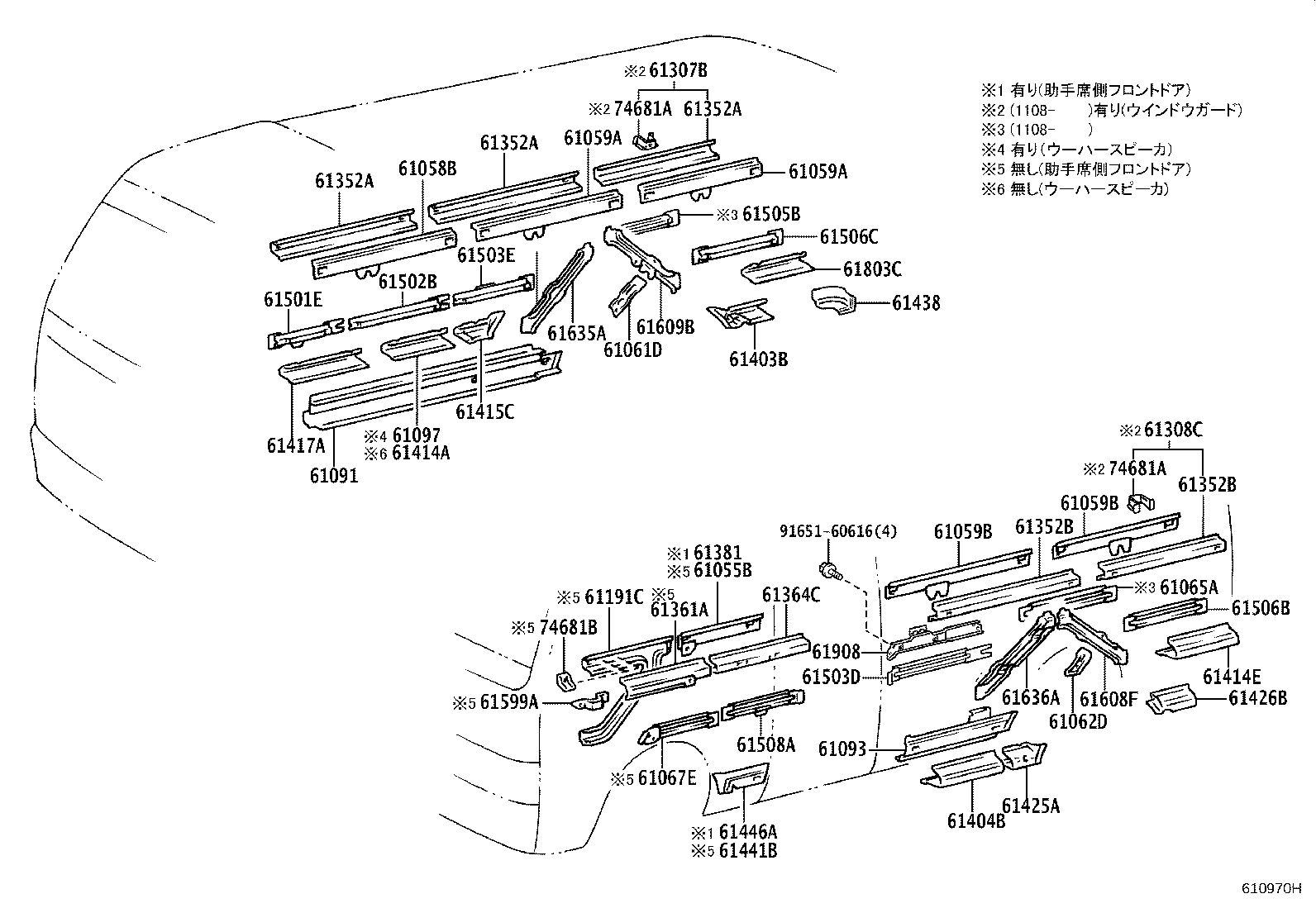

610970H 1993-01 → 2004-08

610970H 2004-08 → 2015-01

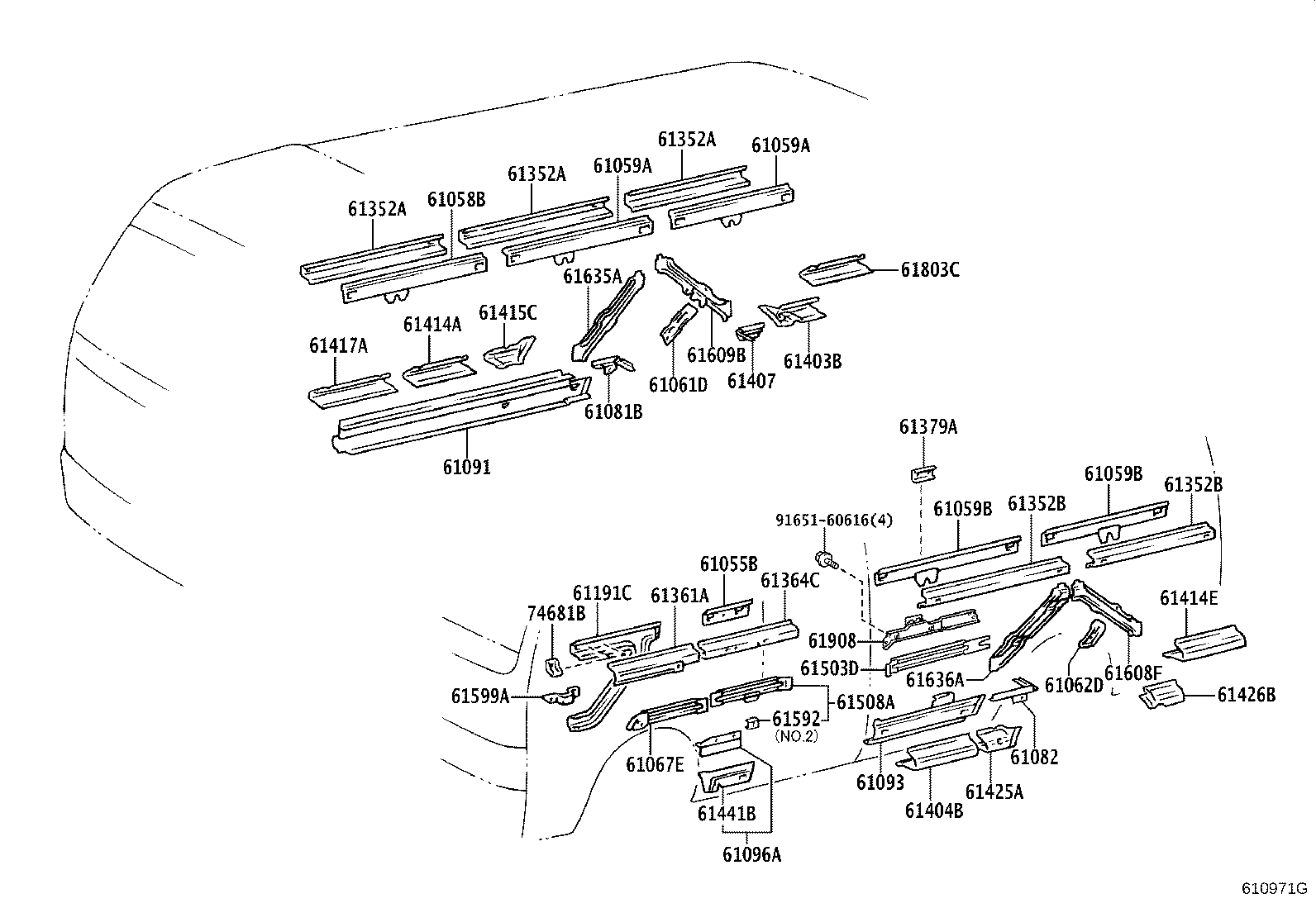

610971G 1993-01 → 1999-07

610971G 1999-07 → 2004-08

610971G 2004-08 → 2015-01

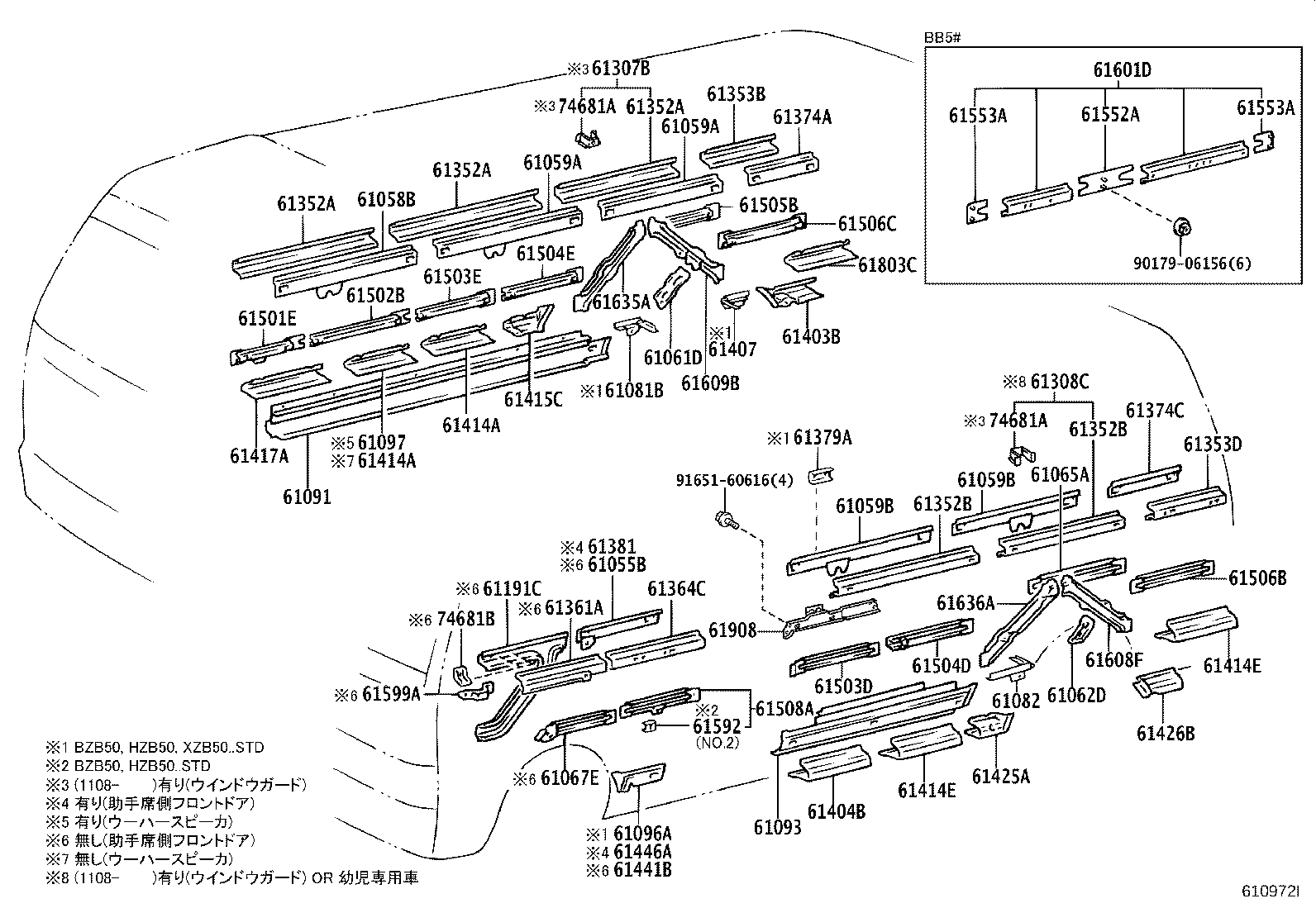

610972I 1993-01 → 2015-01

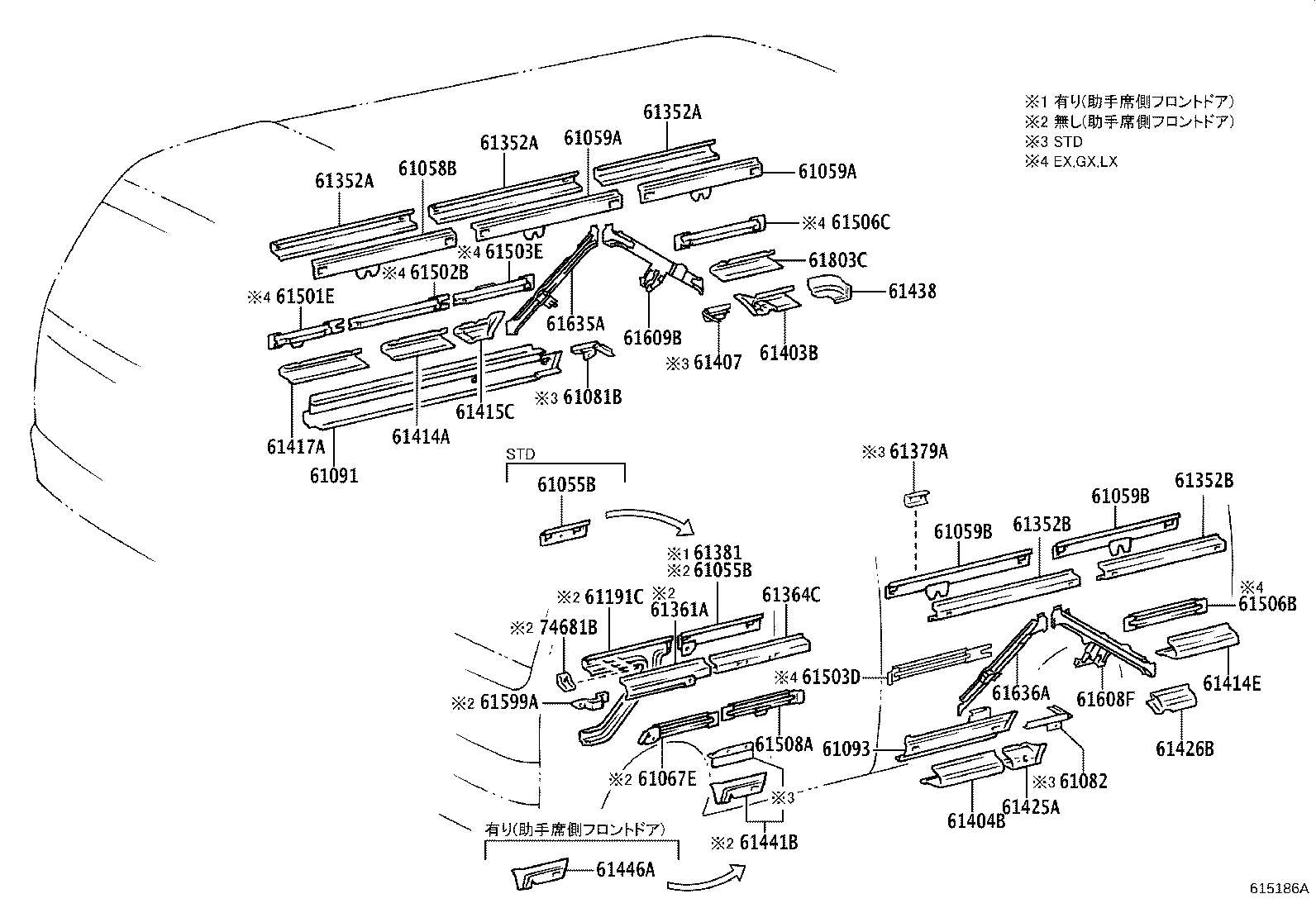

615186A 2015-01 → —

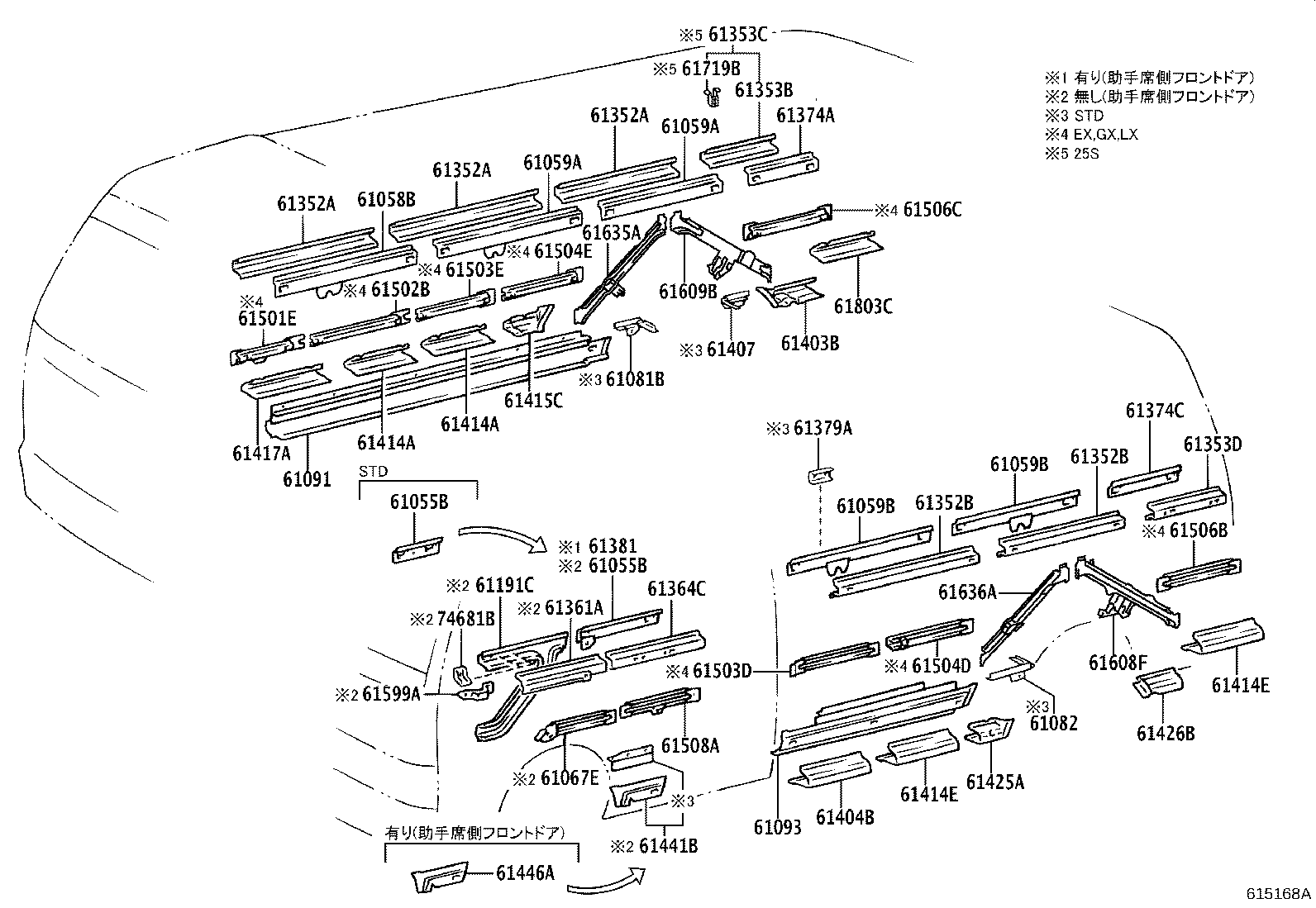

615168A 2015-01 → —

Part groups

PNC	Description
53137A	Retainer, Headlamp Door
53762B	Reinforcement, Radiator Reserve Tank Mount
53797A	Protector, Side Turn Signal Lamp
53803B	Bracket Sub-assy, Front Side Panel, RH
53804B	Bracket Sub-assy, Front Side Panel, LH
53827G	Protector, Front Fender Side Panel, RH
53861C	Bracket, Front Wheel Opening, NO.1
53862A	Bracket, Front Wheel Opening, NO.2
55149A	Bracket, Dash Wiring Harness
55717D	Protector, Front, Lower
58169E	Retainer, Rear Heater Mounting
59202	Lock Sub-assy, Inspection Hole Cover
59401	Cover Sub-assy, Cooler Condenser
61013A	Pillar Sub-assy, NO.3 RH
61014A	Pillar Sub-assy, NO.4 RH
61015A	Pillar Sub-assy, NO.5 RH
61016	Pillar Sub-assy, NO.6 RH
61017	Pillar Sub-assy, NO.7 RH
61018	Pillar Sub-assy, NO.8 RH
61022A	Pillar Sub-assy, NO.2 LH
61025A	Pillar Sub-assy, NO.5 LH
61026A	Pillar Sub-assy, NO.6 LH
61027B	Pillar Sub-assy, NO.7, LH
61028B	Pillar Sub-assy, NO.8 LH
61033B	Pillar Sub-assy, NO.2 Inner, RH
61035B	Pillar Sub-assy, NO.4 Inner, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61043	Pillar Sub-assy, NO.2 Inner, LH
61054B	Pillar Sub-assy, NO.12 RH
61055B	Rail Sub-assy, NO.2 Center, Inner, LH
61058B	Rail Sub-assy, NO.3 Center, Inner, RH
61059A	Rail Sub-assy, NO.4 Center, Inner, RH
61059B	Rail Sub-assy, NO.4 Center, Inner, LH
61061D	Gusset Sub-assy, Quarter Wheel House, NO.1, RH
61062D	Gusset Sub-assy, Quarter Wheel House, NO.2
61064E	Pillar Sub-assy, NO.12 LH
61065A	Rail Sub-assy, NO.5 Seat Anchor, LH
61067E	Rail Sub-assy, NO.7 Seat Anchor, LH
61071D	Reinforce Sub-assy, NO.1 Pillar, Upper RH
61072D	Reinforce Sub-assy, NO.1 Pillar, Upper LH
61073B	Reinforce Sub-assy, NO.2 Pillar, Center
61081B	Strength Sub-assy, NO.4 Floor Board, RH
61082	Strength Sub-assy, NO.4 Floor Board, LH
61084A	Rail Sub-assy, Center Door, LH
61086	Bracket Sub-assy, Fuel Inlet Pipe
61091	Rail Sub-assy, NO.2 Lower Inner, RH
61092	Rail Sub-assy, NO.3 Lower Inner, RH
61093	Rail Sub-assy, NO.2 Lower Inner, LH
61094	Rail Sub-assy, NO.3 Lower Inner, LH
61096A	Rail Sub-assy, NO.2 Lower, Inner LH
61097	Rail Sub-assy, NO.5 Lower Outer, RH
61098	Rail Sub-assy, NO.5 Lower Outer, LH
61098A	Stiffener Sub-assy, Pillar NO.10, Inner RH
61099	Stiffener Sub-assy, Pillar NO.10, Inner LH
61102G	Gusset, Front Body Pillar, Lower LH
61112B	Panel, NO.2 Side, RH
61115A	Panel, NO.4 Side, RH
61116A	Panel, Back Side, RH
61117B	Retainer, Washer Tank
61118C	Panel, Center Door Opening, Lower Outer Front
61119A	Panel, Center Door Orening, Lower Inner Front
61122B	Panel, NO.2 Side, LH
61125E	Panel, NO.4 Side, LH
61126C	Panel, Back Side, LH
61128D	Panel, Center Door Opening, Lower Outer Rear
61129C	Panel, Center Door Opening, Lower Inner Rear
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61133C	Pillar, Front Body, Lower Outer RH
61134C	Pillar, Front Body, Lower Outer LH
61136B	Reinforcement, Front Body Pillar, Outer
61143C	Support, Front Bumper Side, RH
61144A	Strength, Side Panel, NO.3 Upper LH
61144C	Support, Front Bumper Side, LH
61145B	Gusset, Front Body Pillar, Lower RH
61146B	Gusset, Front Body Pillar, Lower LH
61153C	Retainer, Front Body Pillar Lower Hinge, RH
61154B	Retainer, Front Body Pillar Lower Hinge, LH
61157	Bracket, NO.2 Side Panel
61158B	Retainer, Side Panel, NO.1
61159D	Retainer, Side Panel, NO.2 RH
61159E	Retainer, Side Panel, NO.2 LH
61161B	Stiffener, Side Panel, Upper NO.1
61162B	Stiffener, Side Panel, Upper NO.2
61164A	Stiffener, Side Panel, Upper NO.4
61166B	Stiffener, Side Panel, Upper NO.6
61167A	Stiffener, Side Panel, Lower RH
61168A	Stiffener, Side Panel, Lower LH
61171A	Bracket, Antenna Pole Mounting
61171C	Stiffener, Side Panel, NO.1
61172	Stiffener, Side Panel, NO.2
61177D	Reinforcement, NO.1 Pillar, Center
61178A	Reinforcement, NO.1 Pillar, Lower RH
61181A	Bracket, Instrument Side, RH
61182C	Bracket, Instrument Side, LH
61188C	Reinforcement, NO.1 Pillar, Lower LH
61191C	Reinforcement, Side Lower Window, LH
61193B	Cover, Front Pillar Service Hole
61201A	Stiffener Sub-assy, Side Panel, NO.1
61216B	Pillar, NO.3
61217C	Pillar, NO.4
61221	Pillar, NO.1 Outer, Upper LH
61222	Pillar, NO.1 Outer, Lower LH
61225A	Rail, Roof Side Outer Upper NO.1, RH
61226A	Rail, Roof Side Outer Upper NO.1, LH
61237C	Rail, Roof Side, Inner NO.4 RH
61237D	Pillar, NO.9 Outer, Upper RH
61239A	Pillar, NO.10 RH
61247C	Pillar, NO.9 Outer, Upper LH
61248C	Pillar, NO.9 Outer, Lower LH
61249	Retainer, Roof Side Rail, Outer LH
61251A	Pillar, NO.1 Inner, RH
61254	Pillar, NO.3 Inner, RH
61254A	Pillar, NO.3 Inner, LH
61261D	Pillar, NO.1 Inner, LH
61265D	Pillar, NO.3 Inner, Upper LH
61267C	Pillar, NO.4 Inner, Upper LH
61272A	Pillar, NO.9 Inner, RH
61273	Pillar, NO.9 Inner, Lower RH
61274	Pillar, NO.10 Inner, RH
61277B	Joint, Roof Drip Channel
61278A	Joint, Roof Drip Channel, LH
61282C	Pillar, NO.9 Inner, LH
61283B	Pillar, NO.9 Inner, Lower LH
61284B	Pillar, NO.10 Inner, LH
61288	Pillar, NO.3 Corner, LH
61289A	Pillar, NO.4 Corner, LH
61299	Bracket, NO.9 Inner Pillar Blower
61299A	Bracket, Inner Pillar Blower, RH
61299B	Bracket, Inner Pillar Blower, LH
61305B	Reinforce Sub-assy, Center Body Piller, Lower Front
61306B	Reinforce Sub-assy, Center Body Pillar, Lower Rear
61307B	Rail Sub-assy, NO.5 Center, Outer RH
61307C	Pillar Sub-assy, Center Body, Inner Front
61308C	Rail Sub-assy, NO.5 Center Outer, LH
61308D	Pillar Sub-assy, Center Body, Inner Rear
61318A	Rail, NO.6 Upper Outer, RH
61319B	Plate, Center Body Pillar, Outer RH
61328A	Rail, NO.6 Upper Outer, LH
61329	Plate, Center Body Pillar, Outer LH
61335E	Retainer, Seat Belt Anchor
61338B	Rail, Rear Side NO.2, RH
61342A	Rail, NO.1 Upper Inner, Rear LH
61348B	Rail, Rear Side NO.2, LH
61352A	Rail, NO.2 Center Outer, RH
61352B	Rail, NO.2 Center Outer, LH
61353B	Rail, NO.3 Center Outer, RH
61353C	Rail, NO.3 Center Outer
61353D	Rail, NO.3 Center, LH
61356	Channel, Roof Drip Side, Front RH
61357	Channel, Roof Drip Side, Center NO.1
61358A	Channel, Roof Drip Side, Center NO.1
61358B	Channel, Roof Drip Side, Rear RH
61361A	Rail, NO.1 Center Outer, LH
61364C	Rail, NO.4 Center Outer, LH
61366A	Channel, Roof Drip Side, Front LH
61367C	Channel, Roof Drip Side, Center NO.1
61368	Channel, Roof Drip Side, Center NO.1
61368A	Channel, Roof Drip Side, Rear LH
61374A	Rail, NO.4 Center Inner
61374C	Rail, NO.4 Center Inner, LH
61379A	Bracket, Center Pillar Garnish
61381	Rail, NO.1 Center Inner, LH
61389	Patch, Center Body Pillar, Outer
61399	Patch, Center Body Pillar, Outer NO.2
61403B	Rail Sub-assy, NO.6 Lower Outer, RH
61404B	Rail Sub-assy, NO.6 Lower Outer, LH
61404C	Rail Sub-assy, NO.6 Lower Outer, RH
61406	Rail Sub-assy, NO.7 Lower Inner, Lower LH
61407	Strength Sub-assy, NO.3 Floor Board, RH
61408B	Strength Sub-assy, NO.3 Floor Board, LH
61414A	Rail,NO.4 Lower Outer, RH
61414E	Rail, NO.4 Lower Outer, LH
61415C	Rail, NO.5 Lower Outer, RH
61417A	Rail, NO.7 Lower Outer, RH
61418B	Rail, NO.8 Lower Outer, RH
61419B	Rail, NO.9 Lower Outer
61421B	Rail, NO.1 Lower Outer, LH
61425A	Rail, NO.5 Lower Outer, LH
61426B	Rail, NO.6 Lower Outer, LH
61428B	Rail, NO.8 Lower Outer, LH
61429A	Rail, NO.9 Lower Outer, LH
61438	Rail, NO.7 Lower Inner, Lower RH
61441B	Rail, NO.1 Lower Inner, LH
61442	Rail, NO.2 Lower Inner, LH
61443A	Rail, NO.3 Lower Inner, LH
61446A	Rail, NO.6 Lower Inner, LH
61452	Panel, Rocker Inner, Front RH
61453A	Panel, Rocker Inner, Rear RH
61455A	Retainer, Front Step, RH
61456A	Strength, NO.1 Floor Board Set, RH
61462	Panel, Rocker, Inner Front LH
61463A	Panel, Rocker, Inner Rear LH
61466	Strength, NO.1 Floor Board Set, LH
61471	Rail, Center Door, Outer
61481A	Rail, Center Door, Lower Outer
61487	Reinforcement, NO.10 Pillar, Upper RH
61497	Reinforcement, NO.10 Pillar, Upper LH
61501E	Rail Sub-assy, Seat Anchor, RH
61502B	Rail Sub-assy, NO.2 Seat Anchor, RH
61503D	Rail Sub-assy, NO.3 Seat Anchor
61503E	Rail Sub-assy, NO.3 Seat Anchor, RH
61504D	Rail Sub-assy, NO.4 Seat Anchor
61504E	Rail Sub-assy, NO.4 Seat Anchor, RH
61505B	Rail Sub-assy, NO.5 Seat Anchor, RH
61506B	Rail Sub-assy, NO.6
61506C	Rail Sub-assy, NO.6, RH
61508A	Rail Sub-assy, NO.8 Seat Anchor
61525E	Bracket, Seat Anchor, RH
61525F	Bracket, Seat Anchor, RH
61525G	Bracket, Seat Anchor, RH
61525H	Bracket, Seat Anchor, RH
61525J	Bracket, Seat Anchor, RH
61526B	Bracket, Seat Anchor, NO.2 RH
61526C	Bracket, Seat Anchor, NO.2 LH
61526G	Bracket, Seat Anchor, LH
61526H	Bracket, Seat Anchor, LH
61526J	Bracket, Seat Anchor, LH
61526K	Bracket, Seat Anchor, LH
61531F	Gusset, Seat Anchor, RH
61531G	Gusset, Seat Anchor, RH
61531H	Gusset, Seat Anchor, RH
61531J	Gusset, Seat Anchor, RH
61531K	Gusset, Seat Anchor, RH
61532E	Gusset, Seat Anchor, NO.2
61532F	Gusset, Seat Anchor, NO.1
61532J	Gusset, Seat Anchor, LH
61532K	Gusset, Seat Anchor, LH
61532L	Gusset, Seat Anchor, LH
61547A	Gusset, Seat Anchor, NO.7 LH
61552A	Gusset, Seat Anchor, NO.11 RH
61553A	Gusset, Seat Anchor, NO.12 RH
61557B	Gusset, Pillar TO Rail, NO.2
61567A	Gusset, Pillar TO Rail, NO.2 LH
61578	Plate, NO.4 Pillar, Inner LH
61582A	Bracket, Rear Seat, NO.2
61582B	Bracket, Rear Seat, NO.2 LH
61585A	Gusset, Rear Door Pillar, Front
61586A	Gusset, Rear Door Pillar, Rear
61587	Gusset, Center Door Pillar, Front LH
61588	Gusset, Center Door Pillar, Rear LH
61592	Bracket, Stiffener, NO.2
61593	Bracket, Stiffener, NO.3
61594	Bracket, Stiffener, NO.4
61594A	Bracket, Stiffener, NO.4 LH
61596A	Bracket, Computer Set, Lower LH
61599A	Bracket, Stiffener, NO.6, LH
61601D	Rail Sub-assy, Seat Anchor, NO.1
61608F	Brace Sub-assy, Quarter Wheel House, LH
61609B	Brace Sub-assy, Quarter Panel
61614E	Panel, Quarter, Inner LH
61615D	Pillar, NO.10 Outer, Upper RH
61624F	Plate, Center Door Piller Dust Proof, Rear LH
61625B	Pillar, NO.10 Outer, Upper LH
61631L	Panel, Rear Wheel House, Outer RH
61632K	Panel, Rear Wheel House, Outer LH
61633B	Panel, Wheel House
61635A	Brace, Quarter Wheel House, RH
61636A	Brace, Quarter Wheel House, LH
61651A	Gusset, Pillar Shear, NO.1 RH
61656B	Bracket, Back Door Stay, Upr LH
61661E	Gusset, Pillar Shear, NO.1 LH
61669A	Retainer, Front Door Open Switch Set
61679E	Retainer, Front Door Open Switch Set, LH
61687B	Bracket, Mudguard, Rear RH
61688C	Bracket, Mudguard, Rear LH
61693D	Bracket, Rear Wheel Opening, NO.1
61694D	Bracket, Rear Wheel Opening, NO.2
61705S	Cover Sub-assy, Cooler Condenser Air Intake
61707M	Bracket Sub-assy, Switch Relay
61709A	Reinforcement Sub-assy, Seat Belt Anchor, LH
61719B	Bracket, Roof Side, Inner
61723C	Bracket, Switch Relay
61755D	Retainer, Deck Side Trim, Upper
61787B	Retainer, Slide Door Arm, Upper Rear
61793B	Bracket, Cooler Condenser, NO.1
61803C	Rail Sub-assy, NO.4 Lower Outer, RH
61813A	Plate, Dustproof, NO.1 RH
61815H	Plate, Dust Proof, NO.3 RH
61819D	Plate, Dust Proof, NO.7 RH
61823B	Plate, Dust Proof, NO.1 LH
61824B	Plate, Dust Ploof, NO.2 LH
61825L	Plate, Dust Proof, NO.3 LH
61826C	Pad, Noise Shutter, NO.3
61829	Plate, Dust Proof, NO.7 LH
61852A	Plate, NO.5 Pillar Board Set
61853	Channel, Quarter Inside Panel Center, RH
61854A	Bracket, Quarter Inner Computer, NO.4
61855	Bracket, Rear Washer Tank, Upper
61859	Cover, Front Door Step, RH
61869	Cover, Front Door Step, LH
61886	Plate, Roof Side, Inner Rear
61887	Rail, Side Panel Dust Proof, NO.1 RH
61888	Rail, Side Panel Dust Proof, NO.1 LH
61895	Rail, Side Panel Dust Proof, NO.2 RH
61896	Rail, Side Panel Dust Proof, NO.2 LH
61897	Rail, Side Panel Dust Proof, NO.3 RH
61898A	Rail, Side Panel Dust Proof, NO.3 LH
61908	Pillar Sub-assy, NO.1 Outer, Upper LH
62429	Cover, Center Pillar Service Hole
62551H	Pad, Pillar, NO.1 RH
63147E	Bracket, Roof Panel Reinforcement
63147G	Bracket, Roof Panel Reinforcement
63147L	Bracket, Roof Panel Reinforcement
63147M	Bracket, Roof Panel Reinforcement
63147N	Bracket, Roof Panel Reinforcement
63147P	Bracket, Roof Panel Reinforcement
63147R	Bracket, Roof Panel Reinforcement
63147S	Bracket, Roof Panel Reinforcement
63147T	Bracket, Roof Panel Reinforcement
63147U	Bracket, Roof Panel Reinforcement
63182B	Bracket, Signal, Front LH
63214E	Channel, Roof Drip, Rear, RH
63215E	Channel, Roof Drip, Rear, LH
64116B	Reinforcement, Upper Back, RH
64117B	Reinforcement, Upper Back, LH
64143A	Reinforcement, Back Corner Panel, RH
64144A	Reinforcement, Back Corner Panel, LH
64251A	Bracket, Rear Seatback Stop
64251B	Bracket, Rear Seatback Stop, LH
65415C	Panel, Rear Body, Front RH
65416A	Panel, Rear Body, Front LH
65417	Panel, Rear Body, Rear RH
65614B	Panel, Rear Body, Rear LH
74681A	Retainer, Assist Grip
74681B	Retainer, Assist Grip
76587A	Protector, Center Pillar Outer
77604D	Cover Sub-assy, Fuel Tank Valve
77689	Bracket, Fuel Tank Filler Pipe Protector, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
