Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05

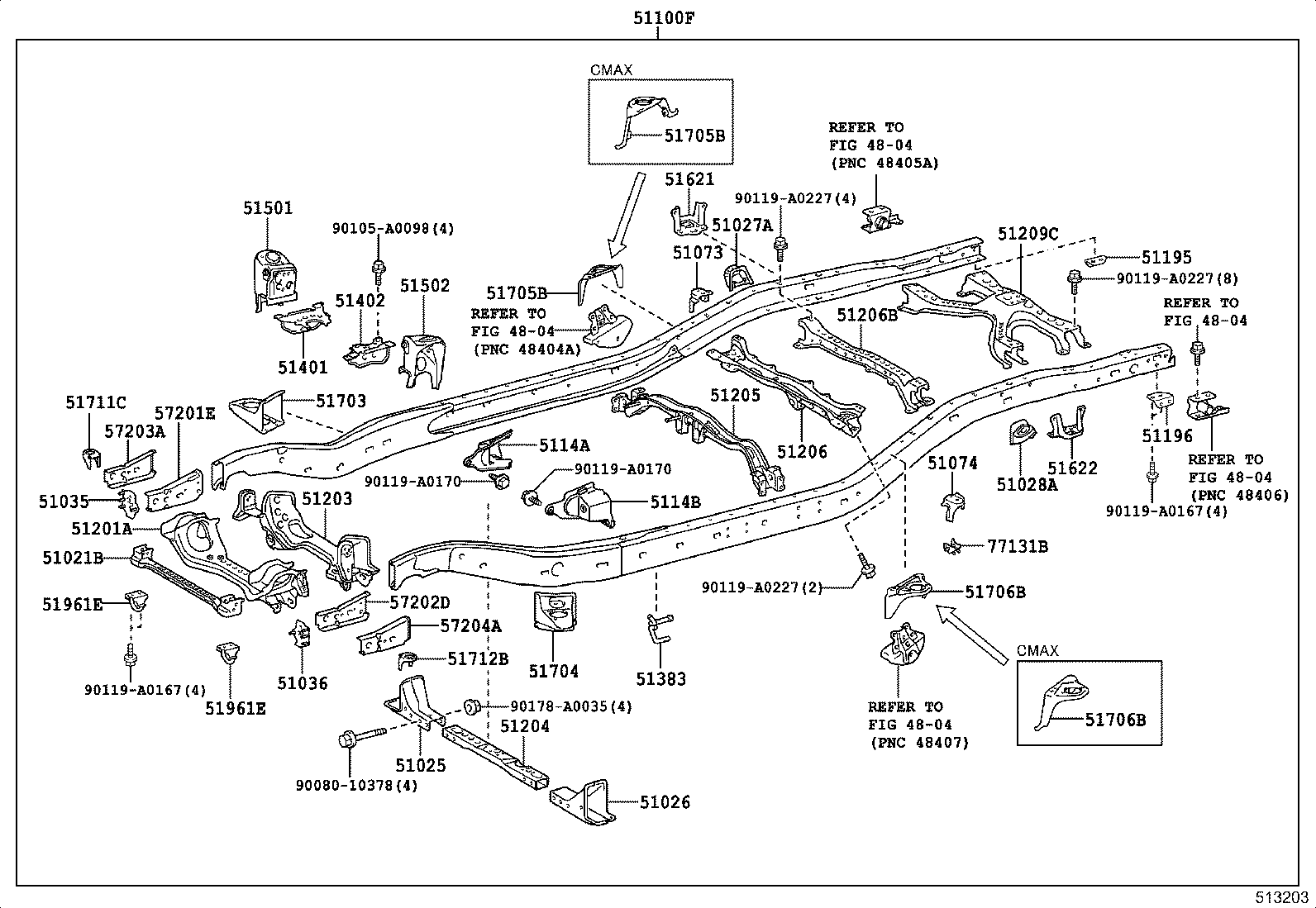

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51021B — Crossmember Sub-assy, Frame Auxiliary | ||||
| 51021-0C030 note |
Crossmember Sub-assy, Frame Auxiliary
2008-08 → 2009-04
ended
|
USK51 CMAX S;USK56 CMAX +2 | — | |
| 51021-0C030 |
Crossmember Sub-assy, Frame Auxiliary
2006-11 → 2008-07
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51021-0C030 note |
Crossmember Sub-assy, Frame Auxiliary
2008-08 → 2009-04
ended
|
USK56 CMAX HTWC S | — | |
| 51021-0C030 |
Crossmember Sub-assy, Frame Auxiliary
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51021-0C030 |
Crossmember Sub-assy, Frame Auxiliary
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51021-0C030 |
Crossmember Sub-assy, Frame Auxiliary
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51021-0C030 |
Crossmember Sub-assy, Frame Auxiliary
2017-08 → —
|
UPK5#,USK5# | — | |
| 51025 — Member Sub-assy, Engine Front Mounting | ||||
| 51025-0C040 |
Member Sub-assy, Engine Front Mounting
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51025-0C040 |
Member Sub-assy, Engine Front Mounting
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51025-0C040 |
Member Sub-assy, Engine Front Mounting
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51025-0C040 |
Member Sub-assy, Engine Front Mounting
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51025-0C040 |
Member Sub-assy, Engine Front Mounting
2017-08 → —
|
UPK5#,USK5# | — | |
| 51026 — Bracket Sub-assy, Frame NO.3 Crossmember, LH | ||||
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51027A — Bracket Sub-assy, Frame NO.4 Crossmember, RH | ||||
| 51027-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51027-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51027-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51027-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51027-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51028A — Bracket Sub-assy, Frame NO.4 Crossmember, LH | ||||
| 51028-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51028-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51028-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51028-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51028-0C010 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51035 — Plate Sub-assy, Frame Side Rail, RH | ||||
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51036 — Plate Sub-assy, Frame Side Rail, LH | ||||
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51073 — Bracket Sub-assy, Rear Body Mounting, NO.2 RH | ||||
| 51073-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51073-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51073-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51073-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51073-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51074 — Bracket Sub-assy, Rear Body Mounting, NO.2 LH | ||||
| 51074-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51074-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51074-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51074-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51074-0C010 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51100F — Frame Sub-assy | ||||
| 51001-0C330 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
GSK50 | — | |
| 51001-0C331 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
GSK50 | — | |
| 51001-0C340 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK50 | — | |
| 51001-0C341 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK50 | — | |
| 51001-0C350 note |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK50 | — | |
| 51001-0C351 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK50 | — | |
| 51001-0C360 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK55 | — | |
| 51001-0C361 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK55 | — | |
| 51001-0C370 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK50 | — | |
| 51001-0C371 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK50 | — | |
| 51001-0C380 note |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK50 | — | |
| 51001-0C380 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK55 | — | |
| 51001-0C381 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK55 | — | |
| 51001-0C381 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK50 | — | |
| 51001-0C390 note |
Frame Sub-assy
2006-11 → 2008-07
ended
|
GSK51 D | — | |
| 51001-0C391 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
GSK51 D | — | |
| 51001-0C400 note |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK51 D | — | |
| 51001-0C401 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 D | — | |
| 51001-0C410 note |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK56 D | — | |
| 51001-0C411 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK56 D | — | |
| 51001-0C420 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK51 D | — | |
| 51001-0C421 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK51 D | — | |
| 51001-0C430 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK56 D | — | |
| 51001-0C431 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK56 D | — | |
| 51001-0C440 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
GSK51 S | — | |
| 51001-0C441 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
GSK51 S | — | |
| 51001-0C450 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK51 DCB | — | |
| 51001-0C451 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 DCB | — | |
| 51001-0C460 note |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK51 DCB | — | |
| 51001-0C461 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 DCB | — | |
| 51001-0C470 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK56 DCB | — | |
| 51001-0C471 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK56 DCB | — | |
| 51001-0C480 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK51 DCB | — | |
| 51001-0C481 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK51 DCB | — | |
| 51001-0C490 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK56 DCB | — | |
| 51001-0C490 note |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK51 DCB | — | |
| 51001-0C491 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK56 DCB | — | |
| 51001-0C491 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK51 DCB | — | |
| 51001-0C500 note |
Frame Sub-assy
2007-03 → 2008-07
ended
|
UCK51 CMAX S | — | |
| 51001-0C501 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 CMAX S | — | |
| 51001-0C510 note |
Frame Sub-assy
2007-03 → 2008-07
ended
|
UCK51 CMAX | — | |
| 51001-0C511 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 CMAX | — | |
| 51001-0C520 note |
Frame Sub-assy
2007-03 → 2008-07
ended
|
UCK56 CMAX S | — | |
| 51001-0C521 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK56 CMAX S | — | |
| 51001-0C530 |
Frame Sub-assy
2007-03 → 2008-07
ended
|
USK51 CMAX | — | |
| 51001-0C531 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK51 CMAX | — | |
| 51001-0C540 note |
Frame Sub-assy
2007-03 → 2008-07
ended
|
USK51 CMAX | — | |
| 51001-0C540 |
Frame Sub-assy
2007-03 → 2008-07
ended
|
USK56 CMAX | — | |
| 51001-0C541 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK56 CMAX | — | |
| 51001-0C541 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK51 CMAX | — | |
| 51001-0C550 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK52 | — | |
| 51001-0C551 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK52 | — | |
| 51001-0C560 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK57 | — | |
| 51001-0C561 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK57 | — | |
| 51001-0C570 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK52 | — | |
| 51001-0C571 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK52 | — | |
| 51001-0C580 |
Frame Sub-assy
2007-01 → 2008-07
ended
|
USK57 | — | |
| 51001-0C581 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
USK57 | — | |
| 51001-0C650 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
GSK51 D | — | |
| 51001-0C651 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
GSK51 D | — | |
| 51001-0C660 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK51 D | — | |
| 51001-0C661 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 D | — | |
| 51001-0C670 |
Frame Sub-assy
2006-11 → 2008-07
ended
|
UCK56 D | — | |
| 51001-0C671 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK56 D | — | |
| 51001-0C680 |
Frame Sub-assy
2007-03 → 2008-07
ended
|
UCK51 CMAX | — | |
| 51001-0C681 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK51 CMAX | — | |
| 51001-0C690 |
Frame Sub-assy
2007-03 → 2008-07
ended
|
UCK56 CMAX | — | |
| 51001-0C691 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK56 CMAX | — | |
| 51001-0C700 note |
Frame Sub-assy
2008-04 → 2008-07
ended
|
UCK50 | — | |
| 51001-0C701 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK50 | — | |
| 51001-0C710 note |
Frame Sub-assy
2008-08 → 2009-03
ended
|
USK51 CMAX S | — | |
| 51001-0C711 note |
Frame Sub-assy
2009-04 → 2009-04
ended
|
USK51 CMAX S | — | |
| 51001-0C720 note |
Frame Sub-assy
2008-08 → 2009-03
ended
|
USK56 CMAX HTWC L | — | |
| 51001-0C720 note |
Frame Sub-assy
2008-08 → 2009-03
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C721 note |
Frame Sub-assy
2009-04 → 2009-04
ended
|
USK56 CMAX HTWC L | — | |
| 51001-0C721 note |
Frame Sub-assy
2009-04 → 2009-04
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C331 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
GSK50 | — | |
| 51001-0C332 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
GSK50 | — | |
| 51001-0C371 |
Frame Sub-assy
2009-04 → 2010-05
ended
|
USK50 | — | |
| 51001-0C381 |
Frame Sub-assy
2009-04 → 2009-08
ended
|
UPK55,USK55 | — | |
| 51001-0C381 note |
Frame Sub-assy
2009-04 → 2009-08
ended
|
USK50 | — | |
| 51001-0C382 |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK55 | — | |
| 51001-0C382 note |
Frame Sub-assy
2009-09 → 2010-05
ended
|
USK50 | — | |
| 51001-0C382 |
Frame Sub-assy
2009-09 → 2010-05
ended
|
UPK55 | — | |
| 51001-0C383 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK55 | — | |
| 51001-0C421 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
USK51 D | — | |
| 51001-0C422 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 D | — | |
| 51001-0C431 |
Frame Sub-assy
2009-04 → 2009-08
ended
|
UPK56,USK56 D | — | |
| 51001-0C432 |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK56 D | — | |
| 51001-0C432 |
Frame Sub-assy
2009-09 → 2010-05
ended
|
UPK56 D | — | |
| 51001-0C433 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK56 D | — | |
| 51001-0C441 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
GSK51 S | — | |
| 51001-0C442 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
GSK51 S | — | |
| 51001-0C481 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
USK51 DCB | — | |
| 51001-0C482 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 DCB | — | |
| 51001-0C491 note |
Frame Sub-assy
2009-04 → 2009-08
ended
|
USK51 DCB | — | |
| 51001-0C491 |
Frame Sub-assy
2009-04 → 2009-08
ended
|
UPK56,USK56 DCB | — | |
| 51001-0C492 note |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK51 DCB | — | |
| 51001-0C492 |
Frame Sub-assy
2009-09 → 2010-05
ended
|
UPK56 DCB L | — | |
| 51001-0C492 |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK56 DCB;UPK56 DCB S | — | |
| 51001-0C493 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK56,USK56 DCB | — | |
| 51001-0C493 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 DCB | — | |
| 51001-0C531 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
USK51 CMAX | — | |
| 51001-0C532 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 CMAX | — | |
| 51001-0C541 |
Frame Sub-assy
2009-04 → 2009-08
ended
|
UPK56,USK56 CMAX | — | |
| 51001-0C541 note |
Frame Sub-assy
2009-04 → 2009-08
ended
|
USK51 CMAX | — | |
| 51001-0C542 |
Frame Sub-assy
2009-09 → 2010-05
ended
|
UPK56 CMAX L | — | |
| 51001-0C542 note |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK51 CMAX | — | |
| 51001-0C542 |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK56 CMAX;UPK56 CMAX S | — | |
| 51001-0C543 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 CMAX | — | |
| 51001-0C543 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK56,USK56 CMAX | — | |
| 51001-0C571 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
USK52 | — | |
| 51001-0C572 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK52 | — | |
| 51001-0C581 |
Frame Sub-assy
2009-04 → 2009-08
ended
|
UPK57,USK57 | — | |
| 51001-0C582 |
Frame Sub-assy
2009-09 → 2010-05
ended
|
UPK57 | — | |
| 51001-0C582 |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK57 | — | |
| 51001-0C583 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK57 | — | |
| 51001-0C651 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
GSK51 D | — | |
| 51001-0C652 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
GSK51 D | — | |
| 51001-0C711 note |
Frame Sub-assy
2010-08 → 2011-09
ended
|
USK51 CMAX S | — | |
| 51001-0C711 note |
Frame Sub-assy
2009-04 → 2011-09
ended
|
USK51 CMAX S | — | |
| 51001-0C712 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 CMAX S | — | |
| 51001-0C712 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK51 CMAX S | — | |
| 51001-0C721 note |
Frame Sub-assy
2009-04 → 2009-08
ended
|
UPK56 CMAX S;USK56 CMAX +2 | — | |
| 51001-0C721 note |
Frame Sub-assy
2009-04 → 2009-08
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C722 note |
Frame Sub-assy
2009-09 → 2011-09
ended
|
UPK56 CMAX S;USK56 CMAX +2 | — | |
| 51001-0C722 note |
Frame Sub-assy
2009-09 → 2011-09
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C722 note |
Frame Sub-assy
2010-08 → 2011-09
ended
|
UPK56,USK56 CMAX HTWC S | — | |
| 51001-0C723 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK56,USK56 CMAX HTWC S | — | |
| 51001-0C723 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C723 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK56 CMAX;USK56 CMAX HTWC +1 | — | |
| 51001-0C740 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK50 | — | |
| 51001-0C741 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK50 | — | |
| 51001-0C750 note |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK50 | — | |
| 51001-0C751 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK50 | — | |
| 51001-0C760 note |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK50 | — | |
| 51001-0C760 note |
Frame Sub-assy
2010-08 → 2011-09
ended
|
UPK50 | — | |
| 51001-0C761 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK50 | — | |
| 51001-0C761 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK50 | — | |
| 51001-0C780 |
Frame Sub-assy
2009-04 → 2010-05
ended
|
UPK51 D | — | |
| 51001-0C800 |
Frame Sub-assy
2009-04 → 2010-05
ended
|
UPK51 DCB L | — | |
| 51001-0C800 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK51 DCB S | — | |
| 51001-0C801 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK51 DCB | — | |
| 51001-0C810 note |
Frame Sub-assy
2009-04 → 2010-05
ended
|
UPK51 DCB L | — | |
| 51001-0C810 note |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK51 DCB S | — | |
| 51001-0C811 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK51 DCB | — | |
| 51001-0C820 note |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK51 CMAX S | — | |
| 51001-0C821 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK51 CMAX | — | |
| 51001-0C830 |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK51 CMAX S | — | |
| 51001-0C830 |
Frame Sub-assy
2009-04 → 2010-05
ended
|
UPK51 CMAX L | — | |
| 51001-0C831 |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK51 CMAX | — | |
| 51001-0C840 note |
Frame Sub-assy
2009-04 → 2010-05
ended
|
UPK51 CMAX L | — | |
| 51001-0C840 note |
Frame Sub-assy
2009-04 → 2011-09
ended
|
UPK51 CMAX S | — | |
| 51001-0C841 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
UPK51 CMAX | — | |
| 51001-0C850 |
Frame Sub-assy
2009-04 → 2010-05
ended
|
UPK52 | — | |
| 51001-0C422 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 RCB | — | |
| 51001-0C424 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 RCB | — | |
| 51001-0C434 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 RCB | — | |
| 51001-0C434 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK56 RCB | — | |
| 51001-0C435 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 RCB | — | |
| 51001-0C435 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK56 RCB | — | |
| 51001-0C442 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
GSK51 DCB | — | |
| 51001-0C482 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 DCB | — | |
| 51001-0C484 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 DCB | — | |
| 51001-0C493 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 DCB | — | |
| 51001-0C493 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK56,USK56 DCB | — | |
| 51001-0C495 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 DCB S | — | |
| 51001-0C495 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 DCB | — | |
| 51001-0C495 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK56,USK56 DCB | — | |
| 51001-0C532 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 CMAX | — | |
| 51001-0C534 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX | — | |
| 51001-0C543 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK56,USK56 CMAX | — | |
| 51001-0C543 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 CMAX (L,S) | — | |
| 51001-0C545 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX HTWCF;USK51 CMAX +2 | — | |
| 51001-0C545 note |
Frame Sub-assy
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51001-0C545 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX S | — | |
| 51001-0C545 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK56,USK56 CMAX | — | |
| 51001-0C572 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK52 | — | |
| 51001-0C574 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK52 | — | |
| 51001-0C584 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK57 | — | |
| 51001-0C584 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK52 | — | |
| 51001-0C585 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK52 | — | |
| 51001-0C585 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK57 | — | |
| 51001-0C652 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
GSK51 RCB | — | |
| 51001-0C712 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 CMAX S | — | |
| 51001-0C712 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK51 CMAX S | — | |
| 51001-0C714 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX HTWC S | — | |
| 51001-0C714 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX HTWC S | — | |
| 51001-0C723 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK56,USK56 CMAX HTWC S | — | |
| 51001-0C723 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C723 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
USK56 CMAX HTWC L | — | |
| 51001-0C725 note |
Frame Sub-assy
2014-09 → 2015-08
ended
|
USK56 CMAX HTWC S | — | |
| 51001-0C725 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK56,USK56 CMAX HTWC S | — | |
| 51001-0C725 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK56 CMAX HTWC L | — | |
| 51001-0C801 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK51 DCB | — | |
| 51001-0C803 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK51 DCB | — | |
| 51001-0C811 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK51 DCB | — | |
| 51001-0C813 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK51 DCB | — | |
| 51001-0C831 |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK51 CMAX | — | |
| 51001-0C833 |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK51 CMAX | — | |
| 51001-0C841 note |
Frame Sub-assy
2013-08 → 2014-09
ended
|
UPK51 CMAX | — | |
| 51001-0C843 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
UPK51 CMAX | — | |
| 51001-0CA90 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 RCB | — | |
| 51001-0CB00 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 RCB | — | |
| 51001-0CB00 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK56 RCB | — | |
| 51001-0CB10 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 DCB | — | |
| 51001-0CB20 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 DCB | — | |
| 51001-0CB20 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK56 DCB | — | |
| 51001-0CB20 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 DCB S | — | |
| 51001-0CB30 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX | — | |
| 51001-0CB40 note |
Frame Sub-assy
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51001-0CB40 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK56 CMAX | — | |
| 51001-0CB40 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX HTWCF;USK51 CMAX +2 | — | |
| 51001-0CB40 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK51 CMAX S | — | |
| 51001-0CB50 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK52 | — | |
| 51001-0CB60 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK52 | — | |
| 51001-0CB60 note |
Frame Sub-assy
2014-09 → 2017-08
ended
|
USK57 | — | |
| 51001-0C484 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 DCB | — | |
| 51001-0C485 |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 DCB | — | |
| 51001-0C486 |
Frame Sub-assy
2020-10 → —
|
USK51 DCB | — | |
| 51001-0C495 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 DCB S | — | |
| 51001-0C495 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 DCB | — | |
| 51001-0C495 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
UPK56,USK56 DCB | — | |
| 51001-0C496 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 DCB | — | |
| 51001-0C496 |
Frame Sub-assy
2018-02 → 2019-11
ended
|
UPK56,USK56 DCB | — | |
| 51001-0C496 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 DCB | — | |
| 51001-0C496 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 DCB S | — | |
| 51001-0C496 note |
Frame Sub-assy
2018-02 → 2018-08
ended
|
USK51 DCB S | — | |
| 51001-0C497 note |
Frame Sub-assy
2020-10 → —
|
USK51,56 DCB | — | |
| 51001-0C497 note |
Frame Sub-assy
2020-10 → —
|
USK56 DCB S | — | |
| 51001-0C534 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX | — | |
| 51001-0C535 |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 CMAX | — | |
| 51001-0C536 |
Frame Sub-assy
2020-10 → —
|
USK51 CMAX | — | |
| 51001-0C545 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
UPK56,USK56 CMAX | — | |
| 51001-0C545 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX | — | |
| 51001-0C545 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX S | — | |
| 51001-0C546 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 CMAX | — | |
| 51001-0C546 note |
Frame Sub-assy
2018-02 → 2018-08
ended
|
USK51 CMAX S | — | |
| 51001-0C546 |
Frame Sub-assy
2018-02 → 2019-11
ended
|
UPK56,USK56 CMAX | — | |
| 51001-0C546 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX | — | |
| 51001-0C546 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX S | — | |
| 51001-0C547 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX S | — | |
| 51001-0C547 note |
Frame Sub-assy
2020-10 → —
|
USK51,56 CMAX | — | |
| 51001-0C574 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK52 | — | |
| 51001-0C575 |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK52 | — | |
| 51001-0C576 |
Frame Sub-assy
2020-10 → —
|
USK52 | — | |
| 51001-0C585 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK57 | — | |
| 51001-0C585 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK52 | — | |
| 51001-0C586 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK52 | — | |
| 51001-0C586 |
Frame Sub-assy
2018-02 → 2019-11
ended
|
USK57 | — | |
| 51001-0C586 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK57 | — | |
| 51001-0C587 note |
Frame Sub-assy
2020-10 → —
|
USK52,57 | — | |
| 51001-0C714 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX S | — | |
| 51001-0C715 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 CMAX S | — | |
| 51001-0C716 note |
Frame Sub-assy
2020-10 → —
|
USK51 CMAX S | — | |
| 51001-0C725 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
UPK56,USK56 CMAX HTWC | — | |
| 51001-0C725 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK56 CMAX HTWC (L,Z) | — | |
| 51001-0C725 note |
Frame Sub-assy
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51001-0C726 note |
Frame Sub-assy
2018-02 → 2019-11
ended
|
USK56 CMAX HTWC (L,Z) | — | |
| 51001-0C726 note |
Frame Sub-assy
2018-02 → 2019-11
ended
|
UPK56,USK56 CMAX HTWC | — | |
| 51001-0C726 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX (L,Z) | — | |
| 51001-0C727 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX (L,Z) | — | |
| 51001-0C803 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
UPK51 DCB | — | |
| 51001-0C804 |
Frame Sub-assy
2018-02 → 2019-07
ended
|
UPK51 DCB | — | |
| 51001-0C823 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
UPK51 CMAX | — | |
| 51001-0C824 note |
Frame Sub-assy
2018-02 → 2019-07
ended
|
UPK51 CMAX | — | |
| 51001-0C833 |
Frame Sub-assy
2017-08 → 2018-02
ended
|
UPK51 CMAX | — | |
| 51001-0C834 |
Frame Sub-assy
2018-02 → 2019-07
ended
|
UPK51 CMAX | — | |
| 51001-0CB10 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 DCB | — | |
| 51001-0CB11 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 DCB | — | |
| 51001-0CB12 note |
Frame Sub-assy
2020-10 → —
|
USK51 DCB | — | |
| 51001-0CB20 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 DCB | — | |
| 51001-0CB20 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 DCB S | — | |
| 51001-0CB20 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK56 DCB | — | |
| 51001-0CB21 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 DCB | — | |
| 51001-0CB21 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 DCB S | — | |
| 51001-0CB21 note |
Frame Sub-assy
2018-02 → 2018-08
ended
|
USK51 DCB S | — | |
| 51001-0CB21 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK56 DCB | — | |
| 51001-0CB21 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 DCB | — | |
| 51001-0CB22 note |
Frame Sub-assy
2020-10 → —
|
USK56 DCB S | — | |
| 51001-0CB22 note |
Frame Sub-assy
2020-10 → —
|
USK51,56 DCB | — | |
| 51001-0CB22 note |
Frame Sub-assy
2020-10 → —
|
USK56 DCB | — | |
| 51001-0CB30 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX | — | |
| 51001-0CB30 note |
Frame Sub-assy
2017-09 → 2018-02
ended
|
USK51 CMAX S | — | |
| 51001-0CB31 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 CMAX S | — | |
| 51001-0CB31 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 CMAX | — | |
| 51001-0CB32 note |
Frame Sub-assy
2020-10 → —
|
USK51 CMAX S | — | |
| 51001-0CB32 note |
Frame Sub-assy
2020-10 → —
|
USK51 CMAX | — | |
| 51001-0CB40 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX S | — | |
| 51001-0CB40 note |
Frame Sub-assy
2017-09 → 2018-02
ended
|
USK56 CMAX HTWC | — | |
| 51001-0CB40 note |
Frame Sub-assy
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51001-0CB40 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK56 CMAX | — | |
| 51001-0CB40 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK51 CMAX | — | |
| 51001-0CB41 note |
Frame Sub-assy
2018-02 → 2018-08
ended
|
USK51 CMAX S | — | |
| 51001-0CB41 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK51 CMAX | — | |
| 51001-0CB41 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK56 CMAX | — | |
| 51001-0CB41 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK56 CMAX HTWC | — | |
| 51001-0CB41 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX | — | |
| 51001-0CB41 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX (L,Z) | — | |
| 51001-0CB41 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX S | — | |
| 51001-0CB42 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX | — | |
| 51001-0CB42 note |
Frame Sub-assy
2020-10 → —
|
USK51,56 CMAX | — | |
| 51001-0CB42 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX S | — | |
| 51001-0CB42 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX (L,Z) | — | |
| 51001-0CB42 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX | — | |
| 51001-0CB50 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK52 | — | |
| 51001-0CB51 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK52 | — | |
| 51001-0CB52 note |
Frame Sub-assy
2020-10 → —
|
USK52 | — | |
| 51001-0CB60 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK57 | — | |
| 51001-0CB60 note |
Frame Sub-assy
2017-08 → 2018-02
ended
|
USK52 | — | |
| 51001-0CB61 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK52 | — | |
| 51001-0CB61 note |
Frame Sub-assy
2018-02 → 2020-10
ended
|
USK57 | — | |
| 51001-0CB61 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK57 | — | |
| 51001-0CB62 note |
Frame Sub-assy
2020-10 → —
|
USK57 | — | |
| 51001-0CB62 note |
Frame Sub-assy
2020-10 → —
|
USK52,57 | — | |
| 51001-0CJ70 |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 DCB | — | |
| 51001-0CJ71 |
Frame Sub-assy
2020-10 → —
|
USK56 DCB | — | |
| 51001-0CJ80 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX (L,Z) | — | |
| 51001-0CJ80 note |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX | — | |
| 51001-0CJ81 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX (L,Z) | — | |
| 51001-0CJ81 note |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX | — | |
| 51001-0CJ90 |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK56 CMAX | — | |
| 51001-0CJ91 |
Frame Sub-assy
2020-10 → —
|
USK56 CMAX | — | |
| 51001-0CK00 |
Frame Sub-assy
2019-11 → 2020-10
ended
|
USK57 | — | |
| 51001-0CK01 |
Frame Sub-assy
2020-10 → —
|
USK57 | — | |
| 5114A — Seal, Frame Side Rail, RH | ||||
| 5114A-0C010 |
Seal, Frame Side Rail, RH
2018-02 → —
|
UPK5#,USK5# | — | |
| 5114B — Seal, Frame Side Rail, LH | ||||
| 5114B-0C010 |
Seal, Frame Side Rail, LH
2018-02 → —
|
UPK5#,USK5# | — | |
| 51195 — Patch, Rear Frame Rail, RH | ||||
| 51195-0C010 |
Patch, Rear Frame Rail, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51195-0C010 |
Patch, Rear Frame Rail, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51195-0C010 |
Patch, Rear Frame Rail, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51195-0C010 |
Patch, Rear Frame Rail, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51195-0C010 |
Patch, Rear Frame Rail, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51196 — Patch, Rear Frame Rail, LH | ||||
| 51196-0C010 |
Patch, Rear Frame Rail, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51196-0C010 |
Patch, Rear Frame Rail, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51196-0C010 |
Patch, Rear Frame Rail, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51196-0C010 |
Patch, Rear Frame Rail, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51196-0C010 |
Patch, Rear Frame Rail, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51201A — Crossmember Sub-assy, Frame, Front | ||||
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2017-08 → —
|
UPK5#,USK5# | — | |
| 51203 — Crossmember Sub-assy, Frame, NO.2 | ||||
| 51202-0C020 note |
Crossmember Sub-assy, Frame, NO.2
2007-01 → 2009-04
ended
|
USK50;USK51 L,S | — | |
| 51202-0C020 |
Crossmember Sub-assy, Frame, NO.2
2006-11 → 2009-04
ended
|
UCK55,56,57,USK55,56,57 | — | |
| 51202-0C030 |
Crossmember Sub-assy, Frame, NO.2
2006-11 → 2009-04
ended
|
GSK5#,UCK50,51,52,USK50,51,52 | — | |
| 51202-0C020 |
Crossmember Sub-assy, Frame, NO.2
2009-04 → 2009-10
ended
|
UPK55,56,57,USK55,56,57 | — | |
| 51202-0C020 note |
Crossmember Sub-assy, Frame, NO.2
2009-04 → 2009-10
ended
|
USK50;USK51 L,S | — | |
| 51202-0C021 |
Crossmember Sub-assy, Frame, NO.2
2009-10 → 2010-05
ended
|
UPK57;UPK55,56 D,L | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2009-10 → 2010-05
ended
|
USK50 | — | |
| 51202-0C021 |
Crossmember Sub-assy, Frame, NO.2
2009-10 → 2013-08
ended
|
USK55,56;UPK56,USK57 S | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2009-10 → 2013-08
ended
|
USK51 L,S | — | |
| 51202-0C030 |
Crossmember Sub-assy, Frame, NO.2
2009-04 → 2010-05
ended
|
UPK52;UPK51,USK50 D,L | — | |
| 51202-0C030 |
Crossmember Sub-assy, Frame, NO.2
2009-04 → 2013-08
ended
|
UPK51 S;GSK5#,UPK50,USK51,52 | — | |
| 51202-0C021 |
Crossmember Sub-assy, Frame, NO.2
2013-08 → 2017-08
ended
|
UPK56,USK56,57 | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2014-09 → 2017-08
ended
|
USK51 (CMAX,DCB) S | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2014-09 → 2017-08
ended
|
USK51 (CMAX,DCB) S | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2014-09 → 2017-08
ended
|
USK52;USK51 HTWCF;USK51 HTWC (L,S) | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2013-08 → 2017-08
ended
|
USK52;USK51 HTWCF;USK51 HTWC (L,S) | — | |
| 51202-0C030 |
Crossmember Sub-assy, Frame, NO.2
2013-08 → 2017-08
ended
|
GSK51,UPK51,USK51,52 | — | |
| 51202-0C021 |
Crossmember Sub-assy, Frame, NO.2
2017-08 → —
|
UPK56,USK56,57 | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2017-08 → —
|
USK51,52 | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2017-08 → —
|
USK51,52 | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2017-08 → 2018-08
ended
|
USK51 S | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2017-08 → 2018-08
ended
|
USK51 S | — | |
| 51202-0C021 note |
Crossmember Sub-assy, Frame, NO.2
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51202-0C030 |
Crossmember Sub-assy, Frame, NO.2
2017-08 → —
|
UPK51,USK51,52 | — | |
| 51204 — Crossmember Sub-assy, Frame, NO.3 | ||||
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2006-11 → 2009-04
ended
|
UCK55,56,57,USK5# | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2006-11 → 2009-04
ended
|
GSK5#,UCK50,51,52 | — | |
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2009-04 → 2010-05
ended
|
UPK57;UPK55,56,USK50 D,L | — | |
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2009-04 → 2013-08
ended
|
USK51,55,56;UPK56,USK52,57 S | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2009-04 → 2010-05
ended
|
UPK52;UPK51 D,L | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2009-04 → 2013-08
ended
|
UPK51 S;GSK5#,UPK50 | — | |
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2013-08 → 2017-08
ended
|
UPK56,USK5# | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2013-08 → 2017-08
ended
|
GSK51,UPK51 | — | |
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2017-08 → —
|
UPK56,USK5# | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2017-08 → 2019-07
ended
|
UPK51 | — | |
| 51205 — Crossmember Sub-assy, Frame, NO.4 | ||||
| 51204-0C090 |
Crossmember Sub-assy, Frame, NO.4
2006-11 → 2009-04
ended
|
GSK50,UCK50,55,USK50,55 | — | |
| 51204-0C100 |
Crossmember Sub-assy, Frame, NO.4
2006-11 → 2009-04
ended
|
UCK56,USK56 L,S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2006-11 → 2009-04
ended
|
UCK51,USK51 L,S | — | |
| 51204-0C110 |
Crossmember Sub-assy, Frame, NO.4
2006-11 → 2009-04
ended
|
UCK52,57,USK52,57 | — | |
| 51204-0C130 |
Crossmember Sub-assy, Frame, NO.4
2006-11 → 2009-04
ended
|
UCK56,USK56 D;GSK51,UCK51,USK51 | — | |
| 51204-0C090 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2010-05
ended
|
UPK55,USK50 | — | |
| 51204-0C090 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2013-08
ended
|
GSK50,UPK50,USK55 | — | |
| 51204-0C100 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2010-05
ended
|
UPK56 L | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2010-05
ended
|
UPK51 L | — | |
| 51204-0C100 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2013-08
ended
|
UPK56 S;USK56 L,S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2013-08
ended
|
UPK51 S;USK51 L,S | — | |
| 51204-0C110 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2010-05
ended
|
UPK52,57 | — | |
| 51204-0C110 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2013-08
ended
|
USK52,57 | — | |
| 51204-0C130 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2010-05
ended
|
UPK56 D;UPK51 D,L | — | |
| 51204-0C130 |
Crossmember Sub-assy, Frame, NO.4
2009-04 → 2013-08
ended
|
UPK51 S;USK56 D;GSK51,USK51 | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2014-09 → 2017-08
ended
|
USK51 (CMAX,DCB) S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2014-09 → 2017-08
ended
|
USK51 (CMAX,DCB) S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2014-09 → 2017-08
ended
|
USK51 HTWCF;USK51 HTWC (L,S) | — | |
| 51204-0C100 |
Crossmember Sub-assy, Frame, NO.4
2013-08 → 2017-08
ended
|
UPK56,USK56 | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2013-08 → 2017-08
ended
|
USK51 HTWCF;UPK51,USK51 HTWC (L,S) | — | |
| 51204-0C110 |
Crossmember Sub-assy, Frame, NO.4
2013-08 → 2017-08
ended
|
USK52 | — | |
| 51204-0C130 |
Crossmember Sub-assy, Frame, NO.4
2013-08 → 2017-08
ended
|
GSK51,UPK51,USK51 | — | |
| 51204-0C140 |
Crossmember Sub-assy, Frame, NO.4
2013-08 → 2017-08
ended
|
USK57 | — | |
| 51204-0C140 note |
Crossmember Sub-assy, Frame, NO.4
2013-08 → 2017-08
ended
|
USK52 | — | |
| 51204-0C140 note |
Crossmember Sub-assy, Frame, NO.4
2014-09 → 2017-08
ended
|
USK52 | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2017-08 → 2018-08
ended
|
USK51 S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2017-08 → 2018-08
ended
|
USK51 S | — | |
| 51204-0C100 |
Crossmember Sub-assy, Frame, NO.4
2017-08 → 2019-11
ended
|
UPK56,USK56 | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2017-08 → 2019-11
ended
|
USK51 | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2017-08 → —
|
USK51 | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2019-11 → —
|
USK56 CMAX (L,Z) | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2019-11 → —
|
USK56 S | — | |
| 51204-0C100 note |
Crossmember Sub-assy, Frame, NO.4
2019-11 → —
|
USK56 | — | |
| 51204-0C110 |
Crossmember Sub-assy, Frame, NO.4
2019-11 → —
|
USK57 | — | |
| 51204-0C110 |
Crossmember Sub-assy, Frame, NO.4
2017-08 → —
|
USK52 | — | |
| 51204-0C130 |
Crossmember Sub-assy, Frame, NO.4
2019-11 → —
|
USK56 | — | |
| 51204-0C130 |
Crossmember Sub-assy, Frame, NO.4
2017-08 → —
|
UPK51,USK51 | — | |
| 51204-0C140 note |
Crossmember Sub-assy, Frame, NO.4
2017-08 → 2019-11
ended
|
USK52 | — | |
| 51204-0C140 |
Crossmember Sub-assy, Frame, NO.4
2017-08 → 2019-11
ended
|
USK57 | — | |
| 51204-0C140 note |
Crossmember Sub-assy, Frame, NO.4
2019-11 → —
|
USK57 | — | |
| 51204-0C140 note |
Crossmember Sub-assy, Frame, NO.4
2017-08 → —
|
USK52 | — | |
| 51206 — Crossmember Sub-assy, Frame, NO.5 | ||||
| 51205-0C060 |
Crossmember Sub-assy, Frame, NO.5
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51205-0C060 |
Crossmember Sub-assy, Frame, NO.5
2009-04 → 2010-05
ended
|
UPK51,55,56,USK50 D | — | |
| 51205-0C060 |
Crossmember Sub-assy, Frame, NO.5
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51205-0C060 |
Crossmember Sub-assy, Frame, NO.5
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51205-0C060 |
Crossmember Sub-assy, Frame, NO.5
2017-08 → —
|
UPK5#,USK5# | — | |
| 51206B — Crossmember Sub-assy, Frame, NO.6 | ||||
| 51206-0C040 |
Crossmember Sub-assy, Frame, NO.6
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51206-0C040 |
Crossmember Sub-assy, Frame, NO.6
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51206-0C040 |
Crossmember Sub-assy, Frame, NO.6
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51206-0C040 |
Crossmember Sub-assy, Frame, NO.6
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51206-0C040 |
Crossmember Sub-assy, Frame, NO.6
2017-08 → —
|
UPK5#,USK5# | — | |
| 51209C — Crossmember Sub-assy, Frame, Rear | ||||
| 51209-0C030 |
Crossmember Sub-assy, Frame, Rear
2006-11 → 2009-04
ended
|
GSK5#,UCK50,51,52,56,57,USK5# | — | |
| 51209-0C030 |
Crossmember Sub-assy, Frame, Rear
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51209-0C030 |
Crossmember Sub-assy, Frame, Rear
2009-04 → 2011-09
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51209-0C031 |
Crossmember Sub-assy, Frame, Rear
2011-09 → 2013-08
ended
|
GSK5#,UPK5#,USK5# | — | |
| 51209-0C031 |
Crossmember Sub-assy, Frame, Rear
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51209-0C031 |
Crossmember Sub-assy, Frame, Rear
2017-08 → —
|
UPK5#,USK5# | — | |
| 51383 — Rod, NO.3 Crossmember Exhaust Pipe Hanger | ||||
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2017-08 → —
|
UPK5#,USK5# | — | |
| 51401 — Bracket Sub-assy, Engine Front Mounting, RH | ||||
| 51401-0C060 |
Bracket Sub-assy, Engine Front Mounting, RH
2006-11 → 2009-04
ended
|
GSK5# | — | |
| 51401-0C070 |
Bracket Sub-assy, Engine Front Mounting, RH
2006-11 → 2009-04
ended
|
UCK5# | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2007-01 → 2009-04
ended
|
USK5# | — | |
| 51401-0C090 note |
Bracket Sub-assy, Engine Front Mounting, RH
2006-11 → 2009-04
ended
|
UCK51,56 (CMAX,RCB) SR5 | — | |
| 51401-0C090 note |
Bracket Sub-assy, Engine Front Mounting, RH
2008-04 → 2009-04
ended
|
UCK50 | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2008-08 → 2009-04
ended
|
USK56 CMAX HTWC S | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2008-08 → 2009-04
ended
|
USK51 CMAX S;USK56 CMAX +2 | — | |
| 51401-0C060 |
Bracket Sub-assy, Engine Front Mounting, RH
2009-04 → 2013-08
ended
|
GSK5# | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;UPK50,USK51,52,55,56,57 | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2009-04 → 2013-08
ended
|
USK56 CMAX HTWC L;UPK51,56,USK51 +2 | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2009-04 → 2013-08
ended
|
UPK50;USK56 CMAX HTWC S | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2010-08 → 2013-08
ended
|
UPK50,56 CMAX,RCB;USK51,56 CMAX HTWC +1 | — | |
| 51401-0C060 |
Bracket Sub-assy, Engine Front Mounting, RH
2013-08 → 2014-09
ended
|
GSK51 | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2013-08 → 2017-08
ended
|
UPK5#,USK5# | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2013-08 → 2017-08
ended
|
USK51 CMAX HTWC S;USK56 +3 | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2013-08 → 2017-08
ended
|
UPK56,USK51,56 CMAX HTWC S | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2013-08 → 2015-08
ended
|
USK56 CMAX HTWC S | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2017-08 → —
|
USK56 CMAX HTWC (L,Z) | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2017-08 → —
|
USK56 CMAX HTWC;UPK5#,USK51 CMAX +1 | — | |
| 51401-0C100 note |
Bracket Sub-assy, Engine Front Mounting, RH
2019-11 → —
|
USK56 CMAX (L,Z) | — | |
| 51402 — Bracket Sub-assy, Engine Front Mounting, LH | ||||
| 51402-0C060 |
Bracket Sub-assy, Engine Front Mounting, LH
2006-11 → 2009-04
ended
|
GSK5# | — | |
| 51402-0C070 |
Bracket Sub-assy, Engine Front Mounting, LH
2006-11 → 2009-04
ended
|
UCK5# | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2007-01 → 2009-04
ended
|
USK5# | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2008-08 → 2009-04
ended
|
USK51 CMAX S;USK56 CMAX +2 | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2008-08 → 2009-04
ended
|
USK56 CMAX HTWC S | — | |
| 51402-0C060 |
Bracket Sub-assy, Engine Front Mounting, LH
2009-04 → 2013-08
ended
|
GSK5# | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;UPK50,USK51,52,55,56,57 | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2009-04 → 2013-08
ended
|
USK56 CMAX HTWC L;UPK51,56,USK51 +2 | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2009-04 → 2013-08
ended
|
UPK50;USK56 CMAX HTWC S | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2010-08 → 2013-08
ended
|
UPK50,56 CMAX,RCB;USK51,56 CMAX HTWC +1 | — | |
| 51402-0C060 |
Bracket Sub-assy, Engine Front Mounting, LH
2013-08 → 2014-09
ended
|
GSK51 | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2013-08 → 2017-08
ended
|
UPK5#,USK5# | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2013-08 → 2015-08
ended
|
USK56 CMAX HTWC S | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2013-08 → 2017-08
ended
|
UPK56,USK51,56 CMAX HTWC S | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2013-08 → 2017-08
ended
|
USK51 CMAX HTWC S;USK56 +3 | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2019-11 → —
|
USK56 CMAX (L,Z) | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2017-08 → —
|
USK56 CMAX HTWC;UPK5#,USK51 CMAX +1 | — | |
| 51402-0C100 note |
Bracket Sub-assy, Engine Front Mounting, LH
2017-08 → —
|
USK56 CMAX HTWC (L,Z) | — | |
| 51501 — Support Sub-assy, Suspension Arm, RH | ||||
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2017-08 → 2018-12
ended
|
UPK5#,USK5# | — | |
| 51501-0C020 |
Support Sub-assy, Suspension Arm, RH
2019-01 → —
|
UPK5#,USK5# | — | |
| 51502 — Support Sub-assy, Suspension Arm, LH | ||||
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51621 — Bracket, Rear Bound Stopper, RH | ||||
| 51621-0C040 |
Bracket, Rear Bound Stopper, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51621-0C040 |
Bracket, Rear Bound Stopper, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51621-0C040 |
Bracket, Rear Bound Stopper, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51621-0C040 |
Bracket, Rear Bound Stopper, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51621-0C040 |
Bracket, Rear Bound Stopper, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51622 — Bracket, Rear Bound Stopper, LH | ||||
| 51622-0C040 |
Bracket, Rear Bound Stopper, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51622-0C040 |
Bracket, Rear Bound Stopper, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51622-0C040 |
Bracket, Rear Bound Stopper, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51622-0C040 |
Bracket, Rear Bound Stopper, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51622-0C040 |
Bracket, Rear Bound Stopper, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH | ||||
| 51703-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51703-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51703-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51703-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51703-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH | ||||
| 51704-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51704-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51704-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51704-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51704-0C020 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51705B — Bracket Sub-assy, Cab Mounting, NO.3 RH | ||||
| 51705-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2007-03 → 2009-04
ended
|
UCK51,56,USK51,56 CMAX | — | |
| 51705-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2006-11 → 2009-04
ended
|
GSK50,UCK50,55,USK50,55;GSK51,UCK51,56,USK51,56 DCB | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2006-11 → 2009-04
ended
|
UCK52,57,USK52,57;GSK51,UCK51,56,USK51,56 D | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2007-03 → 2009-04
ended
|
UCK51,56 CMAX S | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2008-08 → 2009-04
ended
|
USK51 CMAX S;USK56 CMAX +2 | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2008-08 → 2009-04
ended
|
USK56 CMAX HTWC S | — | |
| 51705-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2010-05
ended
|
UPK51,56 CMAX L | — | |
| 51705-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2013-08
ended
|
USK51,56 CMAX;UPK51,56 CMAX S | — | |
| 51705-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2010-05
ended
|
UPK55,USK50;UPK51,56 DCB L | — | |
| 51705-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2013-08
ended
|
UPK51,56 DCB S;GSK50,UPK50,USK55;GSK51,USK51,56 DCB | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,56 D | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2013-08
ended
|
USK52,57;GSK51,USK51,56 D | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2013-08
ended
|
USK56 CMAX HTWC L;UPK51,56,USK51 +2 | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2009-04 → 2013-08
ended
|
USK56 CMAX HTWC S | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2010-08 → 2013-08
ended
|
UPK56,USK51,56 CMAX HTWC S | — | |
| 51705-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2013-08 → 2017-08
ended
|
UPK5#,USK51,56 CMAX | — | |
| 51705-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK51,56 DCB | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2013-08 → 2017-08
ended
|
USK52,57;GSK51,USK51,56 RCB | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2013-08 → 2017-08
ended
|
USK51 CMAX HTWC S;USK56 +3 | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2013-08 → 2017-08
ended
|
UPK56,USK51,56 CMAX HTWC S | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2013-08 → 2015-08
ended
|
USK56 CMAX HTWC S | — | |
| 51705-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2017-08 → —
|
UPK5#,USK51,56 CMAX | — | |
| 51705-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2017-08 → —
|
UPK5#,USK51,56 DCB | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2017-08 → —
|
USK52,57 | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2019-11 → —
|
USK56 CMAX (L,Z) | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2017-08 → —
|
USK56 CMAX HTWC;UPK5#,USK51 CMAX +1 | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2017-08 → —
|
USK56 CMAX HTWC (L,Z) | — | |
| 51705-0C050 note |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51706B — Bracket Sub-assy, Cab Mounting, NO.3 LH | ||||
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2006-11 → 2009-04
ended
|
UCK52,57,USK52,57;GSK51,UCK51,56,USK51,56 D | — | |
| 51706-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2007-03 → 2009-04
ended
|
UCK51,56,USK51,56 CMAX | — | |
| 51706-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2006-11 → 2009-04
ended
|
GSK50,UCK50,55,USK50,55;GSK51,UCK51,56,USK51,56 DCB | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2007-03 → 2009-04
ended
|
UCK51,56 CMAX S | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2008-08 → 2009-04
ended
|
USK51 CMAX S;USK56 CMAX +2 | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2008-08 → 2009-04
ended
|
USK56 CMAX HTWC S | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,56 D | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2013-08
ended
|
USK52,57;GSK51,USK51,56 D | — | |
| 51706-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2013-08
ended
|
USK51,56 CMAX;UPK51,56 CMAX S | — | |
| 51706-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2010-05
ended
|
UPK51,56 CMAX L | — | |
| 51706-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2010-05
ended
|
UPK55,USK50;UPK51,56 DCB L | — | |
| 51706-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2013-08
ended
|
UPK51,56 DCB S;GSK50,UPK50,USK55;GSK51,USK51,56 DCB | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2013-08
ended
|
USK56 CMAX HTWC L;UPK51,56,USK51 +2 | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2009-04 → 2013-08
ended
|
USK56 CMAX HTWC S | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2010-08 → 2013-08
ended
|
UPK56,USK51,56 CMAX HTWC S | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2013-08 → 2017-08
ended
|
USK52,57;GSK51,USK51,56 RCB | — | |
| 51706-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2013-08 → 2017-08
ended
|
UPK5#,USK51,56 CMAX | — | |
| 51706-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK51,56 DCB | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2013-08 → 2017-08
ended
|
UPK56,USK51,56 CMAX HTWC S | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2013-08 → 2017-08
ended
|
USK51 CMAX HTWC S;USK56 +3 | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2013-08 → 2015-08
ended
|
USK56 CMAX HTWC S | — | |
| 51705-0C040 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2017-08 → —
|
USK52,57 | — | |
| 51706-0C020 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2017-08 → —
|
UPK5#,USK51,56 CMAX | — | |
| 51706-0C030 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2017-08 → —
|
UPK5#,USK51,56 DCB | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2017-08 → —
|
USK56 CMAX HTWC (L,Z) | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2017-08 → —
|
USK56 CMAX HTWC;UPK5#,USK51 CMAX +1 | — | |
| 51706-0C040 note |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2019-11 → —
|
USK56 CMAX (L,Z) | — | |
| 51711C — Bracket, Cab Mounting, NO.1 RH | ||||
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51712B — Bracket, Cab Mounting, NO.1 LH | ||||
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 51961E — Hook, Front | ||||
| 51960-0C011 |
Hook, Front
2006-11 → 2009-04
ended
|
UCK55,56,57,USK55,56,57 | — | |
| 51960-0C011 note |
Hook, Front
2006-11 → 2009-04
ended
|
UCK50,USK50;UCK51,USK51 L,S | — | |
| 51960-0C020 |
Hook, Front
2006-11 → 2009-04
ended
|
GSK5#,UCK50,51,52,USK50,51,52 | — | |
| 51960-0C011 |
Hook, Front
2009-04 → 2010-05
ended
|
UPK57;UPK55,56 D,L | — | |
| 51960-0C011 note |
Hook, Front
2009-04 → 2010-05
ended
|
USK50;UPK51 L | — | |
| 51960-0C011 |
Hook, Front
2009-04 → 2013-08
ended
|
USK55,56;UPK56,USK57 S | — | |
| 51960-0C011 note |
Hook, Front
2009-04 → 2013-08
ended
|
UPK50;UPK51 S;USK51 L,S | — | |
| 51960-0C020 |
Hook, Front
2009-04 → 2010-05
ended
|
UPK52;UPK51,USK50 D,L | — | |
| 51960-0C020 |
Hook, Front
2009-04 → 2013-08
ended
|
UPK51 S;GSK5#,UPK50,USK51,52 | — | |
| 51960-0C011 note |
Hook, Front
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51960-0C011 note |
Hook, Front
2013-08 → 2017-08
ended
|
UPK51,USK52;USK51 HTWCF;USK51 HTWC (L,S) | — | |
| 51960-0C011 note |
Hook, Front
2015-08 → 2017-08
ended
|
USK51 HTWC Z | — | |
| 51960-0C011 note |
Hook, Front
2014-09 → 2017-08
ended
|
USK51 (CMAX,DCB) S | — | |
| 51960-0C011 note |
Hook, Front
2014-09 → 2017-08
ended
|
USK52;USK51 HTWCF;USK51 HTWC (L,S) | — | |
| 51960-0C011 note |
Hook, Front
2014-09 → 2017-08
ended
|
USK51 (CMAX,DCB) S | — | |
| 51960-0C011 |
Hook, Front
2013-08 → 2017-08
ended
|
UPK56,USK56,57 | — | |
| 51960-0C020 |
Hook, Front
2013-08 → 2017-08
ended
|
GSK51,UPK51,USK51,52 | — | |
| 51960-0C011 note |
Hook, Front
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51960-0C011 note |
Hook, Front
2017-09 → 2017-11
ended
|
USK51 CMAX S | — | |
| 51960-0C011 note |
Hook, Front
2017-08 → 2018-08
ended
|
USK51 S | — | |
| 51960-0C011 note |
Hook, Front
2017-08 → 2018-08
ended
|
USK51 S | — | |
| 51960-0C011 |
Hook, Front
2017-08 → —
|
UPK56,USK56,57 | — | |
| 51960-0C011 note |
Hook, Front
2017-08 → —
|
USK51,52 | — | |
| 51960-0C011 note |
Hook, Front
2017-08 → —
|
USK51,52 | — | |
| 51960-0C020 |
Hook, Front
2017-08 → —
|
UPK51,USK51,52 | — | |
| 57201E — Extension Sub-assy, Front Side Member, RH | ||||
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 57202D — Extension Sub-assy, Front Side Member, LH | ||||
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 57203A — Extension Sub-assy, Front Side Member, NO.2 RH | ||||
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2017-08 → —
|
UPK5#,USK5# | — | |
| 57204A — Extension Sub-assy, Front Side Member, NO.2 LH | ||||
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2017-08 → —
|
UPK5#,USK5# | — | |
| 77131B — Bracket, Fuel Inlet Pipe Support | ||||
| 77131-0C020 |
Bracket, Fuel Inlet Pipe Support
2006-11 → 2009-04
ended
|
GSK5#,UCK5#,USK5# | — | |
| 77131-0C020 |
Bracket, Fuel Inlet Pipe Support
2009-04 → 2010-05
ended
|
UPK52,57;UPK51,55,56,USK50 D,L | — | |
| 77131-0C020 |
Bracket, Fuel Inlet Pipe Support
2009-04 → 2013-08
ended
|
UPK51,56 S;GSK5#,UPK50,USK51,52,55,56,57 | — | |
| 77131-0C021 |
Bracket, Fuel Inlet Pipe Support
2013-08 → 2017-08
ended
|
GSK51,UPK5#,USK5# | — | |
| 77131-0C021 |
Bracket, Fuel Inlet Pipe Support
2017-08 → —
|
UPK5#,USK5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
