Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

32 part groups · 17 illustrations

Illustrations

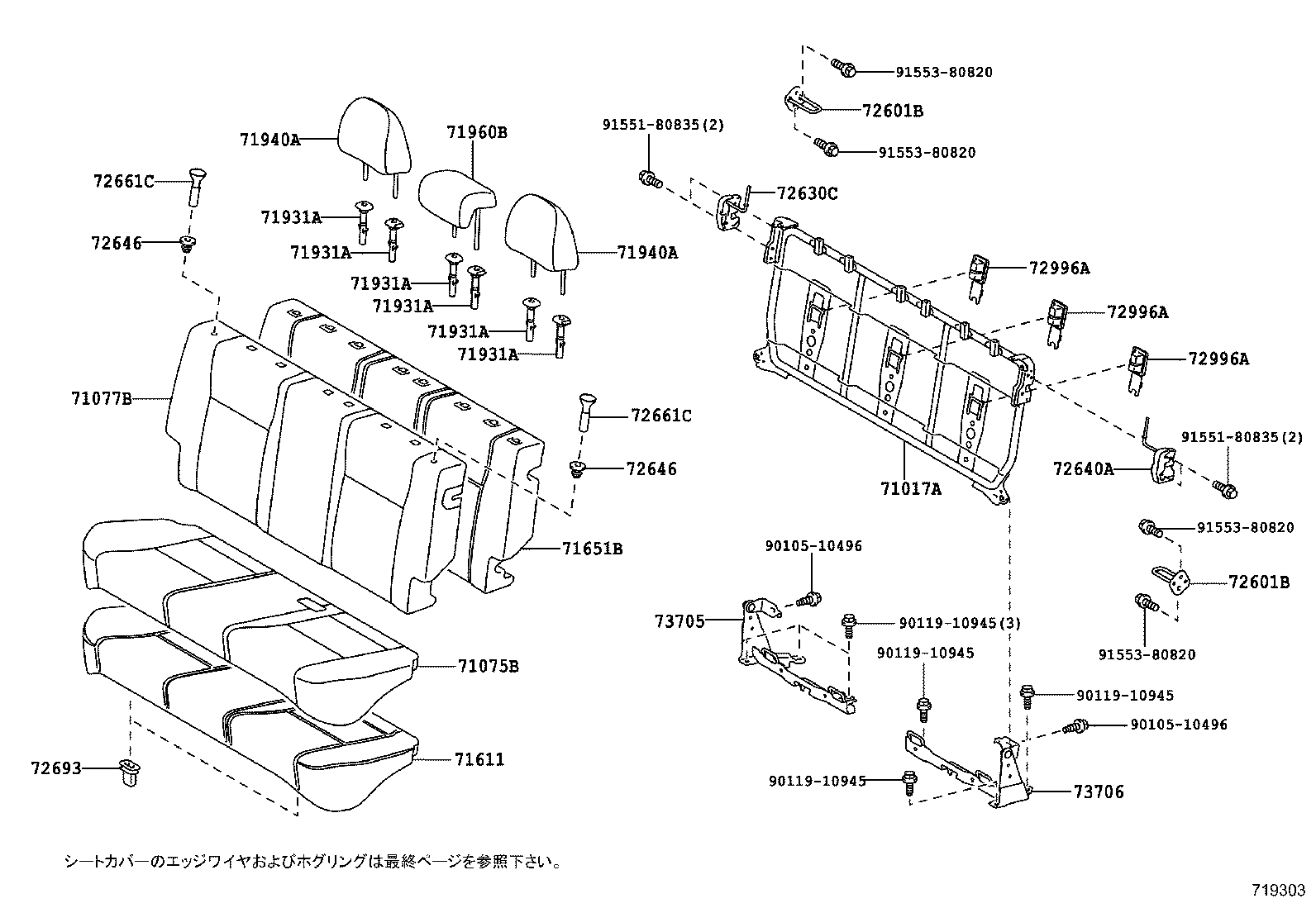

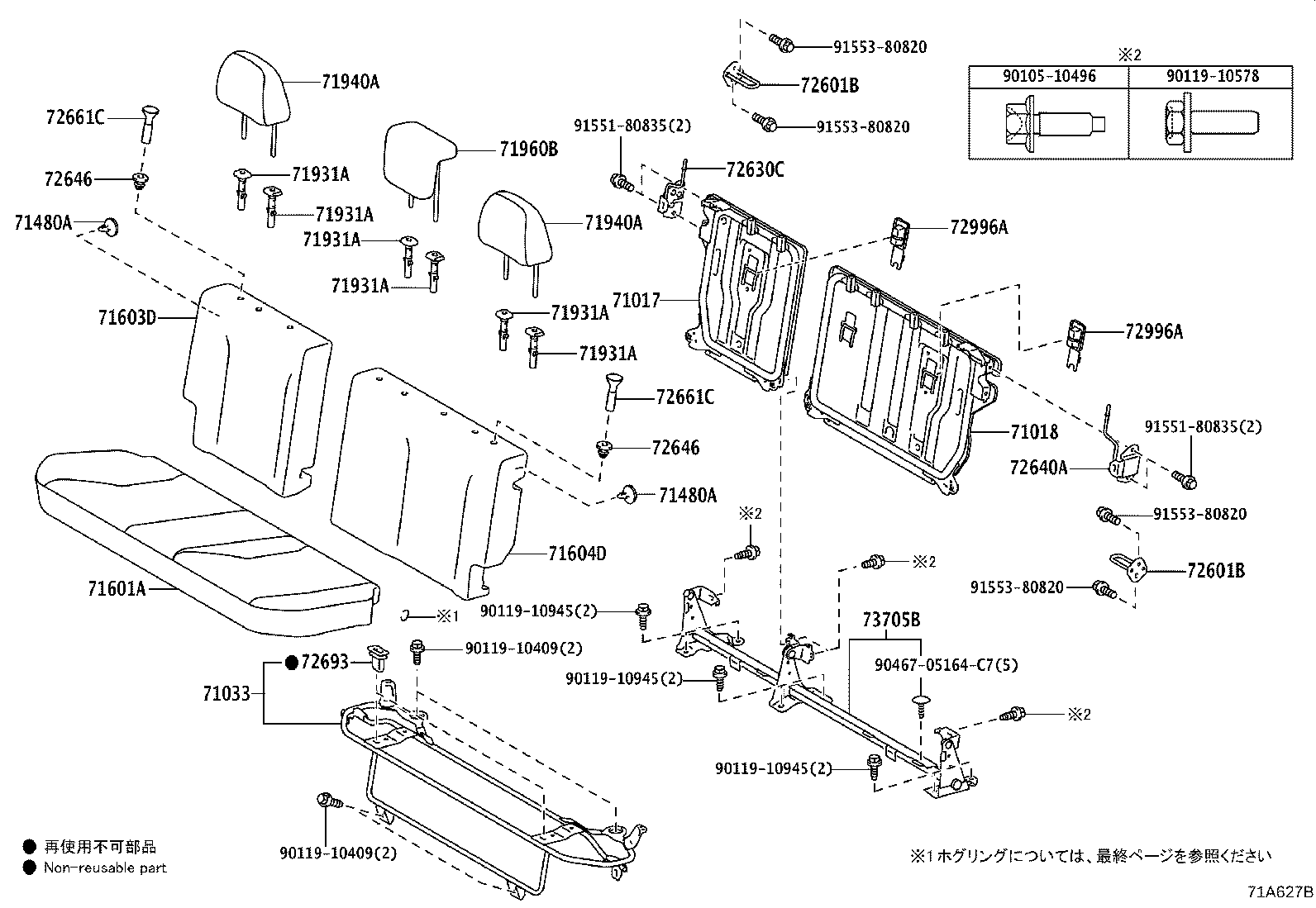

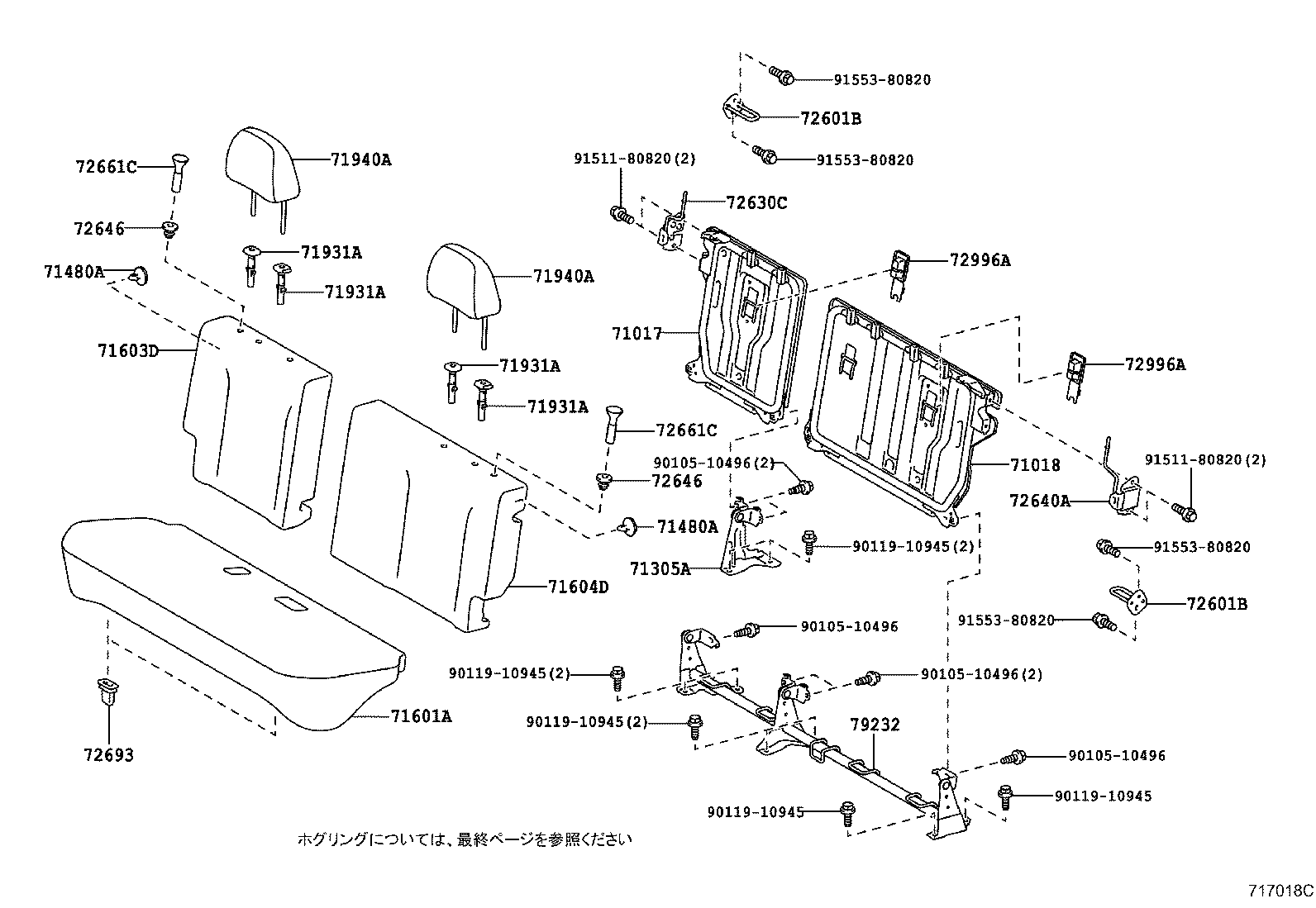

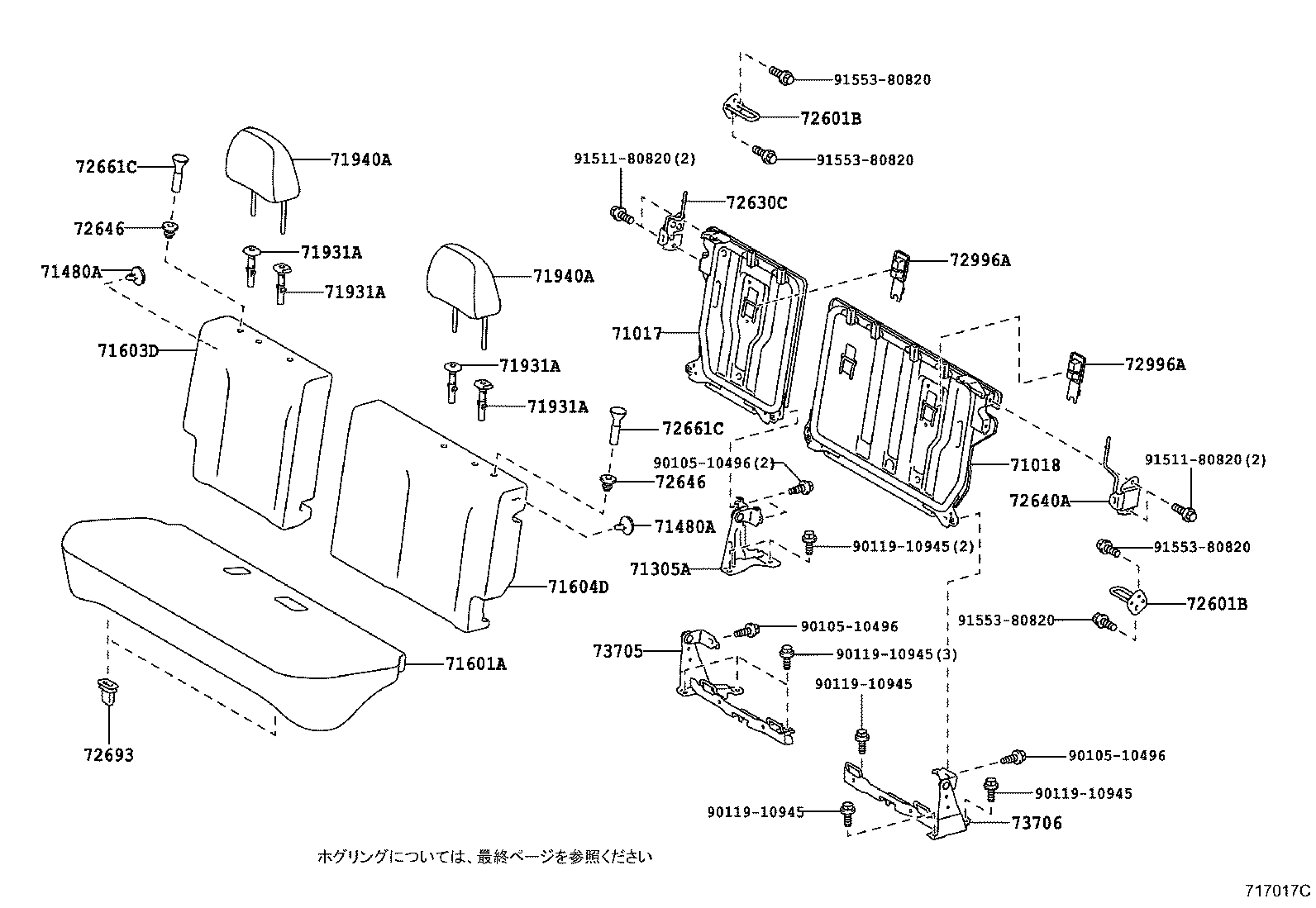

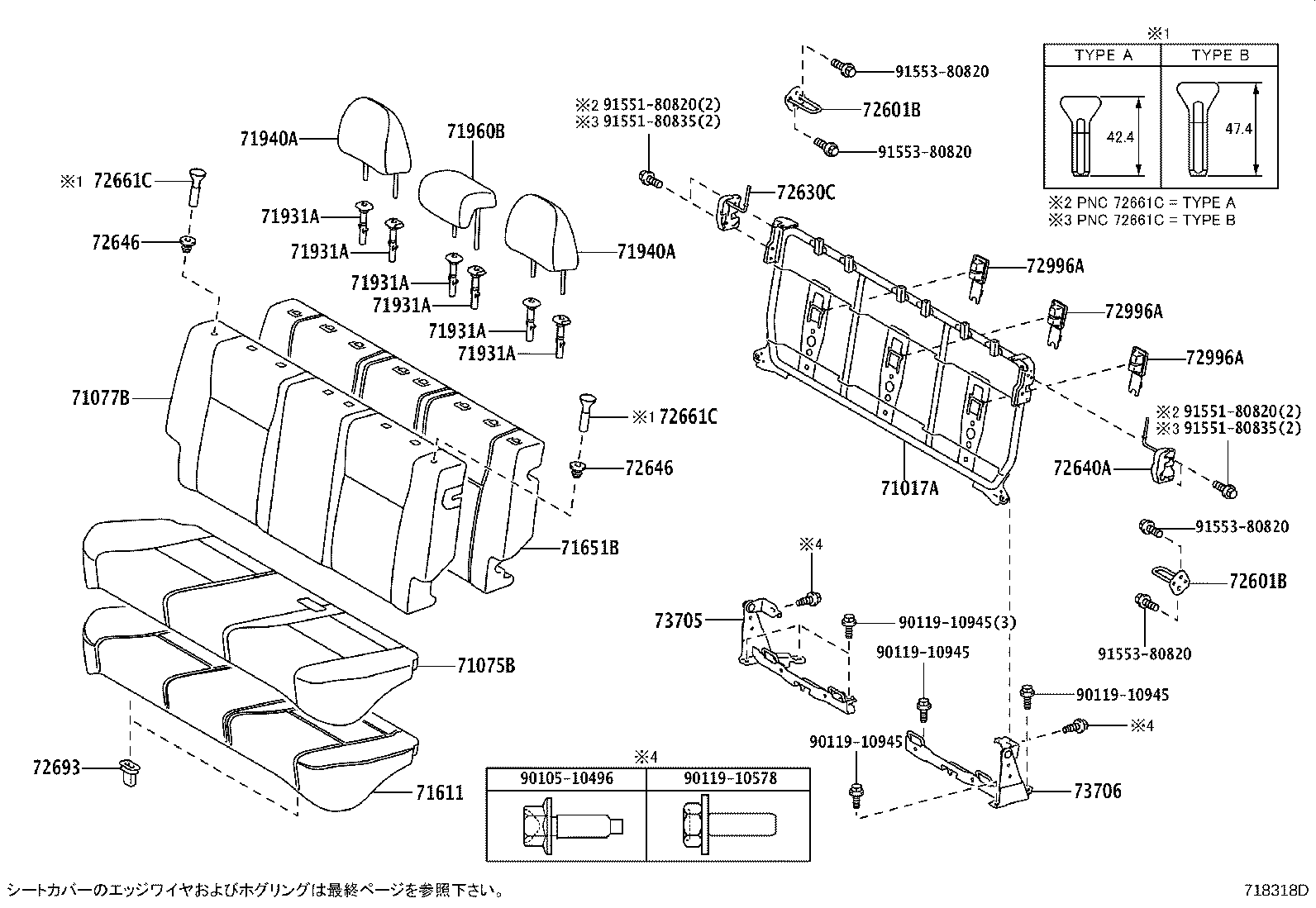

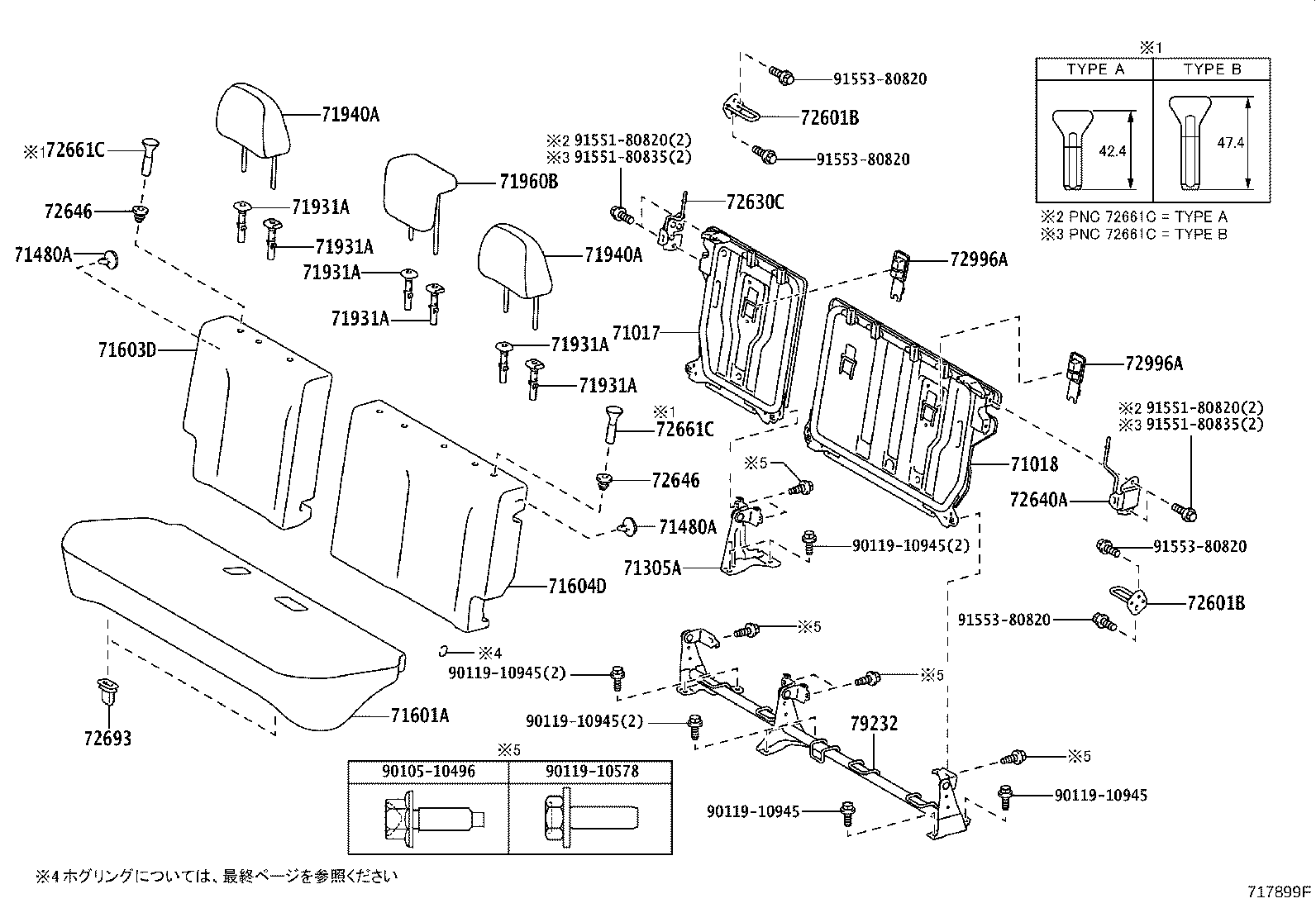

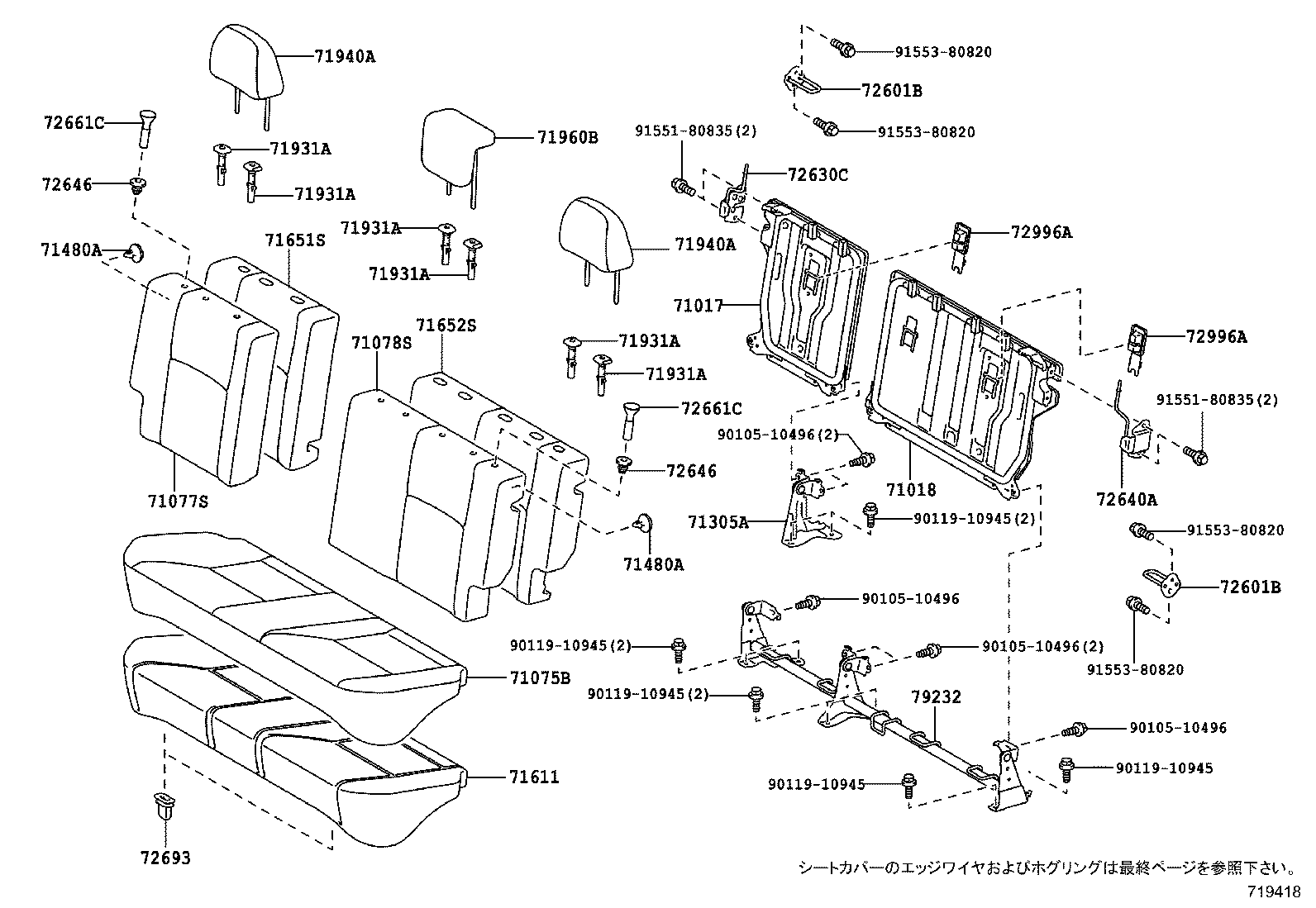

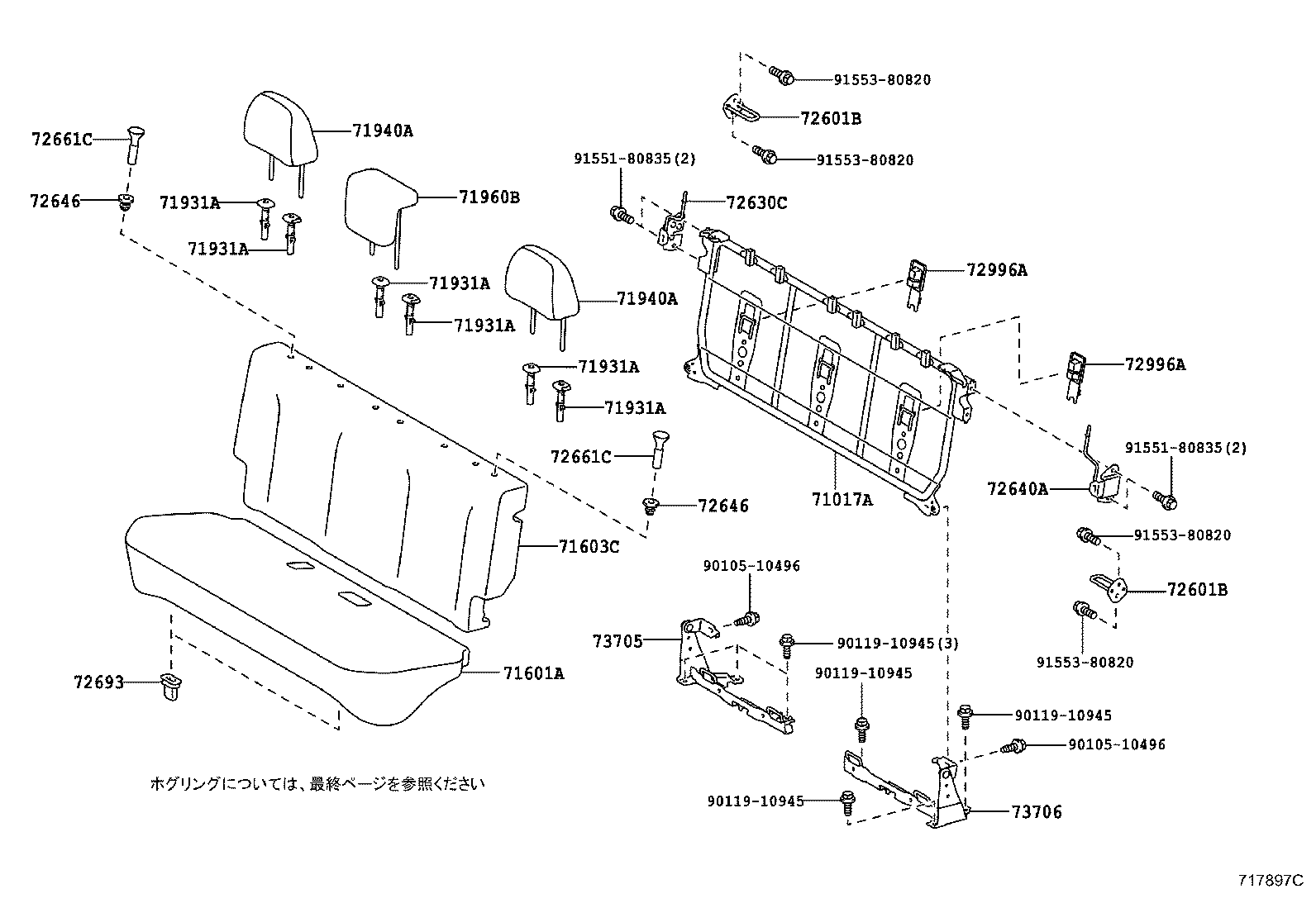

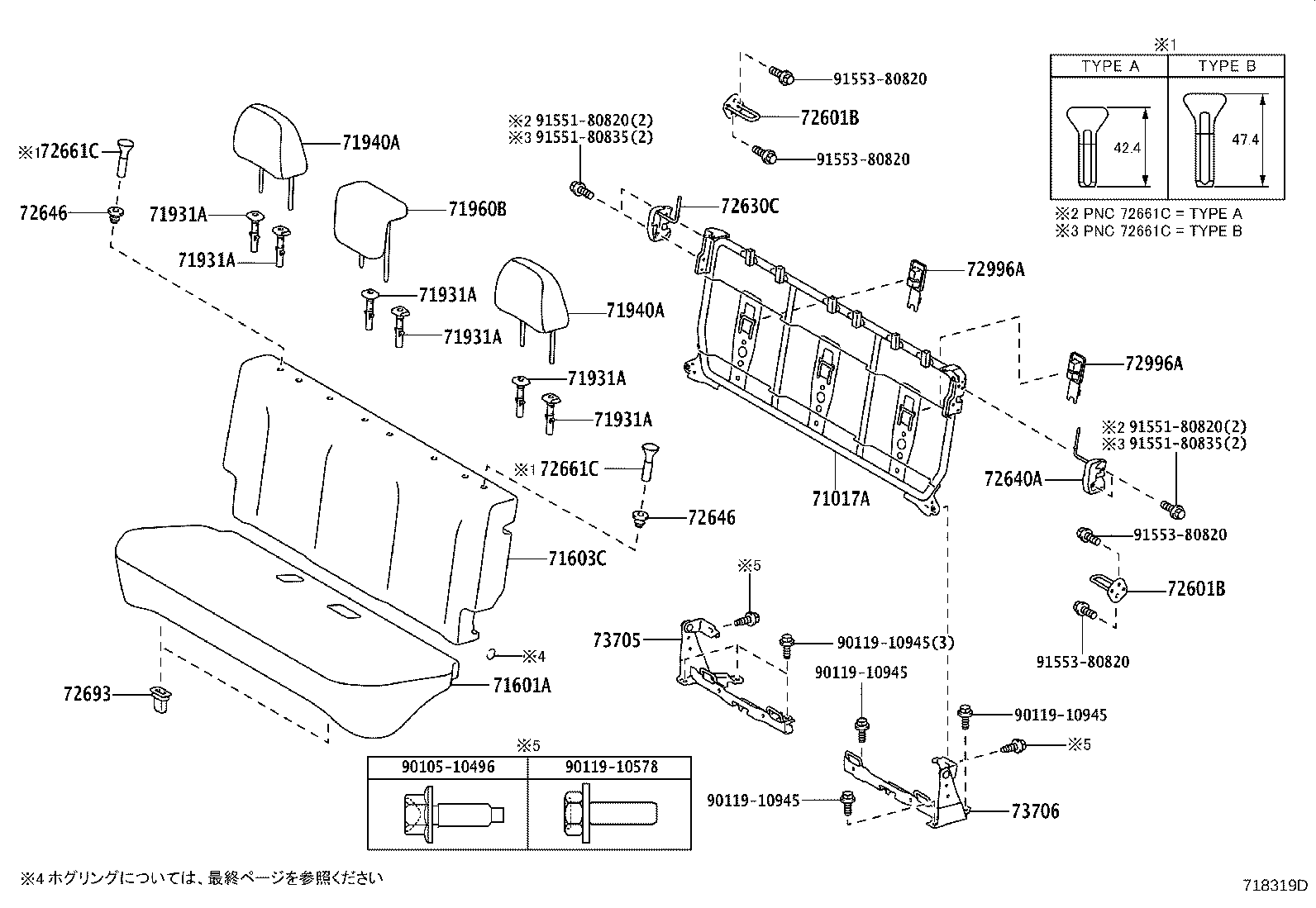

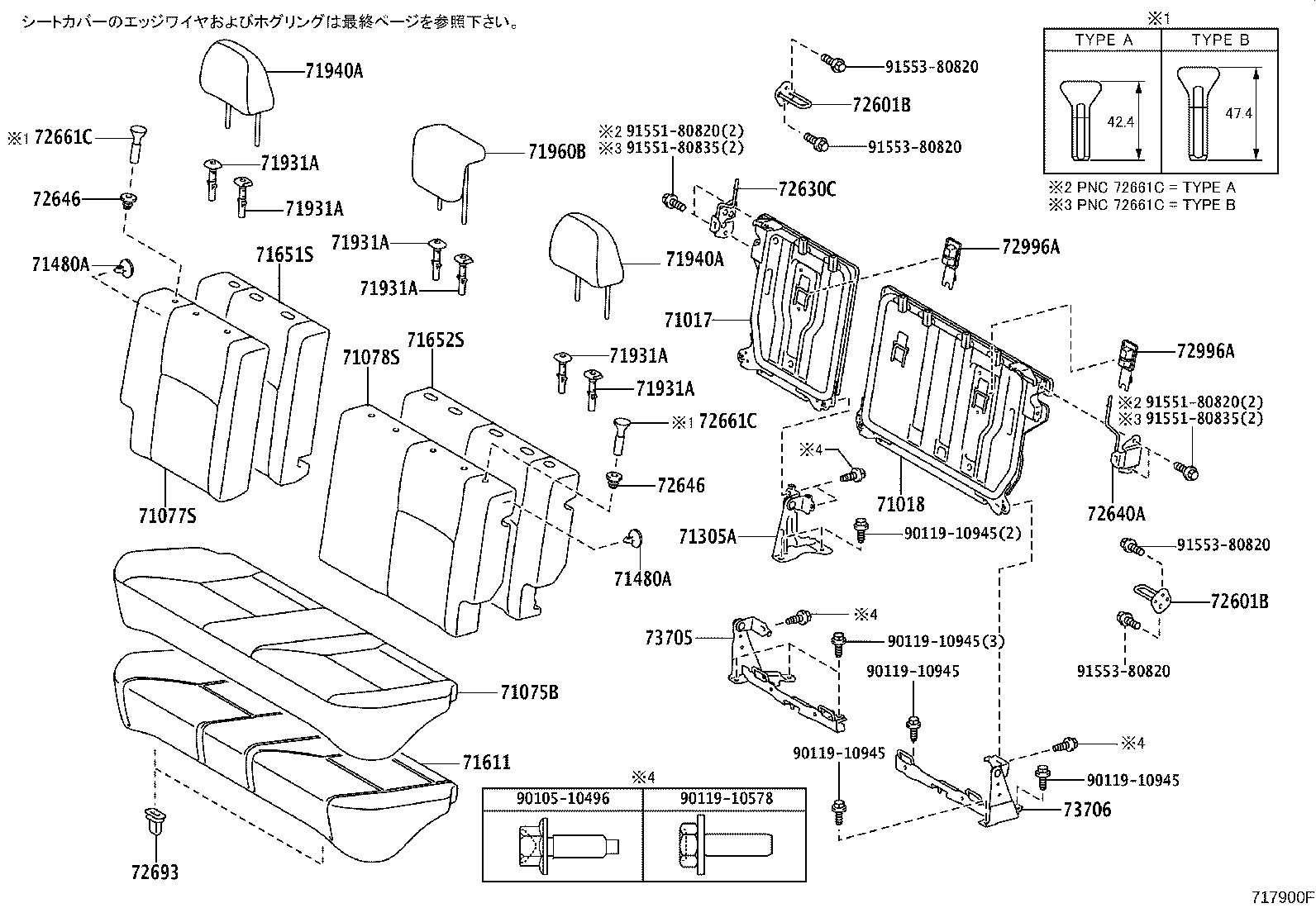

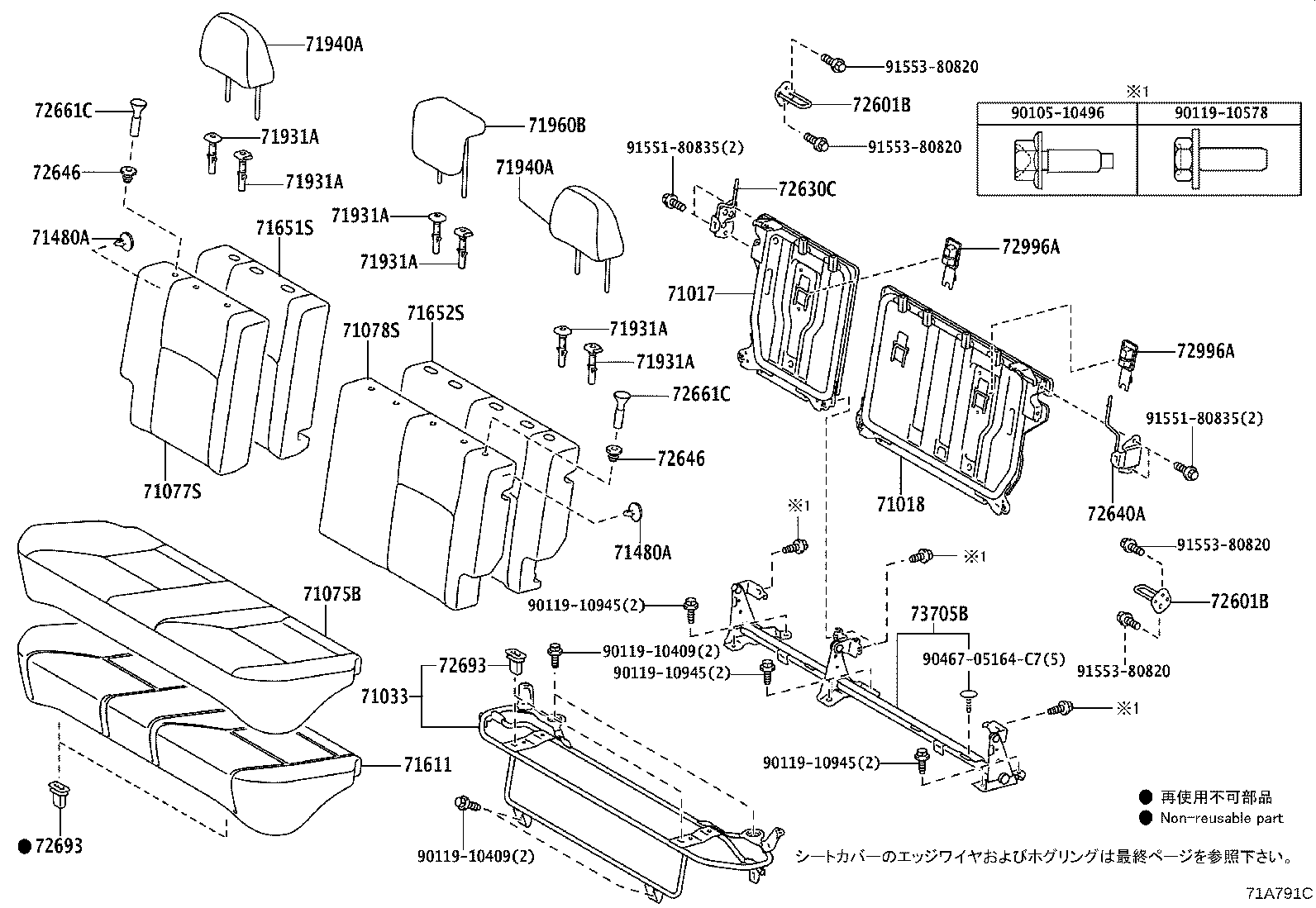

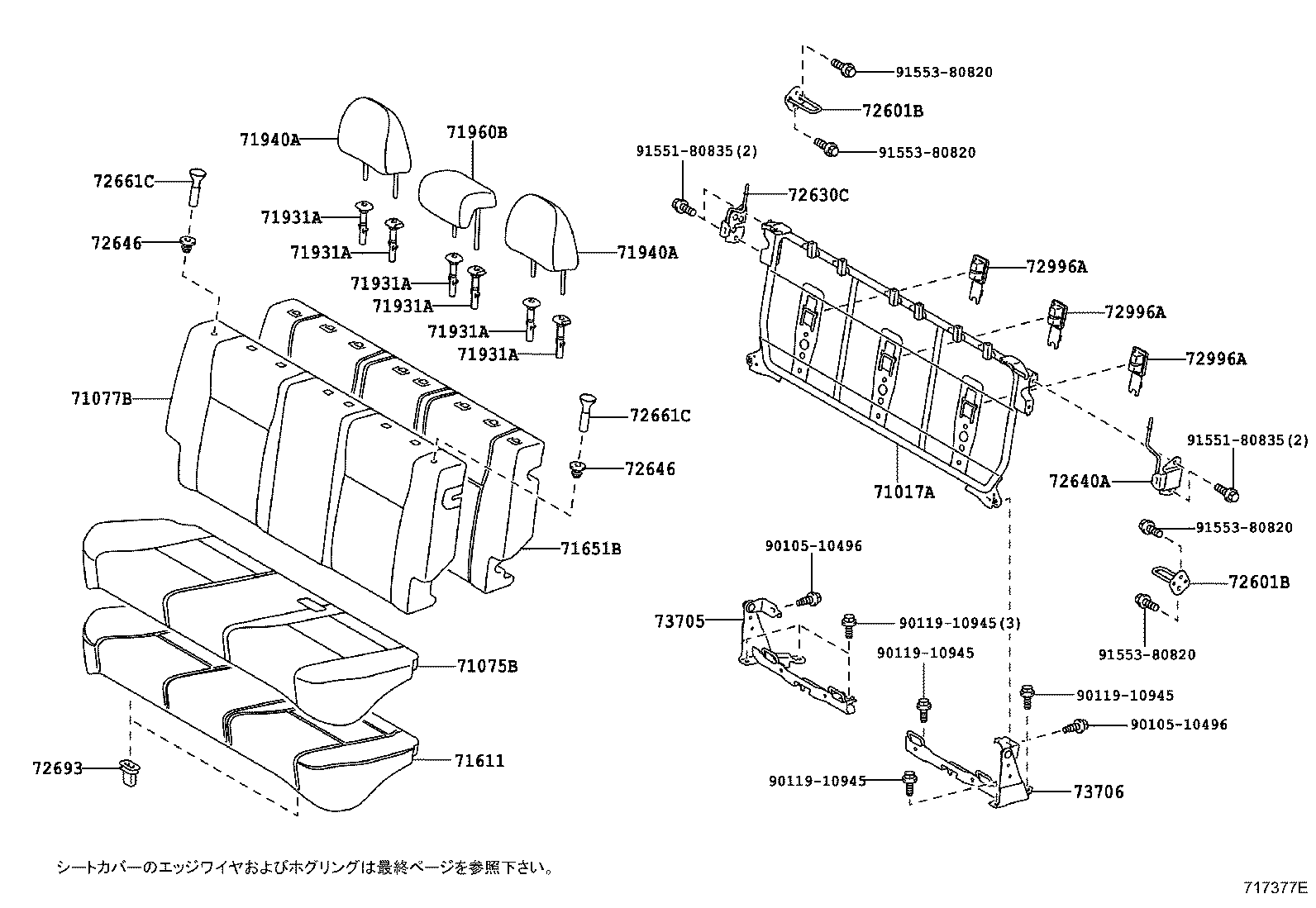

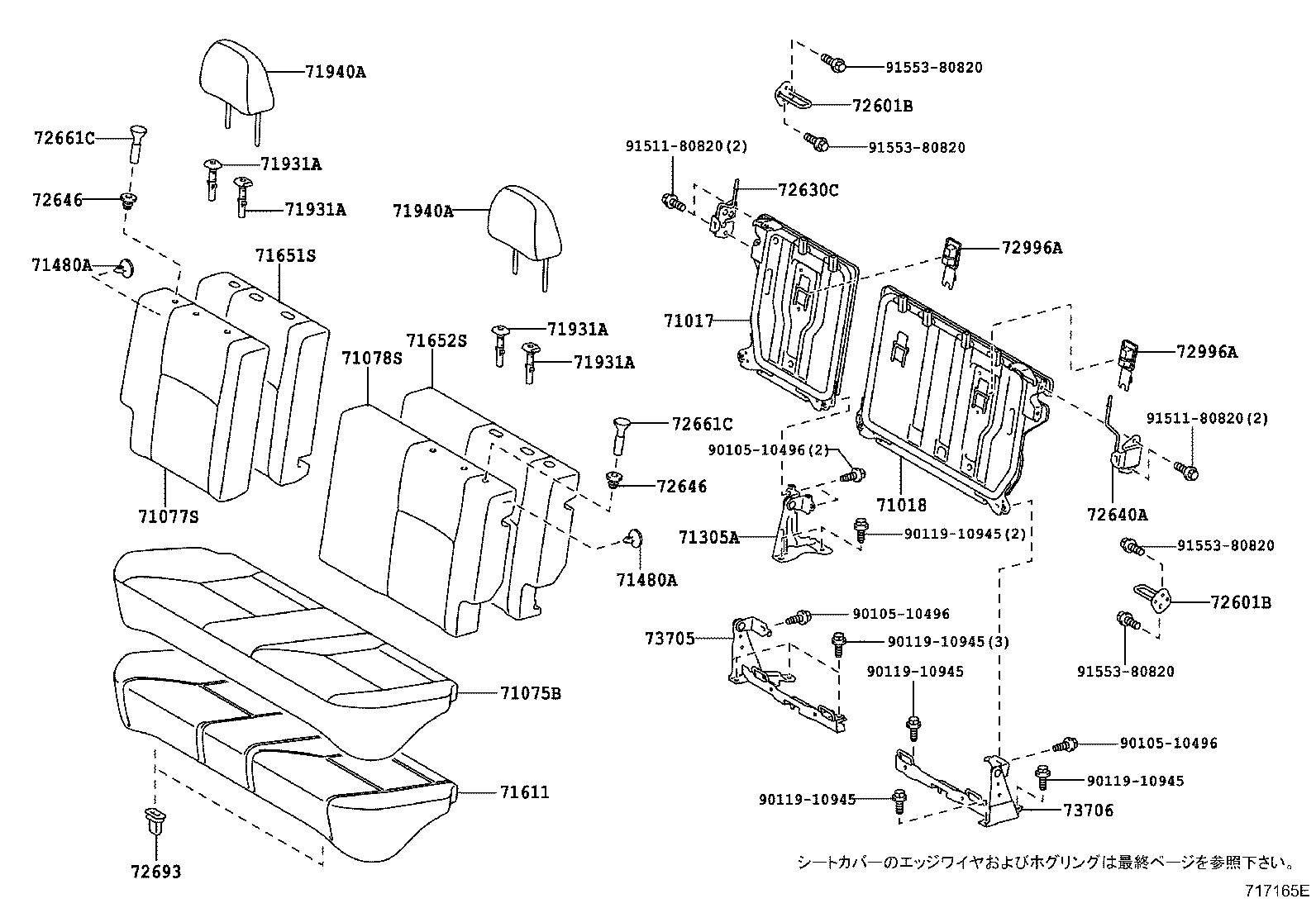

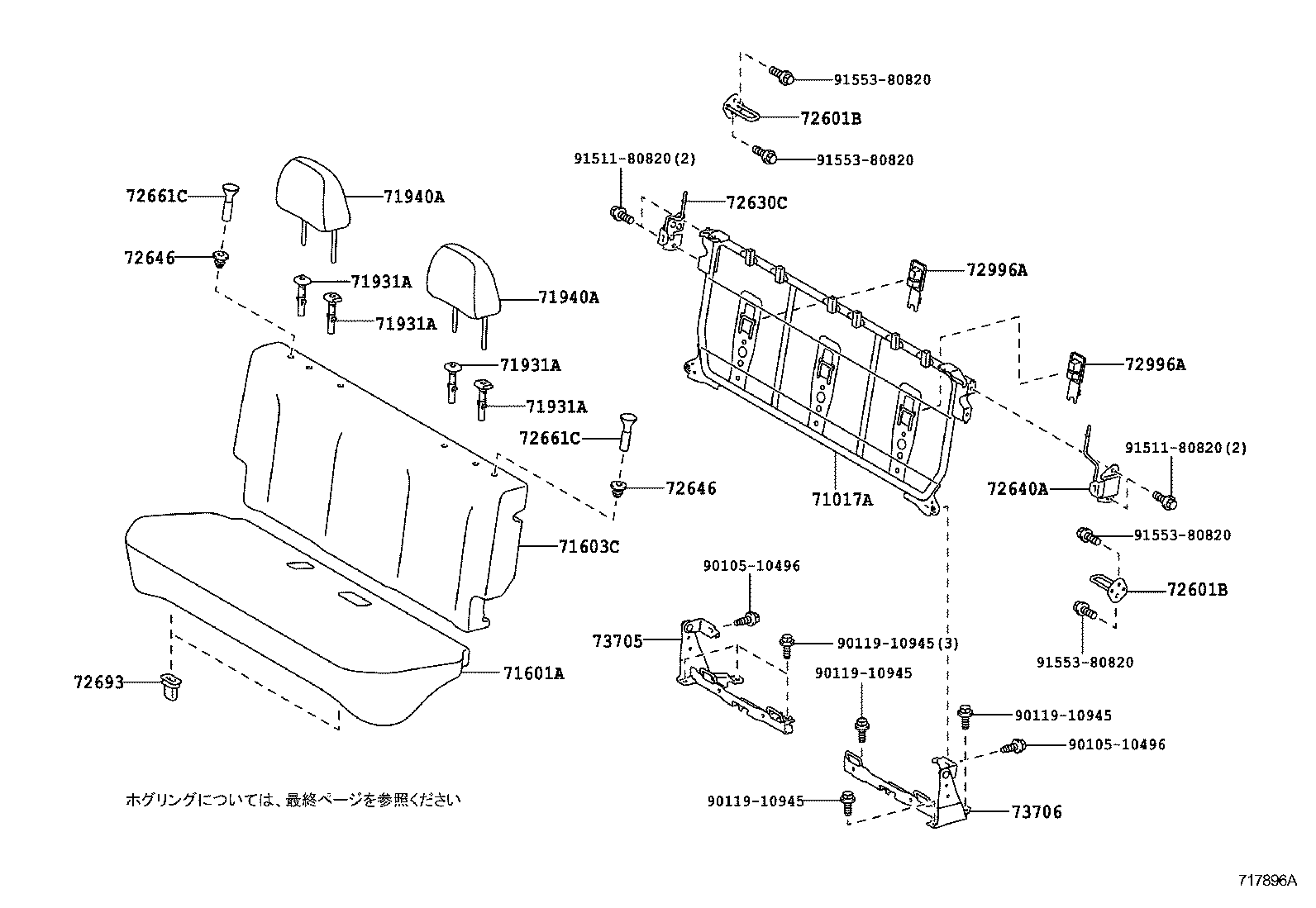

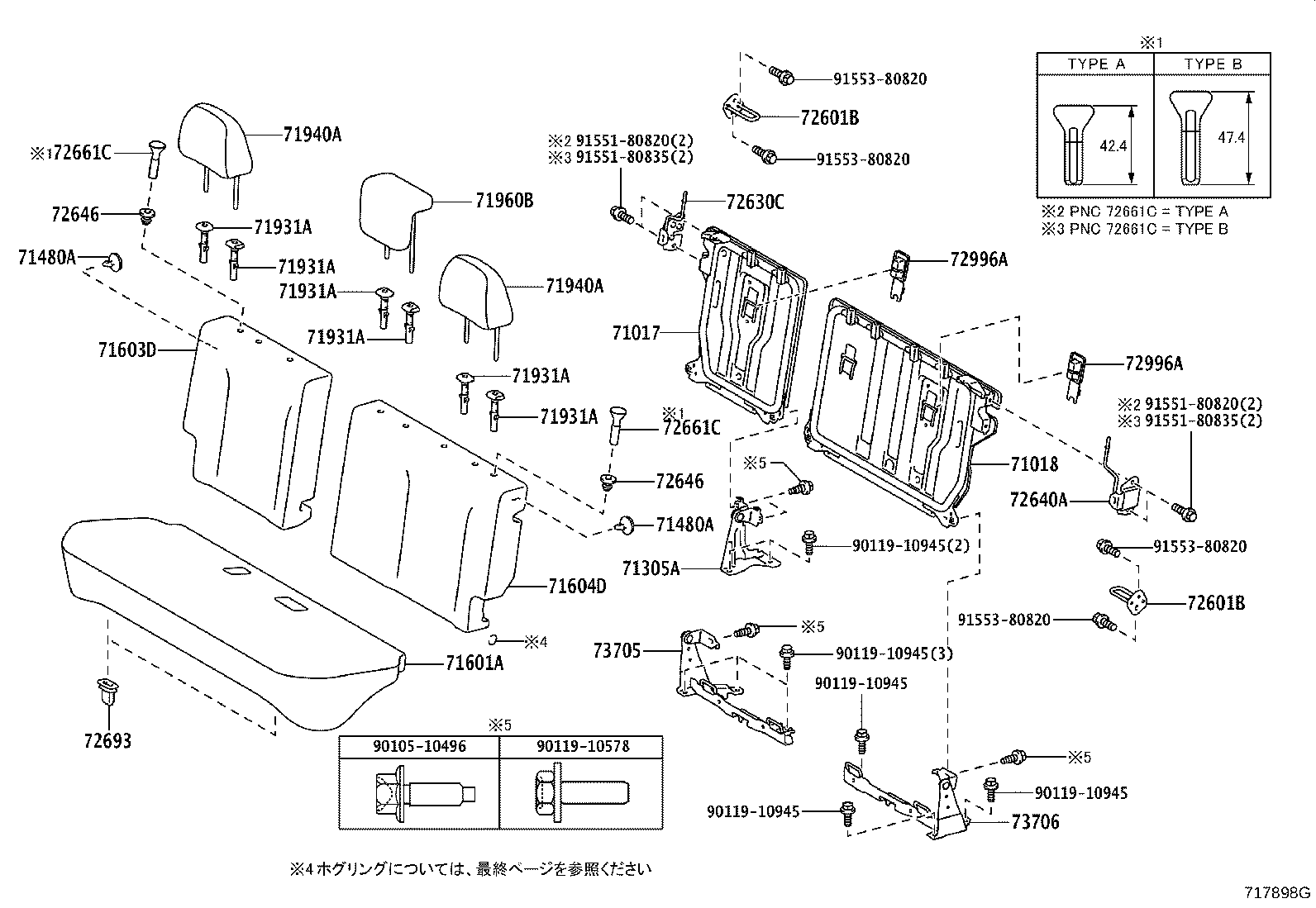

Figure 717016A 717016A 2010-12 → 2012-05 Figure 717017C 717017C 2010-12 → 2012-05 Figure 717018C 717018C 2010-12 → 2012-05 Figure 717165E 717165E 2011-10 → 2012-05 Figure 717896A 717896A 2011-12 → 2012-05 Figure 717897C 717897C 2012-05 → 2013-01 Figure 717377E 717377E 2012-12 → 2013-01 Figure 718318D 718318D 2013-01 → — Figure 719303 719303 2013-09 → 2014-02 Figure 718319D 718319D 2013-01 → — Figure 717900F 717900F 2012-05 → — Figure 719418 719418 2015-07 → 2017-01 Figure 71A791C 71A791C 2017-09 → — Figure 717898G 717898G 2012-05 → — Figure 717899F 717899F 2012-05 → — Figure 71A627B 71A627B 2017-01 → — Figure 719025N 719025N 2010-12 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71305A Hinge Sub-assy, Rear Seatback, Center
71480A Clip (FOR REAR SEATBACK)
71601A Pad Sub-assy, Rear Seat Cushion W/Cover
71603C Pad Sub-assy, Rear Seatback W/Cover
71603D Pad Sub-assy, Rear Seatback W/Cover, RH
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72601B Striker Sub-assy, Rear Seatback Lock
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72996A Cover, Rear Seatback
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73705B Bracket Sub-assy, Cross Anchor
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
79232 Leg, Rear NO.2 Seat, RH
