Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

55 part groups · 18 illustrations

Illustrations

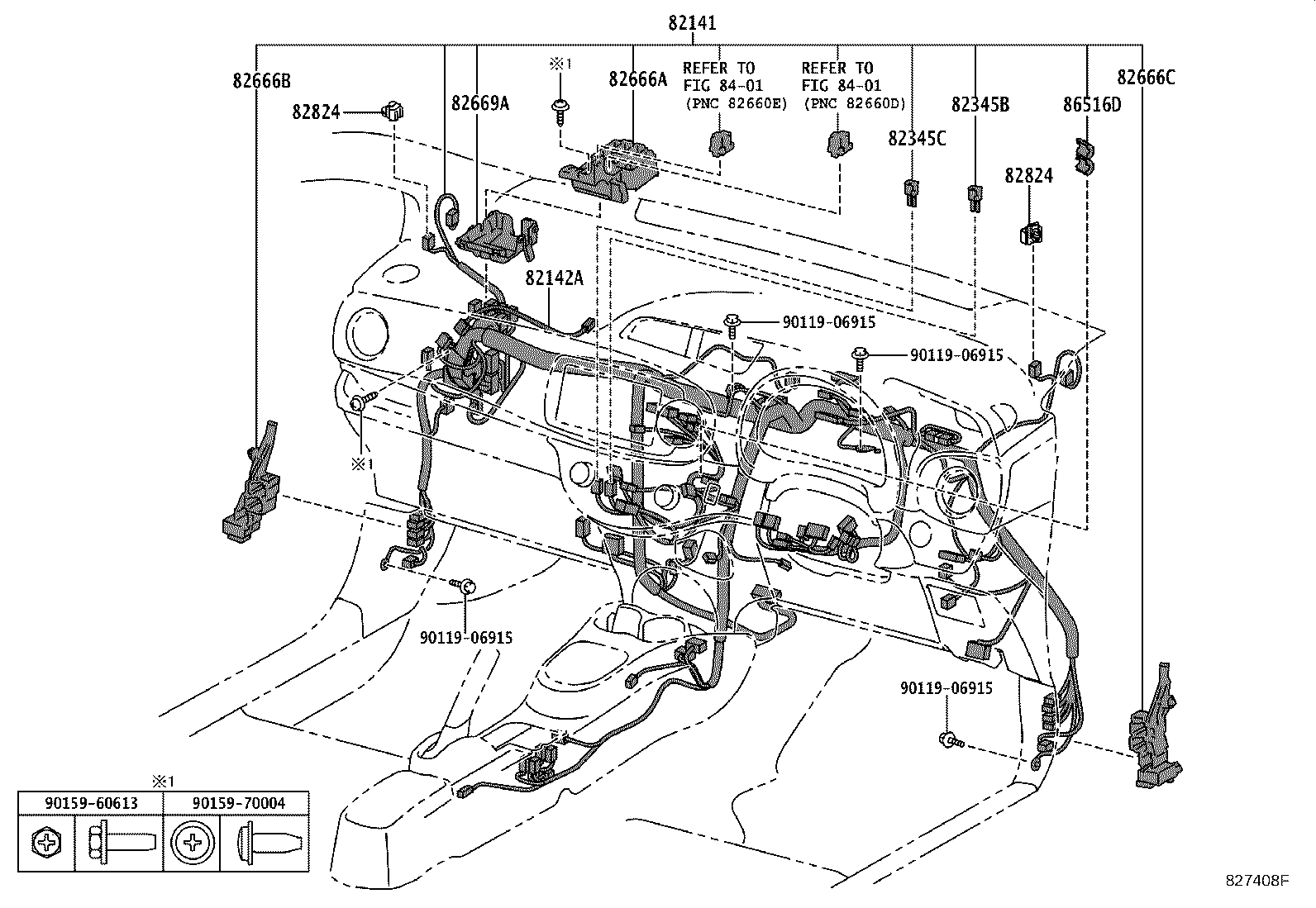

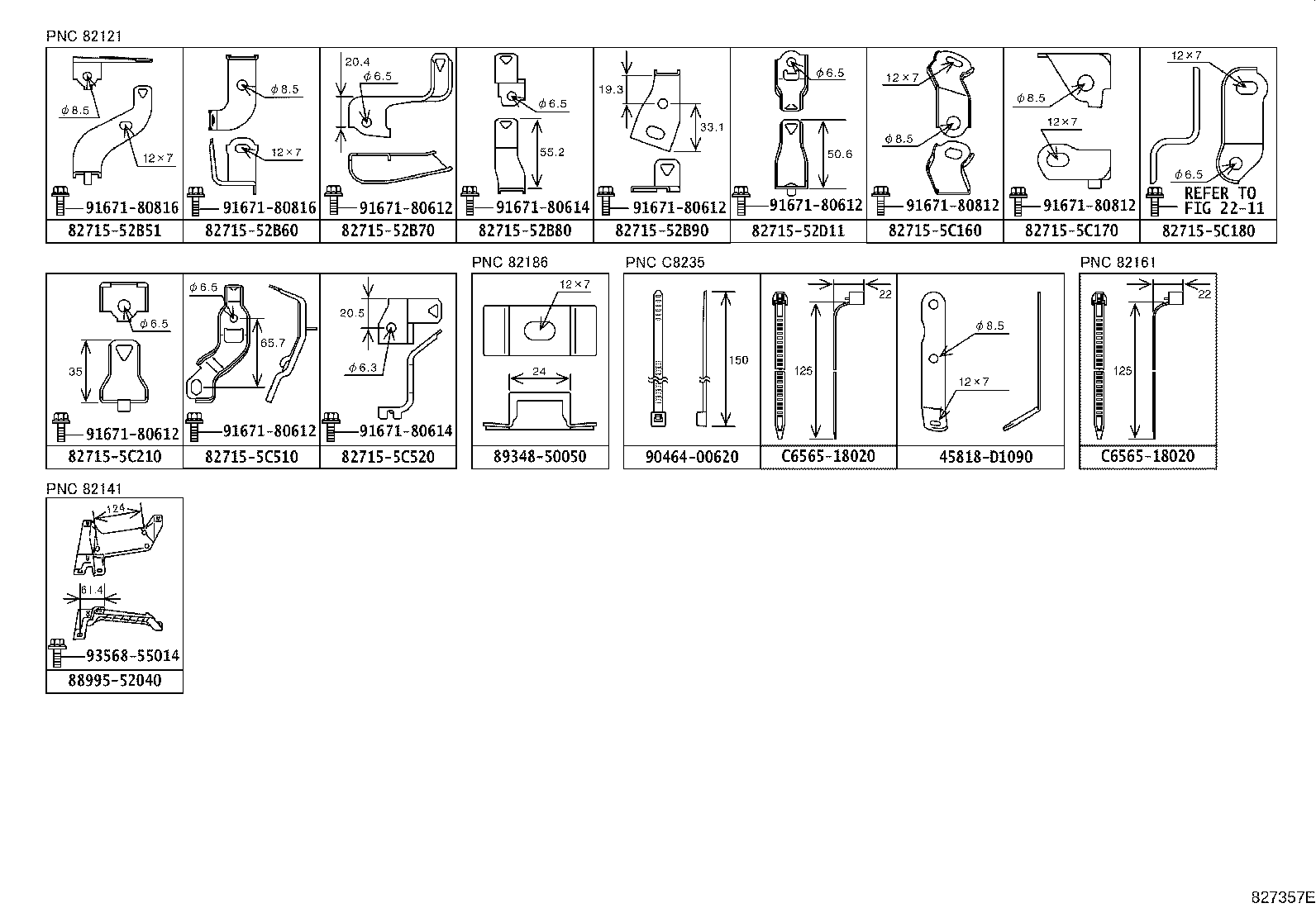

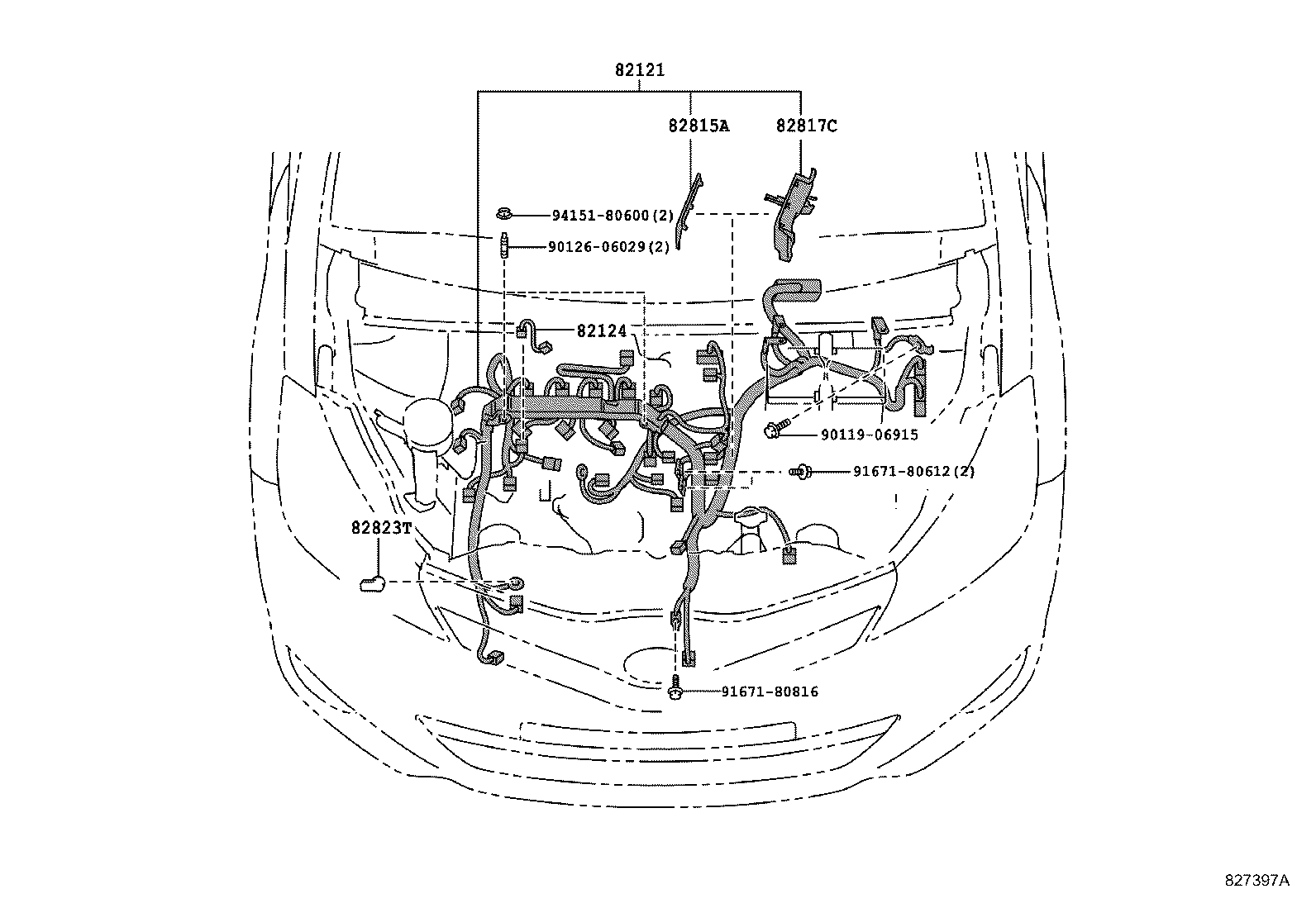

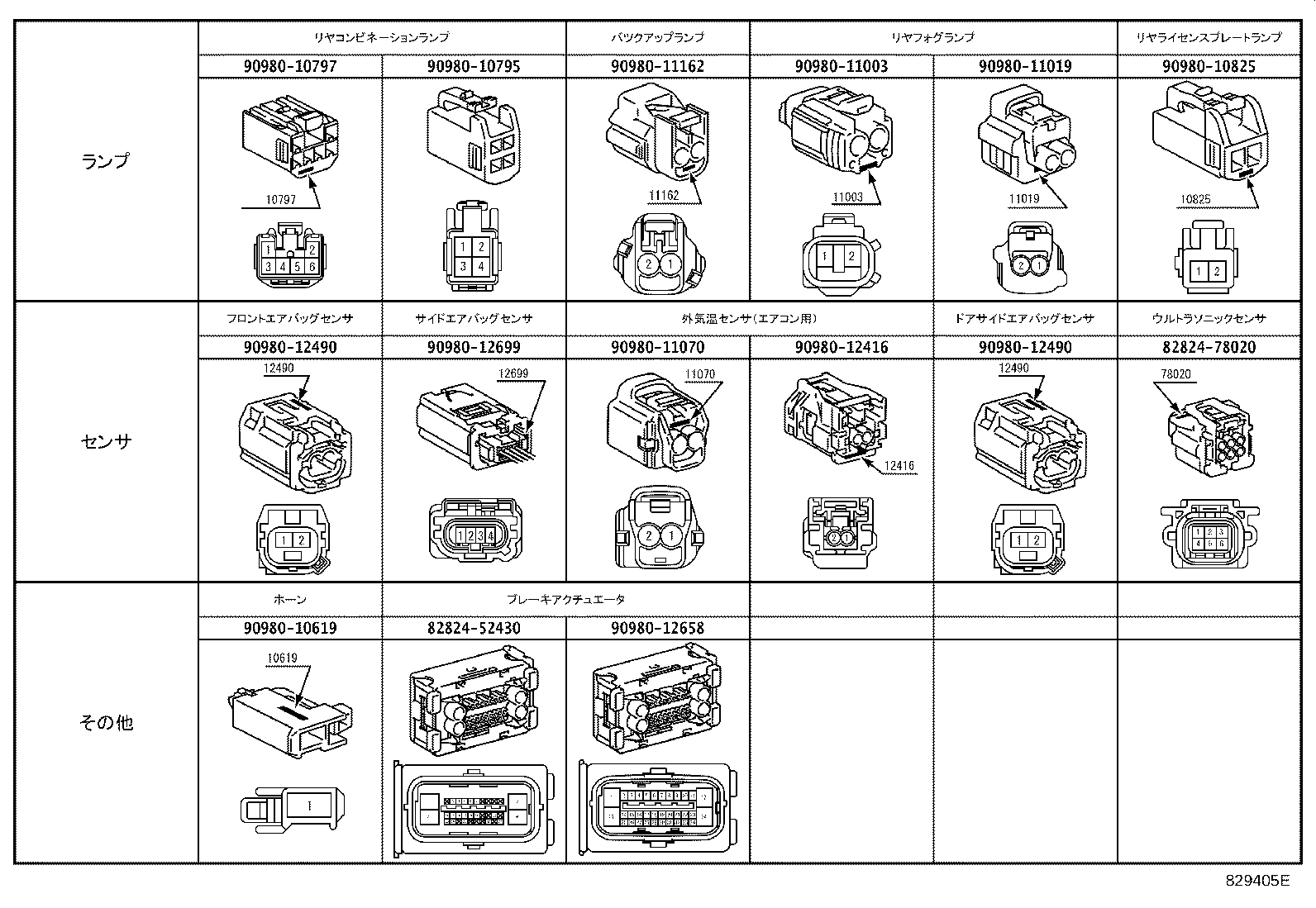

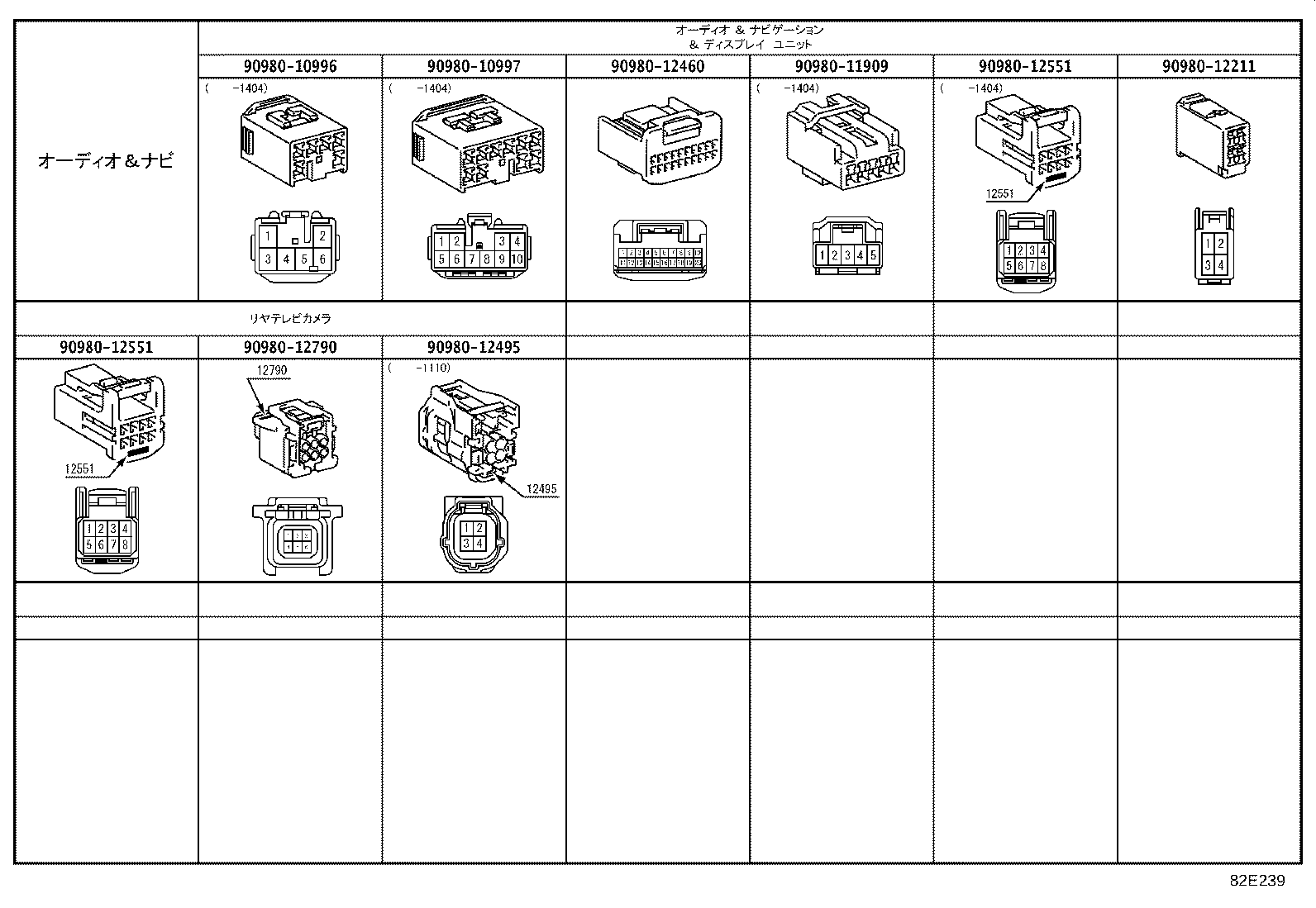

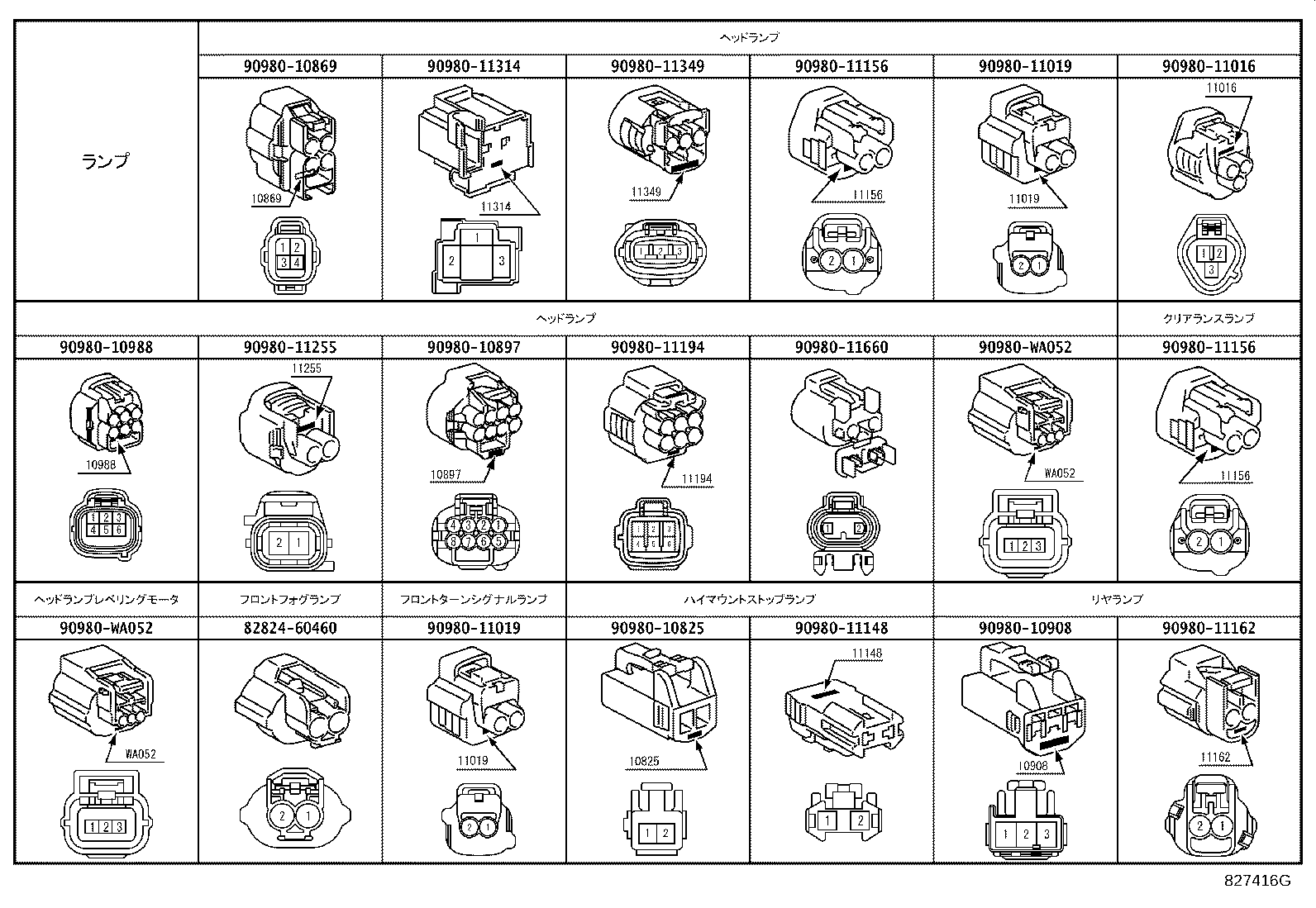

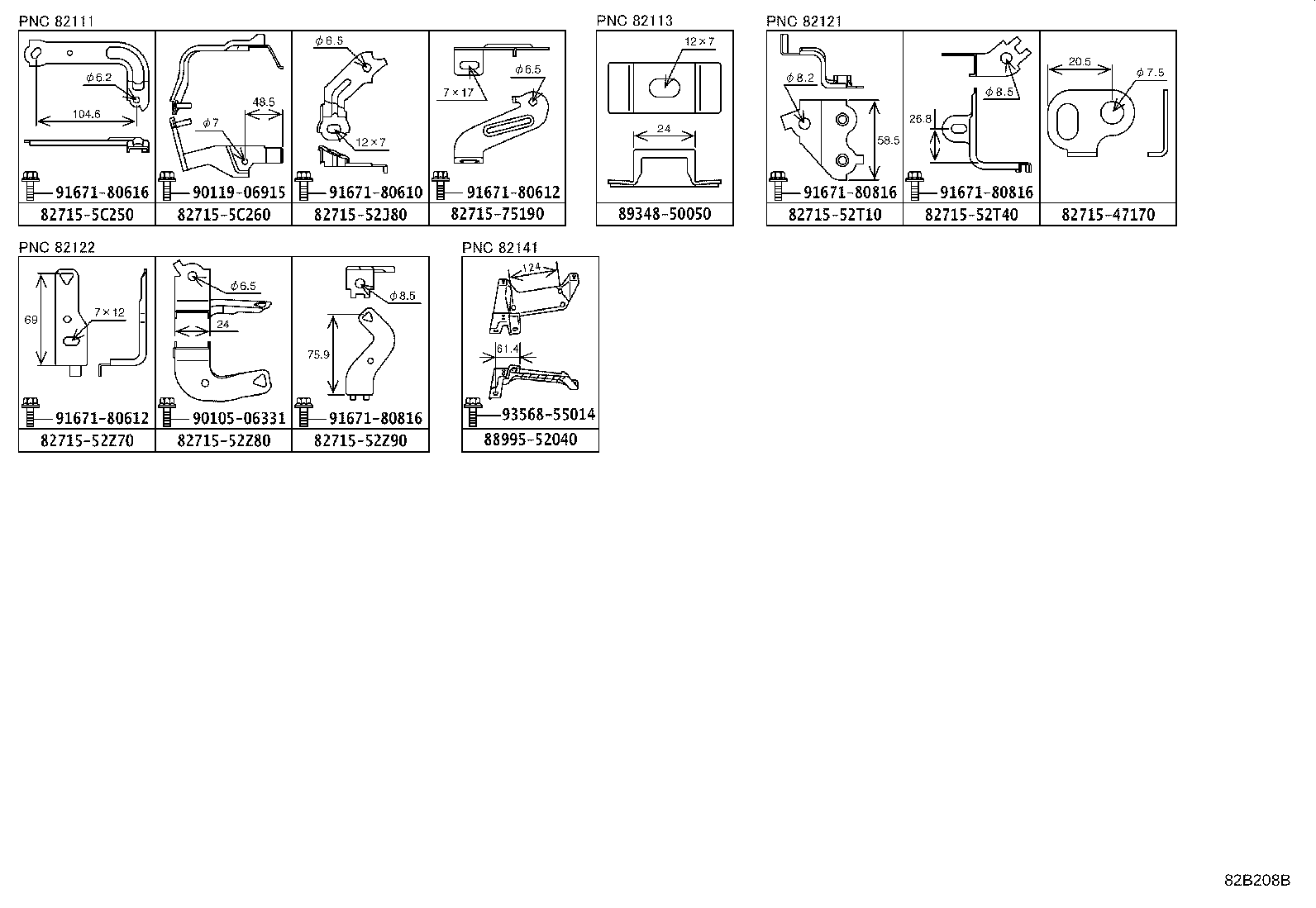

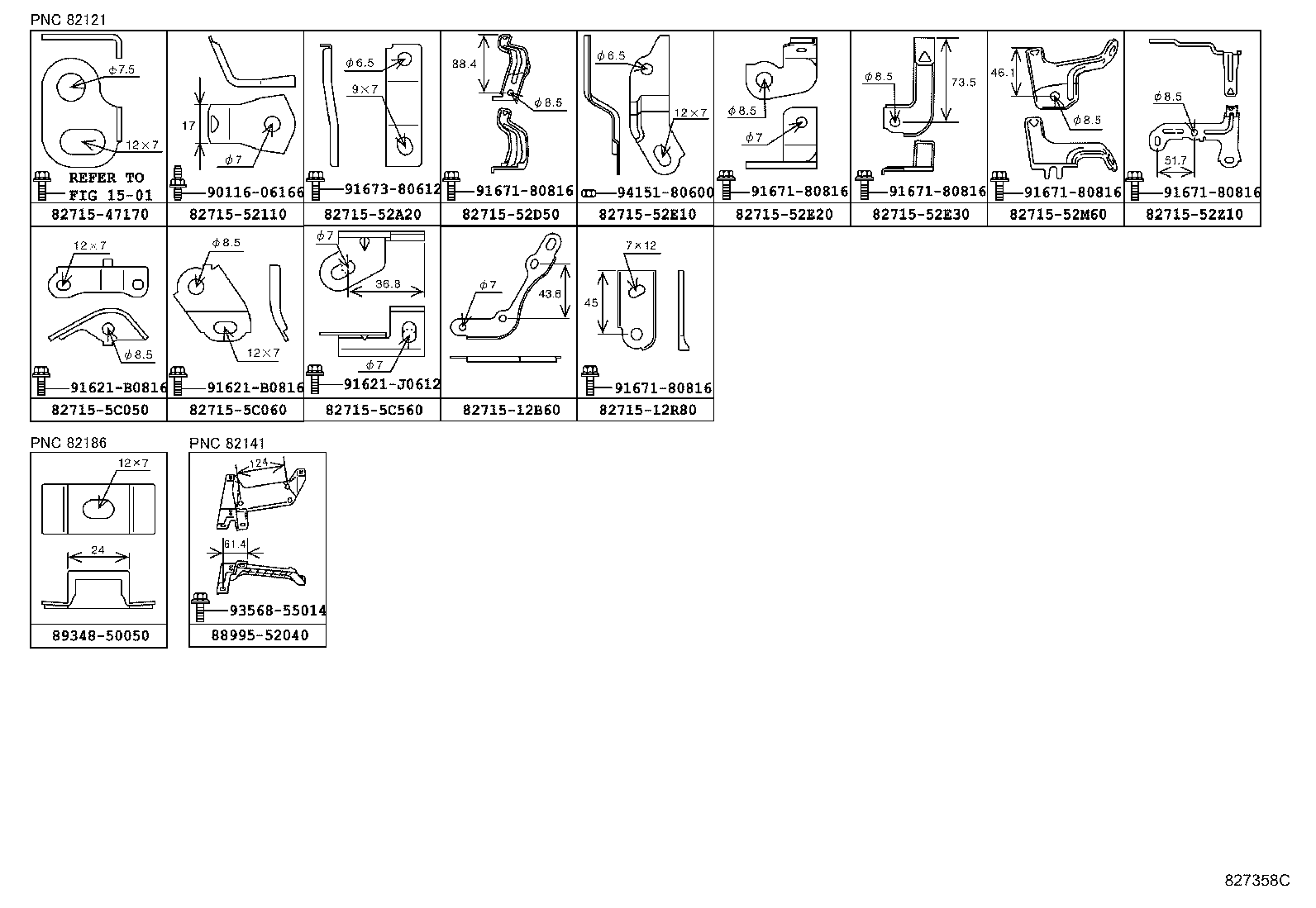

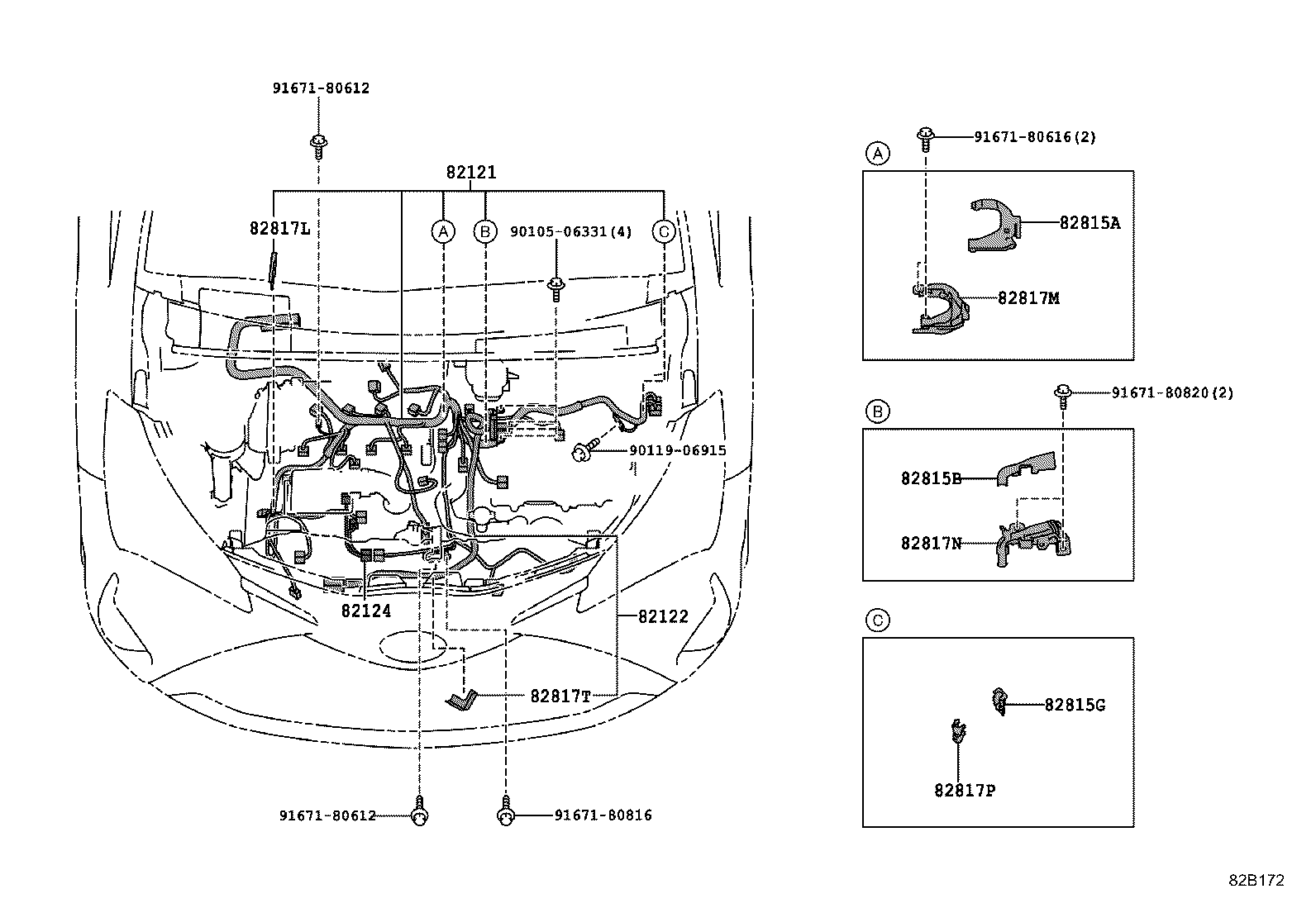

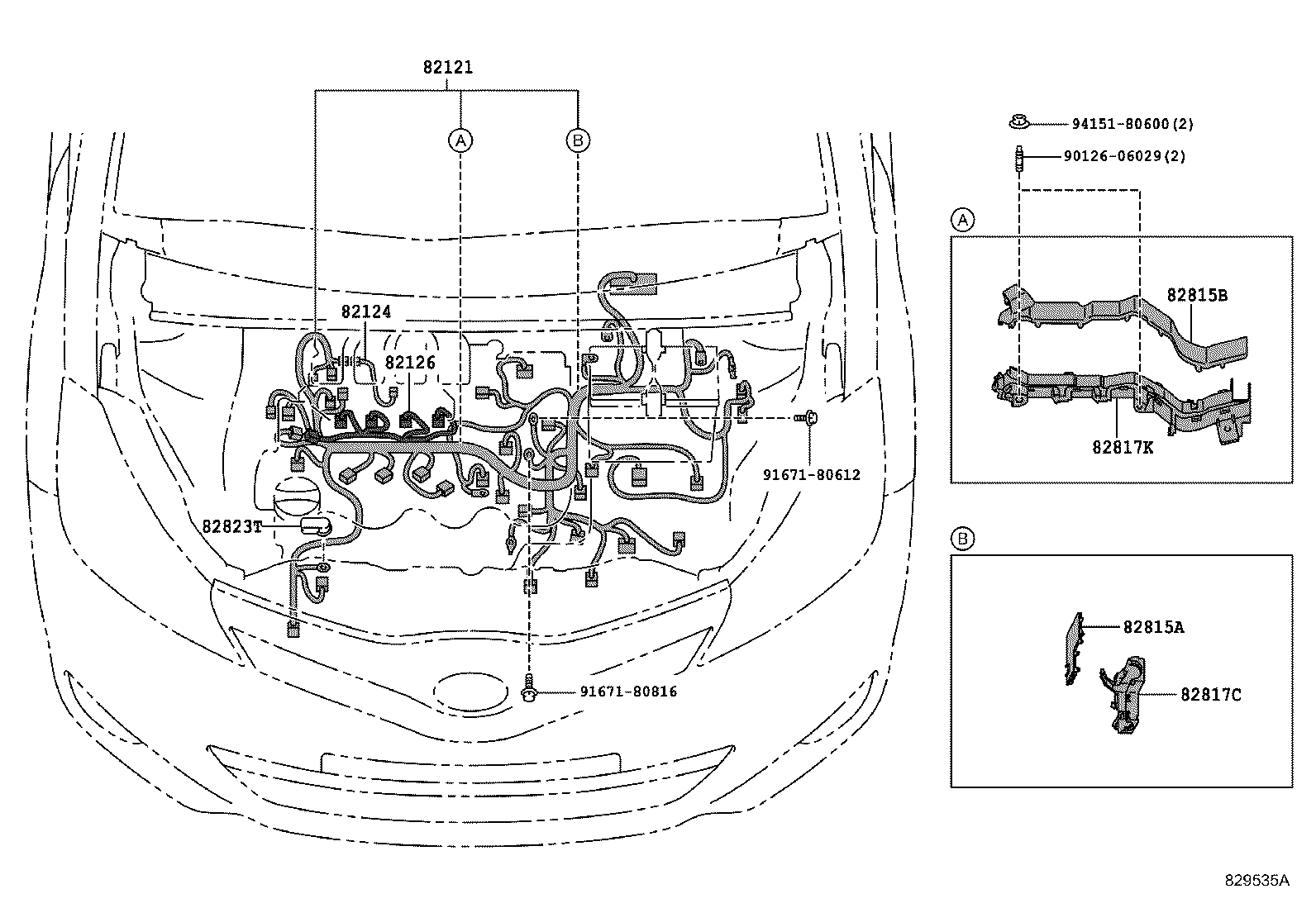

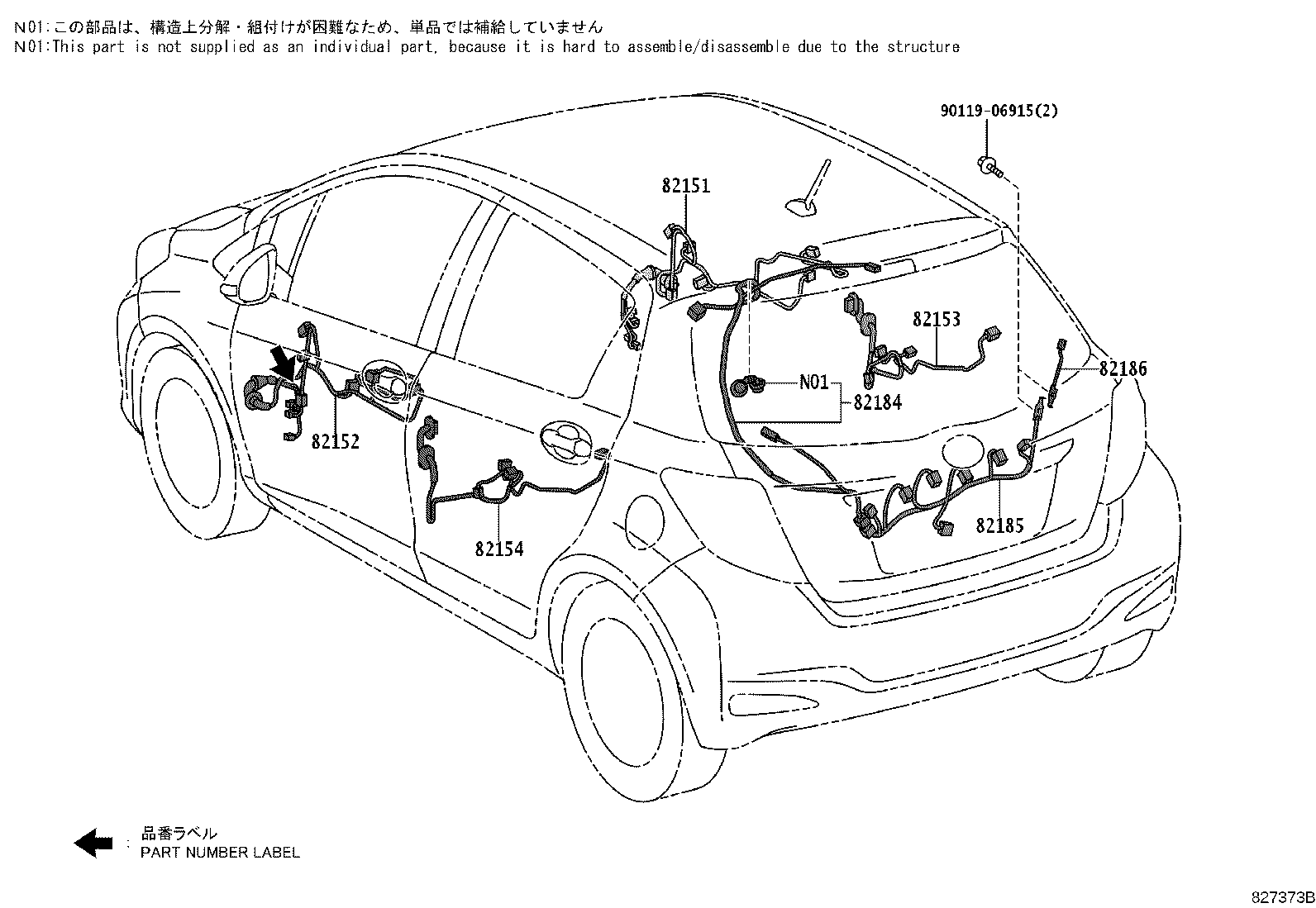

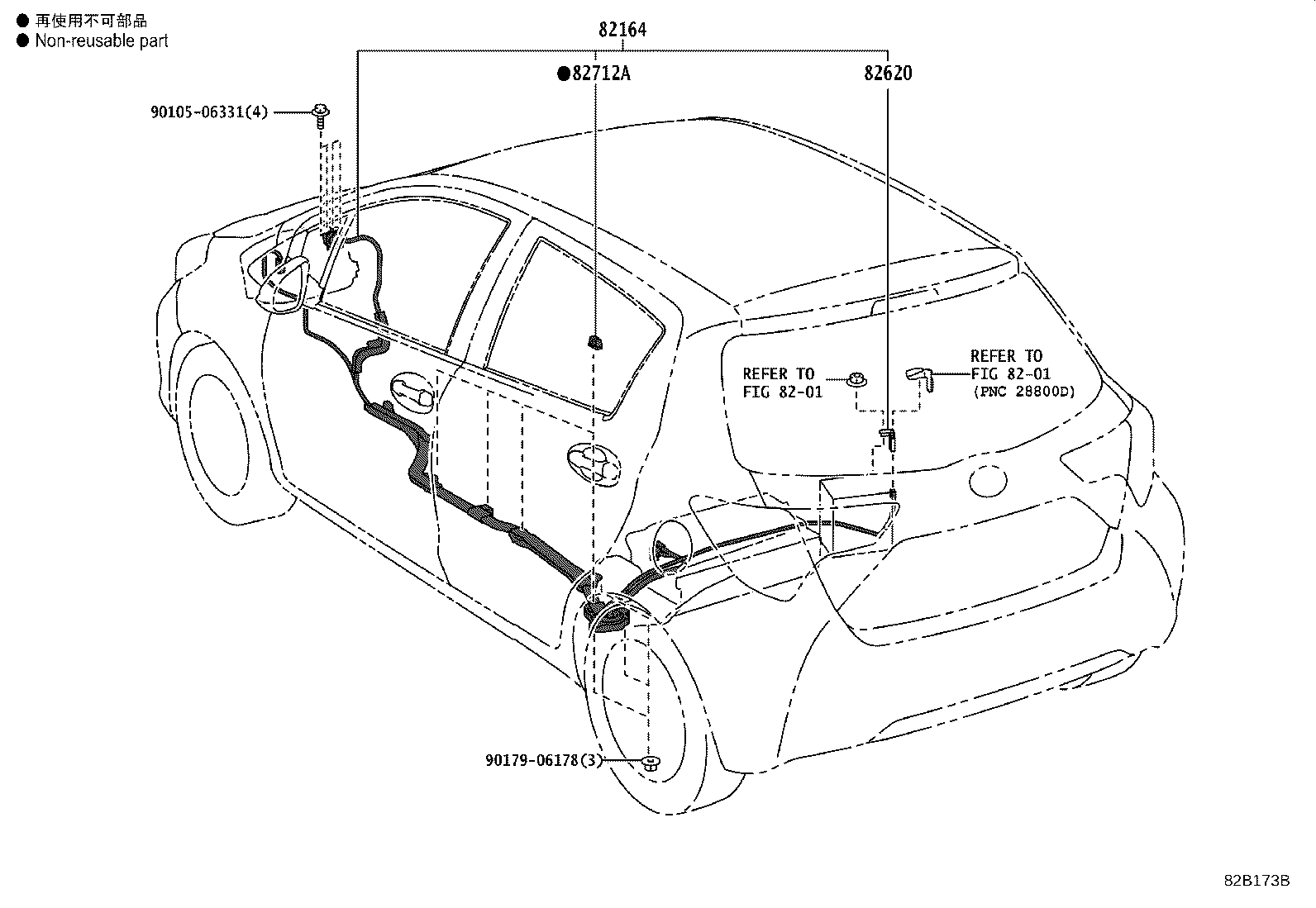

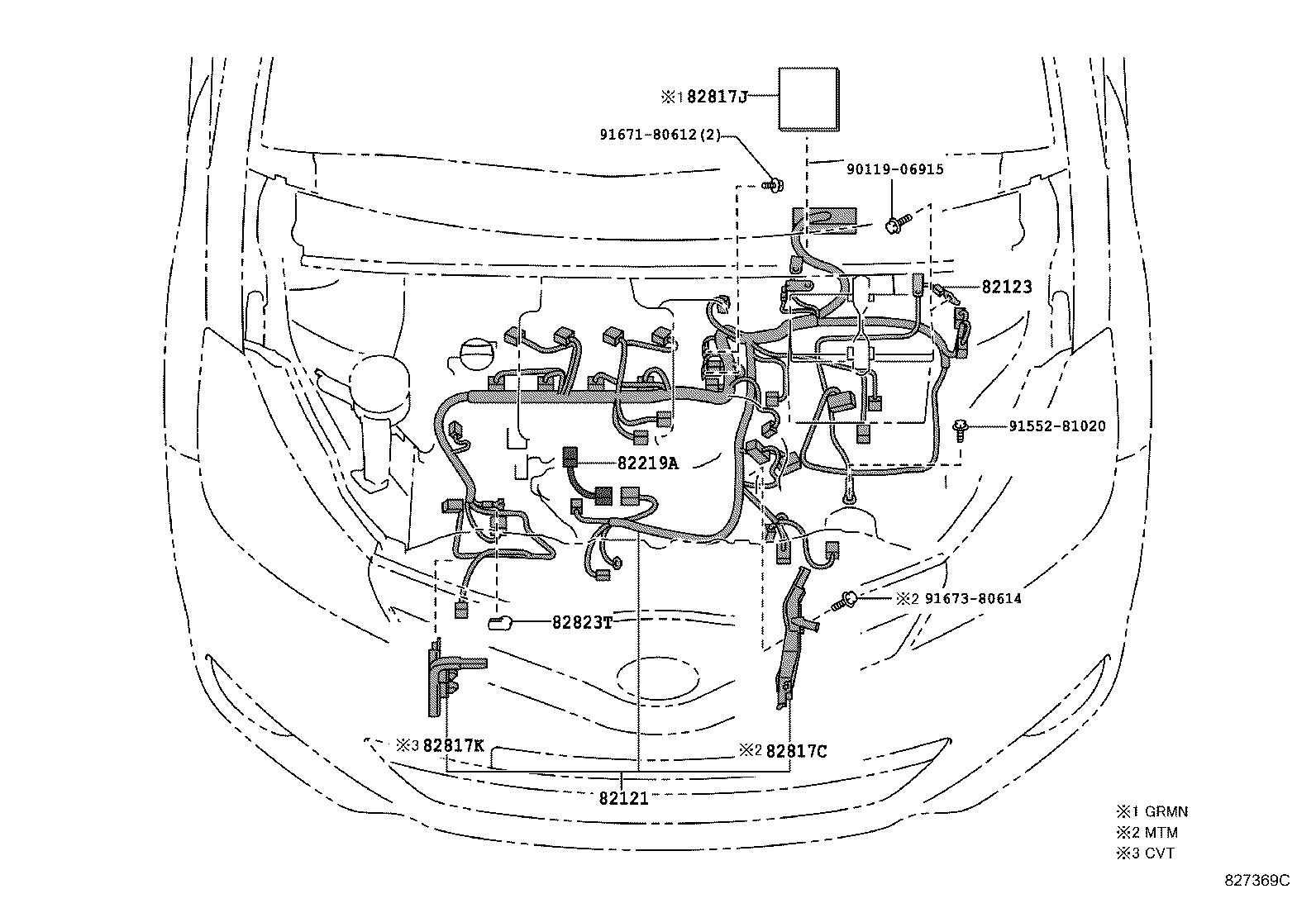

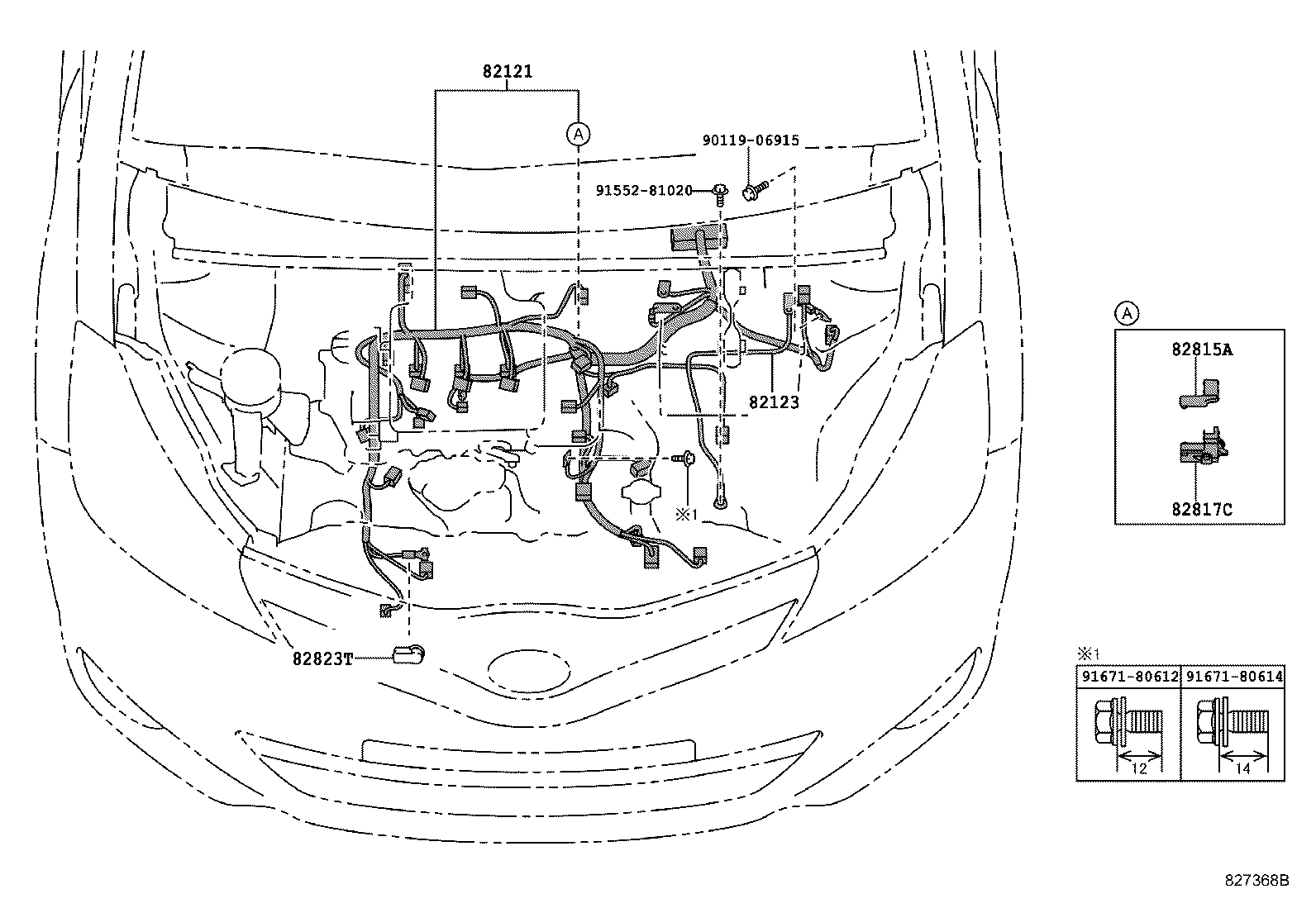

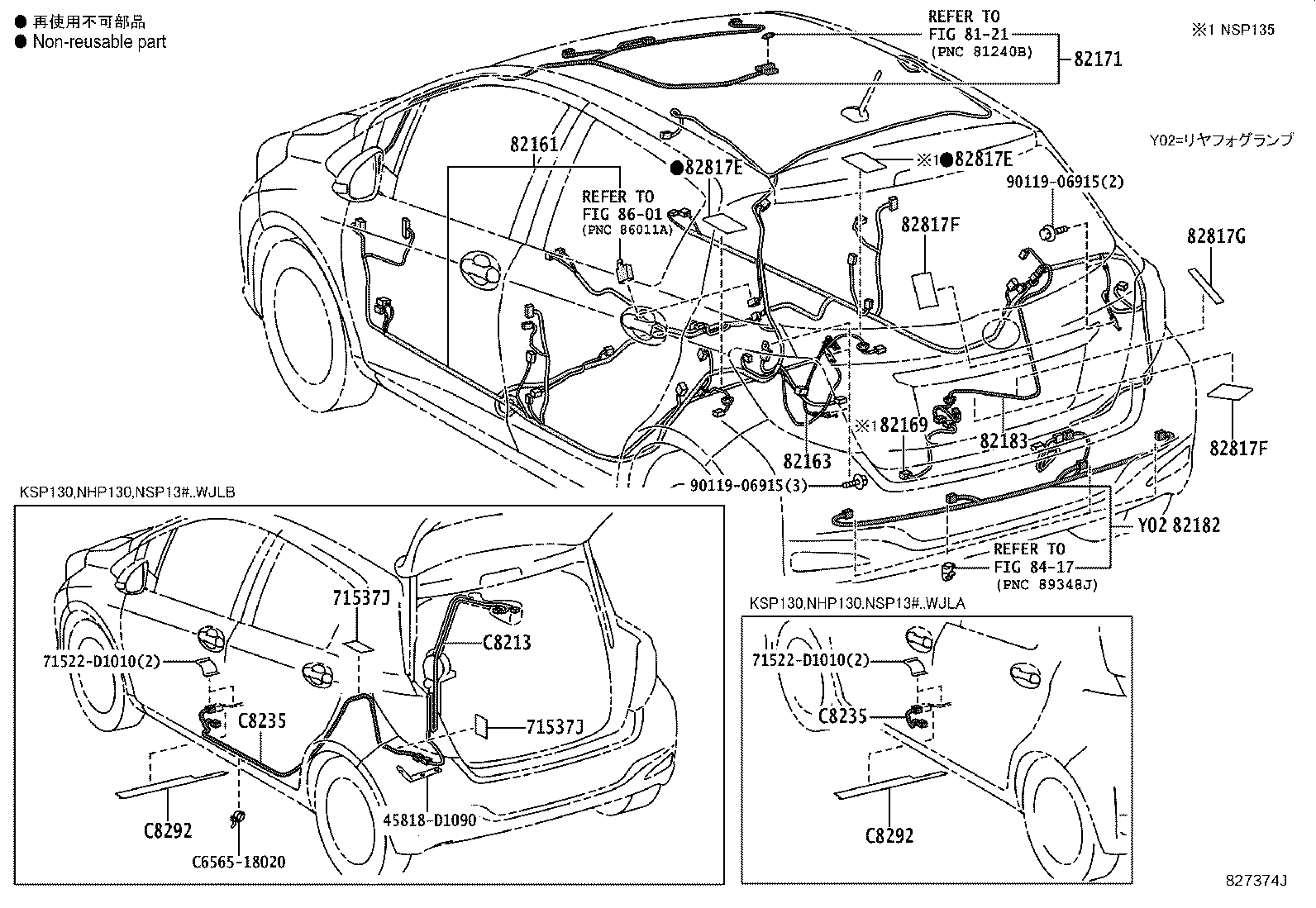

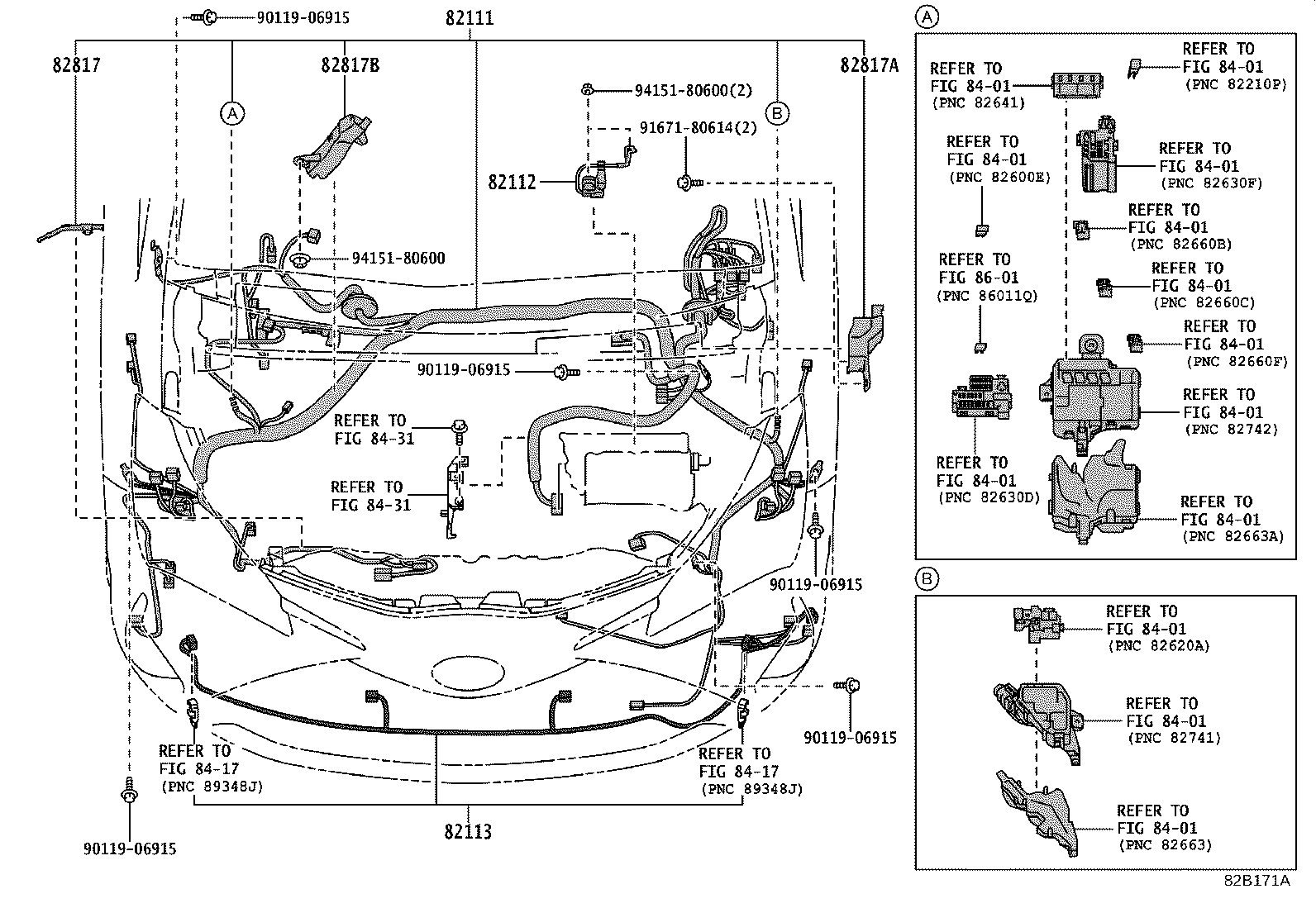

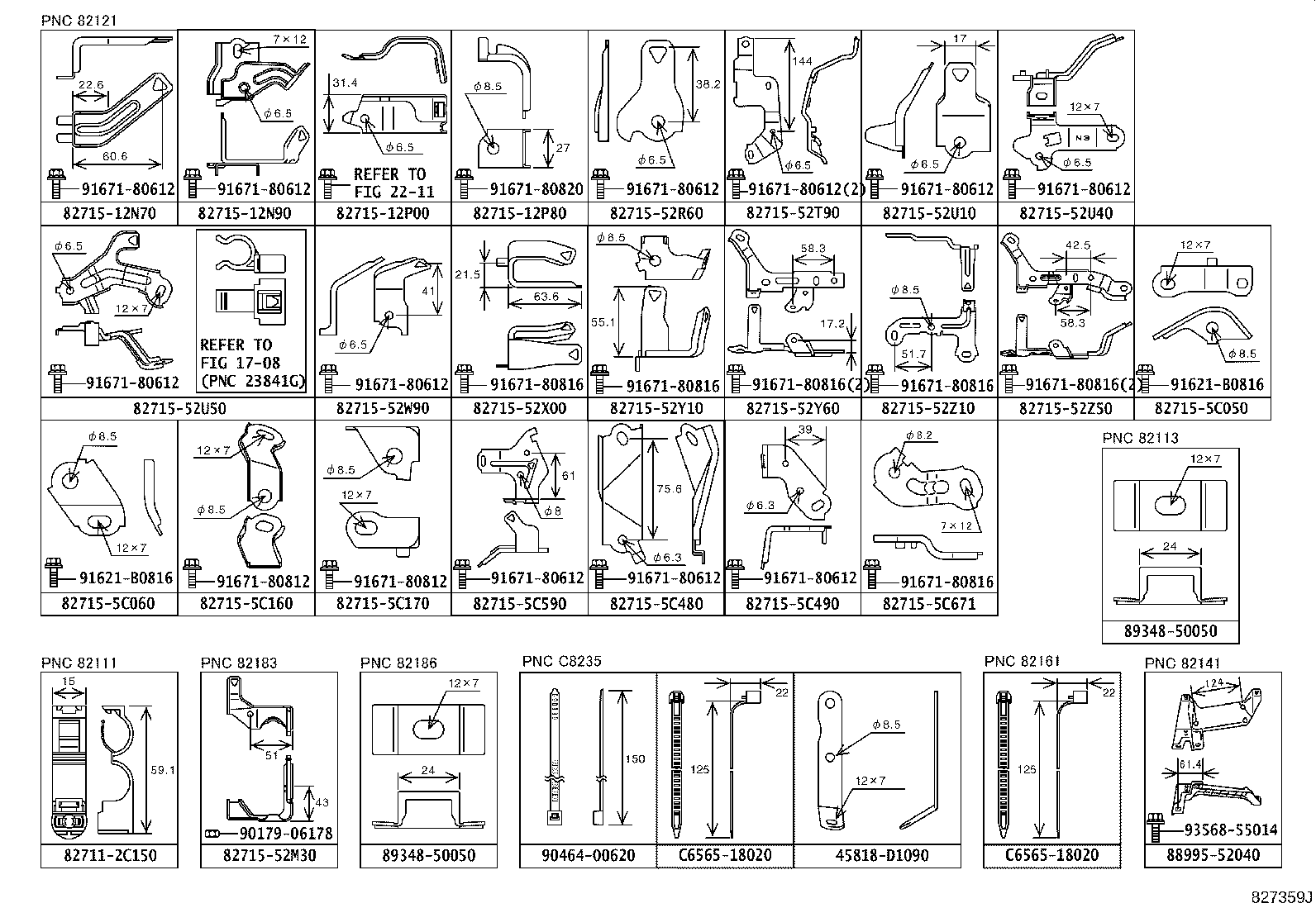

Figure 827362I 827362I 2010-12 → — Figure 82B171A 82B171A 2017-01 → — Figure 827368B 827368B 2010-12 → — Figure 827369C 827369C 2010-12 → — Figure 827397A 827397A 2010-12 → — Figure 829535A 829535A 2014-04 → — Figure 82B172 82B172 2017-01 → — Figure 827408F 827408F 2010-12 → — Figure 827373B 827373B 2010-12 → — Figure 827374J 827374J 2010-12 → — Figure 82B173B 82B173B 2017-01 → — Figure 827357E 827357E 2010-12 → — Figure 827358C 827358C 2010-12 → — Figure 827359J 827359J 2010-12 → — Figure 82B208B 82B208B 2017-01 → — Figure 827416G 827416G 2010-12 → — Figure 829405E 829405E 2010-12 → — Figure 82E239 82E239 2010-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345B Diode
82345C Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82669A Cover, Connector Holder Block, Lower
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
86516D Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
