Toyota Mark 2

1988-08 → 1995-12 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 311160 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

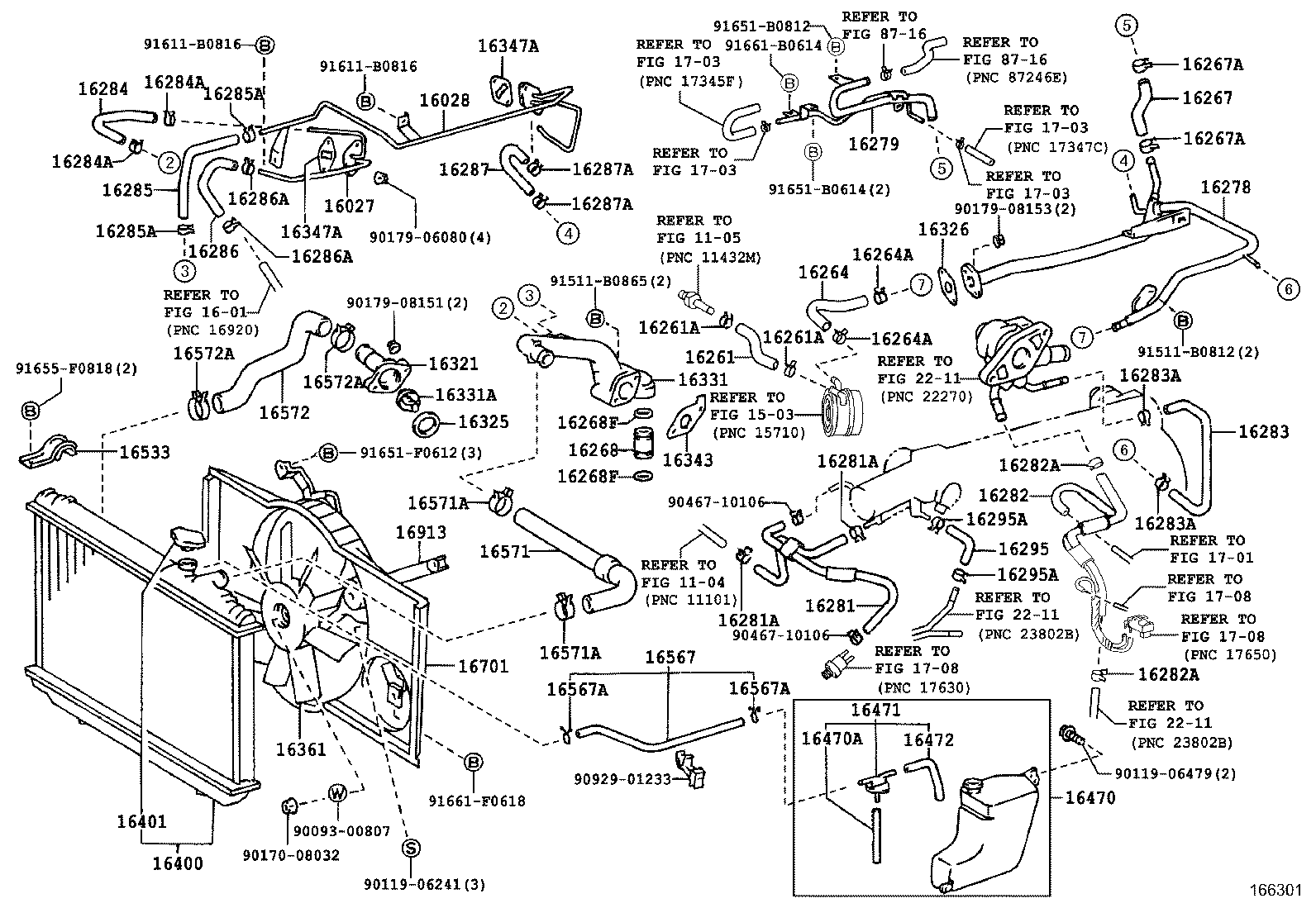

Exploded illustration 166301 1708 — not listed in this catalogue 1104 — not listed in this catalogue 91611B0816 — not listed in this catalogue 16347A — GASKET(FOR TURBO WATER PIPE) (2 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (8 parts) 91611B0816 — not listed in this catalogue 16284A — CLIP(FOR TURBO WATER HOSE NO.1) (2 parts) 16028 — PIPE SUB-ASSY, TURBO WATER, NO.2 (3 parts) 16284 — HOSE, TURBO WATER, NO.1 (2 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (8 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (1 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (8 parts) 91651B0812 — not listed in this catalogue 91661B0614 — not listed in this catalogue 16284A — CLIP(FOR TURBO WATER HOSE NO.1) (2 parts) 16287 — HOSE, TURBO WATER, NO.4 (1 parts) 16287A — CLIP(FOR TURBO WATER HOSE NO.4) (1 parts) 16285 — HOSE, TURBO WATER, NO.2 (1 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (1 parts) 9017908153 — not listed in this catalogue 16287A — CLIP(FOR TURBO WATER HOSE NO.4) (1 parts) 16027 — PIPE SUB-ASSY, TURBO WATER, NO.1 (3 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (4 parts) 16278 — PIPE, WATER BY-PASS, NO.2 (14 parts) 16347A — GASKET(FOR TURBO WATER PIPE) (2 parts) 9017906080 — not listed in this catalogue 91511B0865 — not listed in this catalogue 9017908151 — not listed in this catalogue 16331 — OUTLET, WATER (23 parts) 91511B0812 — not listed in this catalogue 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (19 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (2 parts) 16321 — INLET, WATER (13 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (19 parts) 91655F0818 — not listed in this catalogue 16331A — THERMOSTAT (16 parts) 16572 — HOSE, RADIATOR, OUTLET (14 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (12 parts) 16268F — RING, O(FOR WATER BY-PASS PIPE) (7 parts) 16343 — GASKET, WATER OUTLET HOUSING (8 parts) 16533 — SUPPORT, RADIATOR, UPPER (12 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (16 parts) 91651F0612 — not listed in this catalogue 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (6 parts) 16268F — RING, O(FOR WATER BY-PASS PIPE) (7 parts) 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (20 parts) 9046710106 — not listed in this catalogue 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (1 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (2 parts) 16913 — STAY, HYDRAULIC MOTOR FAN SHROUD (1 parts) 16571 — HOSE, RADIATOR, INLET (15 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (2 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (1 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (1 parts) 9011906479 — not listed in this catalogue 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (6 parts) 16281 — HOSE, WATER BY-PASS, NO.4 (7 parts) 9046710106 — not listed in this catalogue 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (20 parts) 16470 — TANK ASSY, RADIATOR RESERVE (14 parts) 16701 — SHROUD SUB-ASSY, FAN (12 parts) 16471 — CAP SUB-ASSY, RESERVE TANK (14 parts) 16567 — HOSE(FOR RADIATOR RESERVE TANK) (3 parts) 16470A — HOSE OR PIPE(FOR RADIATOR RESERVE TANK) (29 parts) 16472 — HOSE, BREATHER (12 parts) 16567A — CLIP(FOR RADIATOR RESERVE TANK HOSE) (1 parts) 16567A — CLIP(FOR RADIATOR RESERVE TANK HOSE) (1 parts) 16361 — FAN (12 parts) 91661F0618 — not listed in this catalogue 9092901233 — not listed in this catalogue 16401 — CAP SUB-ASSY, RADIATOR (13 parts) 9009300807 — not listed in this catalogue 9011906241 — not listed in this catalogue 9017008032 — not listed in this catalogue 16400 — RADIATOR ASSY (20 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (1 parts) 16286 — HOSE, TURBO WATER, NO.3 (1 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (1 parts) 1601 — not listed in this catalogue 91651B0614 — not listed in this catalogue 16279 — PIPE, WATER BY-PASS, NO.3 (1 parts) 8716 — not listed in this catalogue 1703 — not listed in this catalogue 1703 — not listed in this catalogue 1703 — not listed in this catalogue 8716 — not listed in this catalogue 1703 — not listed in this catalogue 1503 — not listed in this catalogue 16282 — HOSE, WATER BY-PASS, NO.5 (4 parts) 2211 — not listed in this catalogue 1701 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (4 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (4 parts) 2211 — not listed in this catalogue 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (11 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (10 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (12 parts) 16261 — HOSE, WATER BY-PASS (12 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (11 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (12 parts) 1105 — not listed in this catalogue
166301 · 67 callouts, 37 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
431 parts on this figure
Part number Description Fitment Price
16027 — Pipe Sub-assy, Turbo Water, NO.1
16027-88340 Pipe Sub-assy, Turbo Water, NO.1
1988-08 → 1990-06 ended
1GGTE GX81 ¥3,940
16027-88341 Pipe Sub-assy, Turbo Water, NO.1
1990-06 → 1990-08 ended
1GGTE GX81 ¥3,880
16027-88400 Pipe Sub-assy, Turbo Water, NO.1
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥3,100
16028 — Pipe Sub-assy, Turbo Water, NO.2
16028-88340 Pipe Sub-assy, Turbo Water, NO.2
1988-08 → 1990-06 ended
1GGTE GX81 ¥6,300
16028-88341 Pipe Sub-assy, Turbo Water, NO.2
1990-06 → 1990-08 ended
1GGTE GX81 ¥6,100
16028-88400 Pipe Sub-assy, Turbo Water, NO.2
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥6,100
16261 — Hose, Water By-pass
16261-46020 Hose, Water By-pass
1990-08 → 1993-02 ended
1JZGE JZX81 ¥1,360
16261-54080 Hose, Water By-pass
1988-08 → 1993-08 ended
2L# LX80 ¥1,220
16261-70050 Hose, Water By-pass
1988-08 → 1990-08 ended
1GFE GX81 ¥740
16261-70051 Hose, Water By-pass
1990-08 → 1995-12 ended
1GFE GX81 ¥700
16261-72050 Hose, Water By-pass
1988-08 → 1989-08 ended
3YP YX80 ¥730
16261-72051 Hose, Water By-pass
1989-08 → 1995-12 ended
3YP YX80 ¥640
16261-74030 Hose, Water By-pass
1990-08 → 1992-10 ended
4SFE SX80 ¥720
16261-74030 Hose, Water By-pass
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥720
16261-74030 Hose, Water By-pass
1993-05 → 1995-12 ended
4SFE SX80 ¥720
16261-74060 Hose, Water By-pass
1988-08 → 1990-08 ended
4SFI SX80 ¥1,620
16261-88300 Hose, Water By-pass
1988-08 → 1993-02 ended
1GG# GX81 ¥1,240
16261-88400 Hose, Water By-pass
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥640
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90467-13001 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1993-09 → 1995-12 ended
1GFE GX81 ¥230
90467-13050 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1990-08 → 1993-02 ended
1JZGE JZX81 ¥240
90467-13051 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-08 → 1993-09 ended
1GFE GX81 ¥260
90467-15004 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1992-05 → 1995-12 ended
3YP YX80 ¥240
90467-15004 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-08 → 1989-09 ended
2L# LX80 ¥240
90467-15022 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1989-09 → 1993-08 ended
2L# LX80 ¥170
90467-16004 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-08 → 1992-05 ended
3YP YX80 ¥230
90467-20005 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥220
90467-26003 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-08 → 1993-02 ended
1GG# GX81 ¥370
90467-34004 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1988-08 → 1992-10 ended
4SF# SX80 ¥390
90467-34004 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥390
90467-34004 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1993-05 → 1995-12 ended
4SFE SX80 ¥390
16264 — Hose, Water By-pass, NO.2
16264-46010 Hose, Water By-pass, NO.2
1990-08 → 1993-02 ended
1JZGE JZX81 ¥1,220
16264-54070 Hose, Water By-pass, NO.2
1988-08 → 1993-08 ended
2L# LX80 ¥1,240
16264-70060 Hose, Water By-pass, NO.2
1988-08 → 1995-12 ended
1GFE GX81 ¥440
16264-73050 note Hose, Water By-pass, NO.2
1988-08 → 1995-12 ended
3YP YX80 ¥820
16264-74070 Hose, Water By-pass, NO.2
1988-08 → 1990-08 ended
4SFI SX80 ¥810
16264-74090 Hose, Water By-pass, NO.2
1990-08 → 1992-10 ended
4SFE SX80 ¥550
16264-74090 Hose, Water By-pass, NO.2
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥550
16264-74090 Hose, Water By-pass, NO.2
1993-05 → 1995-12 ended
4SFE SX80 ¥550
16264-88400 Hose, Water By-pass, NO.2
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥640
90910-05168 Hose, Water By-pass, NO.2
1988-08 → 1990-08 ended
1GGTE GX81 ¥640
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
90467-13001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1993-09 → 1995-12 ended
1GFE GX81 ¥230
90467-13001 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-08 → 1995-12 ended
3YP YX80 ¥230
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1990-08 → 1993-02 ended
1JZGE JZX81 ¥240
90467-13051 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-08 → 1993-09 ended
1GFE GX81 ¥260
90467-15004 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-08 → 1989-09 ended
2L# LX80 ¥240
90467-15016 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-08 → 1990-08 ended
1GGTE GX81 ¥260
90467-15022 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1989-09 → 1993-08 ended
2L# LX80 ¥170
90467-20005 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥220
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1988-08 → 1992-10 ended
4SF# SX80 ¥250
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥250
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1993-05 → 1995-12 ended
4SFE SX80 ¥250
16267 — Hose, Water By-pass, NO.3
16267-42020 Hose, Water By-pass, NO.3
1989-08 → 1993-02 ended
7MGE MX83 ¥1,810
16267-73020 note Hose, Water By-pass, NO.3
1988-08 → 1995-12 ended
3YP YX80 ¥1,000
16267-74040 Hose, Water By-pass, NO.3
1988-08 → 1990-08 ended
4SFI SX80 ¥1,260
16267-74070 Hose, Water By-pass, NO.3
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥550
16267-74070 Hose, Water By-pass, NO.3
1993-05 → 1995-12 ended
4SFE SX80 ¥550
16267-74070 Hose, Water By-pass, NO.3
1990-08 → 1992-10 ended
4SFE SX80 ¥550
16267-88400 Hose, Water By-pass, NO.3
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥9,000
90910-05169 Hose, Water By-pass, NO.3
1988-08 → 1990-08 ended
1GGTE GX81 ¥9,000
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
90467-13001 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1988-08 → 1995-12 ended
3YP YX80 ¥230
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1993-05 → 1995-12 ended
4SFE SX80 ¥240
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥240
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1990-08 → 1992-10 ended
4SFE SX80 ¥240
90467-15016 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1988-08 → 1990-08 ended
1GGTE GX81 ¥260
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1988-08 → 1992-10 ended
4SFI SX80 ¥250
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1988-08 → 1992-10 ended
1JZGTE JZX81 ¥250
96135-41300 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1989-08 → 1993-02 ended
7MGE MX83 ¥140
16268 — Pipe, Water By-pass, NO.1
16268-42050 Pipe, Water By-pass, NO.1
1989-08 → 1990-05 ended
7MGE MX83 ¥10,200
16268-42051 Pipe, Water By-pass, NO.1
1990-05 → 1993-02 ended
7MGE MX83 ¥19,700
16268-46010 Pipe, Water By-pass, NO.1
1990-08 → 1991-05 ended
1JZGE JZX81 ¥540
16268-46011 Pipe, Water By-pass, NO.1
1991-05 → 1993-02 ended
1JZGE JZX81 ¥540
16268-70030 Pipe, Water By-pass, NO.1
1988-08 → 1991-04 ended
1GFE GX81 ¥930
16268-70031 Pipe, Water By-pass, NO.1
1991-04 → 1995-12 ended
1GFE GX81 ¥910
16268-70040 Pipe, Water By-pass, NO.1
1988-08 → 1990-08 ended
1GGZE GX81 ¥4,540
16268-73140 Pipe, Water By-pass, NO.1
1988-08 → 1989-08 ended
3YP YX80 ¥9,400
16268-73141 Pipe, Water By-pass, NO.1
1989-08 → 1995-12 ended
3YP YX80 ¥9,400
16268-74090 Pipe, Water By-pass, NO.1
1988-08 → 1990-08 ended
4SFI SX80 ¥9,200
16268-74130 Pipe, Water By-pass, NO.1
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥8,500
16268-74130 Pipe, Water By-pass, NO.1
1990-08 → 1992-10 ended
4SFE SX80 ¥8,500
16268-74130 Pipe, Water By-pass, NO.1
1993-05 → 1995-12 ended
4SFE SX80 ¥8,500
16268-88301 Pipe, Water By-pass, NO.1
1988-08 → 1990-06 ended
1GGE,1GGTE GX81 ¥1,190
16268-88302 Pipe, Water By-pass, NO.1
1990-06 → 1993-02 ended
1GGE,1GGTE GX81 ¥1,180
16268-88400 Pipe, Water By-pass, NO.1
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥1,710
16268F — Ring, O(FOR WATER BY-PASS PIPE)
90301-17009 Ring, O(FOR WATER BY-PASS PIPE)
1993-03 → 1995-12 ended
1GFE GX81 ¥390
96761-24017 Ring, O(FOR WATER BY-PASS PIPE)
1988-08 → 1992-10 ended
4SF# SX80 ¥380
96761-24017 Ring, O(FOR WATER BY-PASS PIPE)
1993-05 → 1995-12 ended
4SFE SX80 ¥380
96761-24017 Ring, O(FOR WATER BY-PASS PIPE)
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥380
96761-24018 Ring, O(FOR WATER BY-PASS PIPE)
1988-08 → 1993-03 ended
1GFE,1GGE,1GGTE GX81 ¥350
96761-24022 Ring, O(FOR WATER BY-PASS PIPE)
1990-08 → 1993-02 ended
1JZGE JZX81 ¥260
96761-24023 Ring, O(FOR WATER BY-PASS PIPE)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥320
16278 — Pipe, Water By-pass, NO.2
16278-46010 Pipe, Water By-pass, NO.2
1990-08 → 1993-02 ended
1JZGE JZX81 ¥7,200
16278-70050 Pipe, Water By-pass, NO.2
1988-08 → 1990-08 ended
1GGZE GX81 ¥6,100
16278-70060 Pipe, Water By-pass, NO.2
1988-08 → 1990-09 ended
1GFE GX81 ¥3,480
16278-70061 Pipe, Water By-pass, NO.2
1990-09 → 1995-12 ended
1GFE GX81 ¥2,890
16278-74010 Pipe, Water By-pass, NO.2
1988-08 → 1990-08 ended
4SFI SX80 ¥10,300
16278-74030 Pipe, Water By-pass, NO.2
1993-05 → 1995-12 ended
4SFE SX80 ¥11,300
16278-74030 Pipe, Water By-pass, NO.2
1990-08 → 1992-10 ended
4SFE SX80 ¥11,300
16278-74030 Pipe, Water By-pass, NO.2
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥11,300
16278-88301 Pipe, Water By-pass, NO.2
1988-08 → 1990-08 ended
1GGE GX81 ¥9,200
16278-88301 note Pipe, Water By-pass, NO.2
1990-08 → 1990-12 ended
1GGE GX81 ¥9,200
16278-88302 note Pipe, Water By-pass, NO.2
1990-12 → 1993-02 ended
1GGE GX81 ¥9,100
16278-88302 note Pipe, Water By-pass, NO.2
1990-09 → 1993-02 ended
1GGE GX81 ¥9,100
16278-88340 Pipe, Water By-pass, NO.2
1988-08 → 1990-08 ended
1GGTE GX81 ¥9,500
16278-88400 Pipe, Water By-pass, NO.2
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥14,000
16279 — Pipe, Water By-pass, NO.3
16279-88400 Pipe, Water By-pass, NO.3
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥4,770
16281 — Hose, Water By-pass, NO.4
16281-42020 Hose, Water By-pass, NO.4
1989-08 → 1993-02 ended
7MGE MX83 ¥620
16281-70030 Hose, Water By-pass, NO.4
1988-08 → 1990-08 ended
1GGZE GX81 ¥810
16281-74010 Hose, Water By-pass, NO.4
1988-08 → 1990-08 ended
4SFI SX80 ¥870
16281-74030 Hose, Water By-pass, NO.4
1990-08 → 1992-10 ended
4SFE SX80 ¥580
16281-74030 Hose, Water By-pass, NO.4
1993-05 → 1995-12 ended
4SFE SX80 ¥580
16281-74030 Hose, Water By-pass, NO.4
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥580
16281-88400 Hose, Water By-pass, NO.4
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥720
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1988-08 → 1992-10 ended
4SF# SX80 ¥240
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥240
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1993-05 → 1995-12 ended
4SFE SX80 ¥240
90467-13051 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
90467-15004 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1989-08 → 1993-02 ended
7MGE MX83 ¥240
90467-26003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
1988-08 → 1990-08 ended
1GGZE GX81 ¥370
16282 — Hose, Water By-pass, NO.5
16282-42010 Hose, Water By-pass, NO.5
1989-08 → 1993-02 ended
7MGE MX83 ¥730
16282-70020 Hose, Water By-pass, NO.5
1988-08 → 1990-08 ended
1GGZE GX81 ¥640
16282-74010 Hose, Water By-pass, NO.5
1988-08 → 1990-08 ended
4SFI SX80 ¥740
16282-88400 Hose, Water By-pass, NO.5
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥1,120
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
90467-13050 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
1988-08 → 1990-08 ended
4SFI SX80 ¥240
90467-13051 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
1989-08 → 1993-02 ended
7MGE MX83 ¥250
90467-26003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
1988-08 → 1990-08 ended
1GGZE GX81 ¥370
16283 — Hose, Water By-pass, NO.6
16283-42010 Hose, Water By-pass, NO.6
1989-08 → 1993-02 ended
7MGE MX83 ¥730
16283-88400 Hose, Water By-pass, NO.6
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥1,020
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
90467-13051 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
90467-22003 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
1989-08 → 1993-02 ended
7MGE MX83 ¥250
16284 — Hose, Turbo Water, NO.1
16284-88340 Hose, Turbo Water, NO.1
1988-08 → 1990-08 ended
1GGTE GX81 ¥8,000
16284-88400 Hose, Turbo Water, NO.1
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥6,500
16284A — Clip(FOR TURBO WATER HOSE NO.1)
90467-15016 Clip(FOR TURBO WATER HOSE NO.1)
1988-08 → 1990-08 ended
1GGTE GX81 ¥260
90467-15016 Clip(FOR TURBO WATER HOSE NO.1)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
16285 — Hose, Turbo Water, NO.2
16285-88400 Hose, Turbo Water, NO.2
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥6,500
16285A — Clip(FOR TURBO WATER HOSE NO.2)
90467-15016 Clip(FOR TURBO WATER HOSE NO.2)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
16286 — Hose, Turbo Water, NO.3
16286-88400 Hose, Turbo Water, NO.3
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥6,500
16286A — Clip(FOR TURBO WATER HOSE NO.3)
90467-15016 Clip(FOR TURBO WATER HOSE NO.3)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
16287 — Hose, Turbo Water, NO.4
16287-88400 Hose, Turbo Water, NO.4
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥7,500
16287A — Clip(FOR TURBO WATER HOSE NO.4)
90467-15016 Clip(FOR TURBO WATER HOSE NO.4)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
16295 — Hose, Water By-pass, NO.7
16295-88400 Hose, Water By-pass, NO.7
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥550
16295A — Clip(FOR WATER BY-PASS HOSE NO.7)
90467-13051 Clip(FOR WATER BY-PASS HOSE NO.7)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥260
16321 — Inlet, Water
16321-46010 Inlet, Water
1990-08 → 1991-08 ended
1JZGE JZX81 ¥2,870
16321-46040 Inlet, Water
1991-08 → 1993-02 ended
1JZGE JZX81 ¥3,360
16321-70011 Inlet, Water
1988-08 → 1990-08 ended
1GGZE GX81 ¥3,180
16321-70030 Inlet, Water
1988-08 → 1995-12 ended
1GFE GX81 ¥2,780
16321-71010 Inlet, Water
1988-08 → 1995-12 ended
3YP YX80 ¥3,200
16321-74020 Inlet, Water
1990-08 → 1992-10 ended
4SFE SX80 ¥3,990
16321-74020 Inlet, Water
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥3,990
16321-74020 Inlet, Water
1993-05 → 1995-12 ended
4SFE SX80 ¥3,990
16321-88301 Inlet, Water
1988-08 → 1993-02 ended
1GGE GX81 ¥3,170
16321-88340 Inlet, Water
1988-08 → 1990-08 ended
1GGTE GX81 ¥2,510
16321-88360 Inlet, Water
1988-08 → 1990-08 ended
4SFI SX80 ¥2,900
16321-88400 Inlet, Water
1990-08 → 1991-08 ended
1JZGTE JZX81 ¥3,640
16321-88401 Inlet, Water
1991-08 → 1992-10 ended
1JZGTE JZX81 ¥2,770
16325 — Gasket, Water Inlet Housing, NO.1
16325-62010 Gasket, Water Inlet Housing, NO.1
1990-08 → 1993-02 ended
1JZ# JZX81 ¥350
16325-63010 Gasket, Water Inlet Housing, NO.1
1988-08 → 1992-10 ended
1GG# GX81 ¥640
16325-63010 Gasket, Water Inlet Housing, NO.1
1992-10 → 1993-01 ended
3YP YX80 ¥640
16325-63010 Gasket, Water Inlet Housing, NO.1
1992-10 → 1993-01 ended
1GGE GX81 ¥640
16325-63010 Gasket, Water Inlet Housing, NO.1
1992-10 → 1993-01 ended
4SFE SX80 4FC KYO;4SFE +2 ¥640
16325-63010 Gasket, Water Inlet Housing, NO.1
1988-08 → 1992-10 ended
4SF# SX80 ¥640
16325-63010 Gasket, Water Inlet Housing, NO.1
1988-08 → 1992-10 ended
3YP YX80 ¥640
16325-63011 Gasket, Water Inlet Housing, NO.1
1993-01 → 1993-05 ended
1GGE GX81 ¥680
16325-63011 Gasket, Water Inlet Housing, NO.1
1993-01 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥680
16325-63011 Gasket, Water Inlet Housing, NO.1
1993-01 → 1993-05 ended
3YP YX80 ¥680
16325-63011 Gasket, Water Inlet Housing, NO.1
1993-05 → 1995-12 ended
4SFE SX80 ¥680
16325-63011 Gasket, Water Inlet Housing, NO.1
1993-05 → 1995-12 ended
3YP YX80 ¥680
16326 — Gasket, Water Inlet Housing, NO.2
16325-46010 Gasket, Water Inlet Housing, NO.2
1990-08 → 1993-02 ended
1JZ# JZX81 ¥510
16326-70011 note Gasket, Water Inlet Housing, NO.2
1990-08 → 1992-03 ended
1GGE GX81 ¥510
16326-70011 note Gasket, Water Inlet Housing, NO.2
1988-08 → 1993-02 ended
1GGE,1GGTE GX81 ¥510
16326-70012 note Gasket, Water Inlet Housing, NO.2
1992-03 → 1993-02 ended
1GGE GX81 ¥310
16331 — Outlet, Water
16304-70011 Outlet, Water
1988-08 → 1990-08 ended
1GGZE GX81 ¥8,800
16304-74090 Outlet, Water
1988-08 → 1990-08 ended
4SFI SX80 ¥3,640
16304-74100 note Outlet, Water
1988-08 → 1990-08 ended
4SFI SX80 ¥3,640
16304-74160 Outlet, Water
1993-05 → 1995-12 ended
4SFE SX80 ¥4,510
16304-74160 Outlet, Water
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥4,510
16304-74160 Outlet, Water
1990-08 → 1992-10 ended
4SFE SX80 ¥4,510
16304-88400 Outlet, Water
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥4,850
16331-42021 Outlet, Water
1989-08 → 1993-02 ended
7MGE MX83 ¥2,510
16331-46020 Outlet, Water
1990-08 → 1993-02 ended
1JZGE JZX81 ¥4,420
16331-54090 Outlet, Water
1988-08 → 1989-08 ended
2L# LX80 ¥2,780
16331-54090 Outlet, Water
1989-08 → 1990-08 ended
2L# LX80 5F ¥2,780
16331-54140 Outlet, Water
1990-08 → 1990-09 ended
2L# LX80 5F;2LT LX80 +2 ¥5,300
16331-54140 Outlet, Water
1991-03 → 1993-08 ended
2L# LX80 5F ¥5,300
16331-54140 Outlet, Water
1990-09 → 1991-03 ended
2L# LX80 5F;2LT LX80 +1 ¥5,300
16331-54150 Outlet, Water
1990-09 → 1991-03 ended
2LT LX80 4FC (GL,GR) ¥3,180
16331-54150 Outlet, Water
1991-03 → 1993-02 ended
2LT LX80 4FC ¥3,180
16331-54150 Outlet, Water
1990-08 → 1990-09 ended
2LT LX80 HT 4FC ¥3,180
16331-54150 Outlet, Water
1989-08 → 1990-08 ended
2LT LX80 4FC ¥3,180
16331-70060 Outlet, Water
1988-08 → 1990-08 ended
1GFE GX81 ¥8,600
16331-70070 Outlet, Water
1990-08 → 1995-12 ended
1GFE GX81 ¥11,400
16331-71010 Outlet, Water
1988-08 → 1995-12 ended
3YP YX80 ¥3,690
16331-88300 Outlet, Water
1988-08 → 1993-02 ended
1GGE GX81 ¥3,620
16331-88341 Outlet, Water
1988-09 → 1990-08 ended
1GGTE GX81 ¥2,770
16331A — Thermostat
90916-03046 note Thermostat
1988-08 → 1991-06 ended
4SF# SX80 ¥1,740
90916-03046 note Thermostat
1992-01 → 1995-12 ended
3YP YX80 ¥1,740
90916-03060 note Thermostat
1991-06 → 1992-10 ended
4SFE SX80 ¥2,010
90916-03060 note Thermostat
1992-10 → 1993-05 ended
4SFE SX80 4FC KYO;4SFE +2 ¥2,010
90916-03060 note Thermostat
1993-05 → 1995-12 ended
4SFE SX80 ¥2,010
90916-03063 note Thermostat
1988-08 → 1993-02 ended
1GG# GX81 ¥1,780
90916-03069 note Thermostat
1988-08 → 1992-01 ended
3YP YX80 ¥2,030
90916-03072 note Thermostat
1990-08 → 1993-03 ended
2L# LX80 ¥2,030
90916-03078 note Thermostat
1989-08 → 1993-02 ended
7MGE MX83 ¥1,020
90916-03081 note Thermostat
1988-08 → 1995-12 ended
1GFE GX81 ¥2,030
90916-03092 note Thermostat
1990-08 → 1991-08 ended
1JZ# JZX81 ¥1,860
90916-03092 note Thermostat
1991-08 → 1991-09 ended
1JZGTE JZX81 ¥1,860
90916-03093 note Thermostat
1991-08 → 1991-09 ended
1JZGE JZX81 ¥1,600
90916-03093 note Thermostat
1991-09 → 1993-02 ended
1JZ# JZX81 ¥1,600
90916-03099 note Thermostat
1993-03 → 1993-08 ended
2L LX80 ¥2,030
90916-03099 note Thermostat
1988-08 → 1990-08 ended
2L# LX80 ¥2,030
16343 — Gasket, Water Outlet Housing
16343-42010 Gasket, Water Outlet Housing
1989-08 → 1989-12 ended
7MGE MX83 ¥500
16343-42020 Gasket, Water Outlet Housing
1989-12 → 1993-02 ended
7MGE MX83 ¥500
16343-46020 Gasket, Water Outlet Housing
1990-08 → 1993-02 ended
1JZGE JZX81 ¥250
16343-54030 Gasket, Water Outlet Housing
1988-08 → 1991-10 ended
2L# LX80 ¥500
16343-54040 Gasket, Water Outlet Housing
1991-10 → 1993-08 ended
2L# LX80 ¥300
16343-88300 Gasket, Water Outlet Housing
1988-08 → 1993-02 ended
1GGE GX81 ¥500
16343-88340 Gasket, Water Outlet Housing
1988-08 → 1990-08 ended
1GGTE GX81 ¥500
16343-88400 Gasket, Water Outlet Housing
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥310
16347A — Gasket(FOR TURBO WATER PIPE)
16347-88340 Gasket(FOR TURBO WATER PIPE)
1988-08 → 1990-08 ended
1GGTE GX81 ¥500
16347-88380 Gasket(FOR TURBO WATER PIPE)
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥450
16361 — Fan
16361-38010 Fan
1988-08 → 1995-12 ended
3YP YX80 ¥6,400
16361-41090 Fan
1989-08 → 1993-02 ended
7MGE MX83 ¥7,900
16361-46030 Fan
1990-08 → 1993-02 ended
1JZGE JZX81 ¥9,400
16361-63040 Fan
1988-08 → 1991-07 ended
4SF# SX80 5F ¥0
16361-64010 Fan
1988-08 → 1991-07 ended
4SF# SX80 4FC —
16361-64010 Fan
1991-07 → 1995-12 ended
4SFE SX80 —
16361-70030 Fan
1988-08 → 1993-08 ended
2L# LX80 ¥7,900
16361-70030 Fan
1988-08 → 1993-08 ended
1GGTE GX81;1GGE GX81 5F ¥7,900
16361-70040 Fan
1988-08 → 1995-12 ended
1GFE GX81 ¥7,700
16361-70050 Fan
1988-08 → 1990-08 ended
1GGZE GX81 ¥8,000
16361-88300 Fan
1988-08 → 1993-02 ended
1GGE GX81 4FC ¥7,900
16911-46010 Fan
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥0
16400 — Radiator Assy
16400-42220 Radiator Assy
1989-08 → 1993-02 ended
7MGE MX83 ¥75,900
16400-46040 Radiator Assy
1990-08 → 1993-02 ended
1JZGE JZX81 ¥80,900
16400-46050 Radiator Assy
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥81,800
16400-54650 Radiator Assy
1988-08 → 1994-09 ended
2L# LX80 5F ¥40,900
16400-54660 Radiator Assy
1988-08 → 1993-02 ended
2LT LX80 4FC ¥40,900
16400-70300 Radiator Assy
1988-08 → 1993-02 ended
1GFE,1GGE GX81 5F ¥30,000
16400-70320 Radiator Assy
1988-08 → 1990-08 ended
1GGTE GX81 5F ¥39,500
16400-70341 Radiator Assy
1988-08 → 1990-08 ended
1GGTE,1GGZE GX81 4FC ¥39,500
16400-70360 Radiator Assy
1988-08 → 1991-11 ended
1GFE,1GGE GX81 4FC ¥34,300
16400-70360 Radiator Assy
1991-11 → 1995-12 ended
1GFE GX81 4FC ¥34,300
16400-70480 Radiator Assy
1991-11 → 1993-02 ended
1GGE GX81 4FC ¥80,000
16400-73360 Radiator Assy
1988-08 → 1991-05 ended
3YP YX80 3FC ¥74,600
16400-73361 Radiator Assy
1991-05 → 1993-05 ended
3YP YX80 3FC ¥73,900
16400-73400 Radiator Assy
1993-02 → 1995-12 ended
3YP YX80 5F ¥41,200
16400-73410 Radiator Assy
1993-02 → 1995-12 ended
3YP YX80 4FC GL ¥35,800
16400-73420 Radiator Assy
1993-05 → 1995-12 ended
3YP YX80 4FC KYO ¥41,200
16400-74410 Radiator Assy
1988-08 → 1993-02 ended
4SFI SX80 5F ¥63,000
16400-74410 Radiator Assy
1988-08 → 1993-02 ended
3YP YX80 5F ¥63,000
16400-74420 Radiator Assy
1988-08 → 1995-12 ended
4SF# SX80 4FC ¥73,900
16400-74720 Radiator Assy
1990-08 → 1995-12 ended
4SFE SX80 5F ¥69,500
16401 — Cap Sub-assy, Radiator
16401-63010 Cap Sub-assy, Radiator
1994-09 → 1995-12 ended
4SFE SX80 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1994-09 → 1995-12 ended
1GFE GX81 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1993-02 → 1994-09 ended
3YP YX80 3FC ¥1,170
16401-63010 Cap Sub-assy, Radiator
1993-02 → 1994-09 ended
1GFE GX81 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1993-02 → 1994-09 ended
2L LX80 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1993-02 → 1994-09 ended
4SFE SX80 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1988-08 → 1993-02 ended
3YP YX80 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1988-08 → 1993-02 ended
1GFE,1GG# GX81 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1988-08 → 1993-02 ended
2L# LX80 ¥1,170
16401-63010 Cap Sub-assy, Radiator
1988-08 → 1993-02 ended
4SF# SX80 ¥1,170
16401-72090 Cap Sub-assy, Radiator
1989-08 → 1993-02 ended
7MGE MX83 ¥1,170
16401-72090 Cap Sub-assy, Radiator
1993-02 → 1995-12 ended
3YP YX80 4FC,5F ¥1,170
16401-72090 Cap Sub-assy, Radiator
1989-08 → 1993-02 ended
1JZ# JZX81 ¥1,170
16470 — Tank Assy, Radiator Reserve
16470-46010 Tank Assy, Radiator Reserve
1990-08 → 1994-09 ended
1JZ# JZX81 ¥4,400
16470-46010 Tank Assy, Radiator Reserve
1994-09 → 1995-12 ended
1GFE GX81 ¥4,400
16470-46010 Tank Assy, Radiator Reserve
1994-09 → 1995-12 ended
4SFE SX80 ¥4,400
16470-46010 Tank Assy, Radiator Reserve
1990-08 → 1994-09 ended
1G# GX81 ¥4,400
16470-46010 Tank Assy, Radiator Reserve
1990-08 → 1994-09 ended
4SFE SX80 ¥4,400
16470-46010 Tank Assy, Radiator Reserve
1990-08 → 1994-09 ended
7MGE MX83 ¥4,400
16470-46010 Tank Assy, Radiator Reserve
1990-08 → 1994-09 ended
2L# LX80 ¥4,400
16470-70110 Tank Assy, Radiator Reserve
1988-08 → 1990-08 ended
2L# LX80 ¥4,510
16470-70110 Tank Assy, Radiator Reserve
1988-08 → 1990-08 ended
1GFE,1GG# GX81 ¥4,510
16470-70110 Tank Assy, Radiator Reserve
1988-08 → 1990-08 ended
4SFI SX80 ¥4,510
16470-70110 Tank Assy, Radiator Reserve
1988-08 → 1990-08 ended
7MGE MX83 ¥4,510
16470-72010 Tank Assy, Radiator Reserve
1993-02 → 1993-04 ended
3YP YX80 ATM;3YP YX80 +2 ¥3,400
16470-72010 Tank Assy, Radiator Reserve
1988-08 → 1993-02 ended
3YP YX80 ¥3,400
16470-72010 Tank Assy, Radiator Reserve
1993-04 → 1995-12 ended
3YP YX80 ¥3,400
16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16567-46010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1995-12 ended
1G# GX81 ¥1,220
16567-54080 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1994-09 → 1995-12 ended
4SFE SX80 ¥890
16567-54080 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1994-09 ended
2L# LX80 ¥890
16567-54080 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1994-09 ended
4SF# SX80 ¥890
16567-70020 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
1GFE,1GG# GX81 ¥1,000
85338-46010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1995-12 ended
1G# GX81 —
85338-72010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-05 → 1995-12 ended
3YP YX80 —
85338-72010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1992-10 ended
3YP YX80 —
85338-72010 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-04 → 1993-05 ended
3YP YX80 4FC,5F —
85338-72010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-04 → 1993-05 ended
3YP YX80 3FC —
85338-72010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-02 → 1993-04 ended
3YP YX80 ATM;3YP YX80 +2 —
85338-72010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1992-10 → 1993-02 ended
3YP YX80 —
85338-72010 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
3YP YX80 —
85338-95A01 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
1GFE,1GG# GX81 —
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-02 → 1993-04 ended
3YP YX80 ATM;3YP YX80 +2 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1994-09 → 1995-12 ended
4SFE SX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-05 → 1995-12 ended
3YP YX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1995-12 ended
1JZ# JZX81 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1995-12 ended
7MGE MX83 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
2L# LX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
7MGE MX83 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1994-09 ended
4SFE SX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1994-09 ended
2L# LX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
4SFI SX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1988-08 → 1990-08 ended
3YP YX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-04 → 1993-05 ended
3YP YX80 4FC,5F ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1993-04 → 1993-05 ended
3YP YX80 3FC ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1990-08 → 1992-10 ended
3YP YX80 ¥580
90445-12078 note Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1992-10 → 1993-02 ended
3YP YX80 ¥580
16471 — Cap Sub-assy, Reserve Tank
16405-46010 Cap Sub-assy, Reserve Tank
1994-09 → 1995-12 ended
1GFE GX81 ¥740
16405-46010 Cap Sub-assy, Reserve Tank
1994-09 → 1995-12 ended
4SFE SX80 ¥740
16405-46010 Cap Sub-assy, Reserve Tank
1990-08 → 1994-09 ended
1G# GX81 ¥740
16405-46010 Cap Sub-assy, Reserve Tank
1990-08 → 1994-09 ended
1JZ# JZX81 ¥740
16405-46010 Cap Sub-assy, Reserve Tank
1990-08 → 1994-09 ended
4SFE SX80 ¥740
16405-46010 Cap Sub-assy, Reserve Tank
1990-08 → 1994-09 ended
7MGE MX83 ¥740
16405-46010 Cap Sub-assy, Reserve Tank
1990-08 → 1994-09 ended
2L# LX80 ¥740
16405-70080 Cap Sub-assy, Reserve Tank
1988-08 → 1990-08 ended
2L# LX80 —
16405-70080 Cap Sub-assy, Reserve Tank
1988-08 → 1990-08 ended
1GFE,1GG# GX81 —
16405-70080 Cap Sub-assy, Reserve Tank
1988-08 → 1990-08 ended
4SFI SX80 —
16405-70080 Cap Sub-assy, Reserve Tank
1988-08 → 1990-08 ended
7MGE MX83 —
16405-72010 Cap Sub-assy, Reserve Tank
1993-02 → 1993-04 ended
3YP YX80 ATM;3YP YX80 +2 —
16405-72010 Cap Sub-assy, Reserve Tank
1988-08 → 1993-02 ended
3YP YX80 —
16405-72010 Cap Sub-assy, Reserve Tank
1993-04 → 1995-12 ended
3YP YX80 —
16472 — Hose, Breather
85338-22030 Hose, Breather
1993-04 → 1995-12 ended
3YP YX80 —
85338-22030 Hose, Breather
1993-02 → 1993-04 ended
3YP YX80 ATM;3YP YX80 +2 —
85338-22030 Hose, Breather
1988-08 → 1993-02 ended
3YP YX80 —
85338-46010 Hose, Breather
1990-08 → 1995-12 ended
7MGE MX83 —
85338-46010 Hose, Breather
1990-08 → 1995-12 ended
4SFE SX80 —
85338-46010 Hose, Breather
1990-08 → 1995-12 ended
1JZ# JZX81 —
85338-95A01 Hose, Breather
1988-08 → 1990-08 ended
7MGE MX83 —
85338-95A01 Hose, Breather
1990-08 → 1993-08 ended
2L# LX80 —
85338-95A01 Hose, Breather
1988-08 → 1990-08 ended
4SFI SX80 —
85338-95A01 Hose, Breather
1988-08 → 1990-08 ended
2L# LX80 —
90445-12078 note Hose, Breather
1988-08 → 1993-02 ended
1GFE,1GG# GX81 ¥580
90445-12078 note Hose, Breather
1993-02 → 1995-12 ended
1GFE GX81 ¥580
16533 — Support, Radiator, Upper
16505-46010 Support, Radiator, Upper
1990-08 → 1993-02 ended
1JZ# JZX81 ¥1,540
16505-70020 Support, Radiator, Upper
1994-09 → 1995-12 ended
1GFE GX81 ¥1,410
16505-70020 Support, Radiator, Upper
1994-09 → 1995-12 ended
4SFE SX80 ¥1,410
16505-70020 Support, Radiator, Upper
1993-02 → 1994-09 ended
1GFE GX81 ¥1,410
16505-70020 Support, Radiator, Upper
1993-02 → 1994-09 ended
2L LX80 ¥1,410
16505-70020 Support, Radiator, Upper
1993-02 → 1994-09 ended
4SFE SX80 ¥1,410
16505-70020 Support, Radiator, Upper
1988-08 → 1993-02 ended
3YP YX80 ¥1,410
16505-70020 Support, Radiator, Upper
1988-08 → 1993-02 ended
1GFE,1GG# GX81 ¥1,410
16505-70020 Support, Radiator, Upper
1988-08 → 1993-02 ended
4SF# SX80 ¥1,410
16505-70020 Support, Radiator, Upper
1988-08 → 1993-02 ended
7MGE MX83 ¥1,410
16505-70020 Support, Radiator, Upper
1988-08 → 1993-02 ended
2L# LX80 ¥1,410
16505-73020 Support, Radiator, Upper
1993-02 → 1995-12 ended
3YP YX80 ¥1,430
16567 — Hose(FOR RADIATOR RESERVE TANK)
16567-46010 Hose(FOR RADIATOR RESERVE TANK)
1990-08 → 1993-02 ended
7MGE MX83 ¥1,220
16567-46010 Hose(FOR RADIATOR RESERVE TANK)
1990-08 → 1993-02 ended
1JZ# JZX81 ¥1,220
16567-70020 Hose(FOR RADIATOR RESERVE TANK)
1989-08 → 1990-08 ended
7MGE MX83 ¥1,000
16567A — Clip(FOR RADIATOR RESERVE TANK HOSE)
90467-11085 Clip(FOR RADIATOR RESERVE TANK HOSE)
1990-08 → 1993-02 ended
1JZ# JZX81 ¥100
16571 — Hose, Radiator, Inlet
16571-42030 Hose, Radiator, Inlet
1989-08 → 1993-02 ended
7MGE MX83 ¥1,750
16571-46010 Hose, Radiator, Inlet
1990-08 → 1991-07 ended
1JZGE JZX81 ¥1,610
16571-46010 Hose, Radiator, Inlet
1991-08 → 1993-02 ended
1JZGE JZX81 ¥1,610
16571-46020 Hose, Radiator, Inlet
1990-08 → 1991-07 ended
1JZGTE JZX81 ¥1,960
16571-46020 Hose, Radiator, Inlet
1991-08 → 1992-10 ended
1JZGTE JZX81 ¥1,960
16571-54280 Hose, Radiator, Inlet
1988-08 → 1994-09 ended
2L# LX80 ¥1,750
16571-70190 Hose, Radiator, Inlet
1988-08 → 1995-12 ended
1GFE GX81 ¥1,610
16571-70200 Hose, Radiator, Inlet
1988-08 → 1990-08 ended
1GGTE GX81 ¥1,760
16571-70210 Hose, Radiator, Inlet
1988-08 → 1993-02 ended
1GGE GX81 ¥2,800
16571-70220 Hose, Radiator, Inlet
1988-08 → 1990-08 ended
1GGZE GX81 ¥2,840
16571-72060 Hose, Radiator, Inlet
1988-08 → 1993-02 ended
3YP YX80 ¥1,610
16571-72060 Hose, Radiator, Inlet
1993-02 → 1993-05 ended
3YP YX80 3FC ¥1,610
16571-73110 Hose, Radiator, Inlet
1993-02 → 1995-12 ended
3YP YX80 4FC,5F ¥1,970
16571-74110 Hose, Radiator, Inlet
1988-08 → 1990-08 ended
4SFI SX80 ¥1,760
16571-74170 Hose, Radiator, Inlet
1990-08 → 1995-12 ended
4SFE SX80 ¥1,610
16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET)
90467-34001 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
1993-02 → 1993-05 ended
3YP YX80 3FC ¥330
90467-34001 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1993-02 ended
3YP YX80 ¥330
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1995-12 ended
4SF# SX80 ¥390
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1991-07 ended
1JZ# JZX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1991-07 ended
1GFE,1GG# GX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1994-09 → 1995-12 ended
3YP YX80 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1993-02 → 1994-09 ended
3YP YX80 4FC,5F ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1993-02 → 1994-09 ended
2L LX80 ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
1993-02 → 1993-05 ended
3YP YX80 3FC ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1991-07 ended
2L# LX80 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-08 → 1993-02 ended
1G# GX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-08 → 1993-02 ended
1JZ# JZX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-08 → 1993-02 ended
7MGE MX83 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-08 → 1993-02 ended
2L# LX80 ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1993-02 ended
3YP YX80 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1988-08 → 1991-07 ended
7MGE MX83 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-07 → 1991-08 ended
1G# GX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-07 → 1991-08 ended
7MGE MX83 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1991-07 → 1991-08 ended
2L# LX80 ¥480
90467-37006 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1993-02 → 1995-12 ended
1GFE GX81 ¥400
16572 — Hose, Radiator, Outlet
16572-42040 Hose, Radiator, Outlet
1989-08 → 1993-02 ended
7MGE MX83 ¥2,160
16572-46010 Hose, Radiator, Outlet
1990-08 → 1991-07 ended
1JZGE JZX81 ¥2,210
16572-46020 Hose, Radiator, Outlet
1990-08 → 1991-07 ended
1JZGTE JZX81 ¥1,970
16572-46110 Hose, Radiator, Outlet
1991-08 → 1993-02 ended
1JZGE JZX81 ¥1,290
16572-46120 Hose, Radiator, Outlet
1991-08 → 1992-10 ended
1JZGTE JZX81 ¥1,820
16572-54280 Hose, Radiator, Outlet
1988-08 → 1994-09 ended
2L# LX80 ¥2,790
16572-70160 Hose, Radiator, Outlet
1988-08 → 1995-12 ended
1GFE GX81 ¥2,170
16572-70170 Hose, Radiator, Outlet
1988-08 → 1993-02 ended
1GGE,1GGTE GX81 ¥2,160
16572-70180 Hose, Radiator, Outlet
1988-08 → 1990-08 ended
1GGZE GX81 ¥1,970
16572-72060 Hose, Radiator, Outlet
1988-08 → 1993-02 ended
3YP YX80 ¥1,960
16572-72060 Hose, Radiator, Outlet
1993-02 → 1993-05 ended
3YP YX80 3FC ¥1,960
16572-73090 Hose, Radiator, Outlet
1993-02 → 1995-12 ended
3YP YX80 4FC,5F ¥1,960
16572-74090 Hose, Radiator, Outlet
1988-08 → 1990-08 ended
4SFI SX80 ¥1,870
16572-74160 Hose, Radiator, Outlet
1990-08 → 1995-12 ended
4SFE SX80 ¥1,830
16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
90467-34001 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1993-02 ended
3YP YX80 ¥330
90467-34001 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1993-02 → 1993-05 ended
3YP YX80 3FC ¥330
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1995-12 ended
4SF# SX80 ¥390
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1990-08 ended
1GGZE GX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1993-02 → 1995-12 ended
3YP YX80 4FC,5F ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1993-02 → 1994-09 ended
3YP YX80 3FC ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1991-08 → 1994-09 ended
1JZ# JZX81 ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1991-08 → 1994-09 ended
2L# LX80 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1991-07 → 1993-02 ended
1G# GX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1991-07 → 1993-02 ended
7MGE MX83 ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1993-02 ended
3YP YX80 ¥480
90467-37002 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1991-08 ended
2L# LX80 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1991-07 ended
1GFE,1GGE,1GGTE GX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1991-07 ended
1JZ# JZX81 ¥480
90467-37002 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1991-07 ended
7MGE MX83 ¥480
90467-37006 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1993-02 → 1995-12 ended
1GFE GX81 ¥400
90467-41001 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1988-08 → 1990-08 ended
2L# LX80 ¥510
90467-41004 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1990-08 → 1994-09 ended
2L# LX80 ¥410
90467-41007 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1991-08 → 1993-02 ended
1JZ# JZX81 ¥510
16701 — Shroud Sub-assy, Fan
16701-54170 Shroud Sub-assy, Fan
1988-08 → 1994-09 ended
2L# LX80 ¥8,400
16701-70080 Shroud Sub-assy, Fan
1988-08 → 1990-08 ended
1GGTE GX81 ¥7,200
16711-42070 Shroud Sub-assy, Fan
1989-08 → 1993-02 ended
7MGE MX83 ¥7,100
16711-70100 Shroud Sub-assy, Fan
1988-08 → 1993-02 ended
1GFE,1GGE GX81 5F ¥5,200
16711-70110 Shroud Sub-assy, Fan
1988-08 → 1995-12 ended
1GFE,1GGE,1GGZE GX81 4FC ¥7,000
16711-72060 Shroud Sub-assy, Fan
1988-08 → 1993-02 ended
3YP YX80 ¥9,400
16711-72060 Shroud Sub-assy, Fan
1993-02 → 1993-05 ended
3YP YX80 3FC ¥9,400
16711-73110 Shroud Sub-assy, Fan
1993-02 → 1995-12 ended
3YP YX80 4FC,5F ¥9,600
16711-74180 Shroud Sub-assy, Fan
1988-08 → 1991-07 ended
4SF# SX80 5F ¥7,000
16711-74190 Shroud Sub-assy, Fan
1991-07 → 1995-12 ended
4SFE SX80 ¥7,000
16711-74190 Shroud Sub-assy, Fan
1988-08 → 1991-07 ended
4SF# SX80 4FC ¥7,000
16912-46010 Shroud Sub-assy, Fan
1990-08 → 1992-10 ended
1JZGTE JZX81 ¥0
16913 — Stay, Hydraulic Motor Fan Shroud
16913-46010 Stay, Hydraulic Motor Fan Shroud
1990-08 → 1992-10 ended
1JZGTE JZX81 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
