Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

100 part groups · 12 illustrations

Illustrations

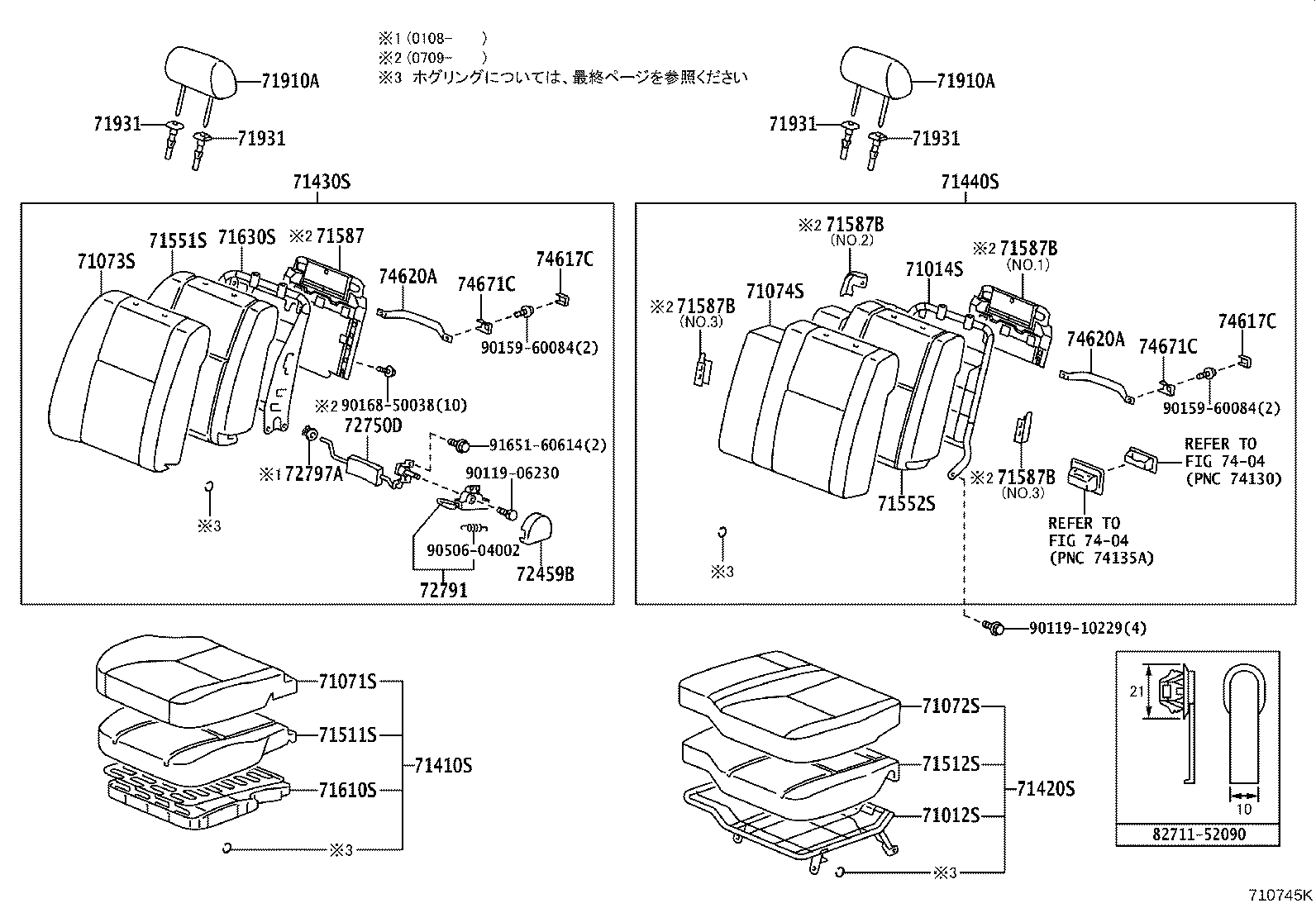

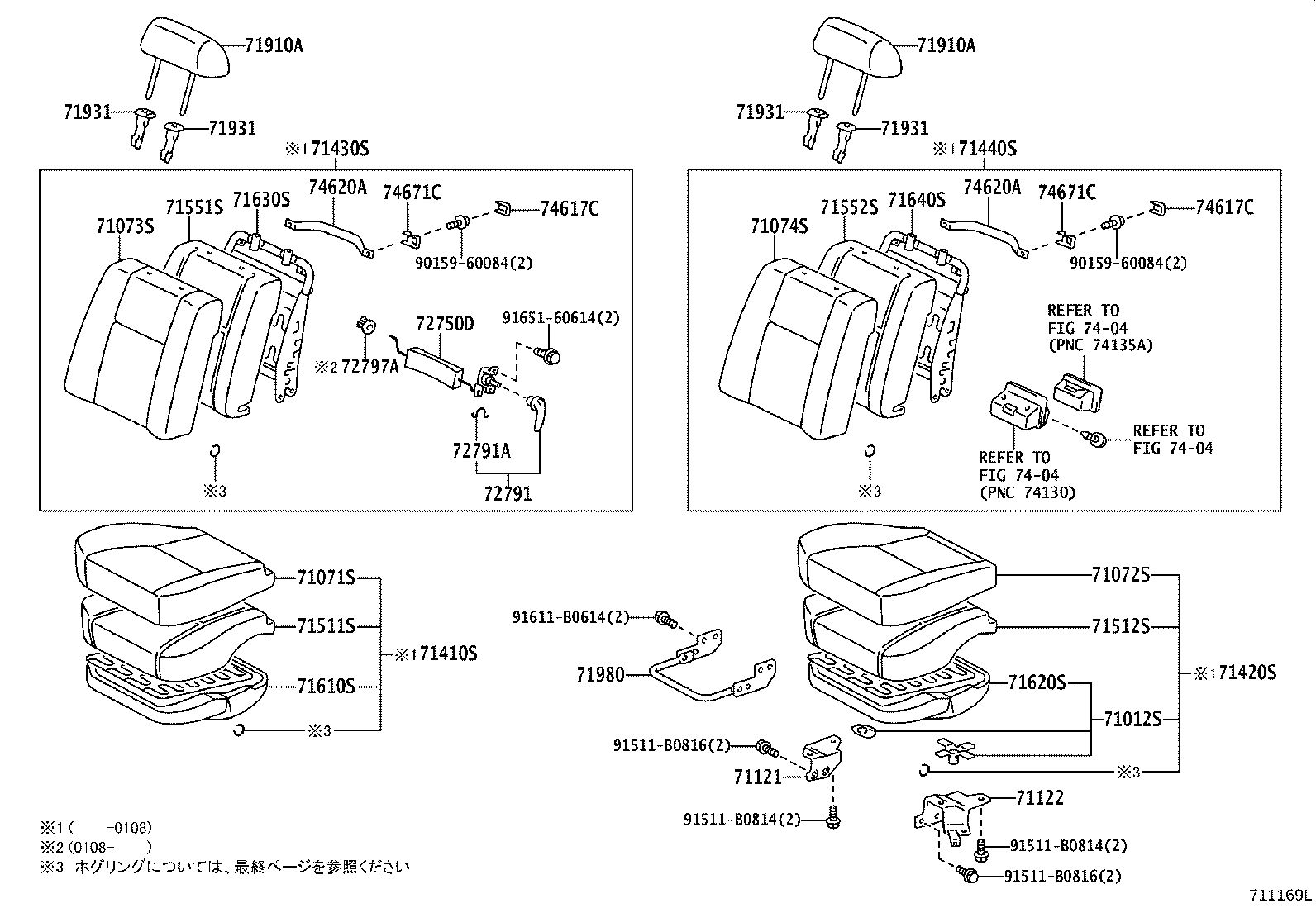

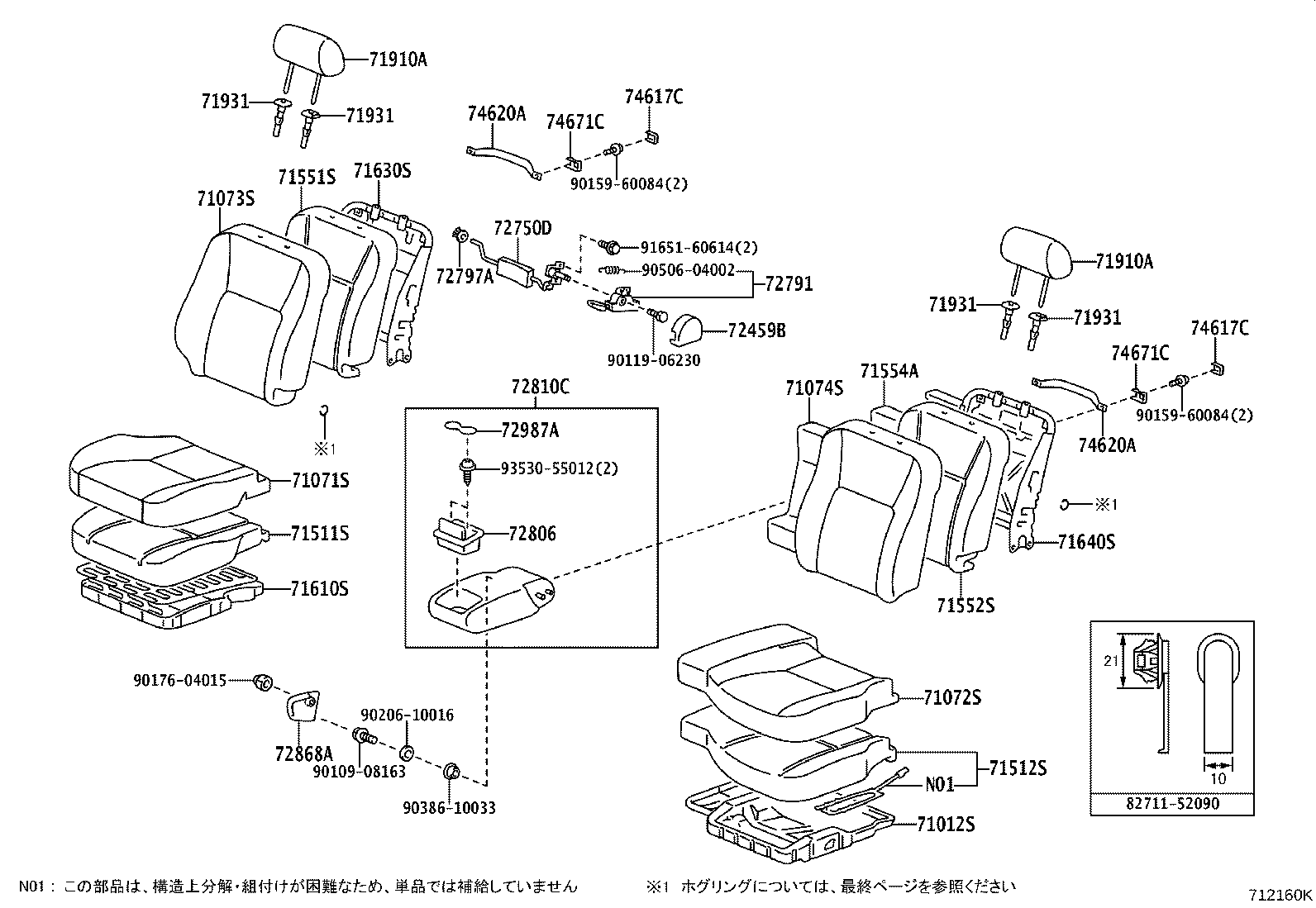

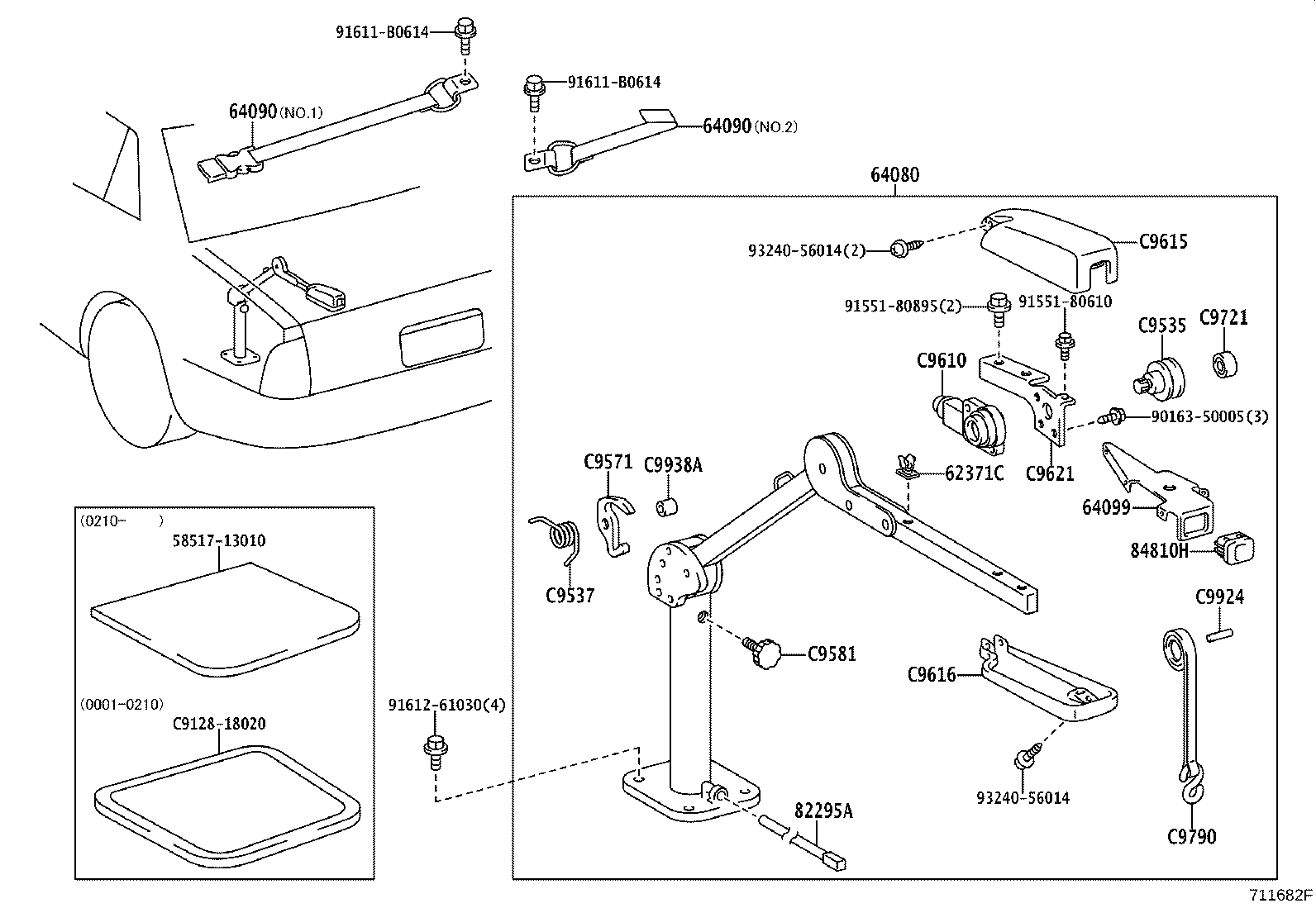

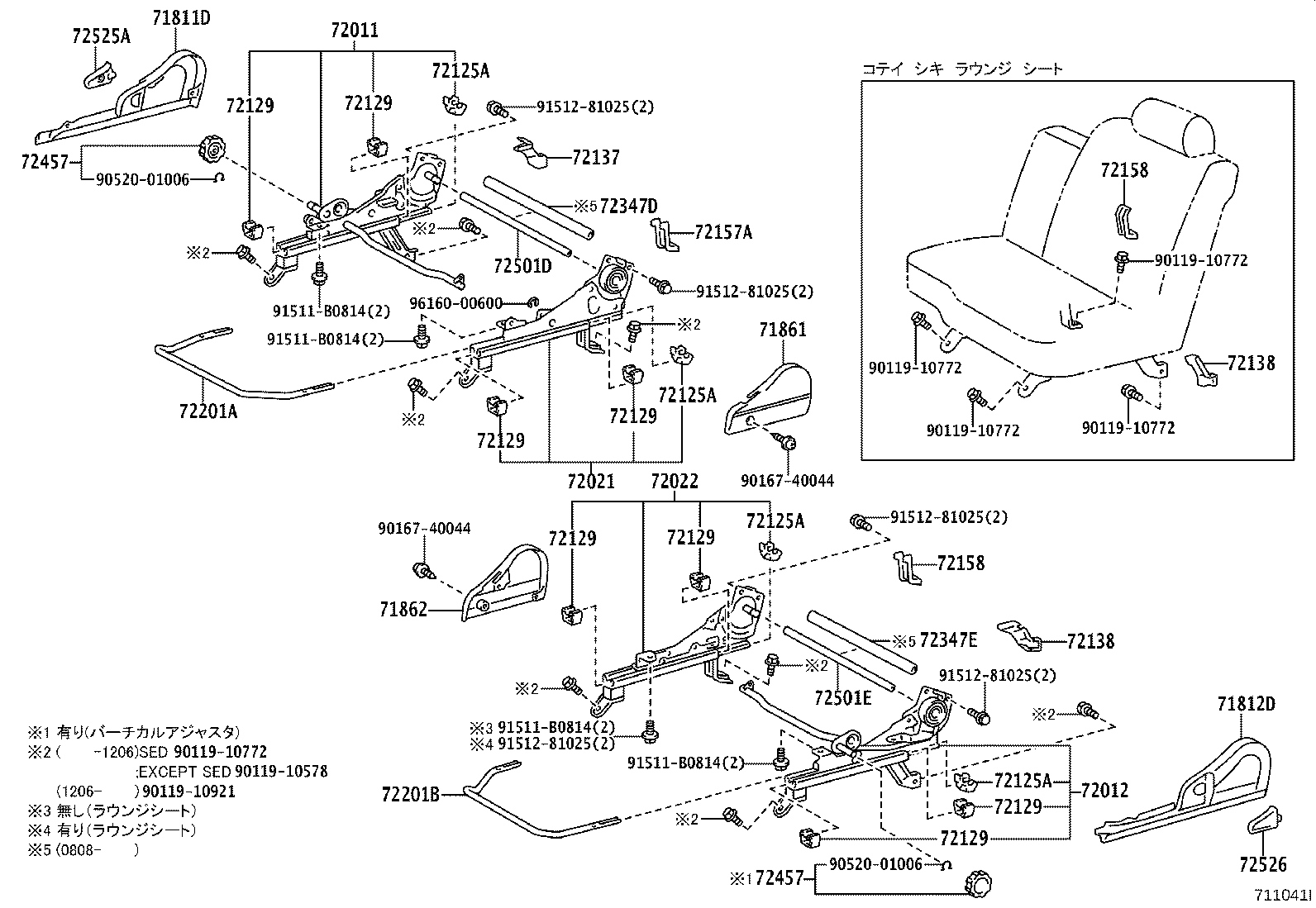

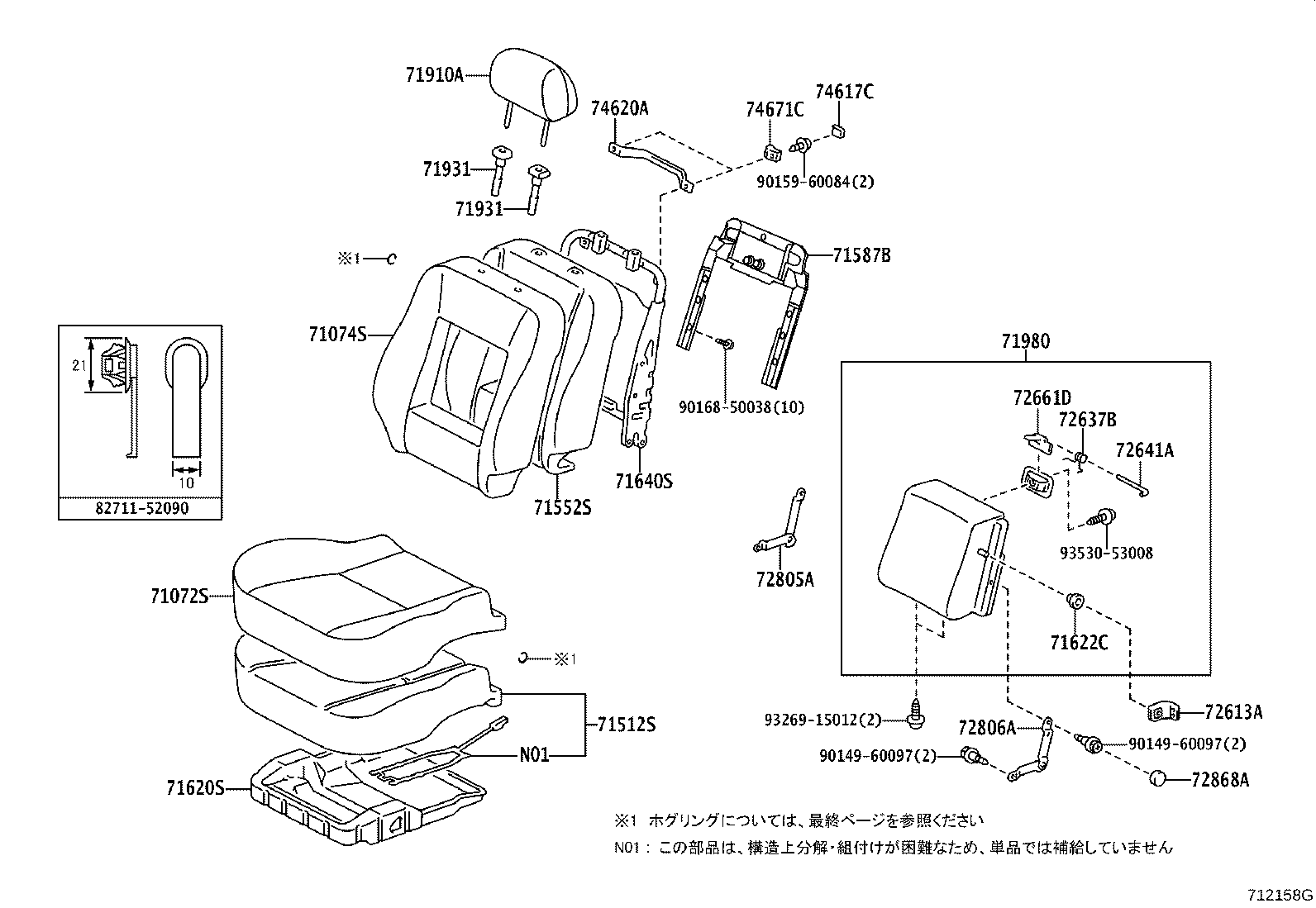

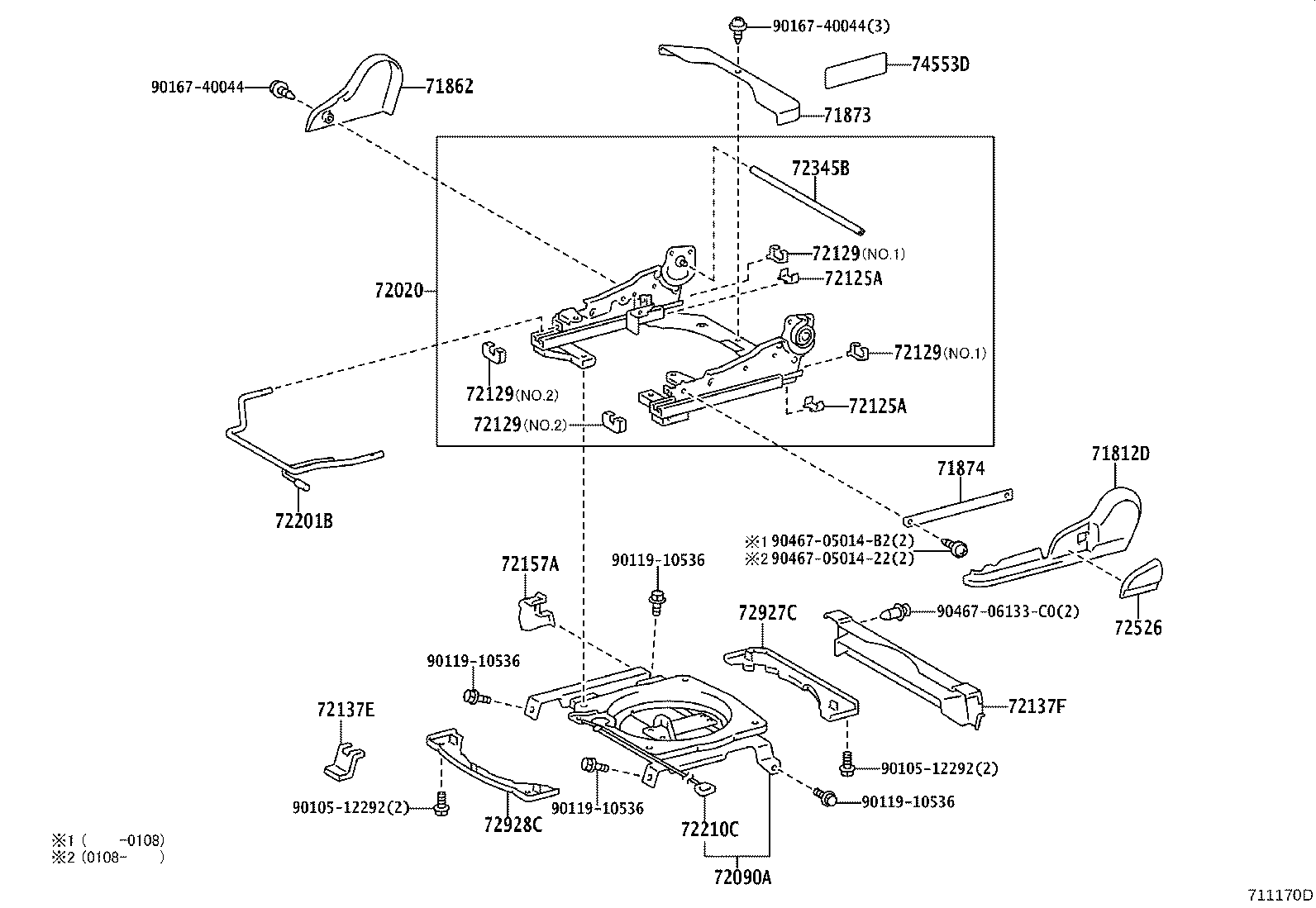

Figure 710744J 710744J 1995-12 → — Figure 710744J 710744J 2007-09 → — Figure 710745K 710745K 1995-12 → — Figure 712160K 712160K 2001-08 → 2007-06 Figure 712158G 712158G 2001-08 → — Figure 711169L 711169L 1998-01 → 2007-06 Figure 711041I 711041I 1995-12 → — Figure 711041I 711041I 2007-09 → — Figure 711170D 711170D 1998-01 → — Figure 711682F 711682F 2000-01 → — Figure 711682F 711682F 2008-08 → — Figure 718165G 718165G 1995-12 → —

Part groups

PNCDescription
62371C Catch, Lock
64080 Arm Assy, Power Lift
64090 Belt Assy, Wheel Chair
64099 Base Sub-assy, Power Lift Arm Guide
71012S Frame Sub-assy, Front Seat Cushion, LH
71014S Frame Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71554A Pad, Front Seatback, Center
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71622C Bush, Front Seatback Protector Shaft
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705B Cap(FOR FRONT SEATBACK BOARD)
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71980 Footrest Assy, Front Seat, NO.1
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72020 Adjuster Assy, Front Seat, LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72090A Table Assy, Front Seat Turn, LH
72125A Cover, Seat Track, Upper Rear
72129 Protector, Seat Track Lower Rail, NO.1
72137 Cover, Seat Track, Outer RH
72137E Cover, Seat Track, NO.1
72137F Cover, Seat Track, NO.2
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72210C Cable Assy, Seat Track Control, LH
72345B Pipe, Reclining Connecting
72347D Cover, Reclining Connecting Hook, RH
72347E Cover, Reclining Connecting Hook, LH
72457 Knob, Vertical Seat Adjuster
72459B Cap, Lumbar Support Lever
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72613A Striker, Front Seat Lock
72637B Spring, Front Seatback Lock, RH
72641A Pin, Front Seatback Lock
72661D Lever, Front Seatback Lock
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72791A Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
72797A Spacer, Lumbar Support
72805A Link Sub-assy, Front Seat Footrest, RH
72806 Link Sub-assy, Front Seat Center Armrest, LH
72806A Link Sub-assy, Front Seat Footrest, LH
72810C Armrest Assy, Front Seat, Center
72868A Cover, Center Armrest Hinge
72927C Cover, Rear Seat Cushion Under RH
72928C Cover, Rear Seat Cushion Under, LH
72987A Cover, Front Seat Center Armrest
74553D Label, Front Seat Caution
74617C Plug, Assist Grip
74620A Grip Assy, Assist, Rear
74671C Support, Assist Grip
82295A Wire, Winch Earth
84810H Switch Assy, Power Window Regulator
C9535 Pulley, Power Lift
C9537 Spring, Power Lift Return
C9571 Lever, Power Lift Arm Lock
C9581 Handle, Power Lift Lock
C9610 Motor Assy, Power Lift
C9615 Cover, Power Lift Motor, NO.1
C9616 Cover, Power Lift Motor, NO.2
C9621 Base, Power Lift Motor
C9721 Bearing, NO.2 Winch
C9790 Belt Assy, Winch
C9924 Pin
C9938A Collar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
