Toyota Town/Masterace V,WG

1988-08 → 1992-01 · chassis KR2#,YR2#,3#,CR2#,3# · catalogue 651130 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

33 part groups · 8 illustrations

Illustrations

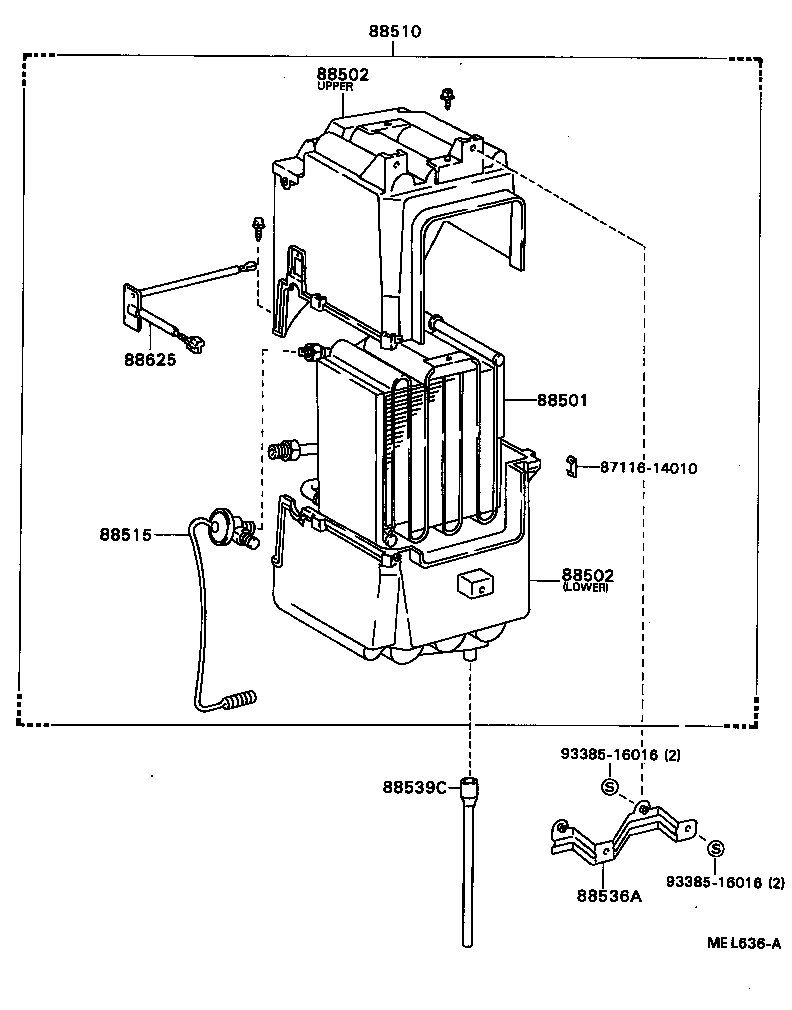

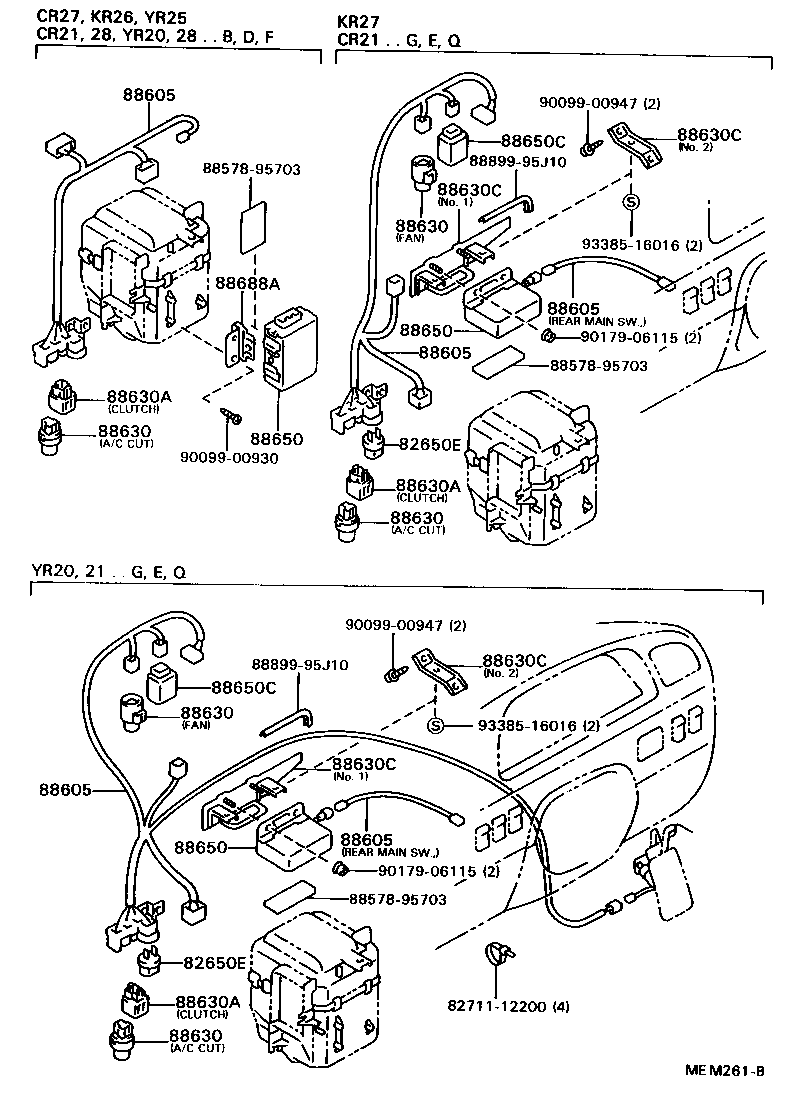

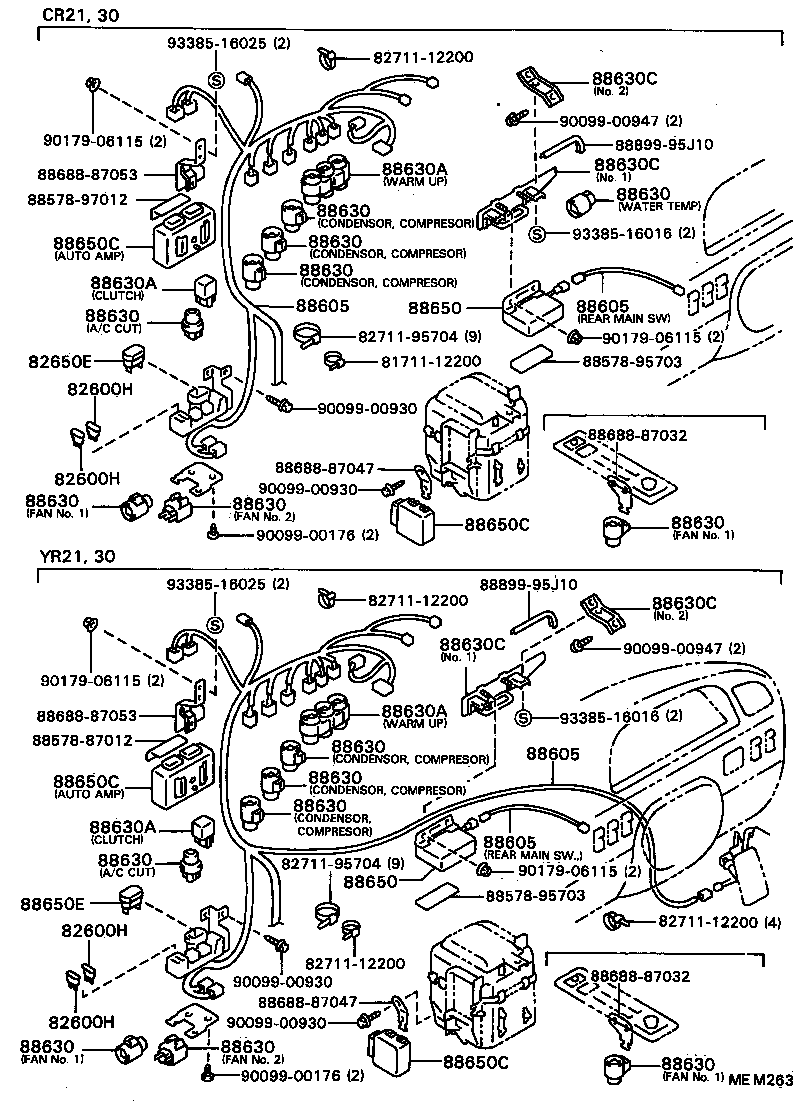

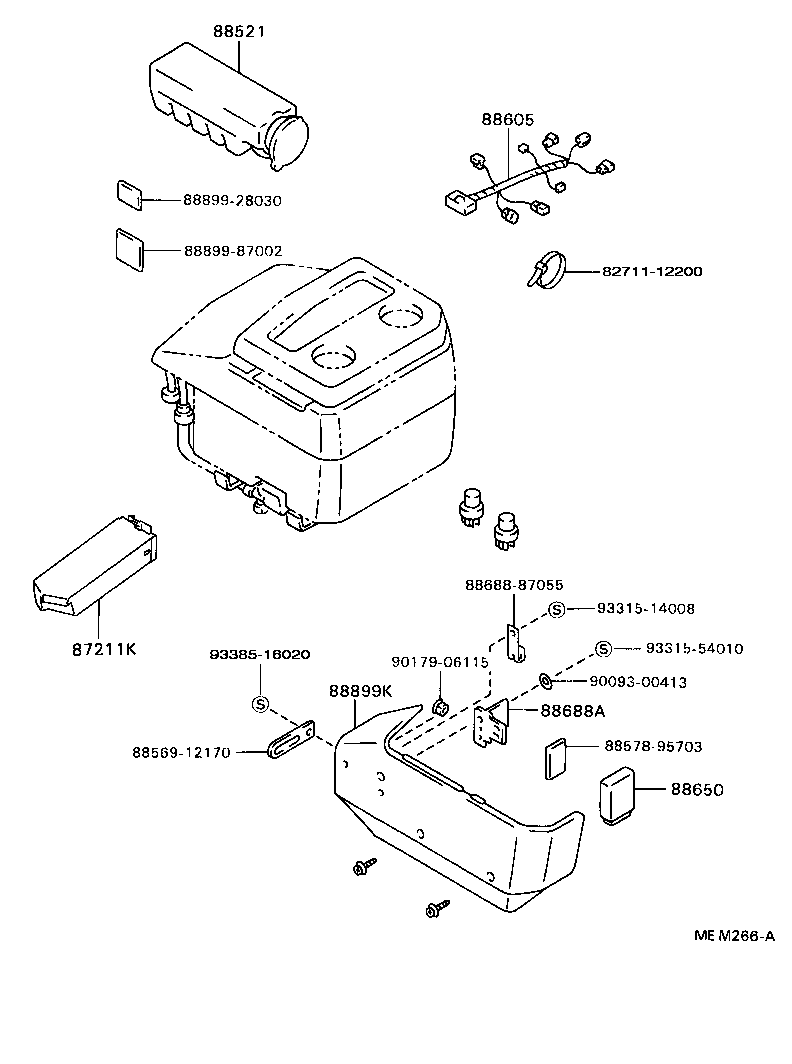

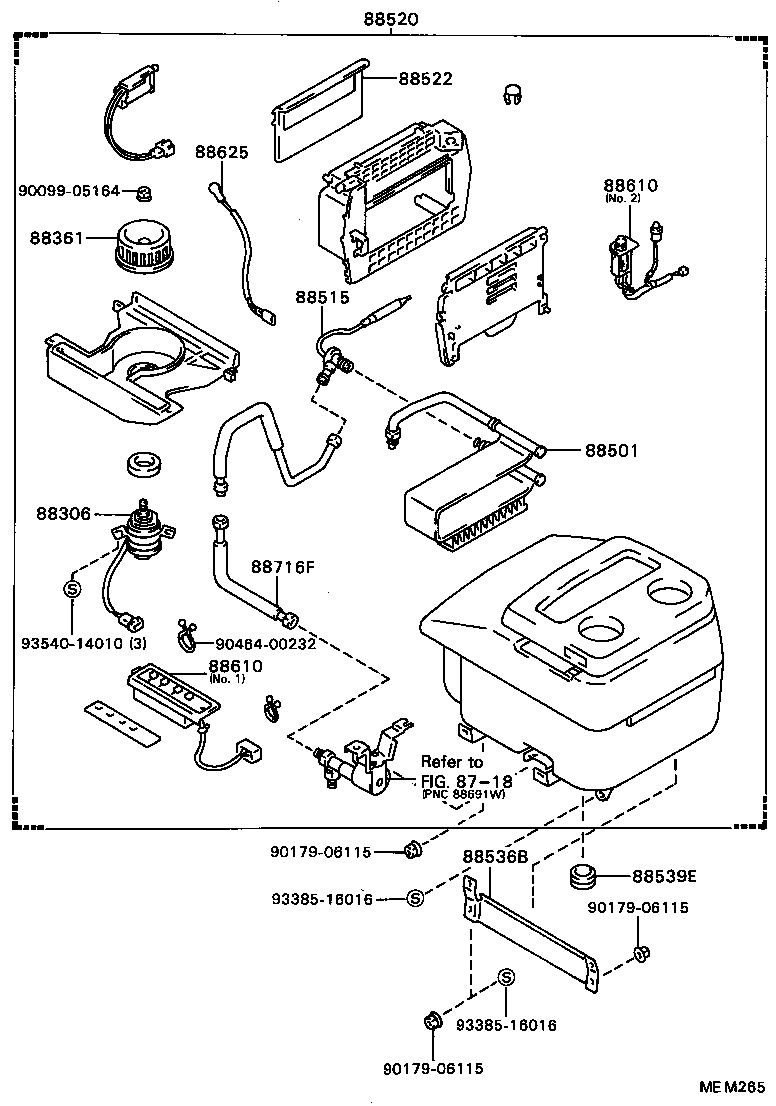

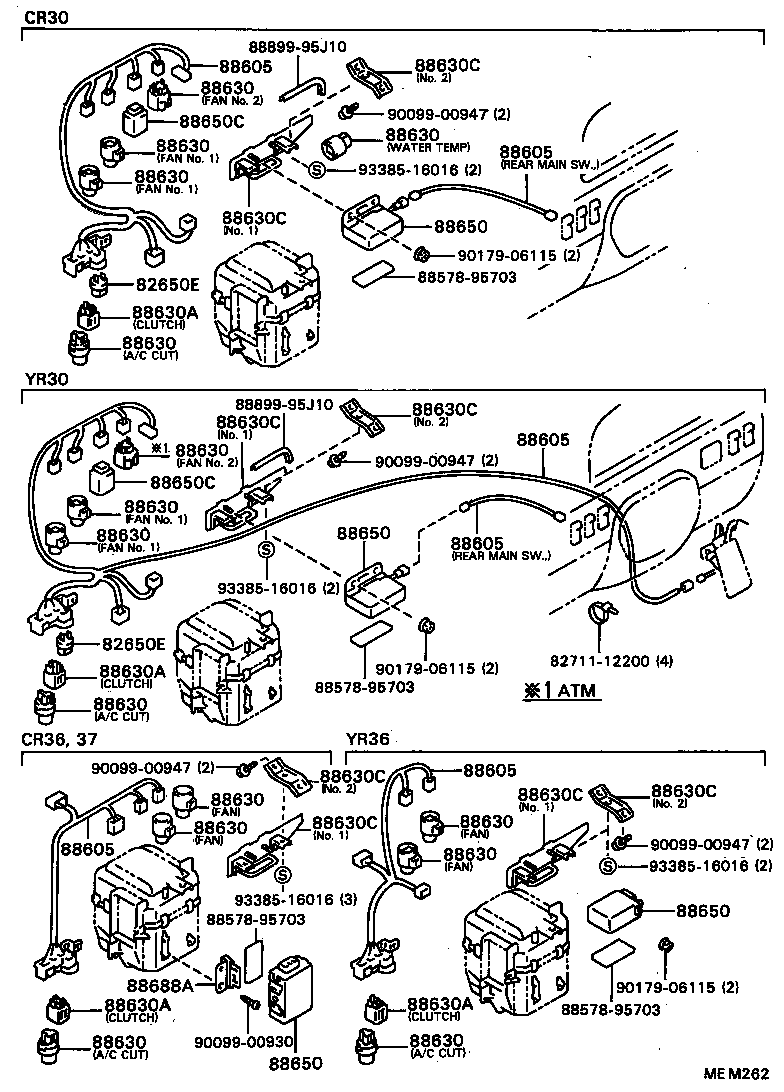

Figure MEL634C MEL634C 1988-08 → — Figure MEM261B MEM261B 1988-08 → — Figure MEM262 MEM262 1988-08 → — Figure MEM263 MEM263 1988-08 → — Figure MEM264A MEM264A 1988-08 → — Figure MEL636A MEL636A 1988-08 → — Figure MEM265 MEM265 1988-08 → — Figure MEM266A MEM266A 1988-08 → —

Part groups

PNCDescription
82600H Fuse, Fuse Block
82650E Breaker Assy, Wiring Circuit
87211K Duct, Air
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88521 Case, Cooler Unit
88522 Door, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88605 Harness Sub-assy, Cooler Wiring, NO.1
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630C Bracket, Cooler Relay
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88688A Bracket, Cooler Stabilizer Amplifier
88716F Pipe, Cooler Refrigerant Liquid, F
88717F Pipe, Cooler Refrigerant Suction, F
88750C Curtain Assy, Separate
88899K Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
