Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

300 part groups · 31 illustrations

Illustrations

713900D 1996-11 → 2001-11

713900D 1996-11 → 2004-07

713900D 1996-11 → —

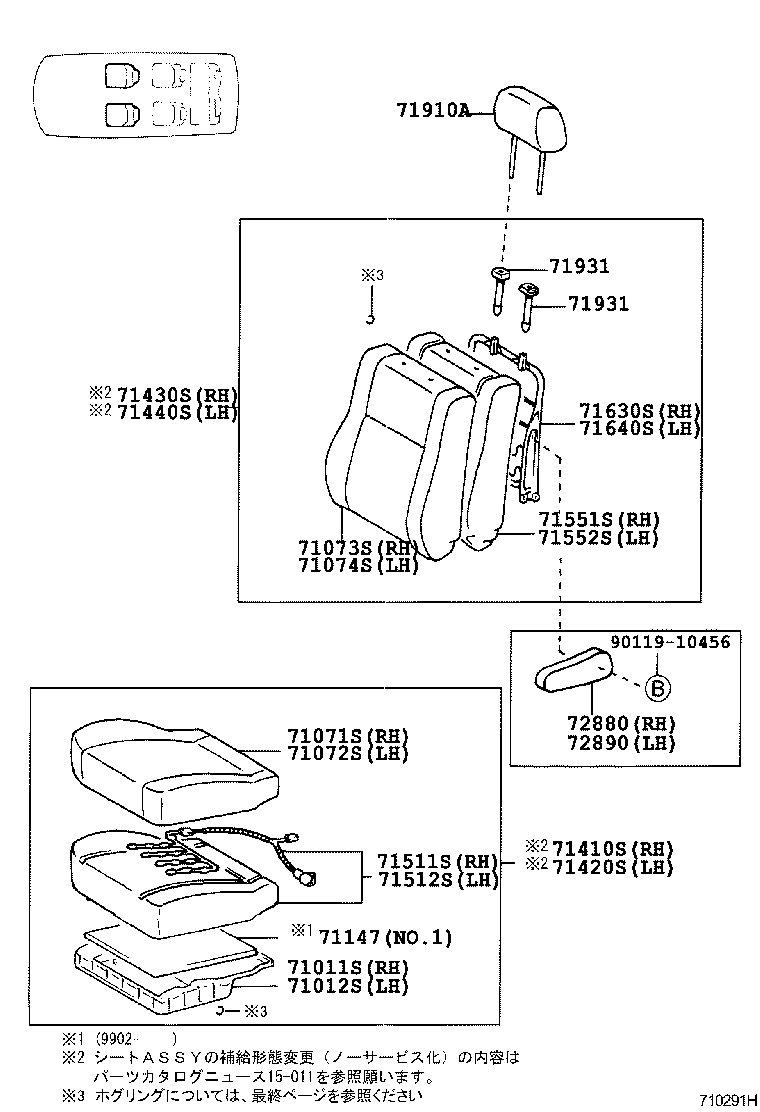

710291H 1996-10 → 2001-11

710291H 1996-11 → 2001-11

710291H 1996-11 → 2004-07

710291H 1996-11 → —

710271 1996-10 → 2001-11

710271 1996-11 → 2001-11

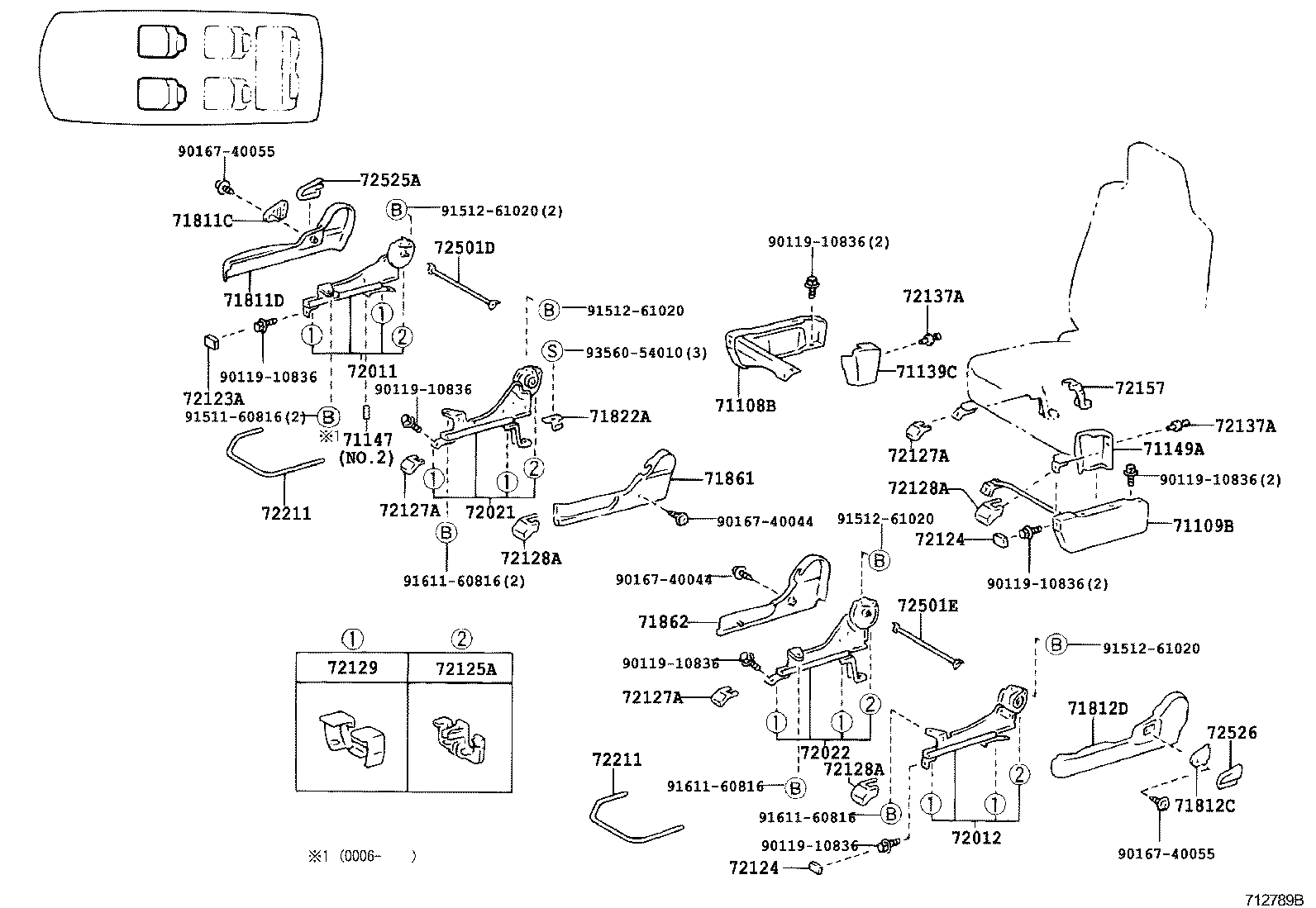

712789B 1996-10 → 2001-11

712789B 1996-11 → 2001-11

712789B 1996-11 → 2002-08

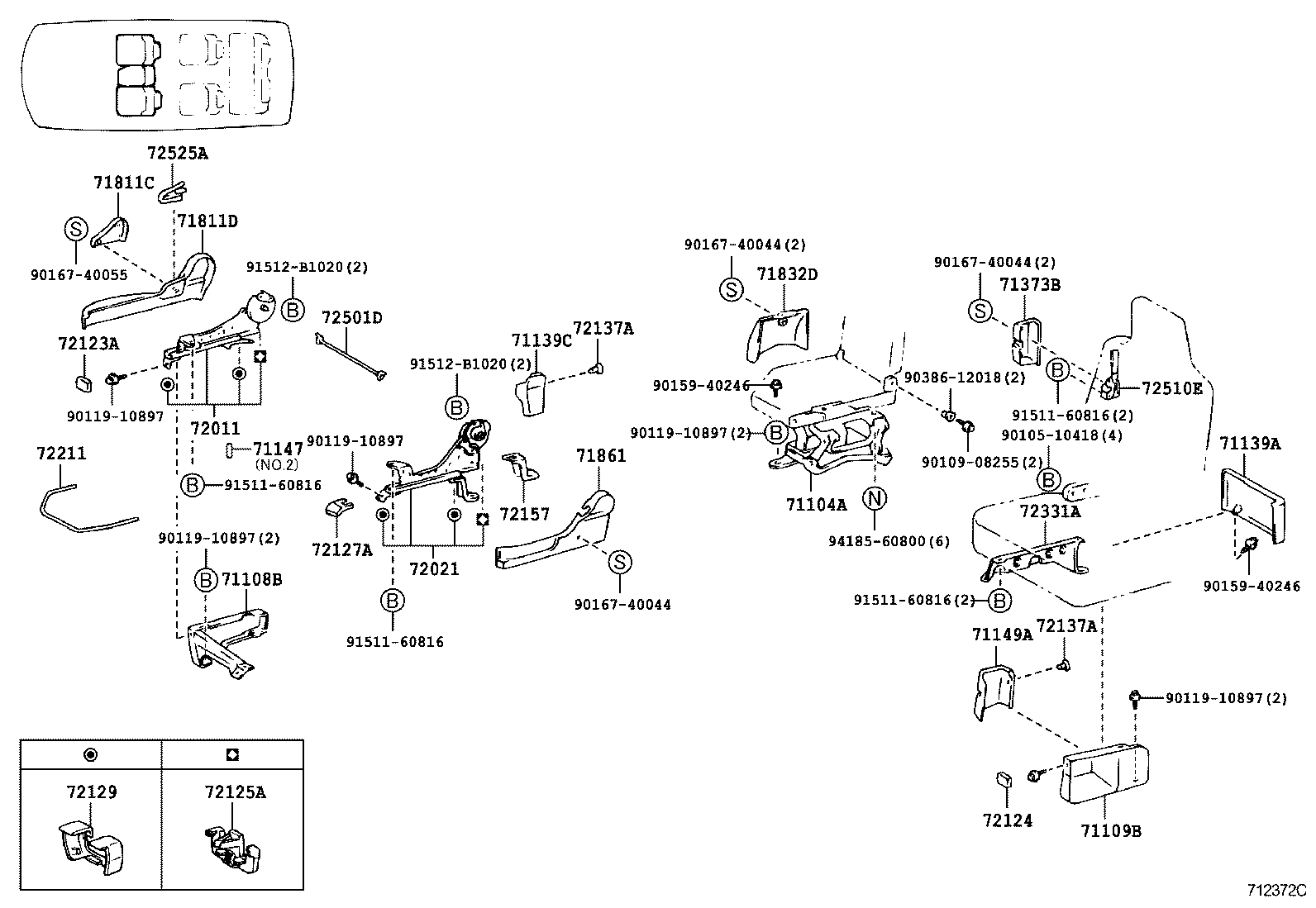

712372C 1996-11 → 1998-12

712372C 1996-11 → 2001-11

712372C 1996-11 → 2004-07

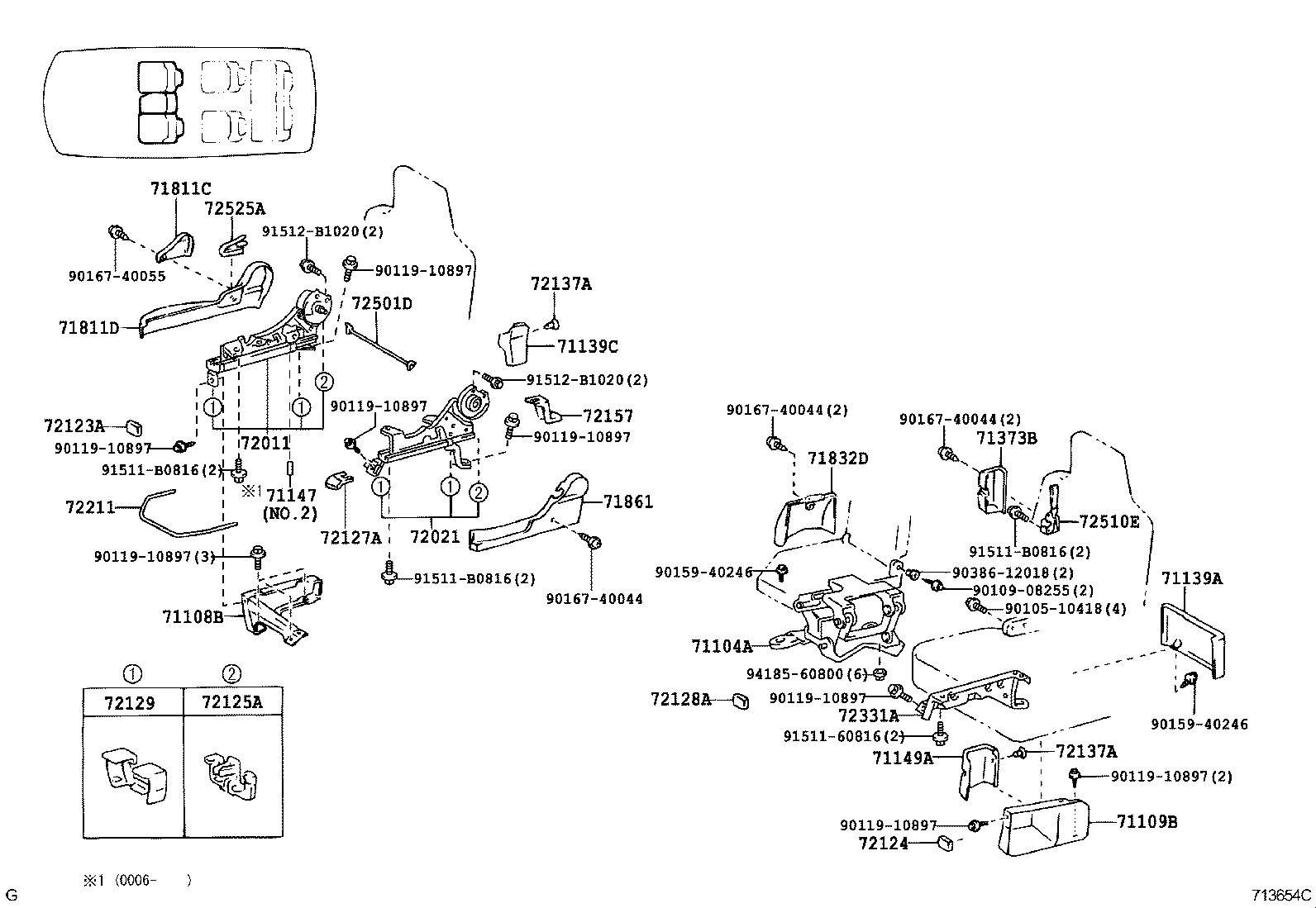

713654C 1998-12 → —

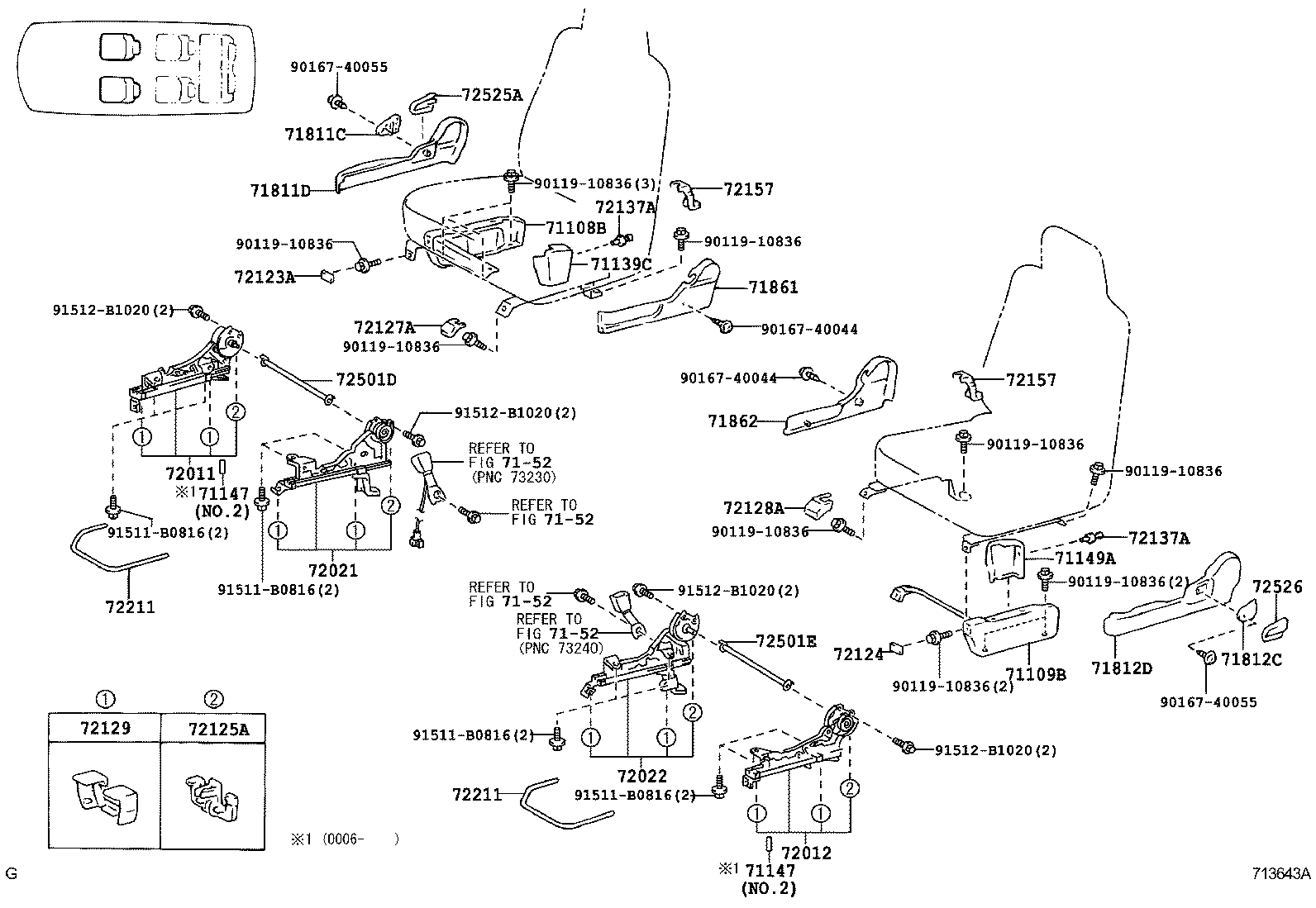

713643A 2002-08 → —

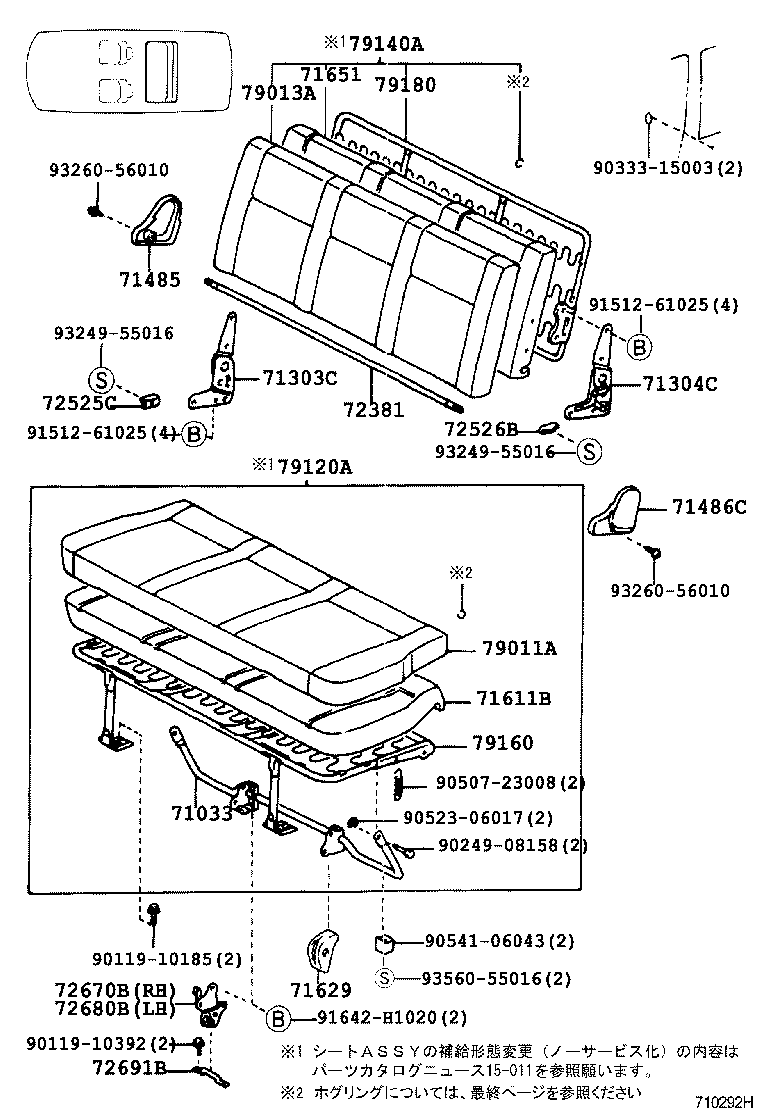

710292H 1996-11 → 2001-11

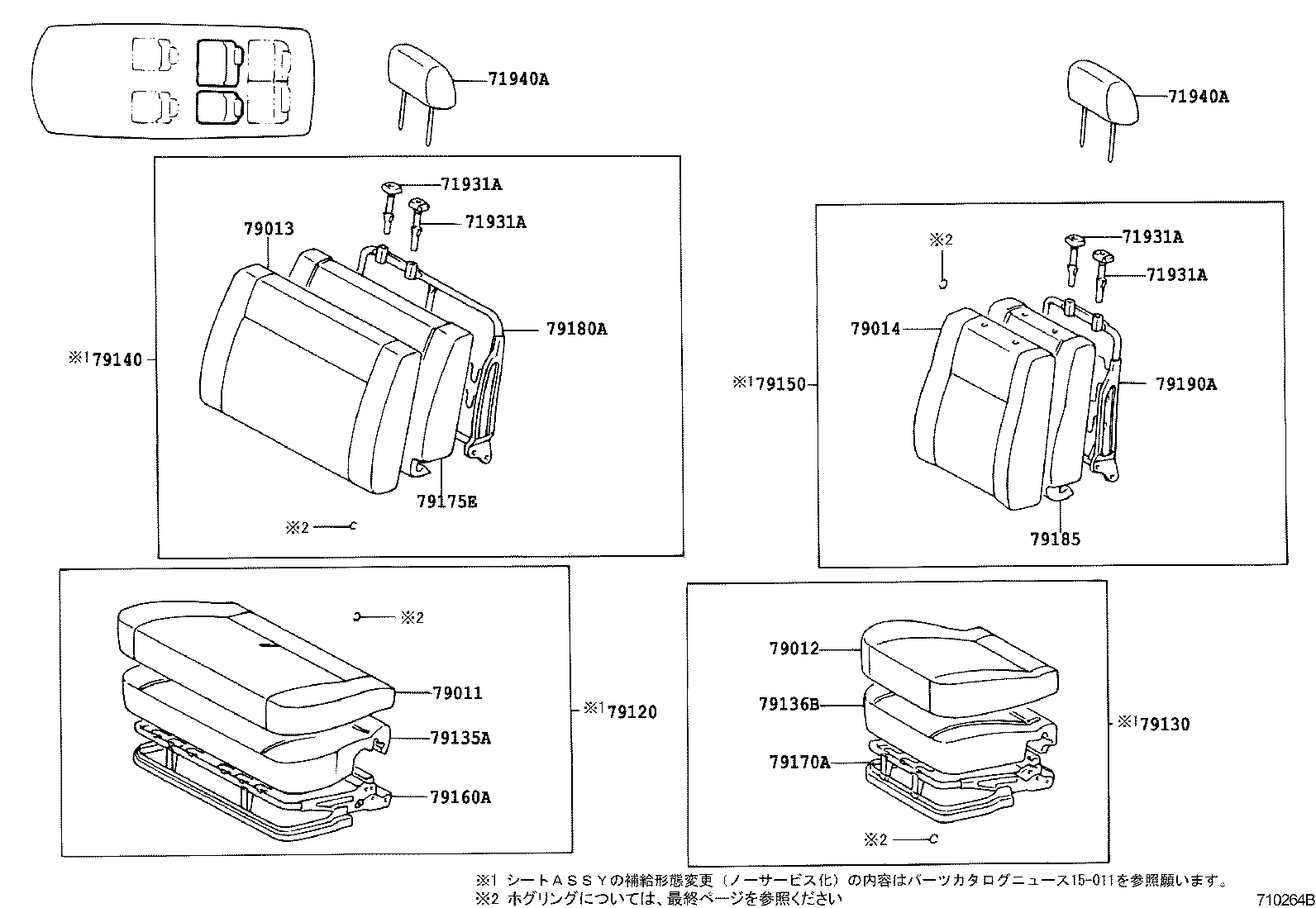

710264B 1996-10 → 2001-11

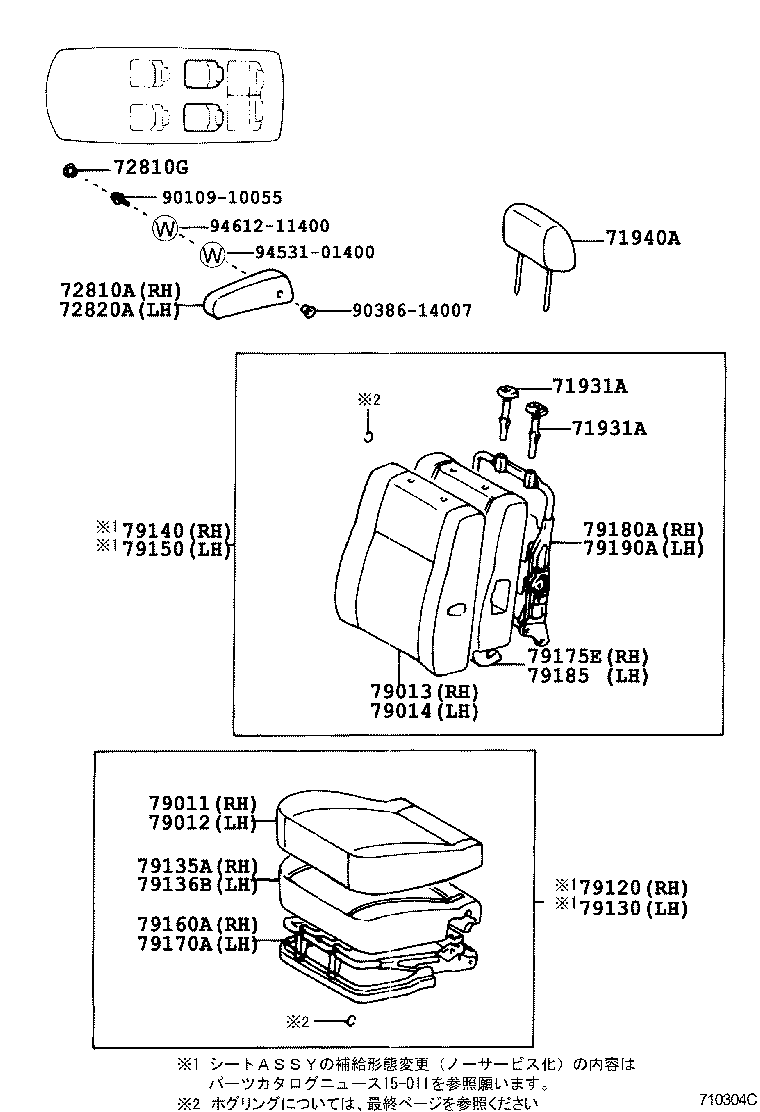

710304C 1996-10 → 2001-11

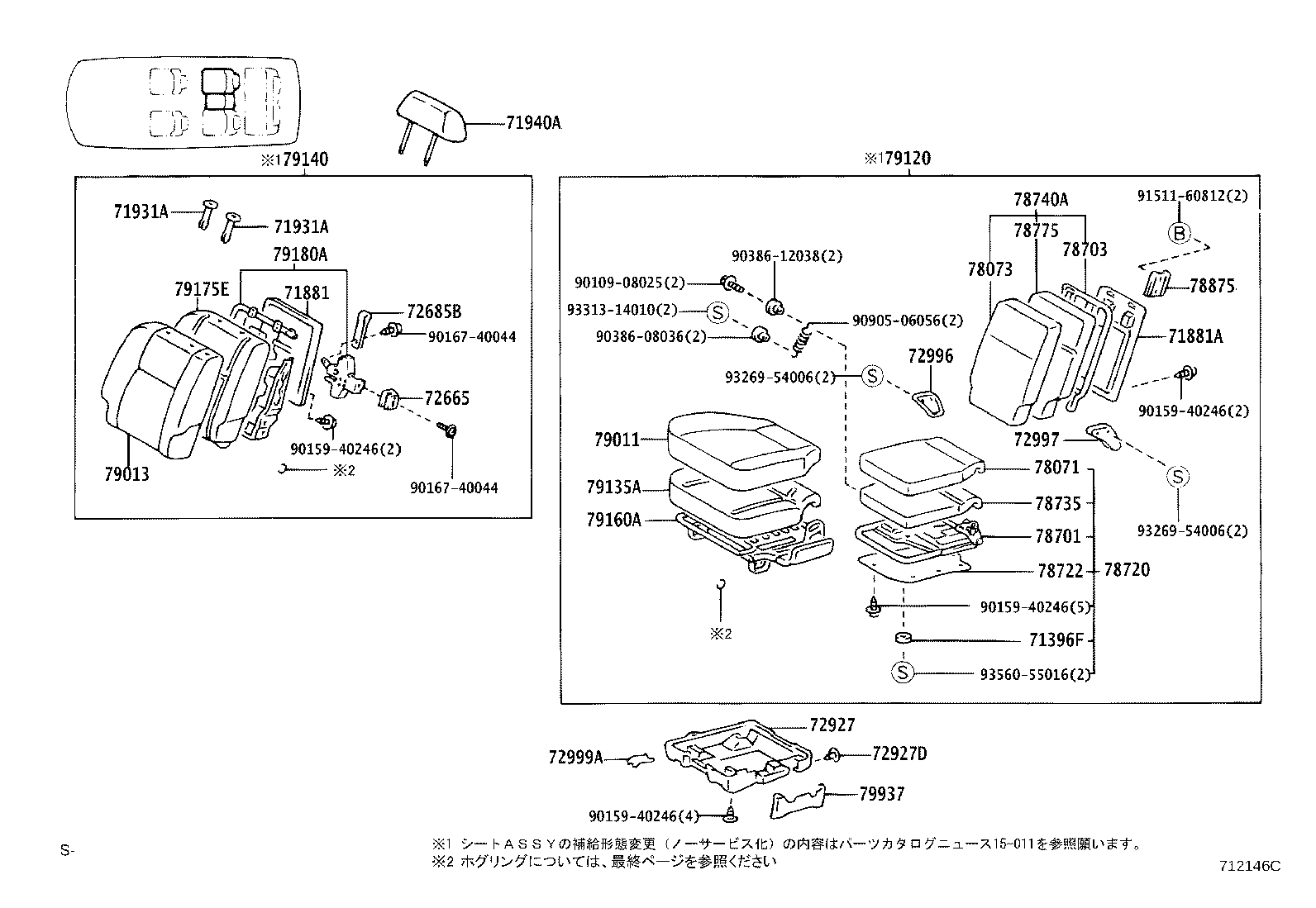

712146C 1998-12 → 2001-11

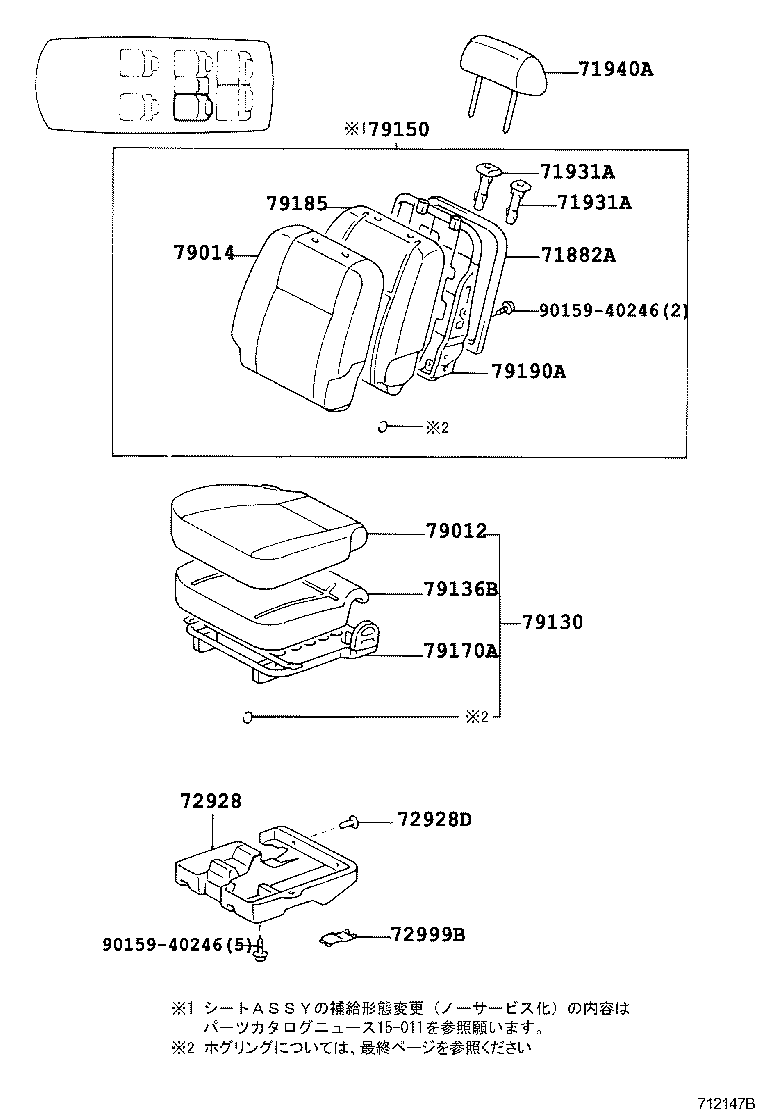

712147B 1998-12 → 2001-11

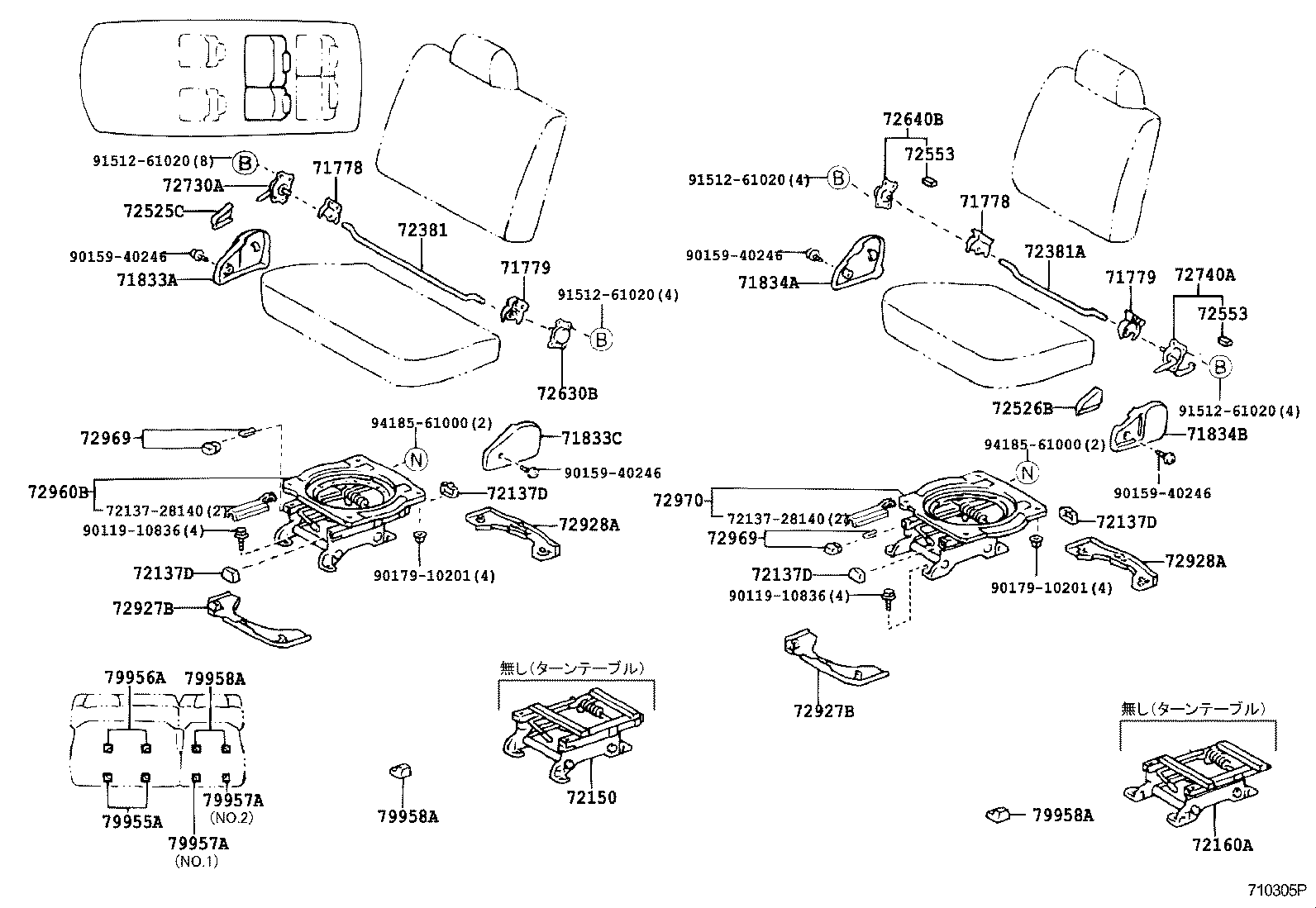

710305P 1996-10 → 2001-11

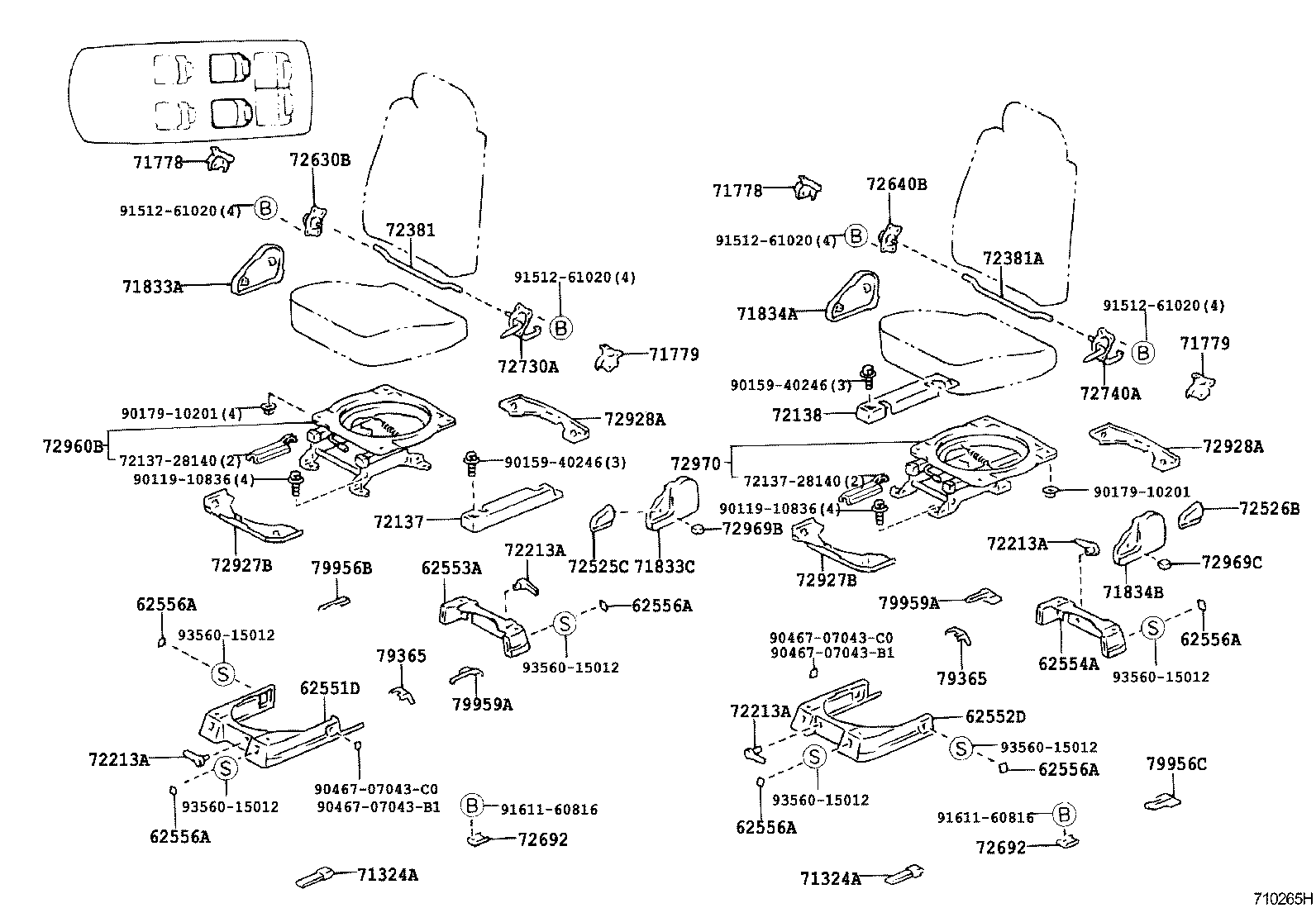

710265H 1996-10 → 2001-11

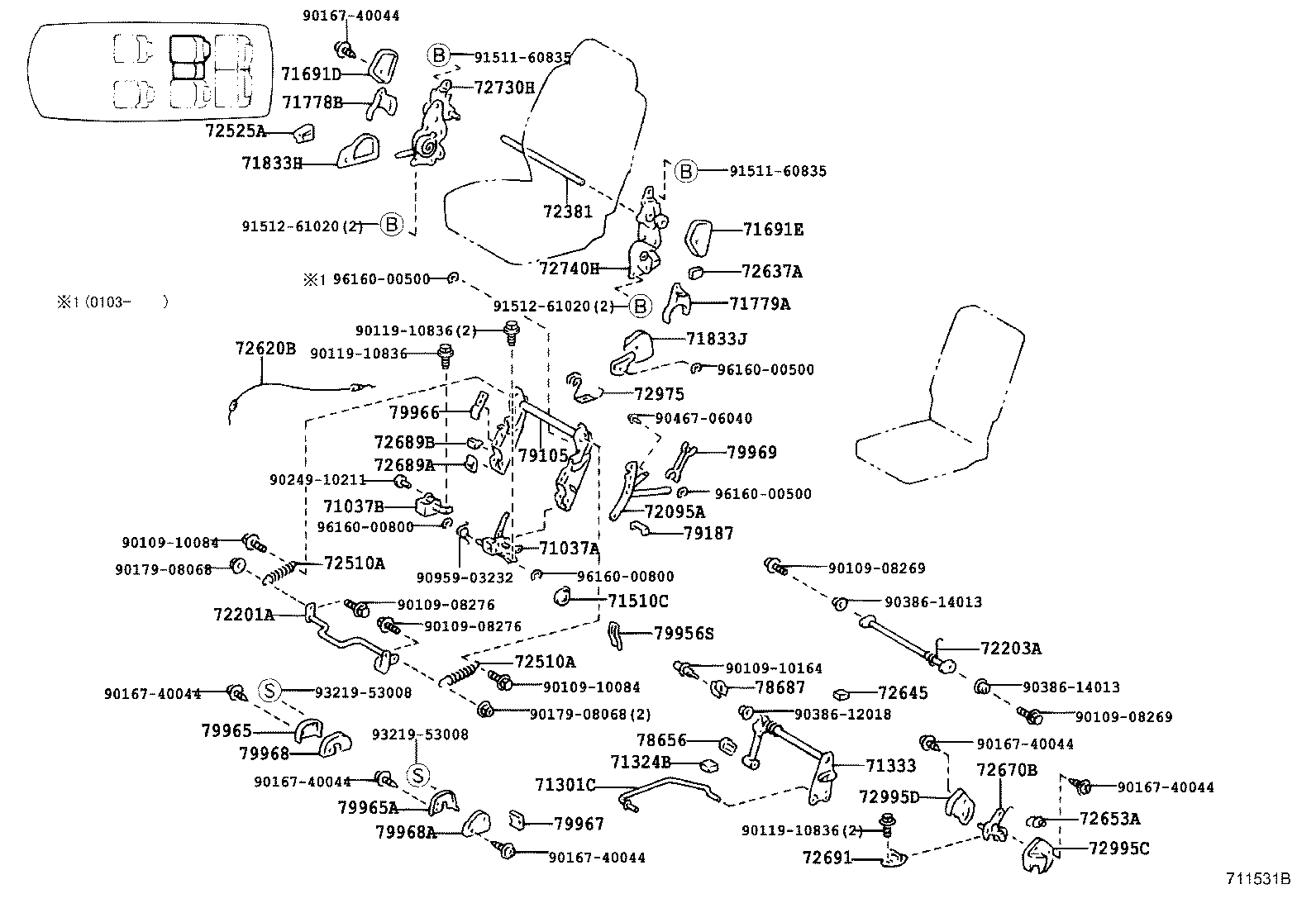

711531B 1998-12 → 2001-11

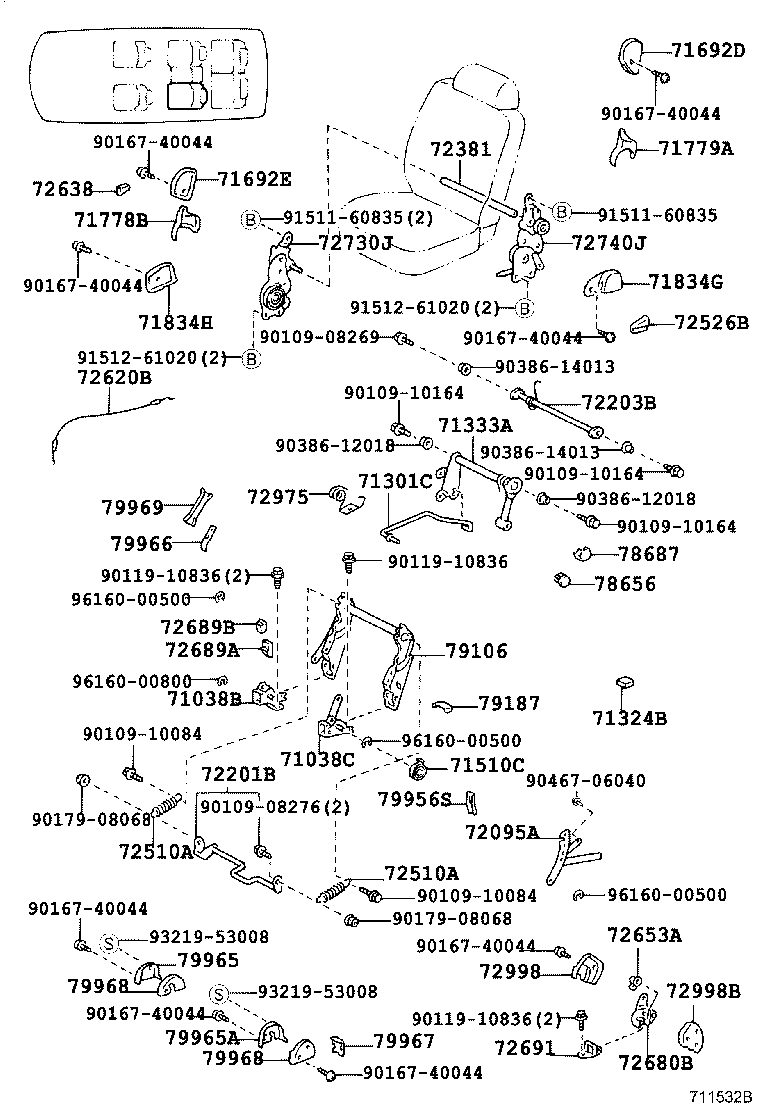

711532B 1998-12 → 2001-11

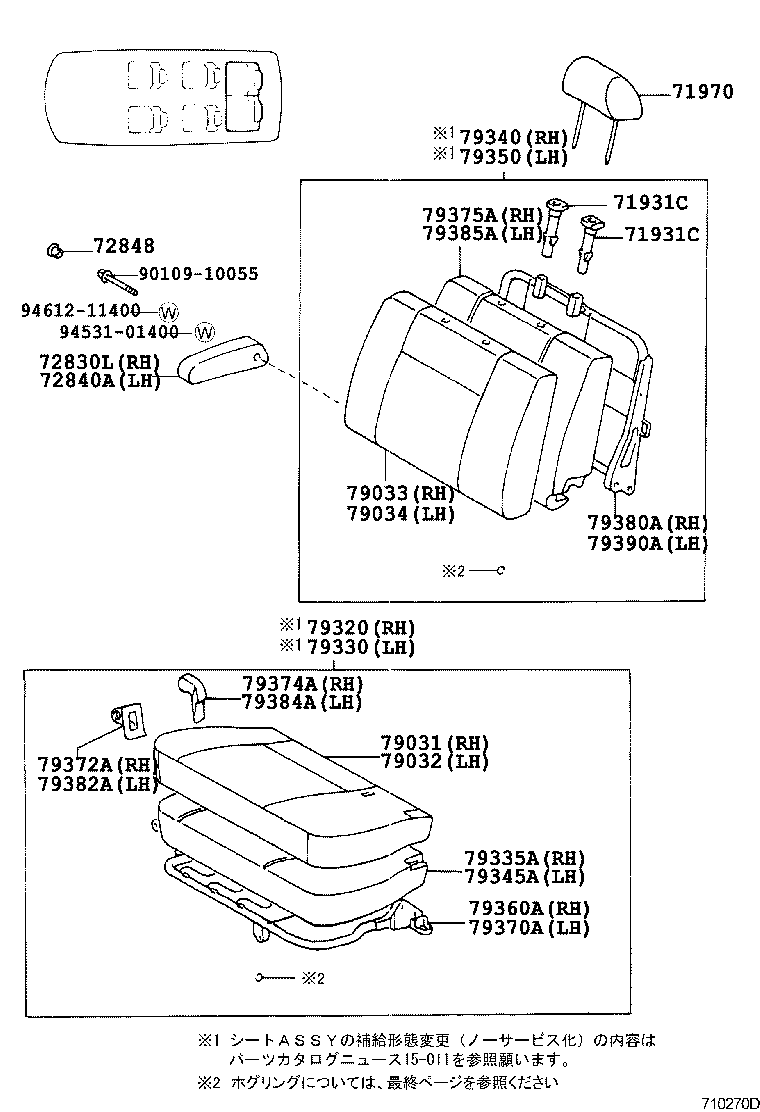

710270D 1996-10 → 2001-11

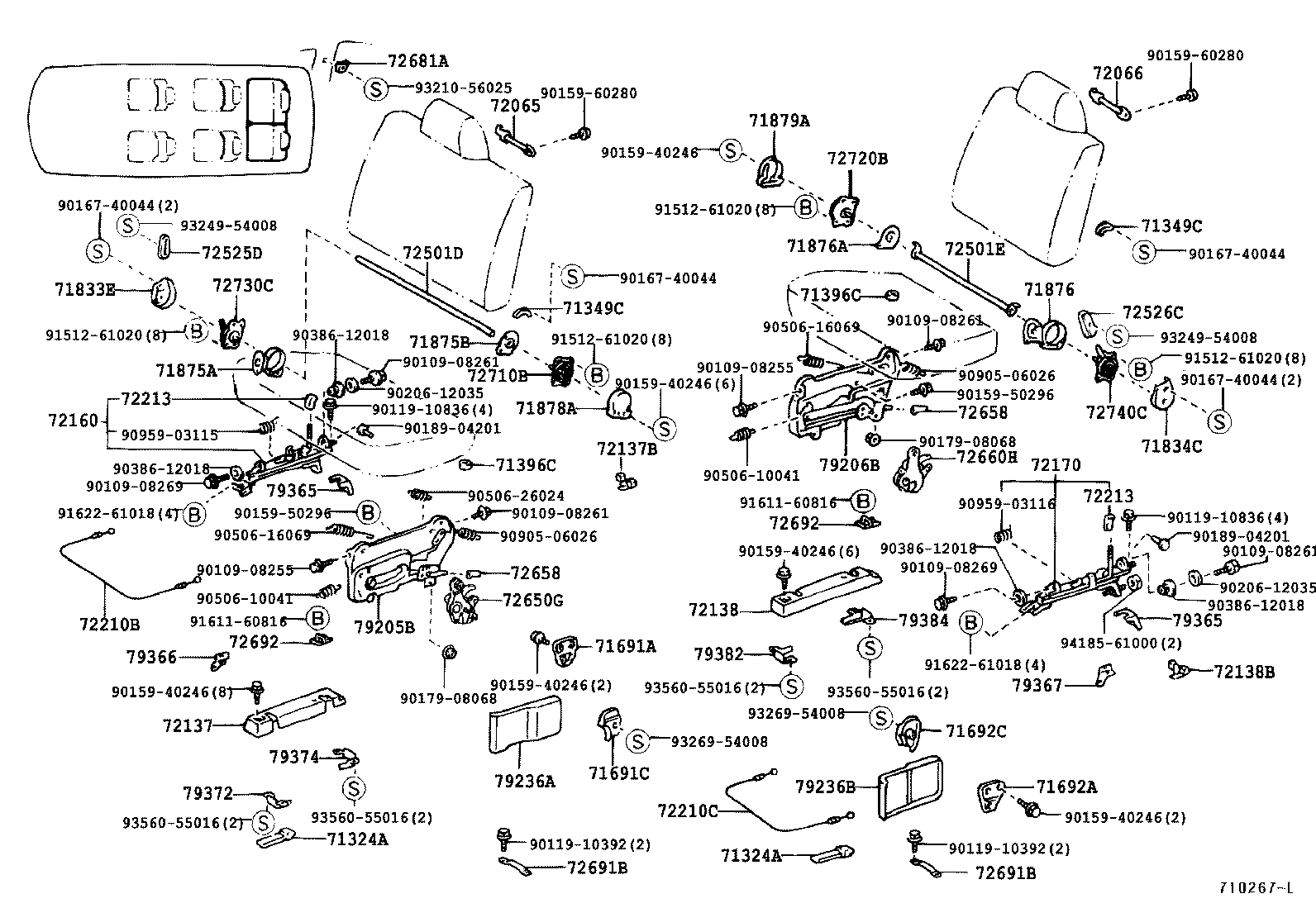

710267L 1996-10 → 2001-11

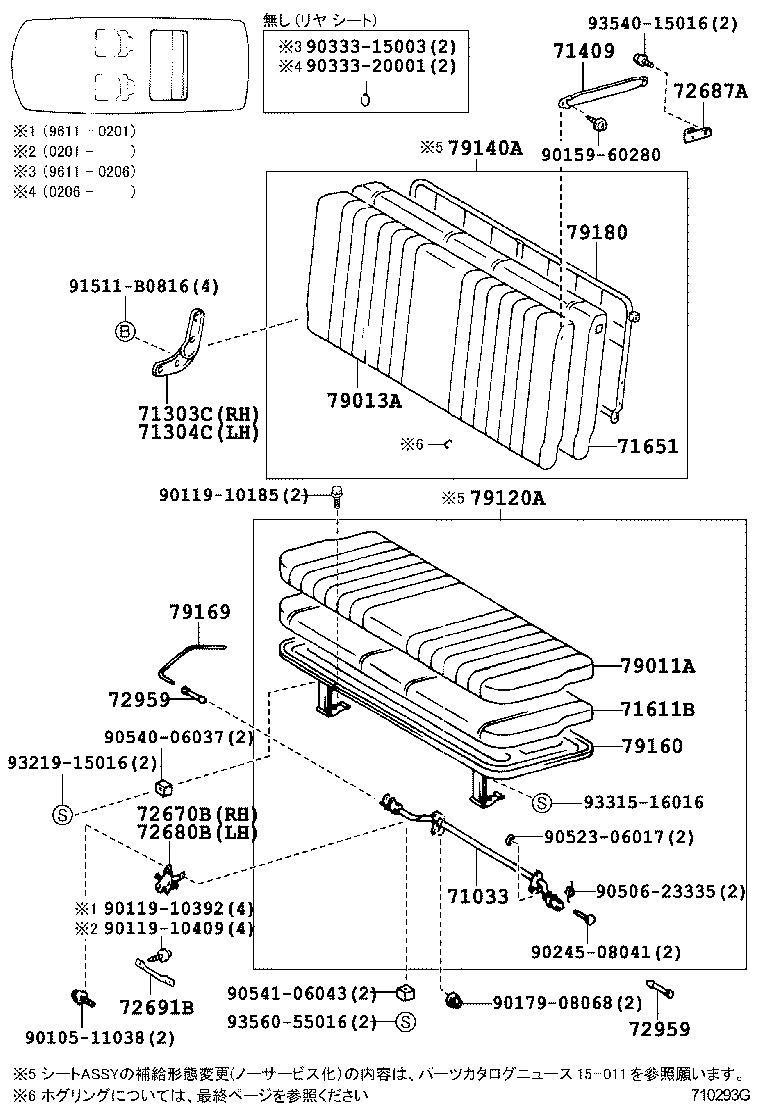

710293G 1996-11 → —

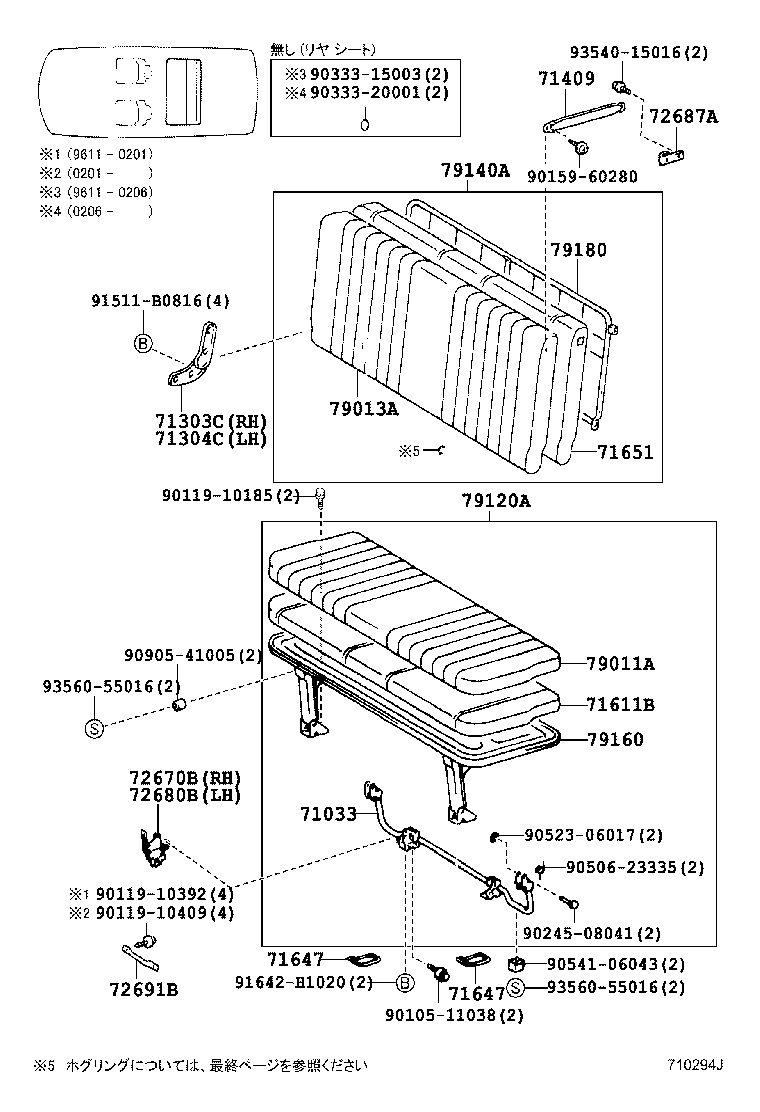

710294J 1996-11 → —

718165A 1996-10 → —

Part groups

PNC	Description
55560D	Lock Assy, Seat Under Tray
62551D	Garnish, Rear Seat Side, RH
62552D	Garnish, Rear Seat Side, LH
62553A	Garnish, Rear Seat Side, NO.2 RH
62554A	Garnish, Rear Seat Side, NO.2 LH
62556A	Cap, Rear Seat Side Garnish
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71033	Leg Sub-assy, Rear Seat Cushion
71037A	Hinge Sub-assy, Center Seatback, Inner RH
71037B	Hinge Sub-assy, Center Seatback, Outer RH
71038B	Hinge Sub-assy, Rear Seat Cushion Leg, LH
71038C	Hinge Sub-assy, Rear Seat Cushion Leg, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71104A	Hinge, Front Sub Seat
71108B	Leg Sub-assy, Front Seat, RH
71109B	Leg Sub-assy, Front Seat, LH
71139A	Cover, Front Seat Leg, NO.1
71139C	Cover, Front Seat Leg, RH
71147	Silencer, Seat Spring
71149A	Cover, Front Seat Leg, LH
71301C	Link Sub-assy, Rear Seat Cushion
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71324A	Cushion, Rear Seat
71324B	Cushion, Rear Seat
71333	Leg, Rear Seat Cushion, NO.1
71333A	Leg, Rear Seat Cushion, NO.2
71349C	Cover, Rear Seatback Hinge
71373B	Cover, Front Seatback Lock
71396C	Cushion, NO.2 Seat Support, Rear
71396F	Cushion, NO.1 Seat Support, Rear
71409	Stopper Sub-assy, Rear Seatback
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71485	Cover, Rear Seat Hinge
71486C	Cover, Rear Seat Hinge, LH
71510C	Spring, Spiral
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611B	Pad, Rear NO.1 Seat Cushion
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71651	Pad, Rear NO.1 Seatback
71691A	Cover, Rear NO.3 Seat Lock, RH
71691C	Cover, Rear Seat Lock, Inner RH
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71691E	Cover, Rear Seat Cushion Hinge, NO.1
71692A	Cover, Rear NO.3 Seat Lock, LH
71692C	Cover, Rear Seat Lock, Inner LH
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71750A	Tray Assy, Front Seat Under
71769	Cover, Front Seat Under Tray Bracket
71778	Cover, Rear Seat Side Hinge Male, RH
71778B	Cover, Rear Seat Side Hinge Male, RH
71779	Cover, Rear Seat Side Hinge Male, LH
71779A	Cover, Rear Seat Side Hinge Male, LH
71811C	Cover, Reclining Adjuster, RH
71811D	Shield, Front Seat Cushion, RH
71812C	Cover, Reclining Adjuster, LH
71812D	Shield, Front Seat Cushion, LH
71822A	Bracket, Front Seat Shield Set, NO.1 LH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71833H	Cover, Rear Seat Reclining, NO.1 RH
71833J	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71834G	Cover, Rear Seat Reclining, NO.1 LH
71834H	Cover, Rear Seat Reclining, NO.1 LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71881	Board, Rear Seatback, RH
71881A	Board, Rear Seatback
71882A	Board, Rear Seatback, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72095A	Plate Sub-assy, Rear Seat Turn Set
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129	Protector, Seat Track Lower Rail, NO.1
72137	Cover, Seat Track, Outer RH
72137A	Clip (FOR SEAT TRACK COVER)
72137B	Cover, Seat Track, RH
72137D	Cover, Rear Seat Track, RH
72138	Cover, Seat Track, Outer LH
72138B	Cover, Seat Track, LH
72150	Track Assy, Rear Seat, RH
72157	Cover, Seat Track Bracket, Inner
72160	Track Assy, Rear Seat, Outer RH
72160A	Track Assy, Rear Seat, LH
72170	Track Assy, Rear Seat, Outer LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72203A	Handle Sub-assy, Rear Seat Track, RH
72203B	Handle Sub-assy, Rear Seat Track, LH
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72211	Handle, Seat Track Adjusting
72213	Knob, Seat Track Adjusting Handle
72213A	Knob, Seat Track Adjusting Handle
72331A	Board, Assistant Seat, Back
72381	Rod, Reclining Adjuster Equalizing, NO.1
72381A	Rod, Rear Seat Reclining Adjuster Equalizing, LH
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72510A	Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72510E	Lock Assy, Front Seatback
72525A	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72553	Cover, Reclining Pedal
72620B	Cable Assy, Rear NO.1 Seat Lock
72630B	Adjuster Assy, Rear NO.1 Seat, Inner RH
72637A	Handle, Rear Seat Lock
72638	Handle, Rear Seat Lock, LH
72640B	Adjuster Assy, Rear NO.1 Seat, Inner LH
72645	Cushion, Rear Seatback Lock
72650G	Lock Assy, Rear NO.2 Seat, RH
72653A	Snap, Rear Seatback Lock Rod
72658	Knob, Rear Seat Handle
72660H	Lock Assy, Rear NO.2 Seat, LH
72665	Cover, Rear Seatback Lock, RH
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72681A	Hook, Rear Seat
72685B	Belt, Rear Seatback Lock, RH
72687A	Holder, Rear Seatback Lock
72689A	Cushion, Rear Seat Cushion Lock
72689B	Cushion, Rear Seat Cushion Lock, NO.2
72691	Striker, Rear NO.3 Seat Lock
72691B	Striker, Rear Seat Cushion Lock
72692	Striker, Rear Seat Cushion Lock, NO.2
72710B	Adjuster Assy, Rear Seatback, Inner RH
72720B	Adjuster Assy, Rear Seatback, Inner LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72730H	Adjuster Assy, Rear Seat Reclining, RH
72730J	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72740H	Adjuster Assy, Rear Seat Reclining, LH
72740J	Adjuster Assy, Rear Seat Reclining, LH
72810A	Armrest Assy, Seat, RH
72810G	Clip, Rear Seat Armrest
72820A	Armrest Assy, Seat, LH
72830L	Armrest Assy, Rear NO.2 Seat, RH
72840A	Armrest Assy, Rear NO.2 Seat, LH
72848	Cap, NO.3 Seat Armrest
72880	Armrest Assy, Seat, C RH
72890	Armrest Assy, Seat, C LH
72927	Cover, Rear Seat Cushion Under, RH
72927B	Cover, Rear Seat Cushion Under
72927D	Clip (FOR REAR SEAT CUSHION UNDER COVER)
72928	Cover, Rear Seat Cushion Under, LH
72928A	Cover, Rear Seat Cushion Under, NO.2
72928D	Clip (FOR REAR SEAT CUSHION UNDER COVER)
72959	Spacer, Rear Seat Turn Side
72960B	Table Assy, Rear Seat Turn, RH
72969	Knob, Rear Seat Turn Lock
72969B	Knob, Rear Seat Turn Lock, RH
72969C	Knob, Rear Seat Turn Lock, LH
72970	Table Assy, Rear Seat Turn, LH
72975	Protector, Rear Seat Turn Plate
72995C	Cover, Rear Seat Cushion, Outer RH
72995D	Cover, Rear Seat Cushion, Inner RH
72996	Cover, Rear Seatback, RH
72997	Cover, Rear Seatback, LH
72998	Cover, Rear Seat Cushion, LH
72998B	Cover, Rear Seat Cushion, LH
72999A	Cover, Rear Seat Cushion Side, RH
72999B	Cover, Rear Seat Cushion Side, LH
73515	Rail, Front Seat Under Tray, NO.1
78071	Cover Sub-assy, Sub Seat Cushion, RH
78072	Cover Sub-assy, Sub Seat Cushion, LH
78073	Cover Sub-assy, Sub Seatback, RH
78074	Cover Sub-assy, Sub Seatback, LH
78656	Cover, Rear Seat Legrest
78687	Cover, Rear Seat Legrest Lock
78701	Frame Sub-assy, Sub Seat Cushion, RH
78702	Frame Sub-assy, Sub Seat Cushion, LH
78703	Frame Sub-assy, Sub Seatback
78720	Cushion Assy, Sub Seat, RH
78722	Plate, Sub Seat Cushion Board, NO.1
78727	Board, Sub Seat Cushion
78730	Cushion Assy, Sub Seat, LH
78735	Pad, Sub Seat Cushion
78740A	Back Assy, Sub Seat, RH
78750A	Back Assy, Sub Seat, LH
78775	Pad, Sub Seatback
78875	Striker, Sub Seat Lock
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79013A	Cover Sub-assy, NO.1 Seatback
79014	Cover Sub-assy, NO.1 Seatback, LH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79130	Cushion Assy, NO.1 Seat, LH
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79140	Back Assy, NO.1 Seat, RH
79140A	Back Assy, NO.1 Seat
79150	Back Assy, NO.1 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79160A	Spring Assy, NO.1 Seat Cushion, RH
79169	Rod, Rear Seat Hinge Connector
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79175E	Pad, NO.1 Seatback, RH
79180	Spring Assy, NO.1 Seatback
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79187	Cover, NO.1 Seat Inner Bracket
79190A	Spring Assy, NO.1 Seatback, LH
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79236A	Cover, NO.2 Seat Leg
79236B	Cover, NO.2 Seat Leg, LH
79320	Cushion Assy, NO.3 Seat, RH
79330	Cushion Assy, NO.3 Seat, LH
79335A	Pad, NO.3 Seat Cushion, RH
79340	Back Assy, NO.3 Seat, RH
79345A	Pad, NO.3 Seat Cushion, LH
79350	Back Assy, NO.3 Seat, LH
79360A	Spring Assy, NO.3 Seat Cushion, RH
79365	Cover, NO.3 Seat Leg Bracket
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79370A	Spring Assy, NO.3 Seat Cushion, LH
79372	Cover, NO.3 Seat Front Bracket, RH
79372A	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79374A	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79380A	Spring Assy, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79382A	Cover, NO.3 Seat Front Bracket, LH
79384	Cover, NO.3 Seat Leg, Rear LH
79384A	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79390A	Spring Assy, NO.3 Seatback, LH
79937	Cover, Rear Seat Leg, NO.2
79955A	Cover, Rear Seat Front Bracket, RH
79956A	Clip (FOR REAR SEAT LEG BRACKET COVER)
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79956S	Cover, Rear Seat Leg Side
79957A	Cover, Rear Seat Rear Bracket, RH
79958A	Cover, Rear Seat Rear Bracket, LH
79959A	Cover, Rear Seat Leg, RH
79965	Cover, Rear Seat Leg Side, NO.2
79965A	Cover, Rear Seat Leg Side, NO.2
79966	Cover, Rear Seat Leg Side, NO.3
79967	Cover, Rear Seat Leg Side, NO.4
79968	Cover, Rear Seat Leg Side, NO.5
79968A	Cover, Rear Seat Leg Side, NO.5
79969	Cover, Rear Seat Leg Side, NO.6

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
