Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

58 part groups · 73 illustrations

Illustrations

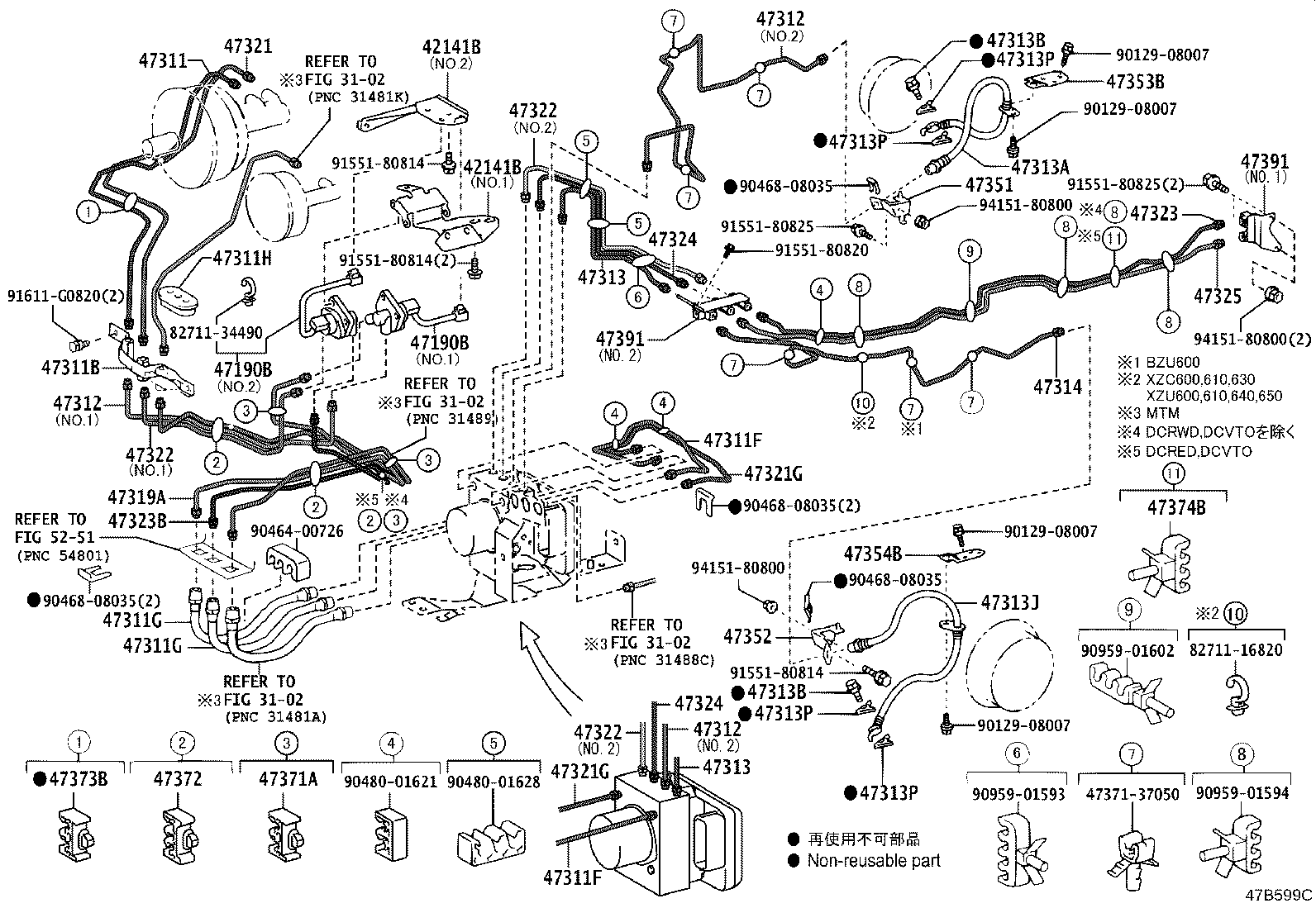

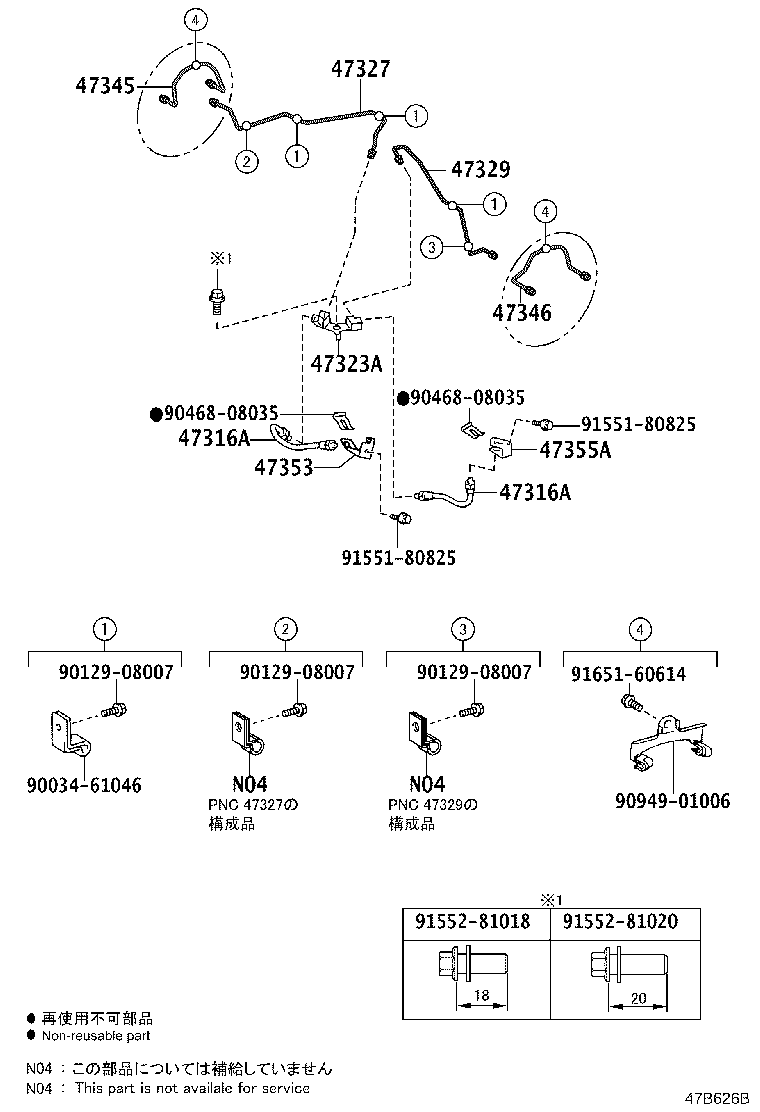

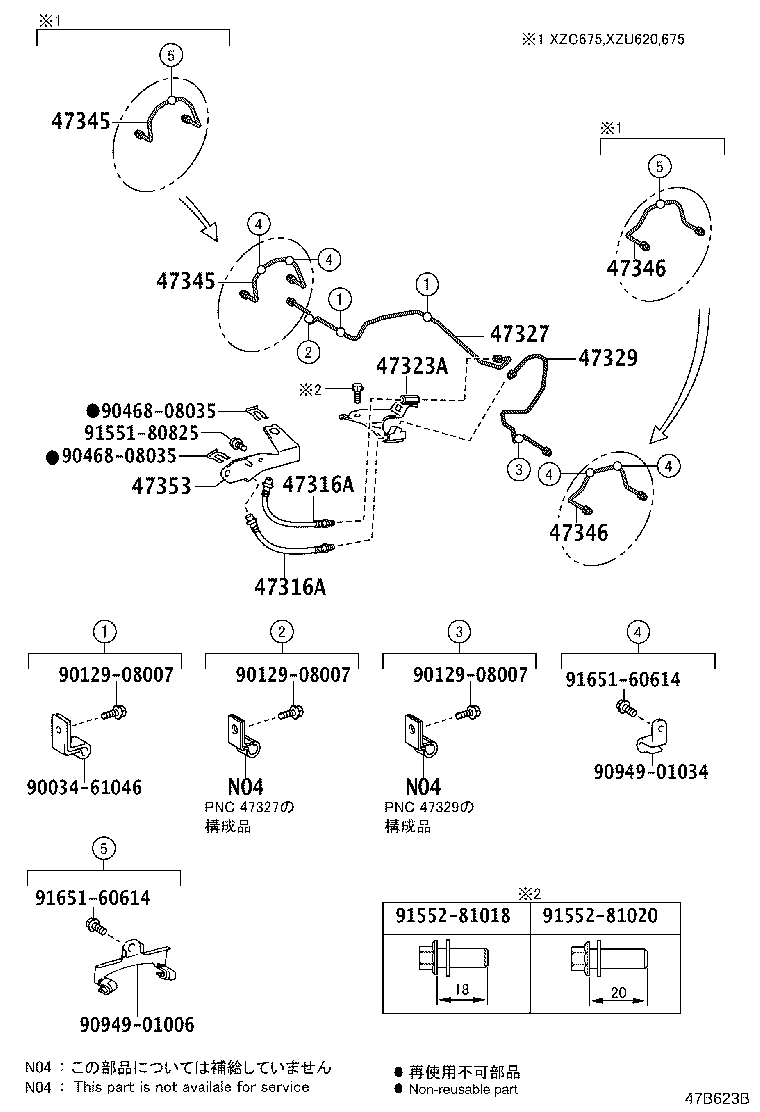

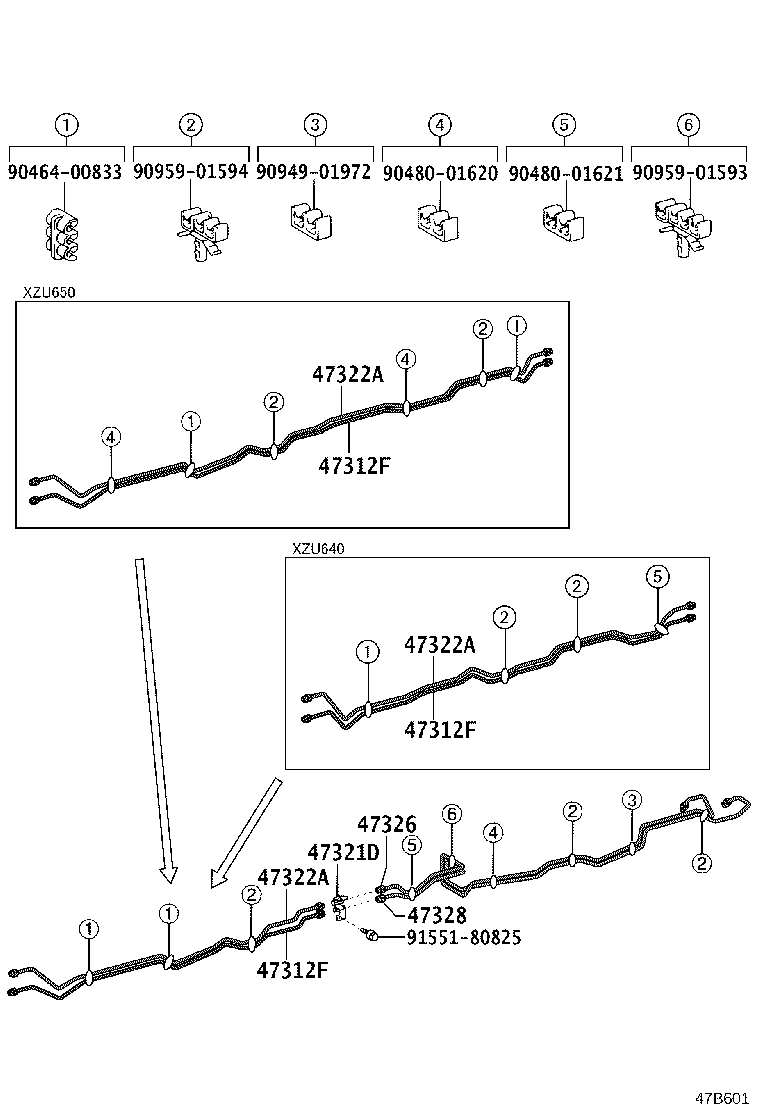

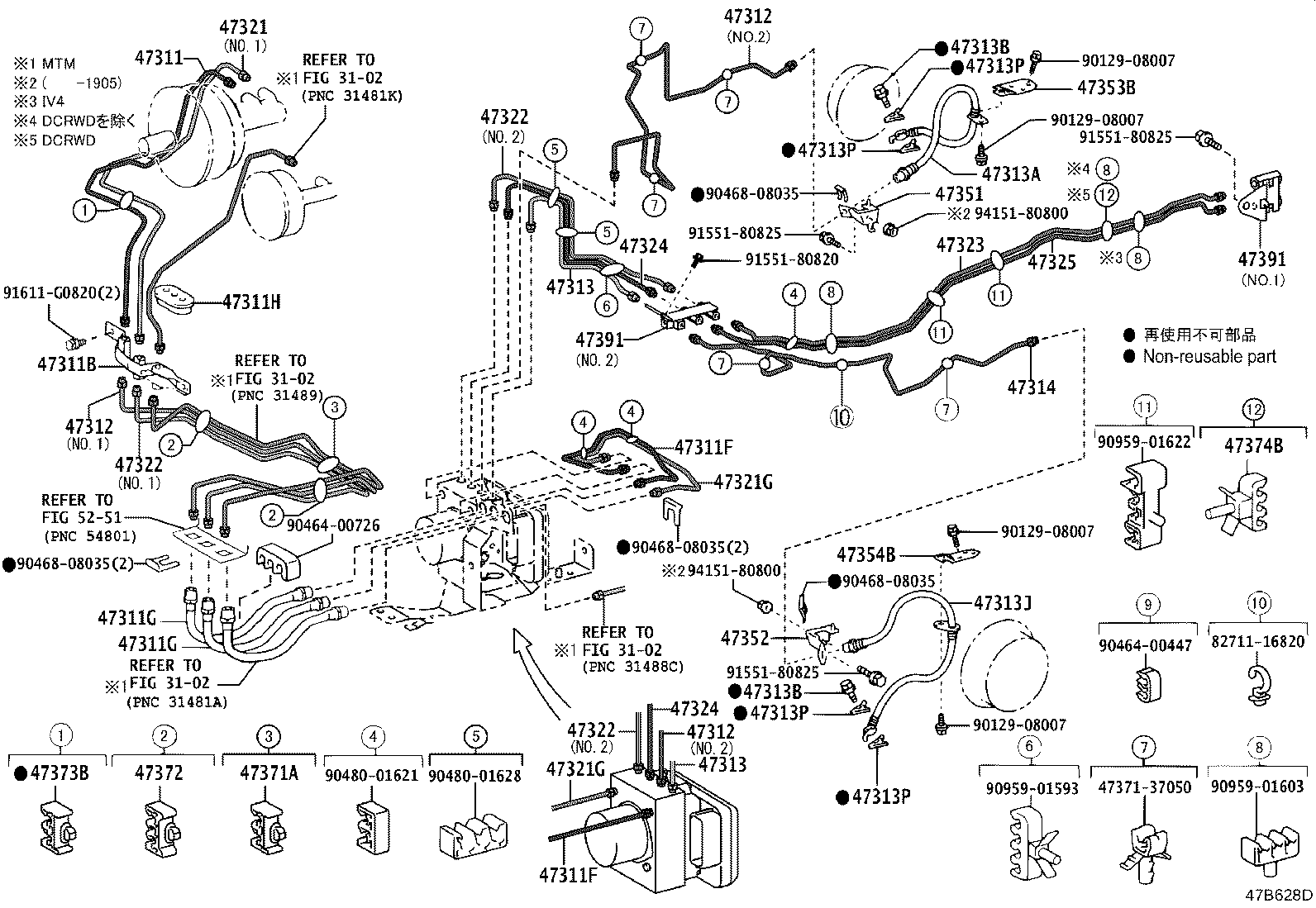

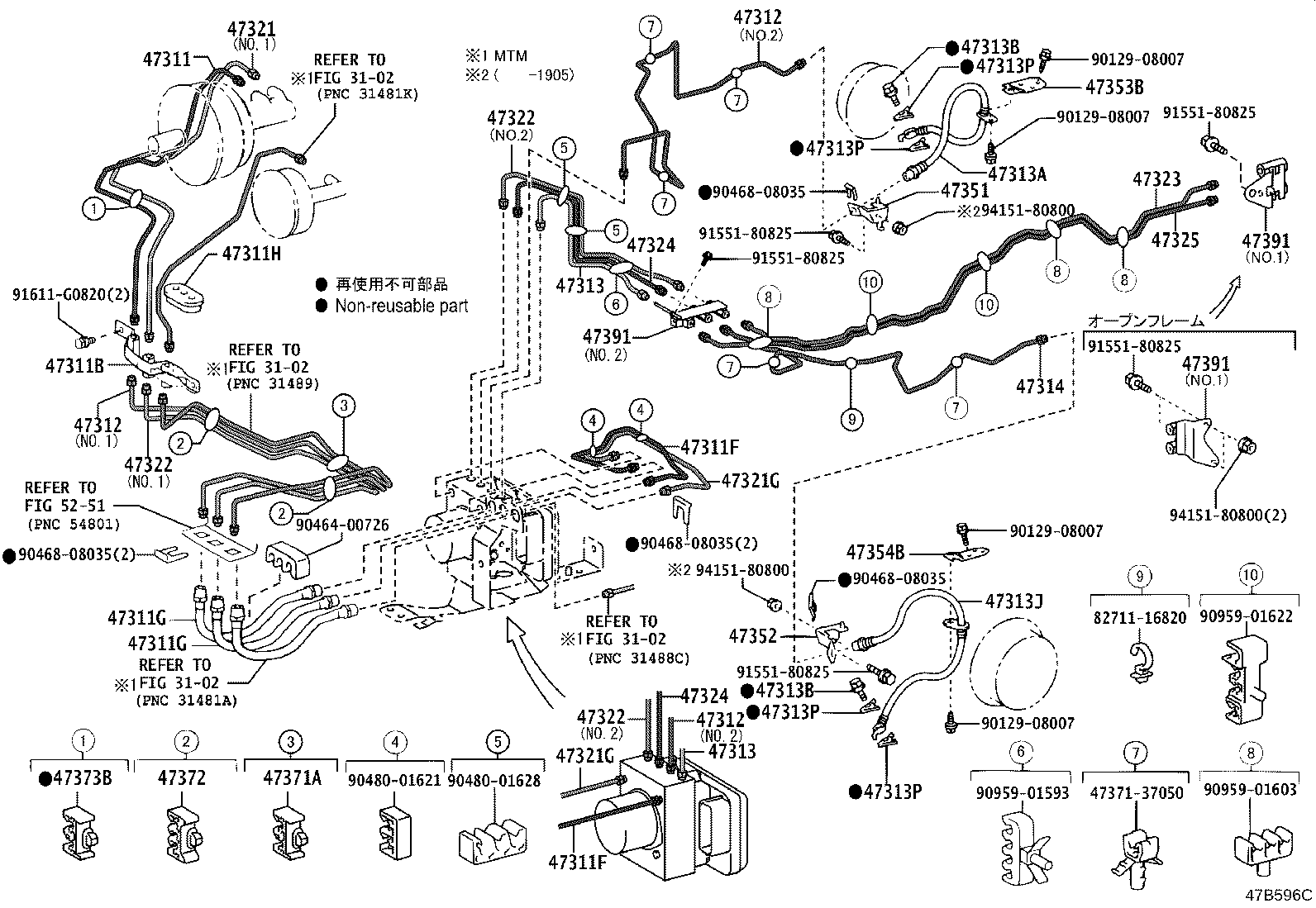

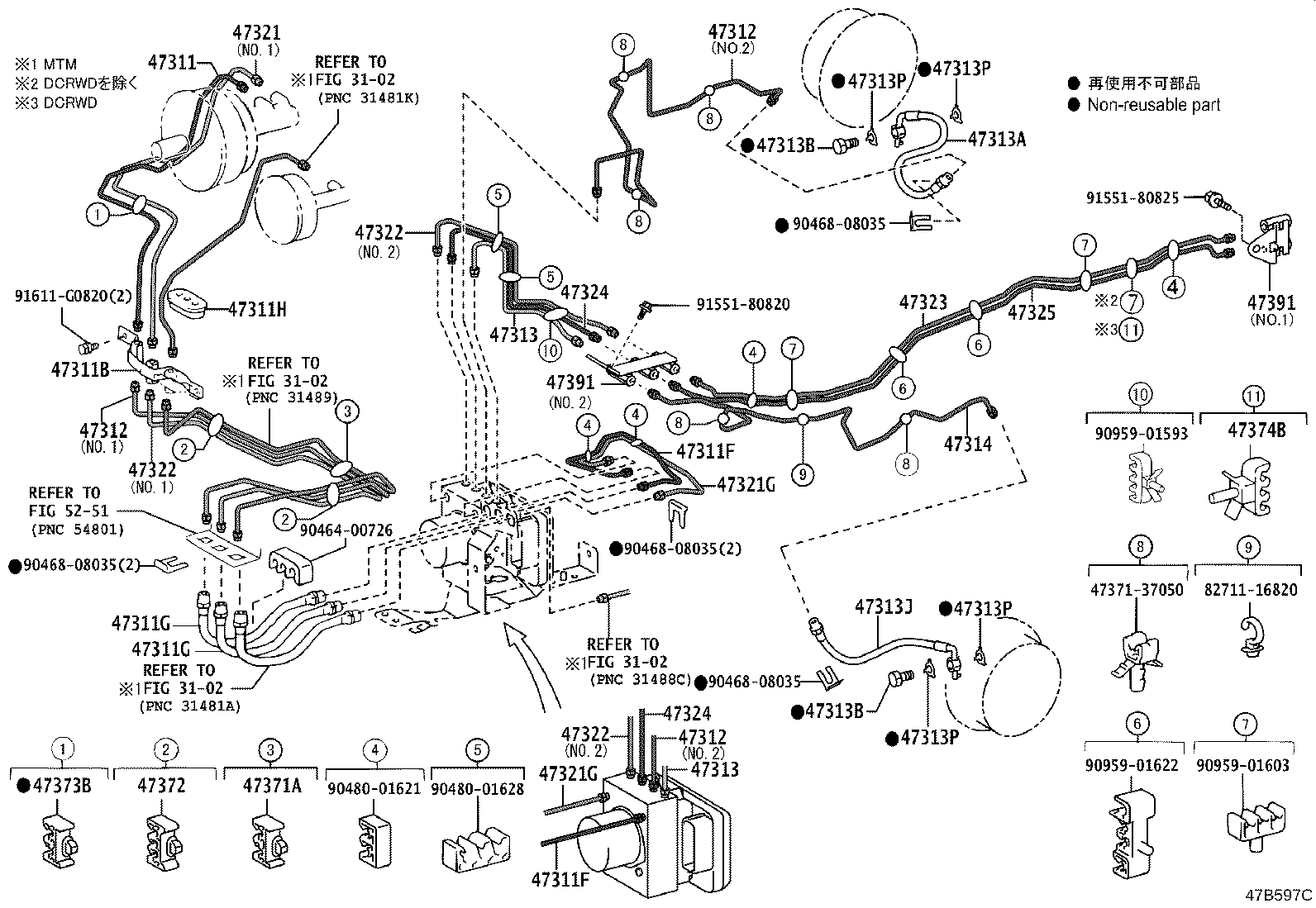

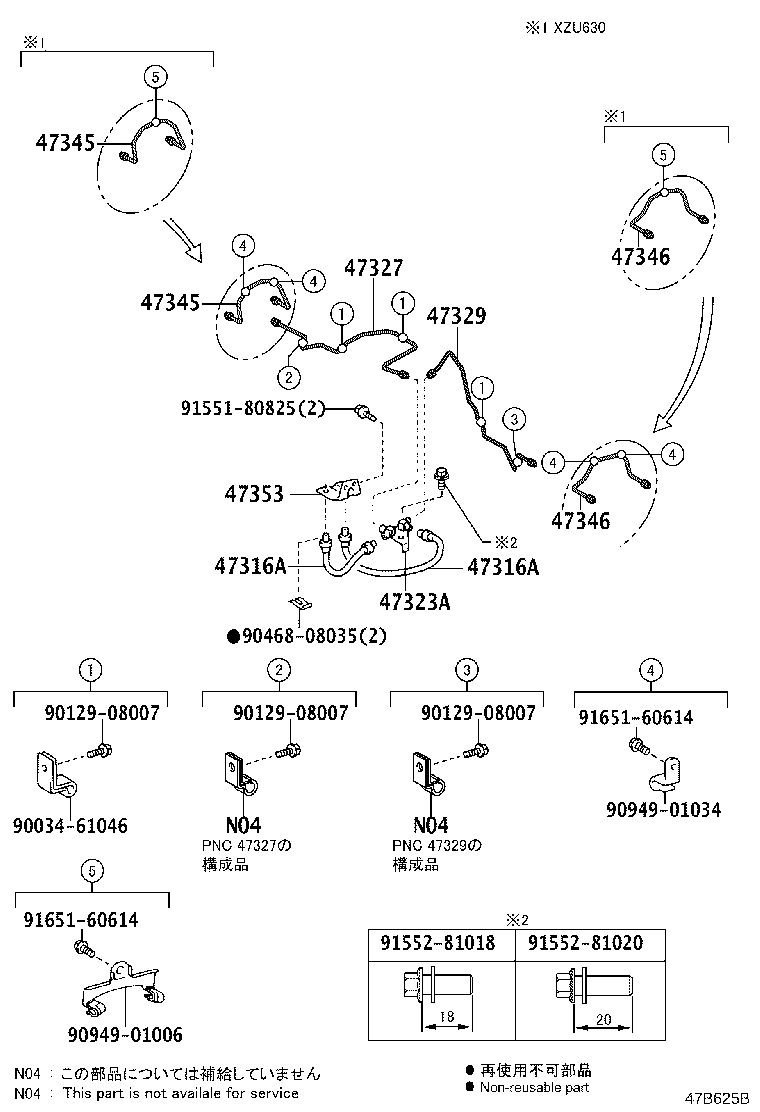

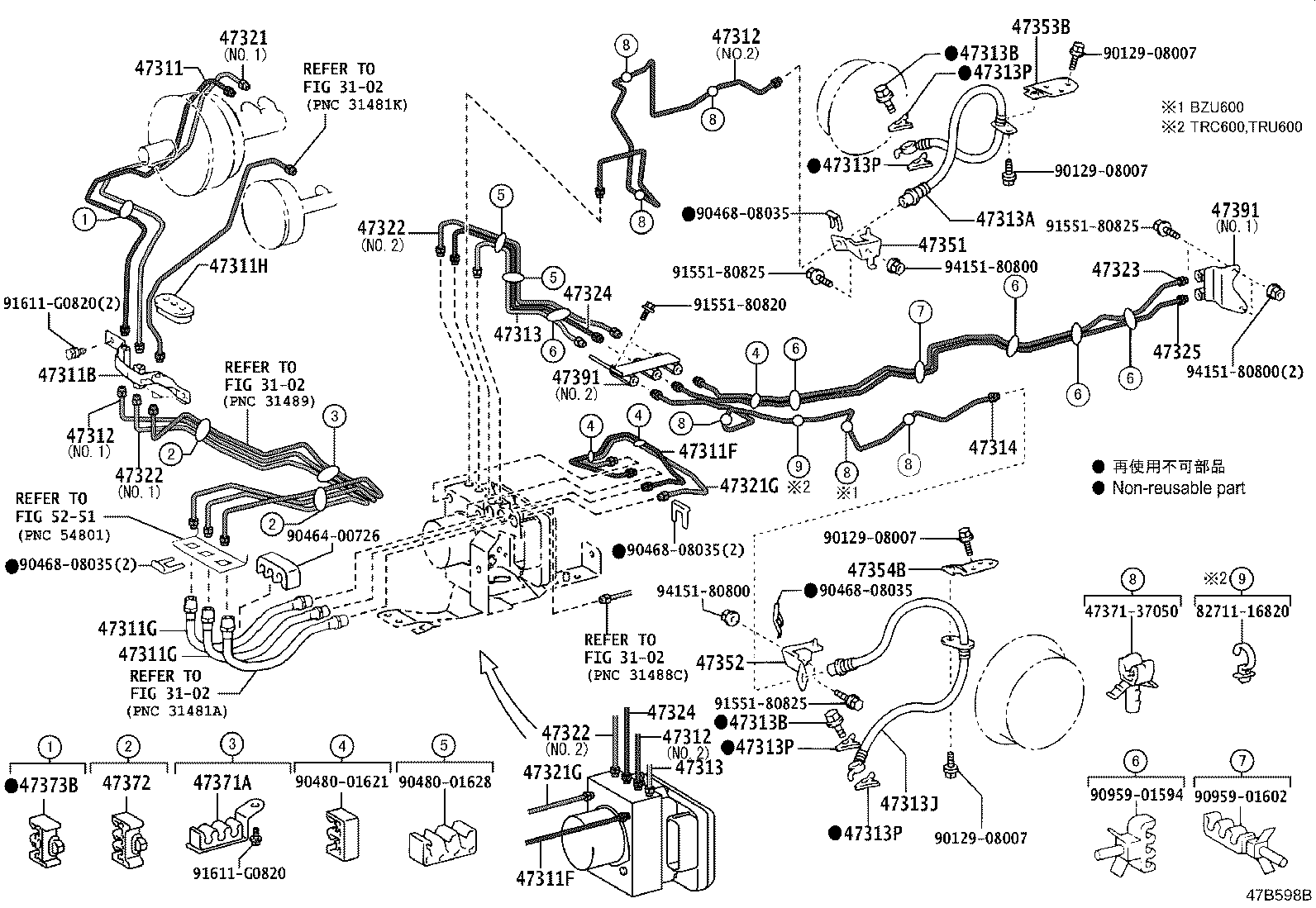

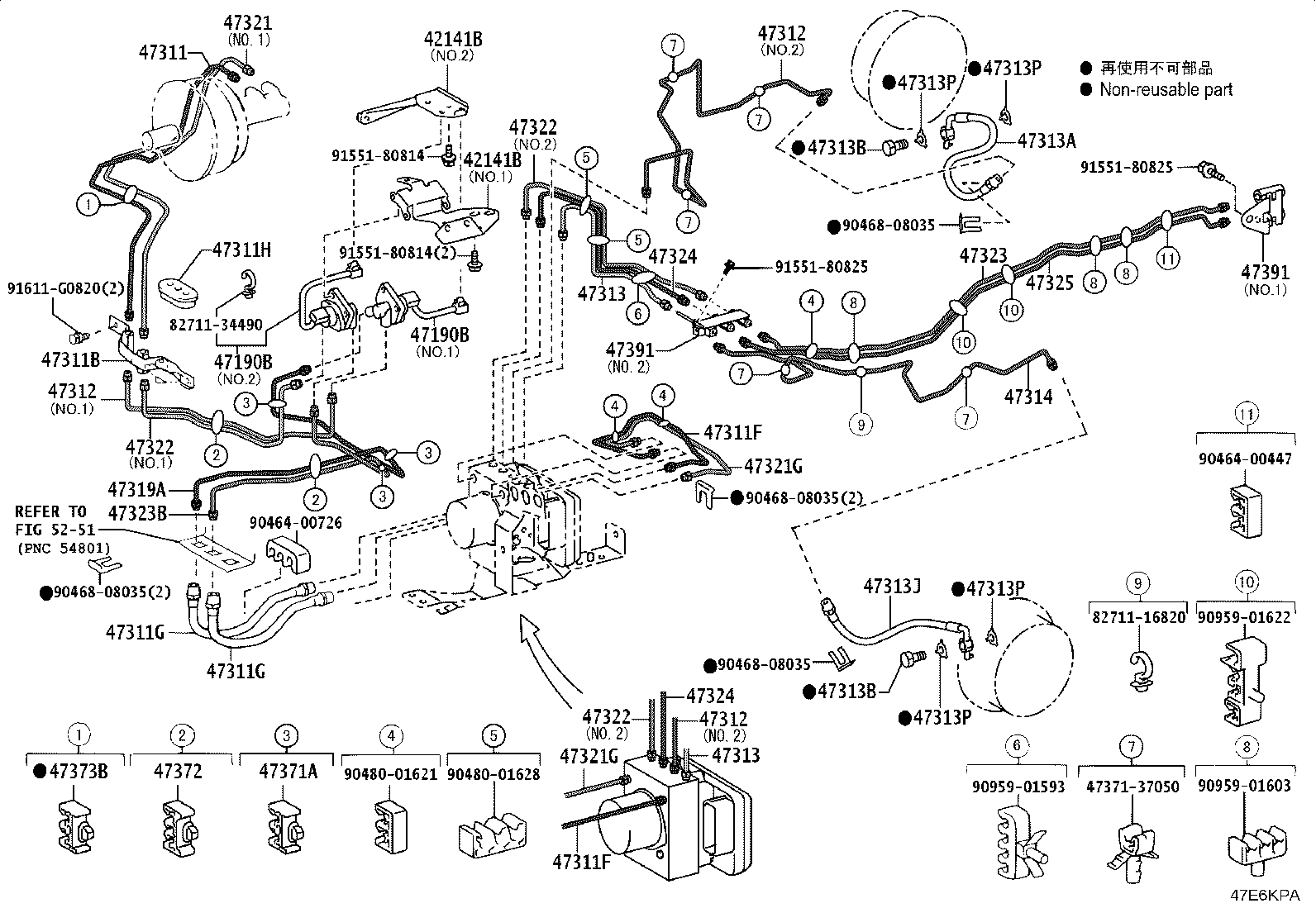

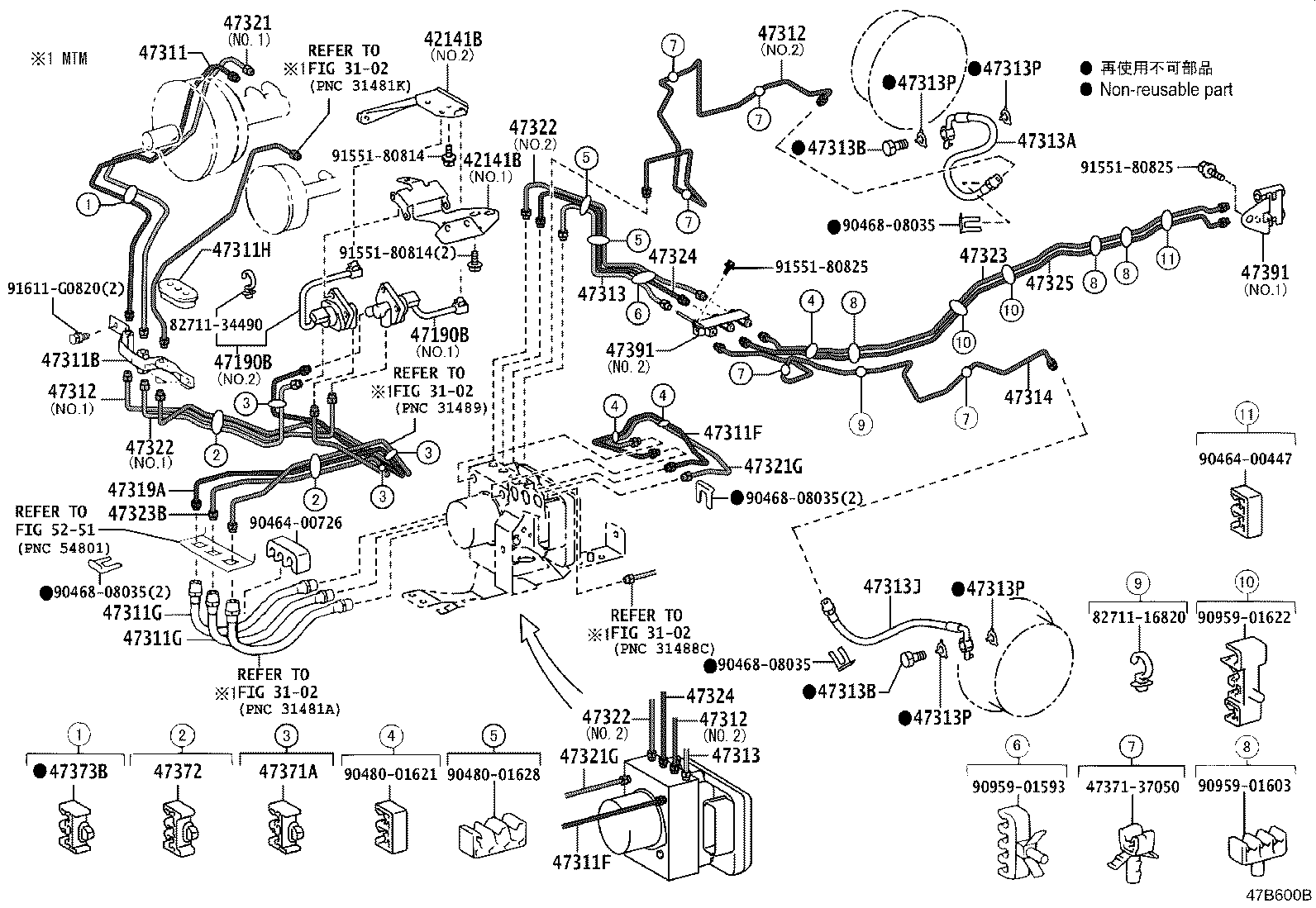

Figure 47B595C 47B595C 2011-07 → — Figure 47B595C 47B595C 2019-05 → — Figure 47B628D 47B628D 2011-07 → — Figure 47B628D 47B628D 2019-05 → — Figure 47B628D 47B628D 2019-05 → — Figure 47B596C 47B596C 2011-07 → — Figure 47B596C 47B596C 2019-05 → — Figure 47B597C 47B597C 2011-07 → — Figure 47B597C 47B597C 2011-07 → — Figure 47B597C 47B597C 2019-05 → — Figure 47B598B 47B598B 2011-07 → — Figure 47B599C 47B599C 2011-07 → — Figure 47B599C 47B599C 2011-07 → — Figure 47B599C 47B599C 2011-07 → — Figure 47B599C 47B599C 2019-05 → — Figure 47B599C 47B599C 2019-05 → — Figure 47B600B 47B600B 2011-07 → — Figure 47B600B 47B600B 2011-07 → — Figure 47E6KPA 47E6KPA 2011-07 → — Figure 47B601 47B601 2011-07 → — Figure 47B601 47B601 2011-07 → — Figure 47B602 47B602 2011-07 → — Figure 47B603 47B603 2011-07 → — Figure 47B604 47B604 2011-07 → — Figure 47B605 47B605 2011-07 → — Figure 47B606 47B606 2011-07 → — Figure 47B607 47B607 2011-07 → — Figure 47B608 47B608 2011-07 → — Figure 47B609 47B609 2011-07 → — Figure 47B610 47B610 2011-07 → — Figure 47B611 47B611 2011-07 → — Figure 47B612 47B612 2017-05 → — Figure 47B613 47B613 2017-05 → — Figure 47B614 47B614 2017-05 → — Figure 47B921 47B921 2019-05 → — Figure 47B922 47B922 2019-05 → — Figure 47B923 47B923 2019-05 → — Figure 47B925 47B925 2019-05 → — Figure 47B615A 47B615A 2011-07 → — Figure 47B616A 47B616A 2011-07 → 2016-05 Figure 47B616A 47B616A 2016-05 → 2017-05 Figure 47B617B 47B617B 2016-05 → — Figure 47B617B 47B617B 2017-05 → — Figure 47B617B 47B617B 2018-05 → — Figure 47B617B 47B617B 2019-05 → — Figure 47B617B 47B617B 2019-05 → — Figure 47B618B 47B618B 2011-07 → — Figure 47B618B 47B618B 2019-05 → — Figure 47B619B 47B619B 2011-07 → 2018-05 Figure 47B619B 47B619B 2011-07 → — Figure 47B619B 47B619B 2011-07 → — Figure 47B619B 47B619B 2019-05 → — Figure 47B619B 47B619B 2019-05 → — Figure 47B620B 47B620B 2011-07 → 2016-05 Figure 47B620B 47B620B 2011-07 → 2018-05 Figure 47B620B 47B620B 2011-07 → — Figure 47B620B 47B620B 2011-07 → — Figure 47B620B 47B620B 2019-05 → — Figure 47B621A 47B621A 2011-07 → — Figure 47B622A 47B622A 2011-07 → 2016-05 Figure 47B623B 47B623B 2016-05 → — Figure 47B623B 47B623B 2019-05 → — Figure 47B624A 47B624A 2011-07 → 2016-05 Figure 47B625B 47B625B 2016-05 → — Figure 47B625B 47B625B 2019-05 → — Figure 47B626B 47B626B 2016-05 → — Figure 47B626B 47B626B 2018-05 → — Figure 47B626B 47B626B 2019-05 → — Figure 47B626B 47B626B 2019-05 → — Figure 47B627B 47B627B 2011-07 → — Figure 47B627B 47B627B 2019-05 → — Figure 47B627B 47B627B 2019-05 → — Figure 477574A 477574A 2011-07 → —

Part groups

PNCDescription
42141B Attachment, Skid Control Wire, NO.1
44510 Actuator Assy, Brake
44521A Collar, Brake Actuator Case, NO.1
44547B Cushion, Brake Actuator Bracket
44590 Bracket Assy, Brake Actuator
47190B Valve Assy, Blend Proportioning
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47311H Grommet(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319A Tube, Front Brake, NO.10
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47323B Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47379R Damper, Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47391 Way, Brake Tube
47392A Way, Brake Tube, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
