Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

62 part groups · 26 illustrations

Illustrations

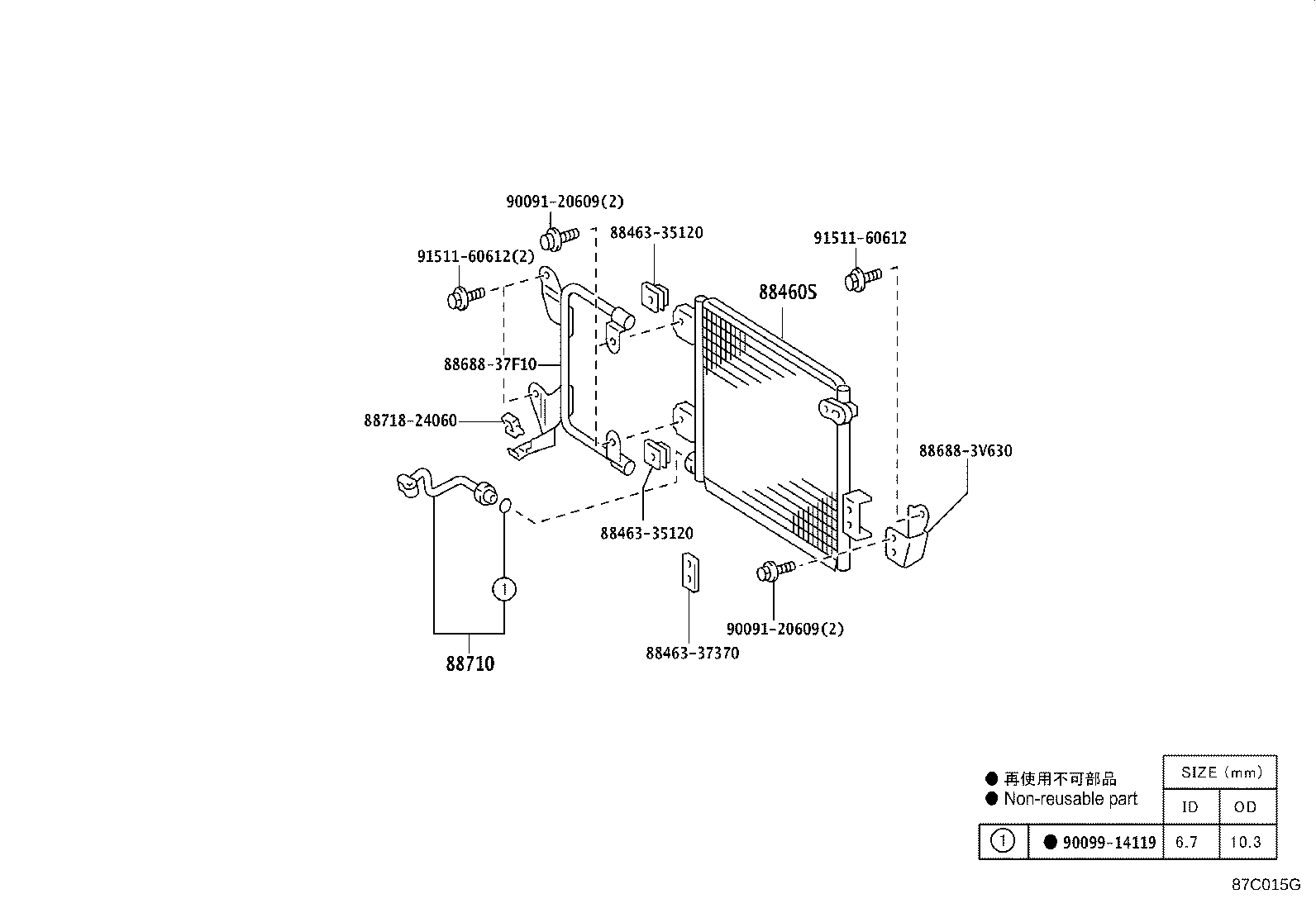

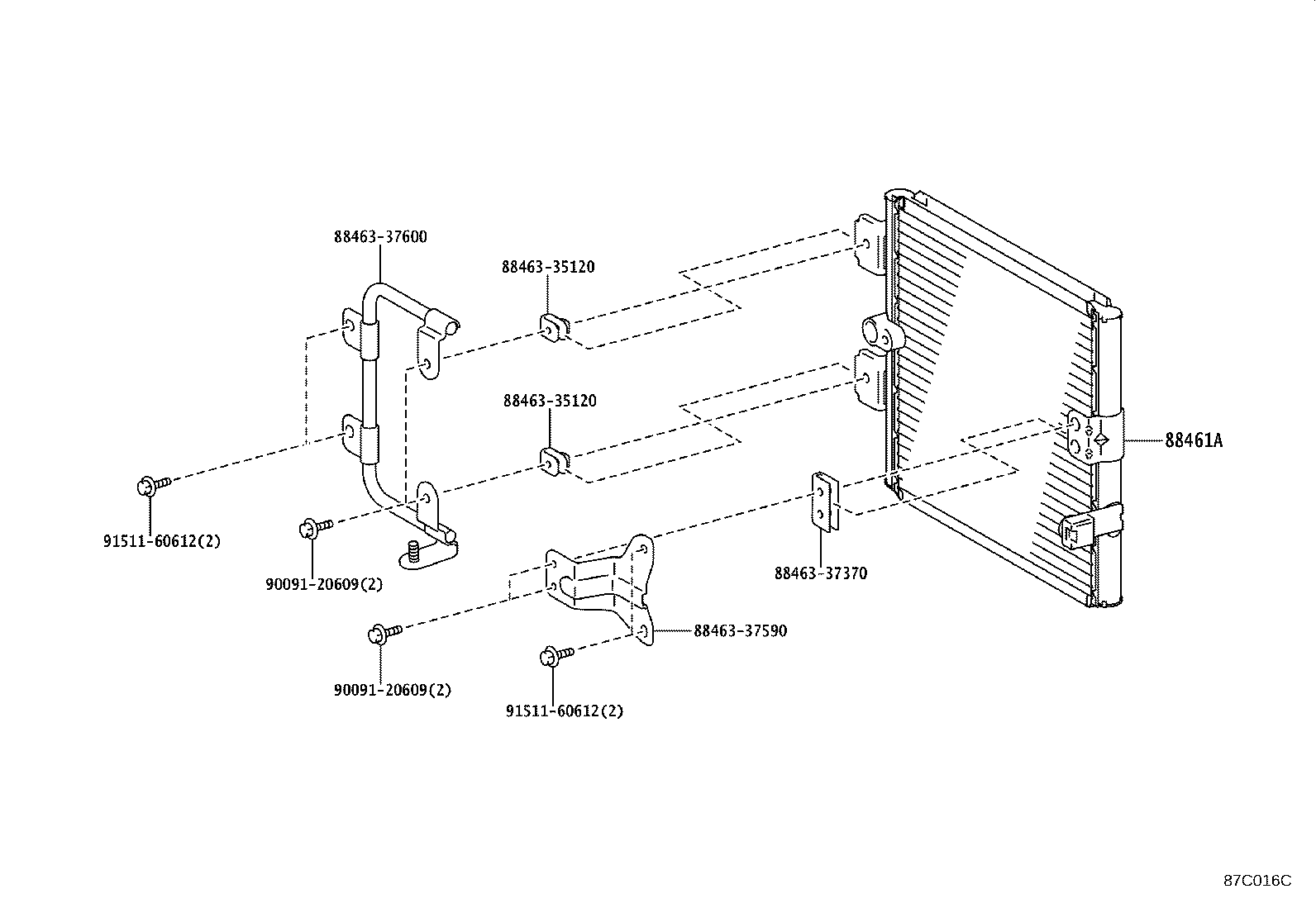

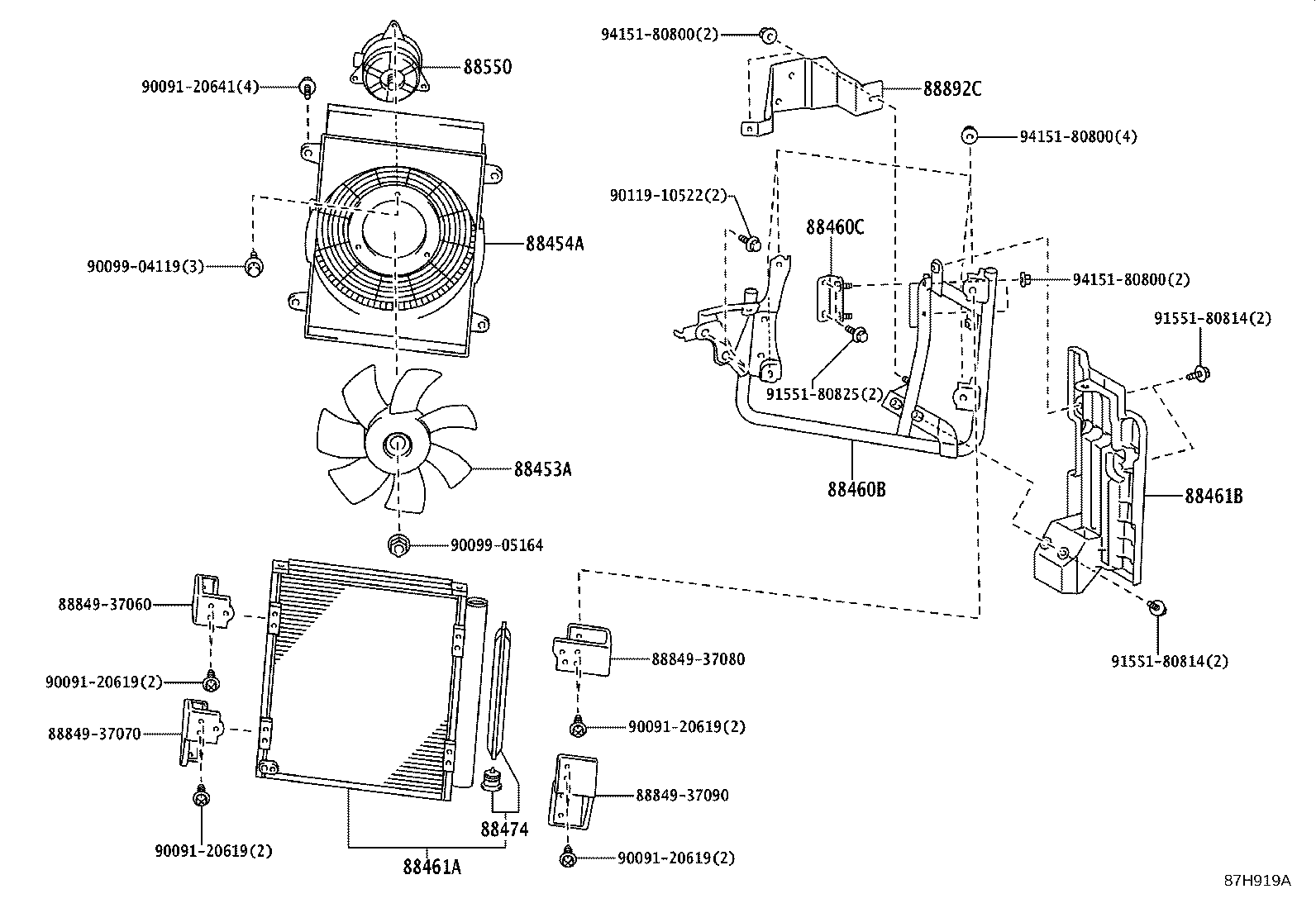

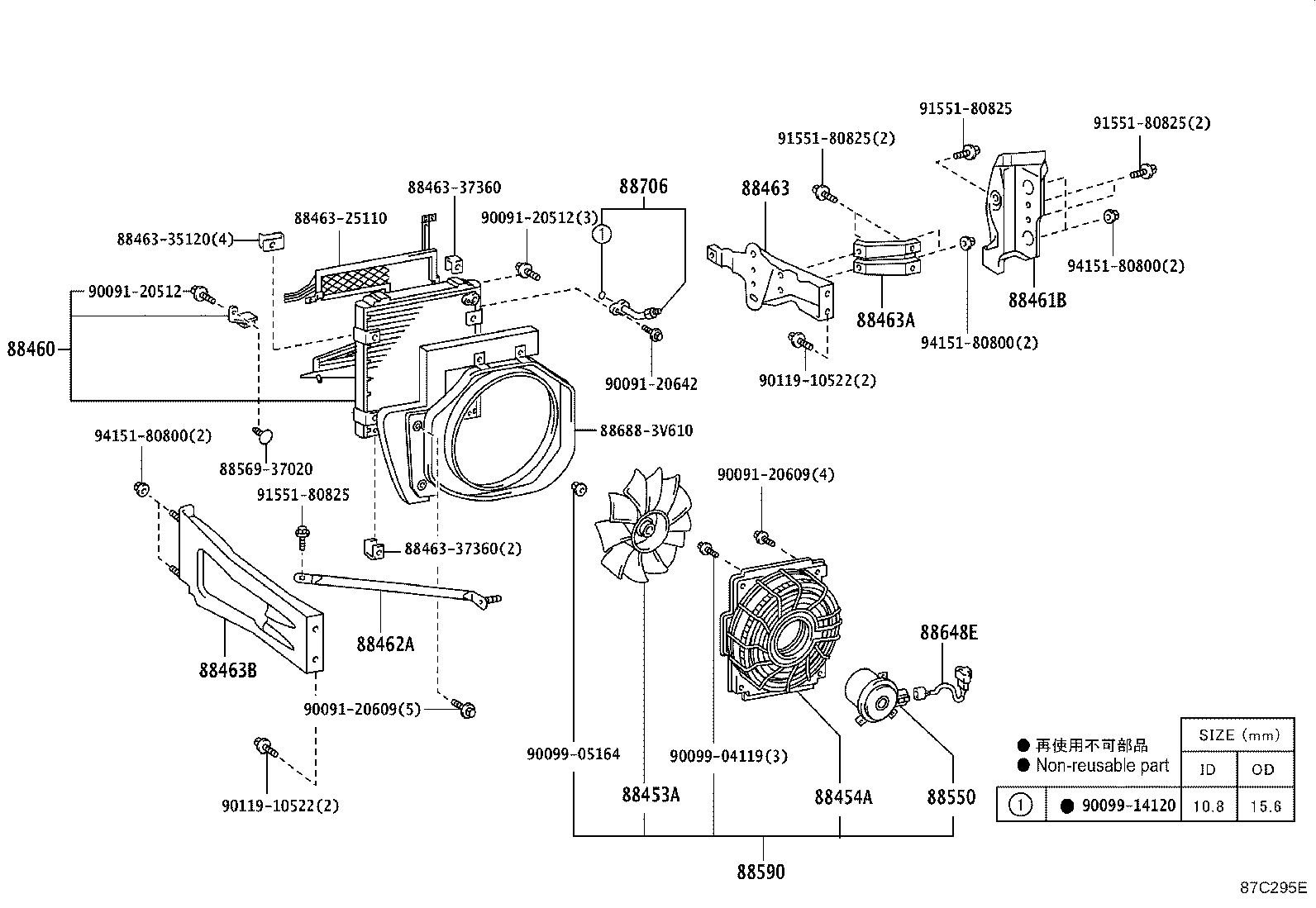

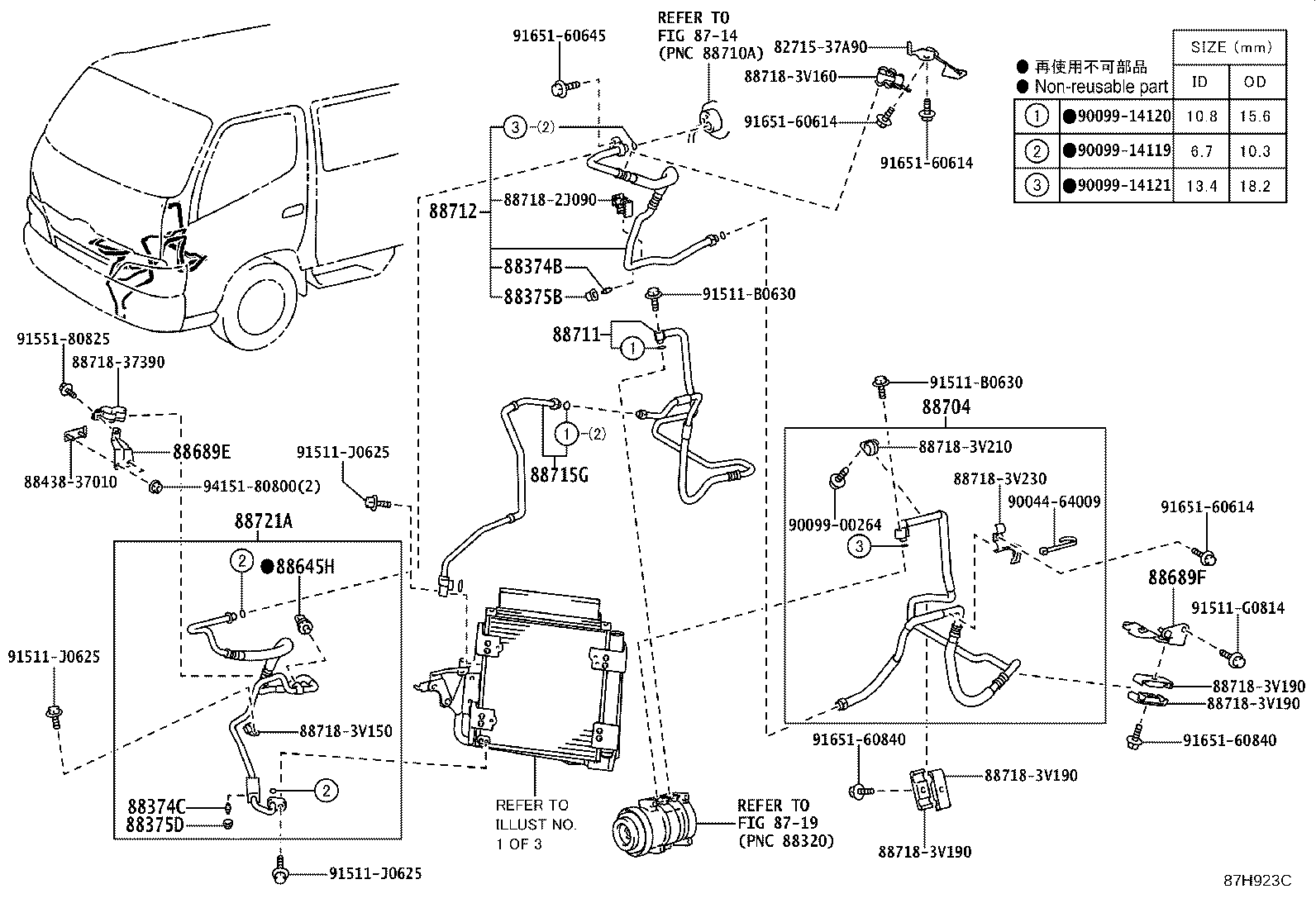

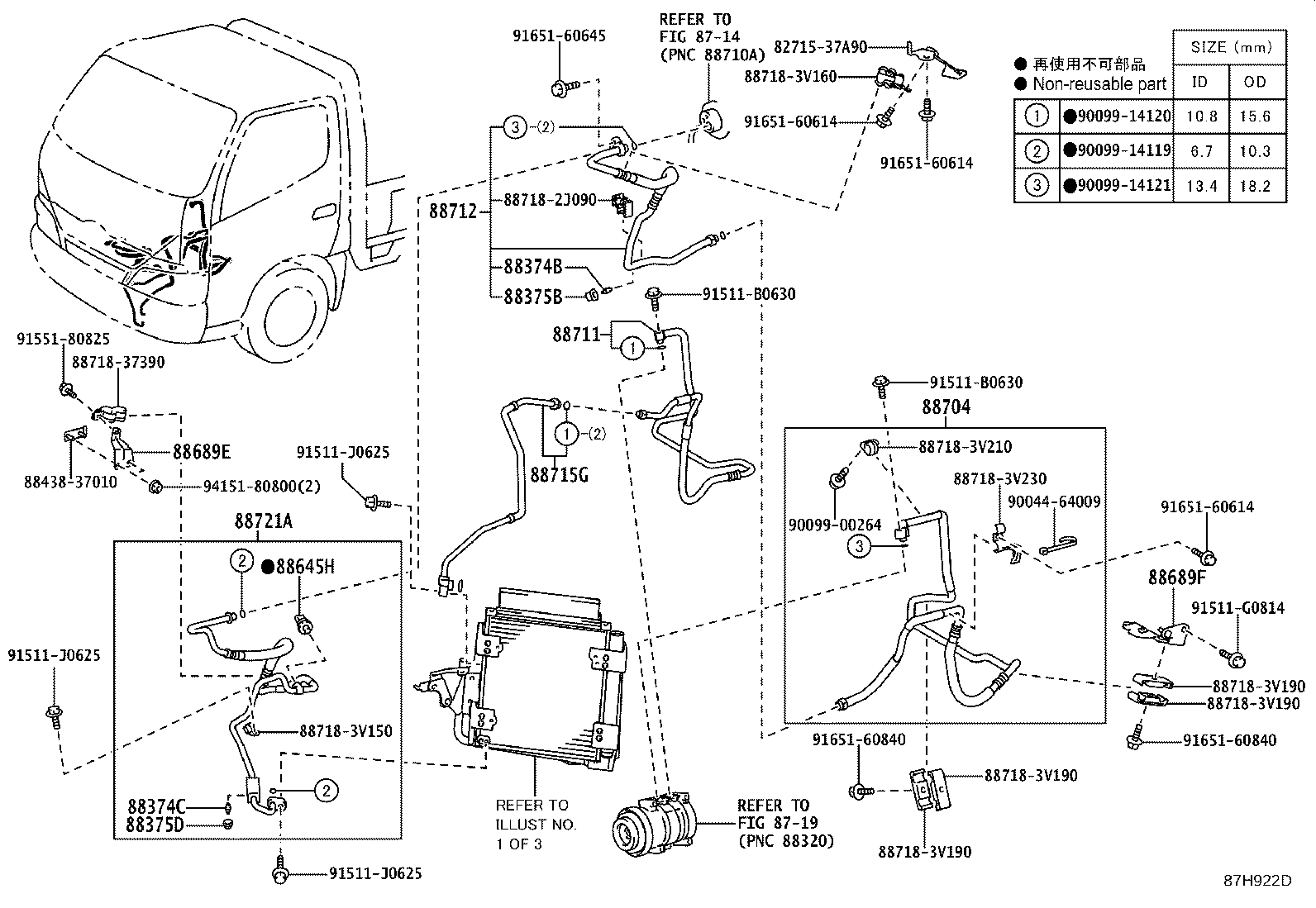

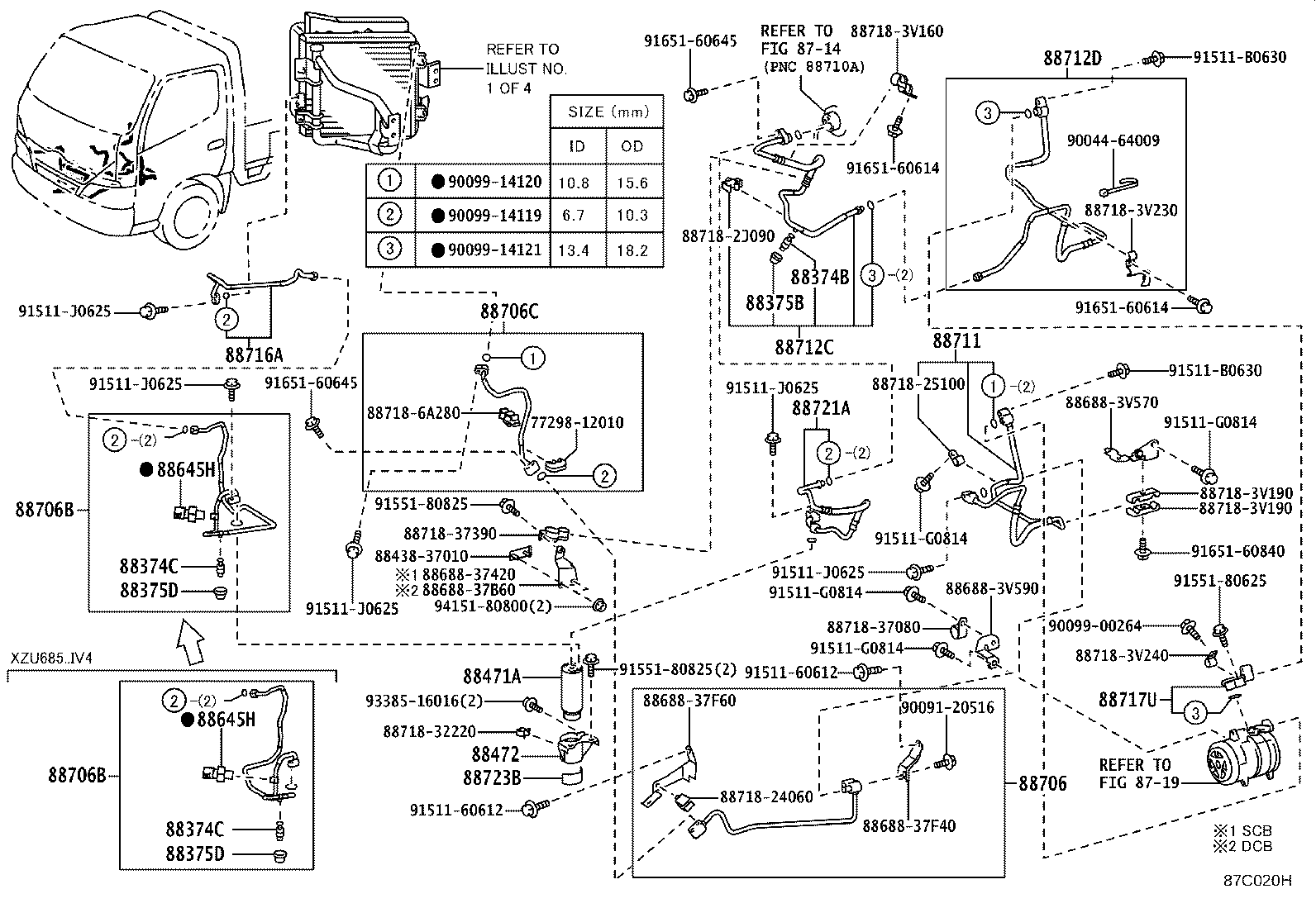

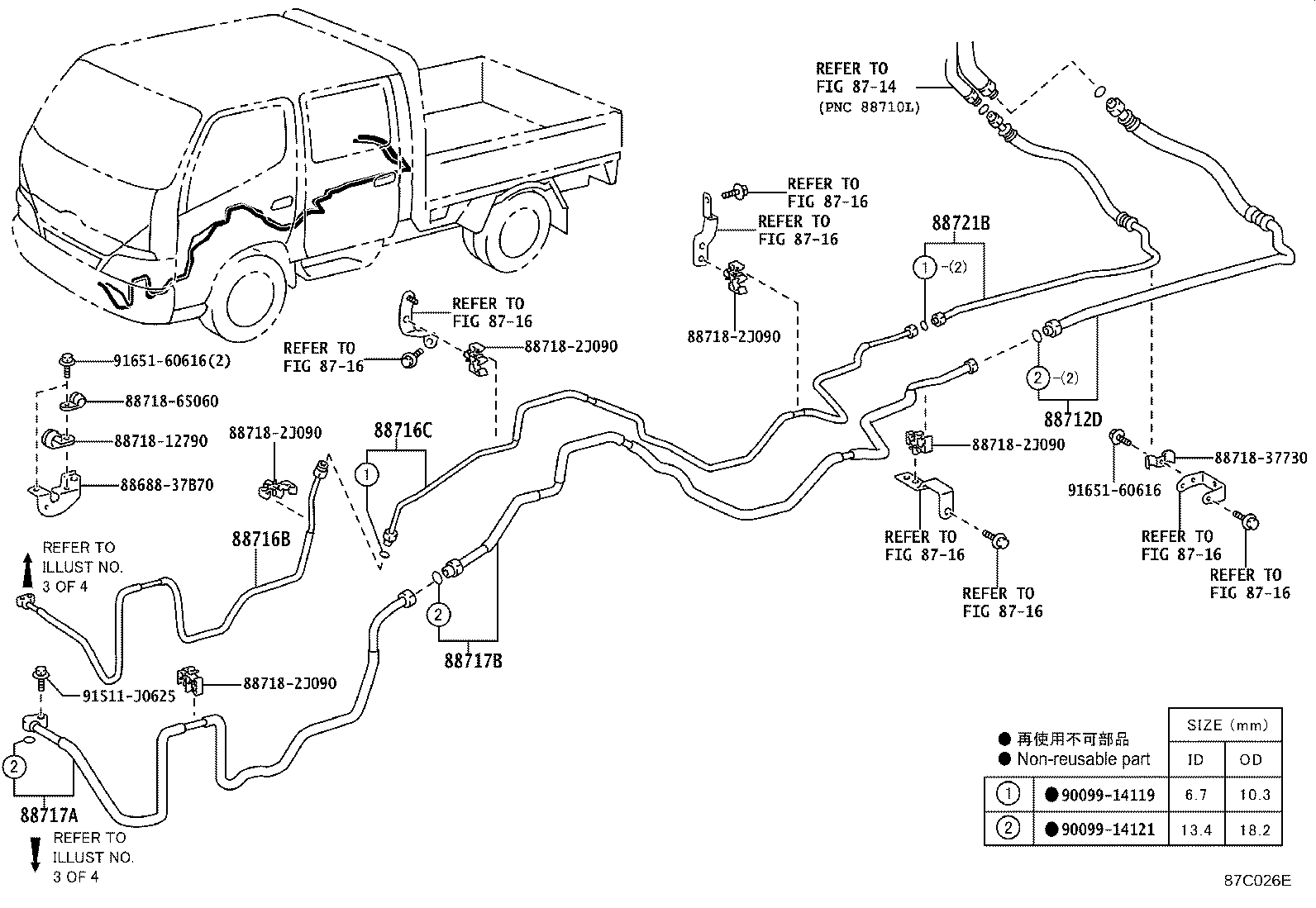

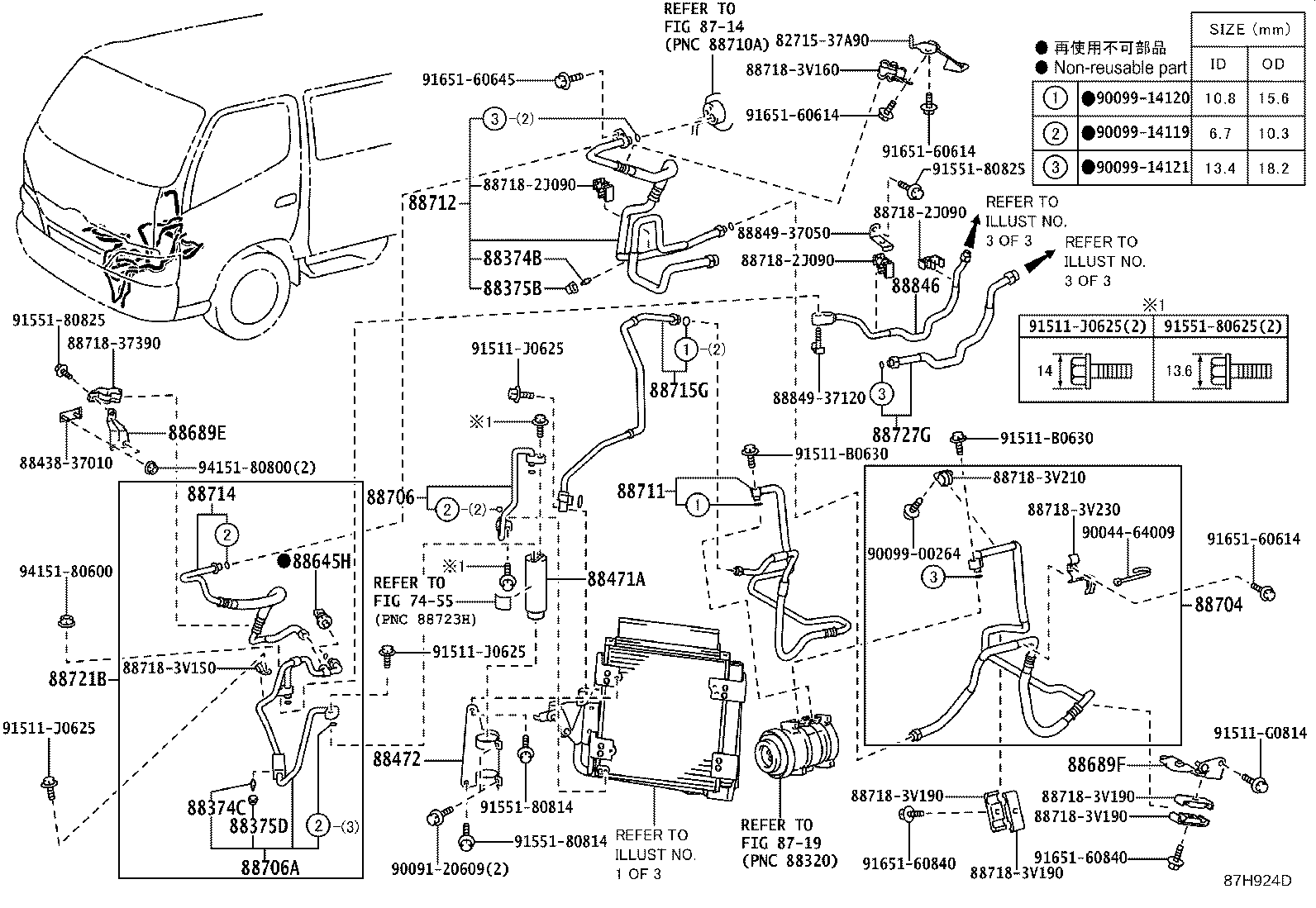

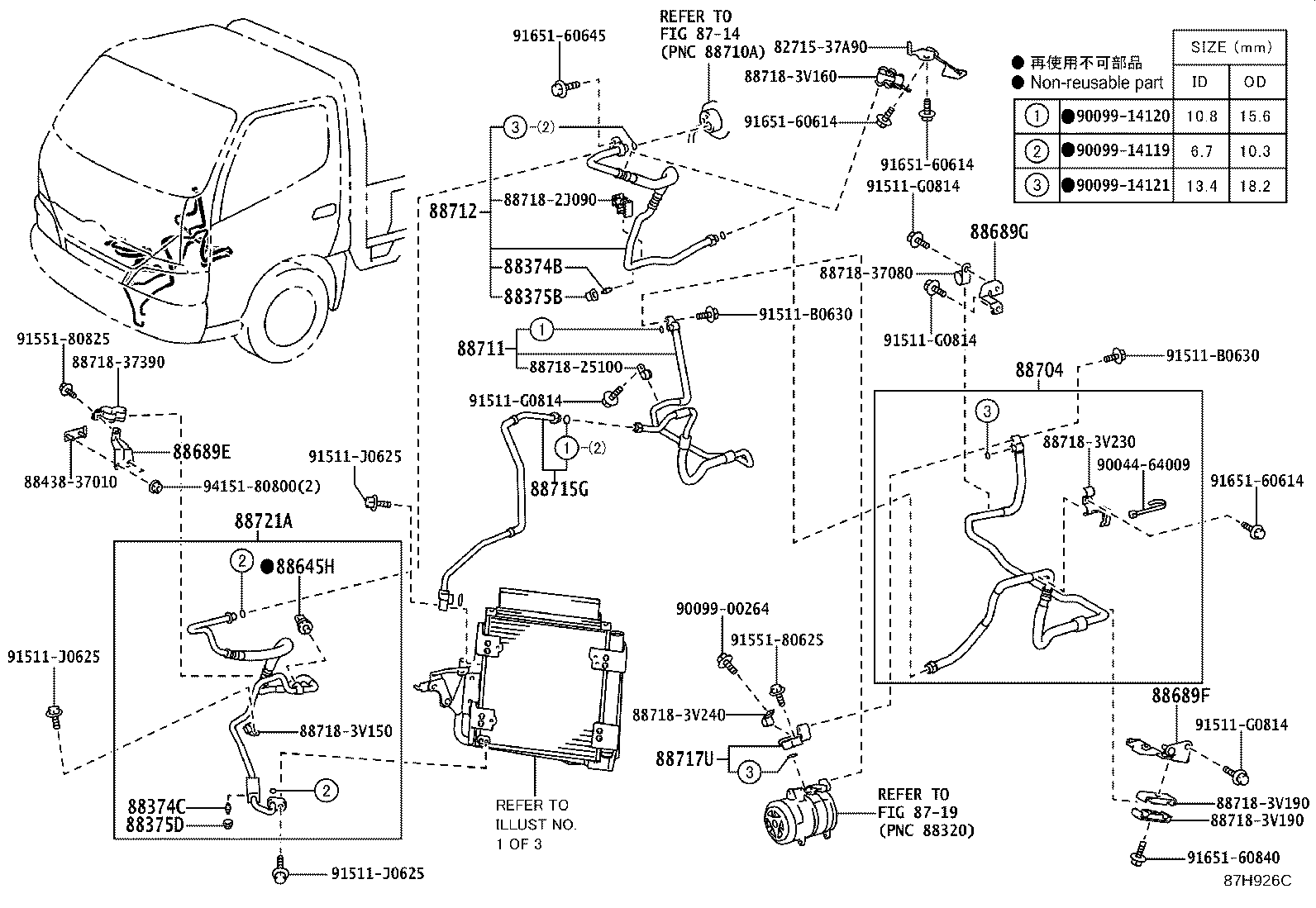

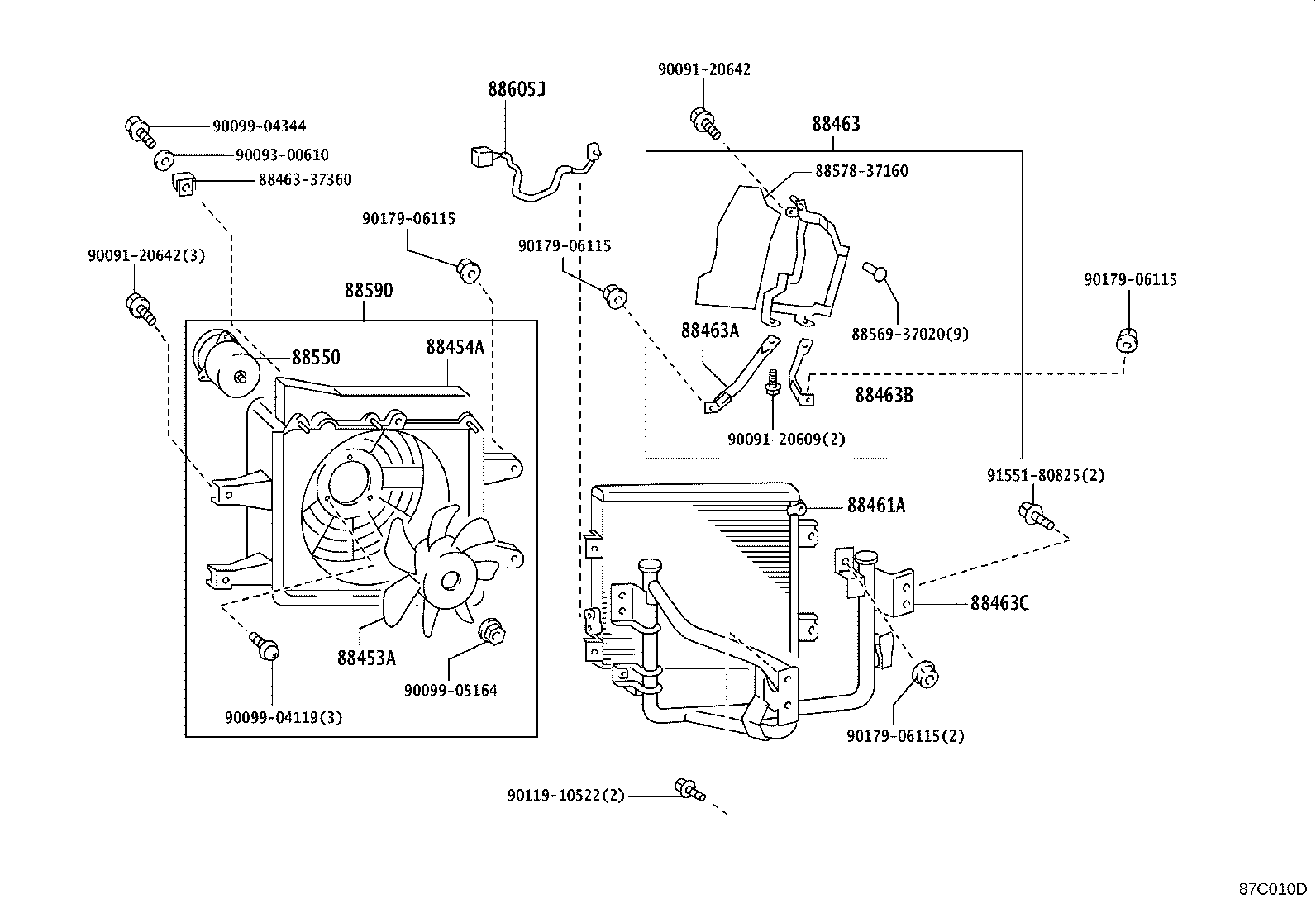

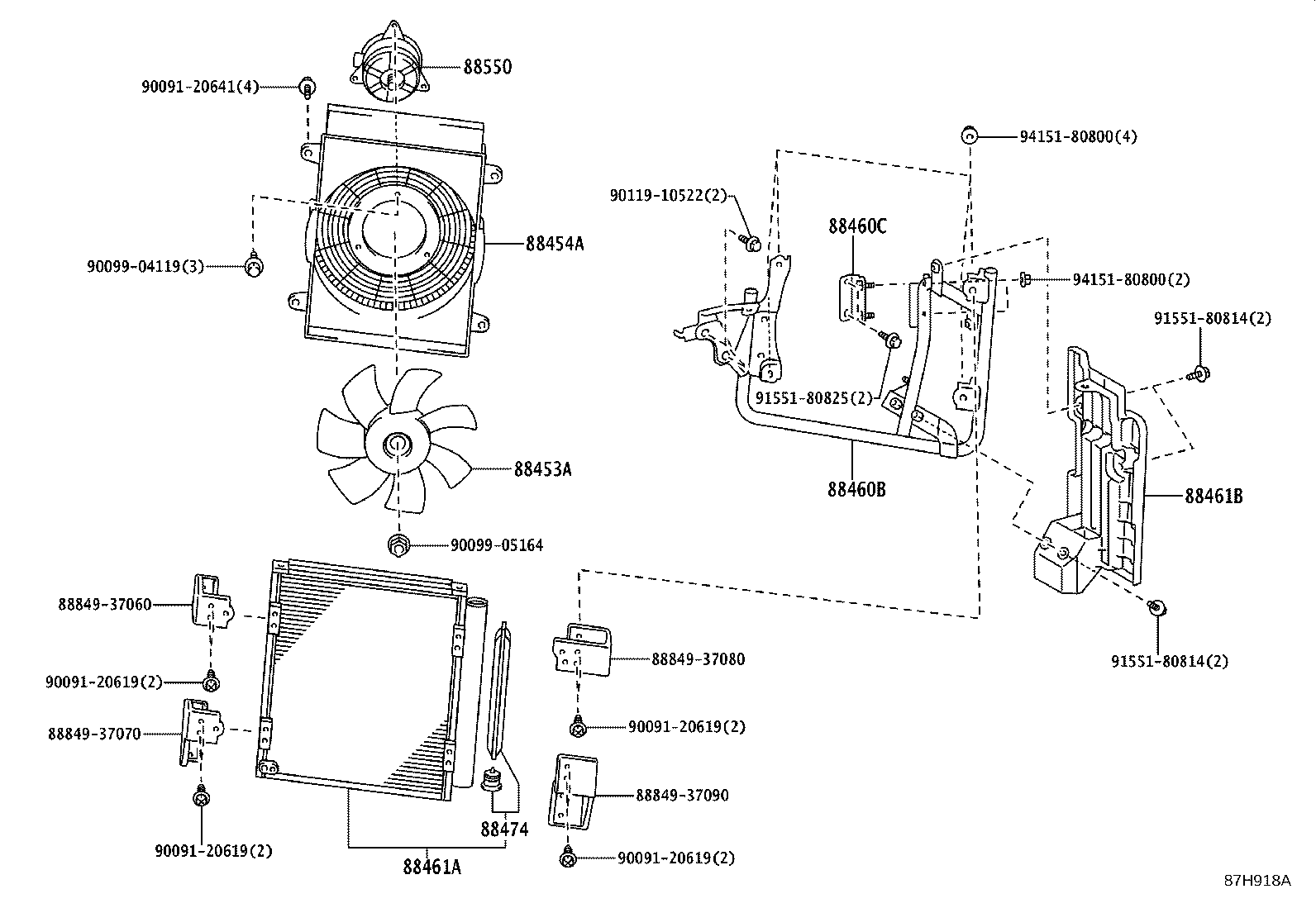

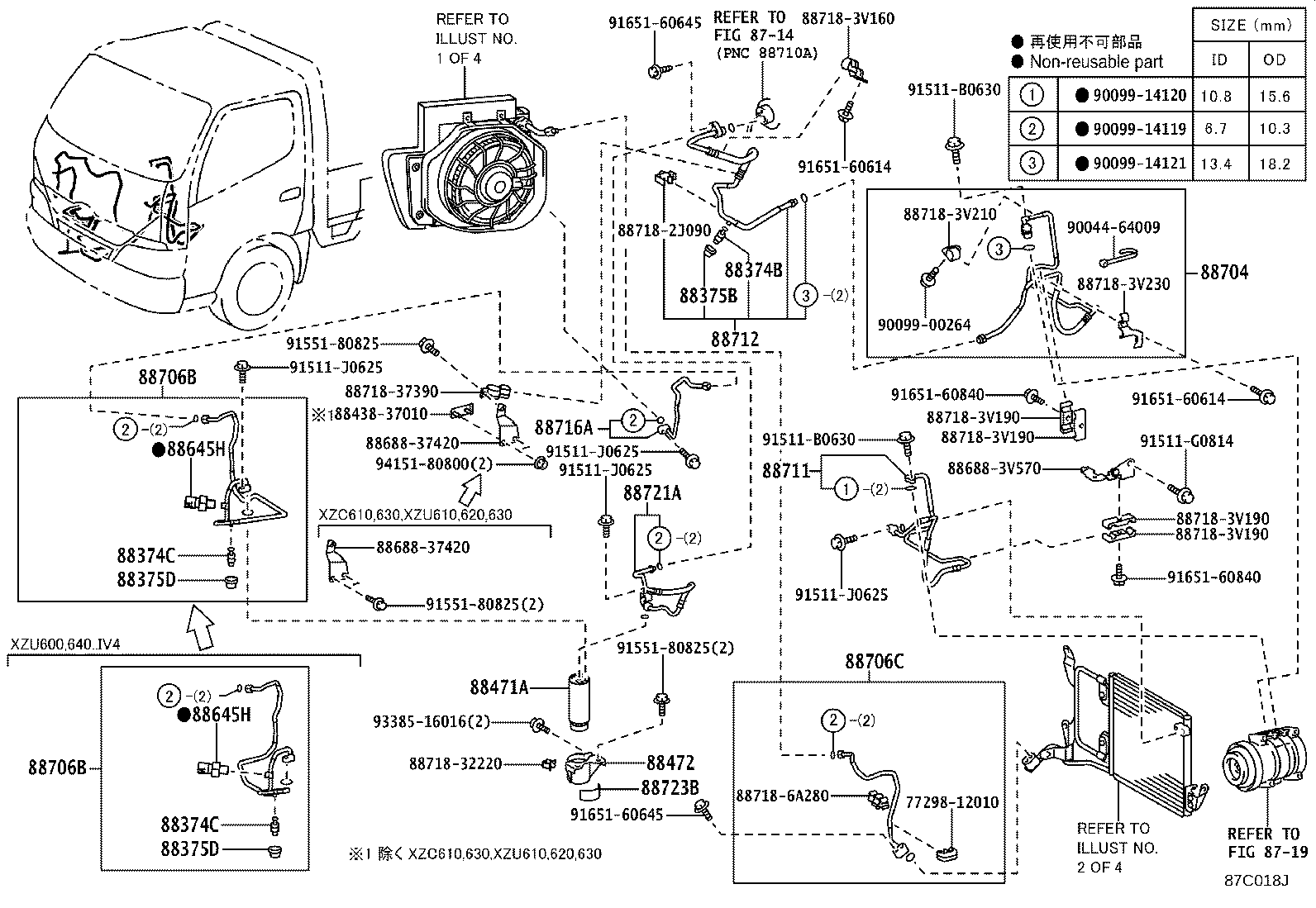

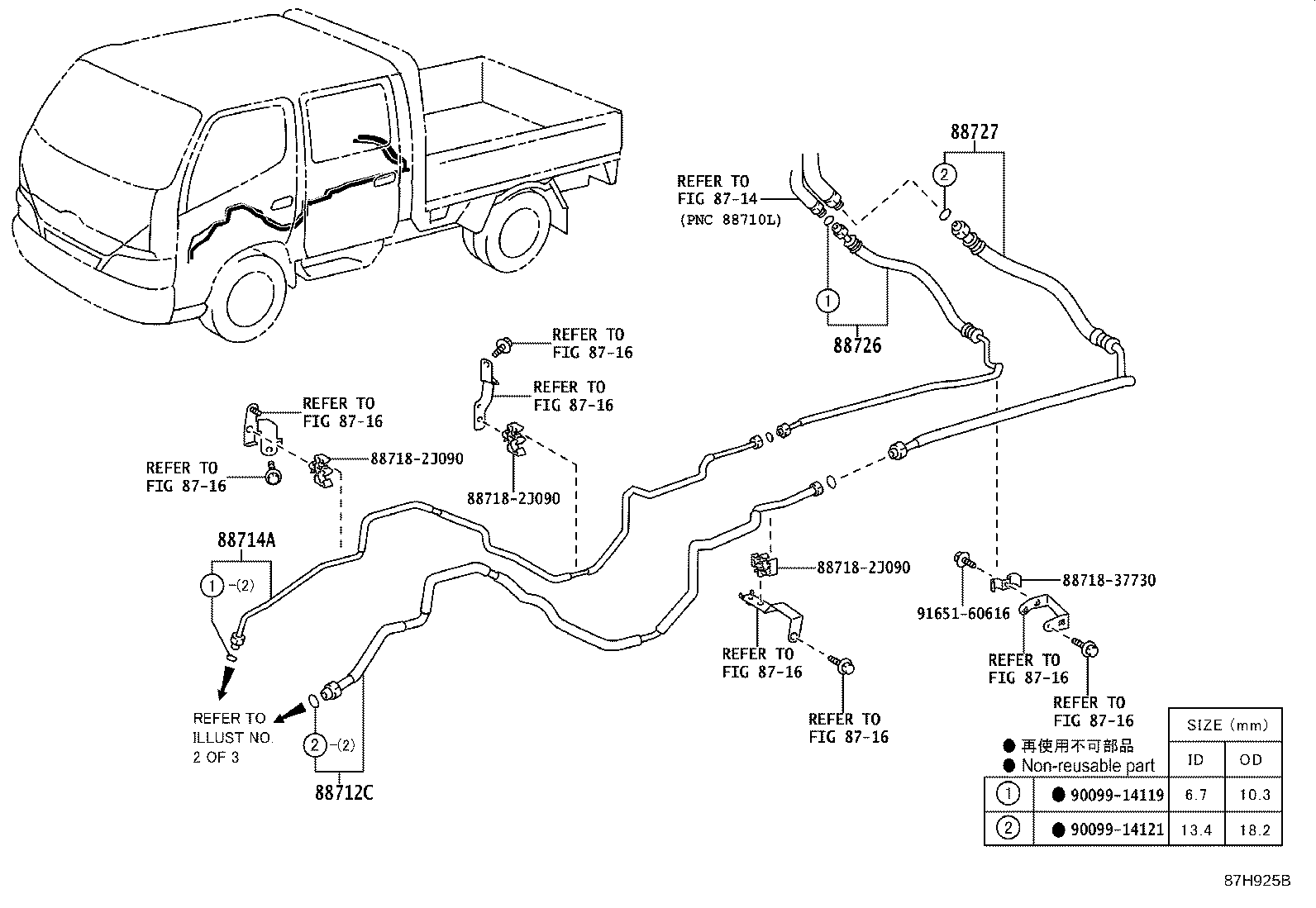

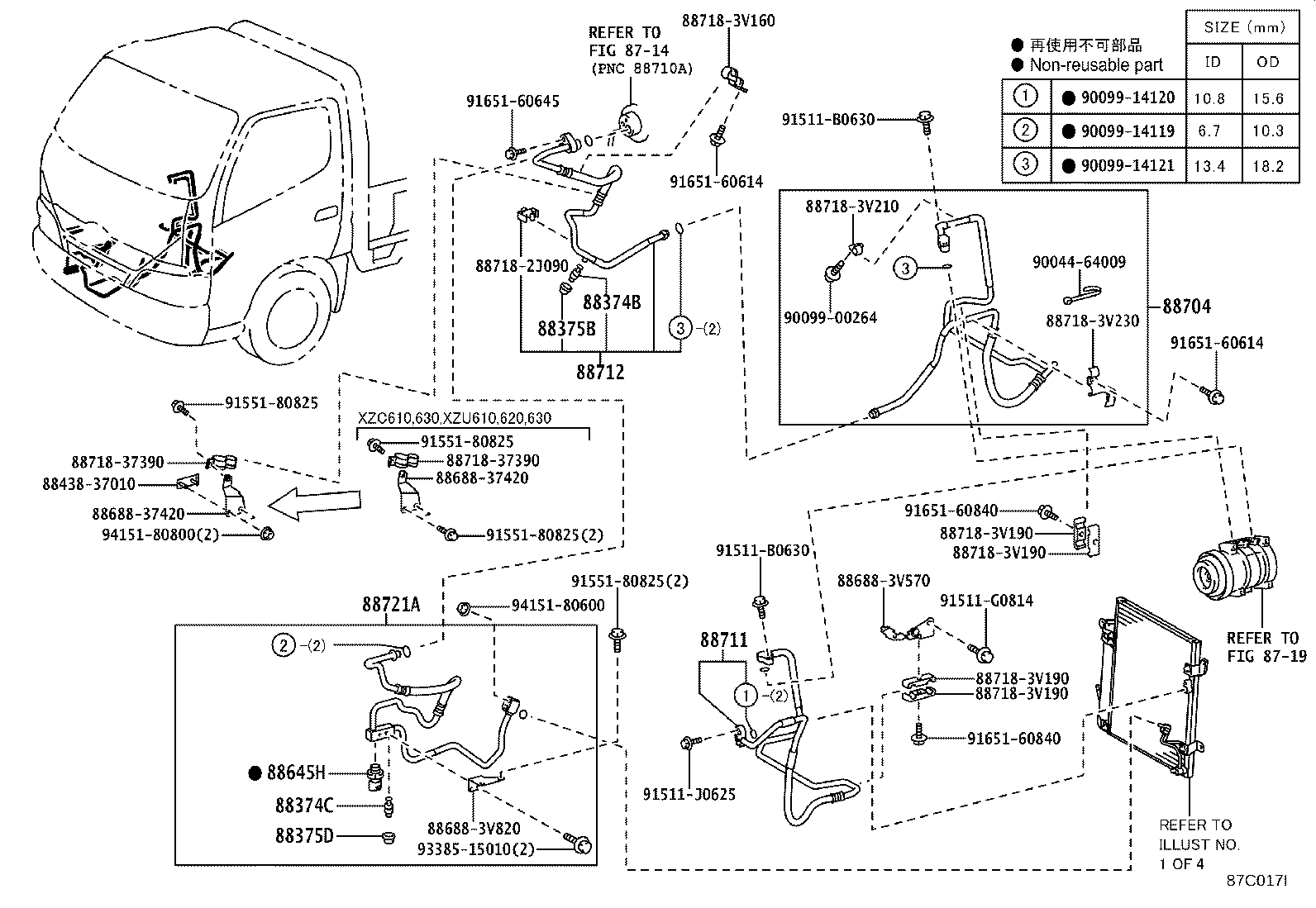

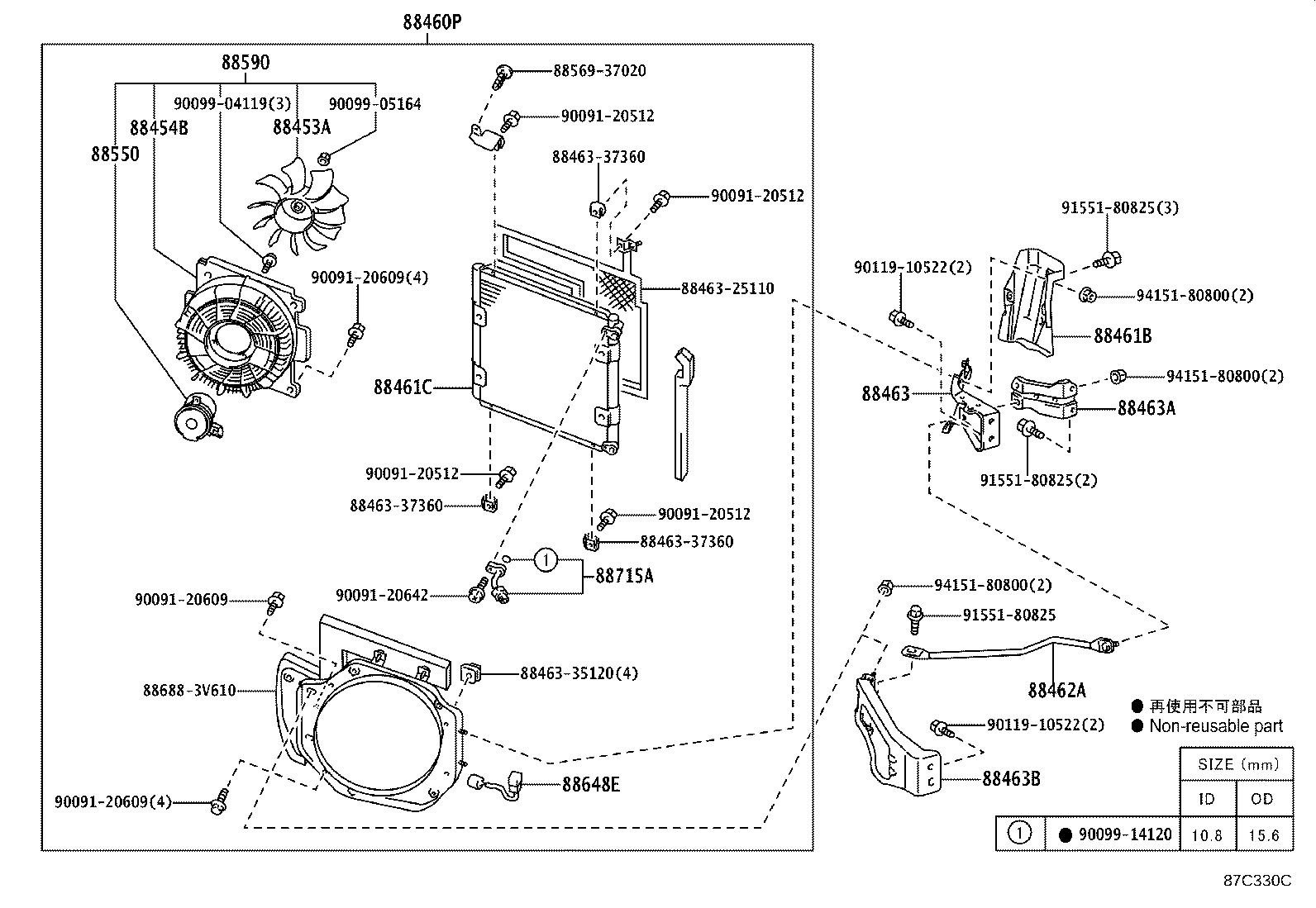

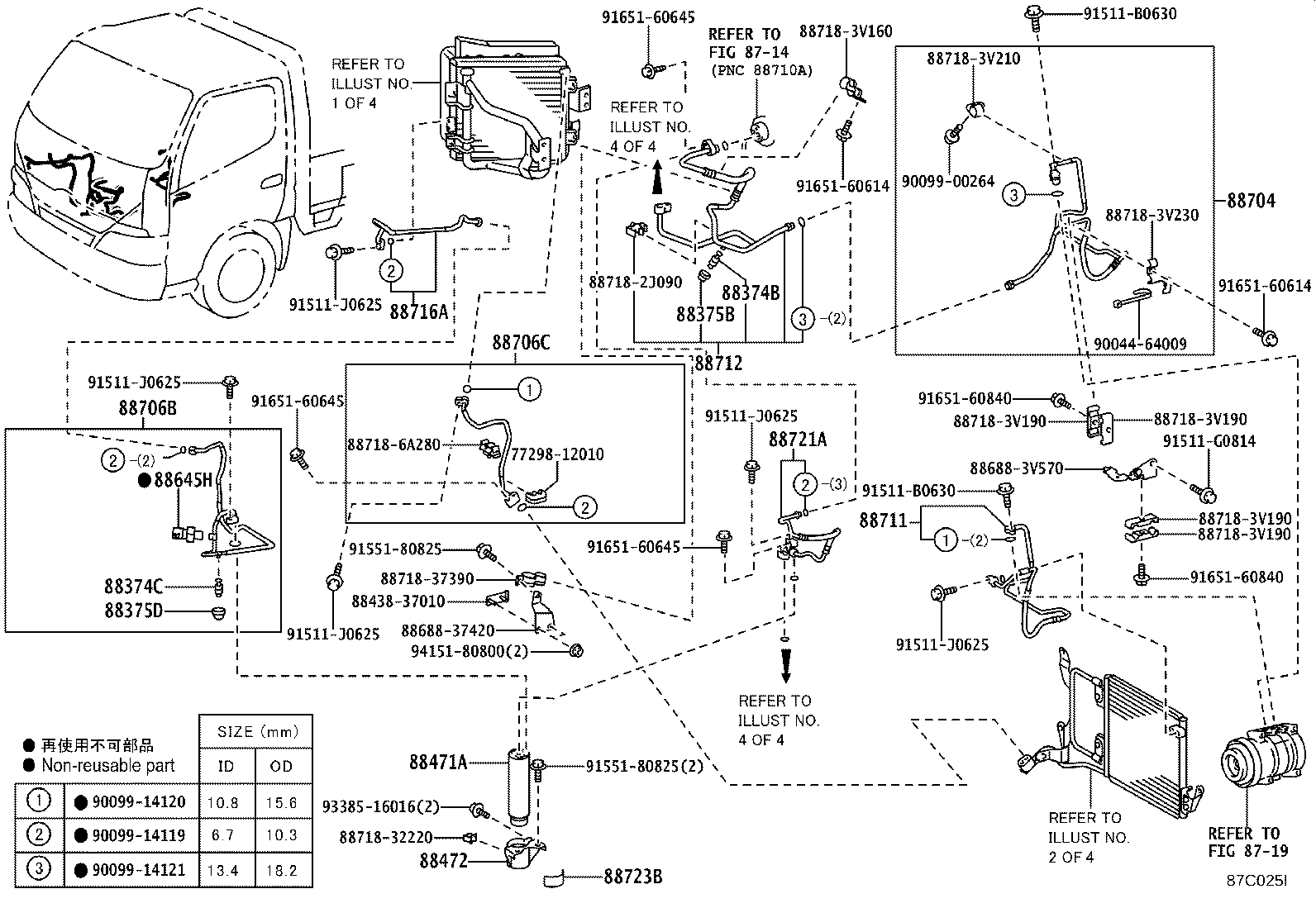

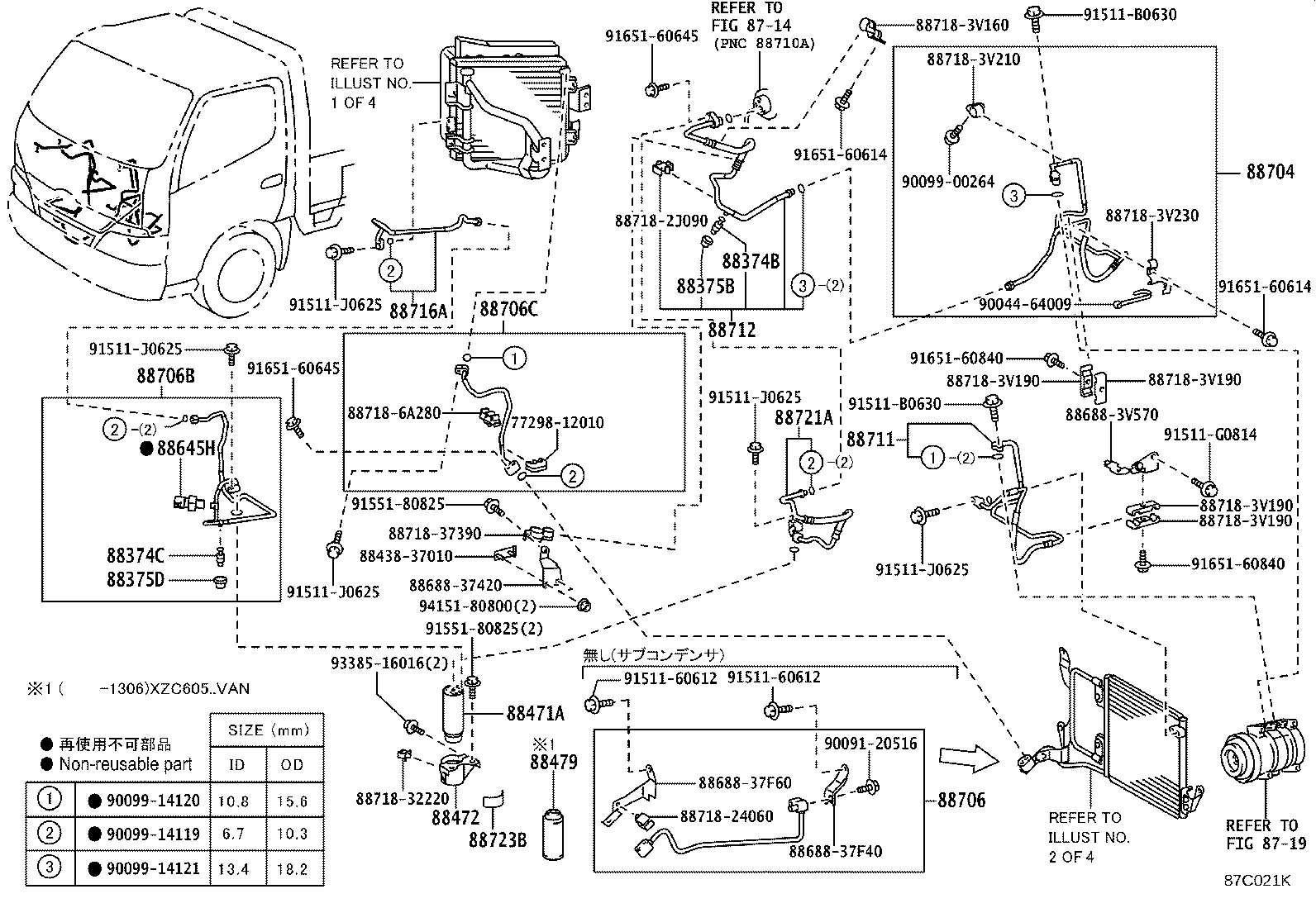

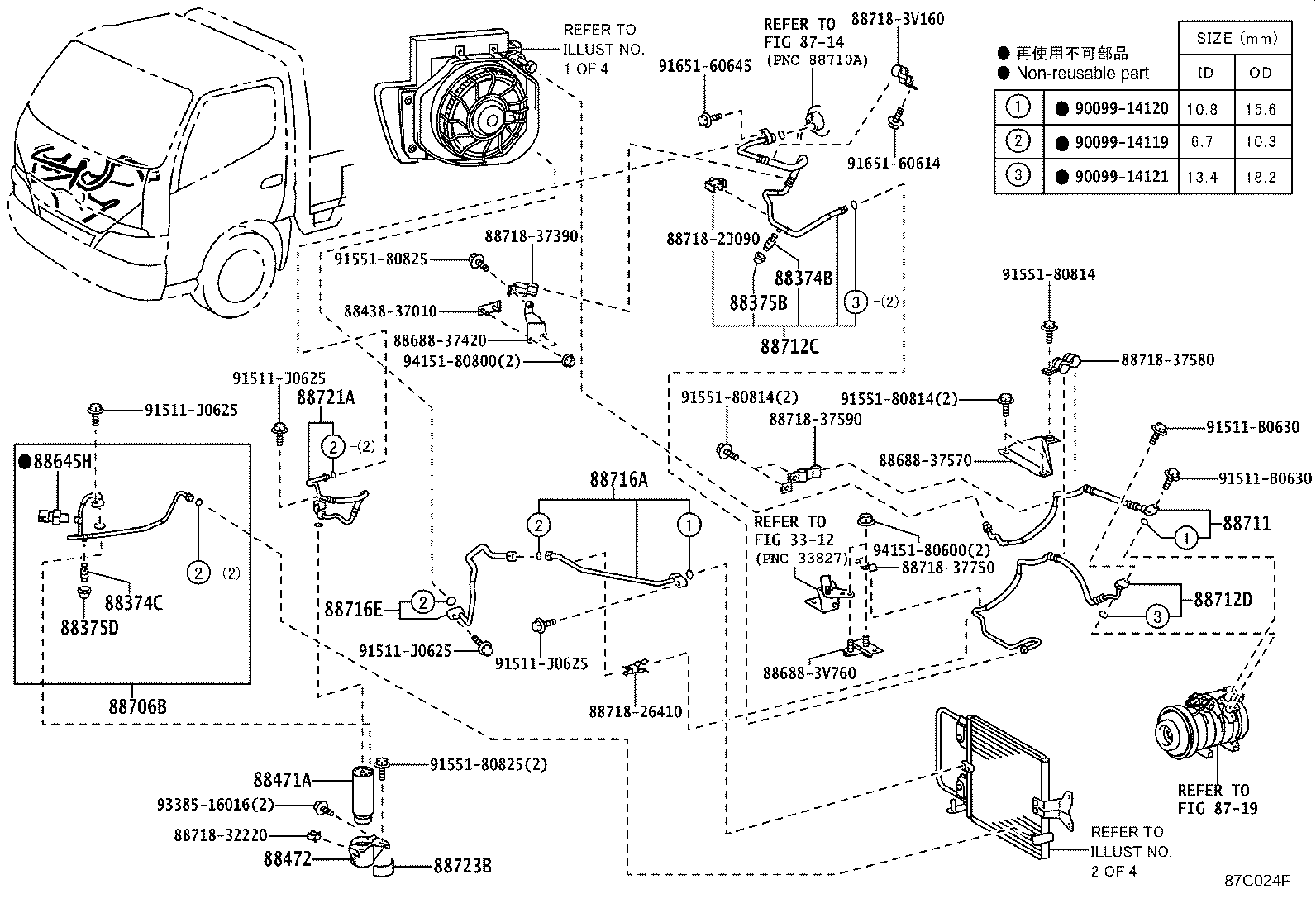

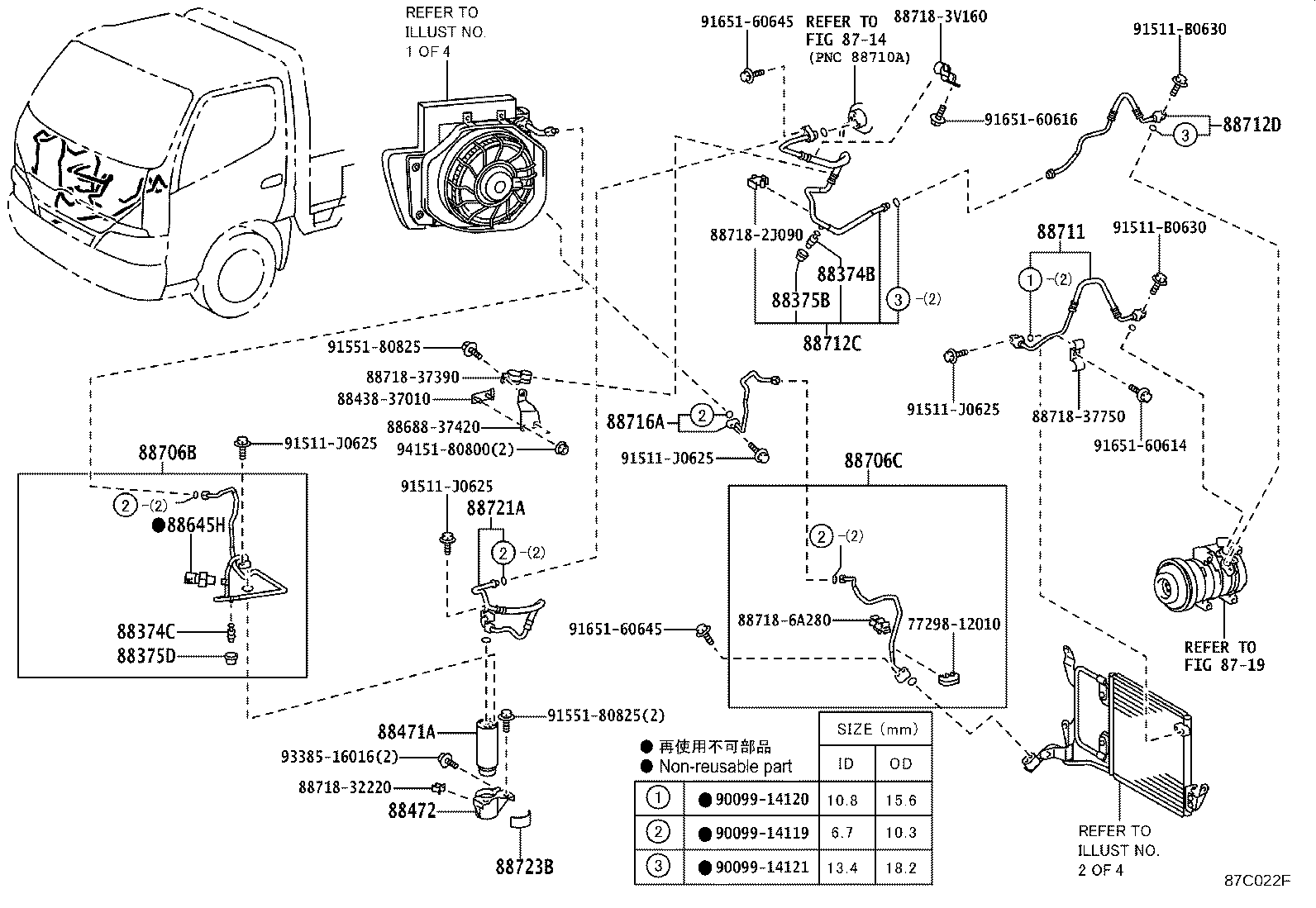

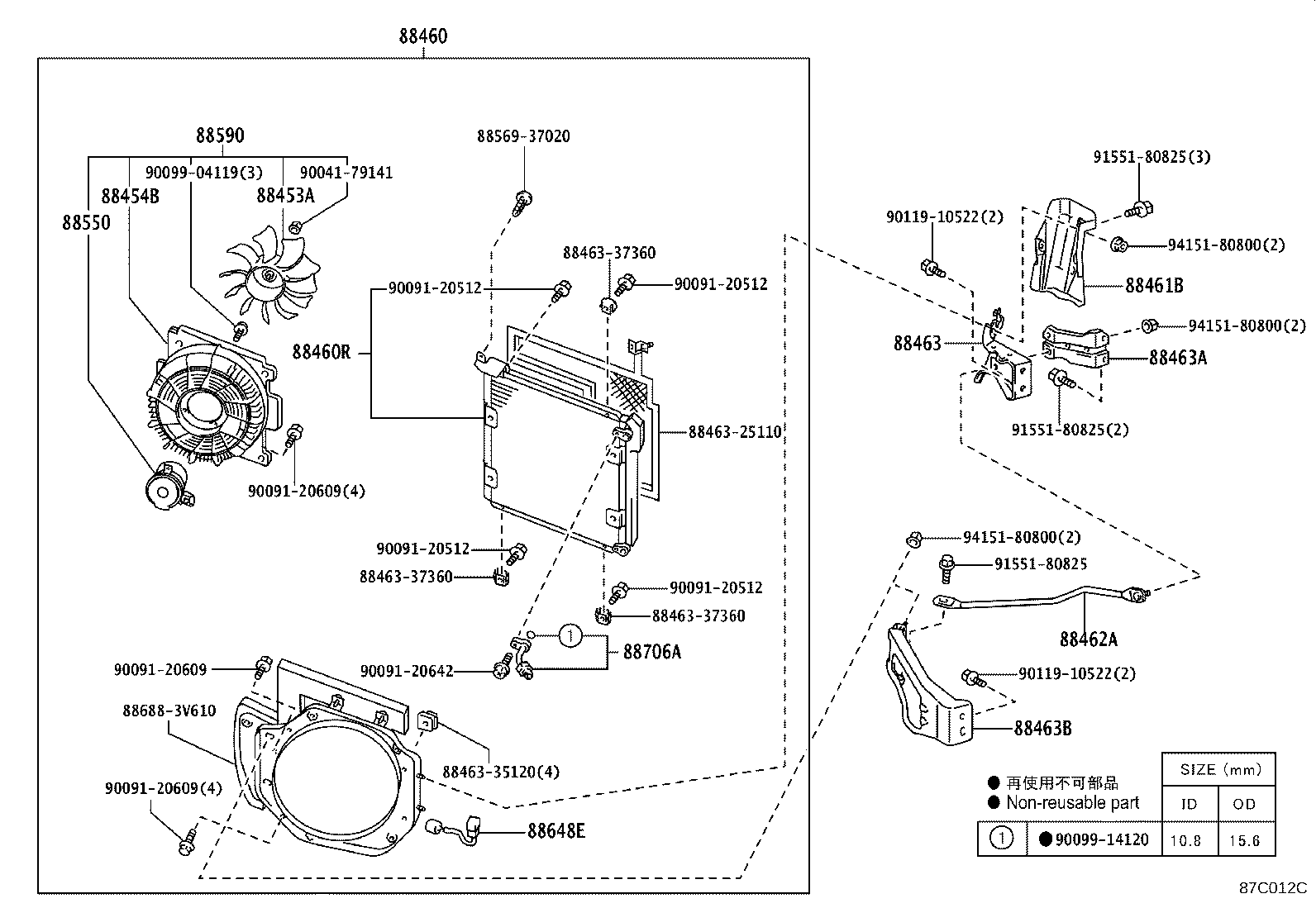

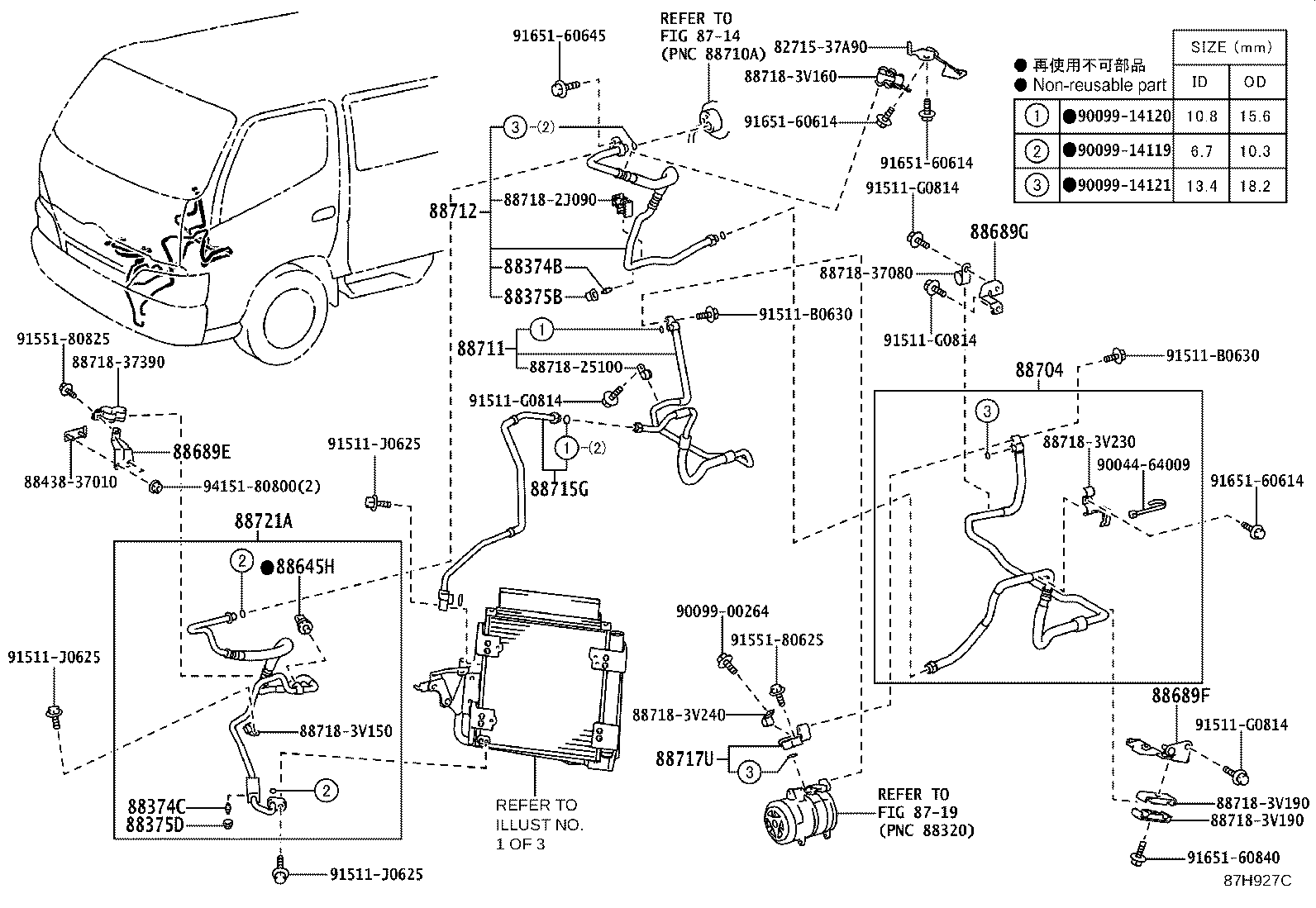

Figure 87C008C 87C008C 2011-07 → — Figure 87C008C 87C008C 2011-07 → — Figure 87C295E 87C295E 2011-07 → — Figure 87C010D 87C010D 2011-07 → — Figure 87C012C 87C012C 2011-07 → — Figure 87C330C 87C330C 2011-07 → — Figure 87H918A 87H918A 2019-05 → — Figure 87H919B 87H919B 2019-05 → — Figure 87C015G 87C015G 2011-07 → — Figure 87C015G 87C015G 2011-07 → — Figure 87C016C 87C016C 2011-07 → — Figure 87H922D 87H922D 2019-05 → — Figure 87H923C 87H923C 2019-05 → — Figure 87H924D 87H924D 2019-05 → — Figure 87H926C 87H926C 2019-05 → — Figure 87H927C 87H927C 2019-05 → — Figure 87C017I 87C017I 2011-07 → — Figure 87C017I 87C017I 2011-07 → — Figure 87C018J 87C018J 2011-07 → — Figure 87C020H 87C020H 2011-07 → — Figure 87C021K 87C021K 2011-07 → — Figure 87C025I 87C025I 2011-07 → — Figure 87C022F 87C022F 2011-07 → — Figure 87C024F 87C024F 2011-07 → — Figure 87H925B 87H925B 2019-05 → — Figure 87C026E 87C026E 2011-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453A Fan, Cooling
88454A Shroud, Fan
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460P Condenser Assy, Cooler NO.2
88460R Condenser Assy NO.1
88460S Condenser Assy NO.2
88461A Core, Cooler Condenser
88461B Cover, Cooler Condenser
88461C Core, Cooler Condenser, NO.2
88462A Holder, Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88471A Tank, Receiver
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88712D Hose, Suction
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717U Tube, Suction, NO.1
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88723B Label, Cooler Service Caution
88726 Tube, Liquid, NO.2
88727 Tube, Suction, NO.2
88727G Tube, Suction
88846 Tube, Liquid
88892C Plate, Condenser, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
