Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

22 part groups · 11 illustrations

Illustrations

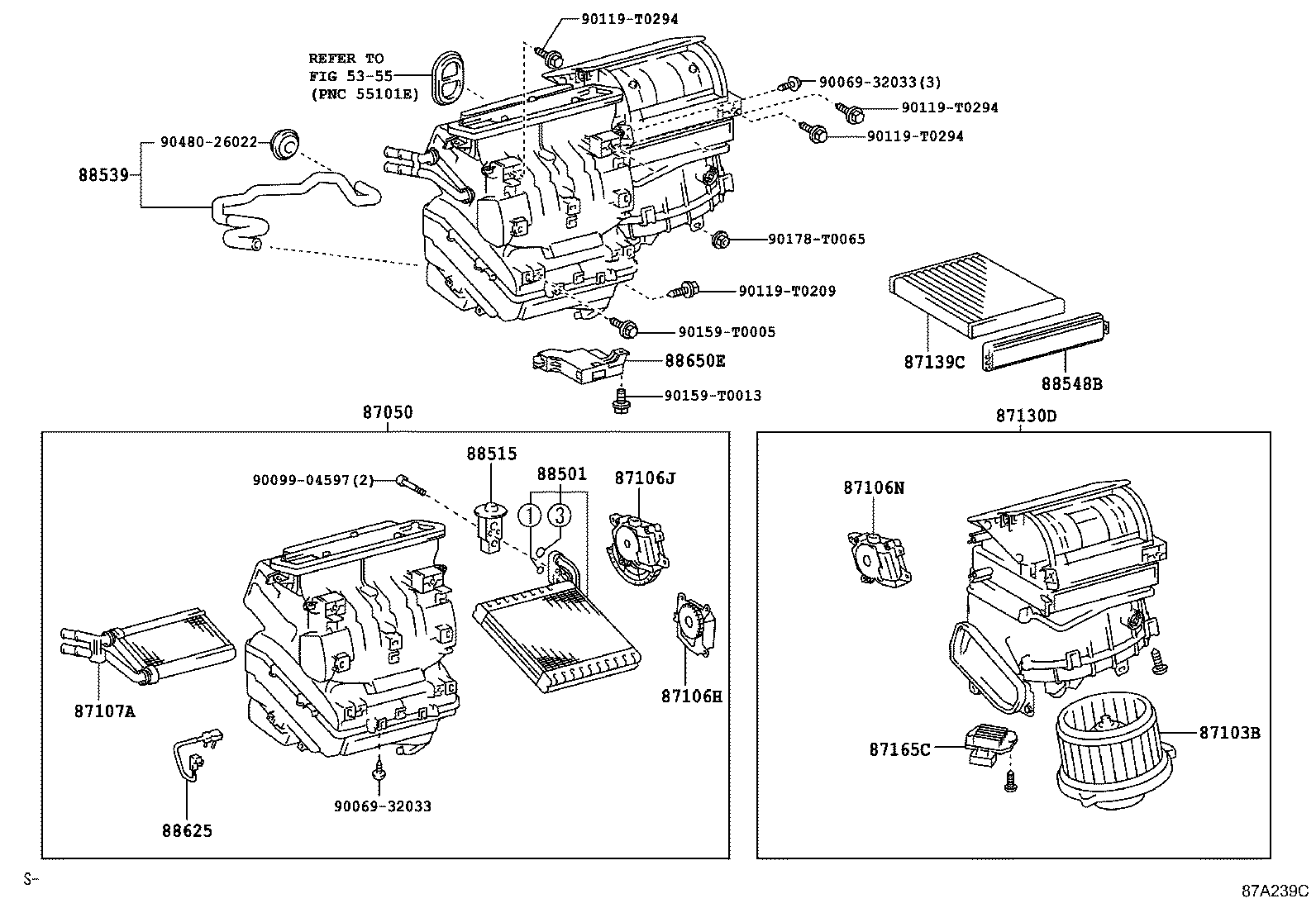

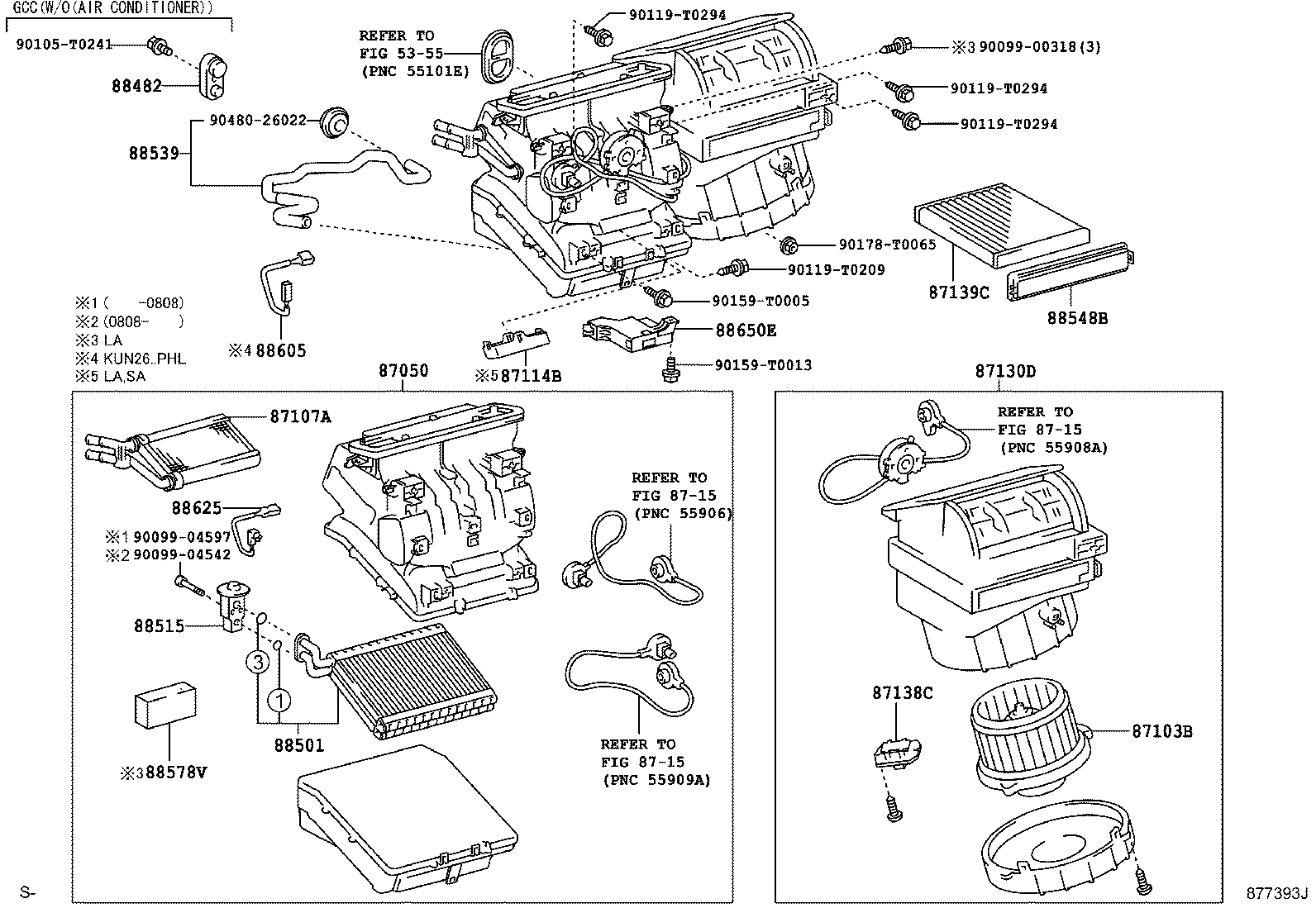

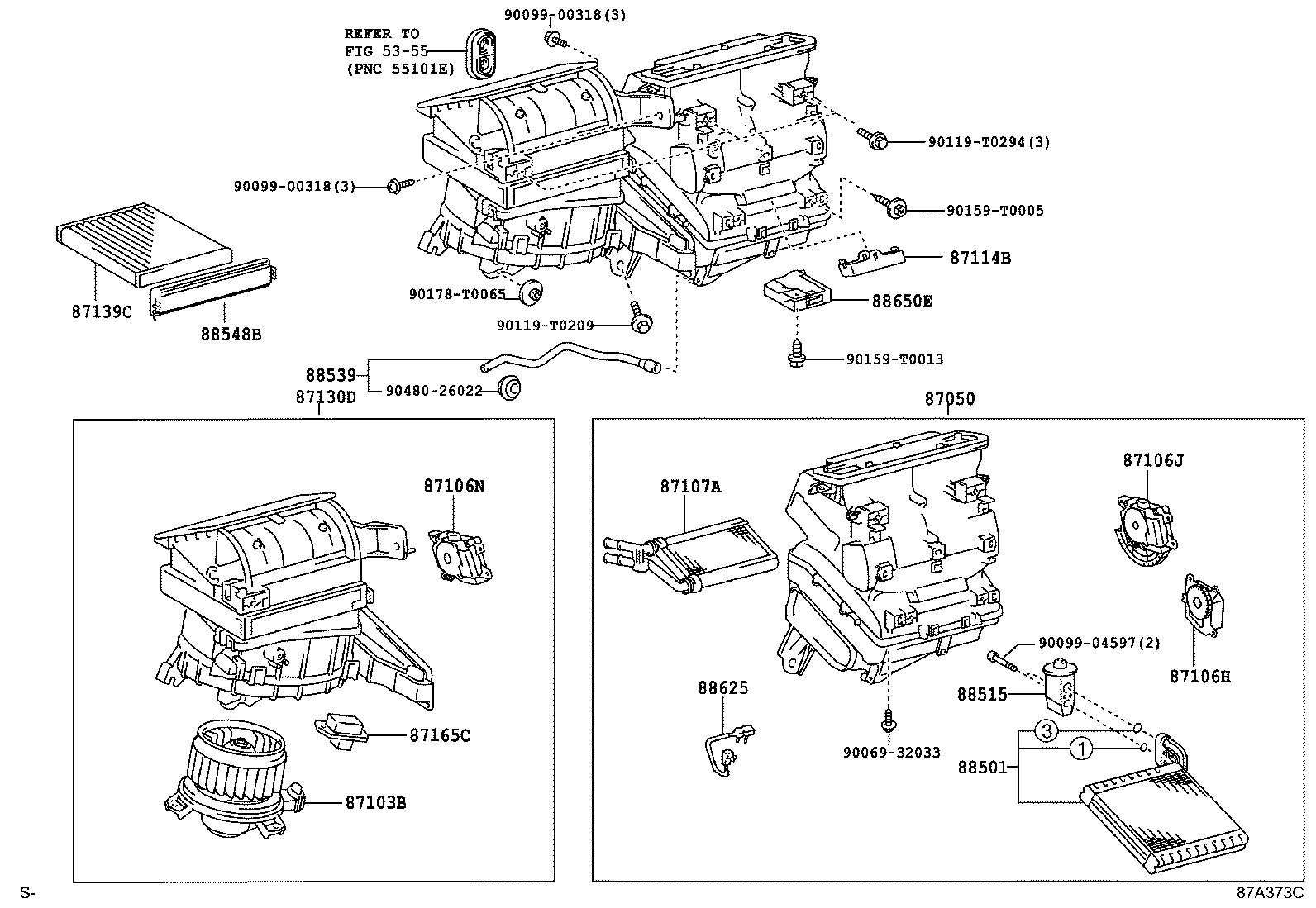

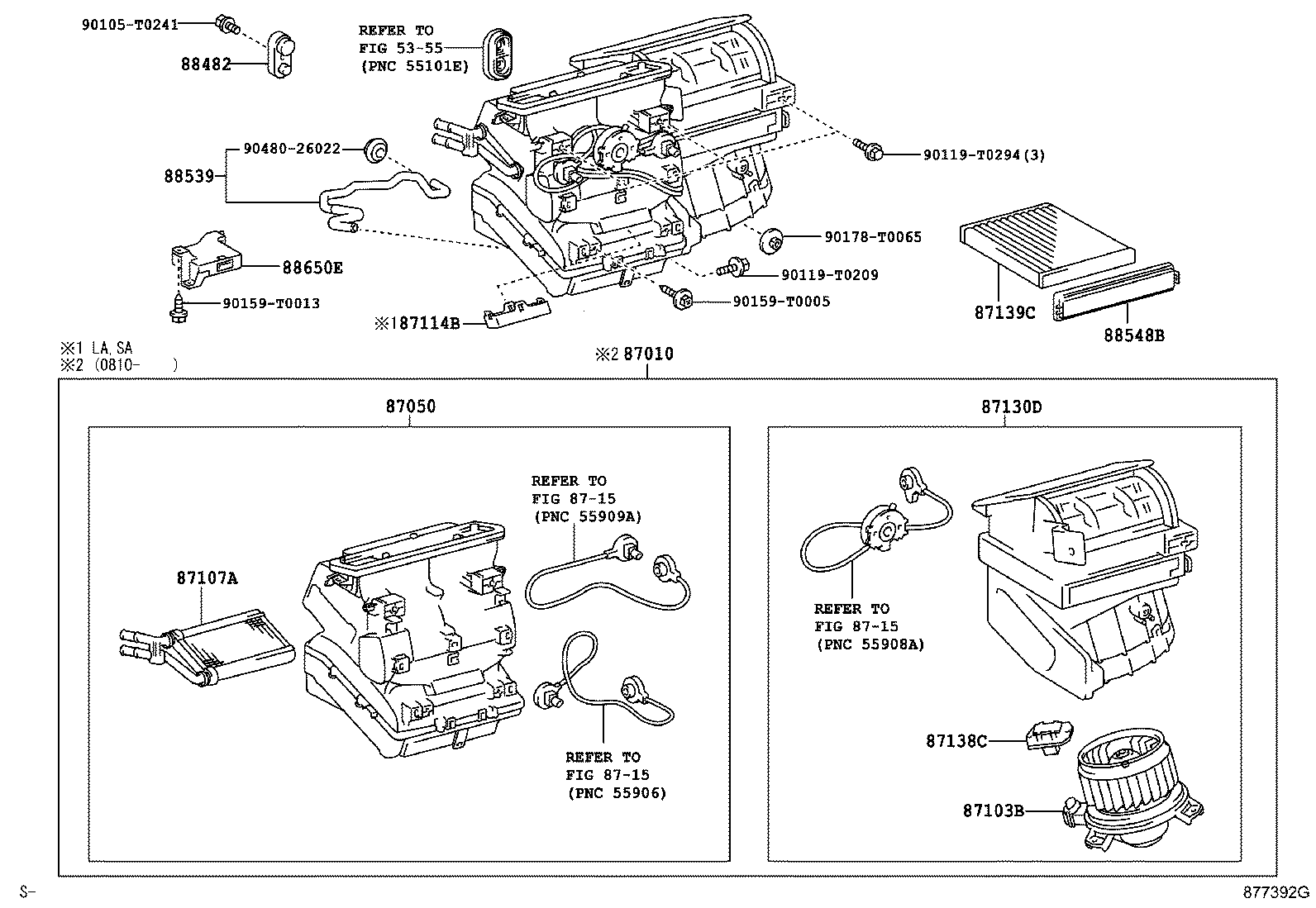

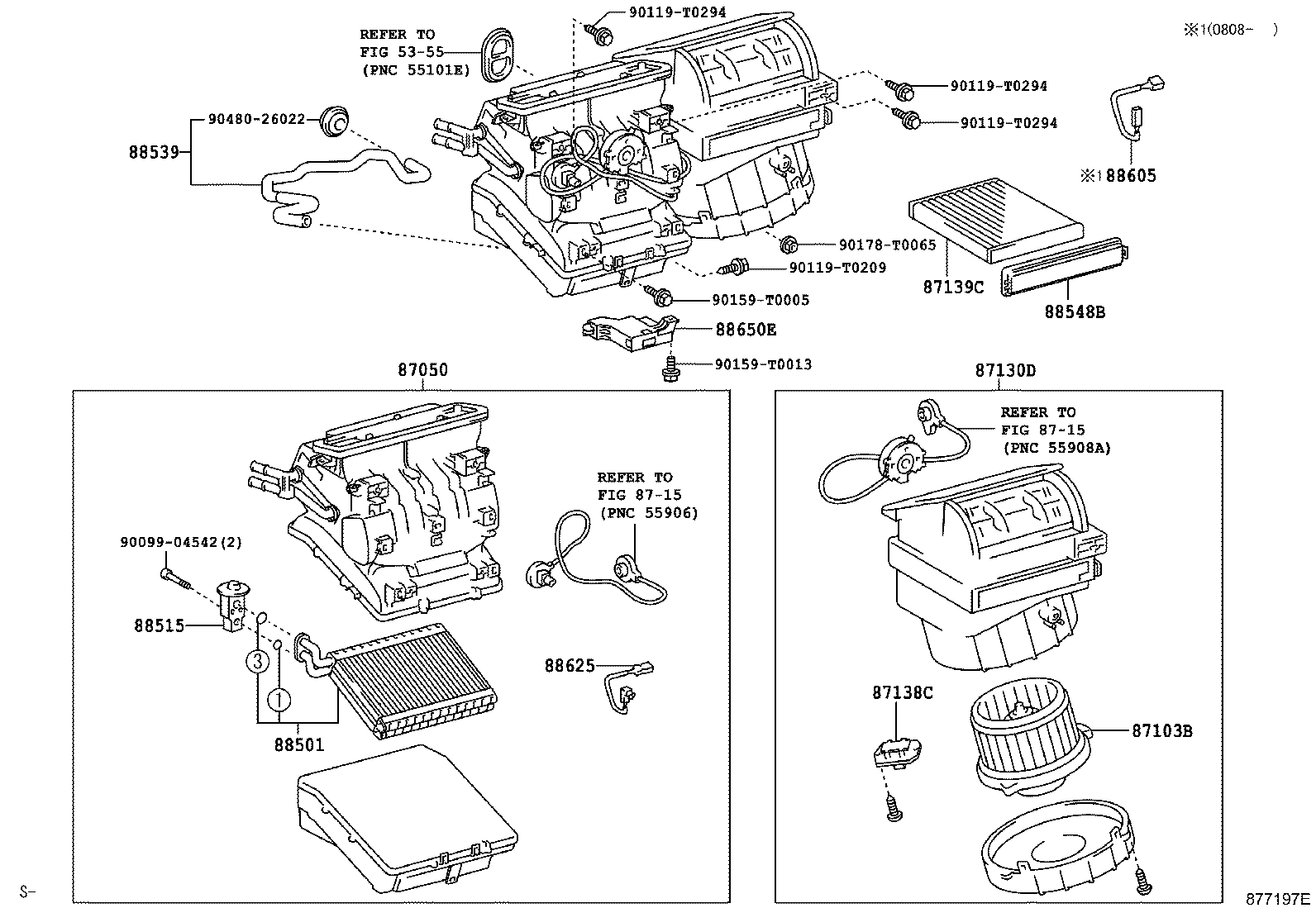

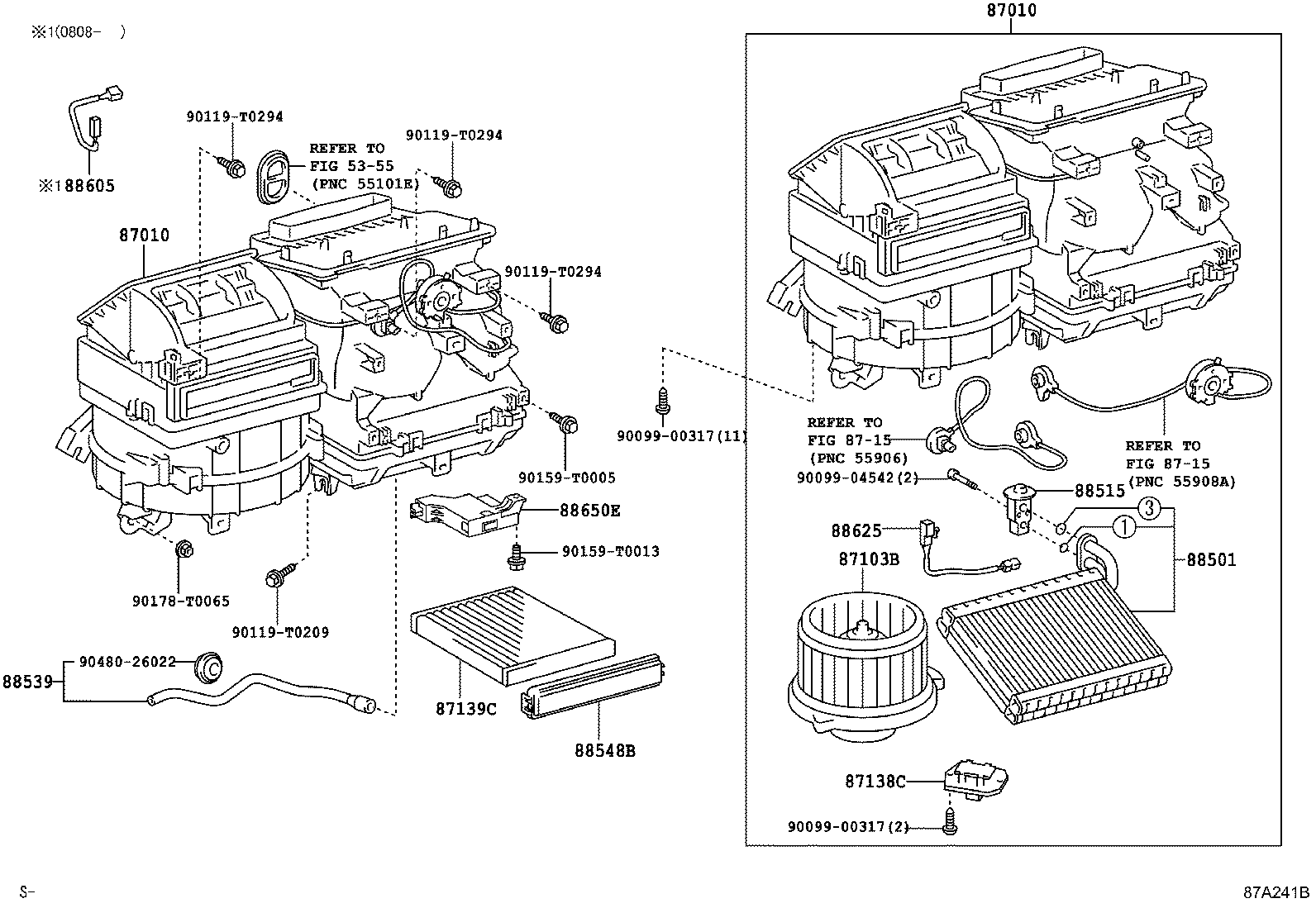

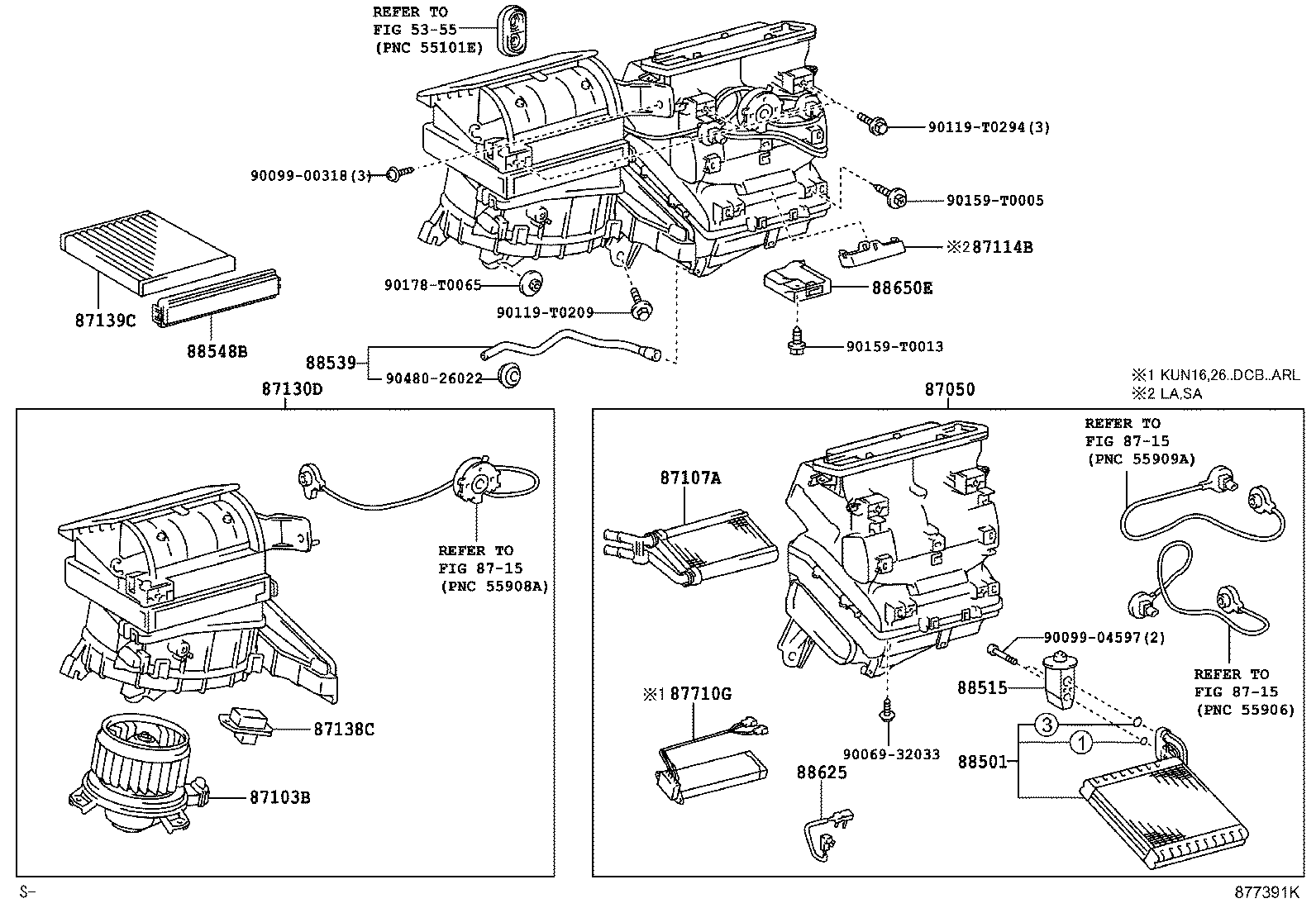

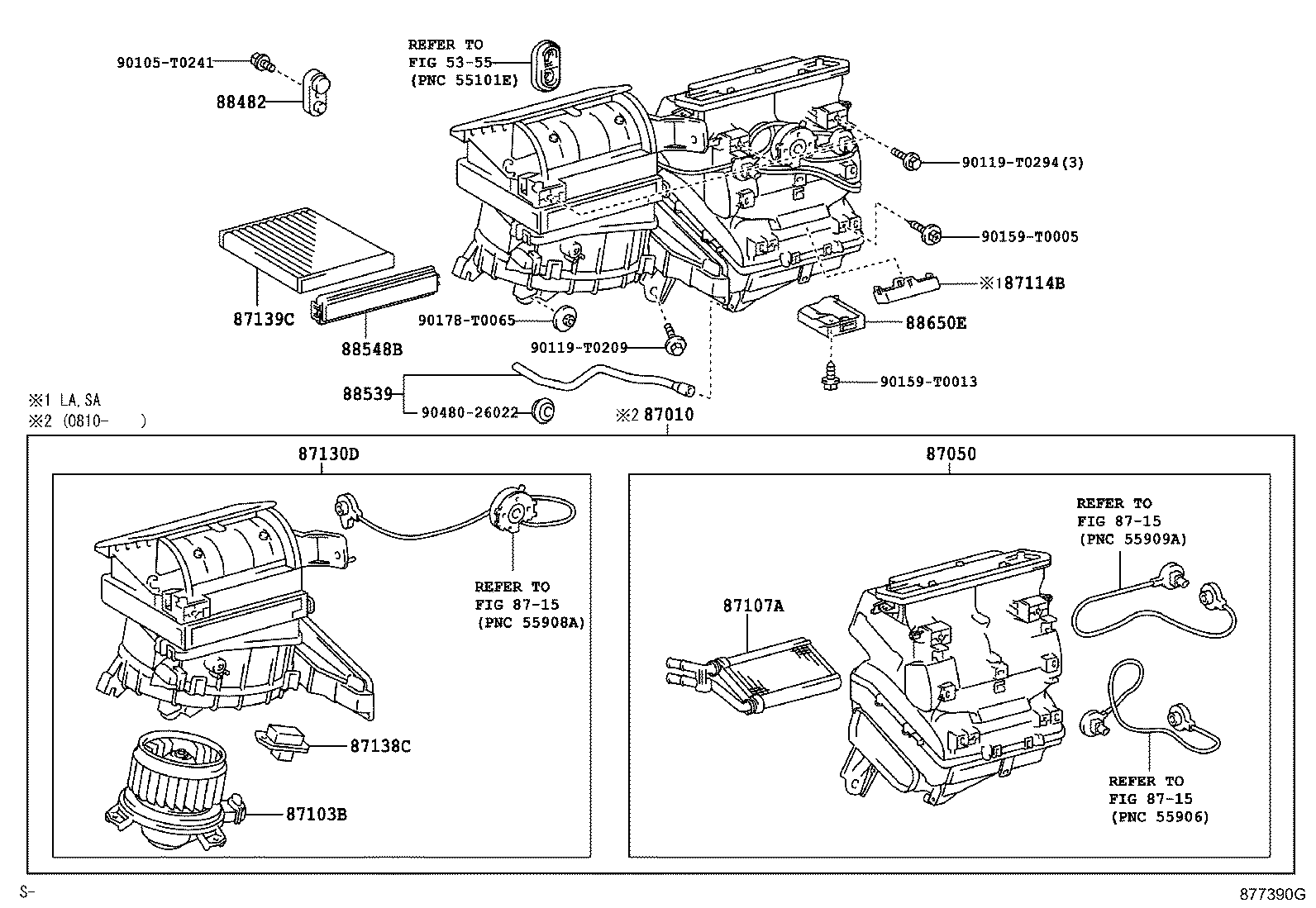

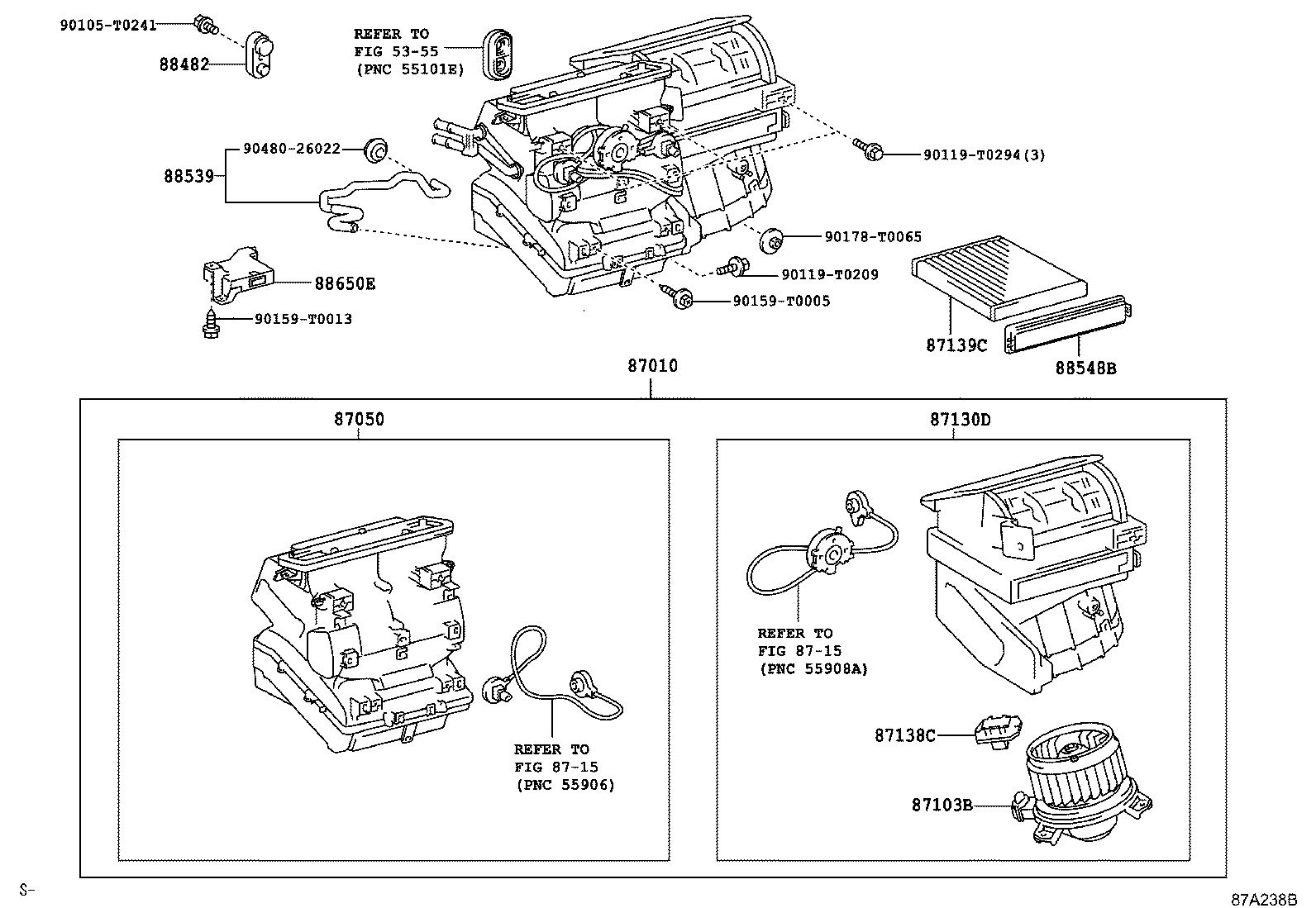

Figure 87A240B 87A240B 2004-08 → — Figure 877391K 877391K 2004-08 → — Figure 87A241B 87A241B 2004-08 → — Figure 877390G 877390G 2005-02 → — Figure 87A373C 87A373C 2008-10 → — Figure 87A239C 87A239C 2004-08 → — Figure 87A238B 87A238B 2004-08 → — Figure 877197E 877197E 2004-08 → — Figure 877392G 877392G 2004-08 → — Figure 877393J 877393J 2004-08 → — Figure 877126E 877126E 2004-08 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88578V Packing, Cooling Unit, NO.3
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
