Brake Tube & Clamp

66 part groups · 46 illustrations

Illustrations

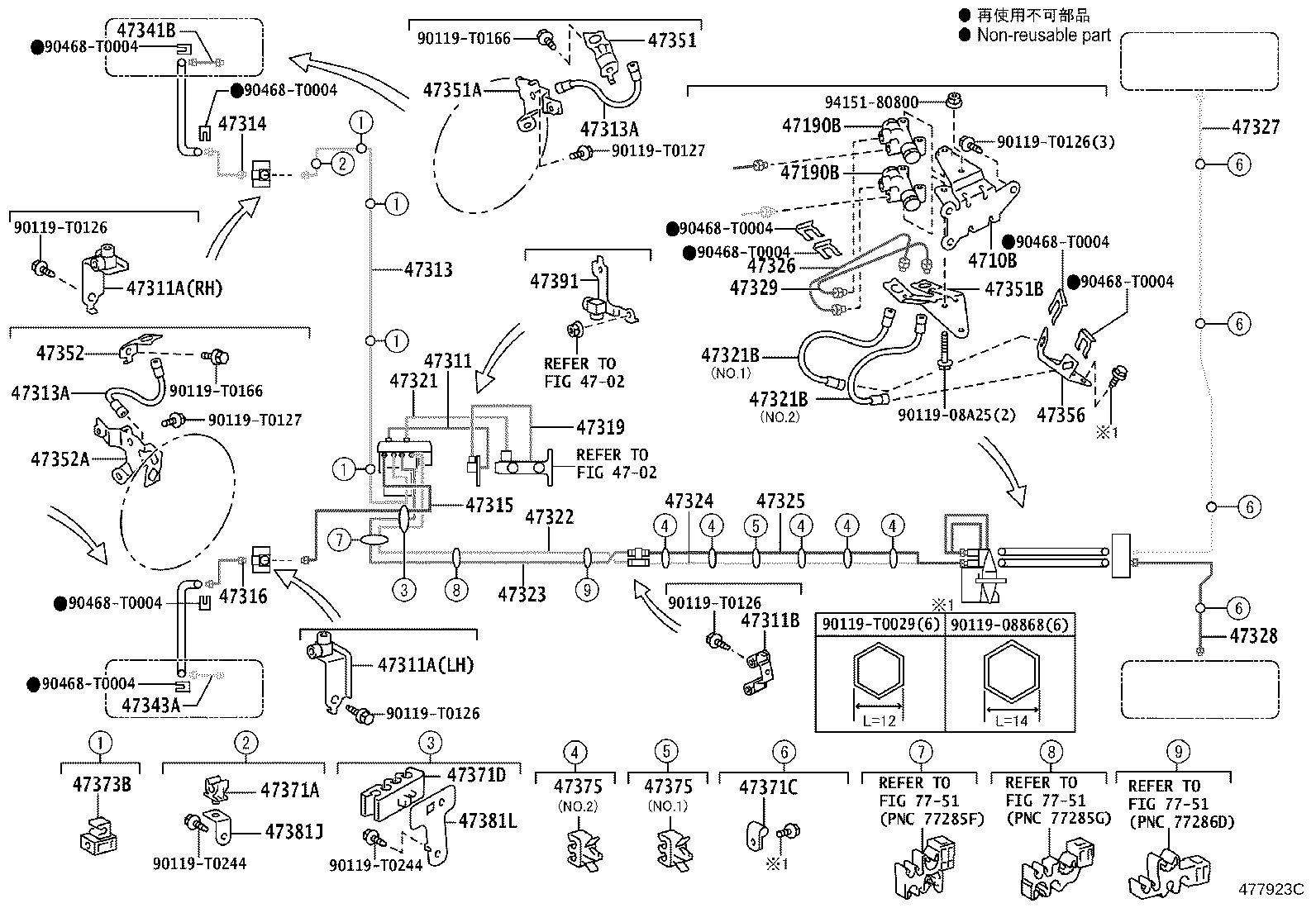

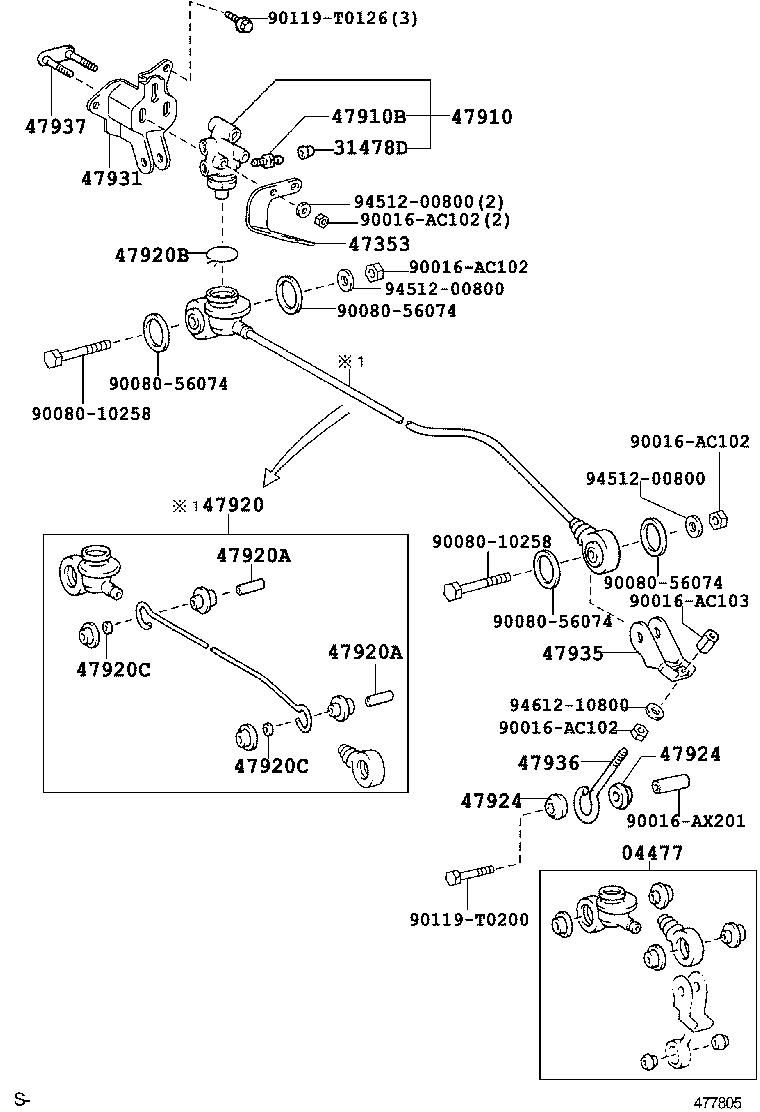

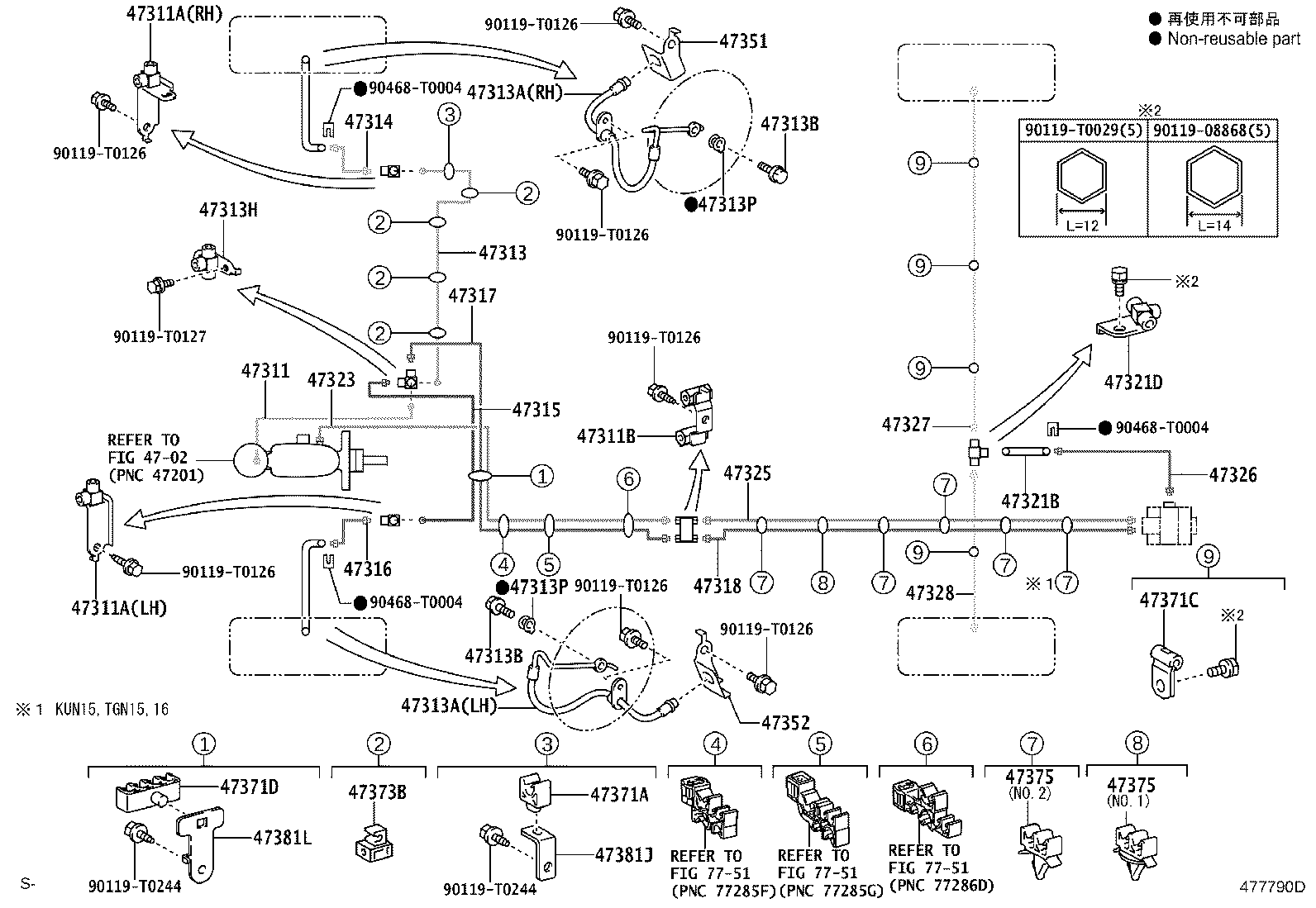

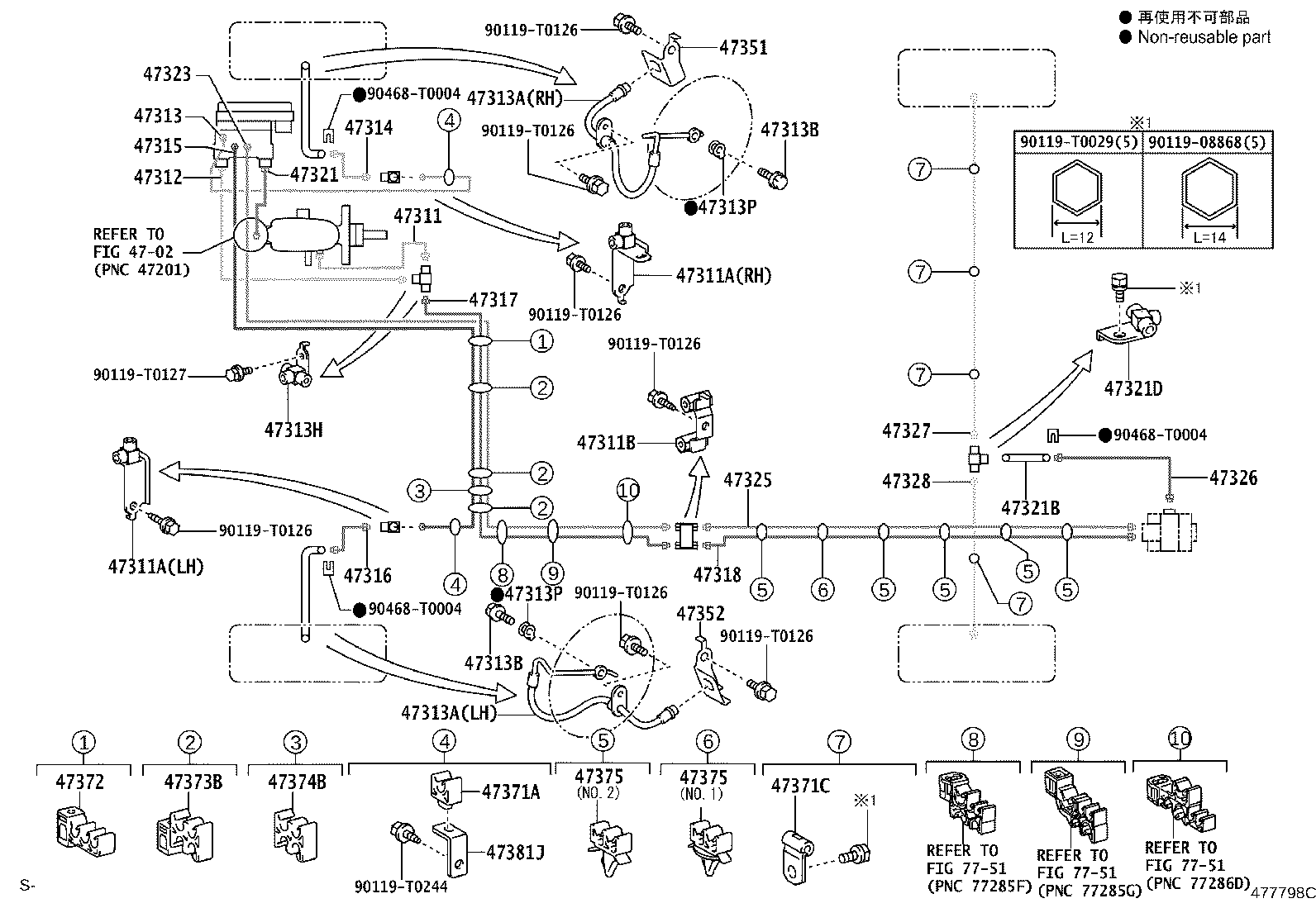

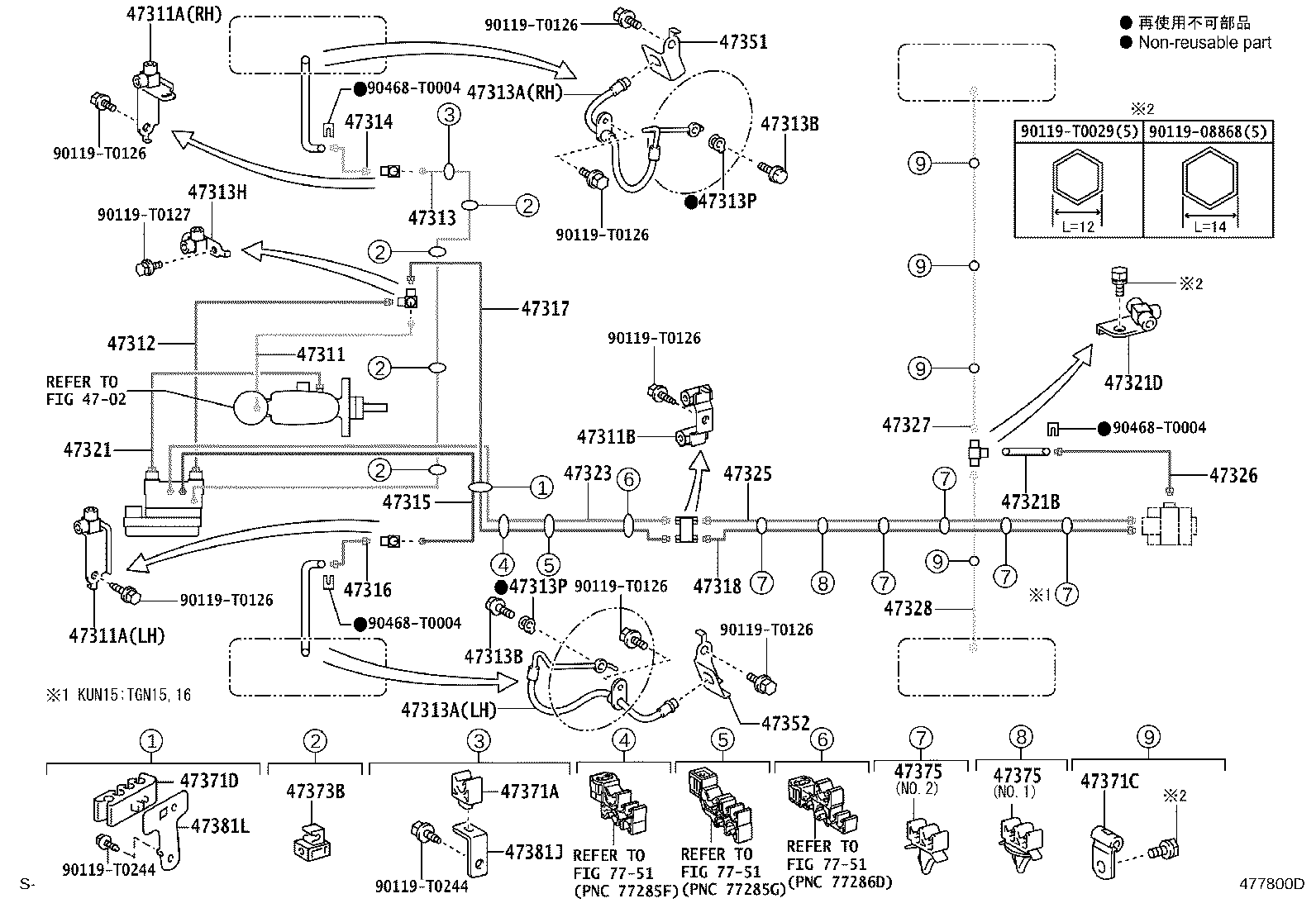

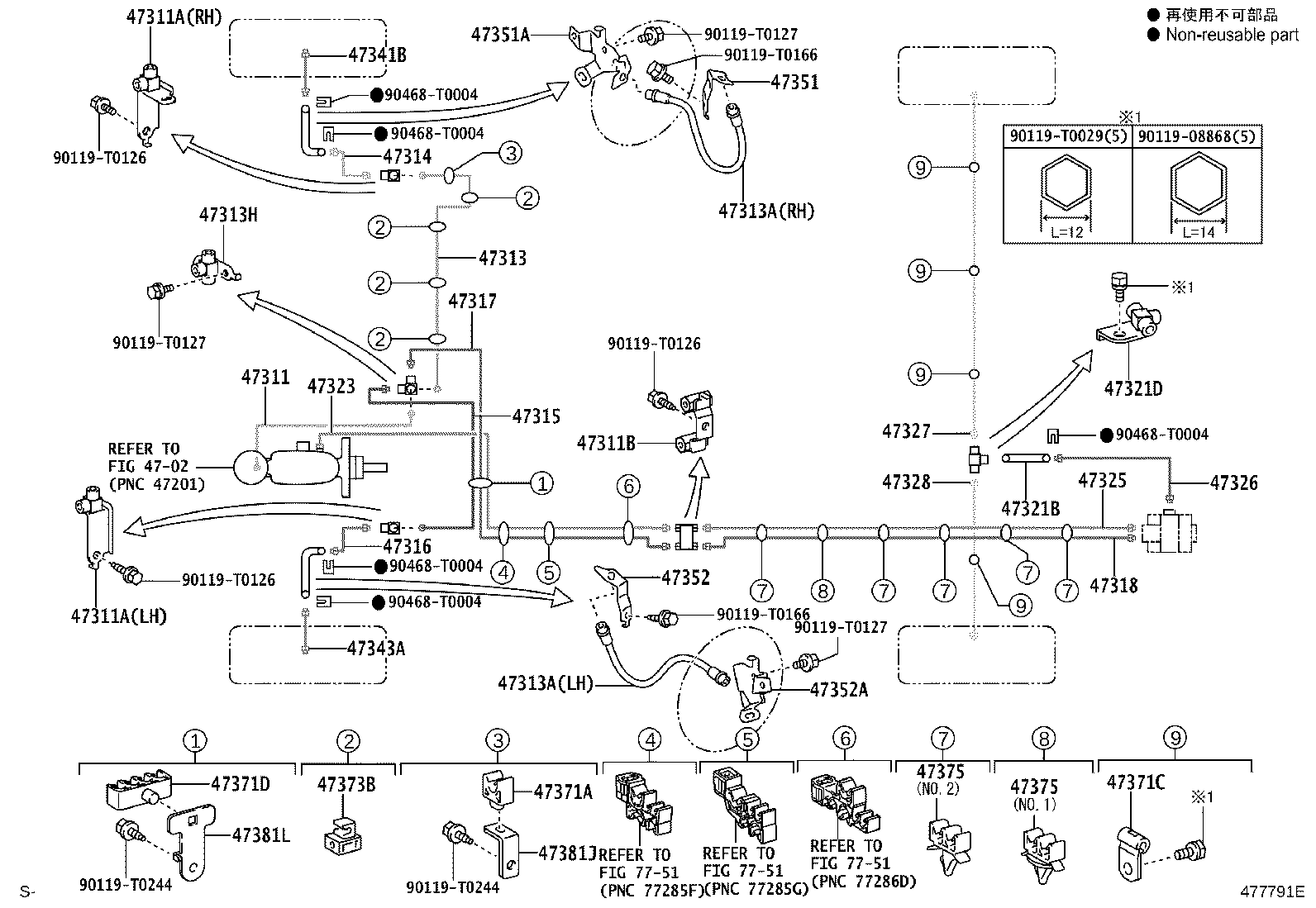

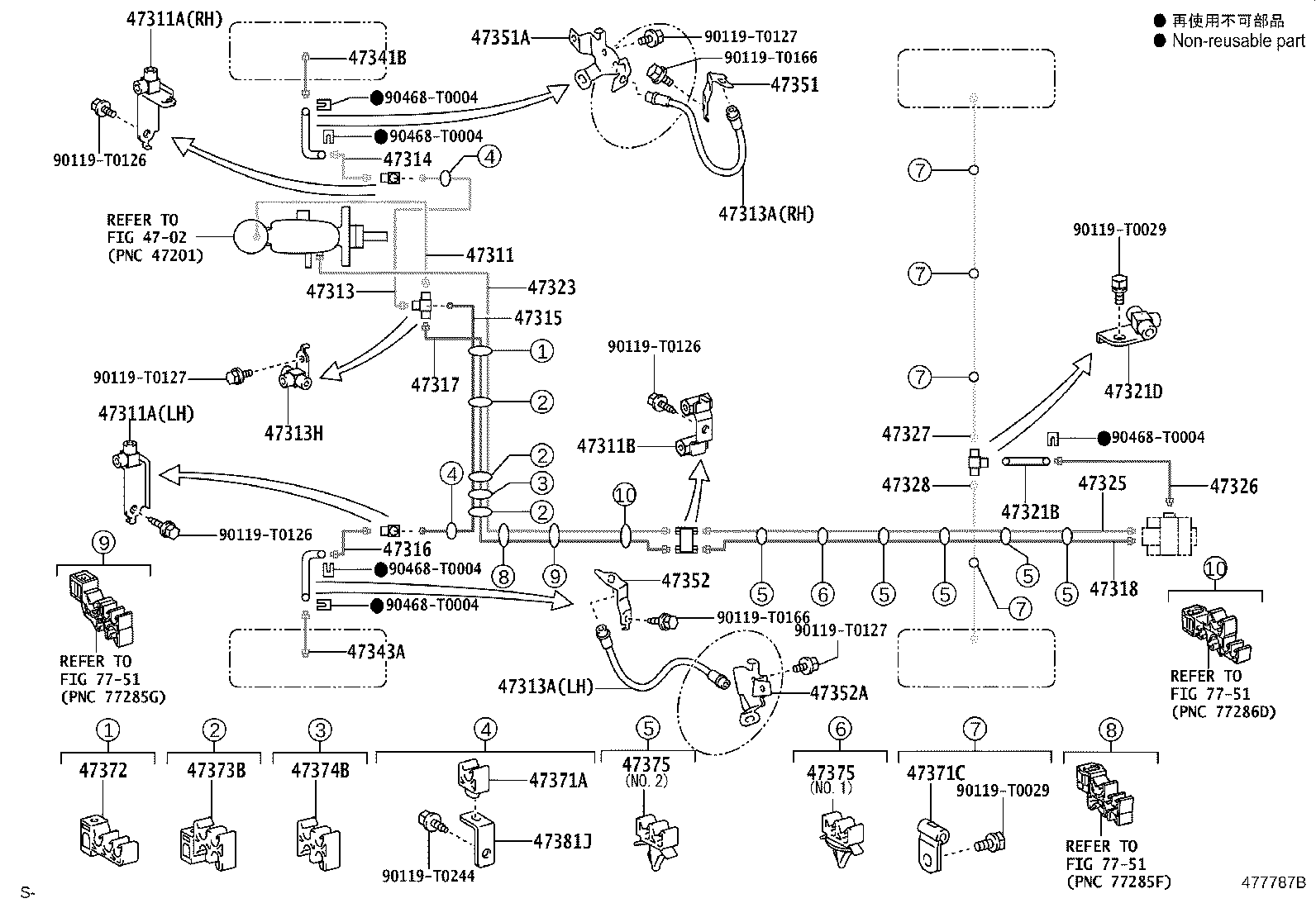

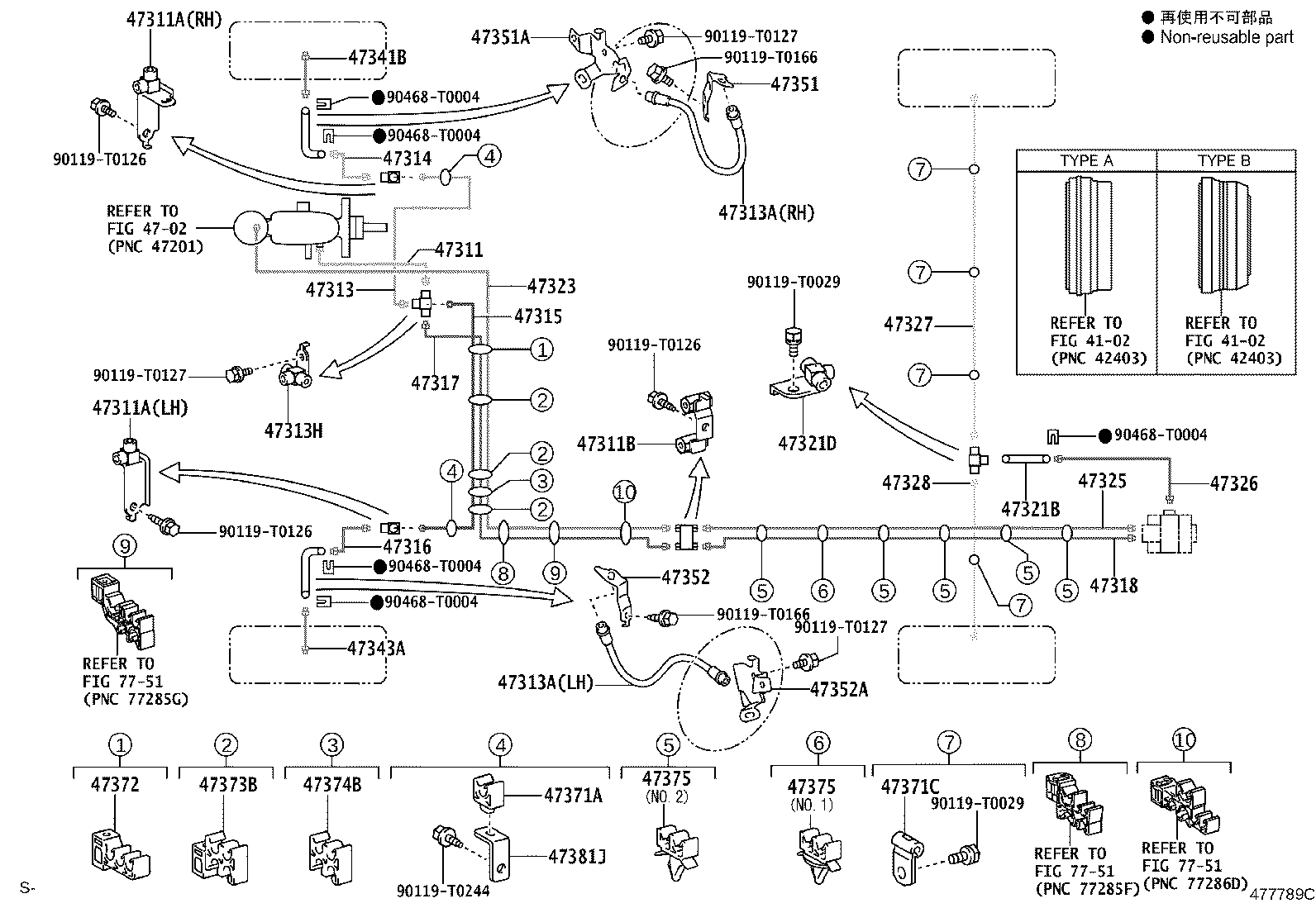

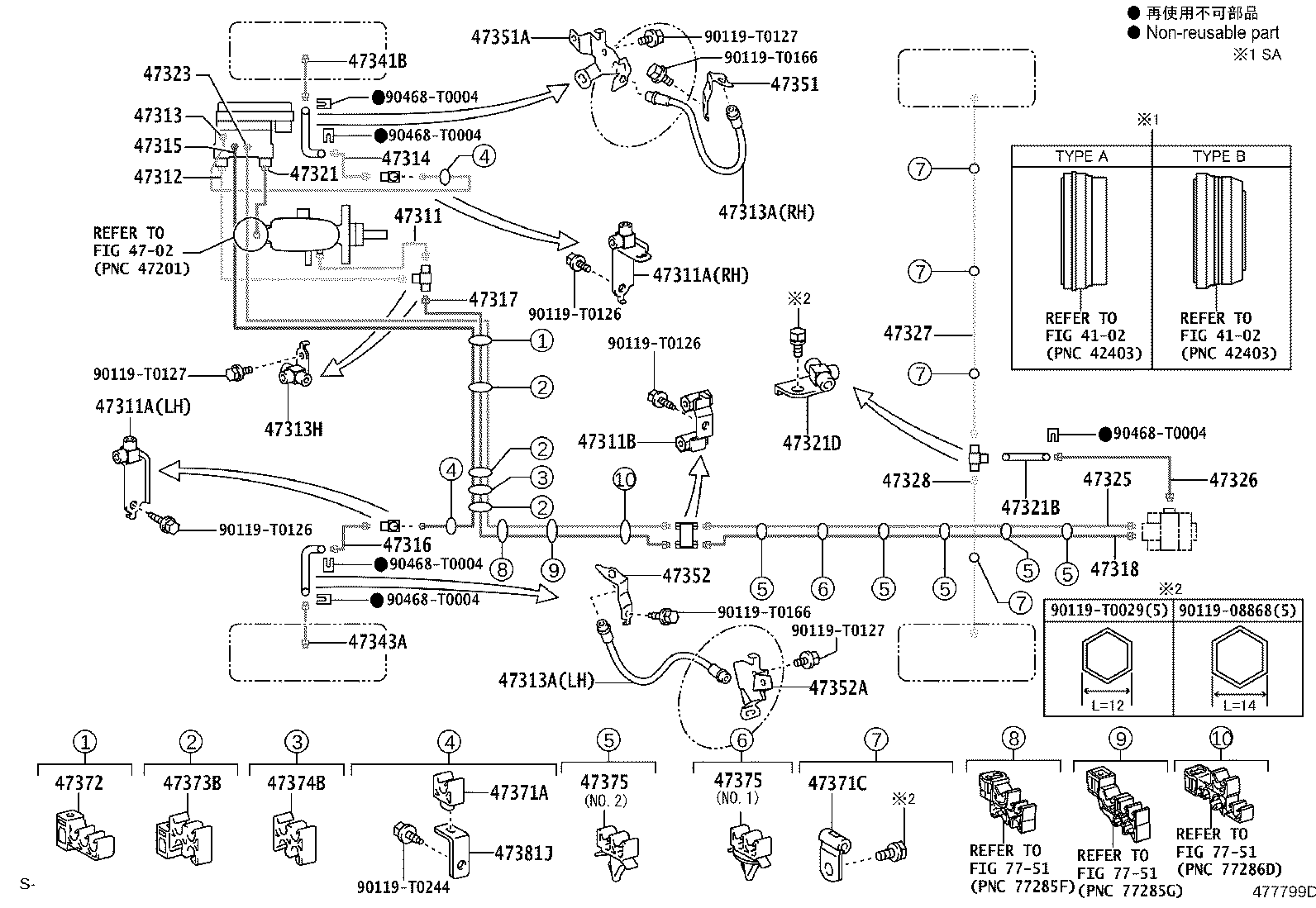

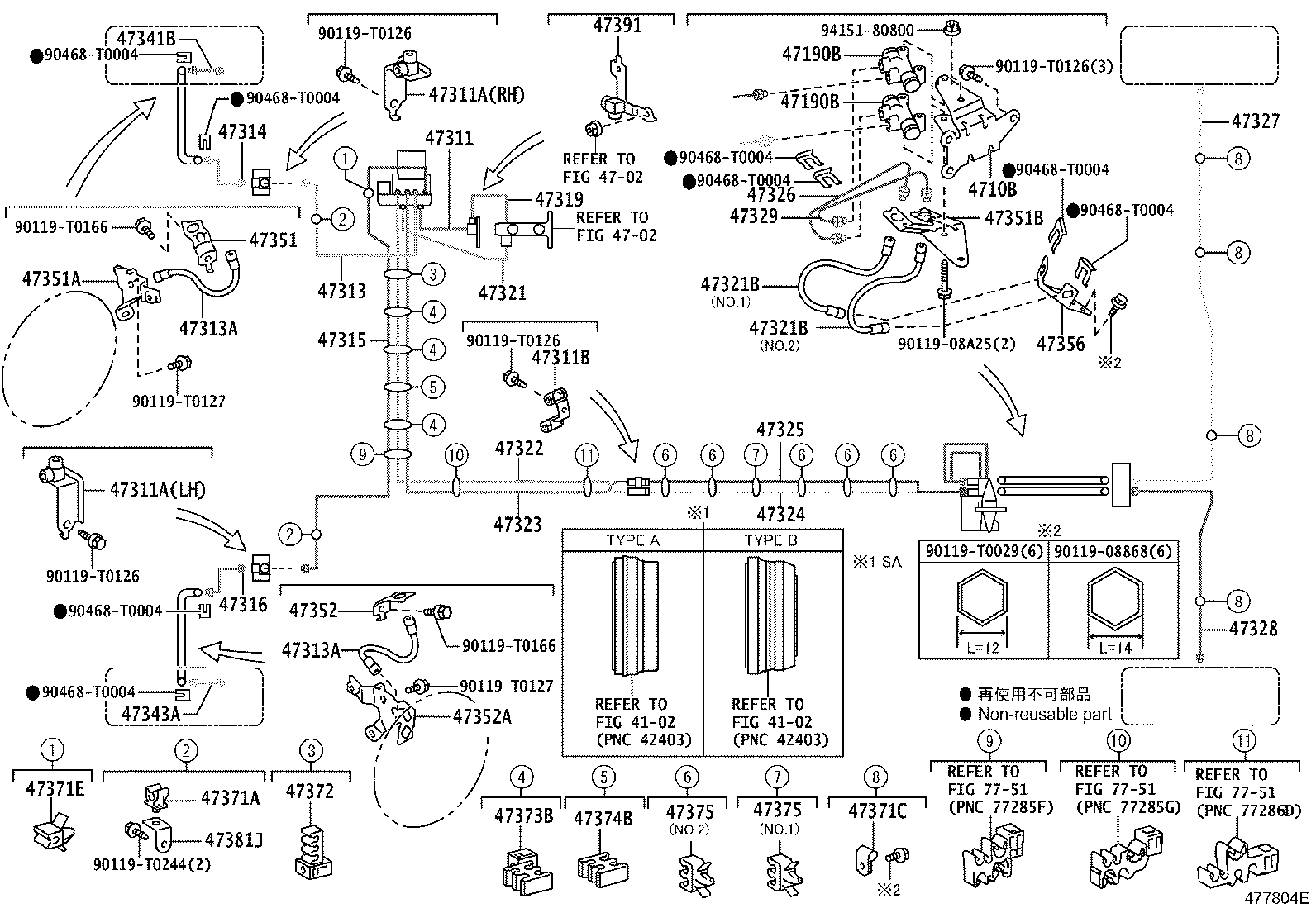

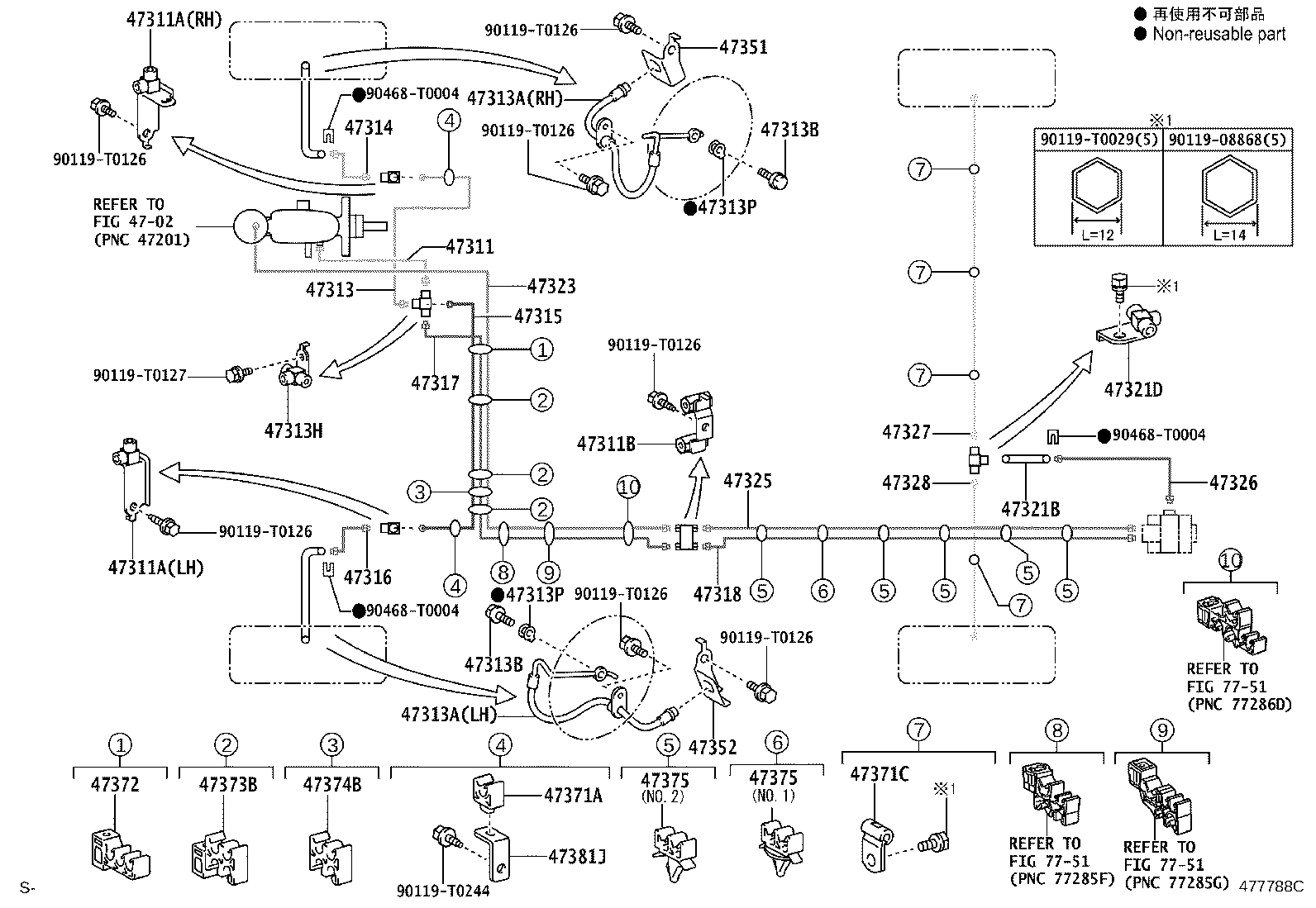

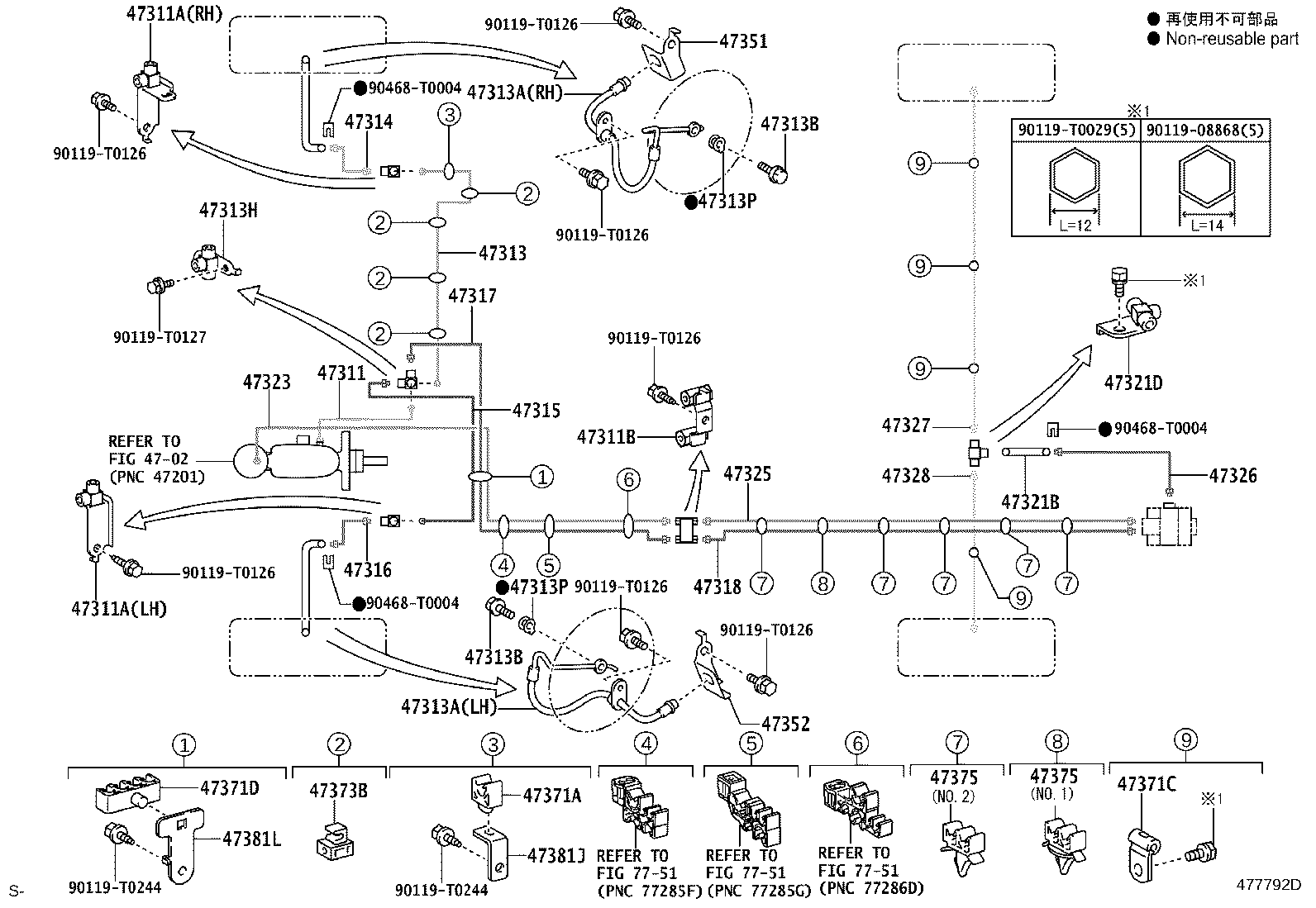

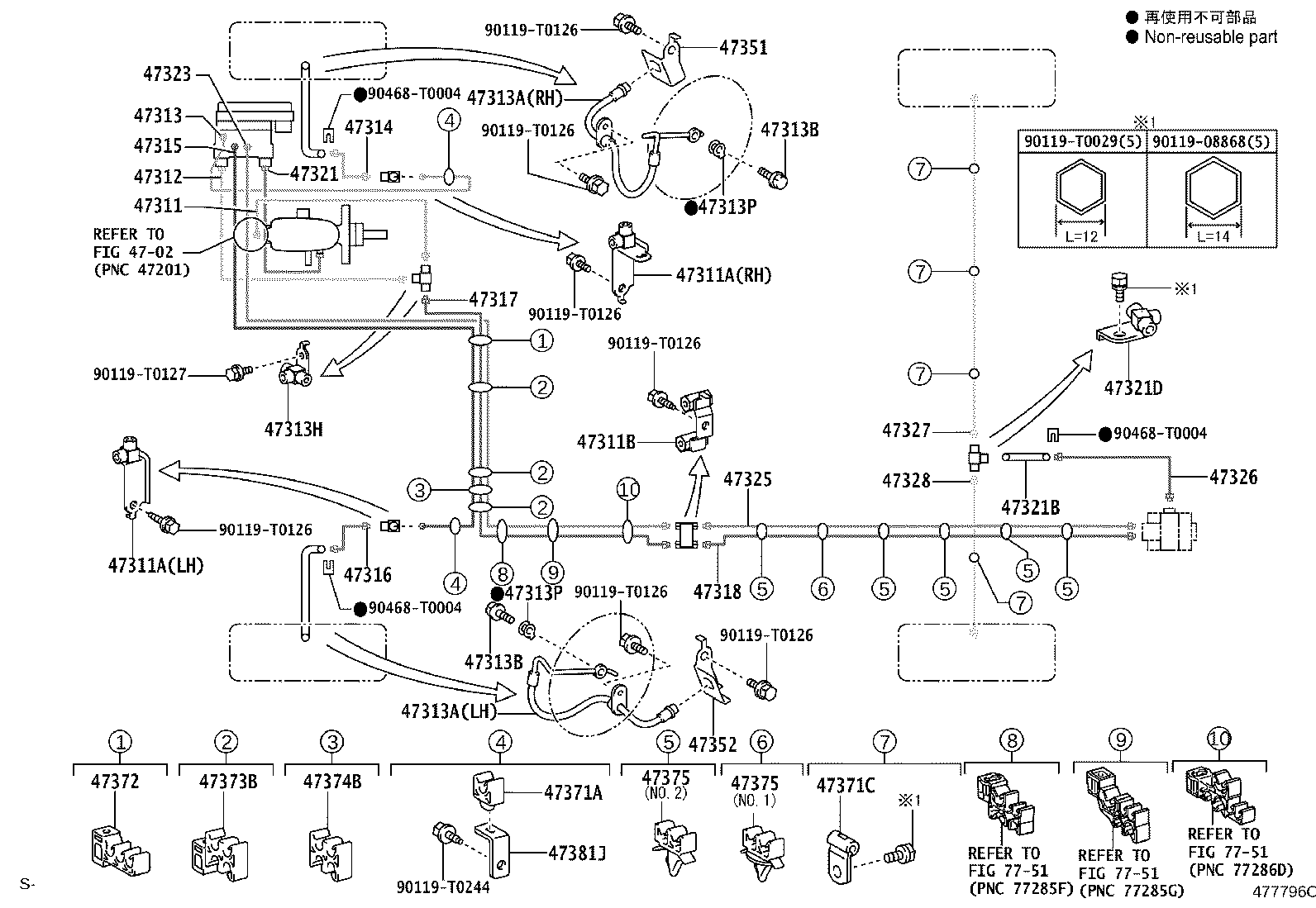

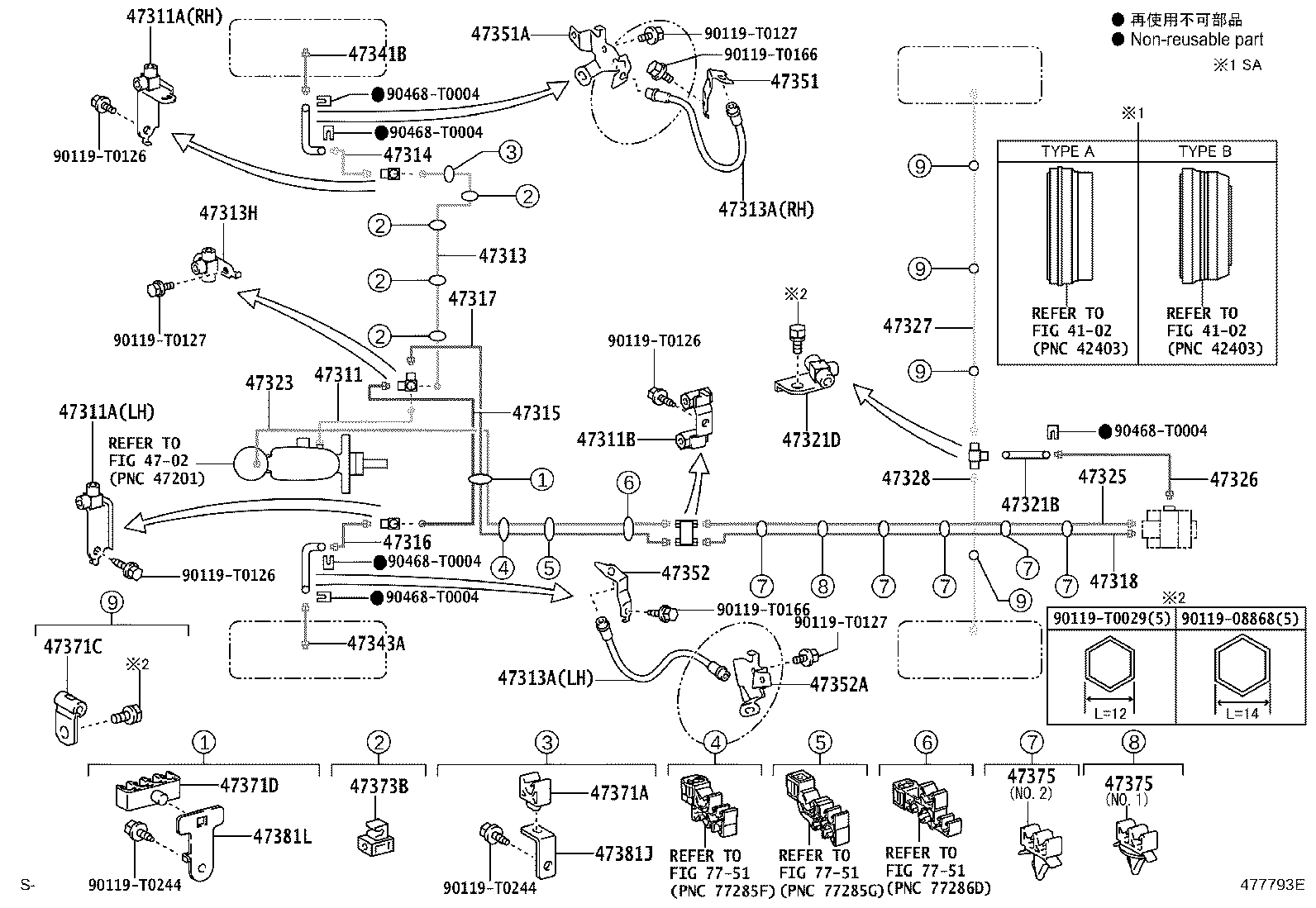

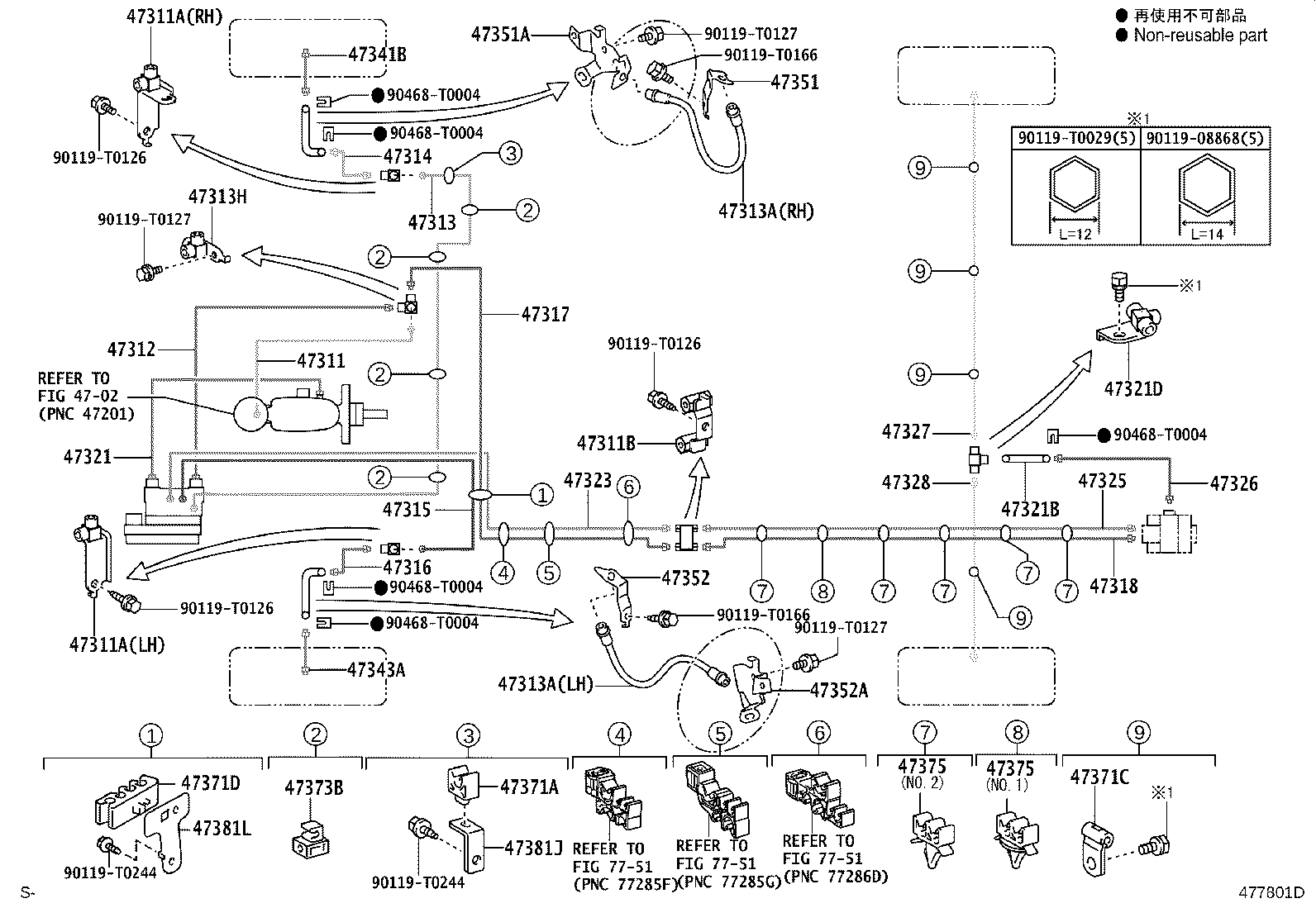

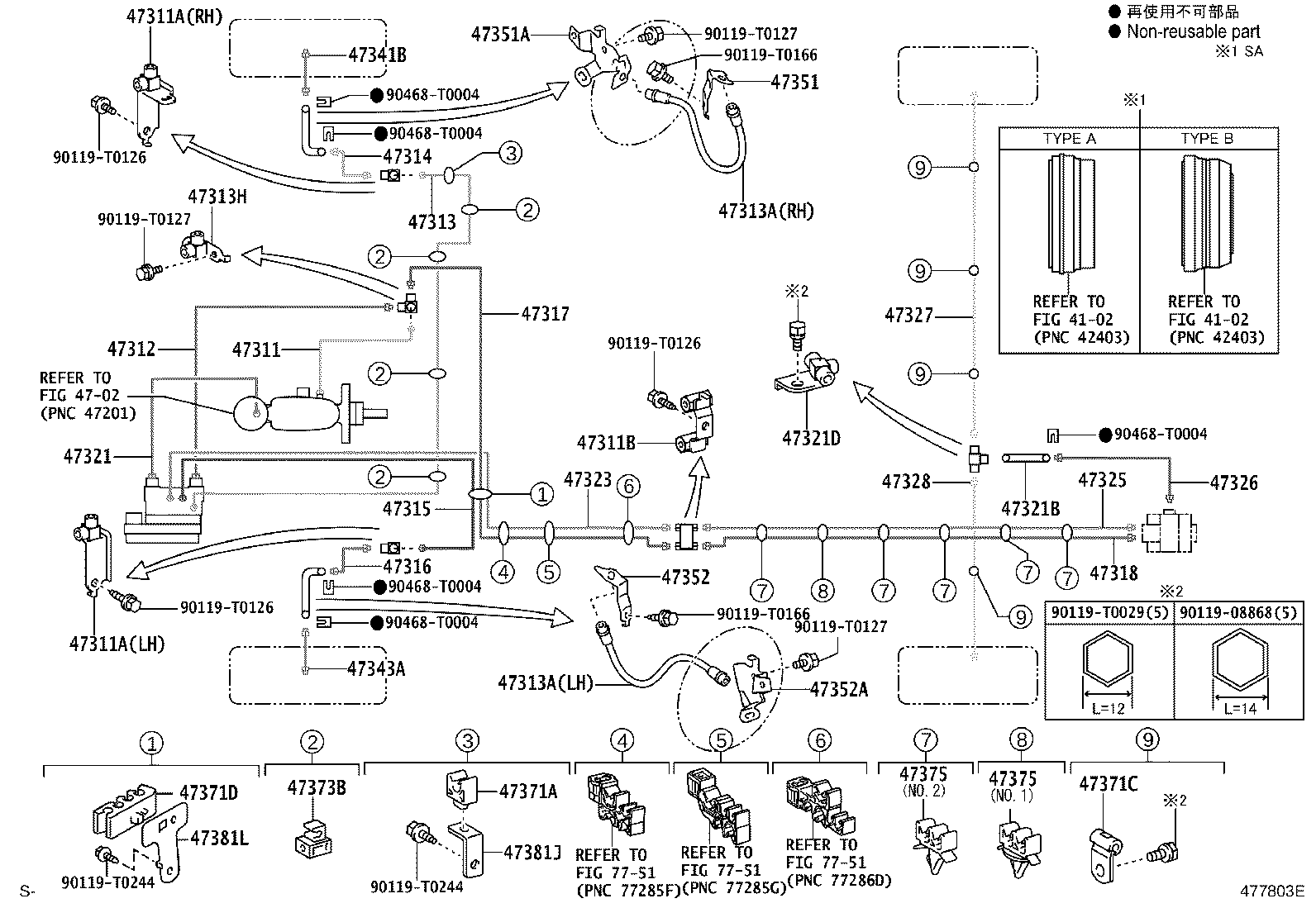

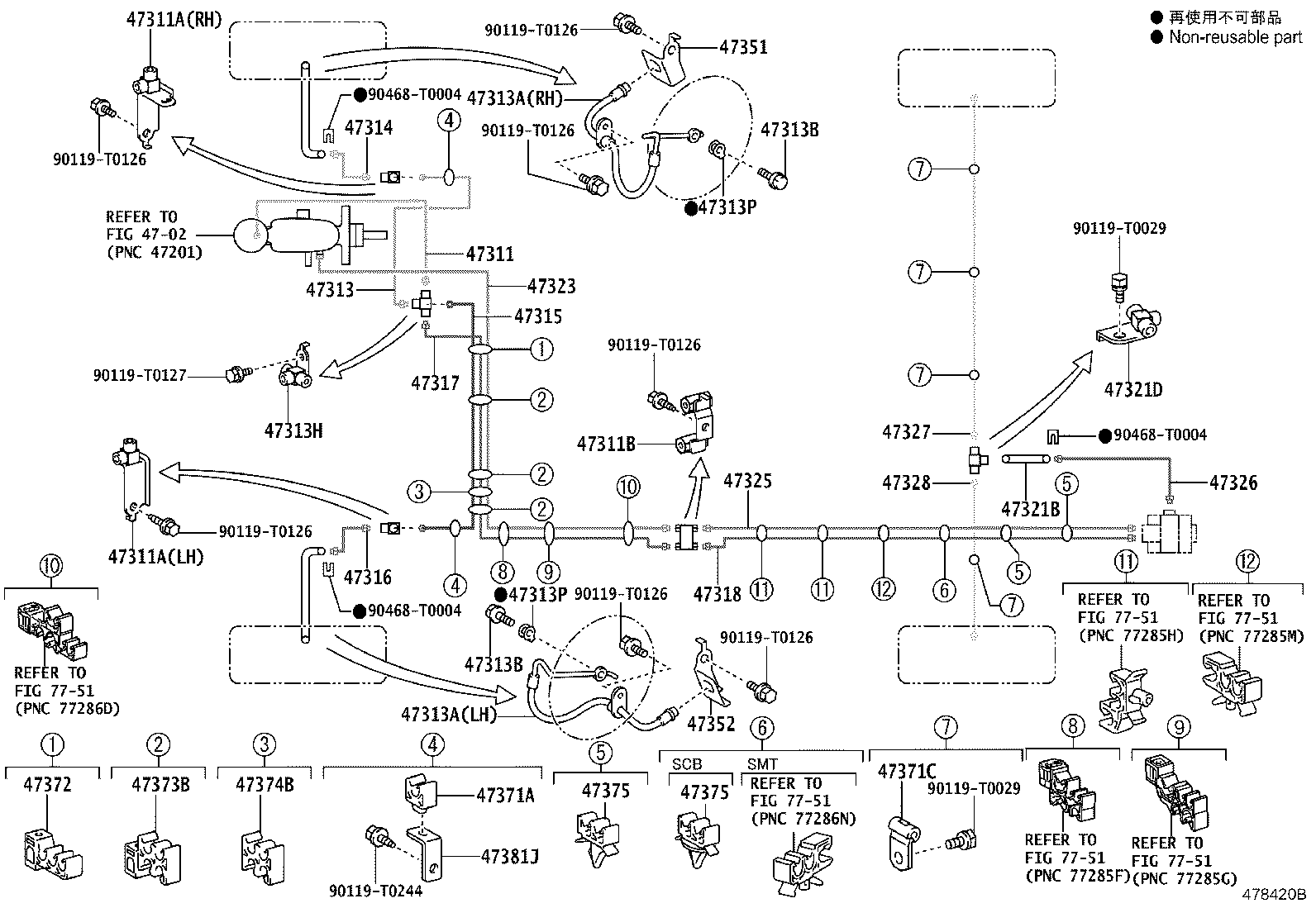

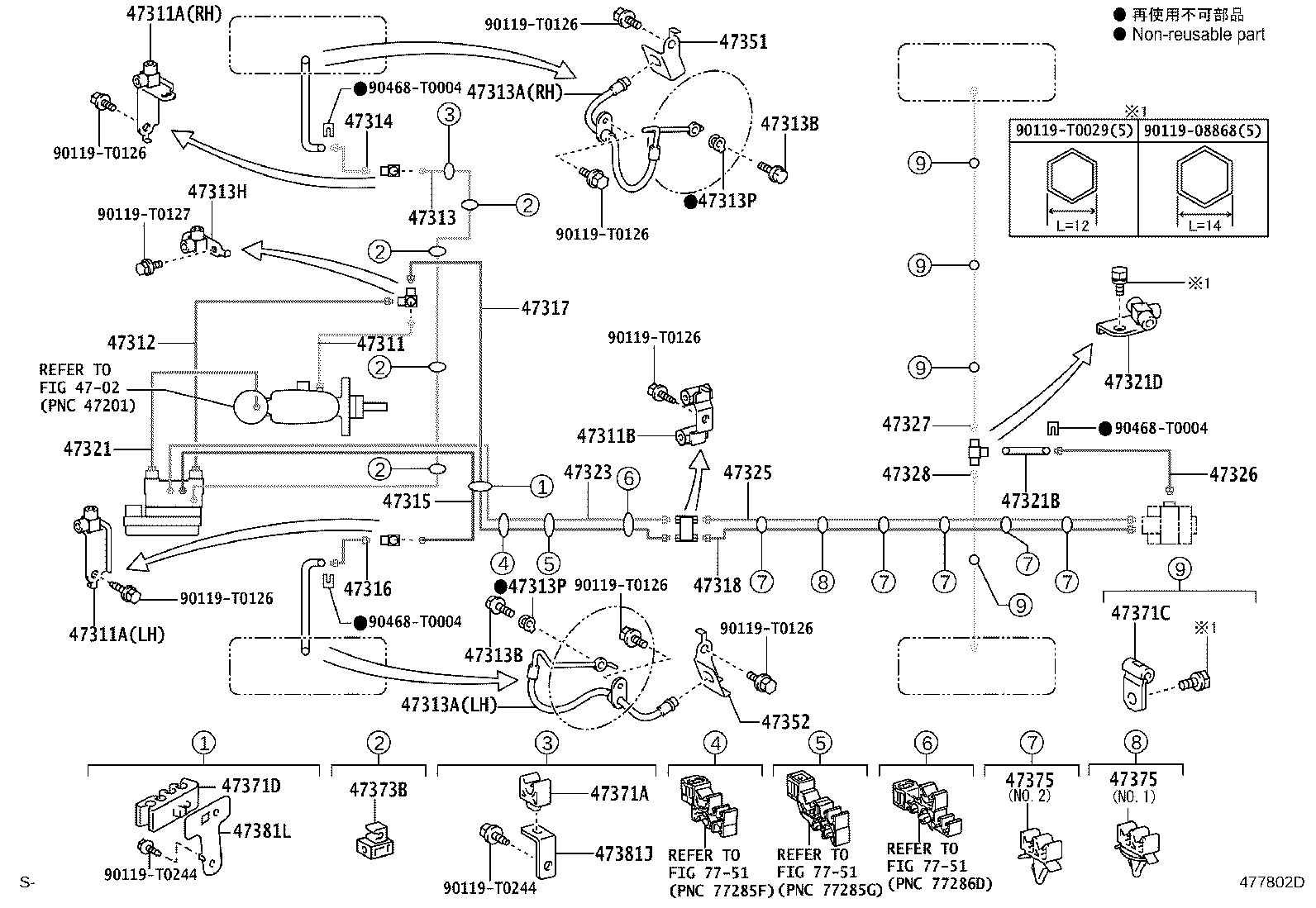

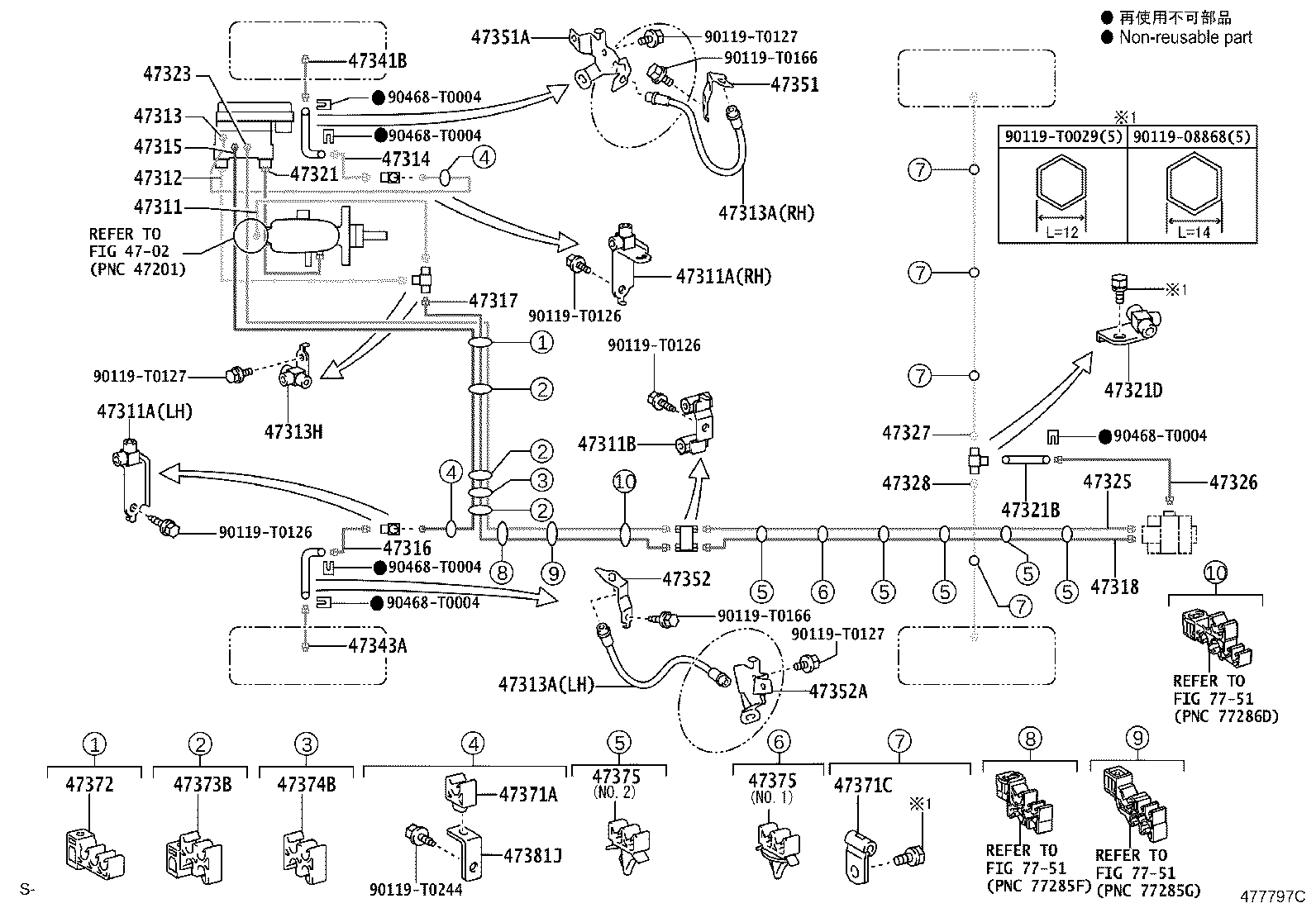

Figure 477786C 477786C 2011-07 → — Figure 477787C 477787C 2011-07 → — Figure 477788C 477788C 2011-07 → — Figure 477789C 477789C 2011-07 → — Figure 477790D 477790D 2011-07 → — Figure 477790D 477790D 2011-07 → — Figure 477791E 477791E 2011-07 → — Figure 477792D 477792D 2011-07 → — Figure 477793E 477793E 2011-07 → — Figure 477793E 477793E 2011-07 → — Figure 478420B 478420B 2012-05 → — Figure 477796C 477796C 2011-07 → — Figure 477796C 477796C 2011-07 → — Figure 477796C 477796C 2013-08 → — Figure 477796C 477796C 2013-08 → — Figure 477797C 477797C 2011-07 → — Figure 477797C 477797C 2011-07 → — Figure 477797C 477797C 2013-08 → — Figure 477798C 477798C 2011-08 → — Figure 477799D 477799D 2011-08 → — Figure 477800D 477800D 2011-07 → — Figure 477800D 477800D 2013-08 → — Figure 477801D 477801D 2011-07 → — Figure 477801D 477801D 2013-08 → — Figure 477802D 477802D 2011-08 → — Figure 477803E 477803E 2011-08 → — Figure 477803E 477803E 2011-08 → — Figure 477803E 477803E 2012-10 → — Figure 477803E 477803E 2013-10 → — Figure 477804E 477804E 2011-07 → — Figure 477804E 477804E 2013-08 → — Figure 477804E 477804E 2013-08 → — Figure 477923C 477923C 2011-10 → — Figure 477923C 477923C 2013-08 → — Figure 477776 477776 2011-07 → — Figure 477776 477776 2011-07 → — Figure 477776 477776 2011-07 → — Figure 477776 477776 2011-07 → — Figure 477776 477776 2012-10 → — Figure 477776 477776 2013-01 → — Figure 477776 477776 2013-10 → — Figure 477776 477776 2013-10 → — Figure 477784B 477784B 2011-07 → — Figure 477924A 477924A 2011-10 → — Figure 477924A 477924A 2013-08 → — Figure 477805 477805 2011-07 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)

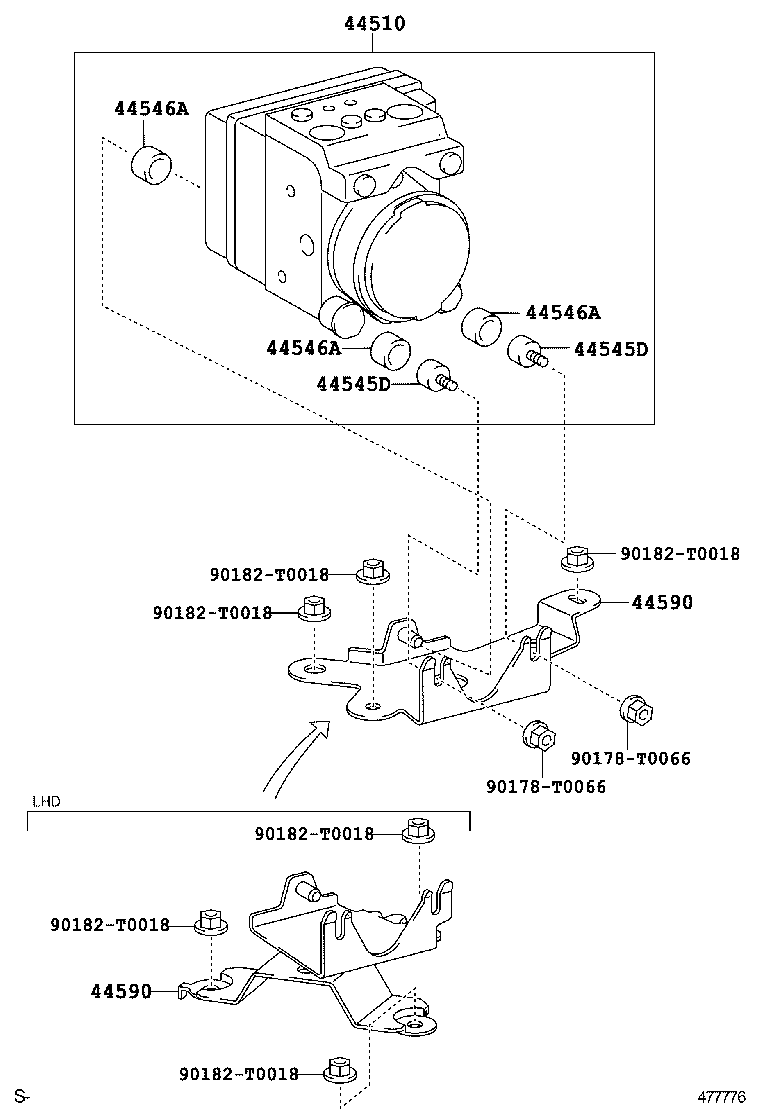

44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44593 Bracket, Brake Actuator, NO.3
4710B Bracket Sub-assy, Blend Proportioning Valve
47190B Valve Assy, Blend Proportioning
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351A Bracket, Flexible Hose, Front RH NO.1
47351B Bracket, Flexible Hose, NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47352A Bracket, Flexible Hose, Front LH NO.1
47353 Bracket, Flexible Hose(FOR REAR)
47356 Bracket, Flexible Hose, NO.6
47371A Clamp, Brake Tube, NO.1
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381J Bracket, Brake Tube Clamp, NO.2
47381L Bracket, Brake Tube Clamp, NO.3
47391 Way, Brake Tube
47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47931 Bracket, Load Sensing Valve
47935 Shackle, Load Sensing Spring, NO.1
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
