Toyota Vitz
2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan
Supported model
Data version 2020-02
Switch & Relay & Computer
116 part groups · 16 illustrations

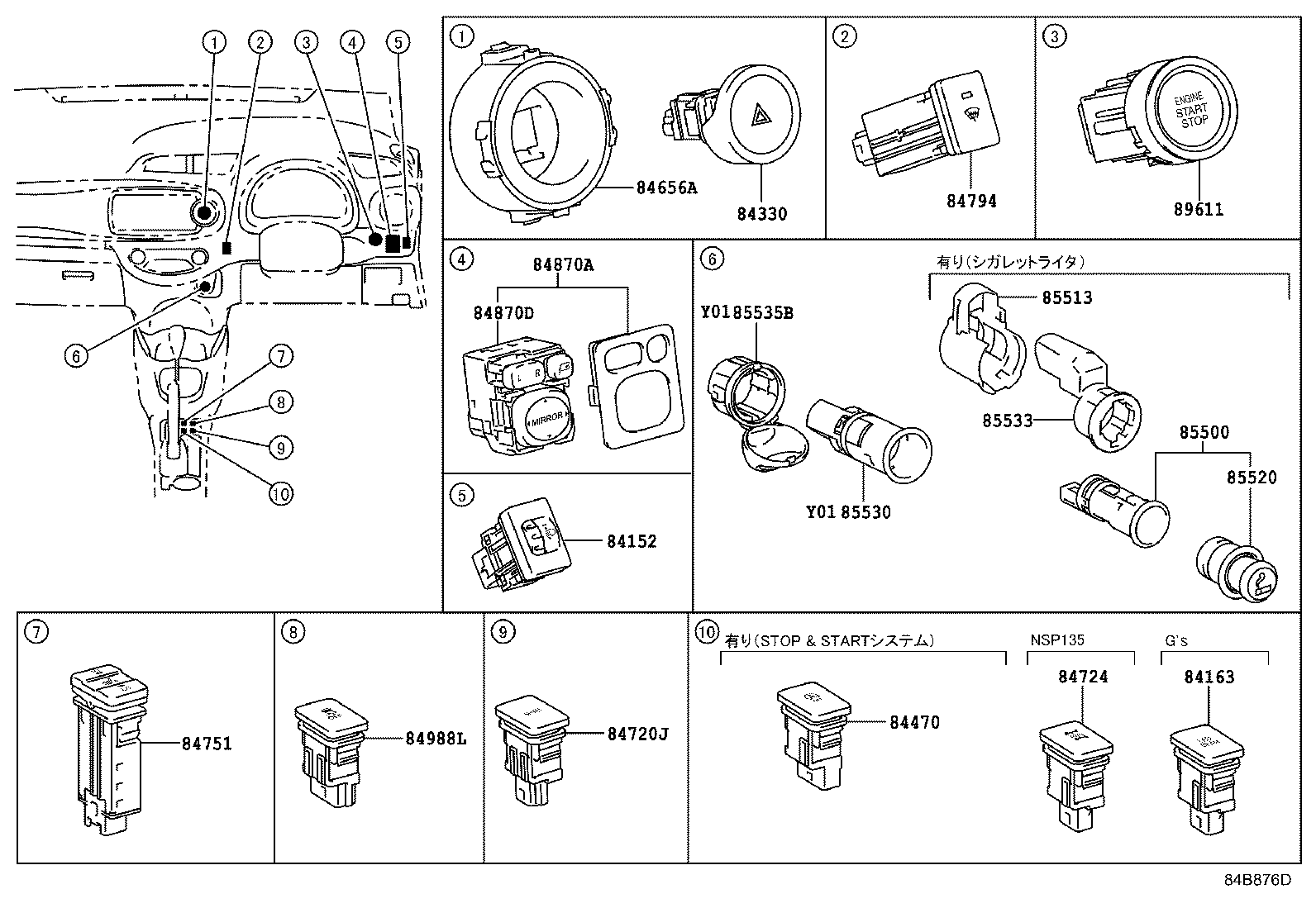

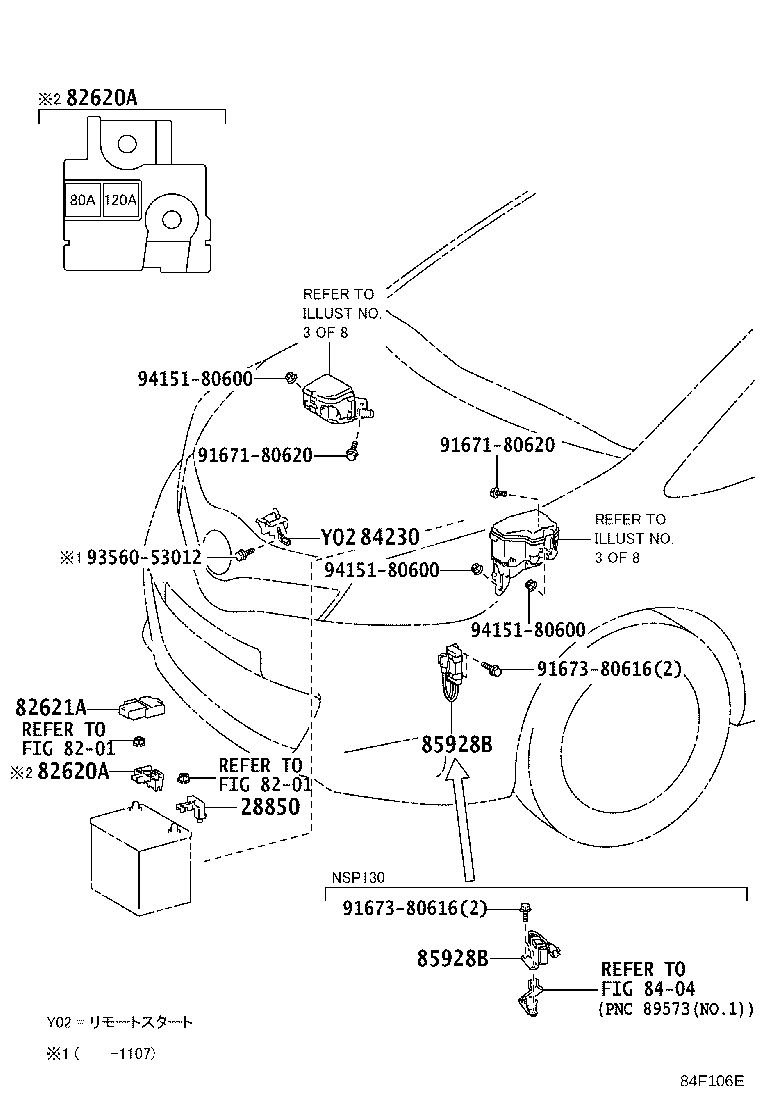

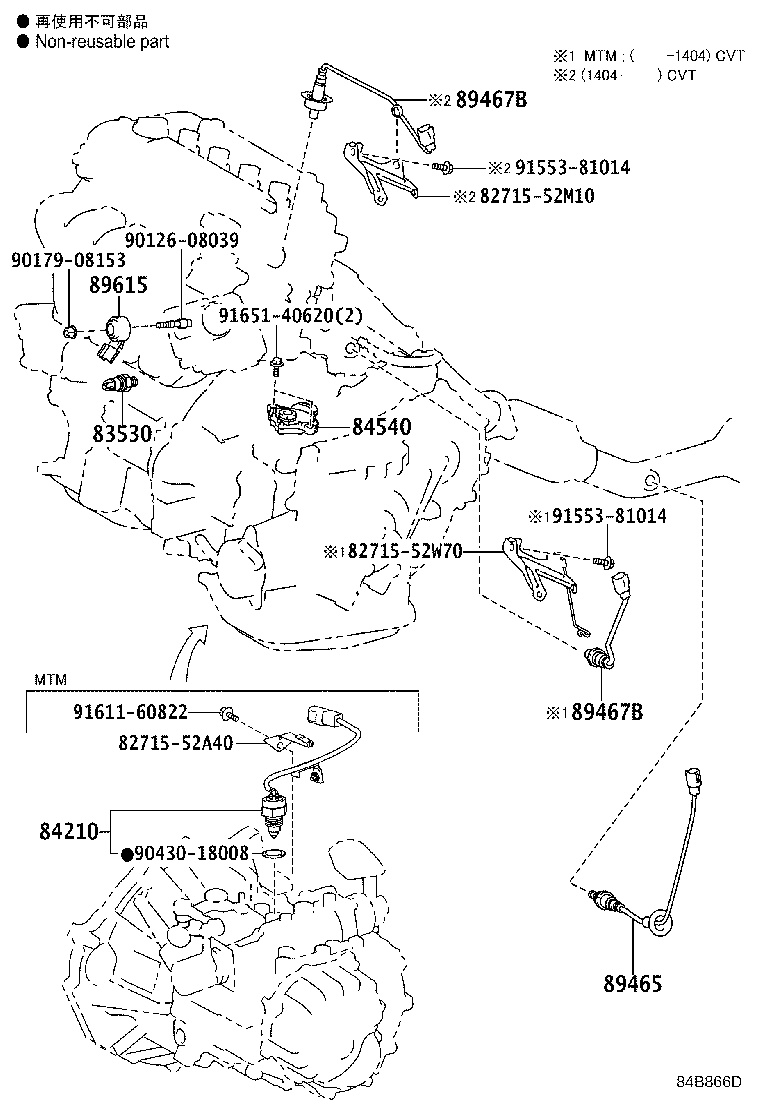

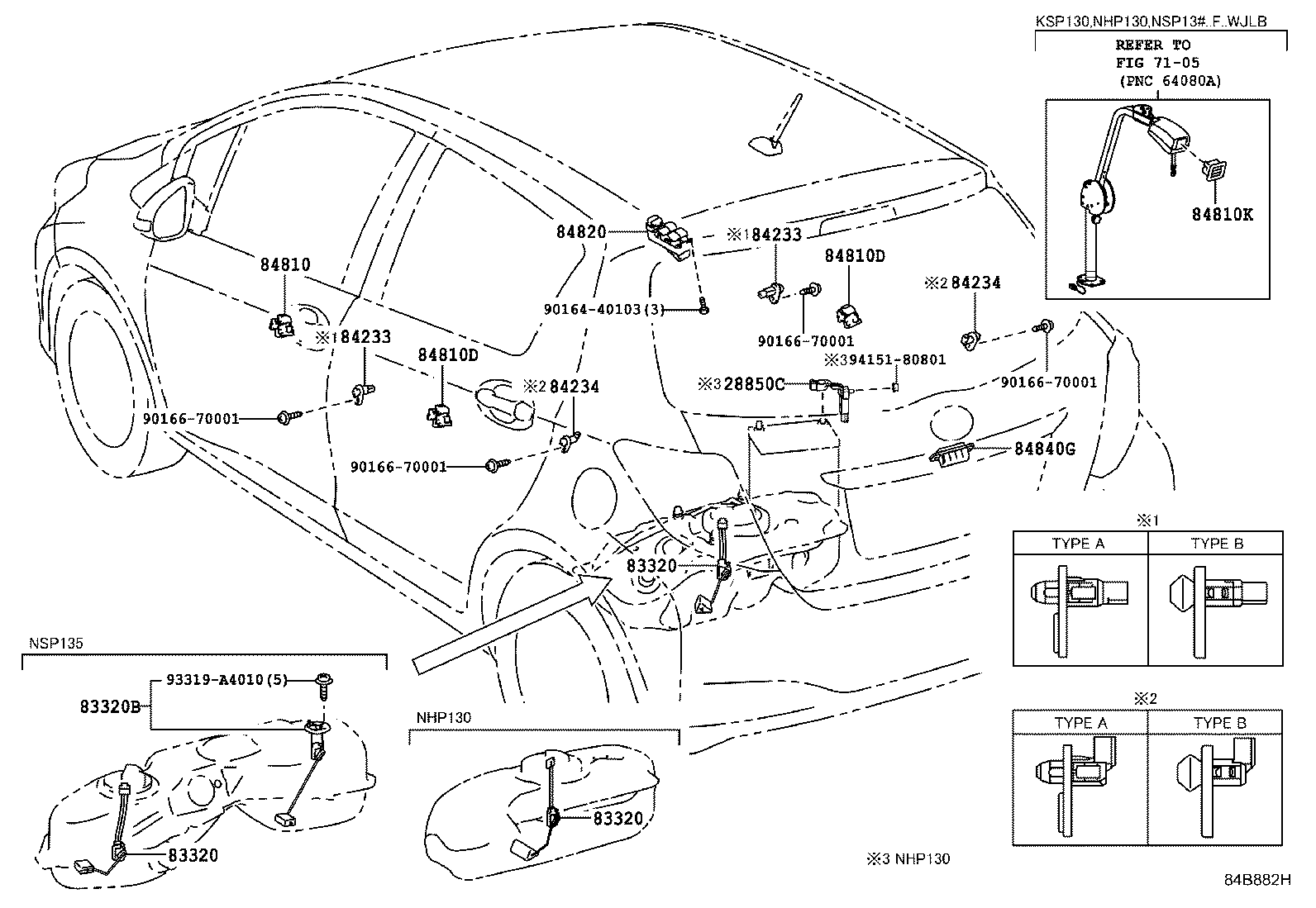

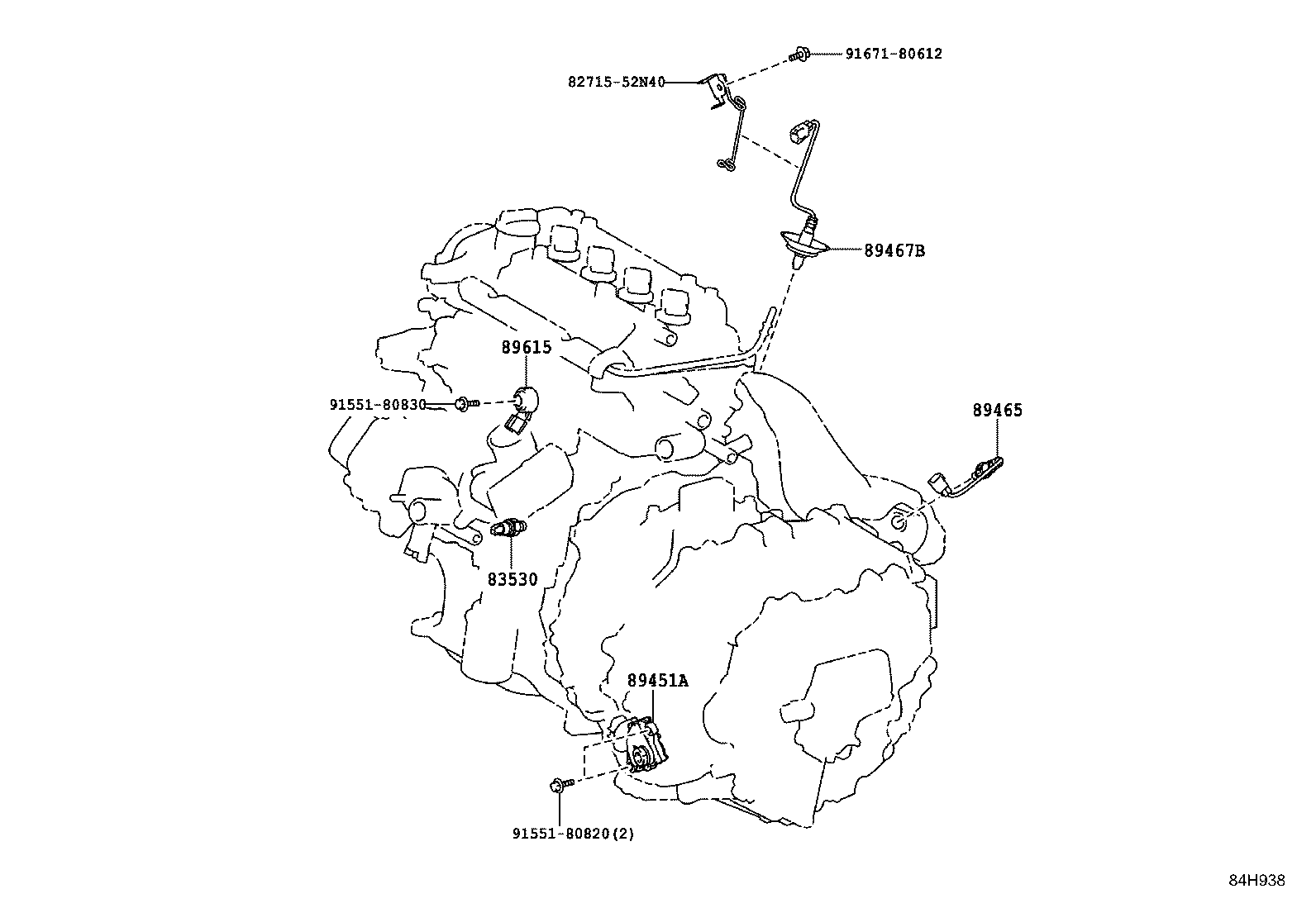

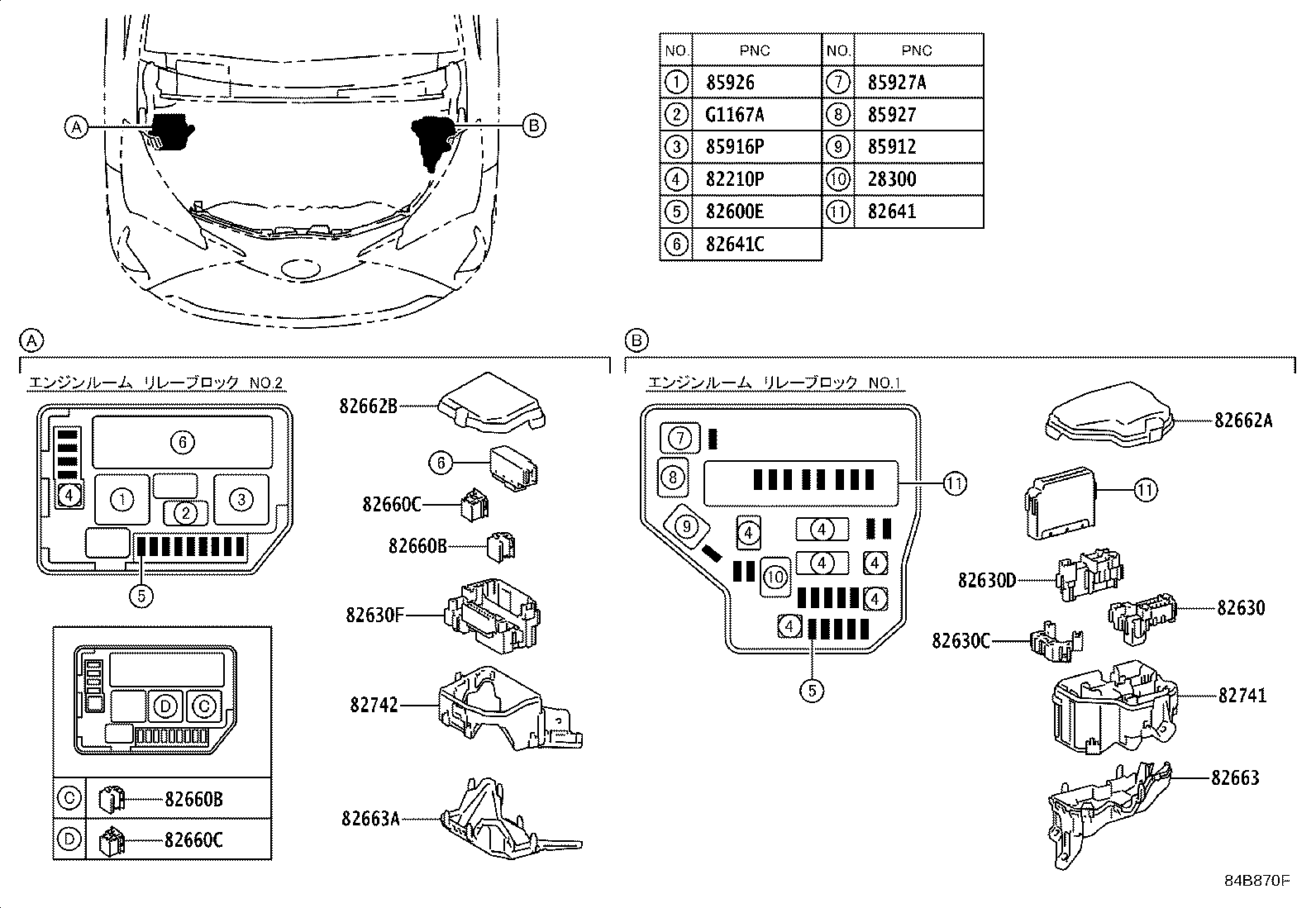

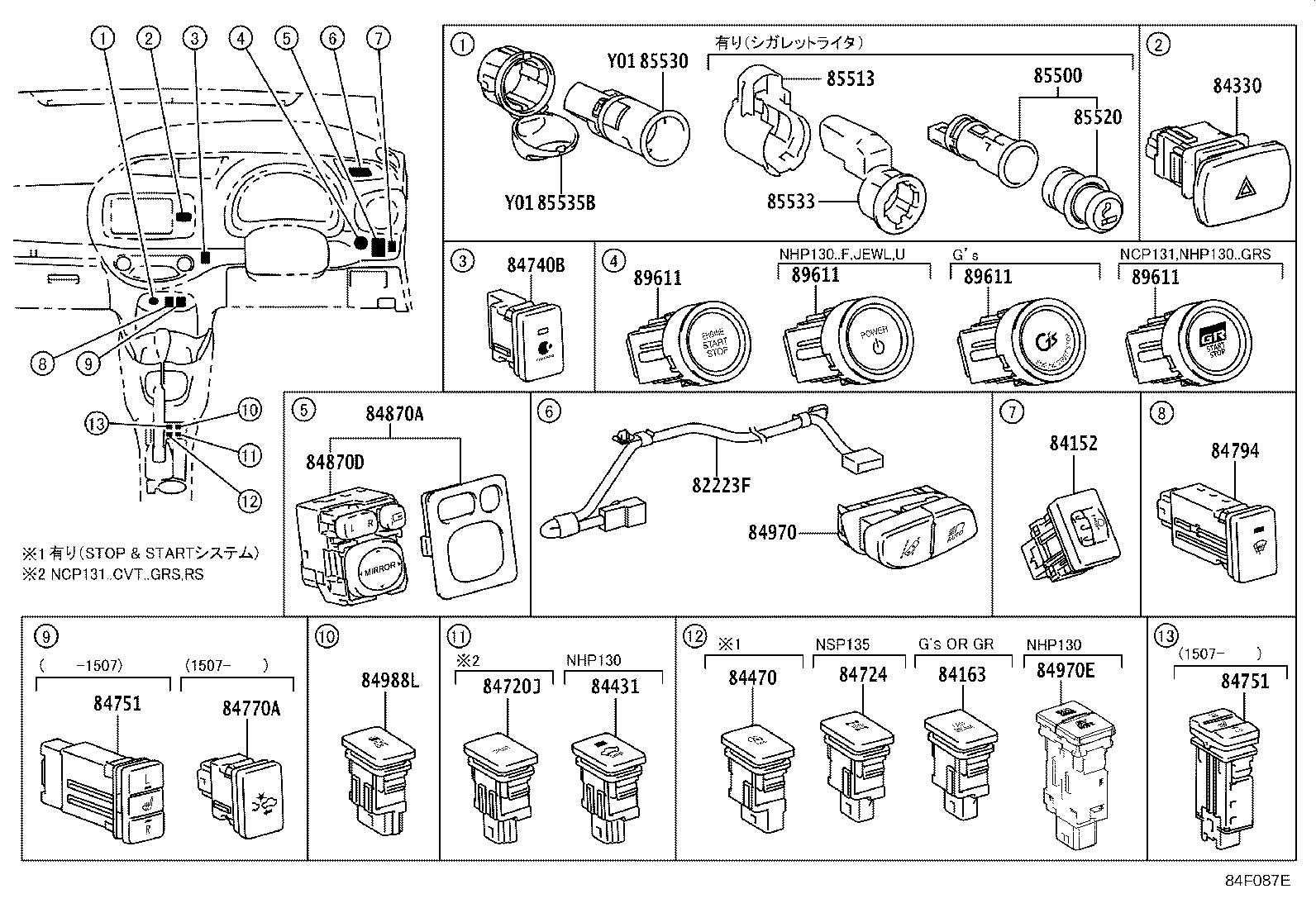

Illustrations
Part groups

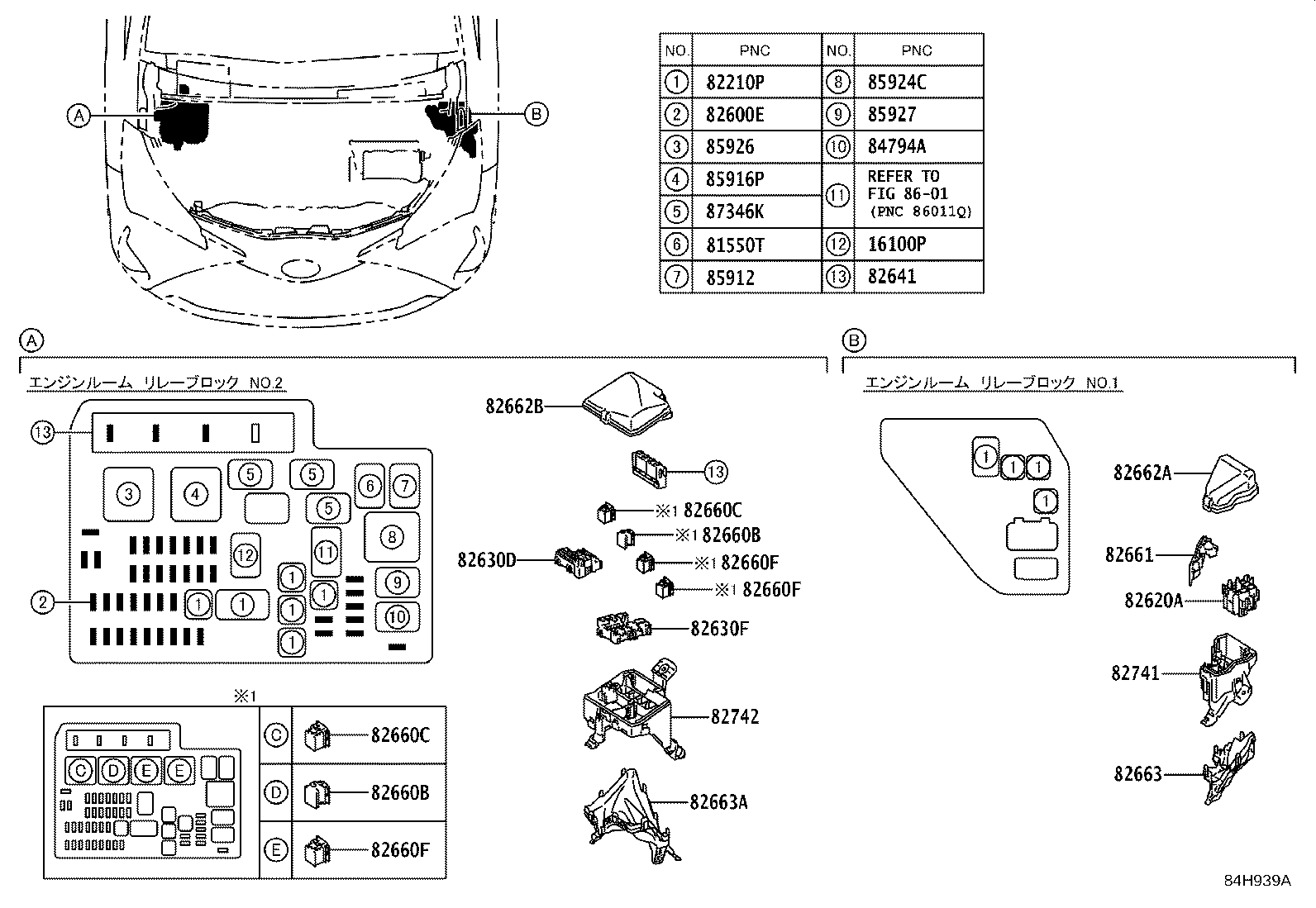

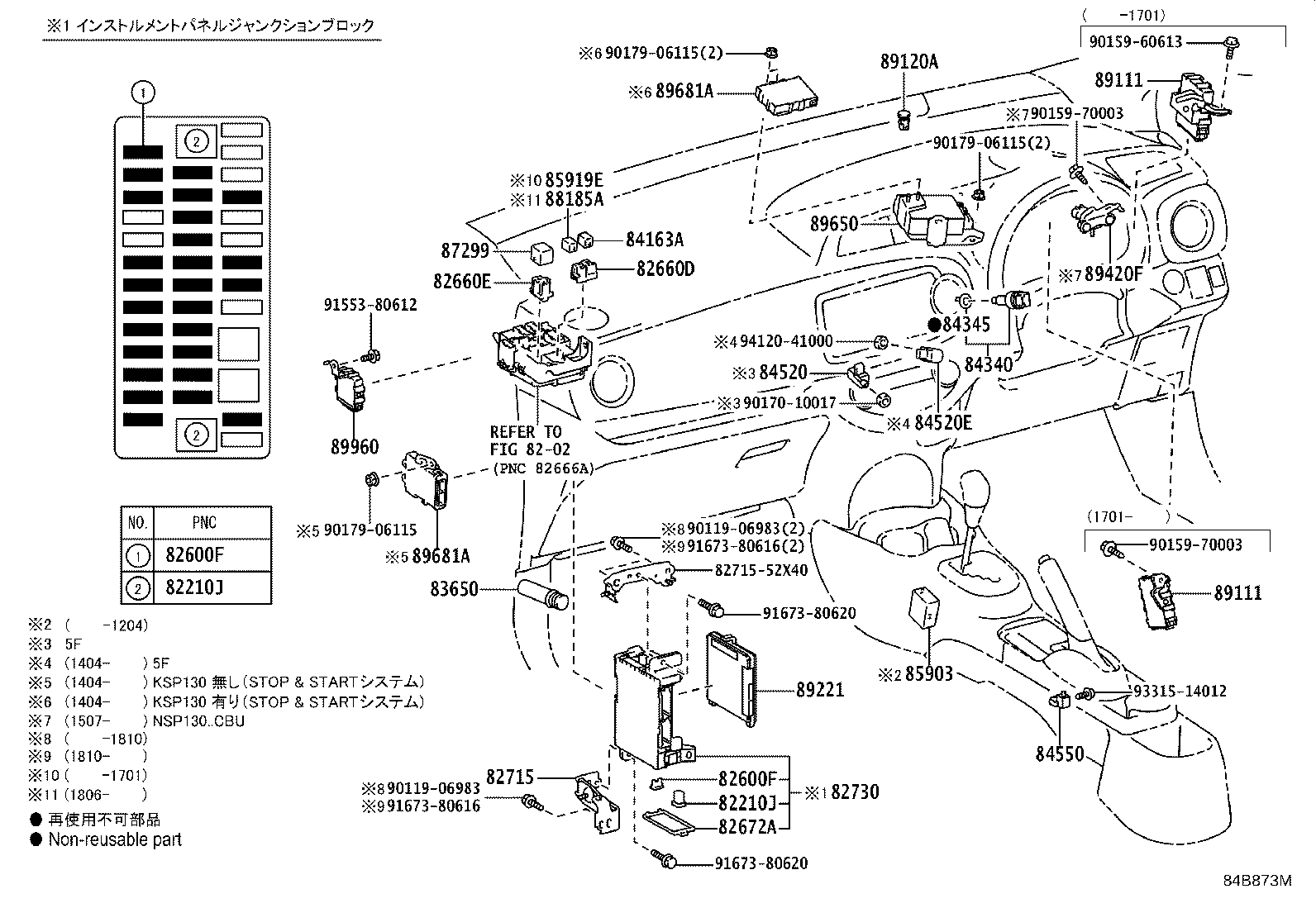

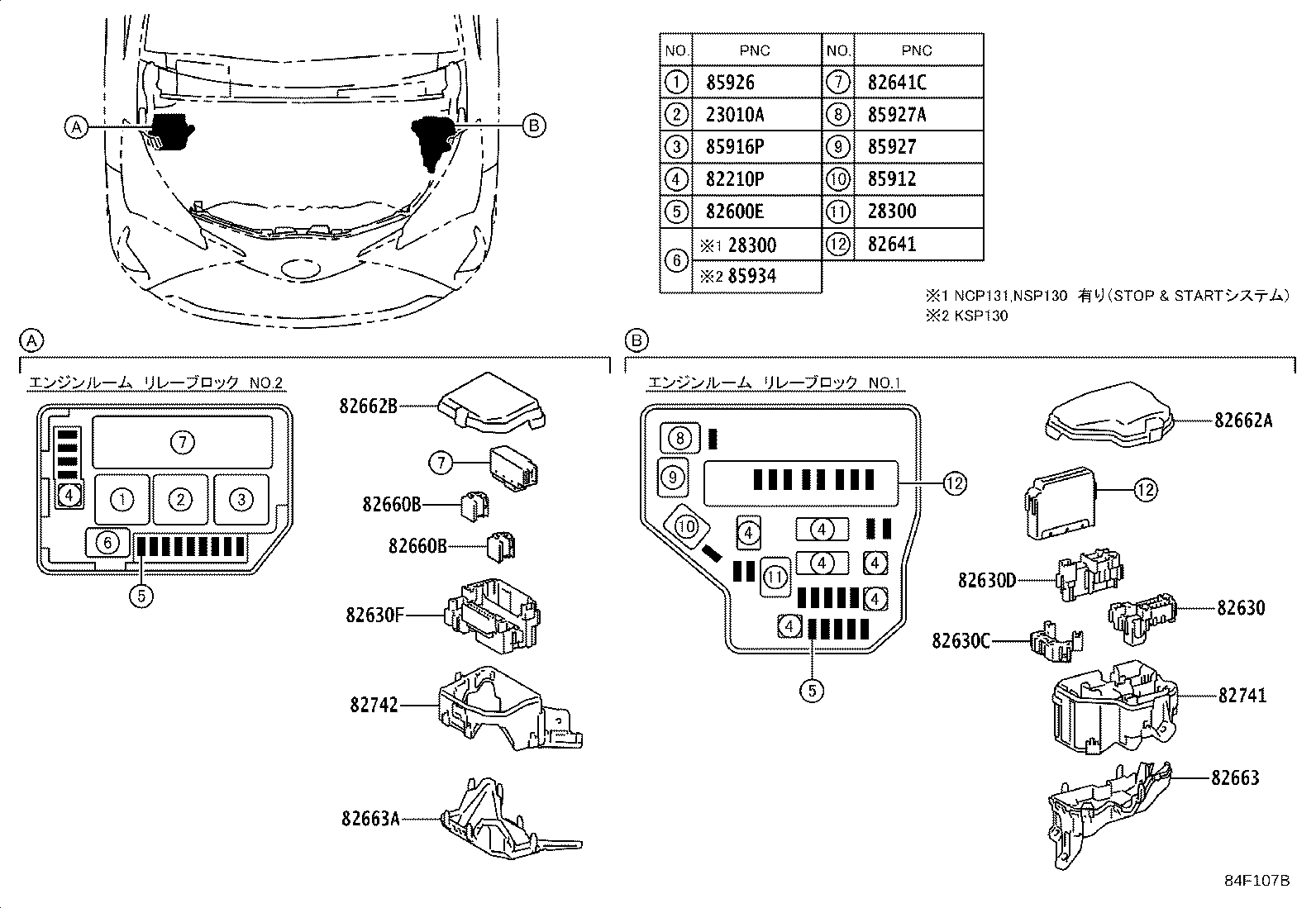

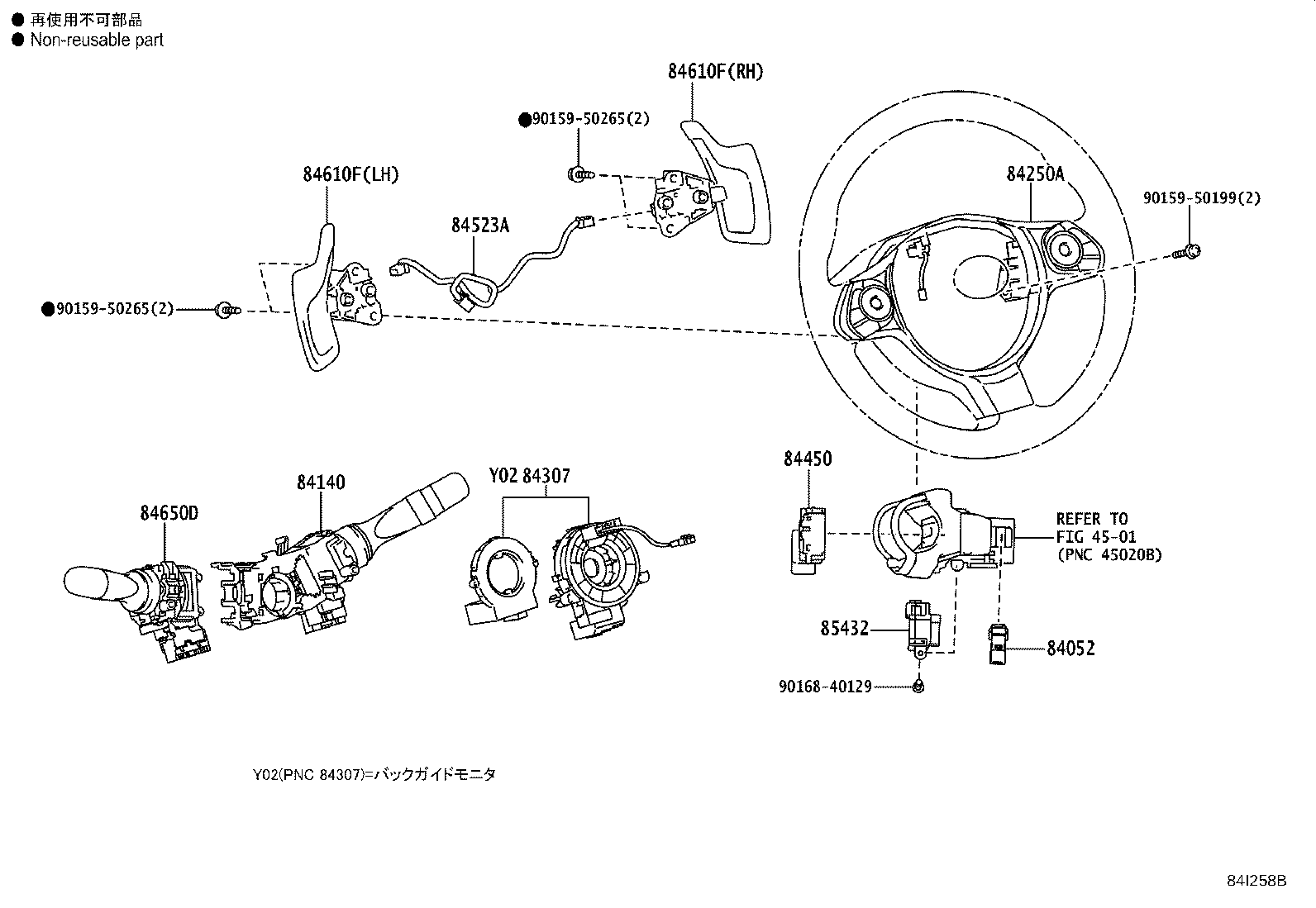

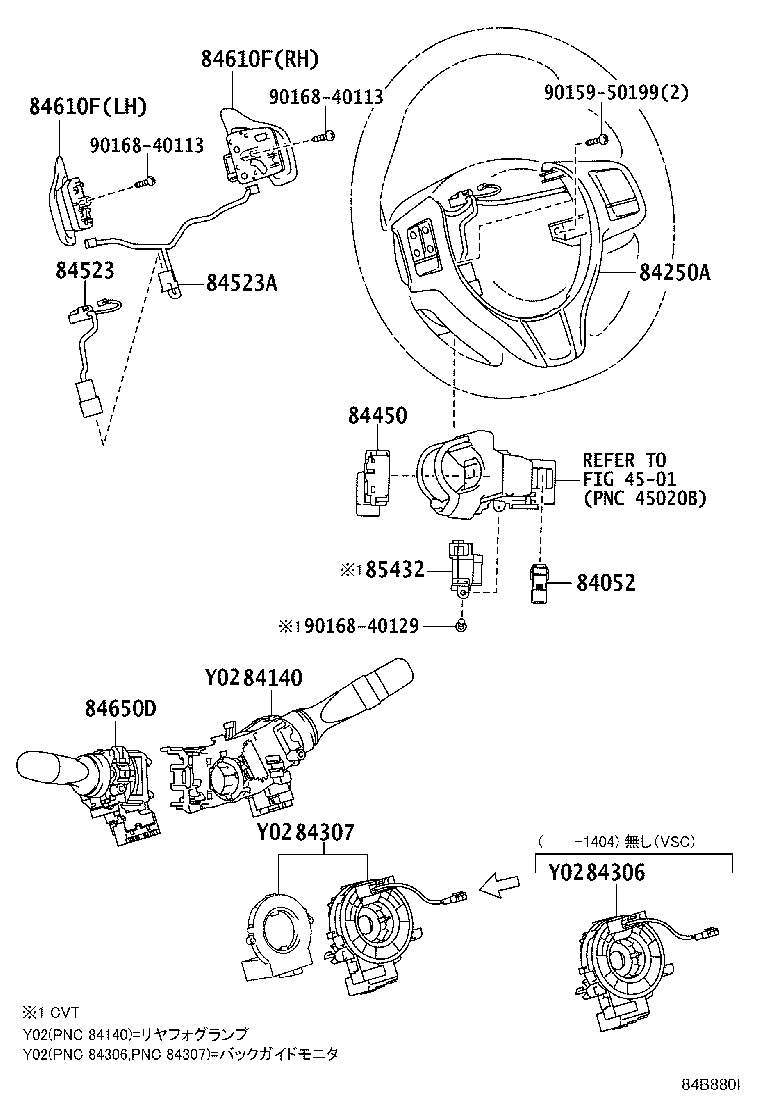

| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 23010A | Relay, Variable Valve Timing |
| 28300 | Relay Assy, Starter |
| 28850 | Sensor Assy, Battery Current |
| 28850C | Sensor Assy, Battery State |
| 81550T | Relay, Back UP Lamp |
| 82210J | Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82223F | Wire, Switch |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82630F | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82641C | Relay, Integration NO.2 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82672A | Cover, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84163 | Switch, Light Emitting Diode Illumination |
| 84163A | Relay, Light Emitting Diode Illumination |
| 84210 | Switch Assy, Back-up Lamp |
| 84230 | Switch Assy, Courtesy Lamp (FOR ENGINE ROOM) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84431 | Switch, Vehicle Approaching Speaker |
| 84450 | Switch Assy, Ignition OR Starter |
| 84470 | Switch Assy, Warning Canceling |
| 84520 | Switch Assy, Clutch Start |
| 84520E | Switch Assy, Clutch Start, NO.2 |
| 84523 | Wire, Switch NO.1 |
| 84523A | Wire, Switch NO.2 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84720J | Switch Assy, Pattern Select |
| 84724 | Switch, 4 Wheel Drive Control |
| 84740B | Switch Assy, Air Purifier |
| 84751 | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84870D | Switch Assy, Outer Mirror, NO.2 |
| 84970 | Switch Assy, Combination |
| 84970E | Switch Assy, Combination NO.2 |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85916P | Relay, Headlamp |
| 85919E | Relay, Stop Lamp |
| 85924C | Relay, Igct |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 85934 | Relay, Magnet-clutch |
| 87299 | Relay, Heater |
| 87346K | Relay, Ptc Heater |
| 88185A | Relay, Pre-collision City Heater |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |

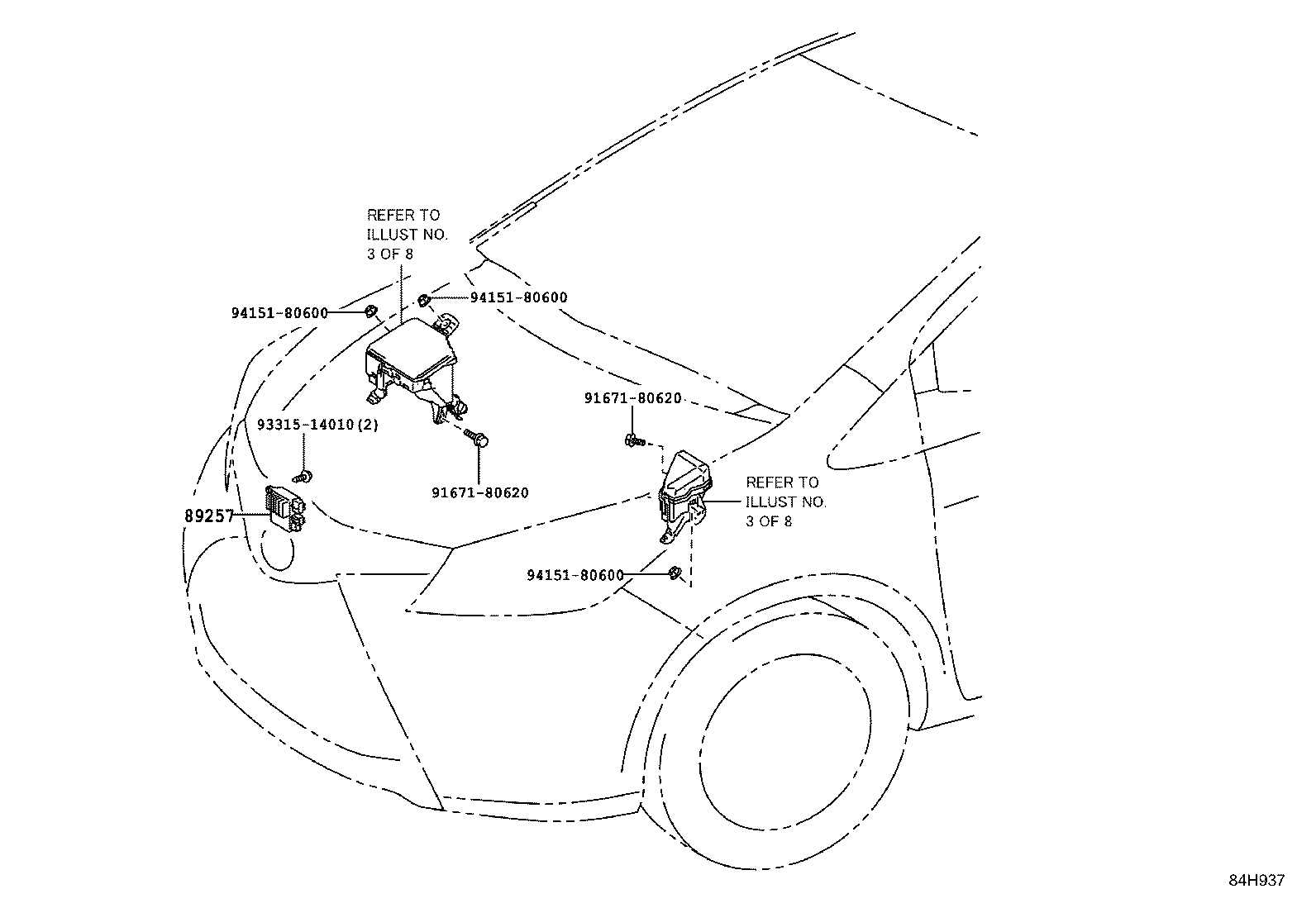

| 89257 | Computer, Cooling Fan |
| 89420F | Sensor Assy, Vacuum |
| 89451A | Sensor, Shift Lever Position |

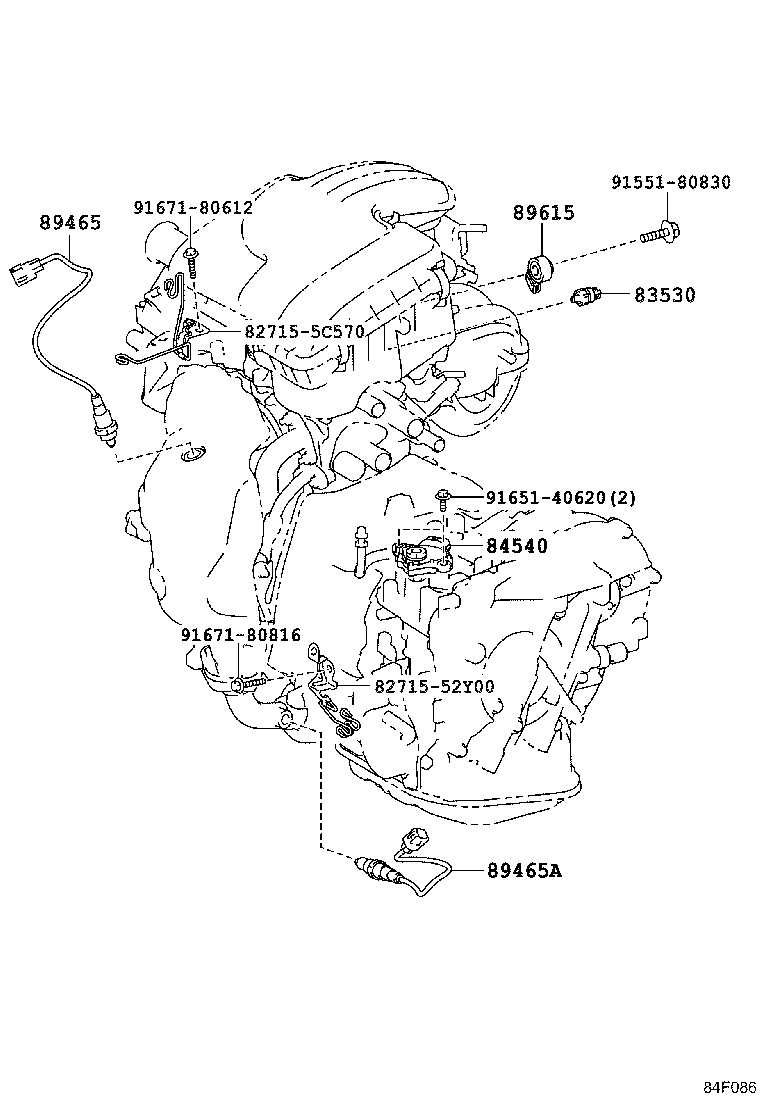

| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |

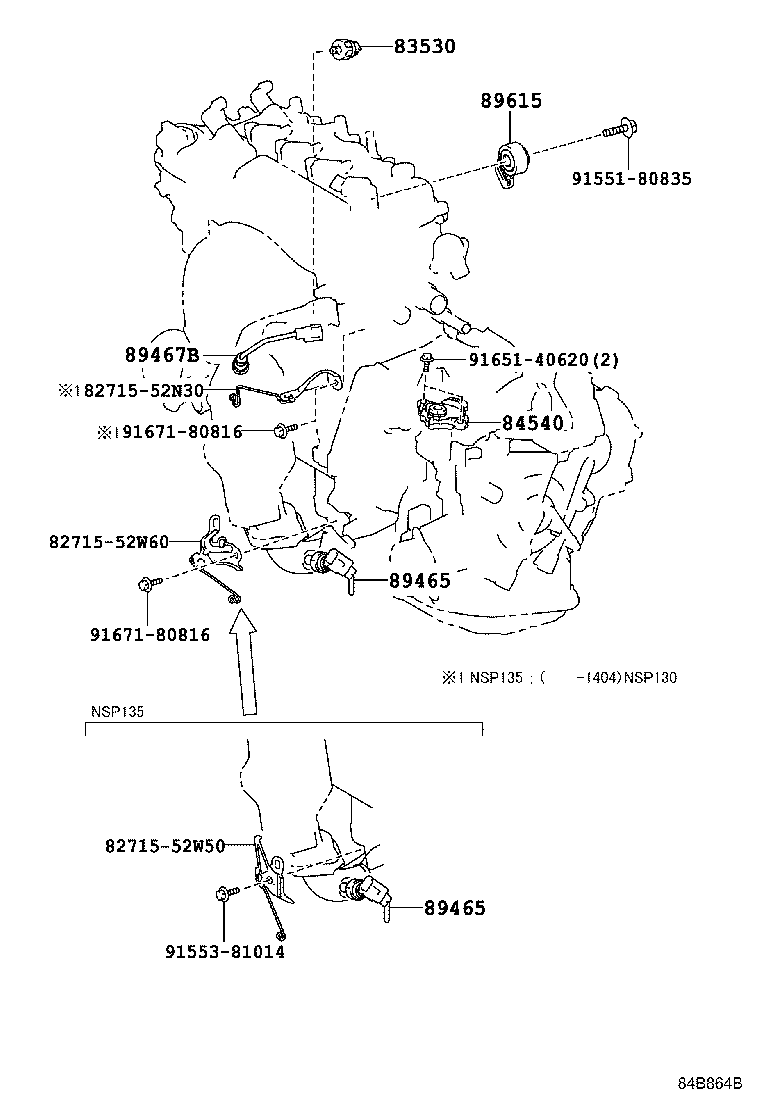

| 89467B | Sensor, Air Fuel Ratio |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89681A | Computer, Power Management Control |
| 89960 | Computer Assy, Headlamp Leveling |
| G1167A | Relay (FOR OIL PUMP MOTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
