Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

255 part groups · 32 illustrations

Illustrations

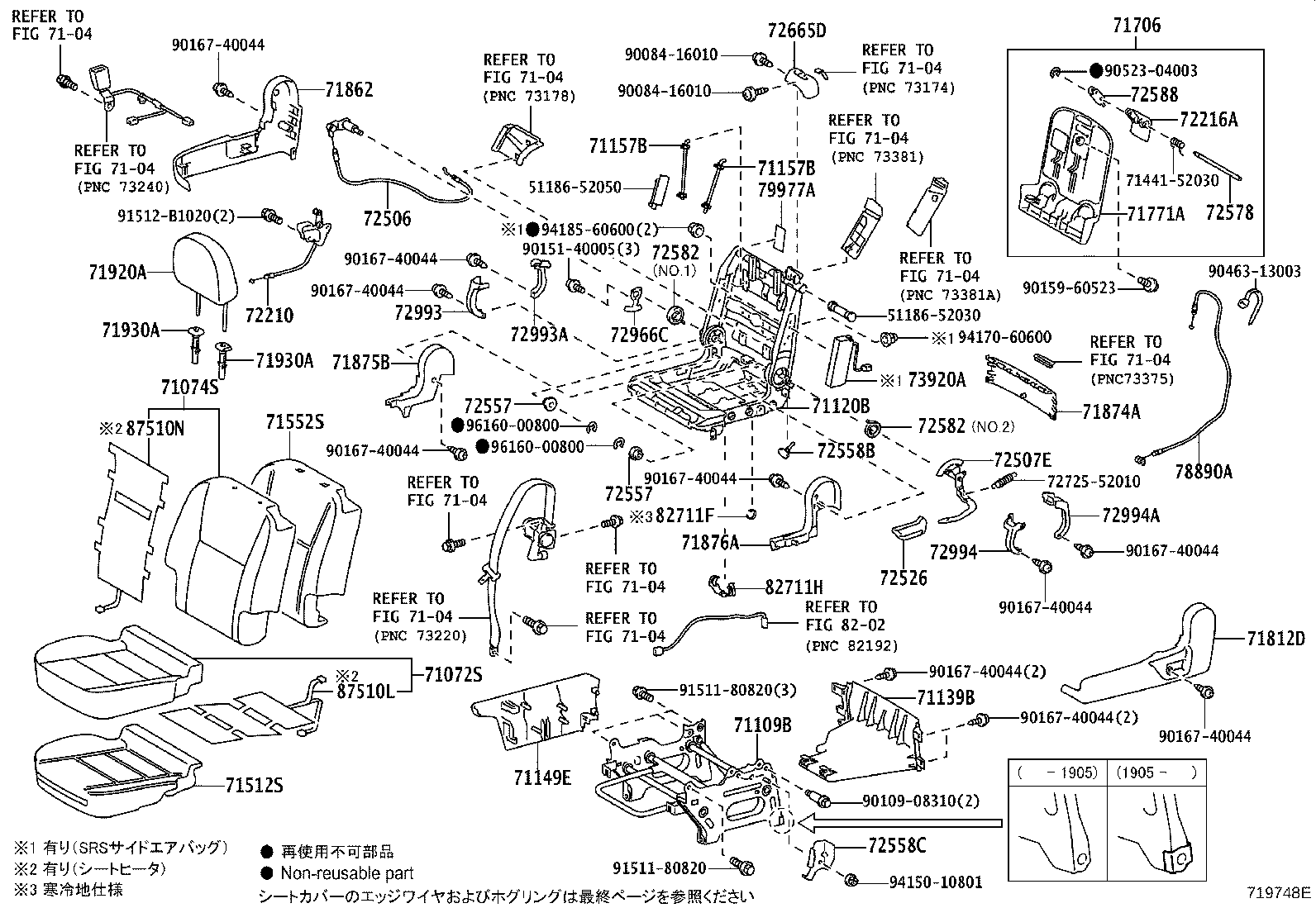

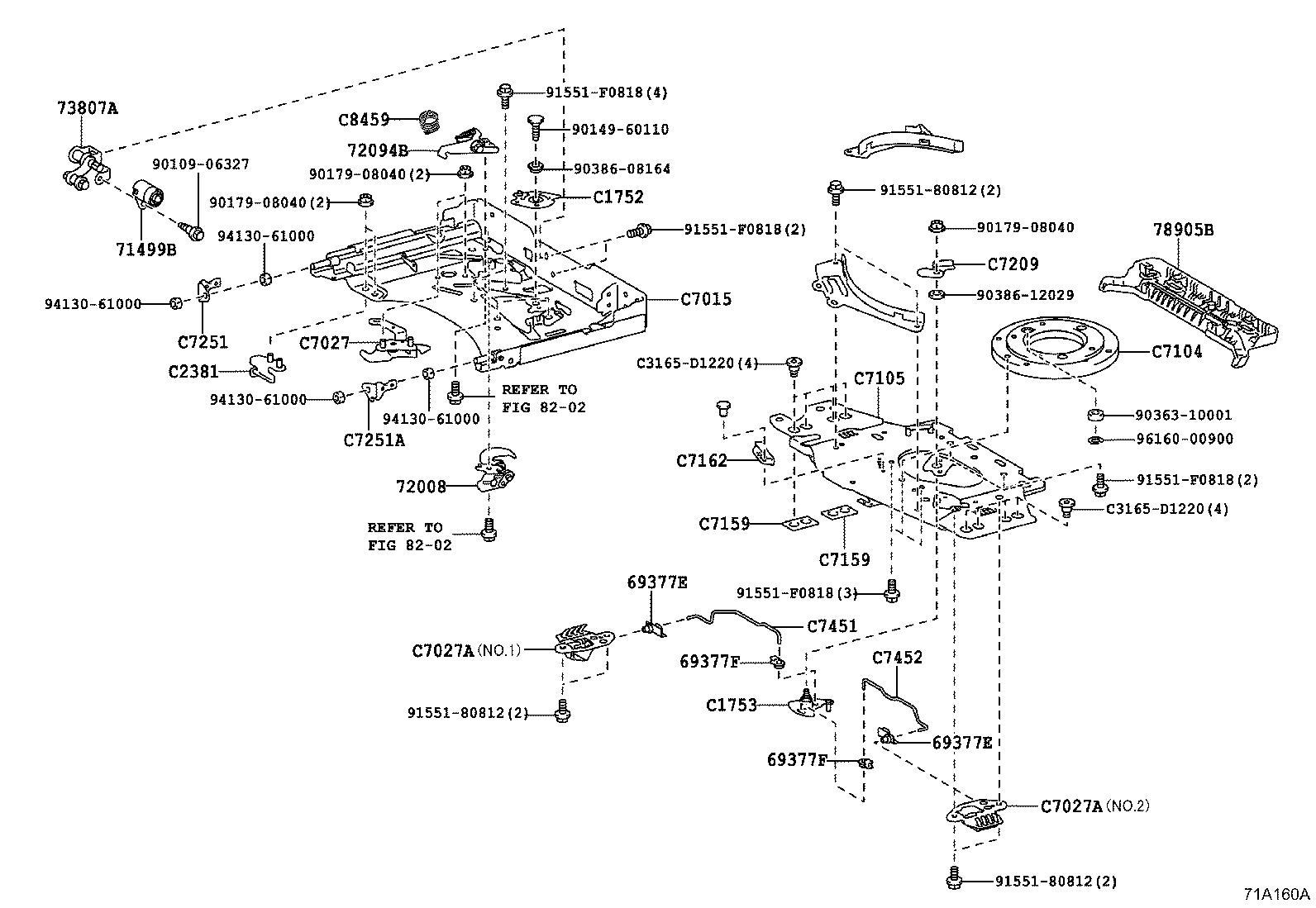

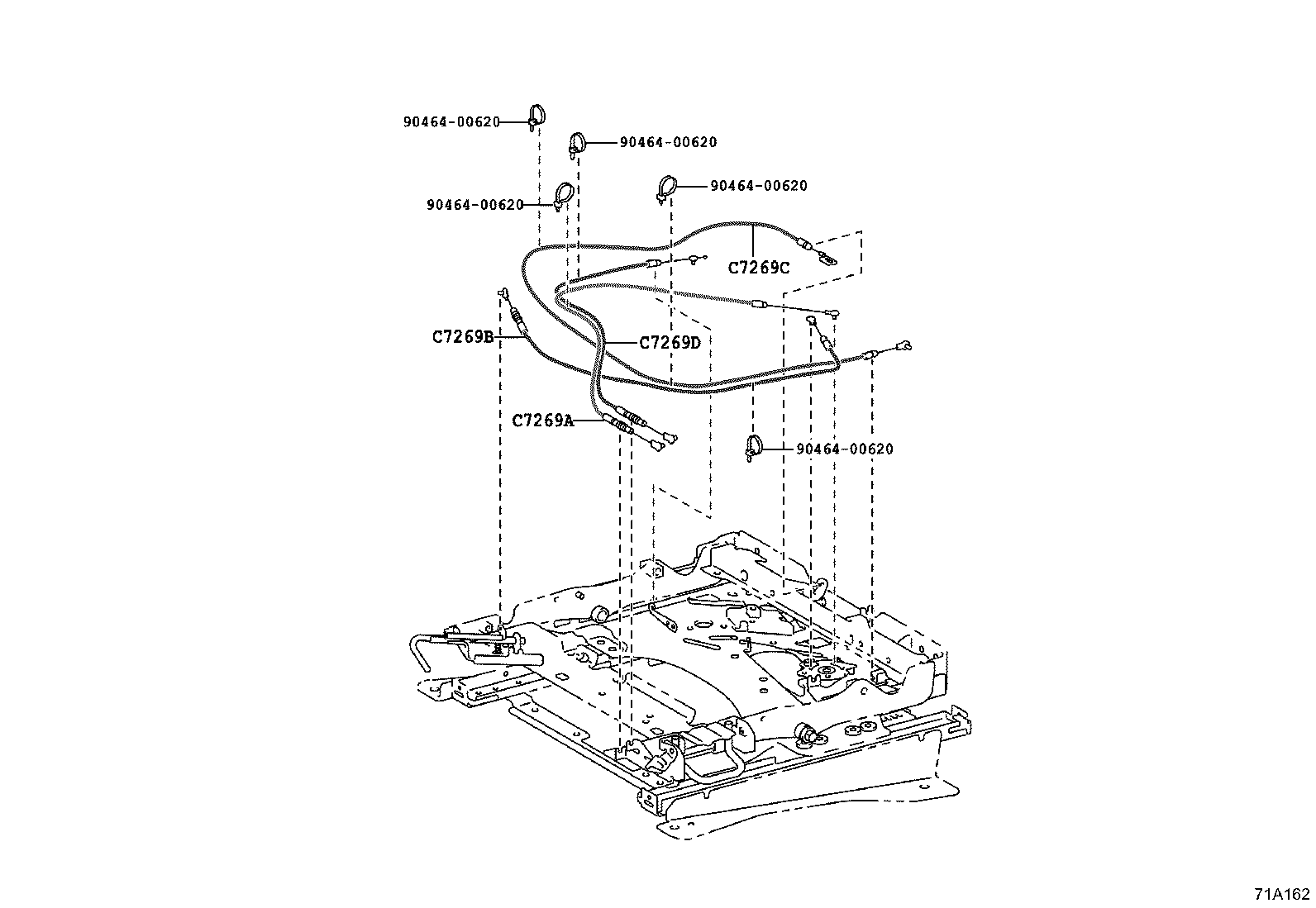

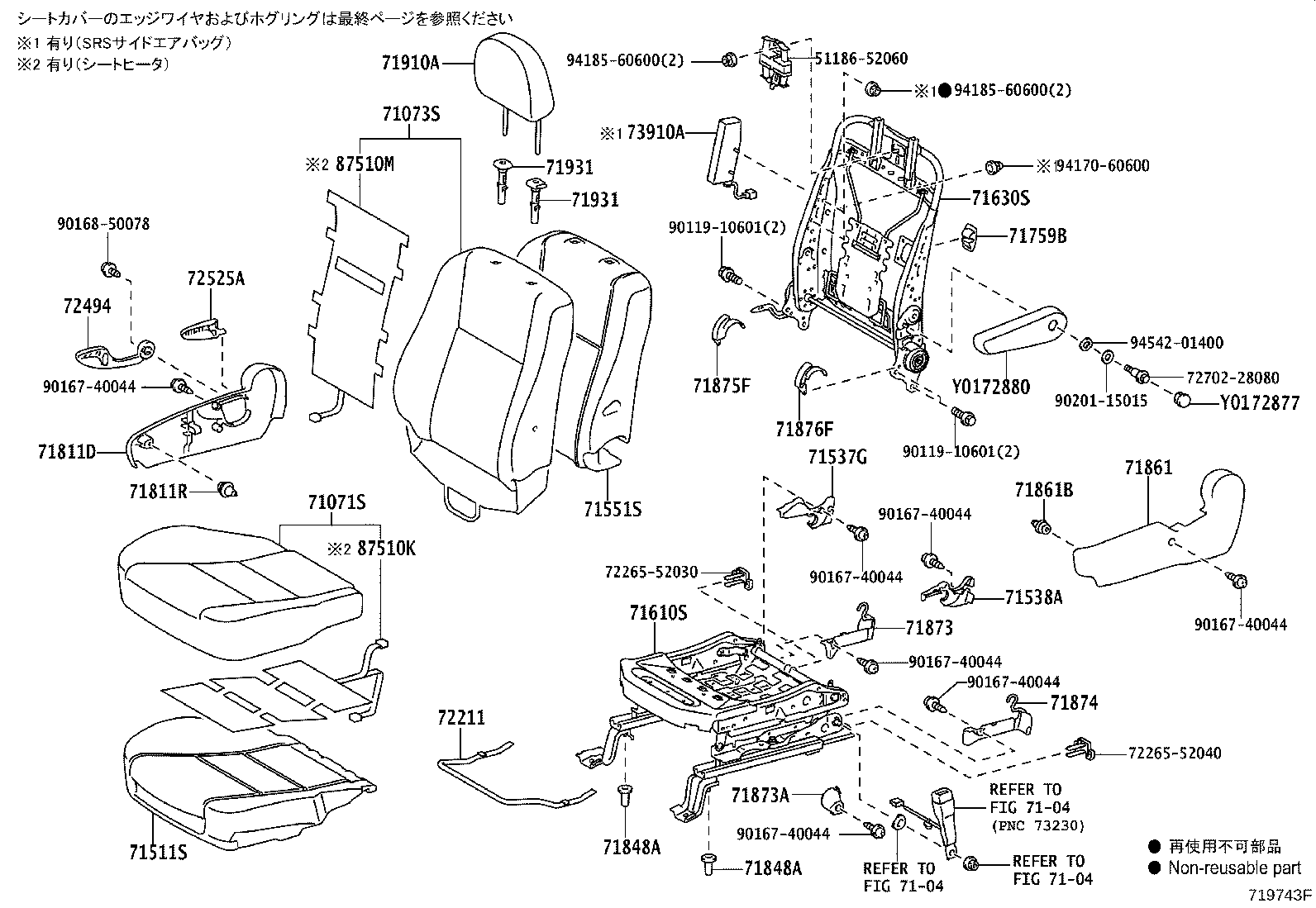

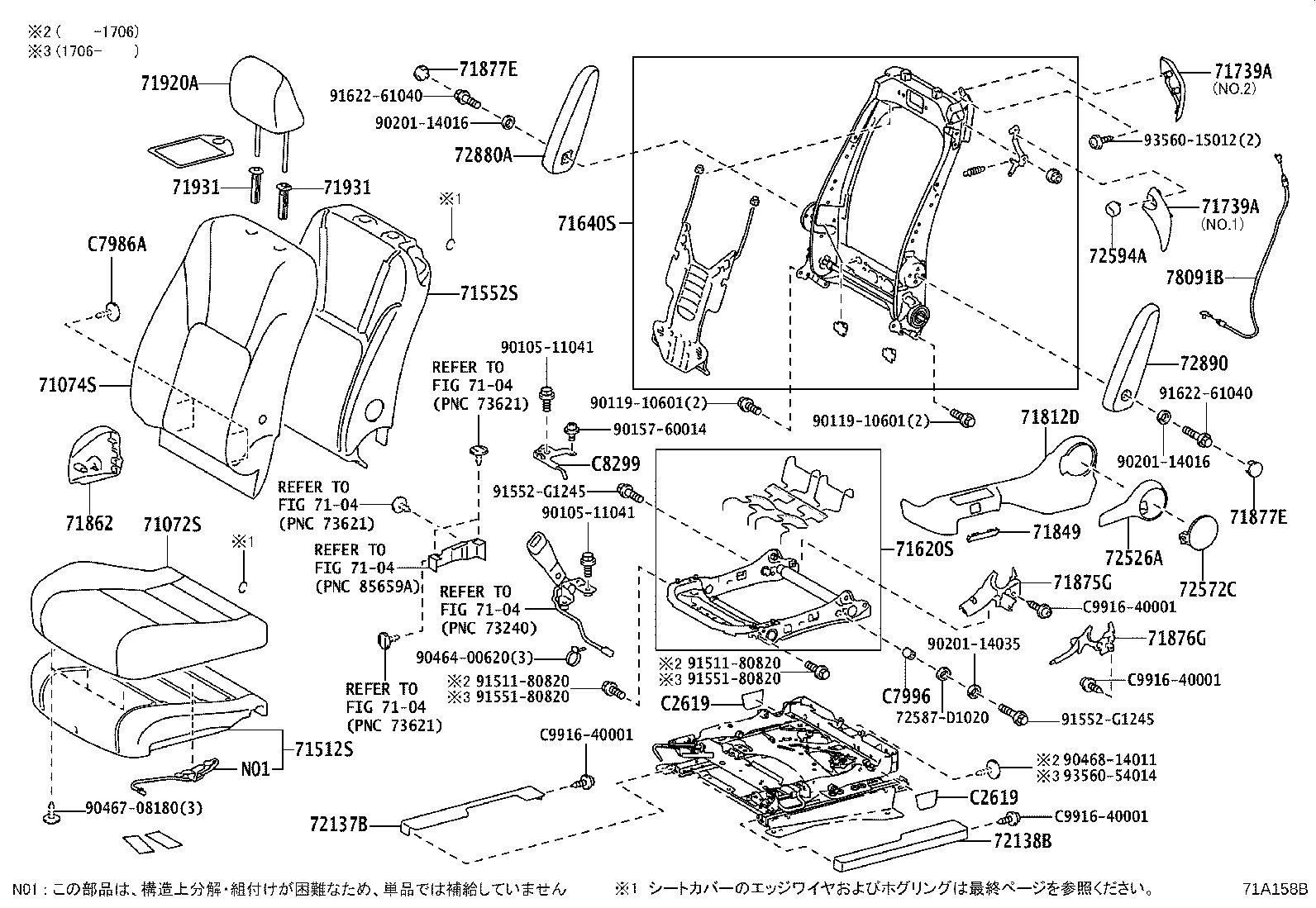

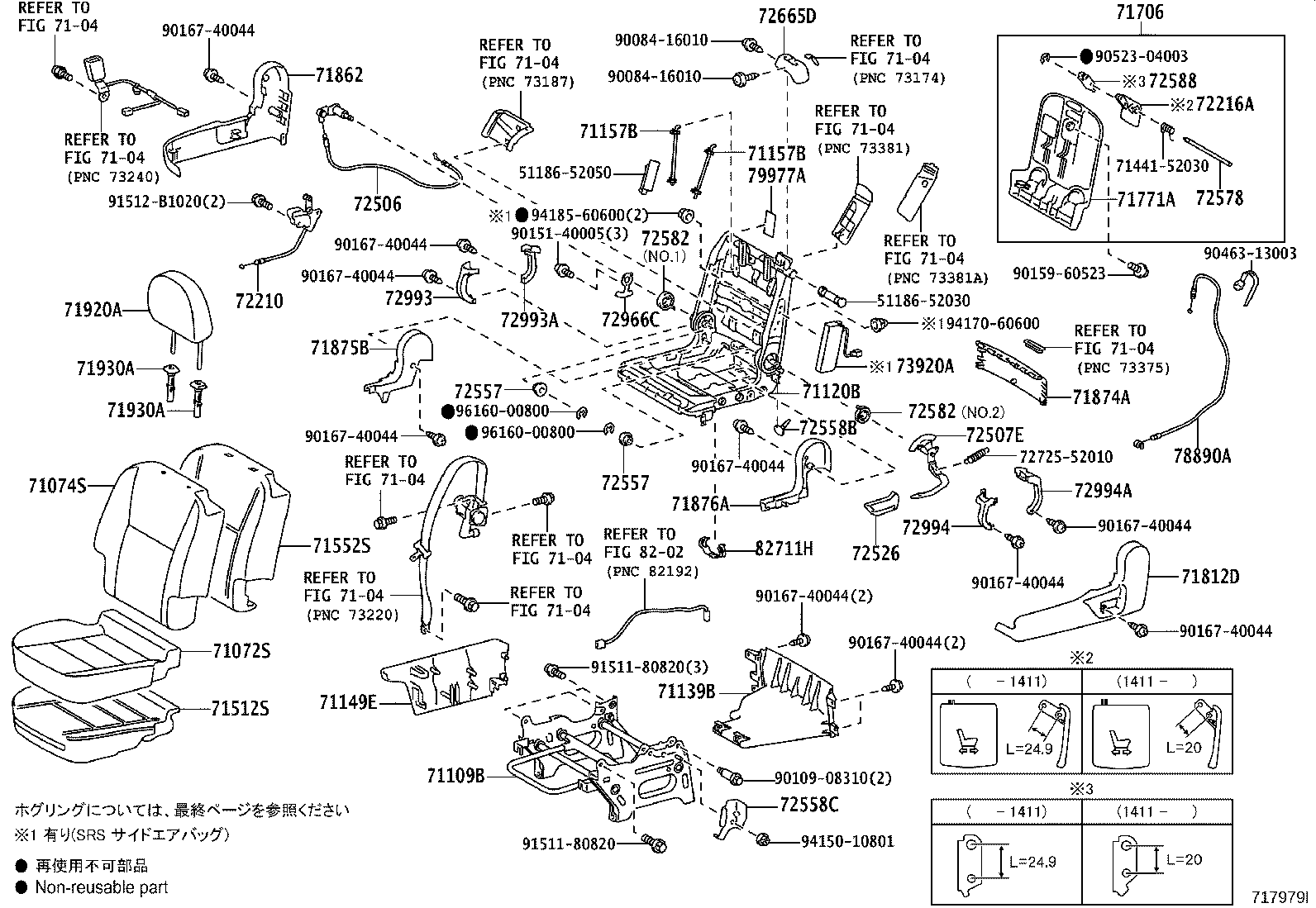

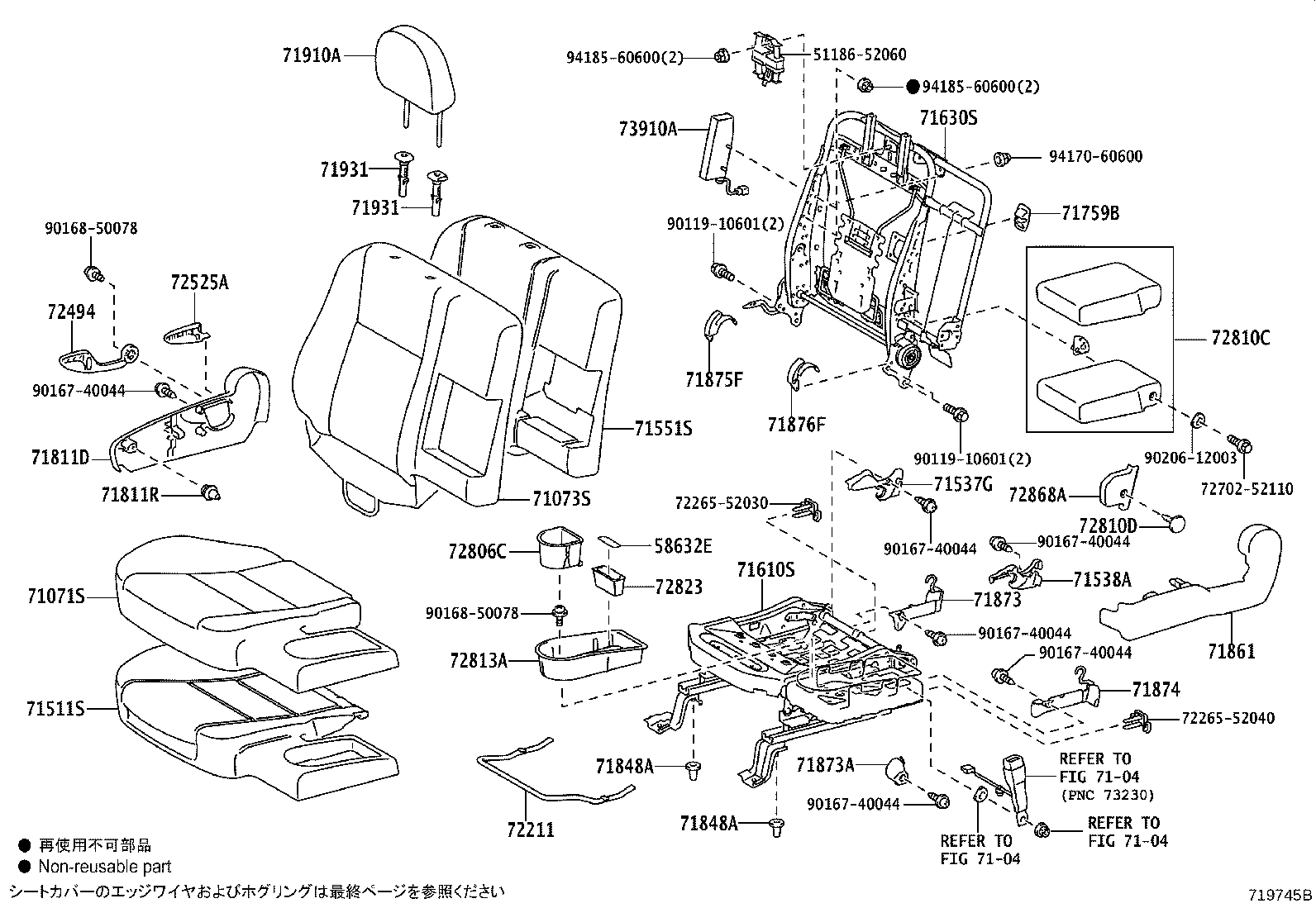

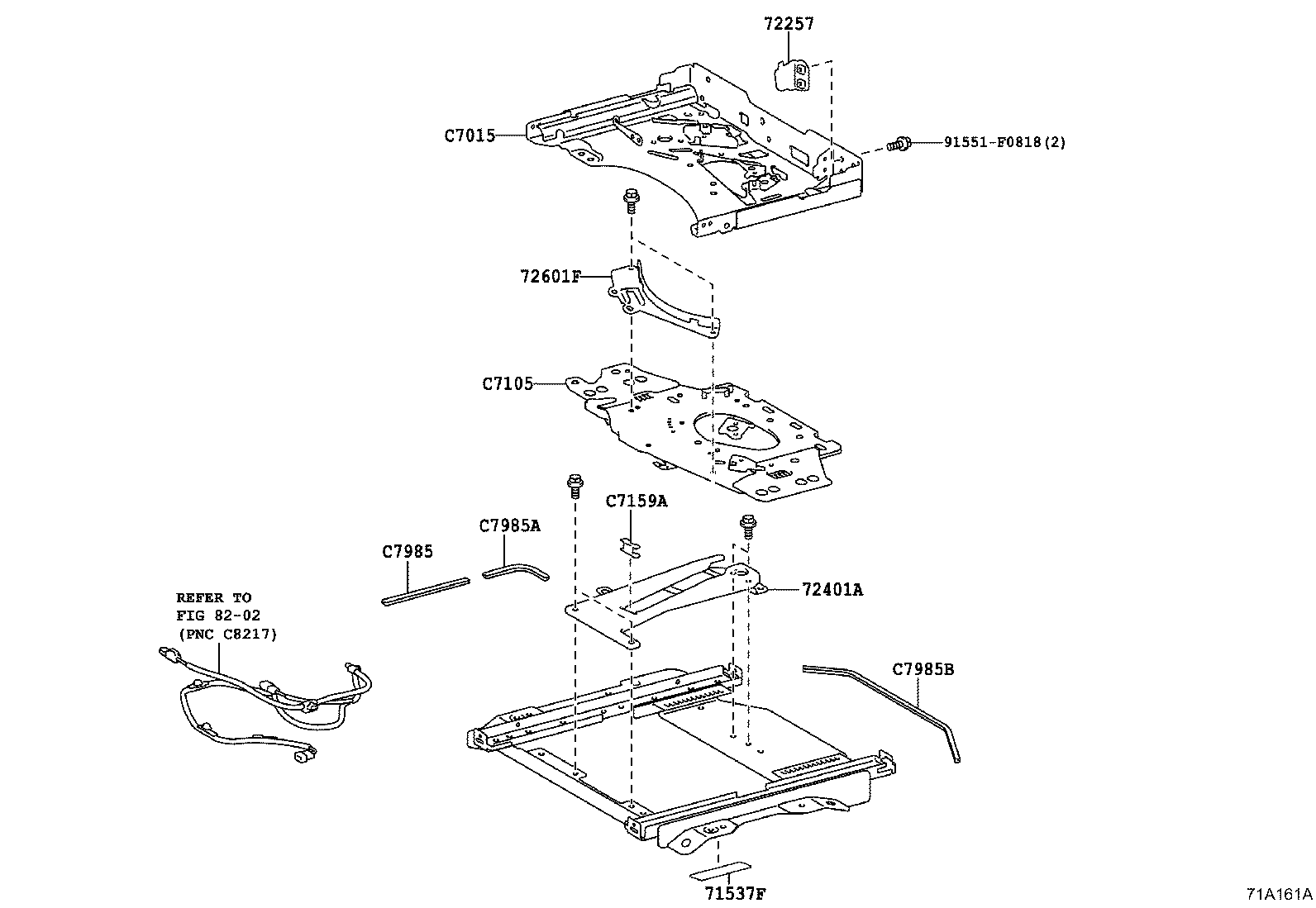

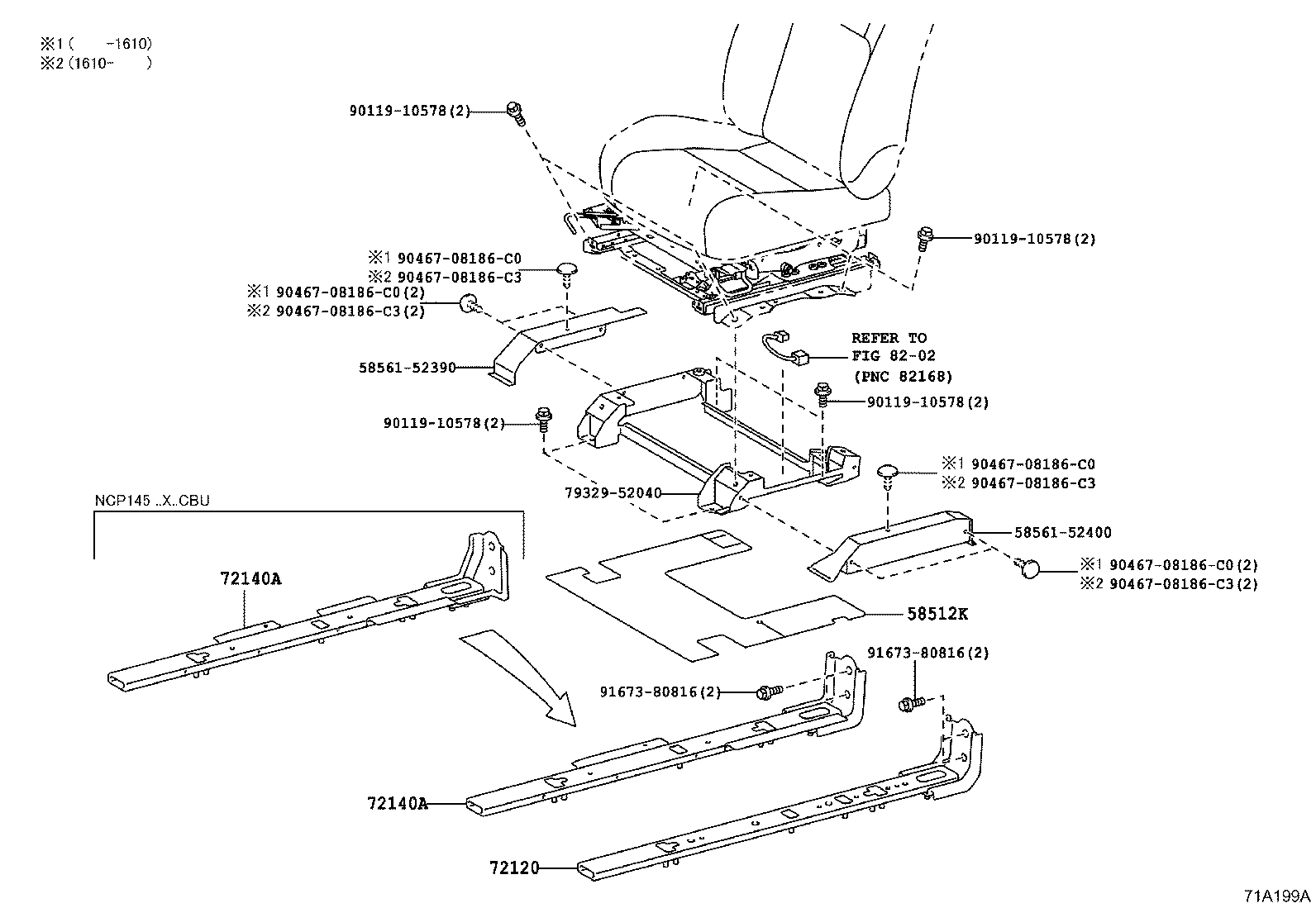

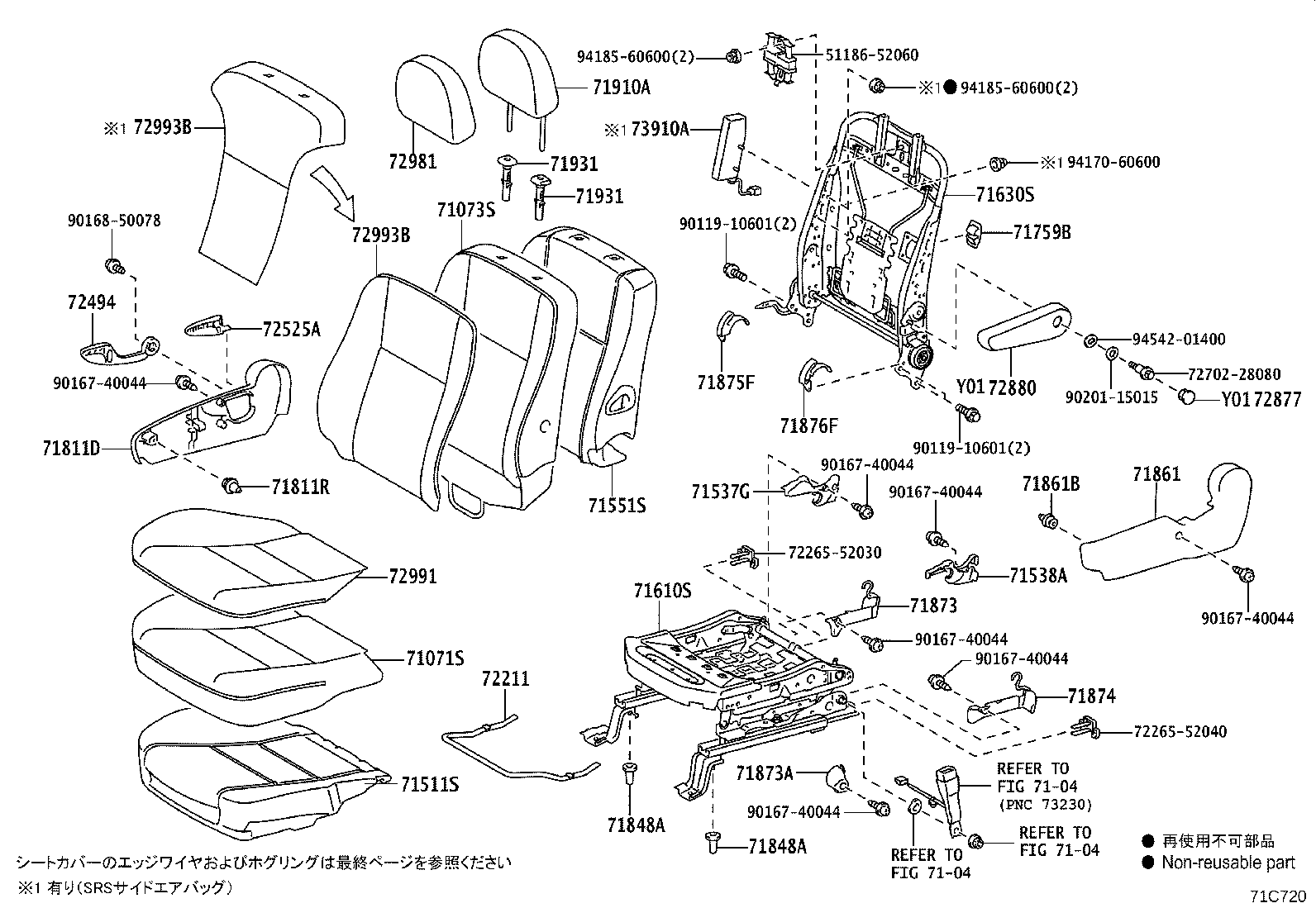

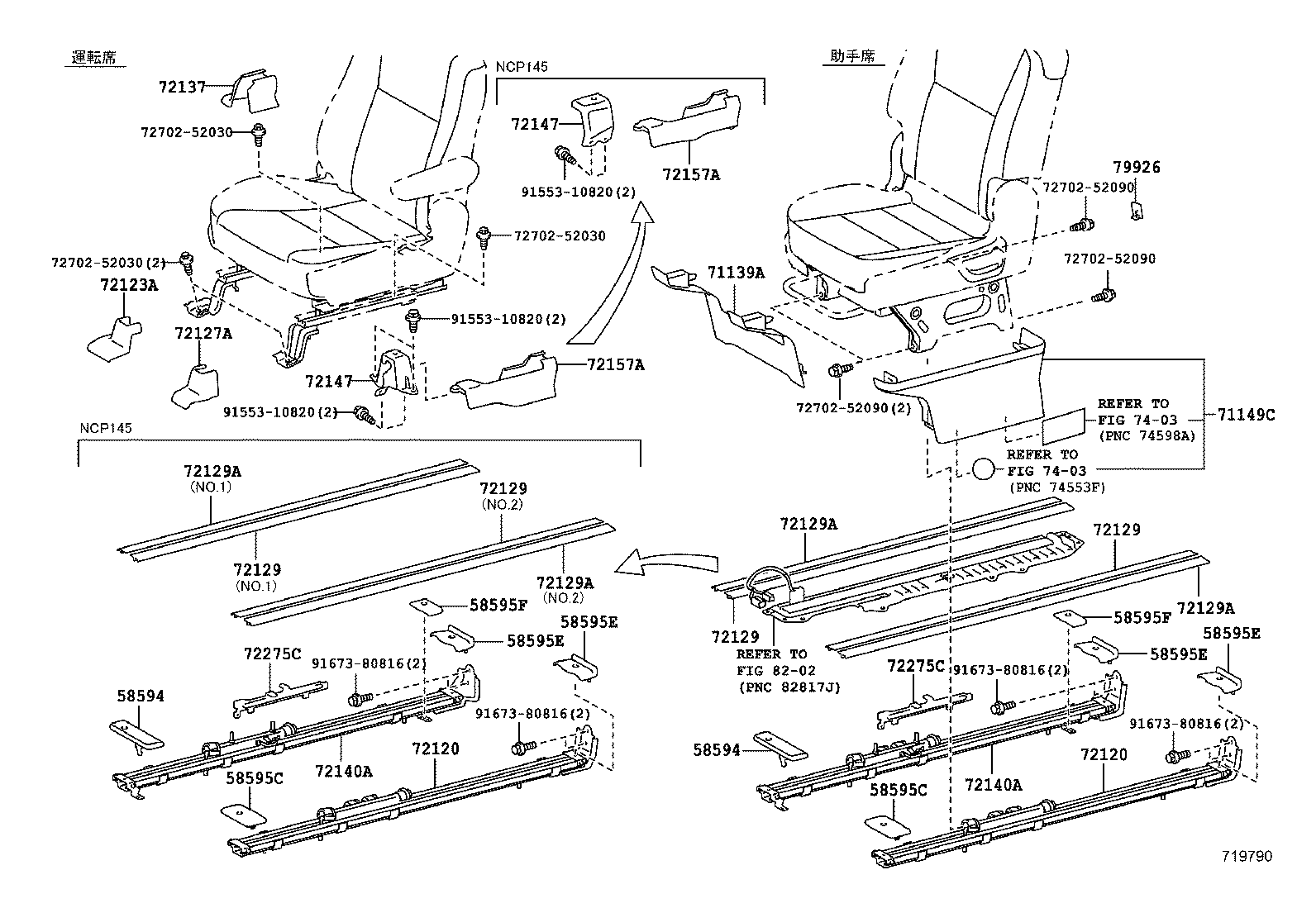

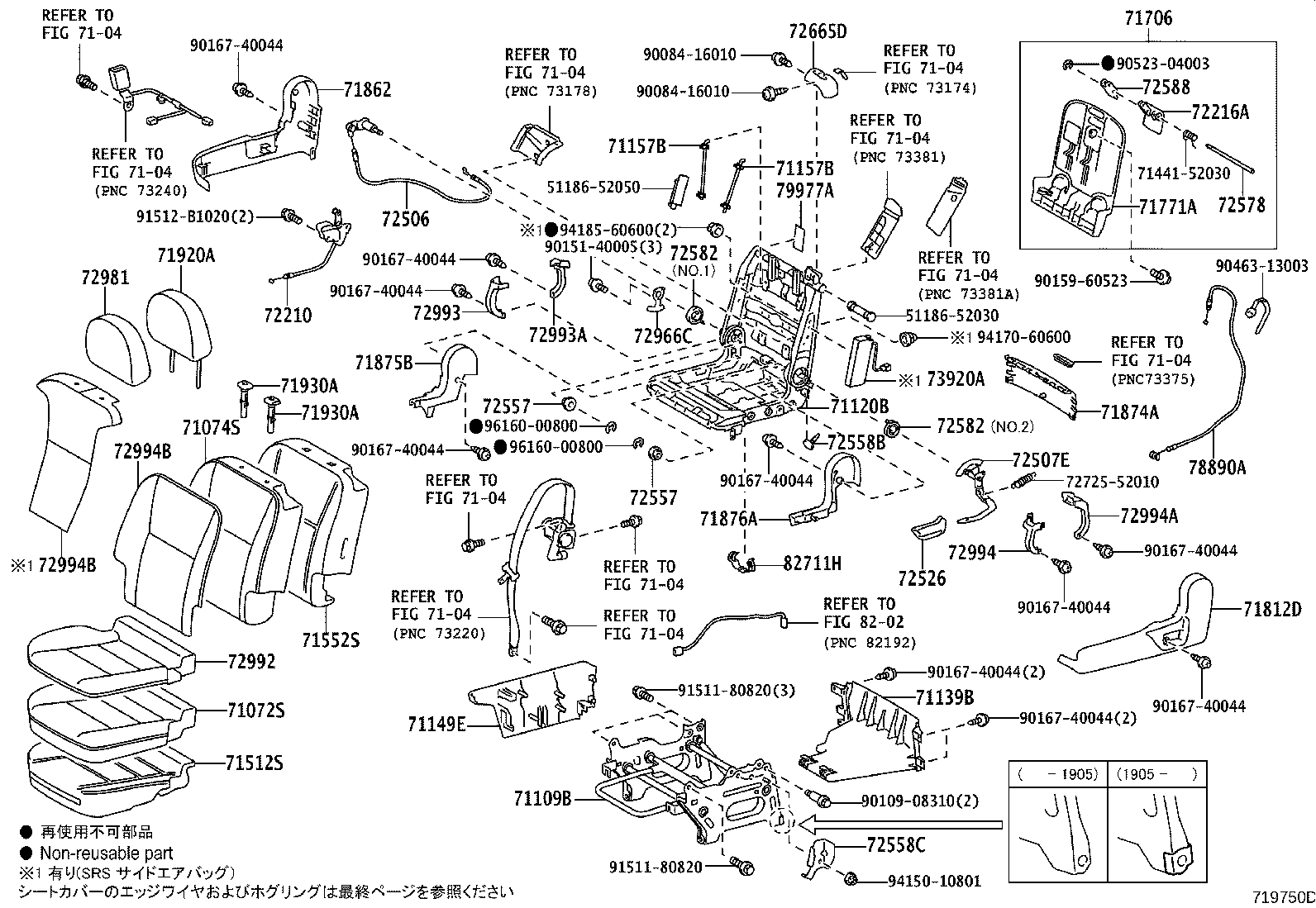

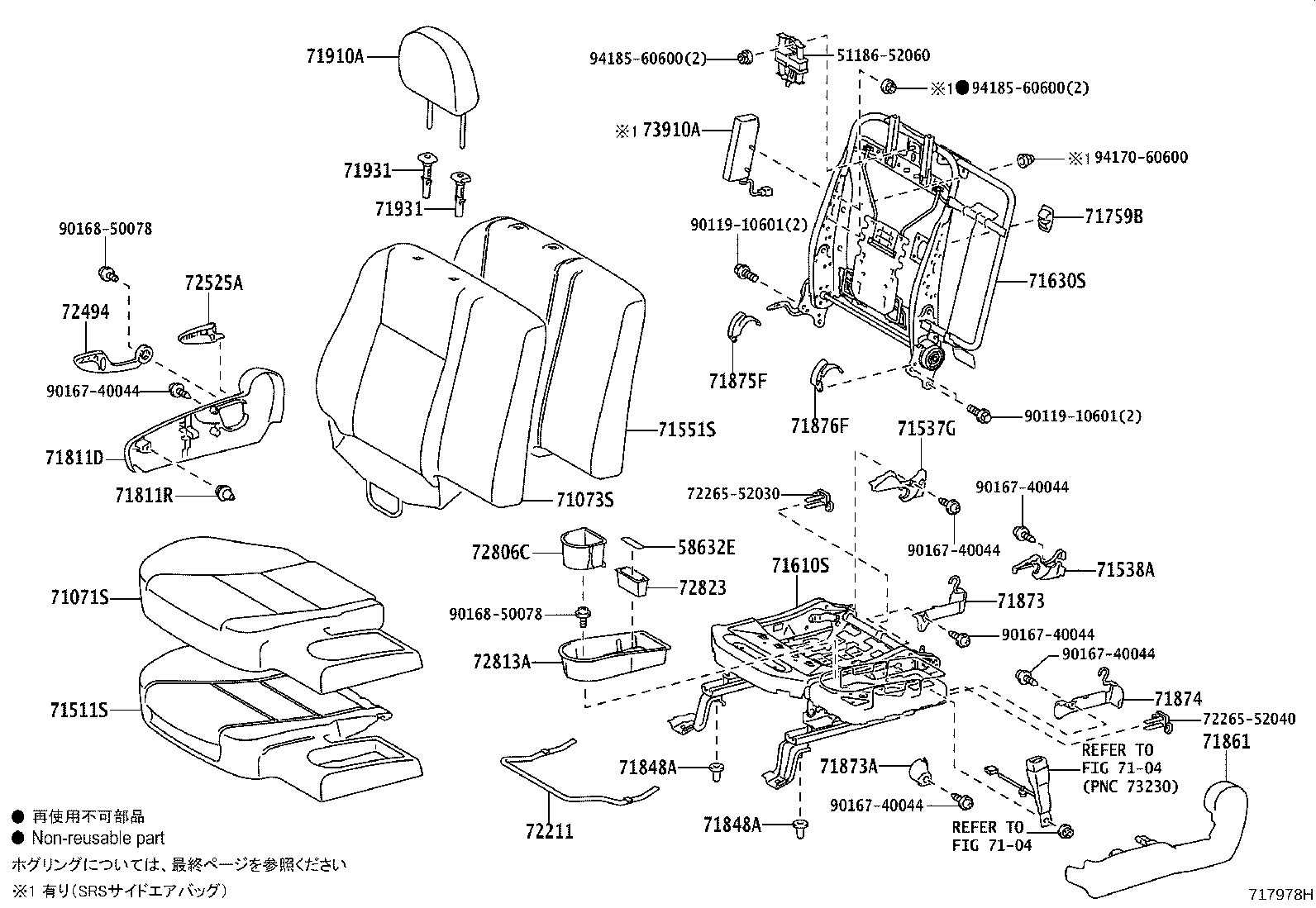

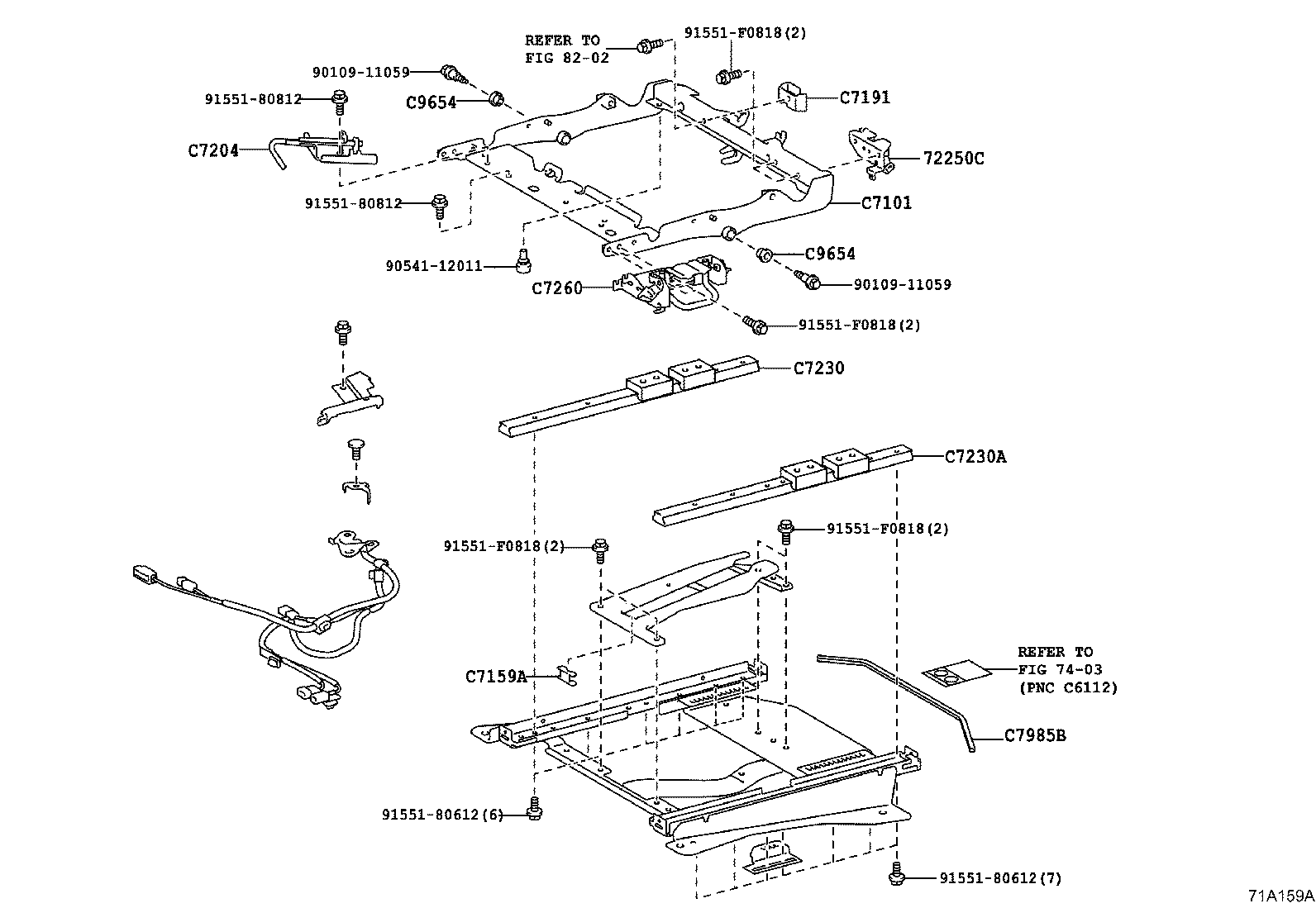

Figure 717977I 717977I 2012-07 → 2015-07 Figure 719743F 719743F 2015-07 → — Figure 71C720 71C720 2015-07 → — Figure 717978H 717978H 2012-07 → 2015-07 Figure 719745C 719745C 2015-07 → — Figure 717979I 717979I 2012-07 → 2015-07 Figure 719748E 719748E 2015-07 → — Figure 719750D 719750D 2015-07 → — Figure 719790 719790 2012-07 → — Figure 71A158B 71A158B 2015-12 → — Figure 71A159A 71A159A 2015-12 → — Figure 71A160A 71A160A 2015-12 → — Figure 71A161A 71A161A 2015-12 → — Figure 71A162 71A162 2015-12 → — Figure 71A199A 71A199A 2015-12 → — Figure 718012D 718012D 2012-07 → — Figure 718012D 718012D 2015-07 → — Figure 718051A 718051A 2012-07 → — Figure 718051A 718051A 2015-07 → — Figure 719830 719830 2012-07 → — Figure 719830 719830 2015-07 → — Figure 718015B 718015B 2012-07 → — Figure 718015B 718015B 2015-07 → — Figure 718016C 718016C 2012-07 → — Figure 718016C 718016C 2015-07 → — Figure 718017G 718017G 2012-07 → — Figure 718017G 718017G 2015-07 → — Figure 718018 718018 2012-07 → — Figure 718018 718018 2015-07 → — Figure 719574A 719574A 2015-12 → — Figure 719578 719578 2015-07 → — Figure 719025D 719025D 2012-07 → —

Part groups

PNCDescription
53019A Shutter Sub-assy, Radiator
55359F Cushion, Welcab Seat
57457F Bracket, Front Seat
58512K Carpet, Floor, NO.2
58543F Carpet, Step Side, RH
58544F Carpet, Step Side, LH
58594 Moulding, Floor Carpet, NO.2
58595C Moulding, Floor Carpet, NO.1
58595E Moulding, Floor Carpet, NO.4
58595F Moulding, Floor Carpet, NO.3
58632E Cover, Seat Floor Box
68332A Roller, Slide Door, Lower
69377E Snap, Welcab Seat Link Arm, NO.1
69377F Snap, Welcab Seat Link Arm, NO.2
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71109B Leg Sub-assy, Front Seat, LH
71120B Frame Assy, Front Seat W/Adjuster, LH
71138 Spacer, Front Seat Set
71139A Cover, Front Seat Leg, NO.1
71139B Cover, Front Seat Leg, NO.2
71139G Cover, Front Seat Leg
71148A Cover, FR Seat Leg, Outer
71149A Cover, Front Seat Leg, LH
71149C Cover, Front Seat Leg, LH (FOR LH SEAT)
71149E Cover, Front Seat Leg, Inner (FOR LH SEAT)
71149F Cover, Front Seat Leg, Inner
71157B Wire, Front Seatback,Upr NO.1
71315 Plate, Front Seat Hinge
71430C Clip
71499B Damper, Seat Cushion Spring
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537D Protector, Front Seat Cushion Edge, LH
71537E Protector, Front Seat Cushion, NO.1
71537F Protector, Front Seat Cushion, NO.2
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71706 Board Sub-assy, Front Seatback, LH
71708D Strap Sub-assy, Seat Cover, LH
71739A Bezel, Front Seatback
71759B Hook, Front Seatback
71769C Clip, Front Seat Cushion Cover
71771A Board, Front Seatback
71811D Shield, Front Seat Cushion, RH
71811R Clip, Front Seat Cushion Shield, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71861B Clip(FOR FRONT SEAT SHIELD, RH)
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71877E Cover, Seat Armrest Hole, LH
71910A Headrest Assy, Front Seat
71920A Headrest Assy, Front Seat, LH
71930A Support Assy, Front Seat Headrest
71931 Support, Front Seat Headrest
72008 Lock Sub-assy, Front Seat Turn
72094B Lock Sub-assy, Front Seat Turn
72120 Track Assy, Front Seat, Outer LH
72123A Cover, Seat Track Bracket, Outer Front RH
72127A Cover, Seat Track Bracket, Inner Front RH
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129E Clip(FOR SEAT TRACK LOWER RAIL PROTECTOR)
72137 Cover, Seat Track, Outer RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72157A Cover, Seat Track Bracket, Inner RH
72210 Cable Assy, Seat Track Control
72211 Handle, Seat Track Adjusting
72216A Lever, Seat Track Handle Control, LH
72250C Lock Assy, Front Seat
72257 Striker, Front Seat Lock
72265 Cover, Seat Track Upper Rail, RH
72265C Clip, Seat Track Upper Rail Cover
72275C Stopper, Front Seat Track Slide
72401A Guide Sub-assy, Front Seat Track Roller
72494 Handle, Vertical Adjusting, RH
72506 Arm Sub-assy, Reclining Adjuster, Center LH
72507E Handle Sub-assy, Reclining Release, NO.1
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72557 Spacer, Reclining Adjuster
72558B Stopper, Reclining (FRONT SEAT)
72558C Stopper, Reclining, NO.1
72572C Cap, Reclining Adjuster Knob, LH
72578 Pin, Front Seatback Stopper
72582 Bar, Reclining Torsion
72585 Bracket, Seat Belt Hanger, RH
72588 Bracket, Front Seatback Board
72589A Cable, Reclining Remote Control
72594A Knob, Reclining Remote Control Lever, LH
72601F Striker Sub-assy, Front Seat Lock
72665D Cover, Front Seatback Lock
72806C Holder Sub-assy, Front Seat Center Armrest Cup
72810C Armrest Assy, Front Seat, Center
72810D Clip, Front Seat Armrest
72813A Box, Front Seat Center Armrest
72823 Holder, FR Seat Armrest Cup
72868A Cover, Center Armrest Hinge
72877 Cover, Seat Armrest, RH
72880 Armrest Assy, Seat, C RH
72880A Armrest Assy, Front Seat, Inner RH
72890 Armrest Assy, Seat, C LH
72966C Plate, Rear Seat Turn Lock, NO.1 LH
72981 Cover, Front Seat Headrest
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
72993 Cover, Front Seatback
72993A Cover, Front Seatback
72993B Cover, Front Seatback, RH
72994 Cover, Front Seatback
72994A Cover, Front Seatback
72994B Cover, Front Seatback, LH
73182 Guide, Front Seat Lap Belt, Outer
73807A Link Sub-assy, Front Seat Suspension, Inner RH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78091B Cable Sub-assy, Fold Seat Lock Control
78890A Cable Assy, Sub-seat Lock Control
78905B Cover Sub-assy, Rear Seat Under Tray
78988B Cover, Front Seat Footrest, NO.1
78988C Cover, Front Seat Footrest, NO.2
79076D Clip, Seat Leg Cover
79076E Clip, Seat Leg Cover
79105C Leg Sub-assy, Front Seat
79107K Leg Sub-assy, Front Seat, RH
79926 Cover, Seat Leg Garnish
79977A Felt, Seatback
82711F Clamp, Wiring Harness
82711H Clamp, Wiring Harness
85820Z Motor Assy, Power Seat
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
C1752 Plate, Control Arm, Upper
C1753 Plate, Control Arm, Lower
C2381 Guide, Table Retainer, NO.1
C2619 Cover, Back Frame
C3588 Bracket, Side Rail, NO.2 LH
C4109 Housing Sub-assy, Slide Door Lock, Rear
C7015 Panel Sub-assy, Turn Table
C7027 Lock Sub-assy, Welcab Seat Turn
C7027A Lock Sub-assy, Welcab Seat Turn
C7101 Bracket Sub-assy, Seat Holder, Front
C7103 Panel Sub-assy, Welcab Seat Leg, NO.1
C7104 Plate Sub-assy, Seat Turn
C7105 Panel Sub-assy, Slide Table
C7111 Bracket, Seat Holder, Front
C7119 Protector, Welcab Seat Holder
C7120 Leg, Welcab Seat, NO.1
C7122 Guard, Welcab Seat Leg
C7137 Plate, Front Seat Turn
C7137A Plate, Front Seat Turn
C7139 Bracket, Hook
C7158 Cover, Welcab Seat Leg
C7158A Clip, Welcab Seat Leg Cover
C7159 Cushion, Welcab Seat Leg Stopper
C7159A Cushion, Welcab Seat Leg Stopper, NO.1
C7160 Panel Assy, Slide Table
C7160A Clip, Slide Table Panel
C7162 Plate, Welcab Seat Slide Table
C7191 Bracket, Seat Holder Link
C7192 Plate, Seat Holder Stopper, NO.1
C7192A Plate, Seat Holder Stopper, NO.2
C7192B Plate, Seat Holder Stopper, NO.3
C7192C Plate, Seat Holder Stopper, NO.4
C7196 Cover, Turn Table, NO.1
C7204 Handle Sub-assy, Welcab Seat Track
C7209 Plate Sub-assy, Front Seat Turn, Upper
C7210 Footrest Assy, Welcab Seat
C7230 Track Assy, Welcab Seat, NO.1
C7230A Track Assy, Welcab Seat, NO.2
C7230B Track Assy, Welcab Seat, NO.3
C7251 Bracket, Welcab Seat Track Stopper, NO.1 RH
C7251A Bracket, Welcab Seat Track Stopper, NO.1 LH
C7252 Bracket, Welcab Seat Track Stopper, NO.2
C7260 Handle Assy, Seat Turn Lock
C7269A Cable, Seat Turn Lock Release, NO.1
C7269B Cable, Seat Turn Lock Release, NO.2
C7269C Cable, Seat Turn Lock Release, NO.3
C7269D Cable, Seat Turn Lock Release, NO.4
C7401 Guide Sub-assy, Welcab Seat, Front
C7402 Guide Sub-assy, Welcab Seat, Rear
C7409 Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7417 Plate, Welcab Seat Arm Guide, Front
C7451 Arm, Welcab Seat Link, NO.1
C7452 Arm, Welcab Seat Link, NO.2
C7453 Arm, Welcab Seat Link, NO.3
C7481 Rod, Welcab Seat, NO.1
C7481A Rod, Welcab Seat, NO.2
C7487 Plate, Welcab Seat Rod Support, NO.1
C7488 Plate, Welcab Seat Rod Support, NO.2
C7691 Cushion, Seat Flat, NO.1 RH
C7691A Cushion, Seat Flat, NO.2 RH
C7985 Guard, Rear Seat Turn, NO.1
C7985A Guard, Rear Seat Turn, NO.2
C7985B Guard, Rear Seat Turn, NO.3
C7986A Clip, Rear Seat Turn Guard Cover
C7986B Cover, Front Seat Turn Guard
C7986C Clip, Front Seat Turn Guard Cover, NO.1
C7986D Clip, Front Seat Turn Guard Cover, NO.2
C7996 Spacer, Turn Seat, NO.1
C7996A Spacer, Turn Seat, NO.2
C8284 Wire, Power Lift Main
C8291 Protector, Tecs Wiring Harness
C8299 Bracket, Welcab Seat Harness Connector
C8340 Computer Assy, Welcab Device Control
C8417 Switch, Limit, NO.1
C8417A Switch, Limit, NO.2
C8417B Switch, Limit, NO.3
C8417C Switch, Limit, NO.4
C8419A Bracket, Limit Switch
C8419B Bracket, Limit Switch
C8419D Bracket, Limit Switch, NO.1
C8459 Spring, Limit Switch
C9025 Pin Sub-assy, Lift Arm Link
C9535 Pulley, Power Lift
C9589 Spring, Platform Lock Handle
C9604 Bracket Sub-assy, Power Lift Motor
C9610 Motor Assy, Power Lift
C9610C Motor Assy, Lift UP Seat Turn
C9610D Motor Assy, Lift UP Seat Slide
C9641 Bracket, Power Lift Motor, NO.1
C9641A Bracket, Power Lift Motor, NO.1
C9642 Bracket, Power Lift Motor, NO.2
C9652A Cap, Power Lift Cylinder
C9654 Collar, Power Lift Cylinder
C9654A Collar, Power Lift Cylinder
C9658 Plate, Power Lift Cylinder Rod
C9938 Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
