Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

96 part groups · 55 illustrations

Illustrations

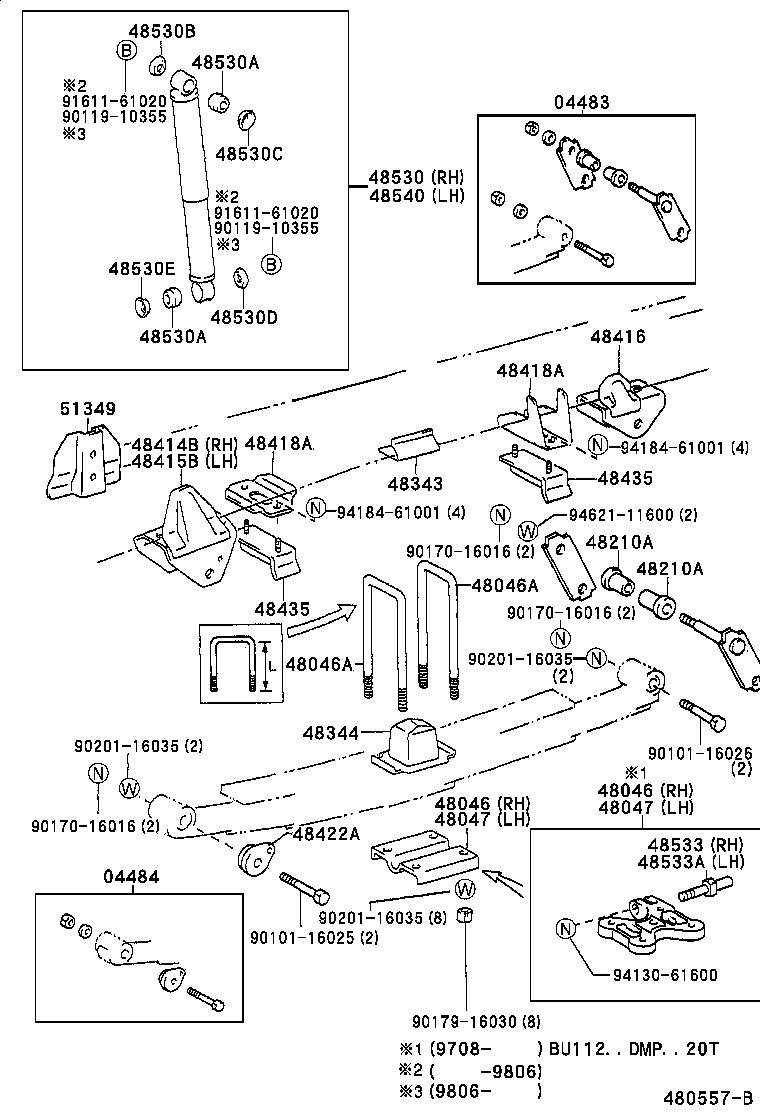

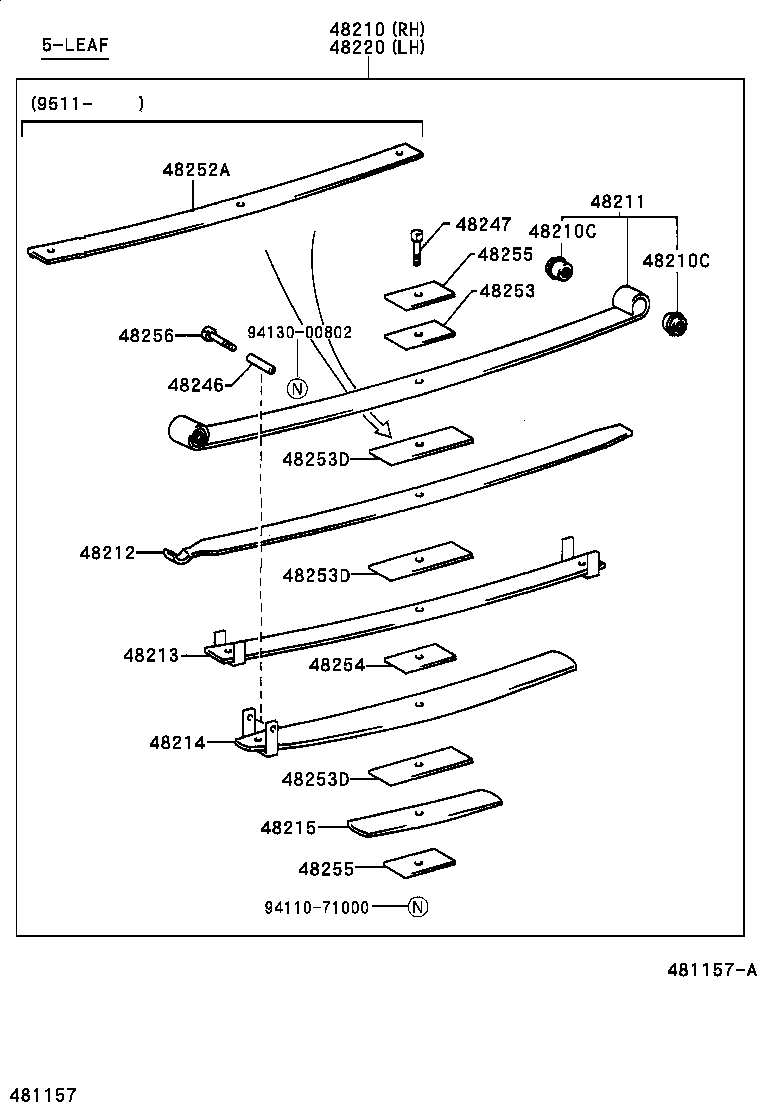

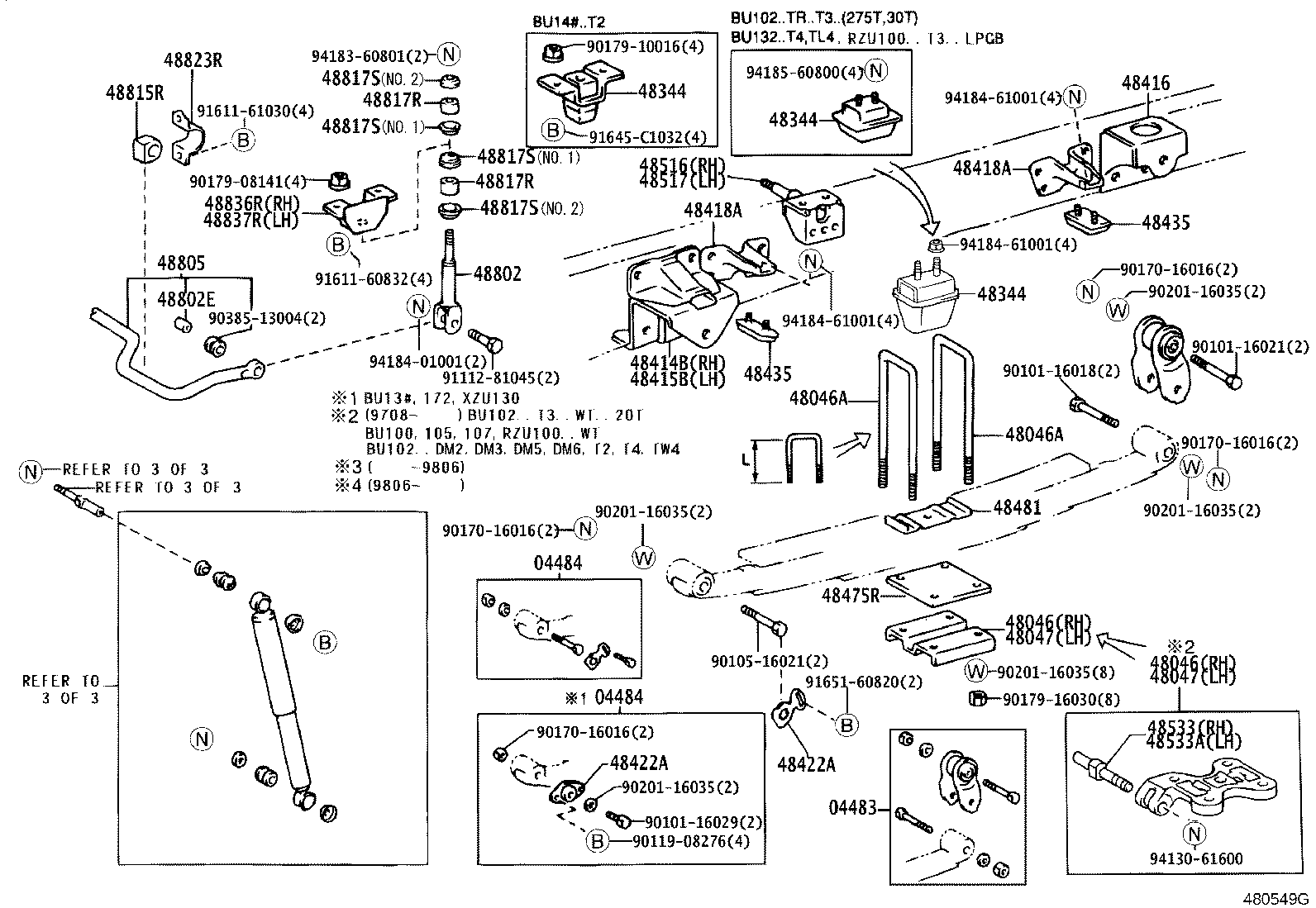

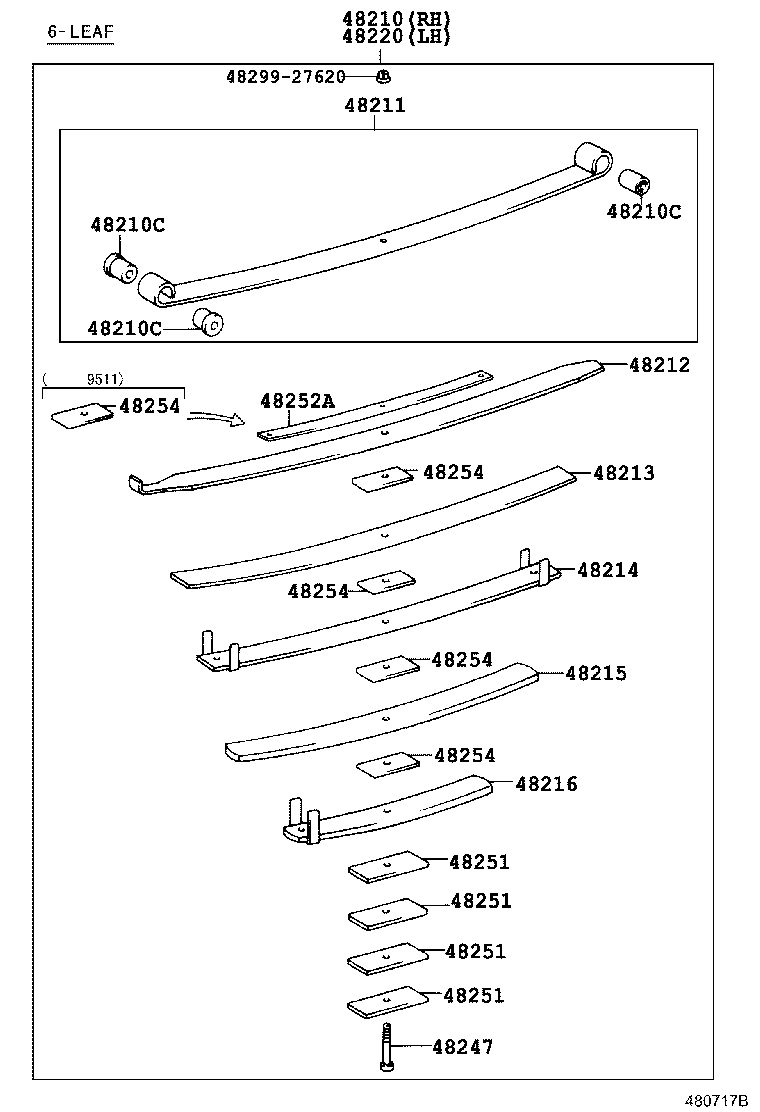

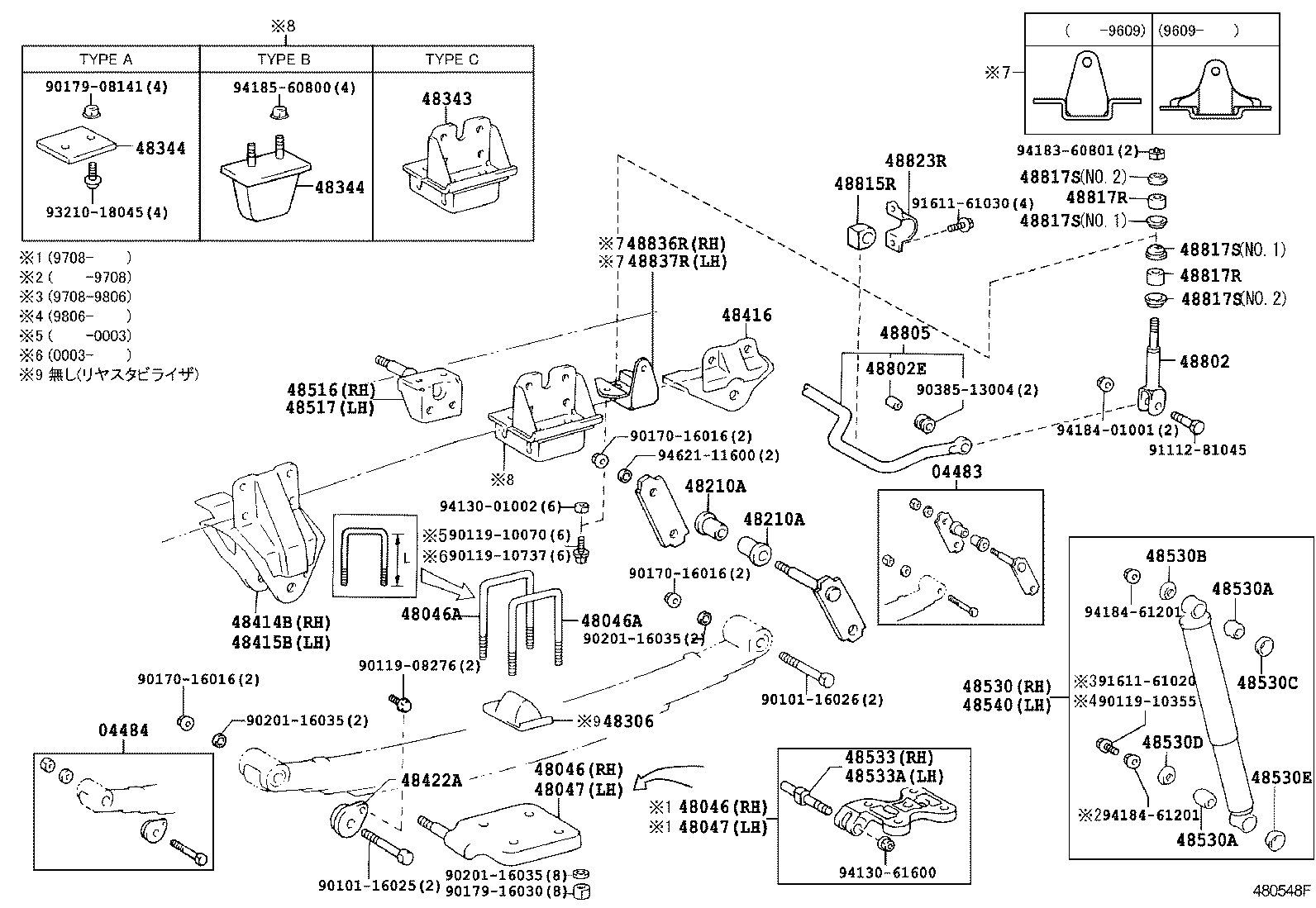

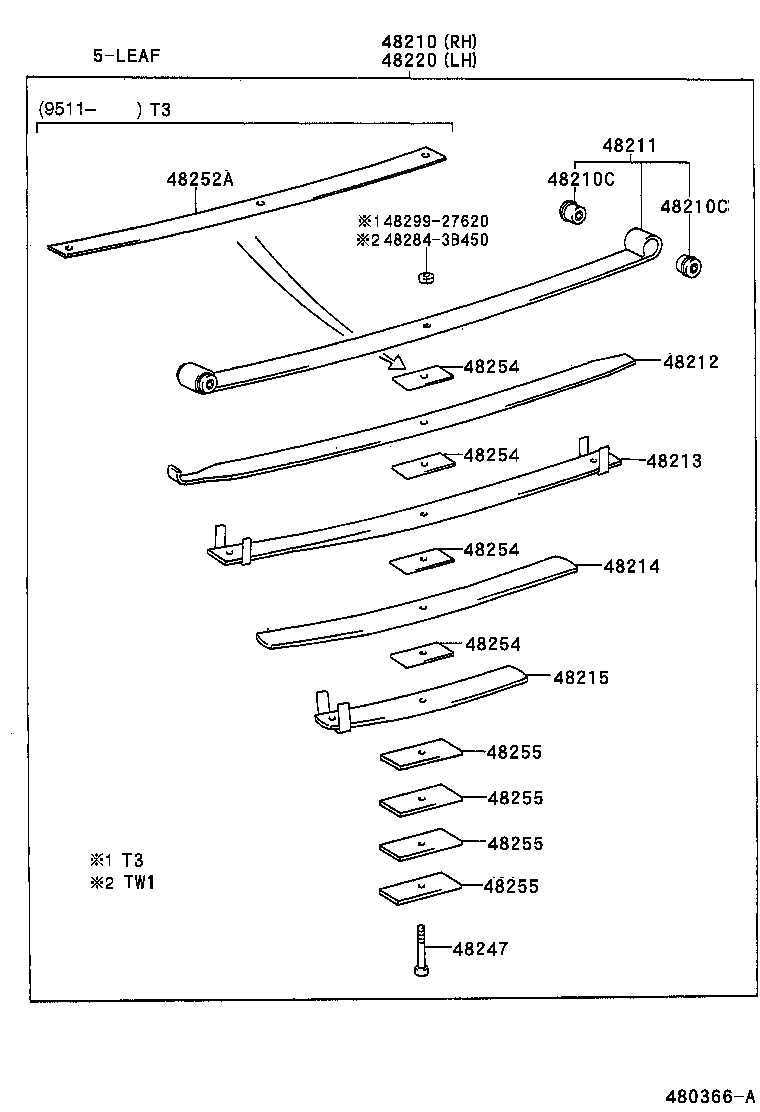

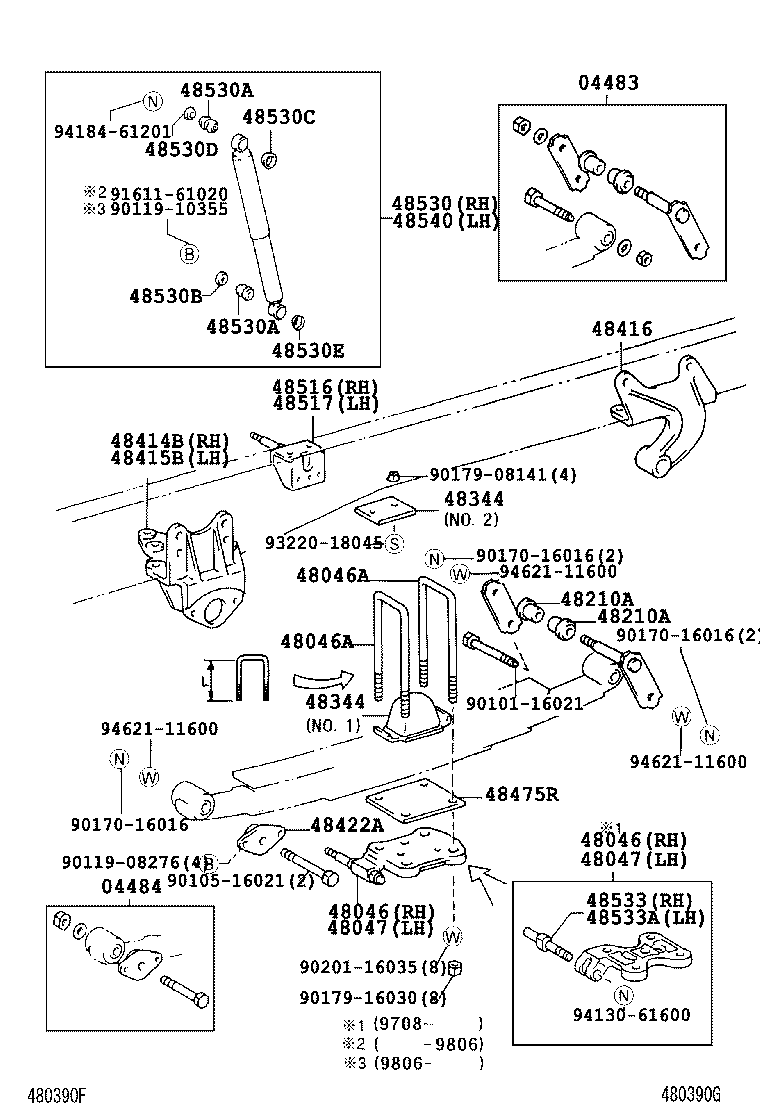

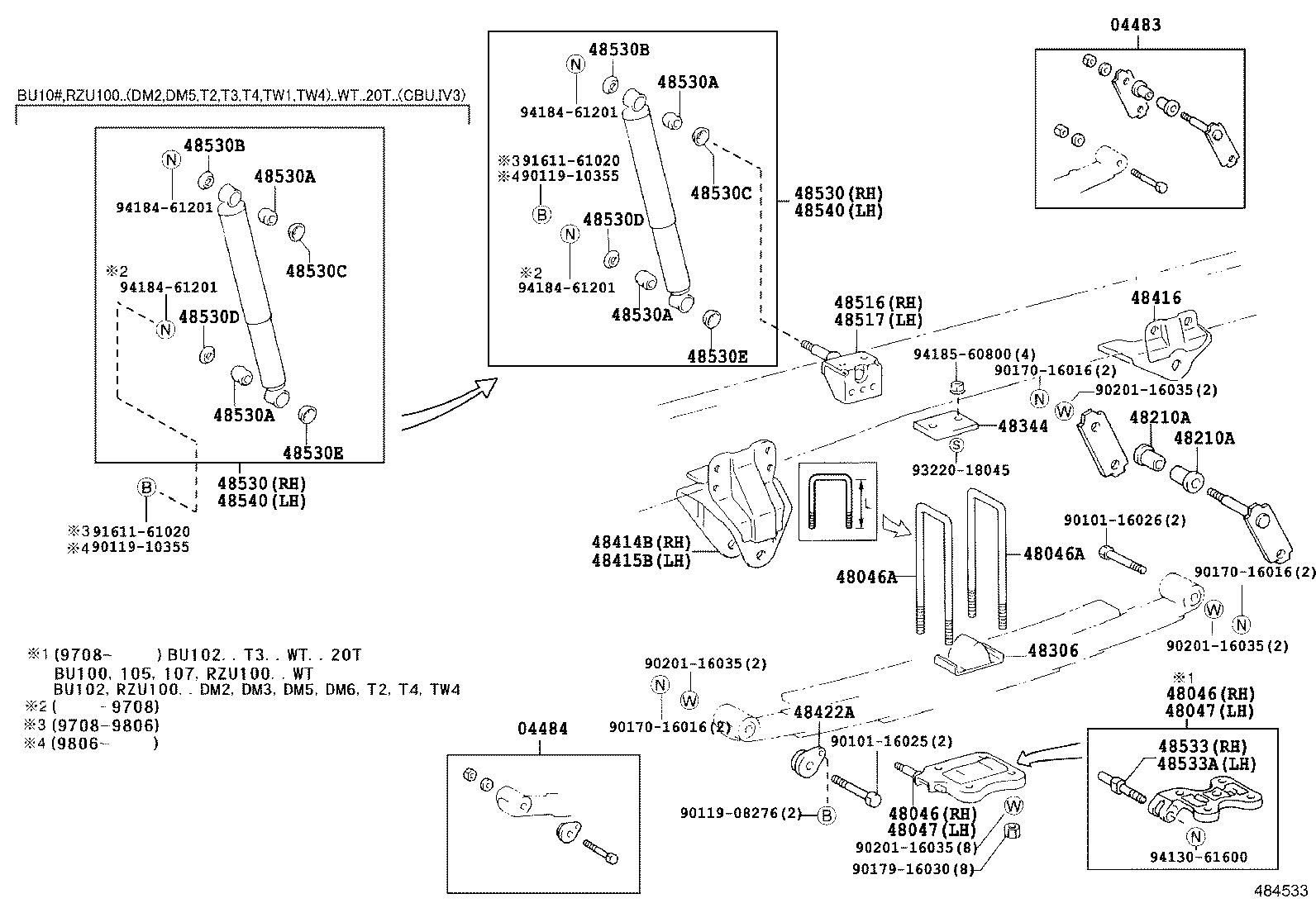

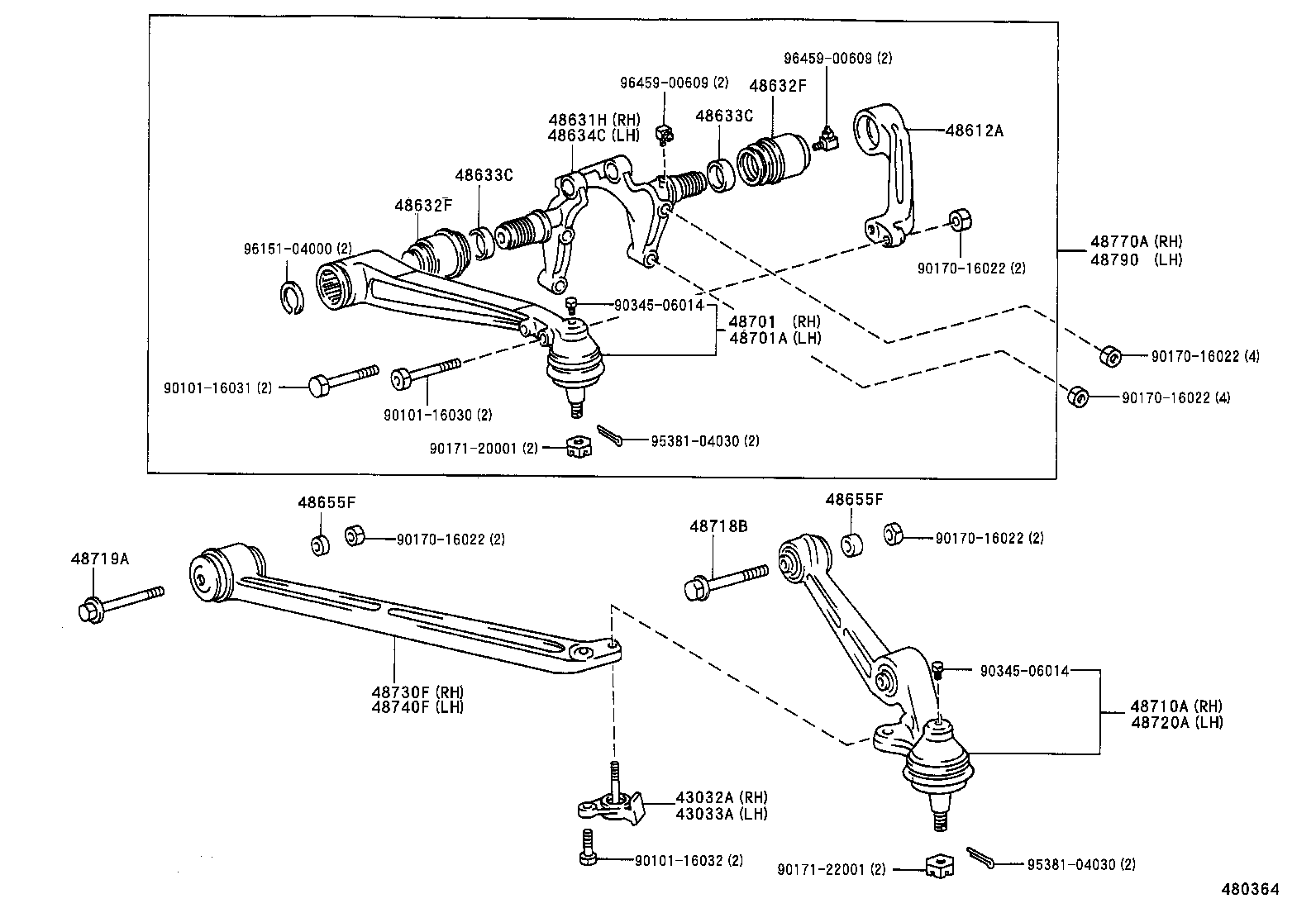

Figure 480387F 480387F 1995-05 → — Figure 480387F 480387F 1995-05 → — Figure 480548F 480548F 1995-05 → — Figure 484533 484533 1995-05 → — Figure 484533 484533 1995-05 → — Figure 480557B 480557B 1995-05 → — Figure 480549G 480549G 1995-05 → — Figure 480549G 480549G 1995-05 → — Figure 480390G 480390G 1995-05 → — Figure 480364 480364 1997-01 → — Figure 480709B 480709B 1995-05 → 1996-08 Figure 480367E 480367E 1995-05 → 1997-10 Figure 480367E 480367E 1996-10 → 1998-09 Figure 480663B 480663B 1996-08 → — Figure 481152B 481152B 1997-10 → — Figure 481152B 481152B 1998-09 → — Figure 480711A 480711A 1995-05 → 1996-08 Figure 480711A 480711A 1995-05 → — Figure 480712B 480712B 1995-05 → — Figure 480713A 480713A 1995-05 → — Figure 480662A 480662A 1996-08 → — Figure 480714B 480714B 1995-05 → — Figure 480366A 480366A 1995-05 → — Figure 481157A 481157A 1995-05 → 1996-05 Figure 480716C 480716C 1995-05 → — Figure 480745A 480745A 1995-05 → — Figure 480715A 480715A 1996-05 → — Figure 481158A 481158A 1996-10 → 1999-05 Figure 480708A 480708A 1997-08 → — Figure 480372B 480372B 1995-05 → — Figure 480717B 480717B 1995-05 → — Figure 480392C 480392C 1995-05 → — Figure 480718B 480718B 1995-05 → — Figure 480718B 480718B 1996-10 → — Figure 481159 481159 1995-05 → — Figure 480361A 480361A 1997-02 → — Figure 480375B 480375B 1995-05 → — Figure 480719A 480719A 1995-05 → — Figure 480720 480720 1995-05 → — Figure 480721 480721 1995-05 → — Figure 480376A 480376A 1995-05 → — Figure 480722 480722 1995-05 → — Figure 480723 480723 1995-05 → — Figure 480724A 480724A 1995-05 → — Figure 481160 481160 1995-05 → — Figure 481161 481161 1995-05 → — Figure 481162 481162 1995-05 → — Figure 480362A 480362A 1996-10 → — Figure 480393B 480393B 1996-10 → — Figure 480725 480725 1995-05 → — Figure 480726A 480726A 1995-05 → — Figure 480378 480378 1995-05 → — Figure 480727 480727 1997-01 → — Figure 481175 481175 1995-05 → — Figure 482905 482905 1995-05 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
43032A Stopper Sub-assy, Steering Knuckle, RH
43033A Stopper Sub-assy, Steering Knuckle, LH
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48107A Arm Sub-assy, Anchor, RH
48108A Arm Sub-assy, Anchor, LH
48161A Spring, Rear Torsion Bar, RH
48162A Spring, Rear Torsion Bar, LH
48173E Seat, Anchor Arm Adjuster
48174C Cover, Rear Tortion Bar Dust
48191A Wedge, Caster(FOR REAR LEAF SPRING)
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48282 Seat, Rear Helper Spring
48306 Bumper Sub-assy, Rear Spring
48343 Bracket, Rear Axle Cushion
48344 Stopper, Bumper, Rear
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48416 Bracket, Spring, NO.4
48418A Bracket, Helper Spring, Front
48422A Support, Rear Spring Pin
48435 Attachment, Helper Spring Bracket, NO.1
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48532 Pin, Rear Shock Absorber Pivot
48533 Pin, Rear Shock Absorber Lower Pivot, RH
48533A Pin, Rear Shock Absorber Lower Pivot, LH
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
48612A Arm, Rear Upper Control, NO.2
48631H Shaft, Rear Upper Arm, NO.2 RH
48632F Bush, Rear Suspension Upper Arm
48633C Seal, Rear Suspension Upper Arm Pivot Dust
48634C Shaft, Rear Suspension Upper Arm
48635A Bush, Upper Arm, Rear
48655F Bush, Lwr Arm, NO.2
48701 Arm Sub-assy, Upper Control, RH
48701A Arm Sub-assy, Upper Control, LH
48710A Arm Assy, Rear Suspension, NO.1 RH
48718B Shaft, Rear Suspension Lower Arm, NO.1
48719A Shaft, Rear Suspension Lower Arm, NO.2
48720A Arm Assy, Rear Suspension, NO.1 LH
48730F Arm Assy, Rear Suspension, NO.2 RH
48740F Arm Assy, Rear Suspension, NO.2 LH
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
48802 Link Sub-assy, Stabilizer
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48823R Cover, Stabilizer Link(FOR REAR)
48836R Bracket, Rear Stabilizer End, RH
48837R Bracket, Rear Stabilizer End, LH
51349 Reinforcement, Rear Spring Front Bracket, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
