Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

65 part groups · 29 illustrations

Illustrations

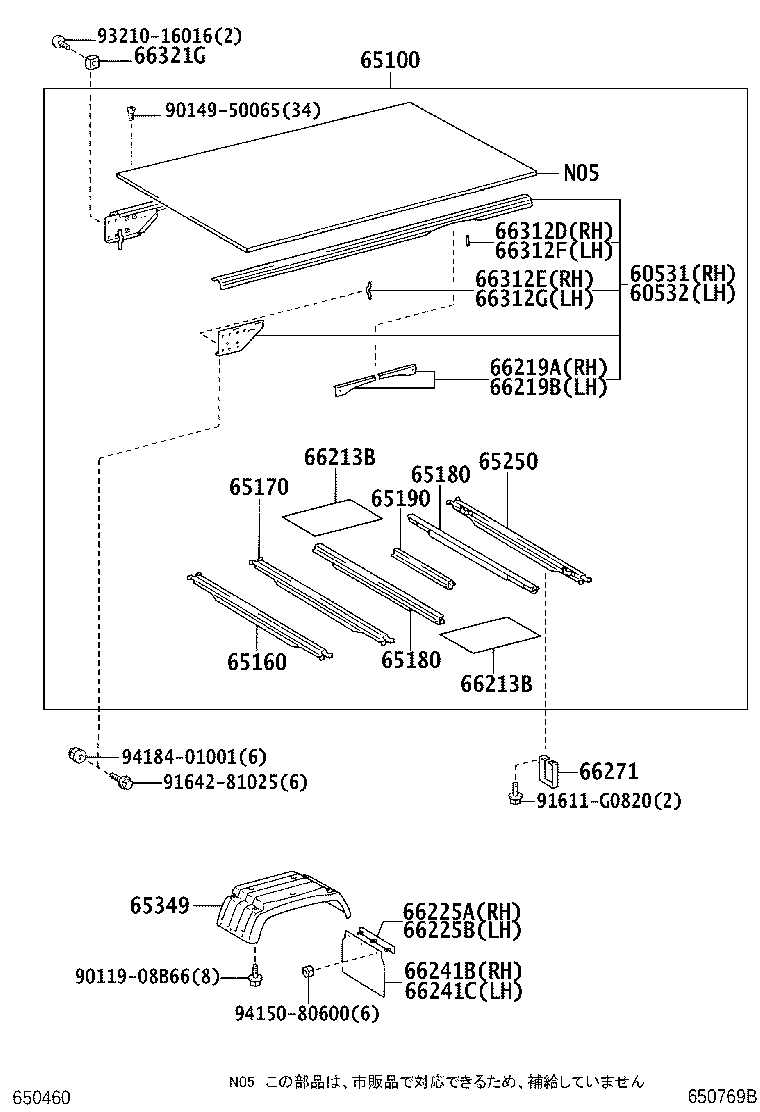

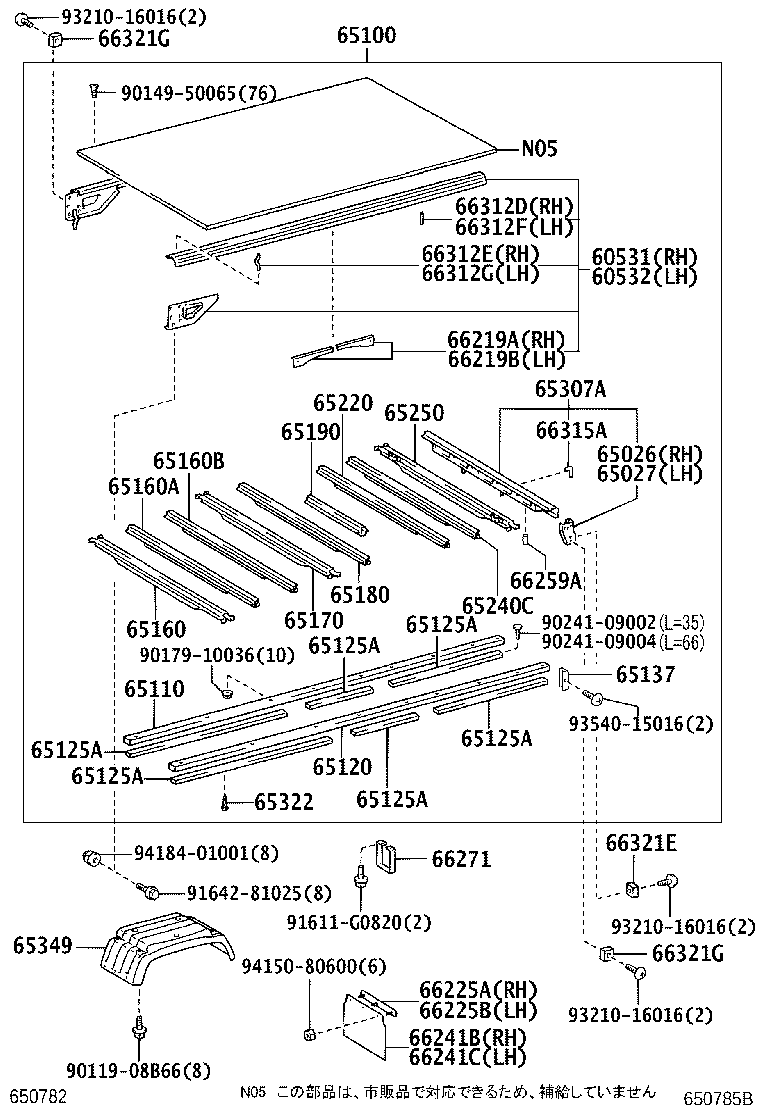

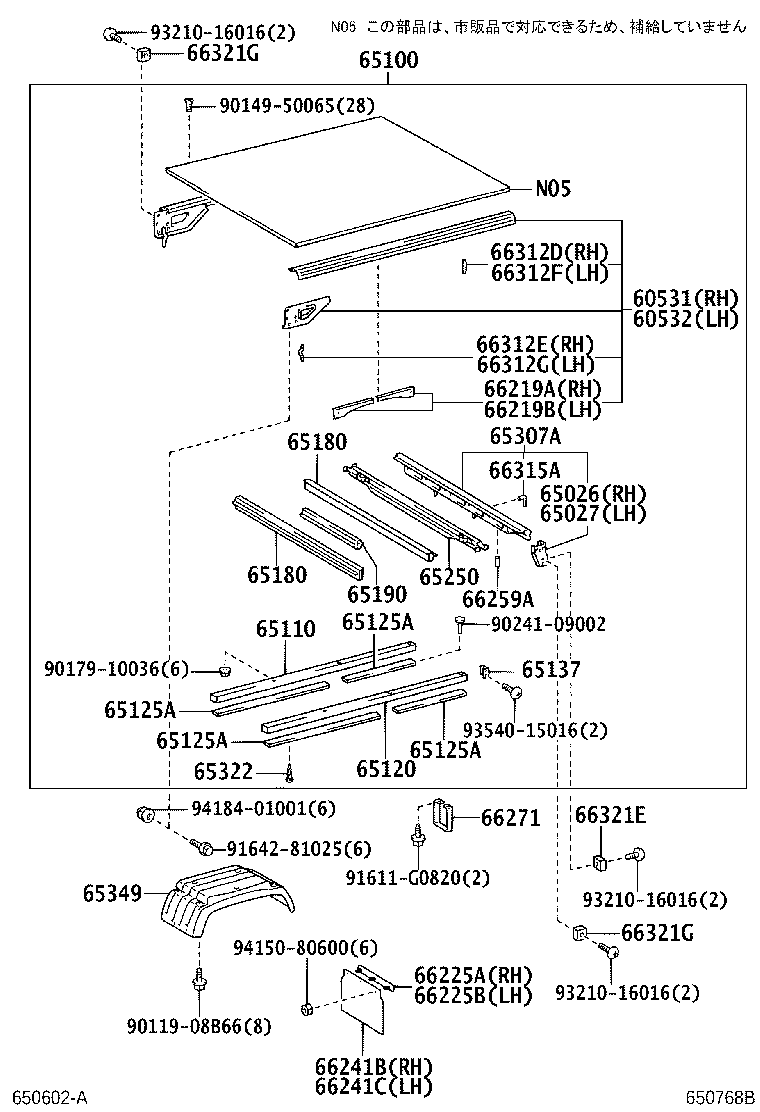

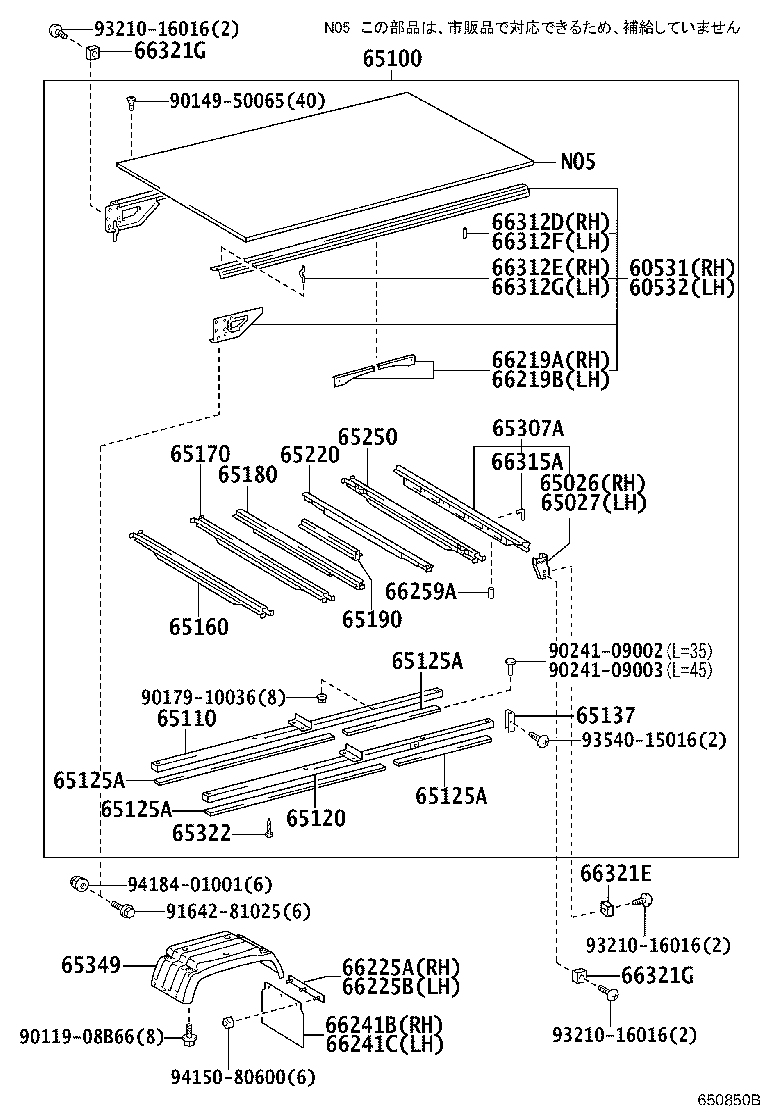

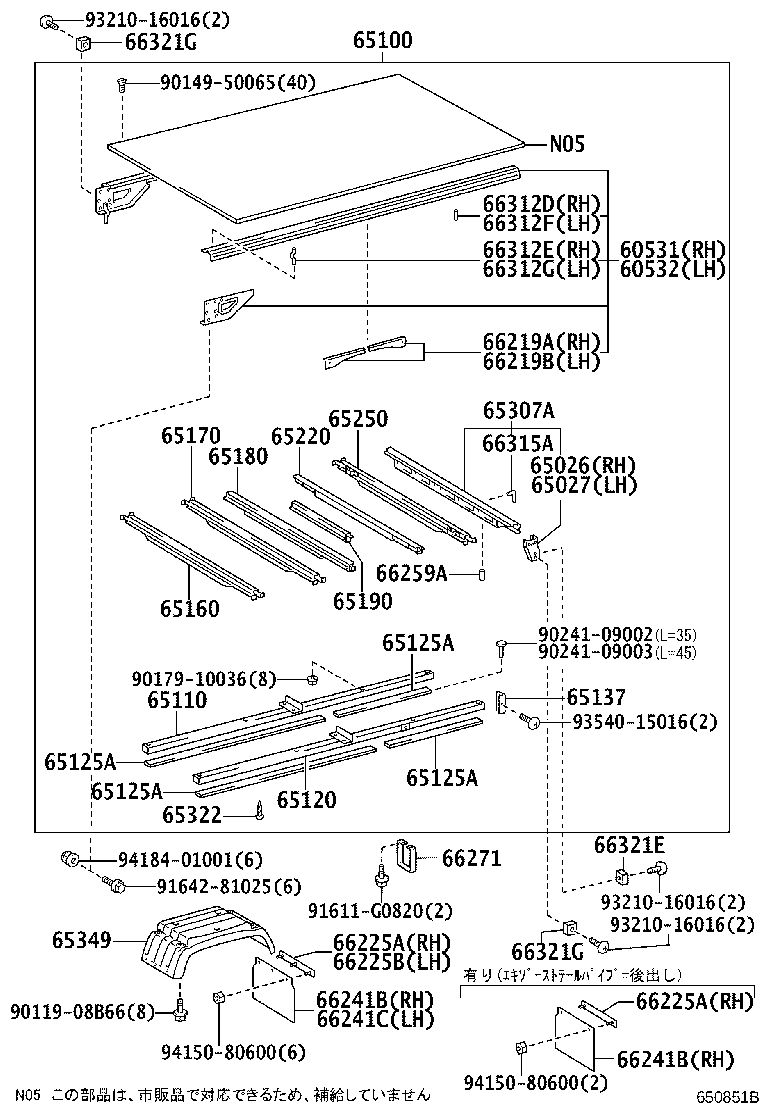

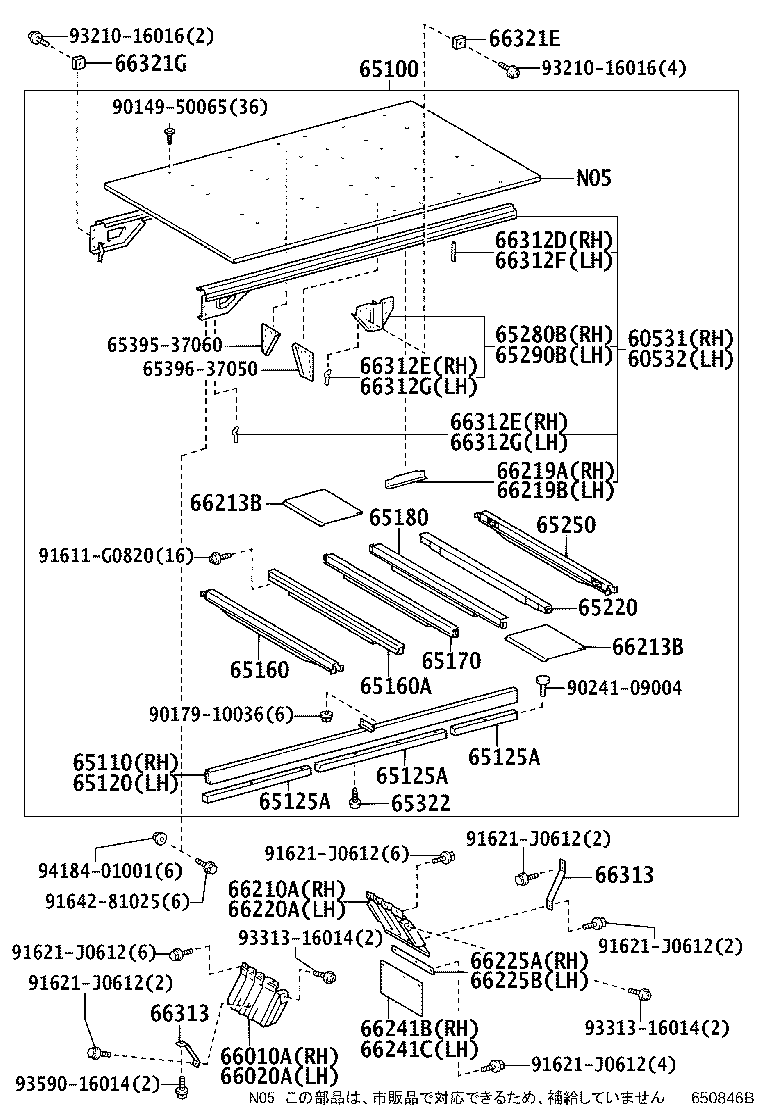

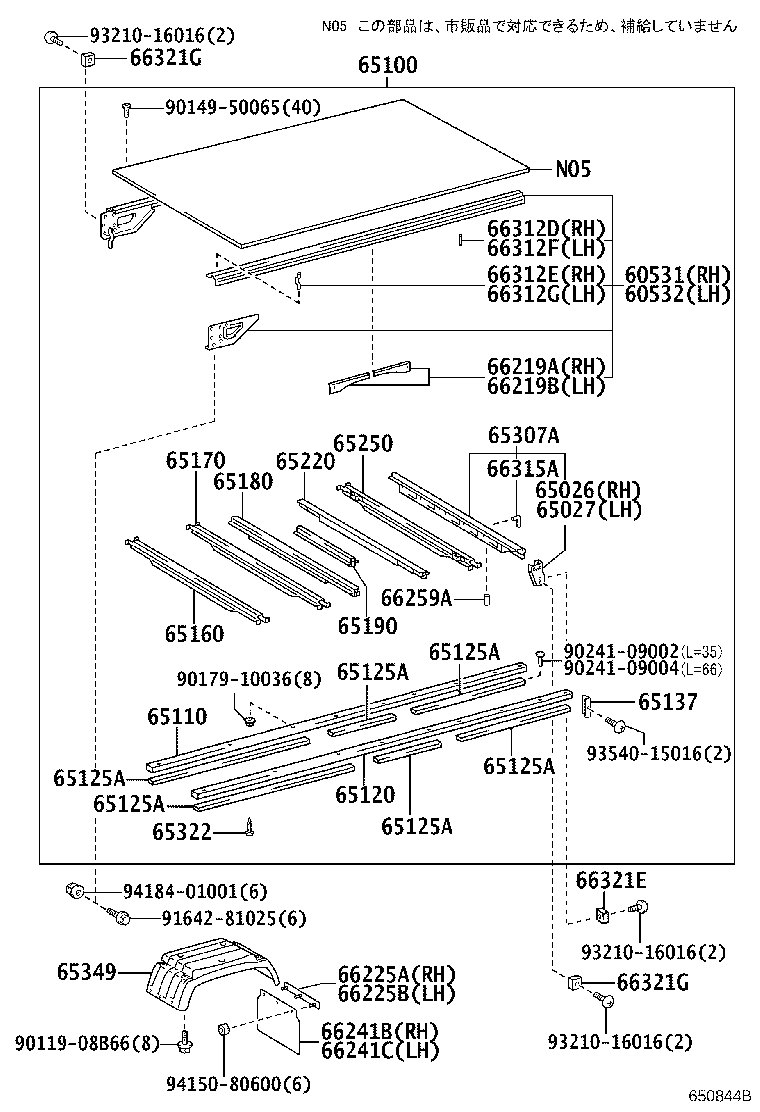

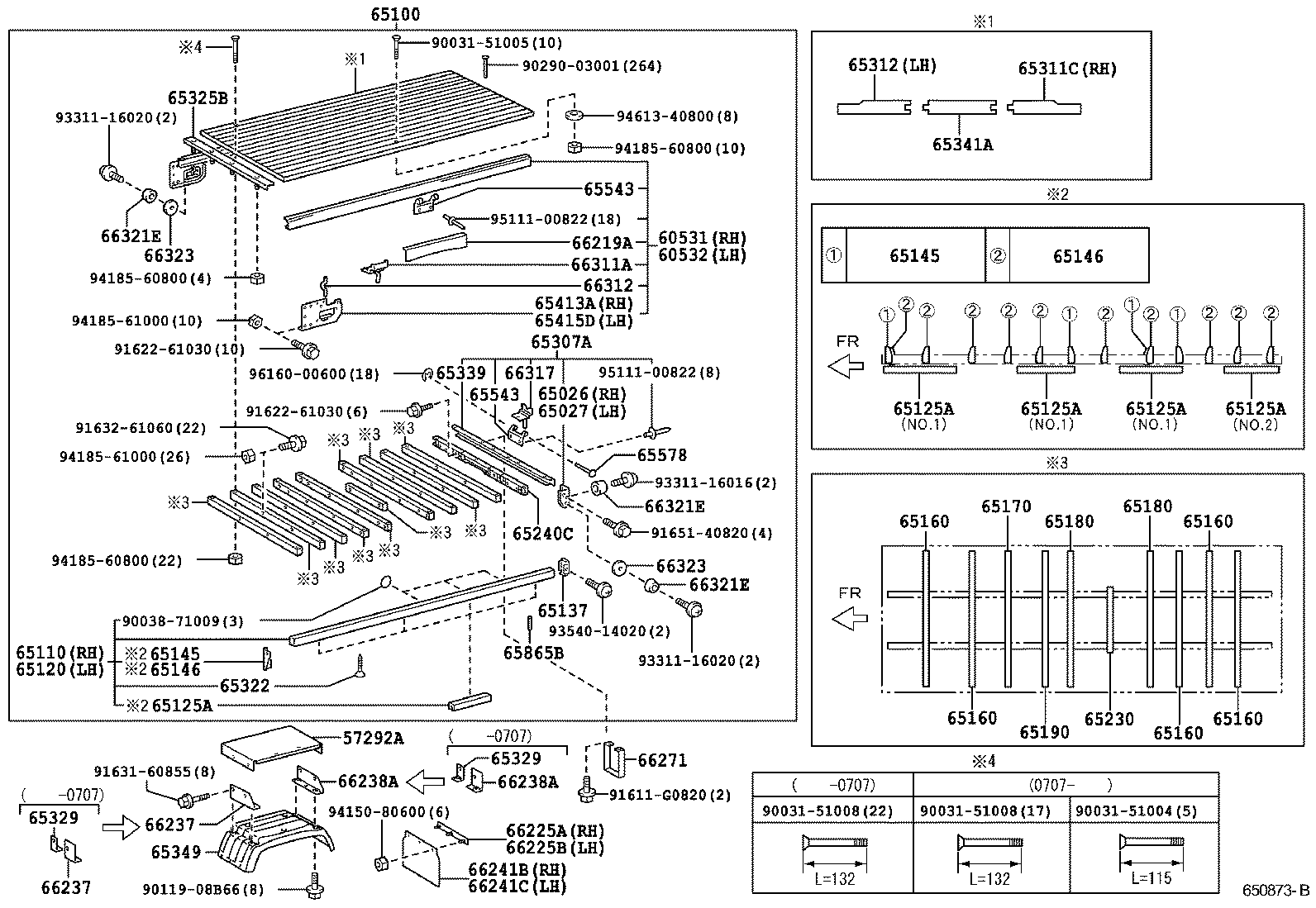

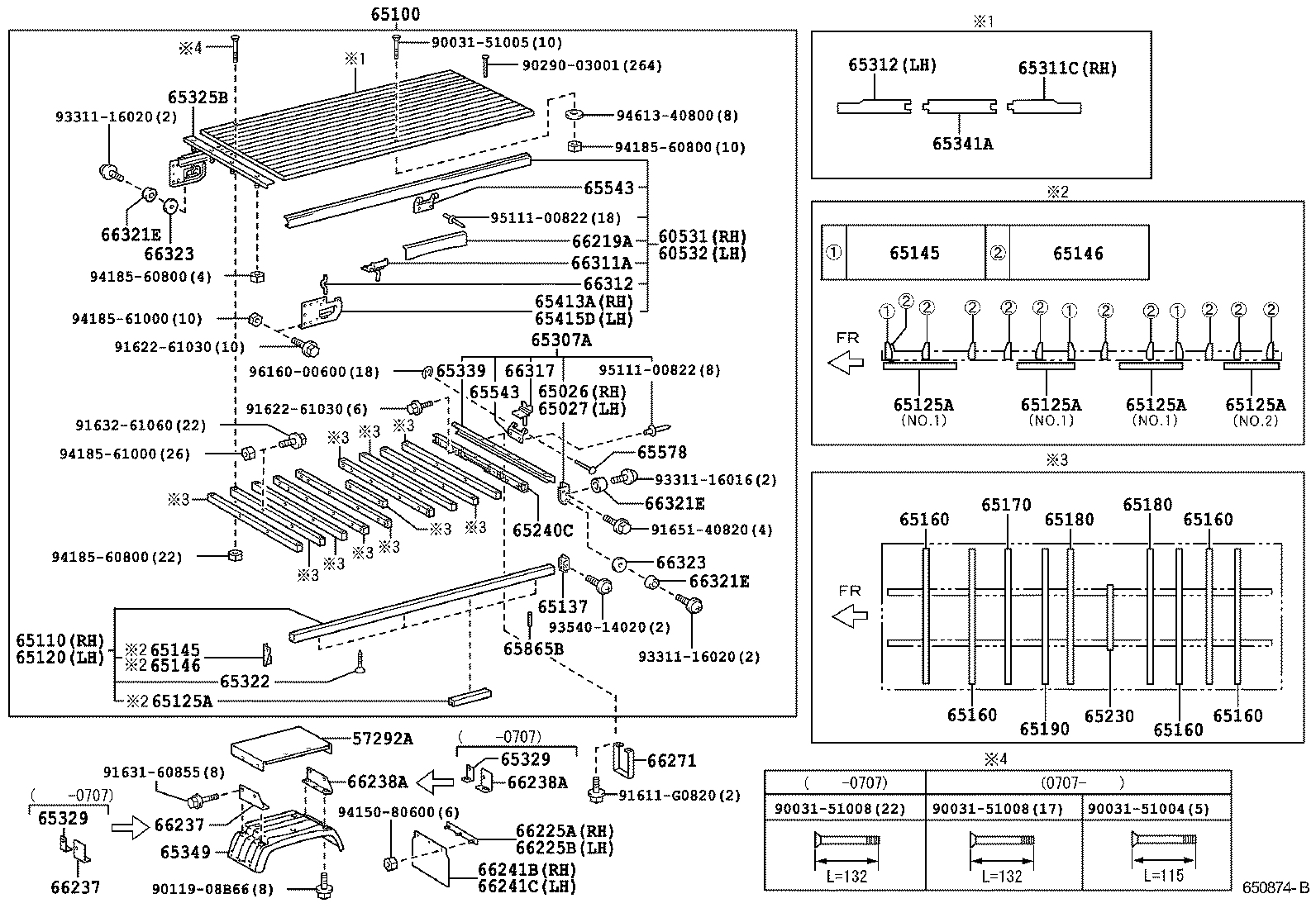

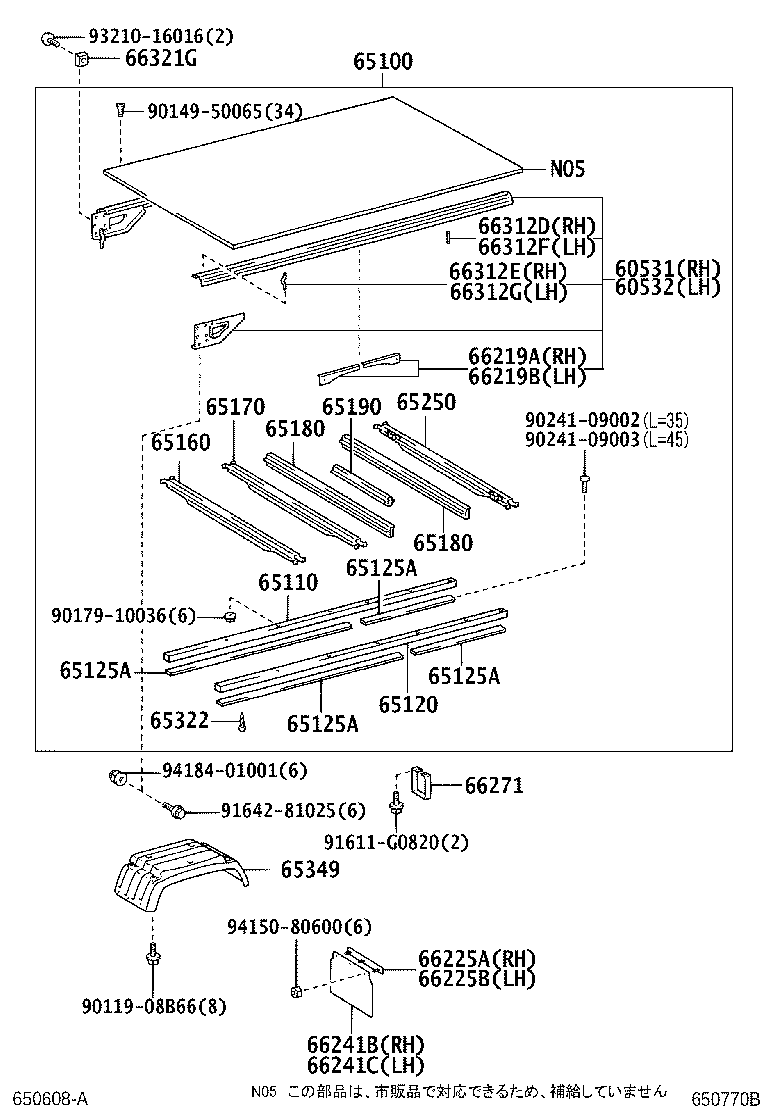

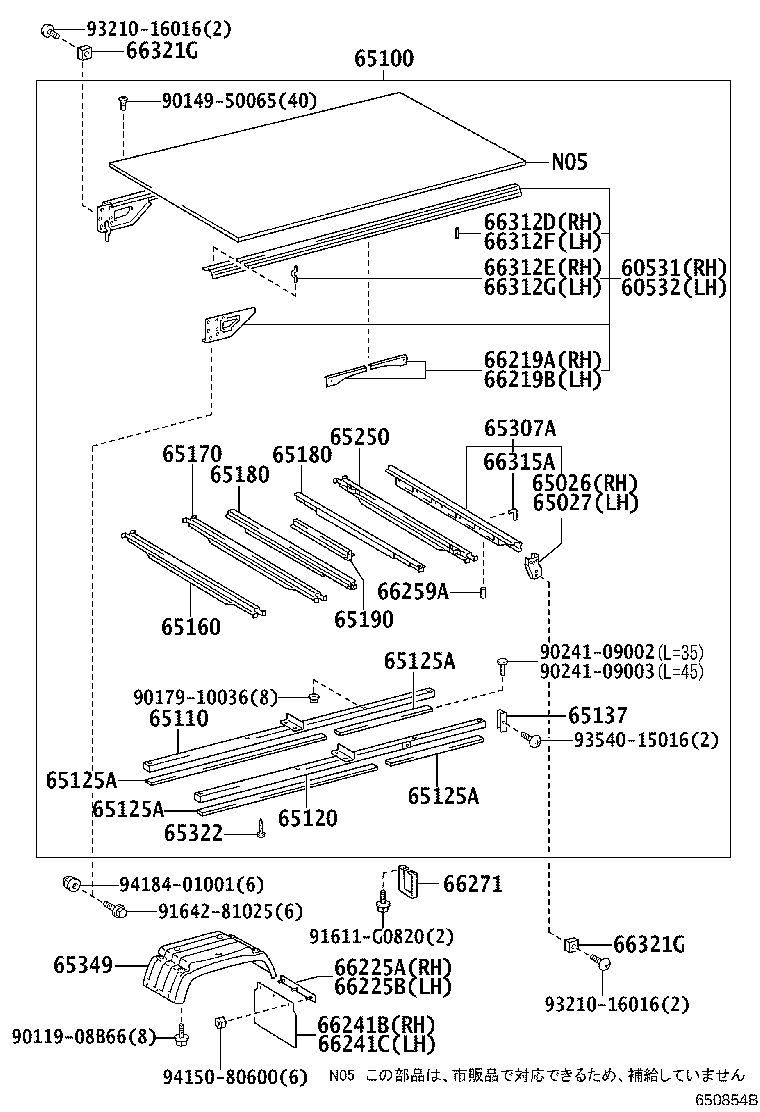

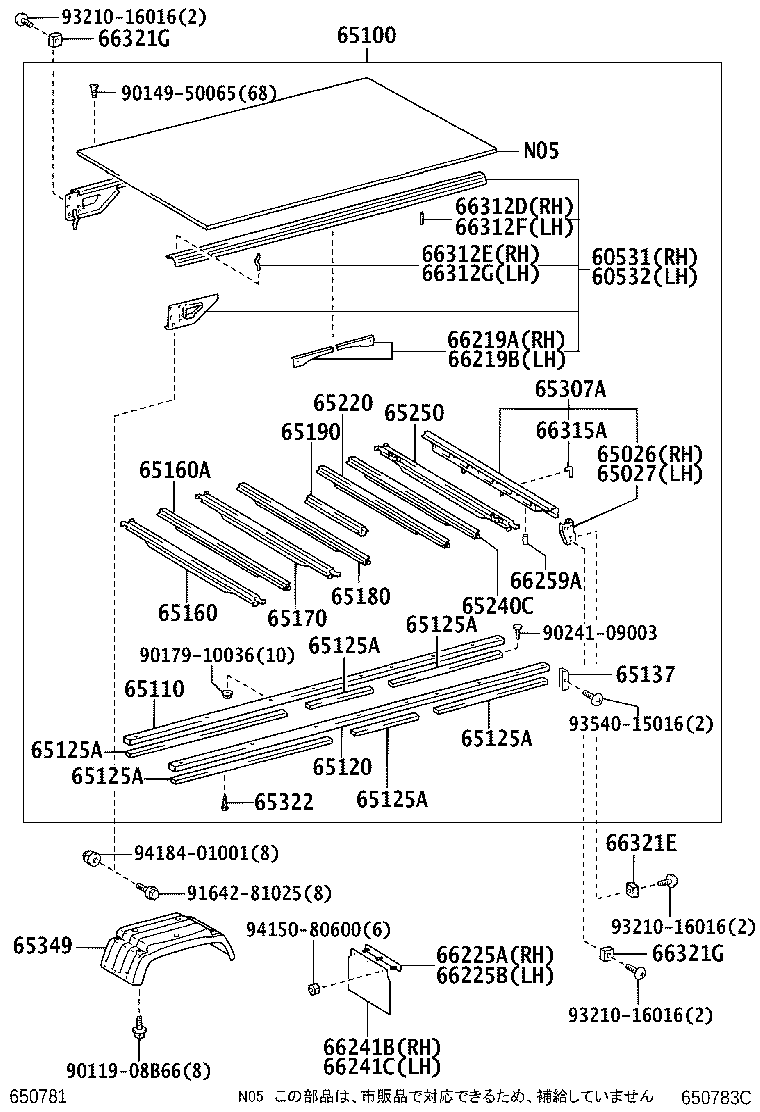

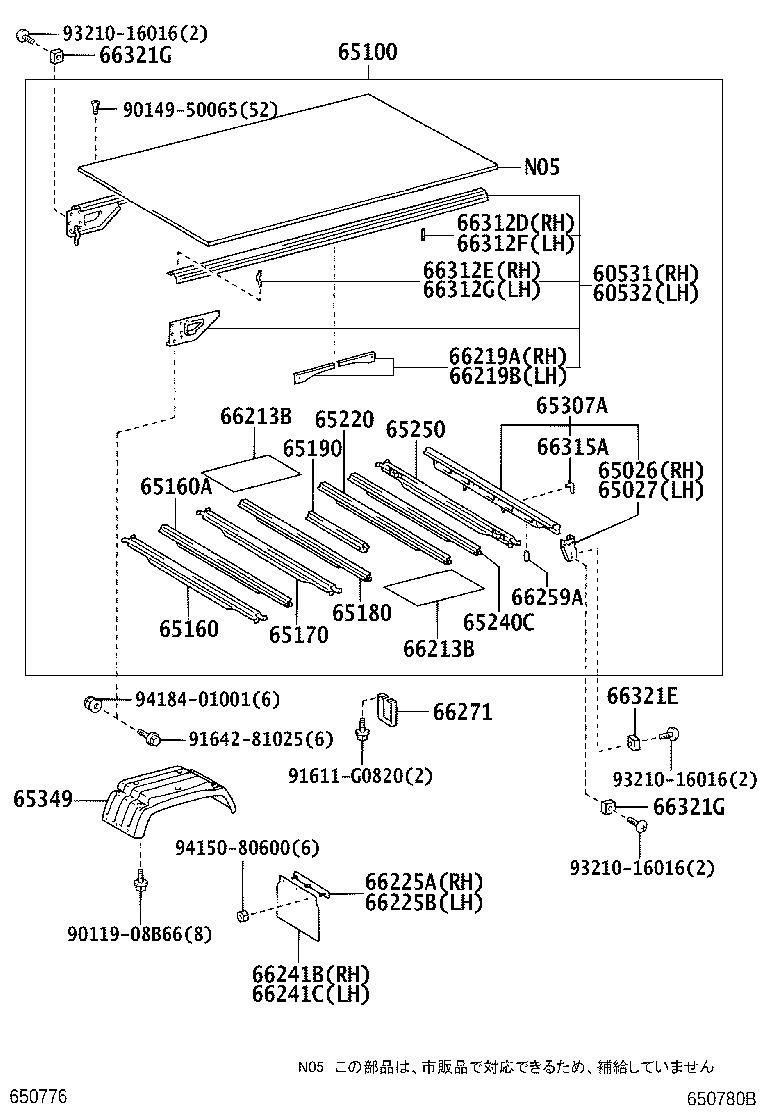

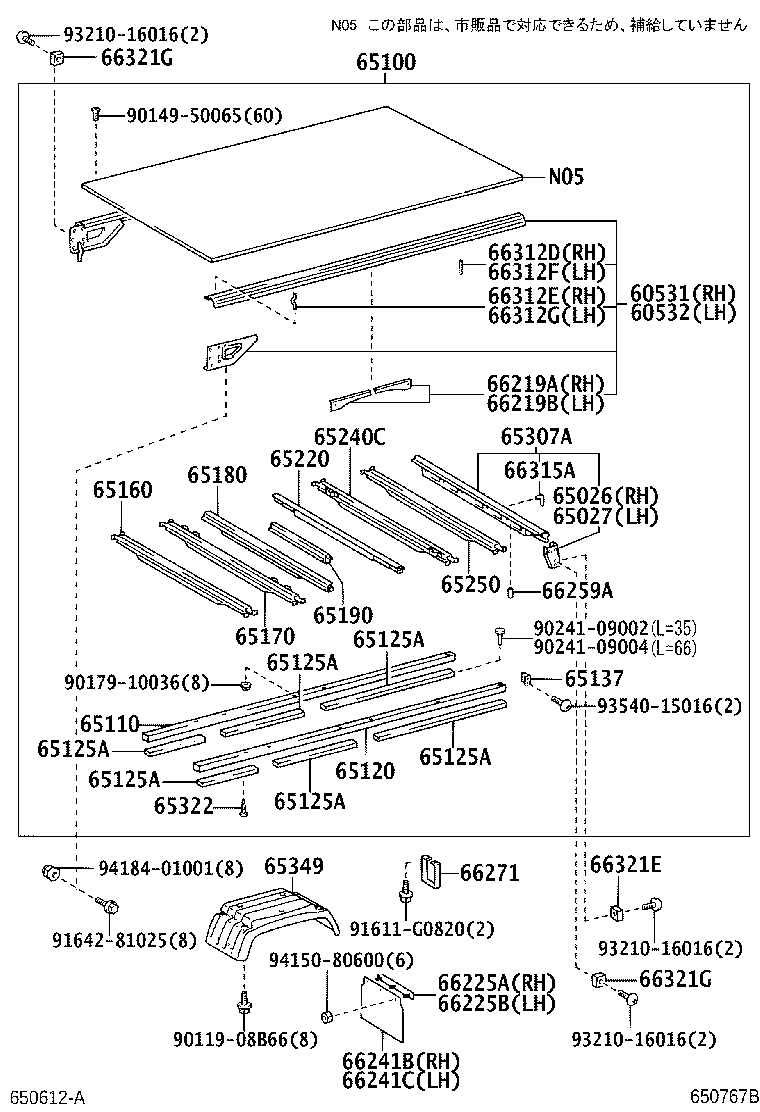

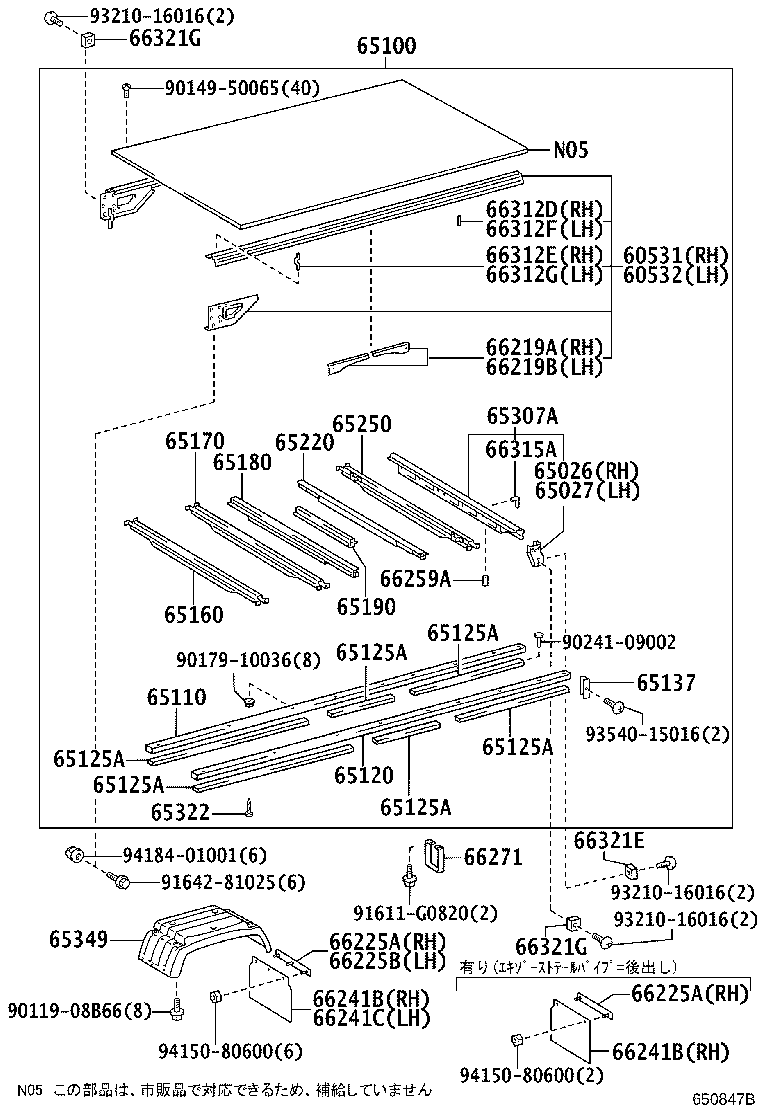

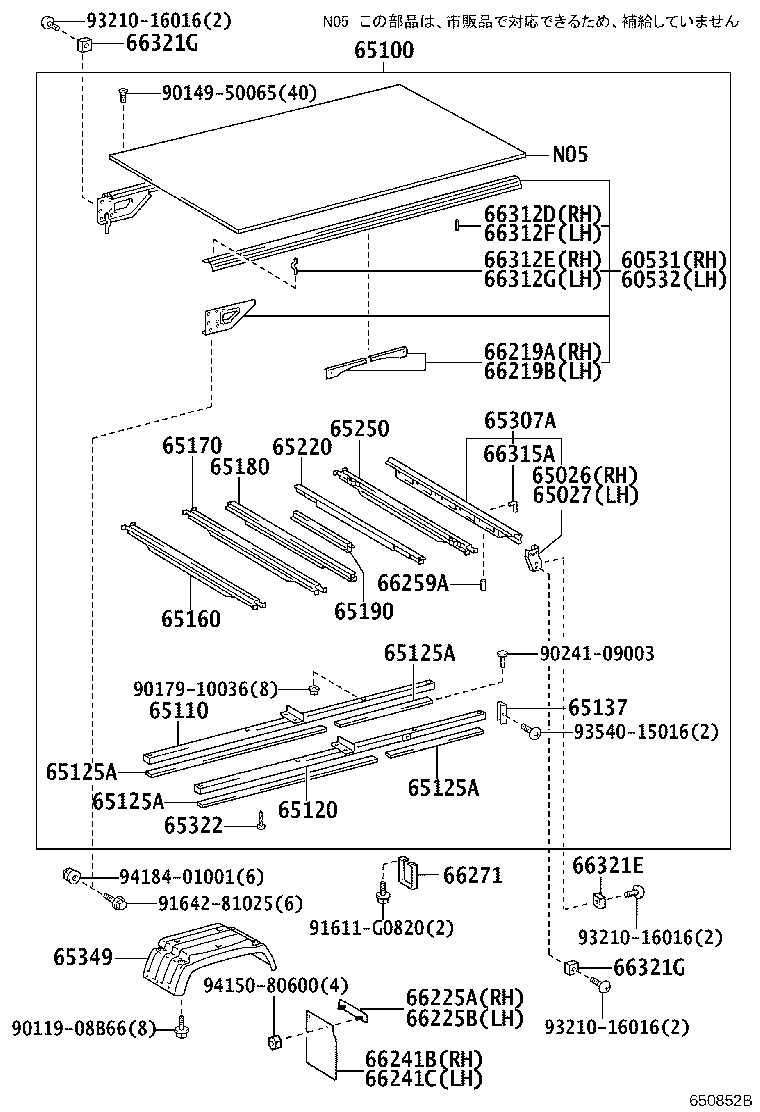

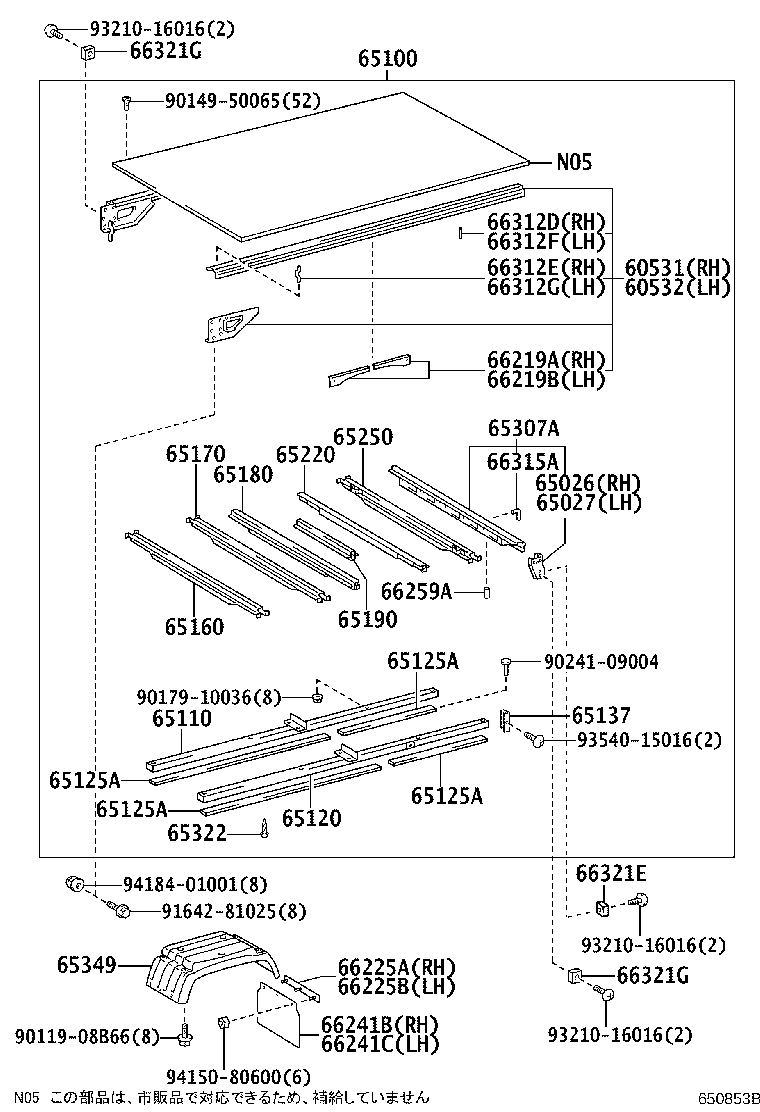

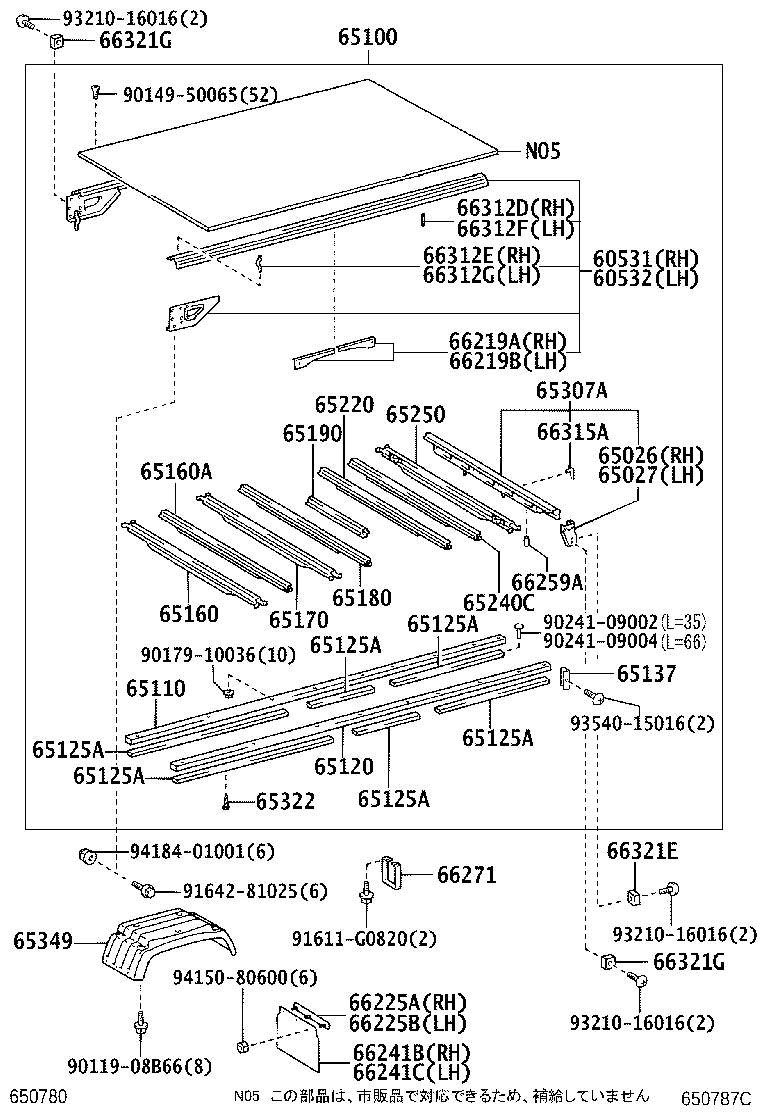

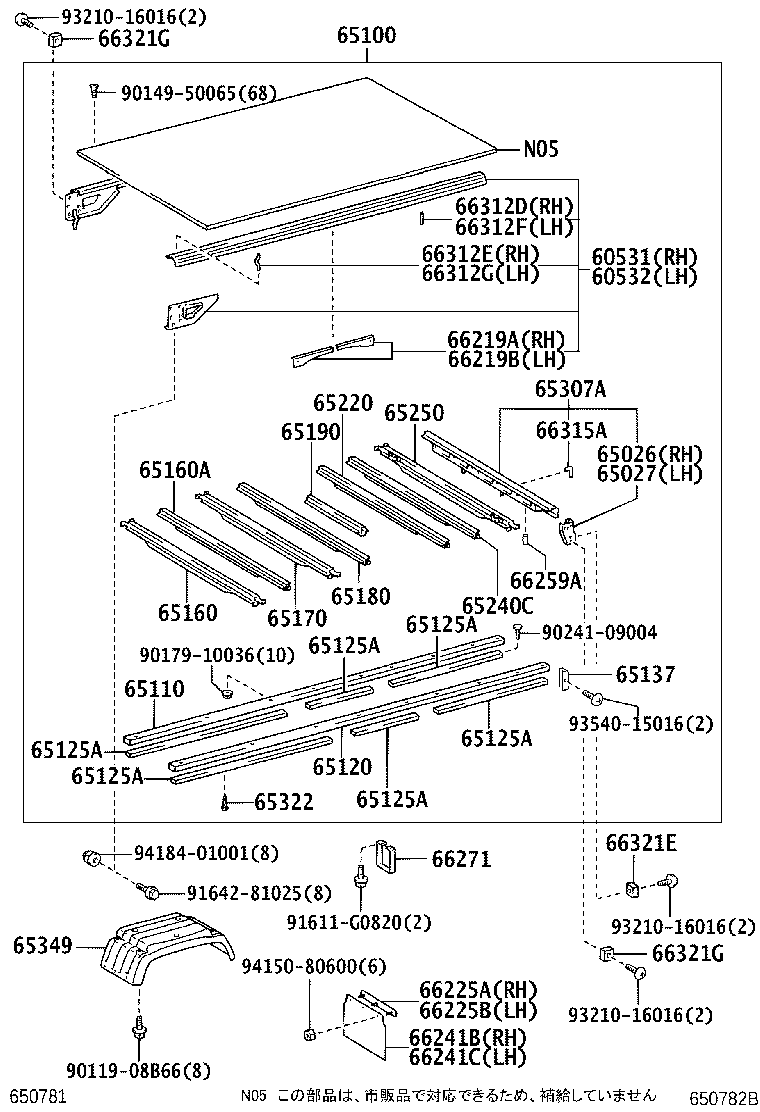

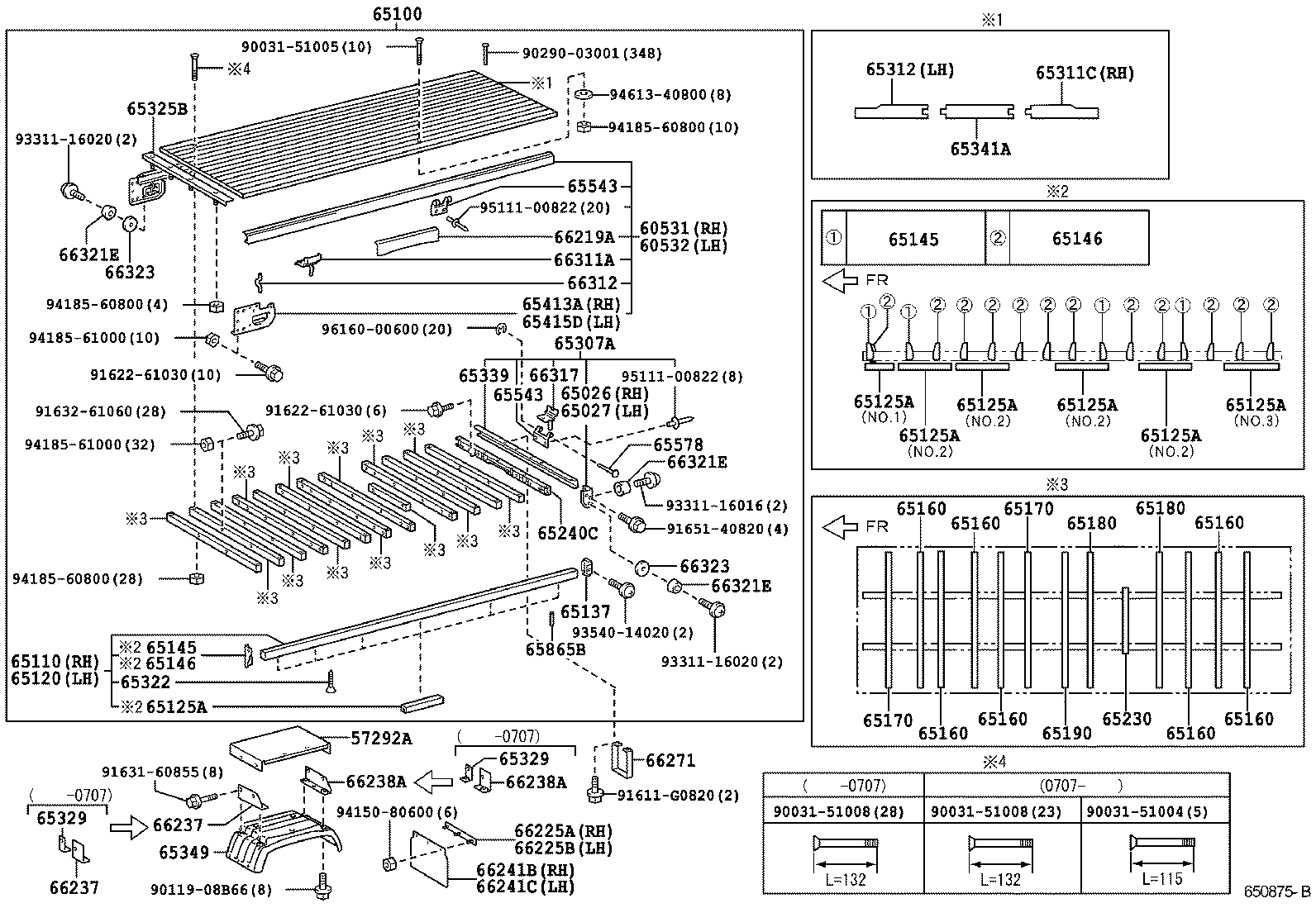

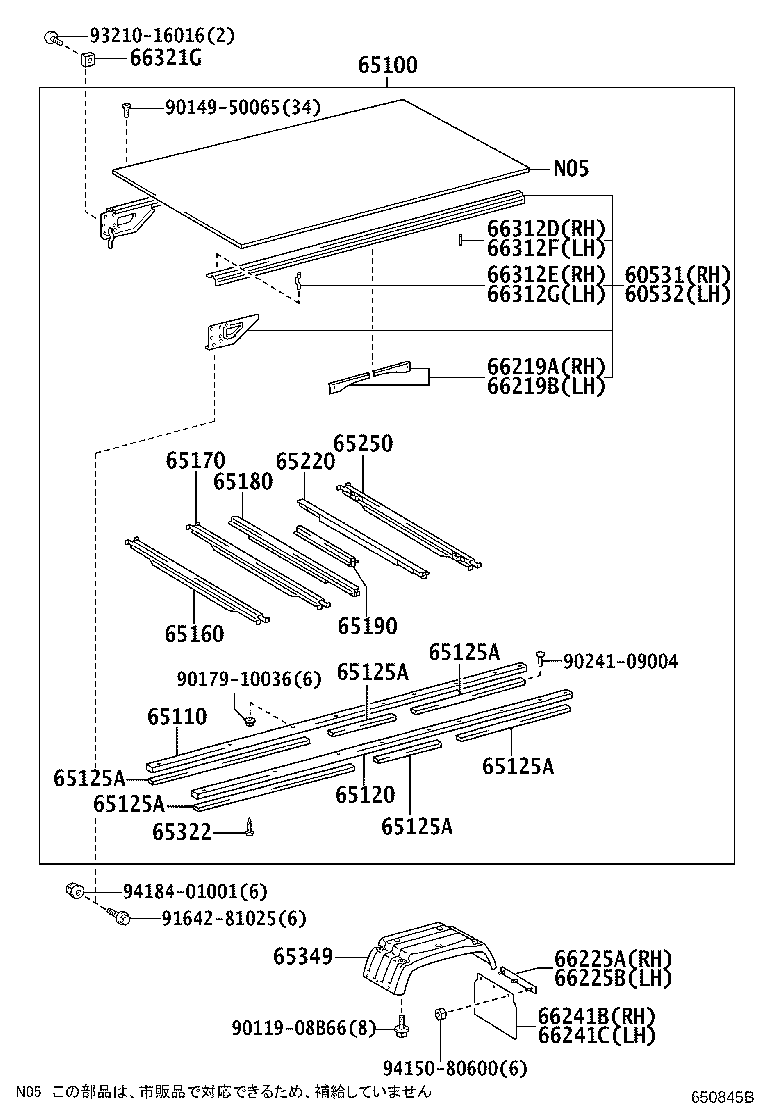

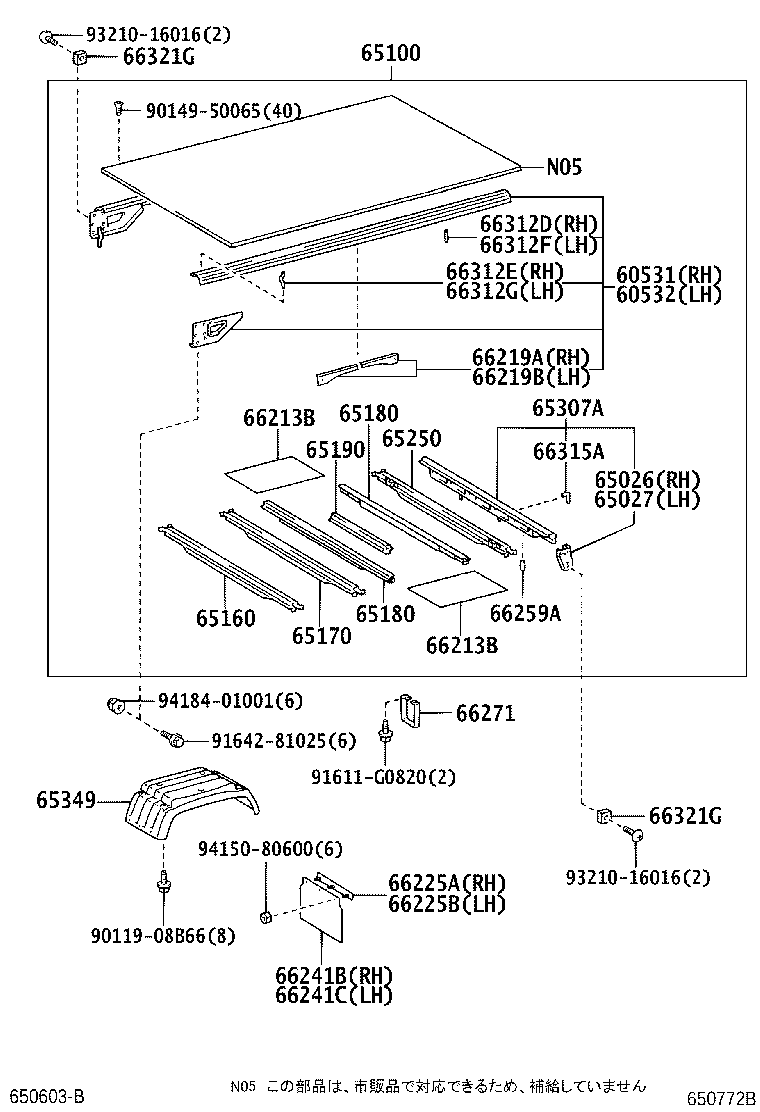

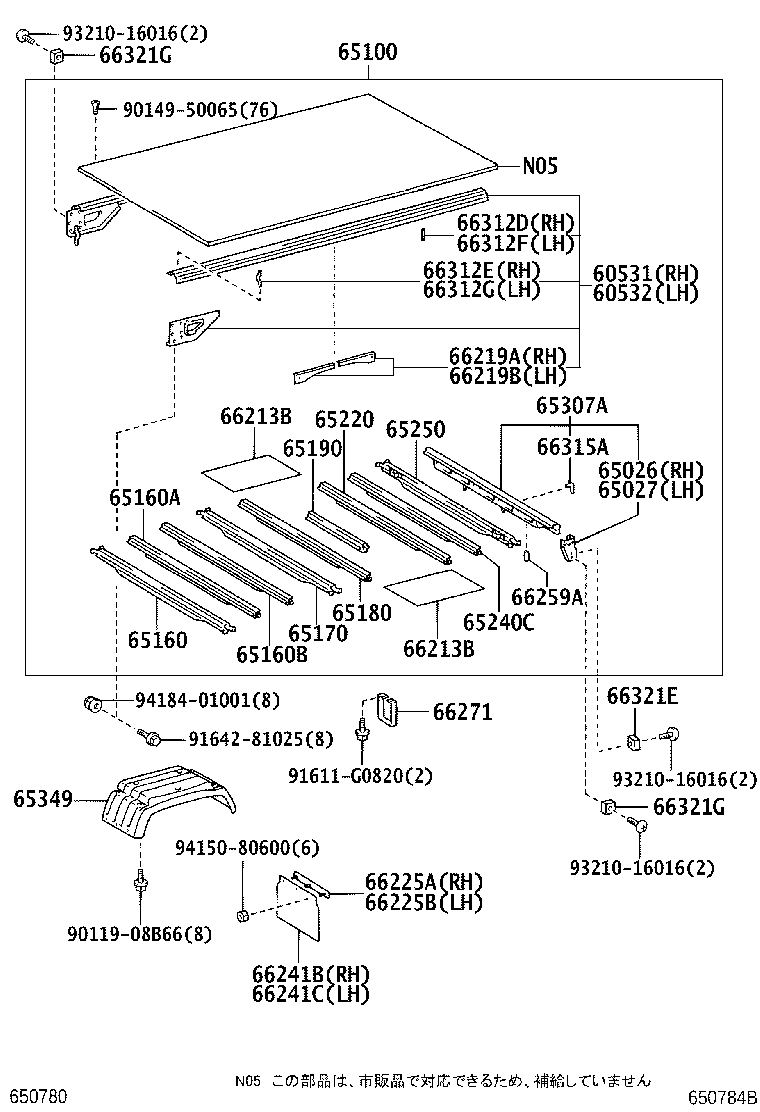

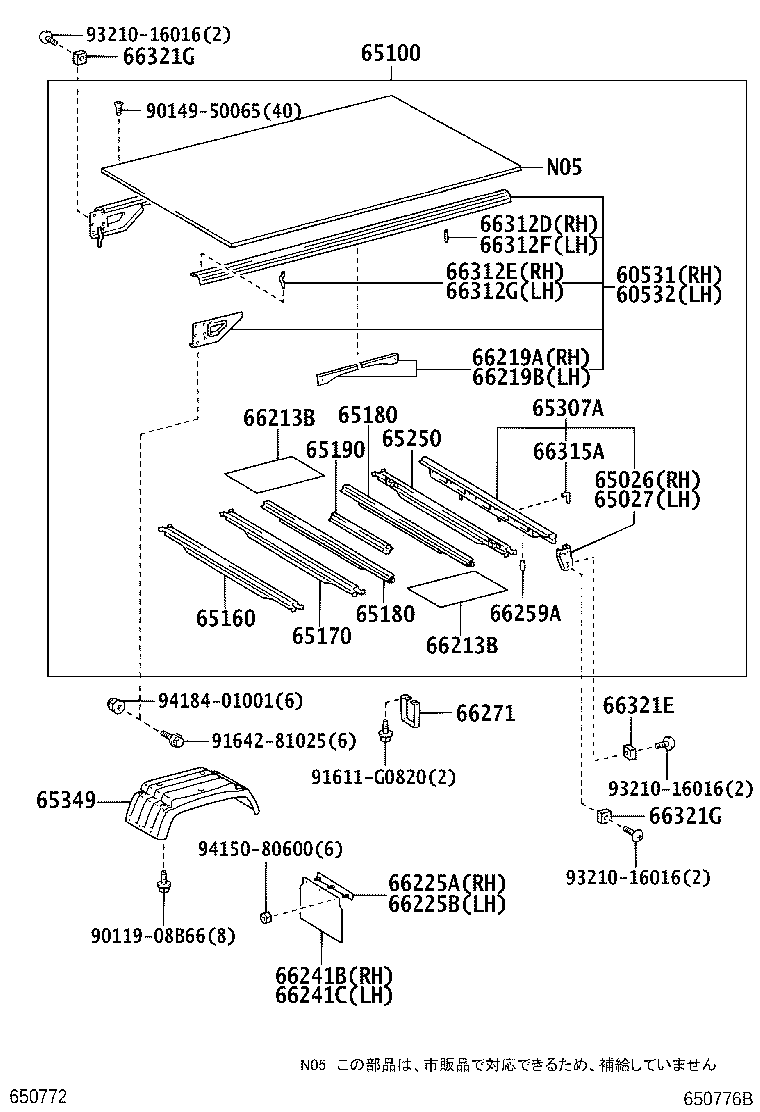

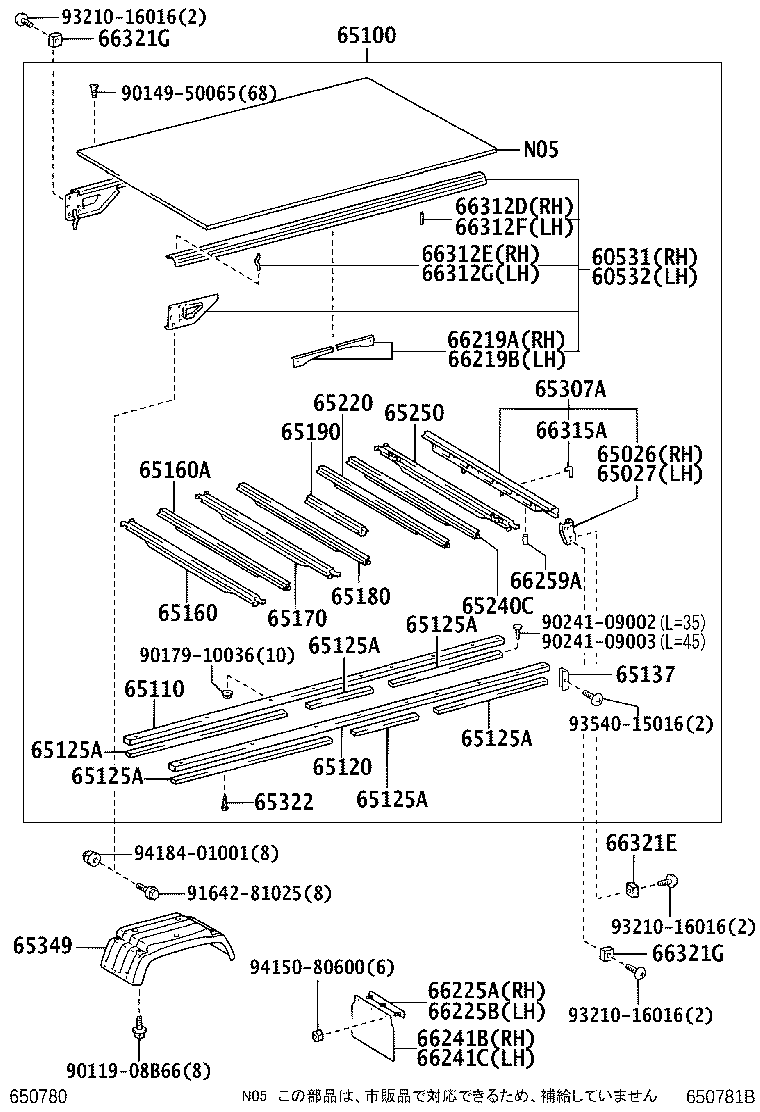

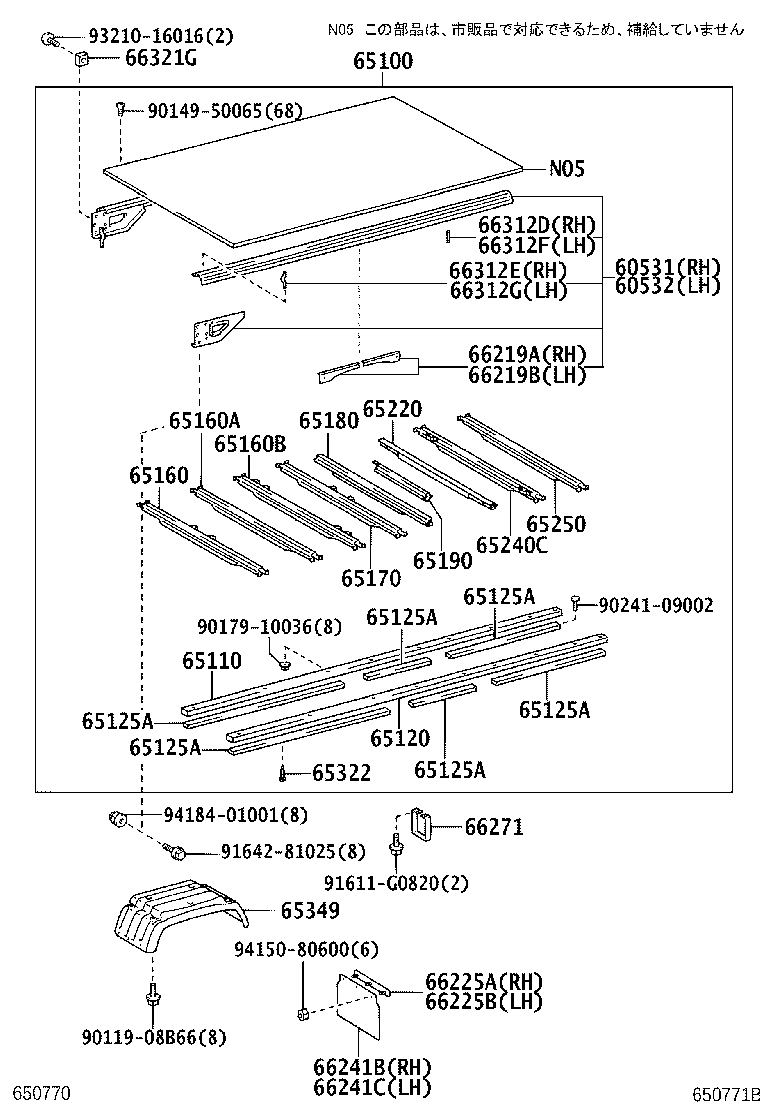

Figure 650766B 650766B 2006-10 → — Figure 650767B 650767B 2006-10 → — Figure 650768B 650768B 2006-10 → — Figure 650776B 650776B 2006-10 → — Figure 650850B 650850B 2006-10 → — Figure 650851B 650851B 2006-10 → — Figure 650852B 650852B 2006-10 → — Figure 650853B 650853B 2006-10 → — Figure 650780B 650780B 2006-10 → — Figure 650787C 650787C 2006-10 → — Figure 650781B 650781B 2006-10 → — Figure 650782B 650782B 2006-10 → — Figure 650783C 650783C 2006-10 → — Figure 650784B 650784B 2006-10 → — Figure 650785B 650785B 2006-10 → — Figure 650844B 650844B 2007-05 → — Figure 650847B 650847B 2007-05 → — Figure 650769B 650769B 2006-10 → — Figure 650770B 650770B 2006-10 → — Figure 650770B 650770B 2006-10 → — Figure 650771B 650771B 2006-10 → — Figure 650845B 650845B 2007-05 → — Figure 650772B 650772B 2006-10 → — Figure 650854B 650854B 2006-10 → — Figure 650854B 650854B 2006-10 → — Figure 650846B 650846B 2007-05 → — Figure 650873B 650873B 2007-05 → — Figure 650874B 650874B 2007-05 → — Figure 650875B 650875B 2007-05 → —

Part groups

PNCDescription
57292A Plate, Floor Board Set
60531 Frame Sub-assy, Floor Side, RH
60532 Frame Sub-assy, Floor Side, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65145 Gusset, Cross Sill
65146 Gusset, Cross Sill
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65230 Sill Assy, Cross, NO.8
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65280B Bracket Assy, Center Post, RH
65290B Bracket Assy, Center Post, LH
65307A Frame Sub-assy, Floor, Rear
65311C Board, Floor, Outside RH
65312 Board, Floor, Outside LH
65322 Nail
65325B Plate, Floor Board, Front
65329 Bracket, Rear Fender
65339 Frame, Floor, Rear
65341A Board, Floor, NO.1
65349 Fender, Floor Side
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
65543 Hinge, Side Gate Female
65578 Pin, Side Gate Hinge
65865B Pin, Cover Top Guide
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66210A Fender Assy, Rear NO.1 RH
66213B Plate, Rear Fender, Upper
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66237 Bracket, Rear Fender, NO.1
66238A Bracket, Rear Fender, NO.2
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66312 Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66313 Support, Rear Fender
66315A Hook, Rope
66317 Hook, Rope, NO.7
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66323 Spacer, Gage Rubber Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
