Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

37 part groups · 20 illustrations

Illustrations

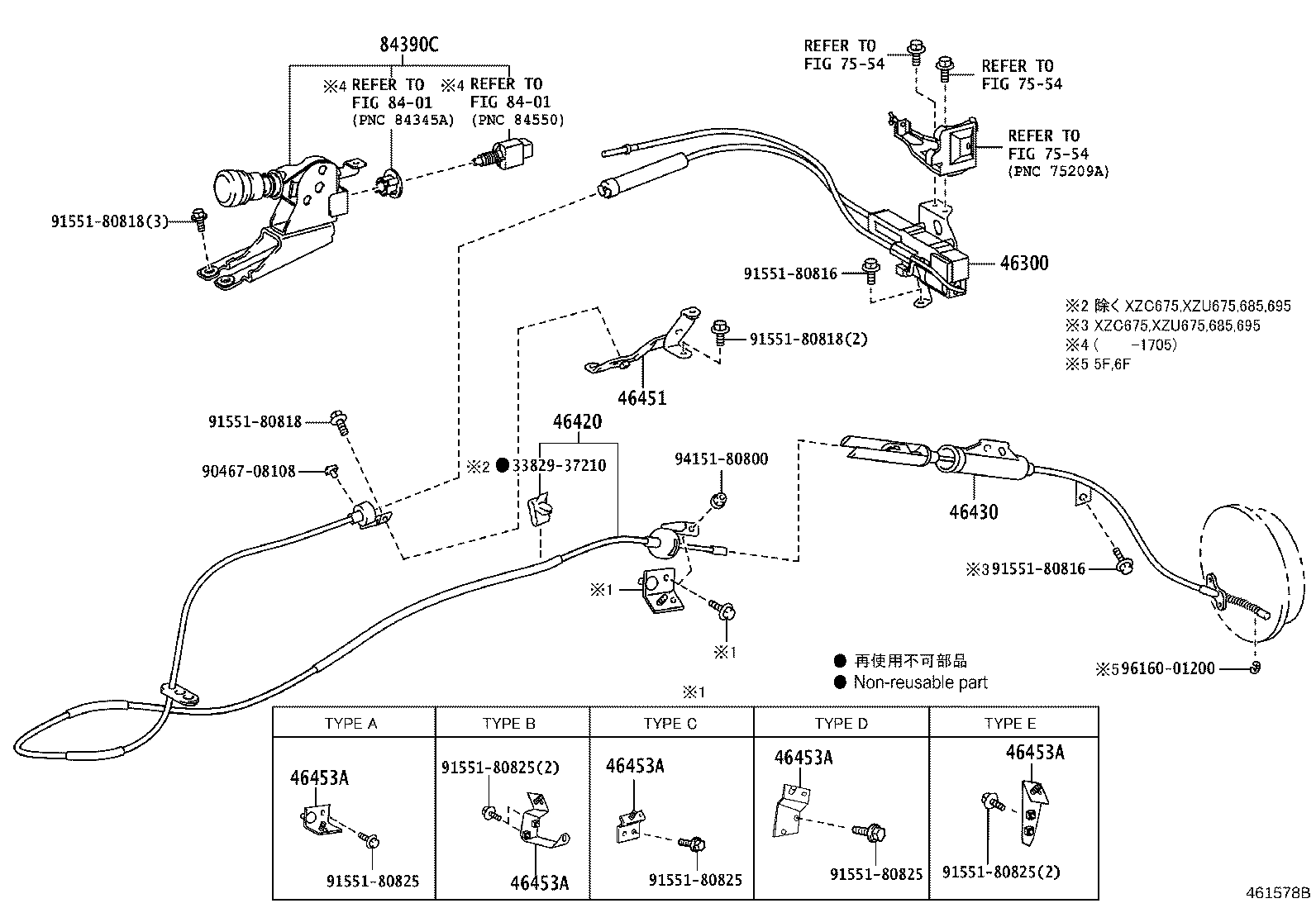

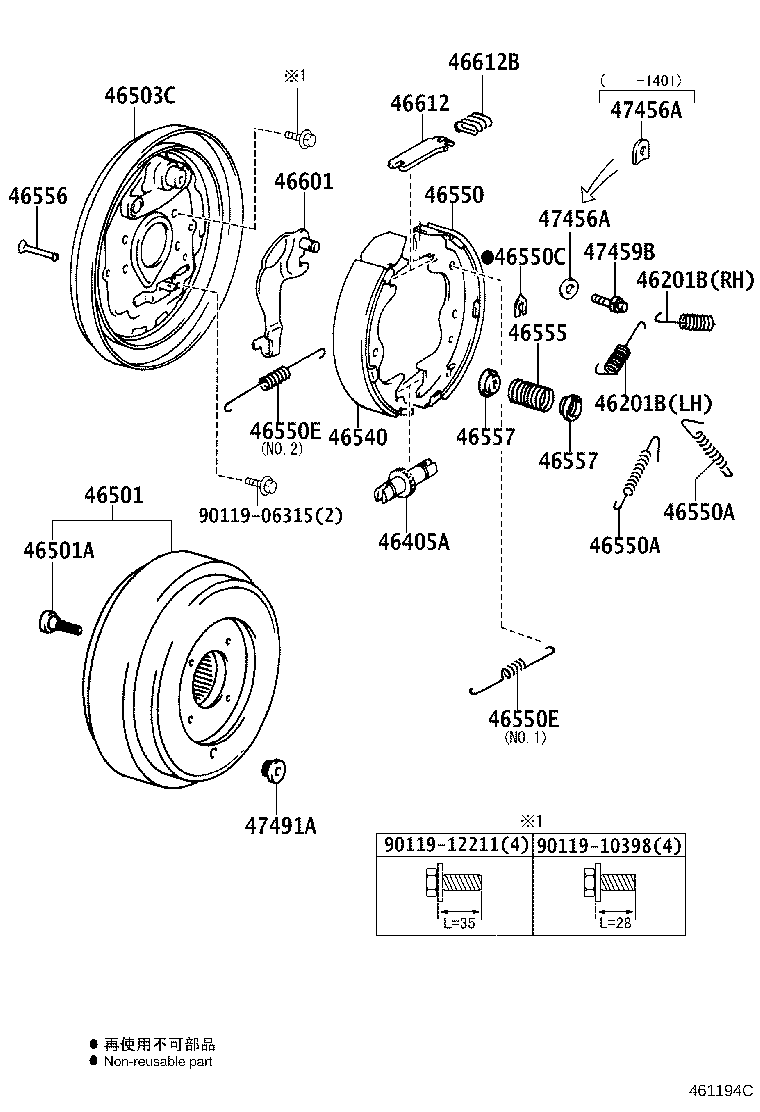

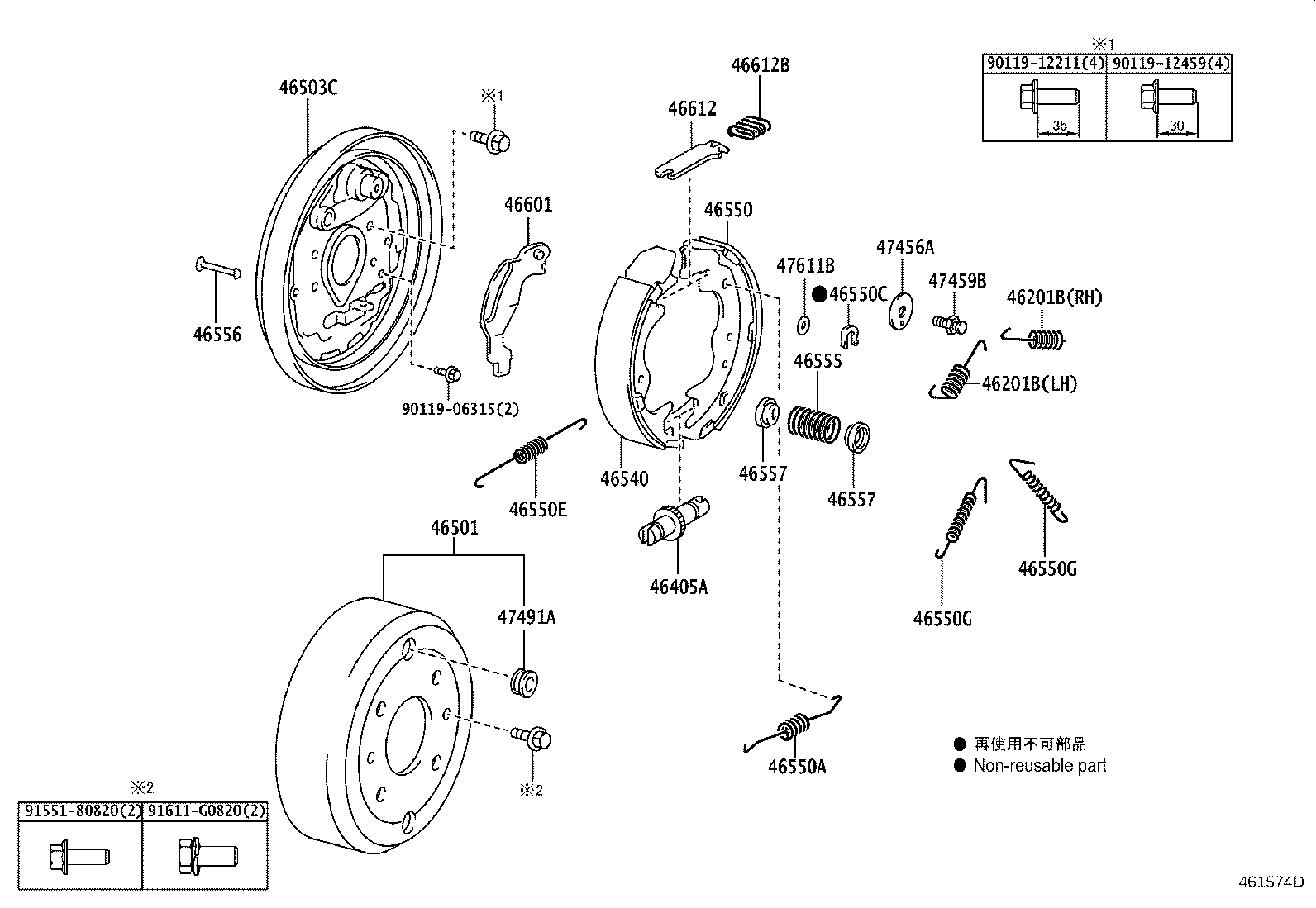

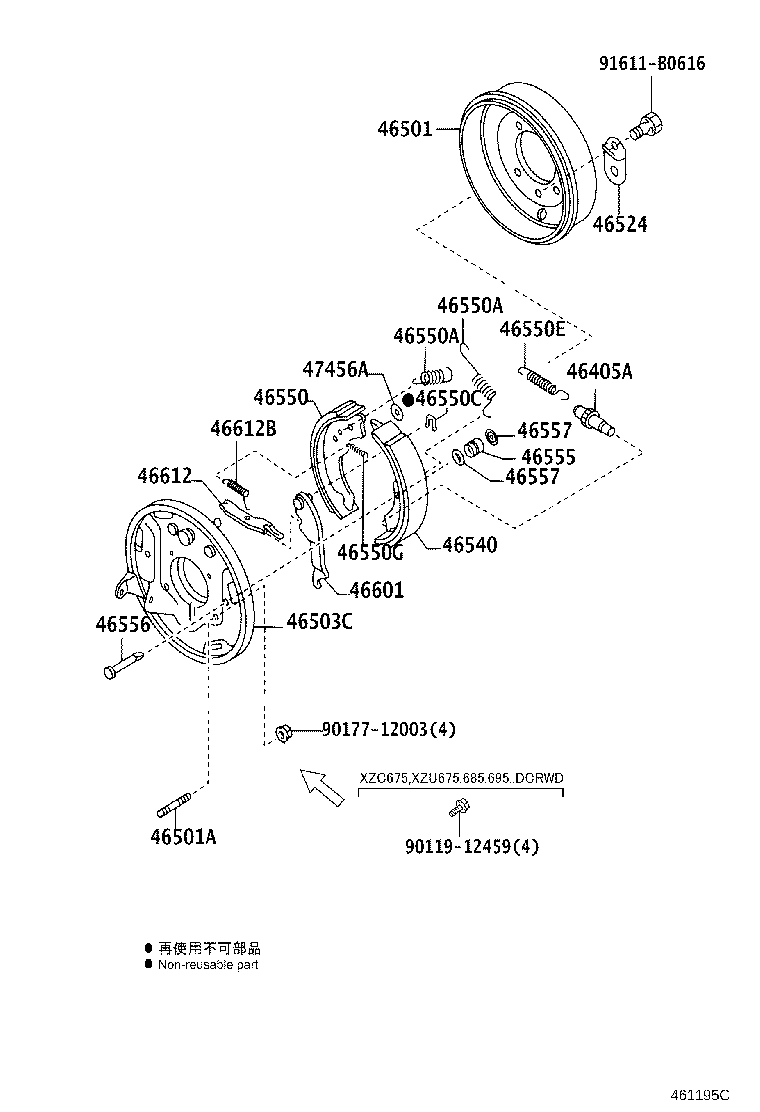

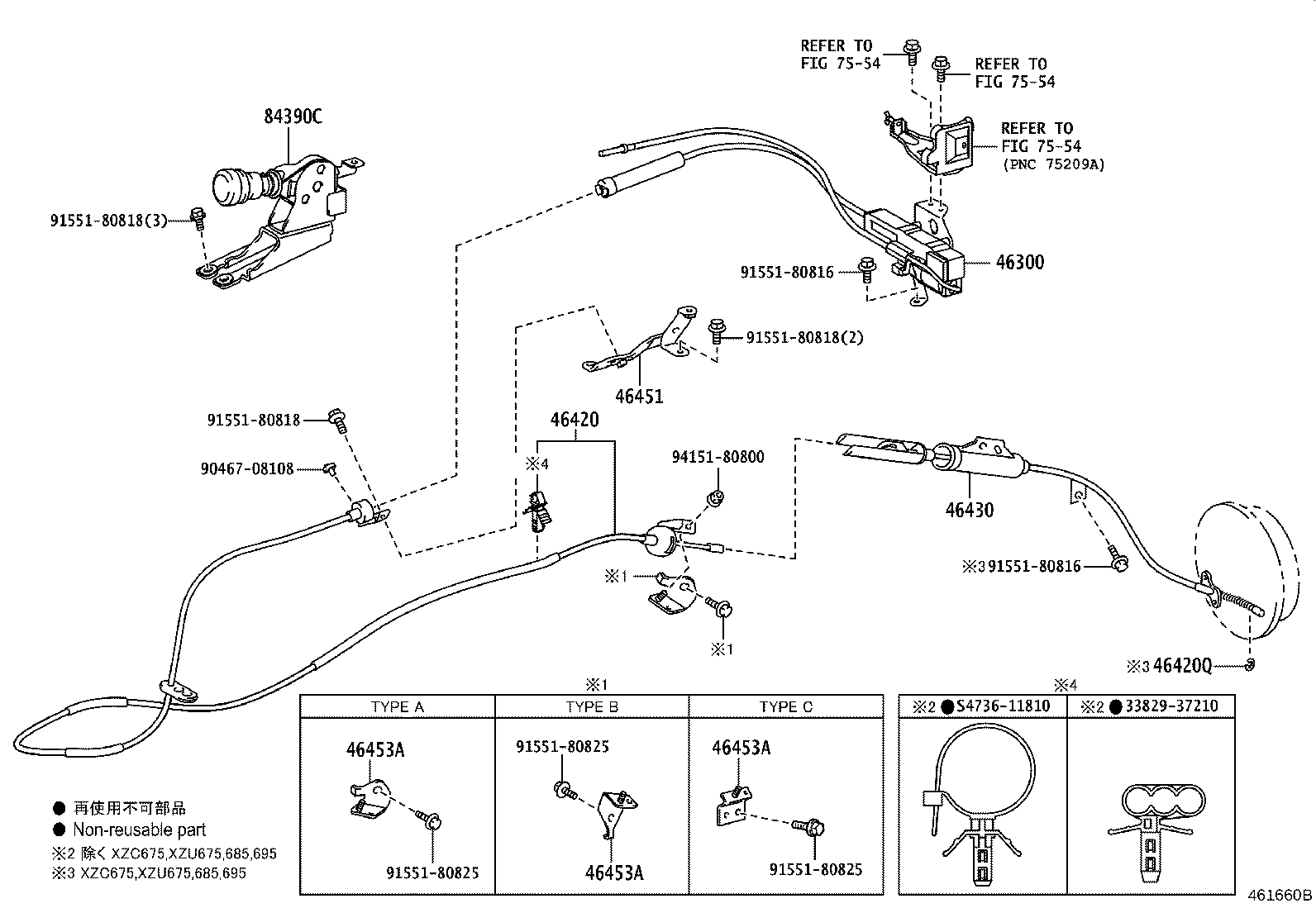

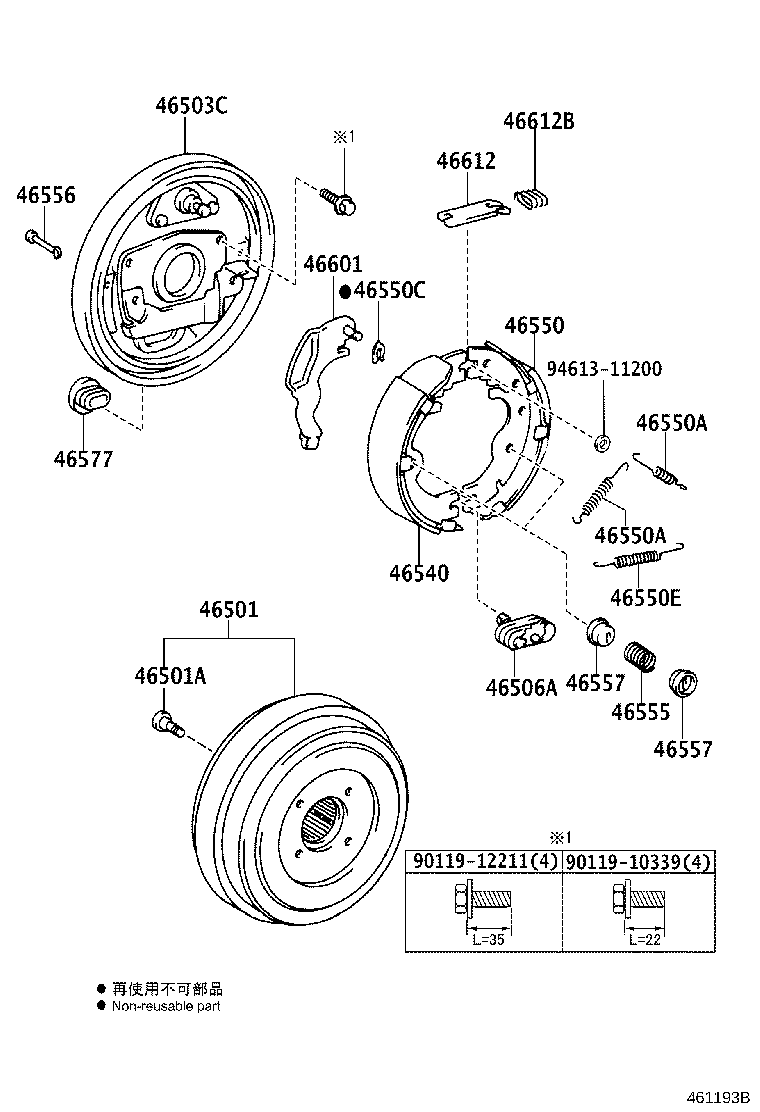

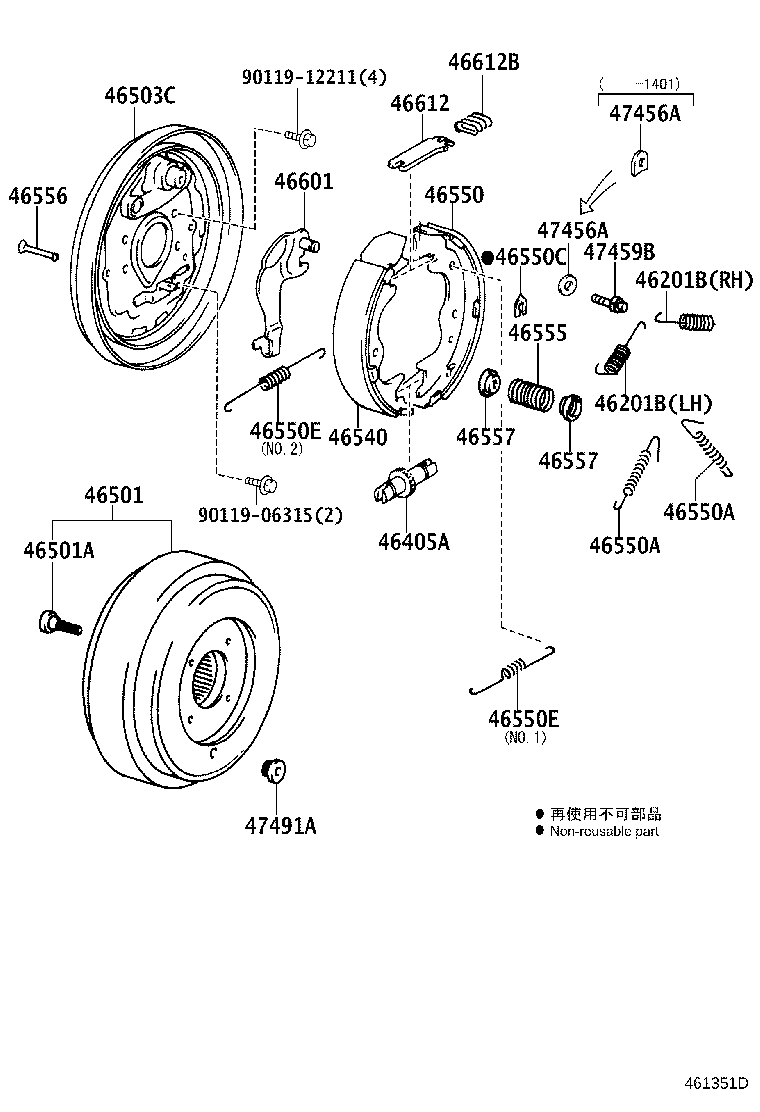

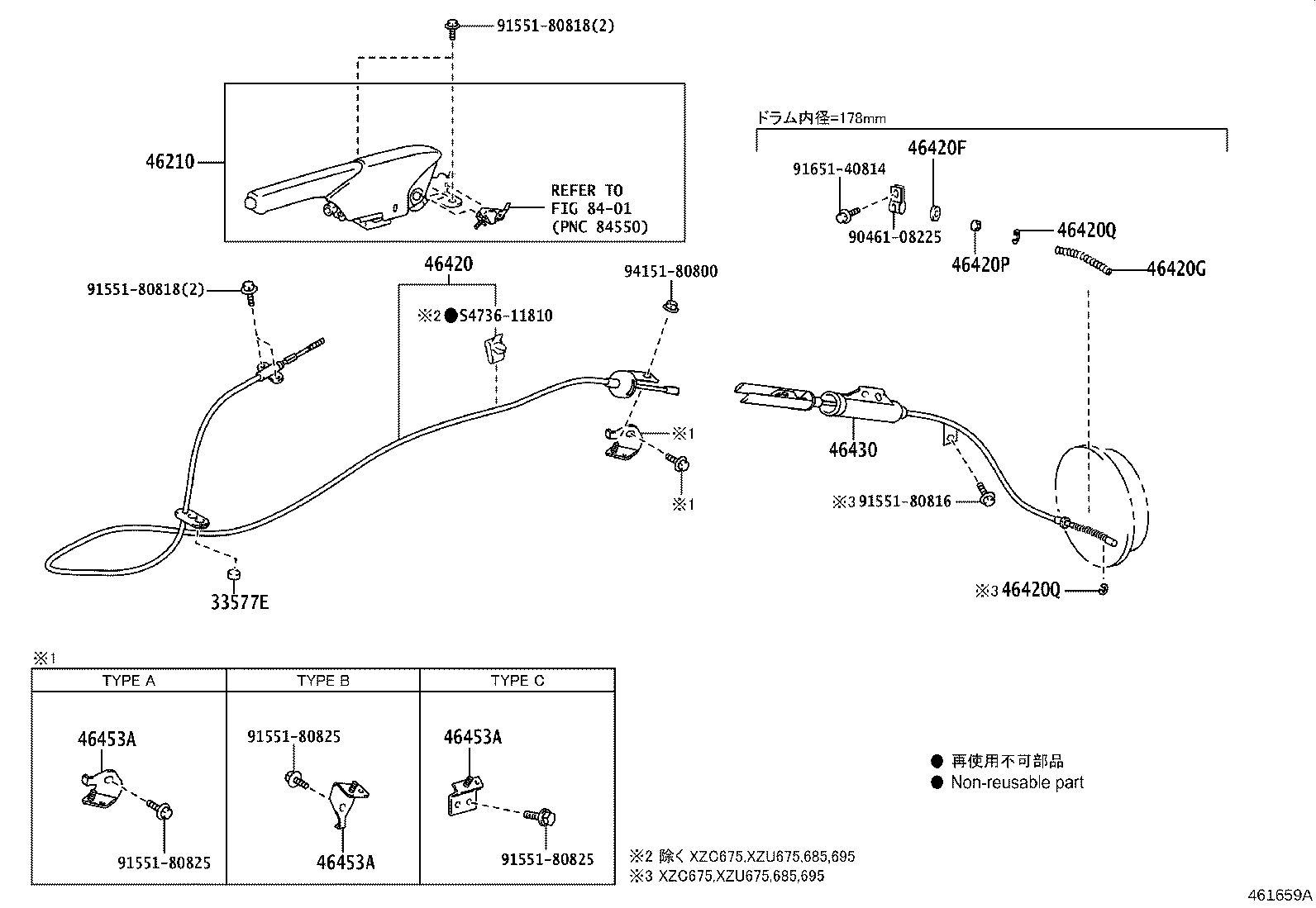

Figure 461576C 461576C 2011-07 → — Figure 461578B 461578B 2013-05 → — Figure 461659A 461659A 2019-05 → — Figure 461660B 461660B 2019-05 → — Figure 461193B 461193B 2011-07 → 2013-05 Figure 461193B 461193B 2011-07 → — Figure 461193B 461193B 2011-07 → — Figure 461193B 461193B 2014-05 → — Figure 461193B 461193B 2019-05 → — Figure 461194C 461194C 2011-07 → — Figure 461194C 461194C 2015-05 → — Figure 461194C 461194C 2019-05 → — Figure 461194C 461194C 2019-05 → — Figure 461195C 461195C 2011-07 → — Figure 461351D 461351D 2013-05 → — Figure 461351D 461351D 2015-05 → — Figure 461351D 461351D 2015-05 → — Figure 461351D 461351D 2019-05 → — Figure 461574D 461574D 2017-05 → — Figure 461574D 461574D 2019-05 → —

Part groups

PNCDescription
33577E Grommet, Shift Cable
46201B Spring, Tension
46210 Lever Assy, Parking Brake
46300 Actuator Assy, Parking Brake W/Bracket
46405A Screw Set, Shoe Adjusting, RH
46420 Cable Assy, Parking Brake, NO.2
46420F Seal, Dust(FOR PARKING BRAKE CABLE)
46420G Spring(FOR PARKING CABLE INNER WIRE SET)
46420P Spacer, Parking Brake
46420Q Ring, E(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46451 Bracket, Cable Support
46453A Bracket, Cable Support, NO.3
46501 Drum Sub-assy, Parking Brake
46501A Bolt, Serration(FOR PARKING BRAKE DRUM)
46503C Plate Sub-assy, Parking Brake
46506A Adjuster Sub-assy, Parking Brake Shoe
46524 Cover, Parking Brake Dust
46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555 Spring, Brake Shoe Hold Down
46556 Pin, Shoe Hold Down Spring
46557 Cup, Brake Shoe Hold Down
46577 Cover, Adjusting Cam Hole
46585A Label, Parking Brake Notice
46601 Lever Sub-assy, Parking Brake Shoe
46612 Strut, Parking Brake Shoe Lever
46612B Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
47456A Plate, Shoe Guide(FOR PARKING BRAKE)
47459B Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47491A Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE)
47611B Shim(FOR PARKING BRAKE SHOE LEVER)
84390C Switch Assy, Electric Parking Brake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
