Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

55 part groups · 11 illustrations

Illustrations

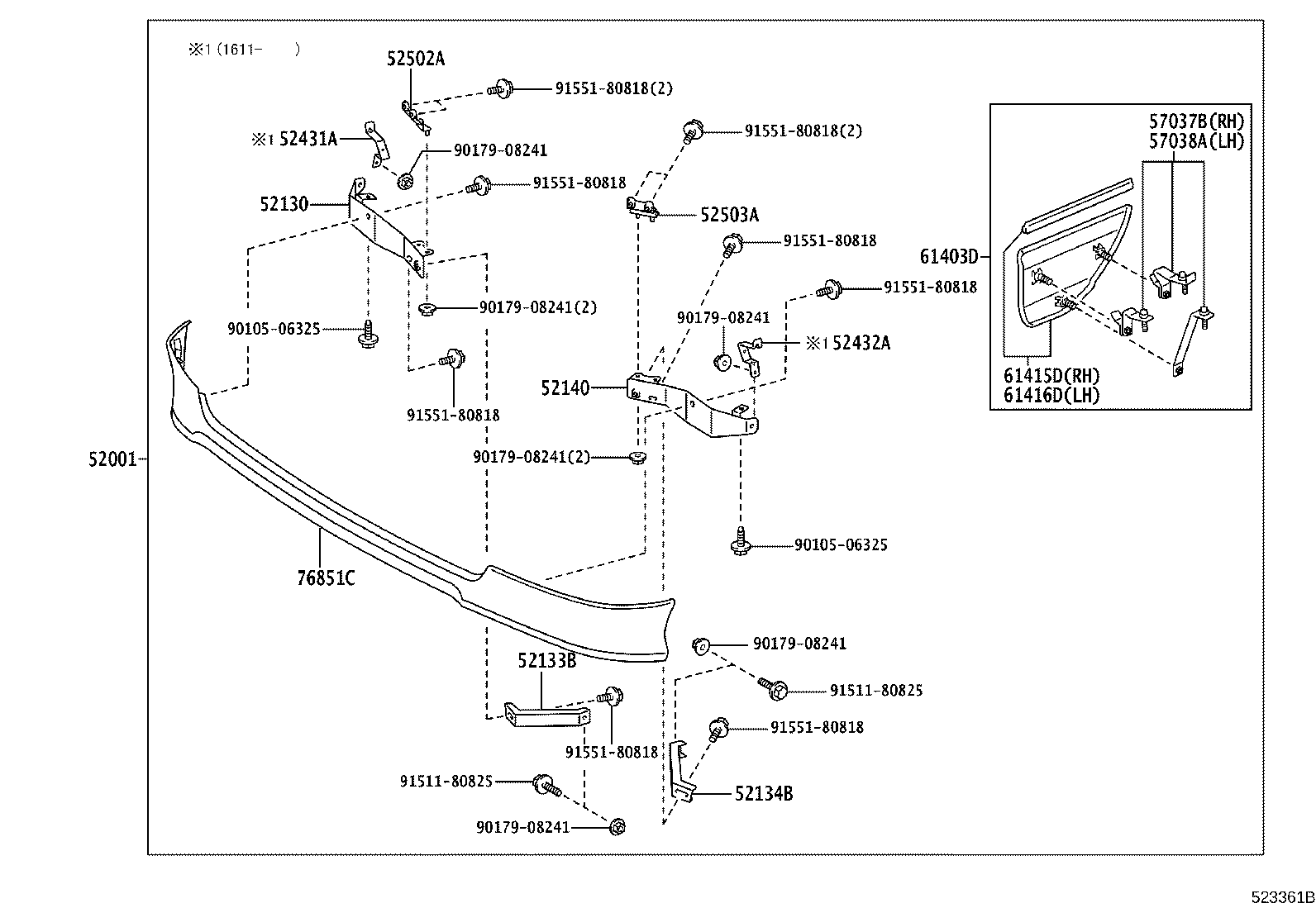

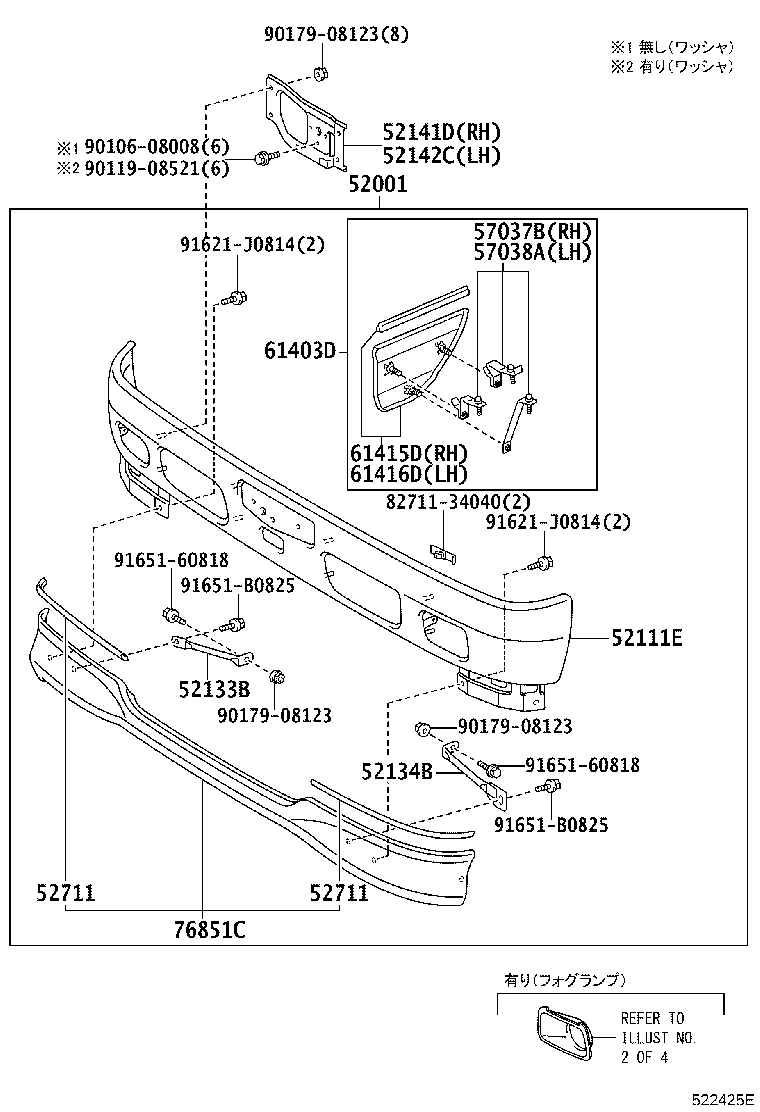

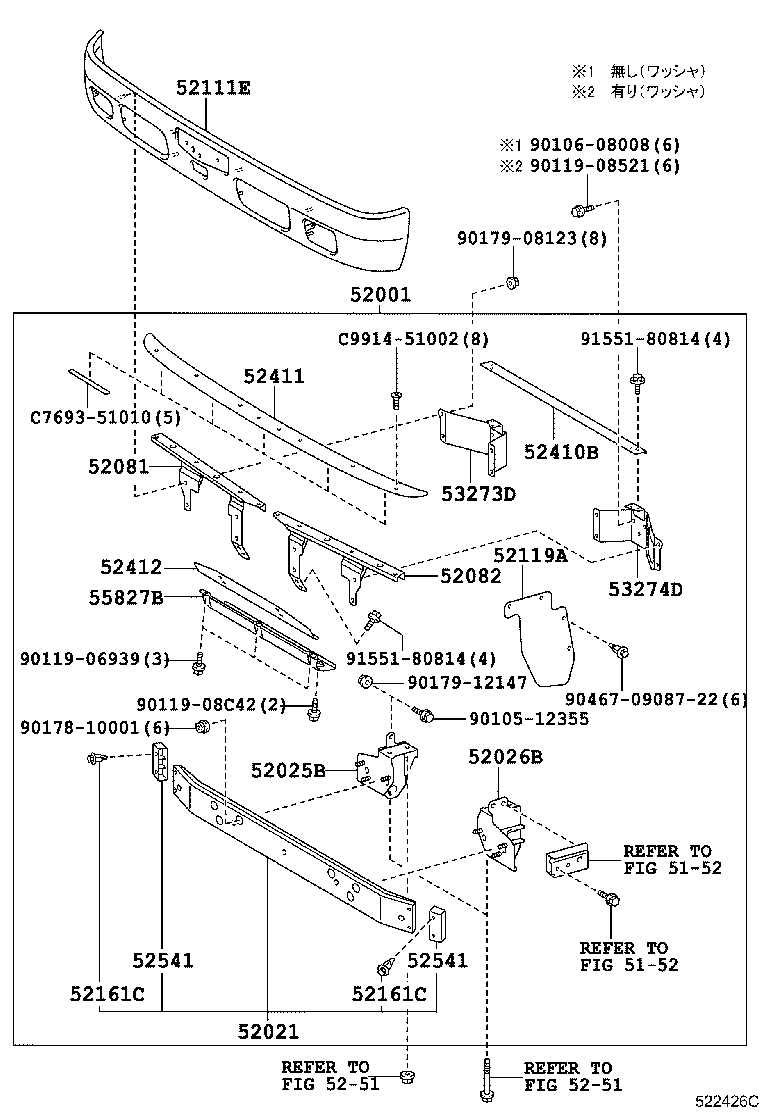

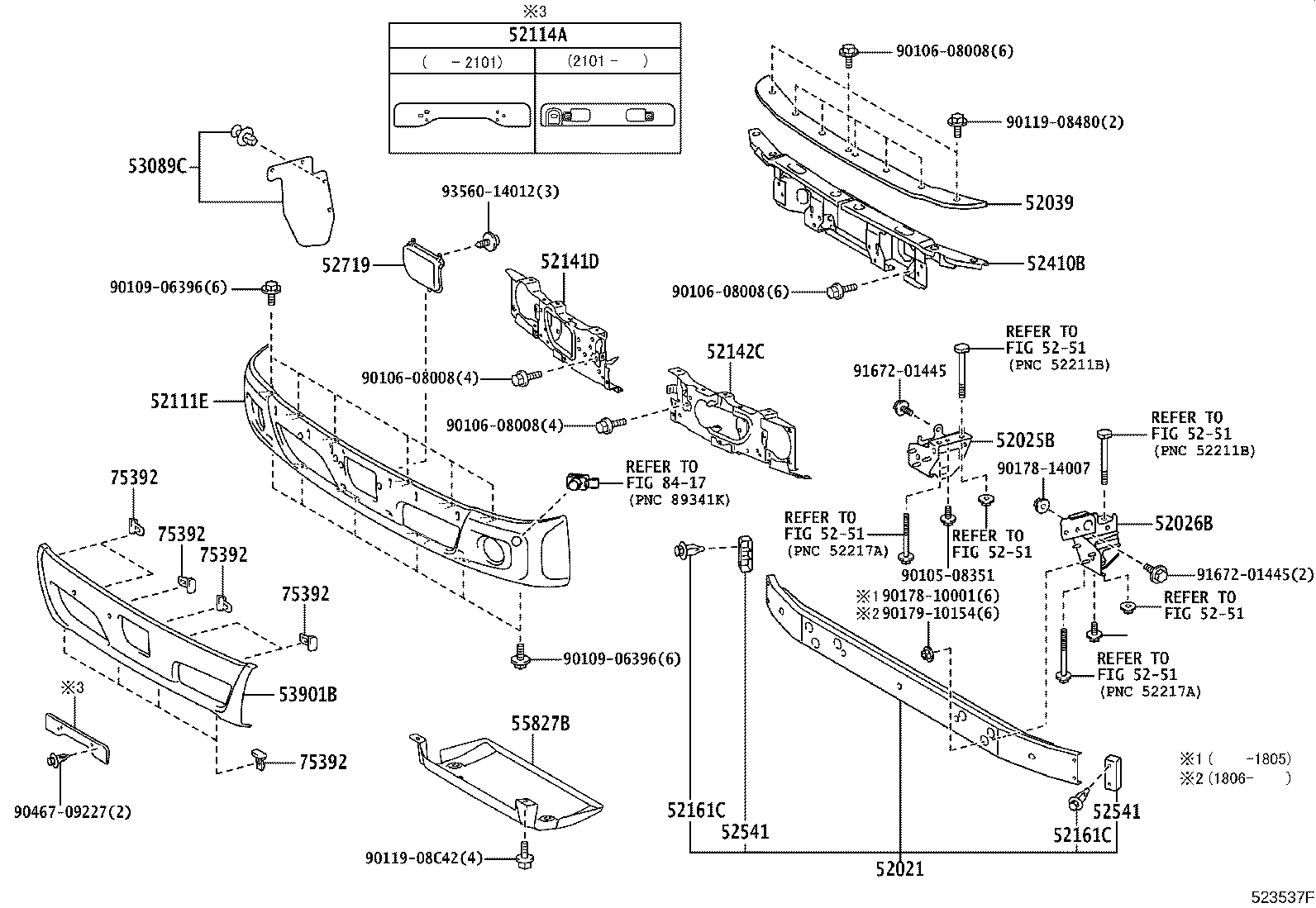

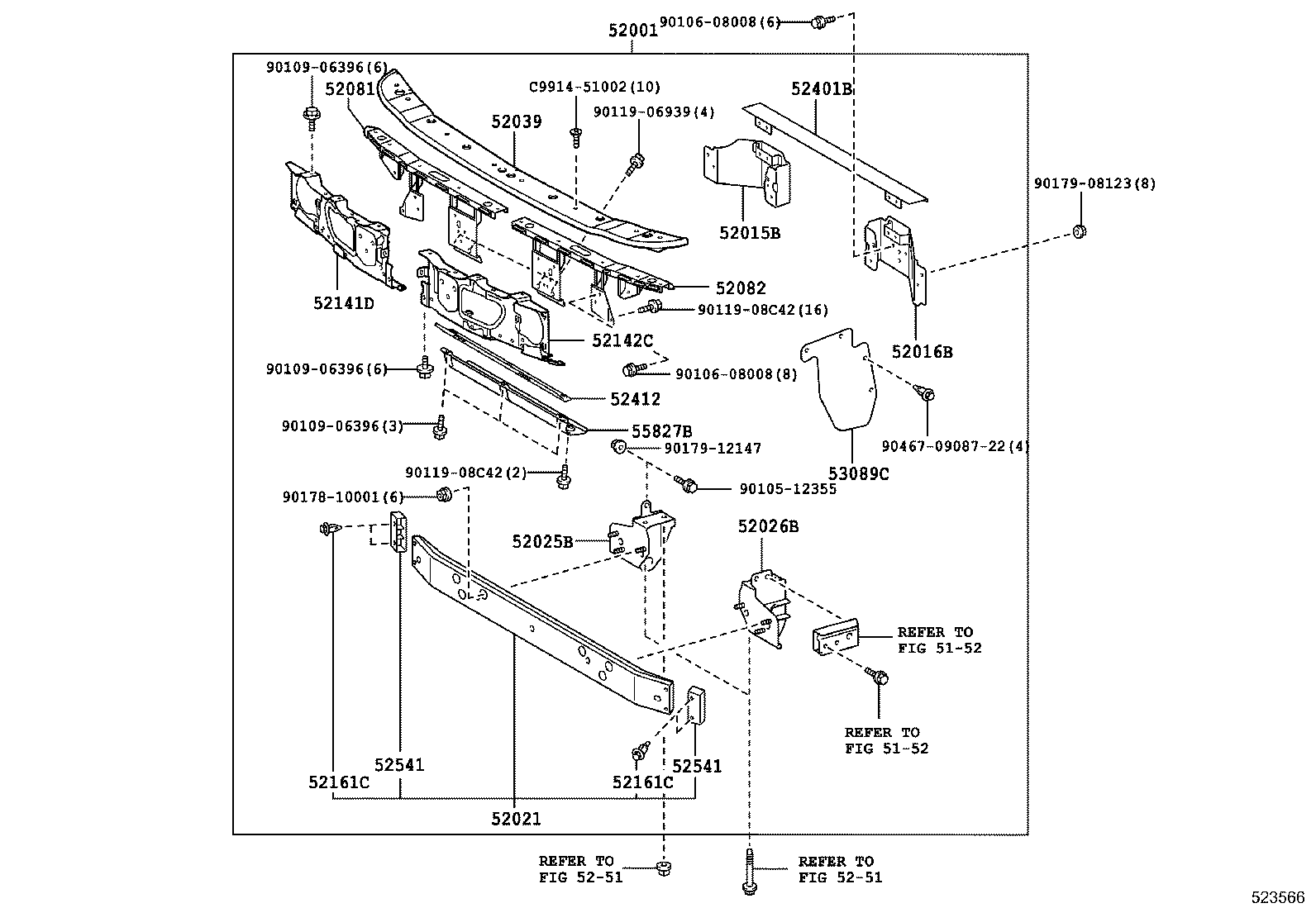

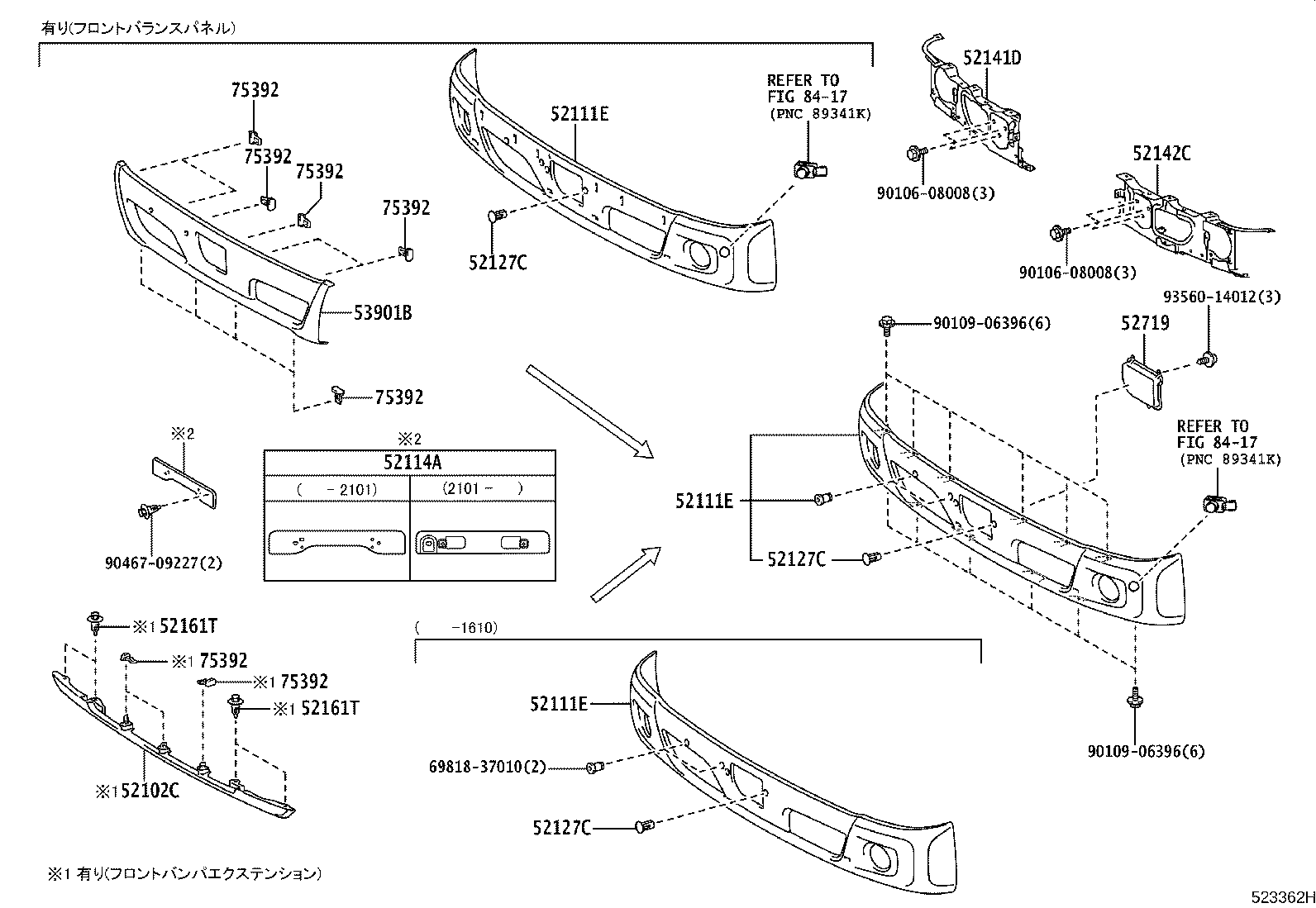

Figure 522423E 522423E 2011-07 → 2016-05 Figure 522425E 522425E 2011-07 → 2016-05 Figure 522426C 522426C 2011-07 → 2016-05 Figure 523362H 523362H 2016-05 → — Figure 523537F 523537F 2017-05 → — Figure 523537F 523537F 2019-05 → — Figure 522502G 522502G 2011-07 → — Figure 523359 523359 2011-07 → 2016-05 Figure 523359 523359 2019-05 → — Figure 523566 523566 2016-05 → 2017-05 Figure 523361B 523361B 2016-05 → —

Part groups

PNCDescription
52001 Front Bumper Set
52015B Bracket Sub-assy, Front Bumper, RH
52016B Bracket Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52025B Extension Sub-assy, Front Bumper, NO.2 RH
52026B Extension Sub-assy, Front Bumper, NO.2 LH
52030 Cover Assy, Front Bumper Hole, RH
52039 Step Sub-assy, Front Bumper
52040 Cover Assy, Front Bumper Hole, LH
52081 Stay Sub-assy, Front Bumper
52082 Stay Sub-assy, Front Bumper, LH
52102C Extension Sub-assy, Front Bumper
52111E Bar, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52130 Bracket Assy, Front Bumper Side Mounting, RH
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52401B Guard Sub-assy, Front Bumper
52410B Guard Assy, Front Bumper
52411 Guard, Front Bumper
52412 Guard, Front Bumper, NO.2
52431A Bracket, Front Bumper Guard, RH
52432A Bracket, Front Bumper Guard, LH
52502A Bracket, Front Bumper Extension Mounting, RH
52503A Bracket, Front Bumper Extension Mounting, LH
52541 Protector, Front Bumper
52671A Extension, Front Bumper Arm, RH
52672 Extension, Front Bumper Arm, LH
52711 Moulding, Front Bumper
52719 Cover, Front Bumper Moulding
53089C Mudguard Sub-assy, Front
53273D Bracket, Front Bumper Arm Mounting, RH
53274D Bracket, Front Bumper Arm Mounting, LH
53901B Panel Sub-assy, Front Valance
55827B Duct, Ventilator Air Guide
57037B Stay Sub-assy, Front Step, RH
57038A Stay Sub-assy, Front Step, LH
61403D Panel Sub-assy, Front Step
61415D Panel, Front Step Under, RH
61416D Panel, Front Step Under, LH
75392 Retainer, Outside Moulding
76851C Front Spoiler
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
