Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

54 part groups · 41 illustrations

Illustrations

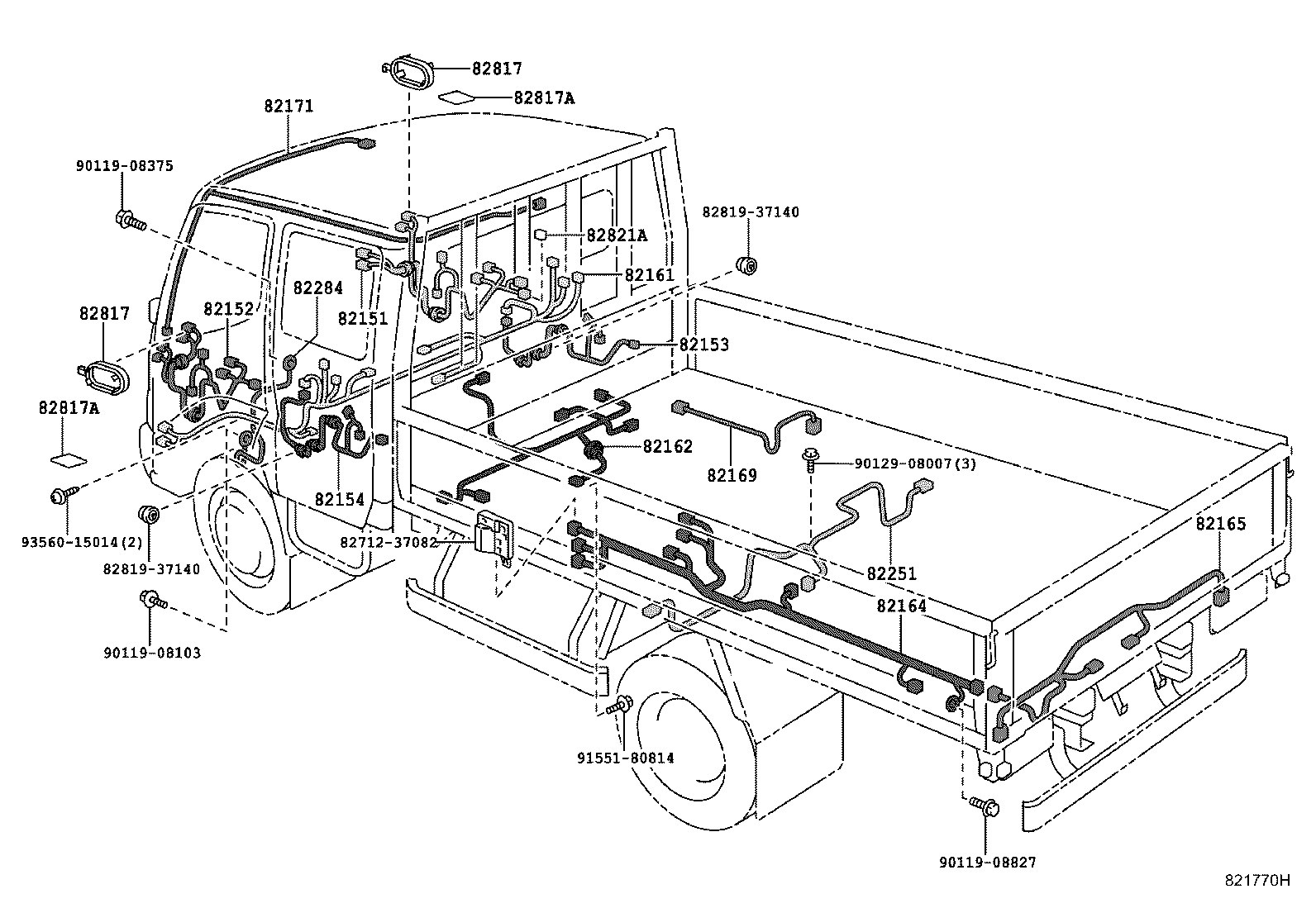

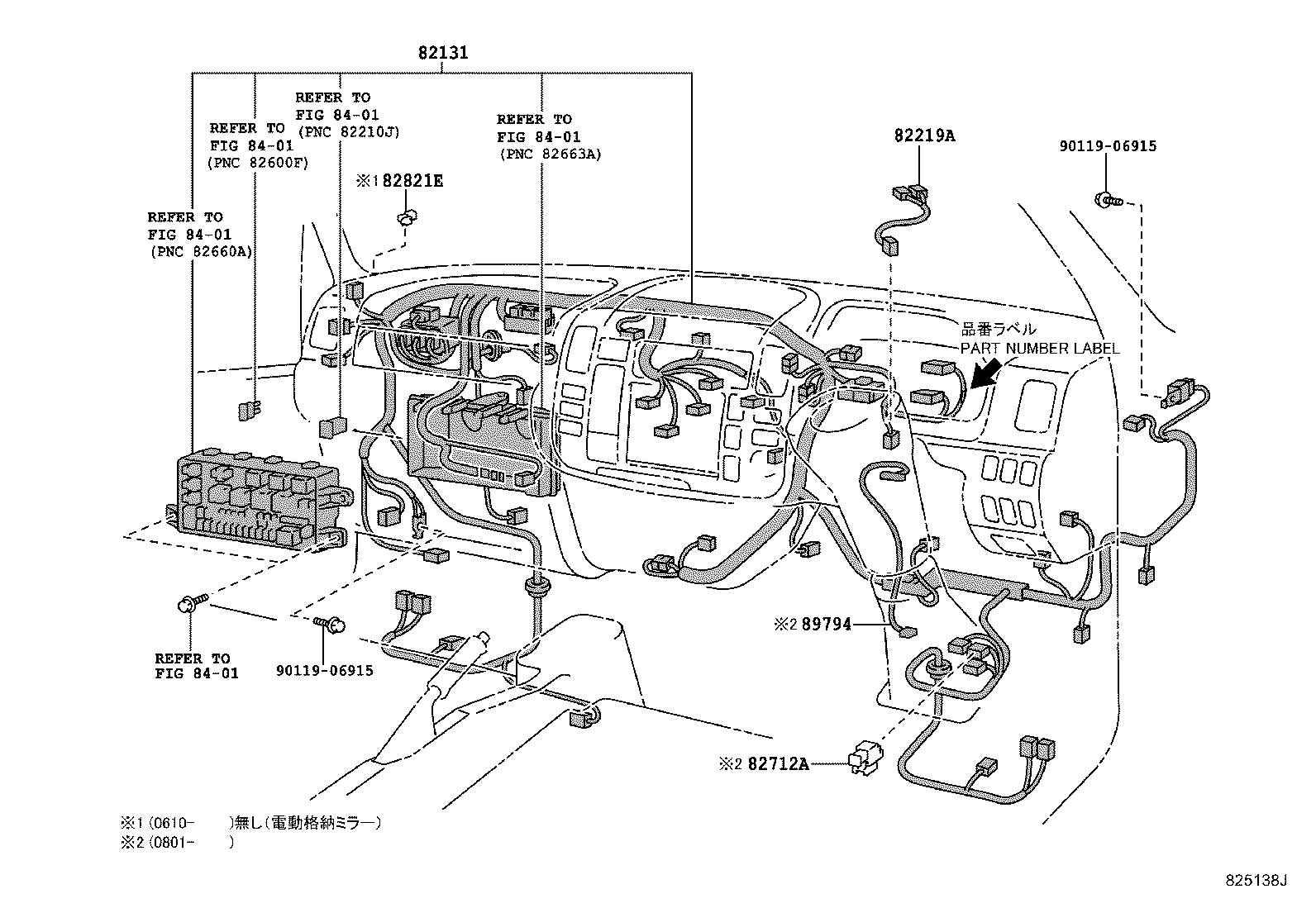

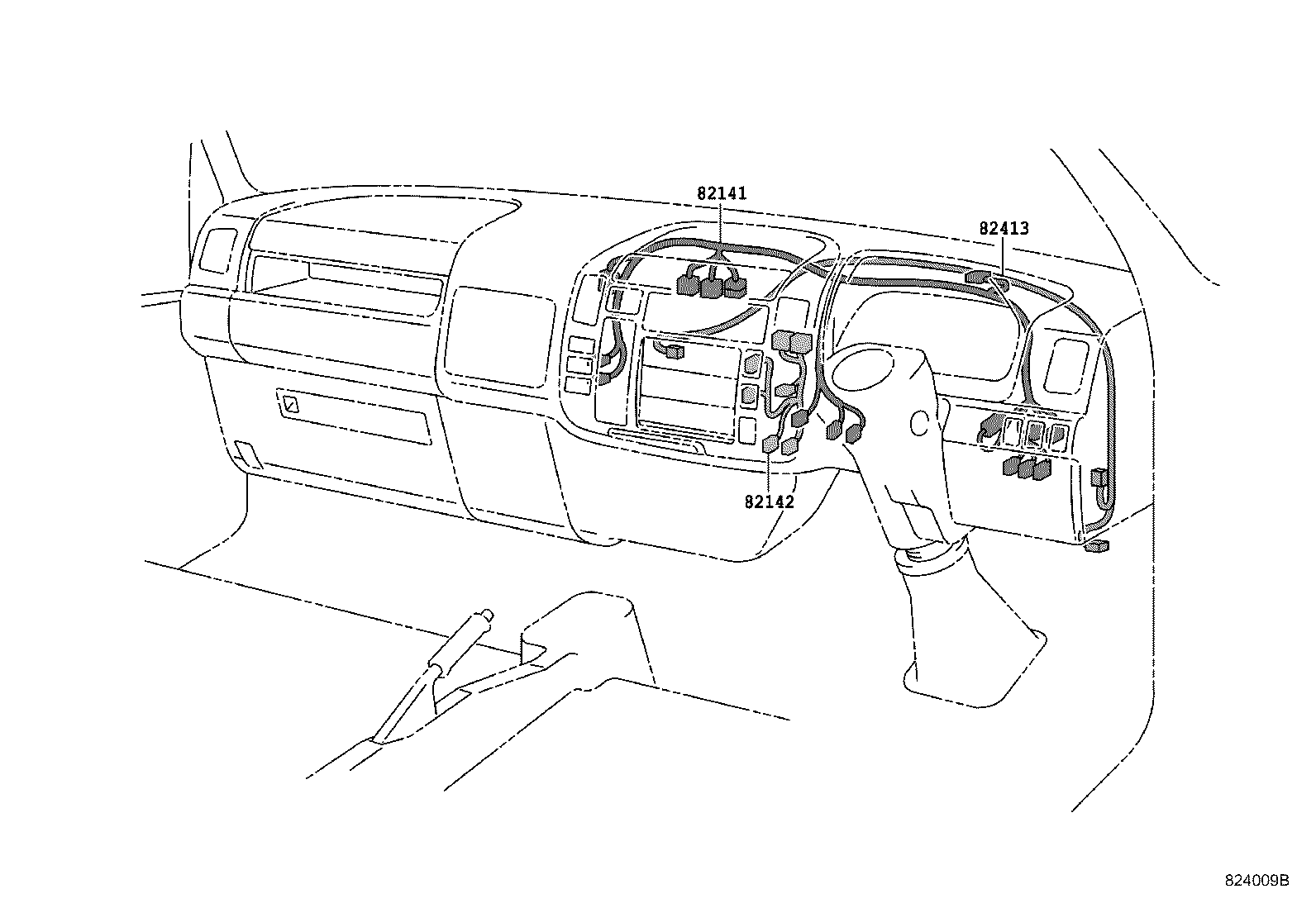

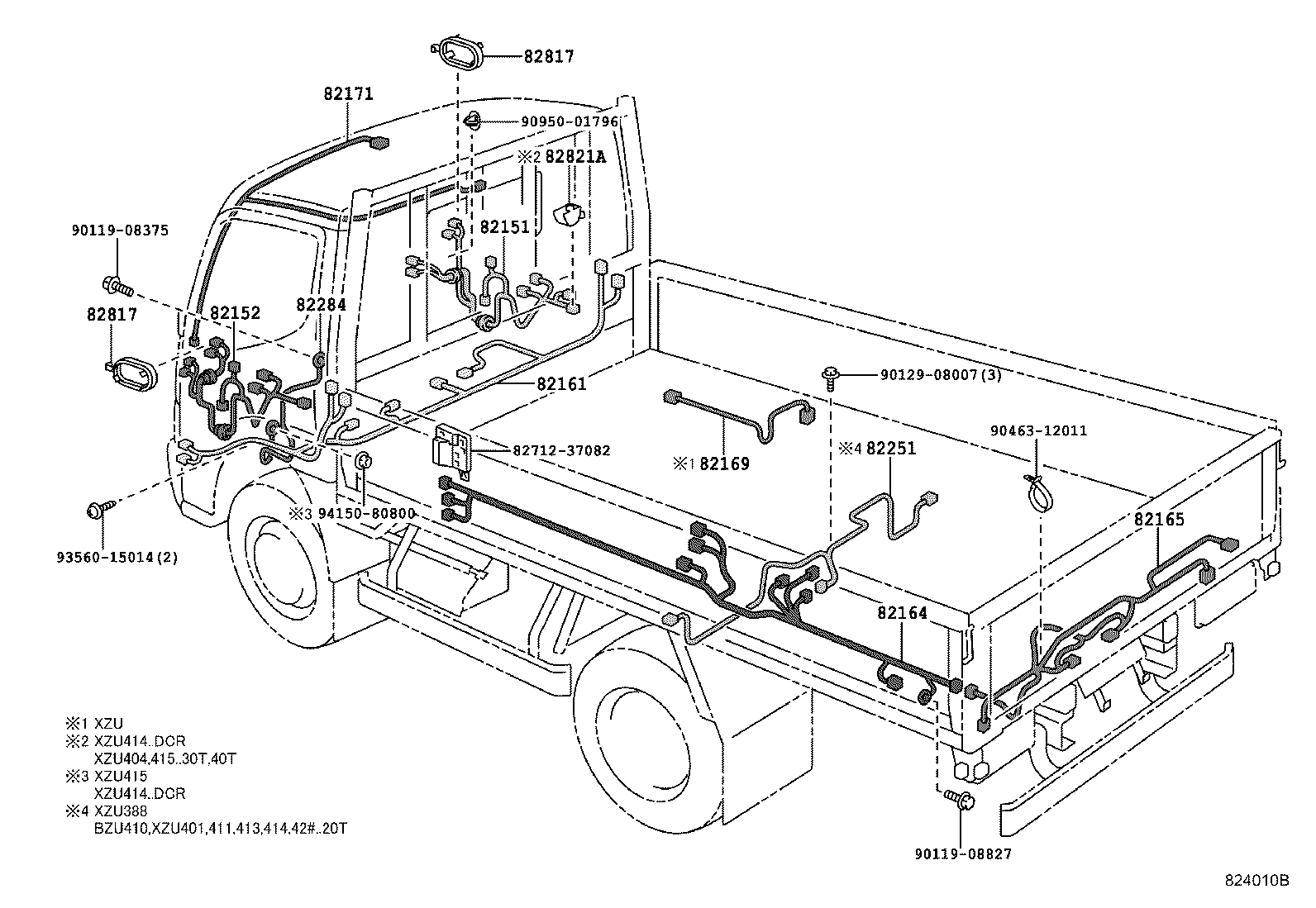

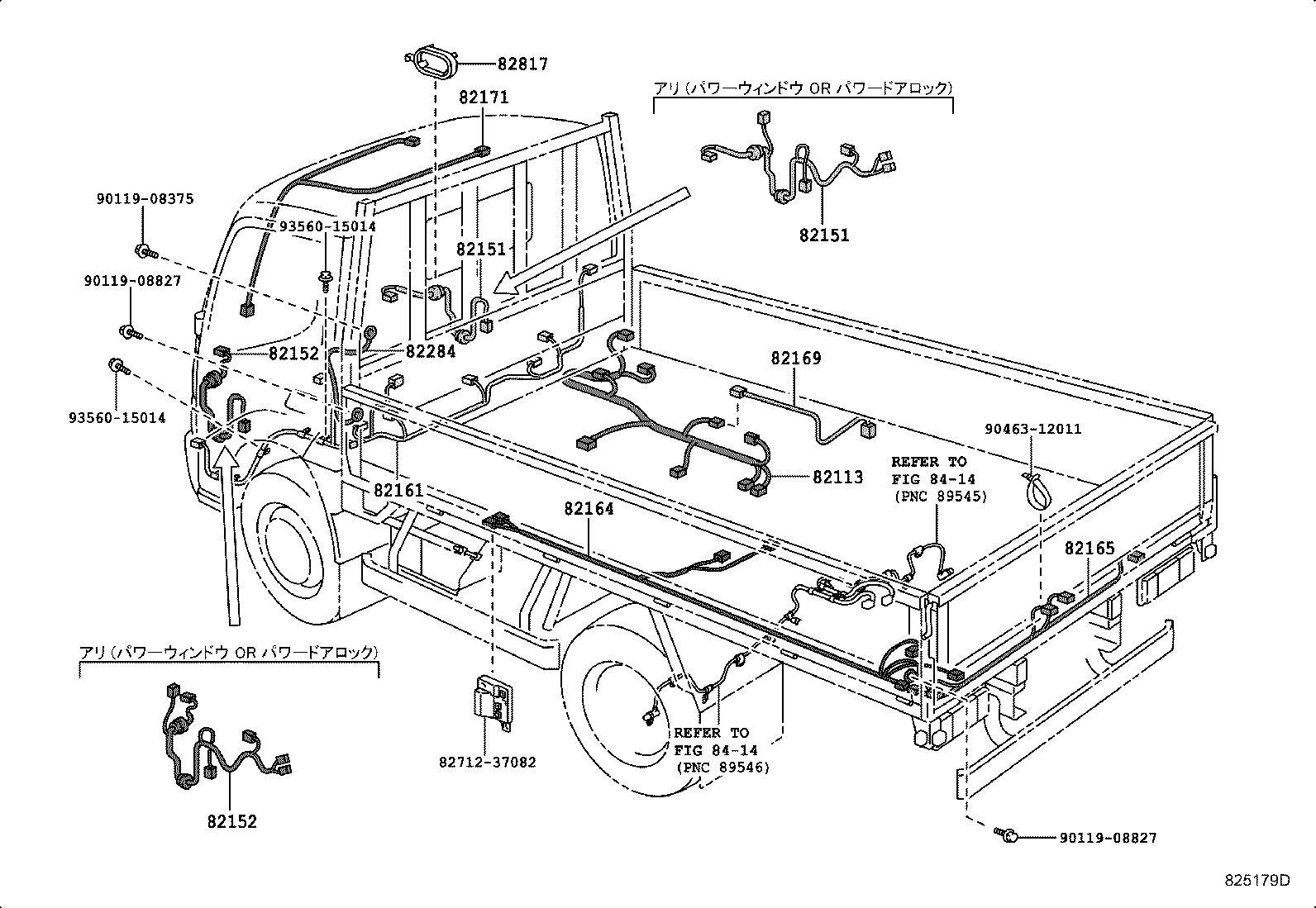

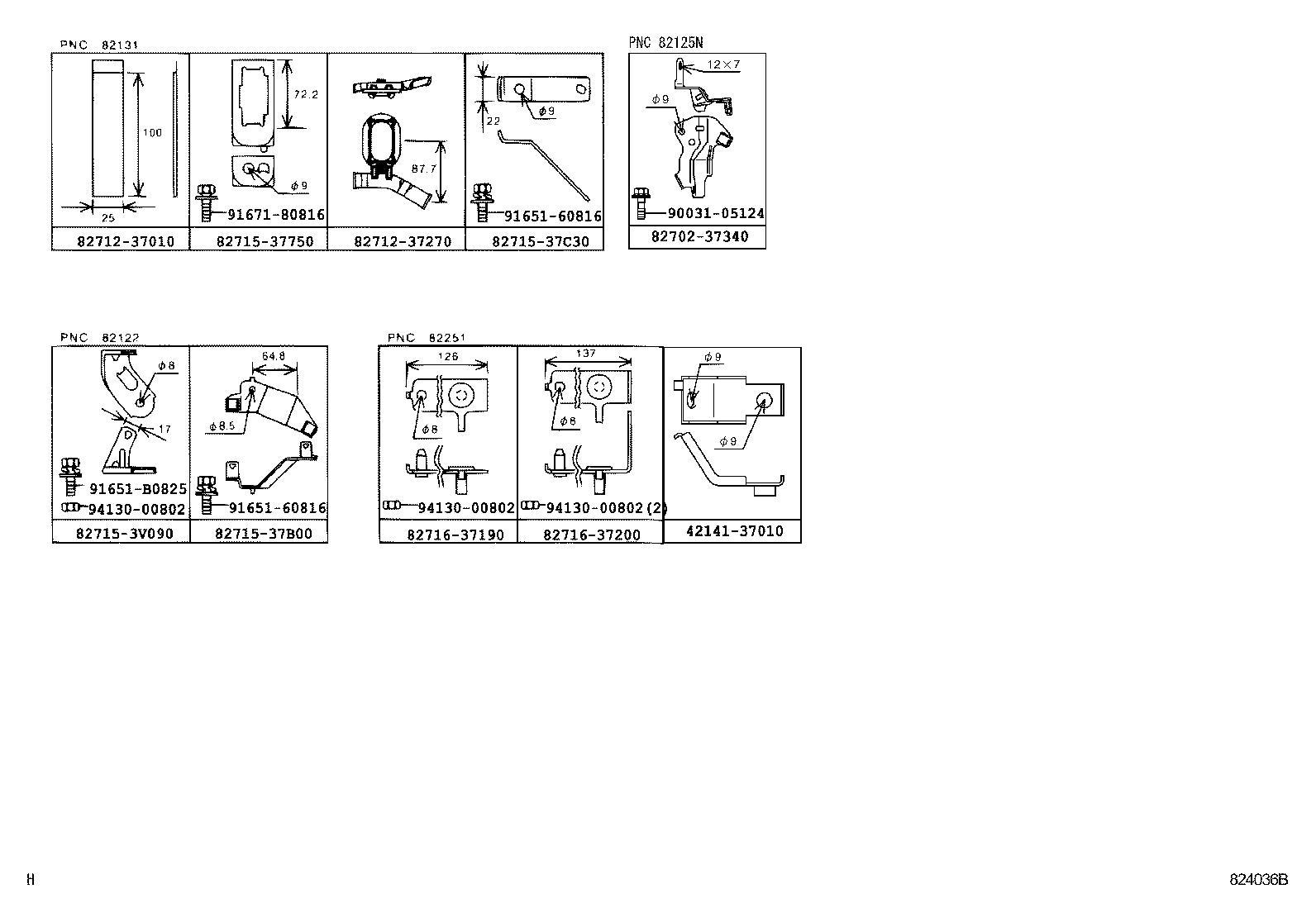

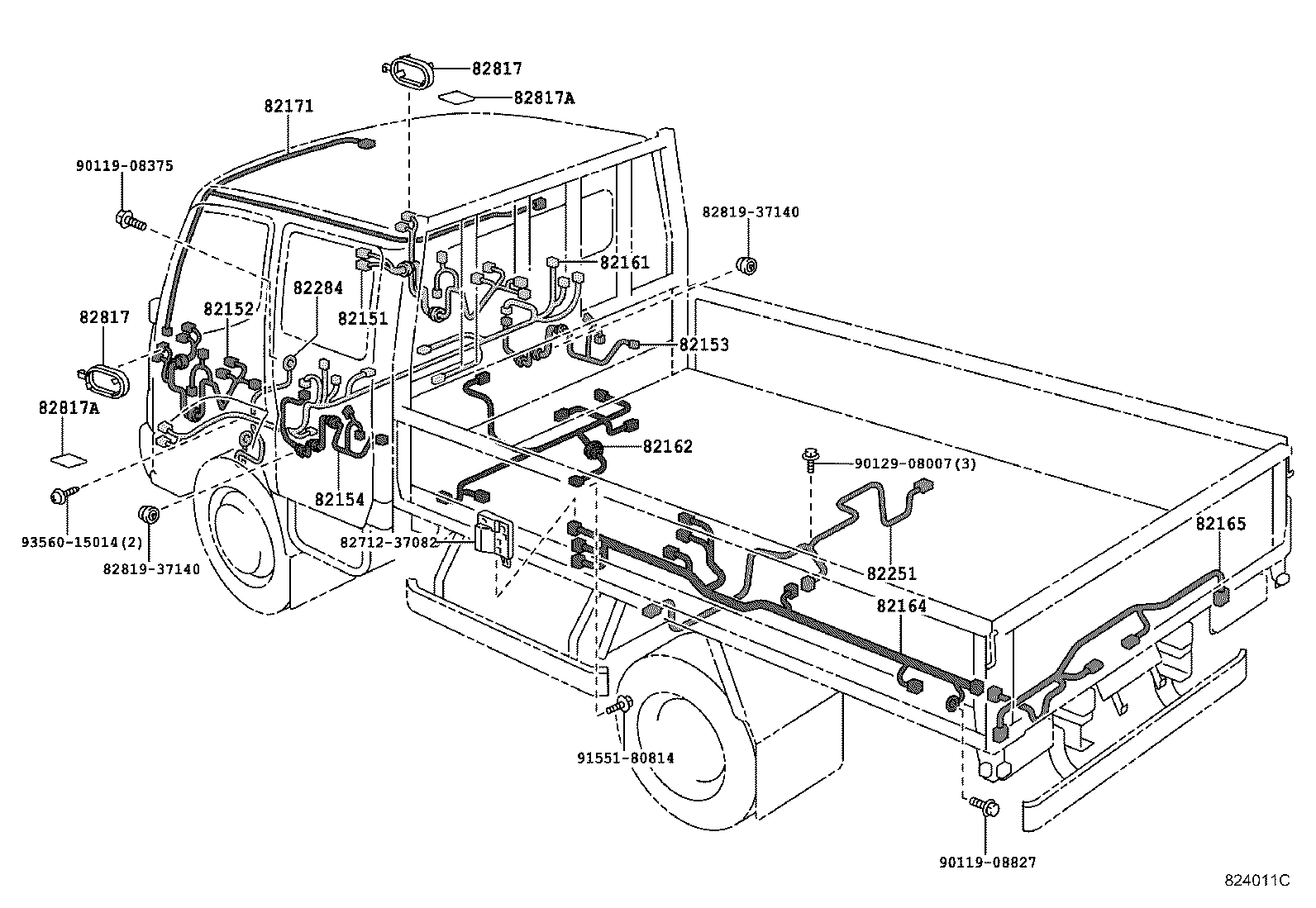

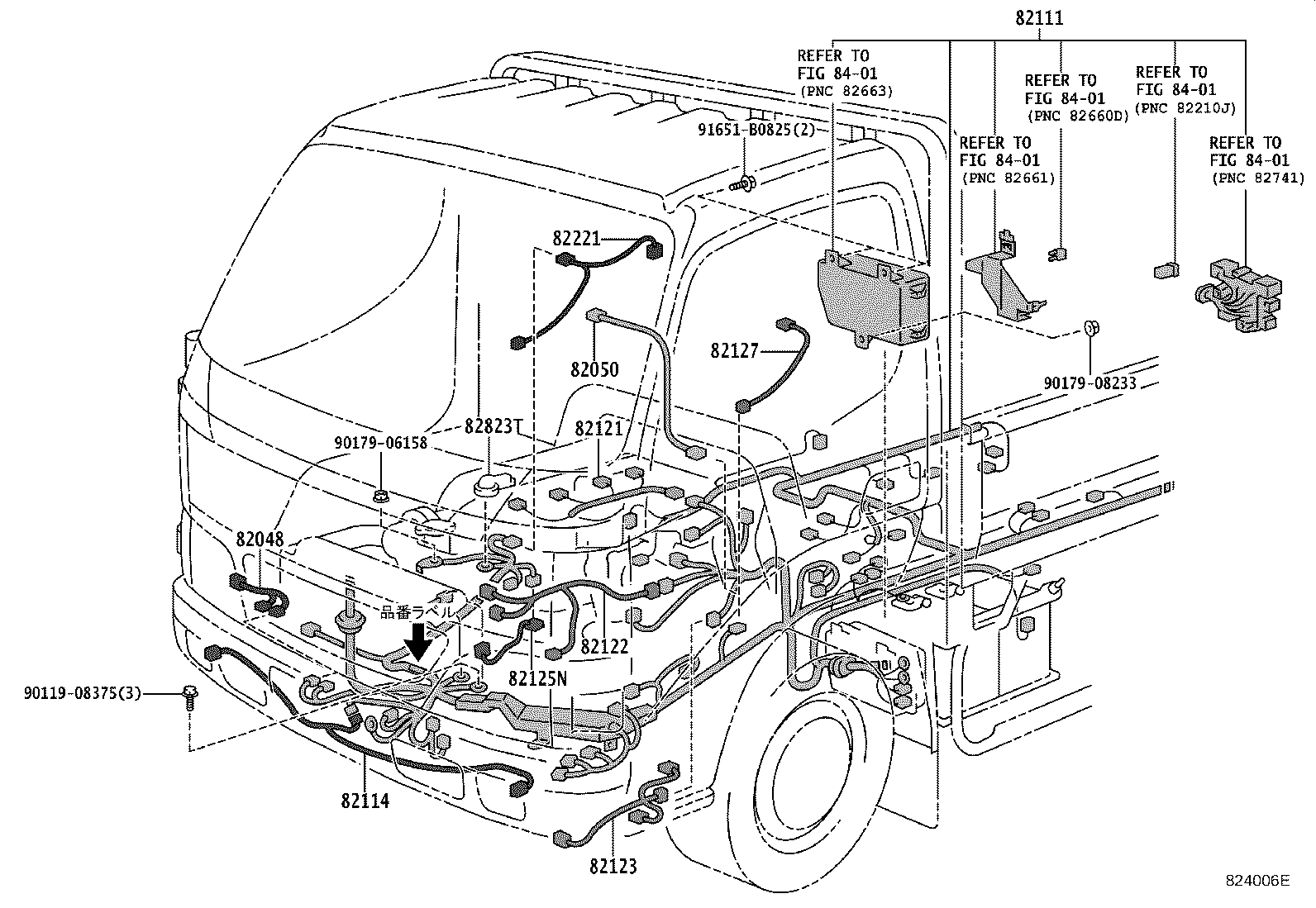

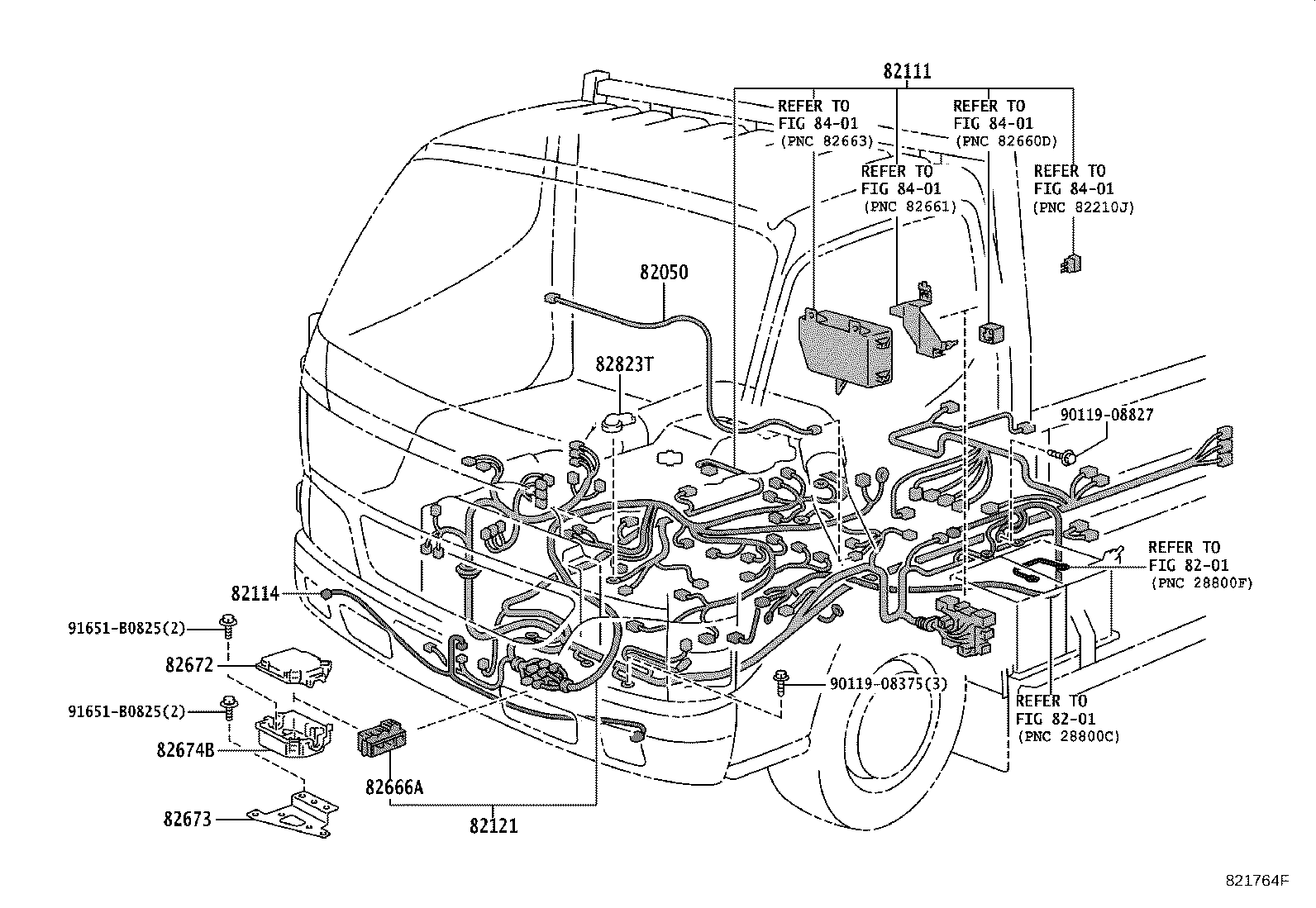

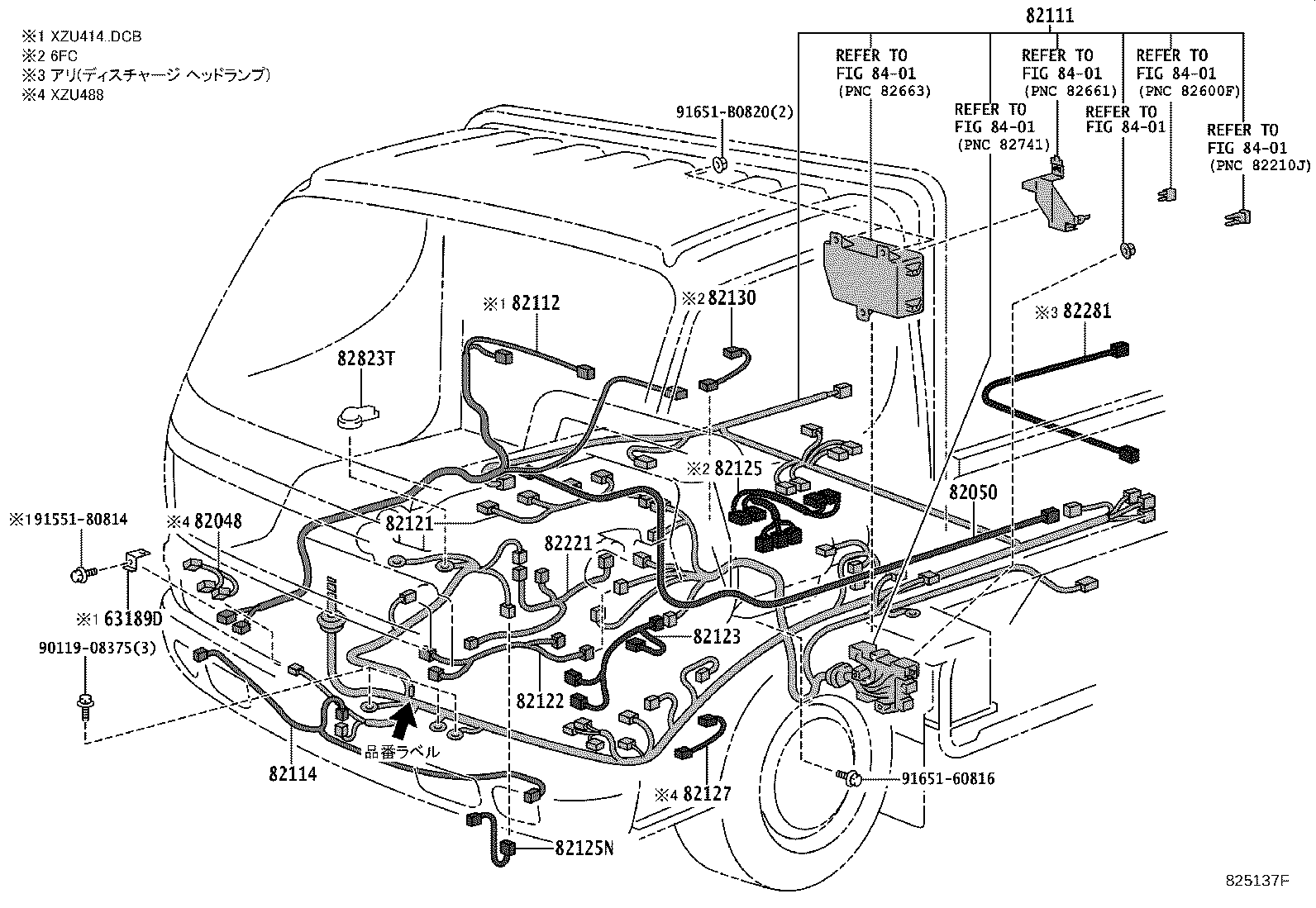

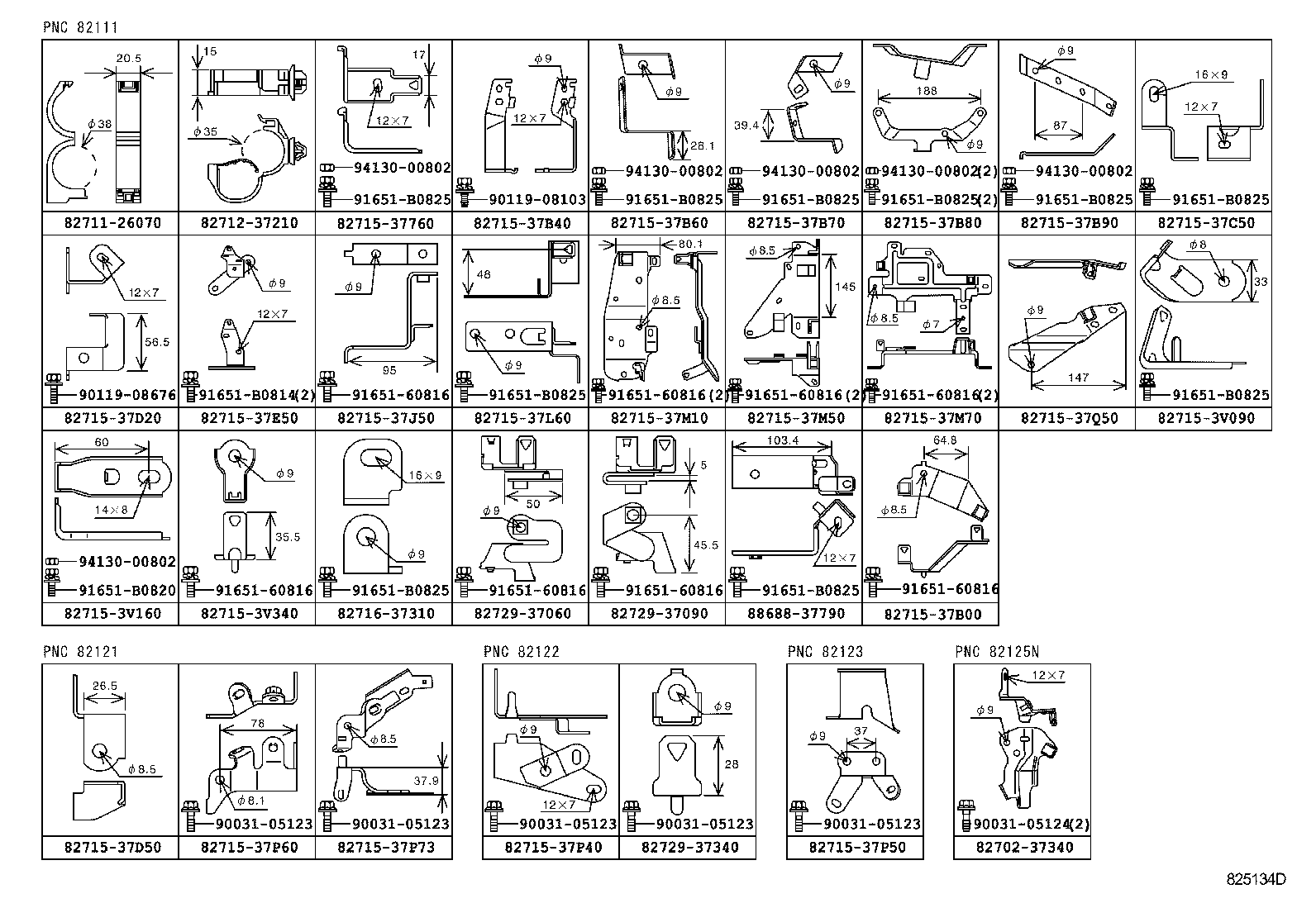

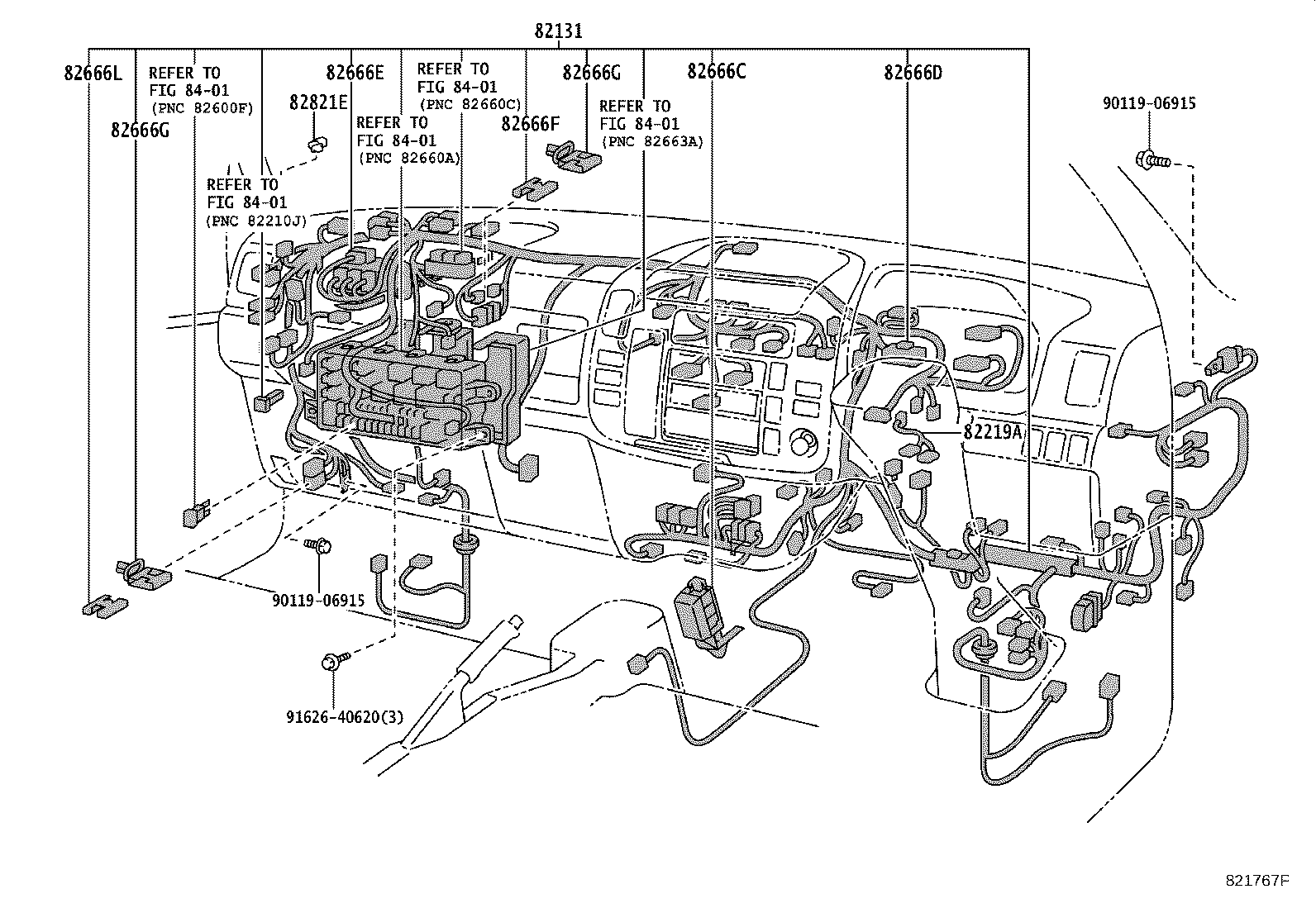

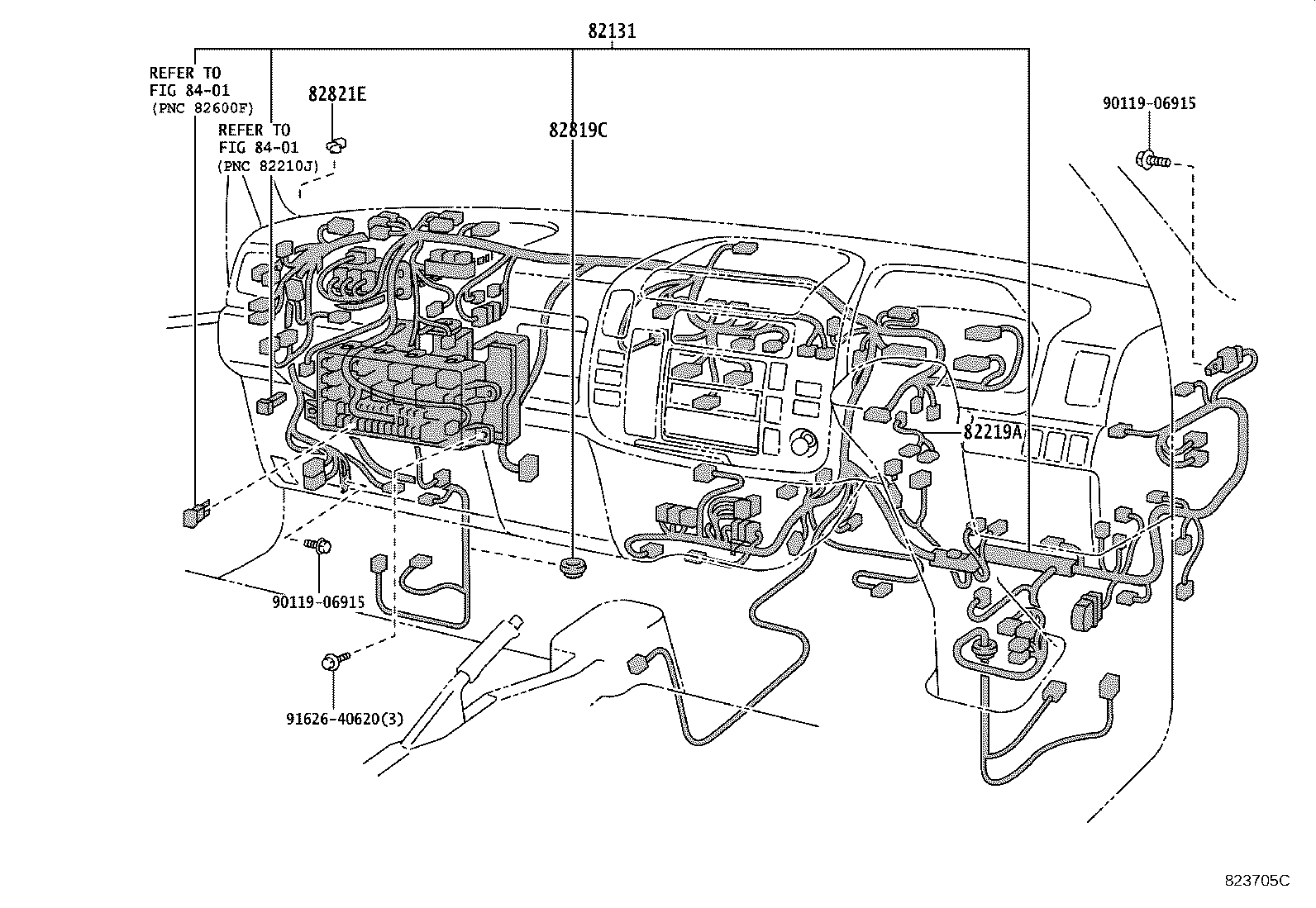

Figure 821765H 821765H 1999-05 → 2004-06 Figure 821766H 821766H 1999-05 → 2004-06 Figure 821764F 821764F 1999-08 → 2004-06 Figure 822415F 822415F 2000-11 → 2004-06 Figure 823711D 823711D 2003-10 → 2004-06 Figure 824012E 824012E 2004-06 → 2007-05 Figure 824006E 824006E 2004-06 → 2006-10 Figure 824007O 824007O 2004-06 → 2006-10 Figure 824007O 824007O 2004-06 → 2007-05 Figure 825137F 825137F 2006-10 → — Figure 821767F 821767F 1999-05 → 2004-06 Figure 823705C 823705C 2003-10 → 2004-06 Figure 824008C 824008C 2004-06 → 2006-10 Figure 824008C 824008C 2004-06 → 2007-05 Figure 825138J 825138J 2006-10 → — Figure 823495A 823495A 1999-05 → 2004-06 Figure 824009B 824009B 2004-06 → 2006-10 Figure 824009B 824009B 2004-06 → 2007-05 Figure 825143E 825143E 2006-10 → — Figure 823706C 823706C 1999-05 → 2004-06 Figure 821770H 821770H 1999-08 → 2004-06 Figure 824010B 824010B 2004-06 → 2006-10 Figure 824010B 824010B 2004-06 → 2007-05 Figure 824011C 824011C 2004-06 → 2006-10 Figure 825139E 825139E 2006-10 → — Figure 825179D 825179D 2006-10 → — Figure 825140D 825140D 2006-10 → — Figure 821771N 821771N 1999-05 → 2006-10 Figure 821771N 821771N 2003-06 → 2007-05 Figure 823274E 823274E 1999-05 → 2006-10 Figure 823274E 823274E 2003-06 → 2007-05 Figure 821772P 821772P 1999-05 → 2006-10 Figure 821772P 821772P 2003-06 → 2007-05 Figure 822241K 822241K 1999-05 → 2006-10 Figure 822241K 822241K 2003-06 → 2007-05 Figure 824036B 824036B 1999-05 → 2006-10 Figure 824036B 824036B 2003-06 → 2007-05 Figure 825134D 825134D 2006-10 → — Figure 825135B 825135B 2006-10 → — Figure 825331 825331 1999-05 → — Figure 825331 825331 1999-05 → —

Part groups

PNCDescription

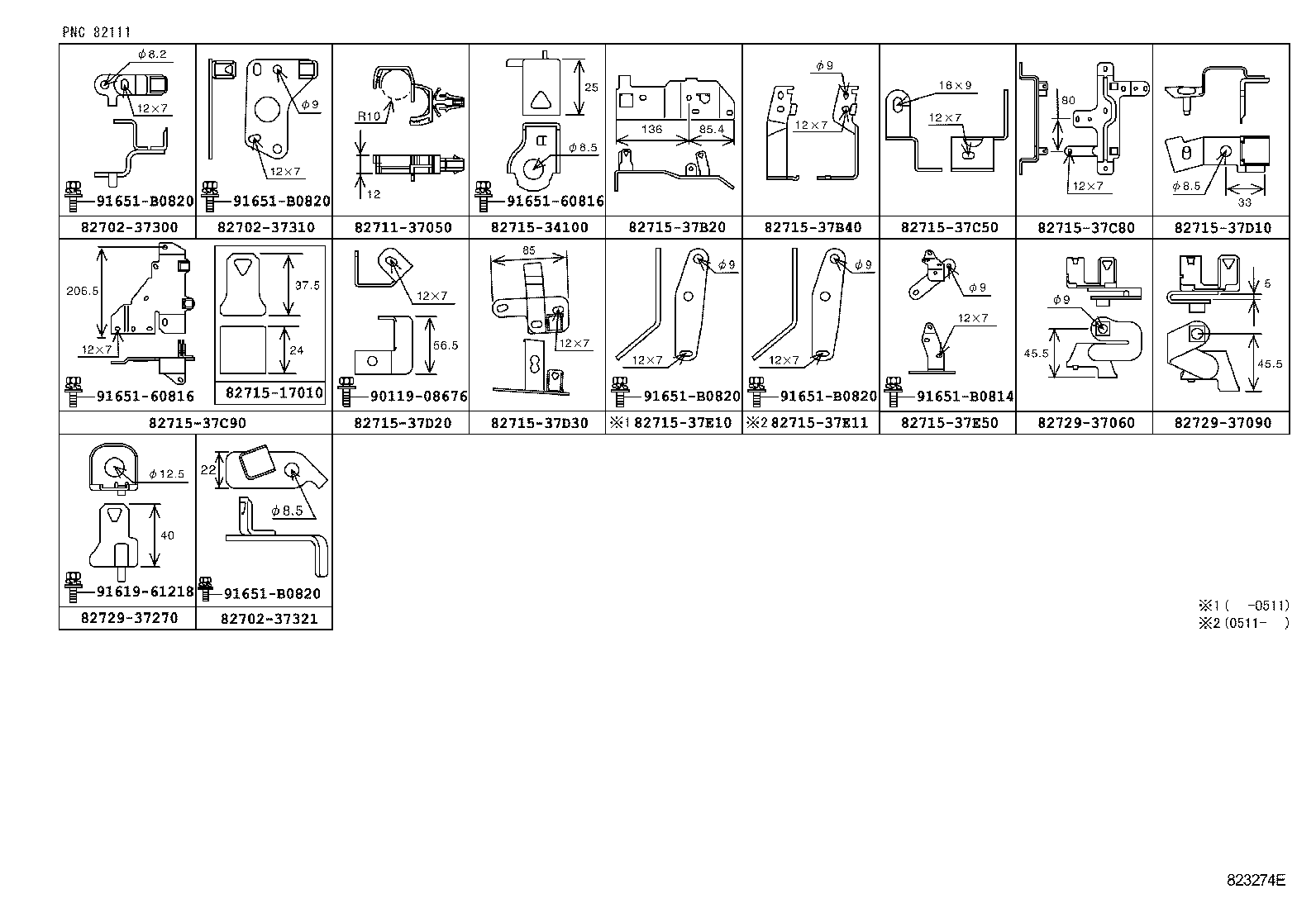

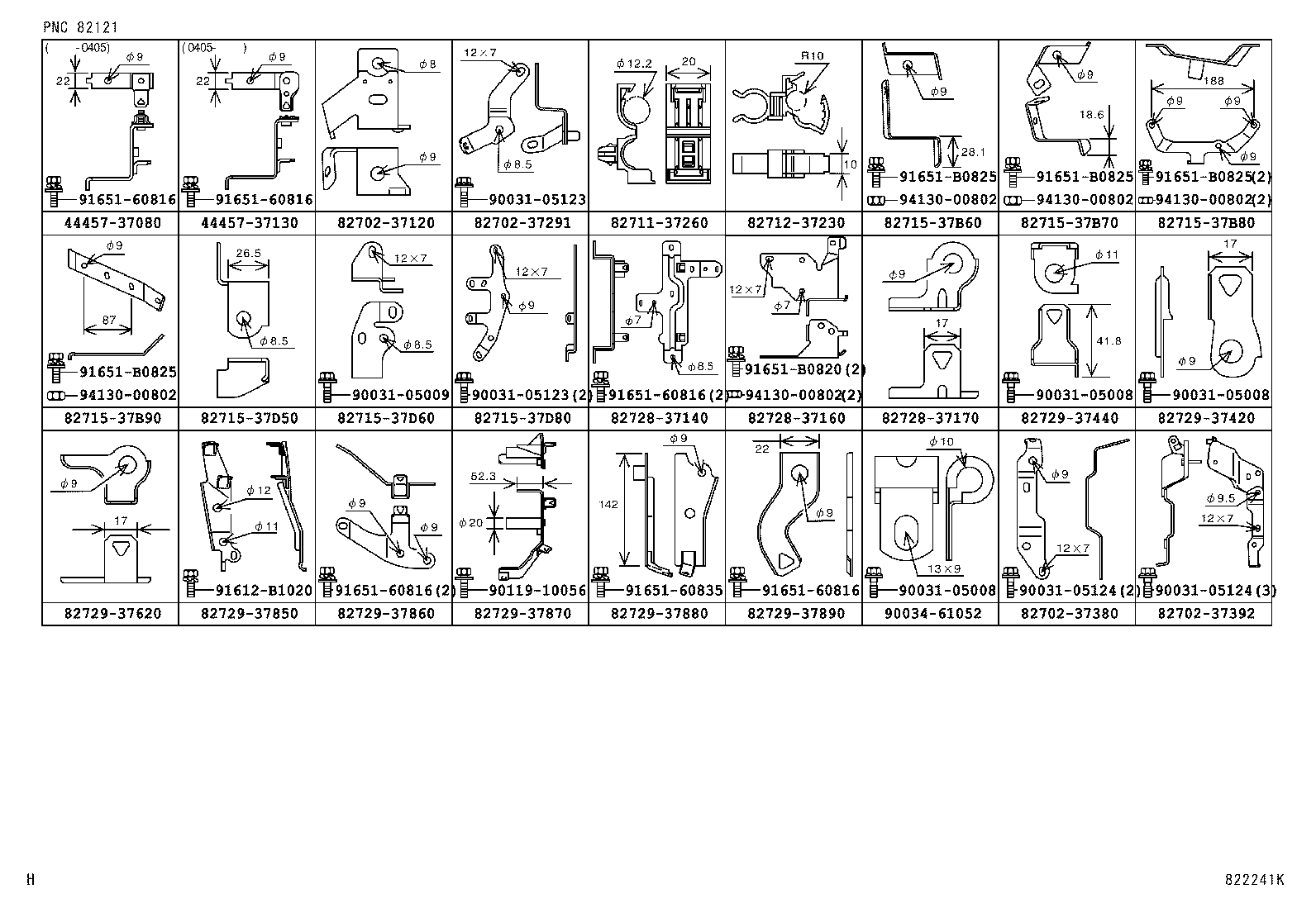

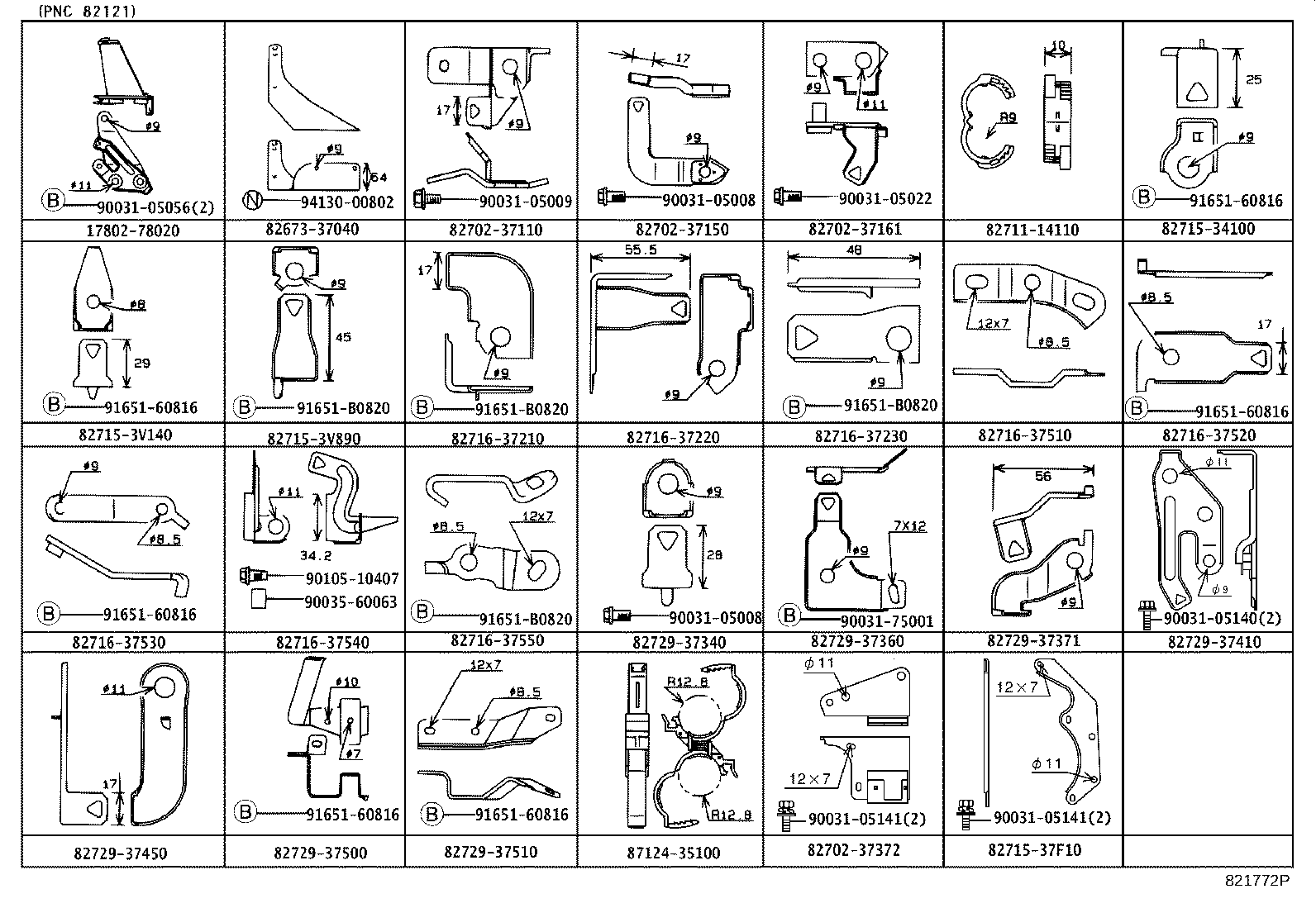

63189D Bracket, Wiring Harness Connector
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch

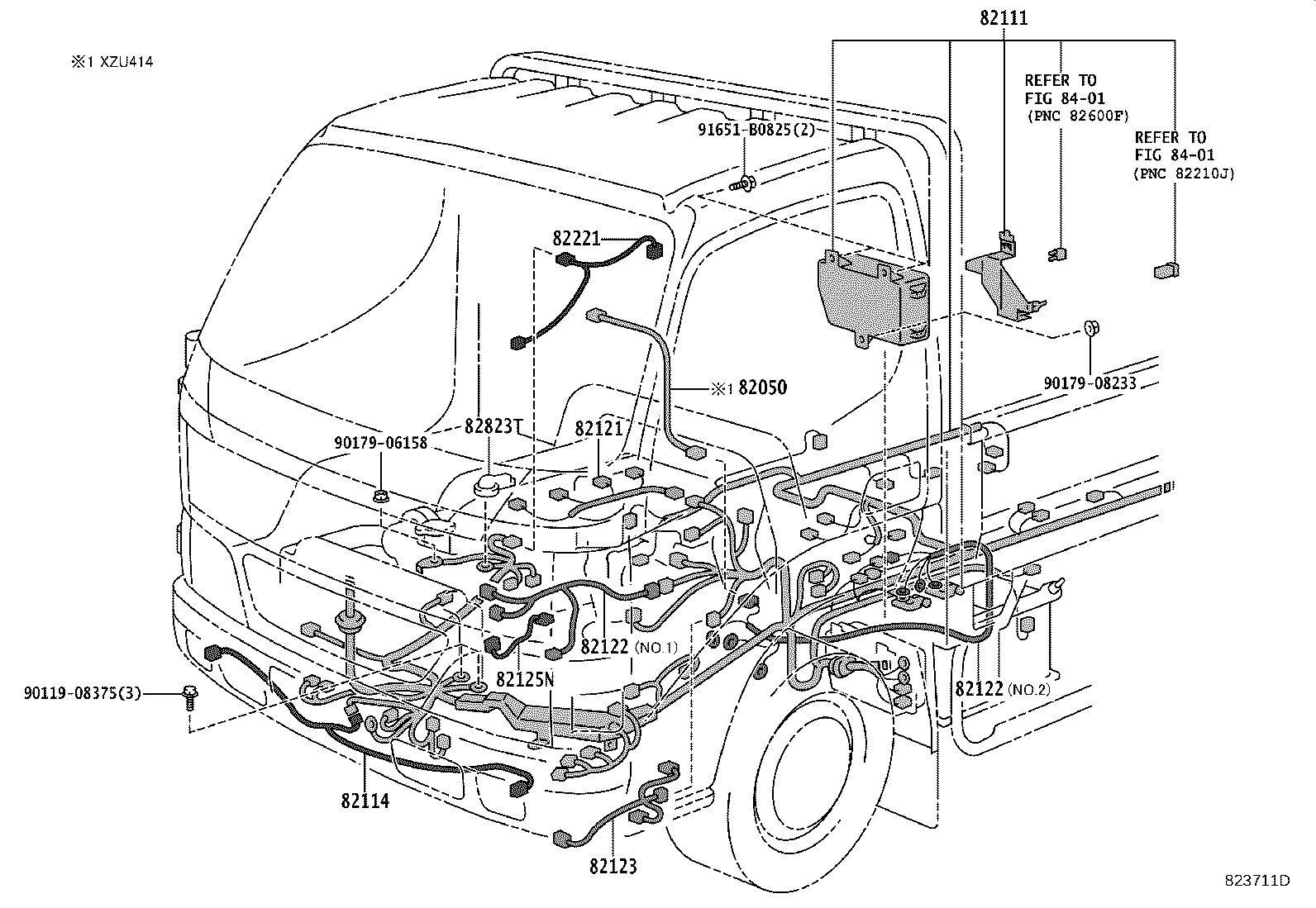

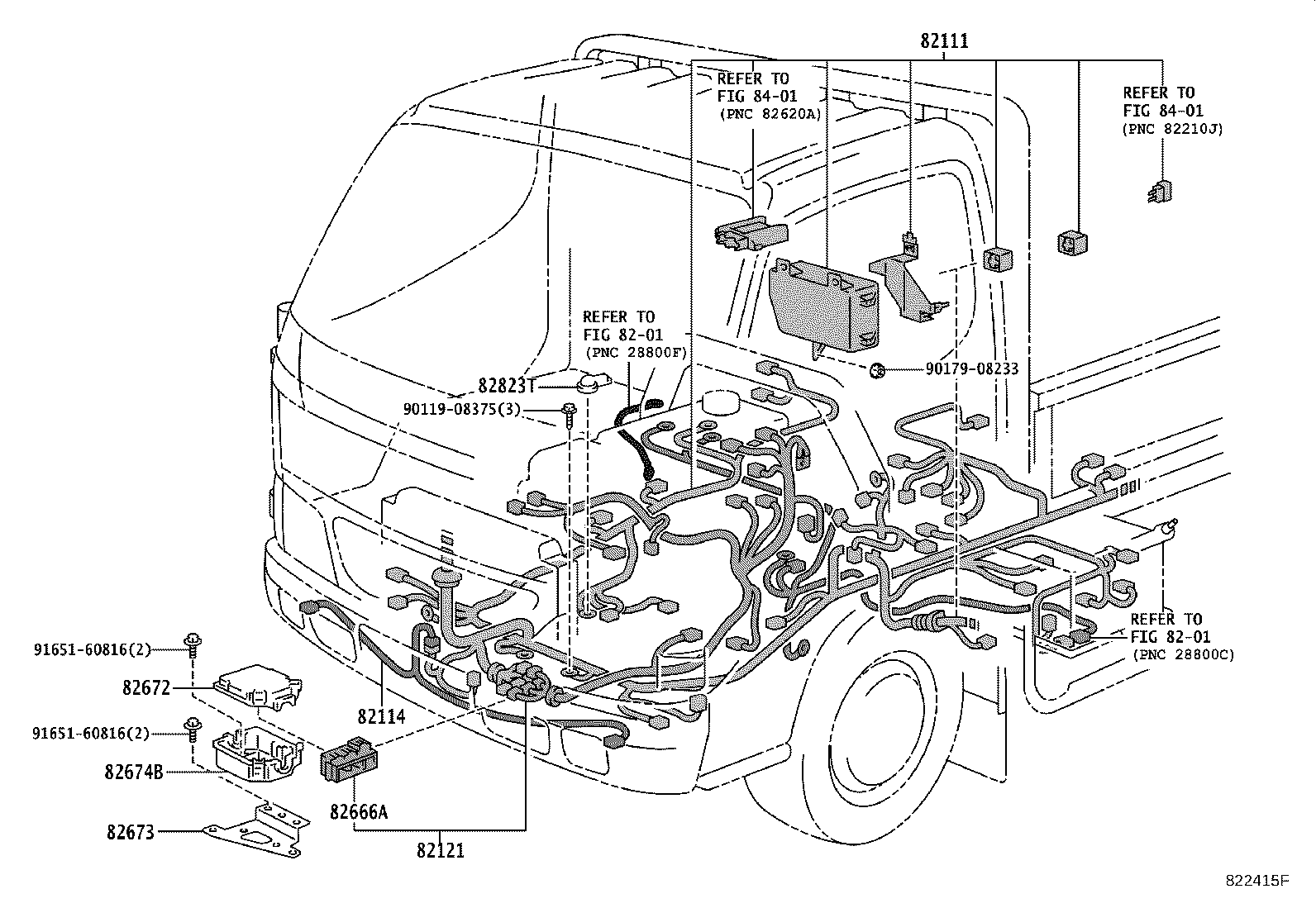

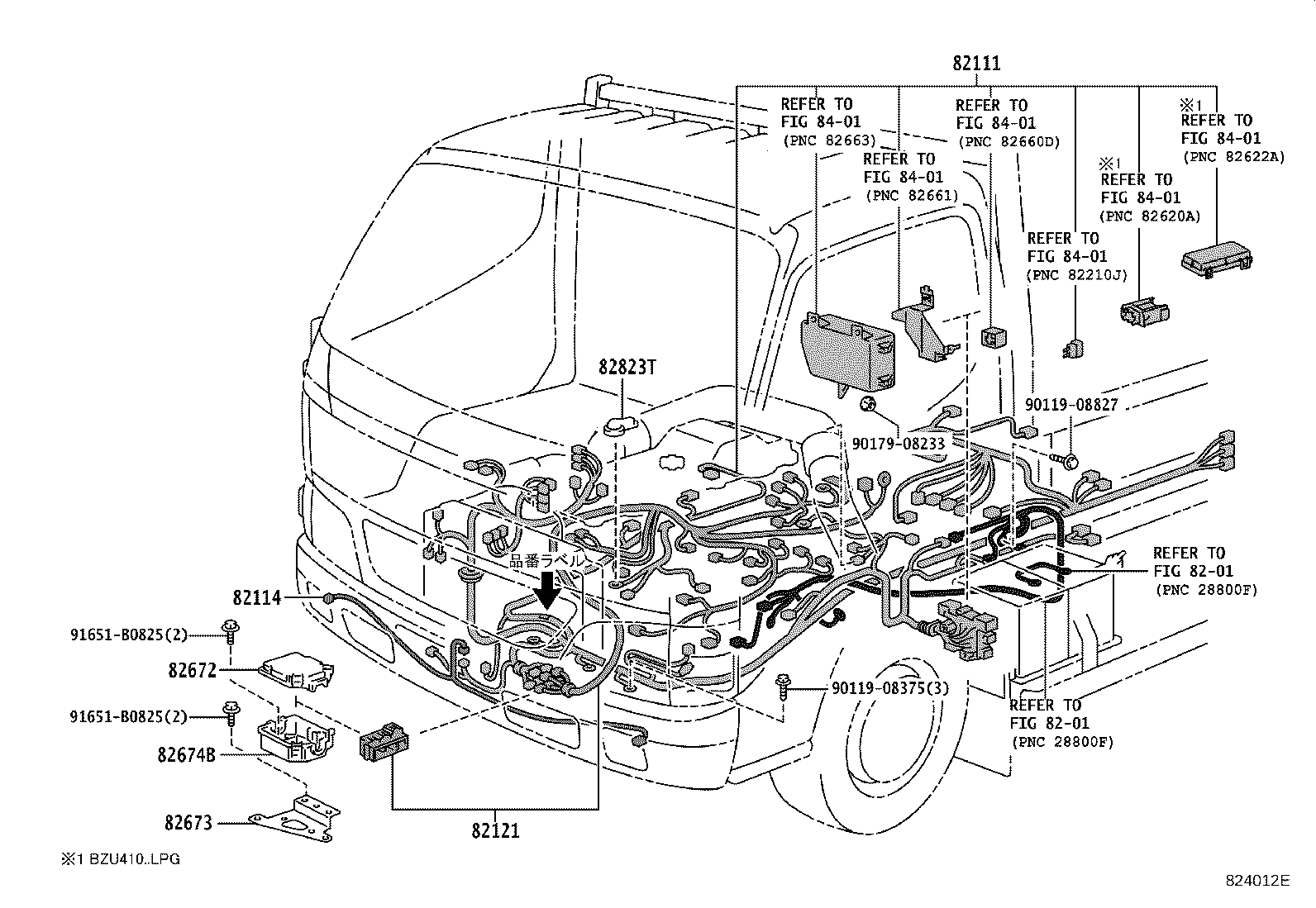

82050 Wire Assy, Engine

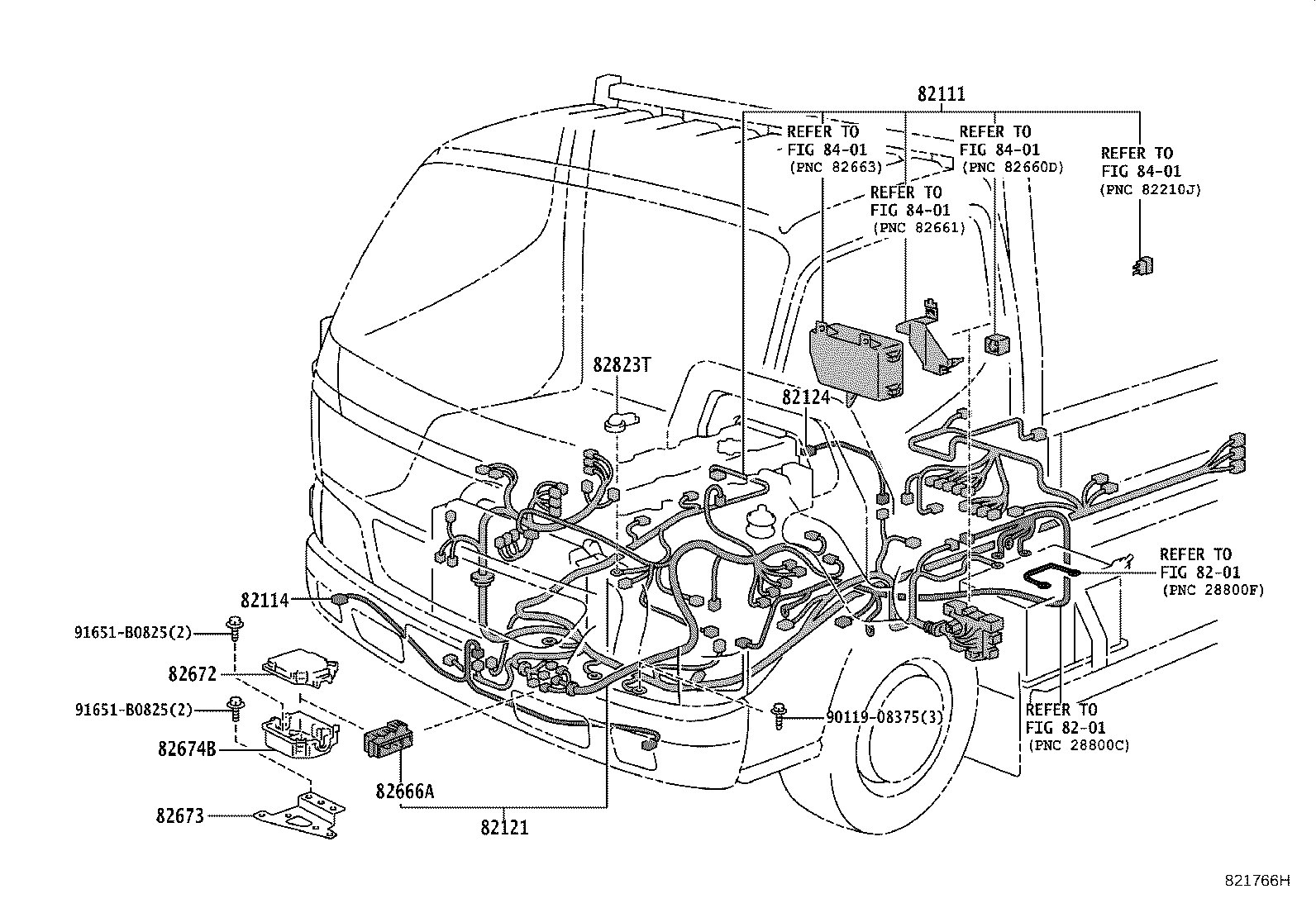

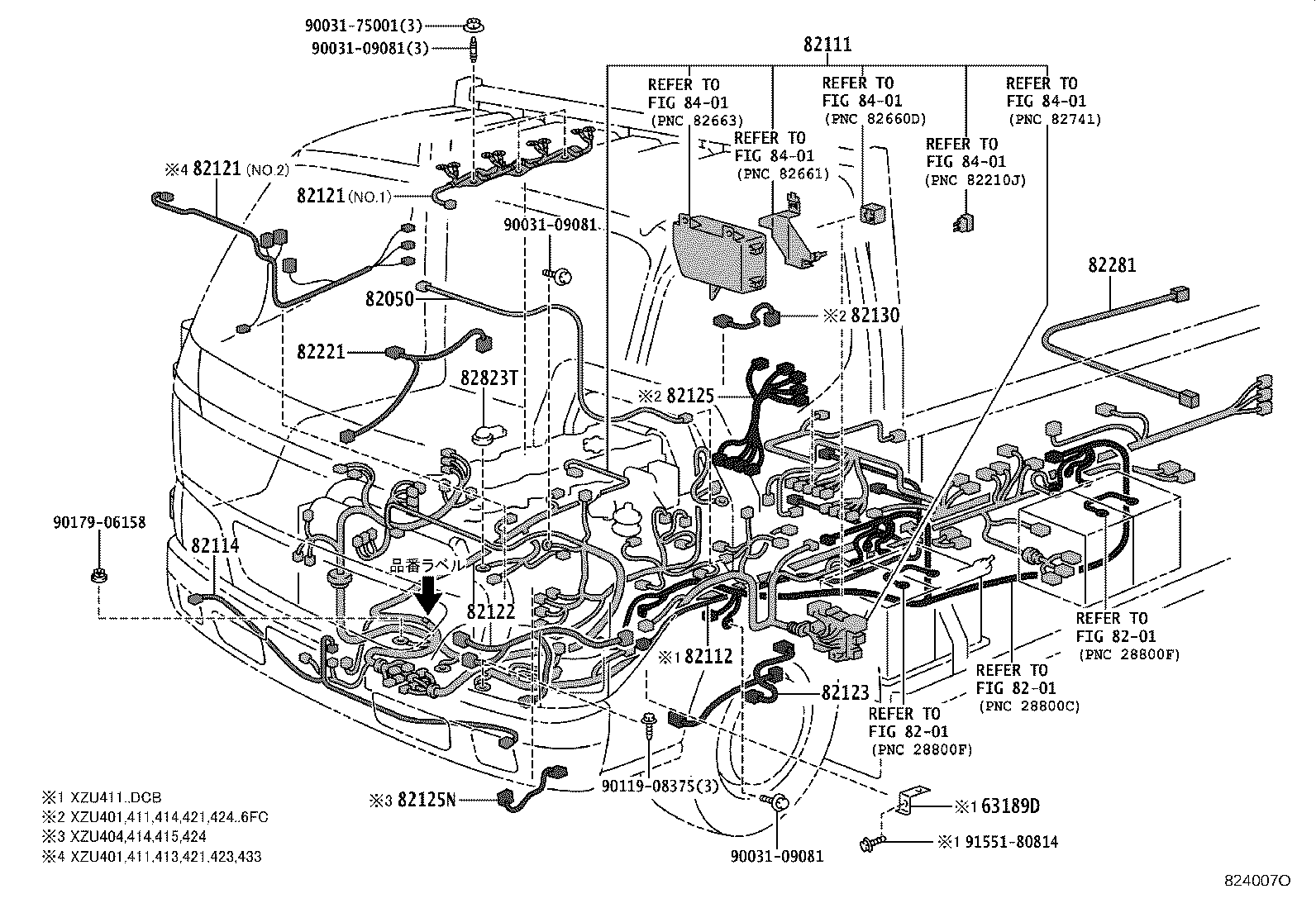

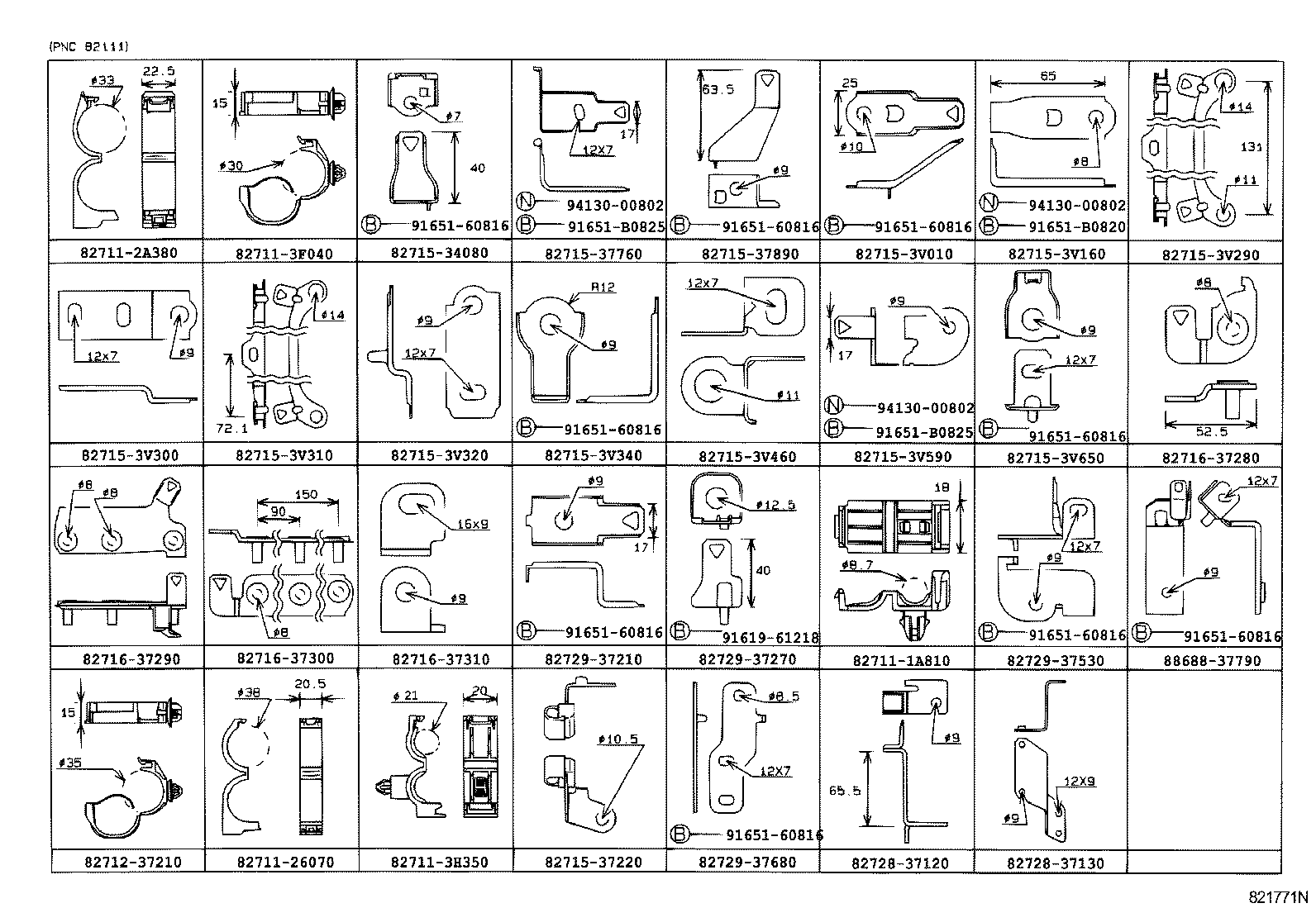

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82127 Wire, Differential
82130 Harness Assy, Chassis Wire

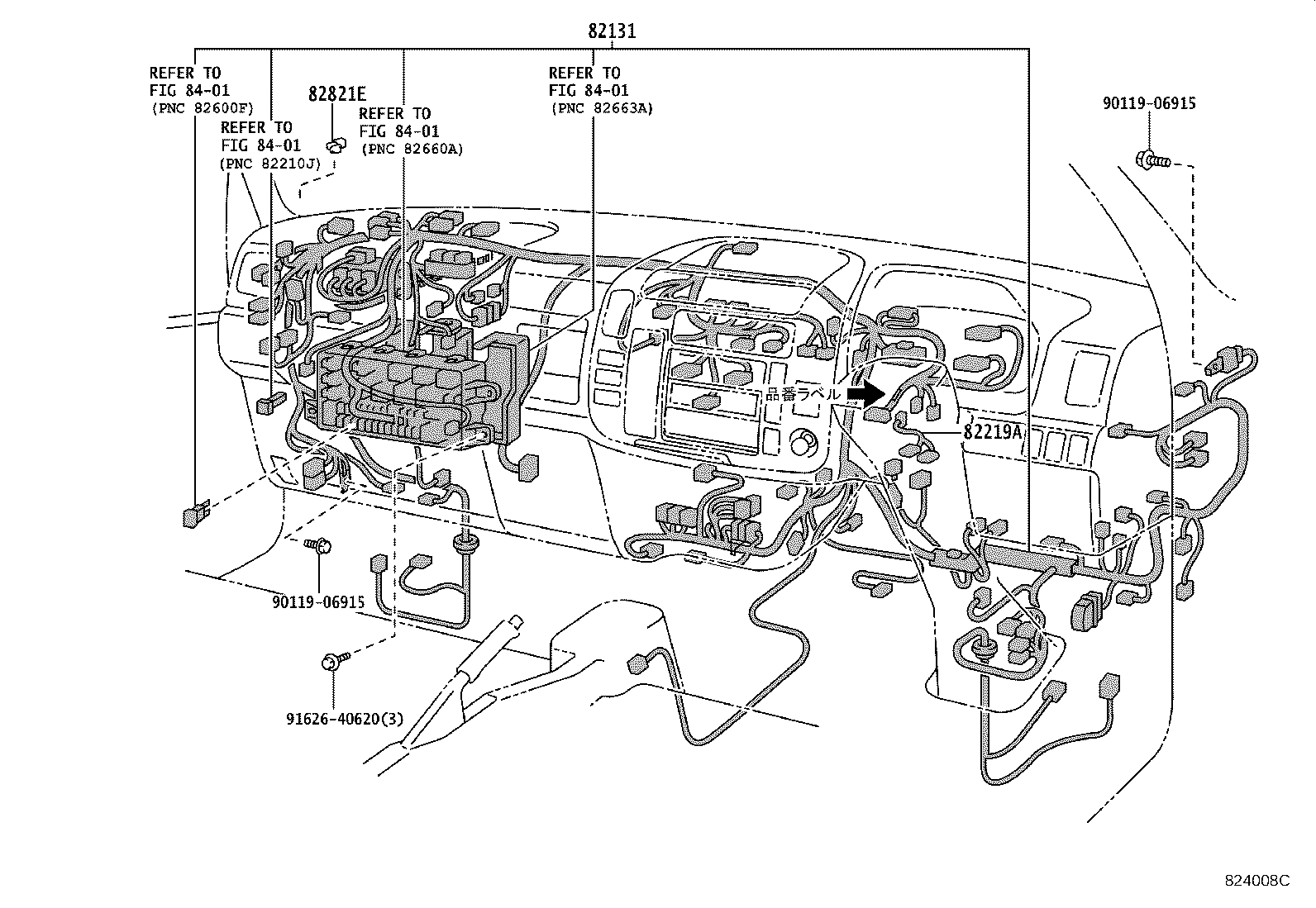

82131 Wire, Cowl

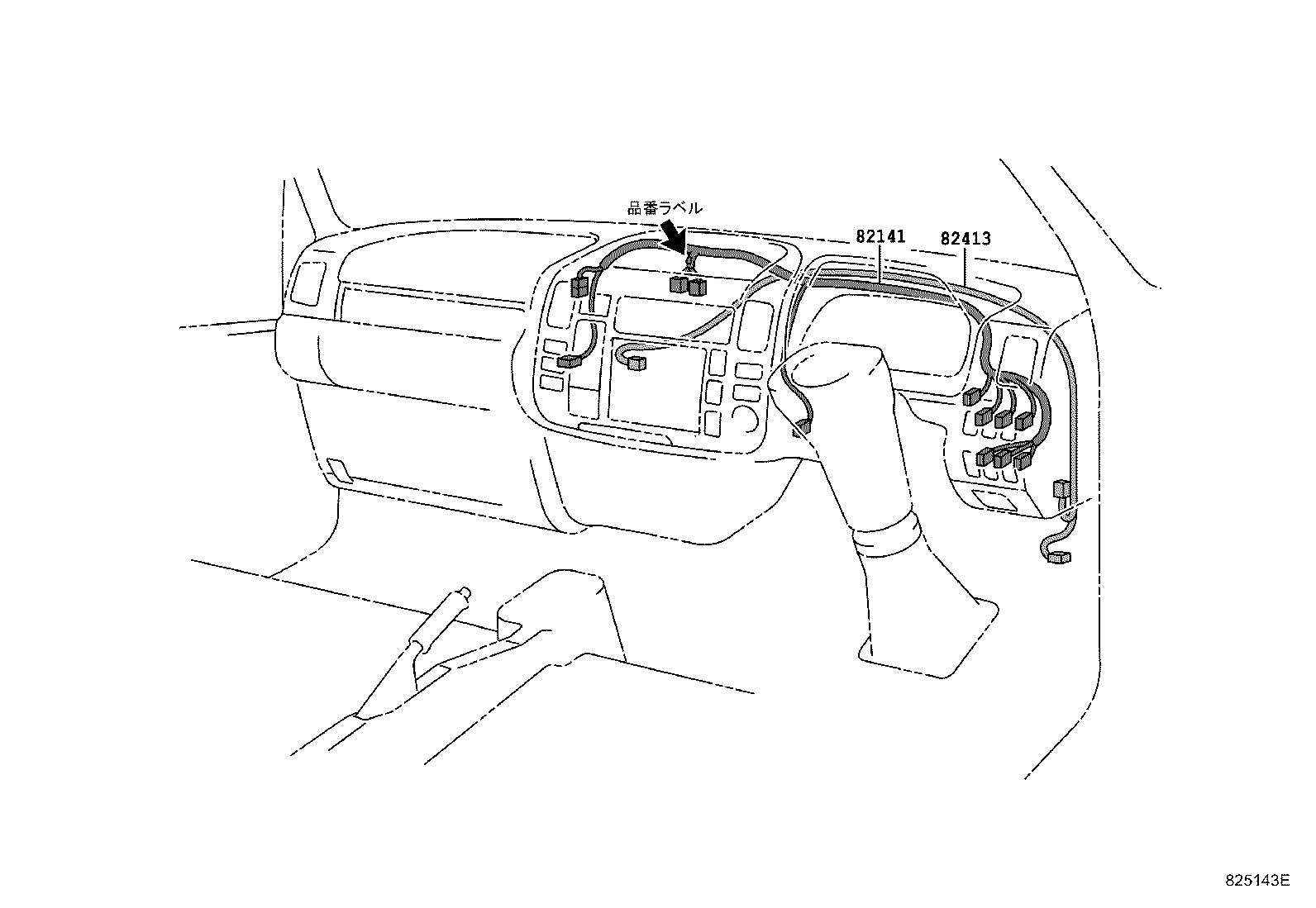

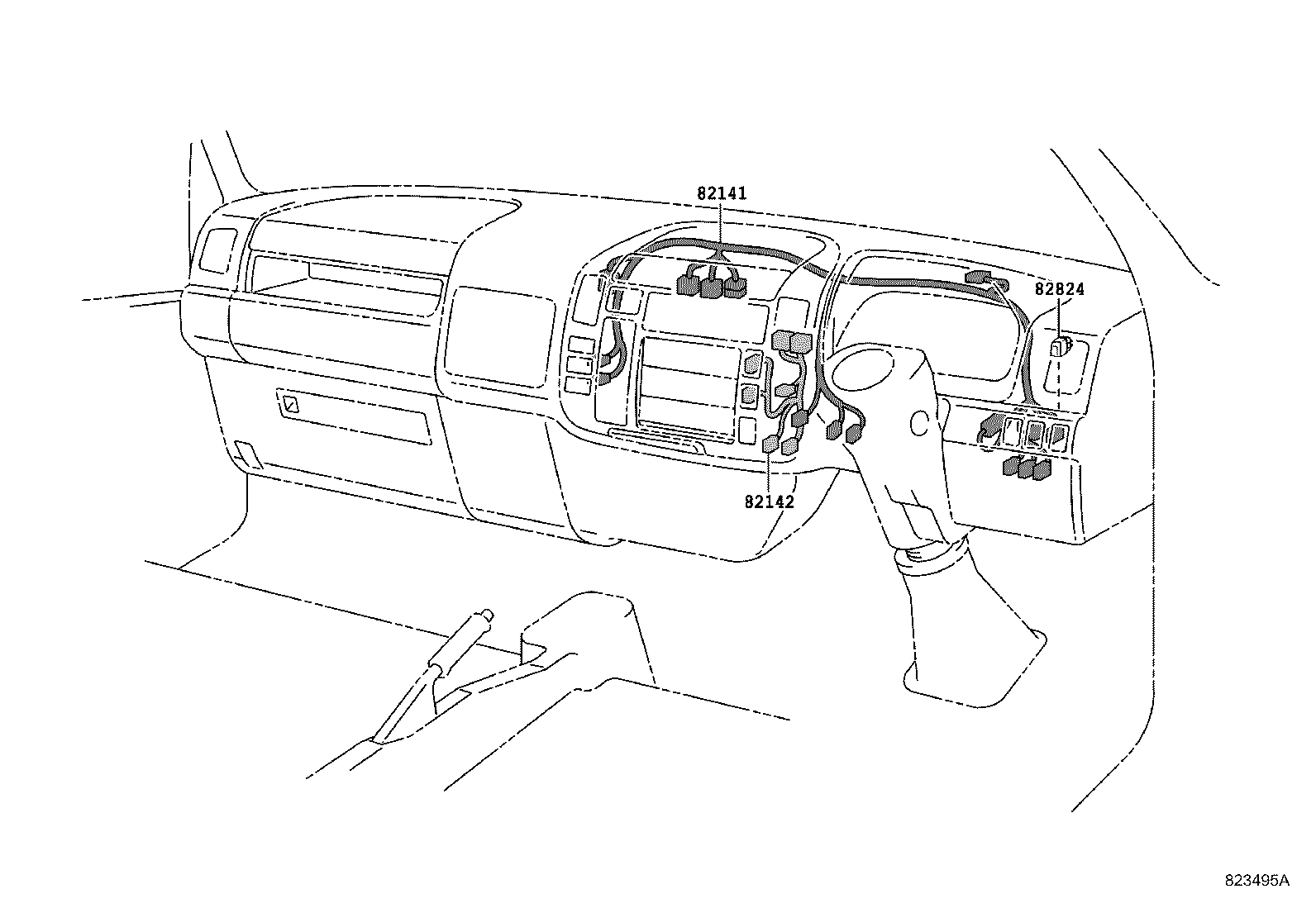

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

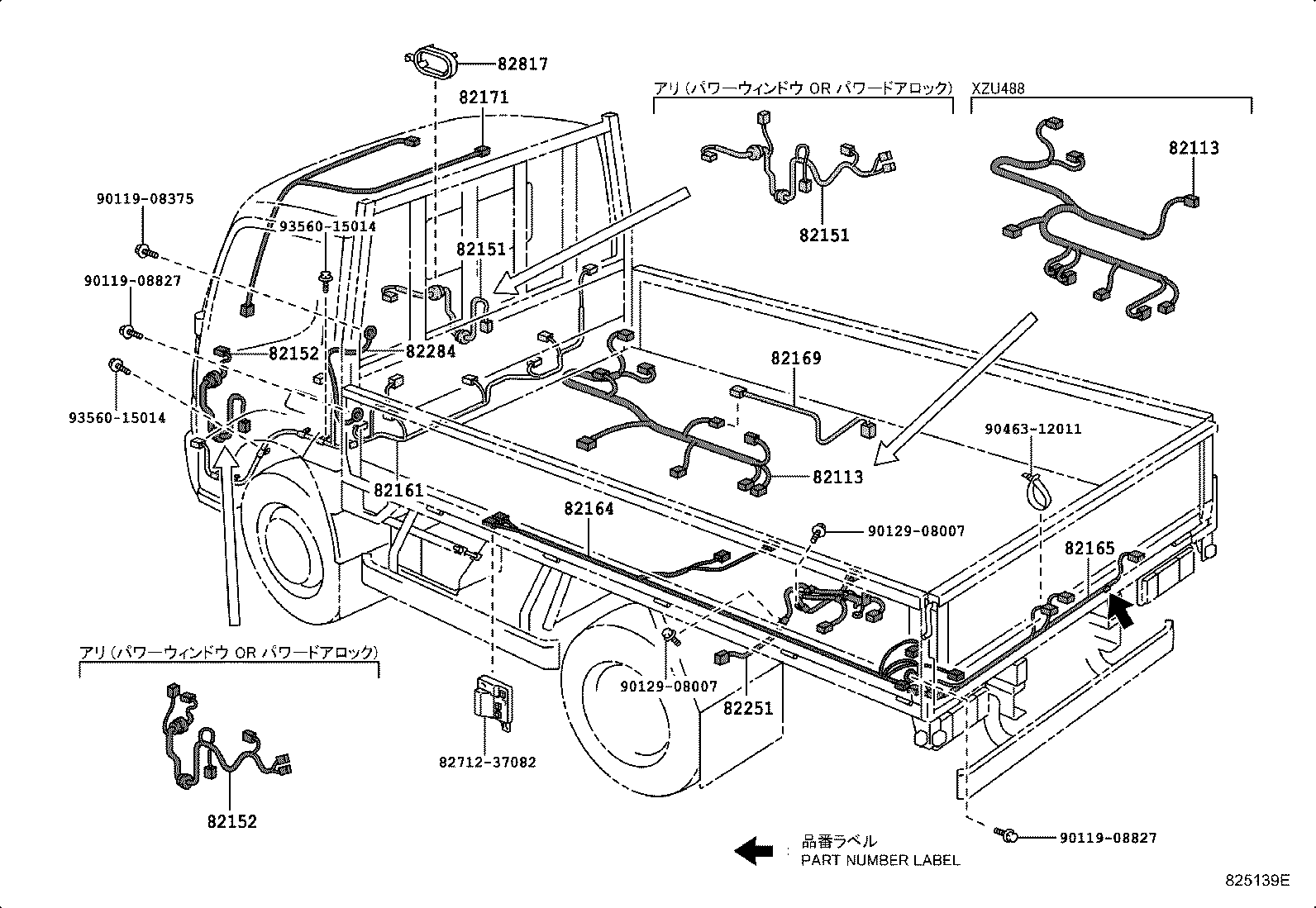

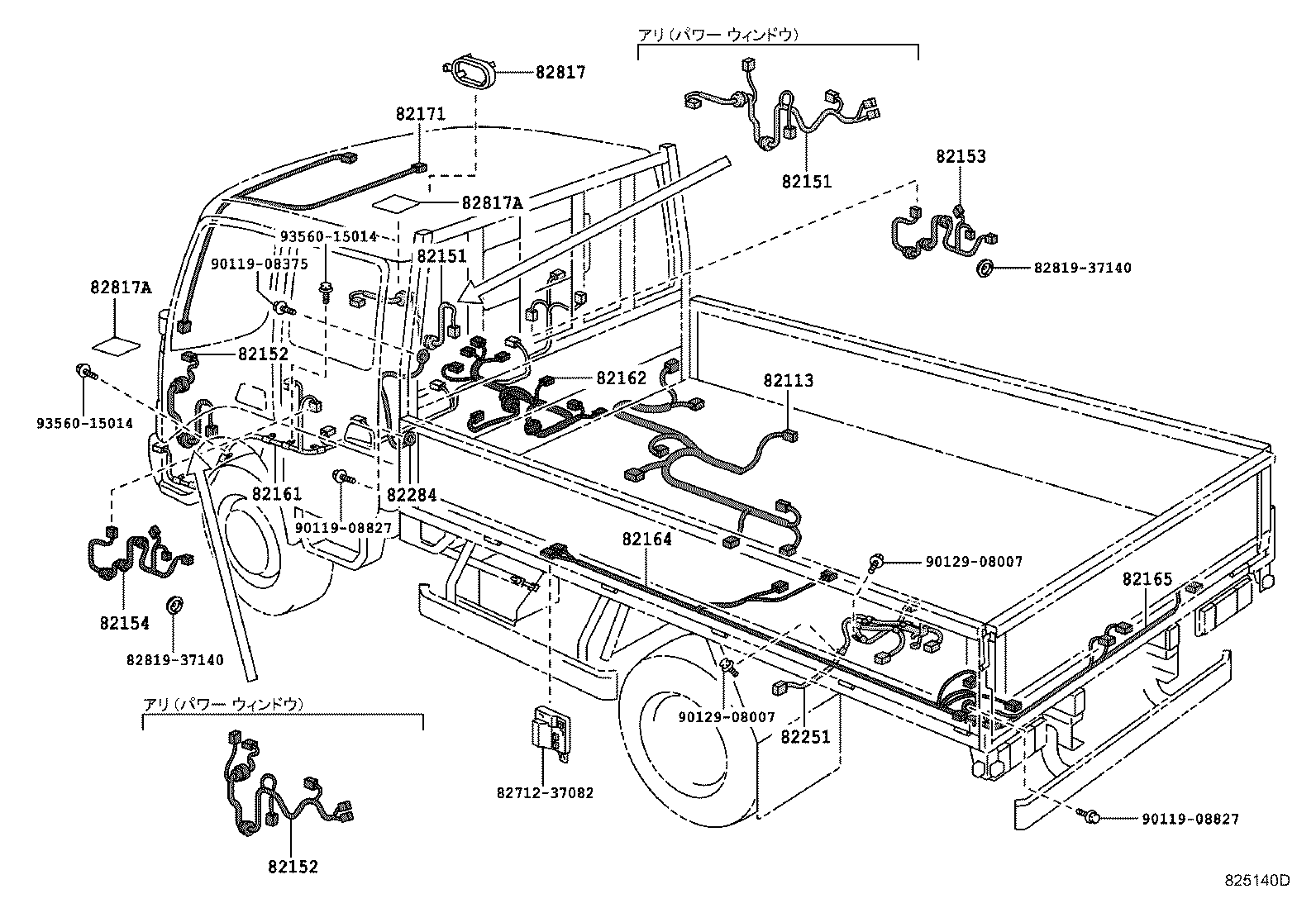

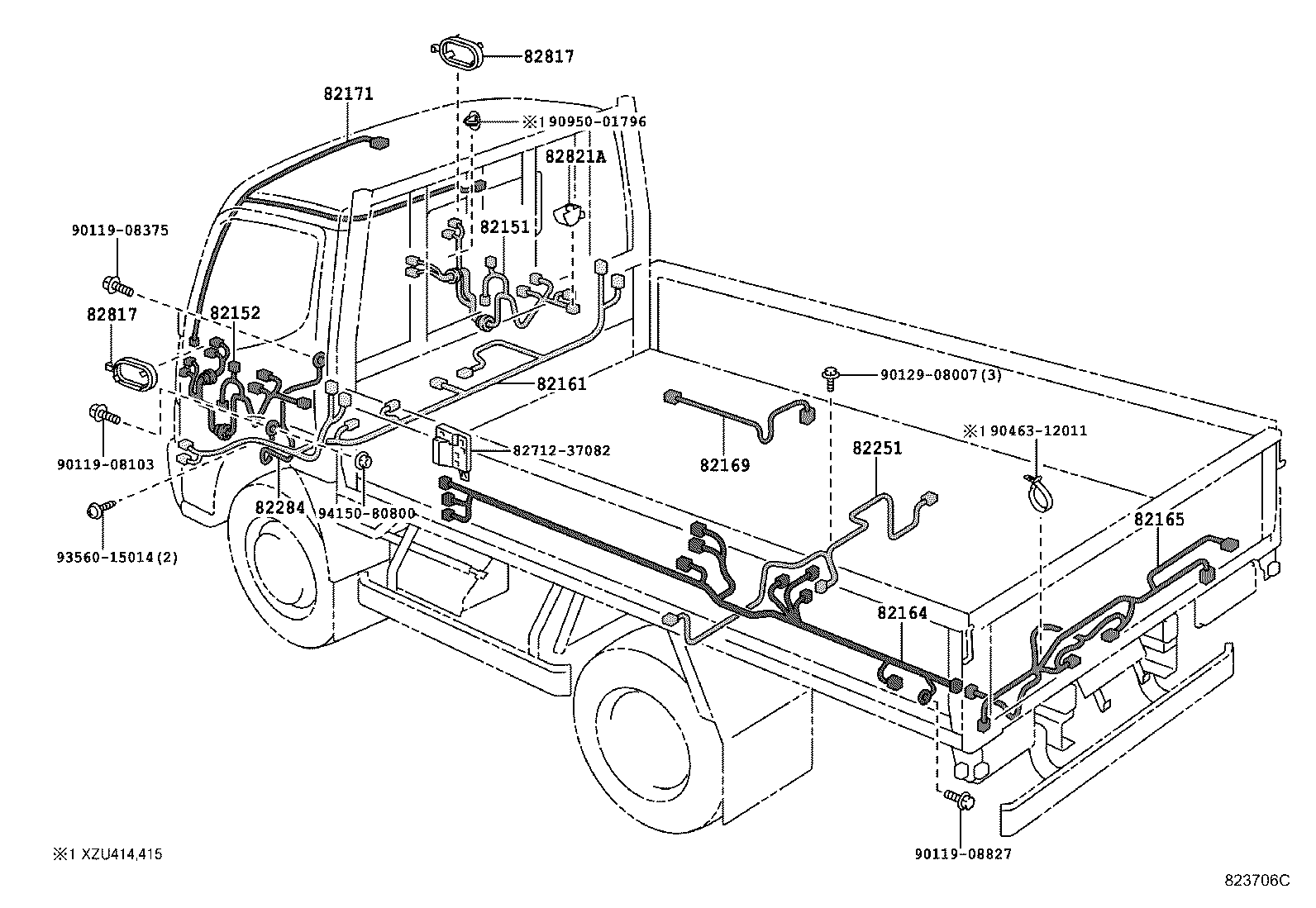

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82281 Wire, Gage
82284 Wire, Earth
82413 Wire, Buzzer
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82674B Cover, Junction Block, Lower
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82819C Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82823T Cap, Alternator Terminal

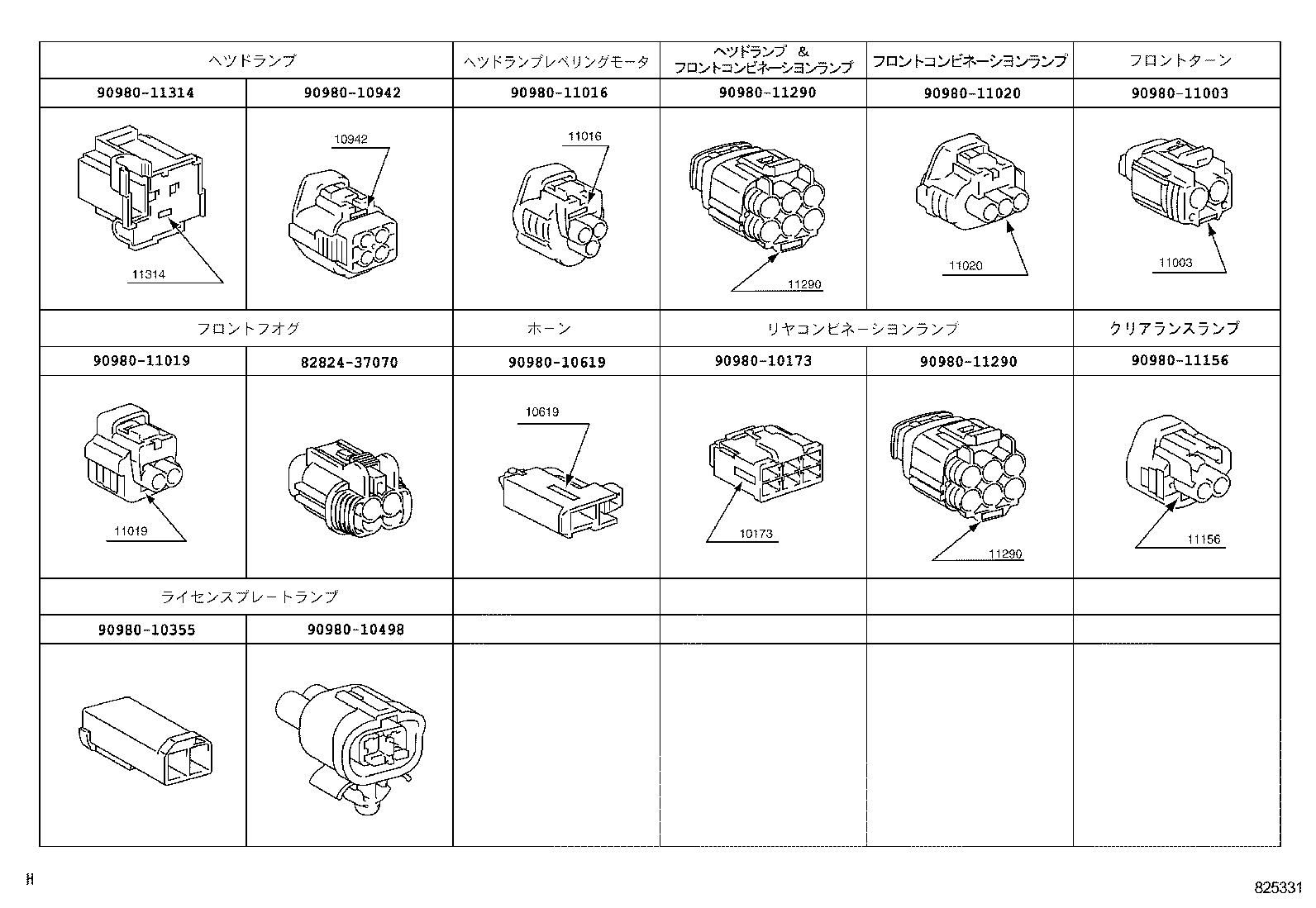

82824 Connector, Wiring Harness
86522A Protector, Horn
89794 Wire, Transponder Key
