Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

166 part groups · 26 illustrations

Illustrations

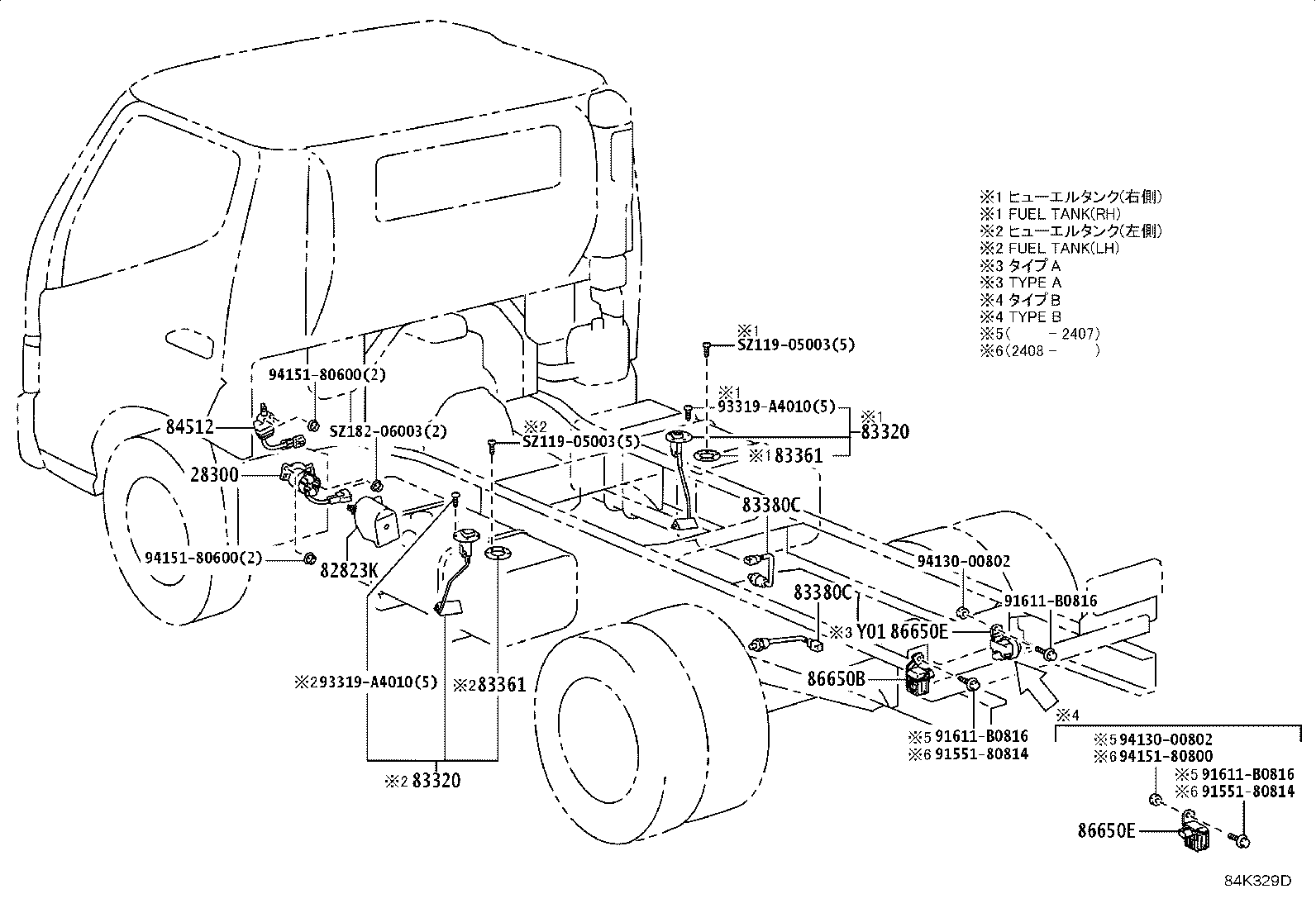

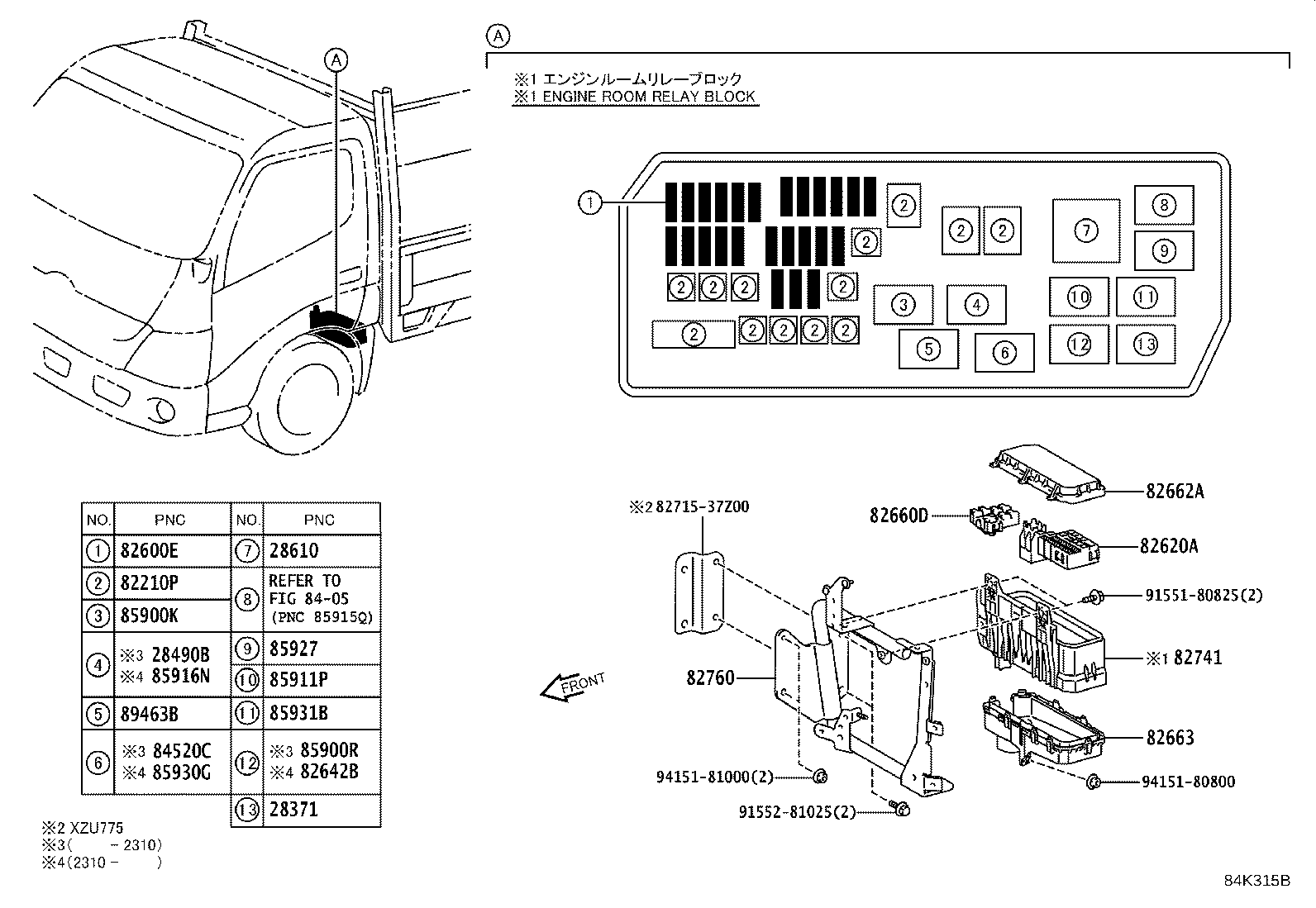

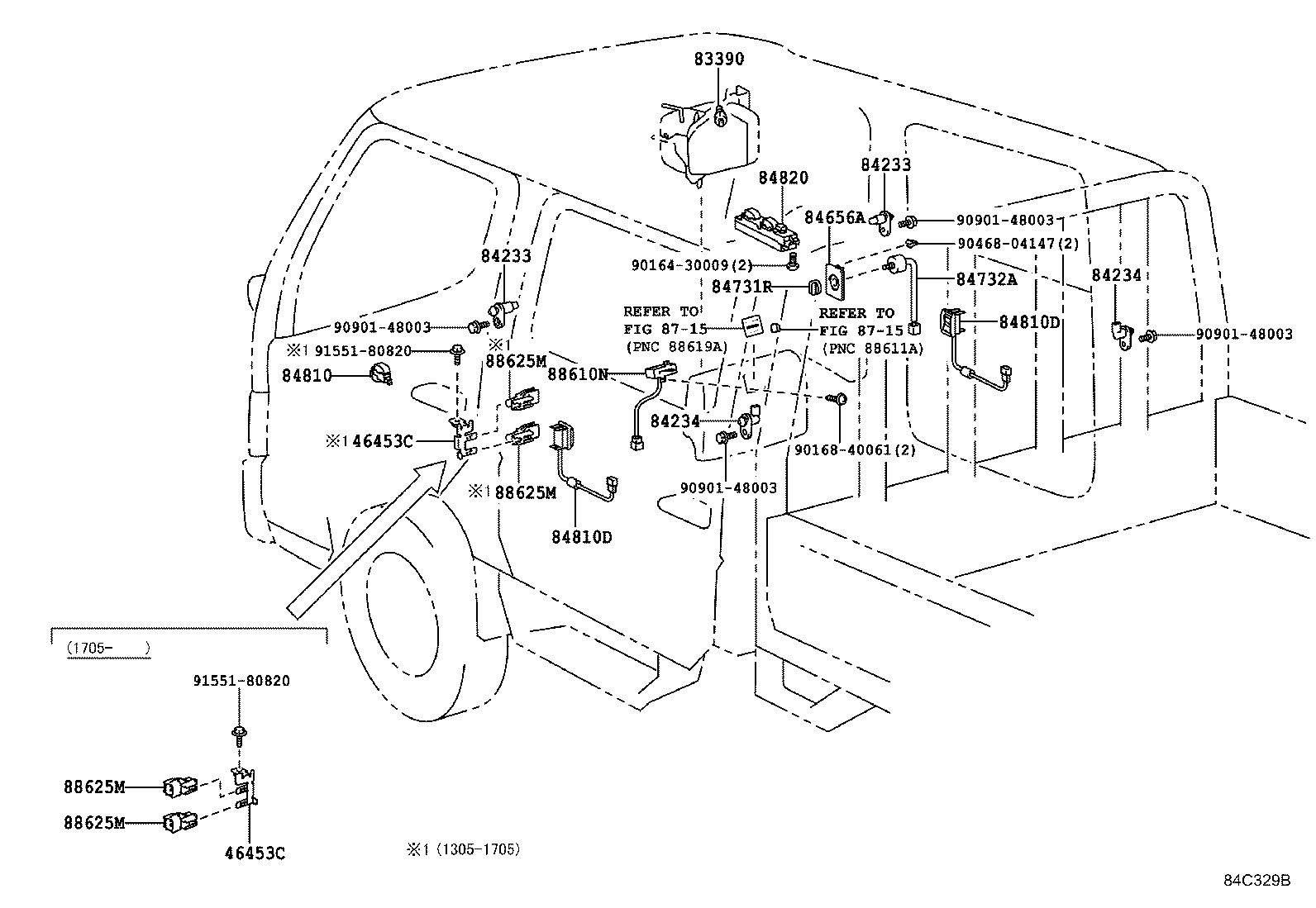

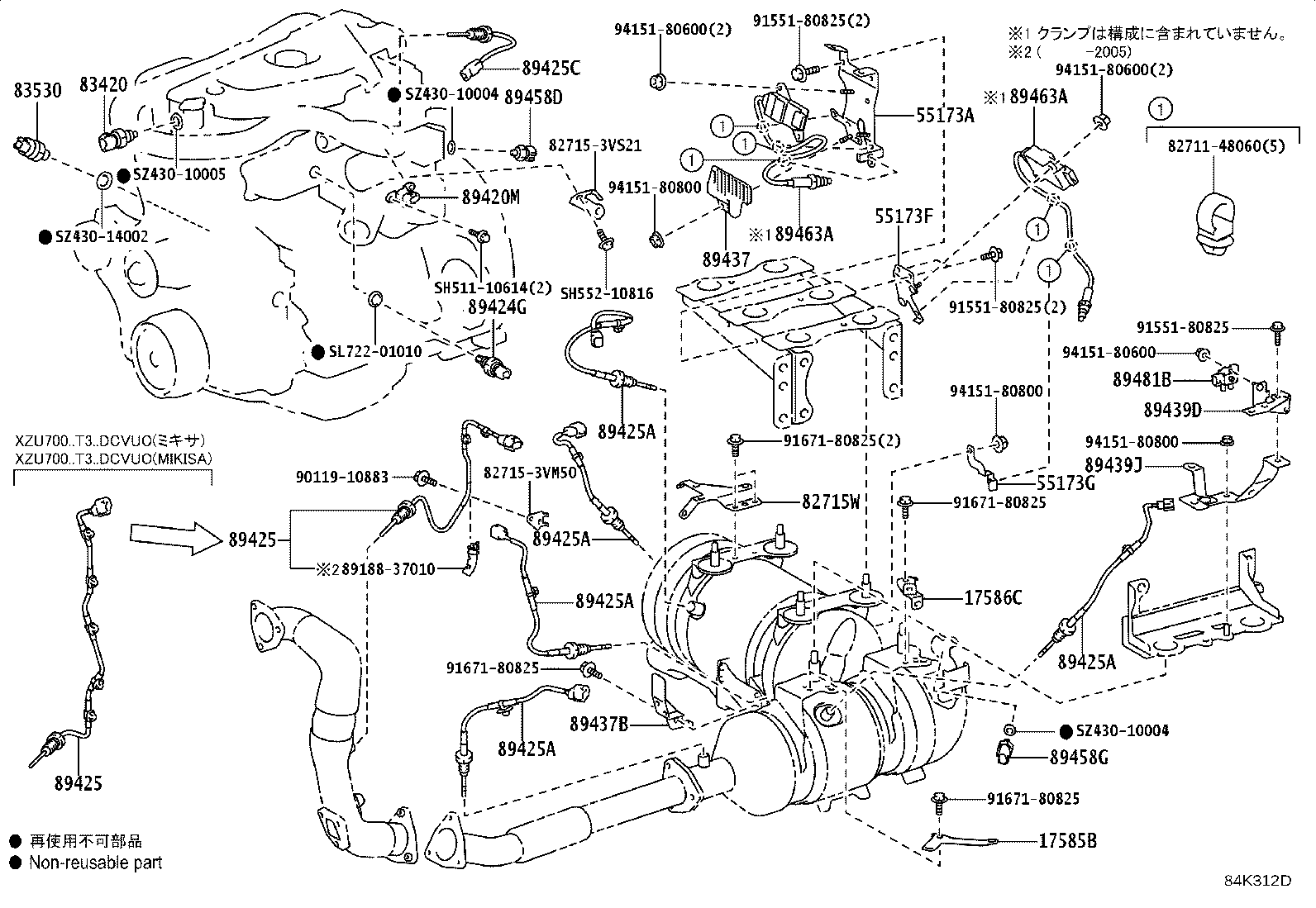

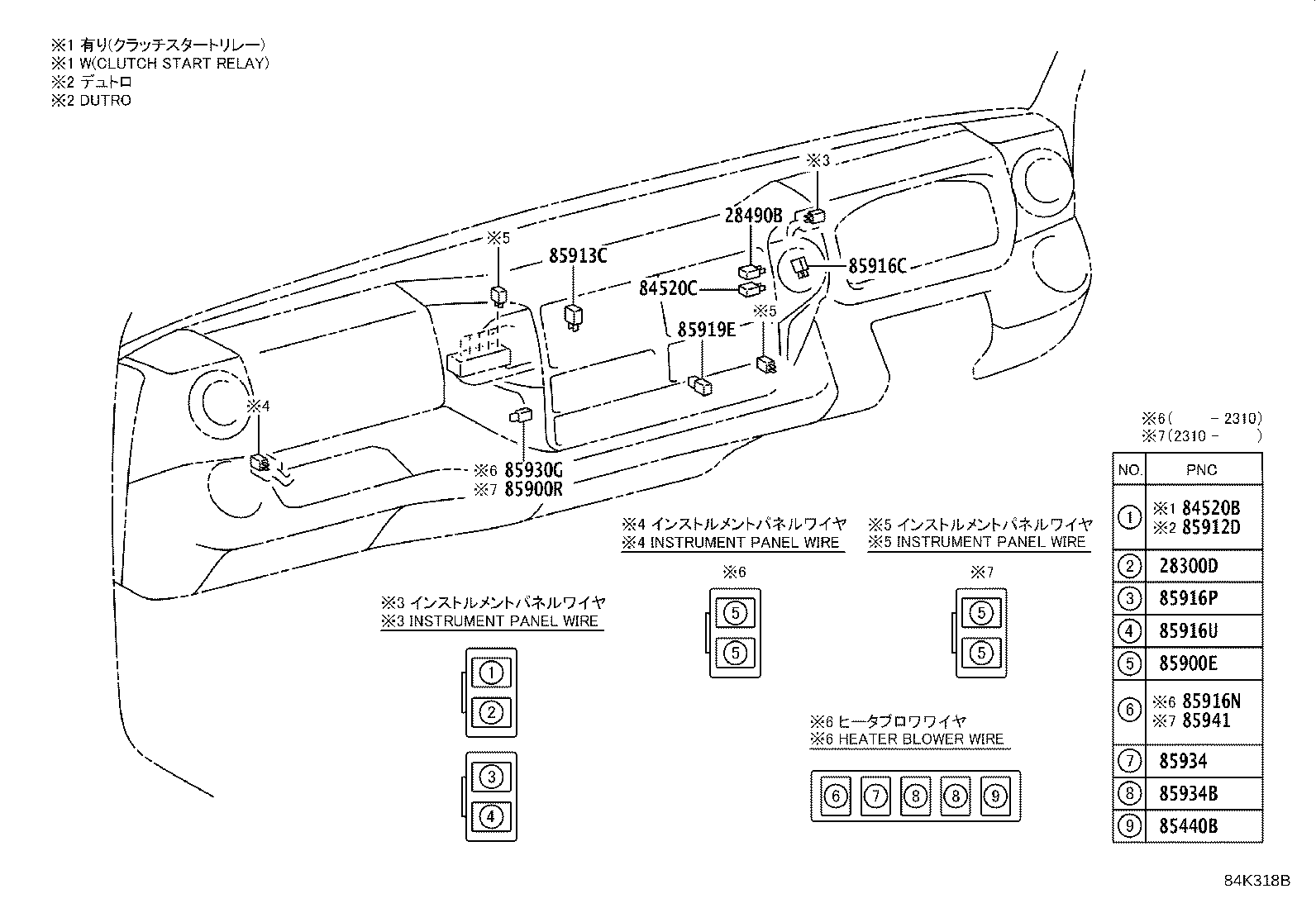

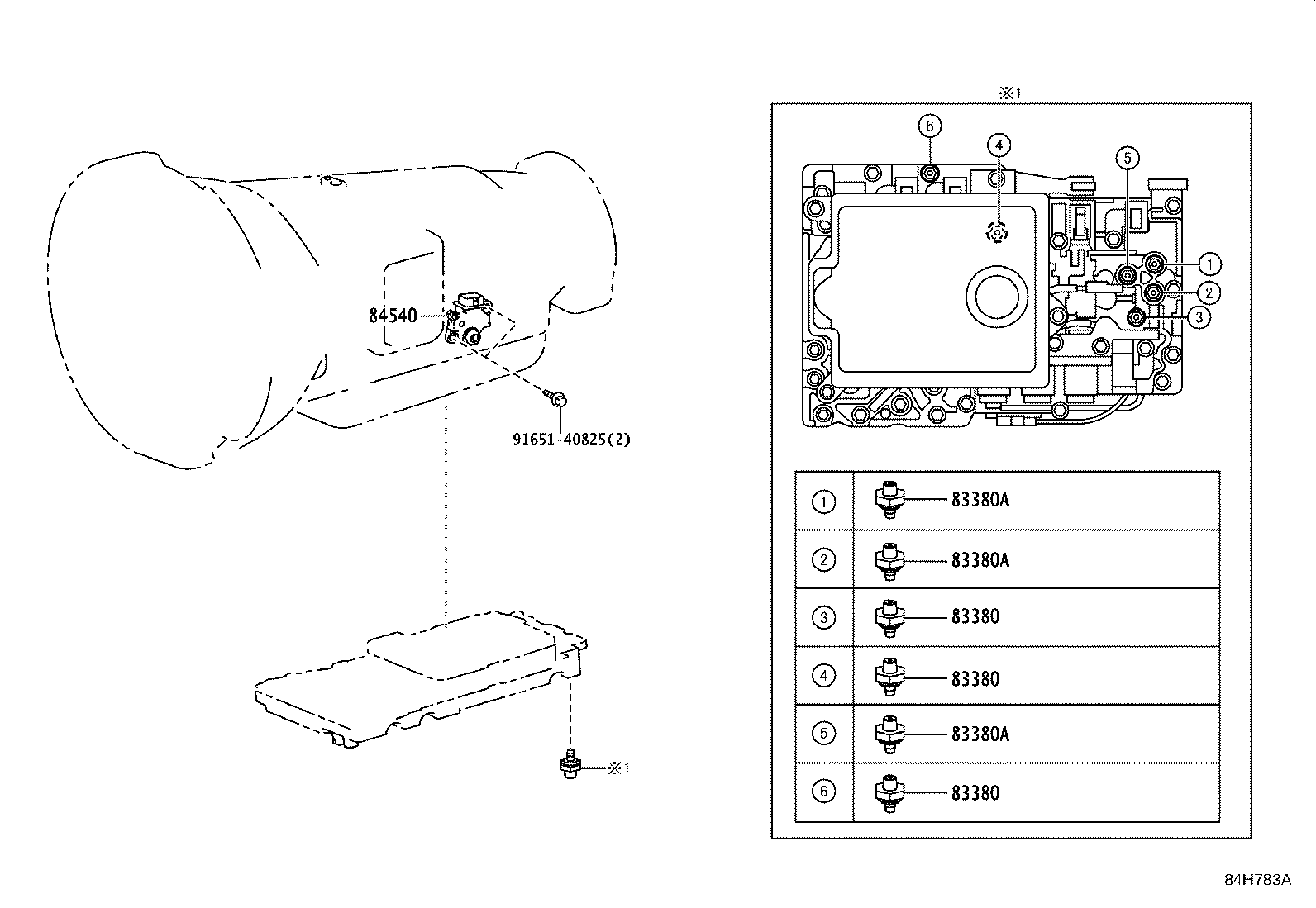

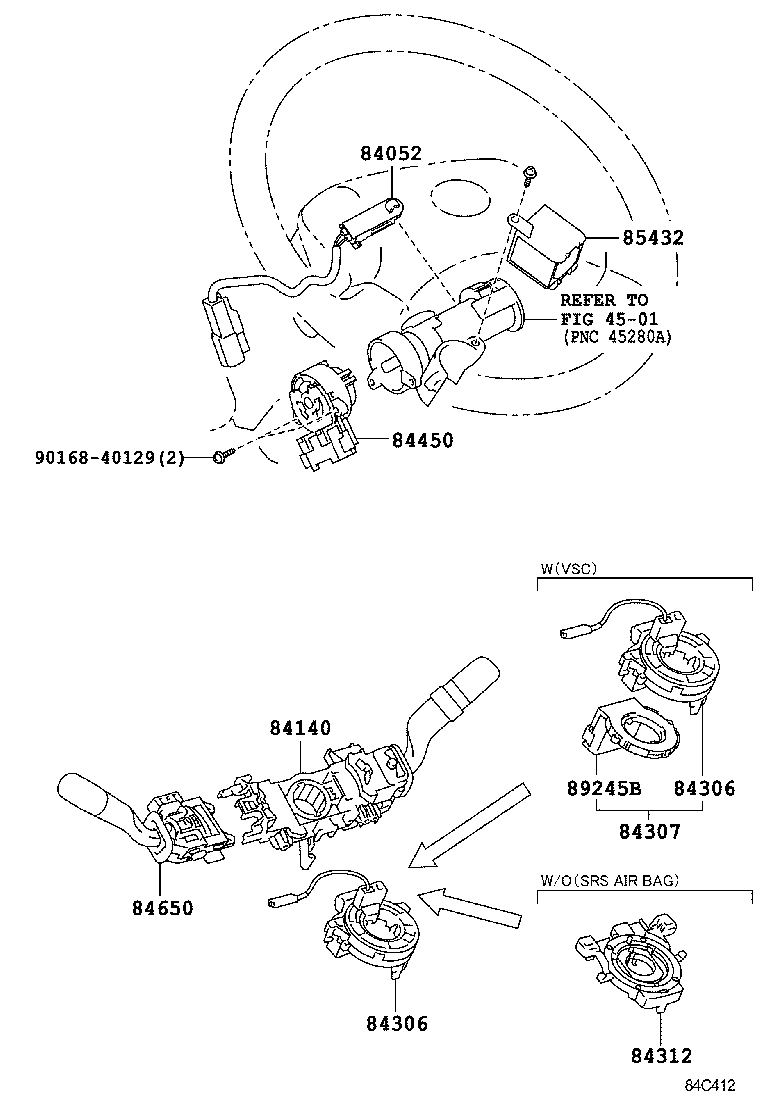

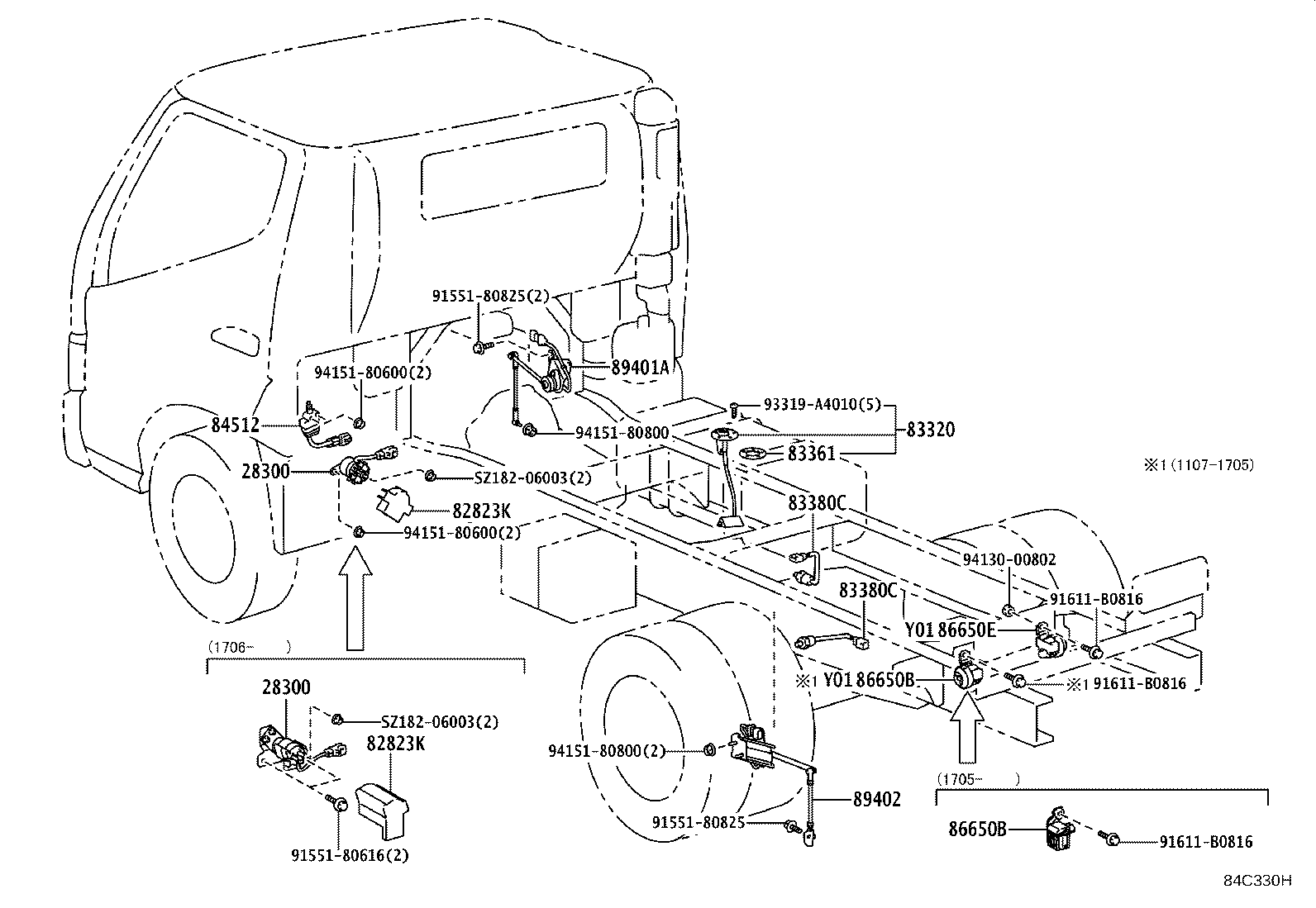

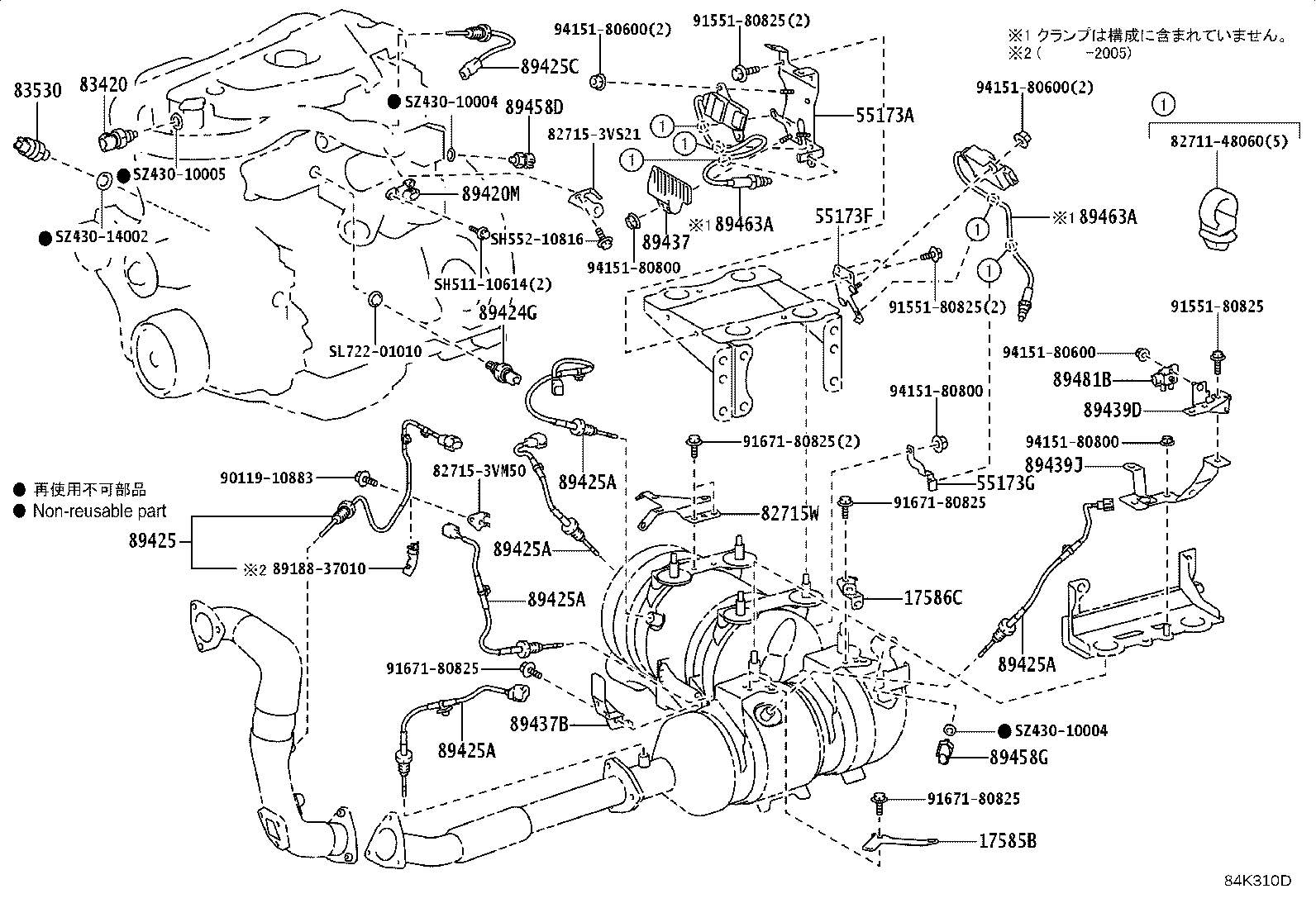

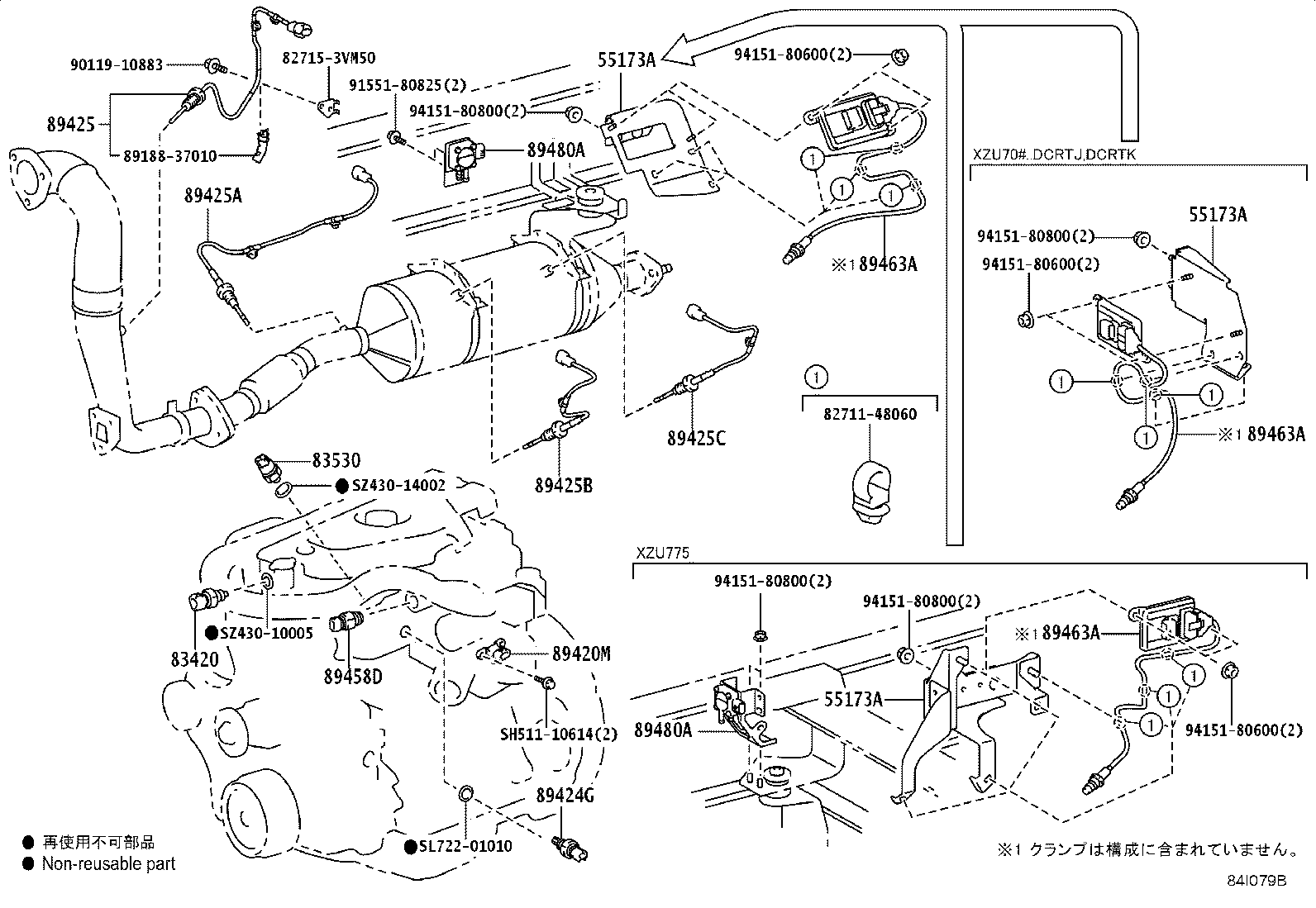

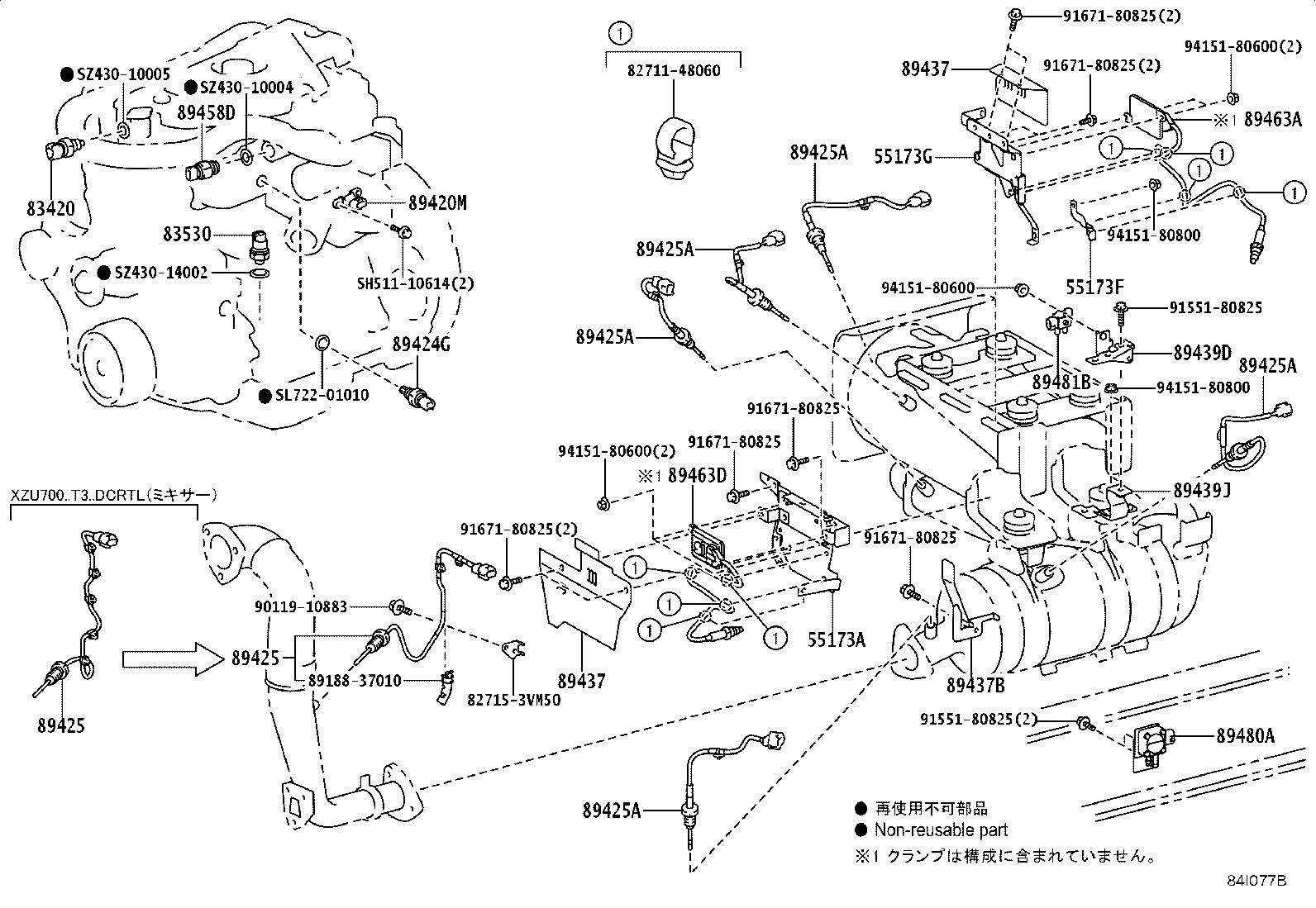

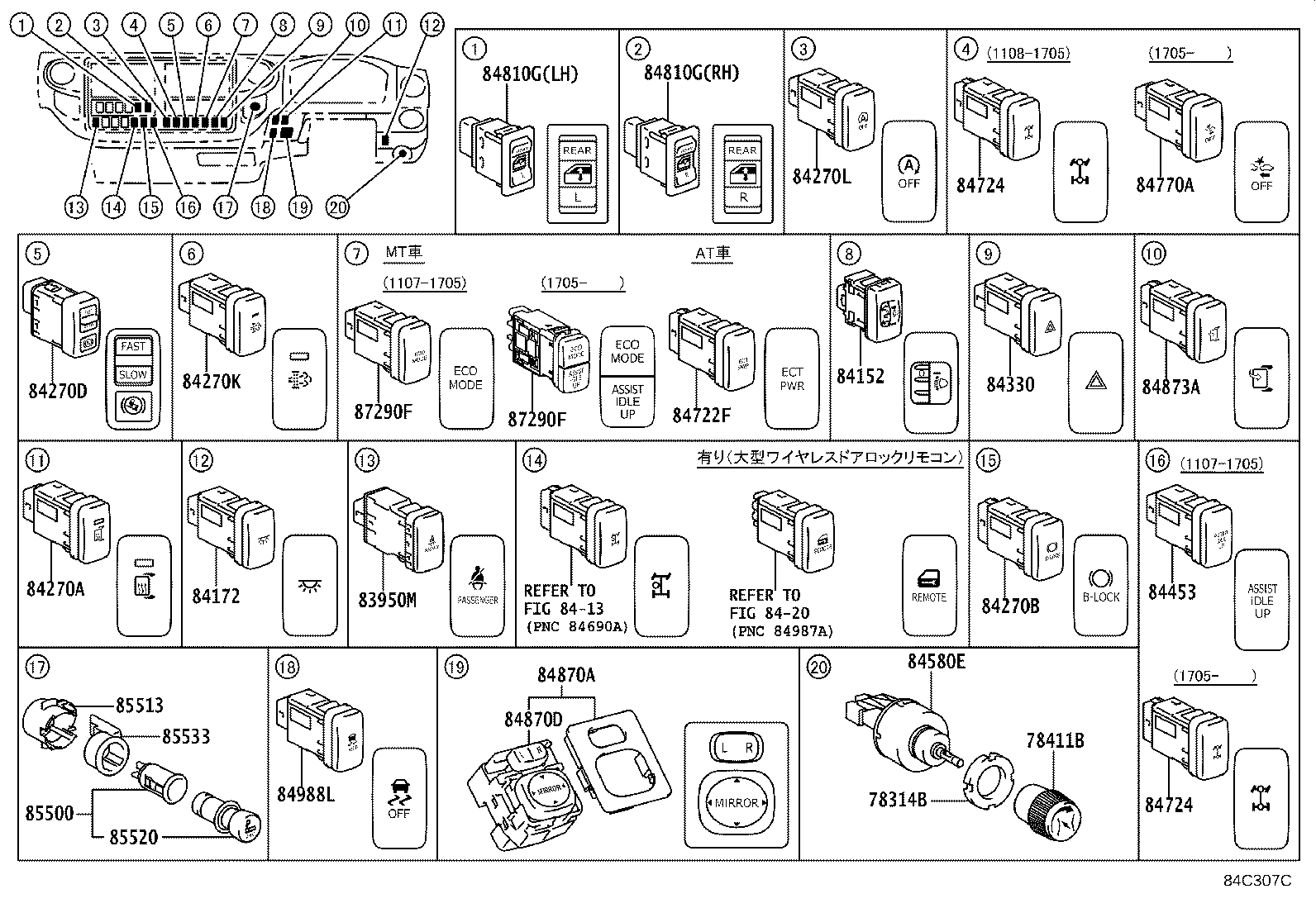

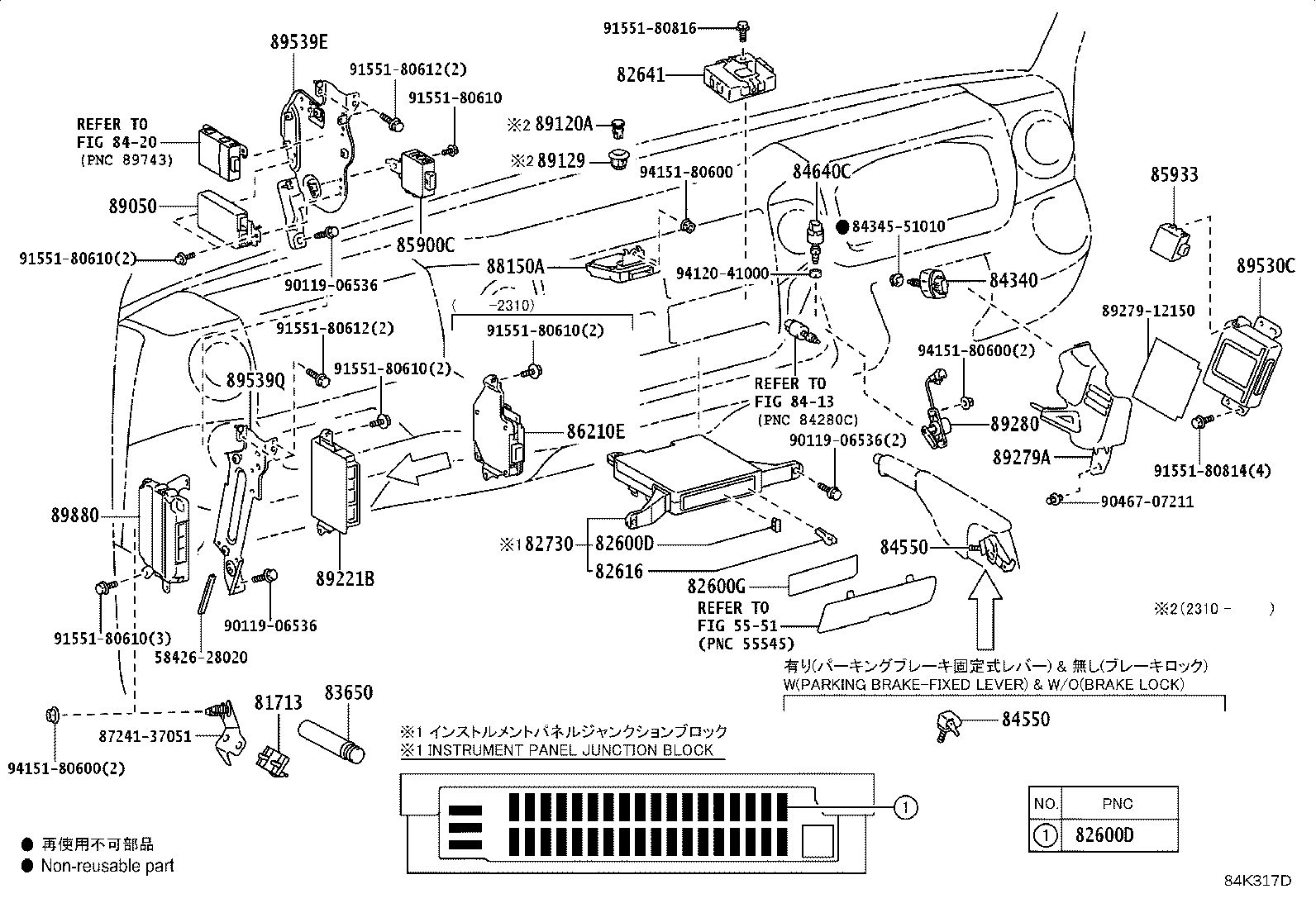

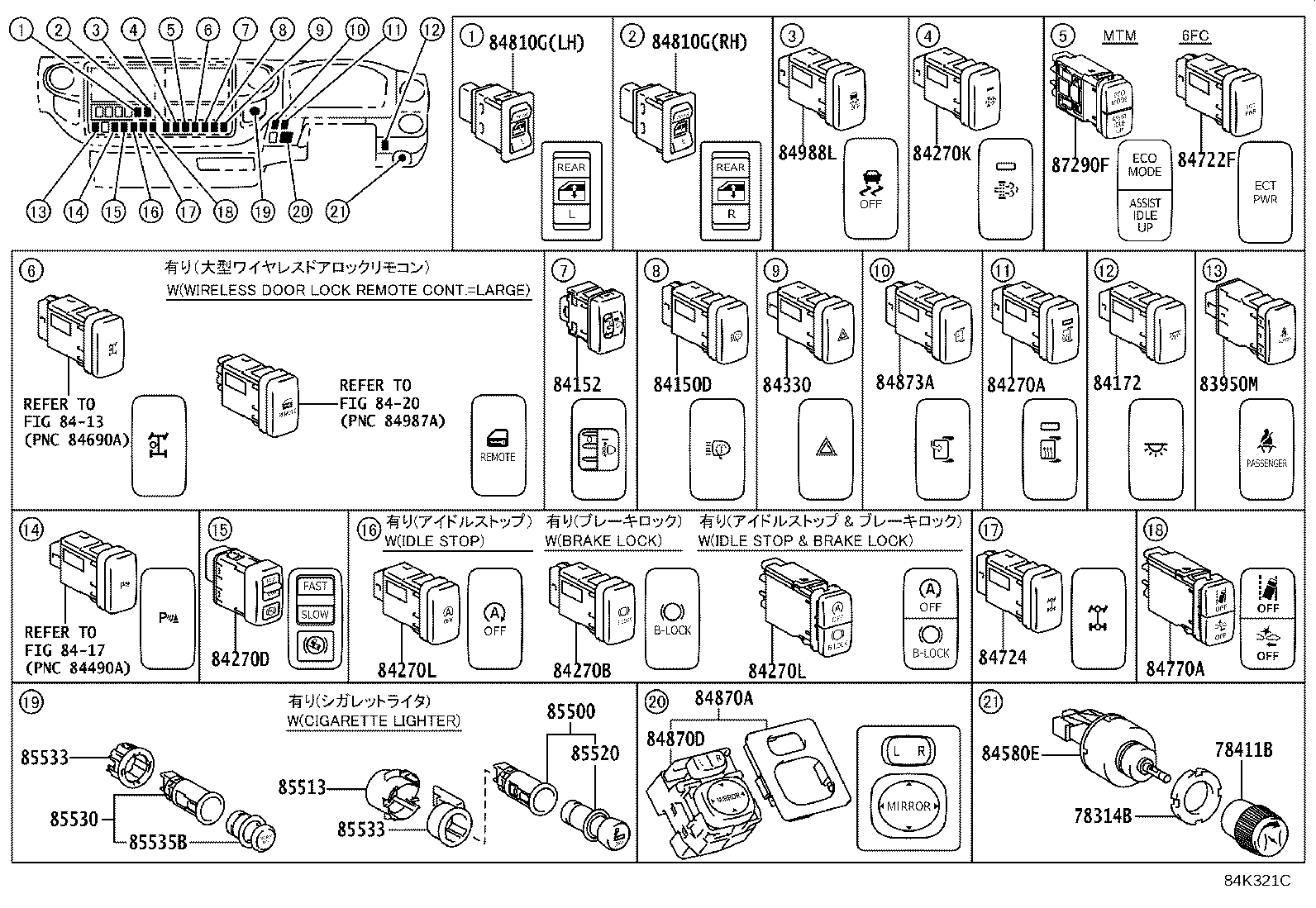

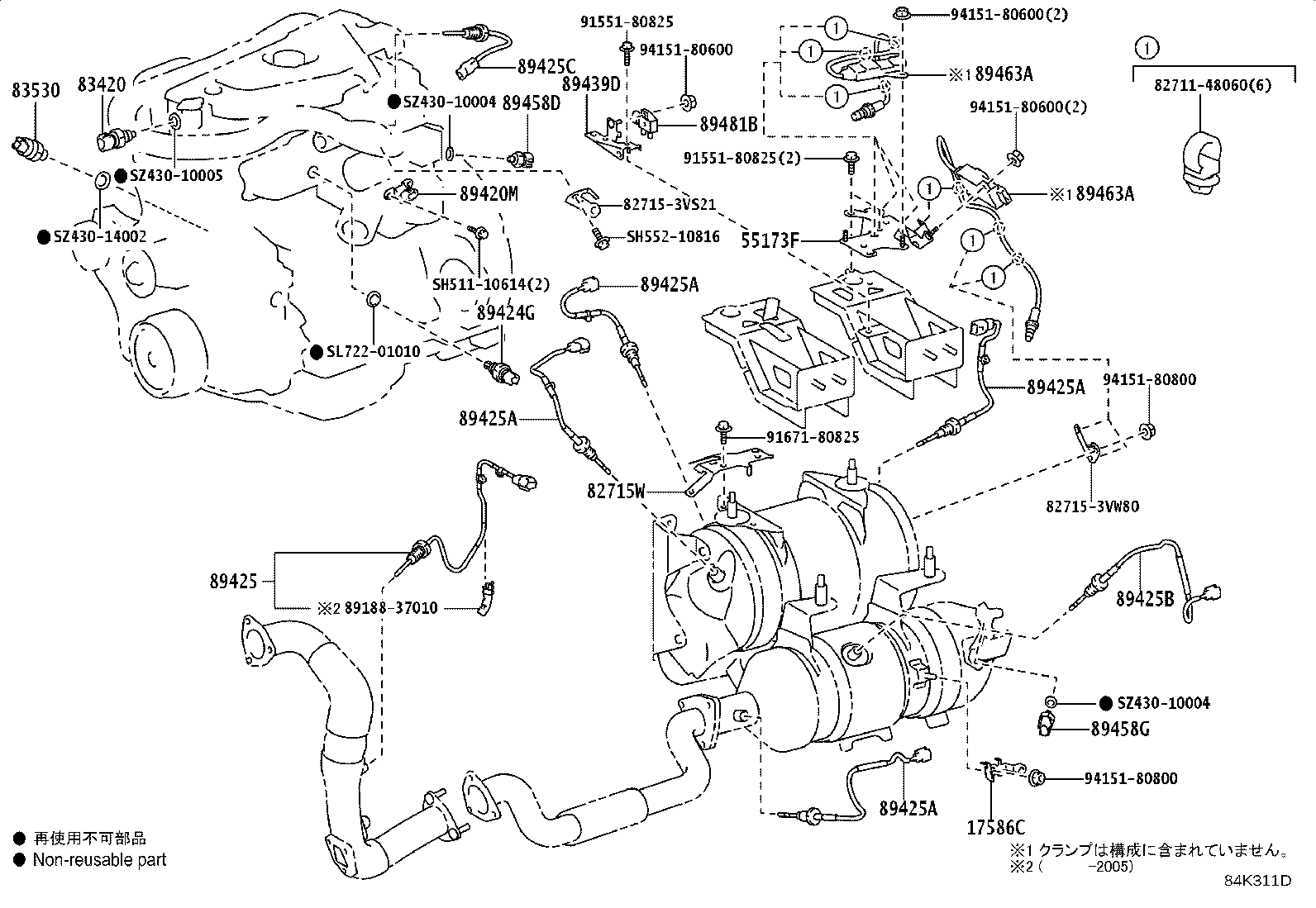

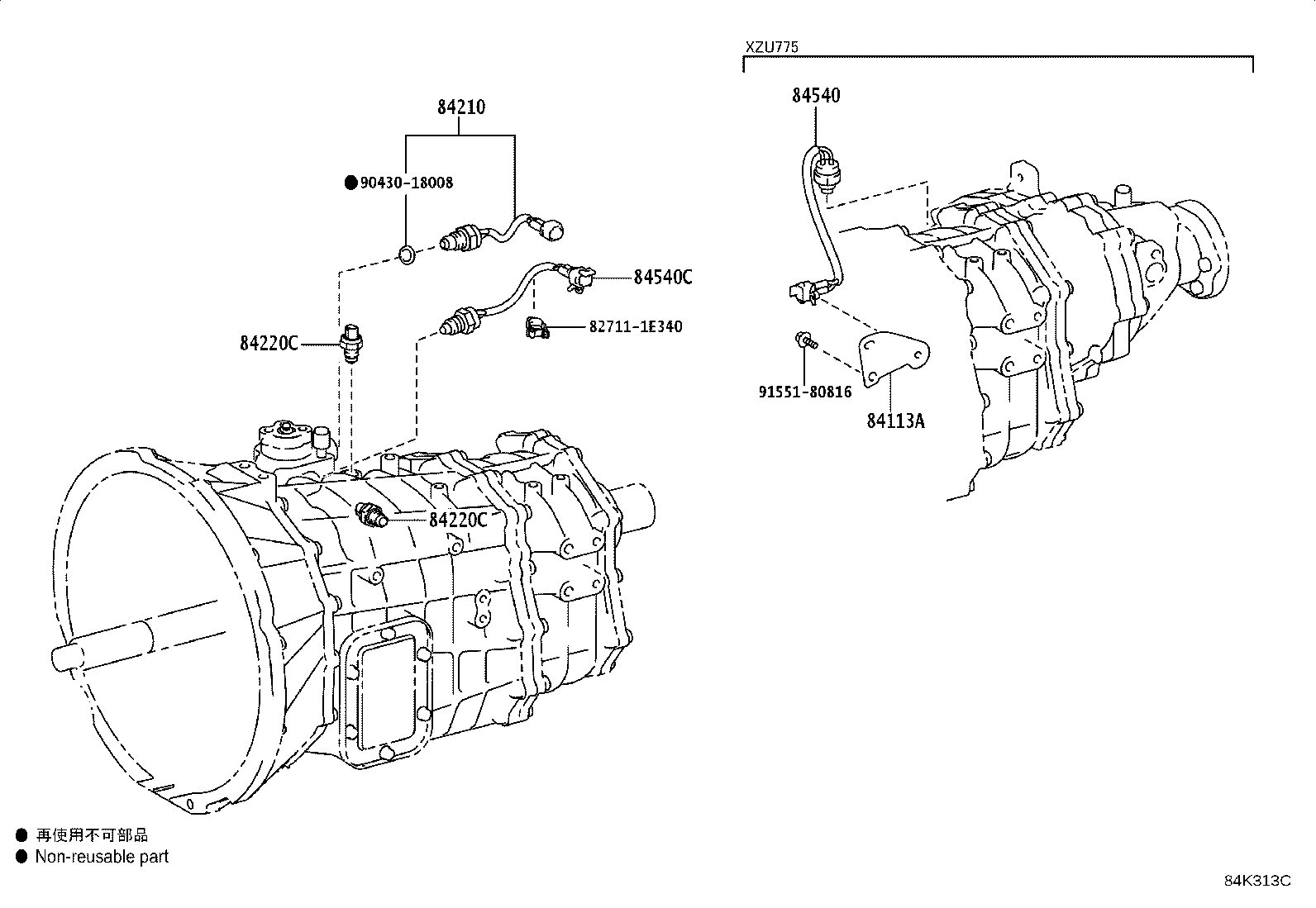

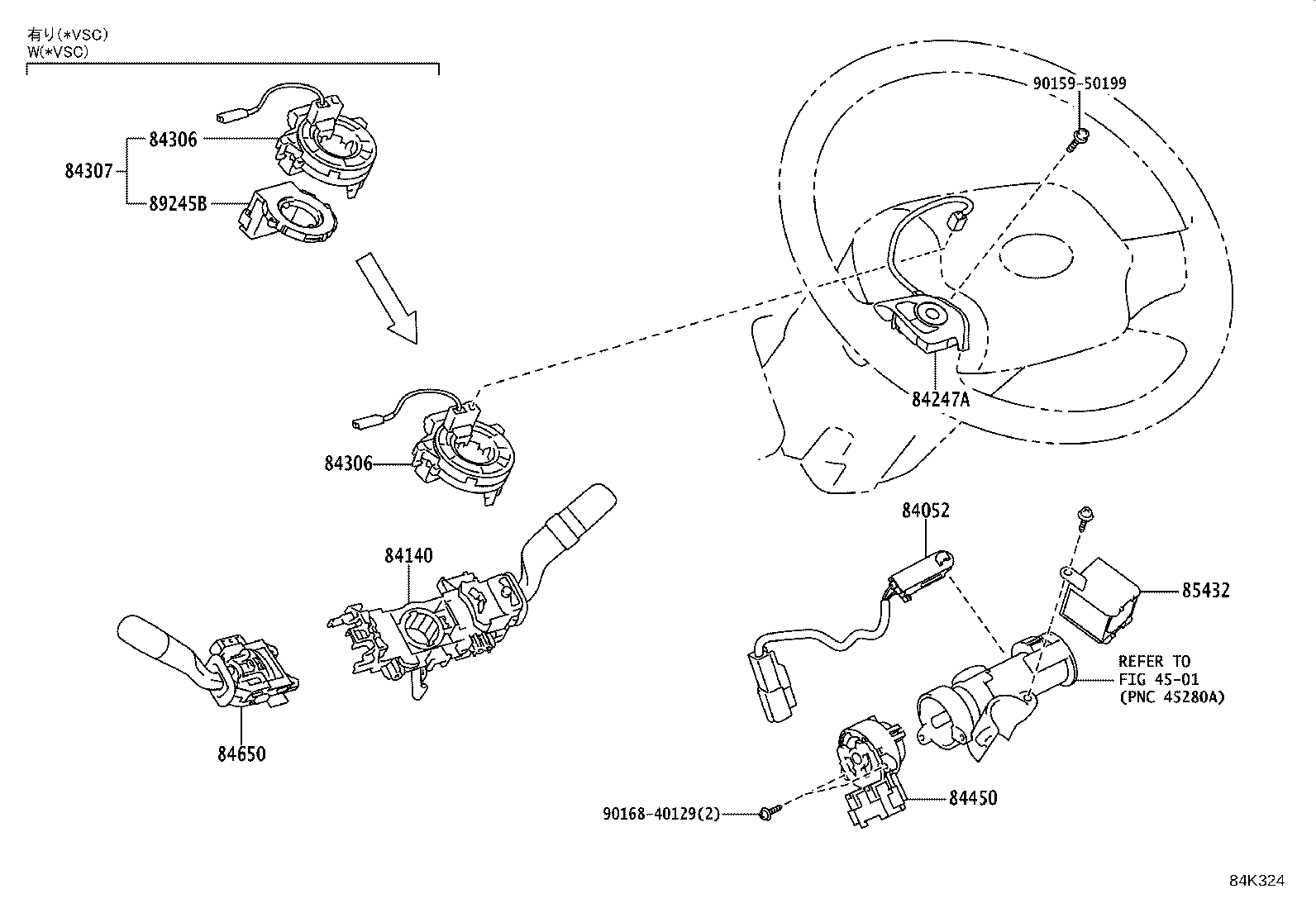

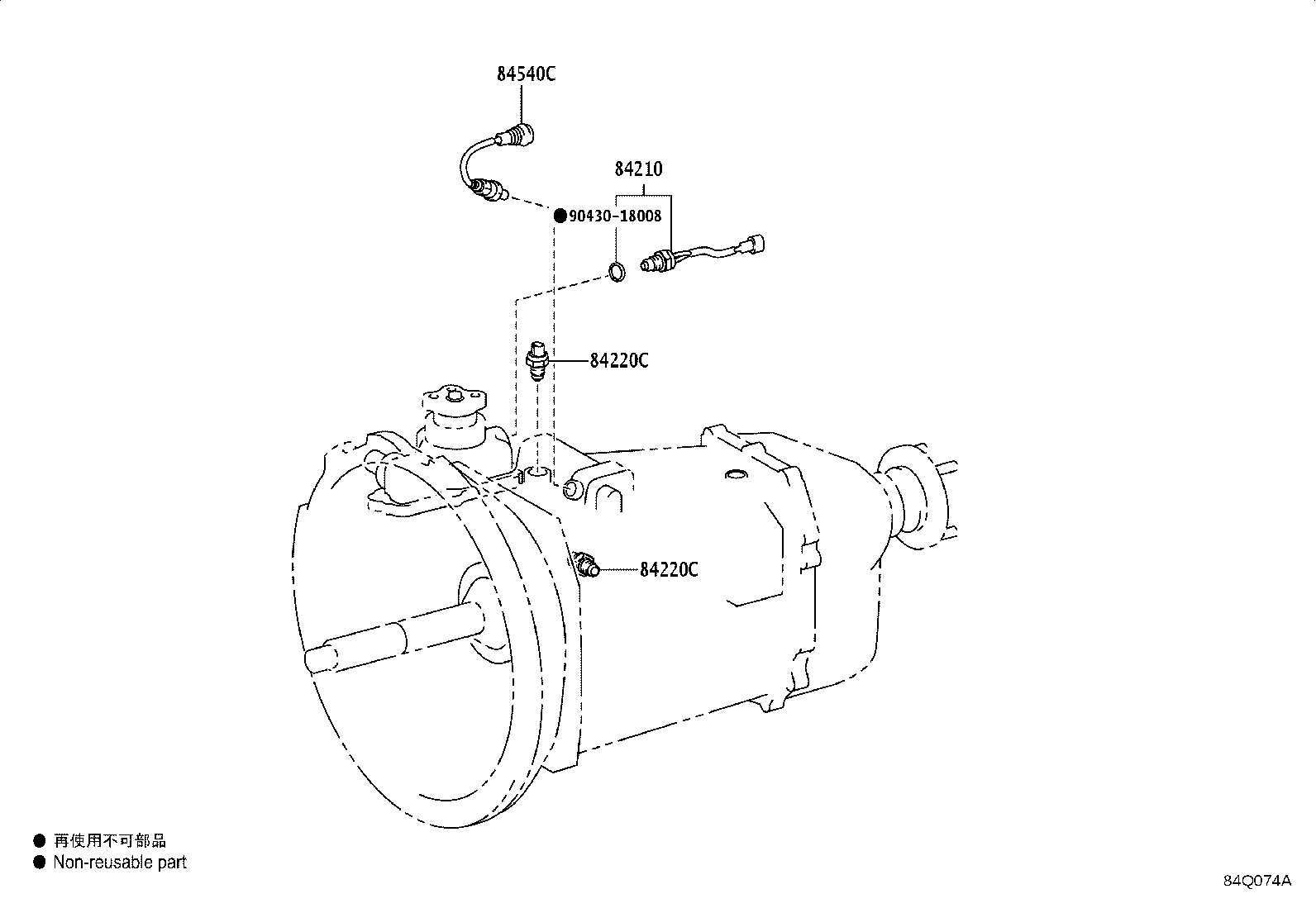

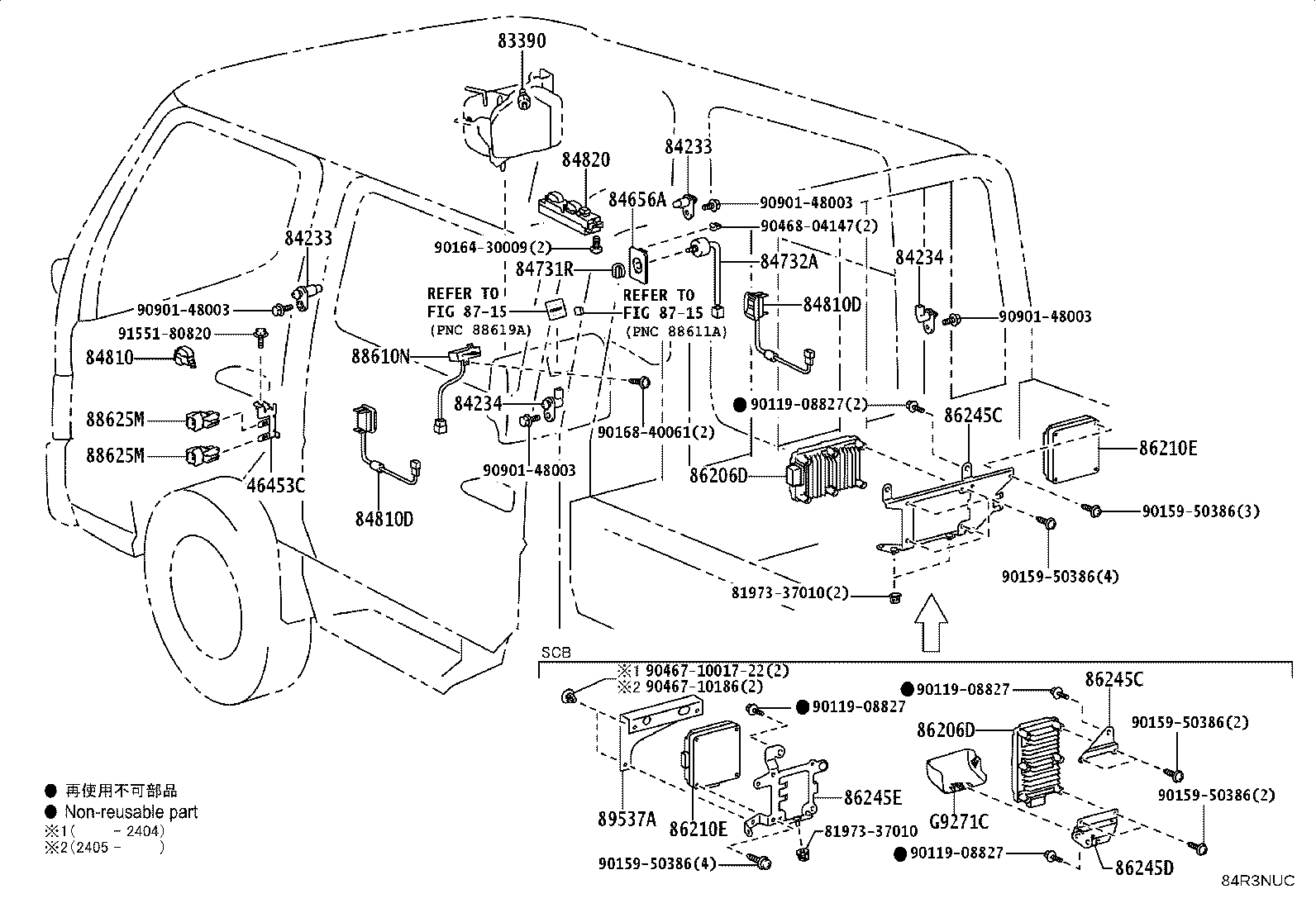

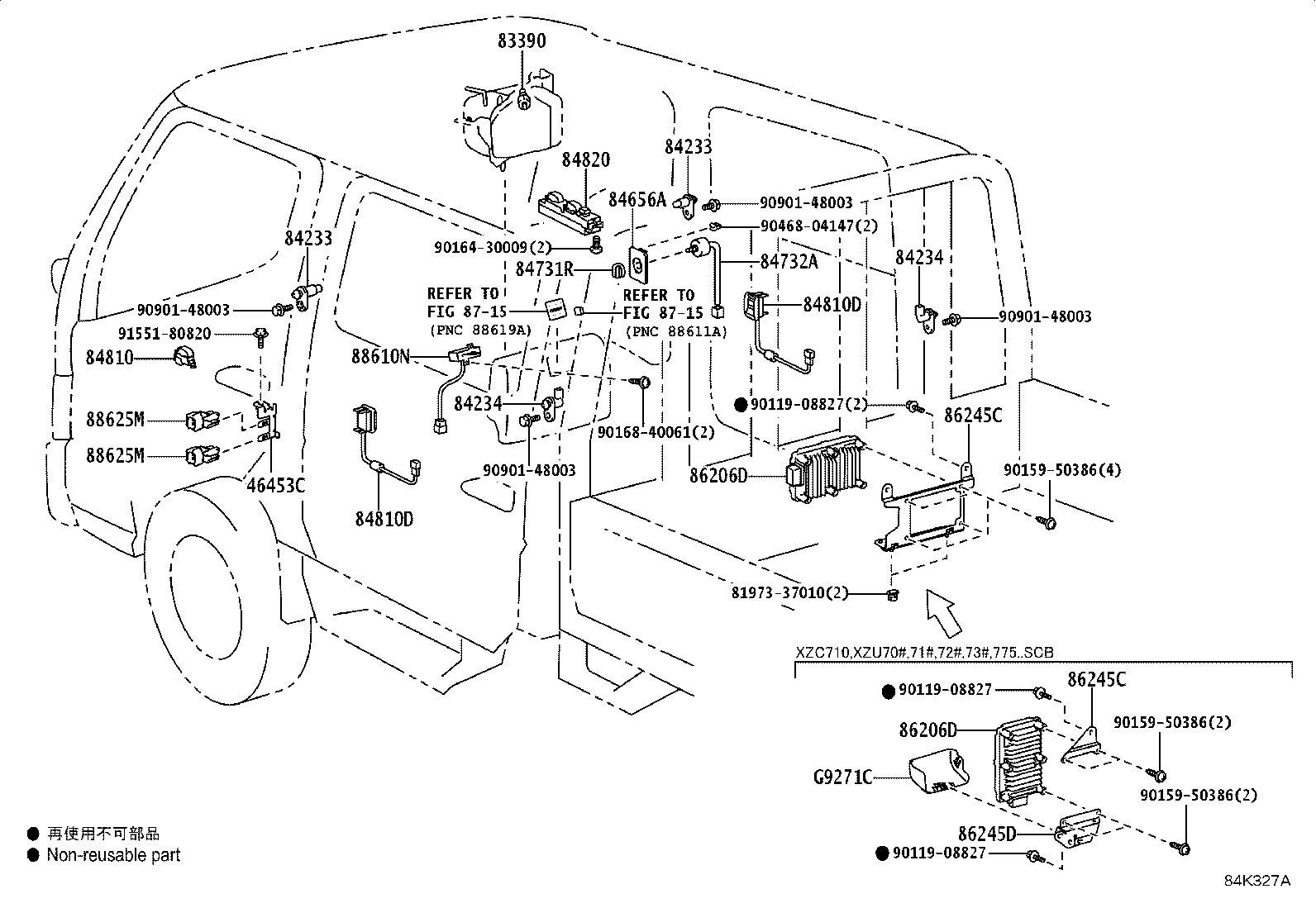

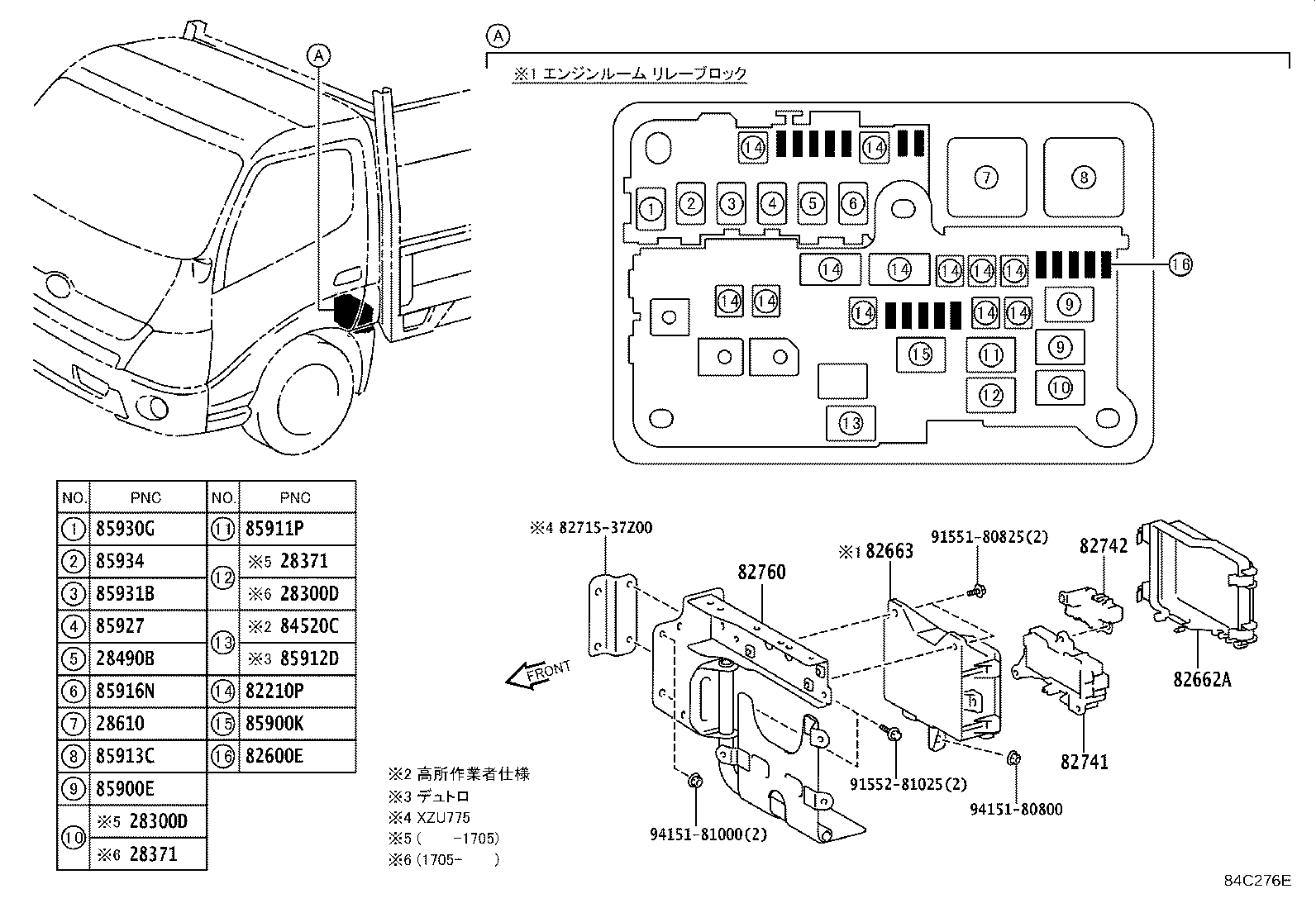

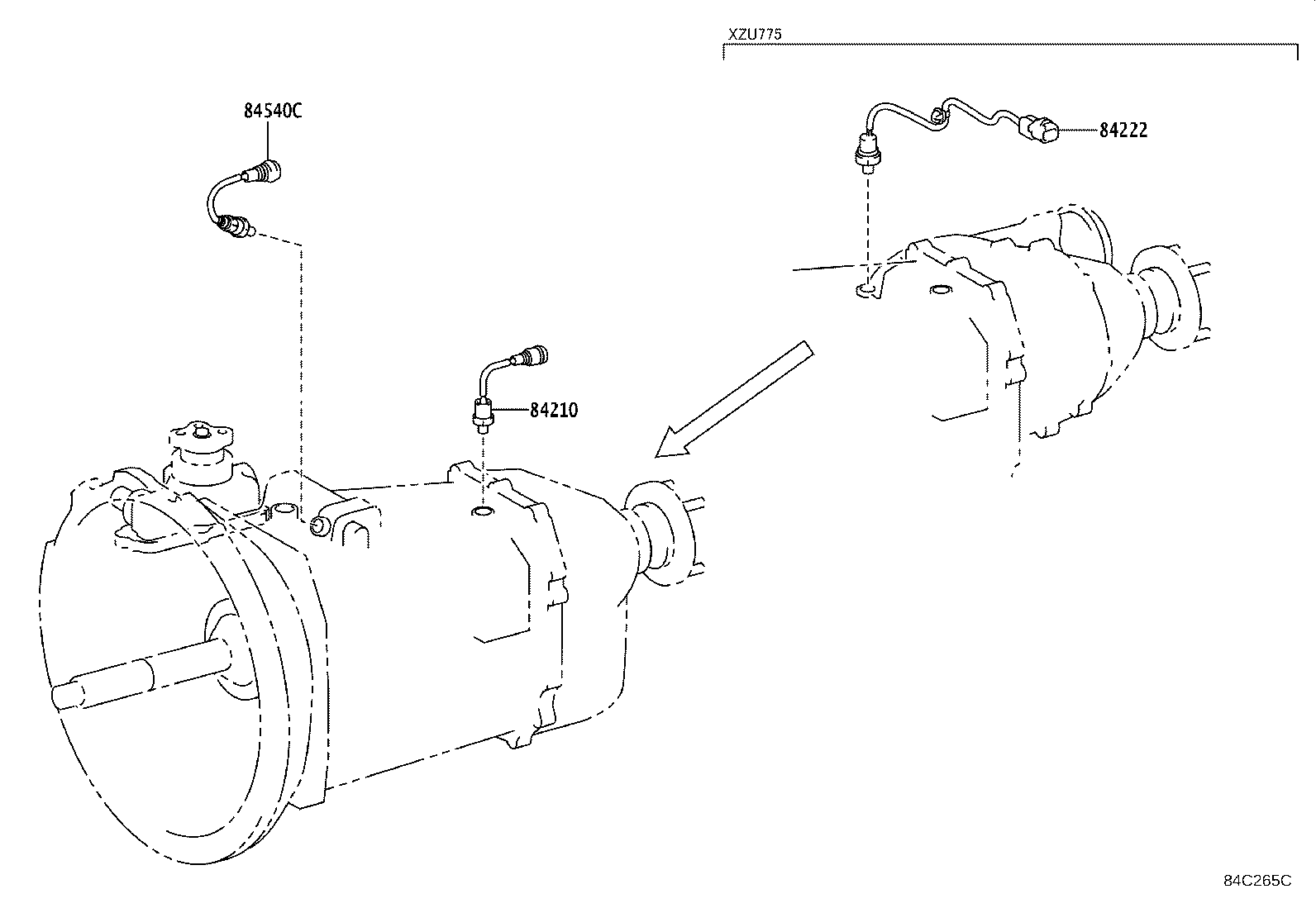

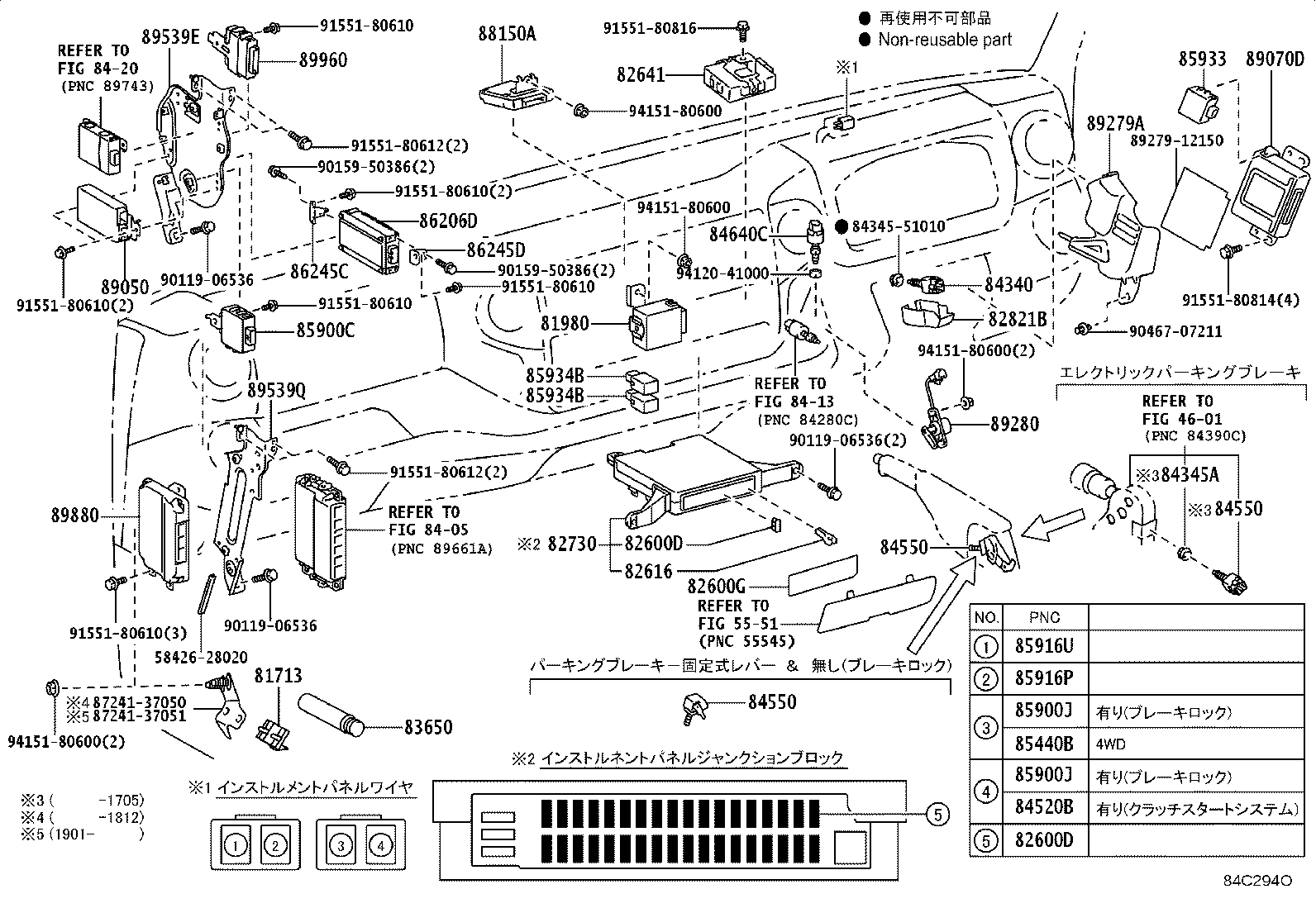

Figure 84C252H 84C252H 2011-07 → 2017-05 Figure 84I079B 84I079B 2017-05 → — Figure 84I077B 84I077B 2017-05 → — Figure 84K310D 84K310D 2019-05 → — Figure 84K311D 84K311D 2019-05 → — Figure 84K312D 84K312D 2019-05 → — Figure 84C261B 84C261B 2011-07 → — Figure 84C265C 84C265C 2011-07 → — Figure 84Q074A 84Q074A 2017-05 → — Figure 84H783A 84H783A 2011-07 → — Figure 84K313C 84K313C 2019-05 → — Figure 84L429 84L429 2019-05 → — Figure 84C276E 84C276E 2011-07 → — Figure 84K315B 84K315B 2019-05 → — Figure 84C294O 84C294O 2011-07 → — Figure 84K317D 84K317D 2019-05 → — Figure 84K318B 84K318B 2019-05 → — Figure 84C307C 84C307C 2011-07 → — Figure 84K321C 84K321C 2019-05 → — Figure 84C412 84C412 2011-07 → — Figure 84K324 84K324 2019-05 → — Figure 84C329B 84C329B 2011-07 → — Figure 84K327A 84K327A 2019-05 → 2023-10 Figure 84R3NUC 84R3NUC 2023-10 → — Figure 84C330H 84C330H 2011-07 → — Figure 84K329D 84K329D 2019-05 → —

Part groups

PNCDescription
17585B Bracket, Exhaust Pipe NO.2 Support
17586C Bracket, Exhaust Pipe NO.3 Support
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28490B Relay, Power Take-off Signal Reverse
28610 Relay Assy, Intake Heater OR Glow Plug
46453C Bracket, Holder
55173A Bracket
55173F Bracket, Electrical Part
55173G Bracket, Electrical Part, NO.2
78314B Nut, Throttle Control Cable Knob
78411B Knob, Throttle Control Cable
81713 Holder, Fusee
81980 Flasher Assy, Turn Signal
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600G Plate, Caution(FOR FUSE)
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82642B Relay, Day Time Running Light, NO.1
82660D Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82715W Bracket, Wiring Harness Clamp
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82760 Bracket Assy, Relay Block
82821B Cover, Connector
82823K Cap, Terminal
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83380 Switch Assy, Presure
83380A Switch Assy, Pressure
83380C Switch Assy, Pressure, NO.2
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84172 Switch, Room Lamp
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84222 Switch, Transfer Indicator, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84270A Switch Assy, Mirror Heater
84270B Switch Assy, Brake Lock
84270D Switch Assy, ES Start Timing
84270K Switch Assy, Dpr
84270L Switch Assy, Idle Stop
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345A Adjuster, Parking Brake Switch Mounting
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84512 Switch, Tilt Cab Control
84520B Relay, Clutch Start
84520C Relay, Neutral Signal Reverse
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84580E Switch Assy, Throttle Position
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84722F Switch, Transmission Control
84724 Switch, 4 Wheel Drive Control
84731R Knob, Rear Heater Blower Switch
84732A Switch, Rear Heater Blower
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84873A Switch, Retractable Outer Mirror
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85440B Relay(FOR FOUR WHEEL DRIVE CONTROL)
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85900C Relay Assy, Control Unit (FOR BRAKE LOCK)
85900E Relay, Idle Stop
85900J Relay, Brake Lock
85900K Relay Assy, Control Unit (FOR ELECTRIC PARKING BRAKE)
85900R Relay, DC/DC Cut
85909C Bracket Sub-assy, Relay, NO.1
85911P Relay, Actuator Power
85912D Relay
85913C Relay, Heater, NO.1
85916C Relay, Back UP Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85919E Relay, Stop Lamp
85927 Relay, Cooling Fan
85930G Relay, Acc
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85934B Relay, Idle Stop
85941 Relay, Windshield Washer
85942 Relay, Headlamp Cleaner Control
86206D Converter Sub-assy, Voltage
86210E Converter Assy, Voltage
86245C Bracket, Voltage Converter
86245D Bracket, Voltage Converter, NO.2
86245E Bracket, Voltage Converter, NO.3
86650B Buzzer Assy, Reverse Warning
86650E Buzzer Assy
87290F Switch Assy, Eco
88150A Computer Assy, Driving Support
88610N Switch Assy, Cooler Control
88625M Thermistor, Cooler
89050 Computer Assy, Parking Brake
89070D Computer Assy, Transmission Control
89120A Sensor, Automatic Light Control
89129 Bracket, Conlight Scanner
89221B Computer, Body
89245B Sensor, Steering
89279A Cover, Computer
89280 Sensor Assy, Clutch Pedal Stroke
89401A Sensor, Suspension Stroke, Front(FOR DISCHARGE HEADLAMP)
89402 Sensor, Suspension Stroke, Rear(FOR DISCHARGE HEADLAMP)
89420M Sensor Assy, Air Pressure
89424G Sensor, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89437 Cover, Sensor
89437B Cover, Sensor
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89458D Sensor, Fuel Pressure
89458G Sensor, Fuel Pressure, NO.2
89463A Sensor, Nitrogen Oxides
89463B Relay, Nitrogen Oxides
89463D Sensor, Nitrogen Oxides, NO.2
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89530C Computer Assy, Transmission Control
89537A Cover, Computer
89539E Bracket, Computer
89539Q Bracket, Computer
89880 Computer Assy, Electric Vehicle Control
89960 Computer Assy, Headlamp Leveling
G9271C Cover, Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
