Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12
Seat & Seat Track
689 part groups · 65 illustrations
Illustrations
710881L

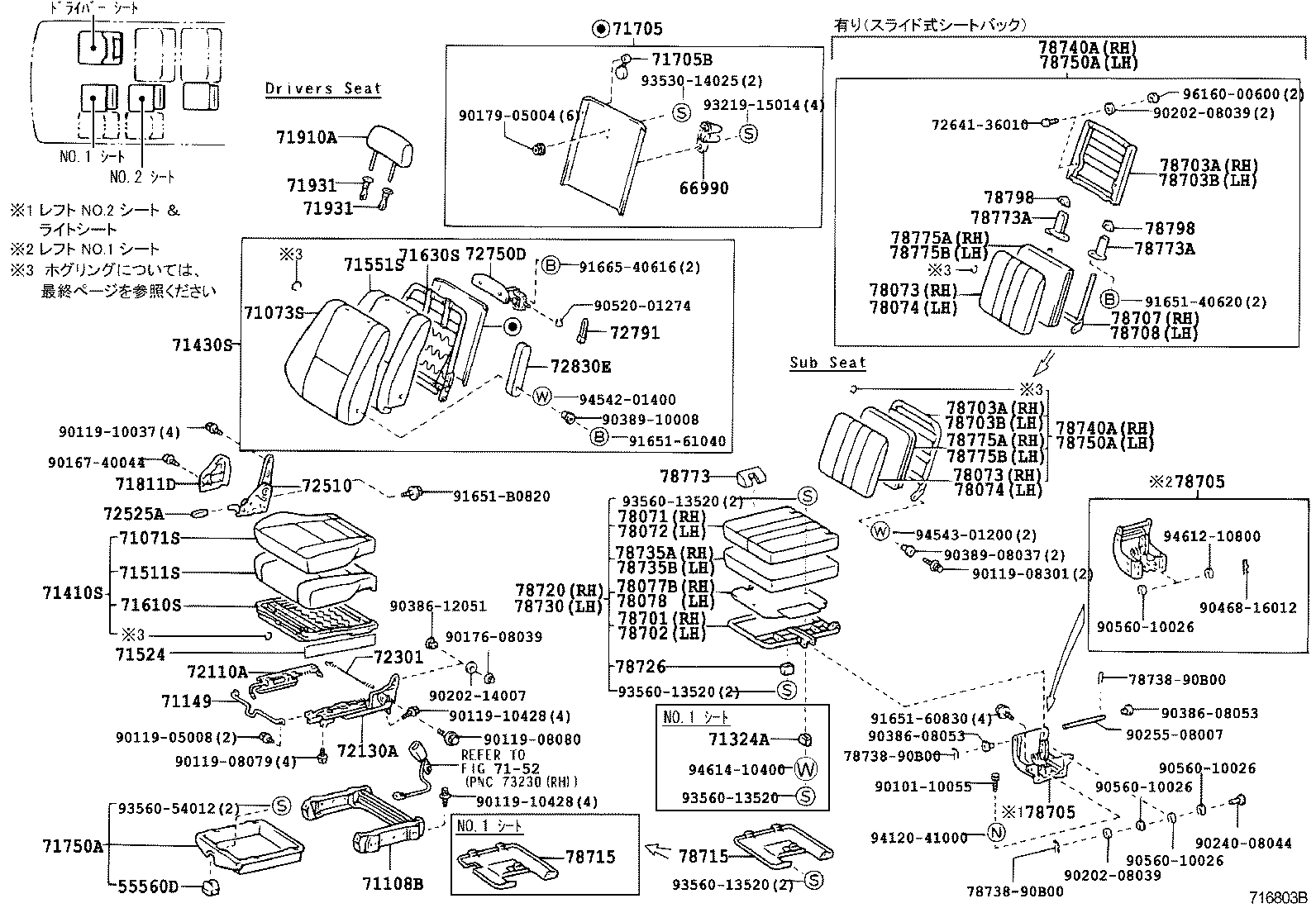

716803B

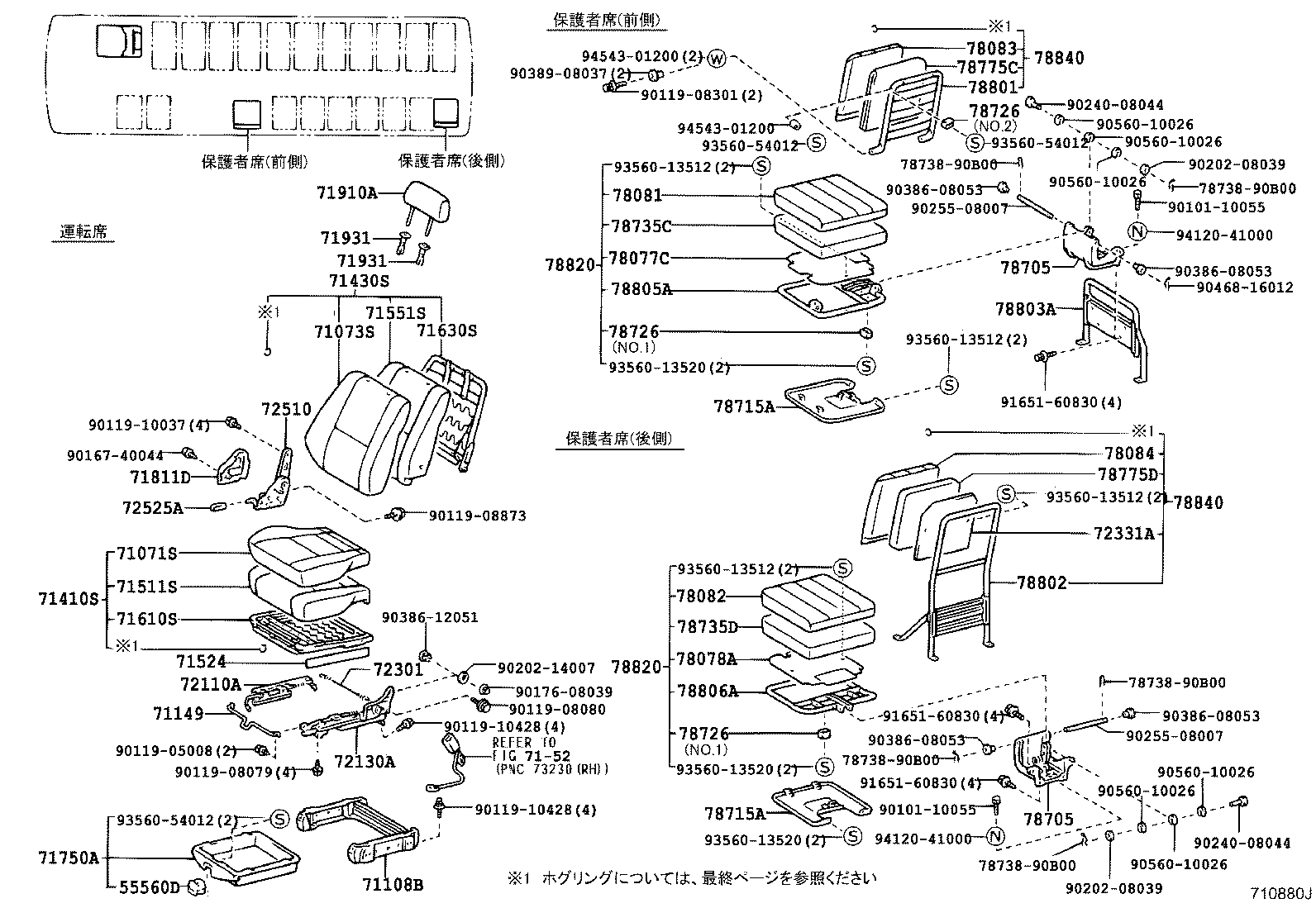

710880J

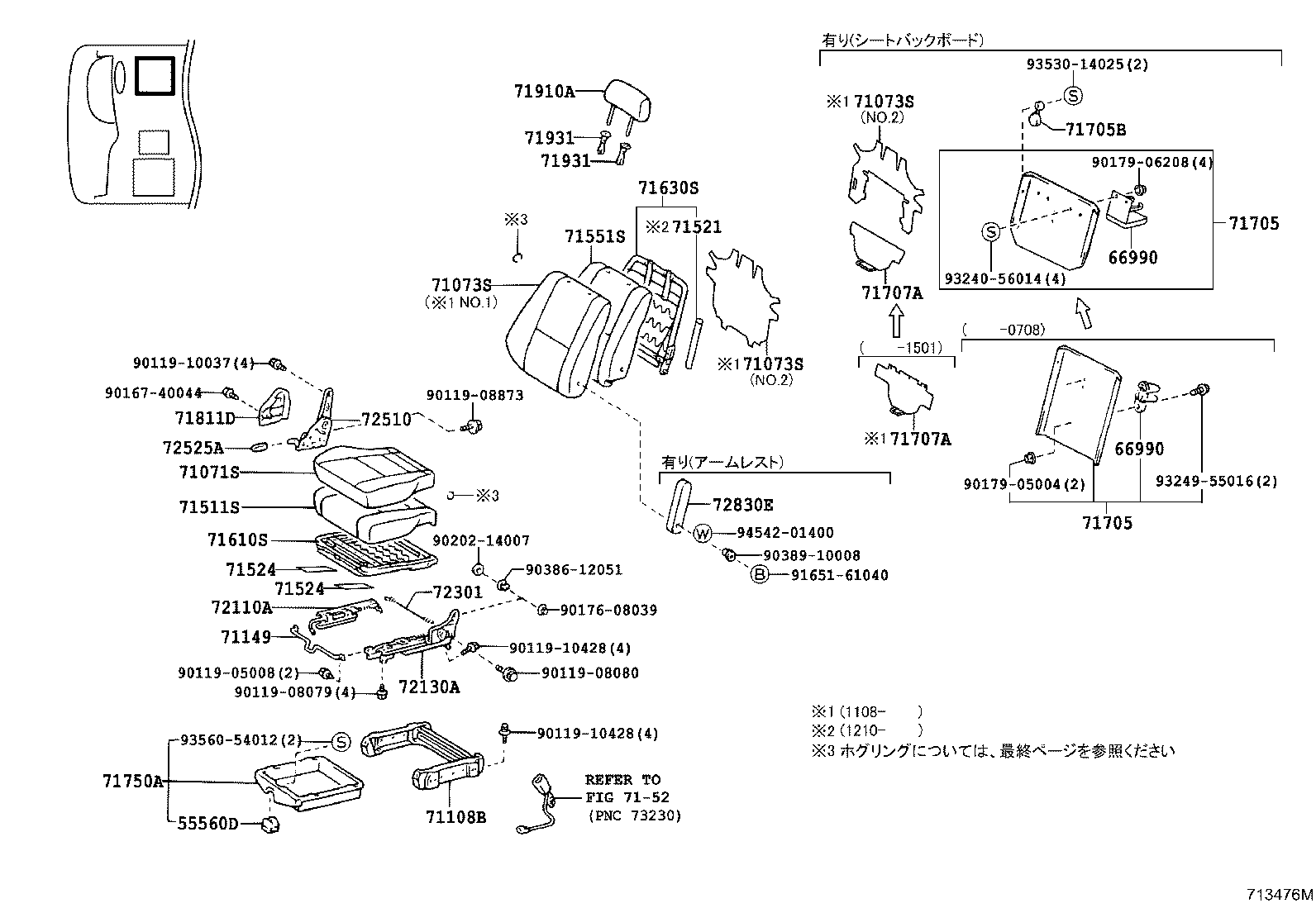

713476M

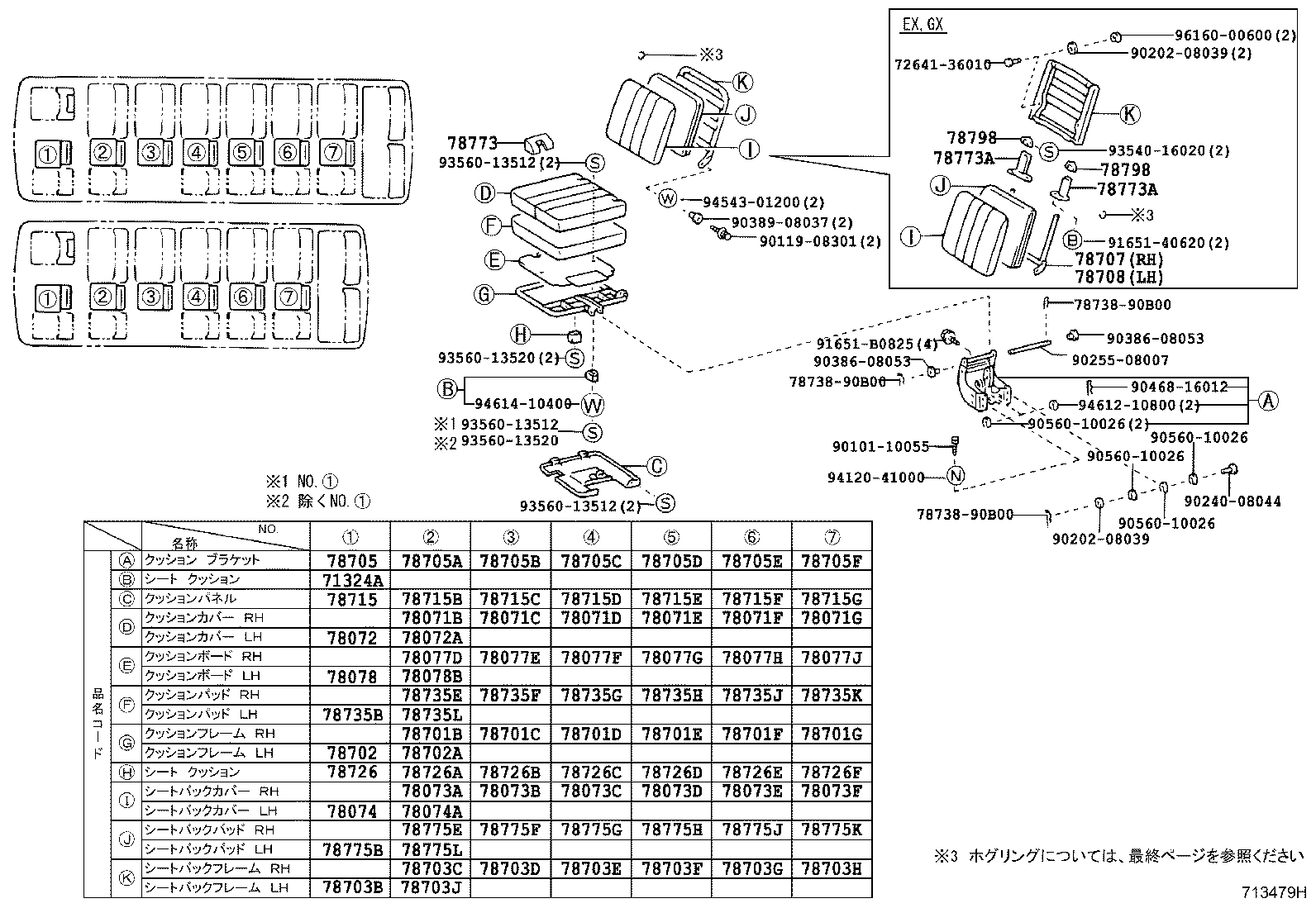

713479H

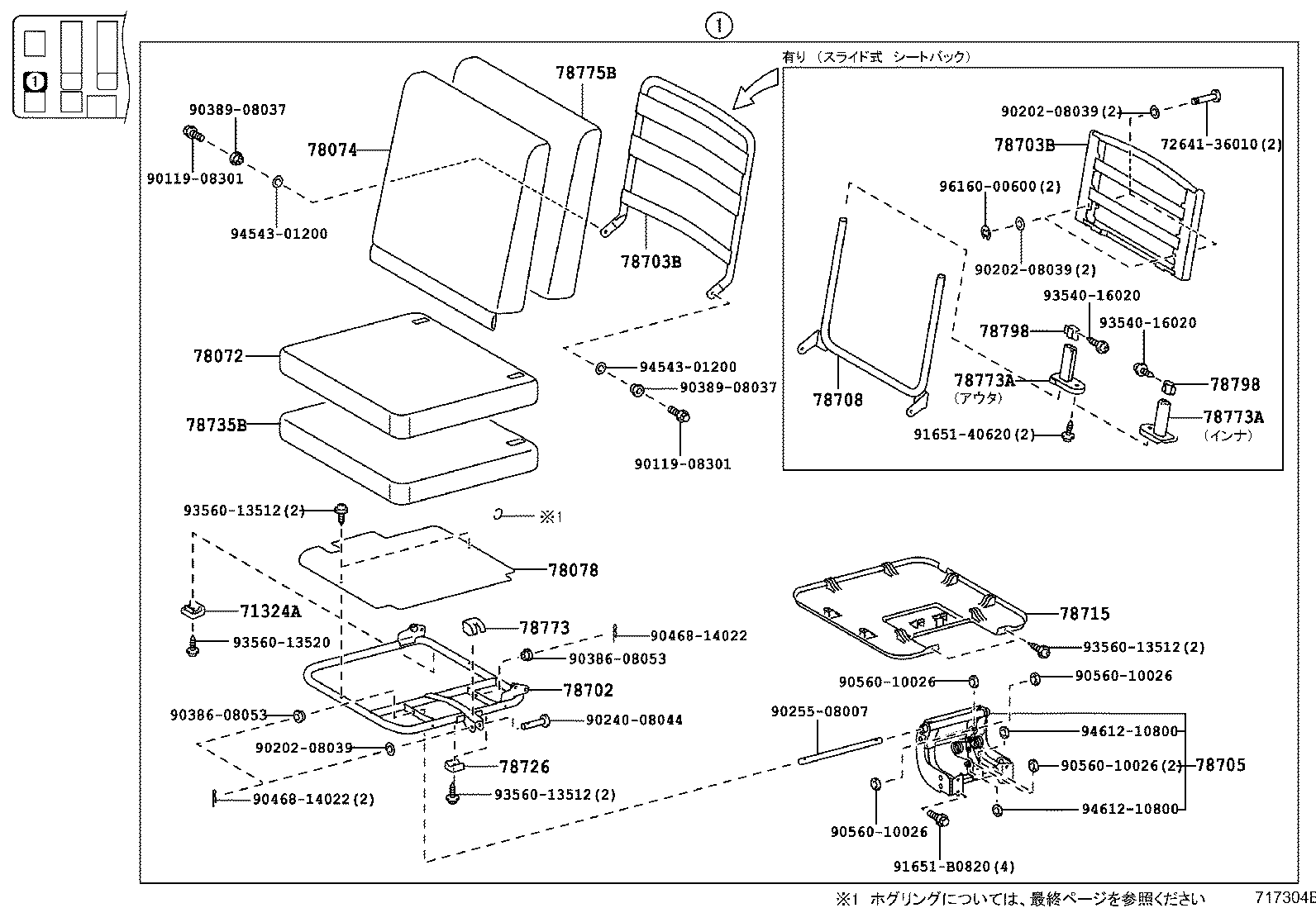

717304B

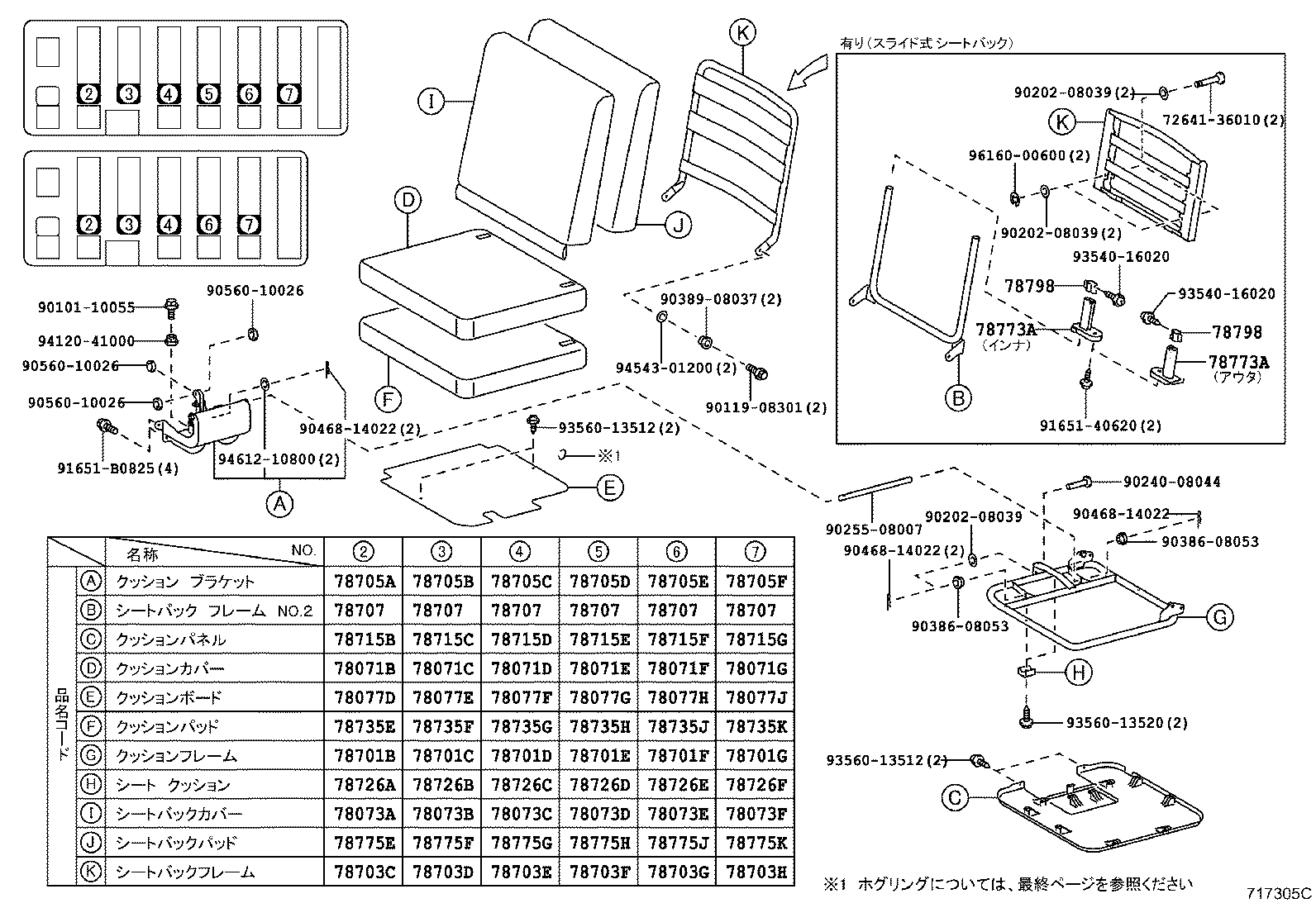

717305C

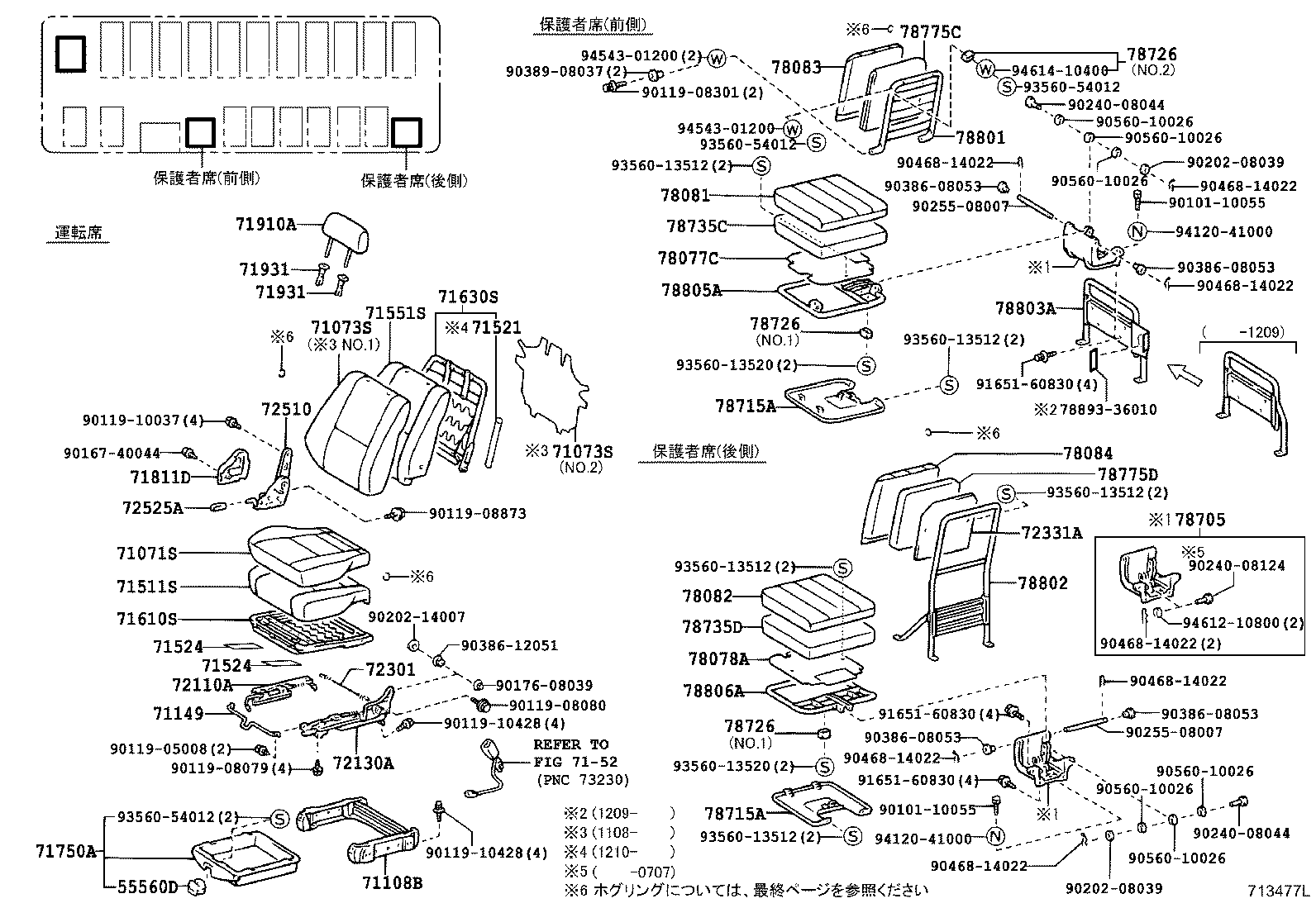

713477L

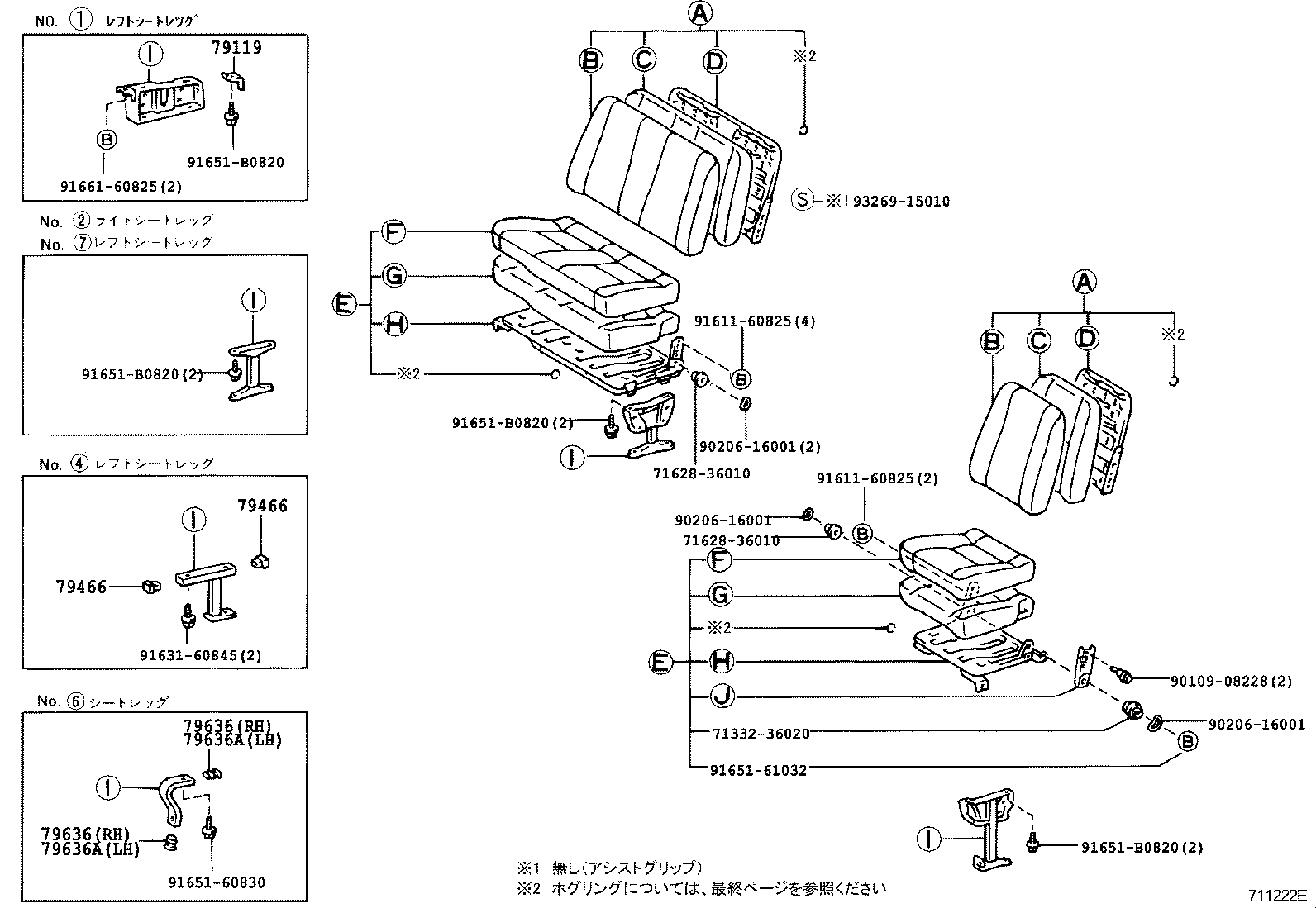

711222E

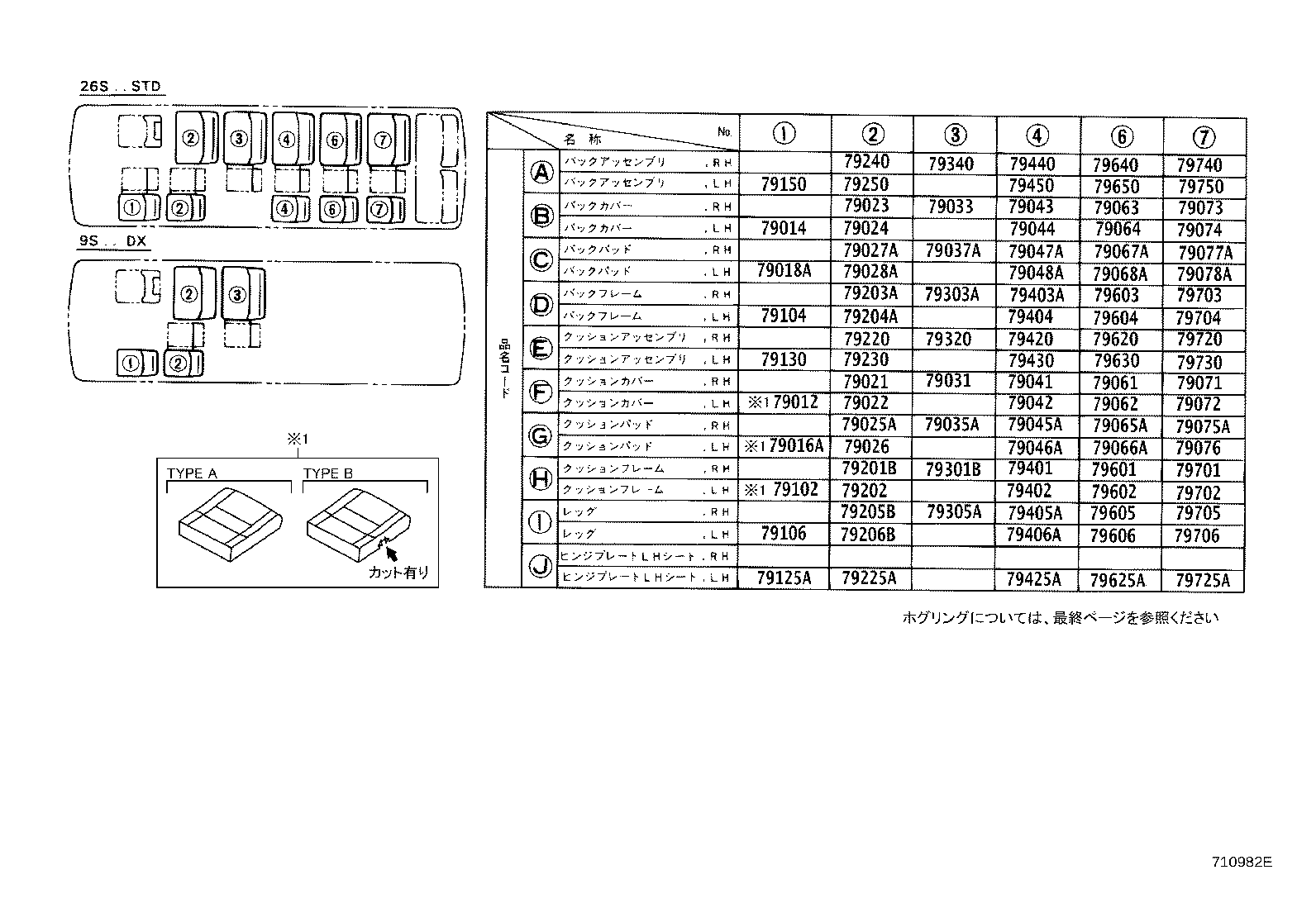

710982E

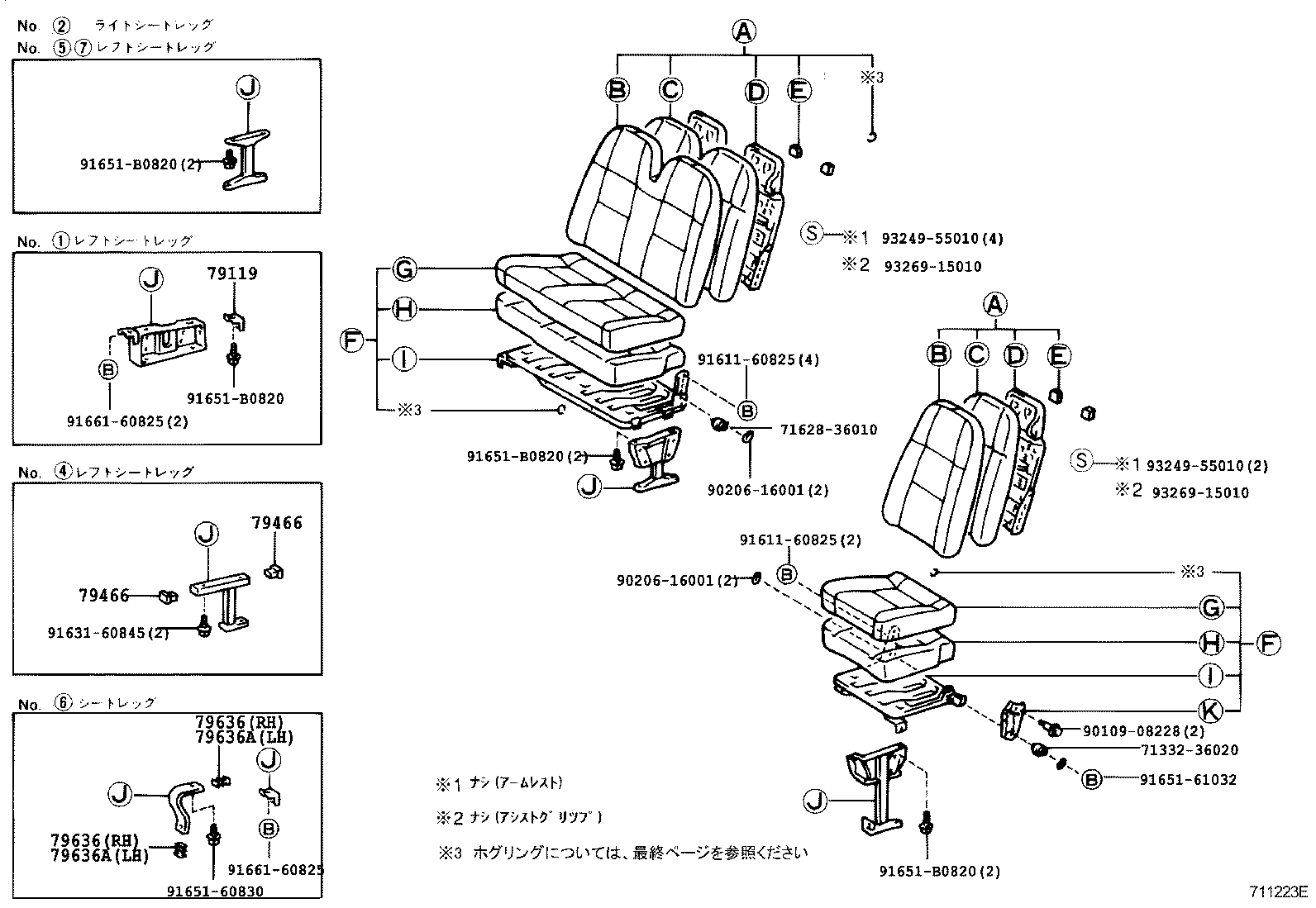

711223E
711223E

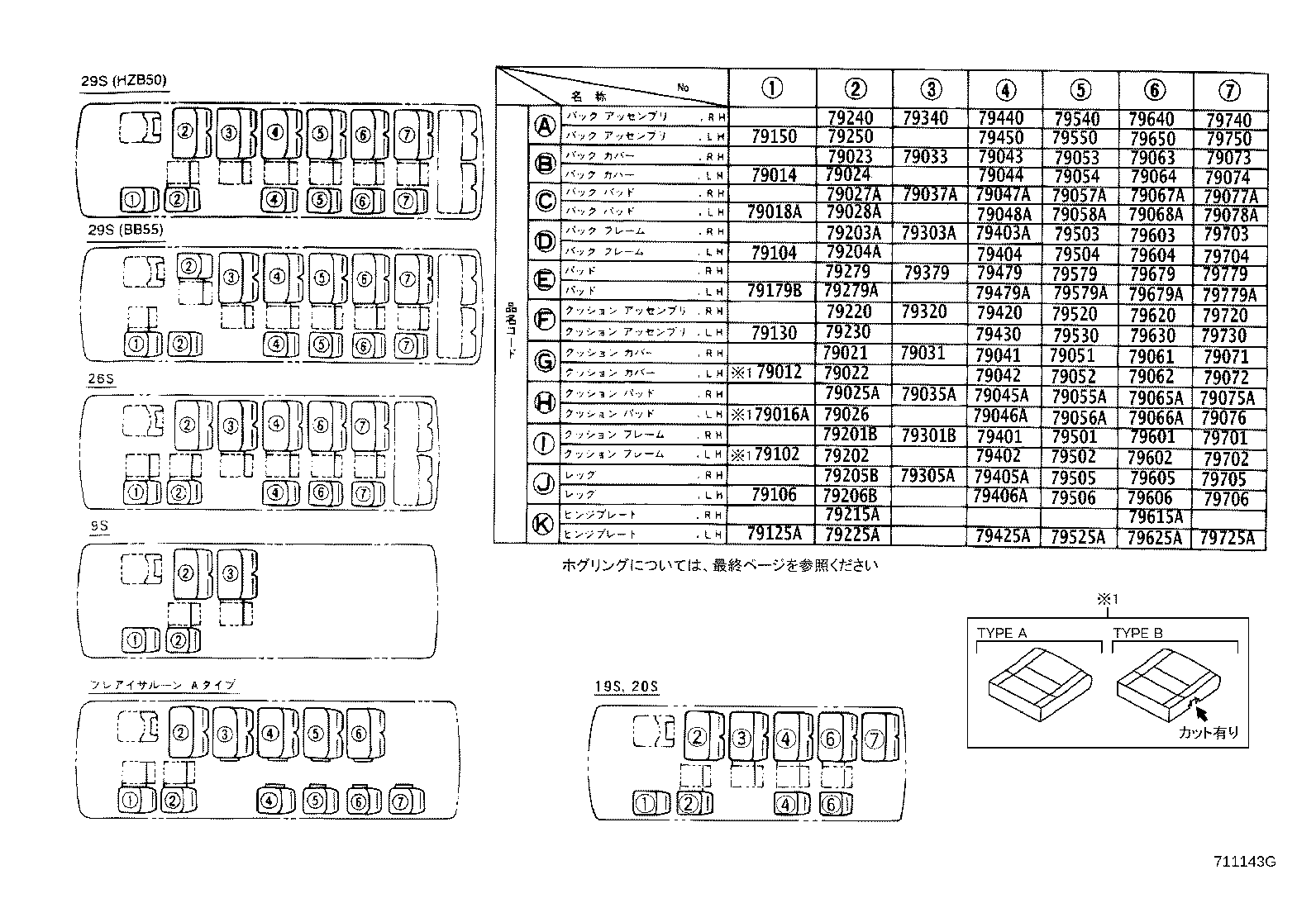

711143G
711143G

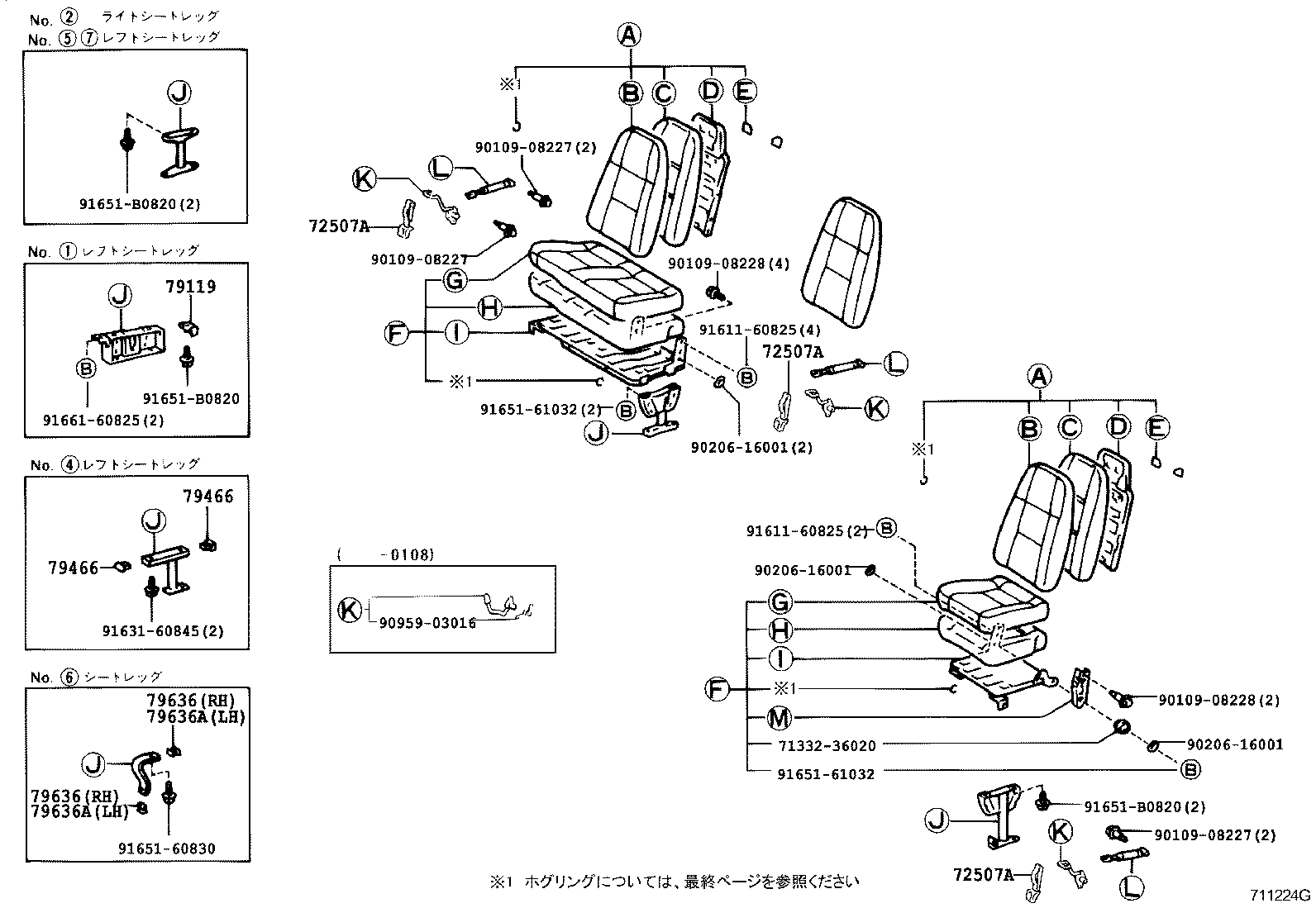

711224G

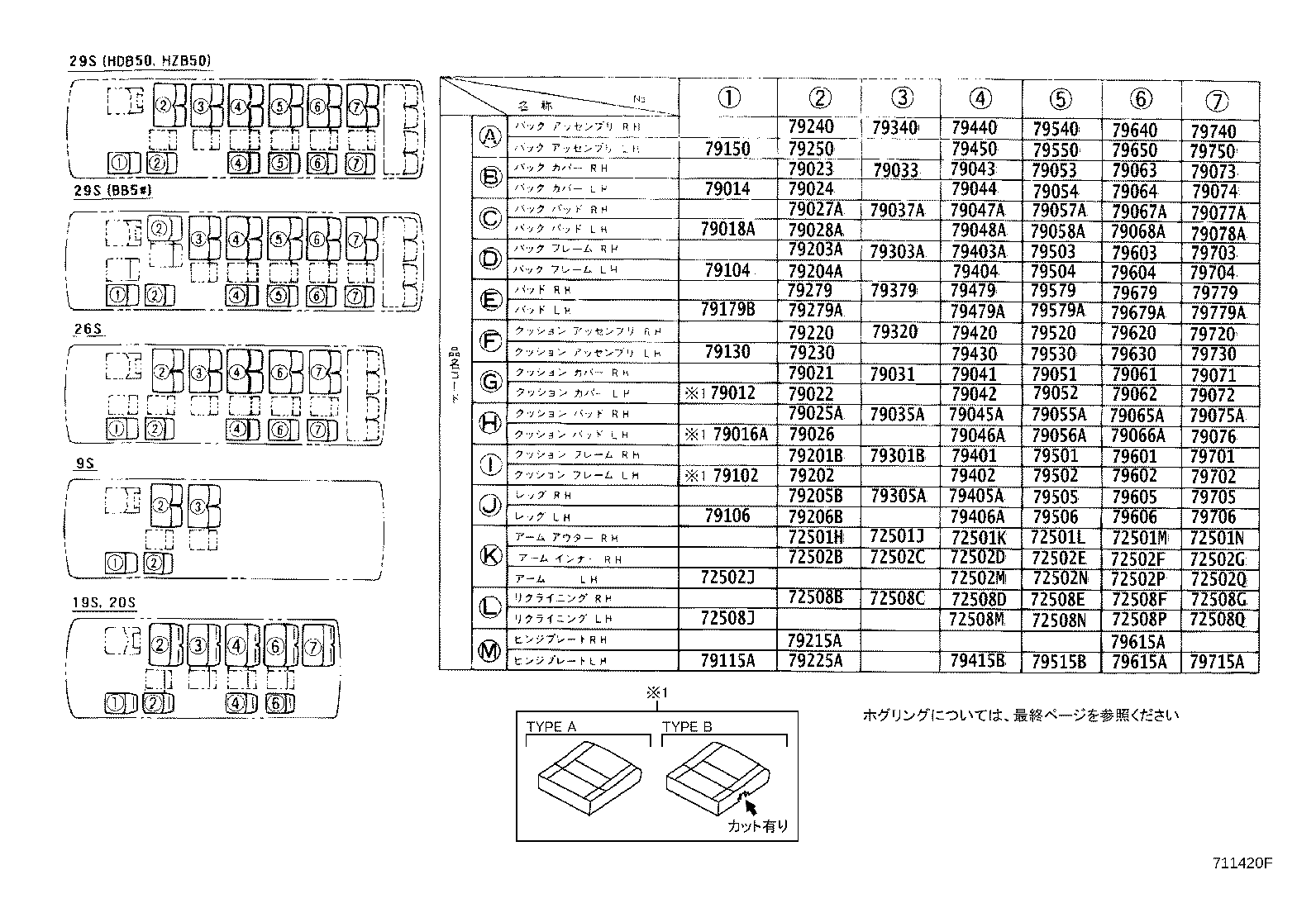

711420F

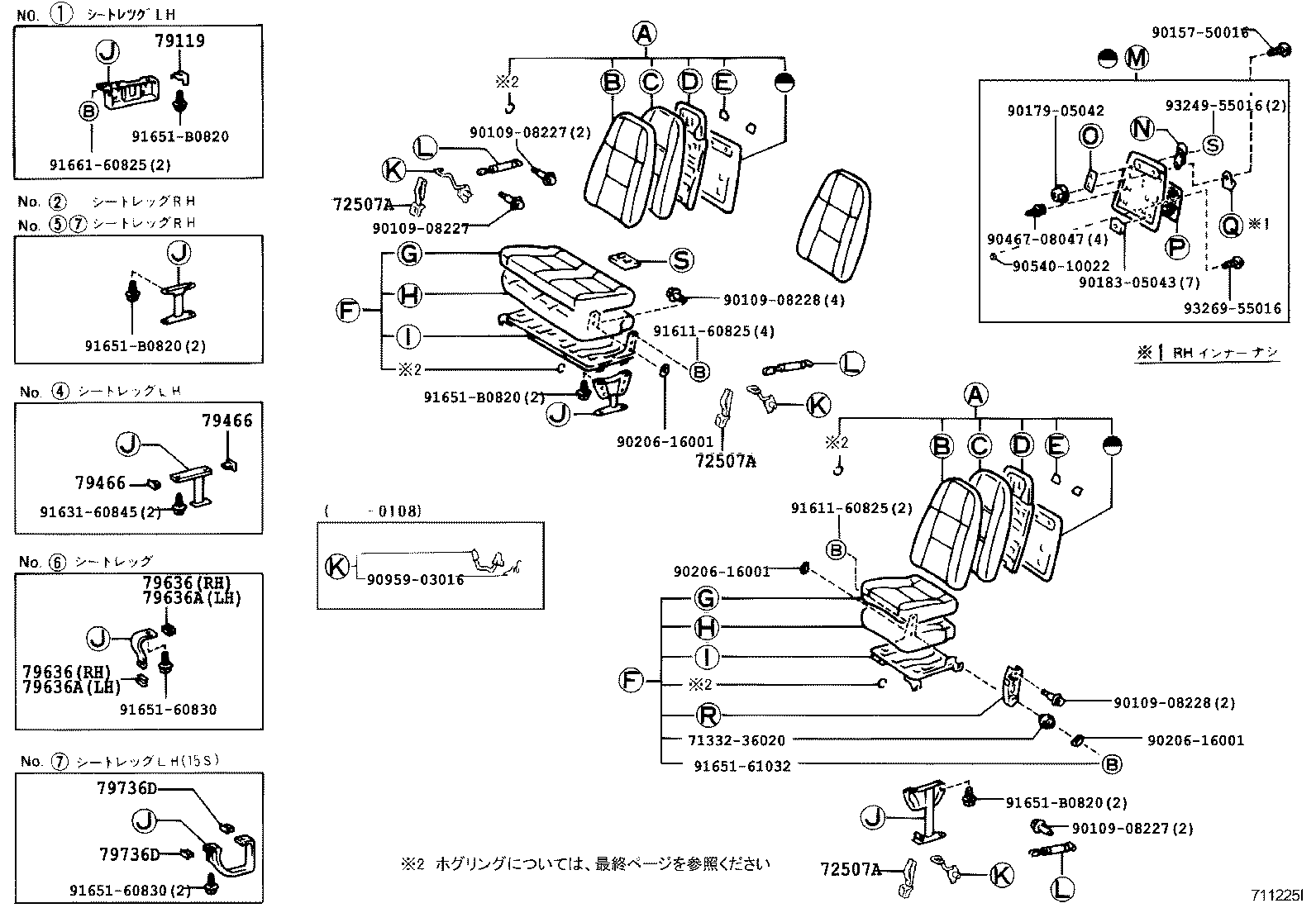

711225I

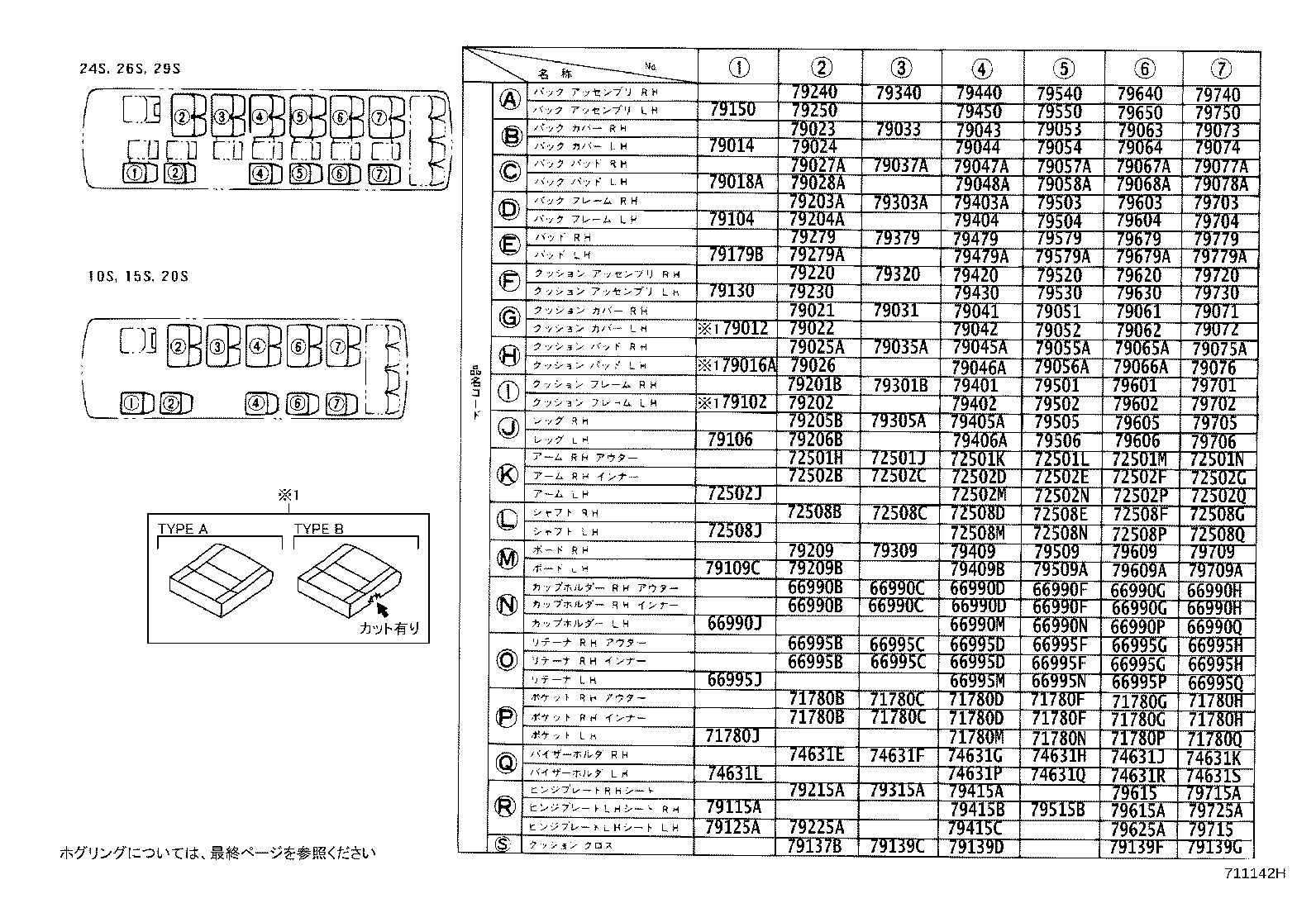

711142H

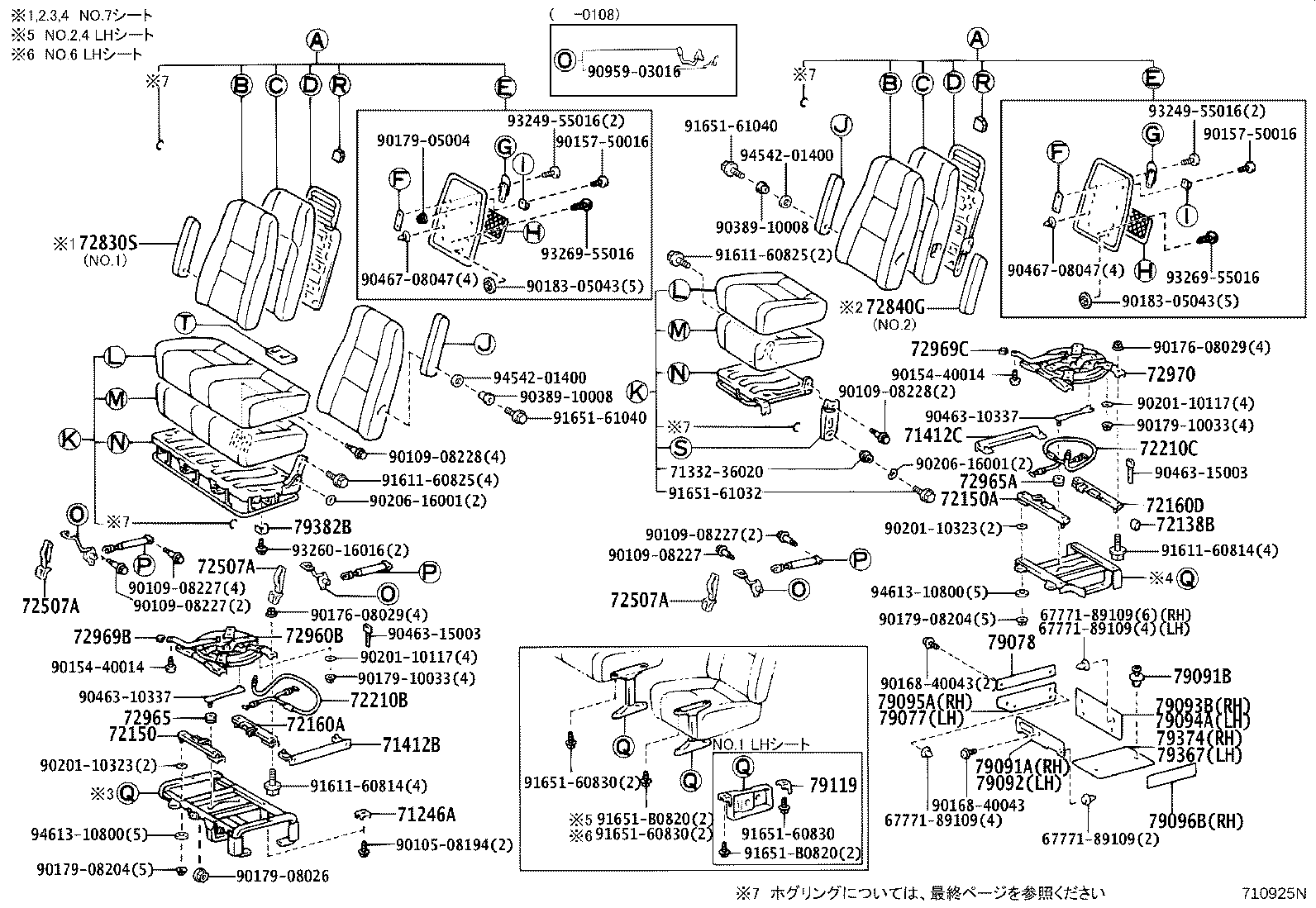

710925N

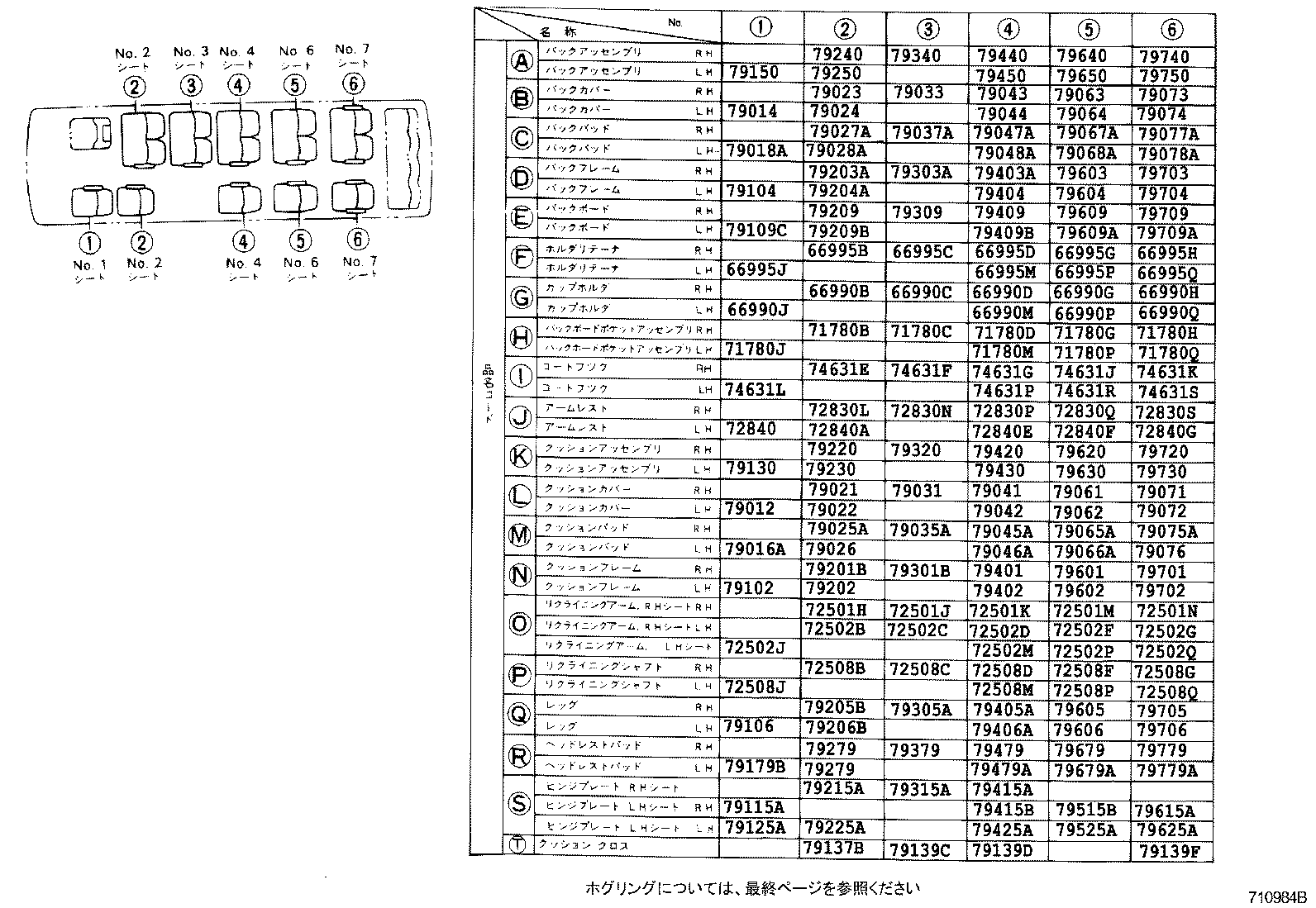

710984B

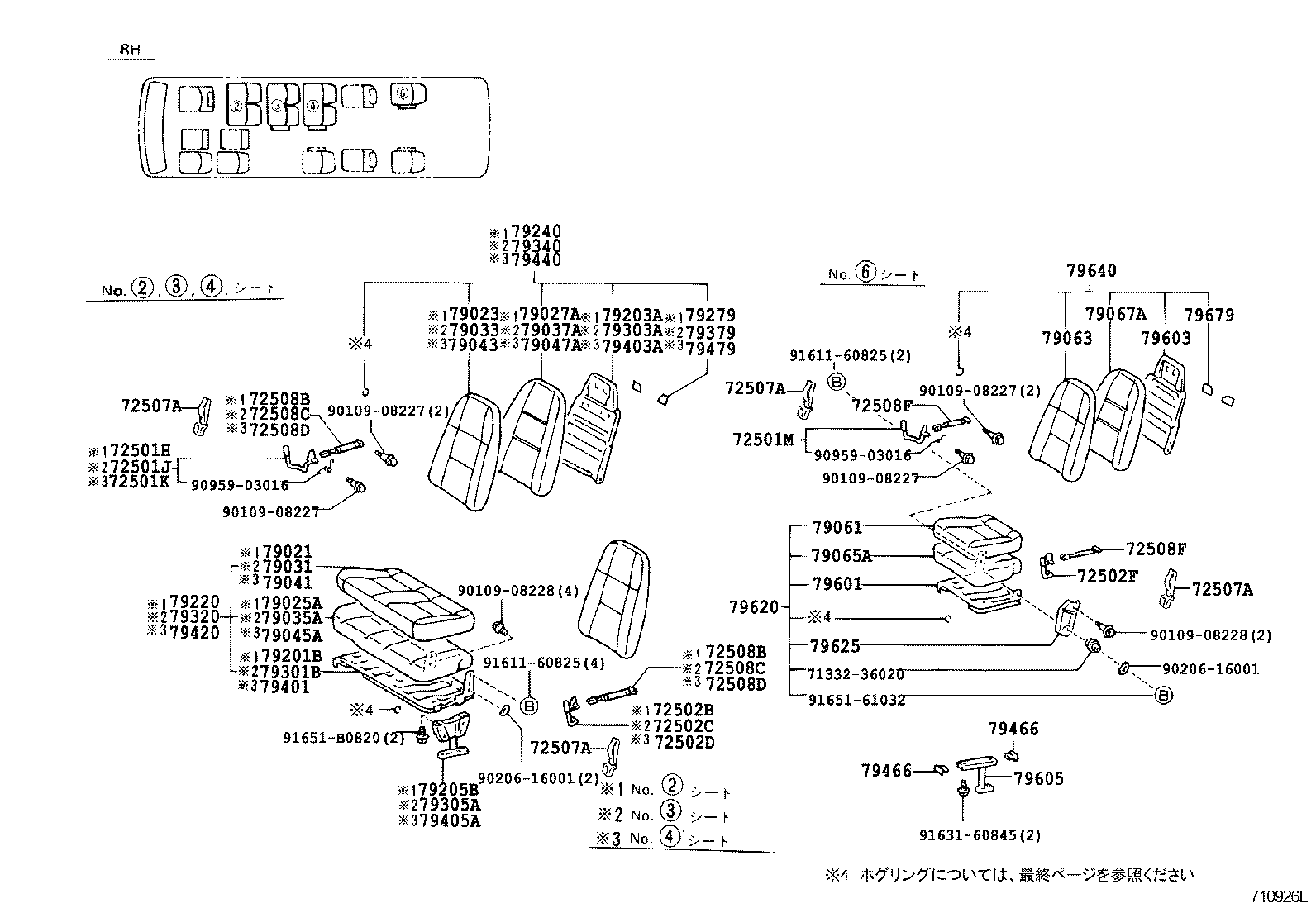

710926L

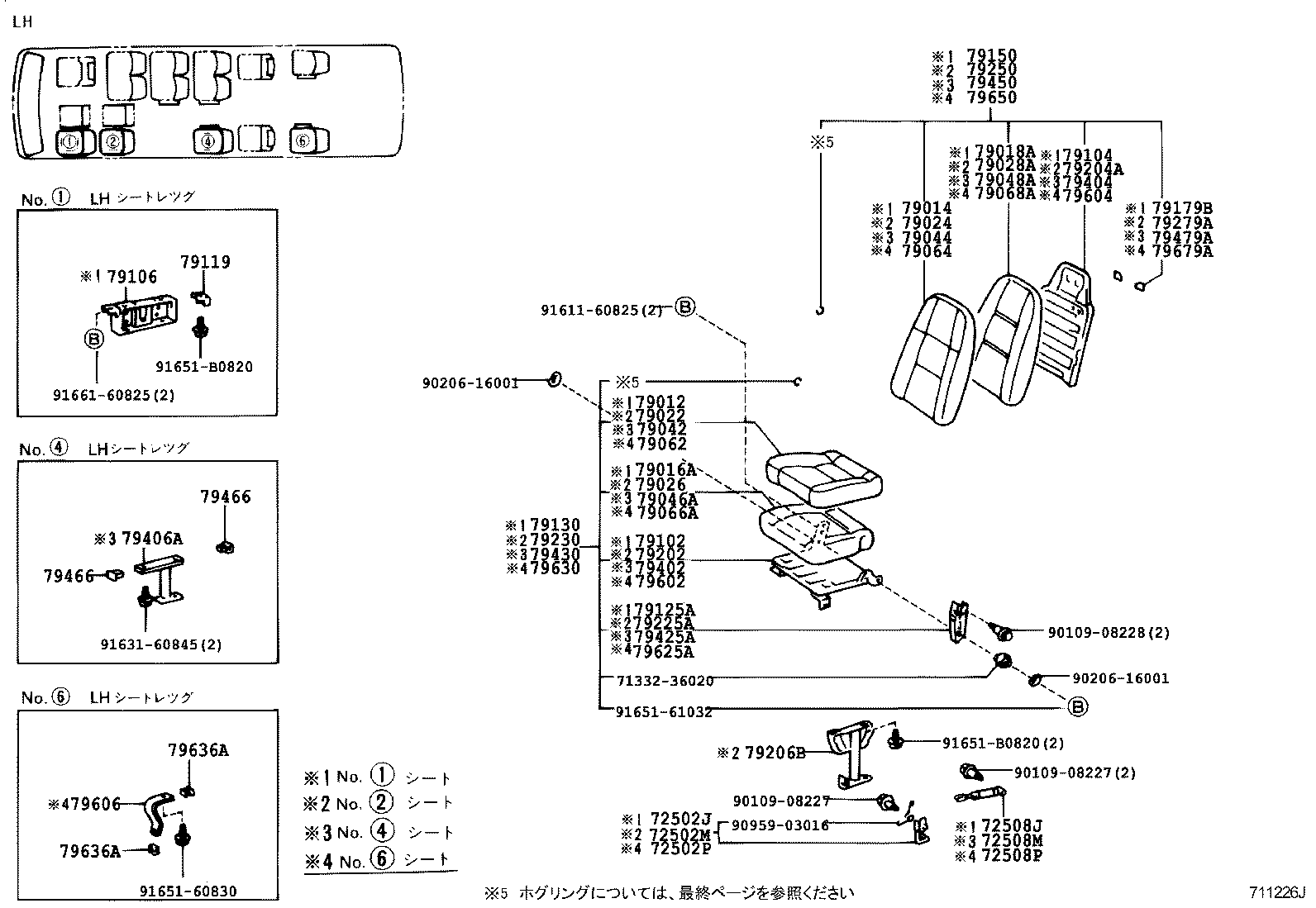

711226J

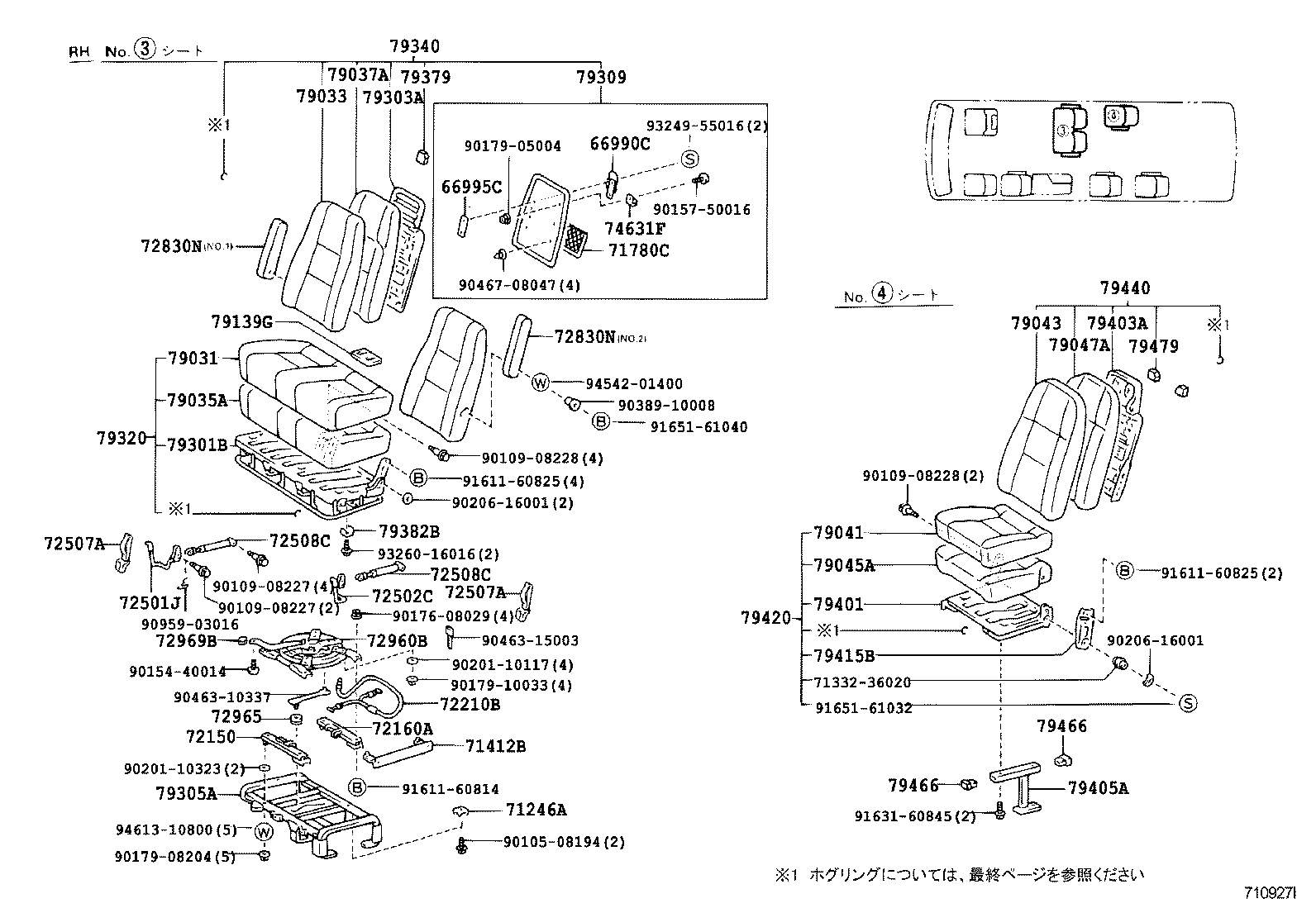

710927I

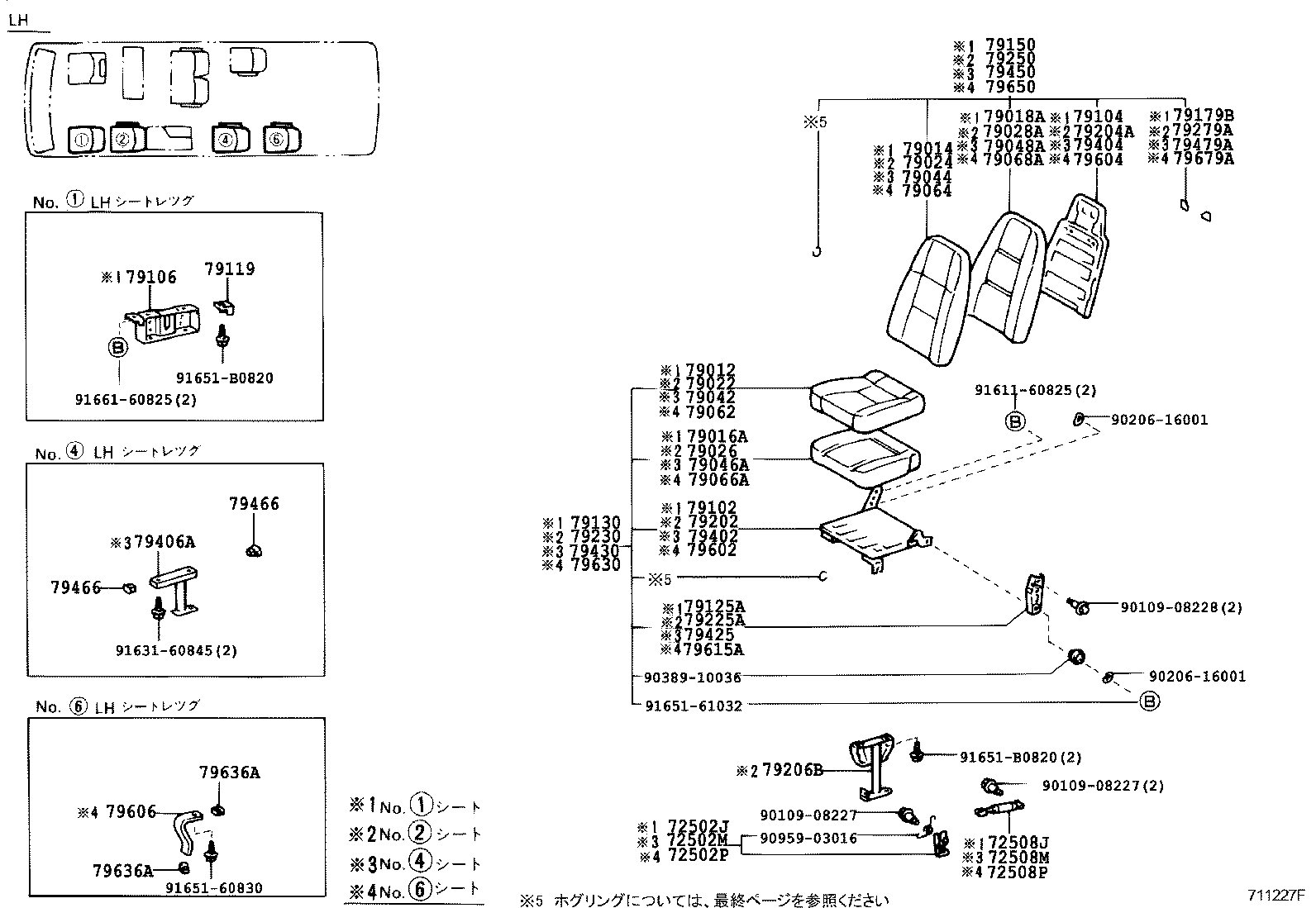

711227F

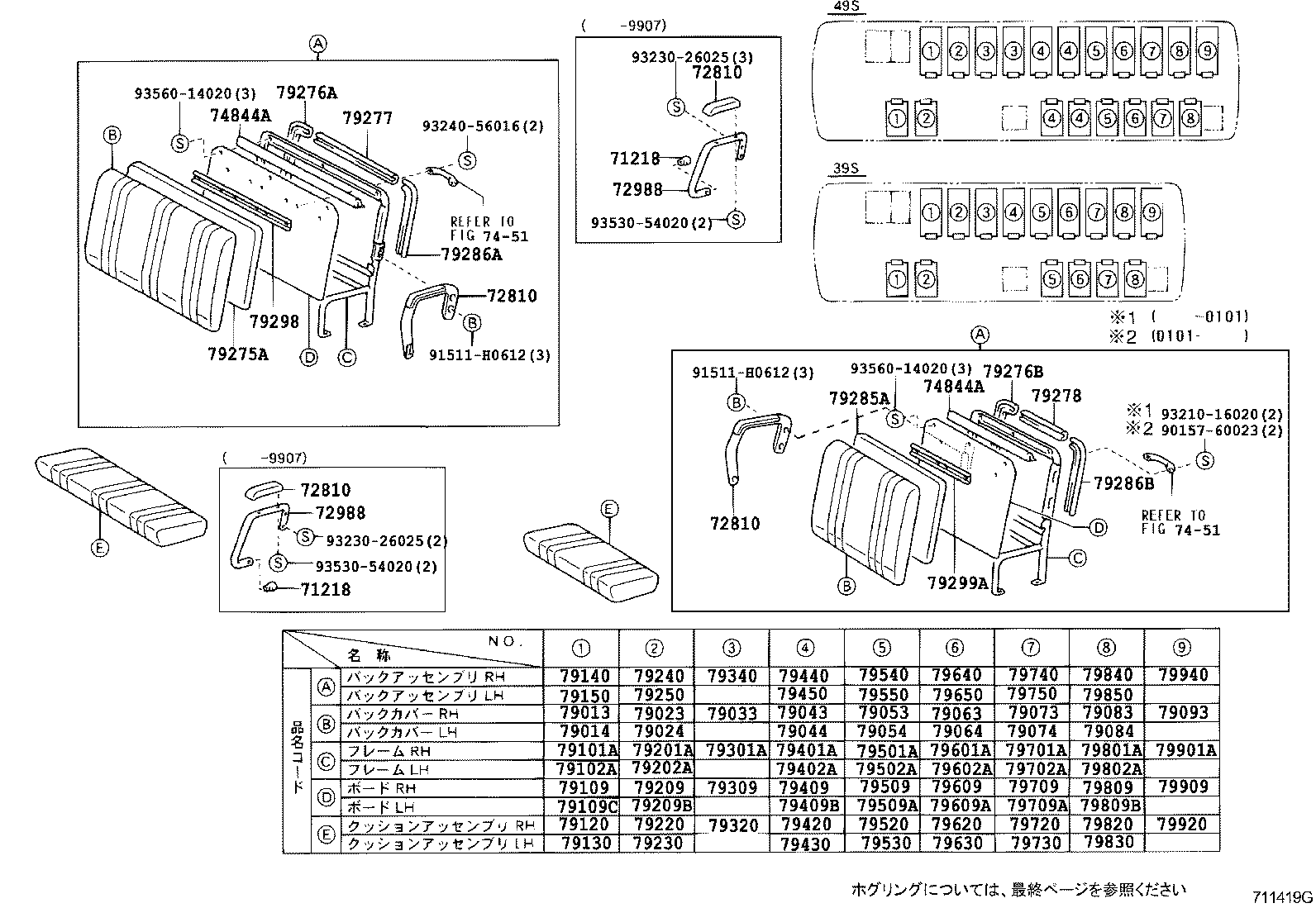

711419G

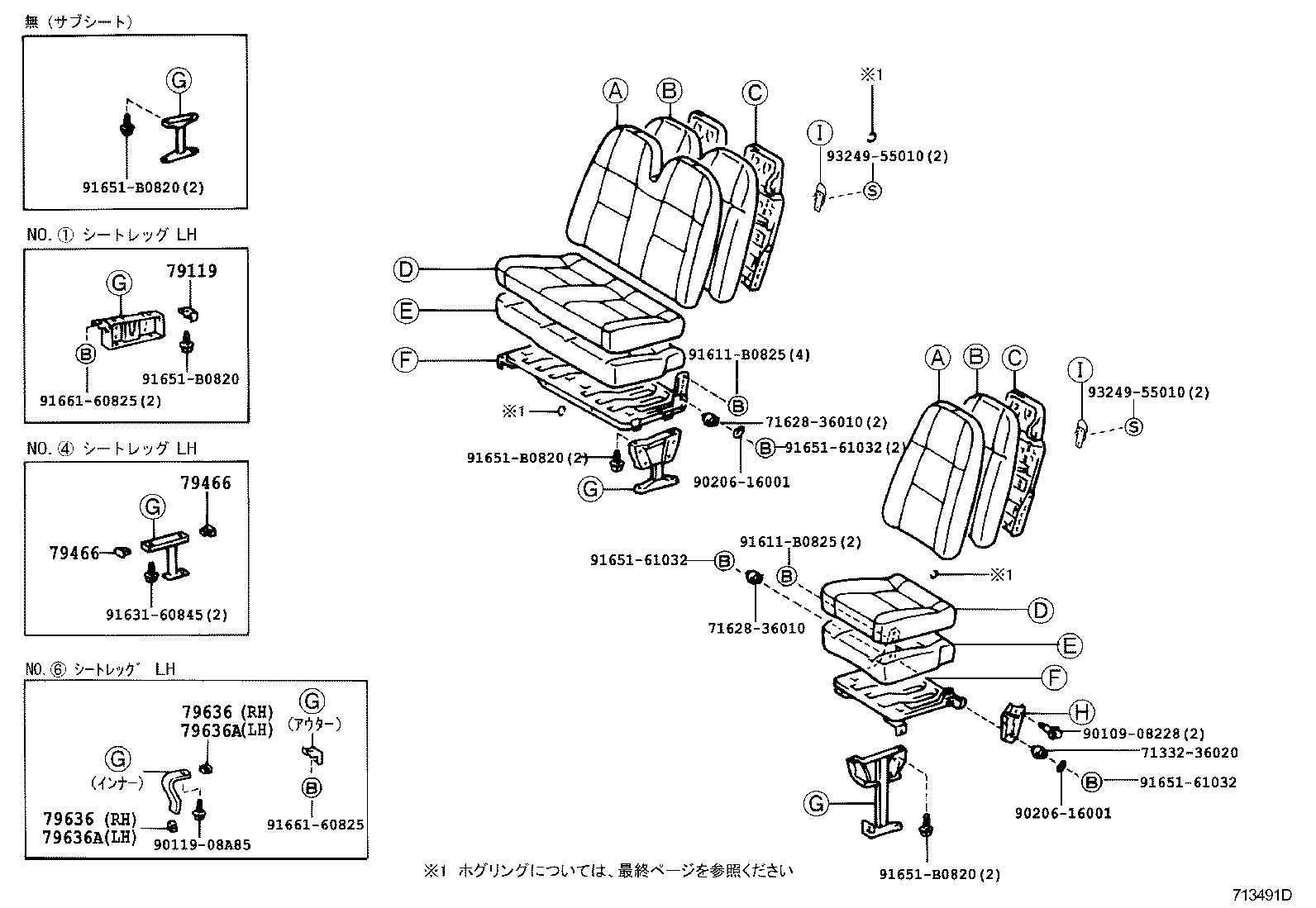

713491D

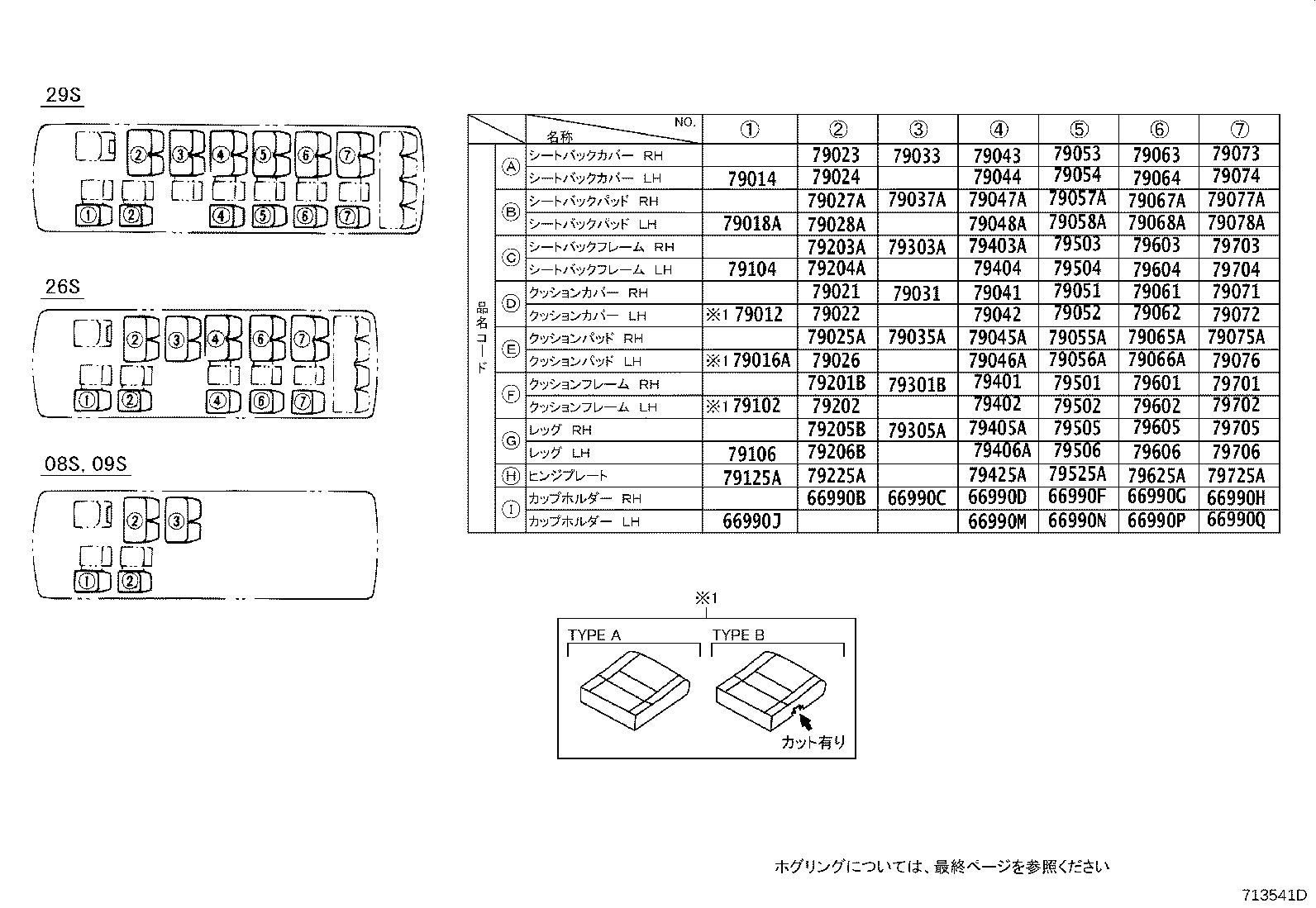

713541D

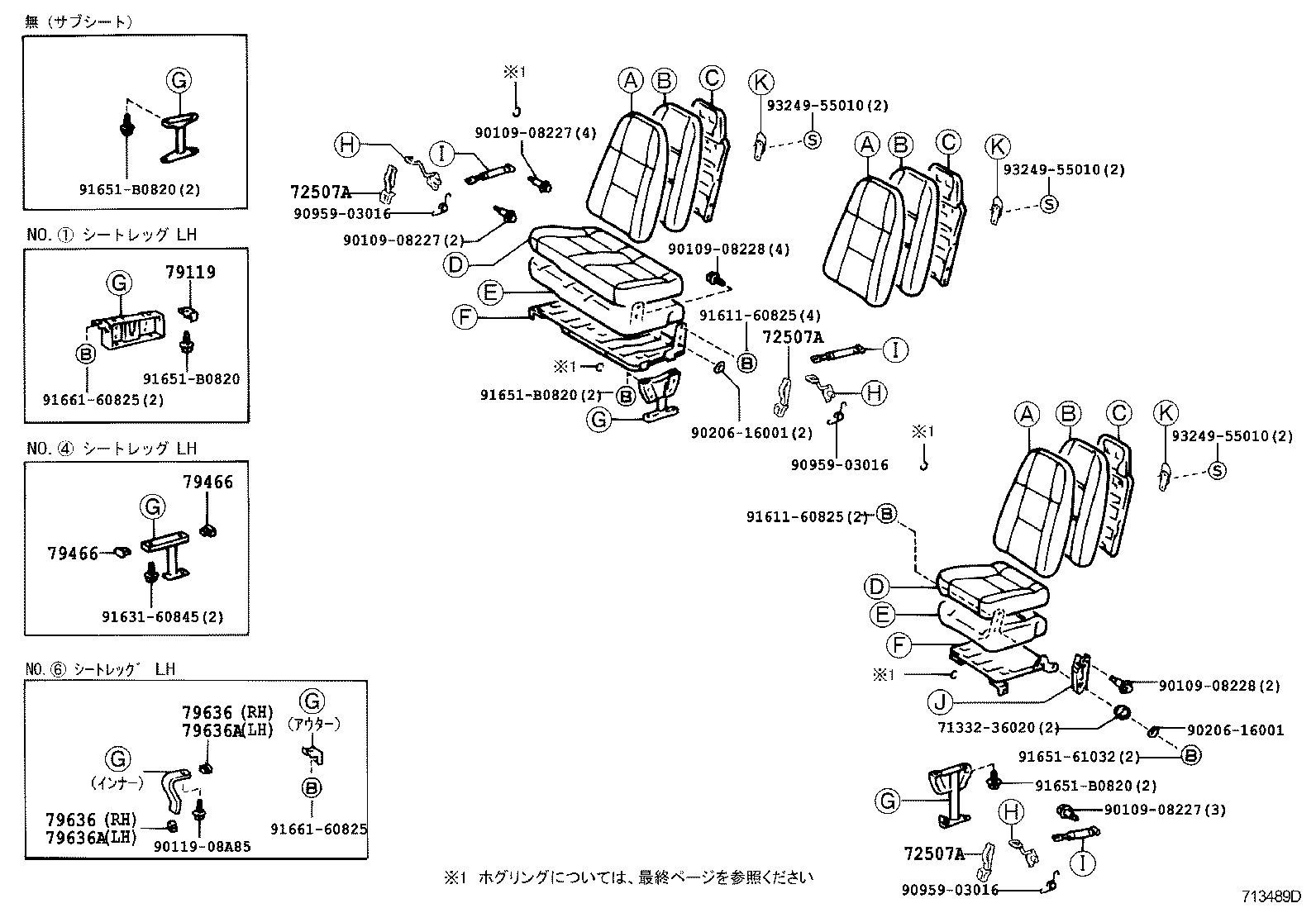

713489D

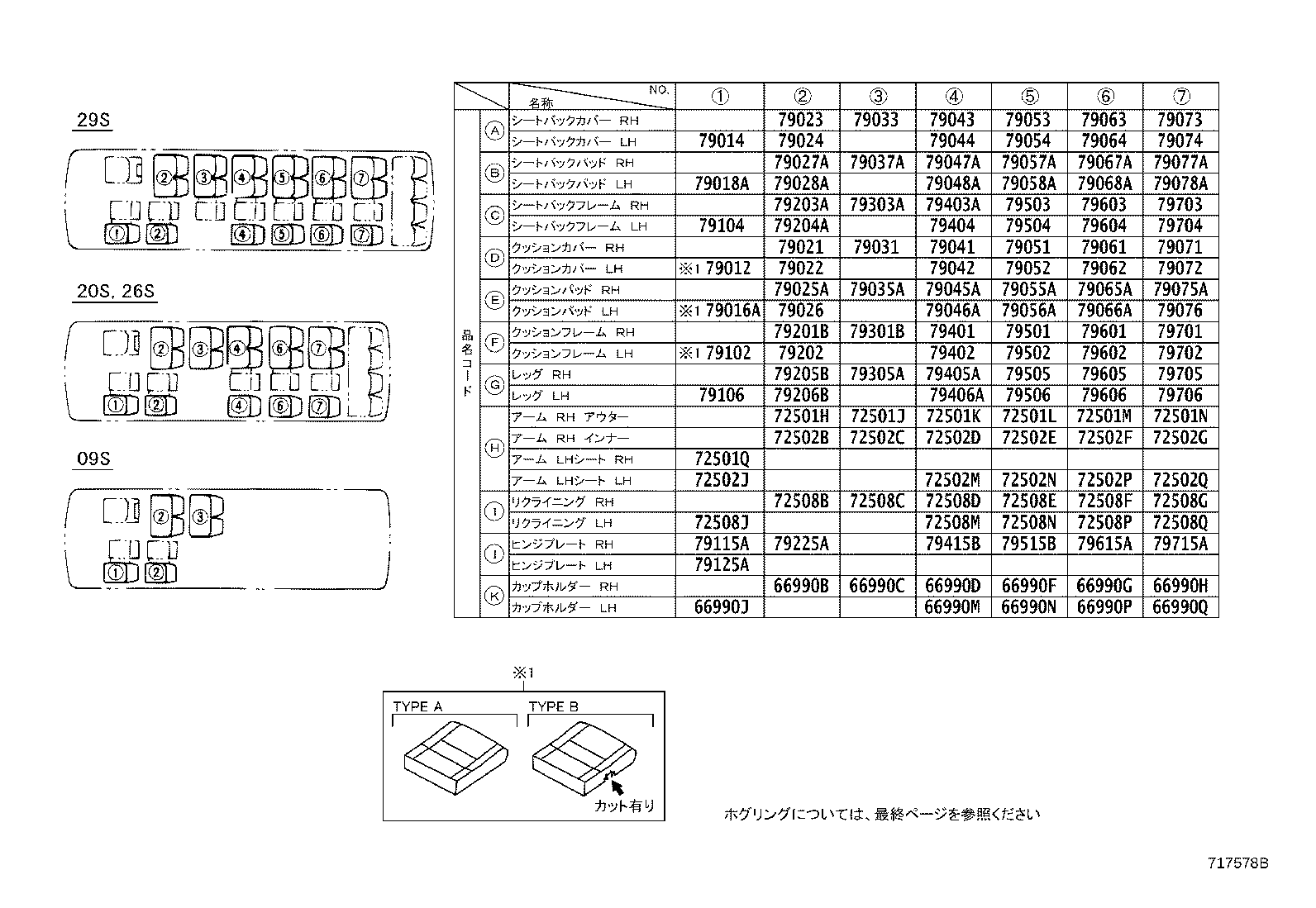

717578B

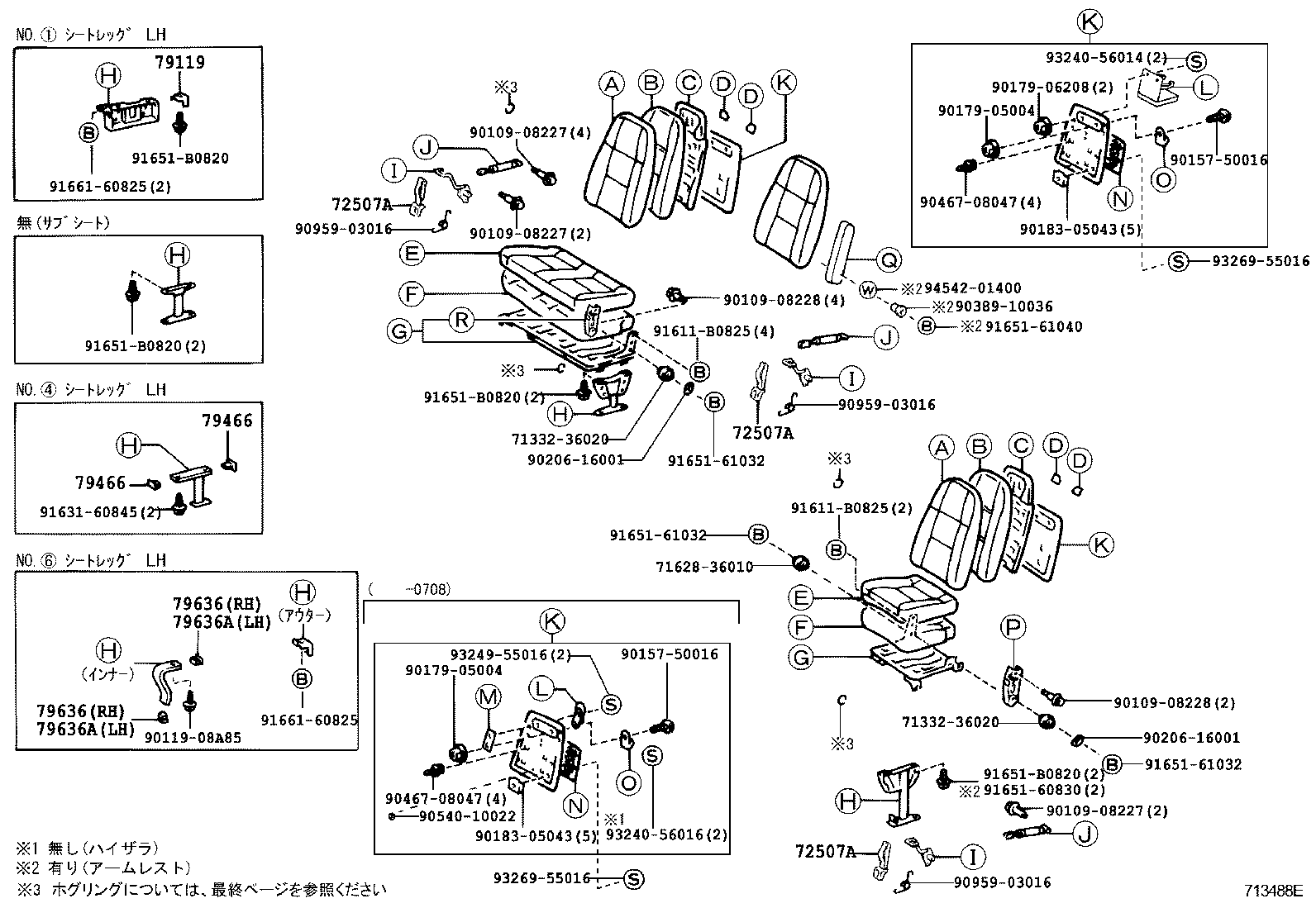

713488E

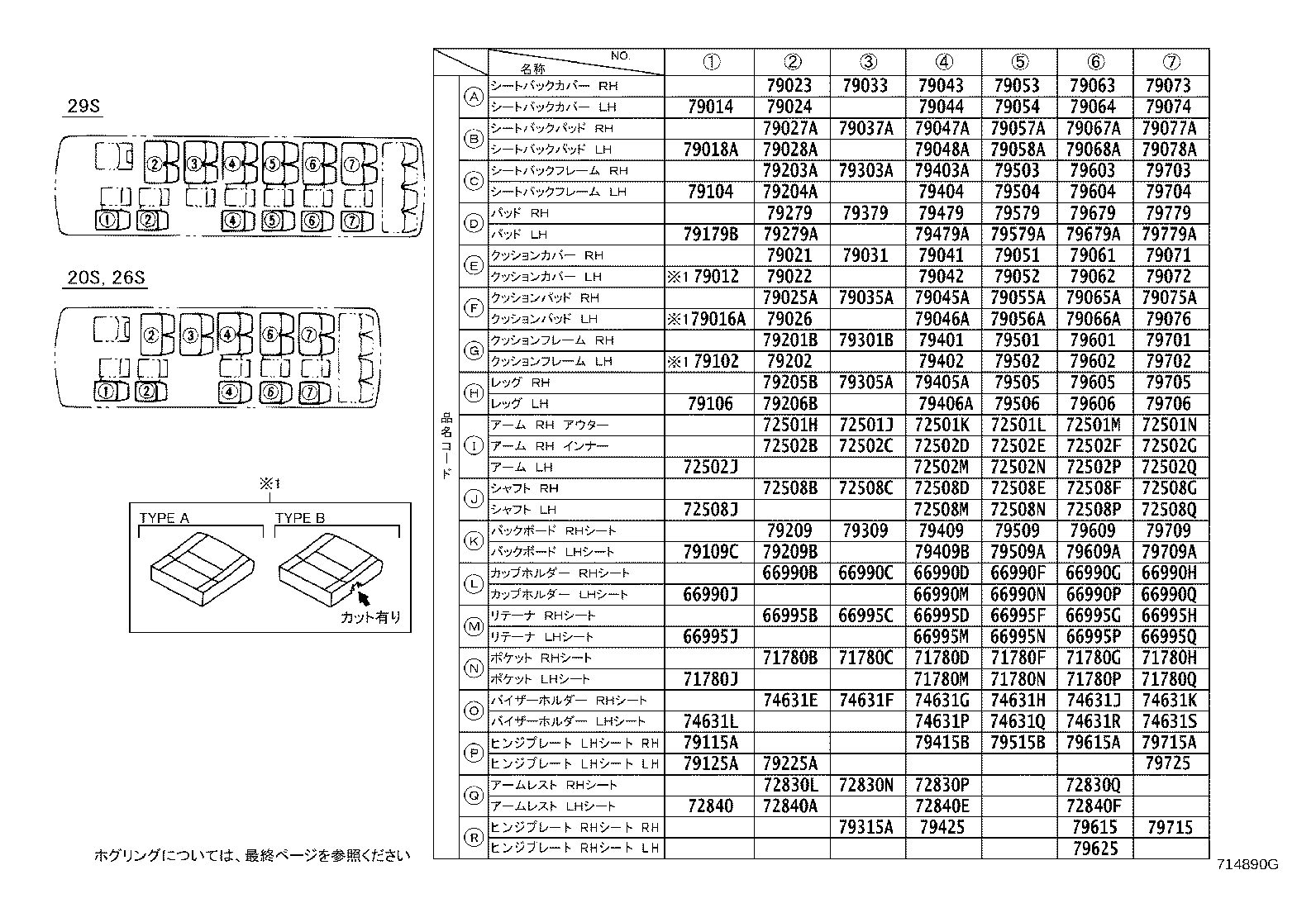

714890G

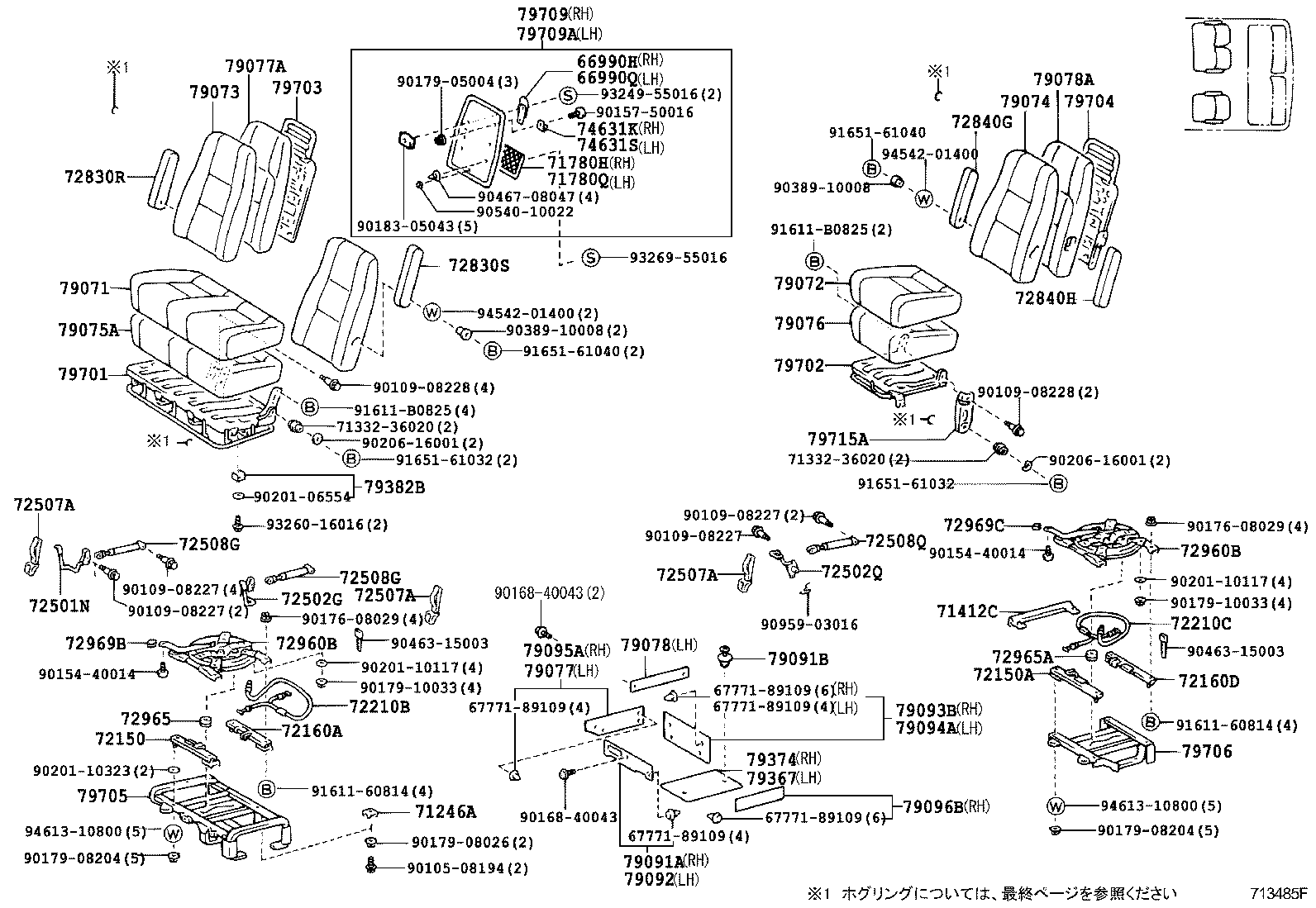

713485F

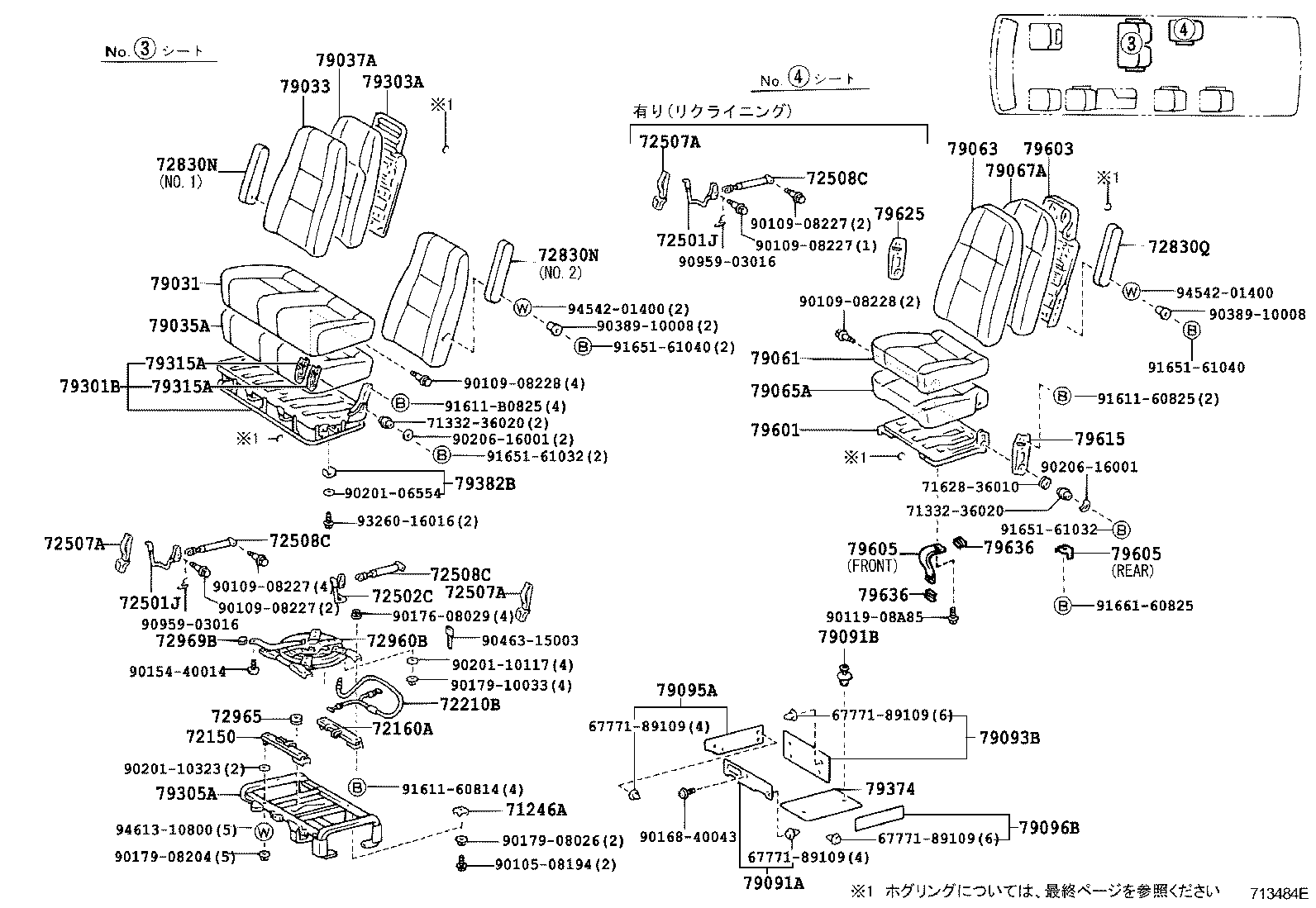

713484E

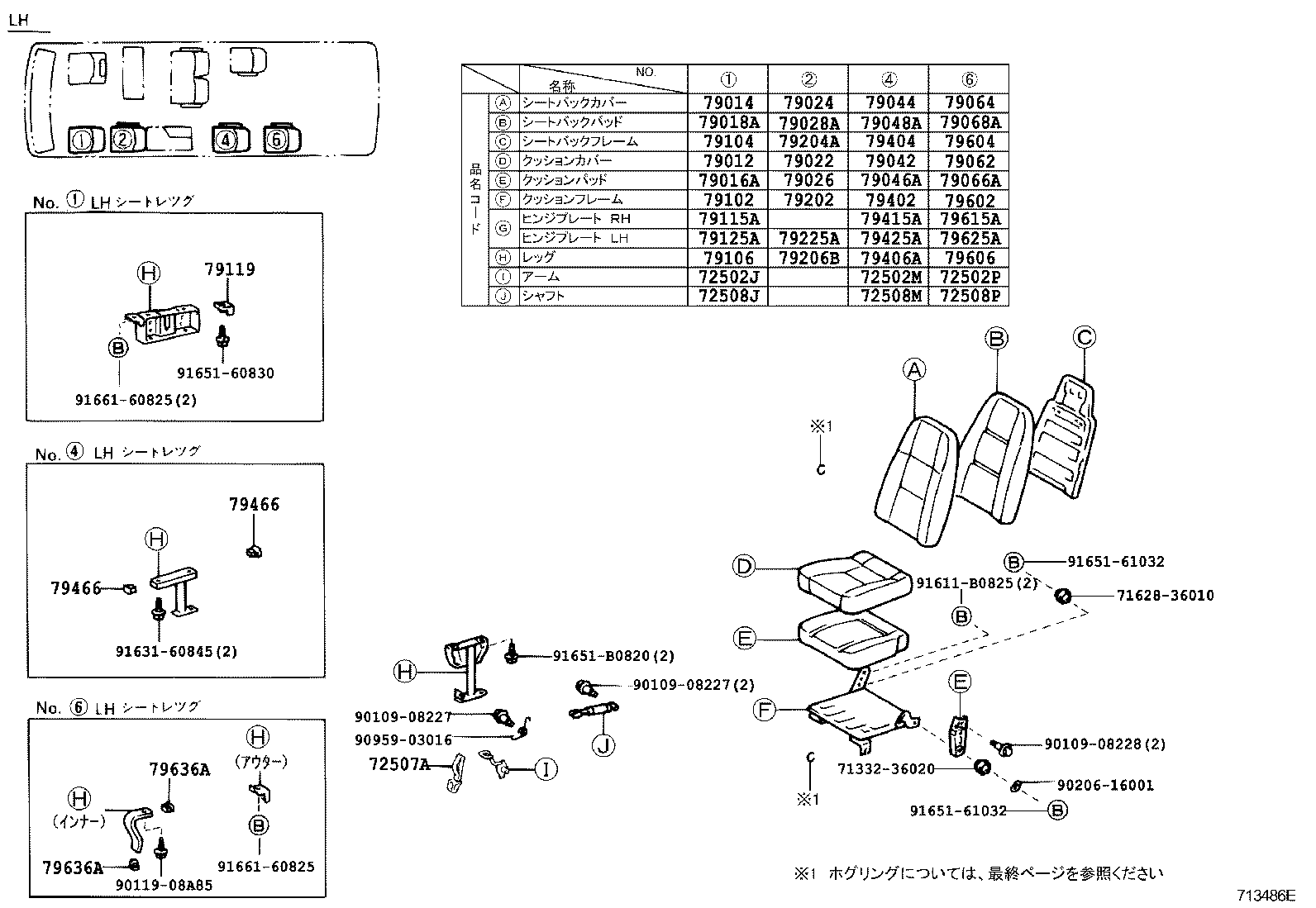

713486E

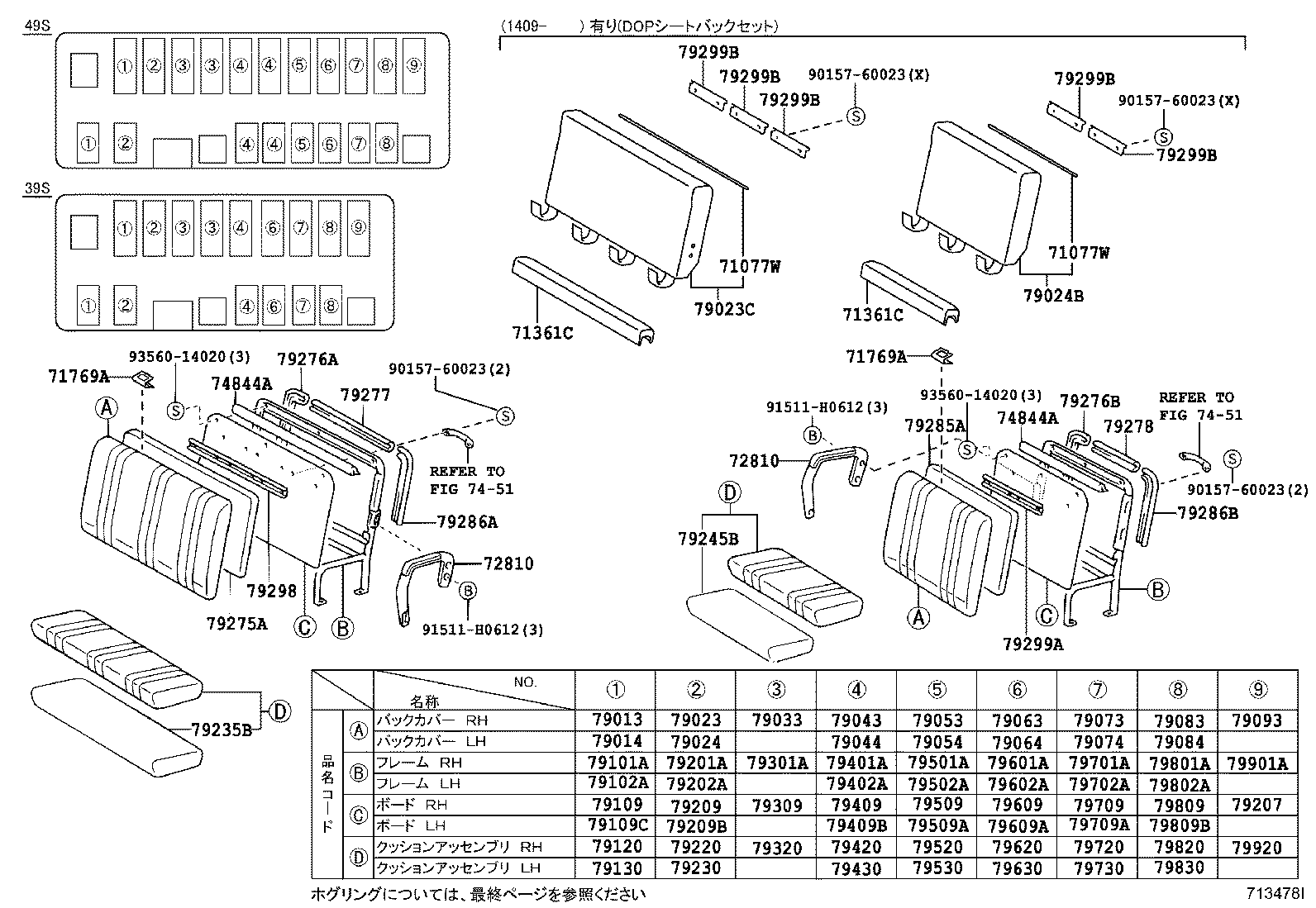

713478I

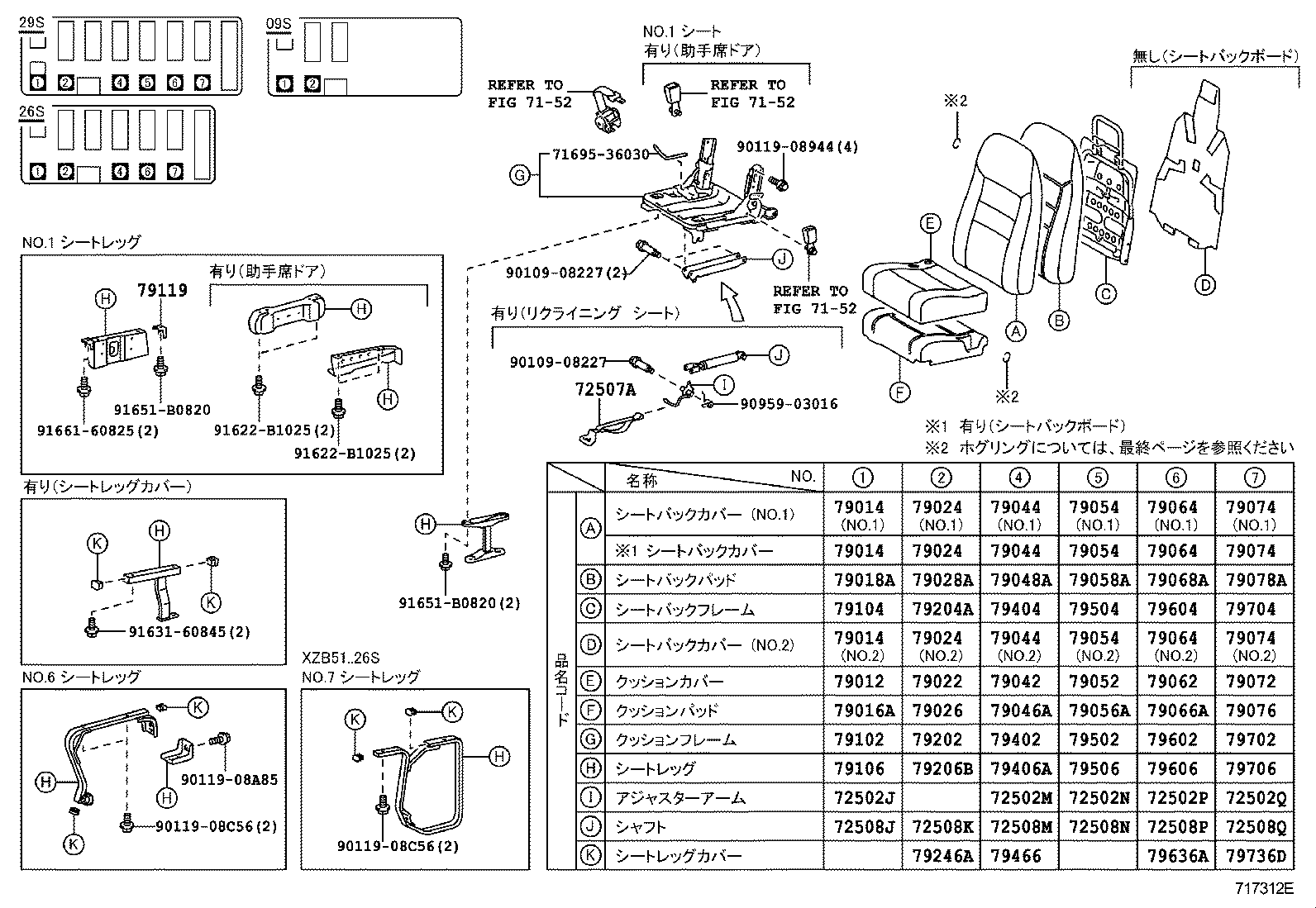

717312E

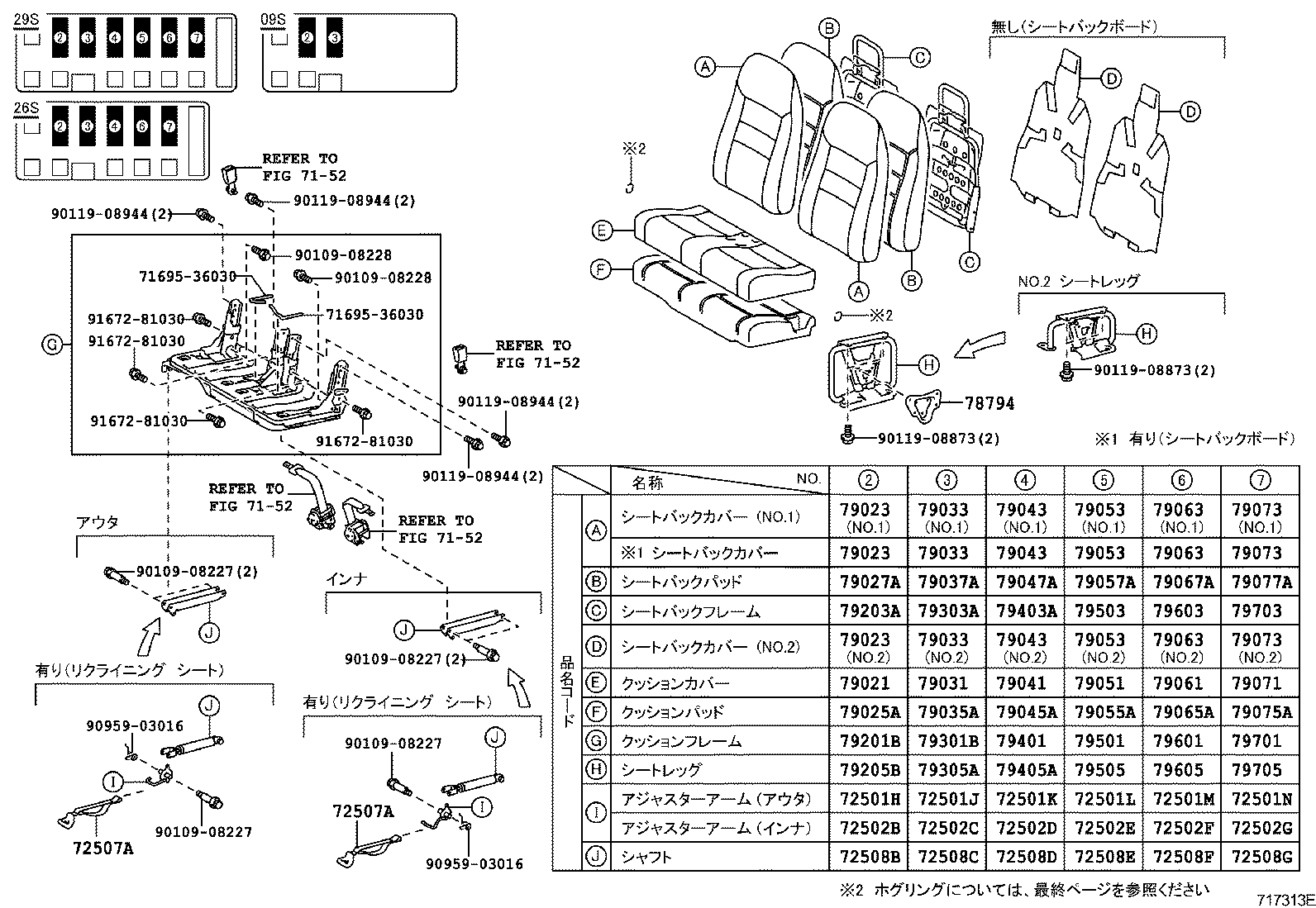

717313E

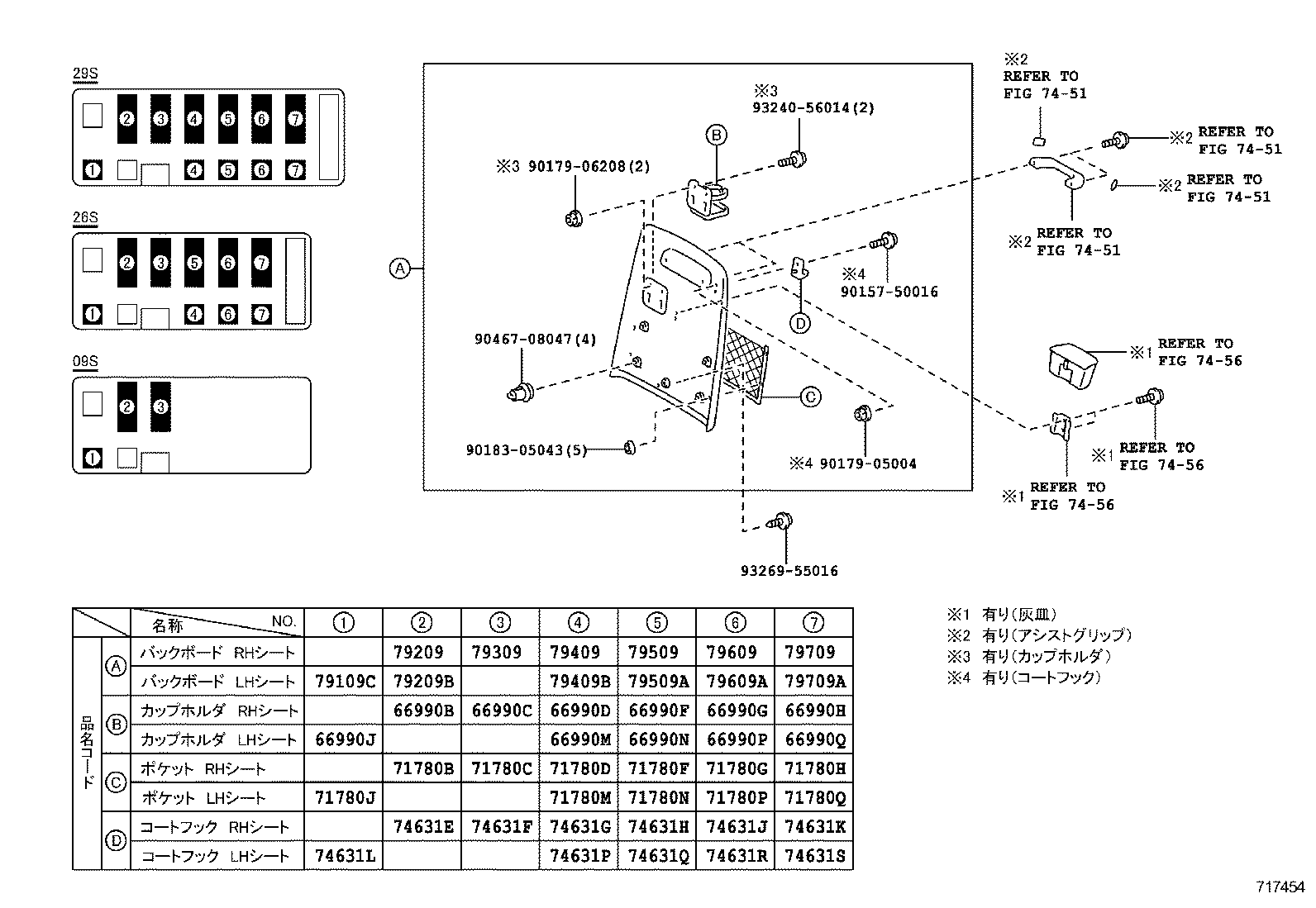

717454

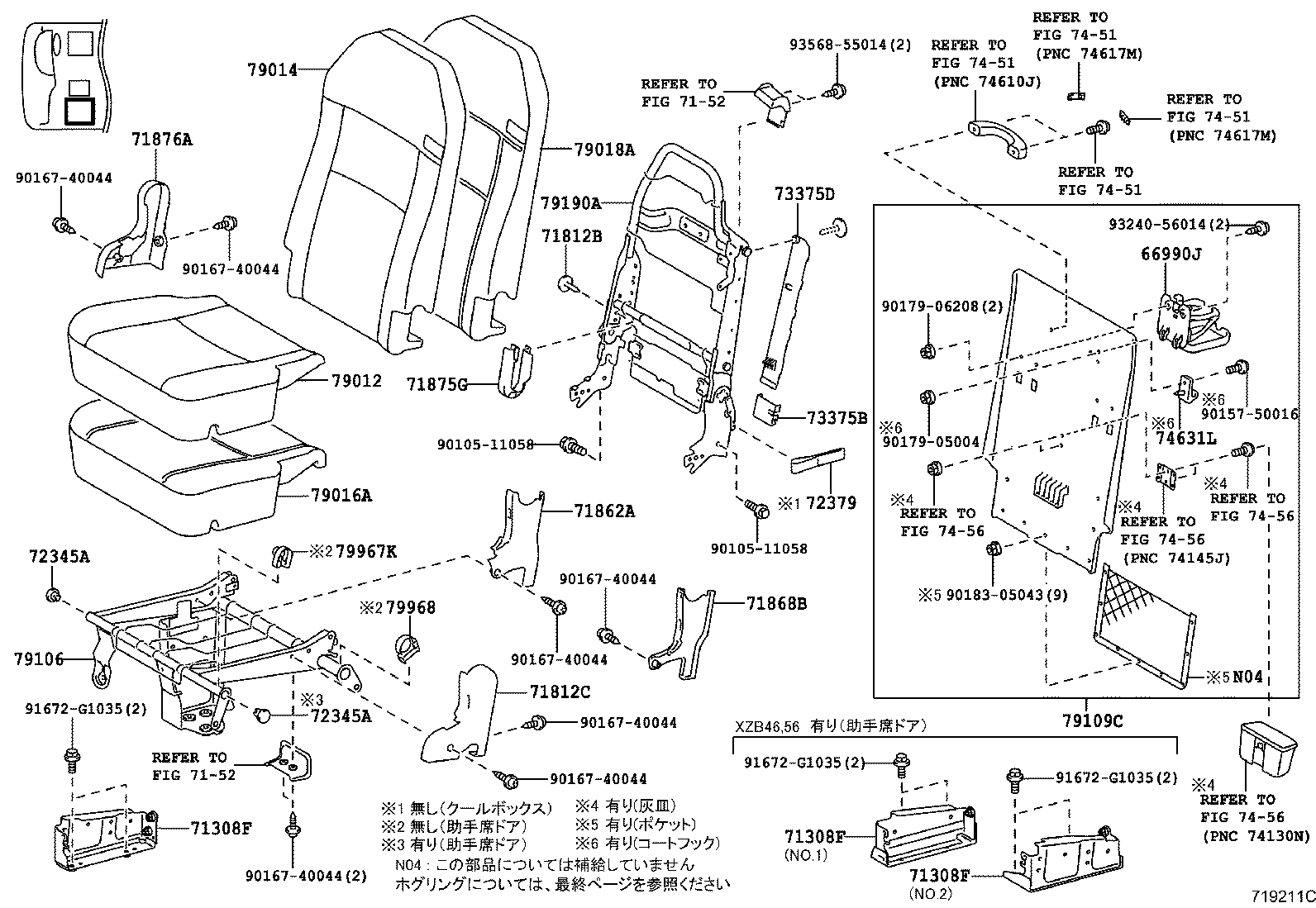

719211C

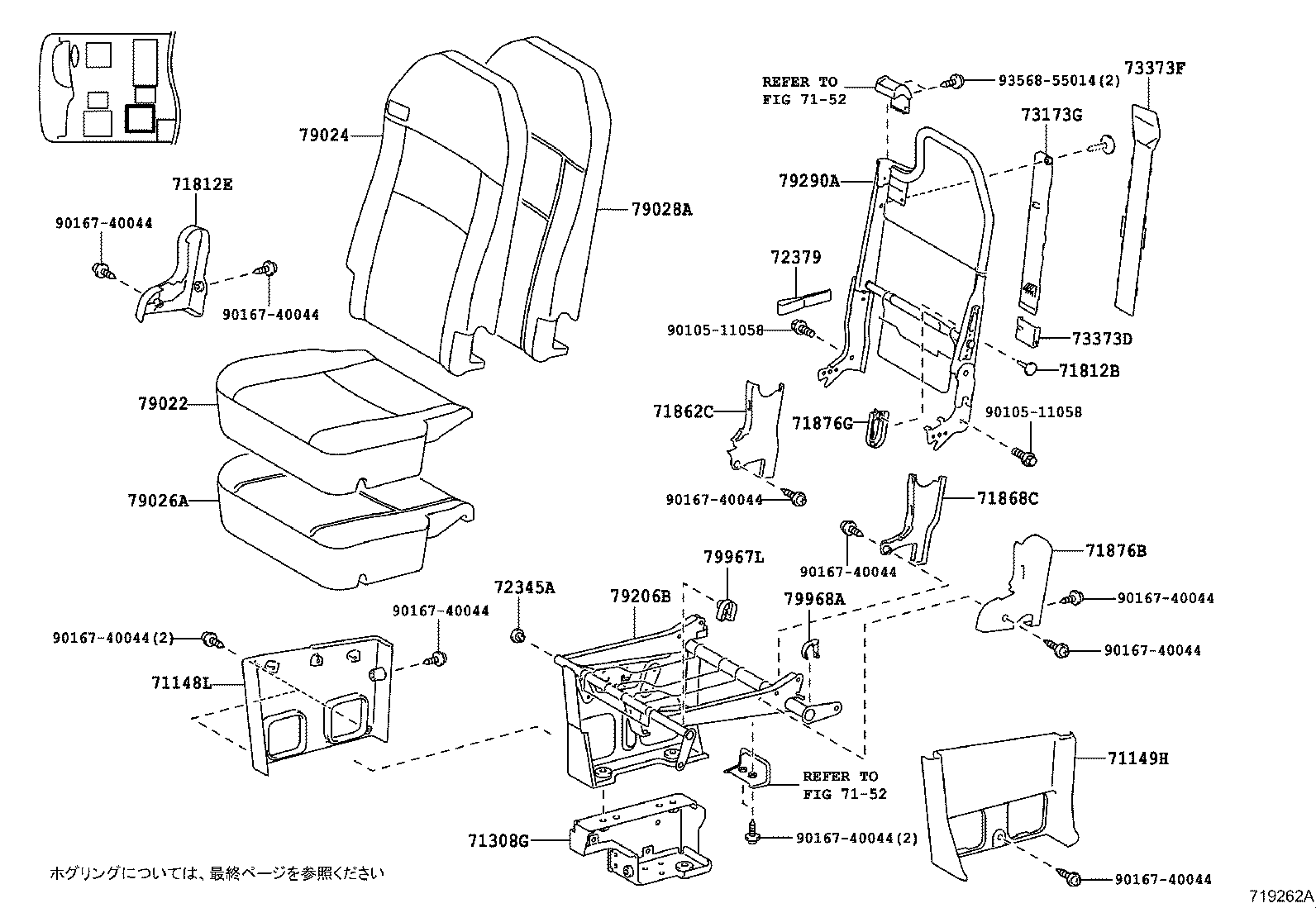

719262A

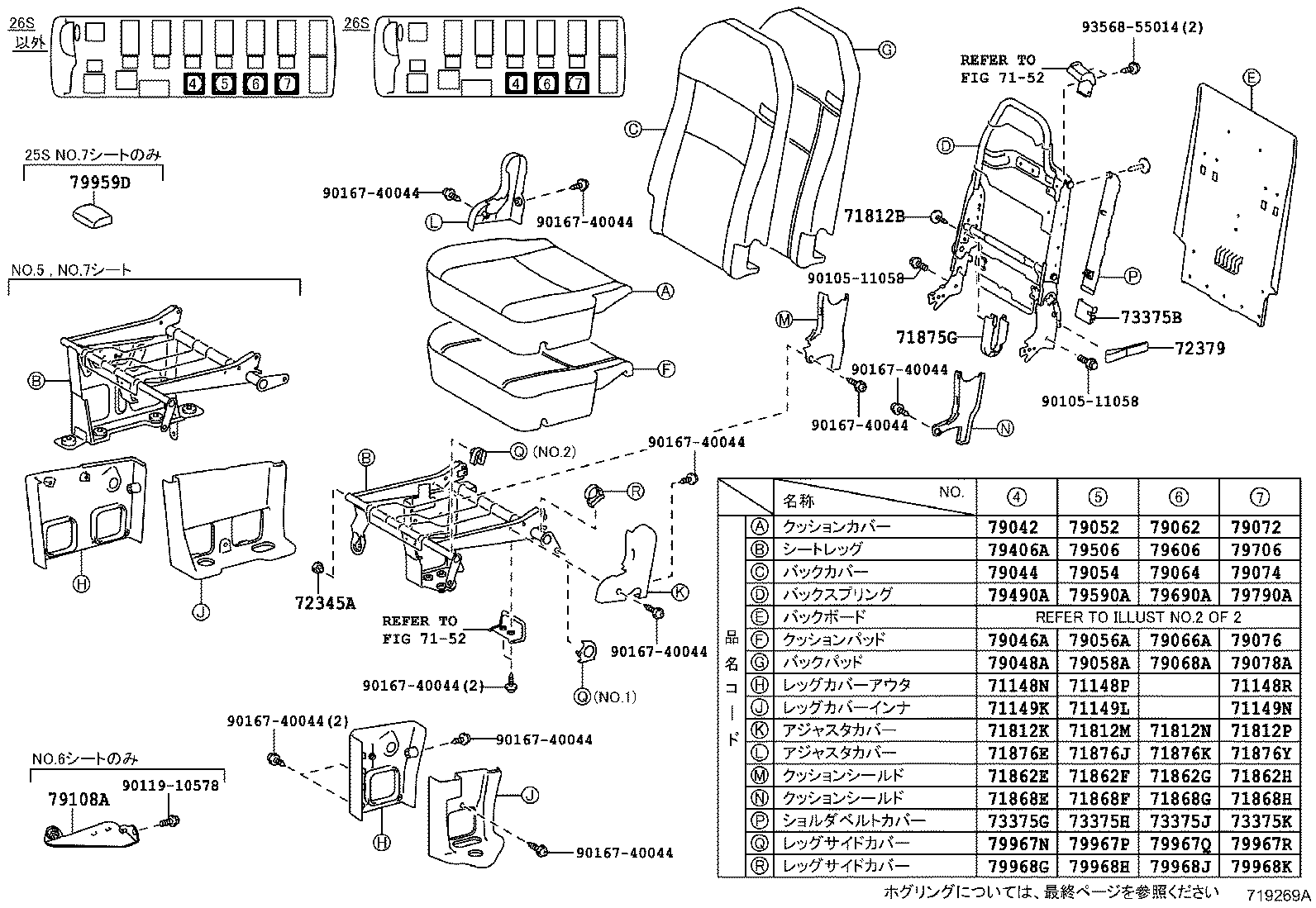

719269A

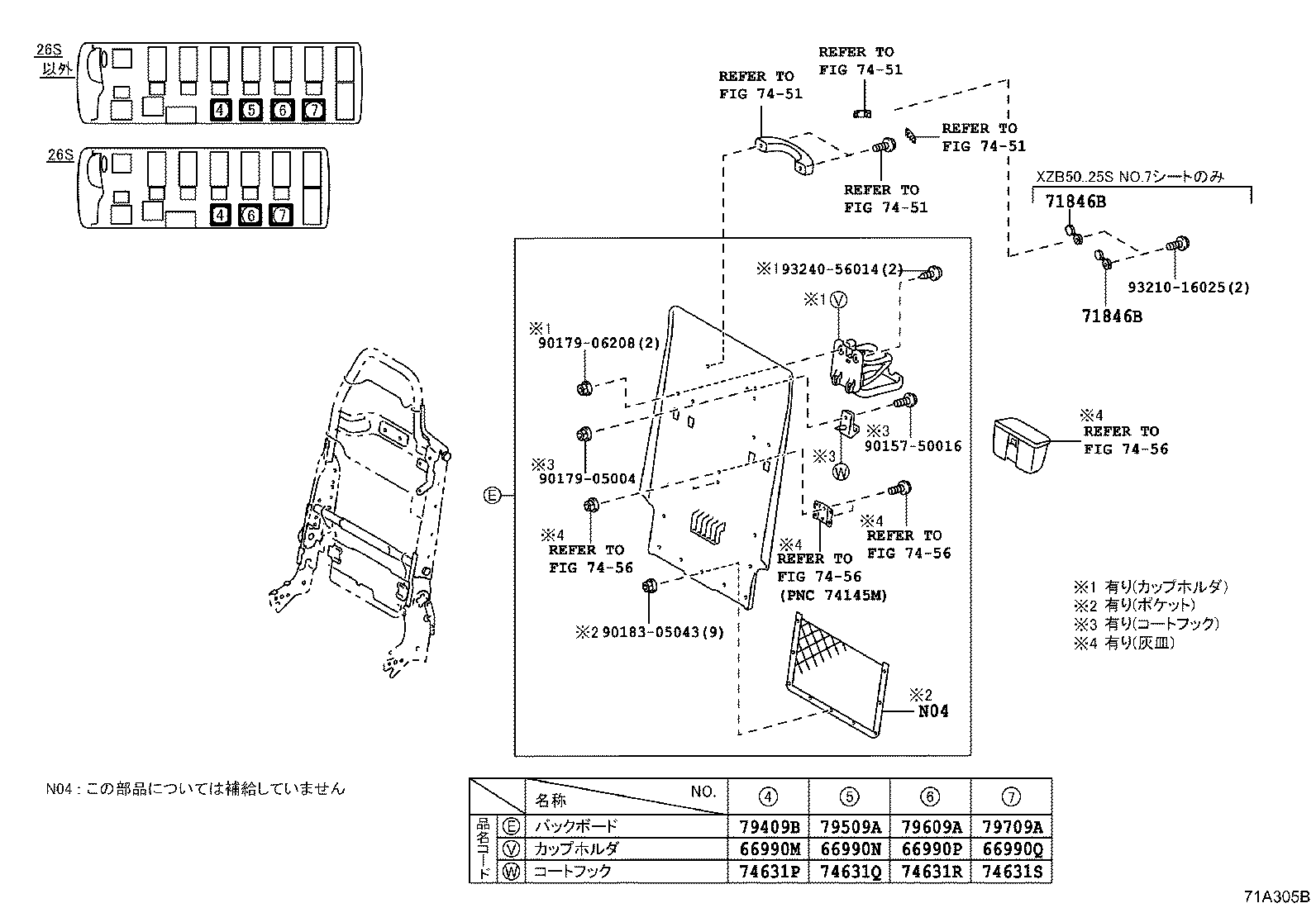

71A305B

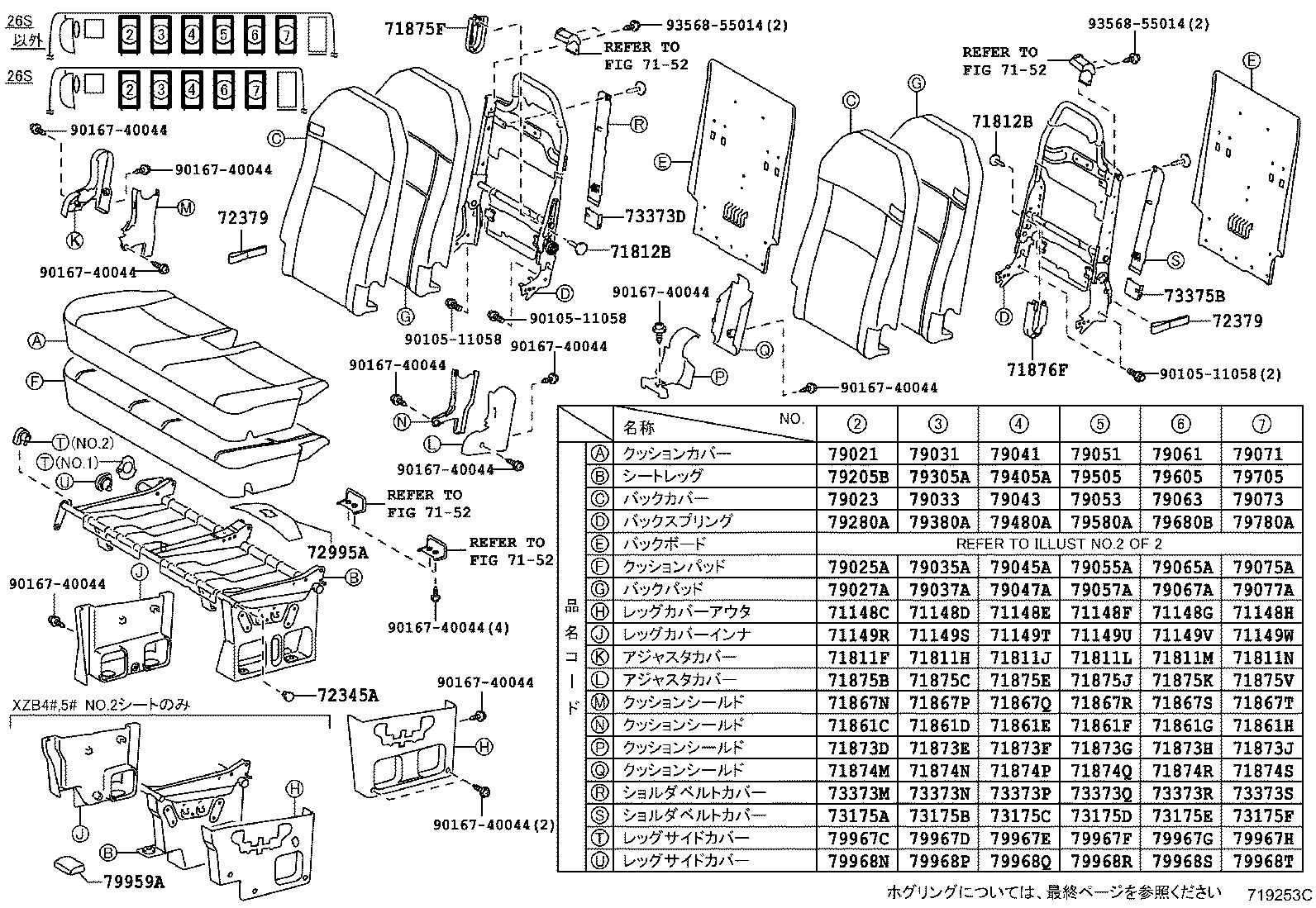

719253C

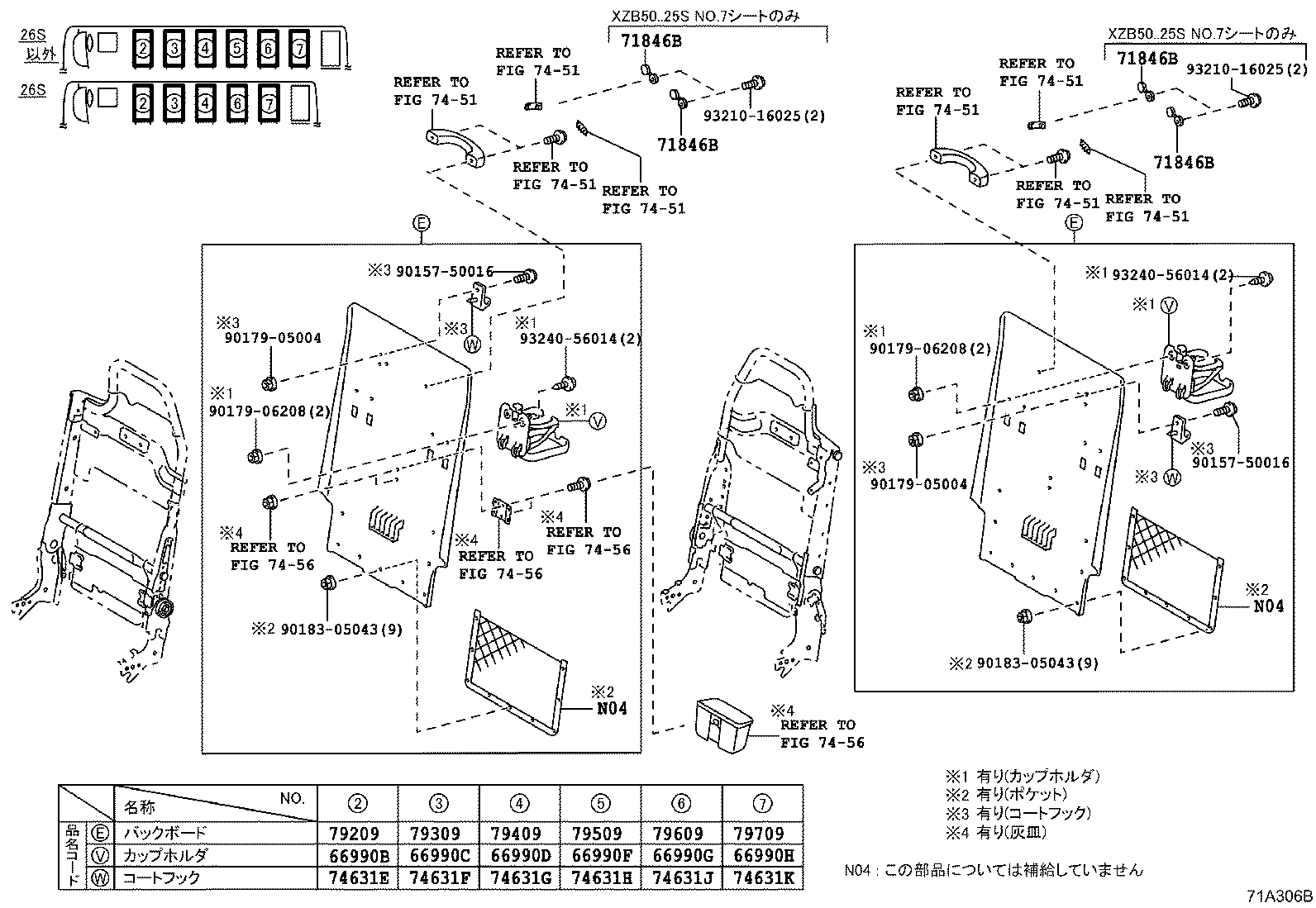

71A306B

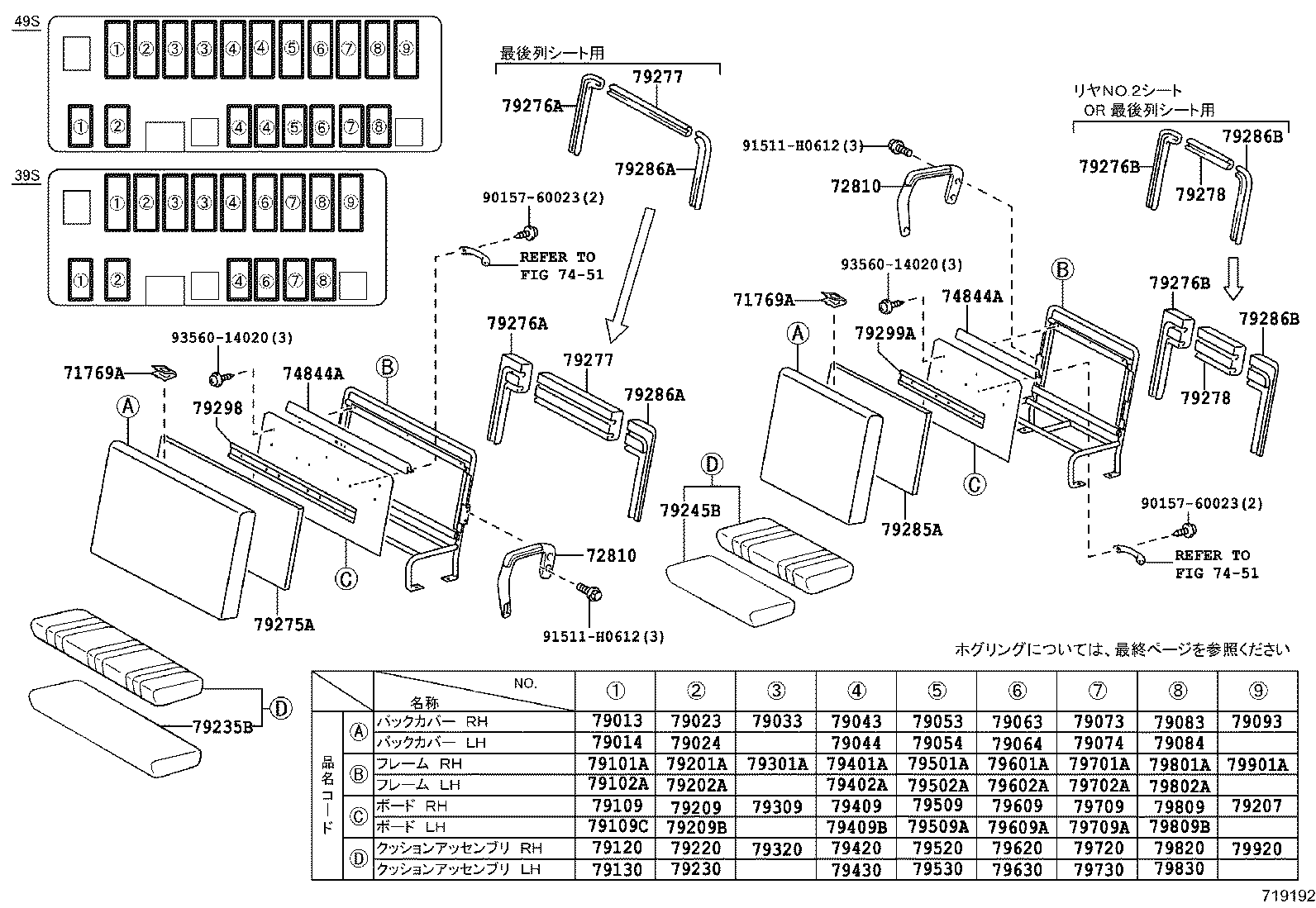

719192

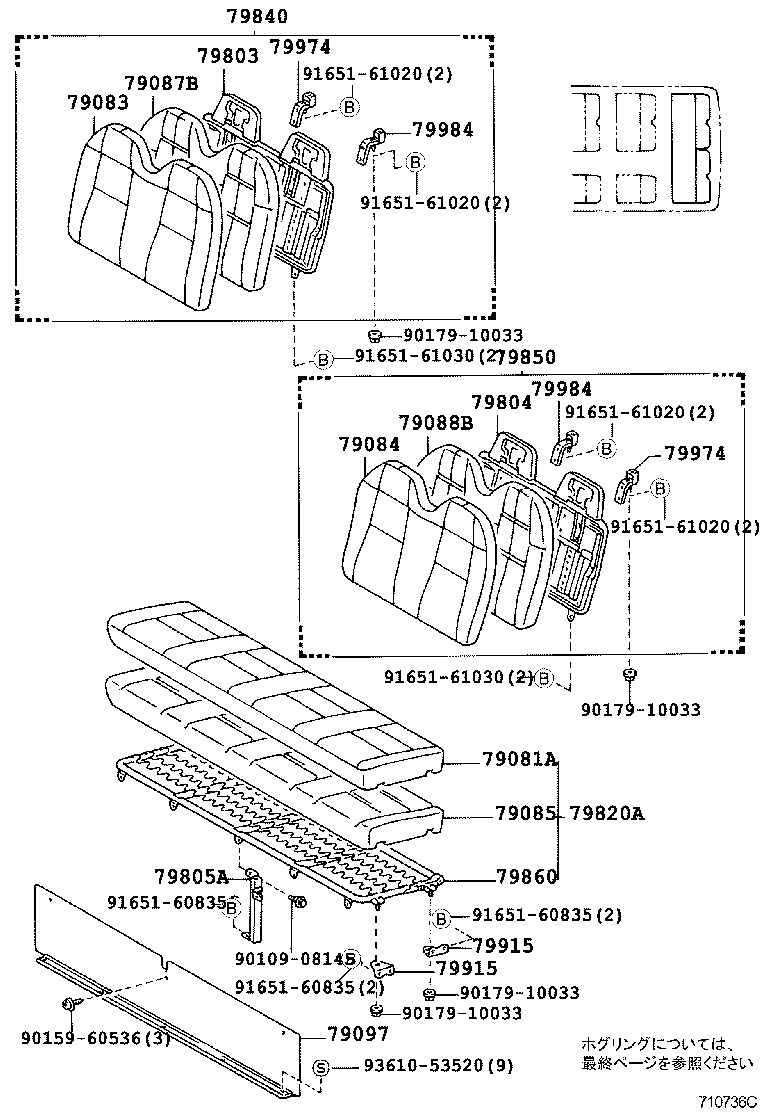

710736C

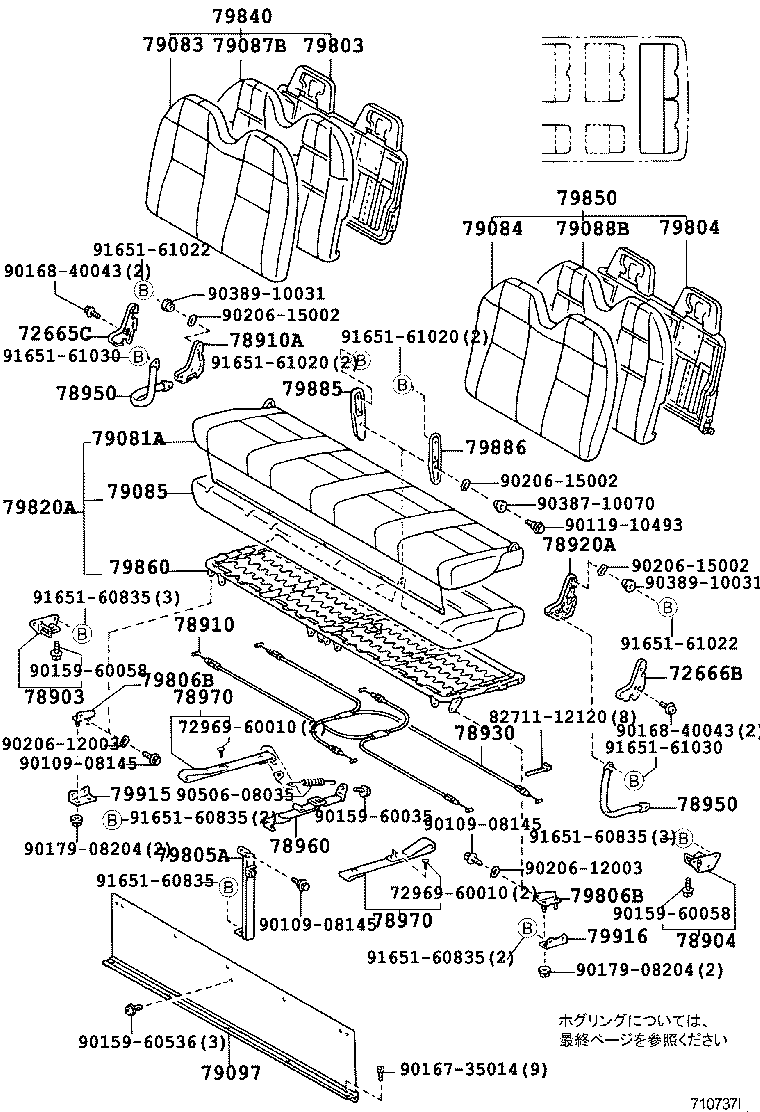

710737I

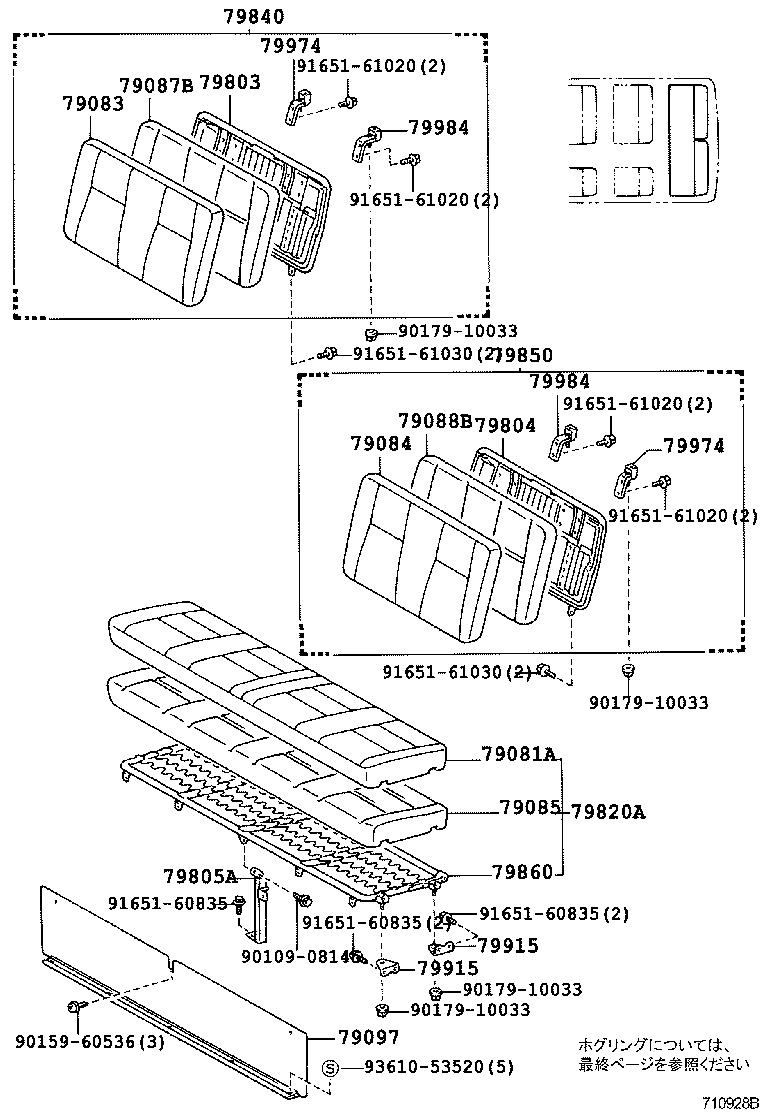

710928B

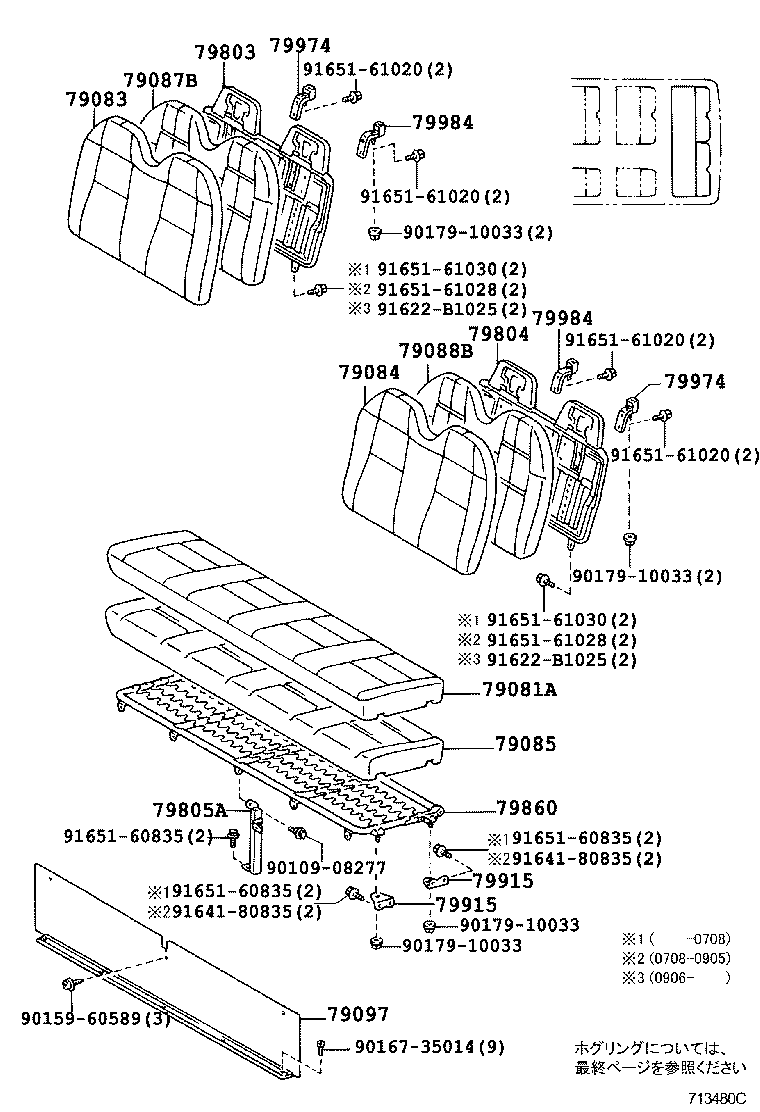

713480C

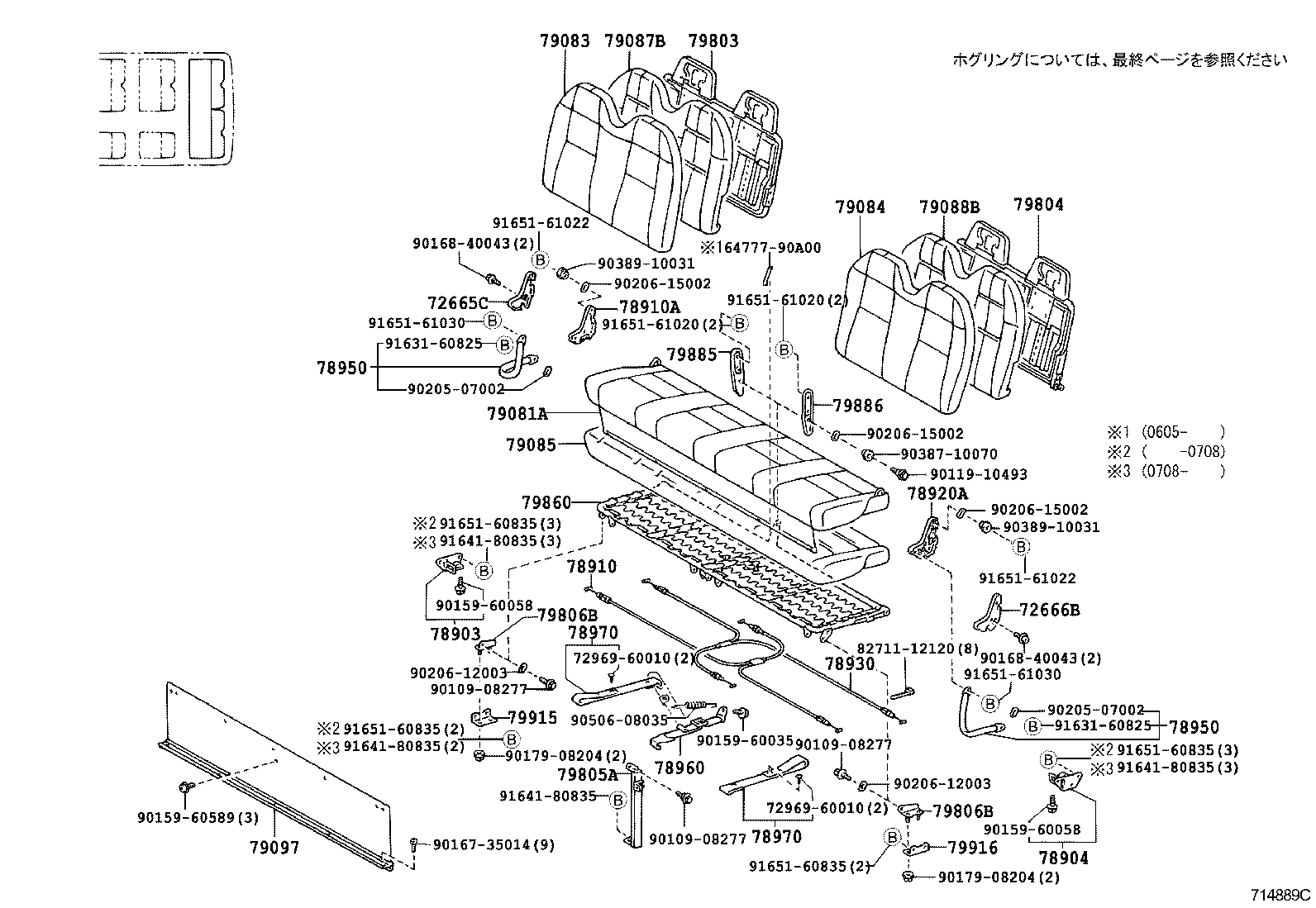

714889C

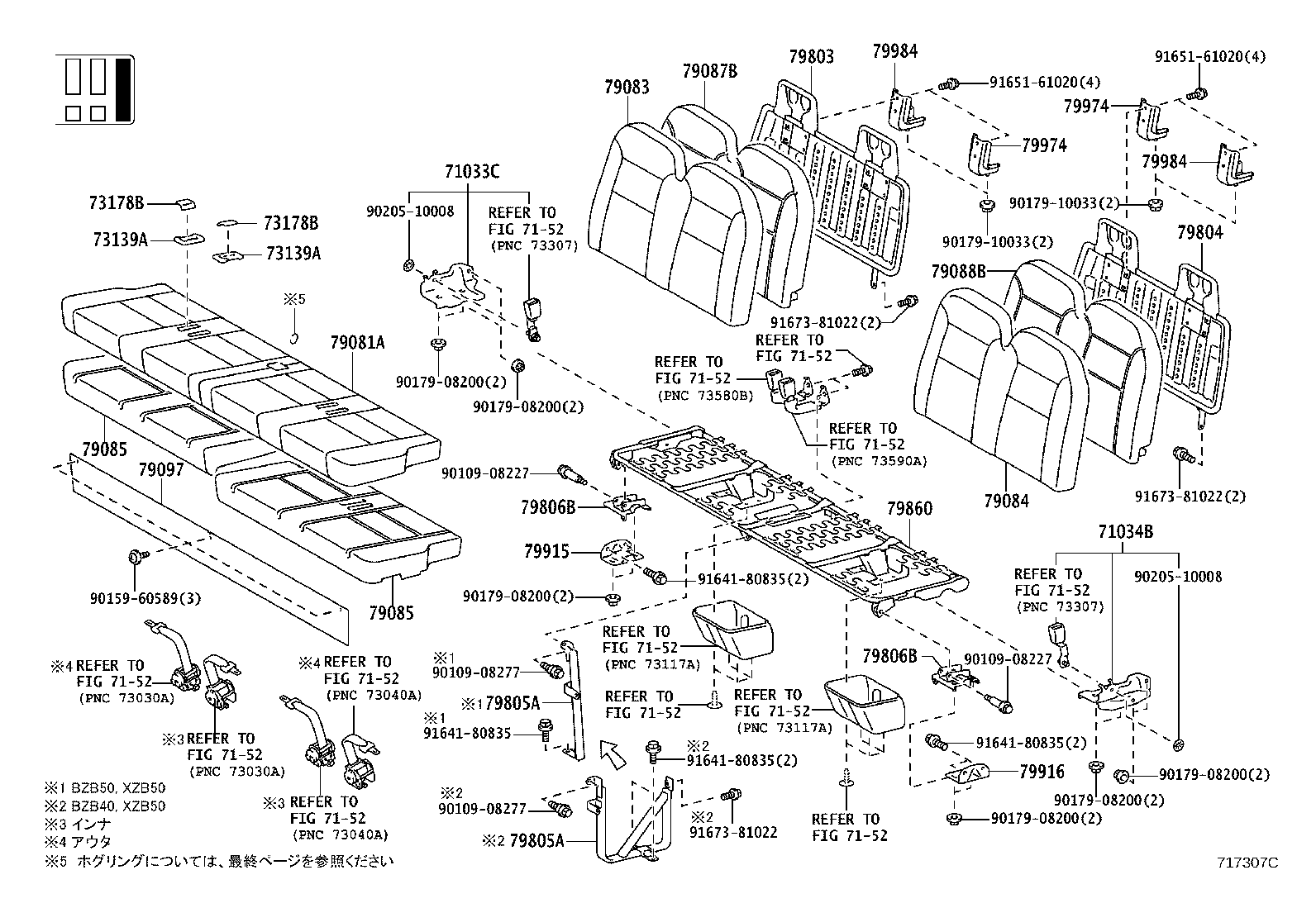

717307C

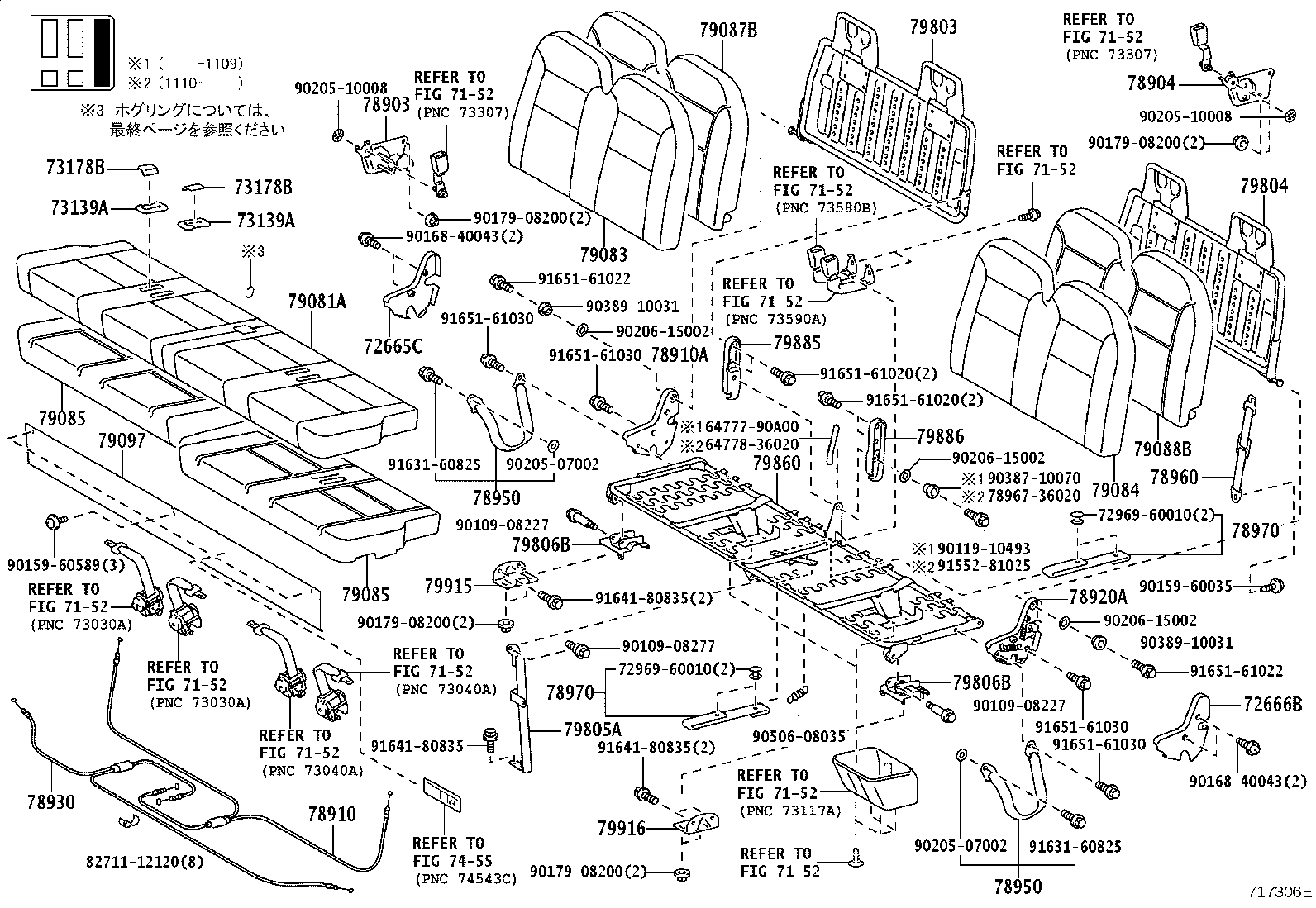

717306E

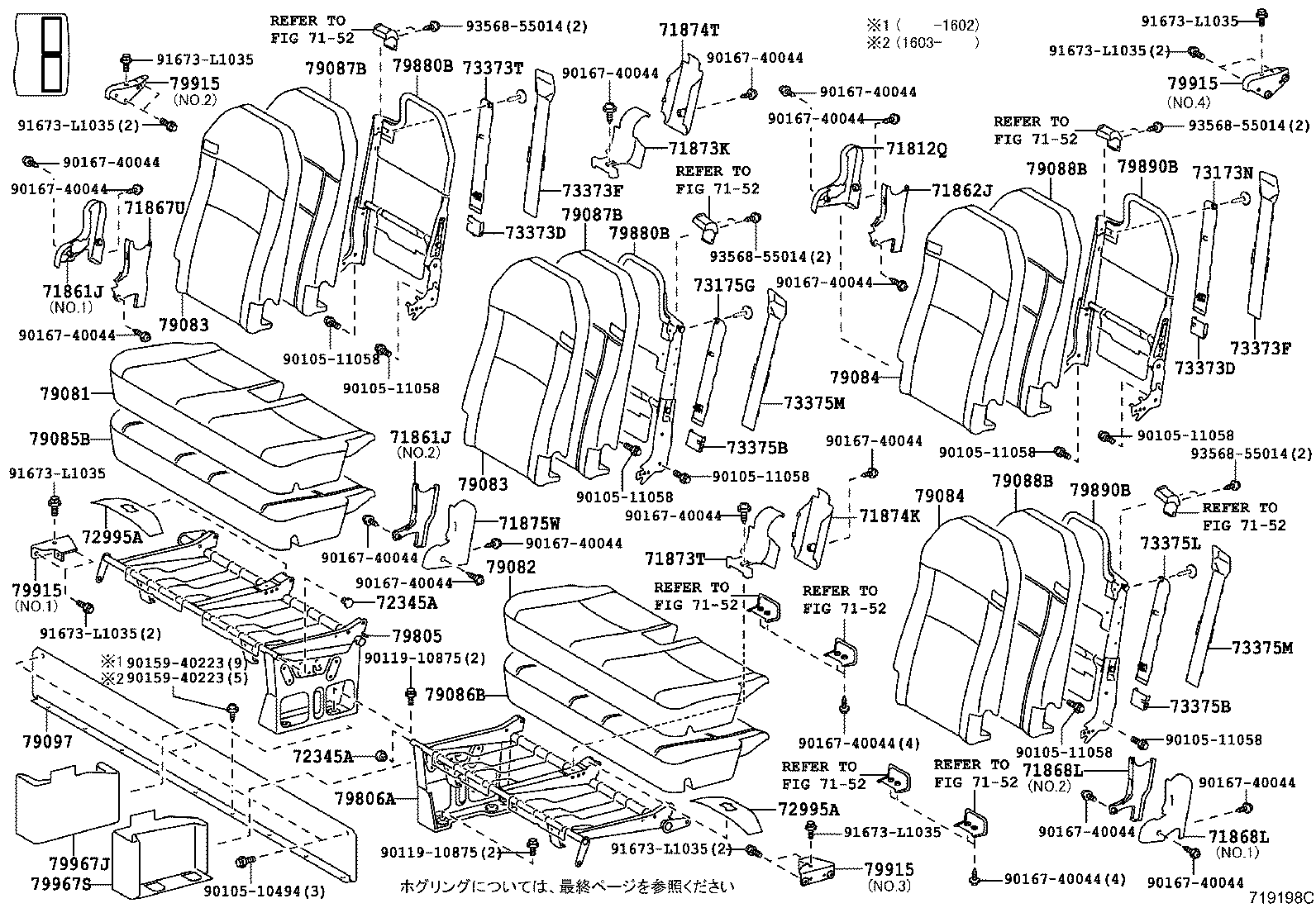

719198C

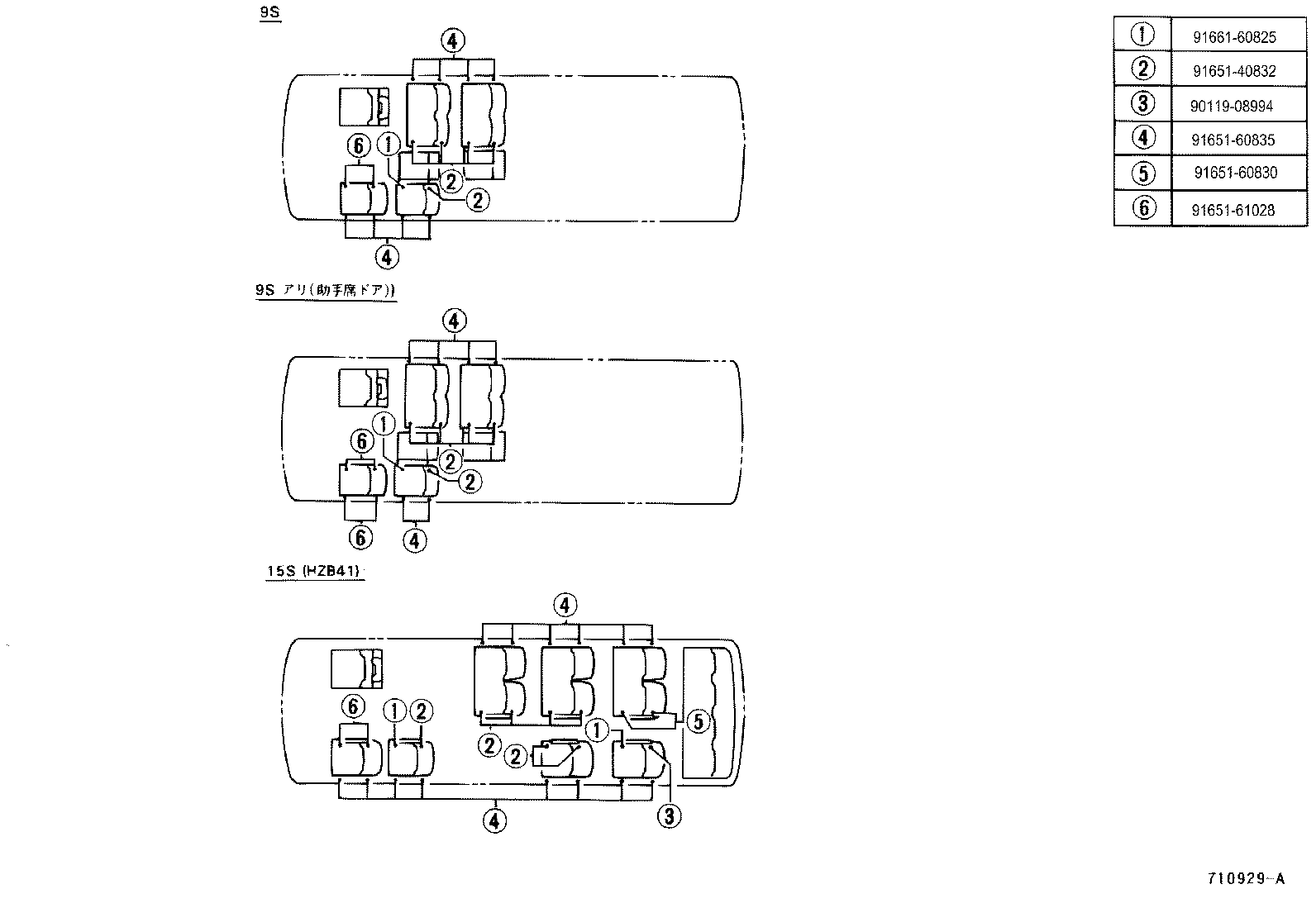

710929A

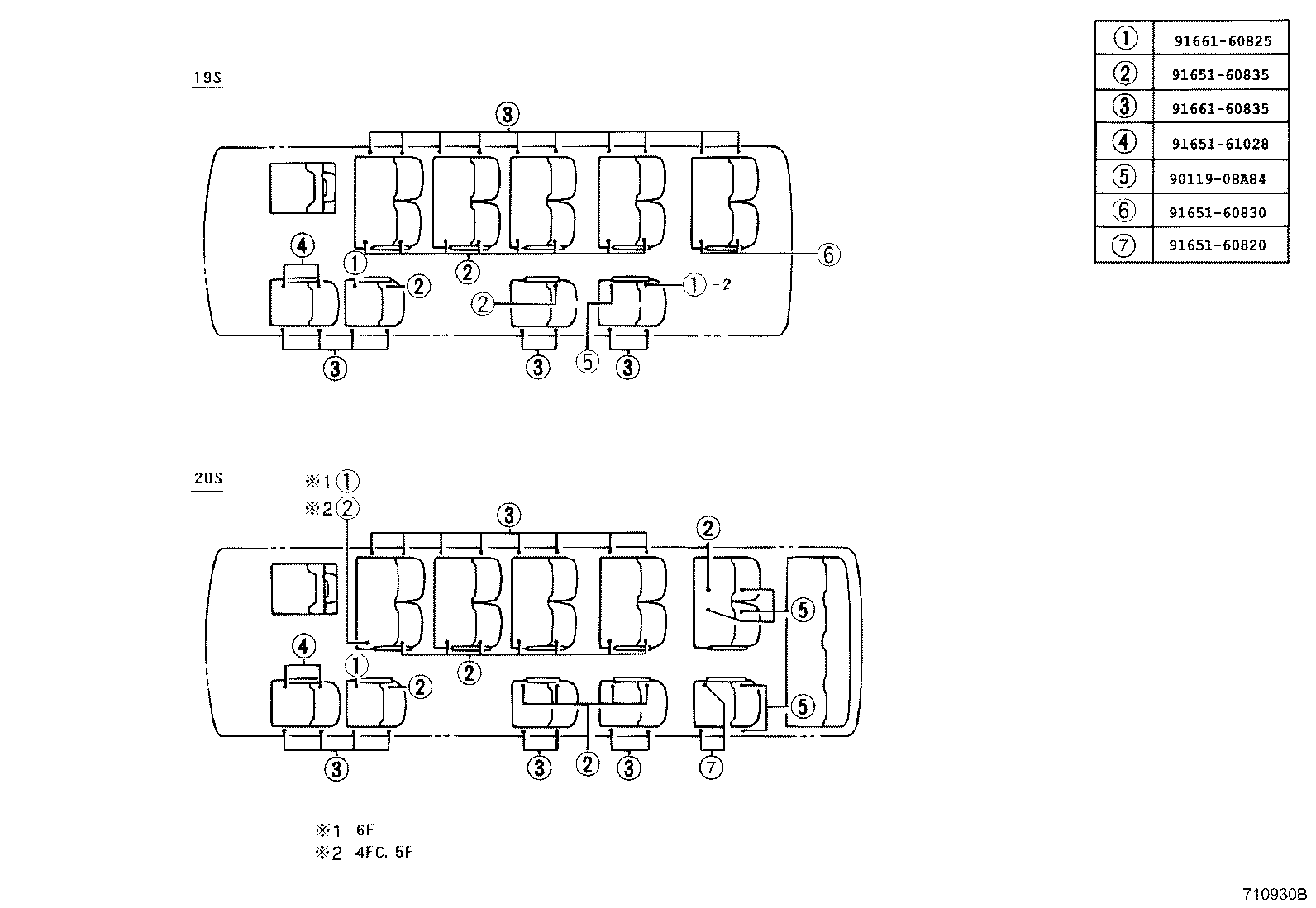

710930B

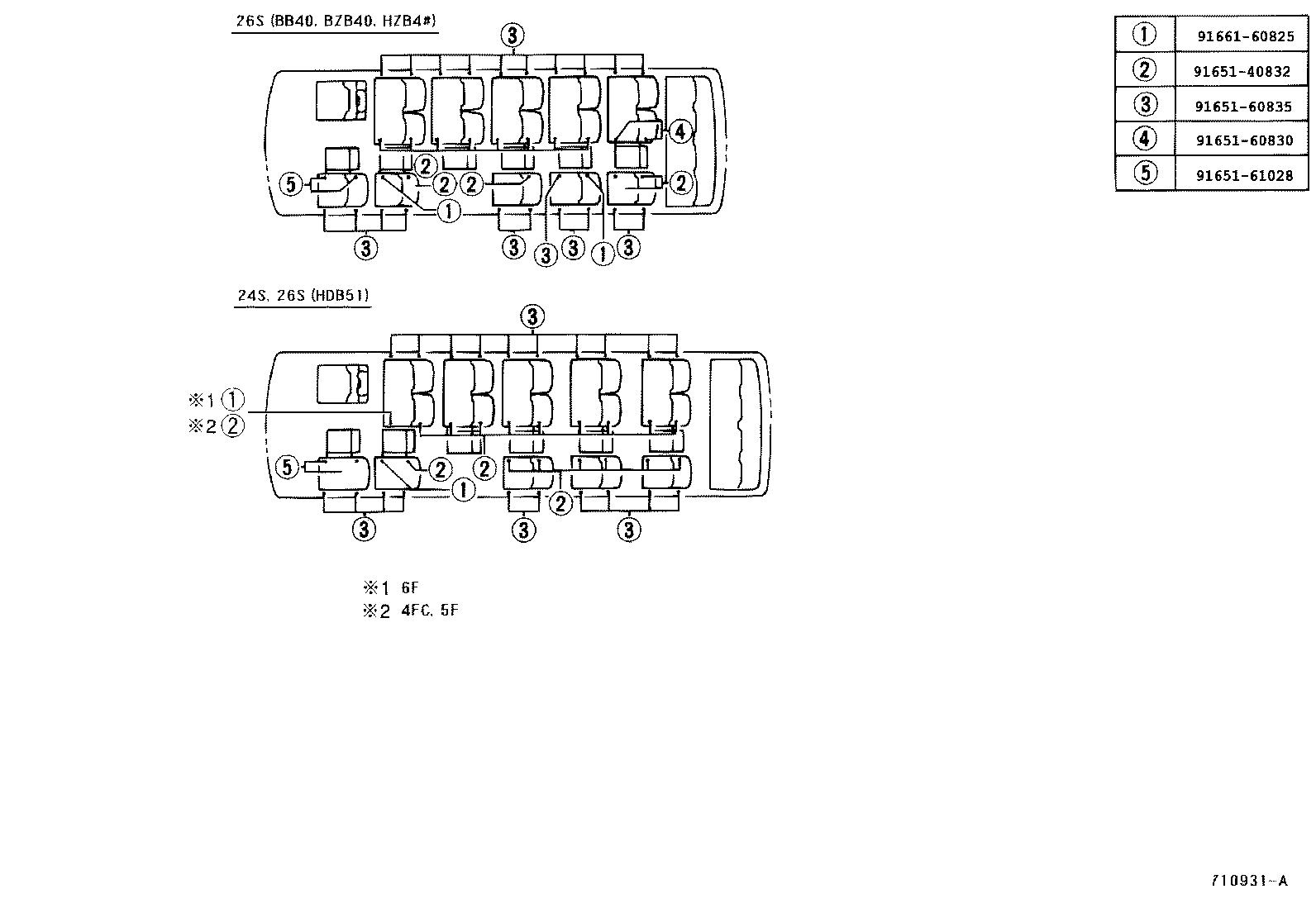

710931A

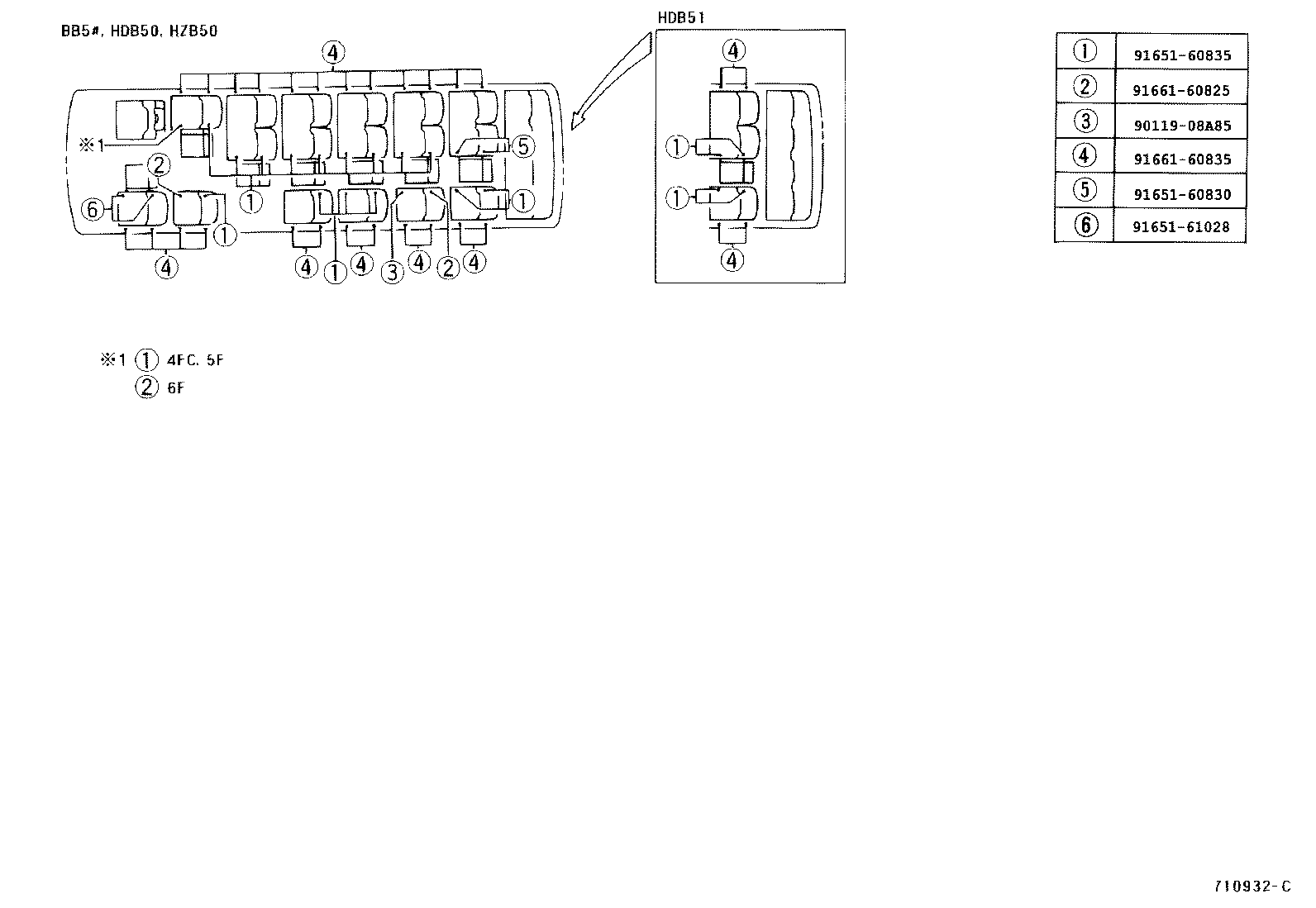

710932C

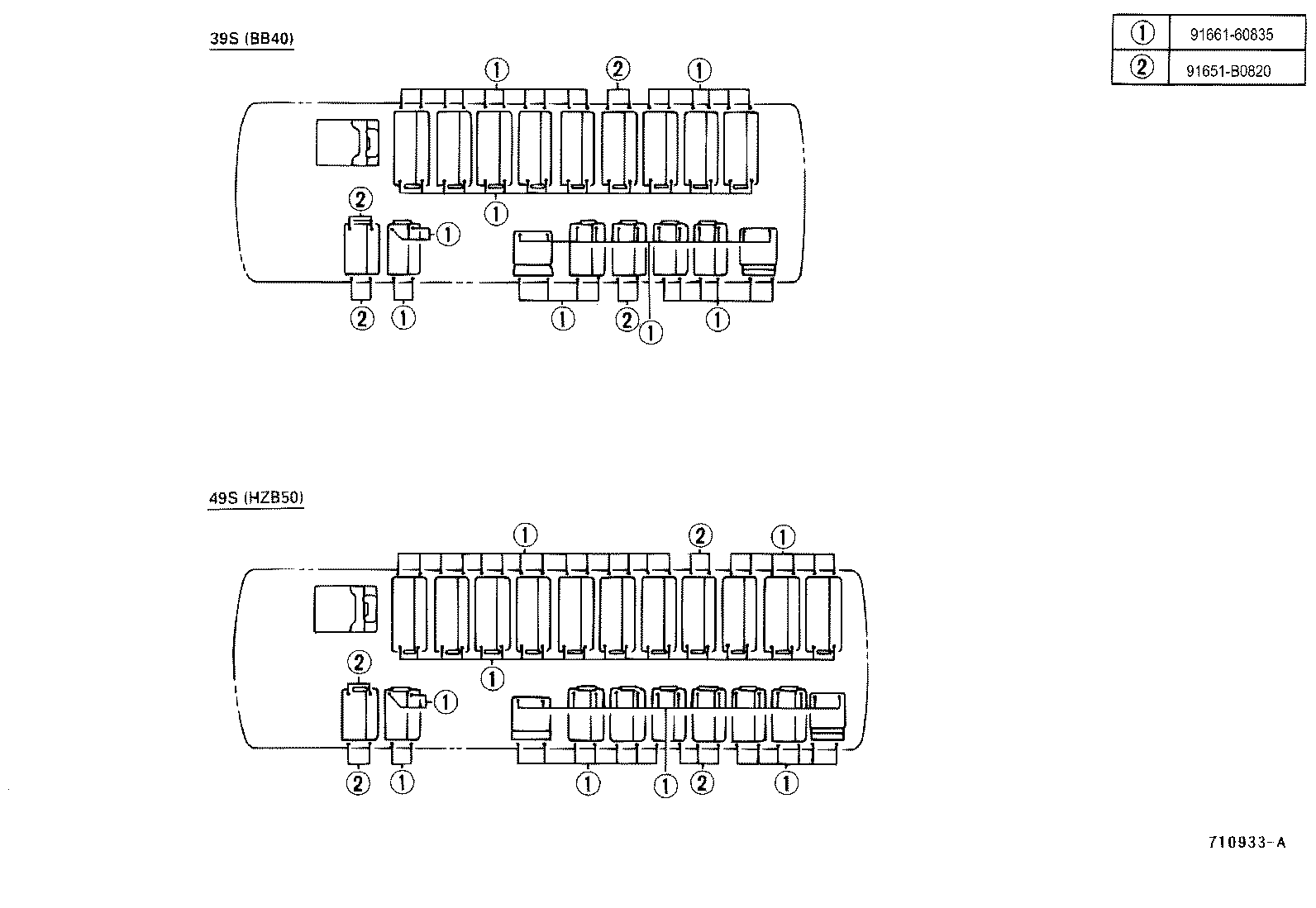

710933A

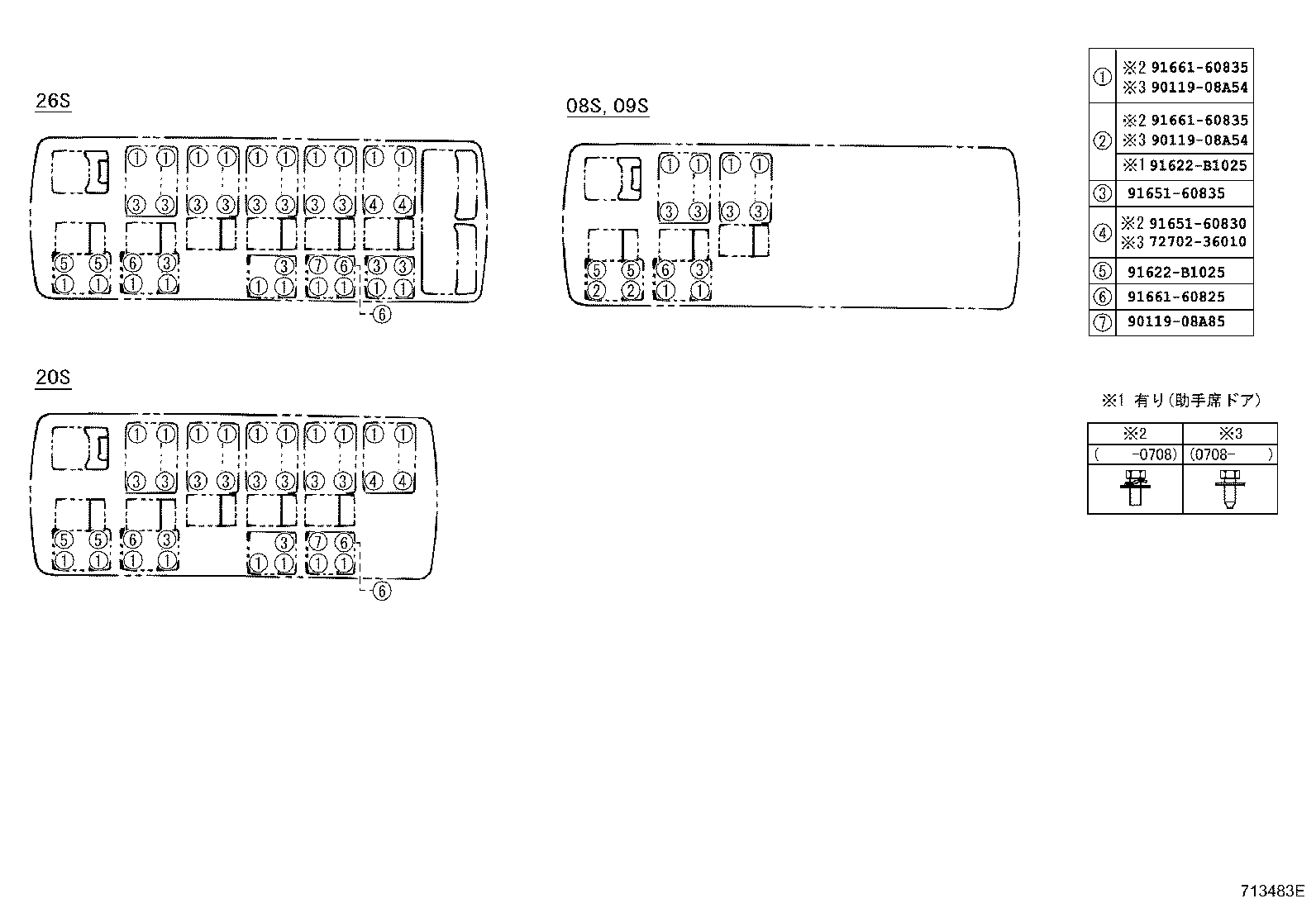

713483E

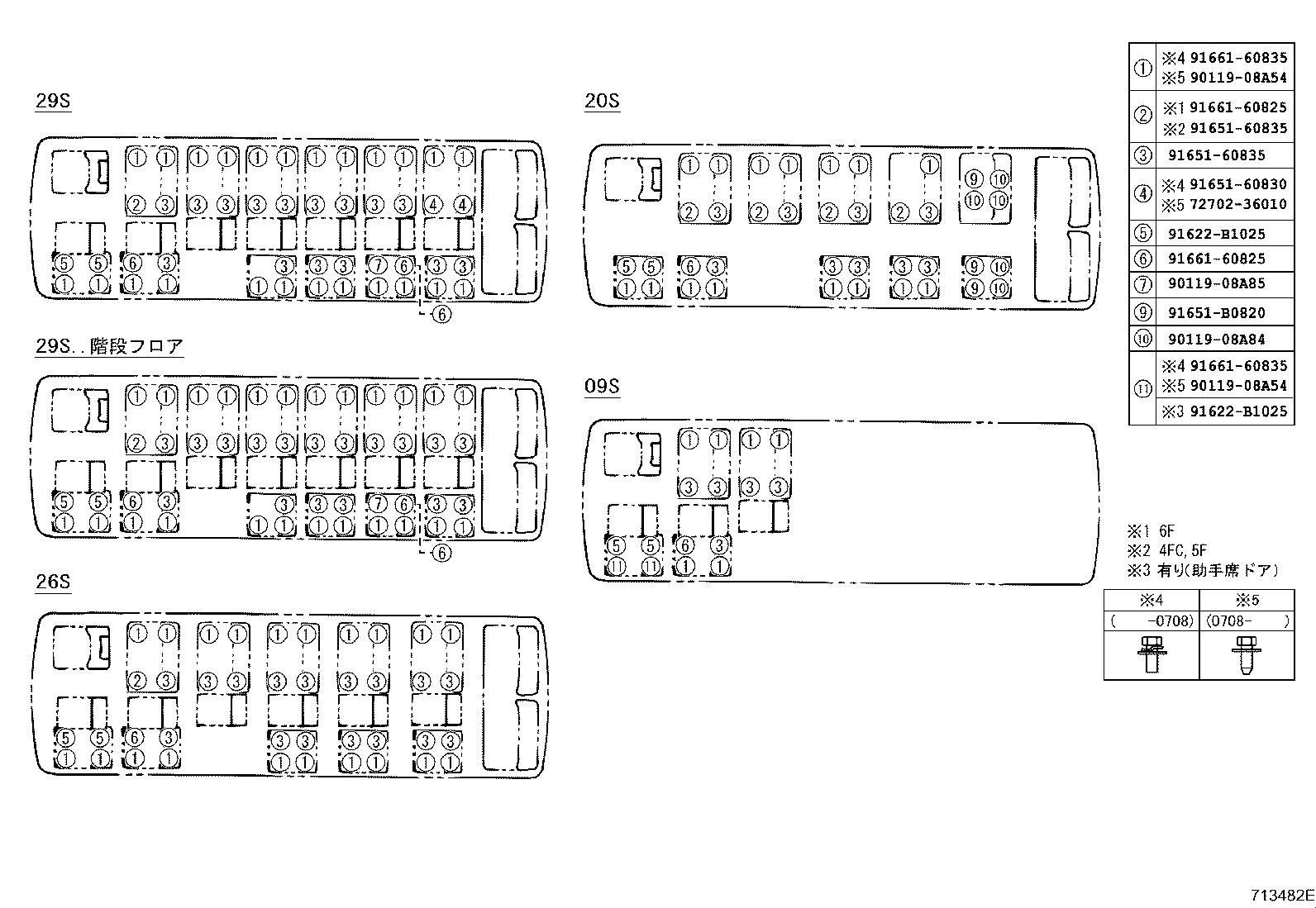

713482E

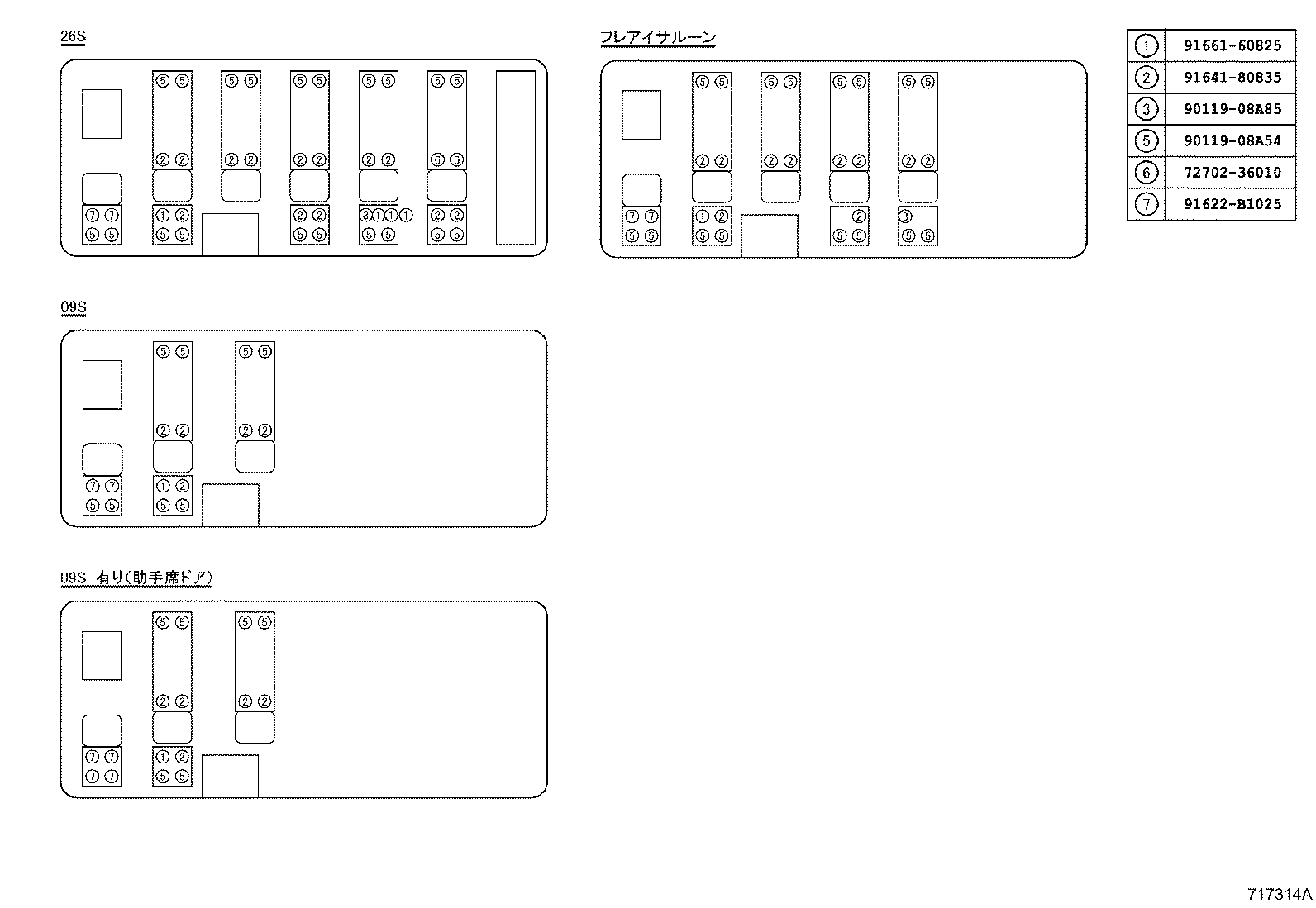

717314A

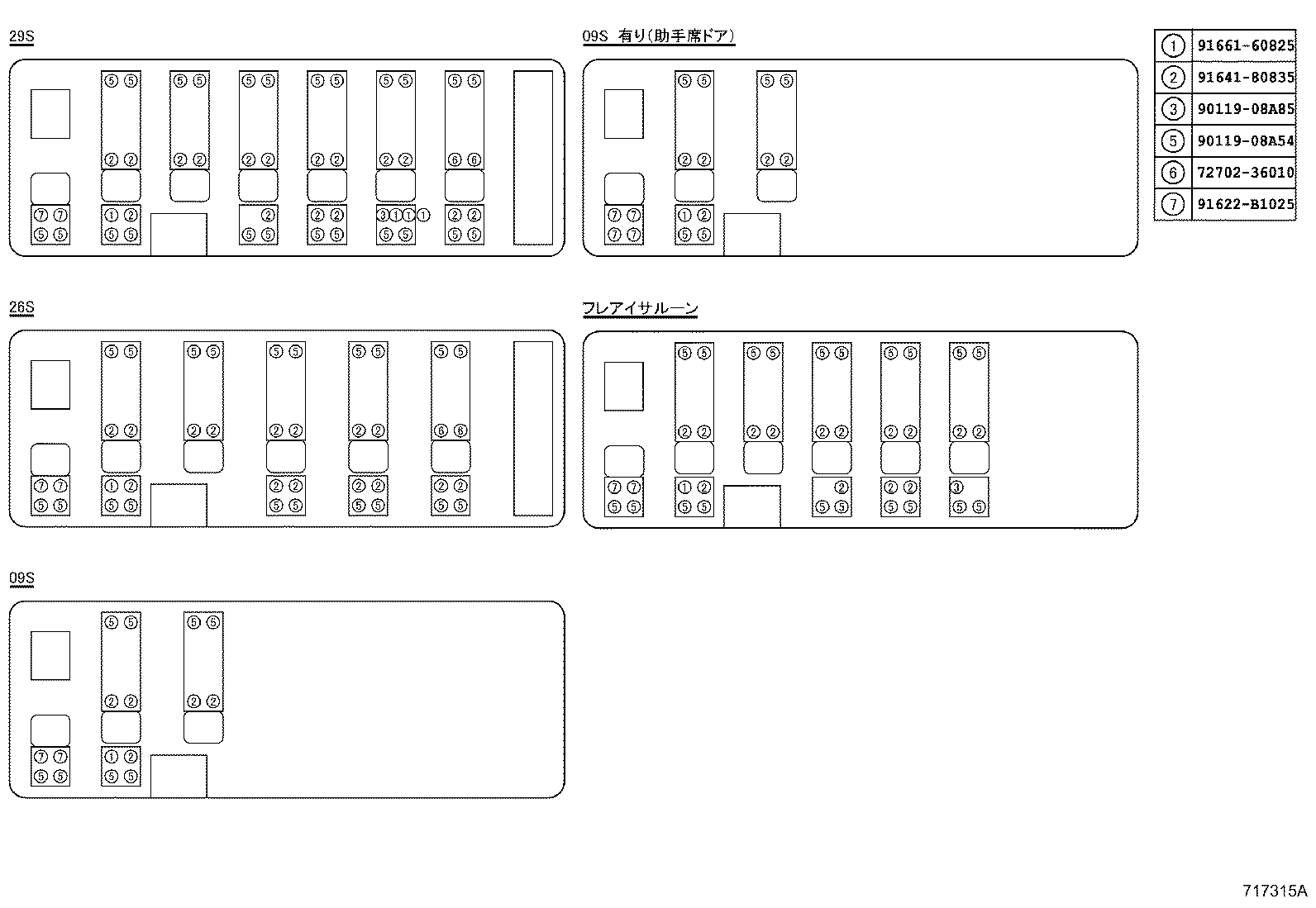

717315A
719193

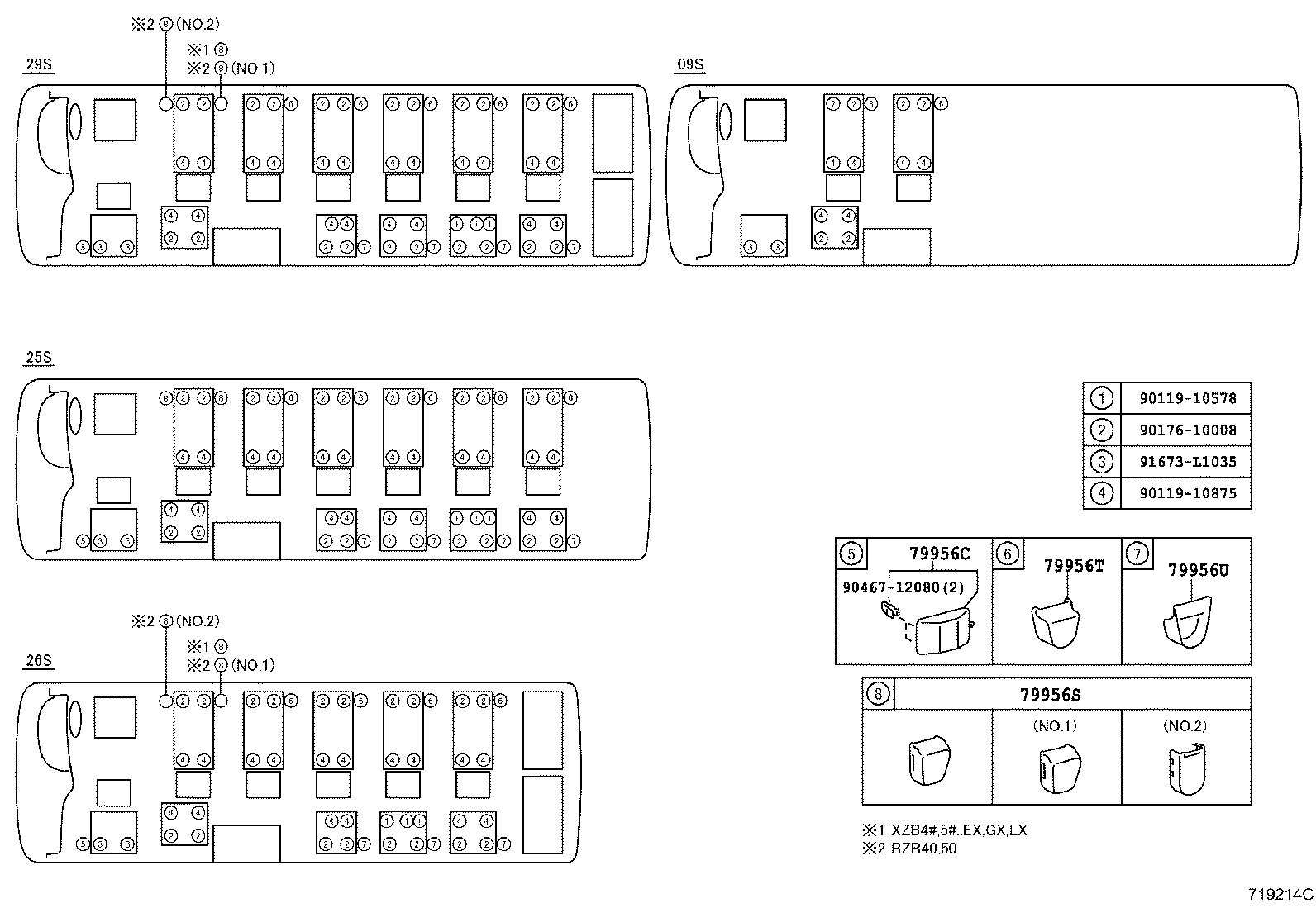

719214C
718165A
Part groups
| PNC | Description |
|---|---|
| 55560D | Lock Assy, Seat Under Tray |
| 66990 | Holder Assy, Cup |
| 66990B | Holder Assy, Cup, NO.2 RH |
| 66990C | Holder Assy, Cup, NO.3 RH |
| 66990D | Holder Assy, Cup, NO.4 RH |
| 66990F | Holder Assy, Cup, NO.5 RH |
| 66990G | Holder Assy, Cup, NO.6 RH |
| 66990H | Holder Assy, Cup, NO.7 RH |
| 66990J | Holder Assy, Cup, NO.1 LH |
| 66990M | Holder Assy, Cup, NO.4 LH |
| 66990N | Holder Assy, Cup, NO.5 LH |
| 66990P | Holder Assy, Cup, NO.6 LH |
| 66990Q | Holder Assy, Cup, NO.7 LH |
| 66995B | Retainer, Cup Holder, NO.2 RH |
| 66995C | Retainer, Cup Holder, NO.3 RH |
| 66995D | Retainer, Cup Holder, NO.4 RH |
| 66995F | Retainer, Cup Holder, NO.5 RH |
| 66995G | Retainer, Cup Holder, NO.6 RH |
| 66995H | Retainer, Cup Holder, NO.7 RH |
| 66995J | Retainer, Cup Holder, NO.1 LH |
| 66995M | Retainer, Cup Holder, NO.4 LH |
| 66995N | Retainer, Cup Holder, NO.5 LH |
| 66995P | Retainer, Cup Holder, NO.6 LH |
| 66995Q | Retainer, Cup Holder, NO.7 LH |
| 71033C | Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH |
| 71034B | Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71077W | Wire, Rear Seatback Cover |
| 71108B | Leg Sub-assy, Front Seat, RH |
| 71148C | Cover, Rear Seat Leg, Outer |
| 71148D | Cover, Rear Seat Leg, Outer |
| 71148E | Cover, Rear Seat Leg, Outer |
| 71148F | Cover, Rear Seat Leg, Outer |
| 71148G | Cover, Rear Seat Leg, Outer |
| 71148H | Cover, Rear Seat Leg, Outer |
| 71148L | Cover, Rear Seat Leg, Outer |
| 71148N | Cover, Rear Seat Leg, Outer |
| 71148P | Cover, Rear Seat Leg, Outer |
| 71148R | Cover, Rear Seat Leg, Outer |
| 71149 | Wire, Front Seat Cushion Connecting |
| 71149H | Cover, Rear Seat Leg, Inner |
| 71149K | Cover, Rear Seat Leg, Inner |
| 71149L | Cover, Rear Seat Leg, Inner |
| 71149N | Cover, Rear Seat Leg, Inner |
| 71149R | Cover, Rear Seat Leg, Inner |
| 71149S | Cover, Rear Seat Leg, Inner |
| 71149T | Cover, Rear Seat Leg, Inner |
| 71149U | Cover, Rear Seat Leg, Inner |
| 71149V | Cover, Rear Seat Leg, Inner |
| 71149W | Cover, Rear Seat Leg, Inner |
| 71218 | Cap, Seat Cushion Frame |
| 71246A | Plate, Rear Seat Cushion Set |
| 71308F | Leg Sub-assy, Rear Seat, RH |
| 71308G | Leg Sub-assy, Rear Seat, RH |
| 71324A | Cushion, Rear Seat |
| 71361C | Pad, Passenger Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71412B | Plate, NO.7 Rear Seat Side, NO.1 |
| 71412C | Plate, NO.7 Rear Seat Side, NO.2 |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71521 | Pad, Front Seat Cushion Silencer, A |
| 71524 | Pad, Front Seat Cushion Silencer, D |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71707A | Cover Sub-assy, Front Seatback Board |
| 71750A | Tray Assy, Front Seat Under |
| 71769A | Clip, Rear Seatback Board |
| 71780B | Pocket Assy, Seatback Board, NO.2 RH |
| 71780C | Pocket Assy, Seatback Board, NO.3 RH |
| 71780D | Pocket Assy, Seatback Board, NO.4 RH |
| 71780F | Pocket Assy, Seatback Board, NO.5 RH |
| 71780G | Pocket Assy, Seatback Board, NO.6 RH |
| 71780H | Pocket Assy, Seatback Board, NO.7 RH |
| 71780J | Pocket Assy, Seatback Board, NO.1 LH |
| 71780M | Pocket Assy, Seatback Board, NO.4 LH |
| 71780N | Pocket Assy, Seatback Board, NO.5 LH |
| 71780P | Pocket Assy, Seatback Board, NO.6 LH |
| 71780Q | Pocket Assy, Seatback Board, NO.7 LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71811H | Cover, Reclining Adjuster, RH |
| 71811J | Cover, Reclining Adjuster, RH |
| 71811L | Cover, Reclining Adjuster, RH |
| 71811M | Cover, Reclining Adjuster, RH |
| 71811N | Cover, Reclining Adjuster, RH |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71812K | Cover, Reclining Adjuster, LH |
| 71812M | Cover, Reclining Adjuster, LH |
| 71812N | Cover, Reclining Adjuster, LH |
| 71812P | Cover, Reclining Adjuster, LH |
| 71812Q | Cover, Reclining Adjuster, LH |
| 71846B | Cap, Rear Seatback Board, NO.1 |
| 71861C | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861D | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861E | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861F | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861G | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861H | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861J | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71862A | Shield, Rear Seat Cushion, Inner LH |
| 71862C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862J | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71867N | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867P | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867Q | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867R | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867S | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867T | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867U | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71868B | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868L | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71873D | Shield, Rear Seat Cushion, Lower RH |
| 71873E | Shield, Rear Seat Cushion, Lower RH |
| 71873F | Shield, Rear Seat Cushion, Lower RH |
| 71873G | Shield, Rear Seat Cushion, Lower RH |
| 71873H | Shield, Rear Seat Cushion, Lower RH |
| 71873J | Shield, Rear Seat Cushion, Lower RH |
| 71873K | Shield, Rear Seat Cushion, Lower RH |
| 71873T | Shield, Rear Seat Cushion, Lower RH |
| 71874K | Shield, Rear Seat Cushion, Lower LH |
| 71874M | Shield, Rear Seat Cushion, Lower LH |
| 71874N | Shield, Rear Seat Cushion, Lower LH |
| 71874P | Shield, Rear Seat Cushion, Lower LH |
| 71874Q | Shield, Rear Seat Cushion, Lower LH |
| 71874R | Shield, Rear Seat Cushion, Lower LH |
| 71874S | Shield, Rear Seat Cushion, Lower LH |
| 71874T | Shield, Rear Seat Cushion, Lower LH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875J | Cover, Reclining Adjuster Inside, RH |
| 71875K | Cover, Reclining Adjuster Inside, RH |
| 71875V | Cover, Reclining Adjuster Inside, RH |
| 71875W | Cover, Reclining Adjuster Inside, RH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71876K | Cover, Reclining Adjuster Inside, LH |
| 71876Y | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72138B | Cover, Seat Track, LH |
| 72150 | Track Assy, Rear Seat, RH |
| 72150A | Track Assy, Rear Seat, RH |
| 72160A | Track Assy, Rear Seat, LH |
| 72160D | Track Assy, Rear Seat, LH |
| 72210B | Cable Assy, Seat Track Control, RH |
| 72210C | Cable Assy, Seat Track Control, LH |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72331A | Board, Assistant Seat, Back |
| 72345A | Pipe, Reclining Connecting |
| 72379 | Belt, Seat Reclining Handle |
| 72501H | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501J | Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501K | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501L | Arm Sub-assy, NO.5 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501M | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501N | Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.1 RH |
| 72501Q | Arm Sub-assy, NO.1 Seat Reclining Adjuster, Upper NO.2 RH |
| 72502B | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502C | Arm Sub-assy, NO.3 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502D | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502E | Arm Sub-assy, NO.5 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502F | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502G | Arm Sub-assy NO.7 Seat Reclining Adjuster, Upper NO.1 LH |
| 72502J | Arm Sub-assy NO.1 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502M | Arm Sub-assy, NO.4 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502N | Arm Sub-assy, NO.5 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502P | Arm Sub-assy, NO.6 Seat Reclining Adjuster, Upper NO.2 LH |
| 72502Q | Arm Sub-assy, NO.7 Seat Reclining Adjuster, Upper NO.2 LH |
| 72507A | Handle Sub-assy, Reclining Release |
| 72508B | Shaft Sub-assy, NO.2 Seat Reclining Adjusting, RH |
| 72508C | Shaft Sub-assy, NO.3 Seat Reclining Adjusting, RH |
| 72508D | Shaft Sub-assy, NO.4 Seat Reclining Adjusting, RH |
| 72508E | Shaft Sub-assy, NO.5 Seat Reclining Adjusting, RH |
| 72508F | Shaft Sub-assy, NO.6 Seat Reclining Adjusting, RH |
| 72508G | Shaft Sub-assy, NO.7 Seat Reclining Adjusting, RH |
| 72508J | Shaft Sub-seat, NO.1 Seat Reclining Adjusting, LH |
| 72508K | Shaft Sub-seat, NO.2 Seat Reclining Adjusting, LH |
| 72508M | Shaft Sub-seat, NO.4 Seat Reclining Adjusting, LH |
| 72508N | Shaft Sub-seat, NO.5 Seat Reclining Adjusting, LH |
| 72508P | Shaft Sub-seat, NO.6 Seat Reclining Adjusting, LH |
| 72508Q | Shaft Sub-seat, NO.7 Seat Reclining Adjusting, LH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72665C | Cover, Rear Seat Lock, RH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72810 | Armrest Assy, Junior Seat |
| 72830E | Armrest Assy, Front Seat |
| 72830L | Armrest Assy, Rear NO.2 Seat, RH |
| 72830N | Armrest Assy, NO.3 Seat, RH |
| 72830P | Armrest Assy, NO.4 Seat, RH |
| 72830Q | Armrest Assy, NO.6 Seat, RH |
| 72830R | Armrest Assy, NO.7 Seat, NO.1 RH |
| 72830S | Armrest Assy, NO.7 Seat, NO.2 RH |
| 72840 | Armrest Assy, Rear NO.1 Seat, LH |
| 72840A | Armrest Assy, Rear NO.2 Seat, LH |
| 72840E | Armrest Assy, NO.4 Seat, LH |
| 72840F | Armrest Assy, NO.6 Seat, LH |
| 72840G | Armrest Assy, NO.7 Seat, NO.1 LH |
| 72840H | Armrest Assy, NO.7 Seat, NO.2 LH |
| 72960B | Table Assy, Rear Seat Turn, RH |
| 72965 | Roller, Rear Seat Turn Guide, RH |
| 72965A | Roller, Rear Seat Turn Guide, LH |
| 72969B | Knob, Rear Seat Turn Lock, RH |
| 72969C | Knob, Rear Seat Turn Lock, LH |
| 72970 | Table Assy, Rear Seat Turn, LH |
| 72988 | Frame, Junior Seat Armrest, RH |
| 72995A | Cover, Rear Seat |
| 73139A | Cover, Seat Belt Anchor |
| 73173G | Cover, Rear Seat Shoulder Belt, RH |
| 73173N | Cover, Rear Seat Shoulder Belt, RH |
| 73175A | Cover, Rear Seat Shoulder Belt, LH |
| 73175B | Cover, Rear Seat Shoulder Belt, LH |
| 73175C | Cover, Rear Seat Shoulder Belt, LH |
| 73175D | Cover, Rear Seat Shoulder Belt, LH |
| 73175E | Cover, Rear Seat Shoulder Belt, LH |
| 73175F | Cover, Rear Seat Shoulder Belt, LH |
| 73175G | Cover, Rear Seat Shoulder Belt, LH |
| 73178B | Cap, Seat Belt Anchor Cover |
| 73373D | Cover, Rear Seat Shoulder Belt Hole, RH |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73373M | Cover, Rear Seat Shoulder Belt, RH |
| 73373N | Cover, Rear Seat Shoulder Belt, RH |
| 73373P | Cover, Rear Seat Shoulder Belt, RH |
| 73373Q | Cover, Rear Seat Shoulder Belt, RH |
| 73373R | Cover, Rear Seat Shoulder Belt, RH |
| 73373S | Cover, Rear Seat Shoulder Belt, RH |
| 73373T | Cover, Rear Seat Shoulder Belt, RH |
| 73375B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 73375D | Cover, Rear Seat Shoulder Belt, LH |
| 73375G | Cover, Rear Seat Shoulder Belt, LH |
| 73375H | Cover, Rear Seat Shoulder Belt, LH |
| 73375J | Cover, Rear Seat Shoulder Belt, LH |
| 73375K | Cover, Rear Seat Shoulder Belt, LH |
| 73375L | Cover, Rear Seat Shoulder Belt, LH |
| 73375M | Cover, Rear Seat Shoulder Belt Hole |
| 74631E | Hook, Coat, NO.2 RH |
| 74631F | Hook, Coat, NO.3 RH |
| 74631G | Hook, Coat, NO.4 RH |
| 74631H | Hook, Coat, NO.5 RH |
| 74631J | Hook, Coat, NO.6 RH |
| 74631K | Hook, Coat, NO.7 RH |
| 74631L | Hook, Coat, NO.1 LH |
| 74631P | Hook, Coat, NO.4 LH |
| 74631Q | Hook, Coat, NO.5 LH |
| 74631R | Hook, Coat, NO.6 LH |
| 74631S | Hook, Coat, NO.7 LH |
| 74844A | Ornament, Front Seatback Panel, A |
| 78071 | Cover Sub-assy, Sub Seat Cushion, RH |
| 78071B | Cover Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78071C | Cover Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78071D | Cover Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78071E | Cover Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78071F | Cover Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78071G | Cover Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78072 | Cover Sub-assy, Sub Seat Cushion, LH |
| 78072A | Cover Sub-assy, Sub Seat Cushion, LH NO.2 |
| 78073 | Cover Sub-assy, Sub Seatback, RH |
| 78073A | Cover Sub-assy, Sub Seatback, RH NO.2 |
| 78073B | Cover Sub-assy, Sub Seatback, RH NO.3 |
| 78073C | Cover Sub-assy, Sub Seatback, RH NO.4 |
| 78073D | Cover Sub-assy, Sub Seatback, RH NO.5 |
| 78073E | Cover Sub-assy, Sub Seatback, RH NO.6 |
| 78073F | Cover Sub-assy, Sub Seatback, RH NO.7 |
| 78074 | Cover Sub-assy, Sub Seatback, LH |
| 78074A | Cover Sub-assy, Sub Seatback, LH NO.2 |
| 78077B | Board Sub-assy, Sub Seat Cushion, RH |
| 78077C | Board Sub-assy, Assistant Seat Cushion, NO.1 |
| 78077D | Board Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78077E | Board Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78077F | Board Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78077G | Board Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78077H | Board Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78077J | Board Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78078 | Board Sub-assy, Sub Seat Cushion, LH |
| 78078A | Board Sub-assy, Assistant Seat Cushion, NO.2 |
| 78078B | Board Sub-assy, Sub Seat Cushion, LH NO.2 |
| 78081 | Cover Sub-assy, Assistant Seat Cushion, NO.1 |
| 78082 | Cover Sub-assy, Assistant Seat Cushion, NO.2 |
| 78083 | Cover Sub-assy, Assistant Seatback, NO.1 |
| 78084 | Cover Sub-assy, Assistant Seatback, NO.2 |
| 78701 | Frame Sub-assy, Sub Seat Cushion, RH |
| 78701B | Frame Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78701C | Frame Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78701D | Frame Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78701E | Frame Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78701F | Frame Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78701G | Frame Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78702 | Frame Sub-assy, Sub Seat Cushion, LH |
| 78702A | Frame Sub-assy, Sub Seat Cushion, LH |
| 78703A | Frame Sub-assy, Sub Seatback, RH |
| 78703B | Frame Sub-assy, Sub Seatback, LH |
| 78703C | Frame Sub-assy, Sub Seatback, RH NO.2 |
| 78703D | Frame Sub-assy, Sub Seatback, RH NO.3 |
| 78703E | Frame Sub-assy, Sub Seatback, RH NO.4 |
| 78703F | Frame Sub-assy, Sub Seatback, RH NO.5 |
| 78703G | Frame Sub-assy, Sub Seatback, RH NO.6 |
| 78703H | Frame Sub-assy, Sub Seatback, RH NO.7 |
| 78703J | Frame Sub-assy, Sub Seatback, LH NO.2 |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78705A | Bracket Sub-assy, Sub Seat Cushion NO.2 |
| 78705B | Bracket Sub-assy, Sub Seat Cushion NO.3 |
| 78705C | Bracket Sub-assy, Sub Seat Cushion NO.4 |
| 78705D | Bracket Sub-assy, Sub Seat Cushion NO.5 |
| 78705E | Bracket Sub-assy, Sub Seat Cushion NO.6 |
| 78705F | Bracket Sub-assy, Sub Seat Cushion NO.7 |
| 78707 | Frame Sub-assy, Sub Seatback, Lower RH |
| 78708 | Frame Sub-assy, Sub Seatback, Lower LH |
| 78715 | Panel, Sub Seat Cushion |
| 78715A | Panel, Assistant Seat Cushion |
| 78715B | Panel, Sub Seat Cushion NO.2 |
| 78715C | Panel, Sub Seat Cushion NO.3 |
| 78715D | Panel, Sub Seat Cushion NO.4 |
| 78715E | Panel, Sub Seat Cushion NO.5 |
| 78715F | Panel, Sub Seat Cushion NO.6 |
| 78715G | Panel, Sub Seat Cushion NO.7 |
| 78720 | Cushion Assy, Sub Seat, RH |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78726A | Cushion, Sub Seat Cushion Frame, NO.2 |
| 78726B | Cushion, Sub Seat Cushion Frame, NO.3 |
| 78726C | Cushion, Sub Seat Cushion Frame, NO.4 |
| 78726D | Cushion, Sub Seat Cushion Frame, NO.5 |
| 78726E | Cushion, Sub Seat Cushion Frame, NO.6 |
| 78726F | Cushion, Sub Seat Cushion Frame, NO.7 |
| 78730 | Cushion Assy, Sub Seat, LH |
| 78735A | Pad, Sub Seat Cushion, RH |
| 78735B | Pad, Sub Seat Cushion, LH |
| 78735C | Pad, Assistant Seat Cushion, NO.1 |
| 78735D | Pad, Assistant Seat Cushion, NO.2 |
| 78735E | Pad, Sub Seat Cushion, RH NO.2 |
| 78735F | Pad, Sub Seat Cushion, RH NO.3 |
| 78735G | Pad, Sub Seat Cushion, RH NO.4 |
| 78735H | Pad, Sub Seat Cushion, RH NO.5 |
| 78735J | Pad, Sub Seat Cushion, RH NO.6 |
| 78735K | Pad, Sub Seat Cushion, RH NO.7 |
| 78735L | Pad, Sub Seat Cushion, LH NO.2 |
| 78740A | Back Assy, Sub Seat, RH |
| 78750A | Back Assy, Sub Seat, LH |
| 78773 | Cover, Sub Seat Hinge, RH |
| 78773A | Hoop, Sub Seatback Guide |
| 78775A | Pad, Sub Seatback, RH |
| 78775B | Pad, Sub Seatback, LH |
| 78775C | Pad, Assistant Seatback, NO.1 |
| 78775D | Pad, Assistant Seatback, NO.2 |
| 78775E | Pad, Sub Seatback, RH NO.2 |
| 78775F | Pad, Sub Seatback, RH NO.3 |
| 78775G | Pad, Sub Seatback, RH NO.4 |
| 78775H | Pad, Sub Seatback, RH NO.5 |
| 78775J | Pad, Sub Seatback, RH NO.6 |
| 78775K | Pad, Sub Seatback, RH NO.7 |
| 78775L | Pad, Sub Seatback, LH NO.2 |
| 78794 | Bracket, Sub Seat, NO.1 |
| 78798 | Spacer, Sub Seatback Frame |
| 78801 | Frame Sub-assy, Assistant Seat, NO.1 |
| 78802 | Frame Sub-assy, Assistant Seat, NO.2 |
| 78803A | Leg Sub-assy, Sub Seat, RH |
| 78805A | Frame Sub-assy, Assistant Seat Cushion, NO.1 |
| 78806A | Frame Sub-assy, Assistant Seat Cushion, NO.2 |
| 78820 | Cushion Assy, Assistant Seat, NO.1 |
| 78840 | Back Assy, Assistant Seat, NO.1 |
| 78903 | Striker Sub-assy, Fold Seat Leg Lock |
| 78904 | Striker Sub-assy, Fold Seat Lock, NO.2 |
| 78910 | Cable Assy, Fold Seat Lock Control, NO.1 |
| 78910A | Lock Assy, Fold Seat, RH |
| 78920A | Lock Assy, Fold Seat, LH |
| 78930 | Cable Assy, Fold Seat Lock Control, NO.3 |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
| 78960 | Band Assy, Fold Seat Stopper, NO.2 |
| 78970 | Band Assy, Seat Lock |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79016A | Pad Sub-assy, NO.1 Seat Cushion, LH |
| 79018A | Pad Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79023C | Cover Sub-assy, Junior Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79024B | Cover Sub-assy, Junior Seatback, LH |
| 79025A | Pad Sub-assy, NO.2 Seat Cushion, RH |
| 79026 | Pad Sub-assy, NO.2 Seat Cushion, LH |
| 79026A | Pad Sub-assy, NO.2 Seat Cushion, LH |
| 79027A | Pad Sub-assy, NO.2 Seatback, RH |
| 79028A | Pad Sub-assy, NO.2 Seatback, LH |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79035A | Pad Sub-assy, NO.3 Seat Cushion, RH |
| 79037A | Pad Sub-assy, NO.3 Seatback, RH |
| 79041 | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042 | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043 | Cover Sub-assy, NO.4 Seatback, RH |
| 79044 | Cover Sub-assy, NO.4 Seatback, LH |
| 79045A | Pad Sub-assy, NO.4 Seat Cushion, RH |
| 79046A | Pad Sub-assy, NO.4 Seat Cushion, LH |
| 79047A | Pad Sub-assy, NO.4 Seatback, RH |
| 79048A | Pad Sub-assy, NO.4 Seatback, LH |
| 79051 | Cover Sub-assy, NO.5 Seat Cushion, RH |
| 79052 | Cover Sub-assy, NO.5 Seat Cushion, LH |
| 79053 | Cover Sub-assy, NO.5 Seatback, RH |
| 79054 | Cover Sub-assy, NO.5 Seatback, LH |
| 79055A | Pad Sub-assy, NO.5 Seat Cushion, RH |
| 79056A | Pad Sub-assy, NO.5 Seat Cushion, LH |
| 79057A | Pad Sub-assy, NO.5 Seatback, RH |
| 79058A | Pad Sub-assy, NO.5 Seatback, LH |
| 79061 | Cover Sub-assy, NO.6 Seat Cushion, RH |
| 79062 | Cover Sub-assy, NO.6 Seat Cushion, LH |
| 79063 | Cover Sub-assy, NO.6 Seatback, RH |
| 79064 | Cover Sub-assy, NO.6 Seatback, LH |
| 79065A | Pad Sub-assy, NO.6 Seat Cushion, RH |
| 79066A | Pad Sub-assy, NO.6 Seat Cushion, LH |
| 79067A | Pad Sub-assy, NO.6 Seatback, RH |
| 79068A | Pad Sub-assy, NO.6 Seatback, LH |
| 79071 | Cover Sub-assy, NO.7 Seat Cushion, RH |
| 79072 | Cover Sub-assy, NO.7 Seat Cushion, LH |
| 79073 | Cover Sub-assy, NO.7 Seatback, RH |
| 79074 | Cover Sub-assy, NO.7 Seatback, LH |
| 79075A | Pad Sub-assy, NO.7 Seat Cushion, RH |
| 79076 | Pad Sub-assy, NO.7 Seat Cushion, LH |
| 79077 | Cover Sub-assy, NO.7 Seat Leg, NO.1 |
| 79077A | Pad Sub-assy, NO.7 Seatback, RH |
| 79078 | Cover Sub-assy, NO.7 Seat Leg, NO.2 |
| 79078A | Pad Sub-assy, NO.7 Seatback, LH |
| 79081 | Cover Sub-assy, NO.8 Seat Cushion, RH |
| 79081A | Cover Sub-assy, NO.8 Seat Cushion |
| 79082 | Cover Sub-assy, NO.8 Seat Cushion, LH |
| 79083 | Cover Sub-assy, NO.8 Seatback, RH |
| 79084 | Cover Sub-assy, NO.8 Seatback, LH |
| 79085 | Pad Sub-assy, NO.8 Seat Cushion |
| 79085B | Pad Sub-assy, NO.8 Seat Cushion, RH |
| 79086B | Pad Sub-assy, NO.8 Seat Cushion, LH |
| 79087B | Pad Sub-assy, NO.8 Seatback, RH |
| 79088B | Pad Sub-assy, NO.8 Seatback, LH |
| 79091A | Garnish Sub-assy, Rear Seat Leg Side |
| 79091B | Clip, Rear Seat Leg Side Garnish |
| 79092 | Garnish Sub-assy, Rear Seat Leg Side, NO.2 |
| 79093 | Cover Sub-assy, NO.9 Seatback, RH |
| 79093B | Garnish Sub-assy, Rear Seat Leg Side, NO.3 |
| 79094A | Garnish Sub-assy, Rear Seat Leg Side, NO.4 |
| 79095A | Garnish Sub-assy, Rear Seat Leg Side, NO.5 |
| 79096B | Garnish Sub-assy, Rear Seat Leg Side, NO.6 |
| 79097 | Partition Sub-assy, Luggage Compartment Wall |
| 79101A | Frame Sub-assy, NO.1 Junior Seat, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79102A | Frame Sub-assy, NO.1 Junior Seat, LH |
| 79104 | Frame Sub-assy, NO.1 Seatback, LH |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79108A | Leg Sub-assy, NO.6 Seat, Rear |
| 79109 | Board Sub-assy, NO.1 Seatback |
| 79109C | Board Sub-assy, NO.1 Seatback, LH |
| 79115A | Plate, NO.1 Seat Cushion Hinge, NO.2 RH |
| 79119 | Bracket, NO.1 Seat Leg, NO.2 |
| 79120 | Cushion Assy, NO.1 Seat, RH |
| 79125A | Plate, NO.1 Seat Cushion Hinge, NO.2 LH |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79137B | Cover, NO.3 Seat Hinge |
| 79139C | Cloth, NO.3 Seat Cushion |
| 79139D | Cloth, NO.4 Seat Cushion |
| 79139F | Cloth, NO.6 Seat Cushion |
| 79139G | Cloth, NO.7 Seat Cushion |
| 79140 | Back Assy, NO.1 Seat, RH |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79179B | Pad, NO.1 Seatback Headrest, LH |
| 79190A | Spring Assy, NO.1 Seatback, LH |
| 79201A | Frame Sub-assy, NO.2 Junior Seat, RH |
| 79201B | Frame Sub-assy, NO.2 Seat Cushion, RH |
| 79202 | Frame Sub-assy, NO.2 Seat Cushion, LH |
| 79202A | Frame Sub-assy, NO.2 Junior Seat, LH |
| 79203A | Frame Sub-assy, NO.2 Seatback, RH |
| 79204A | Frame Sub-assy, NO.2 Seatback, LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |
| 79207 | Board Sub-assy, Junior Seatback, RH |
| 79209 | Board Sub-assy, NO.2 Seatback |
| 79209B | Board Sub-assy, NO.2 Seatback, LH |
| 79215A | Plate, NO.2 Seat Cushion Hinge, NO.1 RH |
| 79220 | Cushion Assy, NO.2 Seat, RH |
| 79225A | Plate, NO.2 Seat Cushion Hinge, NO.2 LH |
| 79230 | Cushion Assy, NO.2 Seat, LH |
| 79235B | Pad, Junior Seat Cushion, RH |
| 79240 | Back Assy, NO.2 Seat, RH |
| 79245B | Pad, Junior Seat Cushion, LH |
| 79246A | Cover, NO.2 Seat Leg, NO.2 |
| 79250 | Back Assy, NO.2 Seat, LH |
| 79275A | Pad, Junior Seatback, RH |
| 79276A | Pad, Junior Seatback Safety, RH |
| 79276B | Pad, Junior Seatback Safety, RH |
| 79277 | Pad, Junior Seatback Safety, A |
| 79278 | Pad, Junior Seatback Safety, B |
| 79279 | Pad, NO.2 Seatback Headrest |
| 79279A | Pad, NO.1 Seatback Headrest, LH |
| 79280A | Spring Assy, NO.2 Seatback, RH |
| 79285A | Pad, Junior Seatback, LH |
| 79286A | Pad, Junior Seatback Safety, LH |
| 79286B | Pad, Junior Seatback Safety, LH |
| 79290A | Spring Assy, NO.2 Seatback, LH |
| 79298 | Reinforcement, Junior Seat Assist Set, RH |
| 79299A | Reinforcement, Junior Seat Assist Set, LH |
| 79299B | Reinforce, Junior Seat Assist Set |
| 79301A | Frame Sub-assy, NO.3 Junior Seat, RH |
| 79301B | Frame Sub-assy, NO.3 Seat Cushion, RH |
| 79303A | Frame Sub-assy, NO.3 Seatback, RH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79309 | Board Sub-assy, NO.3 Seatback |
| 79315A | Plate, NO.3 Seat Cushion Hinge, NO.1 RH |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79340 | Back Assy, NO.3 Seat, RH |
| 79367 | Cover, NO.3 Seat Leg, NO.2 |
| 79374 | Cover, NO.3 Seat Leg, Rear RH |
| 79379 | Pad, NO.3 Seatback Headrest |
| 79380A | Spring Assy, NO.3 Seatback, RH |
| 79382B | Cover, NO.2 Seat Front Bracket, LH |
| 79401 | Frame Sub-assy, NO.4 Seat Cushion, RH |
| 79401A | Frame Sub-assy, NO.4 Junior Seat, RH |
| 79402 | Frame Sub-assy, NO.4 Seat Cushion, LH |
| 79402A | Frame Sub-assy, NO.4 Junior Seat, LH |
| 79403A | Frame Sub-assy, NO.4 Seatback, RH |
| 79404 | Frame Sub-assy, NO.4 Seatback, LH |
| 79405A | Leg Sub-assy, NO.4 Seat, RH |
| 79406A | Leg Sub-assy, NO.4 Seat, LH |
| 79409 | Board Sub-assy, NO.4 Seatback |
| 79409B | Board Sub-assy, NO.4 Seatback, LH |
| 79415A | Plate, NO.4 Seat Cushion Hinge, NO.1 RH |
| 79415B | Plate, NO.4 Seat Cushion Hinge, NO.2 RH |
| 79415C | Plate, NO.1 Seat Cushion Hinge, RH |
| 79420 | Cushion Assy, NO.4 Seat, RH |
| 79425 | Plate, NO.4 Seat Cushion Hinge, NO.1 LH |
| 79425A | Plate, NO.4 Seat Cushion Hinge, NO.2 LH |
| 79430 | Cushion Assy, NO.4 Seat, LH |
| 79440 | Back Assy, NO.4 Seat, RH |
| 79450 | Back Assy, NO.4 Seat, LH |
| 79466 | Cover, NO.4 Seat Leg, NO.1 |
| 79479 | Pad, NO.4 Seatback Headrest, RH |
| 79479A | Pad, NO.4 Seatback Headrest, LH |
| 79480A | Spring Assy, NO.4 Seatback, RH |
| 79490A | Spring Assy, NO.4 Seatback, LH |
| 79501 | Frame Sub-assy, NO.5 Seat Cushion, RH |
| 79501A | Frame Sub-assy, NO.5 Junior Seat, RH |
| 79502 | Frame Sub-assy, NO.5 Seat Cushion, LH |
| 79502A | Frame Sub-assy, NO.5 Junior Seat, LH |
| 79503 | Frame Sub-assy, NO.5 Seatback, RH |
| 79504 | Frame Sub-assy, NO.5 Seatback, LH |
| 79505 | Leg Sub-assy, NO.5 Seat, RH |
| 79506 | Leg Sub-assy, NO.5 Seat, LH |
| 79509 | Board Sub-assy, NO.5 Seatback, RH |
| 79509A | Board Sub-assy, NO.5 Seatback, LH |
| 79515B | Plate, NO.5 Seat Cushion Hinge, NO.2 RH |
| 79520 | Cushion Assy, NO.5 Seat, RH |
| 79525A | Plate, NO.5 Seat Cushion Hinge, NO.2 LH |
| 79530 | Cushion Assy, NO.5 Seat, LH |
| 79540 | Back Assy, NO.5 Seat, RH |
| 79550 | Back Assy, NO.5 Seat, LH |
| 79579 | Pad, NO.5 Seatback Headrest, RH |
| 79579A | Pad, NO.5 Seatback Headrest, LH |
| 79580A | Spring Assy, NO.5 Seatback, RH |
| 79590A | Spring Assy, NO.5 Seatback, LH |
| 79601 | Frame Sub-assy, NO.6 Seat Cushion, RH |
| 79601A | Frame Sub-assy, NO.6 Junior Seat, RH |
| 79602 | Frame Sub-assy, NO.6 Seat Cushion, LH |
| 79602A | Frame Sub-assy, NO.6 Junior Seat, LH |
| 79603 | Frame Sub-assy, NO.6 Seatback, RH |
| 79604 | Frame Sub-assy, NO.6 Seatback, LH |
| 79605 | Leg Sub-assy, NO.6 Seat, RH |
| 79606 | Leg Sub-assy, NO.6 Seat, LH |
| 79609 | Board Sub-assy, NO.6 Seatback, RH |
| 79609A | Board Sub-assy, NO.6 Seatback, LH |
| 79615 | Plate, NO.6 Seat Cushion Hinge, NO.1 RH |
| 79615A | Plate, NO.6 Seat Cushion Hinge, NO.2 RH |
| 79620 | Cushion Assy, NO.6 Seat, RH |
| 79625 | Plate, NO.6 Seat Cushion Hinge, NO.1 LH |
| 79625A | Plate, NO.6 Seat Cushion Hinge, NO.2 LH |
| 79630 | Cushion Assy, NO.6 Seat, LH |
| 79636 | Cover, NO.6 Seat Leg, RH |
| 79636A | Cover, NO.6 Seat Leg, LH |
| 79640 | Back Assy, NO.6 Seat, RH |
| 79650 | Back Assy, NO.6 Seat, LH |
| 79679 | Pad, NO.6 Seatback Headrest, RH |
| 79679A | Pad, NO.6 Seatback Headrest, LH |
| 79680B | Spring Assy, NO.6 Seatback, RH |
| 79690A | Spring Assy, NO.6 Seatback, LH |
| 79701 | Frame Sub-assy, NO.7 Seat Cushion, RH |
| 79701A | Frame Sub-assy, NO.7 Junior Seat, RH |
| 79702 | Frame Sub-assy, NO.7 Seat Cushion, LH |
| 79702A | Frame Sub-assy, NO.7 Junior Seat, LH |
| 79703 | Frame Sub-assy, NO.7 Seatback, RH |
| 79704 | Frame Sub-assy, NO.7 Seatback, LH |
| 79705 | Leg Sub-assy, NO.7 Seat, RH |
| 79706 | Leg Sub-assy, NO.7 Seat, LH |
| 79709 | Board Sub-assy, NO.7 Seatback, RH |
| 79709A | Board Sub-assy, NO.7 Seatback, LH |
| 79715 | Plate, NO.7 Seat Cushion Hinge, NO.1 RH |
| 79715A | Plate, NO.7 Seat Cushion Hinge, NO.2 RH |
| 79720 | Cushion Assy, NO.7 Seat, RH |
| 79725 | Plate, NO.7 Seat Cushion Hinge, NO.1 LH |
| 79725A | Plate, NO.7 Seat Cushion Hinge, NO.2 LH |
| 79730 | Cushion Assy, NO.7 Seat, LH |
| 79736D | Cover, NO.7 Seat Leg, LH |
| 79740 | Back Assy, NO.7 Seat, RH |
| 79750 | Back Assy, NO.7 Seat, LH |
| 79779 | Pad, NO.7 Seatback Headrest, RH |
| 79779A | Pad, NO.7 Seatback Headrest, LH |
| 79780A | Spring Assy, NO.7 Seatback, RH |
| 79790A | Spring Assy, NO.7 Seatback, LH |
| 79801A | Frame Sub-assy, NO.8 Junior Seat, RH |
| 79802A | Frame Sub-assy, NO.8 Junior Seat, LH |
| 79803 | Frame Sub-assy, NO.8 Seatback, RH |
| 79804 | Frame Sub-assy, NO.8 Seatback, LH |
| 79805 | Leg Sub-assy, NO.8 Seat, RH |
| 79805A | Leg Sub-assy, Fold Seat, Front |
| 79806A | Leg Sub-assy, NO.8 Seat, LH |
| 79806B | Leg Sub Assy, Fold Seat Rear |
| 79809 | Board Sub-assy, NO.8 Seatback |
| 79809B | Board Sub-assy, NO.8 Seatback, LH |
| 79820 | Cushion Assy, NO.8 Seat, RH |
| 79820A | Cushion Assy, NO.8 Seat |
| 79830 | Cushion Assy, NO.8 Seat, LH |
| 79840 | Back Assy, NO.8 Seat, RH |
| 79850 | Back Assy, NO.8 Seat, LH |
| 79860 | Spring Assy, NO.8 Seat Cushion |
| 79880B | Spring Assy, NO.8 Seatback, RH |
| 79885 | Hinge, Fold Seatback Set, RH |
| 79886 | Hinge, Fold Seatback Set, LH |
| 79890B | Spring Assy, NO.8 Seatback, LH |
| 79901A | Frame Sub-assy, NO.9 Junior Seat, RH |
| 79909 | Board Sub-assy, NO.9 Seatback, RH |
| 79915 | Bracket, Seat Leg |
| 79916 | Bracket, Seat Leg, NO.2 |
| 79920 | Cushion Assy, NO.9 Seat, RH |
| 79940 | Back Assy, NO.9 Seat, RH |
| 79956C | Cover, Rear Seat Leg Side, LH |
| 79956S | Cover, Rear Seat Leg Side |
| 79956T | Cover, Rear Seat Leg Side |
| 79956U | Cover, Rear Seat Leg Side |
| 79959A | Cover, Rear Seat Leg, RH |
| 79959D | Cover, Seat Leg |
| 79967C | Cover, Rear Seat Leg Side, NO.4 |
| 79967D | Cover, Rear Seat Leg Side, NO.4 |
| 79967E | Cover, Rear Seat Leg Side, NO.4 |
| 79967F | Cover, Rear Seat Leg Side, NO.4 |
| 79967G | Cover, Rear Seat Leg Side, NO.4 |
| 79967H | Cover, Rear Seat Leg Side, NO.4 |
| 79967J | Cover, Rear Seat Leg Side, NO.4 |
| 79967K | Cover, Rear Seat Leg Side, NO.4 |
| 79967L | Cover, Rear Seat Leg Side, NO.4 |
| 79967N | Cover, Rear Seat Leg Side, NO.4 |
| 79967P | Cover, Rear Seat Leg Side, NO.4 |
| 79967Q | Cover, Rear Seat Leg Side, NO.4 |
| 79967R | Cover, Rear Seat Leg Side, NO.4 |
| 79967S | Cover, Rear Seat Leg Side, NO.4 |
| 79968 | Cover, Rear Seat Leg Side, NO.5 |
| 79968A | Cover, Rear Seat Leg Side, NO.5 |
| 79968G | Cover, Rear Seat Leg Side, NO.5 |
| 79968H | Cover, Rear Seat Leg Side, NO.5 |
| 79968J | Cover, Rear Seat Leg Side, NO.5 |
| 79968K | Cover, Rear Seat Leg Side, NO.5 |
| 79968N | Cover, Rear Seat Leg Side, NO.5 |
| 79968P | Cover, Rear Seat Leg Side, NO.5 |
| 79968Q | Cover, Rear Seat Leg Side, NO.5 |
| 79968R | Cover, Rear Seat Leg Side, NO.5 |
| 79968S | Cover, Rear Seat Leg Side, NO.5 |
| 79968T | Cover, Rear Seat Leg Side, NO.5 |
| 79974 | Bracket, Seatback Assist, RH |
| 79984 | Bracket, Seatback Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
