Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

80 part groups · 25 illustrations

Illustrations

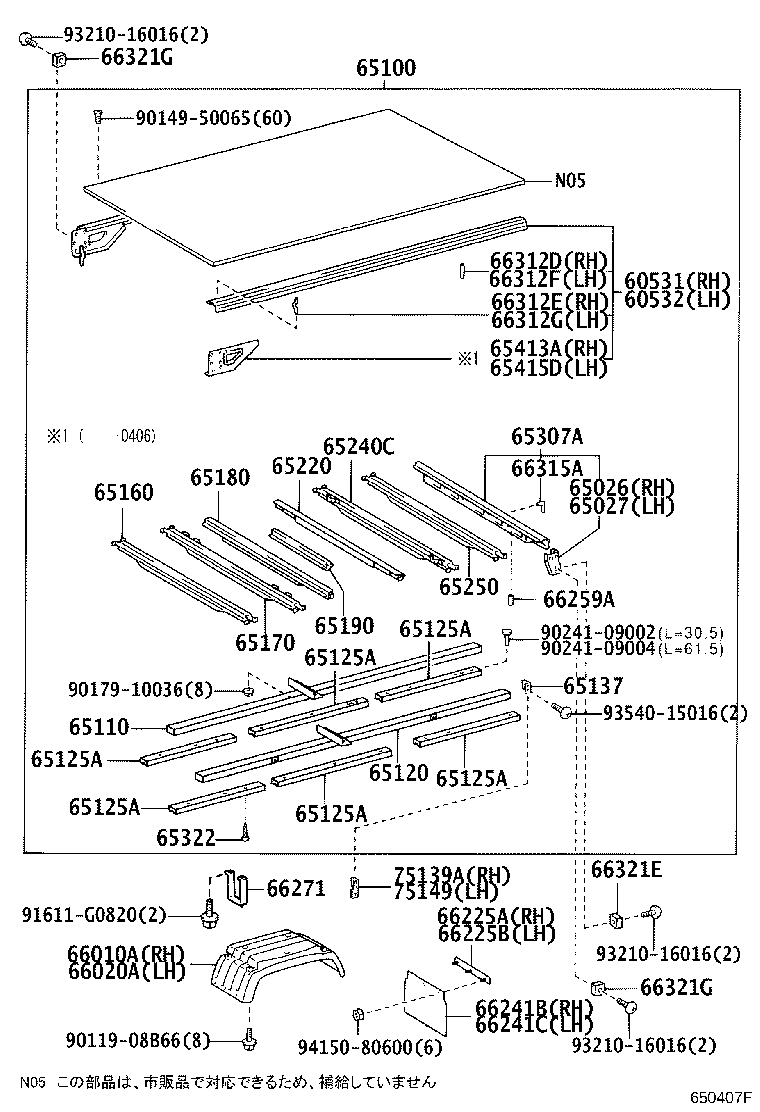

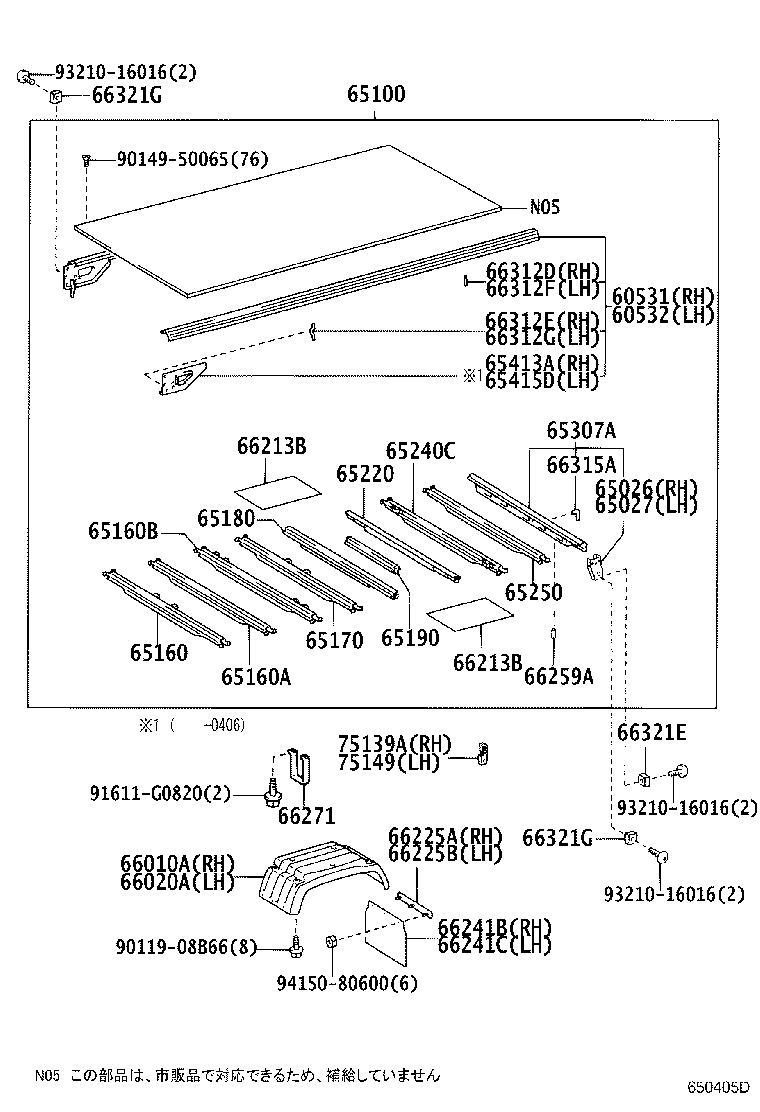

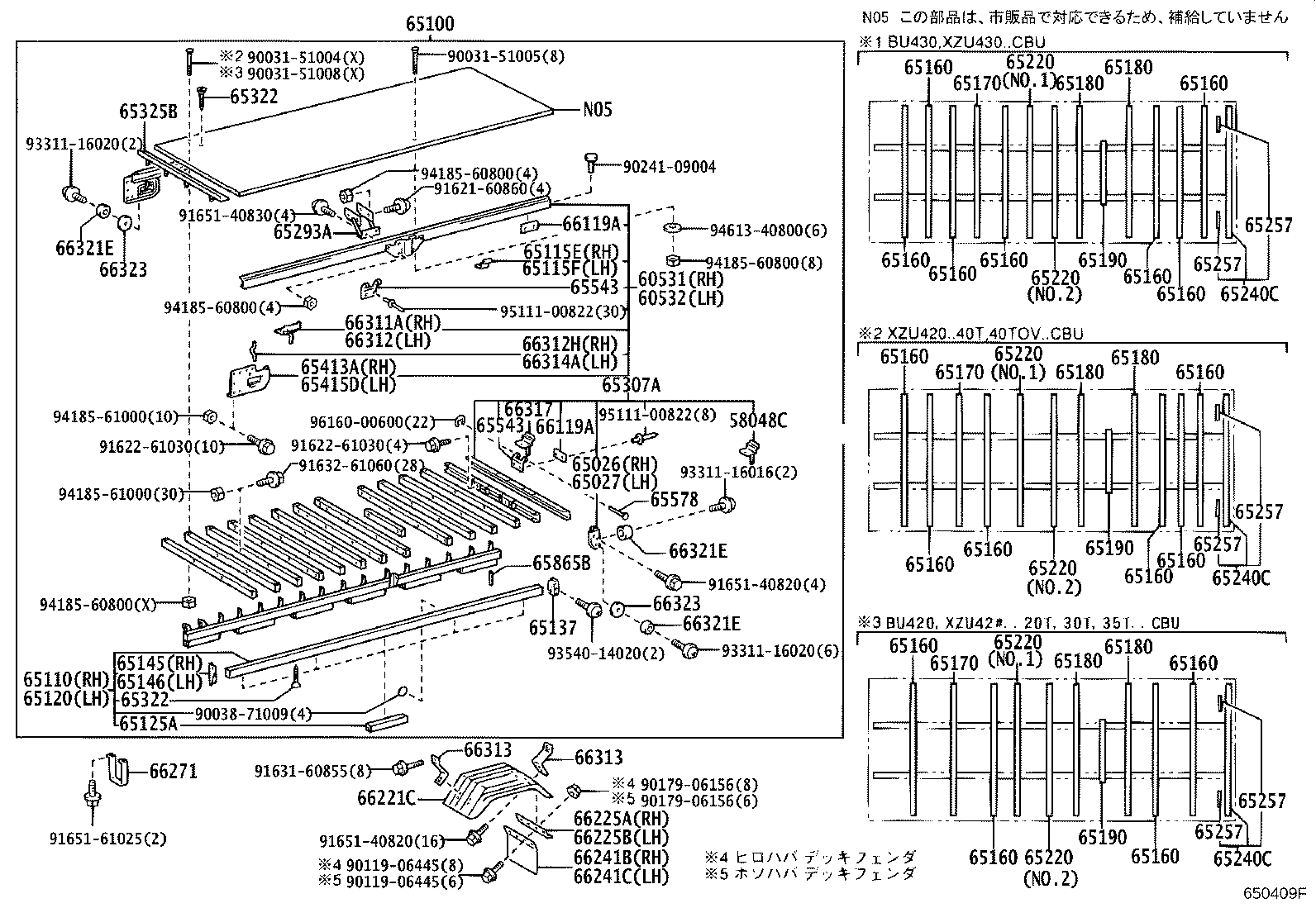

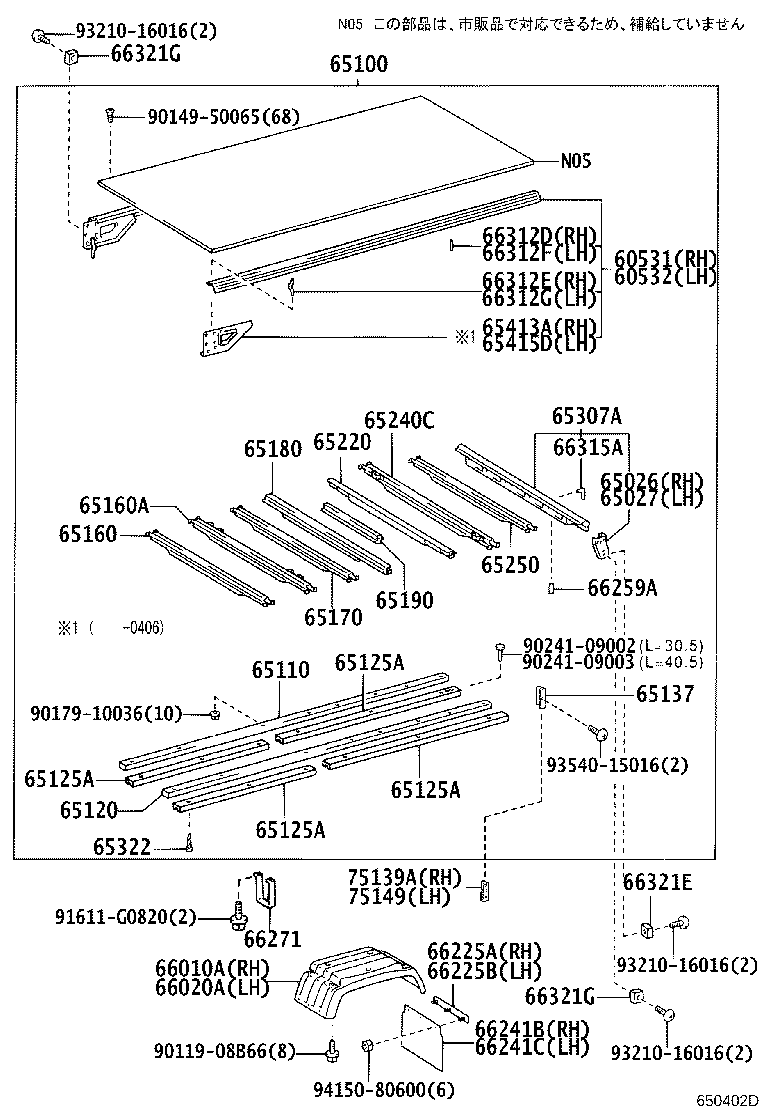

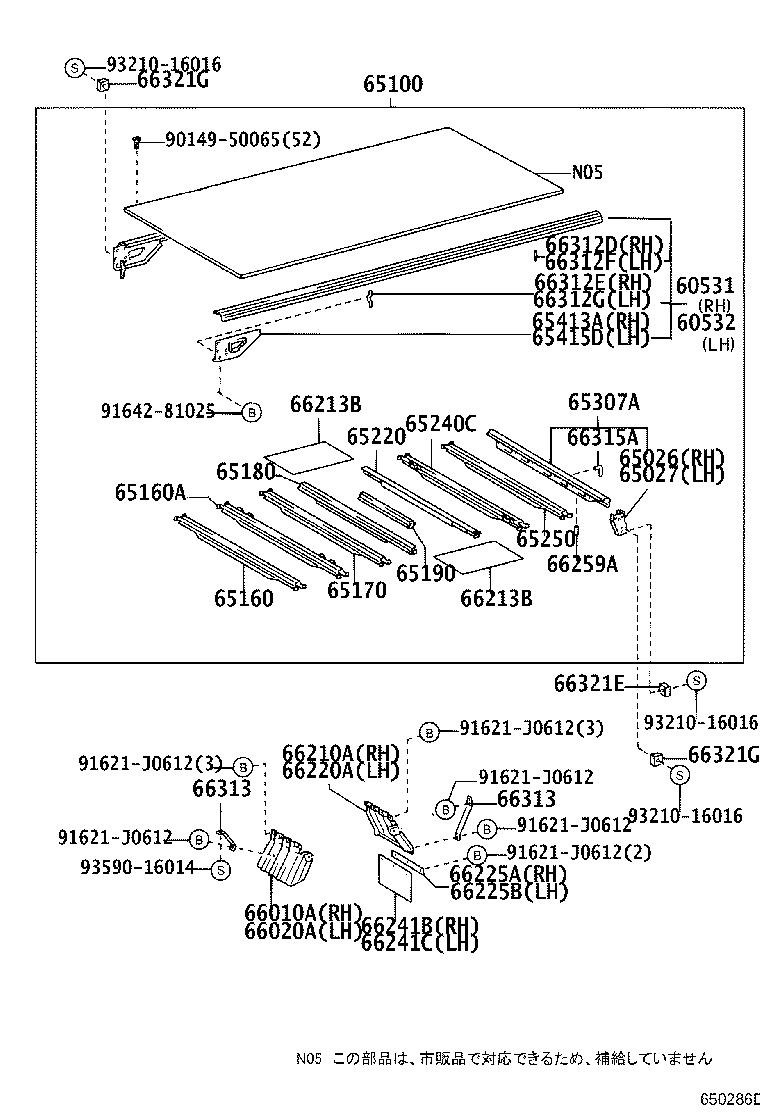

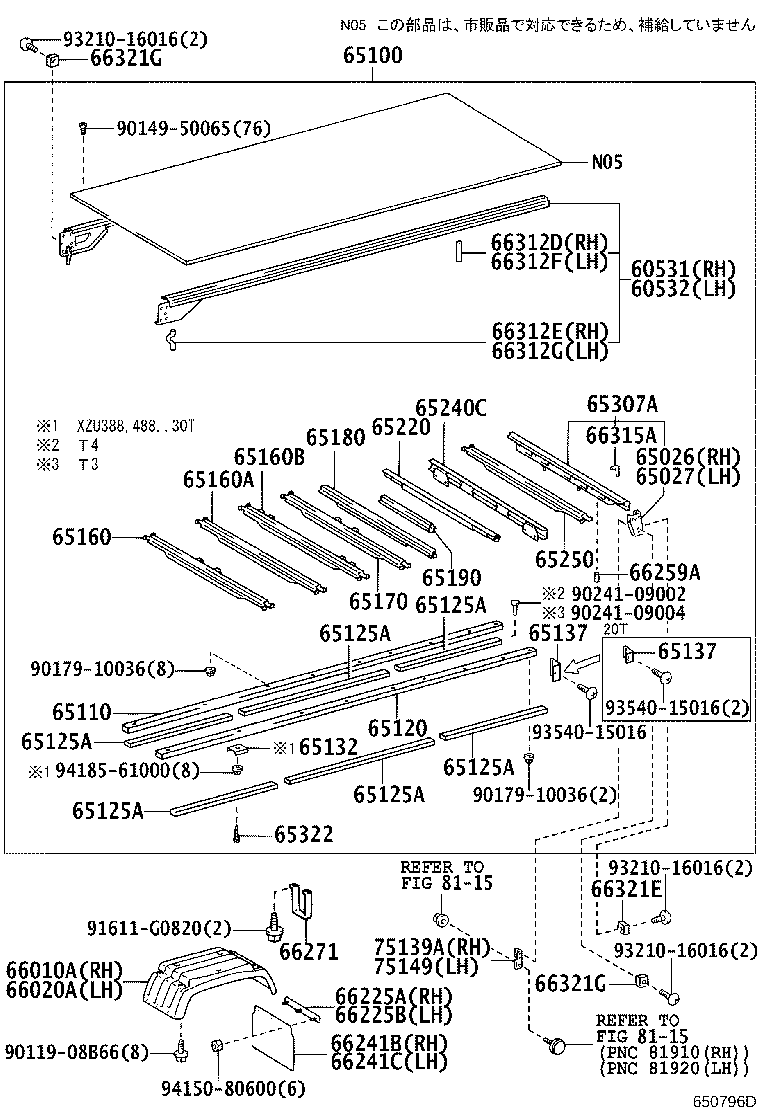

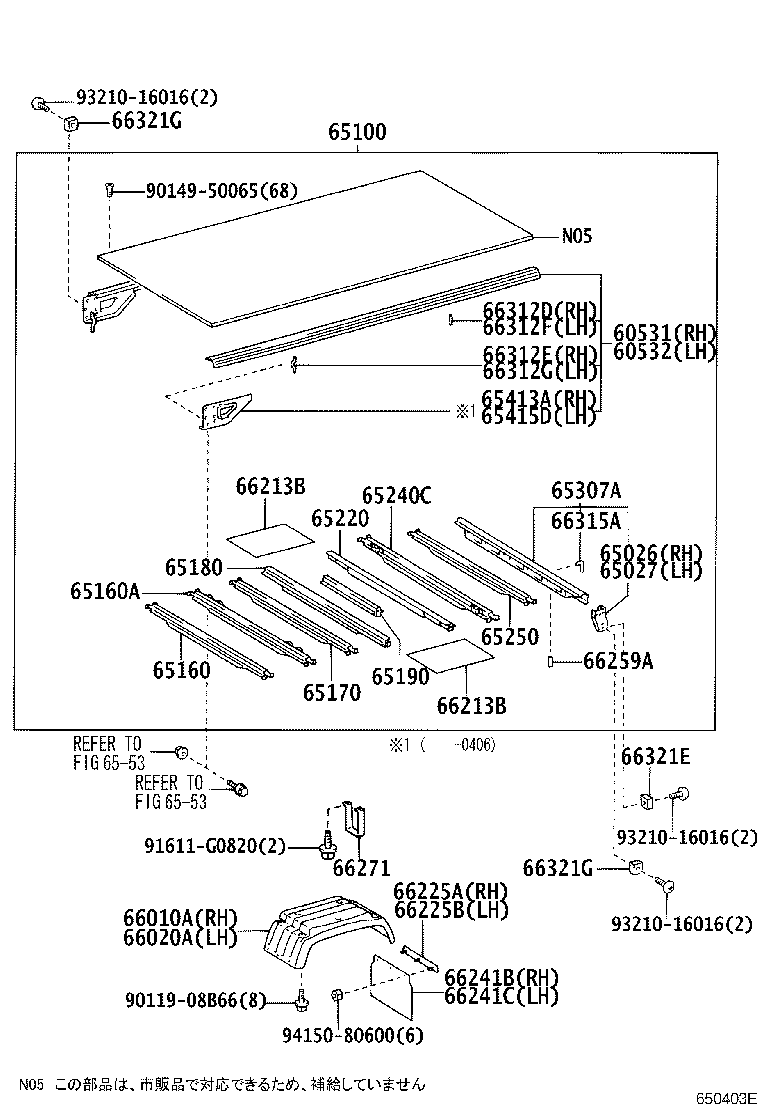

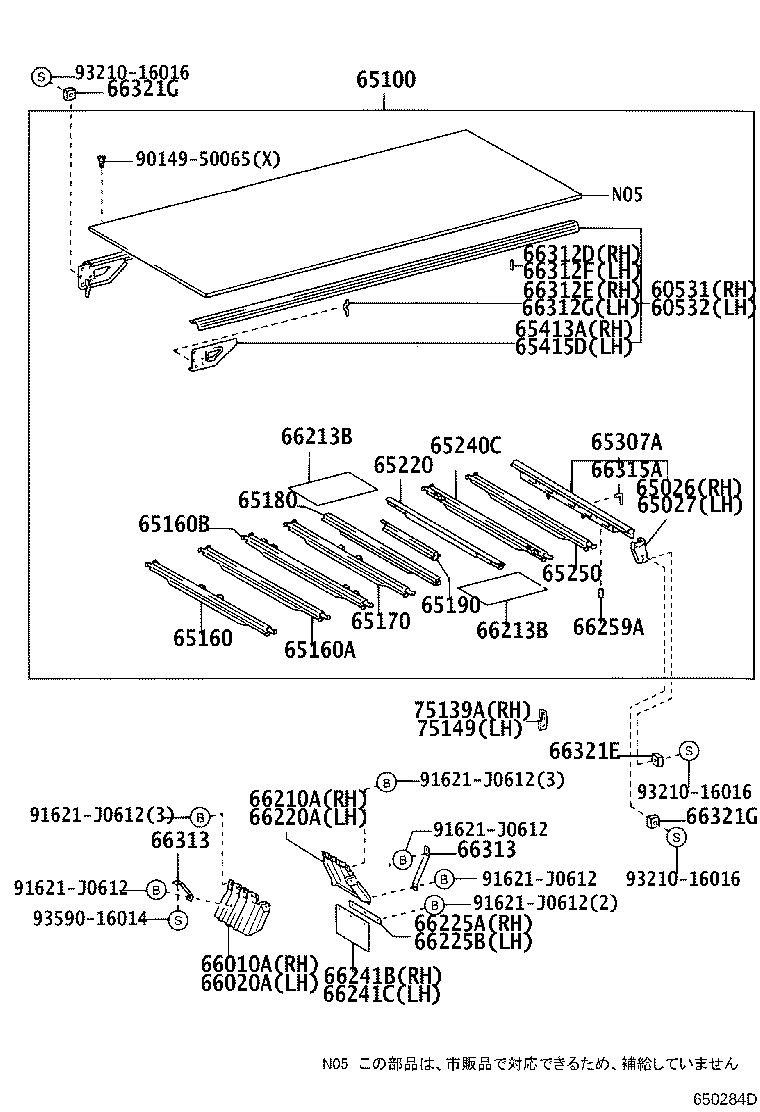

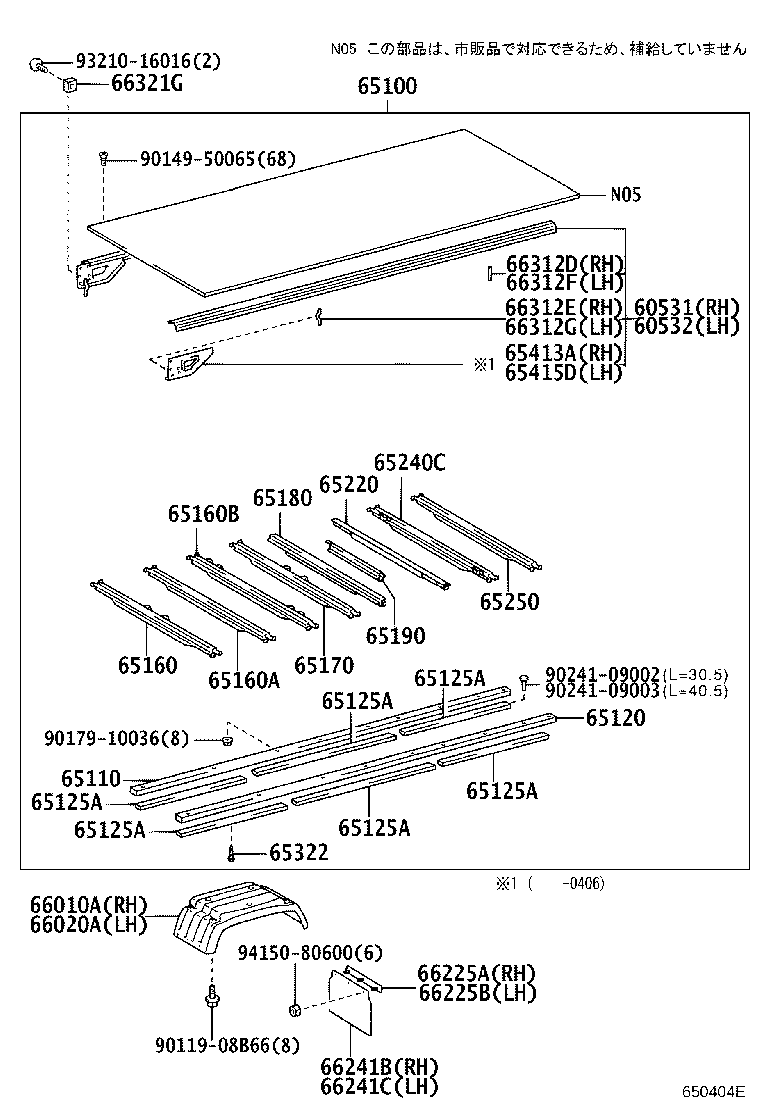

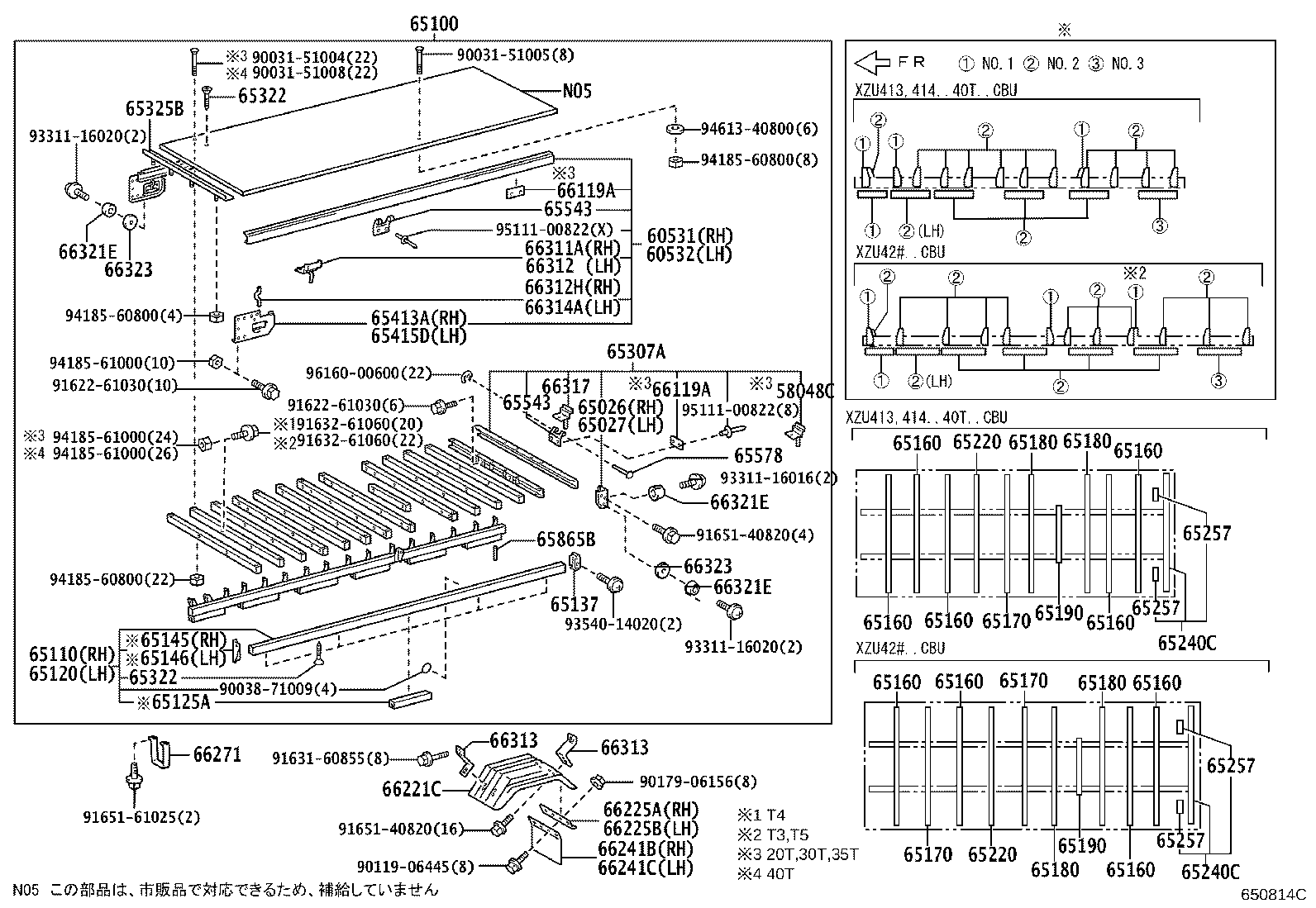

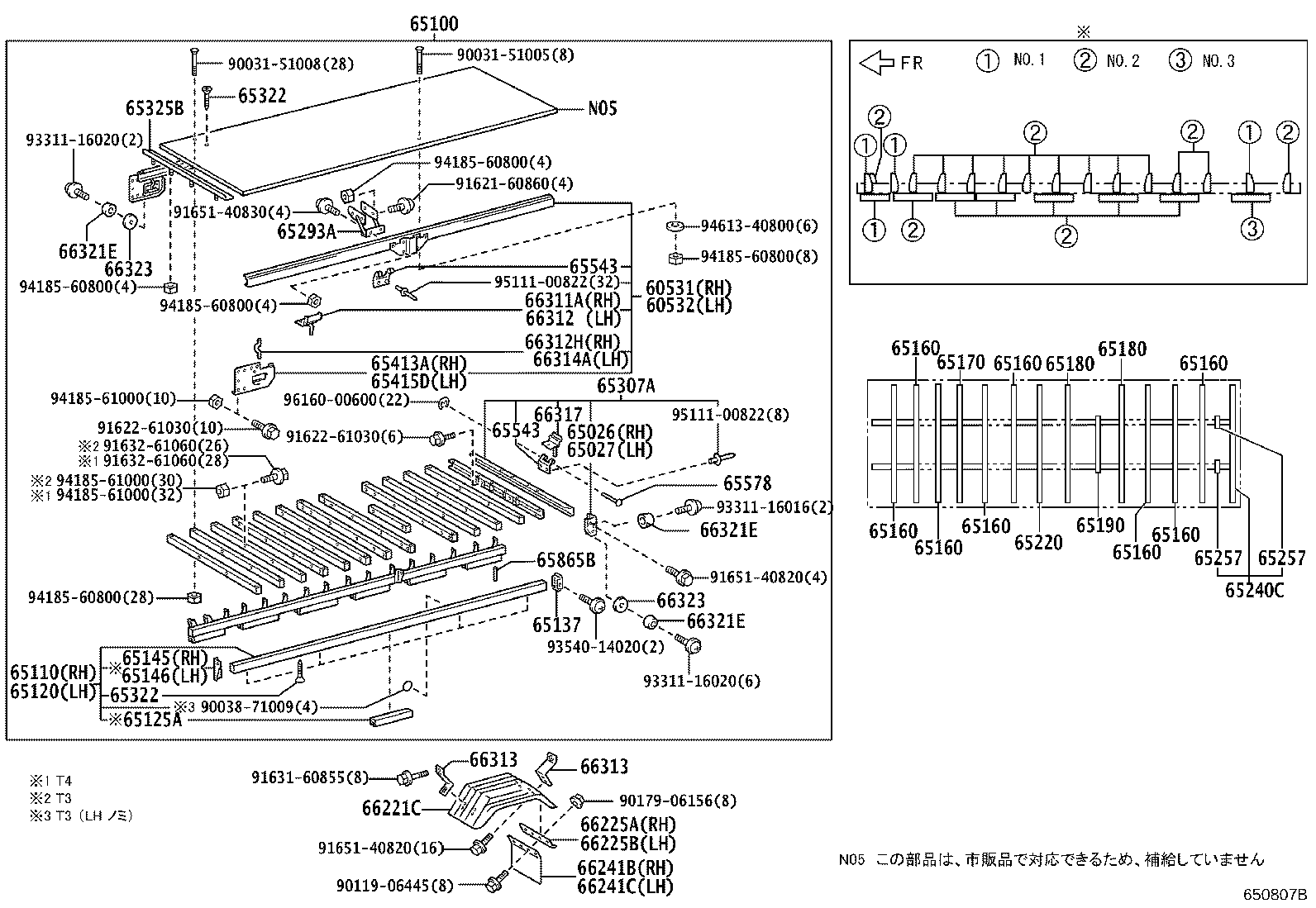

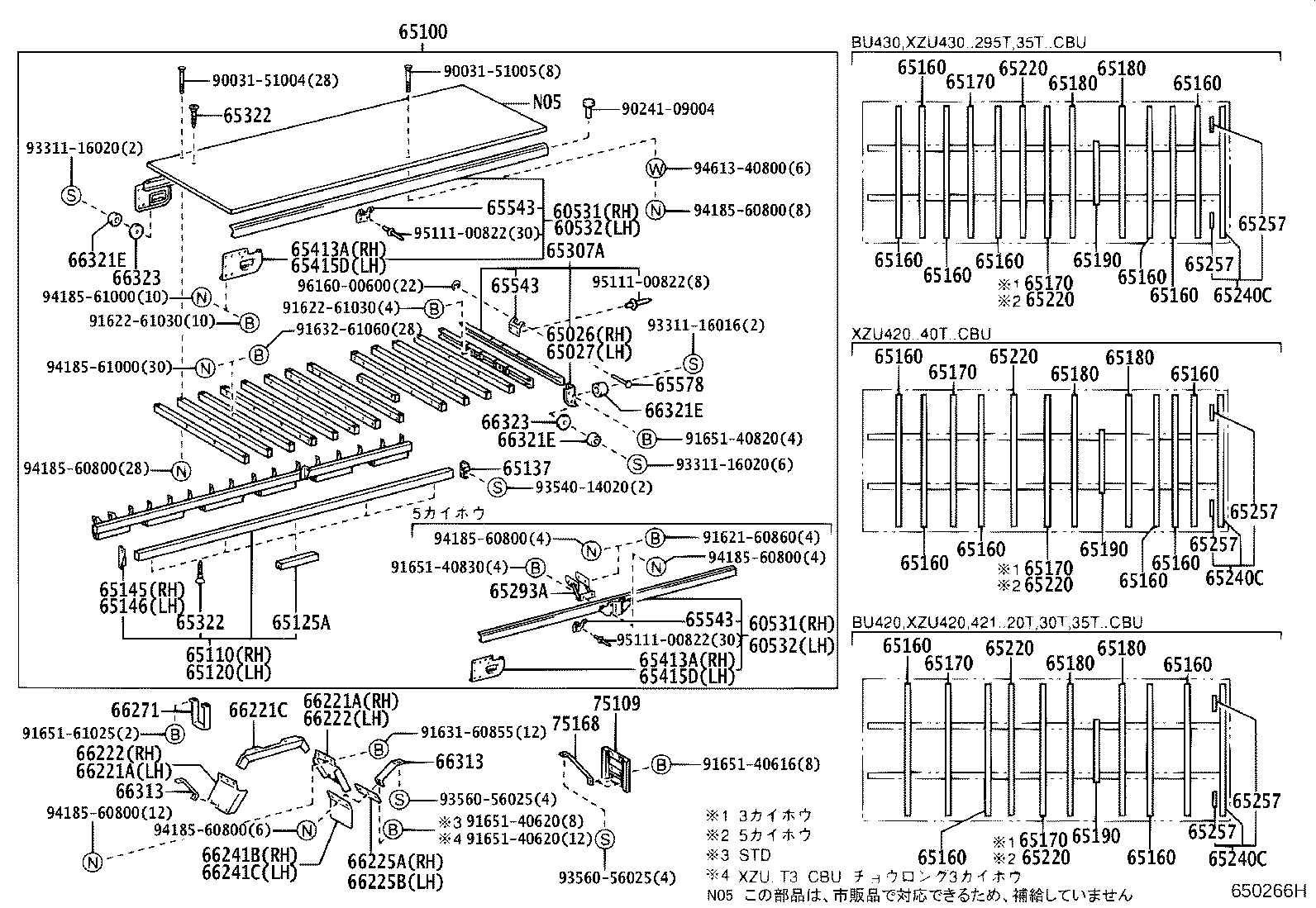

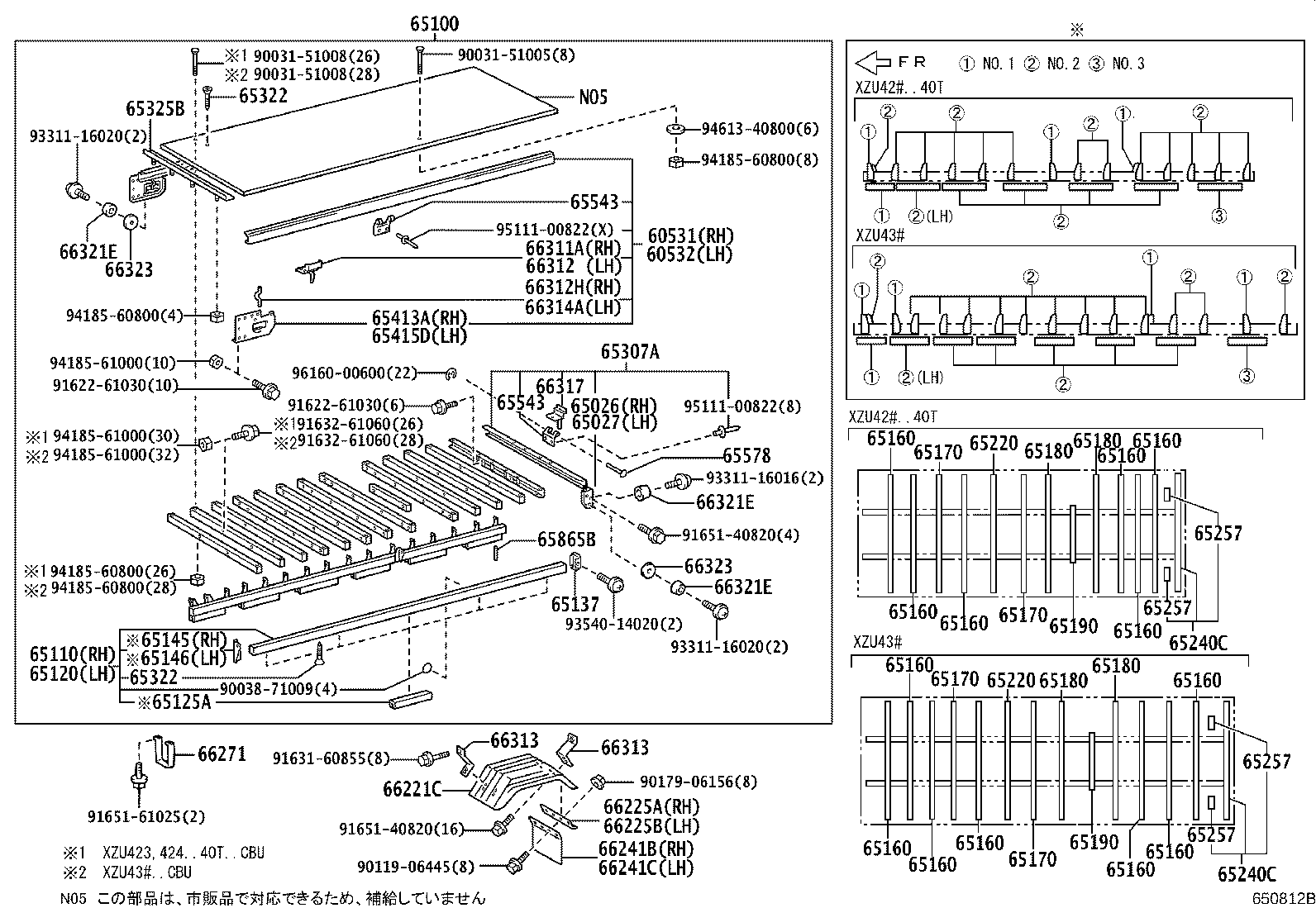

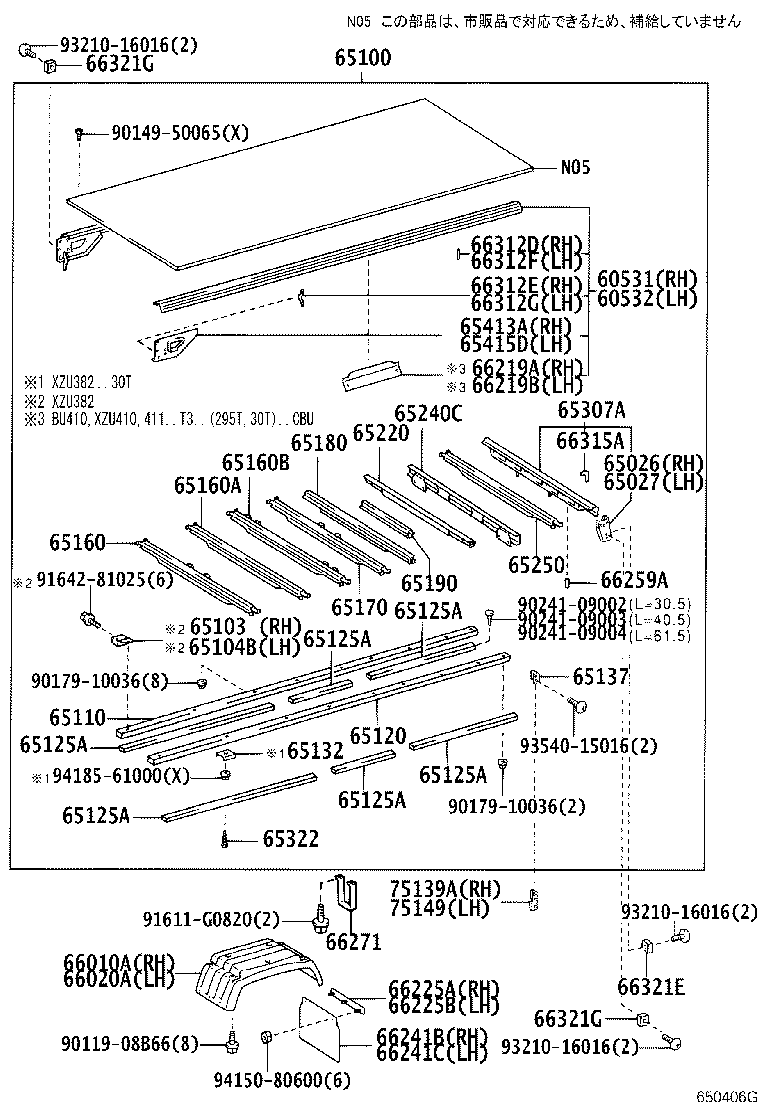

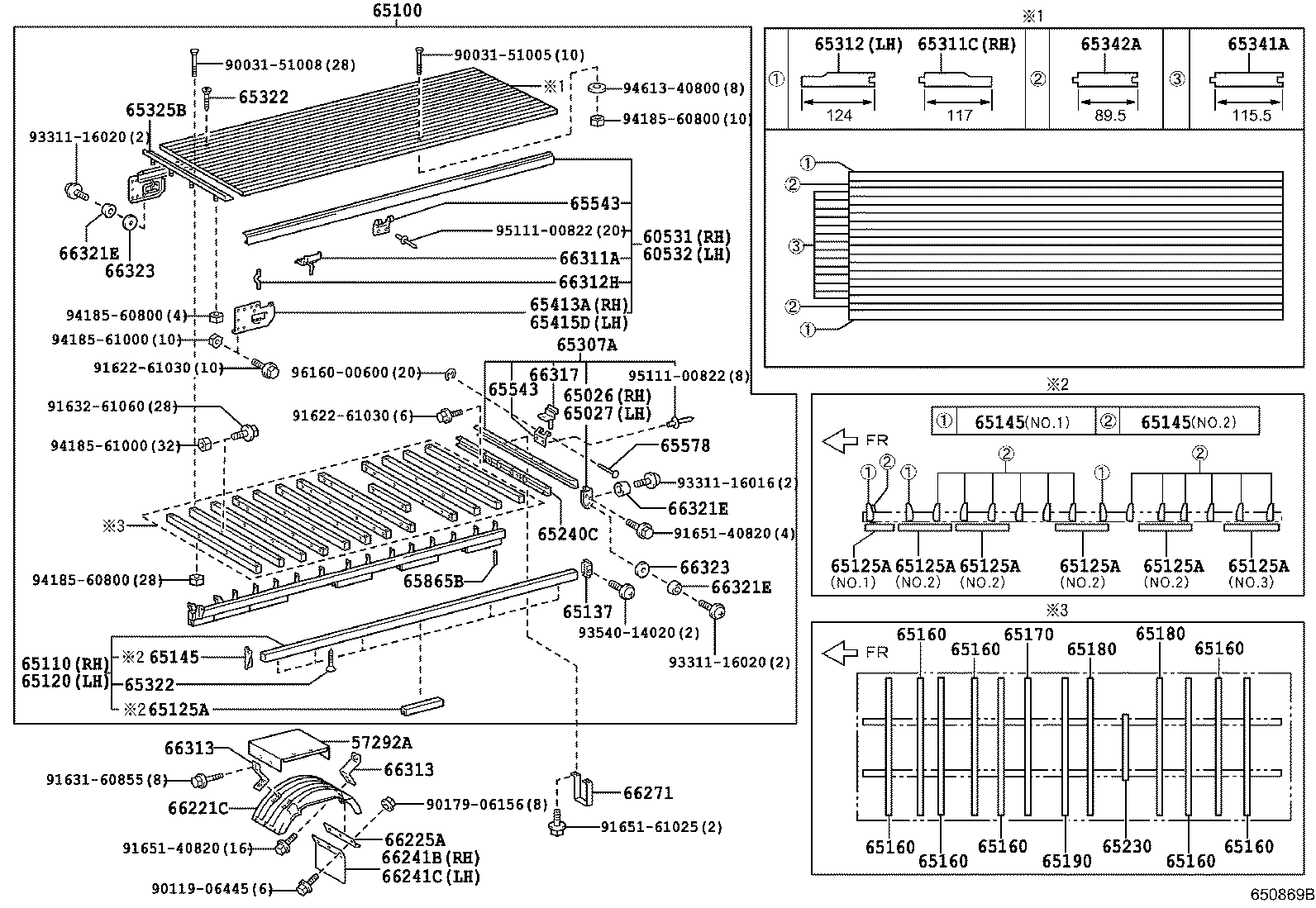

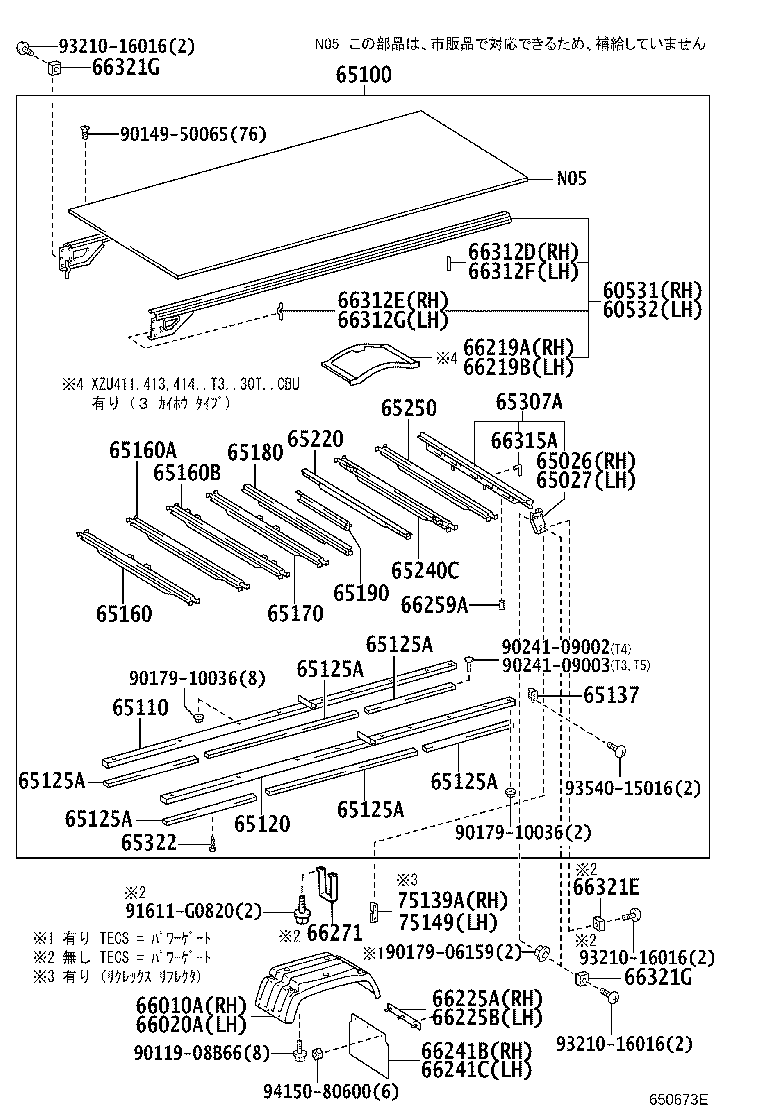

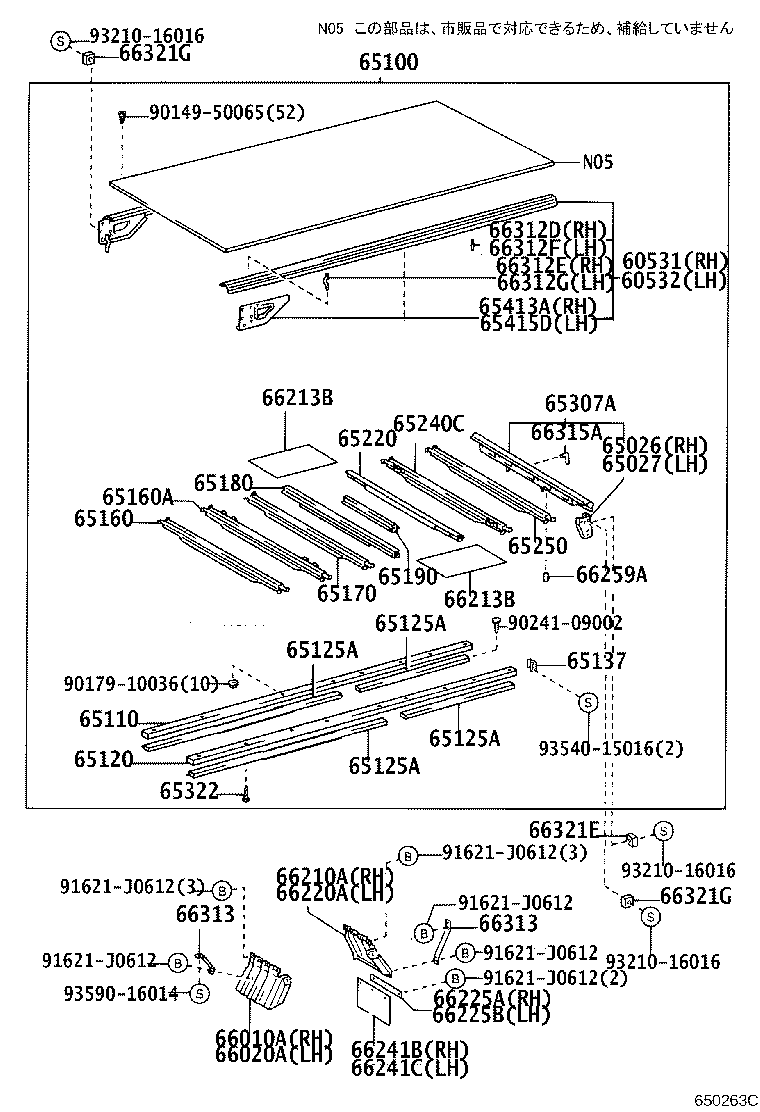

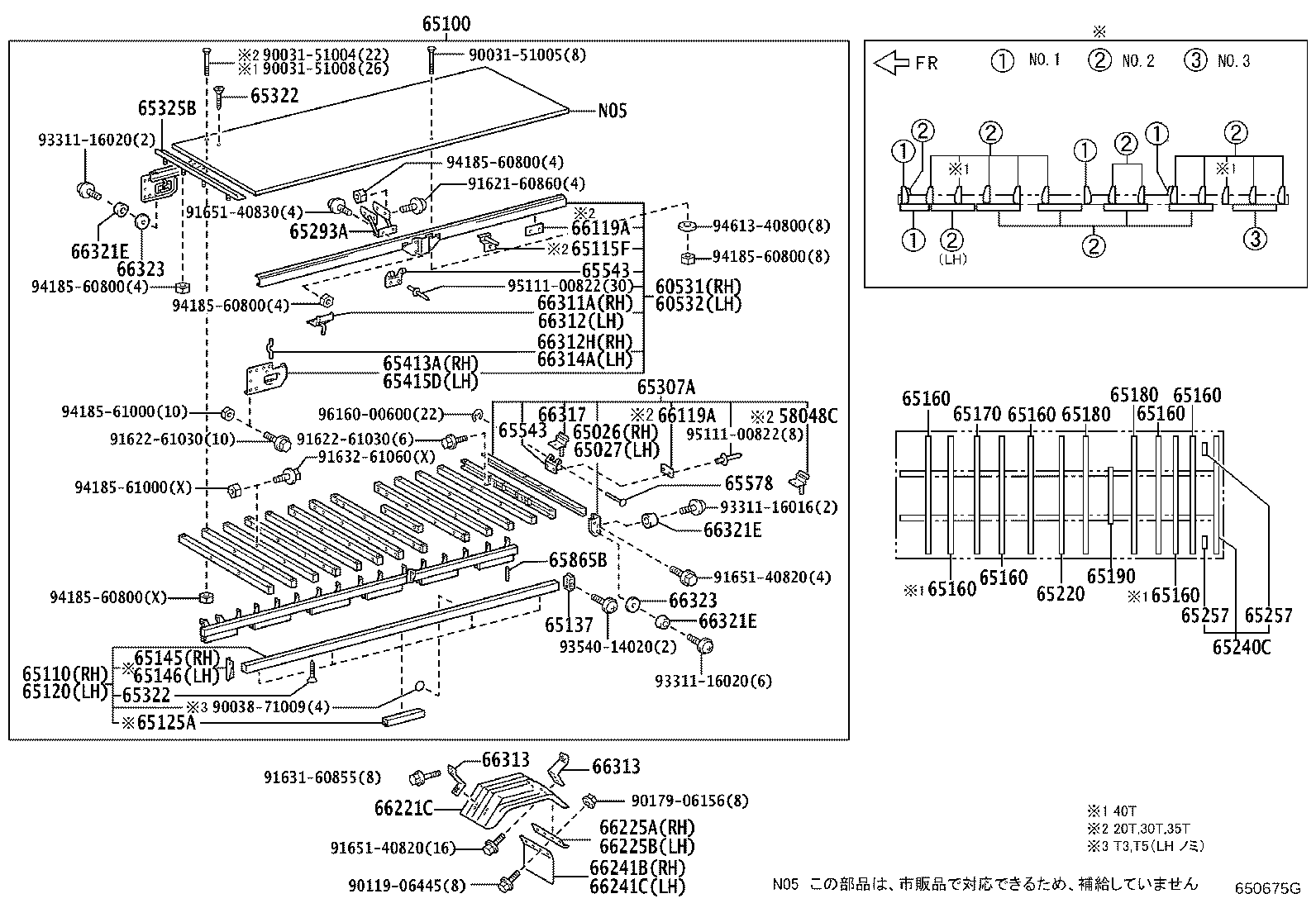

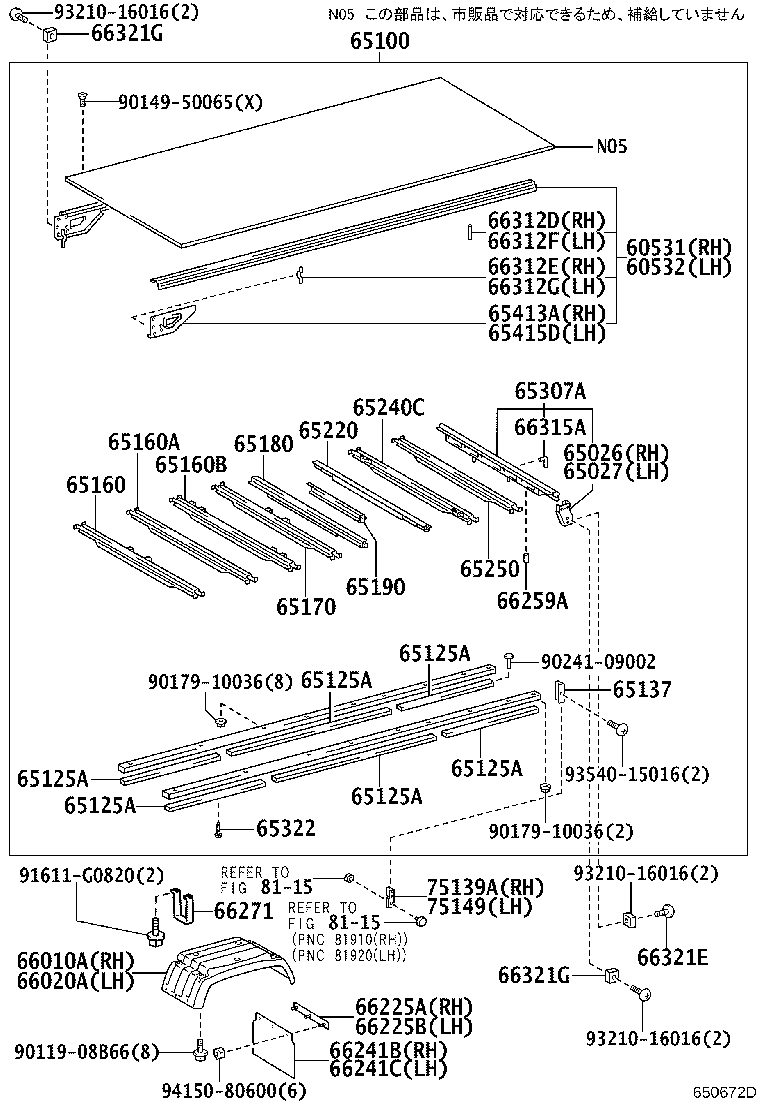

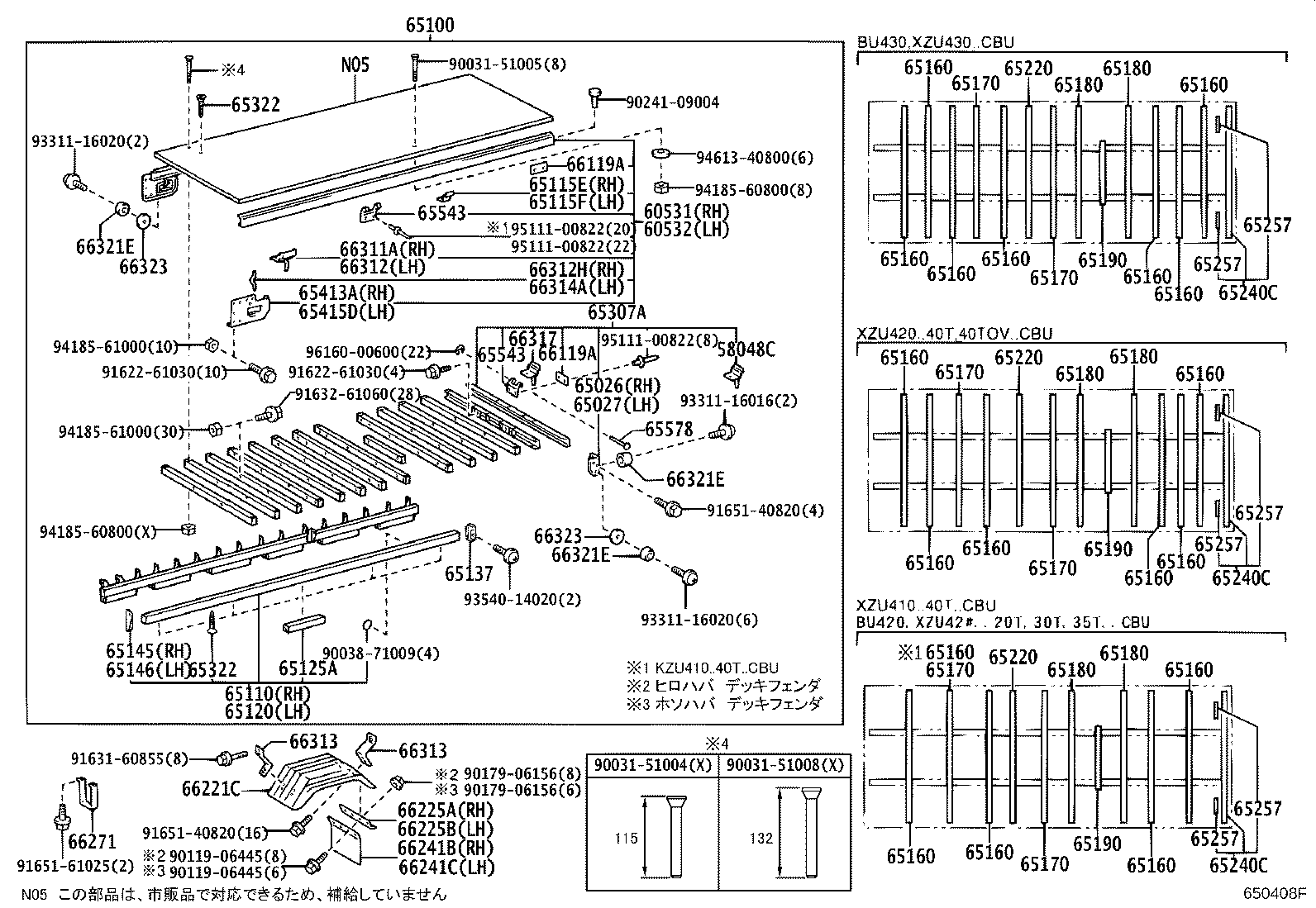

Figure 650285H 650285H 1999-05 → 2002-06 Figure 650285H 650285H 1999-06 → 2002-06 Figure 650286D 650286D 1999-05 → 2002-06 Figure 650284D 650284D 1999-05 → 2002-06 Figure 650263C 650263C 1999-05 → 2002-06 Figure 650266H 650266H 1999-05 → 2002-06 Figure 650406G 650406G 2002-06 → 2004-06 Figure 650408F 650408F 2002-06 → 2004-06 Figure 650409F 650409F 2002-06 → 2004-06 Figure 650402D 650402D 2002-06 → — Figure 650403E 650403E 2002-06 → — Figure 650404E 650404E 2002-06 → — Figure 650405D 650405D 2002-06 → — Figure 650407F 650407F 2002-06 → — Figure 650796D 650796D 2004-06 → — Figure 650673E 650673E 2004-06 → — Figure 650672D 650672D 2004-06 → — Figure 650672D 650672D 2005-05 → — Figure 650814C 650814C 2004-06 → — Figure 650812B 650812B 2004-06 → — Figure 650675G 650675G 2004-06 → — Figure 650807B 650807B 2004-06 → — Figure 650869B 650869B 2007-05 → — Figure 650619A 650619A 2002-06 → 2004-06 Figure 650619A 650619A 2004-06 → —

Part groups

PNCDescription
57292A Plate, Floor Board Set
58048C Hook Sub-assy, Rope, NO.1
60531 Frame Sub-assy, Floor Side, RH
60532 Frame Sub-assy, Floor Side, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65103 Bracket Sub-assy, Mounting, NO.1
65104B Bracket Sub-assy, Mounting, NO.1 LH
65110 Sill Assy, Main, RH
65115E Support, Cross Sill
65115F Support, Cross Sill
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65132 Reinforcement, Main Sill
65137 Cover, Main Sill End
65137B Cover, Main Sill End
65137C Cover, Main Sill End
65145 Gusset, Cross Sill
65146 Gusset, Cross Sill
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65230 Sill Assy, Cross, NO.8
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65255 Gusset, Main Sill
65257 Reinforcement, Rear Cross Sill
65293A Holder, Center Post
65307A Frame Sub-assy, Floor, Rear
65311C Board, Floor, Outside RH
65312 Board, Floor, Outside LH
65322 Nail
65325B Plate, Floor Board, Front
65341A Board, Floor, NO.1
65342A Board, Floor, NO.2
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
65543 Hinge, Side Gate Female
65578 Pin, Side Gate Hinge
65865B Pin, Cover Top Guide
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66119A Patch, Hinge Gate Male
66210A Fender Assy, Rear NO.1 RH
66213B Plate, Rear Fender, Upper
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66221A Plate, Rear Fender, Rear RH
66221C Plate, Rear Fender, Rear
66222 Plate, Rear Fender, Rear LH
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66312 Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66312H Hook, Rope
66313 Support, Rear Fender
66314A Hook, Rope, NO.4
66315A Hook, Rope
66317 Hook, Rope, NO.7
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66323 Spacer, Gage Rubber Bumper
75109 Bracket Sub-assy, Reflex Reflector
75139A Bracket, Reflex Reflector, RH
75149 Bracket, Reflex Reflector, LH
75168 Stay, Reflex Reflector Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
