Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

52 part groups · 72 illustrations

Illustrations

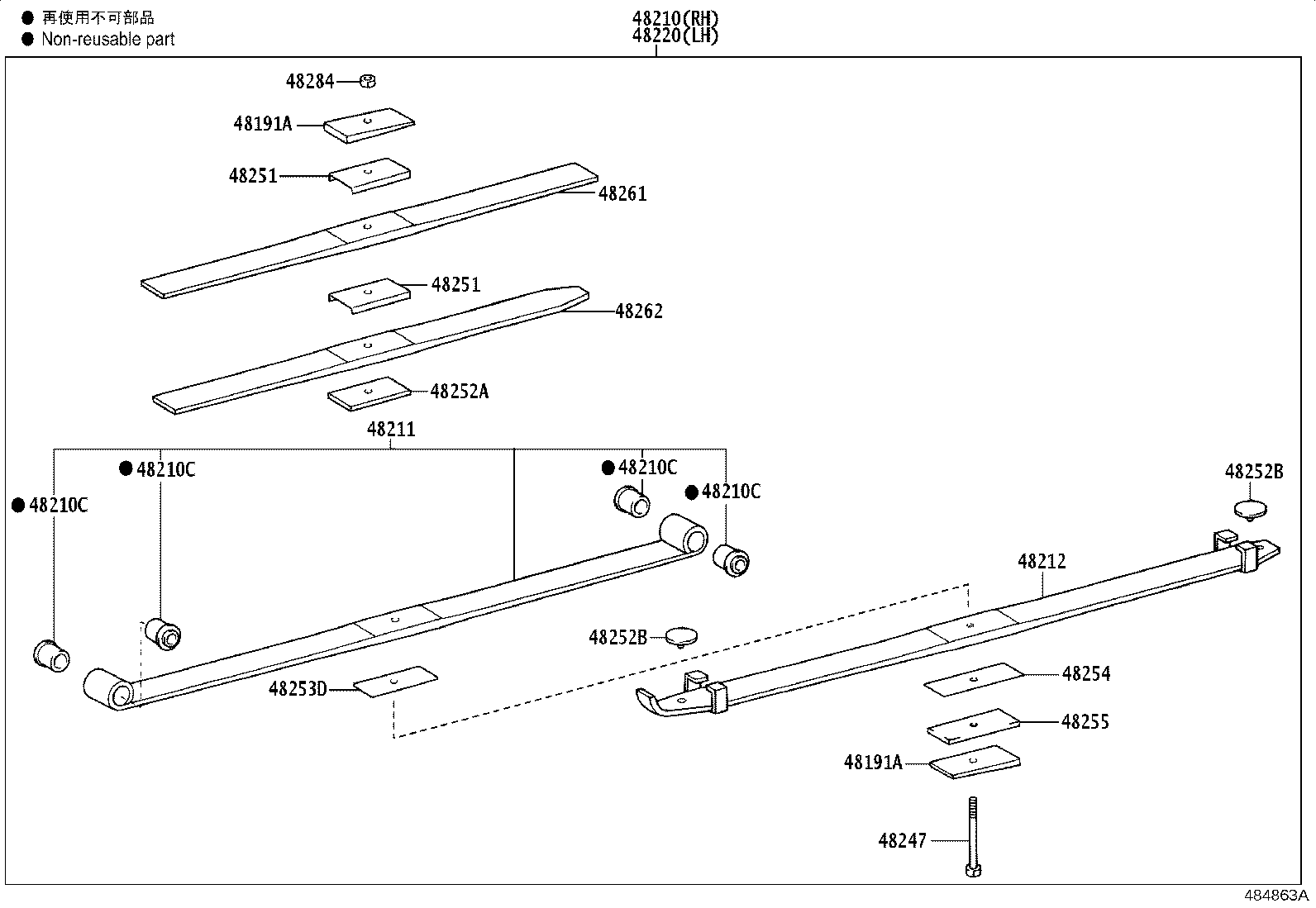

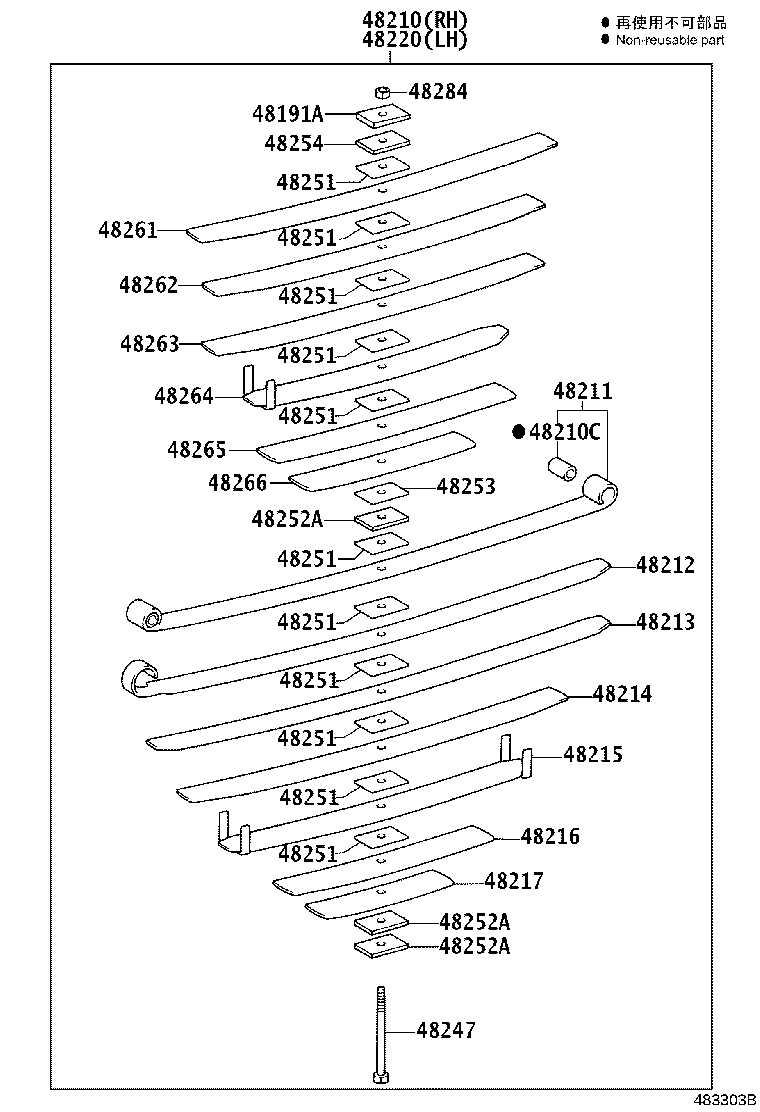

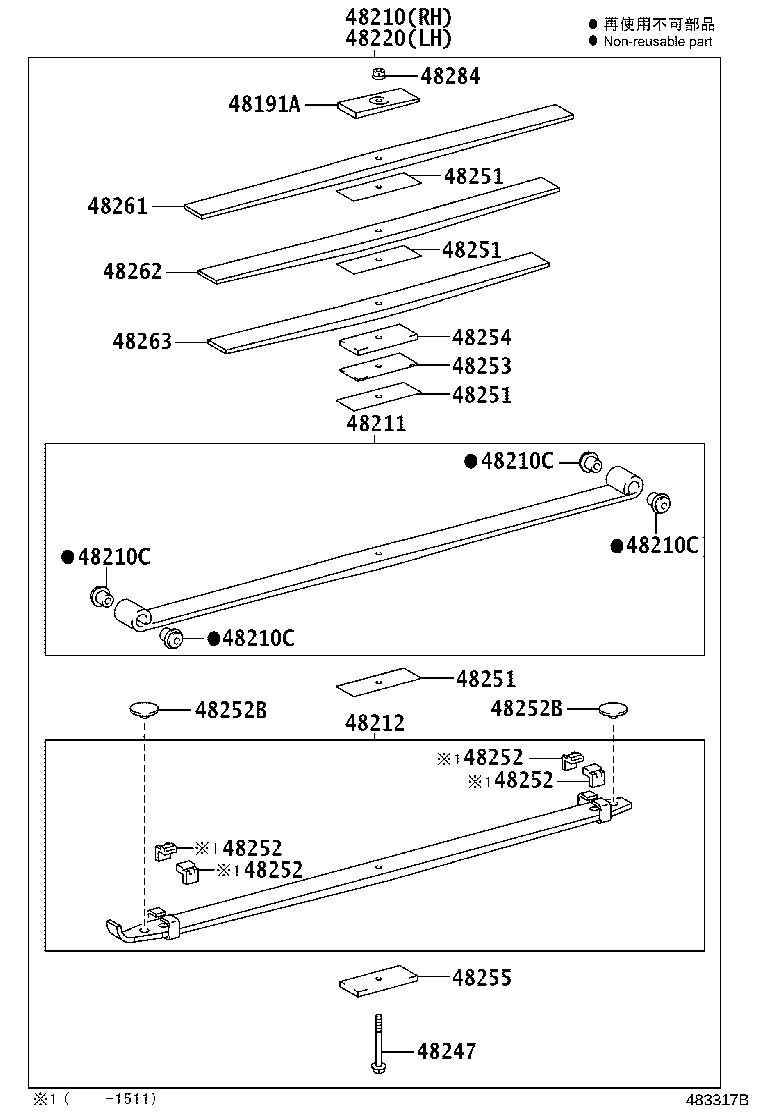

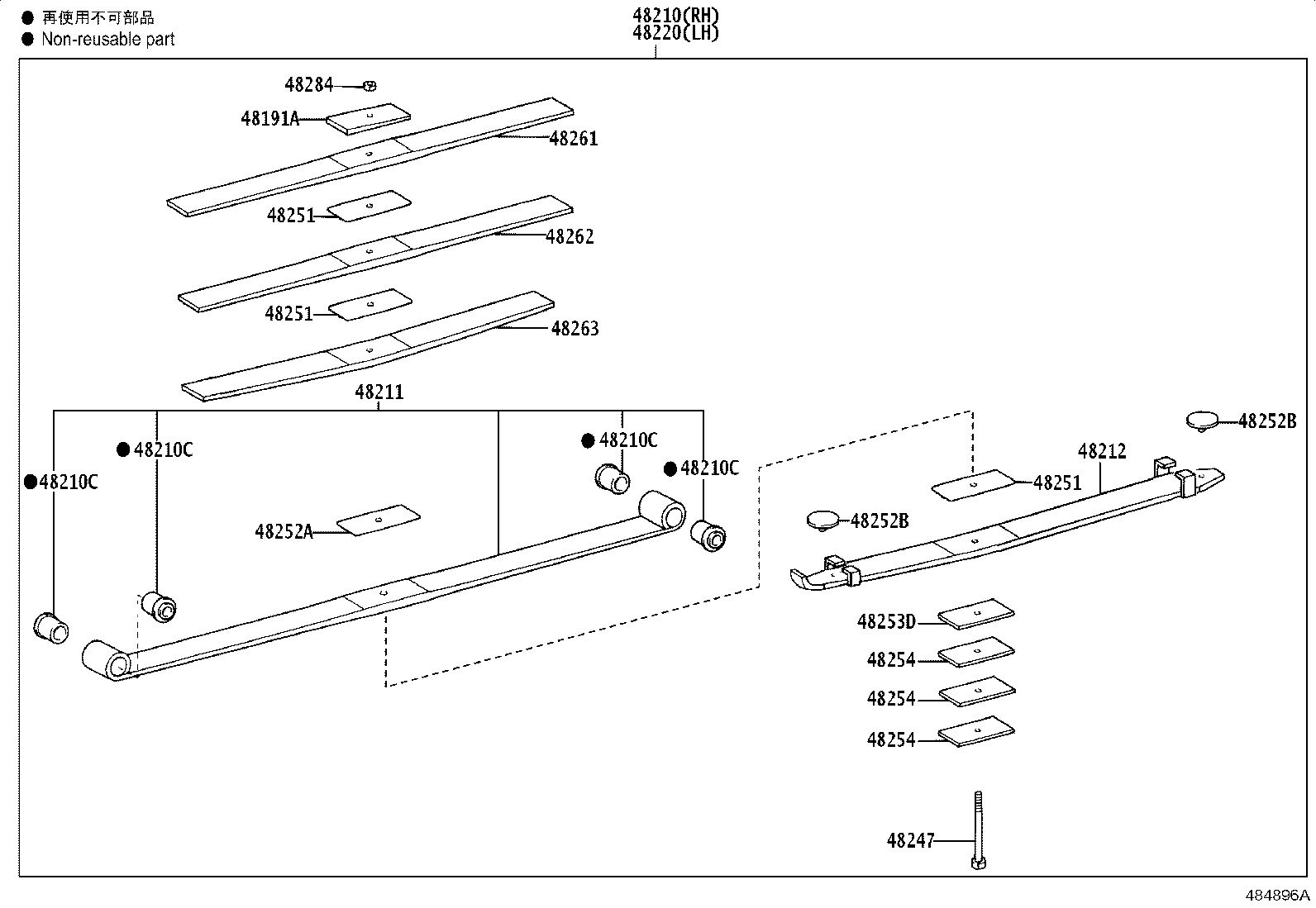

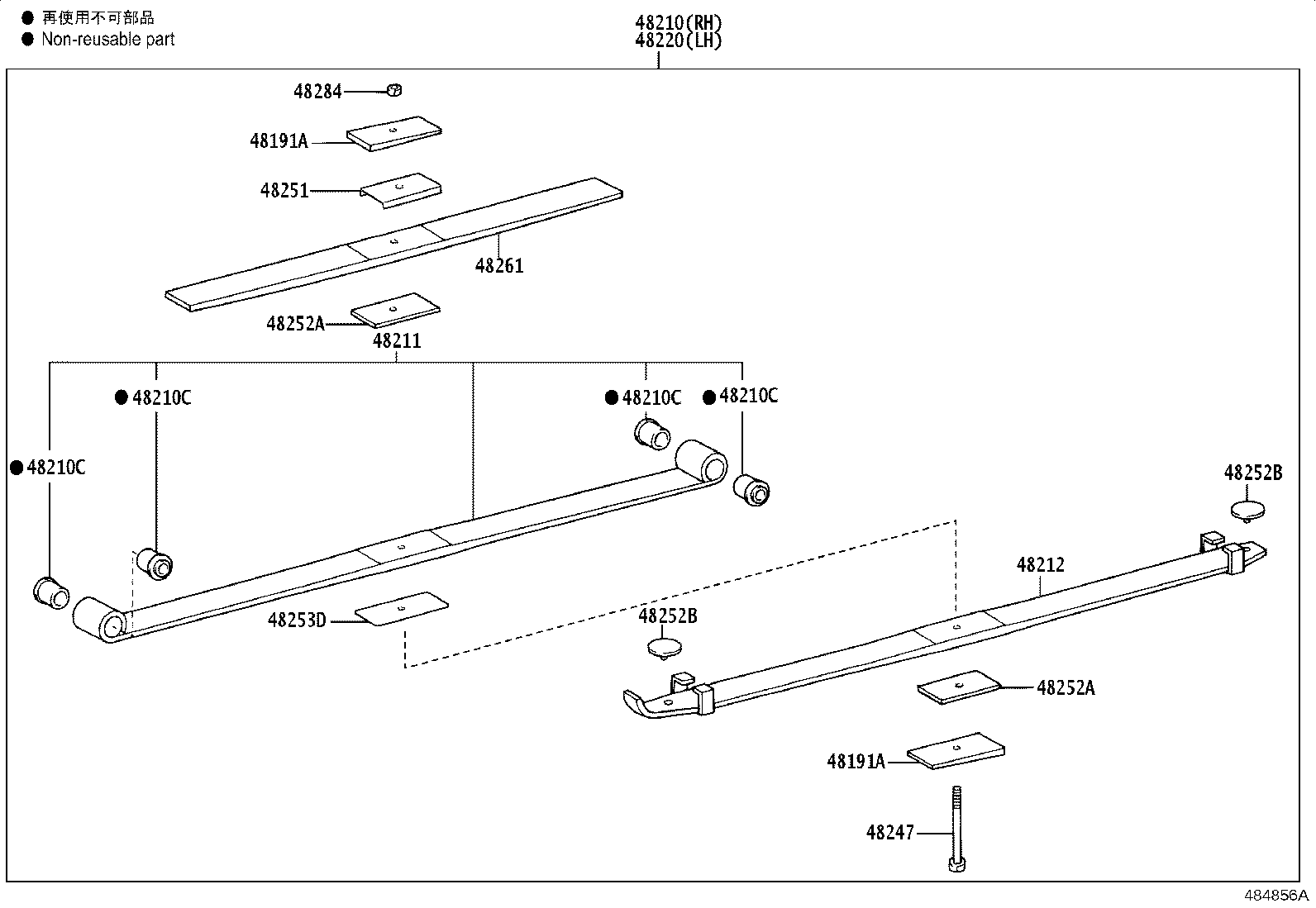

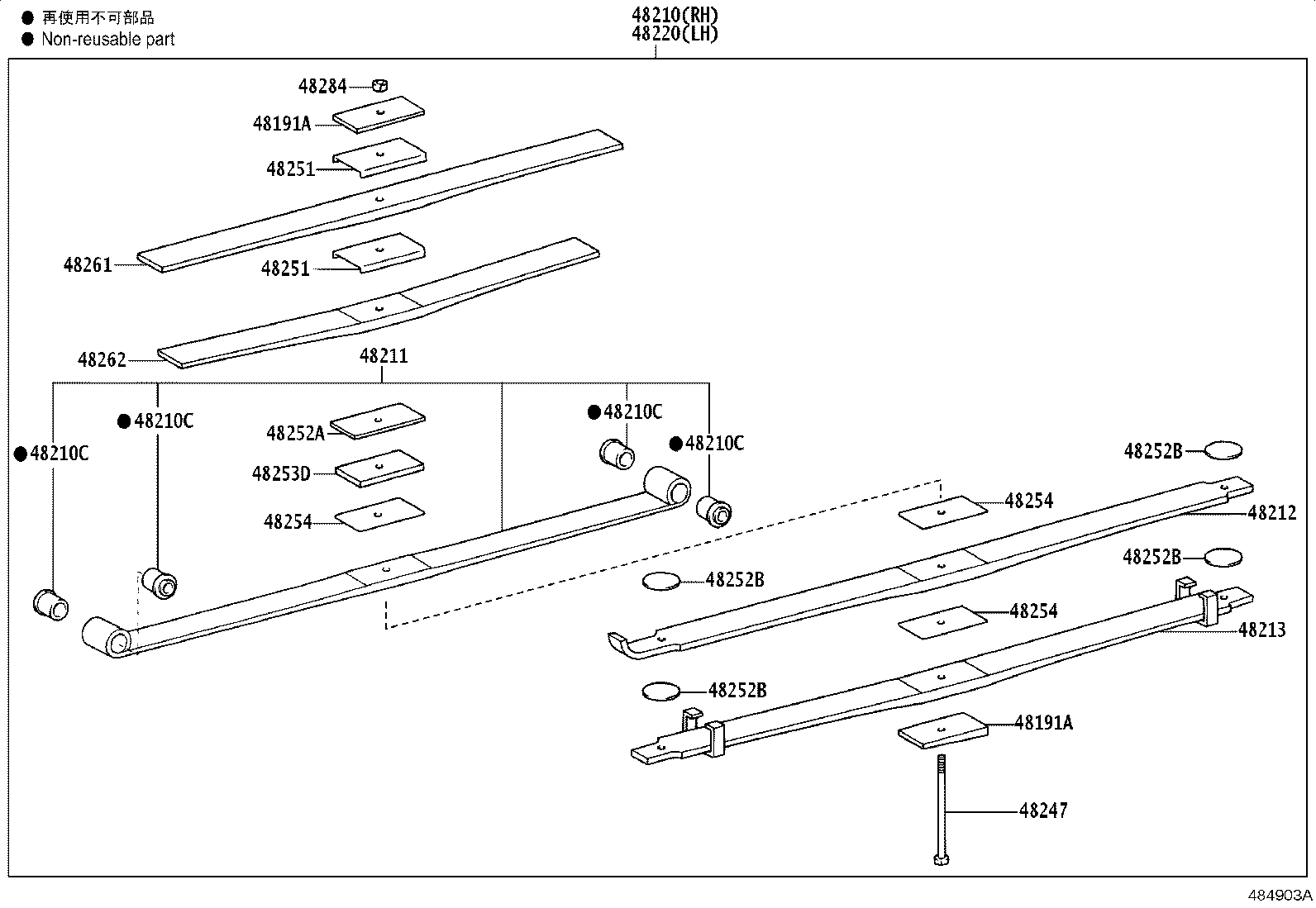

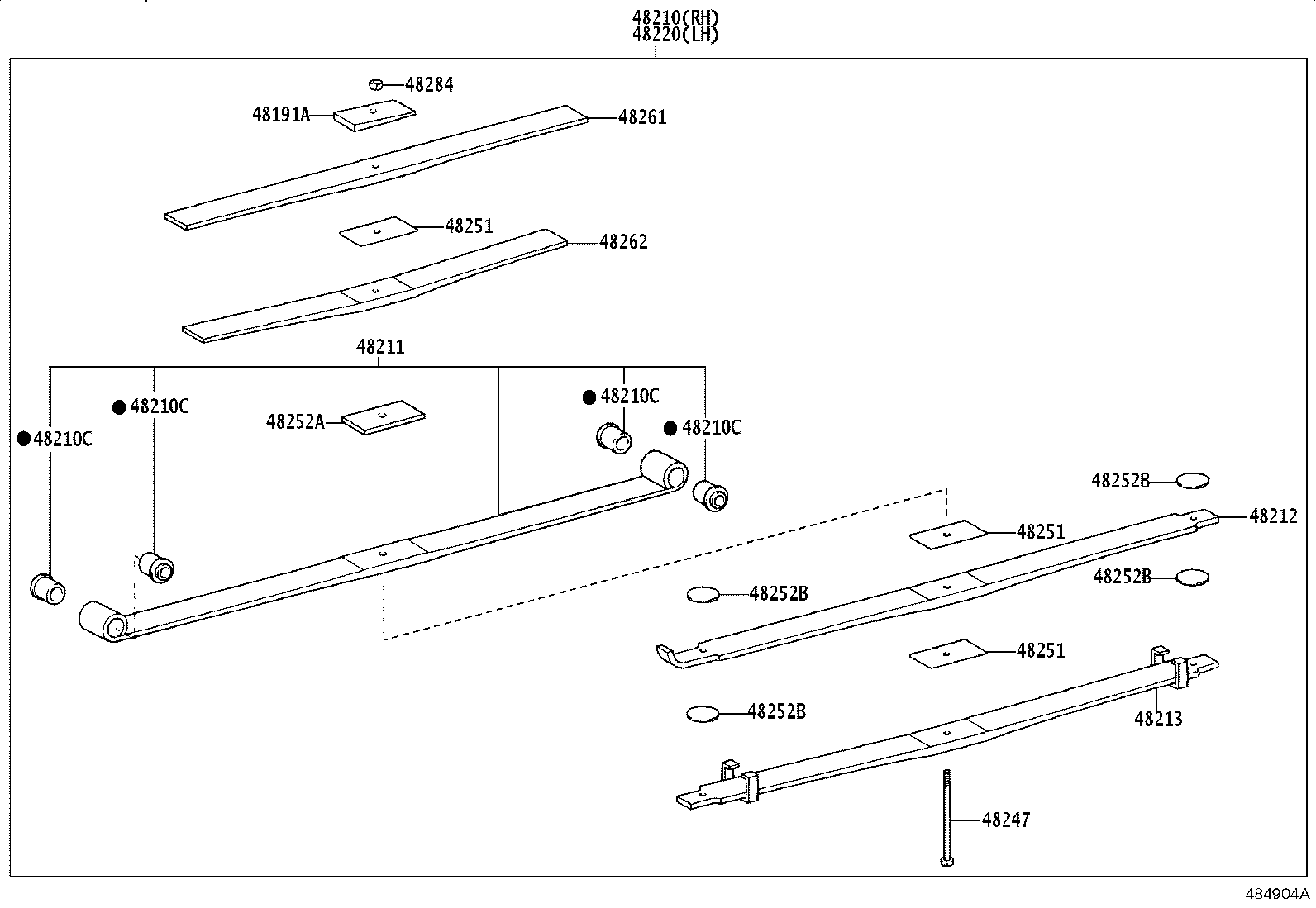

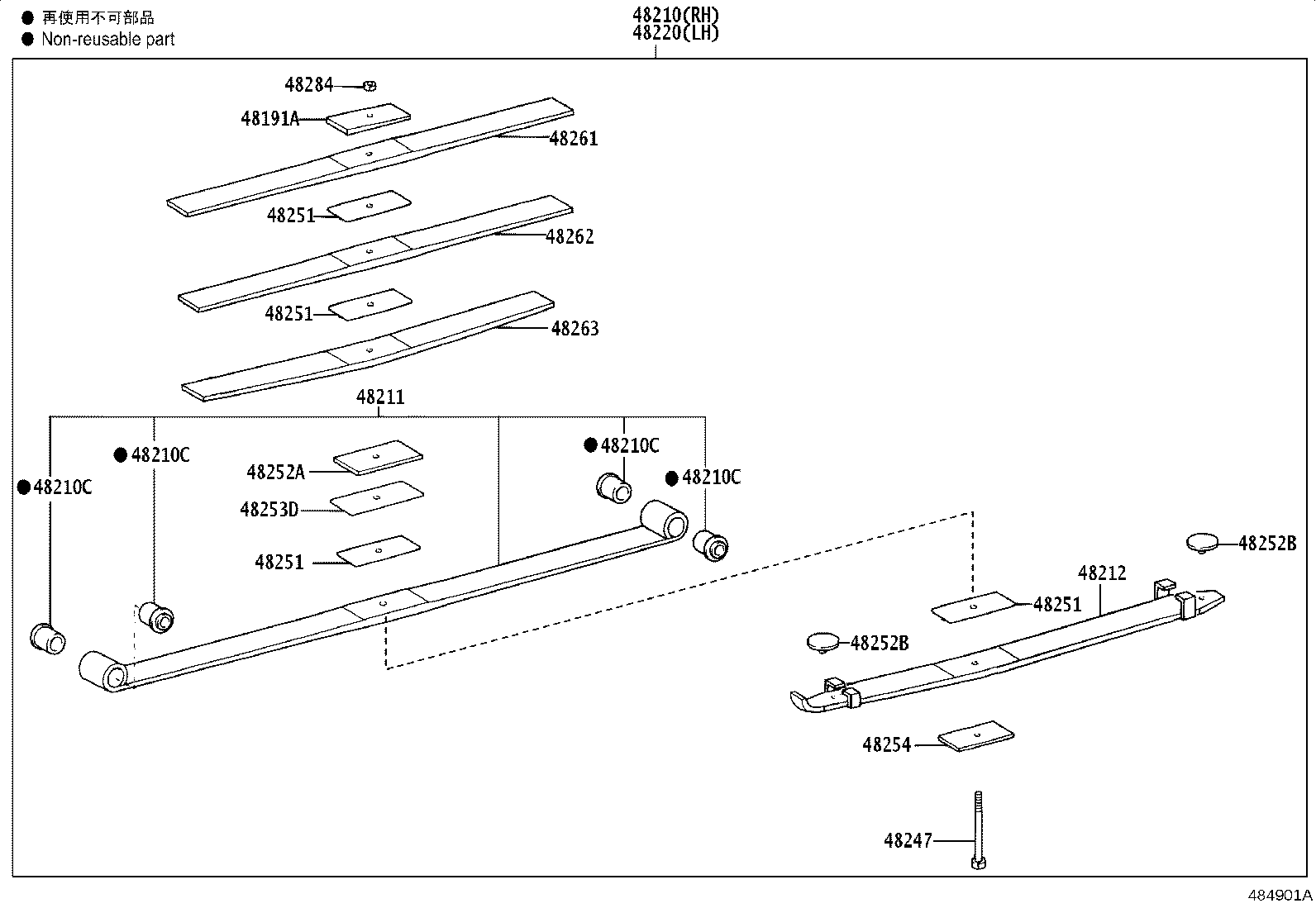

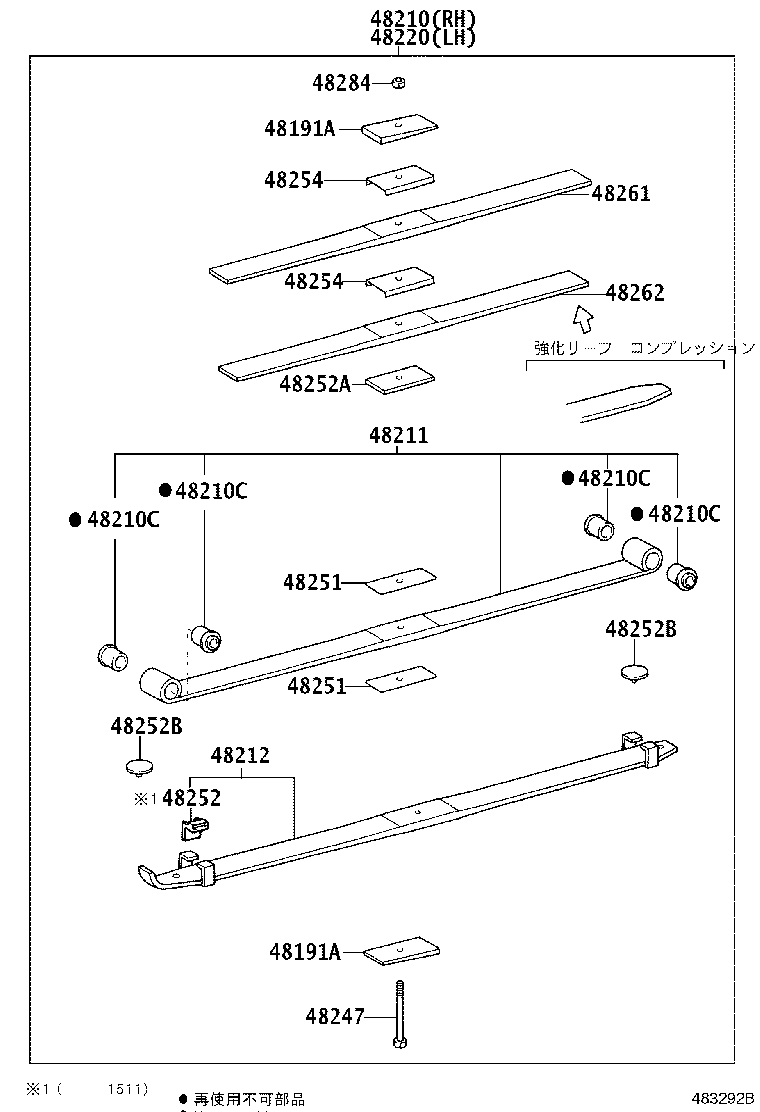

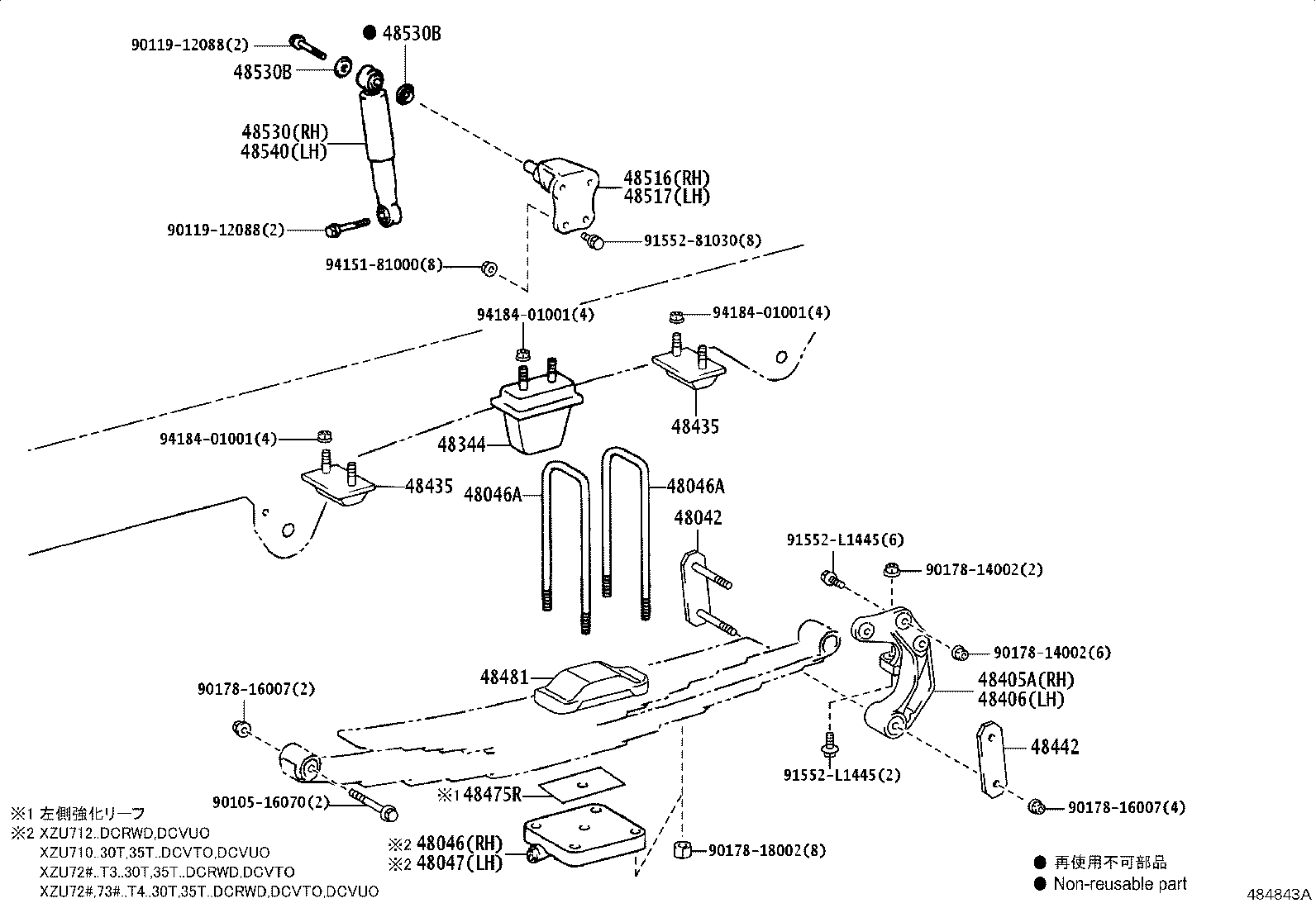

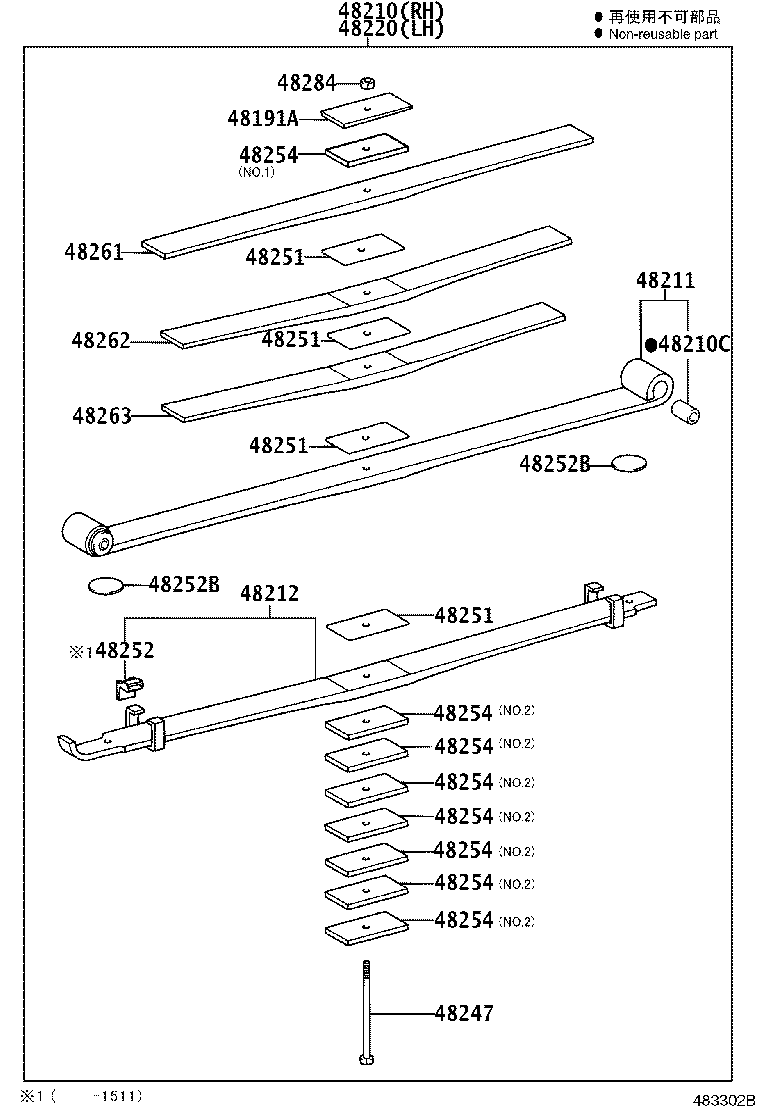

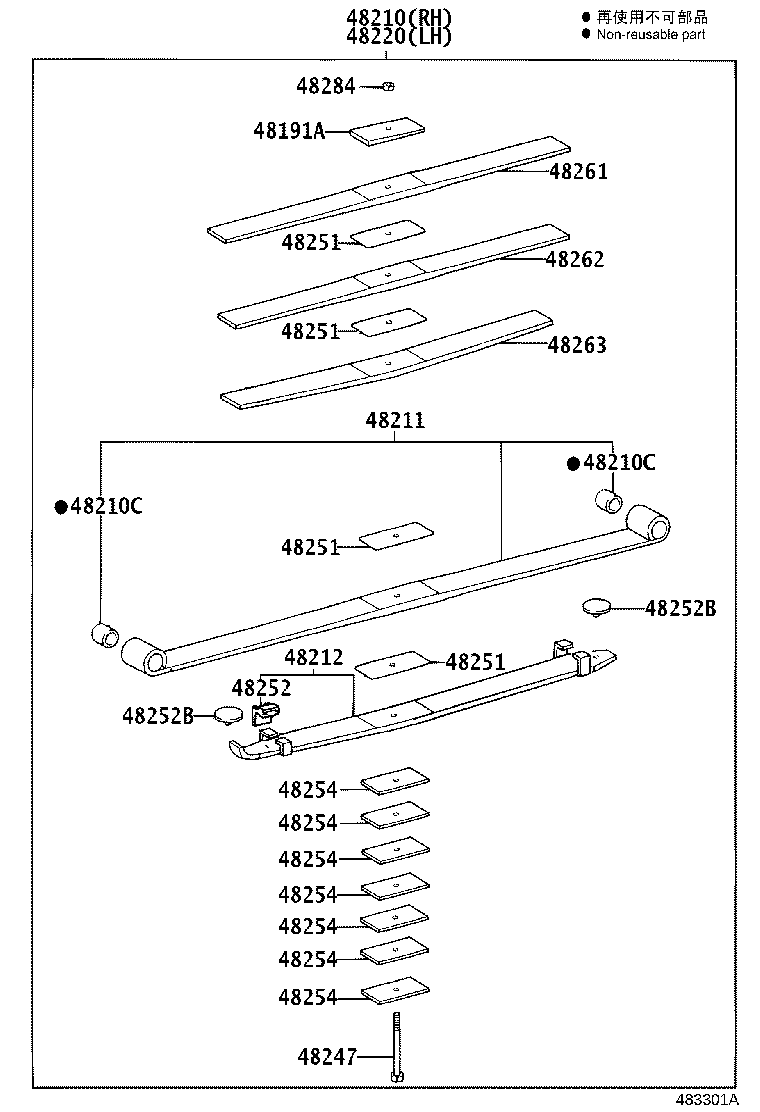

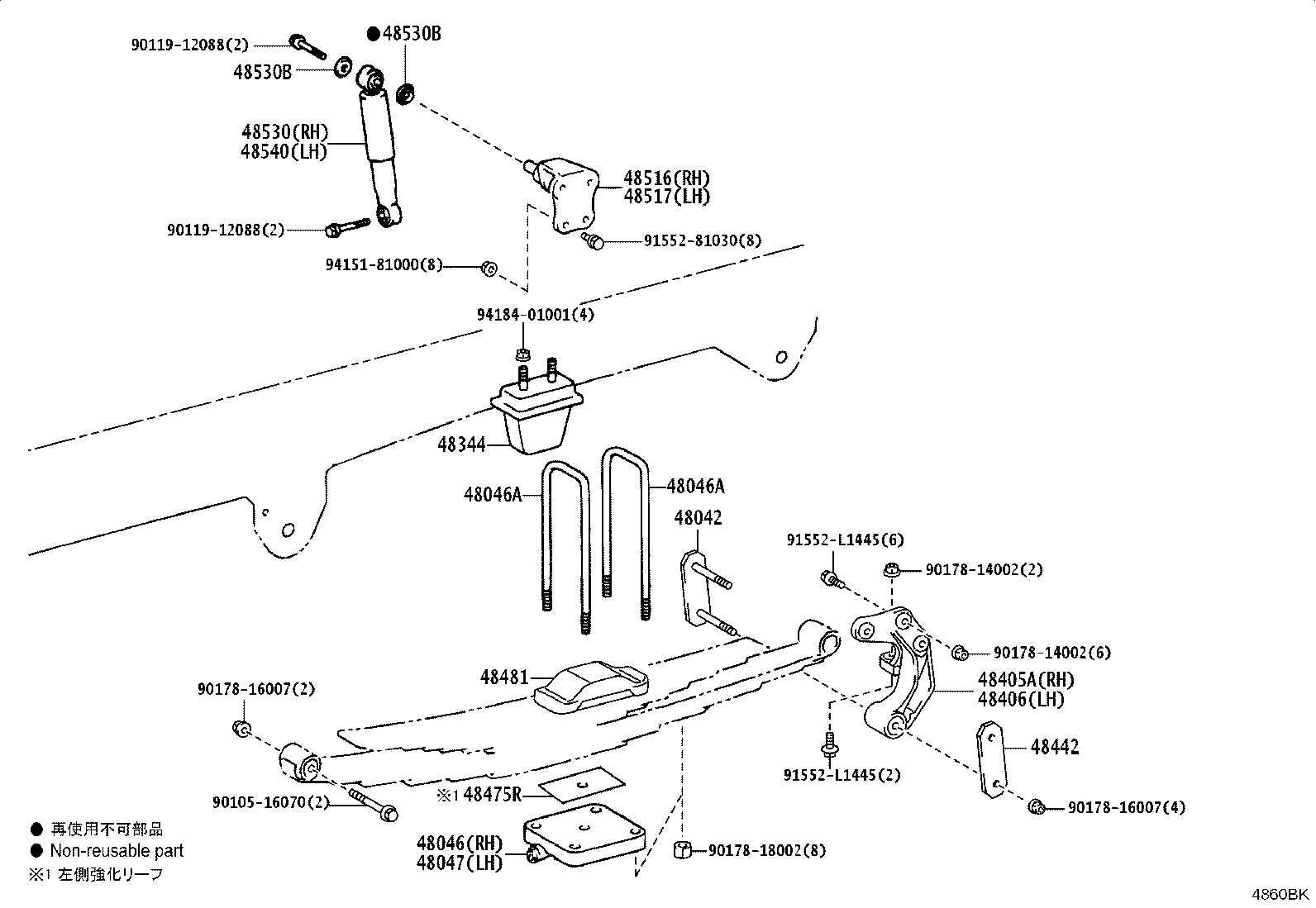

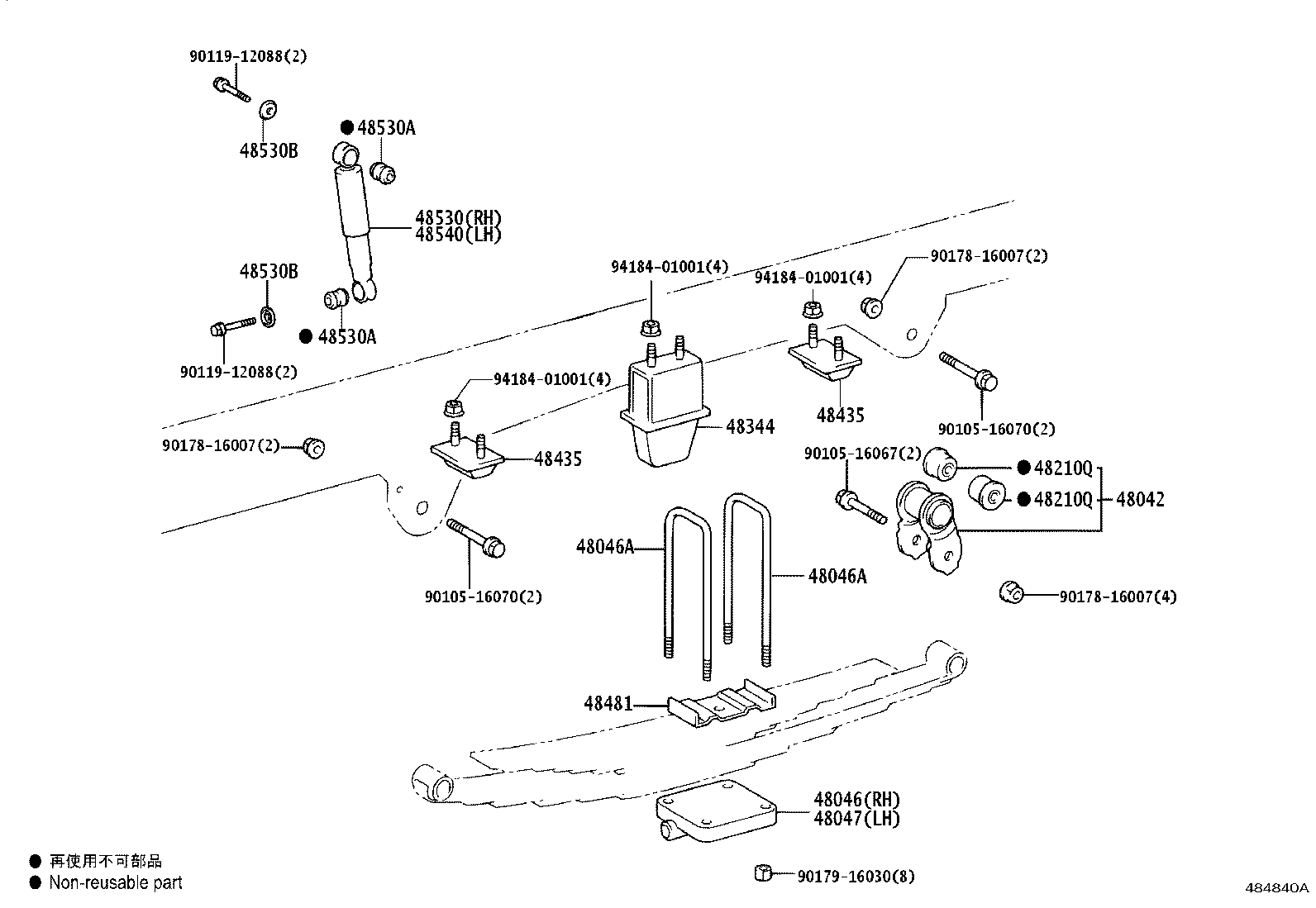

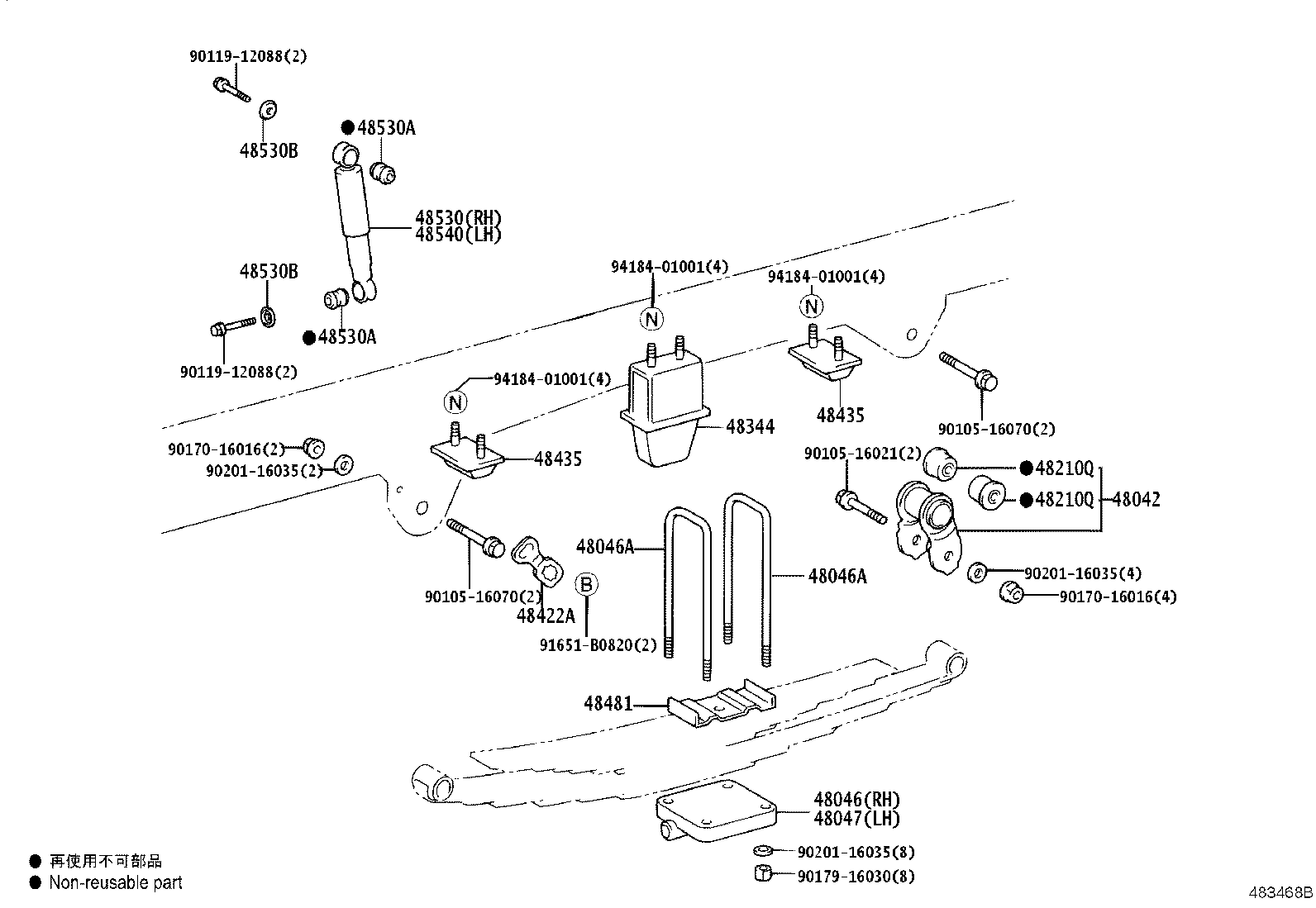

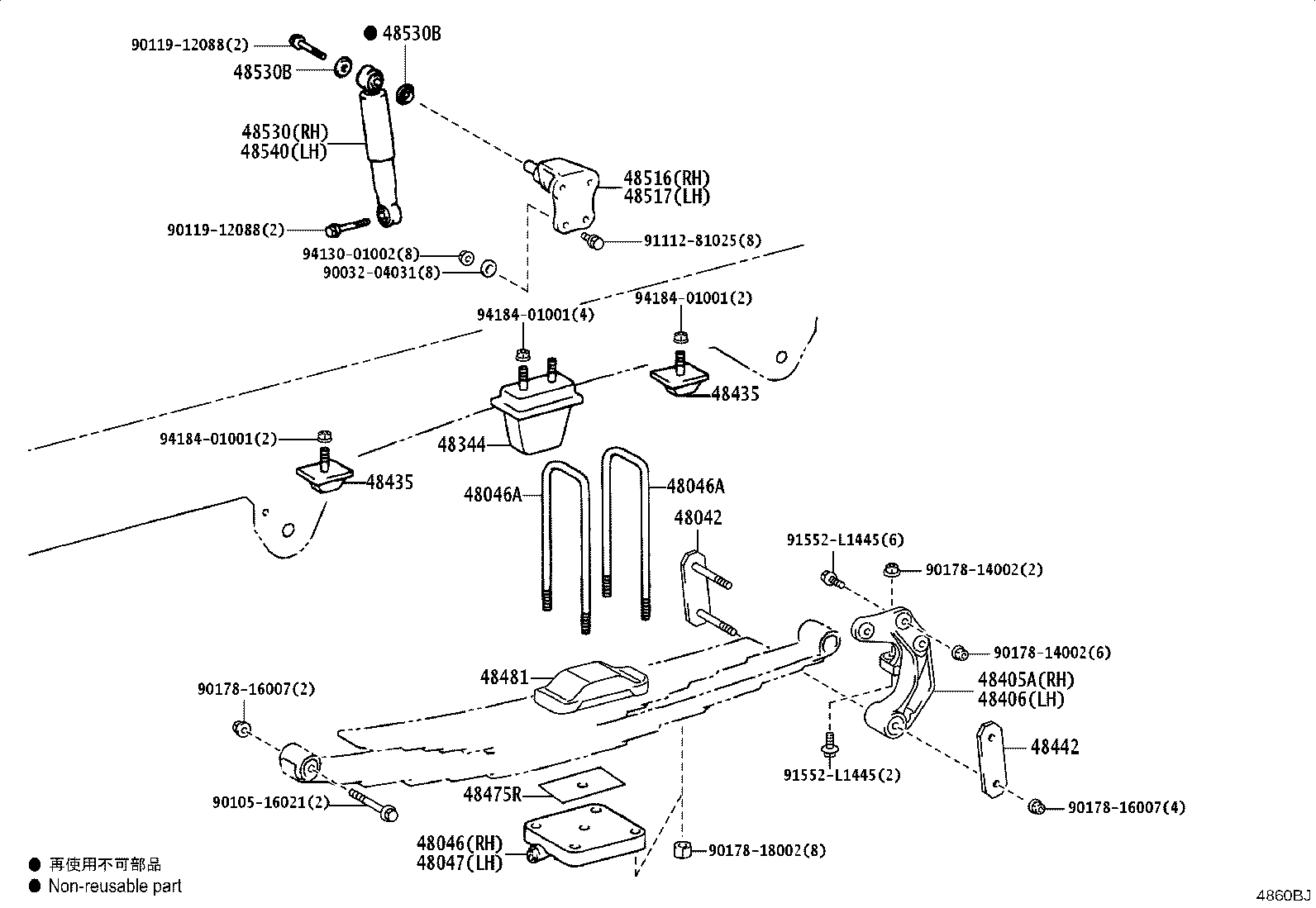

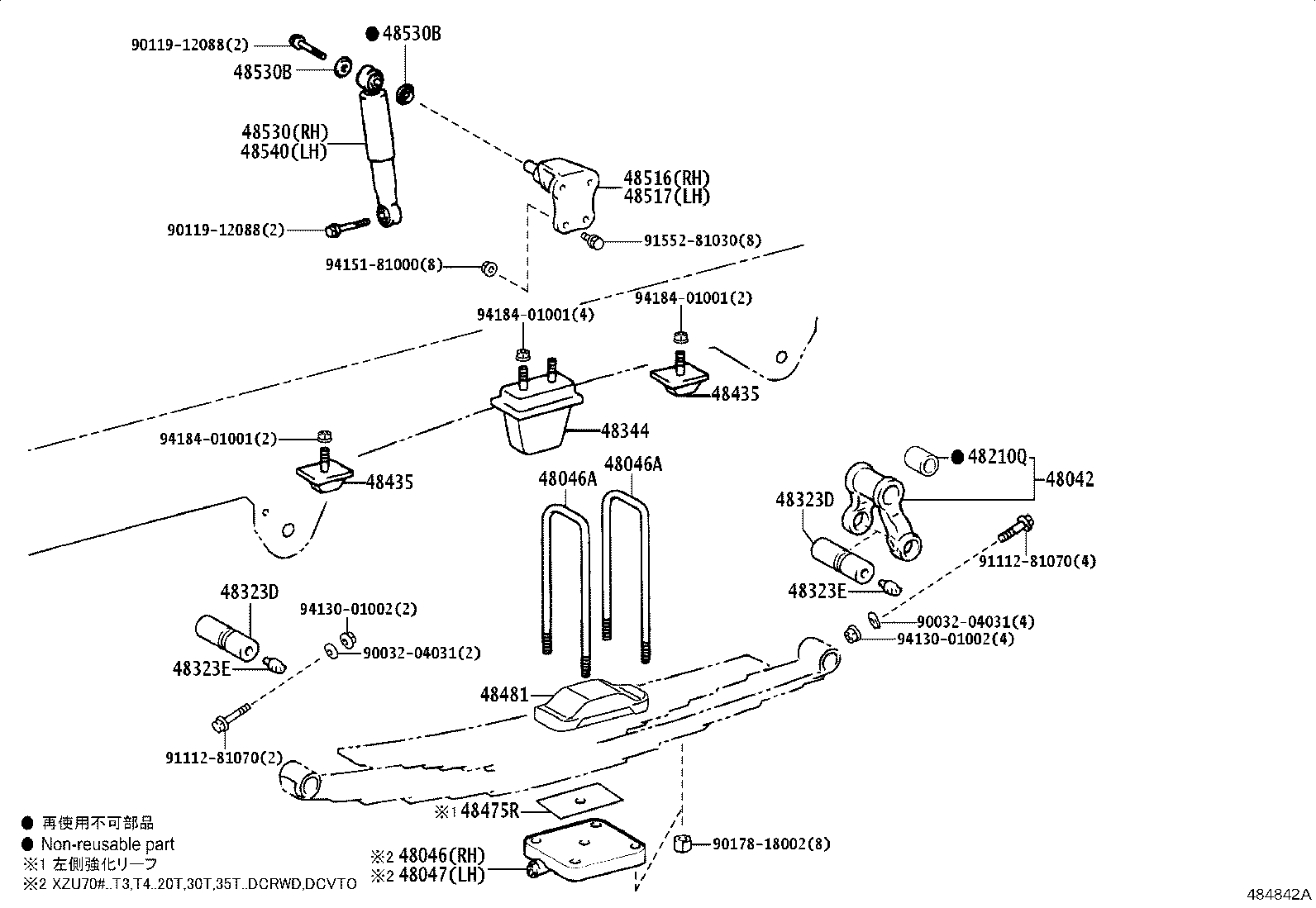

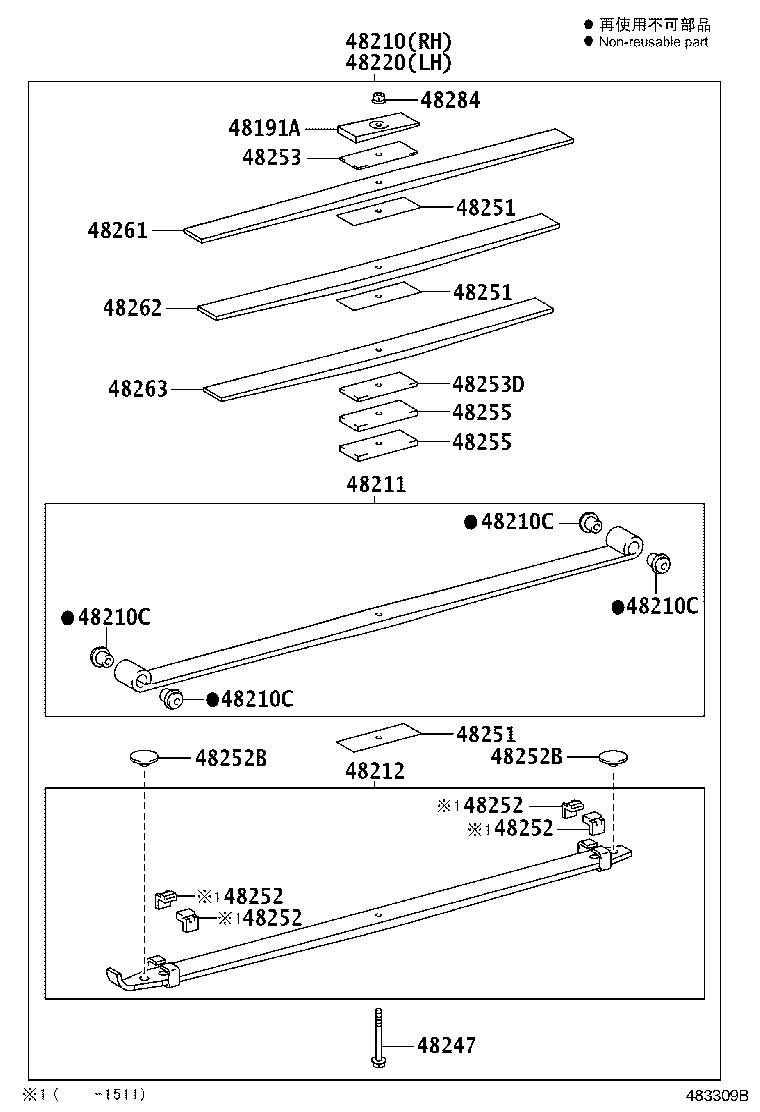

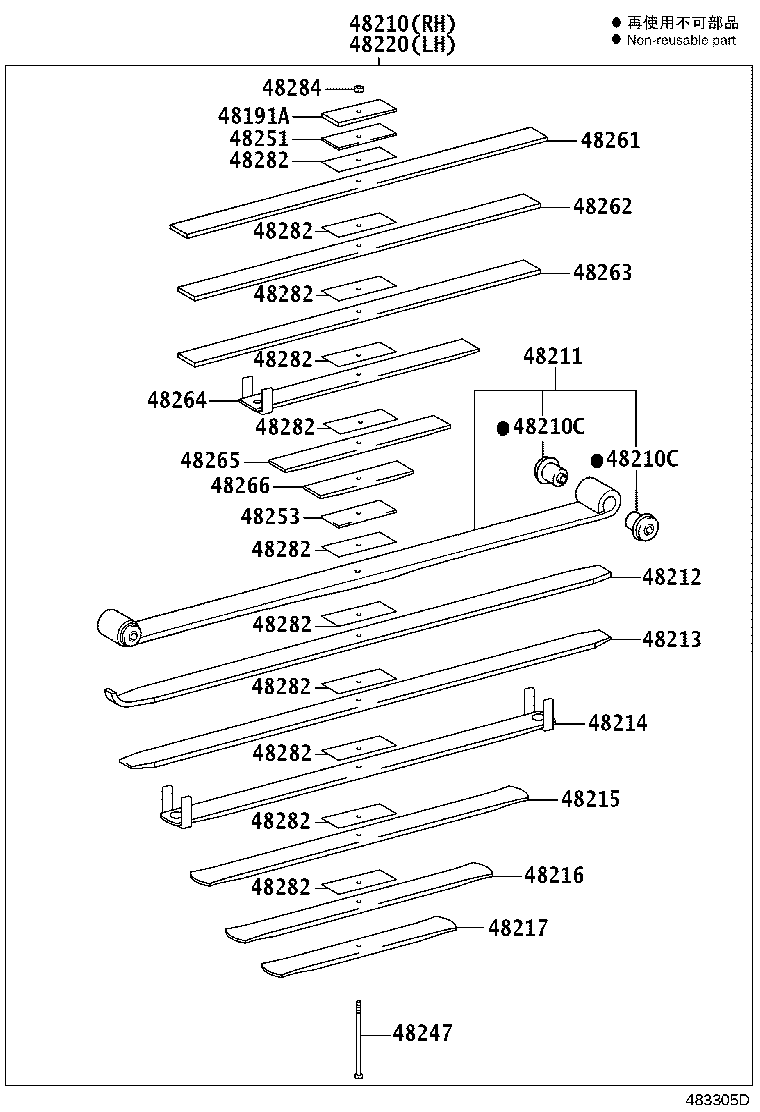

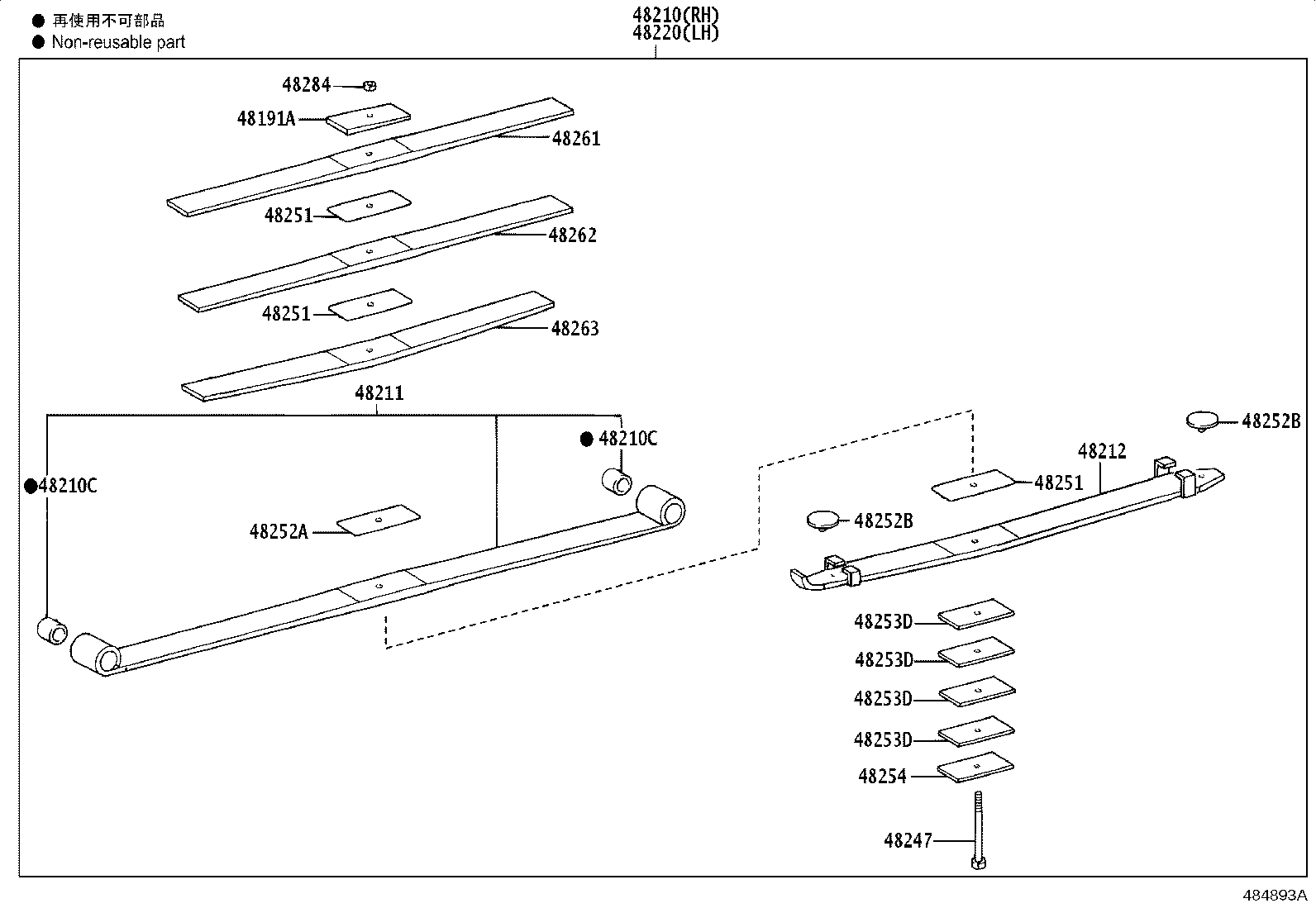

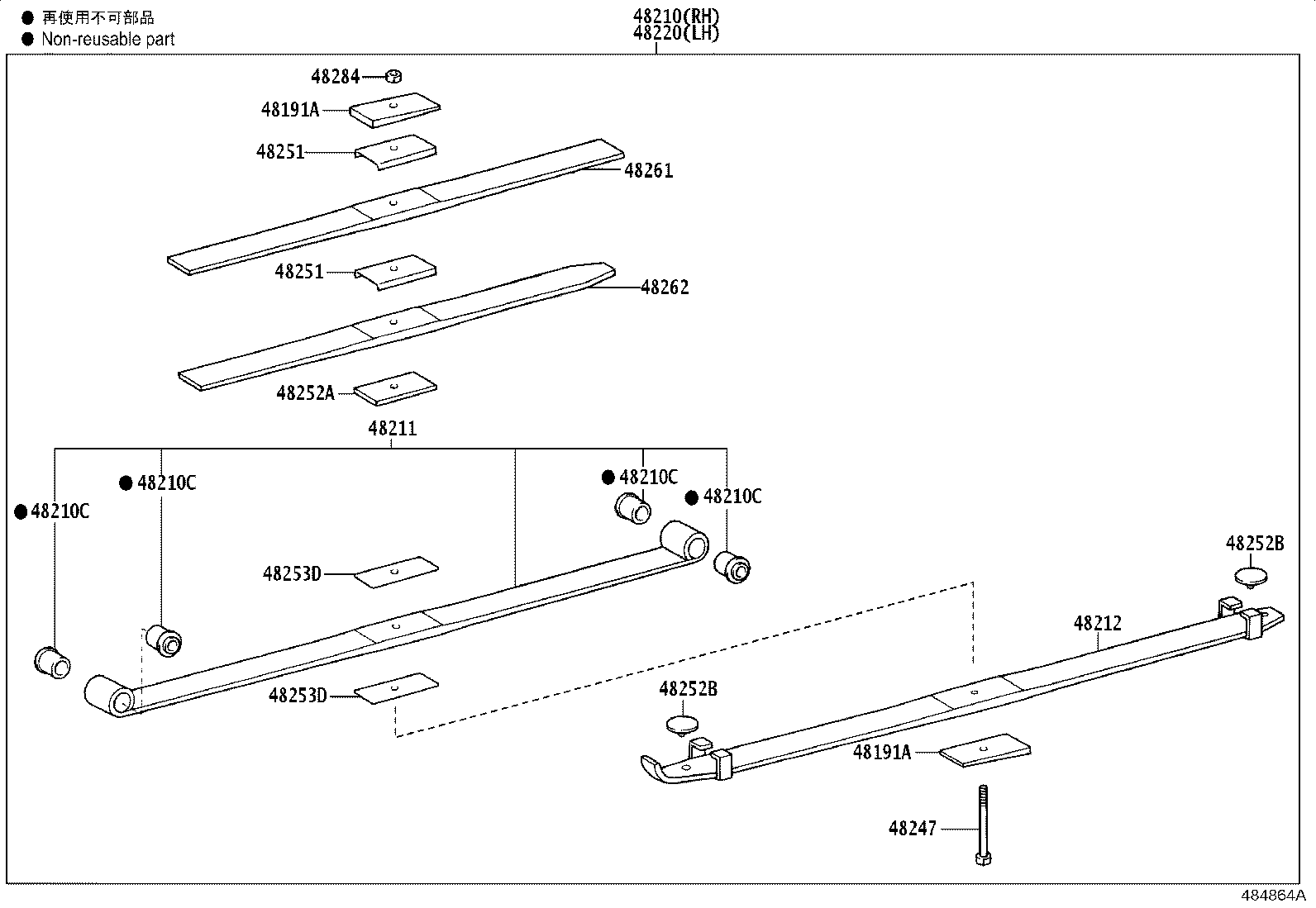

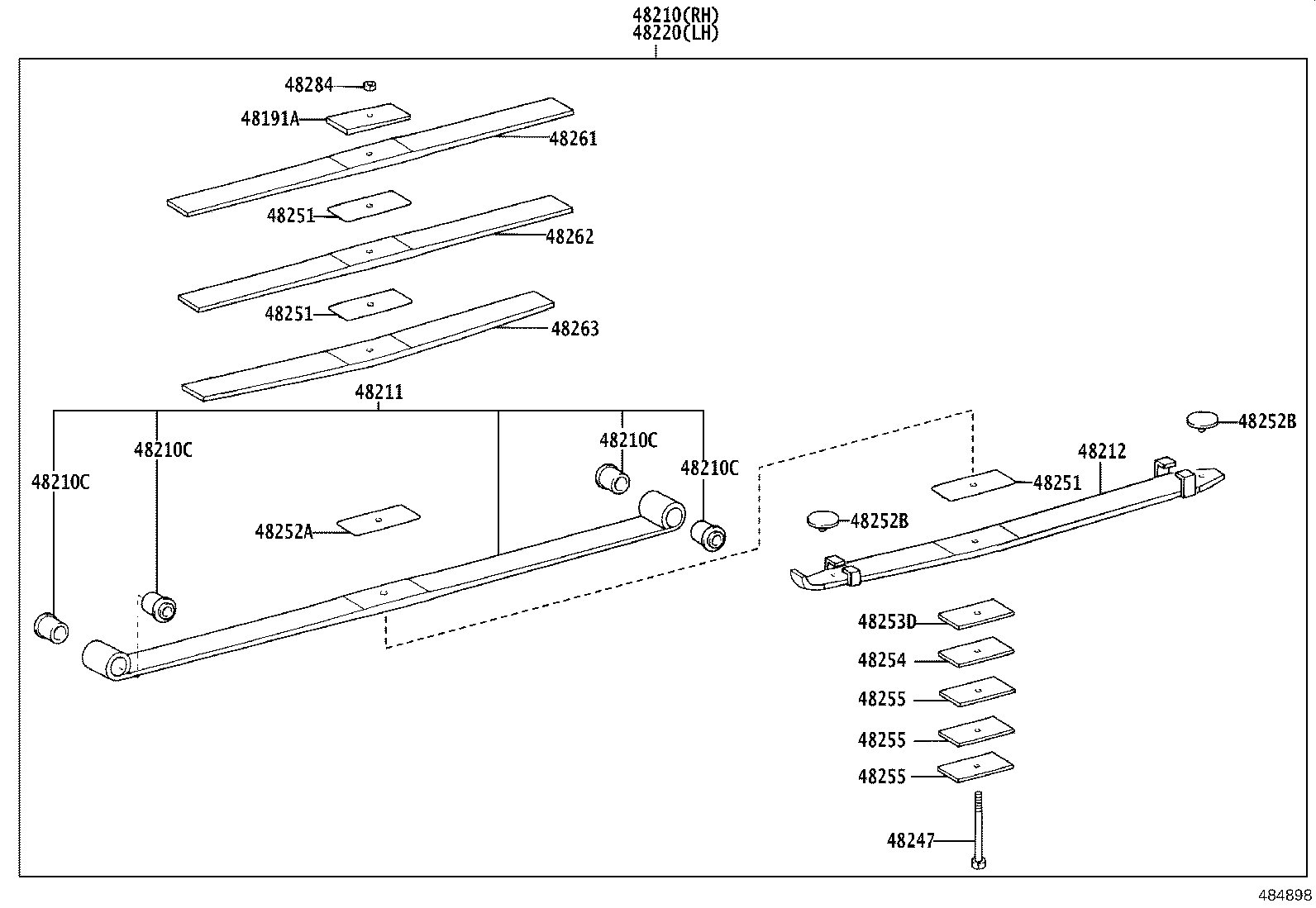

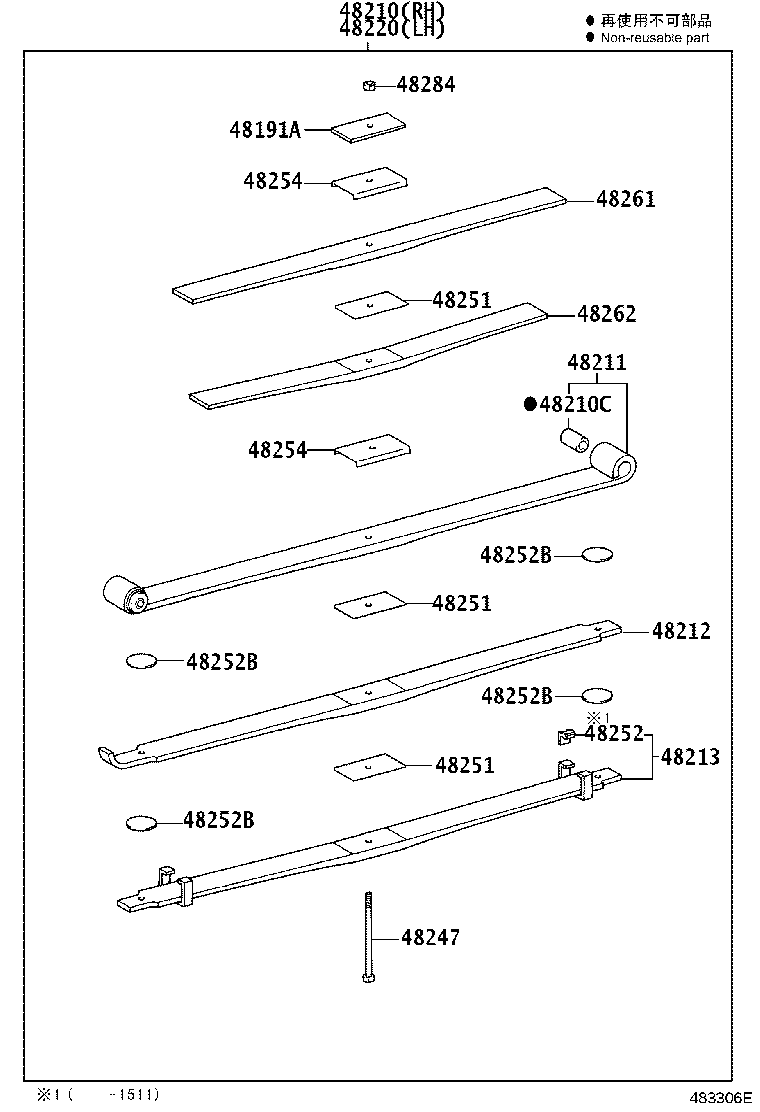

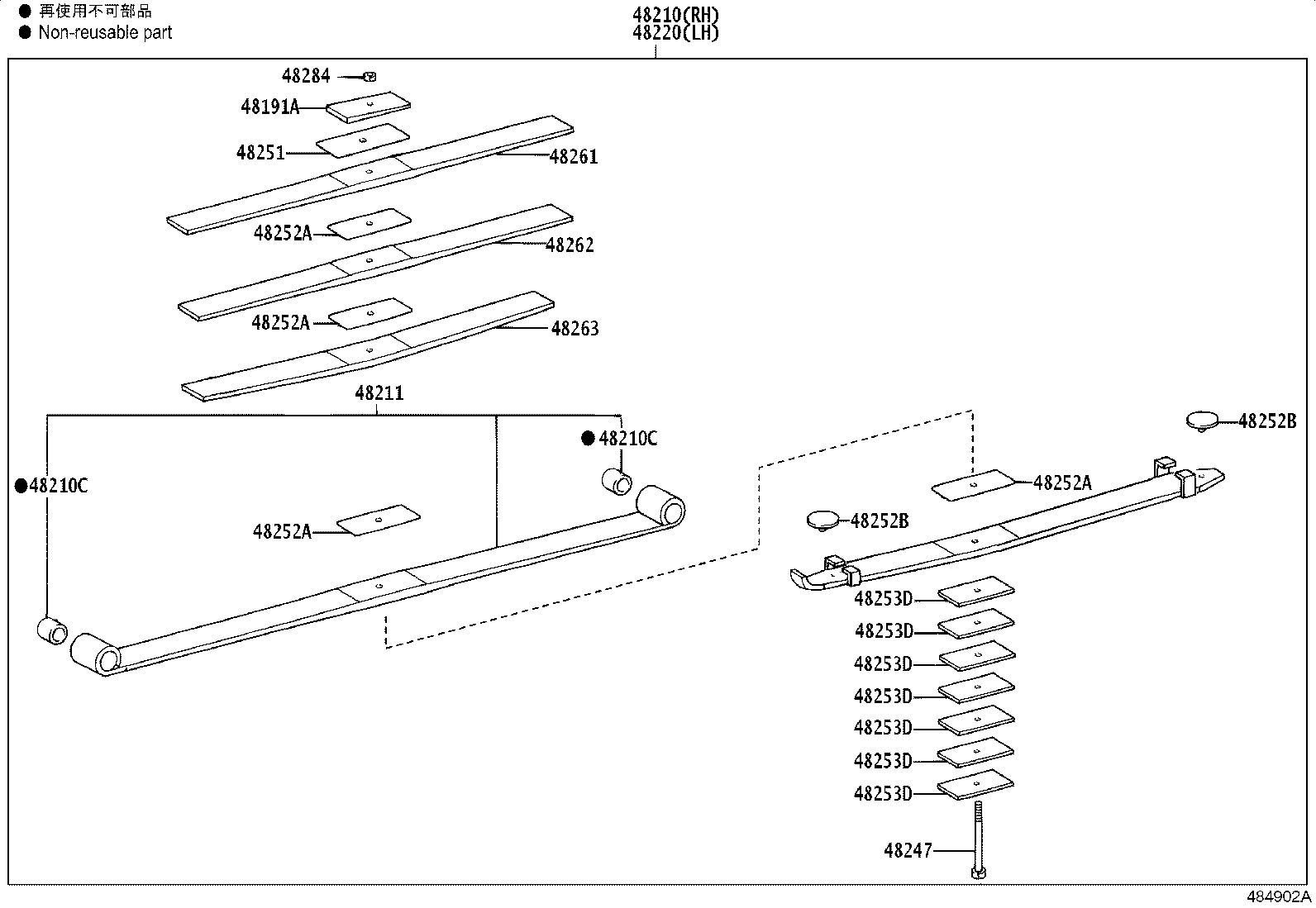

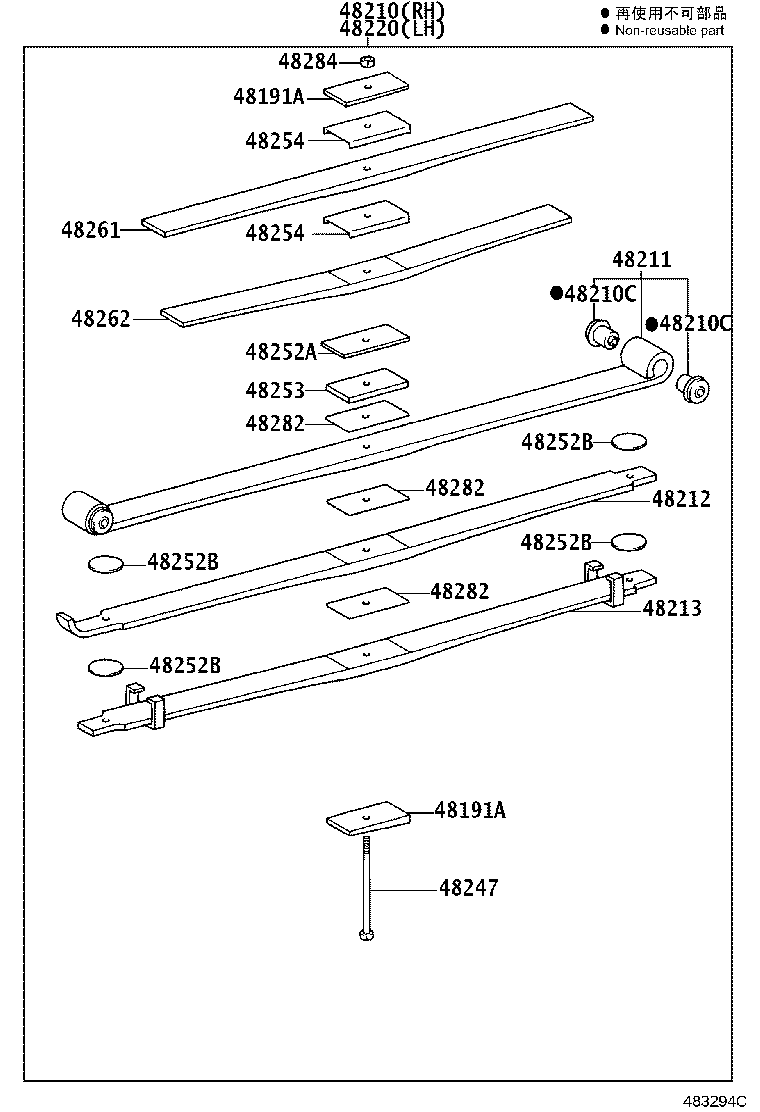

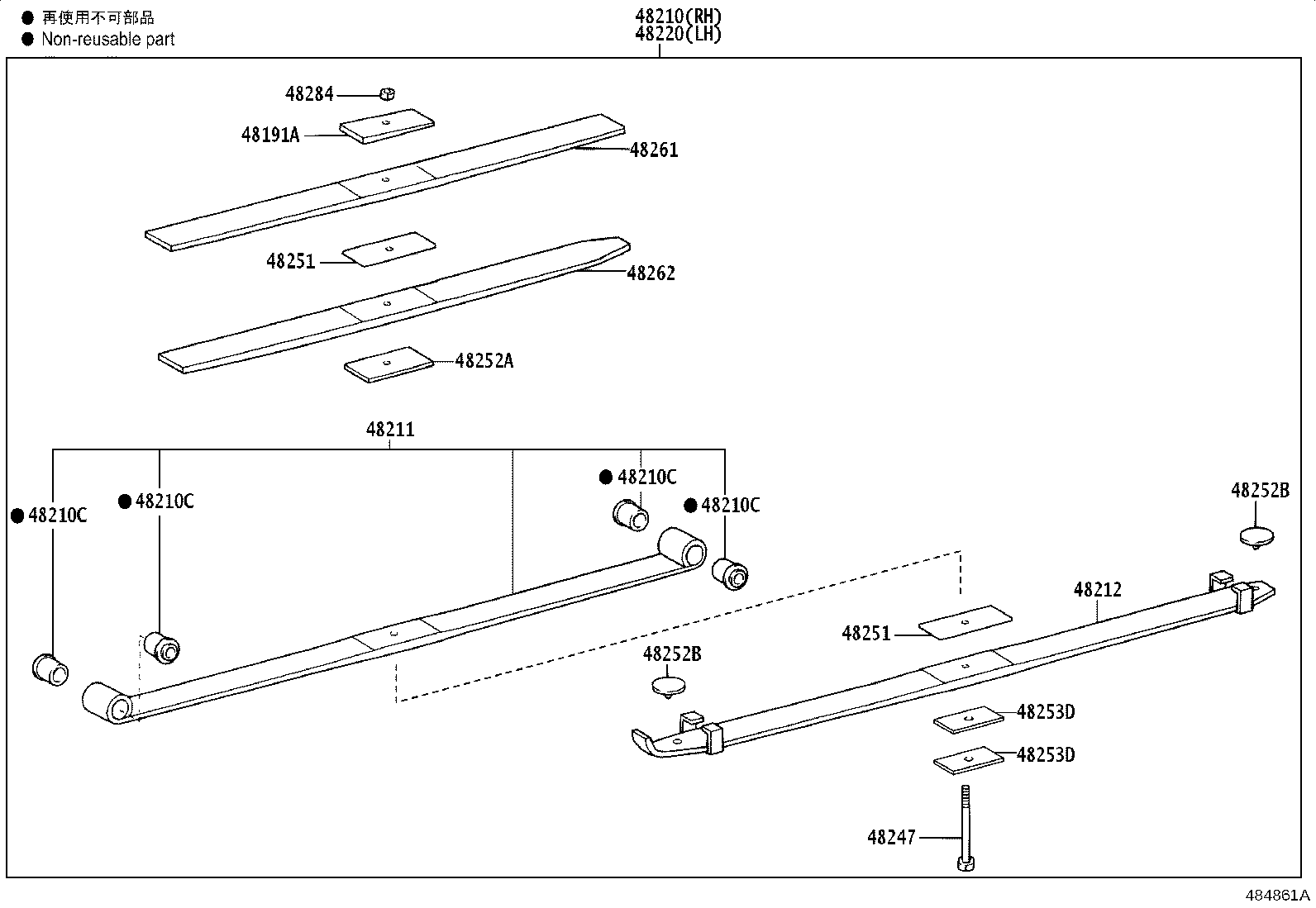

Figure 483462B 483462B 2011-07 → — Figure 484596A 484596A 2011-07 → — Figure 4860BJ 4860BJ 2011-07 → — Figure 483468B 483468B 2011-08 → — Figure 4860BK 4860BK 2019-05 → — Figure 484842A 484842A 2019-05 → — Figure 484843A 484843A 2019-05 → — Figure 484840A 484840A 2019-05 → — Figure 483295C 483295C 2011-07 → — Figure 483296B 483296B 2011-07 → — Figure 483292B 483292B 2011-08 → — Figure 483291B 483291B 2011-07 → — Figure 483291B 483291B 2011-07 → — Figure 483298C 483298C 2011-07 → — Figure 483300C 483300C 2011-07 → 2017-05 Figure 483300C 483300C 2011-07 → — Figure 483300C 483300C 2011-07 → — Figure 483300C 483300C 2019-05 → — Figure 483307B 483307B 2011-07 → — Figure 483308B 483308B 2011-07 → — Figure 483314B 483314B 2011-07 → 2017-05 Figure 483320B 483320B 2011-07 → 2017-05 Figure 483320B 483320B 2017-05 → — Figure 483320B 483320B 2017-05 → — Figure 483320B 483320B 2019-05 → — Figure 483301A 483301A 2011-07 → 2012-09 Figure 483302B 483302B 2011-07 → 2012-09 Figure 483302B 483302B 2011-07 → — Figure 483309B 483309B 2011-07 → — Figure 483311C 483311C 2011-07 → — Figure 483313B 483313B 2011-07 → — Figure 483316B 483316B 2011-07 → 2017-05 Figure 483316B 483316B 2017-05 → — Figure 483316B 483316B 2017-05 → — Figure 483316B 483316B 2019-05 → — Figure 483317B 483317B 2011-07 → — Figure 484893A 484893A 2019-05 → — Figure 484894A 484894A 2019-05 → — Figure 484894A 484894A 2019-05 → — Figure 484894A 484894A 2019-05 → — Figure 484895A 484895A 2019-05 → — Figure 484896A 484896A 2019-05 → — Figure 484897A 484897A 2019-05 → — Figure 484898 484898 2019-05 → — Figure 484899A 484899A 2019-05 → — Figure 484900A 484900A 2019-05 → — Figure 484901A 484901A 2019-05 → — Figure 484902A 484902A 2019-05 → — Figure 483318B 483318B 2011-07 → 2012-09 Figure 483318B 483318B 2011-07 → — Figure 483318B 483318B 2014-05 → 2017-05 Figure 483294C 483294C 2011-08 → — Figure 483306E 483306E 2011-07 → — Figure 484904A 484904A 2019-05 → — Figure 484903A 484903A 2019-05 → — Figure 483303B 483303B 2011-07 → — Figure 483304B 483304B 2011-07 → — Figure 483304B 483304B 2019-05 → — Figure 483305D 483305D 2011-07 → 2017-05 Figure 483305D 483305D 2012-09 → 2017-05 Figure 483305D 483305D 2017-05 → — Figure 484857A 484857A 2019-05 → — Figure 484858A 484858A 2019-05 → — Figure 484856A 484856A 2019-05 → — Figure 484866A 484866A 2019-05 → — Figure 484862A 484862A 2019-05 → — Figure 484859A 484859A 2019-05 → — Figure 484865A 484865A 2019-05 → — Figure 484860A 484860A 2019-05 → — Figure 484861A 484861A 2019-05 → — Figure 484864A 484864A 2019-05 → — Figure 484863A 484863A 2019-05 → —

Part groups

PNCDescription
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)

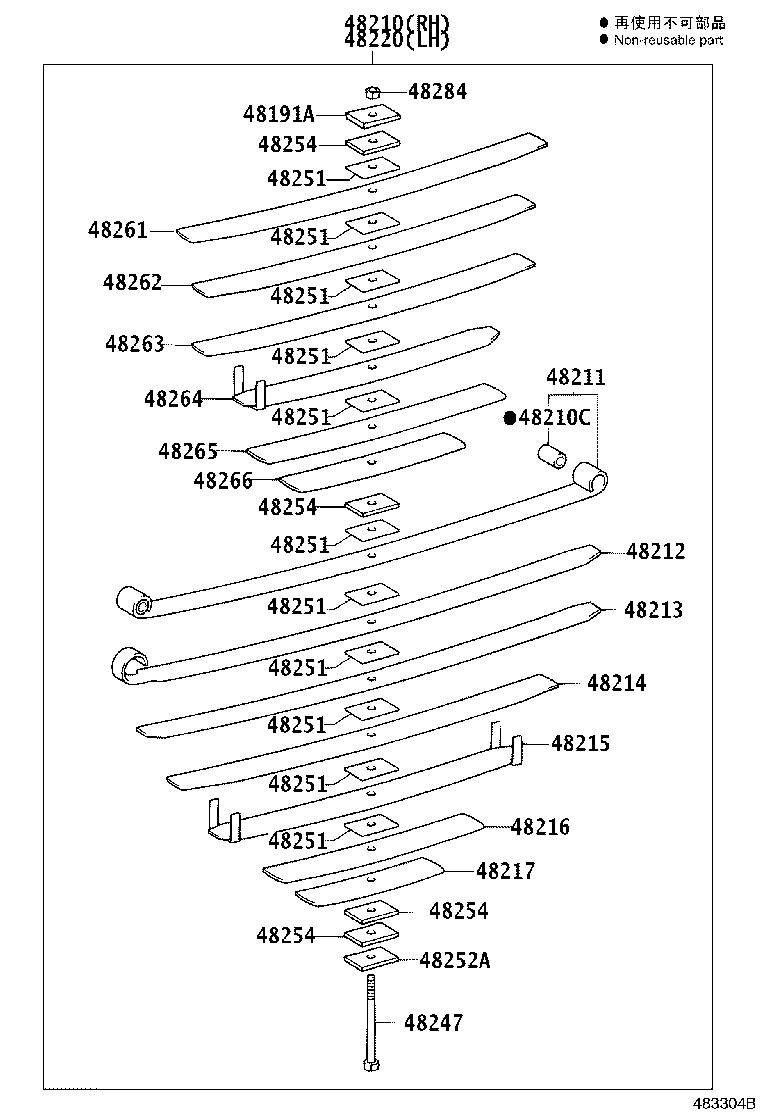

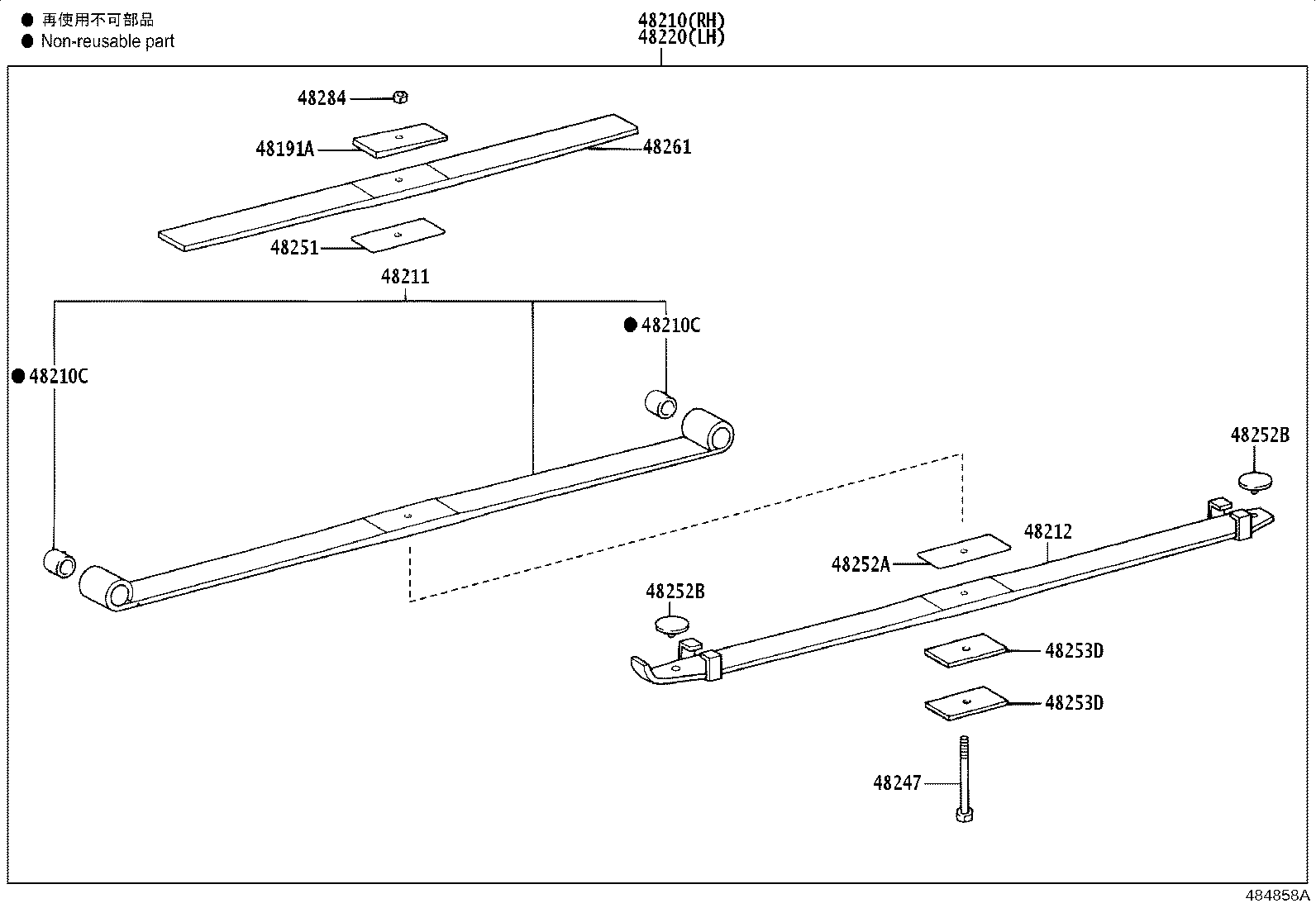

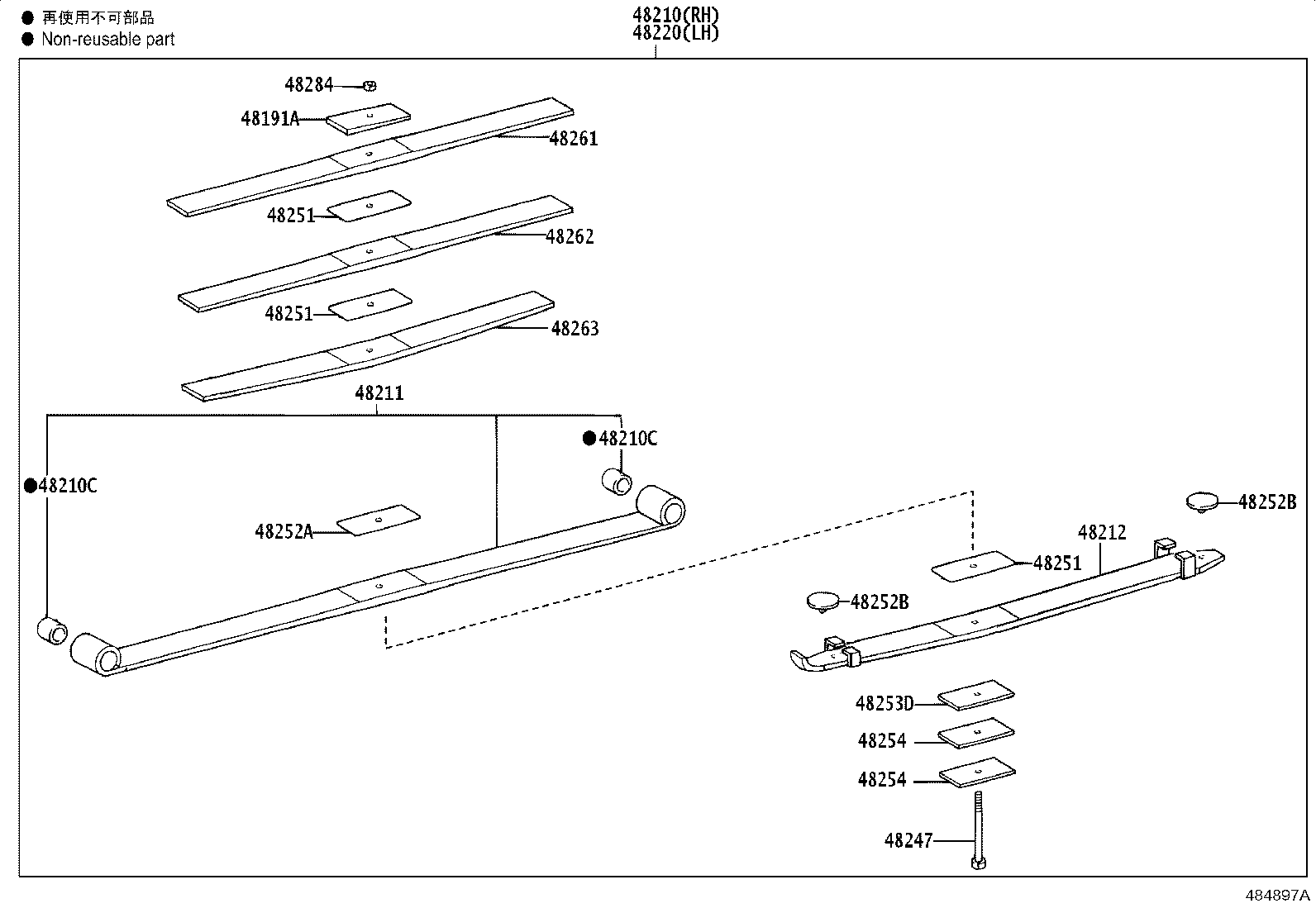

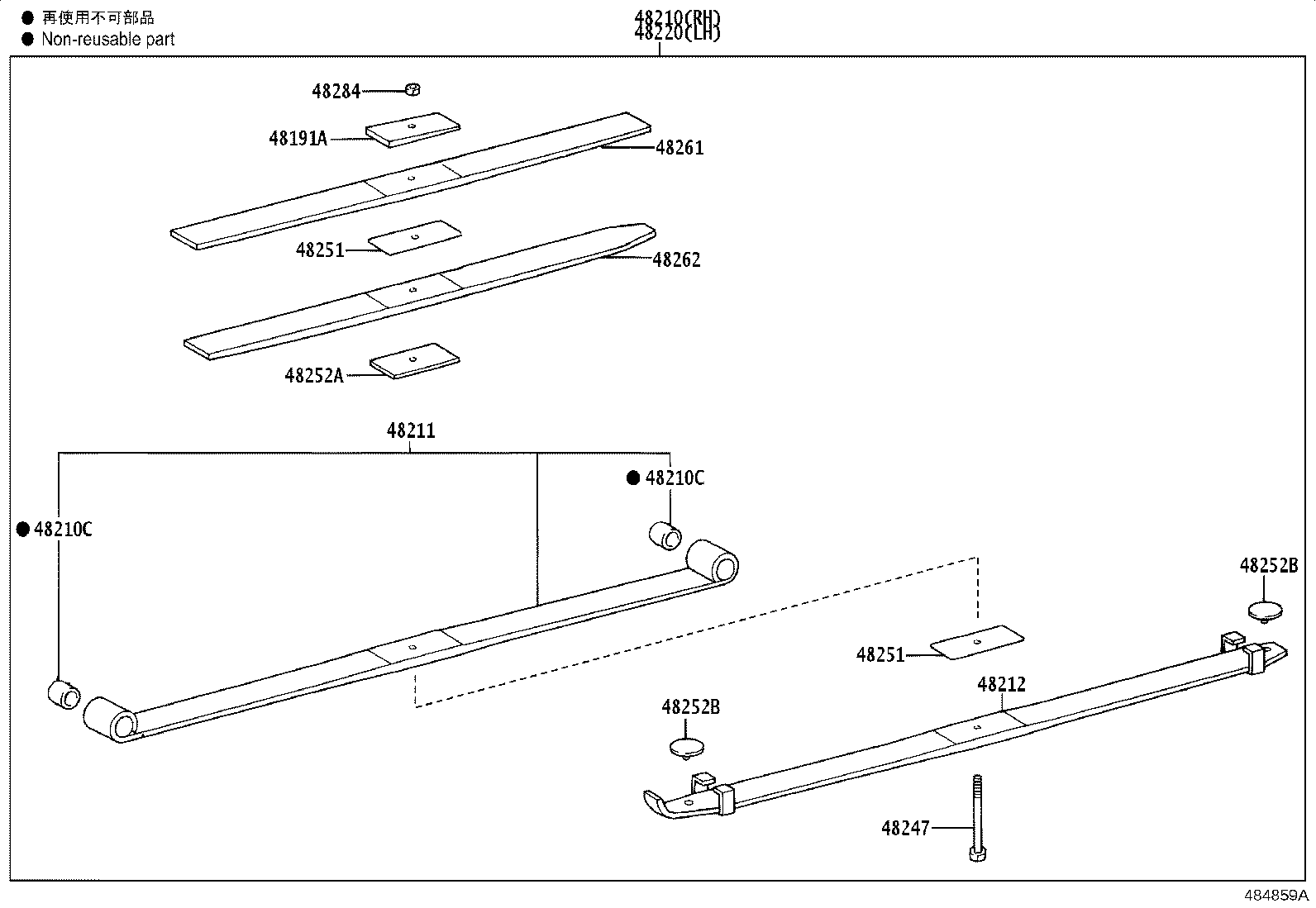

48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210M Nut(FOR REAR SPRING)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48282 Seat, Rear Helper Spring
48284 Nut, Rear Spring Center Bolt
48323D Pin, Rear Spring Bracket
48323E Nipple, Grease(FOR REAR SPRING BRACKET PIN)
48344 Stopper, Bumper, Rear
48405A Bracket Sub-assy, Spring, NO.4 RH
48406 Bracket Sub-assy, Spring, NO.4 LH
48422A Support, Rear Spring Pin
48435 Attachment, Helper Spring Bracket, NO.1
48442 Shackle, Spring, NO.2
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
