Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

57 part groups · 22 illustrations

Illustrations

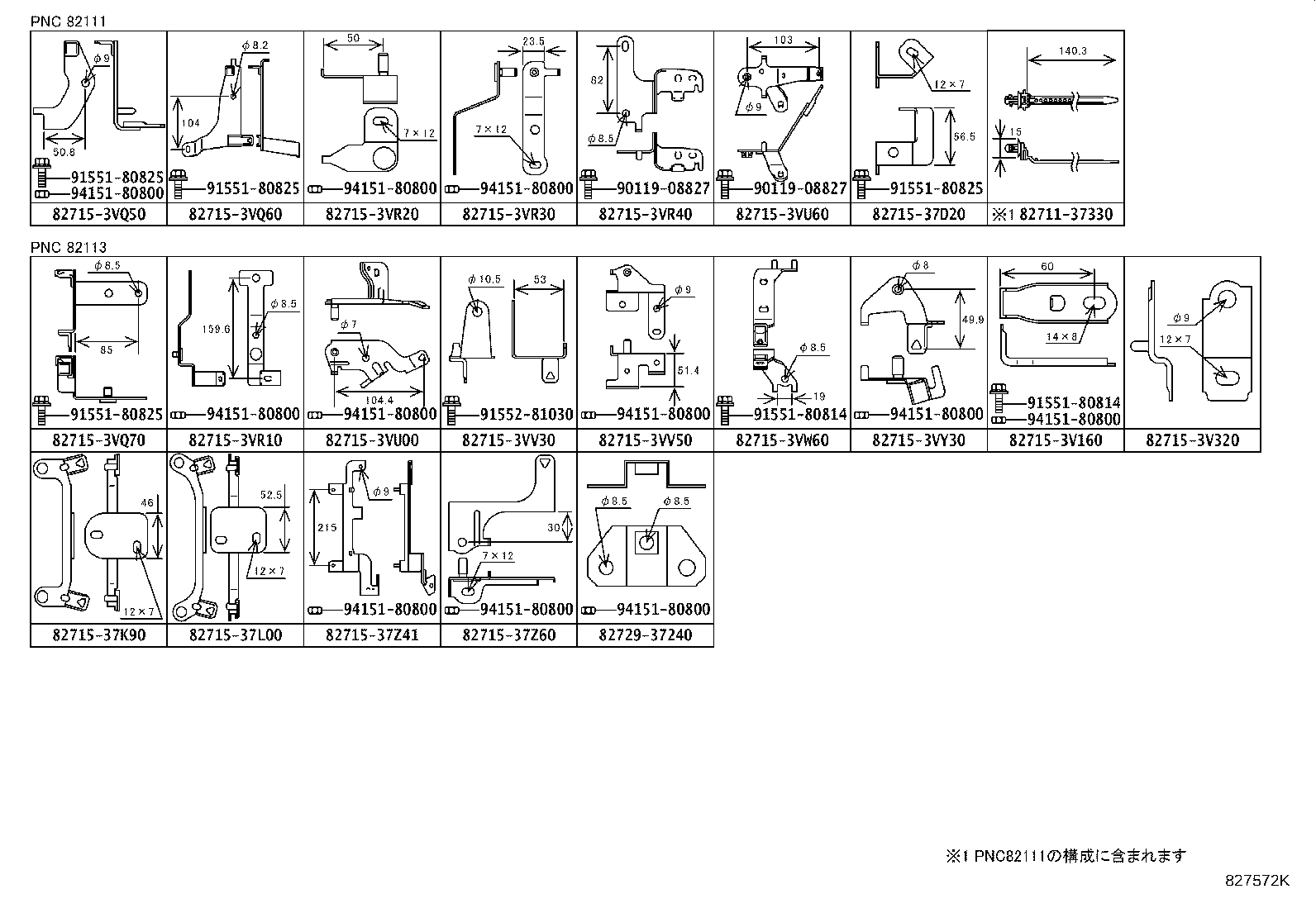

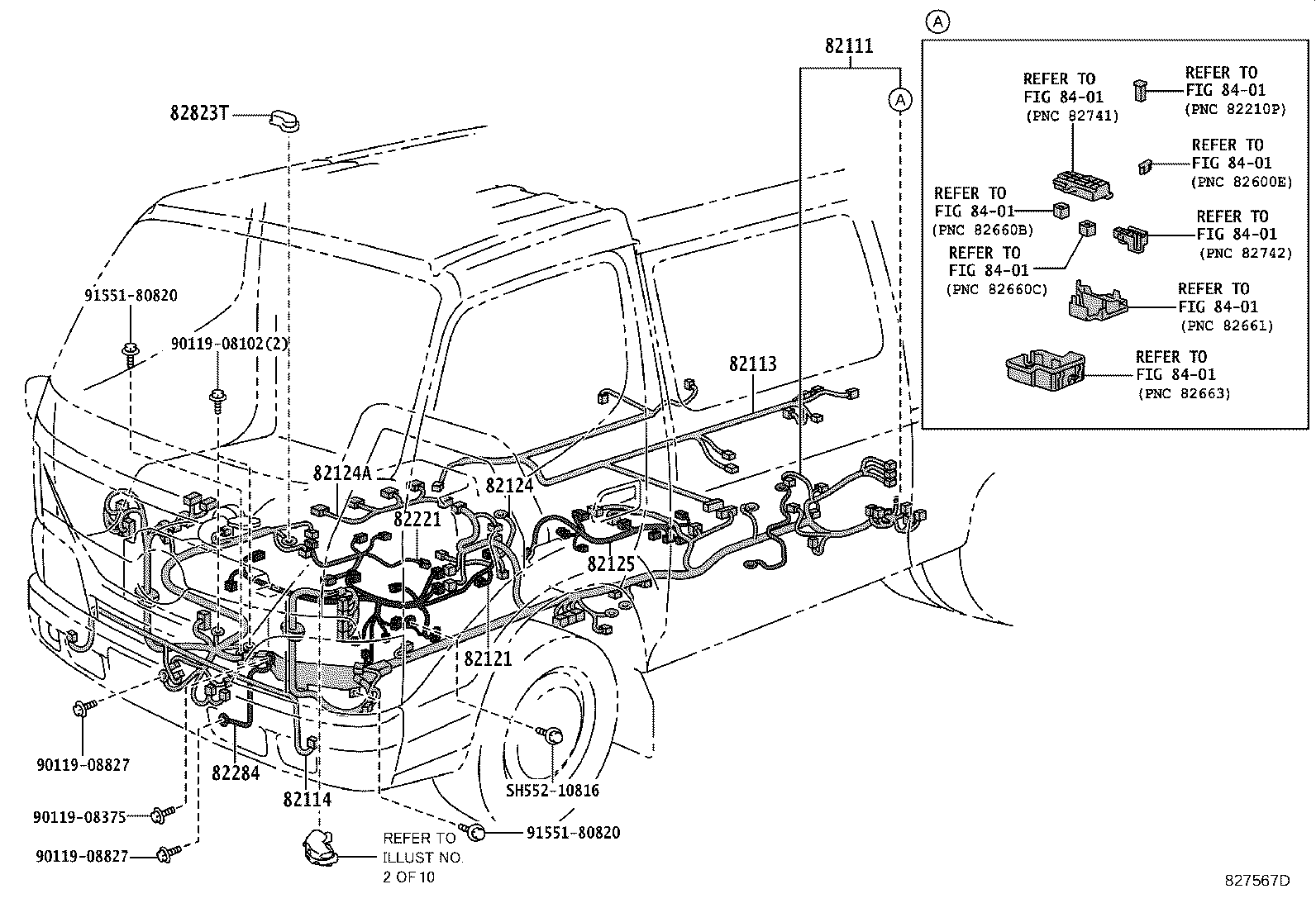

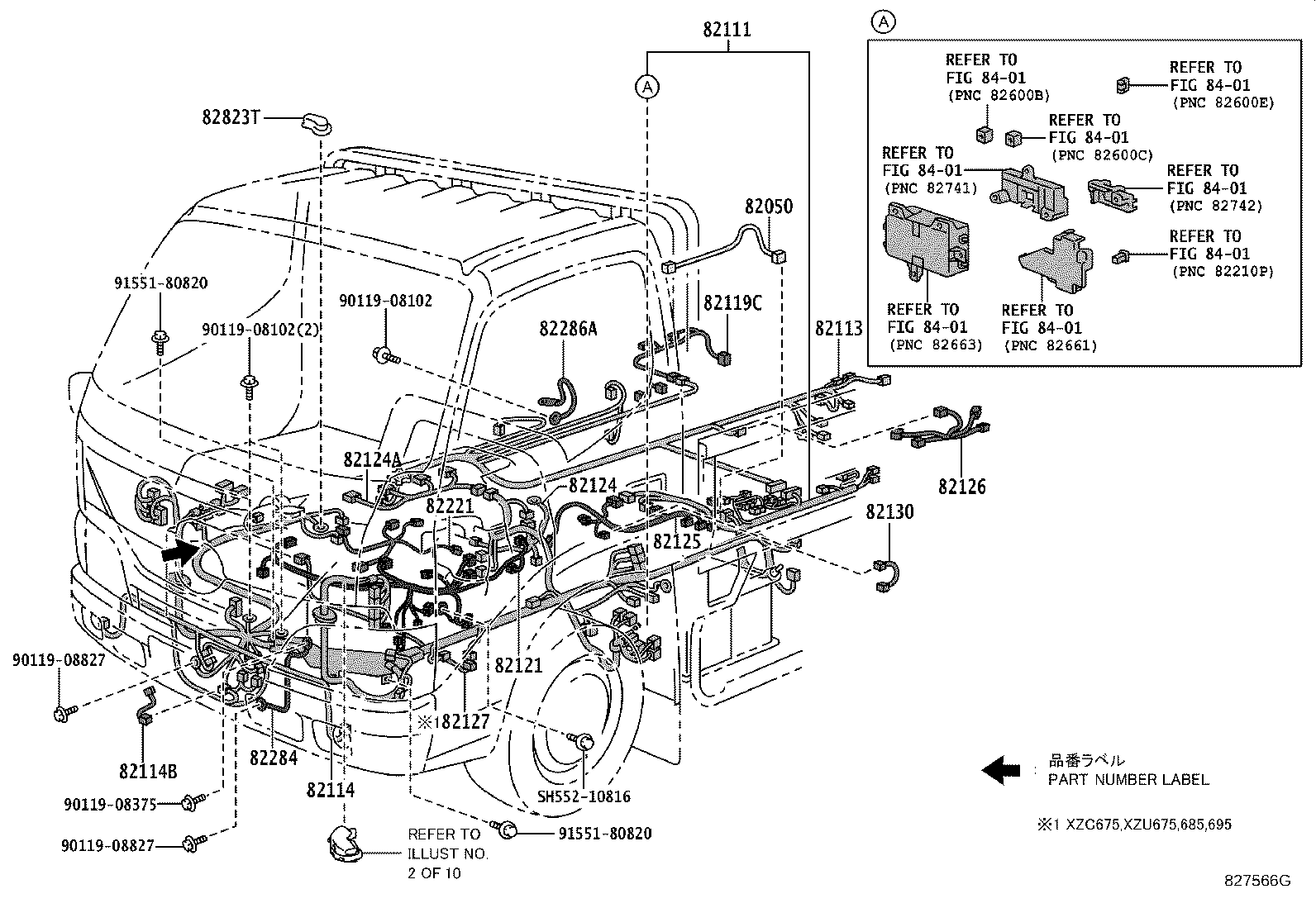

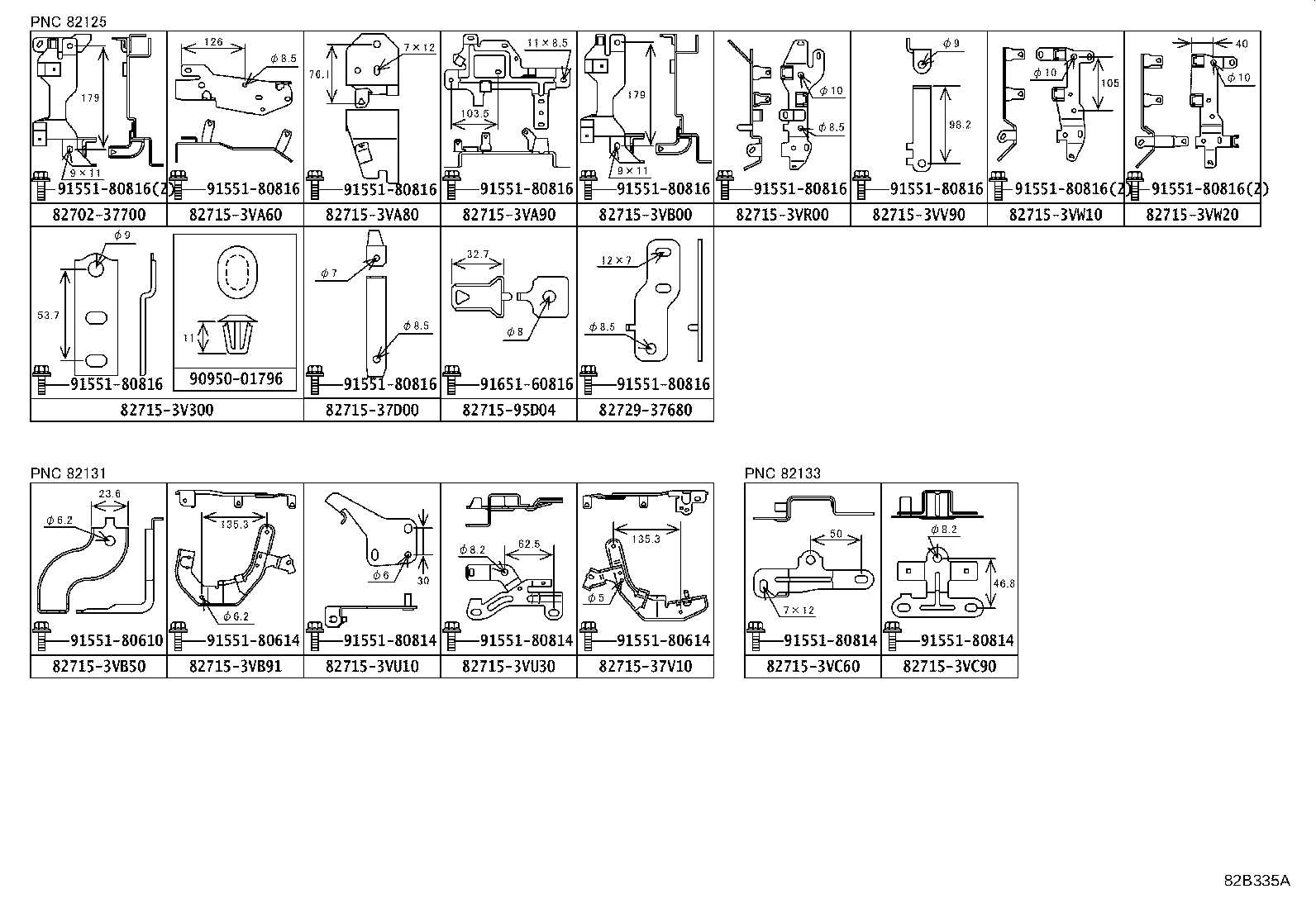

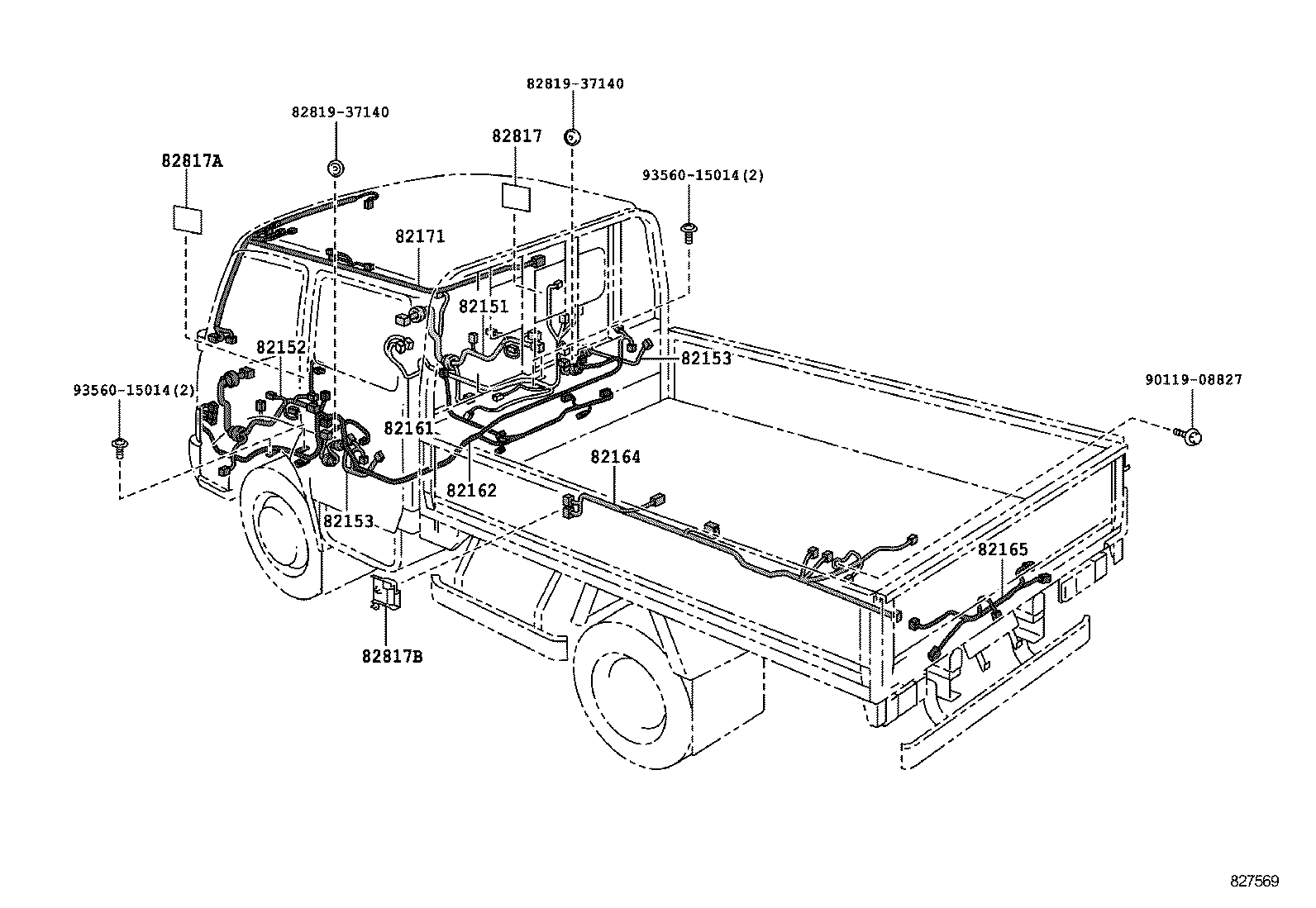

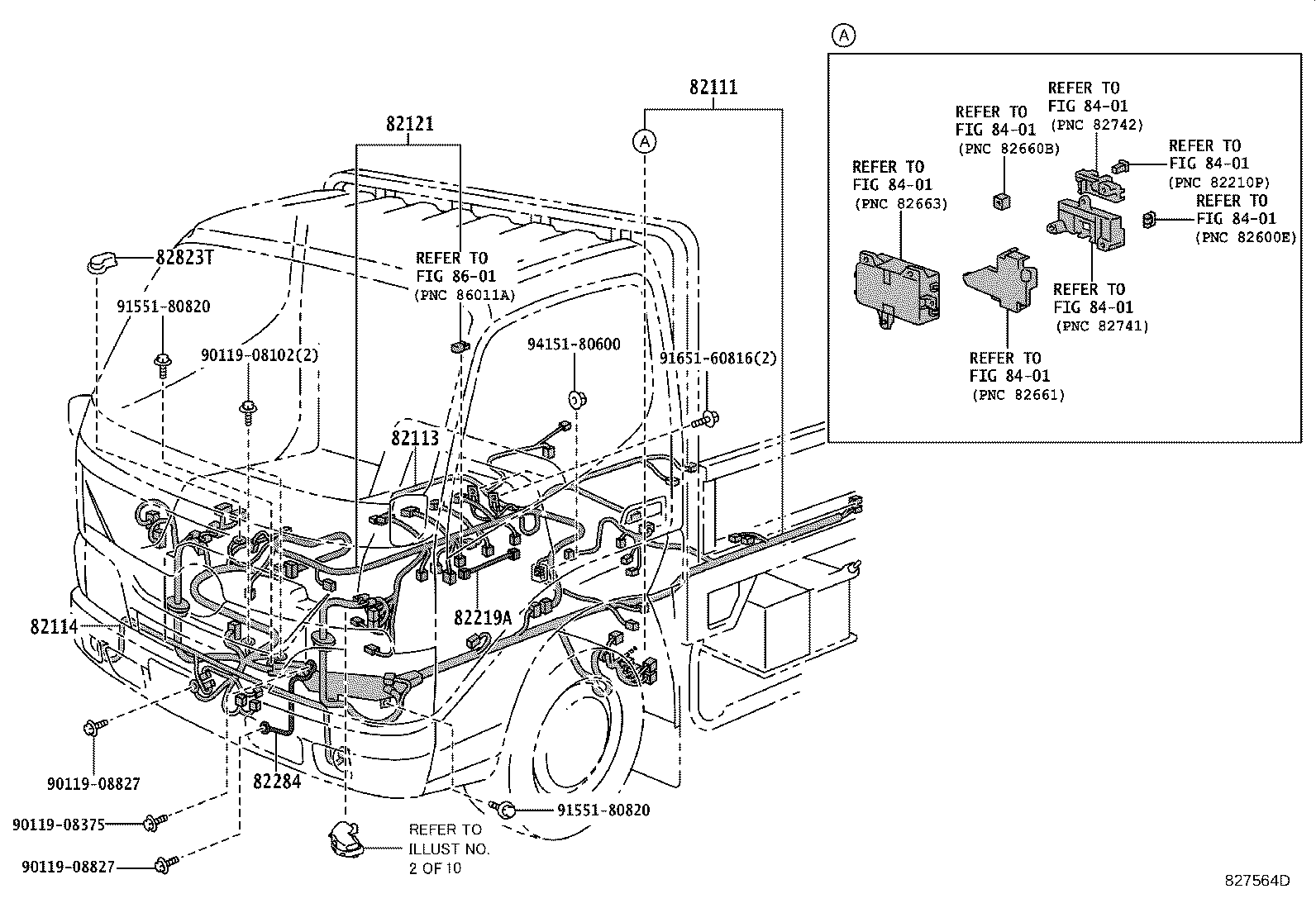

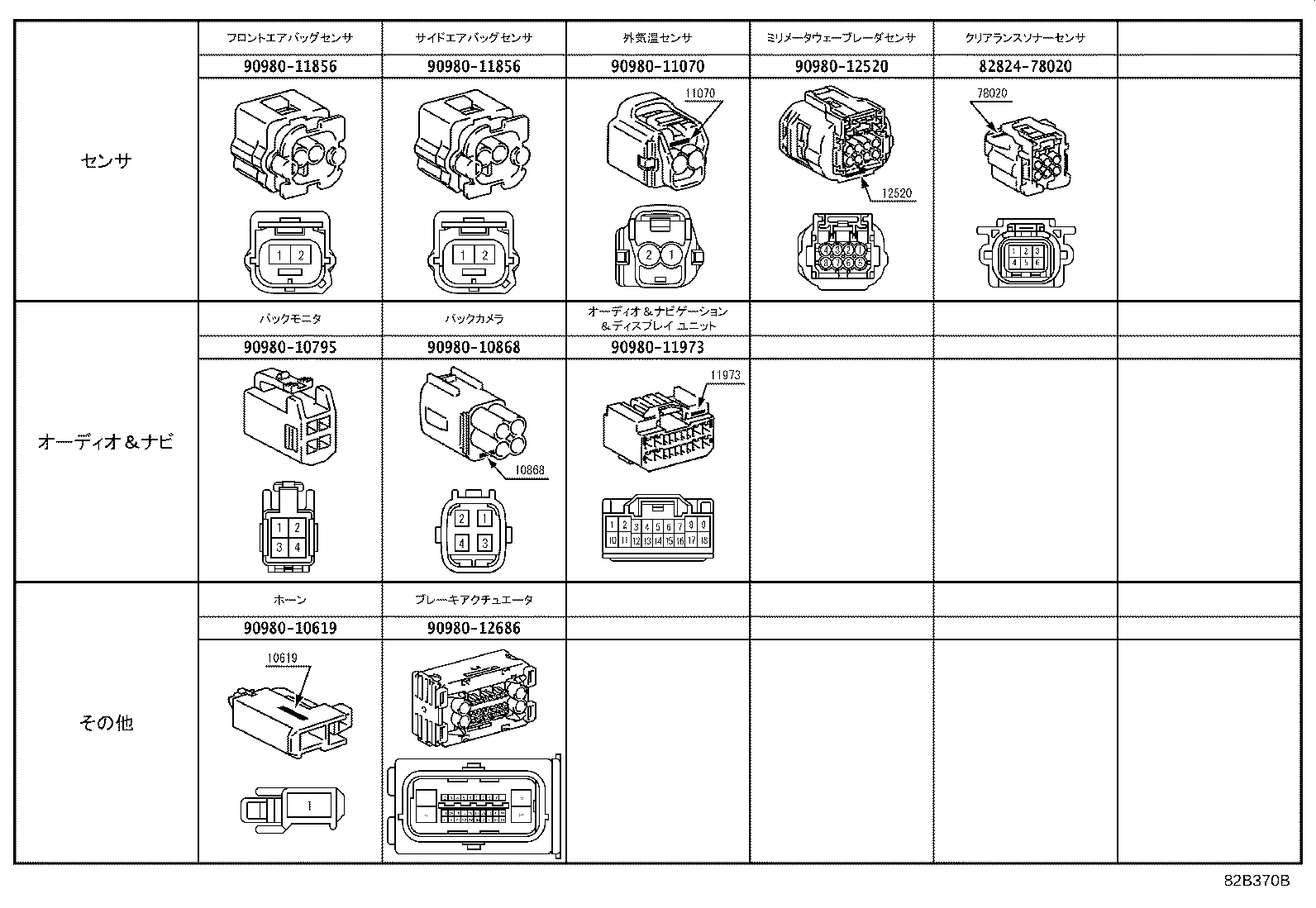

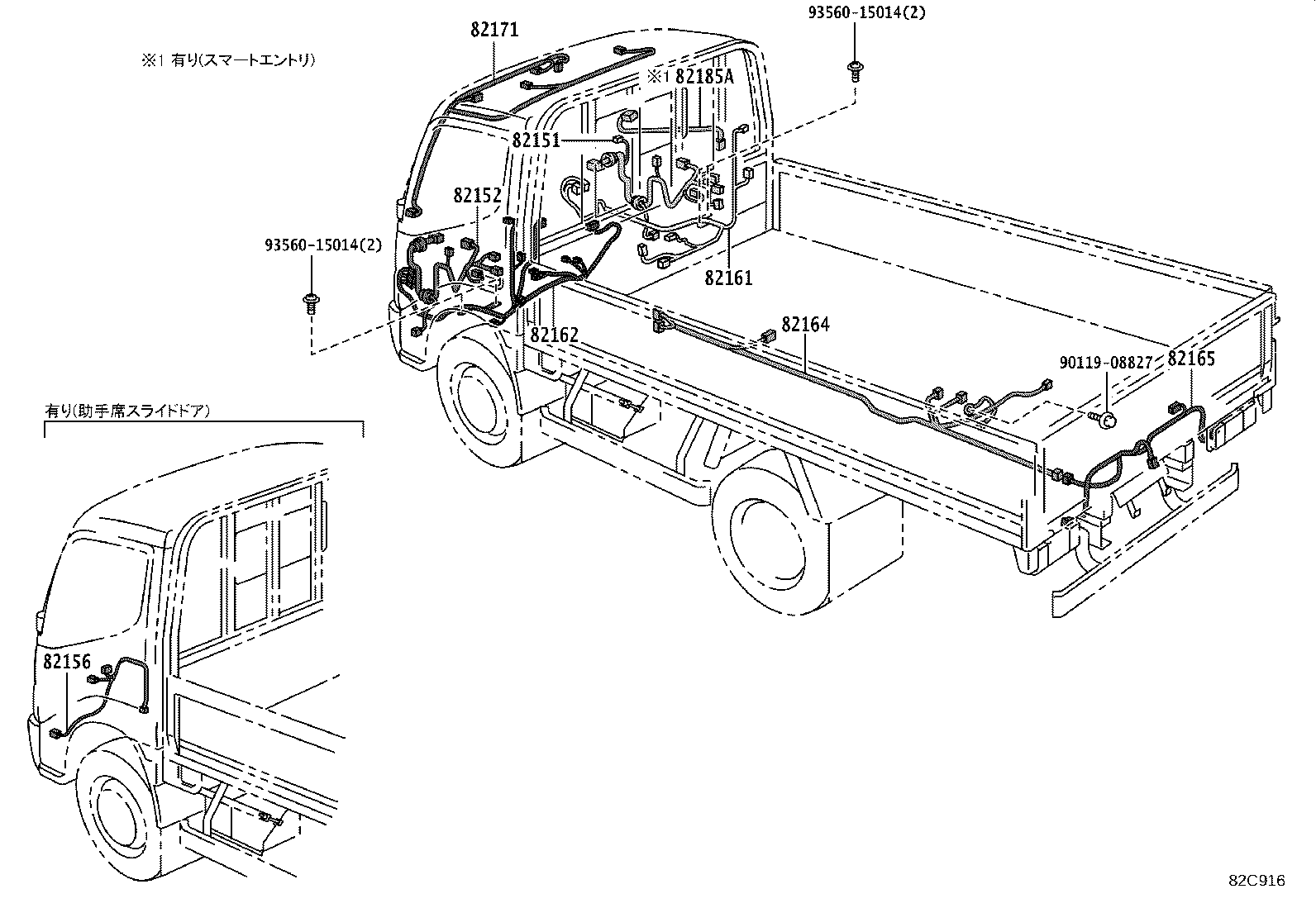

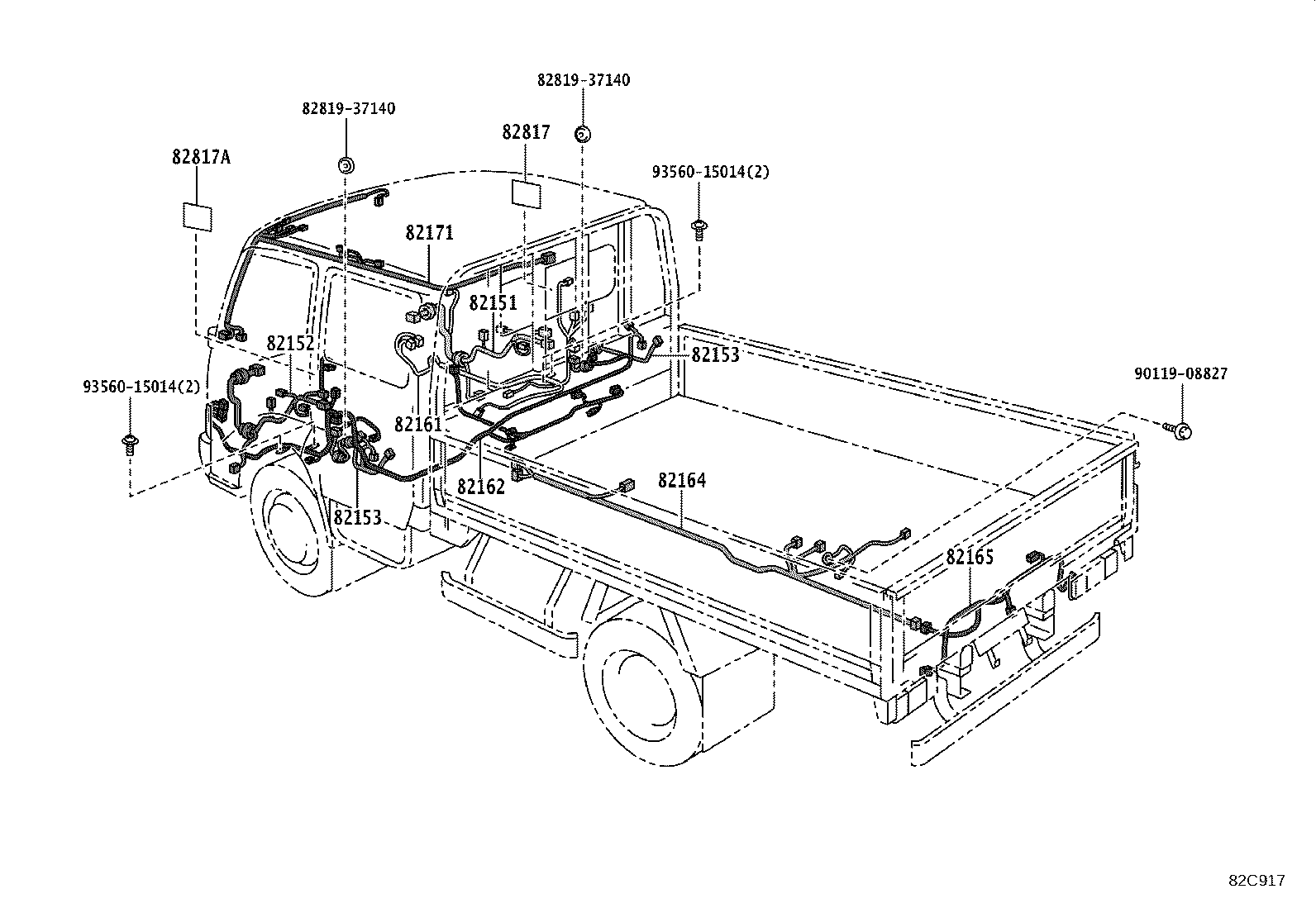

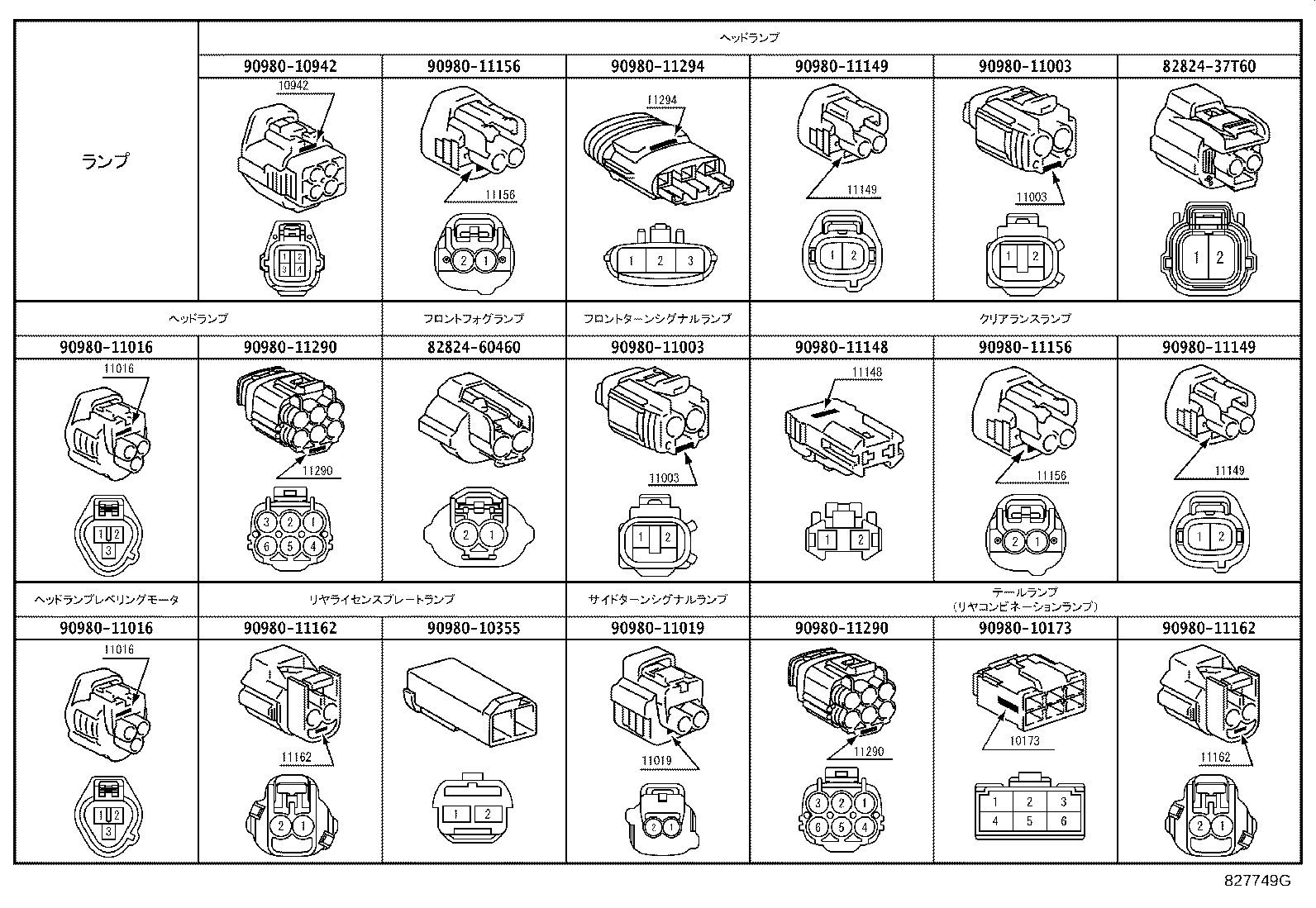

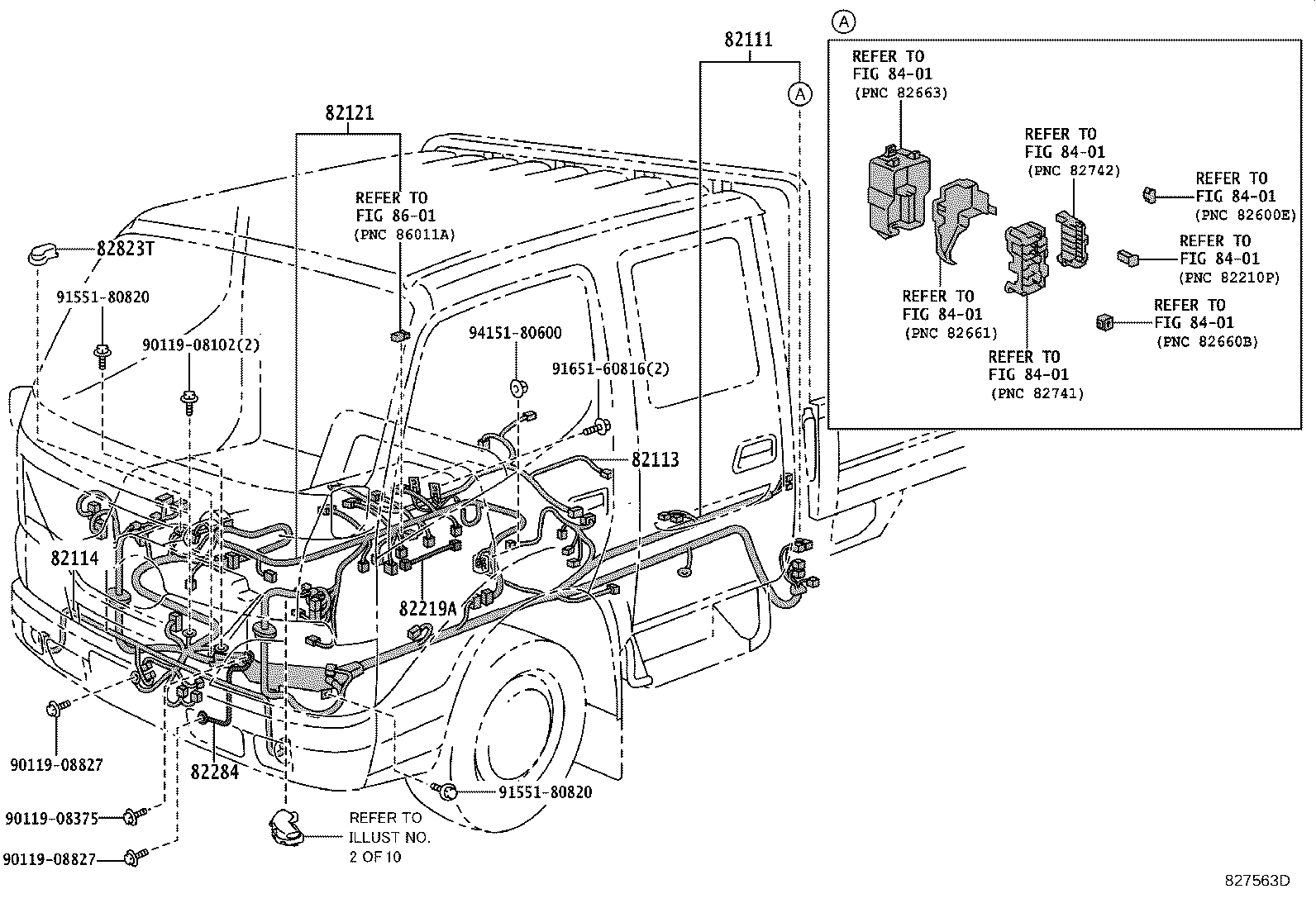

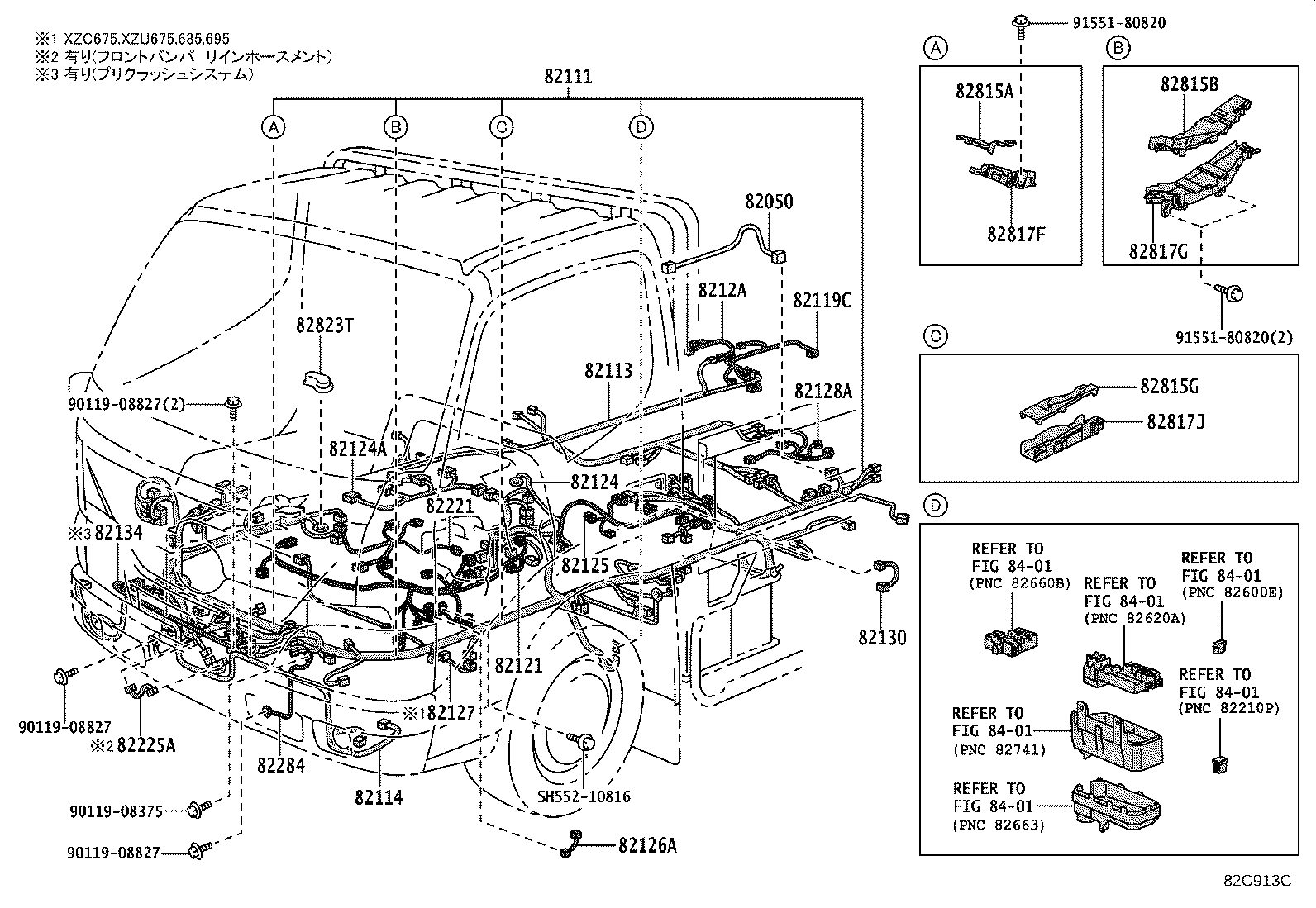

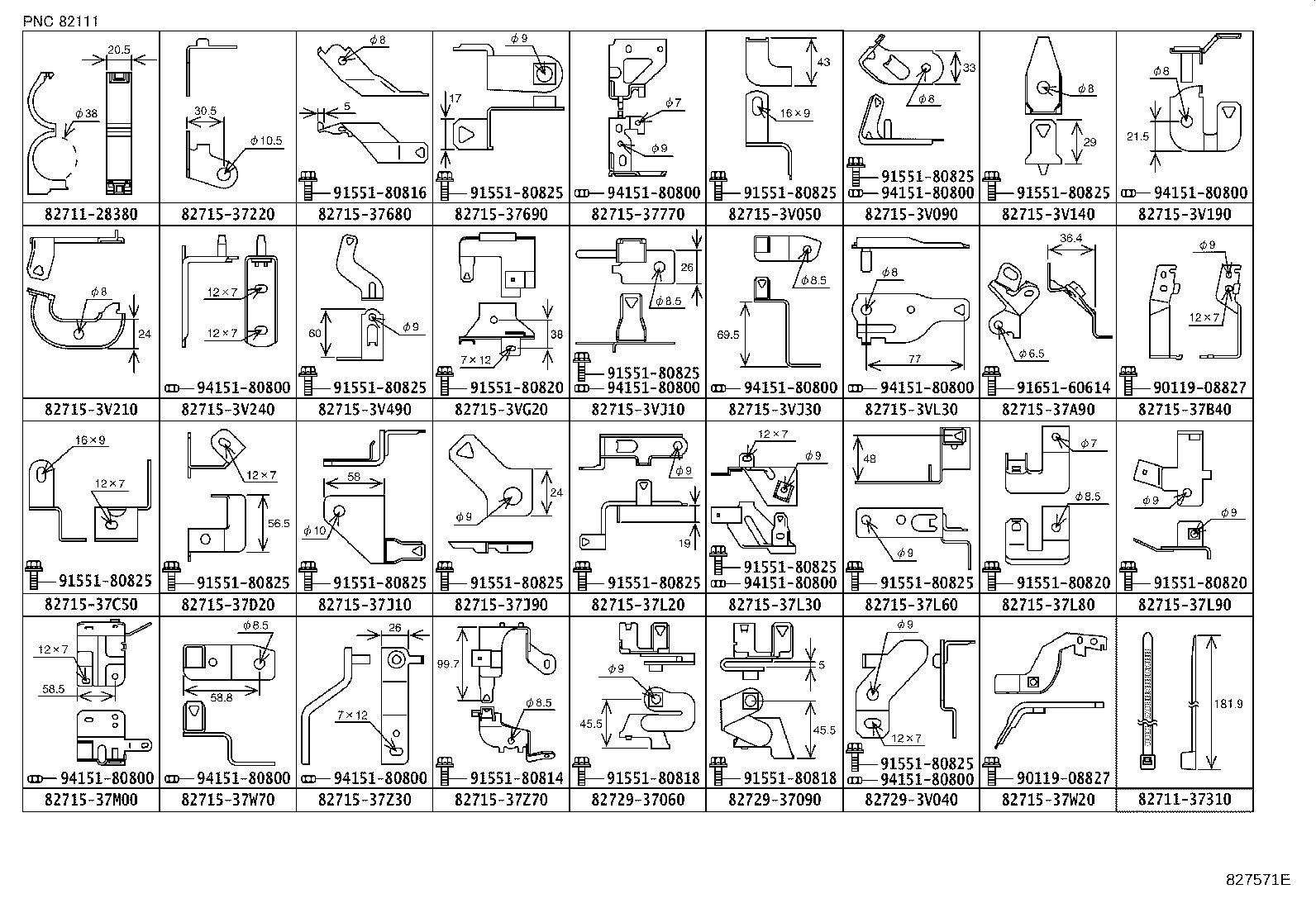

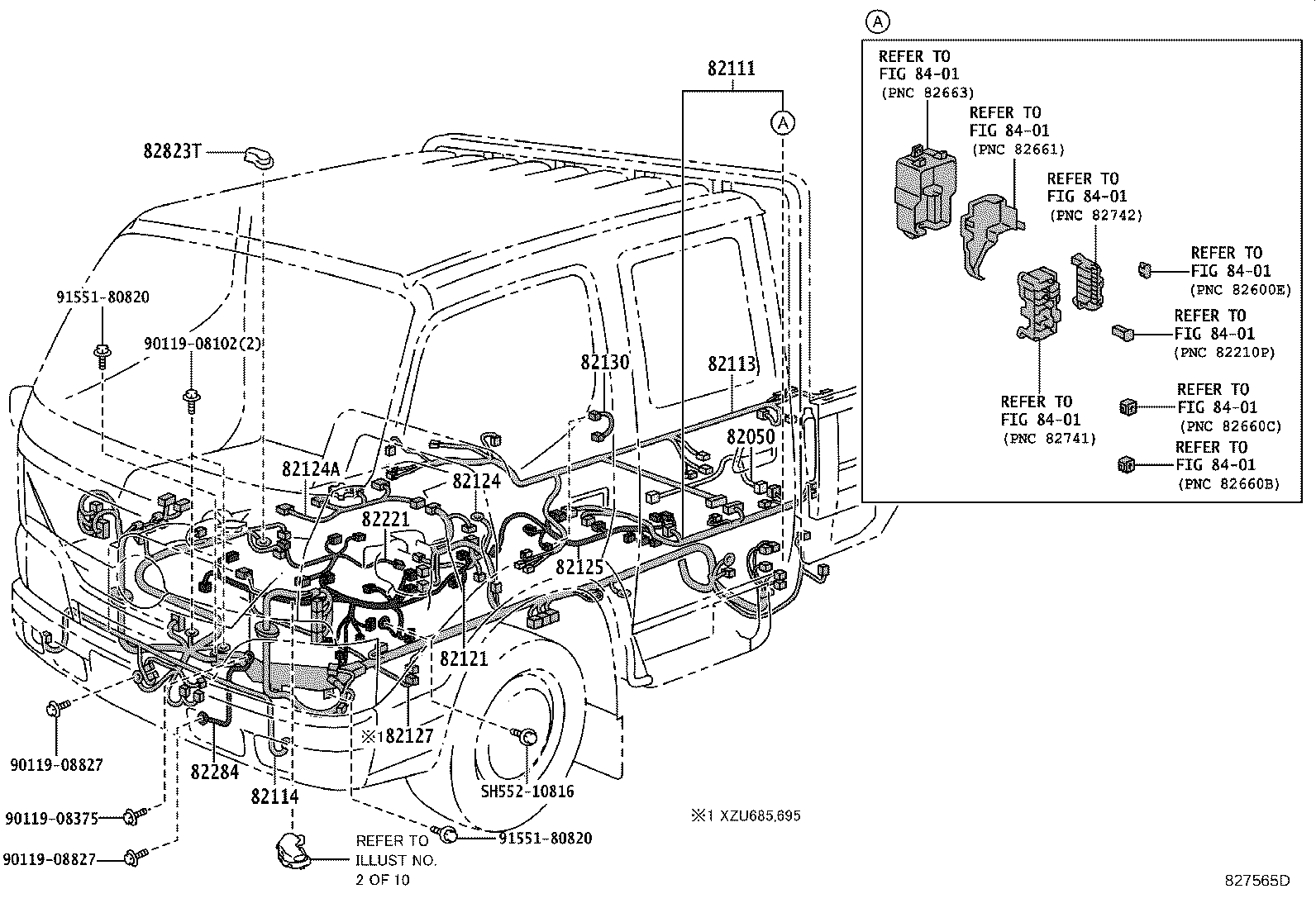

Figure 827562D 827562D 2011-07 → — Figure 827563D 827563D 2011-07 → — Figure 827564D 827564D 2011-07 → — Figure 827565D 827565D 2011-07 → — Figure 827566G 827566G 2011-07 → — Figure 827567D 827567D 2011-07 → — Figure 82C913C 82C913C 2019-05 → — Figure 82C914C 82C914C 2019-05 → — Figure 827568C 827568C 2011-07 → — Figure 82C915 82C915 2019-05 → — Figure 827569 827569 2011-07 → — Figure 827707B 827707B 2011-07 → — Figure 82C916 82C916 2019-05 → — Figure 82C917 82C917 2019-05 → — Figure 827570A 827570A 2011-07 → — Figure 827571E 827571E 2011-07 → — Figure 827572K 827572K 2011-07 → — Figure 827573O 827573O 2011-07 → — Figure 82B335A 82B335A 2011-07 → — Figure 82C918A 82C918A 2011-07 → — Figure 827749G 827749G 2011-07 → — Figure 82B370B 82B370B 2011-07 → —

Part groups

PNCDescription

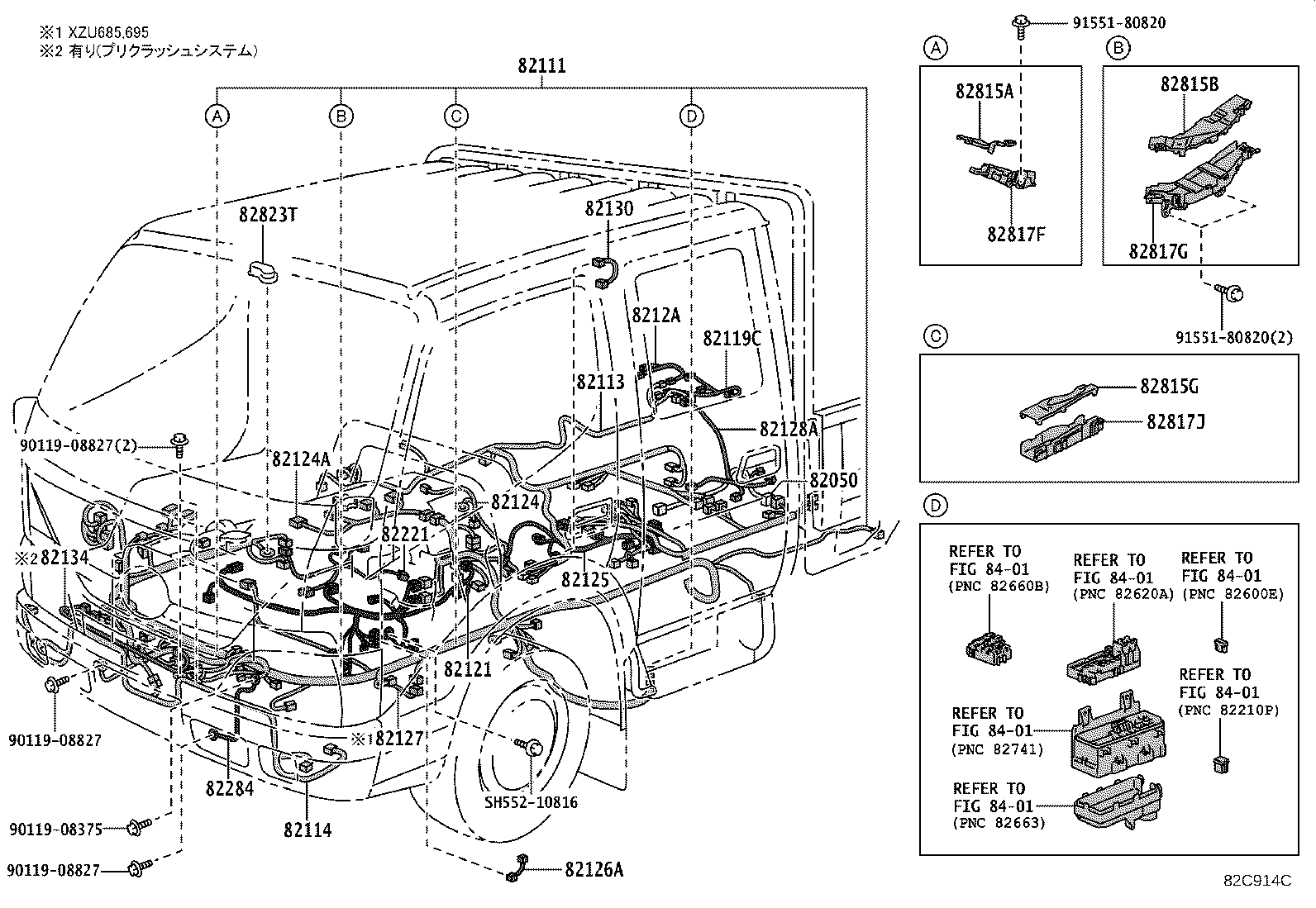

82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82114B Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5

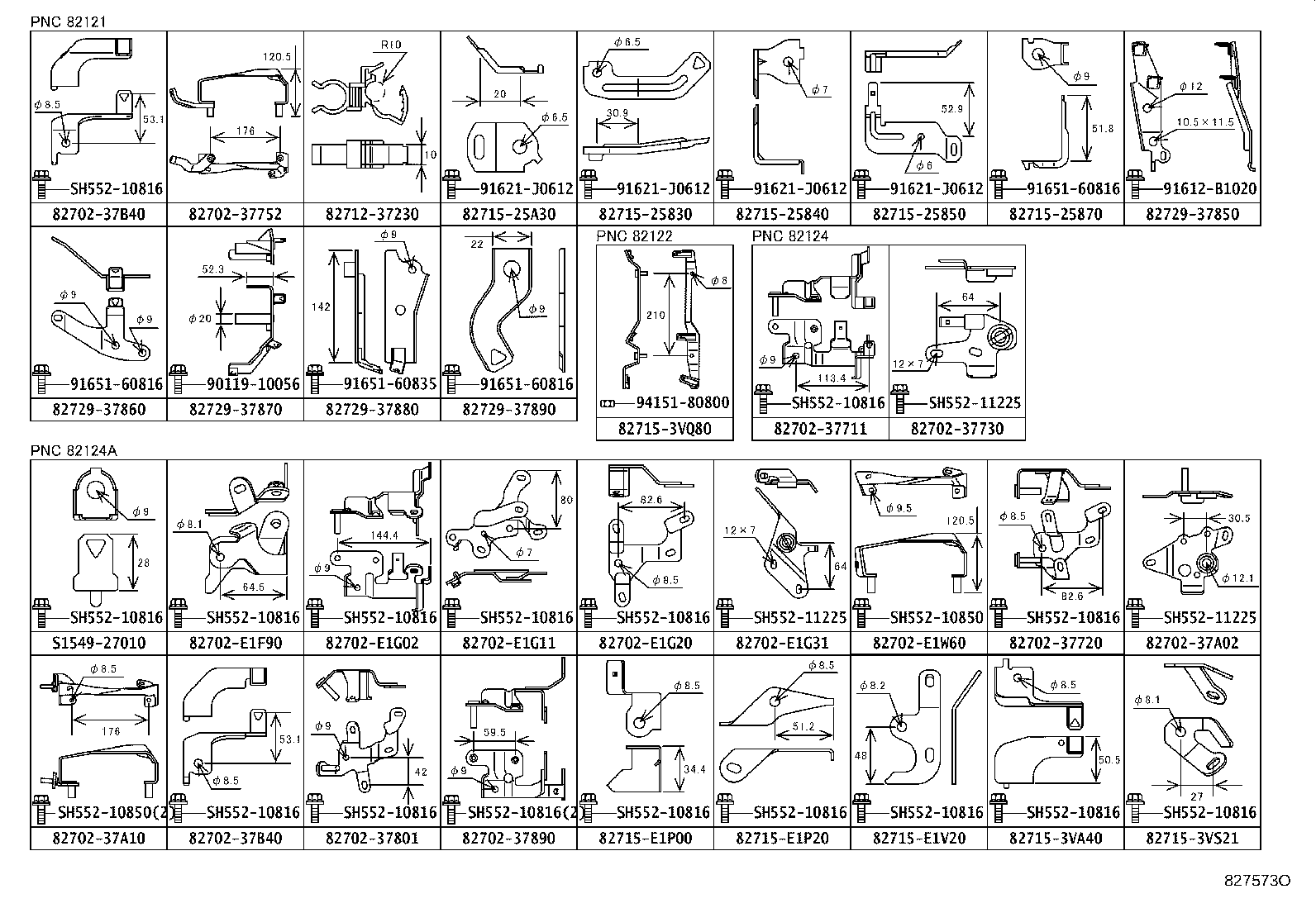

82121 Wire, Engine
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82125 Wire, Transmission
82126 Wire, Engine
82126A Wire, Engine, NO.6
82127 Wire, Differential
82128A Wire, Engine, NO.8
8212A Wire, Engine, NO.9
82130 Harness Assy, Chassis Wire
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4

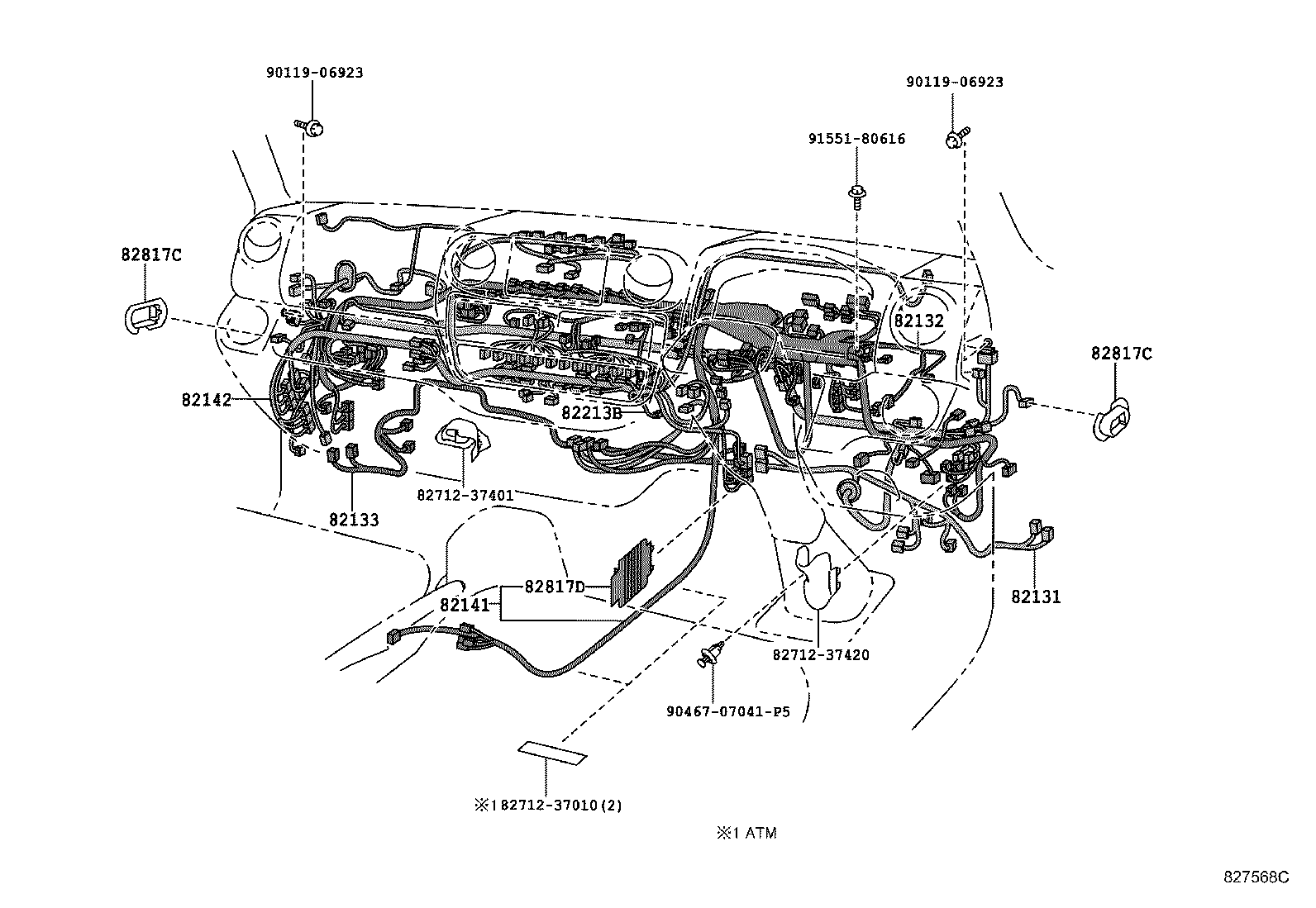

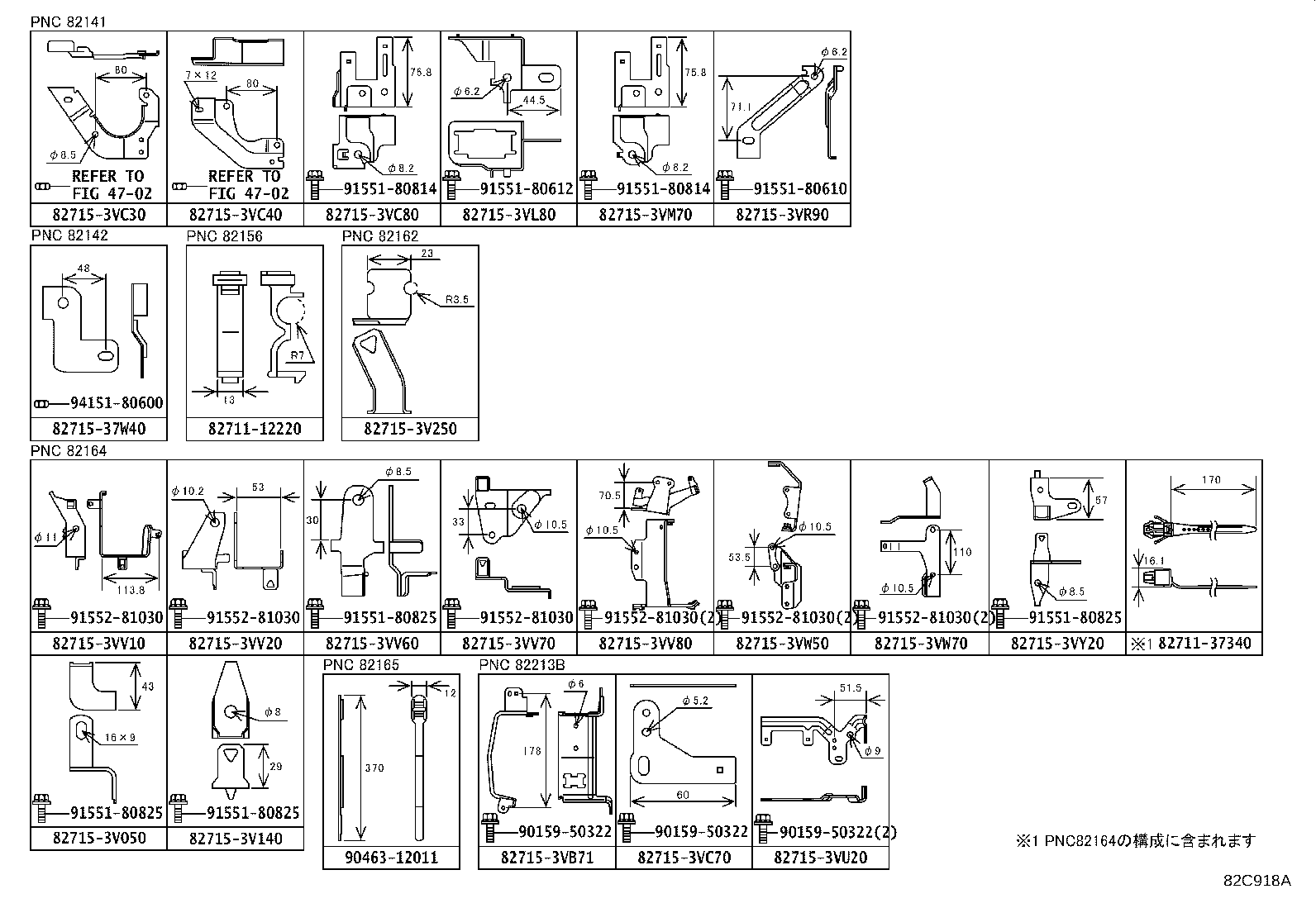

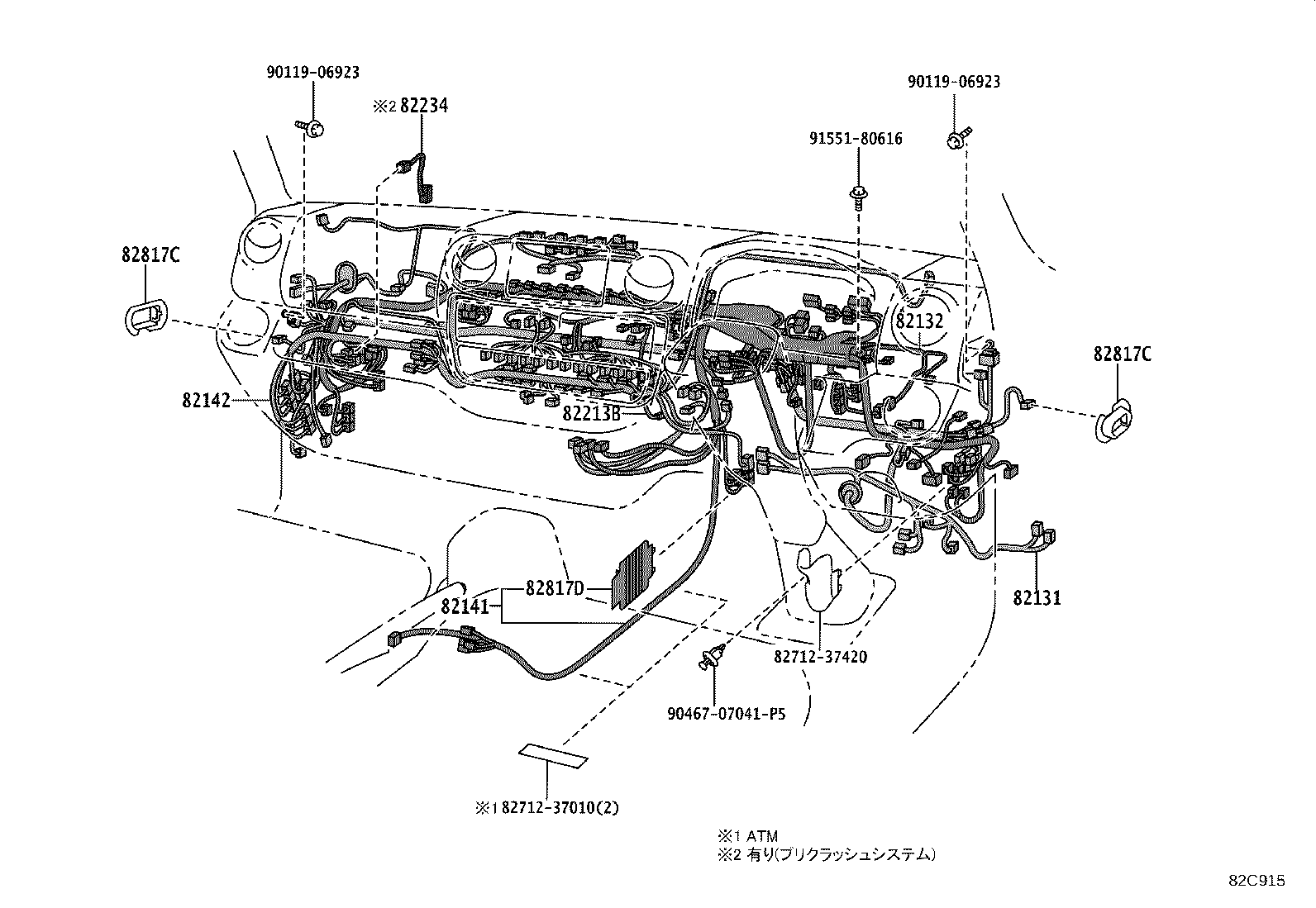

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82156 Wire, Slide Door

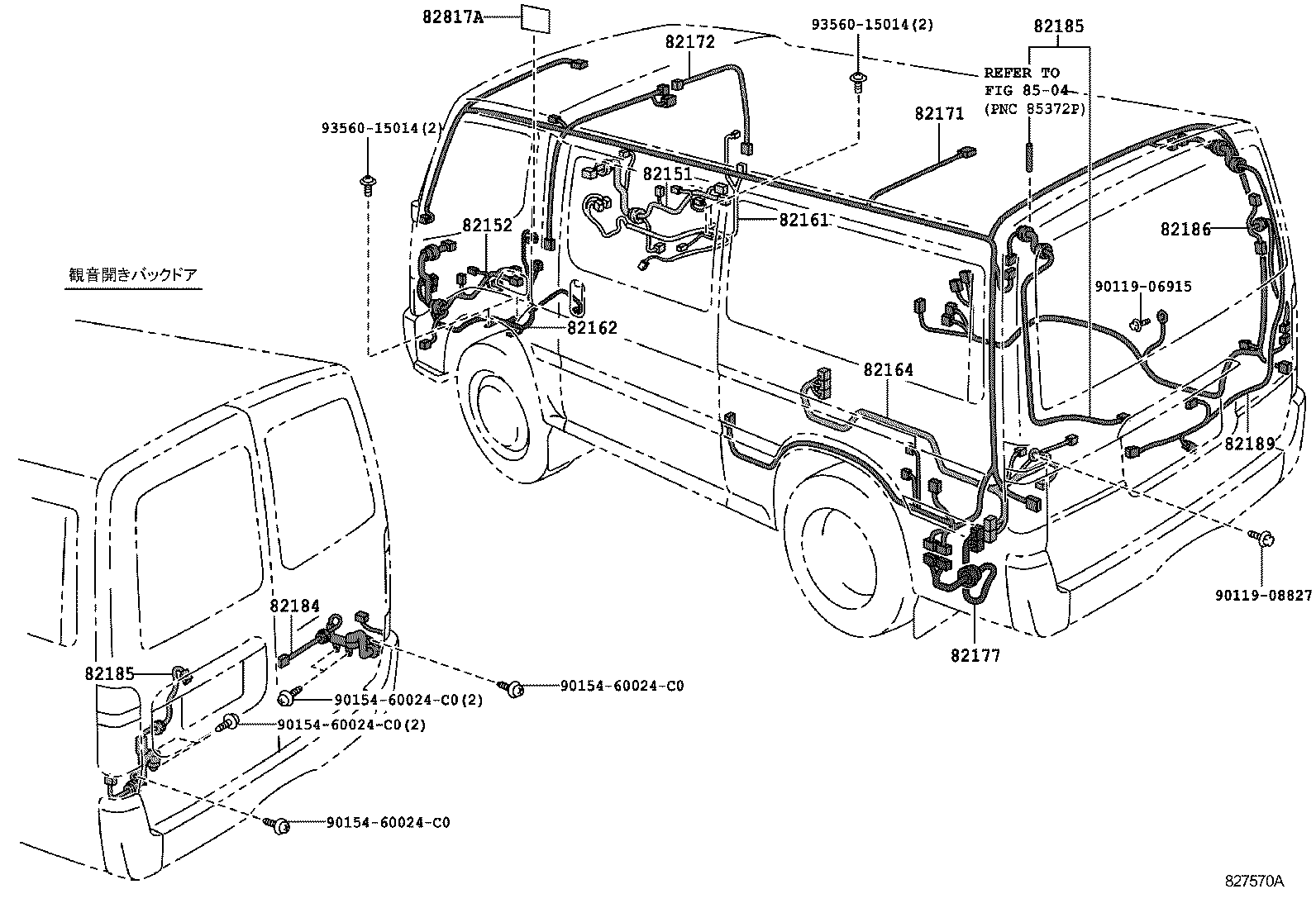

82161 Wire, Floor
82162 Wire, Floor, NO.2

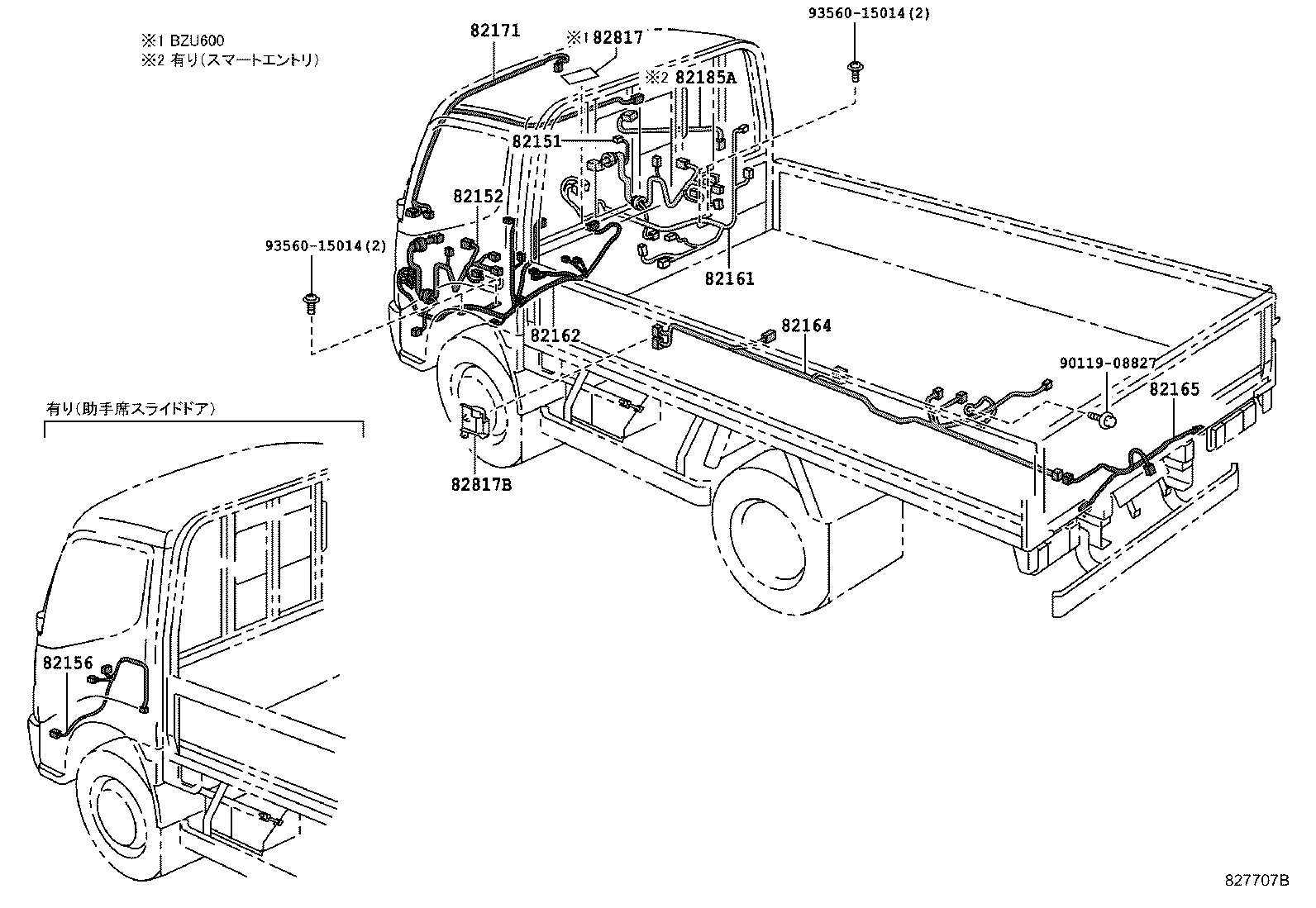

82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82177 Wire, Rear Body
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82185A Wire, Smart Door, Front RH
82186 Wire, Rear Window, NO.1
82189 Wire, Back Door, NO.4
82213B Wire, Heater
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82225A Wire, Lamp, NO.2
82234 Wire, Computer, NO.2
82284 Wire, Earth
82286A Wire, Earth, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
