Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

75 part groups · 50 illustrations

Illustrations

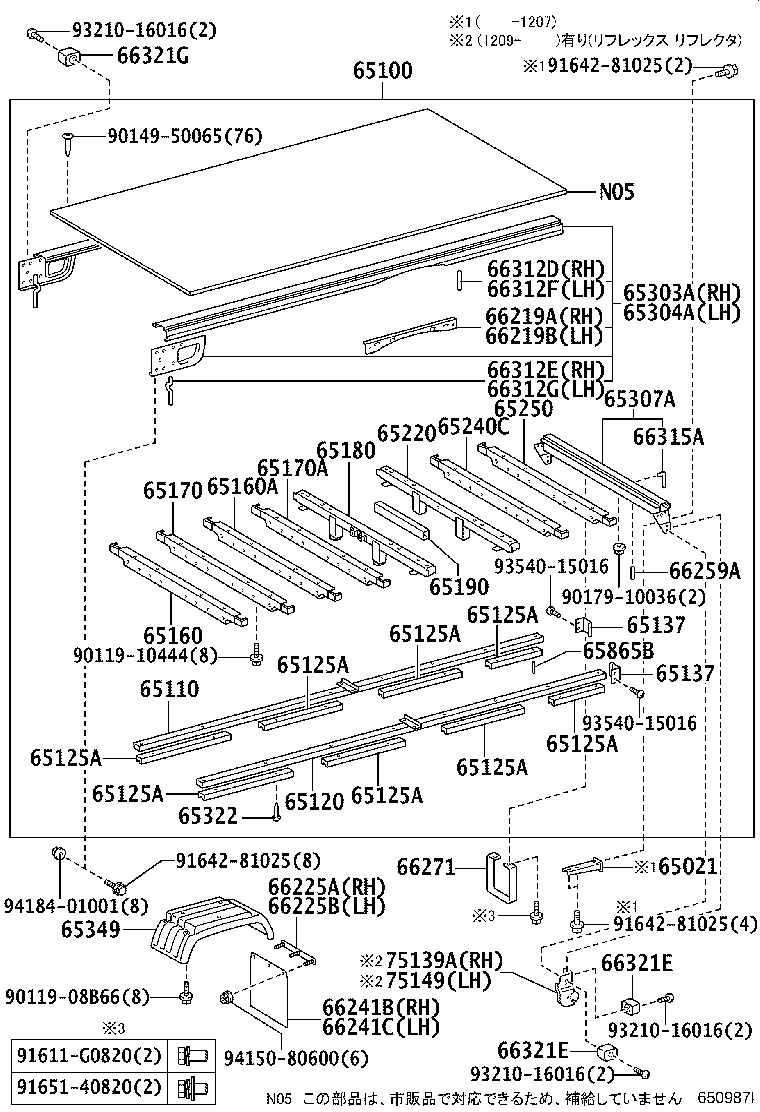

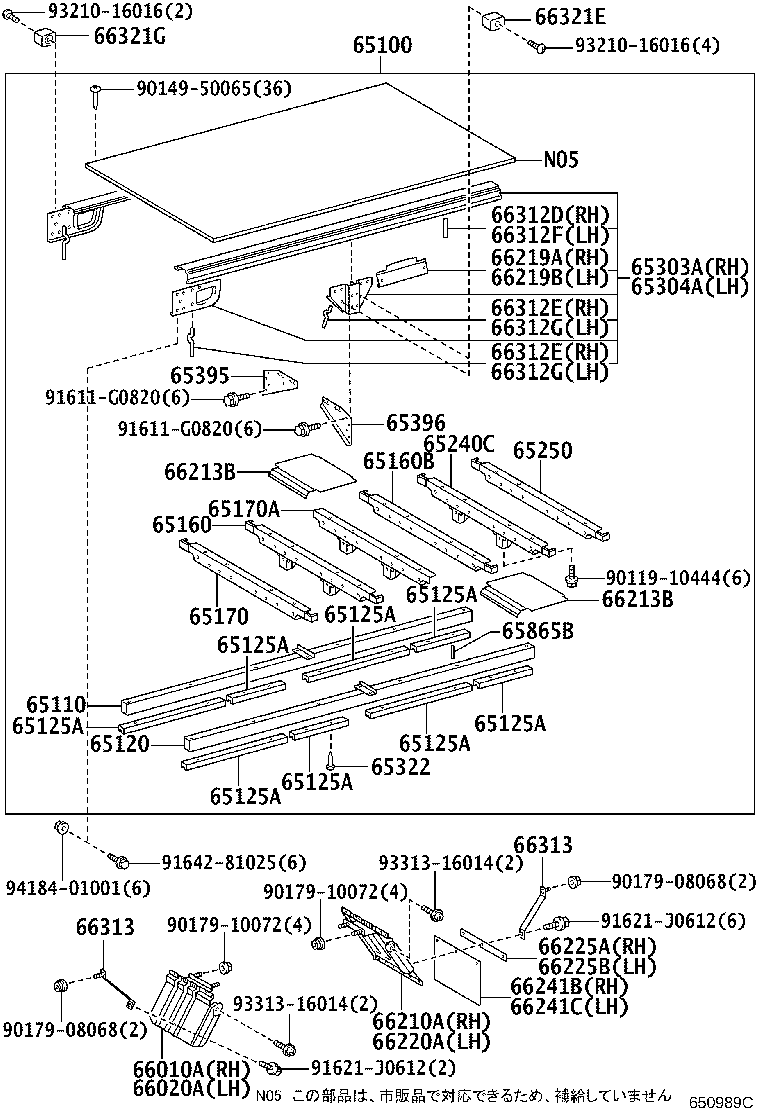

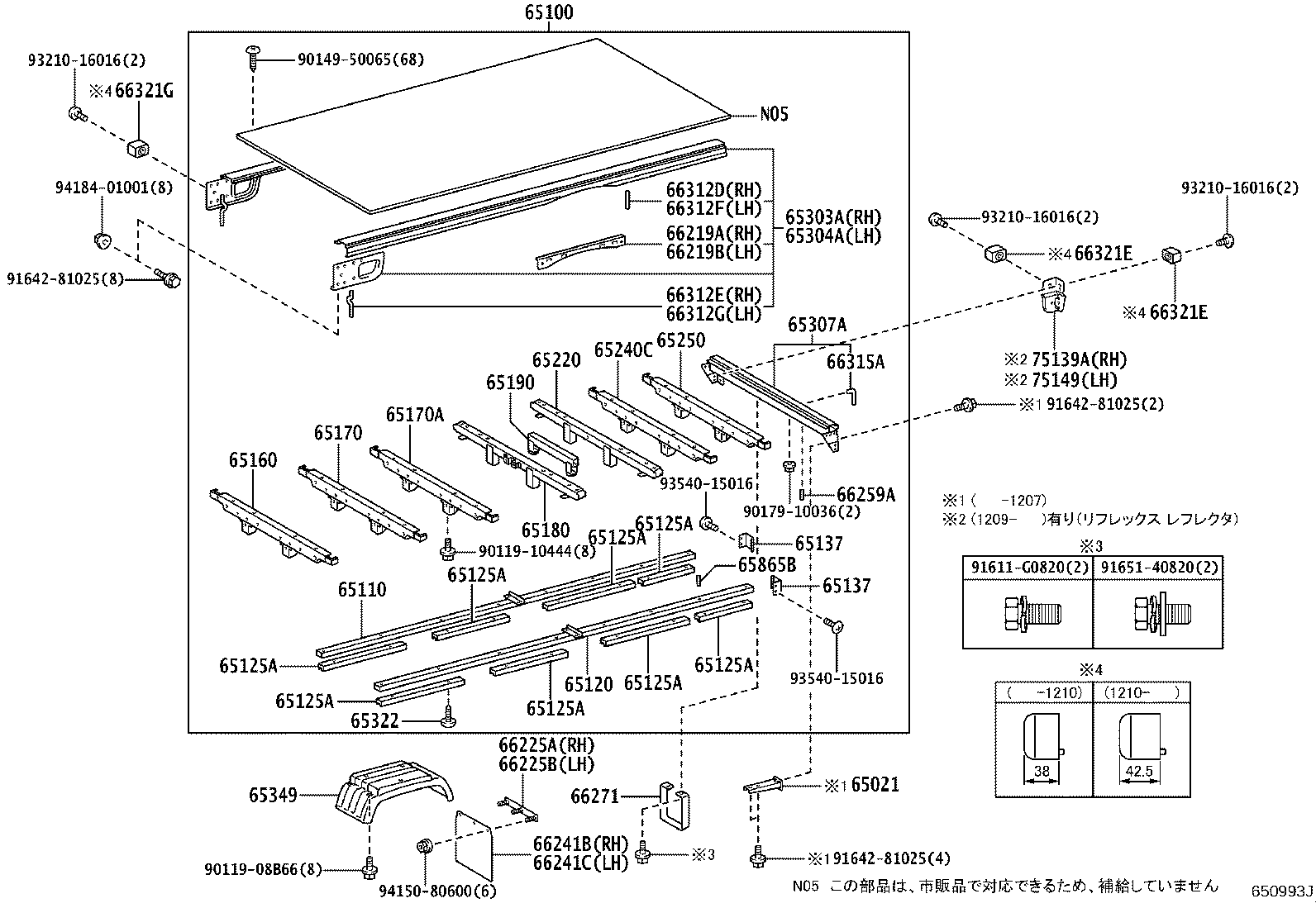

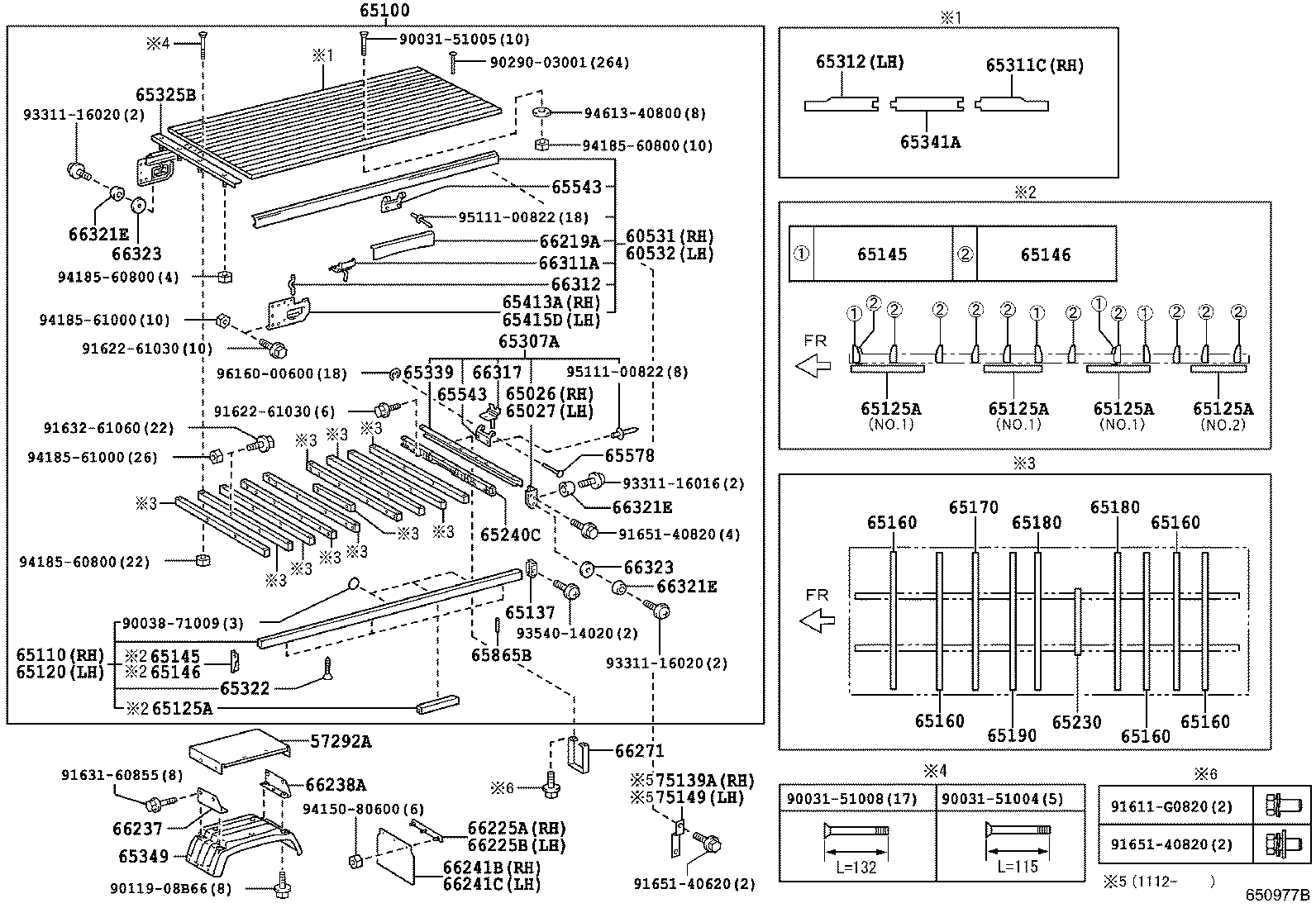

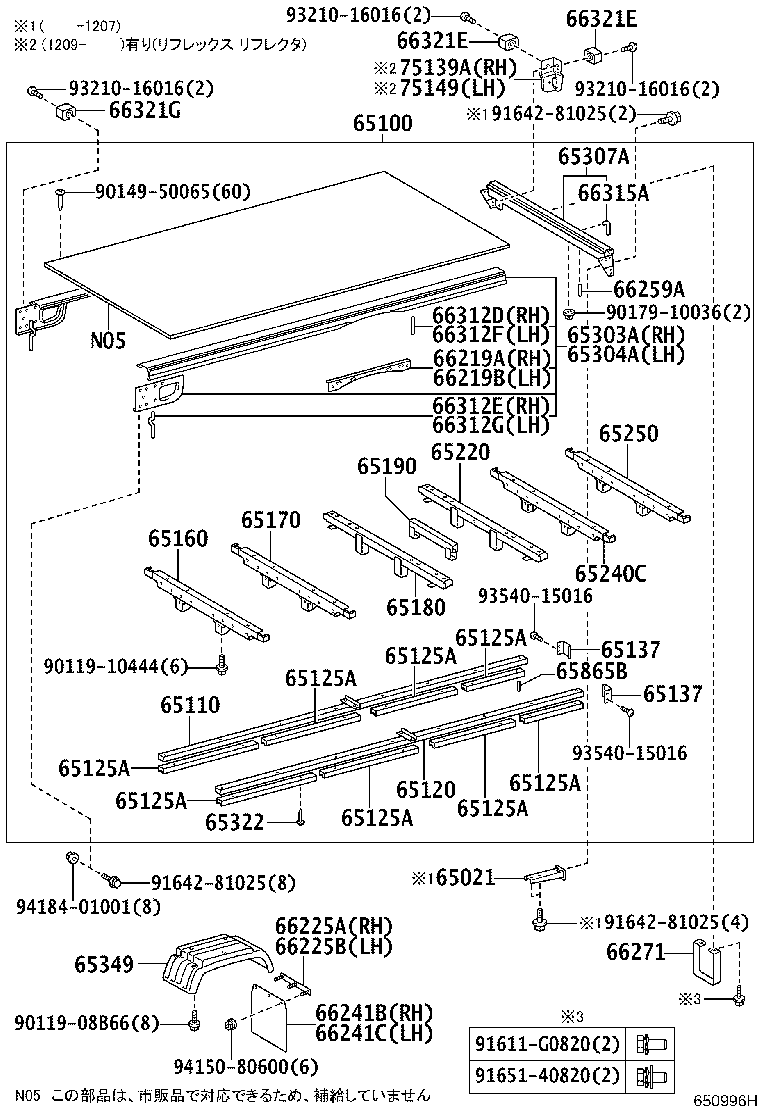

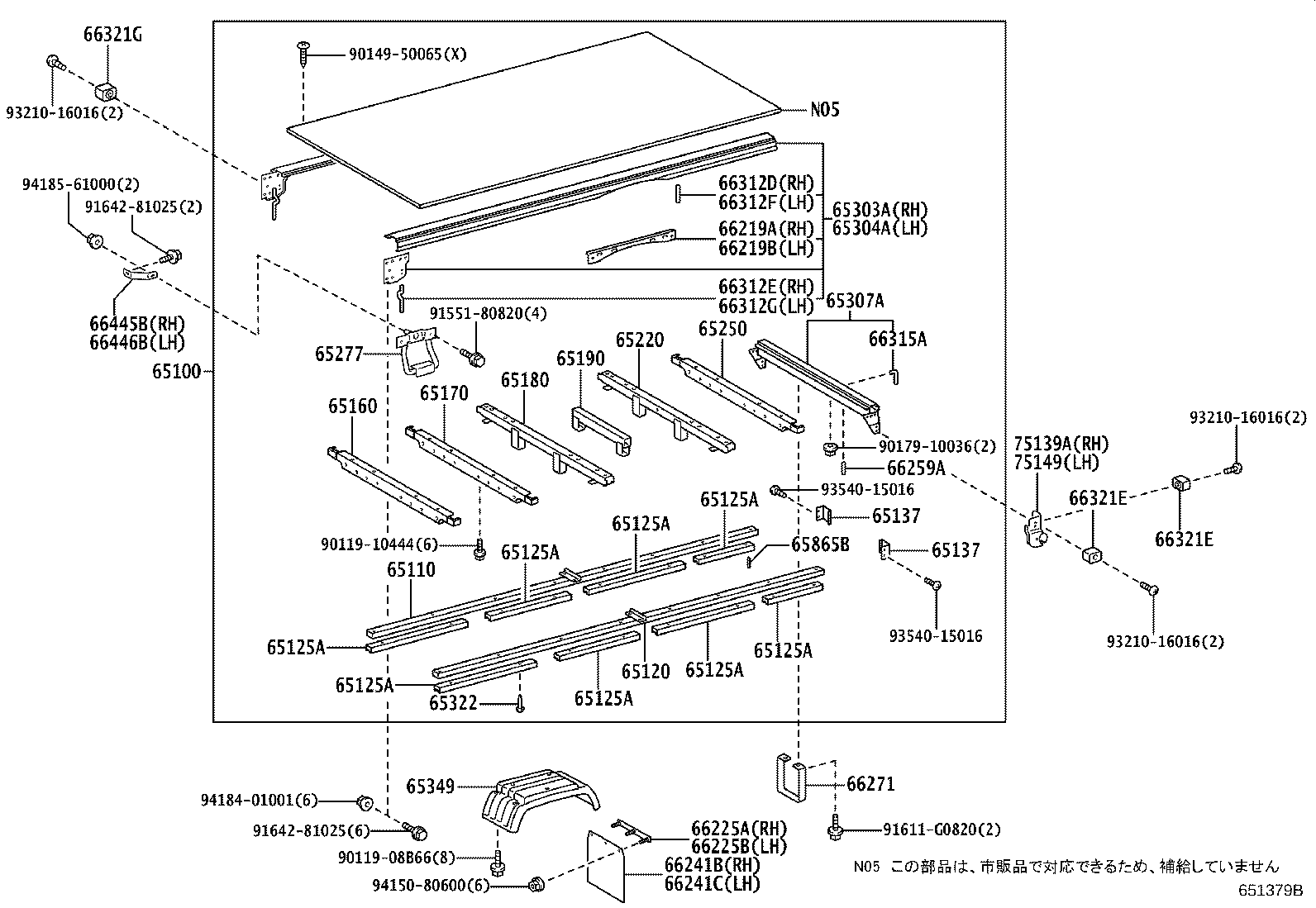

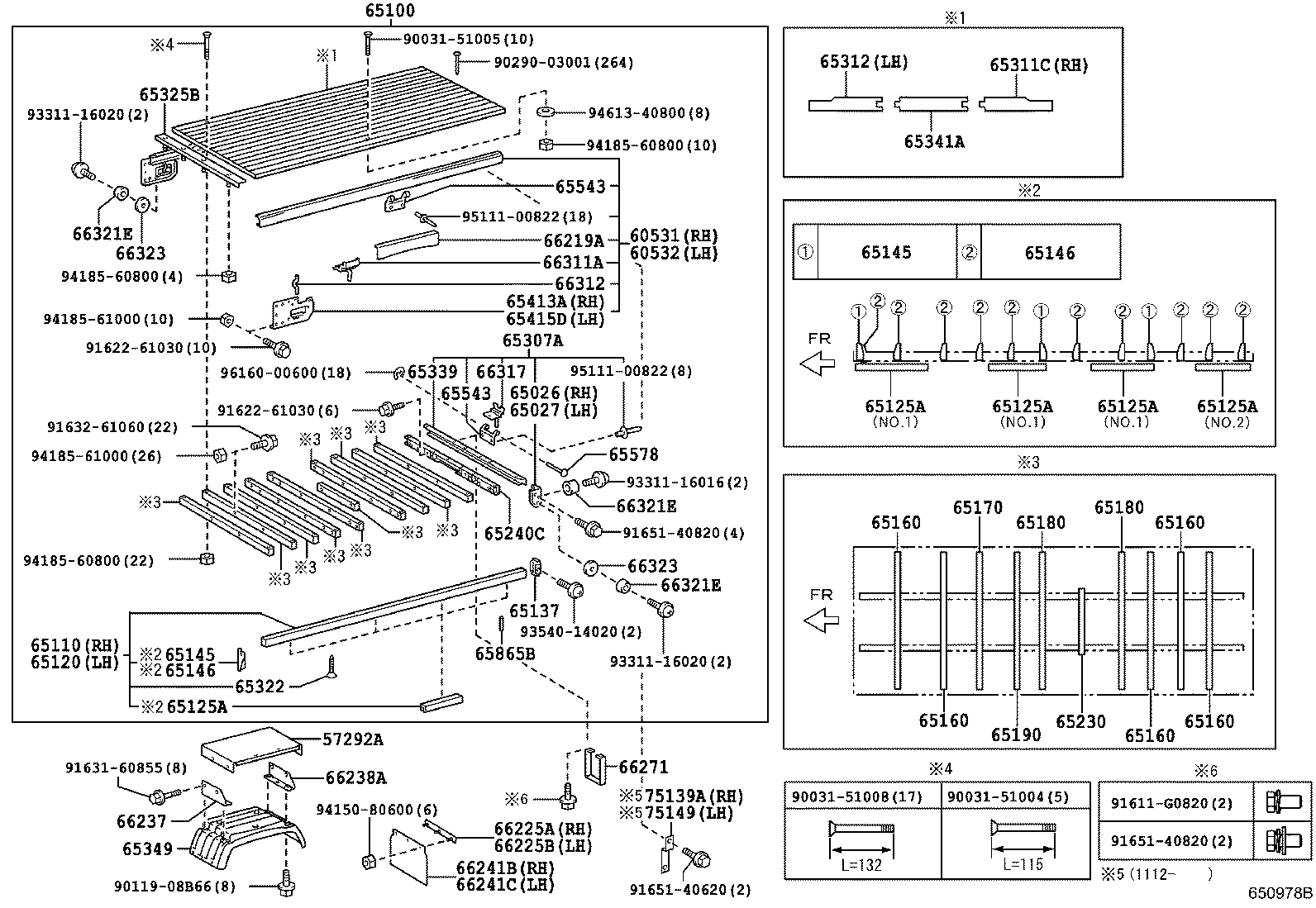

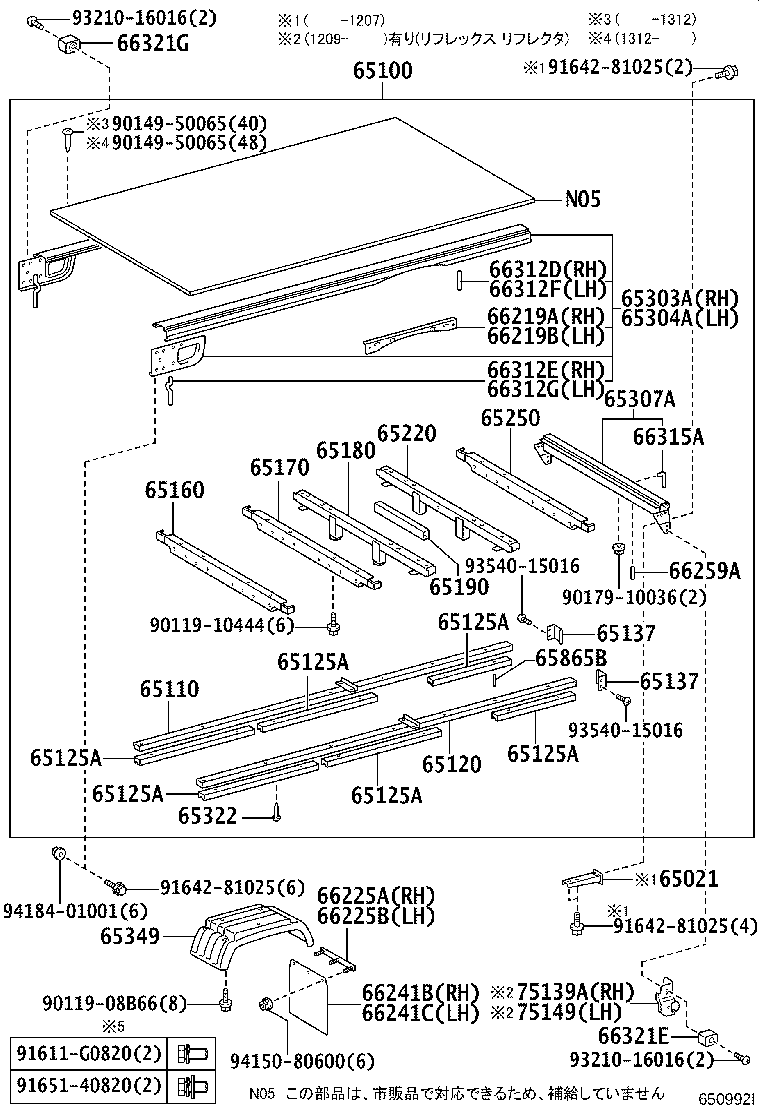

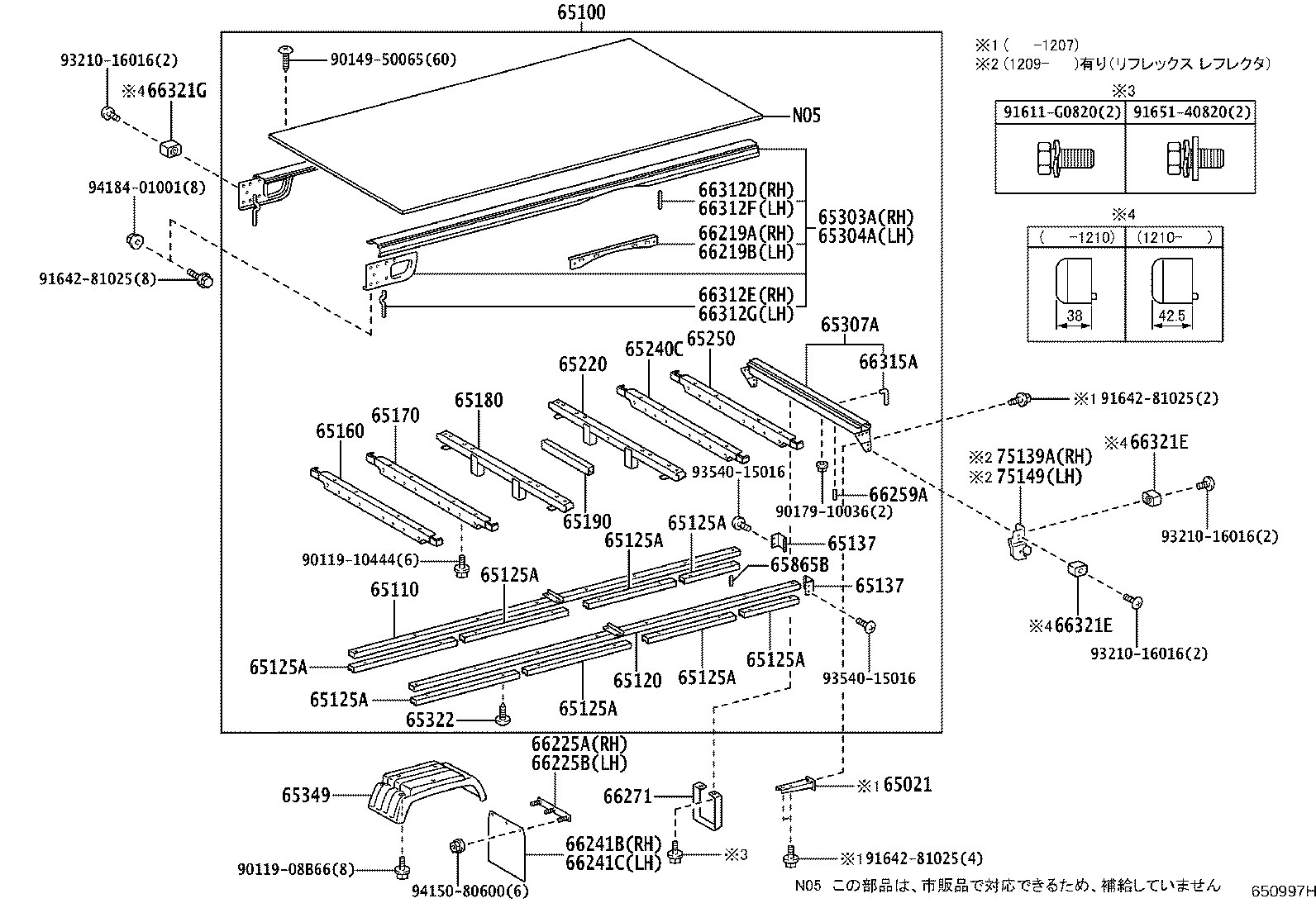

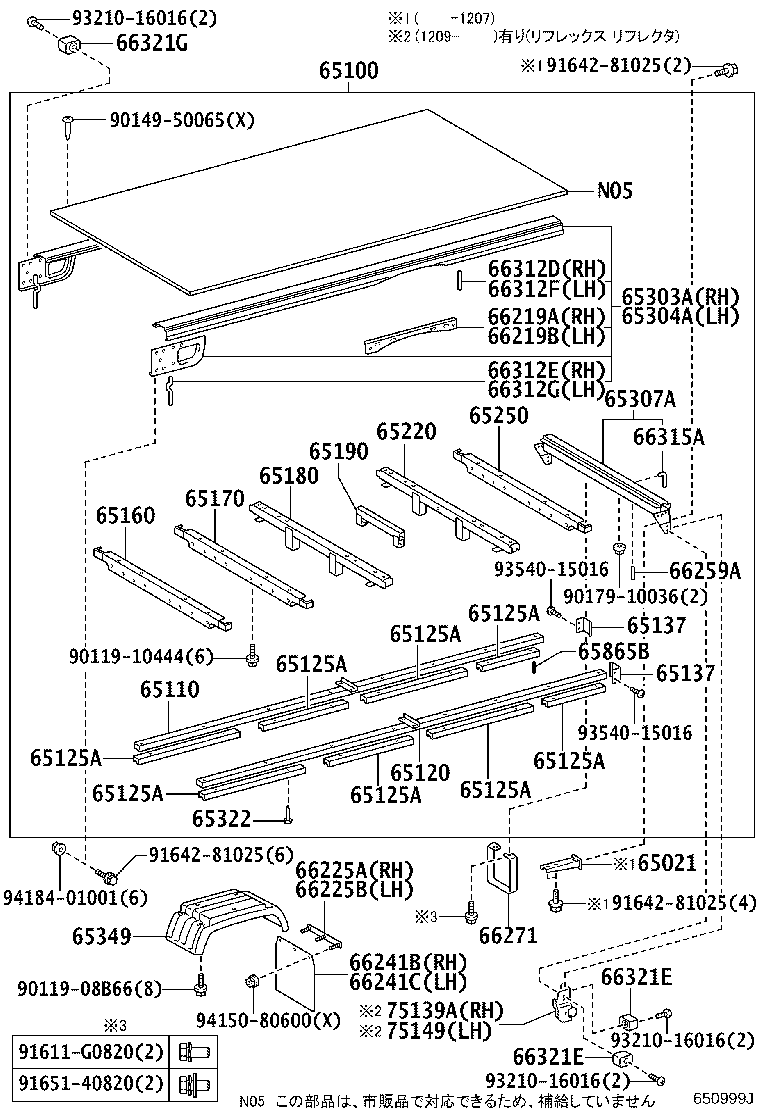

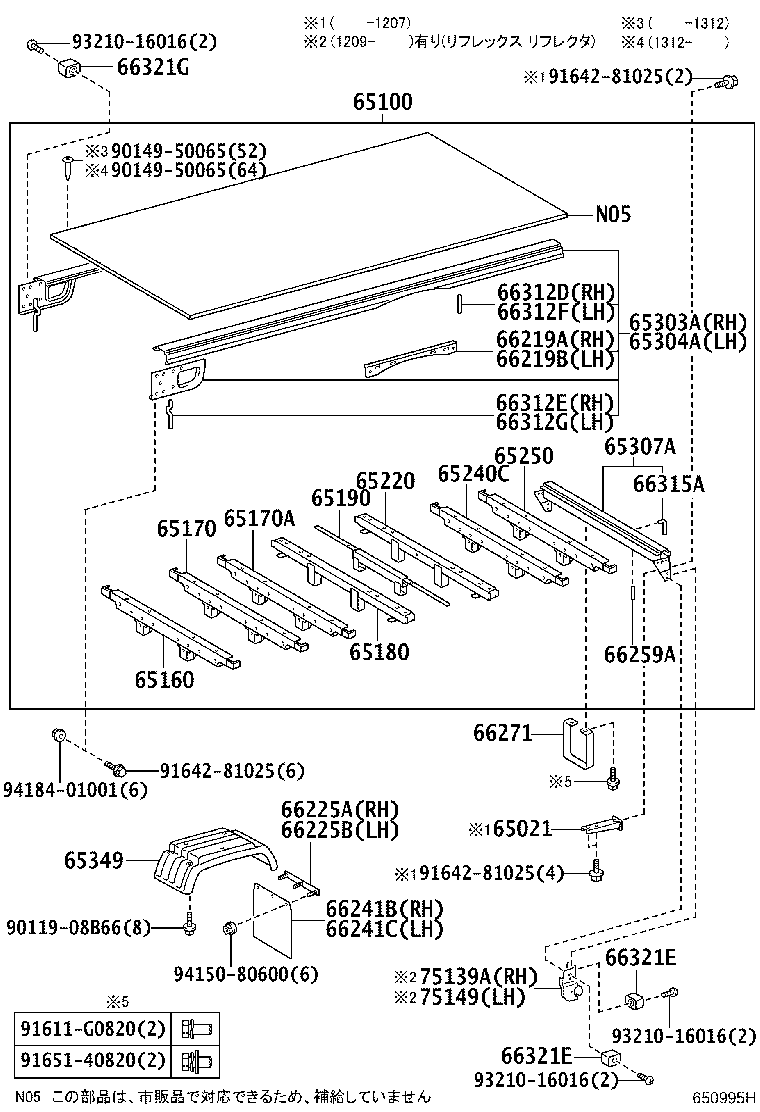

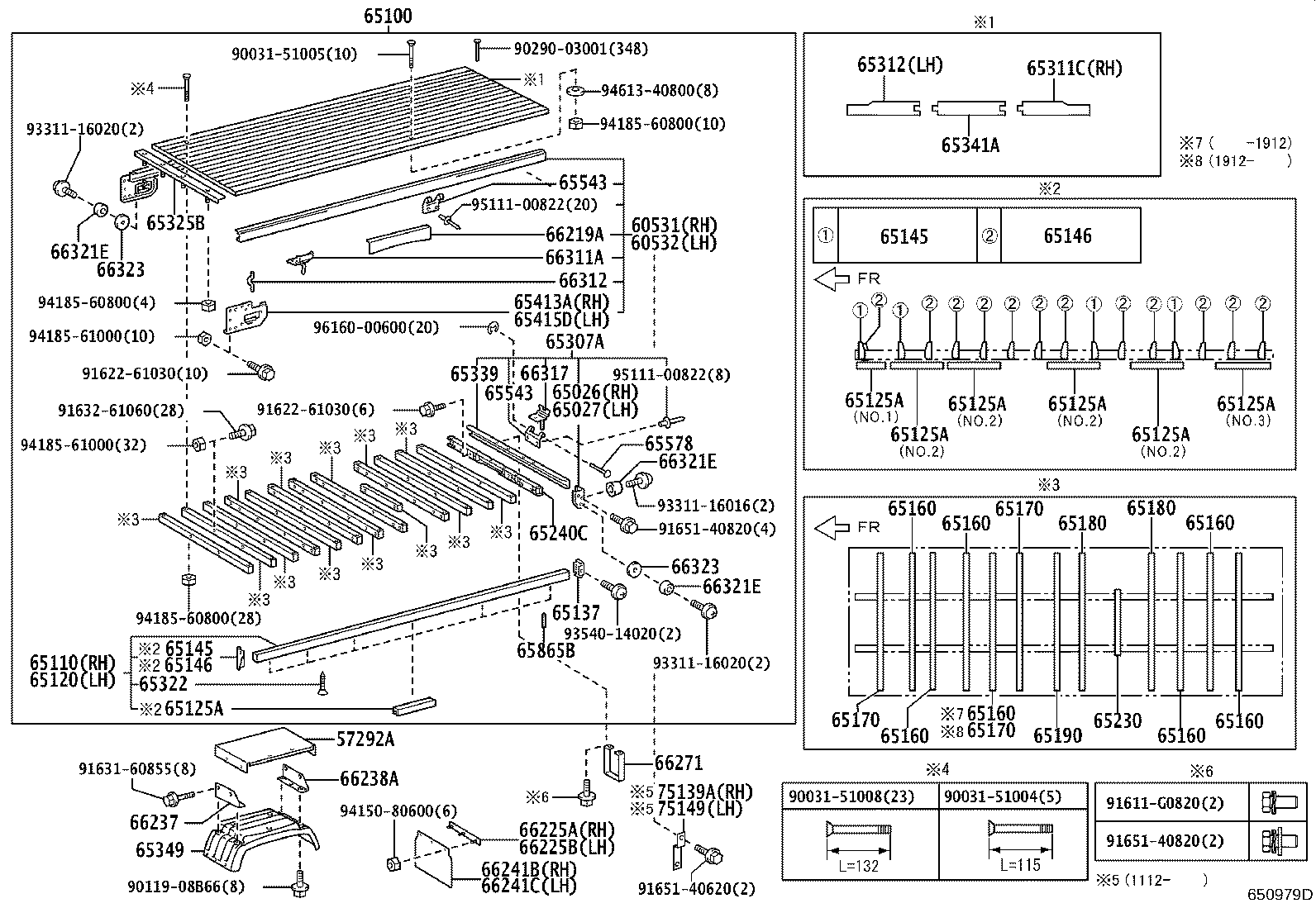

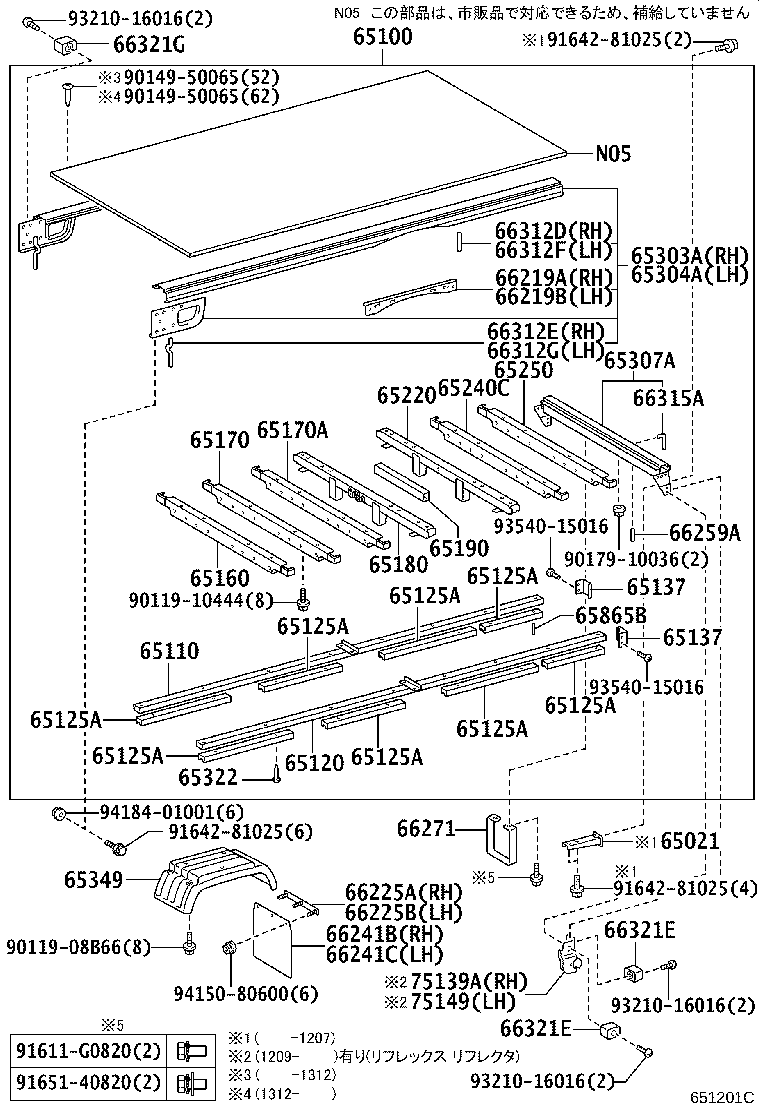

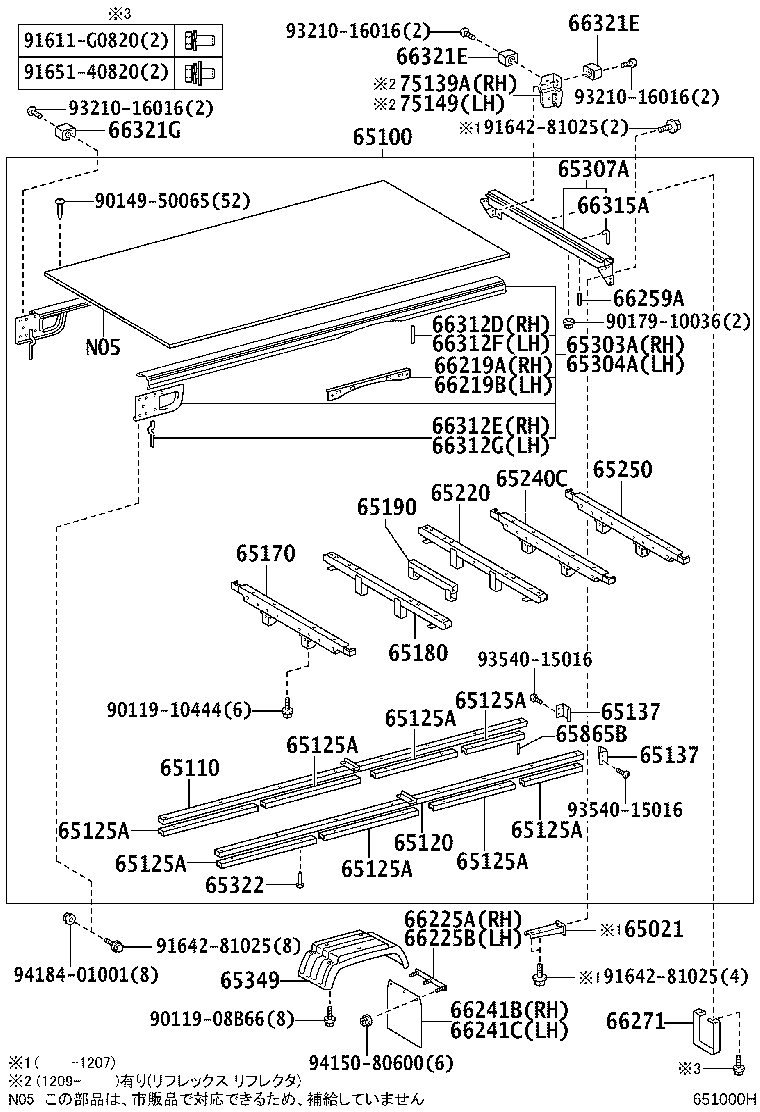

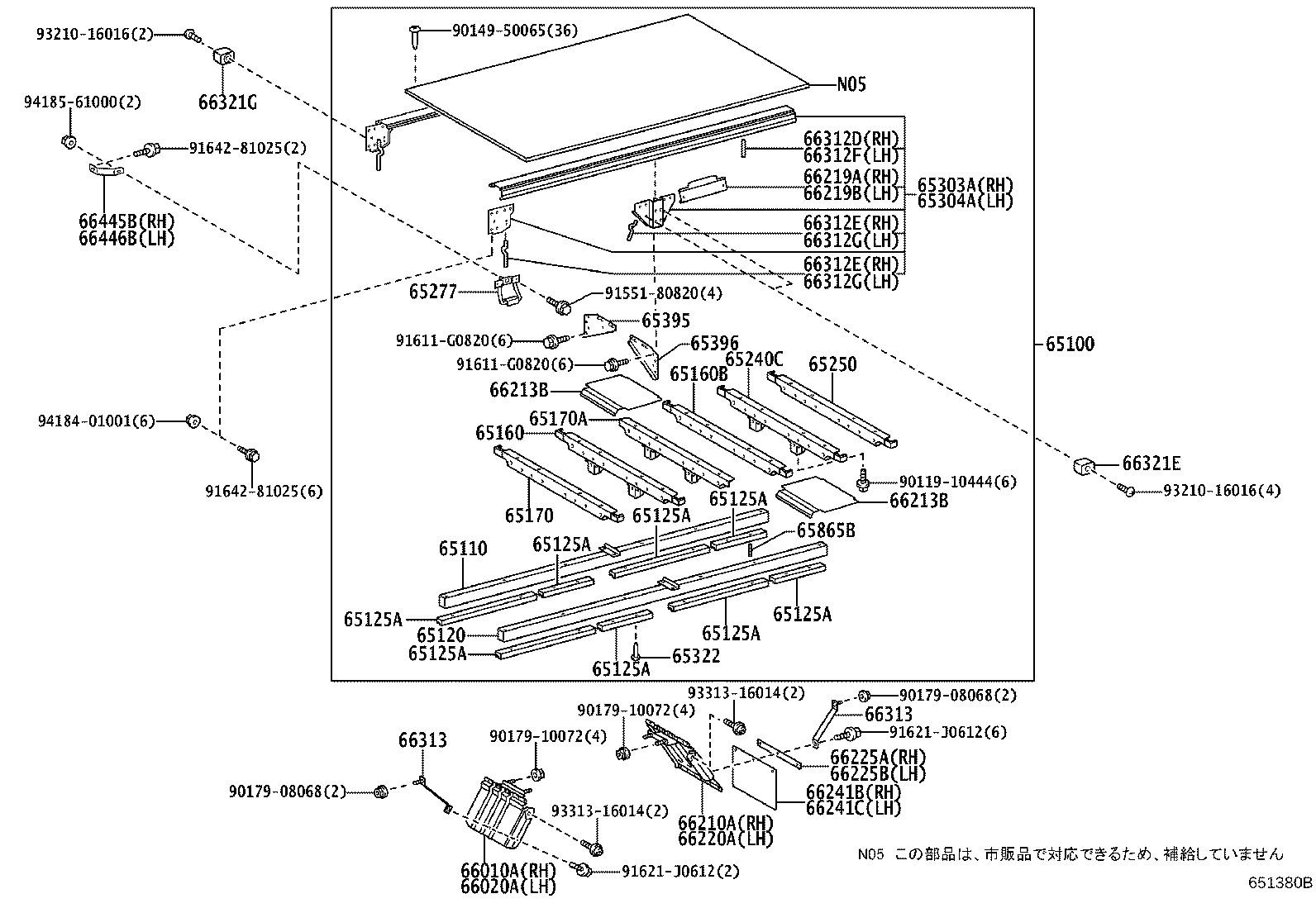

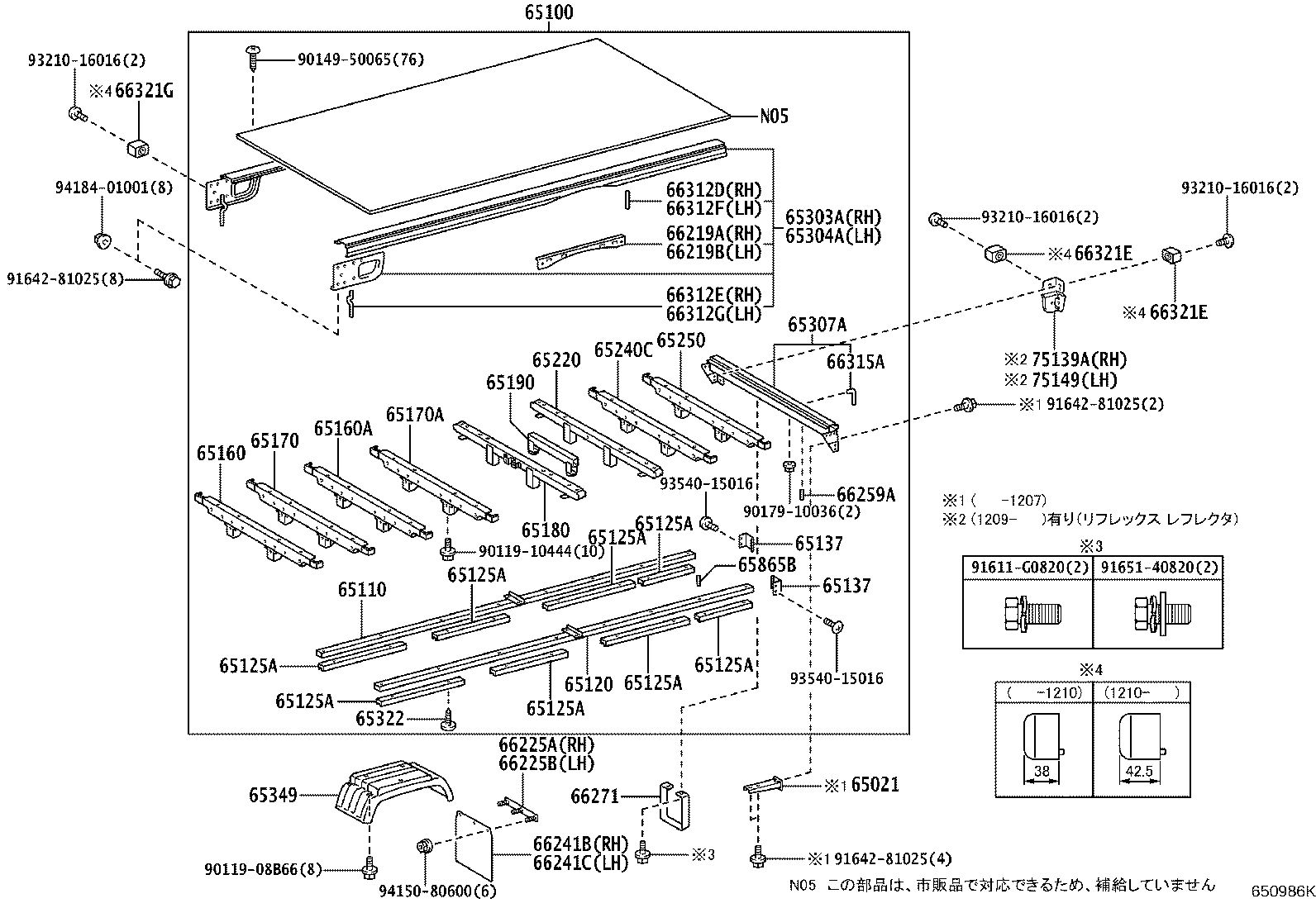

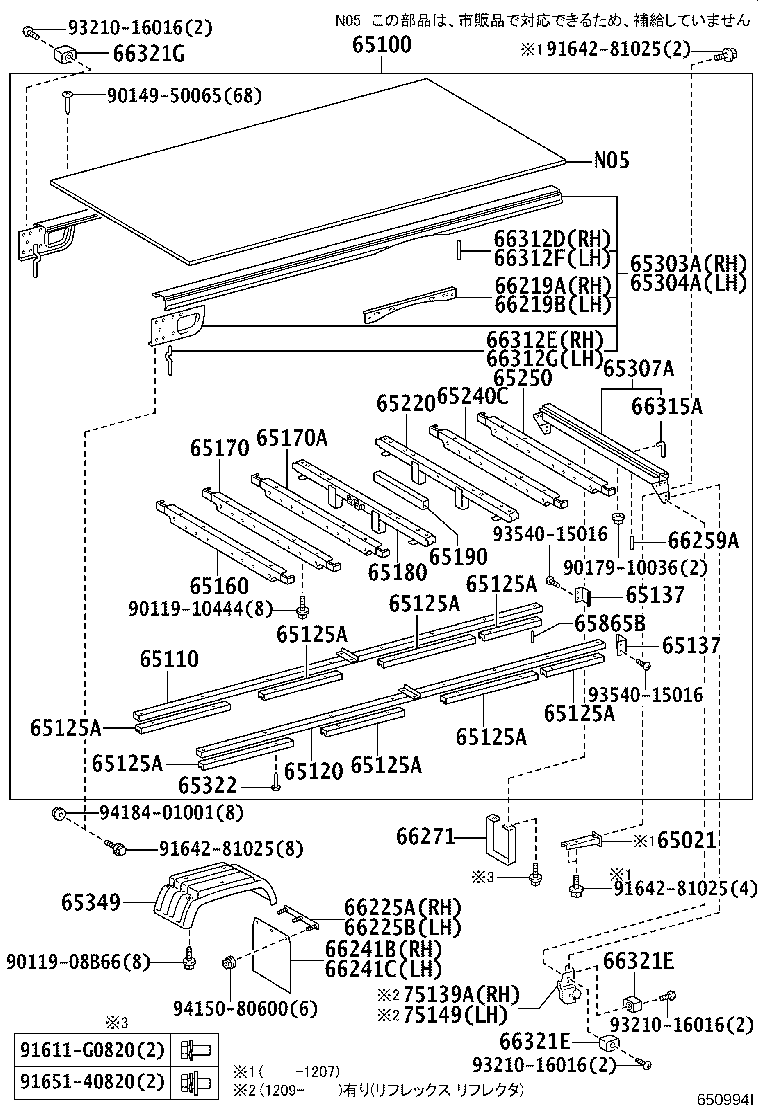

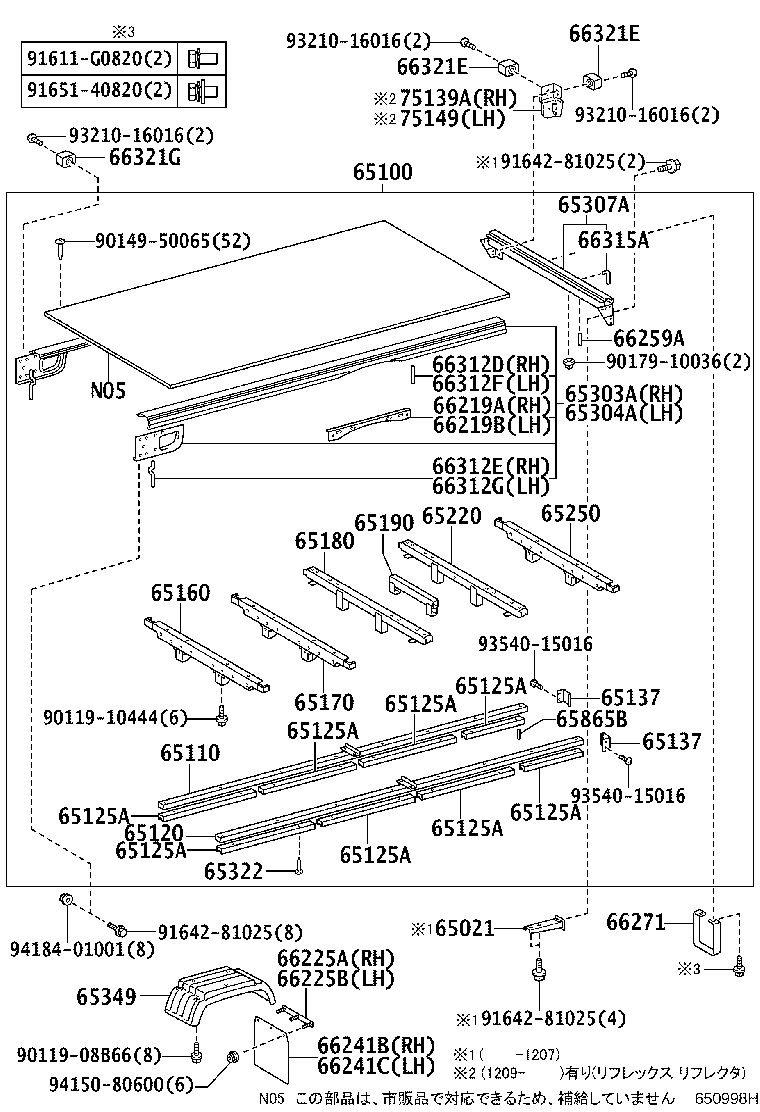

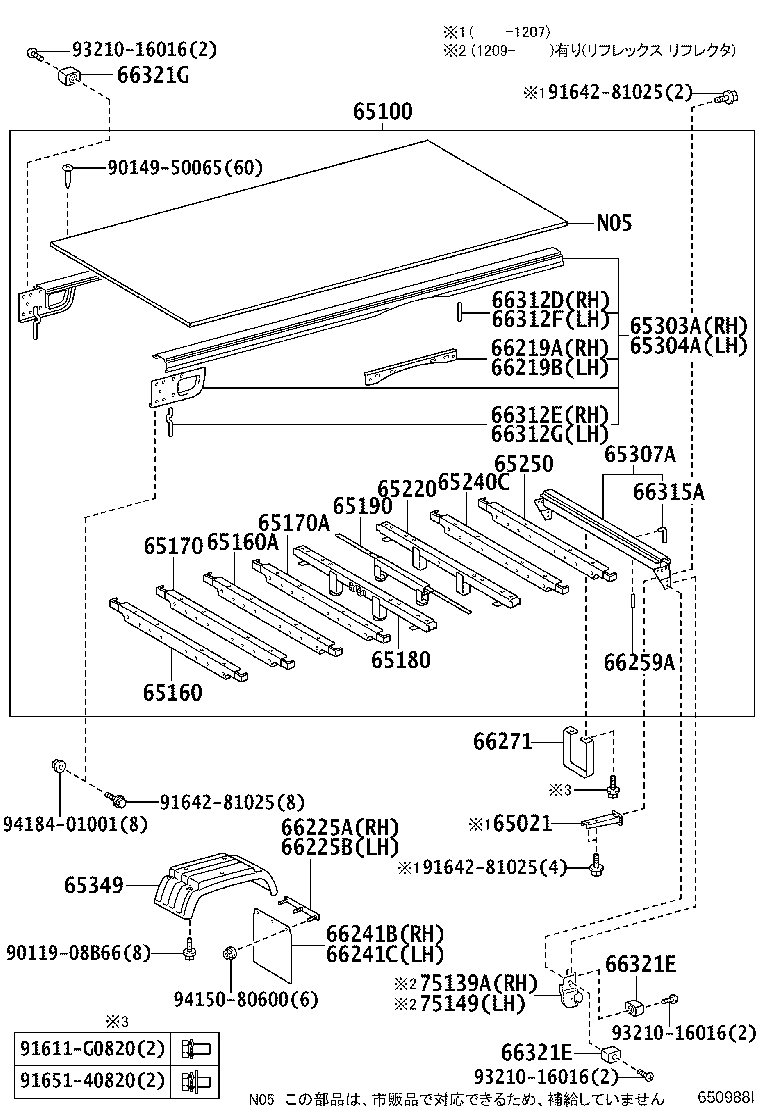

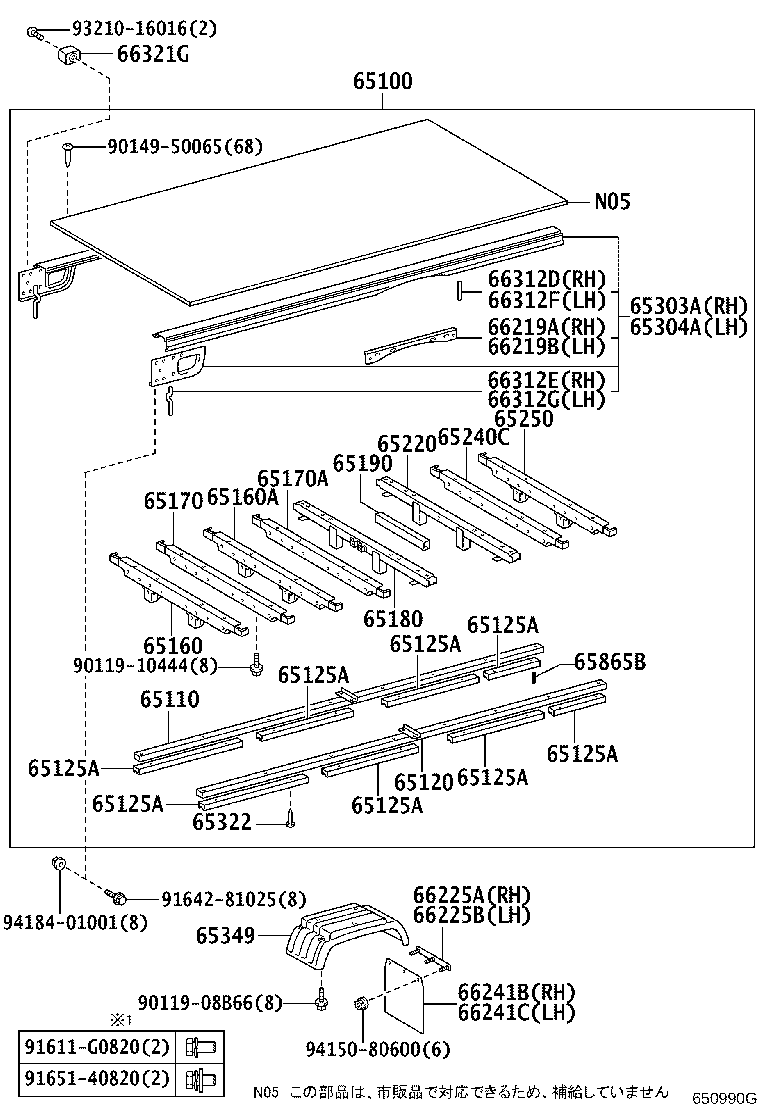

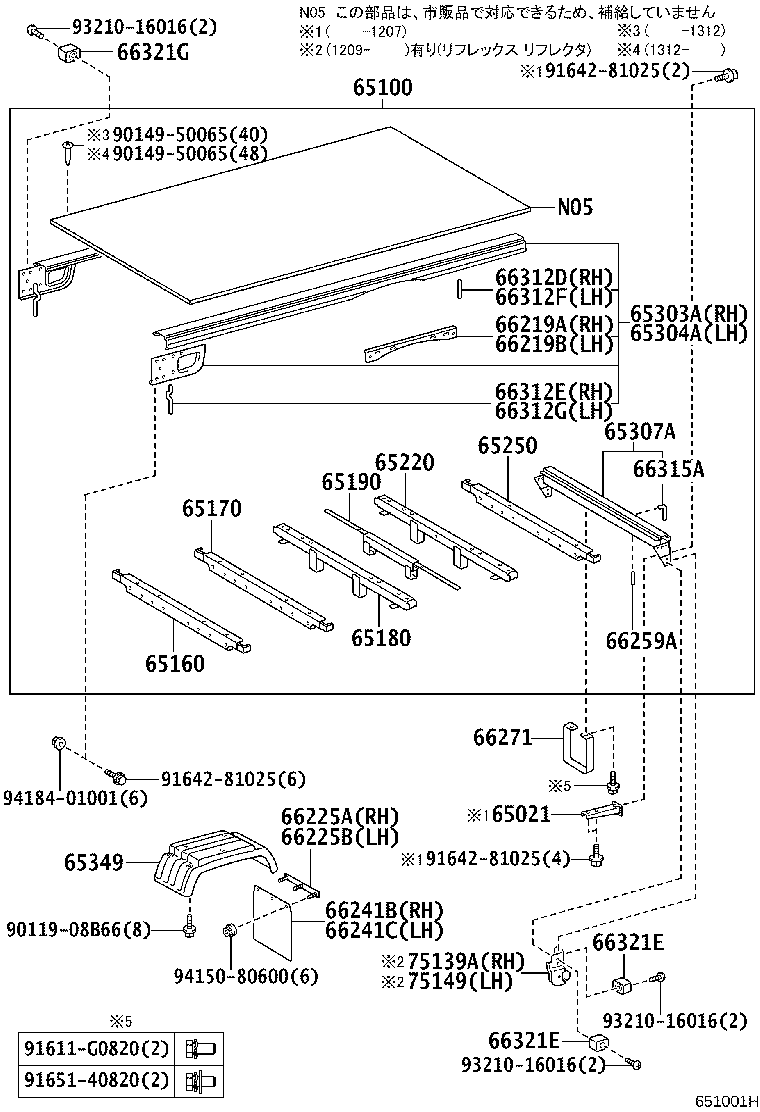

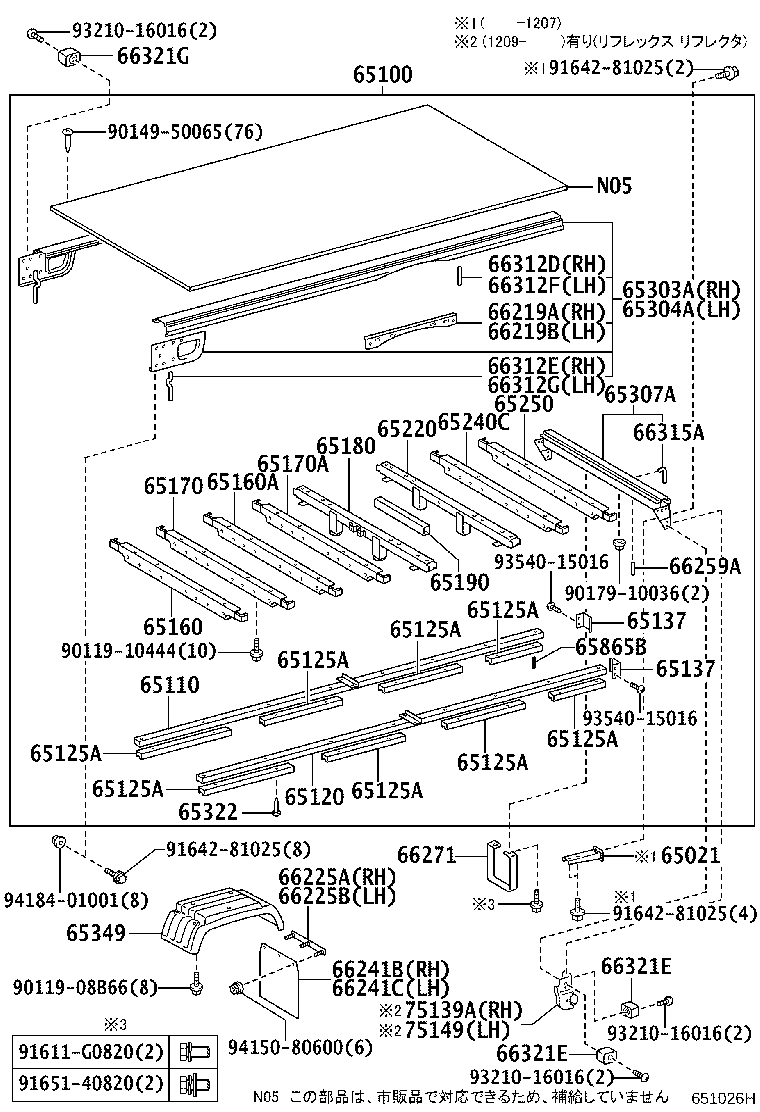

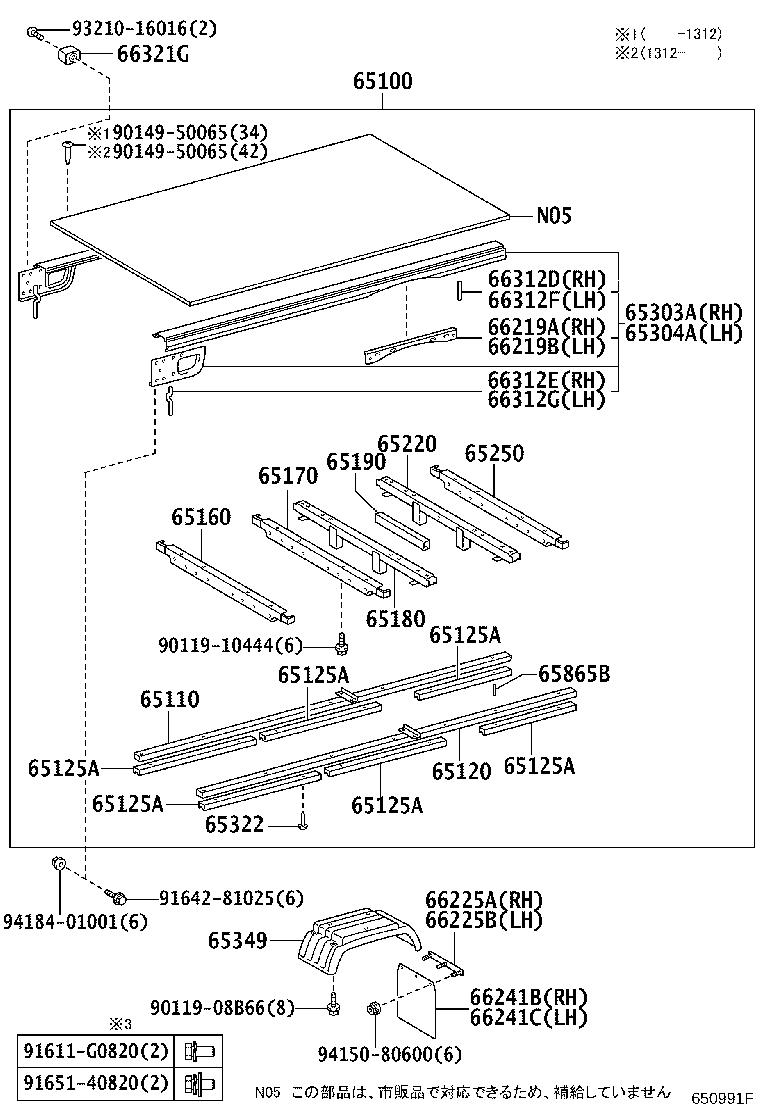

Figure 651002I 651002I 2011-07 → — Figure 651001H 651001H 2011-07 → — Figure 651000H 651000H 2011-07 → — Figure 650999J 650999J 2011-07 → 2019-06 Figure 650999J 650999J 2011-07 → — Figure 650999J 650999J 2011-07 → — Figure 651379B 651379B 2019-06 → — Figure 650998H 650998H 2011-07 → 2019-06 Figure 650998H 650998H 2011-07 → — Figure 651376C 651376C 2019-06 → — Figure 650997H 650997H 2011-07 → — Figure 650996H 650996H 2011-07 → — Figure 650995H 650995H 2011-07 → — Figure 650994I 650994I 2011-07 → — Figure 651201C 651201C 2011-07 → — Figure 650993J 650993J 2011-07 → — Figure 650988H 650988H 2011-07 → — Figure 650986K 650986K 2011-07 → — Figure 650987I 650987I 2011-07 → — Figure 651026H 651026H 2011-07 → — Figure 650992I 650992I 2011-07 → — Figure 650991F 650991F 2011-07 → — Figure 650990G 650990G 2011-07 → — Figure 650989C 650989C 2011-07 → 2019-06 Figure 651380B 651380B 2019-06 → — Figure 650977B 650977B 2011-07 → — Figure 650977B 650977B 2014-05 → — Figure 650977B 650977B 2019-05 → — Figure 650977B 650977B 2019-05 → — Figure 650978B 650978B 2011-07 → — Figure 650978B 650978B 2019-05 → — Figure 650978B 650978B 2019-05 → — Figure 650979D 650979D 2011-07 → — Figure 650979D 650979D 2019-05 → — Figure 650979D 650979D 2019-05 → — Figure 651354E 651354E 2019-05 → — Figure 651355D 651355D 2019-05 → — Figure 651356D 651356D 2019-05 → — Figure 651357D 651357D 2019-05 → — Figure 651358D 651358D 2019-05 → — Figure 651359D 651359D 2019-05 → — Figure 651360D 651360D 2019-05 → — Figure 651361D 651361D 2019-05 → — Figure 651362D 651362D 2019-05 → — Figure 651363E 651363E 2019-05 → — Figure 651364D 651364D 2019-05 → — Figure 651365D 651365D 2019-05 → — Figure 651366E 651366E 2019-05 → — Figure 651367F 651367F 2019-05 → — Figure 651368D 651368D 2019-05 → —

Part groups

PNCDescription
57292A Plate, Floor Board Set
60531 Frame Sub-assy, Floor Side, RH
60532 Frame Sub-assy, Floor Side, LH
65021 Bracket Sub-assy, Main Sill, Lower
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65145 Gusset, Cross Sill
65146 Gusset, Cross Sill
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65167A Reinforcement, Mounting
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65230 Sill Assy, Cross, NO.8
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65277 Step, Side, Front
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307A Frame Sub-assy, Floor, Rear
65311C Board, Floor, Outside RH
65312 Board, Floor, Outside LH
65322 Nail
65325B Plate, Floor Board, Front
65339 Frame, Floor, Rear
65341A Board, Floor, NO.1
65349 Fender, Floor Side
65371 Insulator, Rear Floor
65395 Bracket, Center Post Outer, RH
65396 Bracket, Center Post Outer, LH
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
65543 Hinge, Side Gate Female
65578 Pin, Side Gate Hinge
65865B Pin, Cover Top Guide
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66210A Fender Assy, Rear NO.1 RH
66213B Plate, Rear Fender, Upper
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66237 Bracket, Rear Fender, NO.1
66238A Bracket, Rear Fender, NO.2
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66312 Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66313 Support, Rear Fender
66315A Hook, Rope
66317 Hook, Rope, NO.7
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66323 Spacer, Gage Rubber Bumper
66445B Brace, Frame TO Rear Body
66446B Brace, Frame TO Rear Body, NO.2
75139A Bracket, Reflex Reflector, RH
75149 Bracket, Reflex Reflector, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
