Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

64 part groups · 96 illustrations

Illustrations

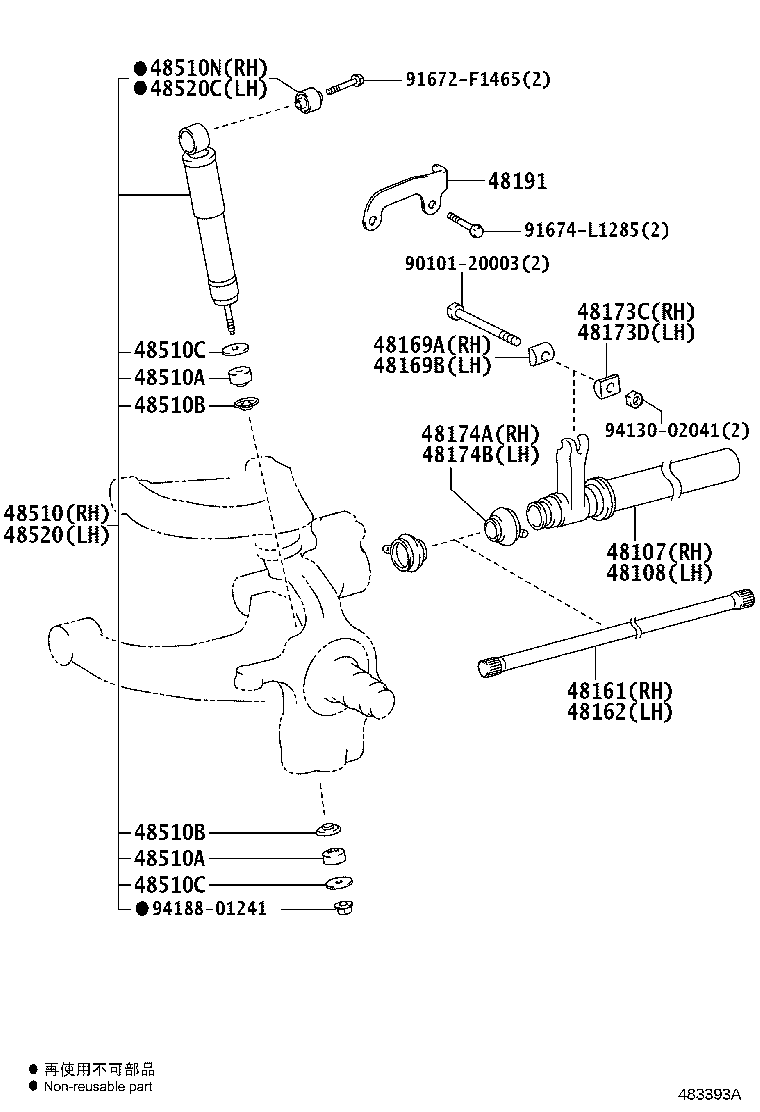

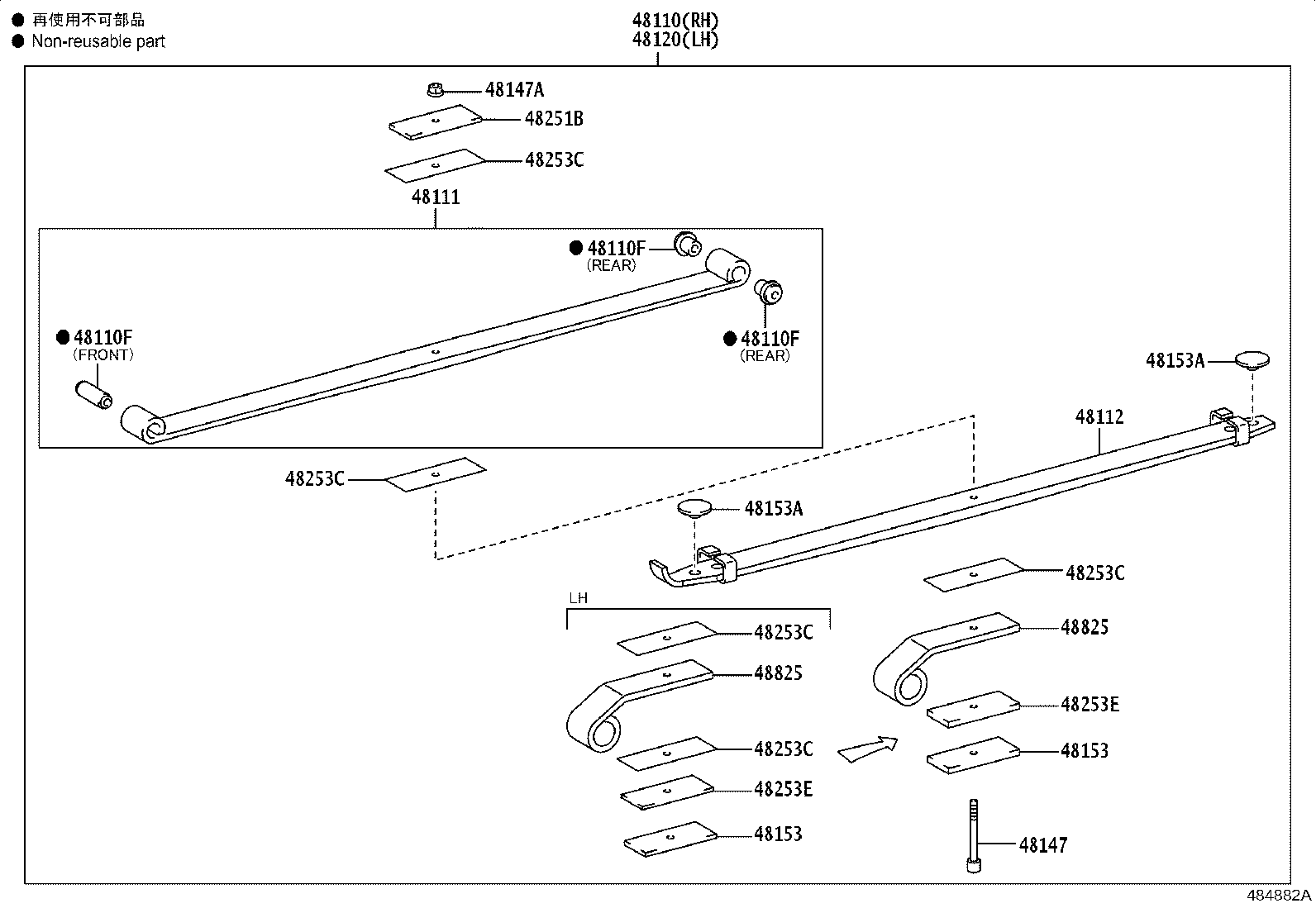

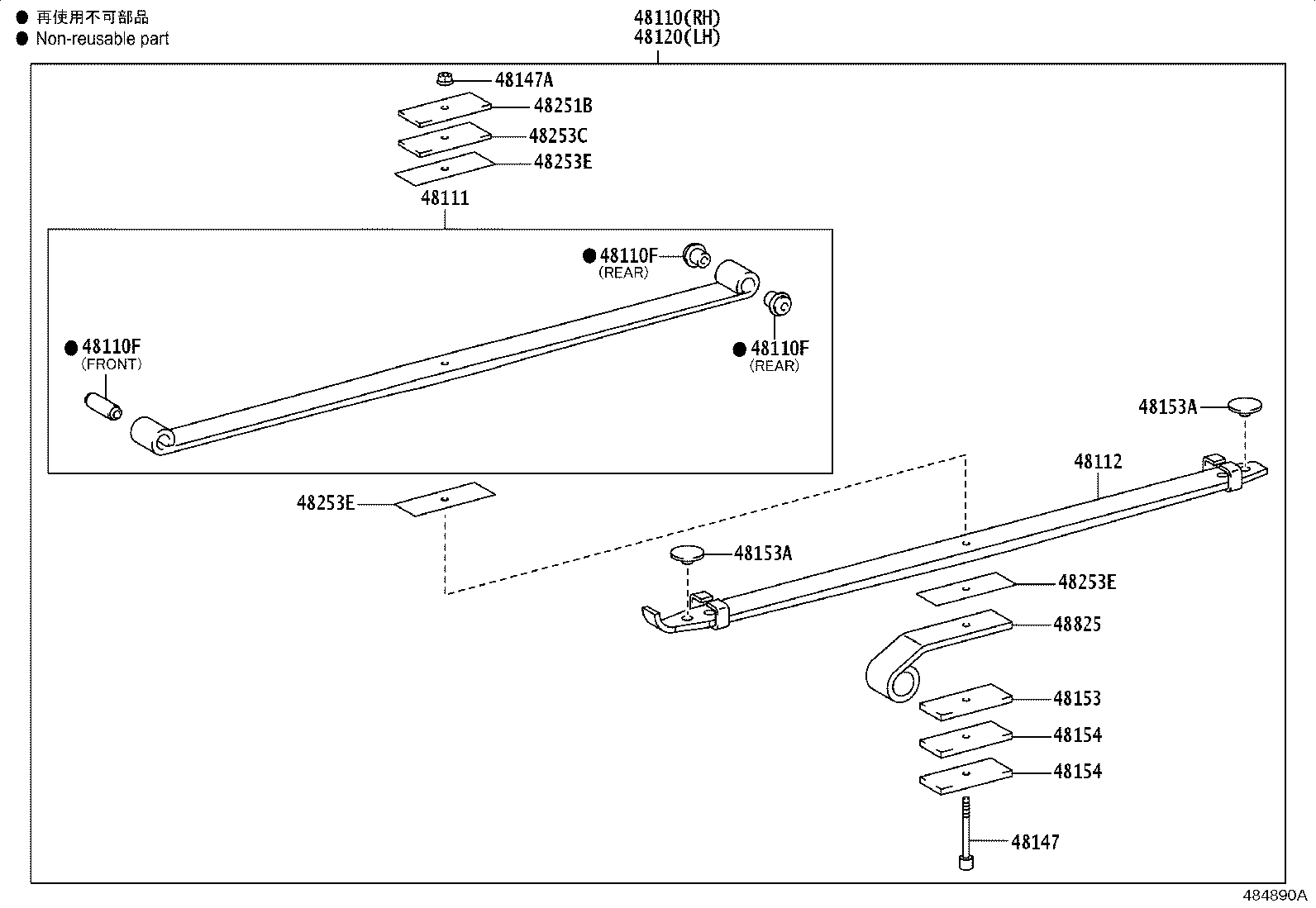

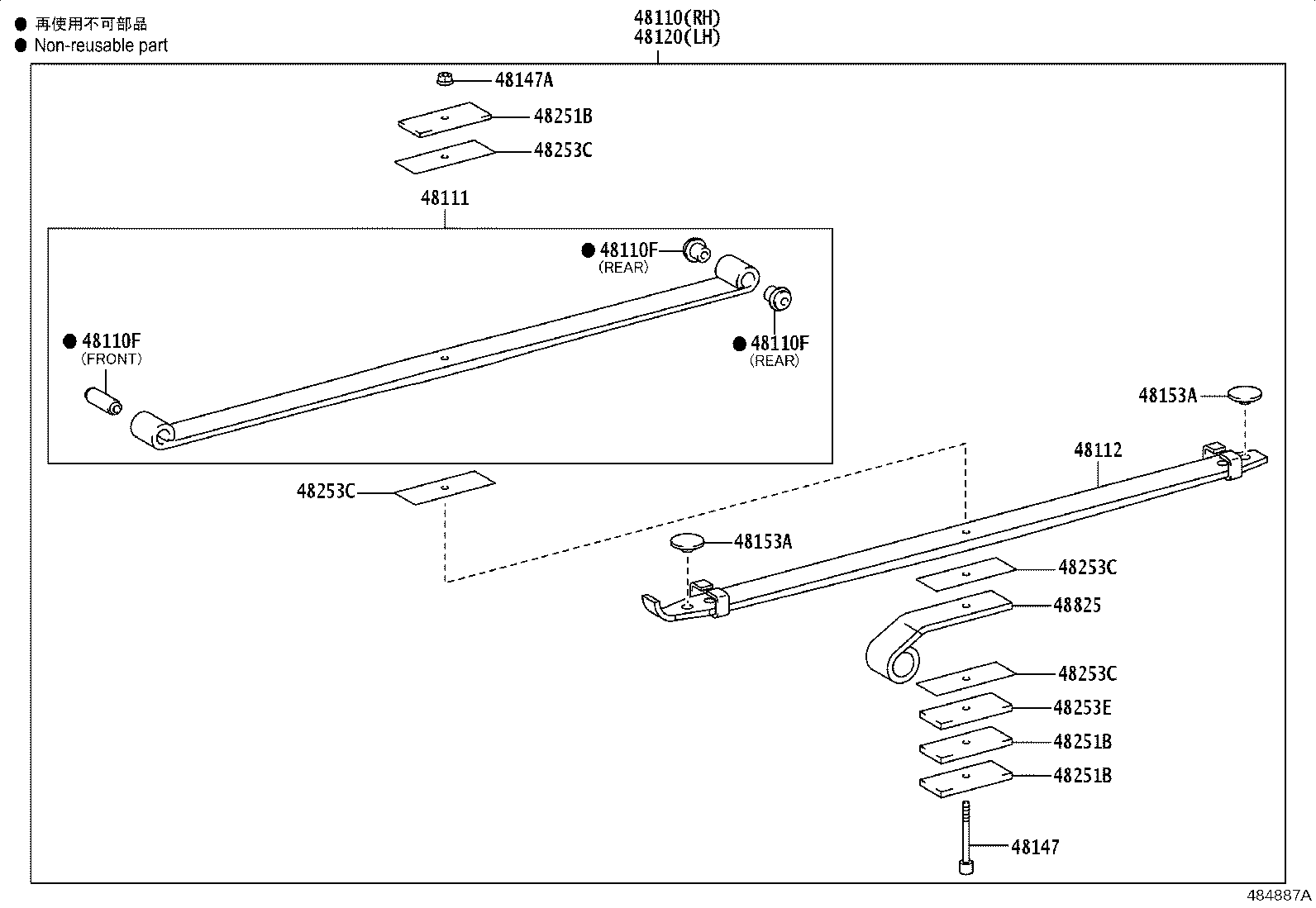

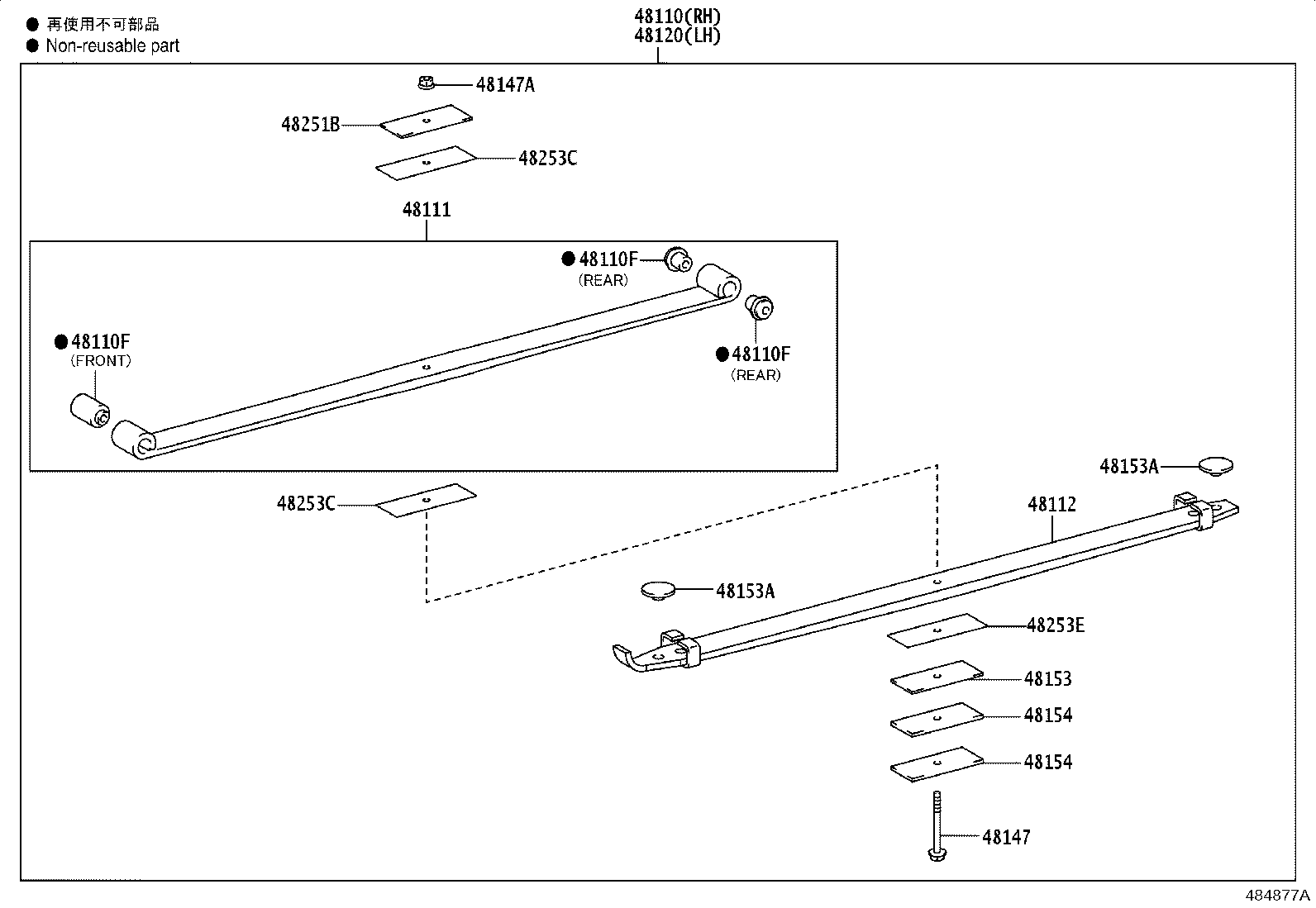

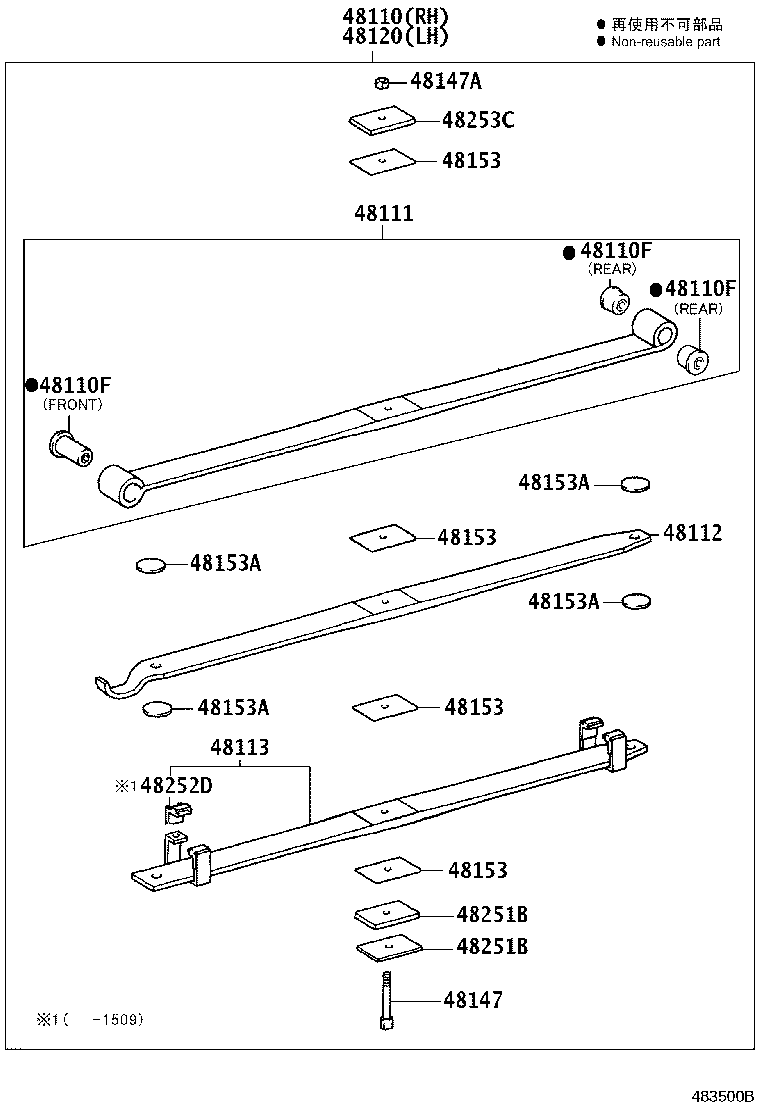

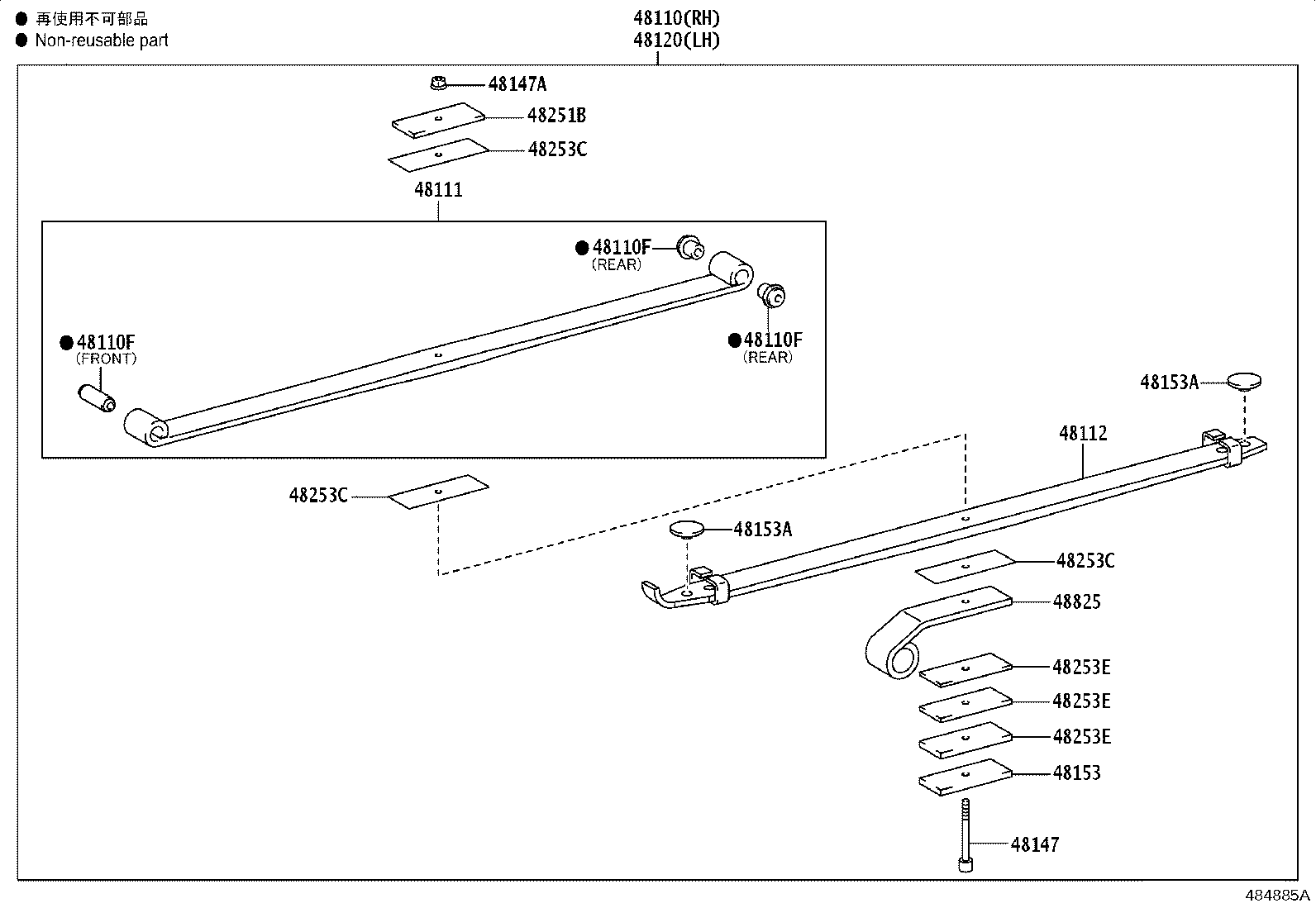

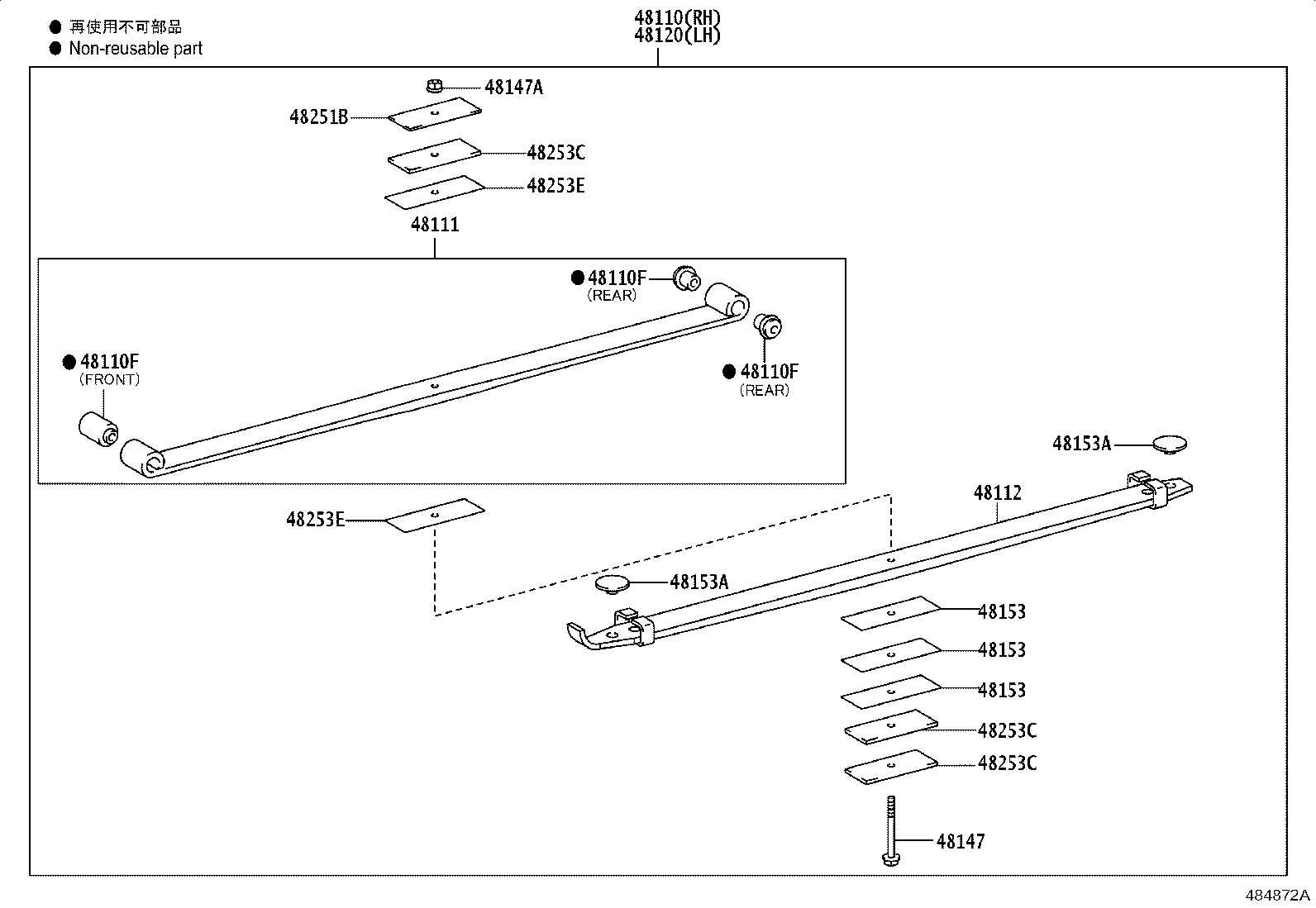

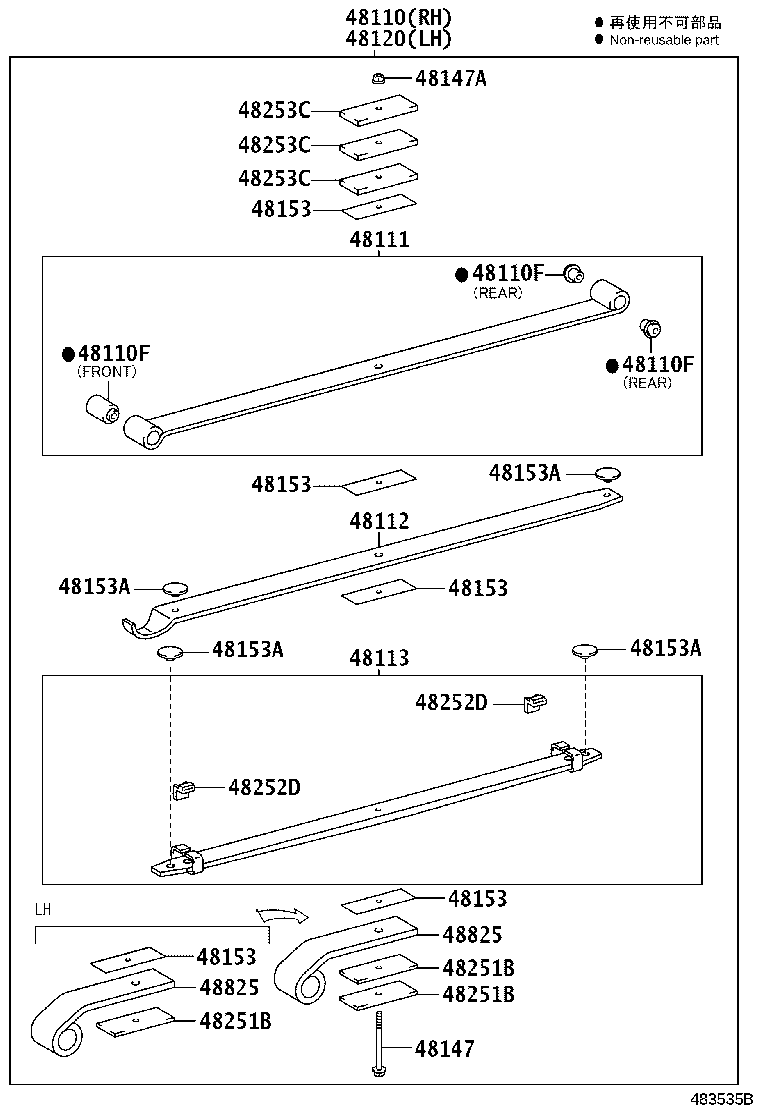

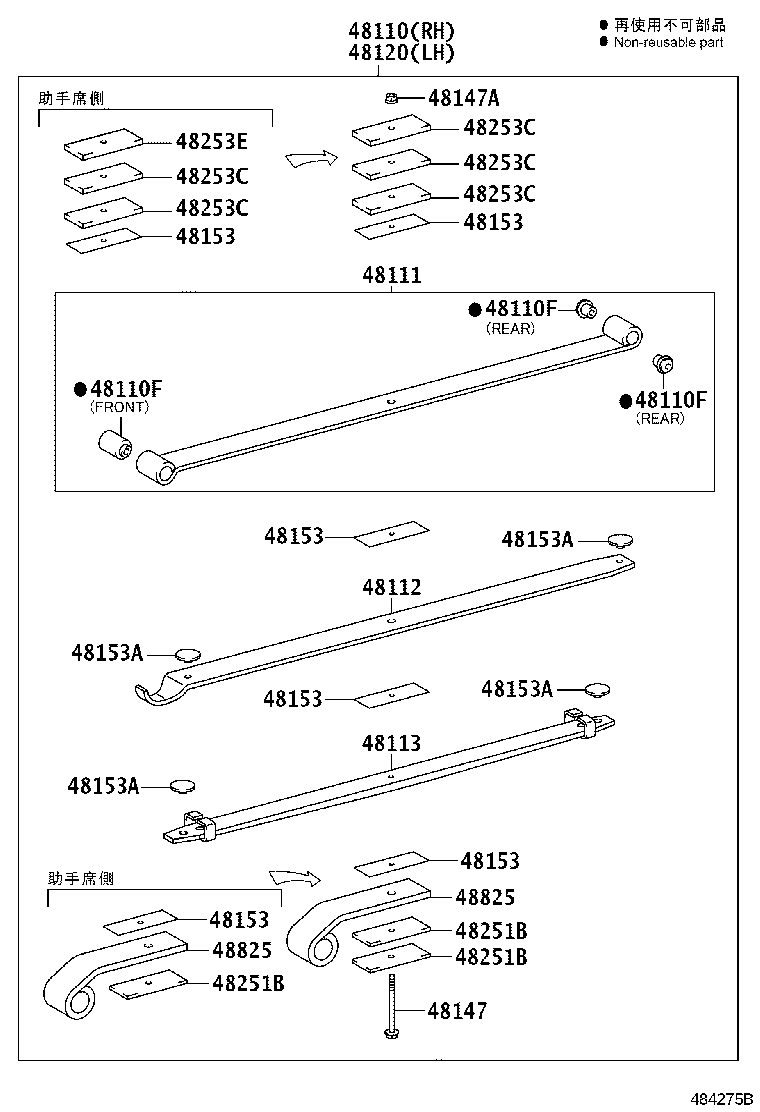

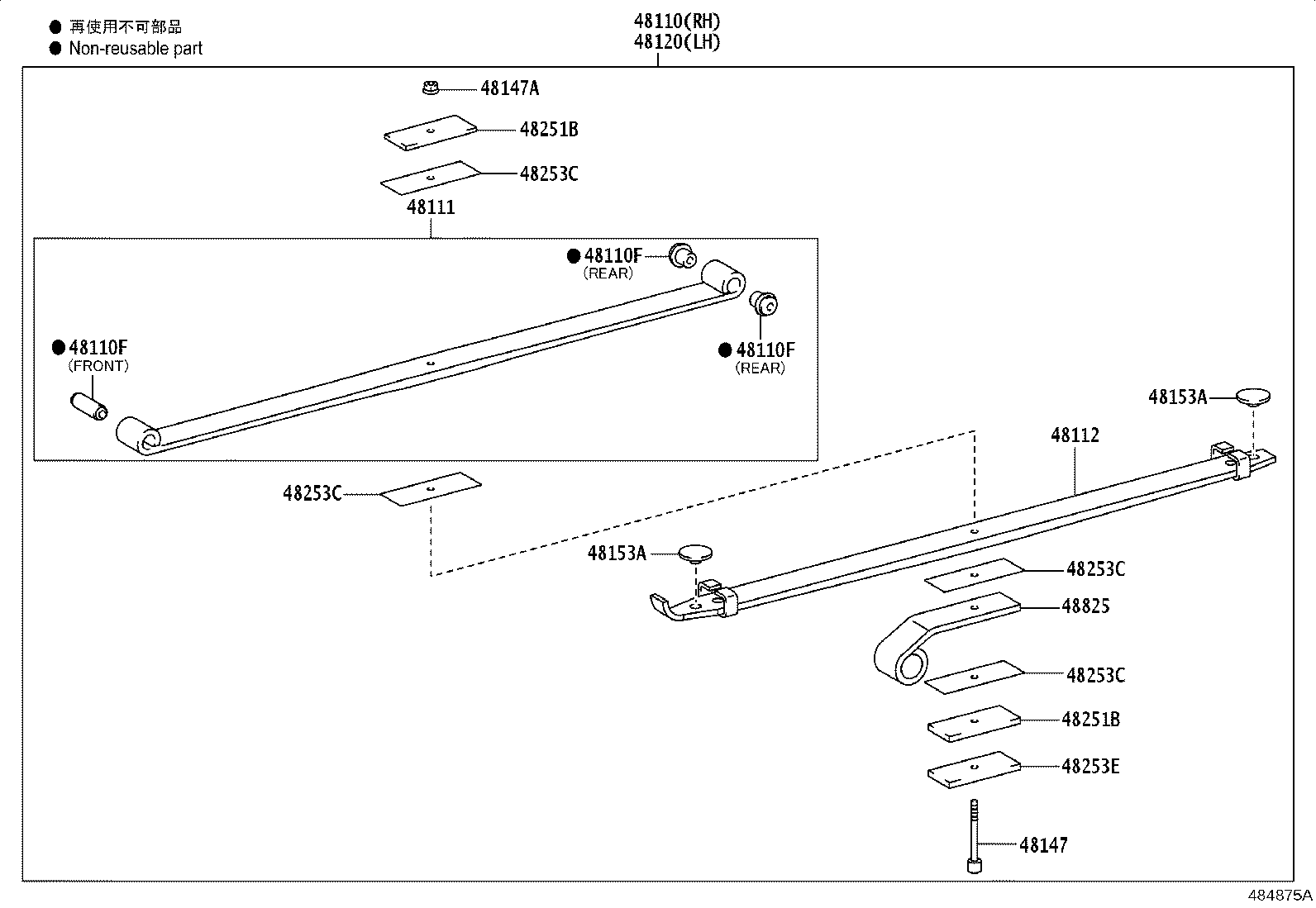

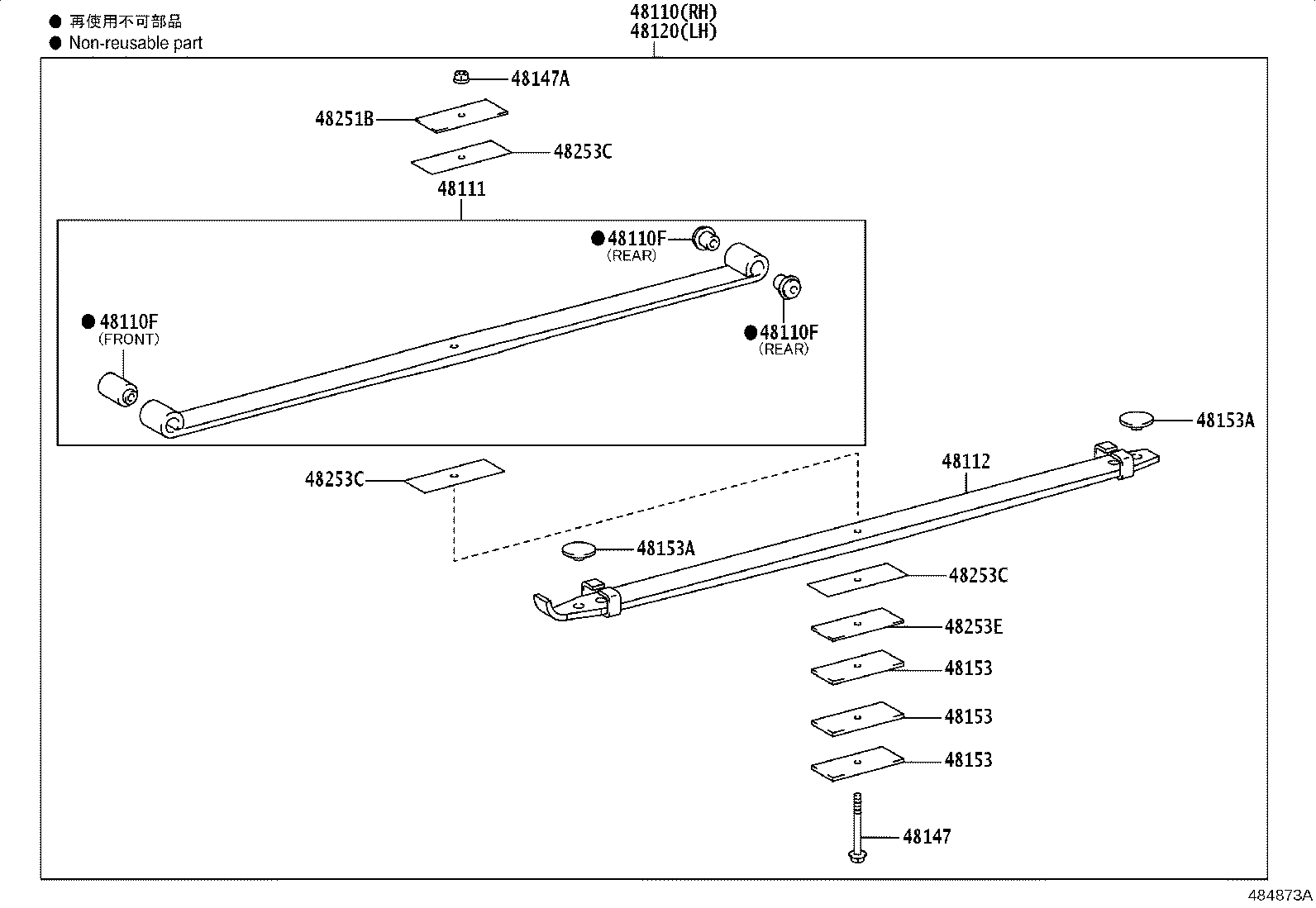

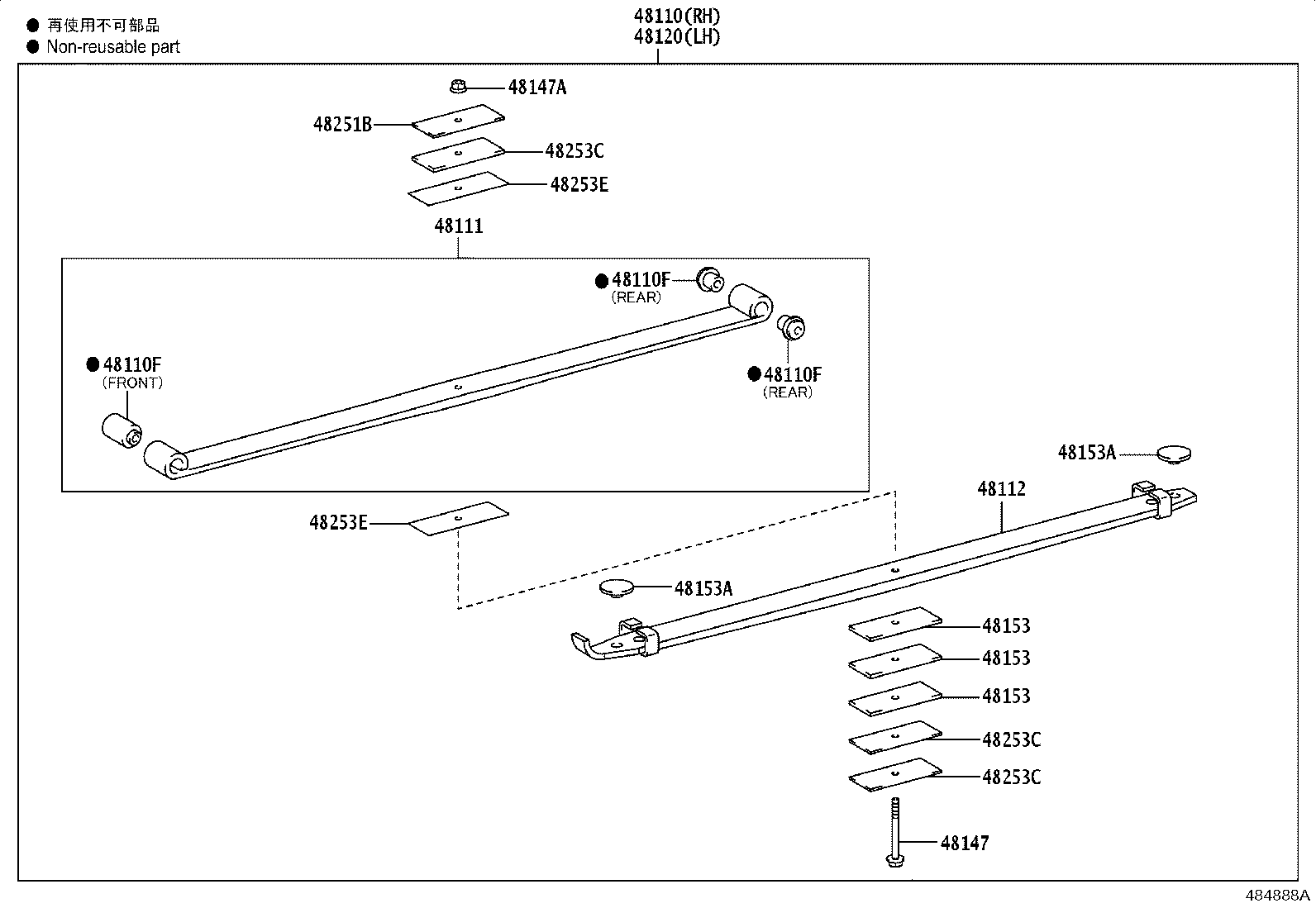

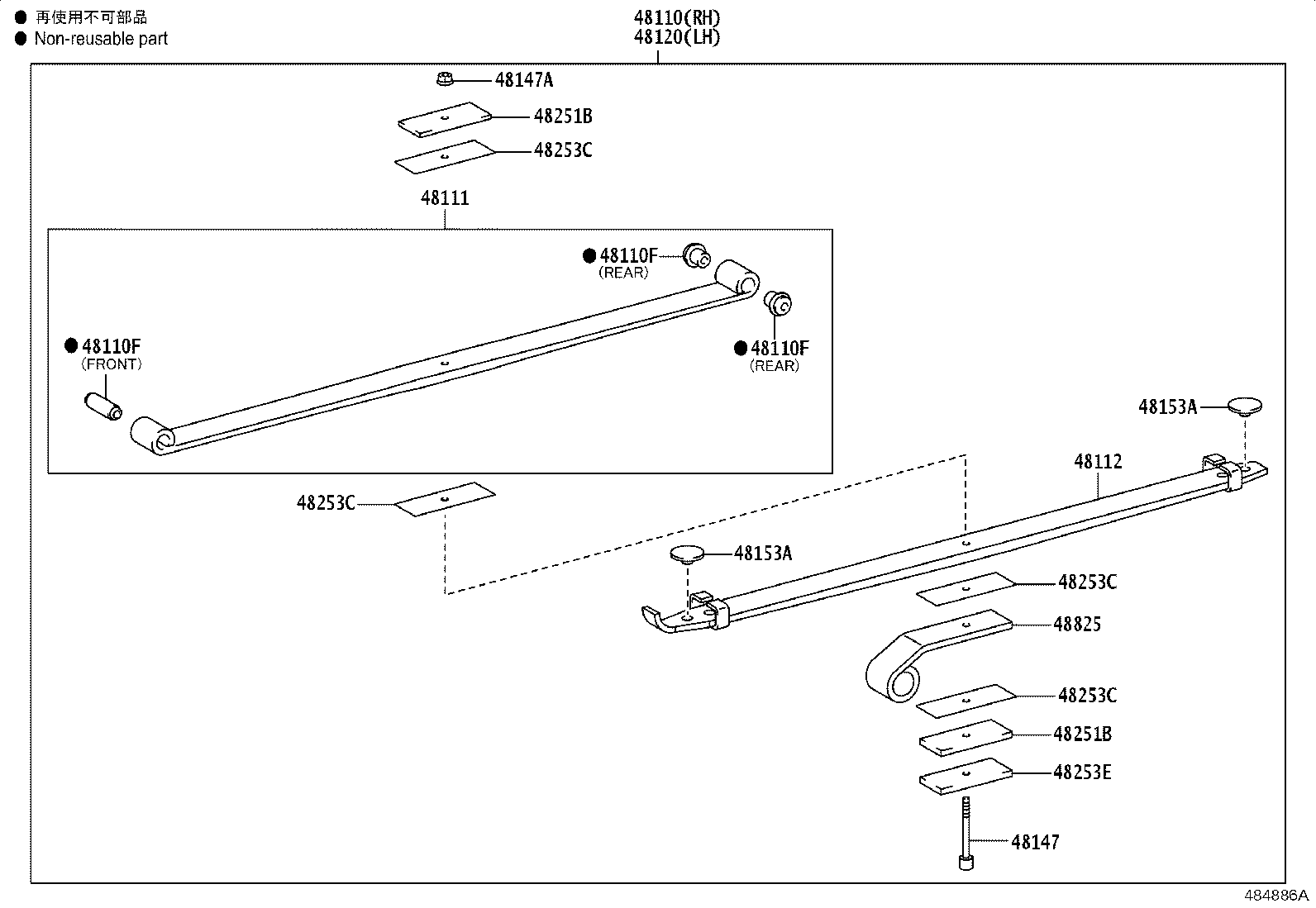

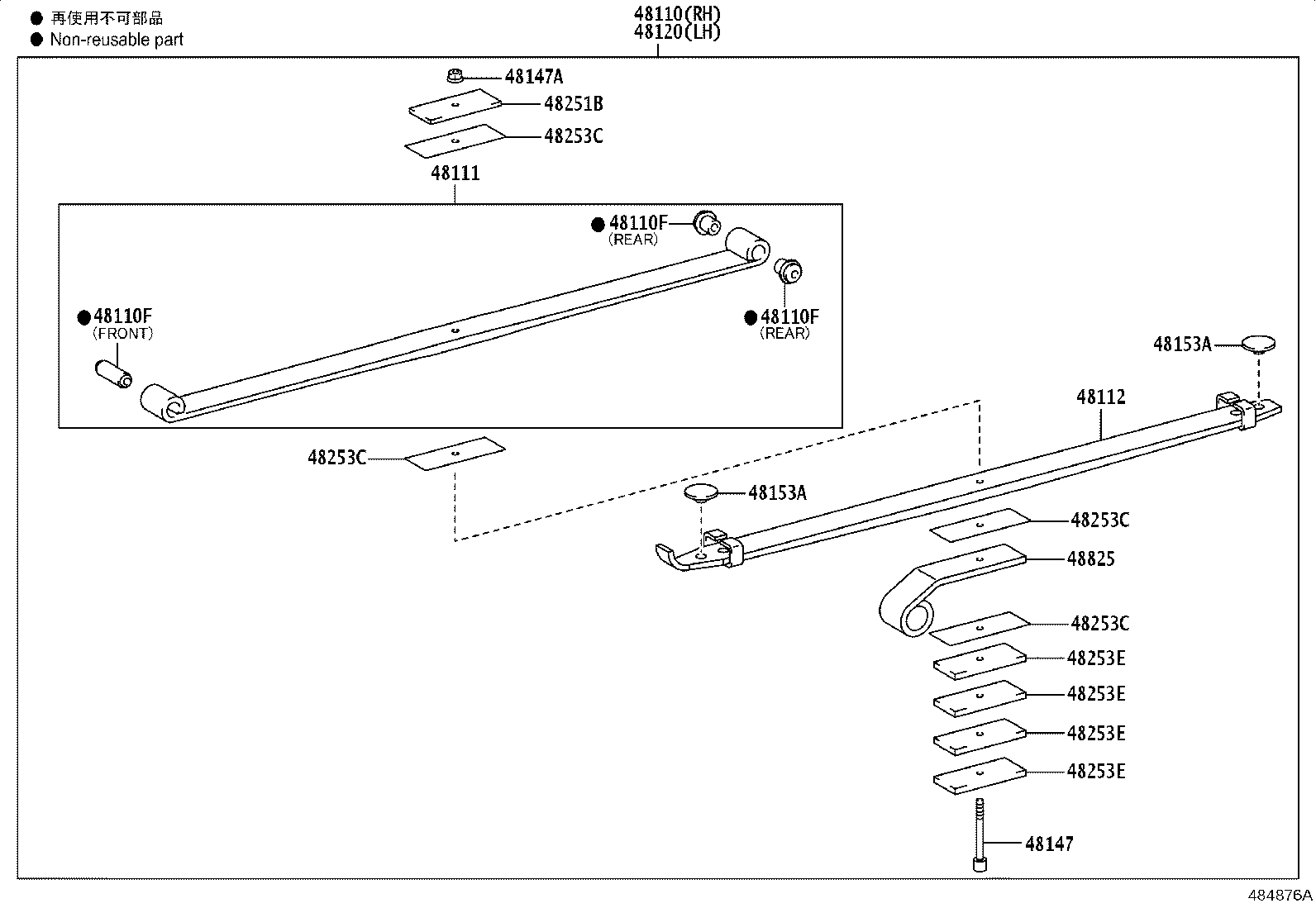

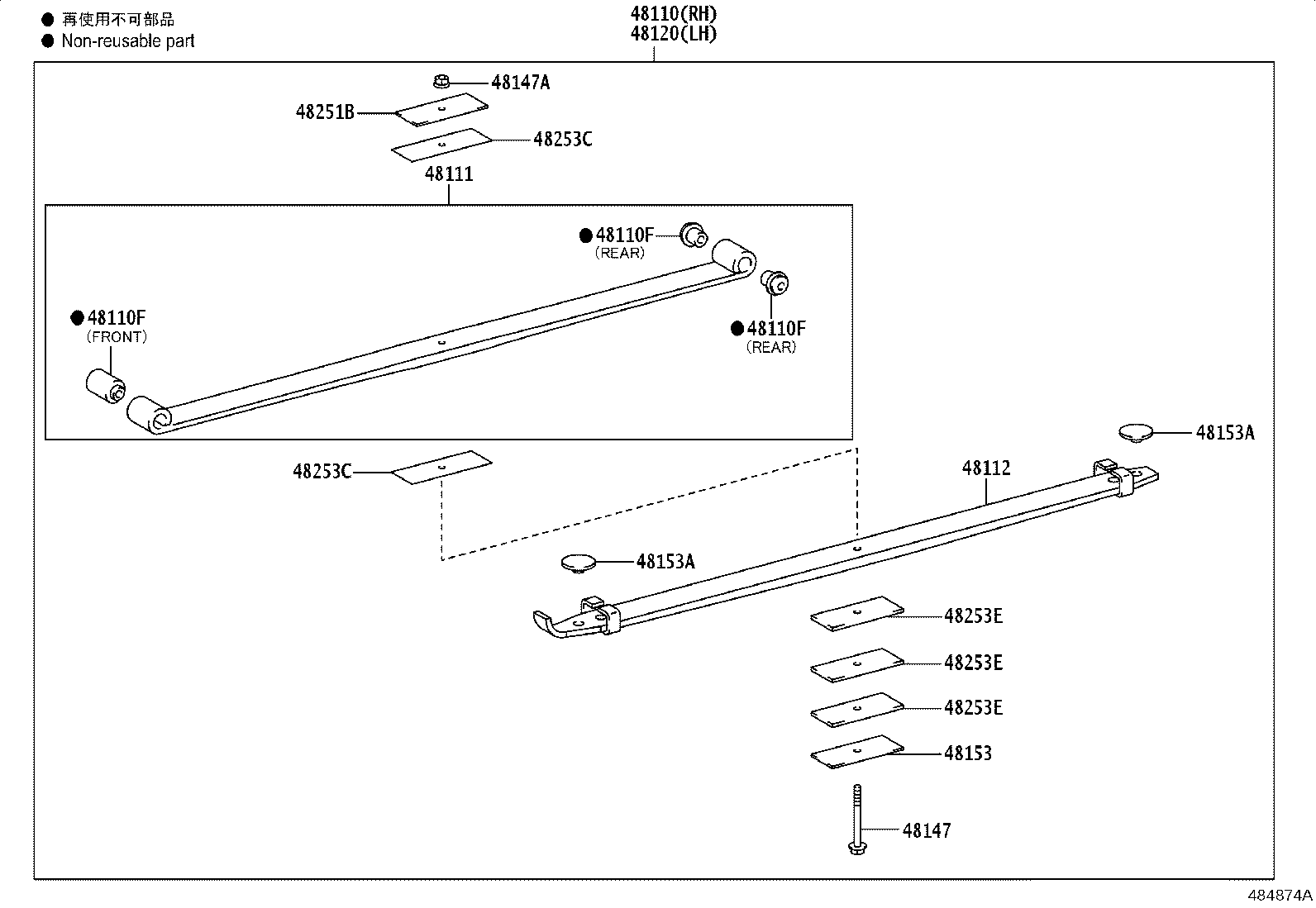

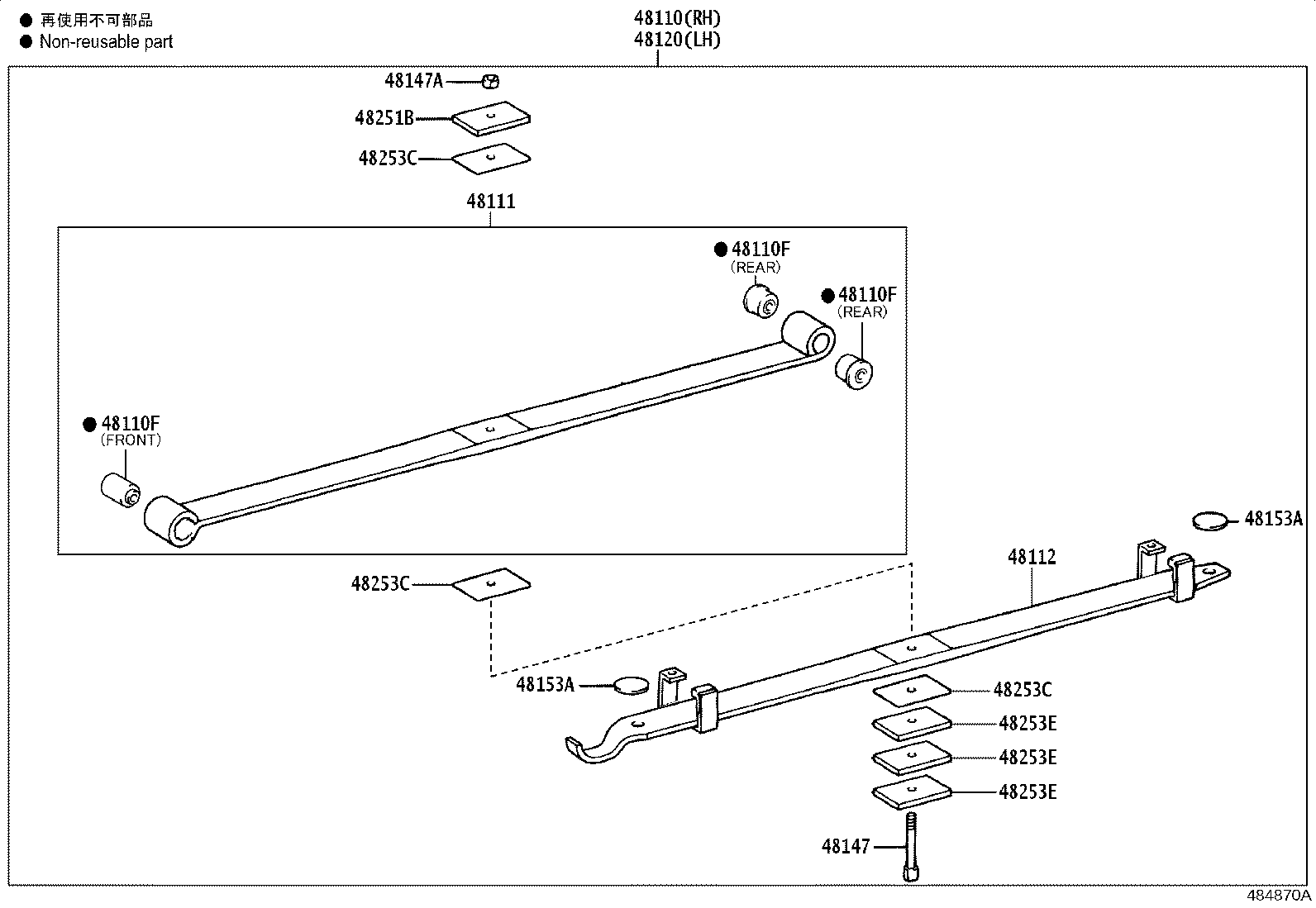

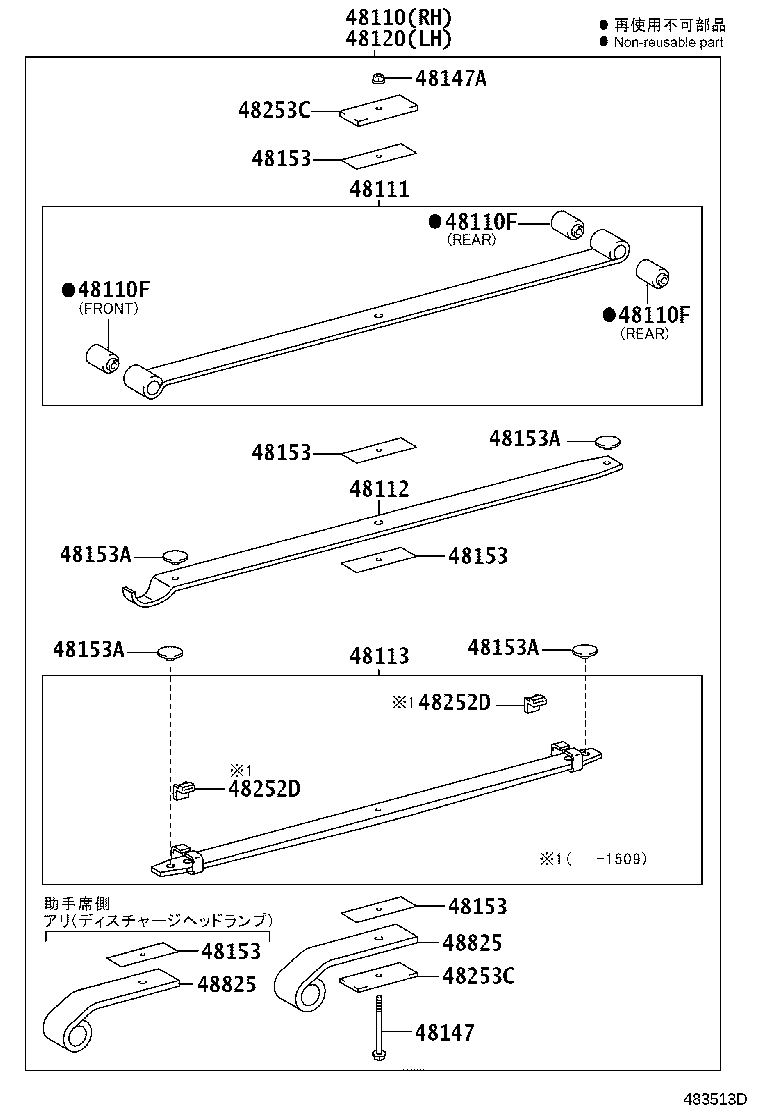

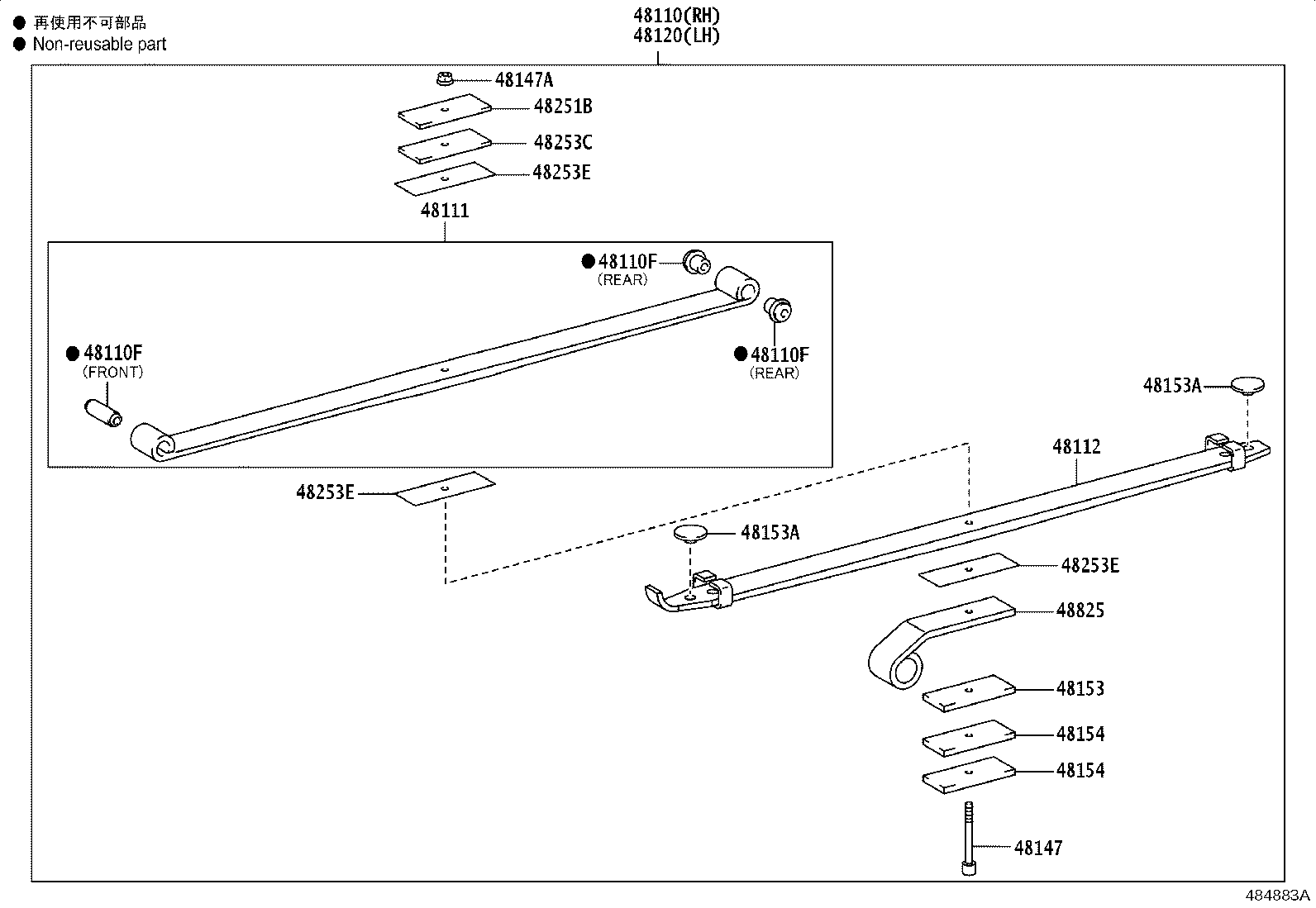

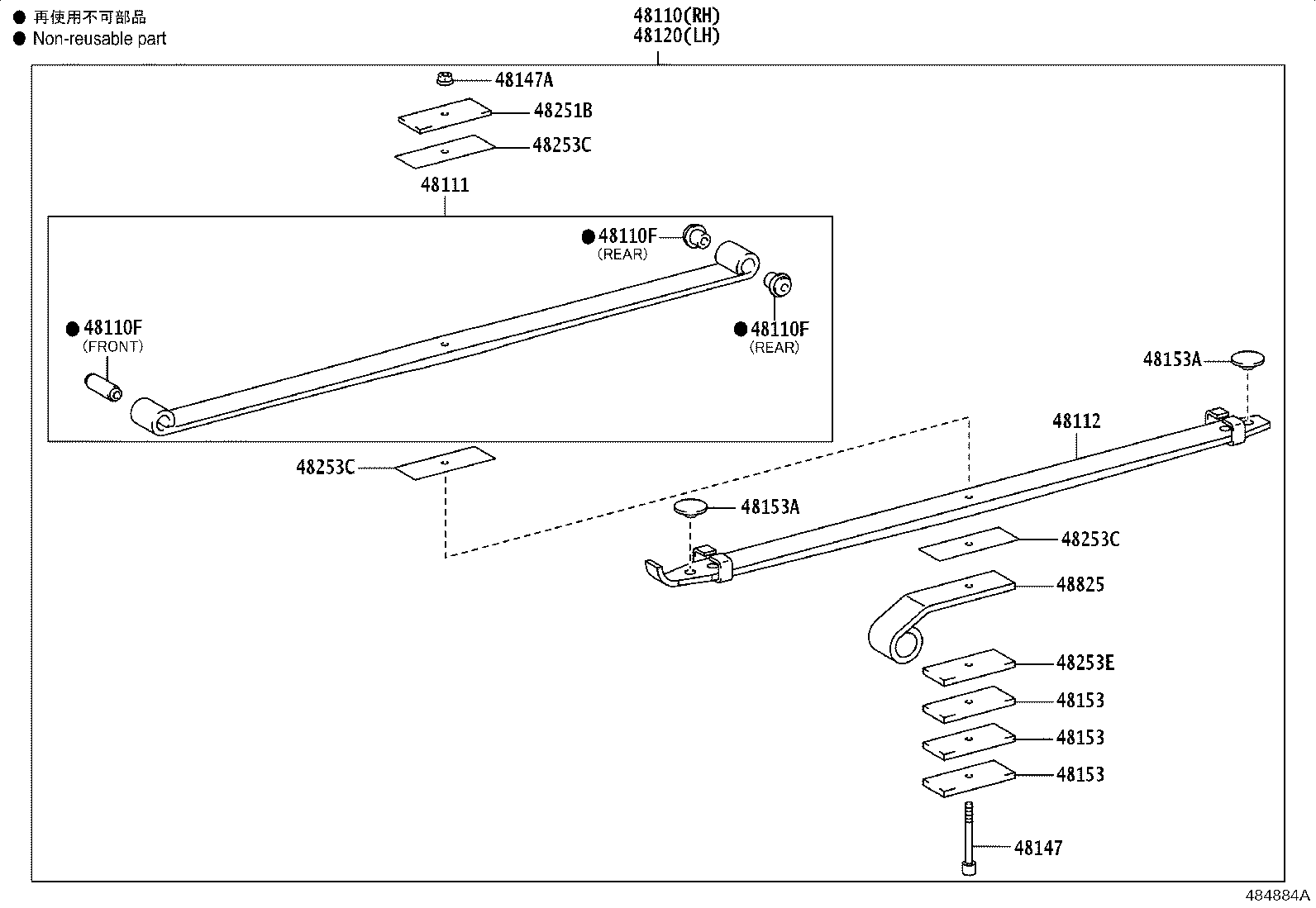

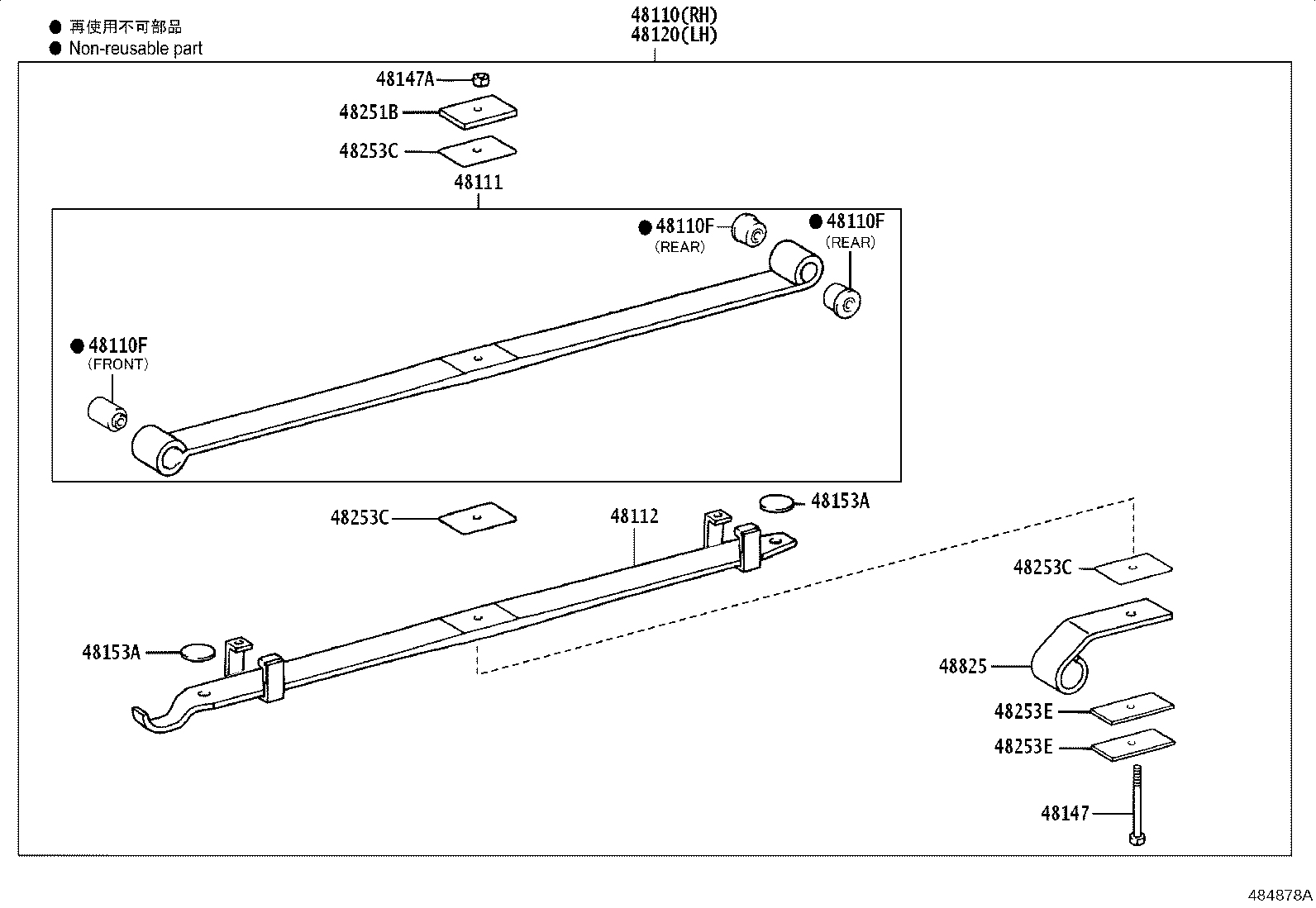

Figure 483388F 483388F 2011-07 → 2017-05 Figure 483388F 483388F 2017-05 → — Figure 483388F 483388F 2017-05 → — Figure 483388F 483388F 2019-05 → — Figure 483389C 483389C 2011-07 → — Figure 483393A 483393A 2011-08 → — Figure 483393A 483393A 2019-05 → — Figure 483530B 483530B 2011-07 → 2015-07 Figure 483531B 483531B 2011-07 → 2015-07 Figure 483520C 483520C 2011-07 → — Figure 483520C 483520C 2017-05 → — Figure 483521C 483521C 2011-07 → — Figure 483521C 483521C 2011-07 → — Figure 483521C 483521C 2011-07 → — Figure 483522C 483522C 2011-07 → — Figure 483522C 483522C 2011-07 → — Figure 483517B 483517B 2011-07 → 2015-09 Figure 483516C 483516C 2011-07 → — Figure 483516C 483516C 2011-07 → — Figure 483516C 483516C 2011-07 → — Figure 480918C 480918C 2011-07 → 2015-09 Figure 484292A 484292A 2013-01 → 2015-09 Figure 484288A 484288A 2013-01 → 2015-09 Figure 484286A 484286A 2013-01 → 2015-09 Figure 484237B 484237B 2015-07 → — Figure 484238B 484238B 2015-07 → — Figure 484238B 484238B 2015-09 → — Figure 484304B 484304B 2015-09 → — Figure 484308B 484308B 2015-09 → 2017-05 Figure 484308B 484308B 2015-09 → — Figure 484308B 484308B 2015-09 → — Figure 484308B 484308B 2017-05 → — Figure 484290B 484290B 2015-09 → — Figure 484289B 484289B 2015-09 → 2017-05 Figure 484289B 484289B 2017-05 → — Figure 484287B 484287B 2015-09 → 2017-05 Figure 484287B 484287B 2017-05 → — Figure 483511A 483511A 2011-07 → 2015-09 Figure 484306A 484306A 2011-07 → 2015-09 Figure 483510C 483510C 2011-07 → — Figure 483510C 483510C 2017-05 → — Figure 483532C 483532C 2011-07 → 2015-07 Figure 483533C 483533C 2011-07 → 2015-07 Figure 484296A 484296A 2013-01 → 2015-09 Figure 484294A 484294A 2013-01 → 2015-09 Figure 484239A 484239A 2015-07 → — Figure 484240A 484240A 2015-07 → — Figure 484297A 484297A 2013-01 → 2015-09 Figure 484295B 484295B 2013-01 → 2017-05 Figure 484295B 484295B 2017-05 → — Figure 484305B 484305B 2015-09 → — Figure 484305B 484305B 2015-09 → — Figure 484307B 484307B 2015-09 → — Figure 483500B 483500B 2011-07 → — Figure 483495B 483495B 2011-07 → — Figure 483512E 483512E 2011-07 → — Figure 483512E 483512E 2011-07 → — Figure 484175A 484175A 2011-07 → 2015-09 Figure 484302B 484302B 2015-09 → — Figure 484303A 484303A 2015-09 → — Figure 483535B 483535B 2011-07 → 2015-09 Figure 483534B 483534B 2011-07 → 2015-09 Figure 483518D 483518D 2011-07 → — Figure 483518D 483518D 2011-07 → — Figure 483513D 483513D 2011-07 → — Figure 484516A 484516A 2011-07 → — Figure 484275B 484275B 2015-09 → — Figure 484277A 484277A 2015-09 → — Figure 481020C 481020C 2011-07 → — Figure 484867A 484867A 2019-05 → — Figure 484868A 484868A 2019-05 → — Figure 484871A 484871A 2019-05 → — Figure 484872A 484872A 2019-05 → — Figure 484873A 484873A 2019-05 → — Figure 484874A 484874A 2019-05 → — Figure 484875A 484875A 2019-05 → — Figure 484875A 484875A 2019-05 → — Figure 484876A 484876A 2019-05 → — Figure 484877A 484877A 2019-05 → — Figure 484878A 484878A 2019-05 → — Figure 484879A 484879A 2019-05 → — Figure 484880A 484880A 2019-05 → — Figure 484881A 484881A 2019-05 → — Figure 484881A 484881A 2019-05 → — Figure 484882A 484882A 2019-05 → — Figure 484883A 484883A 2019-05 → — Figure 484884A 484884A 2019-05 → — Figure 484885A 484885A 2019-05 → — Figure 484886A 484886A 2019-05 → — Figure 484887A 484887A 2019-05 → — Figure 484888A 484888A 2019-05 → — Figure 484889A 484889A 2019-05 → — Figure 484890A 484890A 2019-05 → — Figure 484869A 484869A 2019-05 → — Figure 484870A 484870A 2019-05 → — Figure 484517 484517 2011-07 → —

Part groups

PNCDescription
48042A Shackle Sub-assy, Front Spring, NO.2
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48110 Spring Assy, Front, RH
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48147A Nut, Front Spring Center Bolt
48153 Spacer, Front Leaf Spring, NO.1
48153A Silencer, Front Spring, NO.1
48154 Silencer, Front Spring, NO.2
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48251B Spacer(FOR FRONT SPRING)
48252D Silencer
48253C Spacer, Front Leaf Spring, NO.2
48253E Spacer, Front Spring, NO.3
48304 Bumper Sub-assy, Front Spring, NO.1
48323 Pin, Front Spring Bracket, Front
48323A Nipple, Grease(FOR FRONT SPRING BRACKET, FRONT PIN)
48323B Pin, Front Spring Bracket, Rear
48323C Nipple, Grease(FOR FRONT SPRING BRACKET, REAR PIN)
48403 Bracket Sub-assy, Spring, NO.2
48403A Bush(FOR SPRING BRACKET)
48422 Support, Front Spring Pin
48442A Shackle, Front Spring, RH
48442B Shackle, Front Spring, LH
48443A Plate, Fornt Spring Shackle, Outer
48475 Plate, Distance(FOR FRONT)
48475A Plate, Distance NO.2(FOR FRONT)
48505A Bolt, U(FOR FRONT SPRING)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48802F Link Sub-assy, Front Stabilizer
48809 Bracket Sub-assy, Stabilizer
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48819A Bolt, Front Stabilizer
48825 Bracket, Stabilizer, NO.2
48829A Bracket, Front Stabilizer, NO.1 LH
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
