Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

65 part groups · 54 illustrations

Illustrations

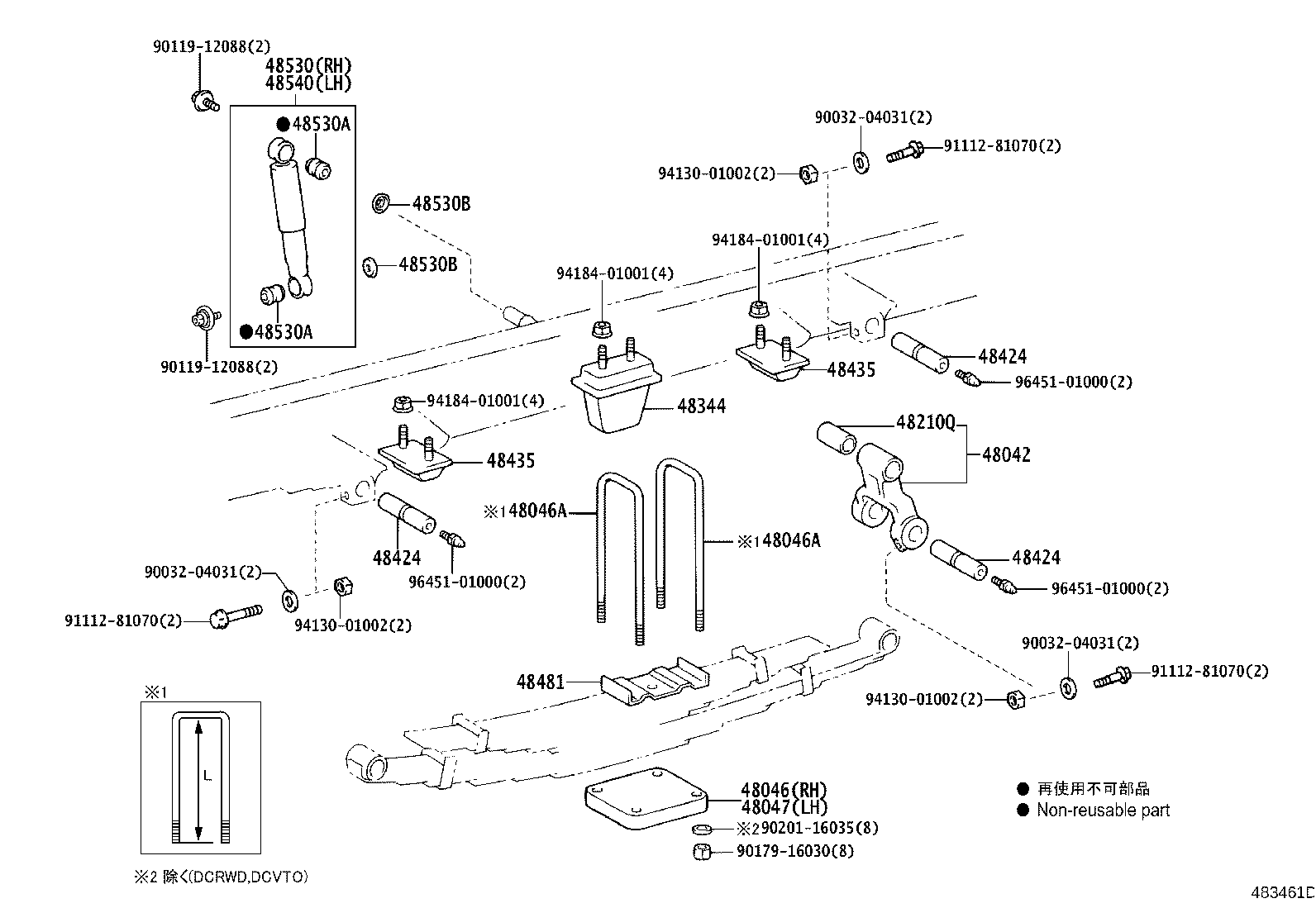

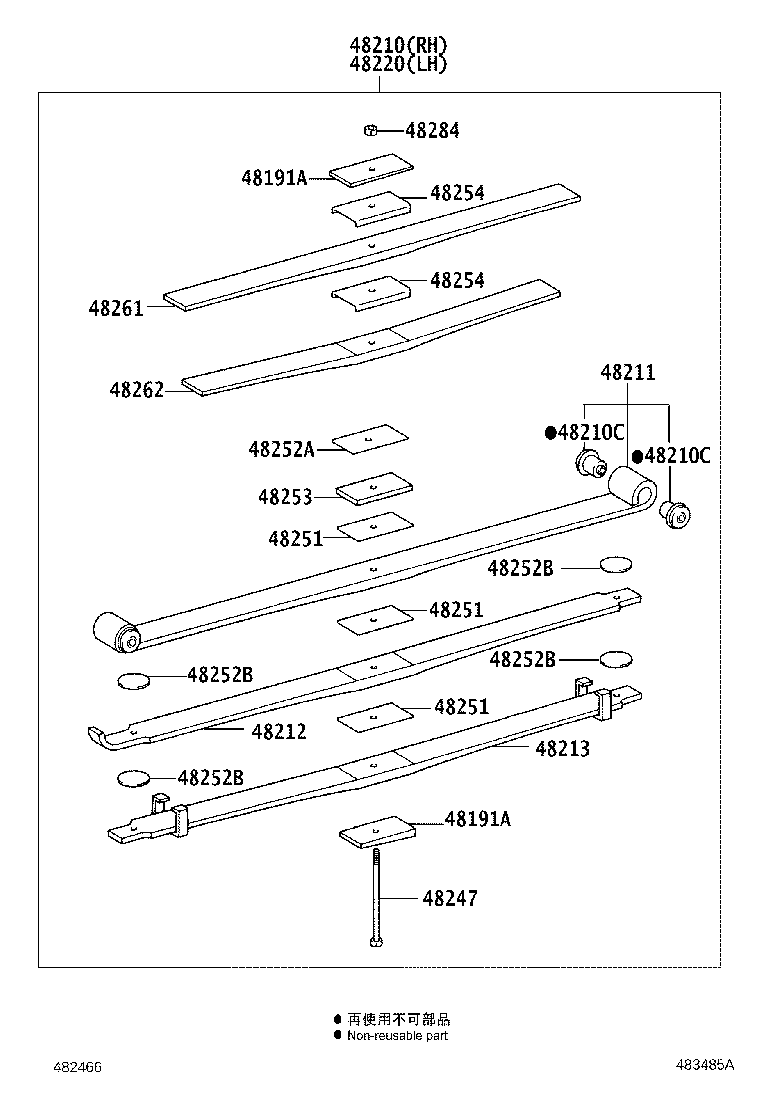

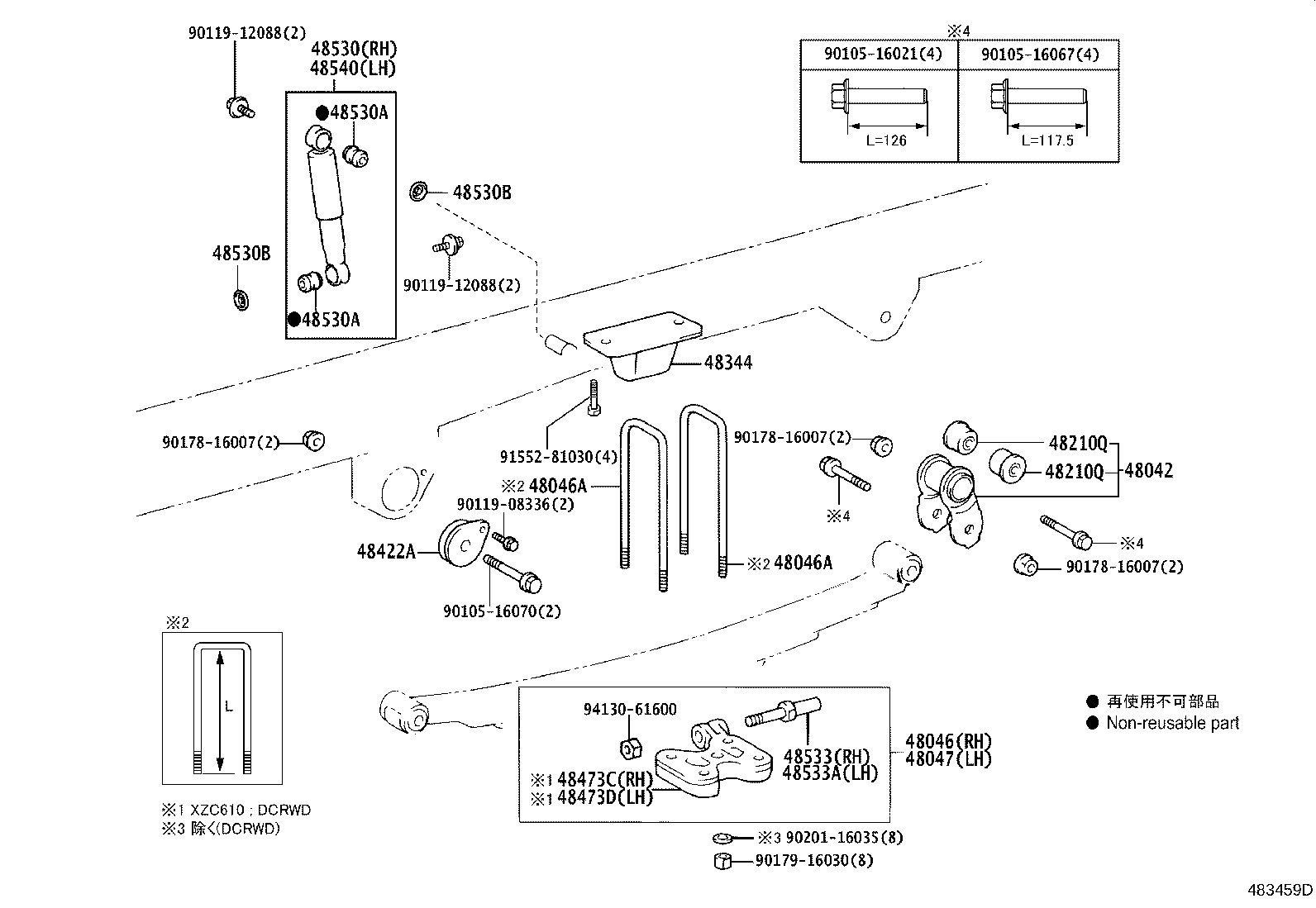

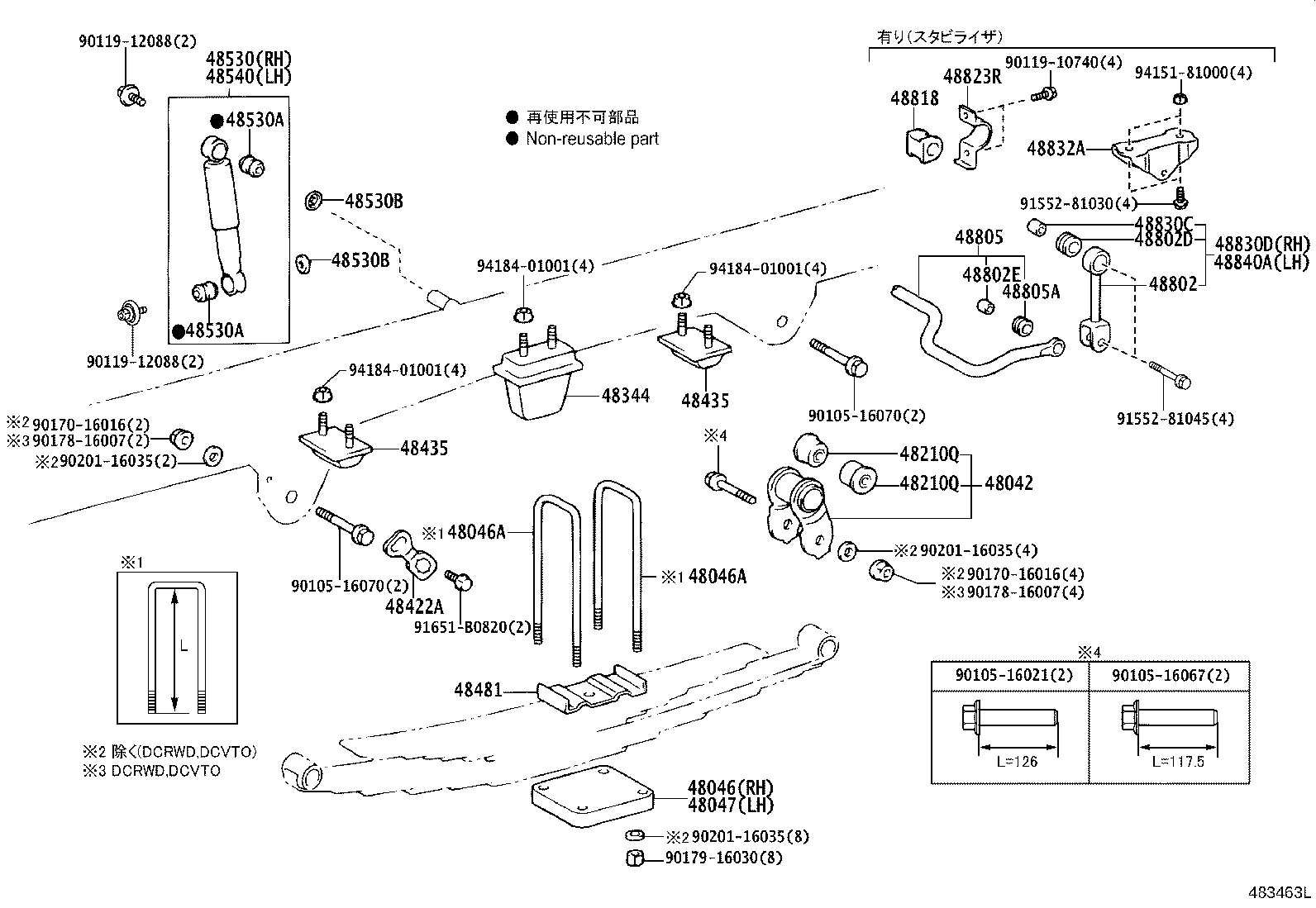

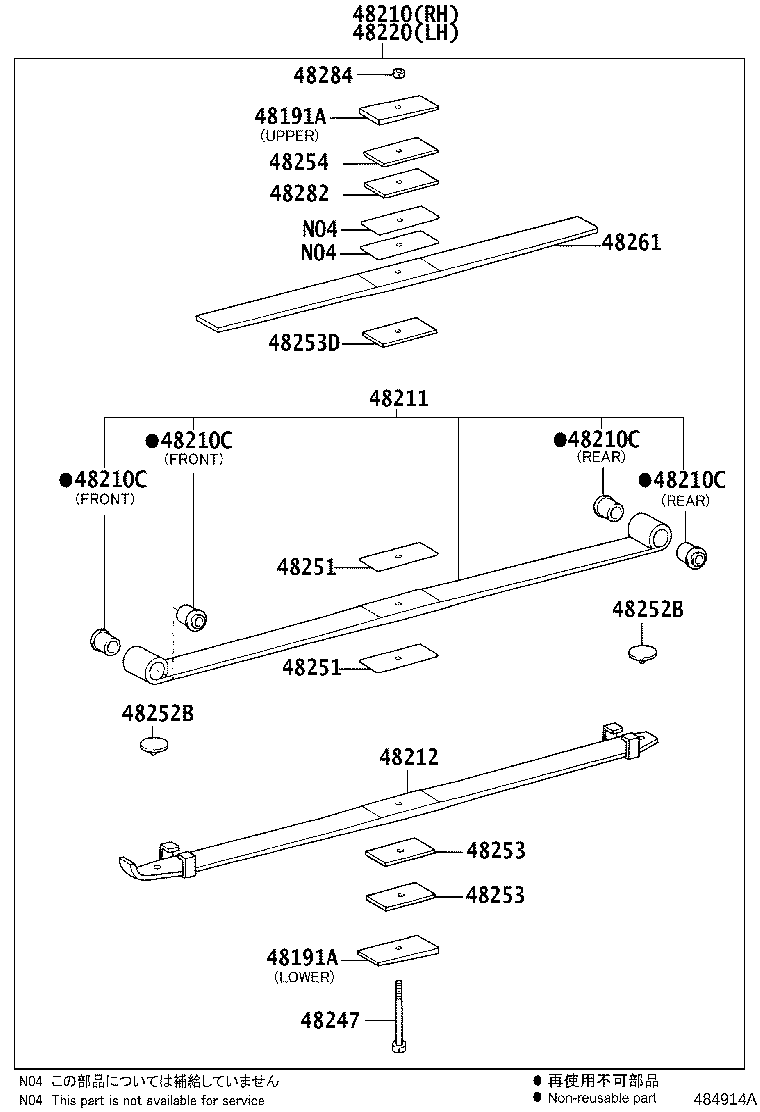

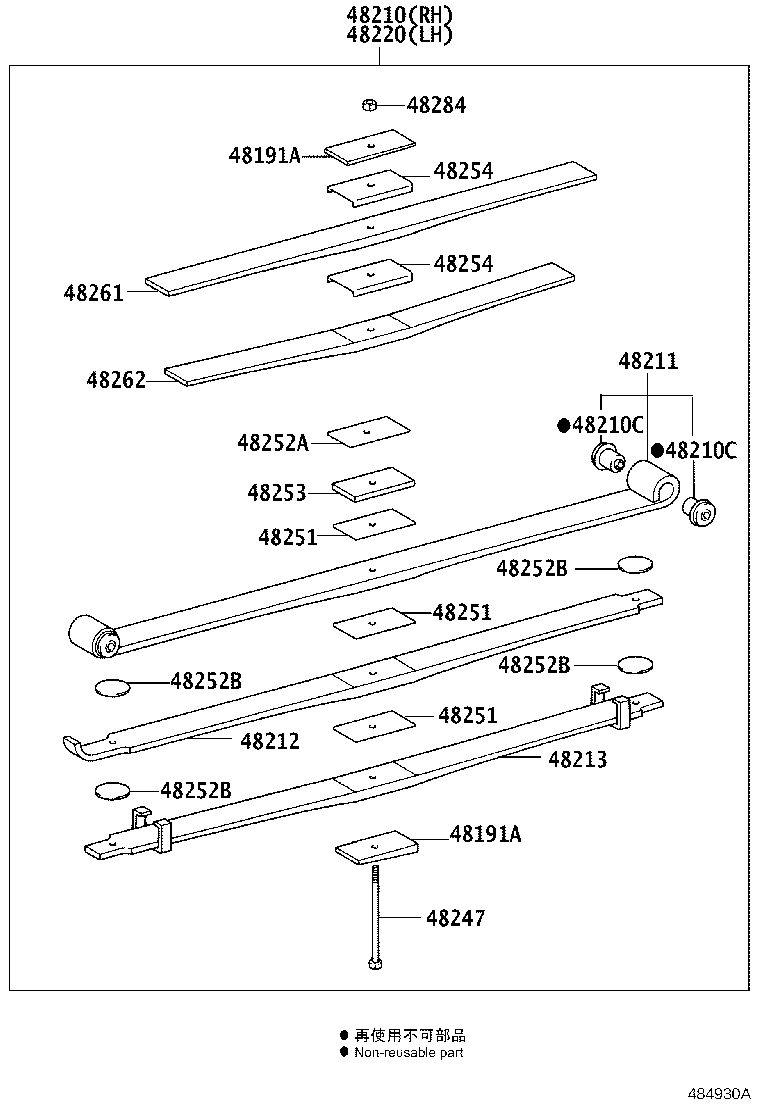

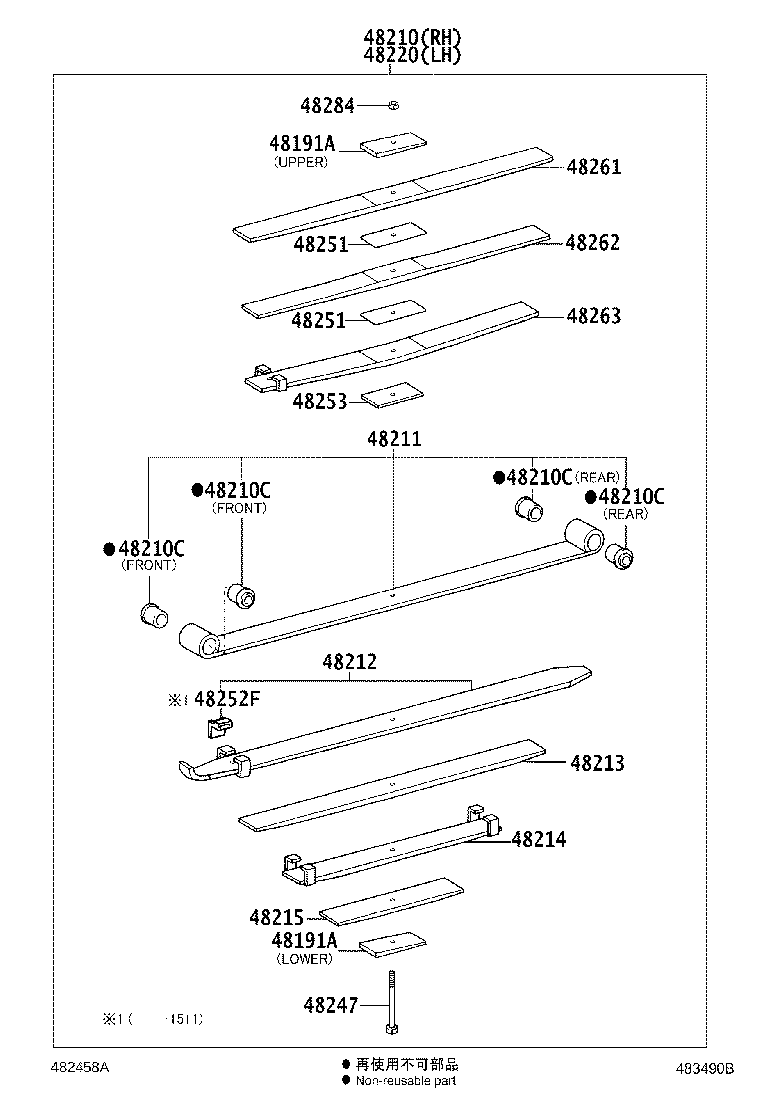

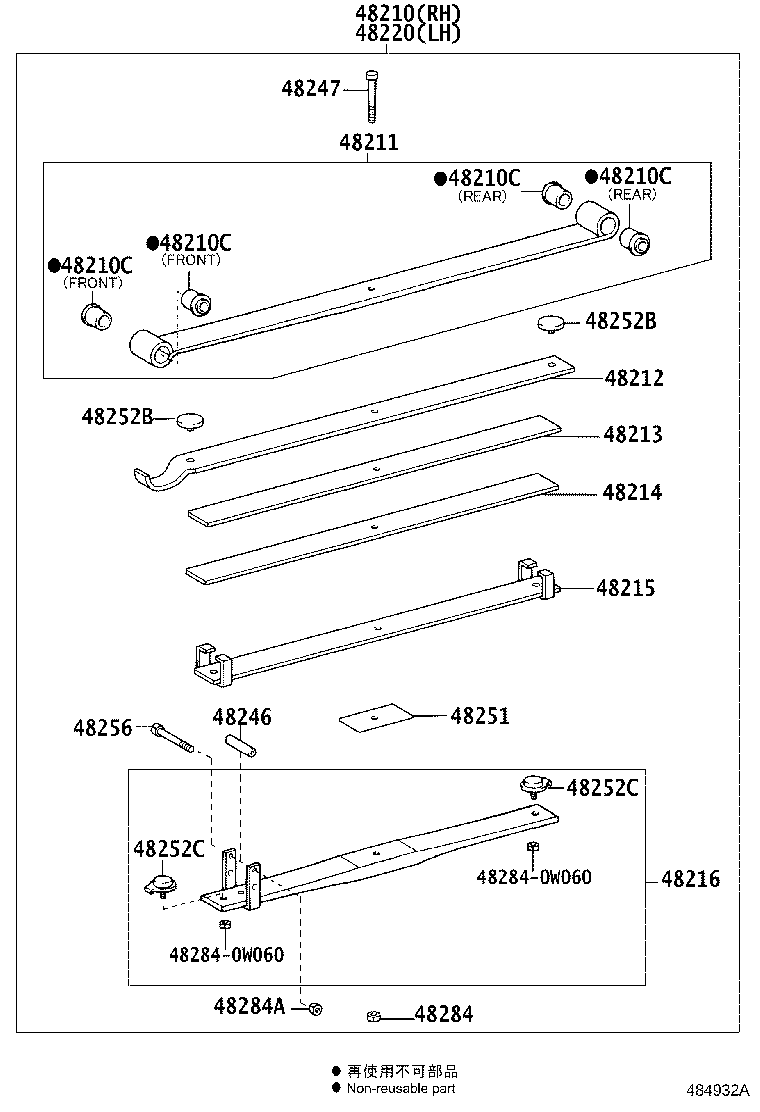

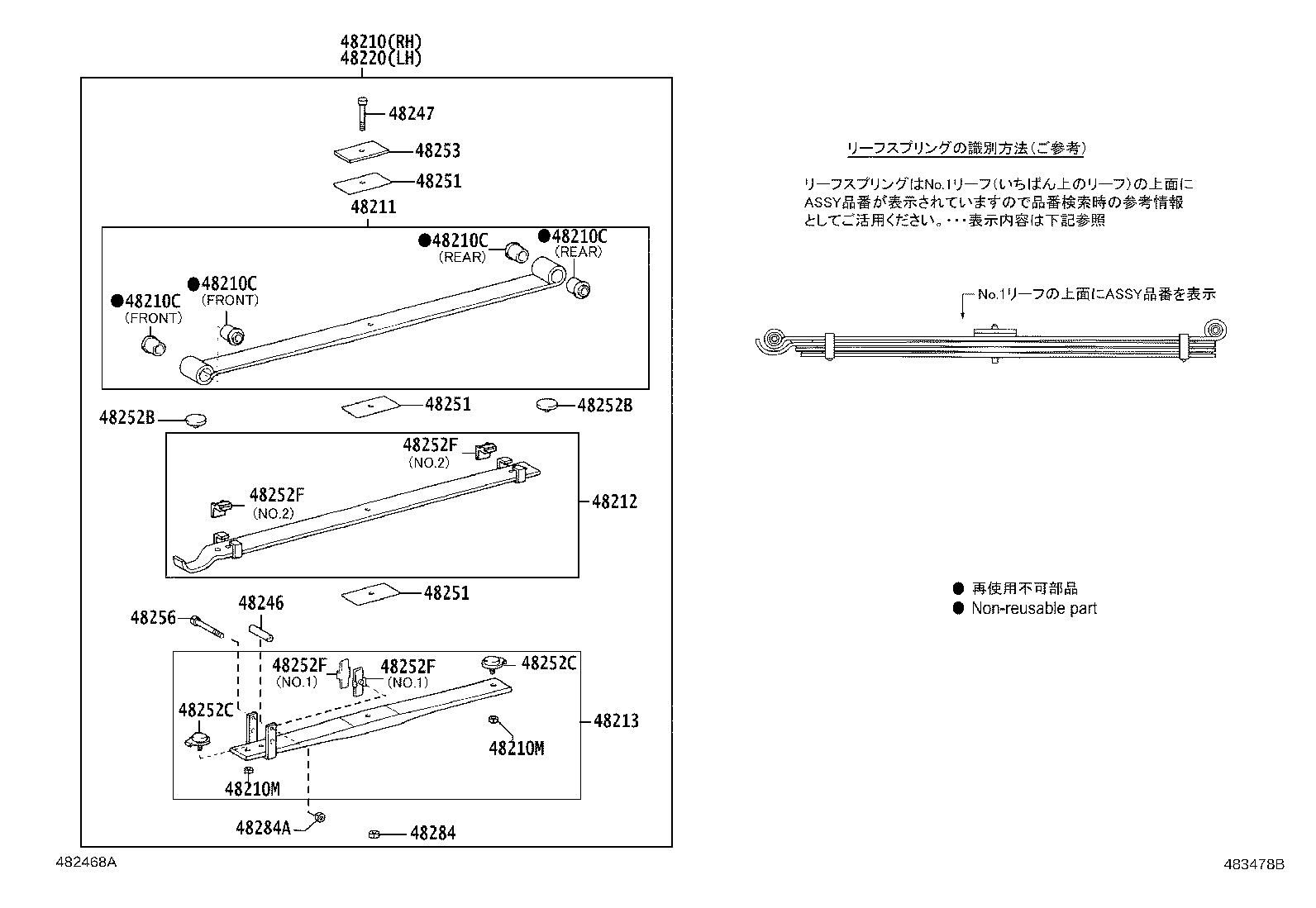

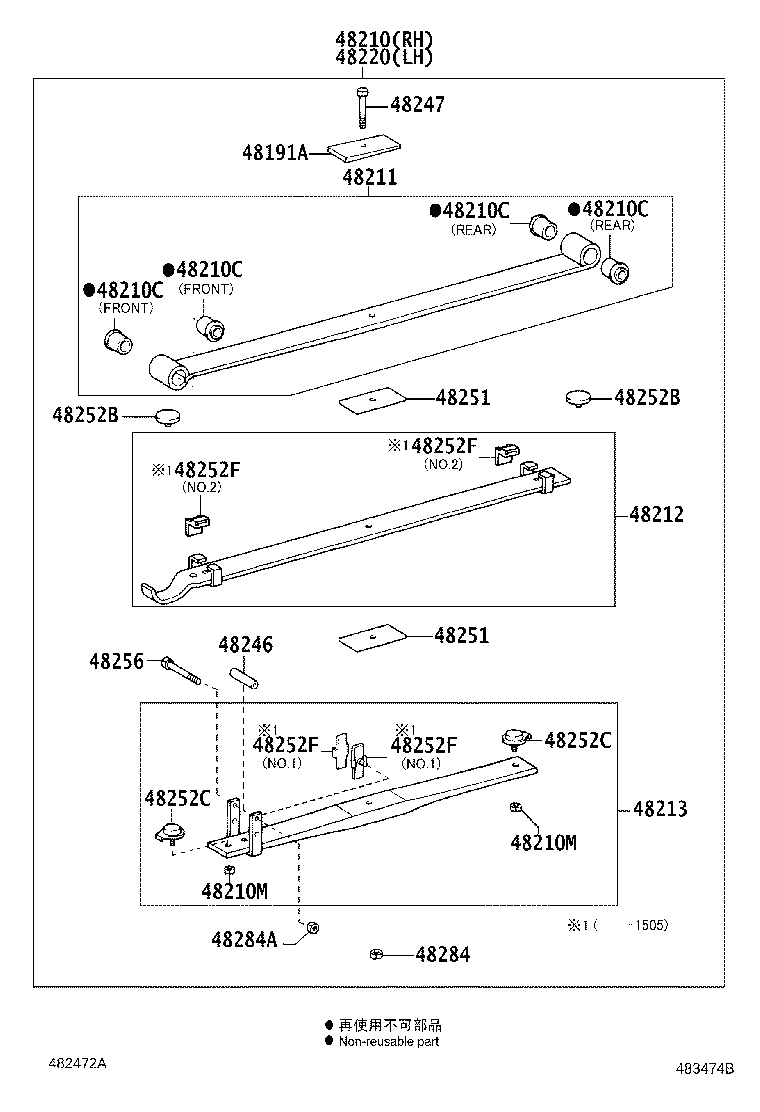

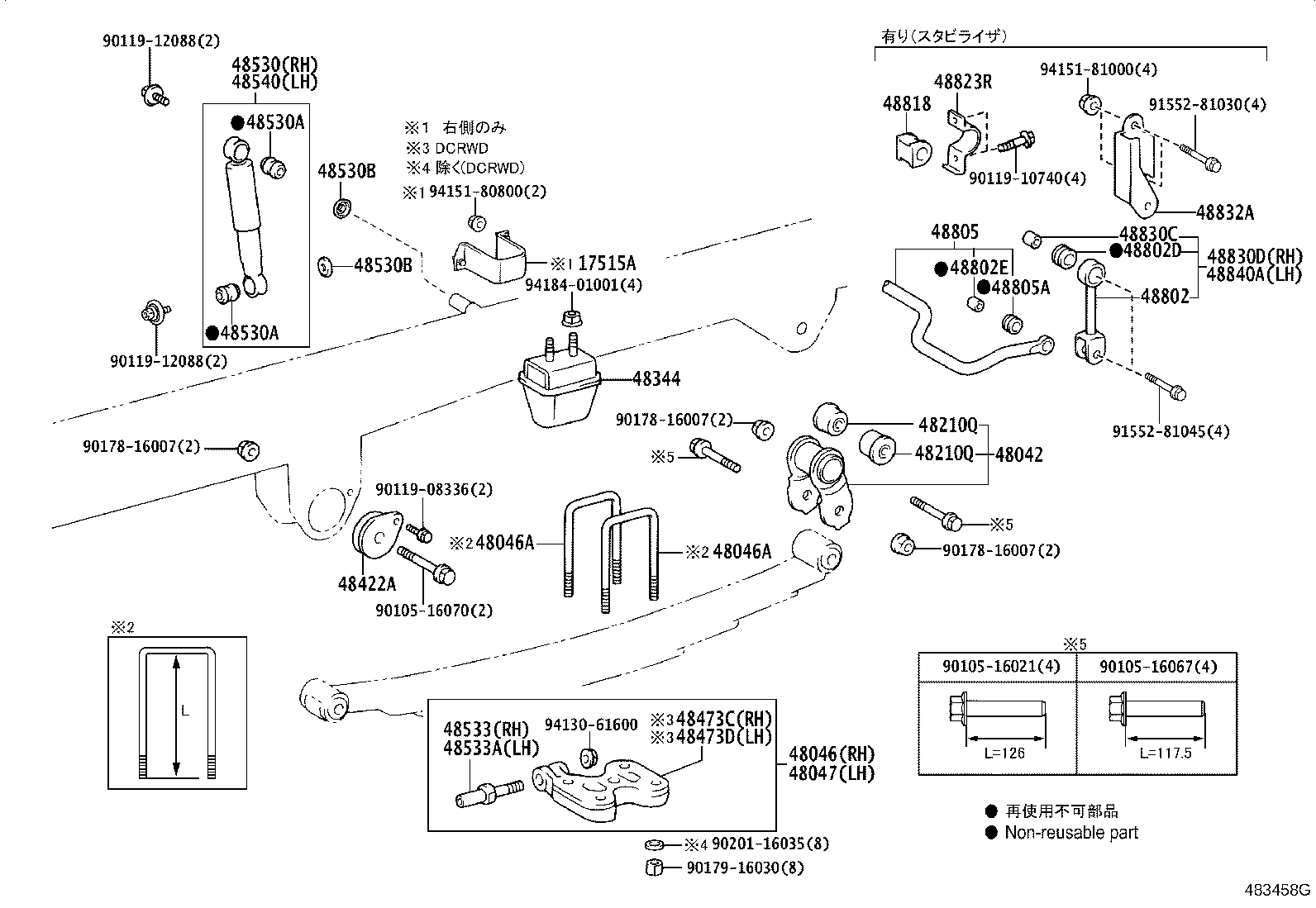

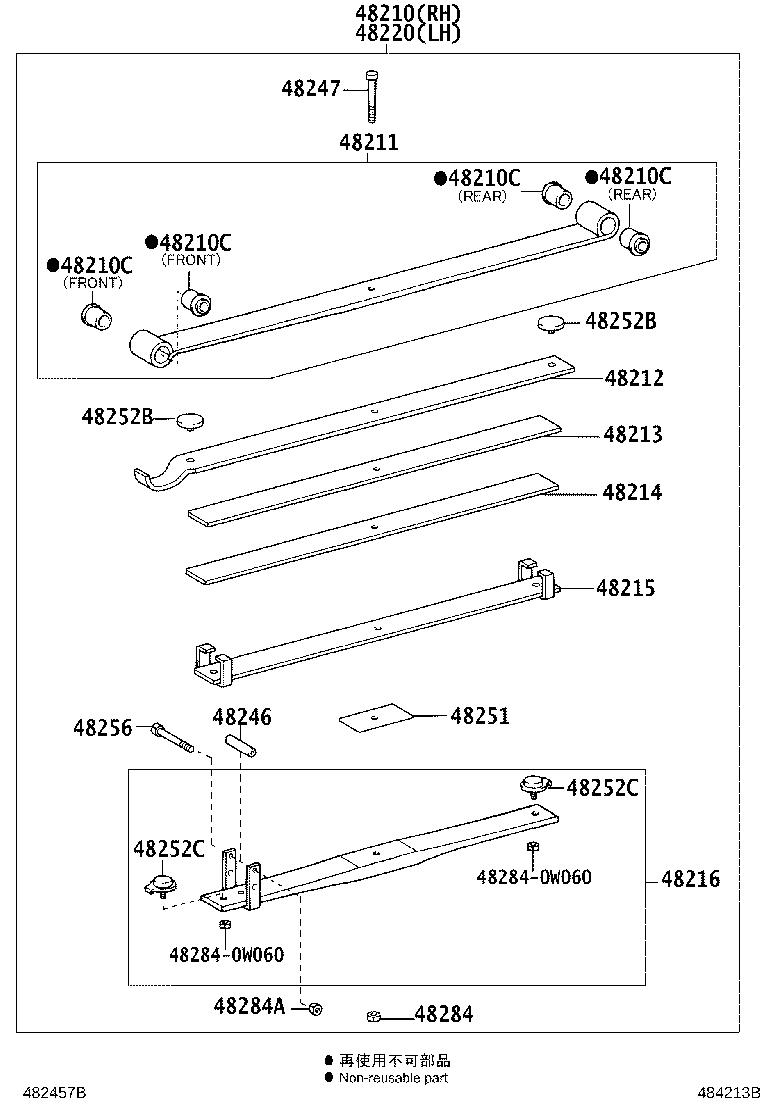

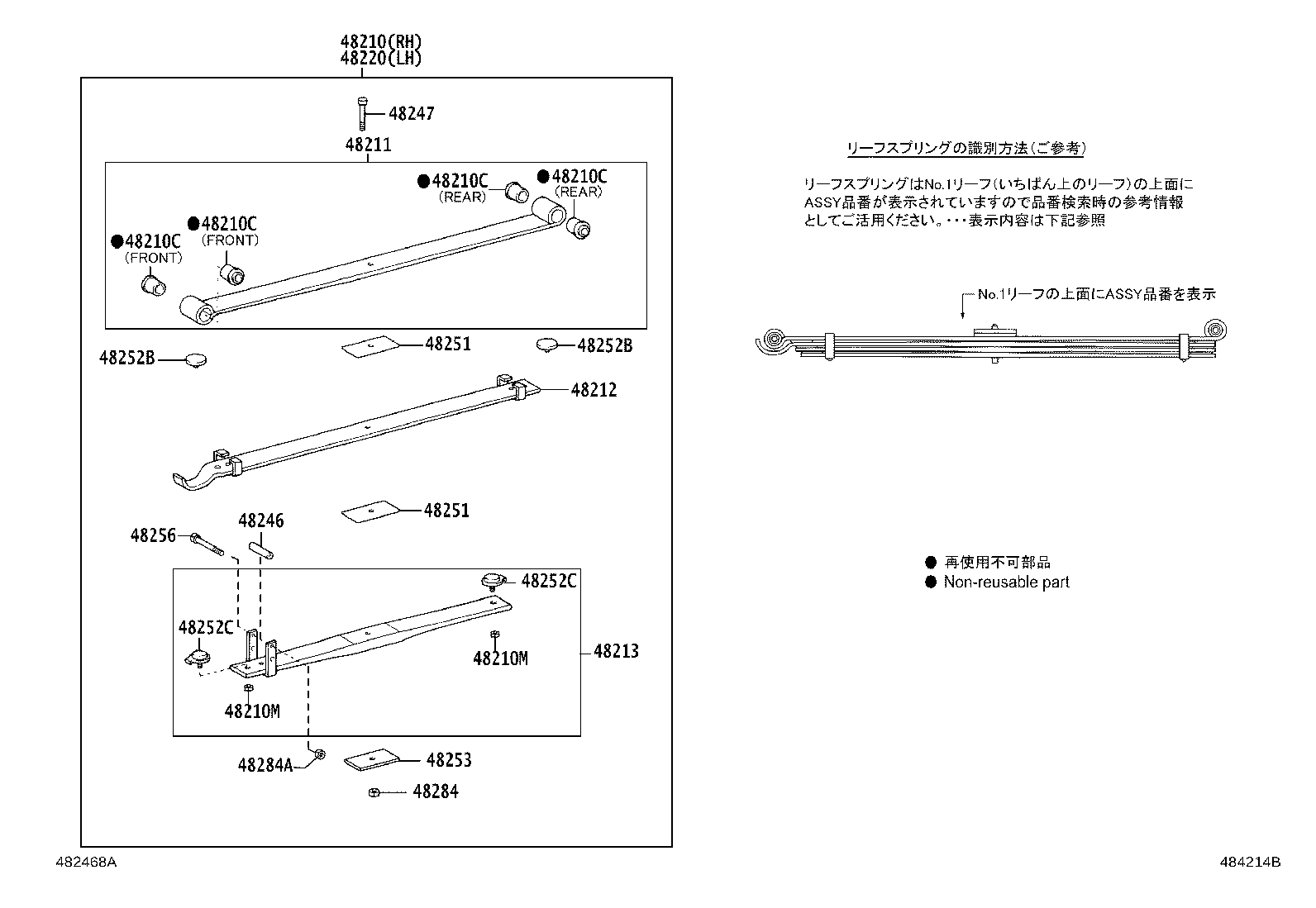

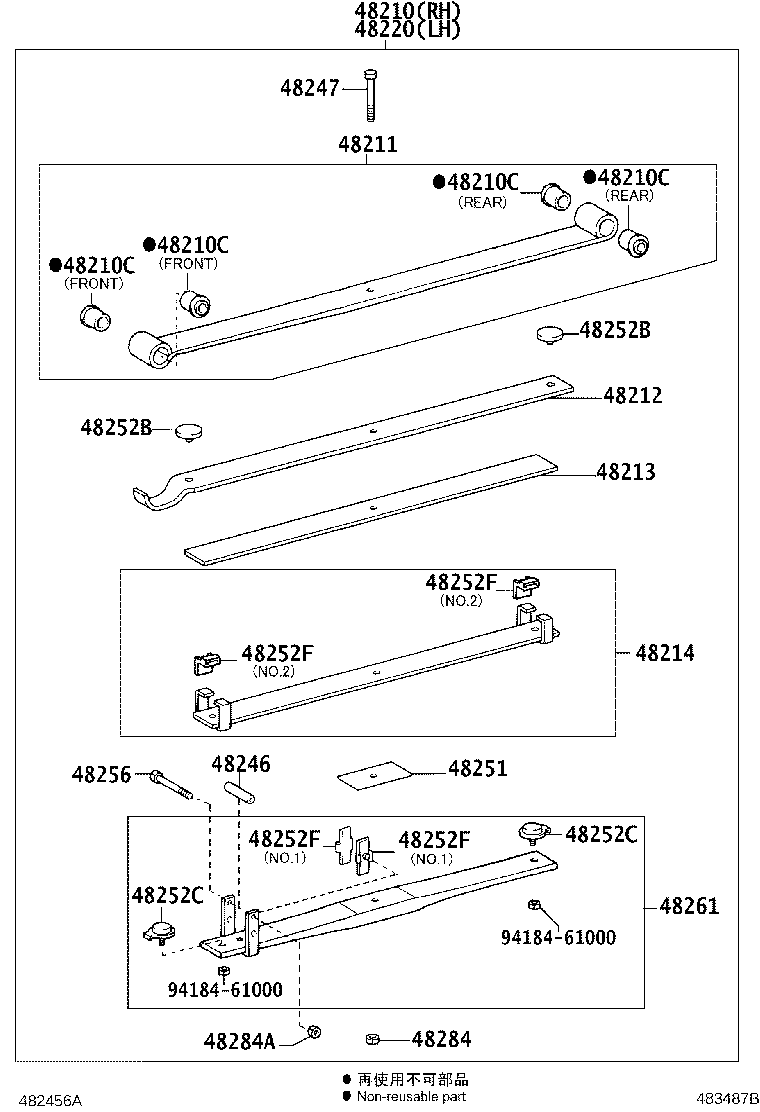

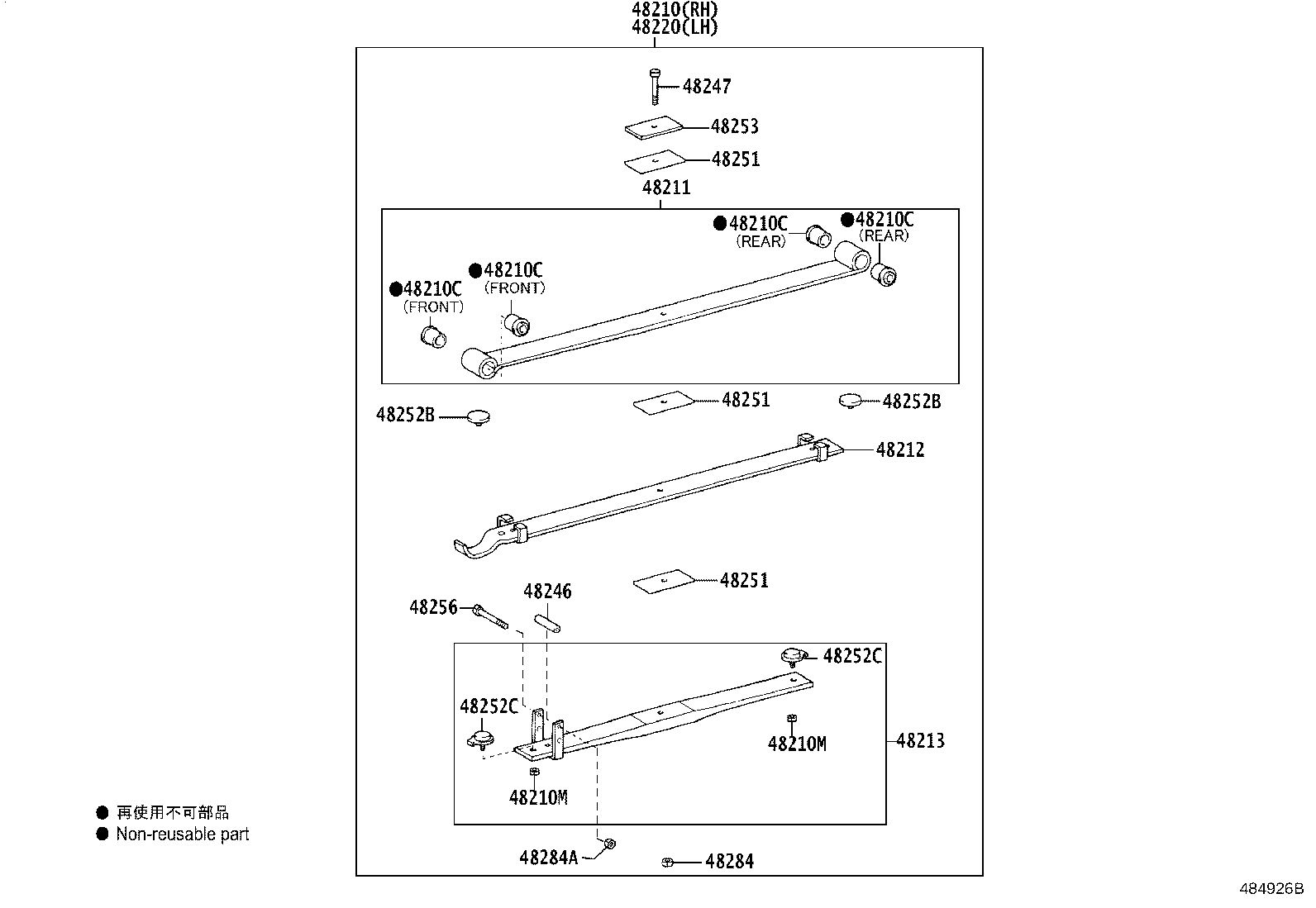

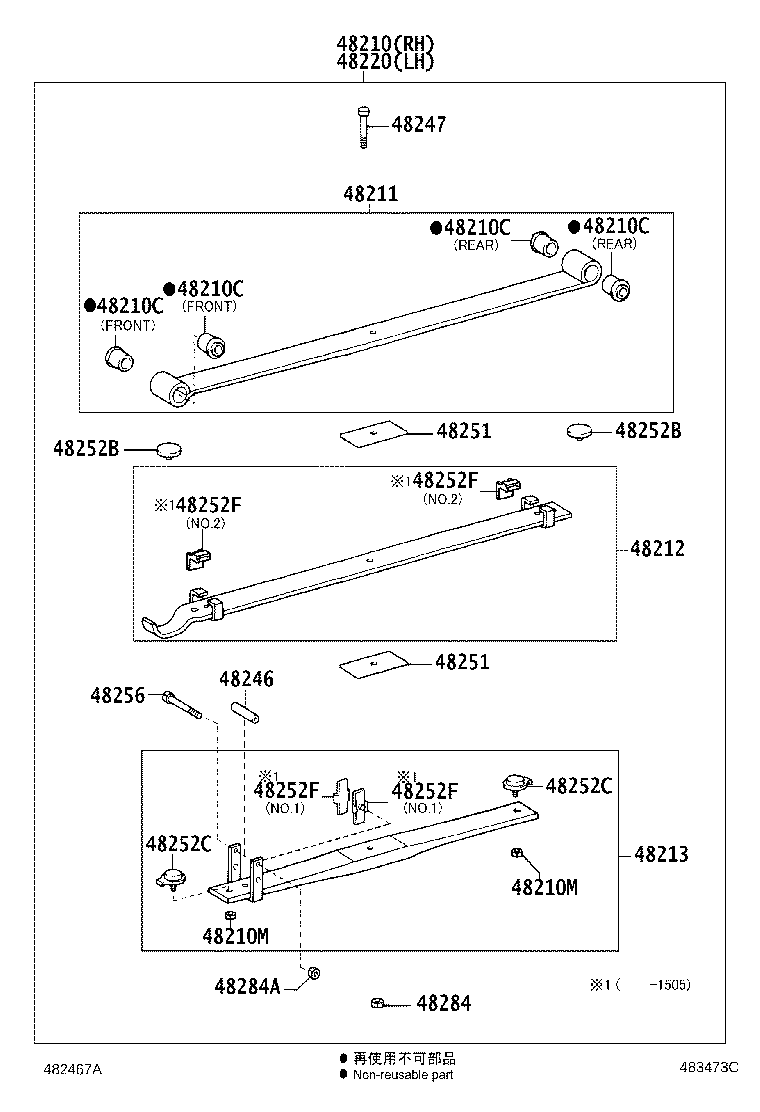

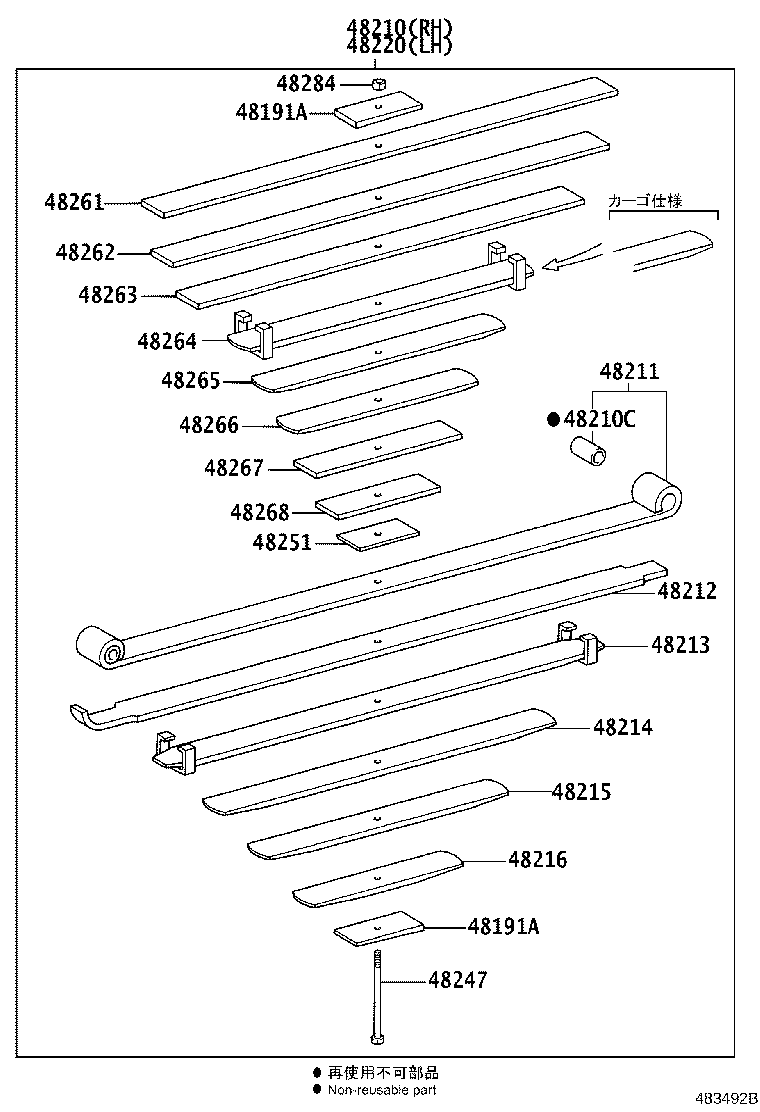

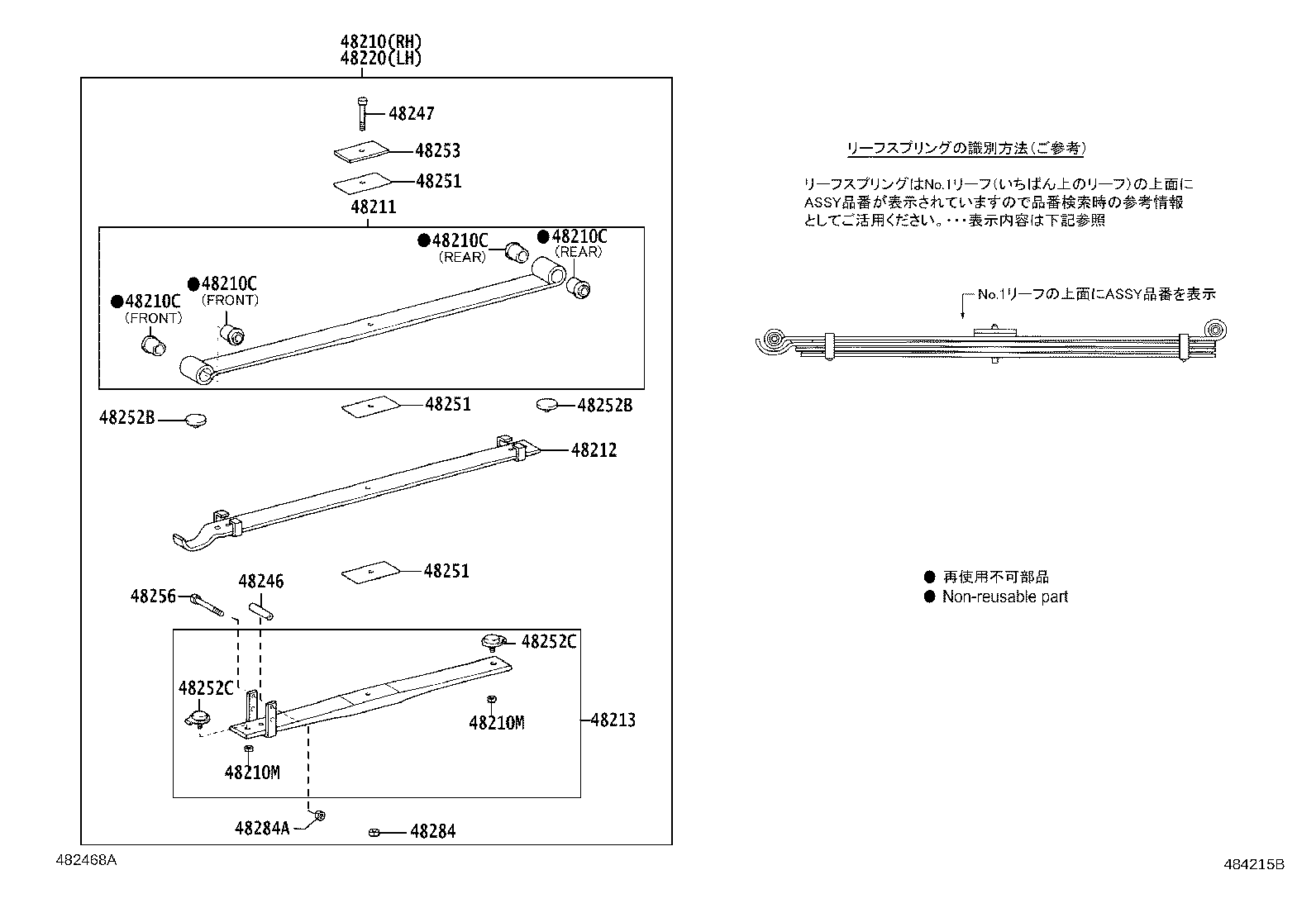

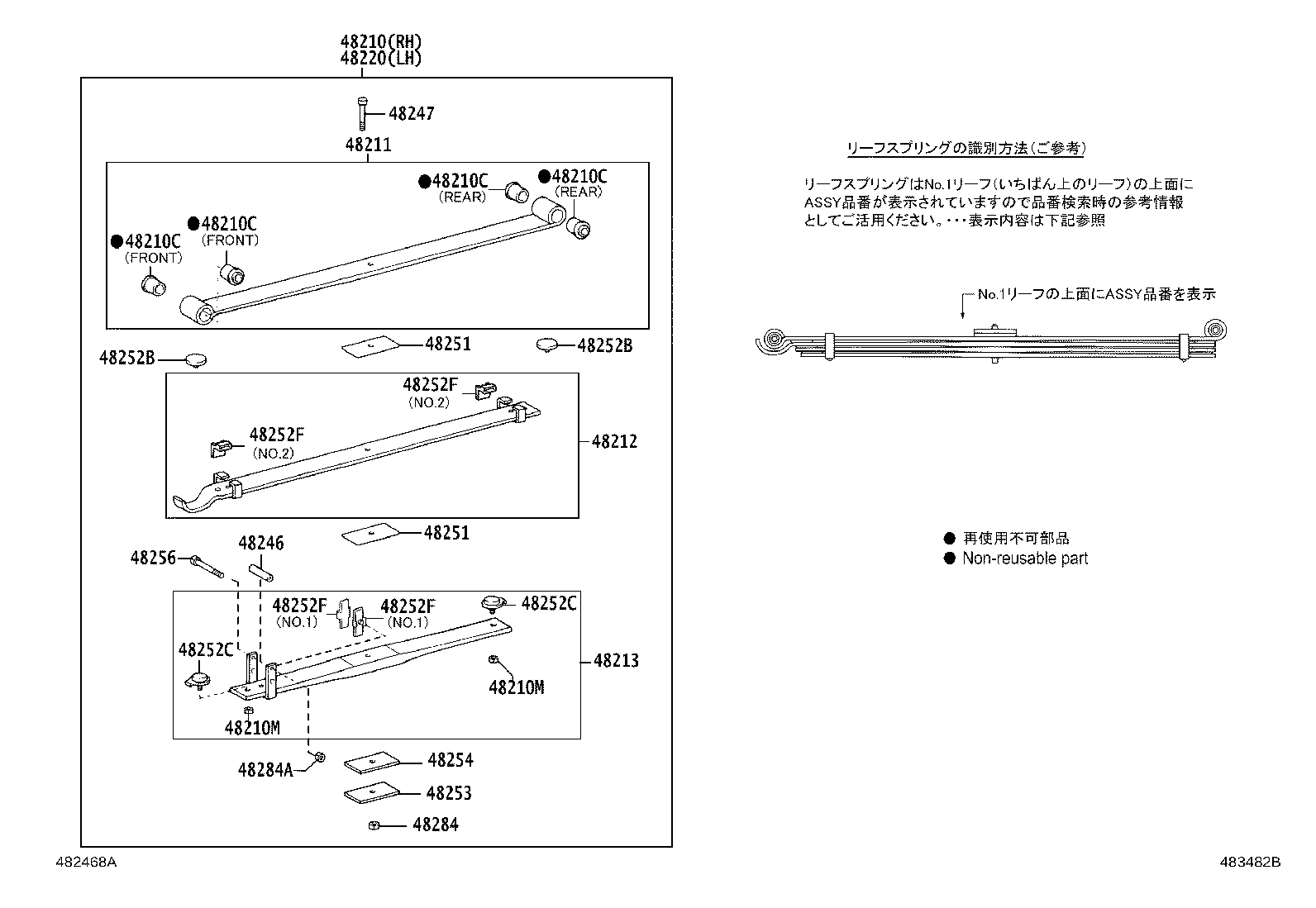

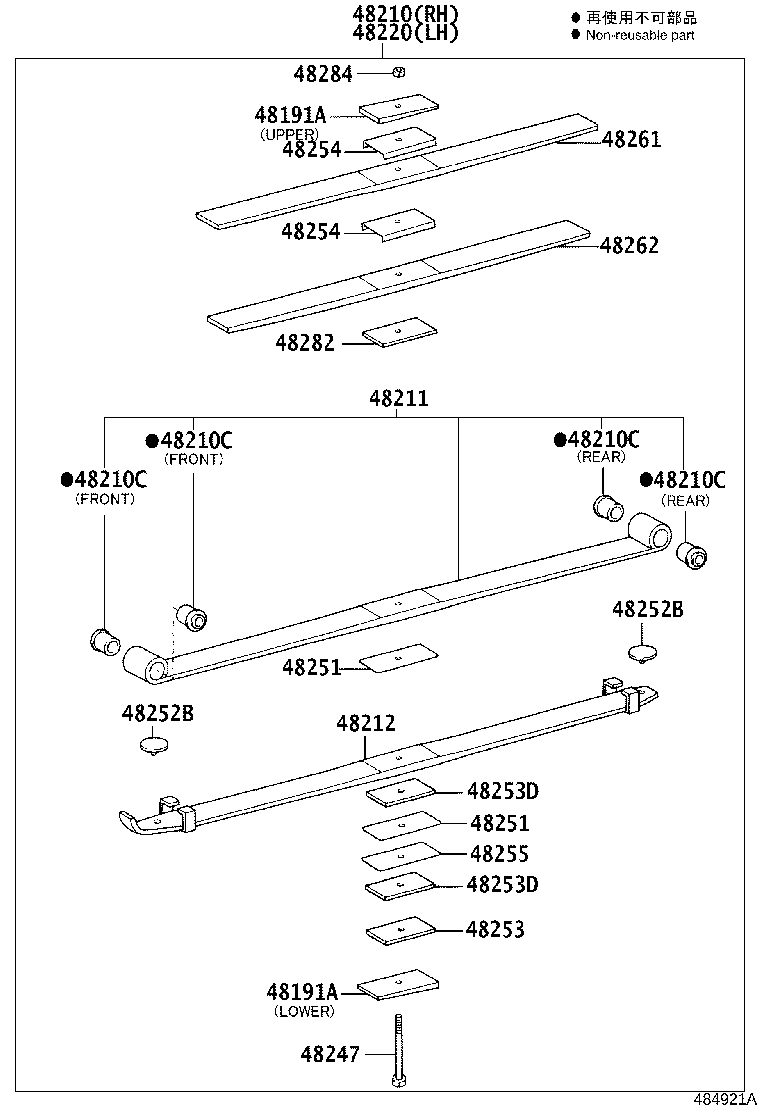

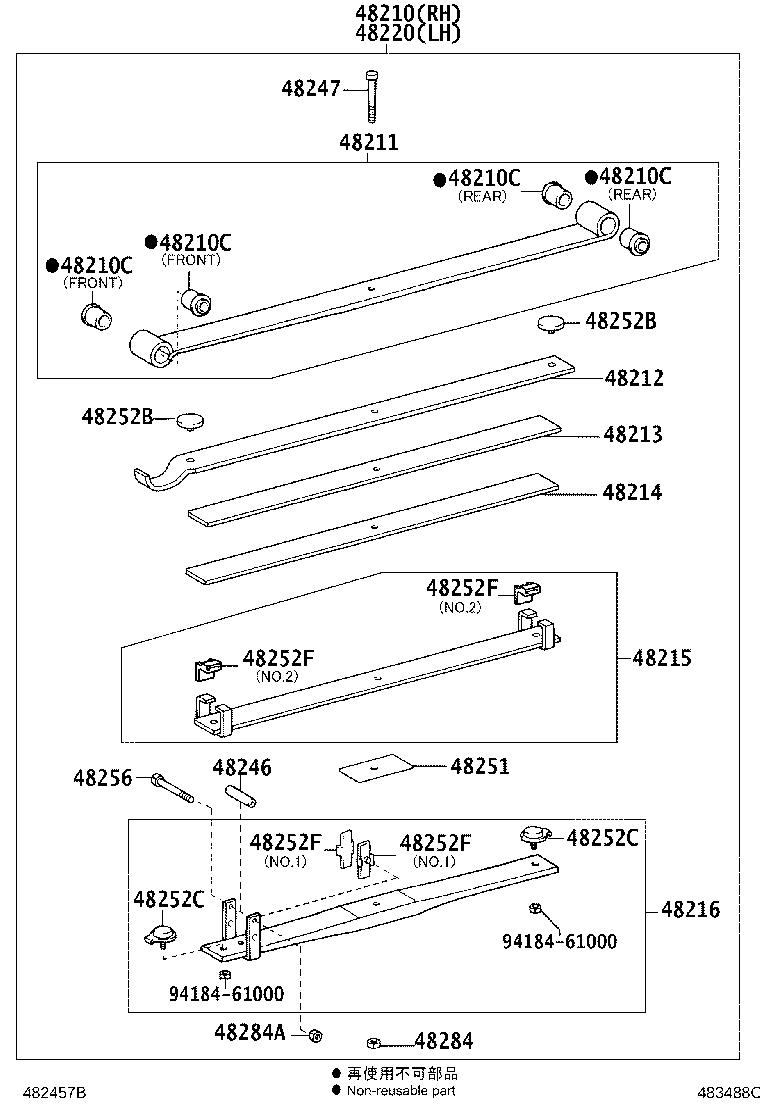

Figure 483457C 483457C 2011-07 → — Figure 483458G 483458G 2011-07 → — Figure 483458G 483458G 2011-07 → — Figure 483459D 483459D 2011-07 → — Figure 483460E 483460E 2011-07 → — Figure 483461D 483461D 2011-07 → — Figure 483463L 483463L 2011-07 → — Figure 483463L 483463L 2011-07 → — Figure 484128C 484128C 2015-05 → — Figure 483471C 483471C 2011-07 → — Figure 483472B 483472B 2011-07 → — Figure 483473C 483473C 2011-07 → — Figure 483474B 483474B 2011-07 → — Figure 483475B 483475B 2011-07 → 2015-03 Figure 484212C 484212C 2015-03 → — Figure 483483C 483483C 2011-07 → — Figure 483484B 483484B 2011-07 → — Figure 483478B 483478B 2011-07 → 2015-03 Figure 484215B 484215B 2015-03 → — Figure 483482B 483482B 2011-07 → 2015-03 Figure 484214B 484214B 2015-03 → — Figure 483485A 483485A 2011-07 → — Figure 483486B 483486B 2011-07 → — Figure 483487B 483487B 2011-07 → 2015-03 Figure 484211B 484211B 2015-03 → — Figure 483490B 483490B 2011-07 → — Figure 483488C 483488C 2011-07 → 2015-03 Figure 483488C 483488C 2011-07 → 2015-03 Figure 484213B 484213B 2015-03 → — Figure 484213B 484213B 2015-03 → — Figure 484213B 484213B 2015-05 → — Figure 483489B 483489B 2011-07 → — Figure 483491A 483491A 2011-07 → — Figure 483492B 483492B 2011-07 → — Figure 484911A 484911A 2019-05 → — Figure 484912A 484912A 2019-05 → — Figure 484913A 484913A 2019-05 → — Figure 484914A 484914A 2019-05 → — Figure 484915A 484915A 2019-05 → — Figure 484917A 484917A 2019-05 → — Figure 484918B 484918B 2019-05 → — Figure 484919A 484919A 2019-05 → — Figure 484920B 484920B 2019-05 → — Figure 484921A 484921A 2019-05 → — Figure 484922A 484922A 2019-05 → — Figure 484923A 484923A 2019-05 → — Figure 484924A 484924A 2019-05 → — Figure 484925A 484925A 2019-05 → — Figure 484926B 484926B 2019-05 → — Figure 484928A 484928A 2019-05 → — Figure 484929A 484929A 2019-05 → — Figure 484930A 484930A 2019-05 → — Figure 484931A 484931A 2019-05 → — Figure 484932A 484932A 2019-05 → —

Part groups

PNCDescription
17515A Retainer, Shock Absorber
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)

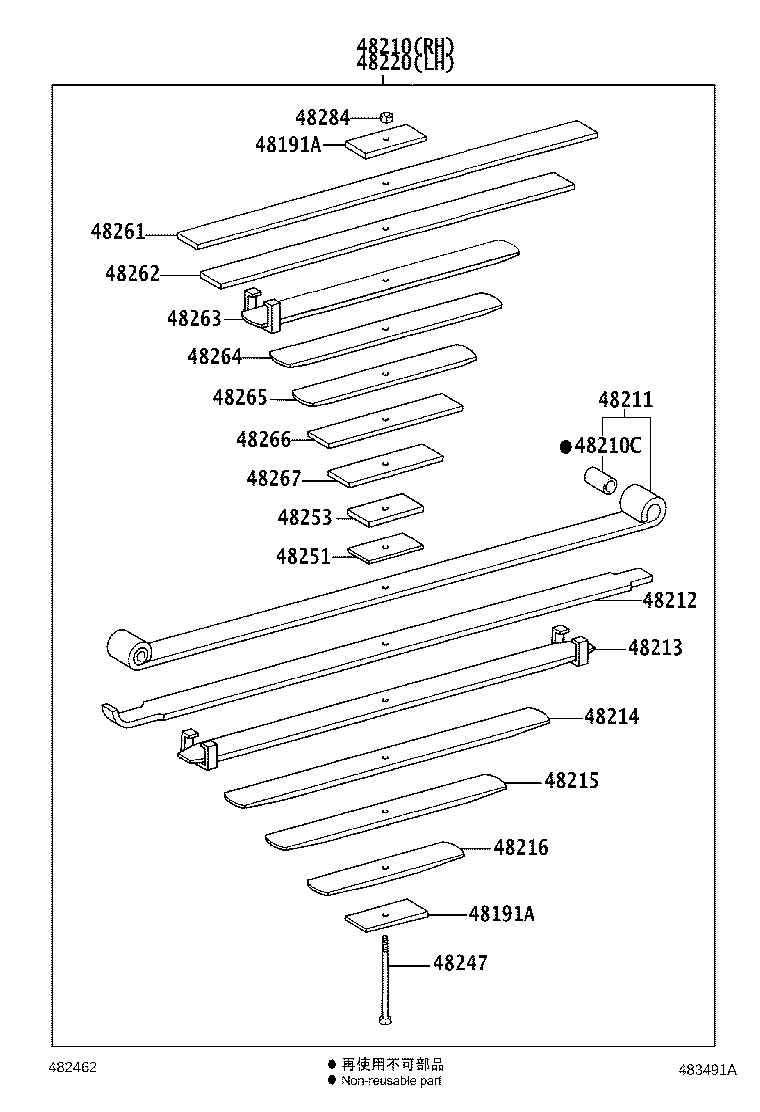

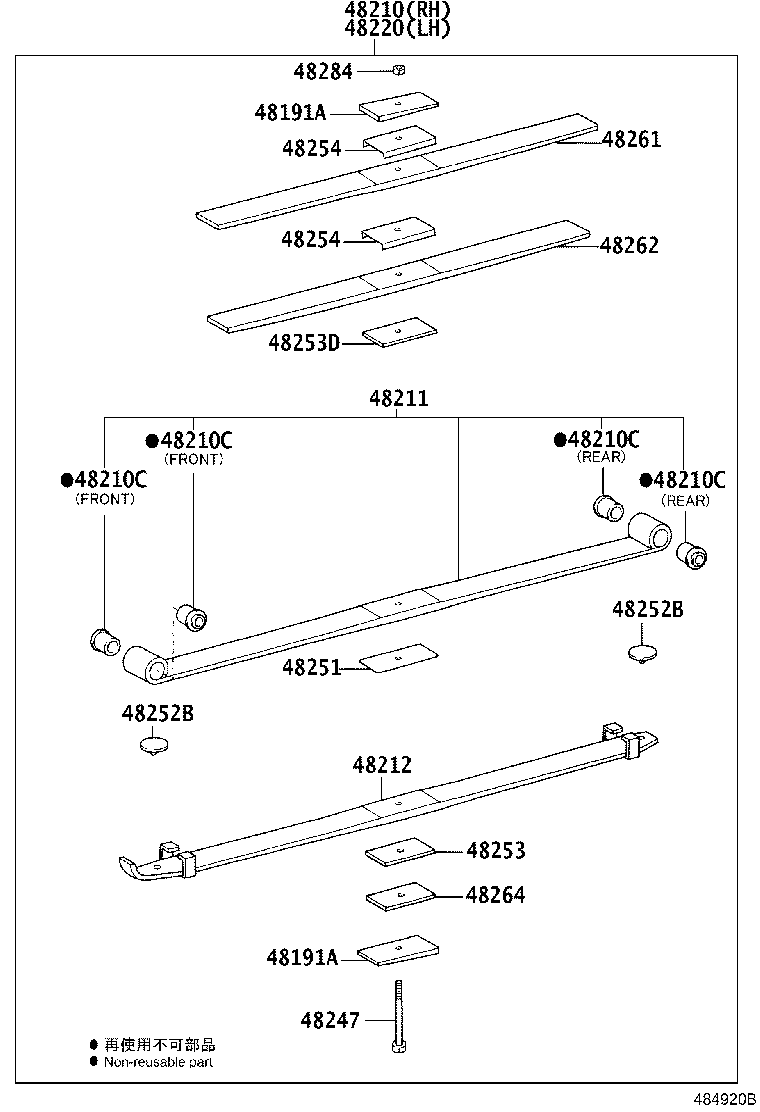

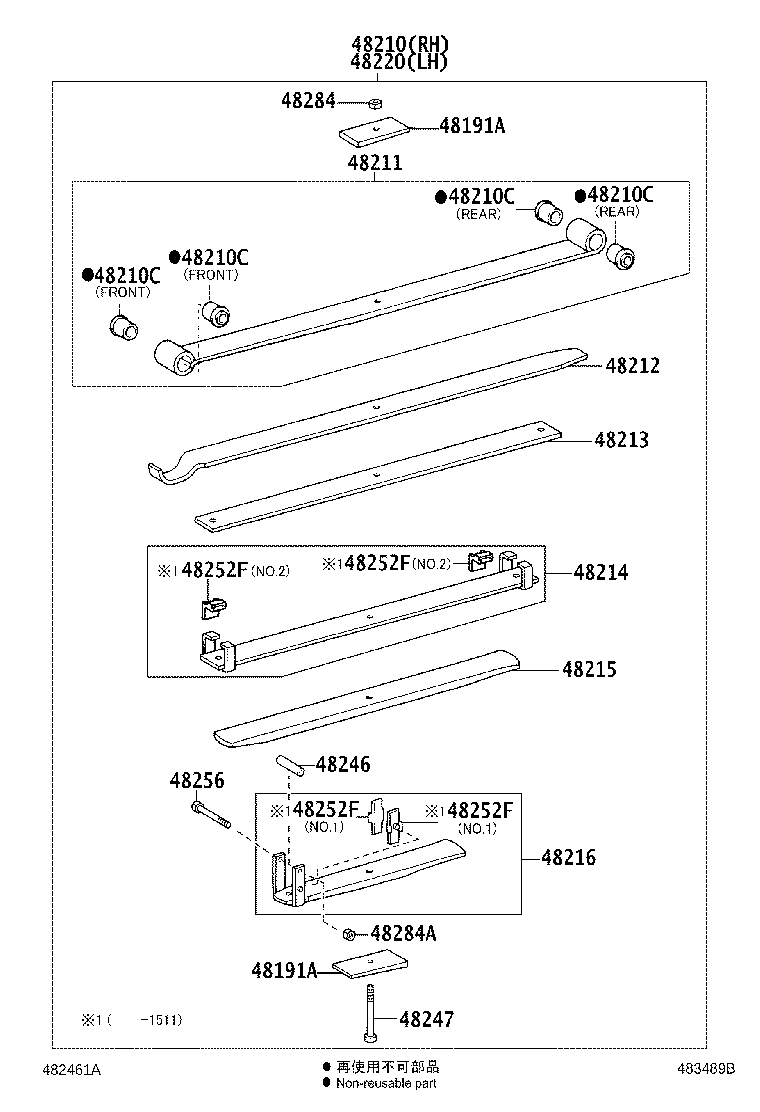

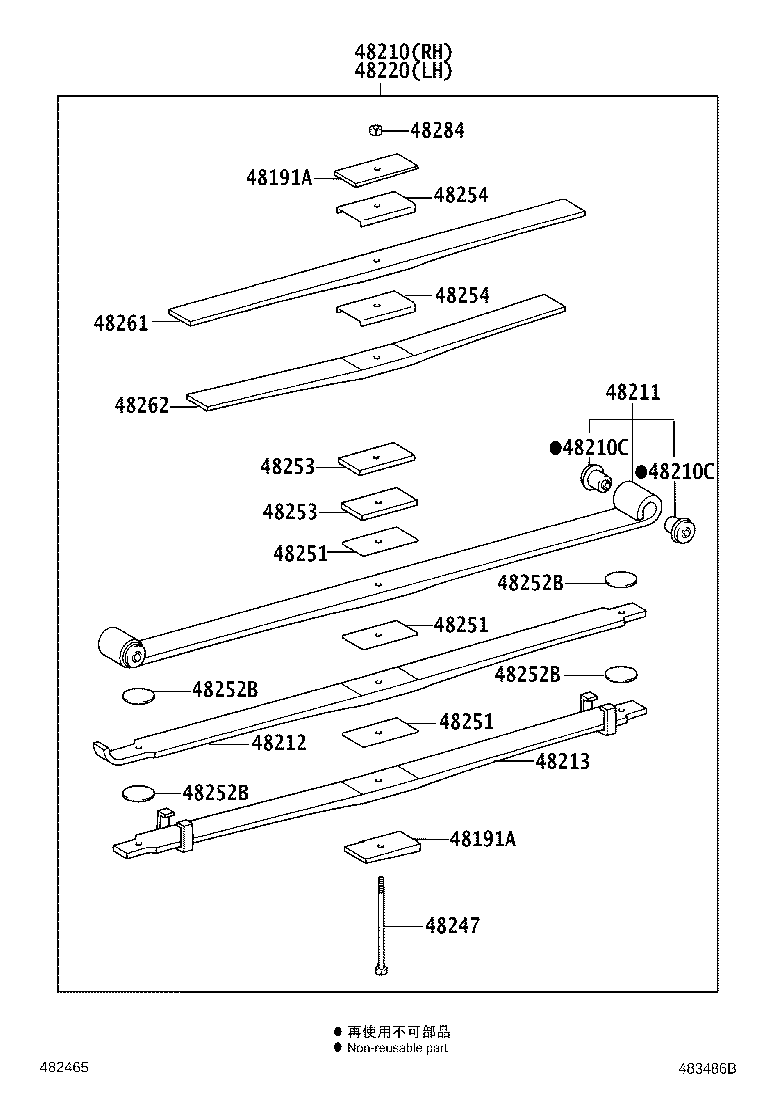

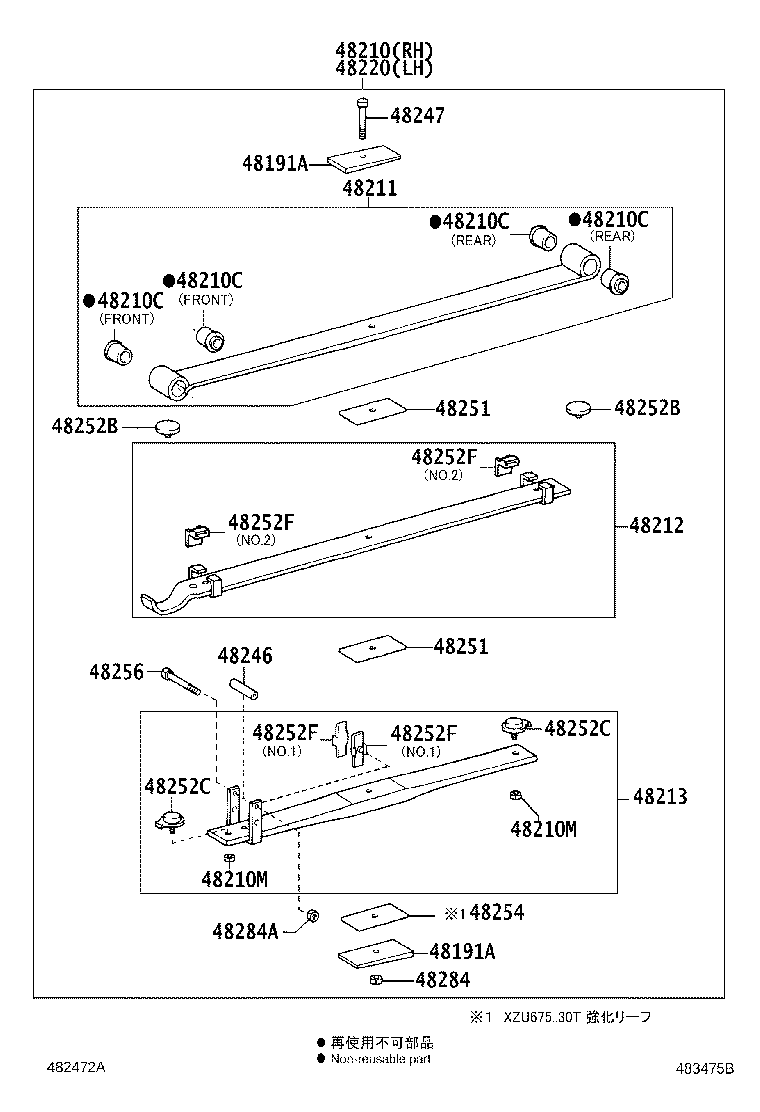

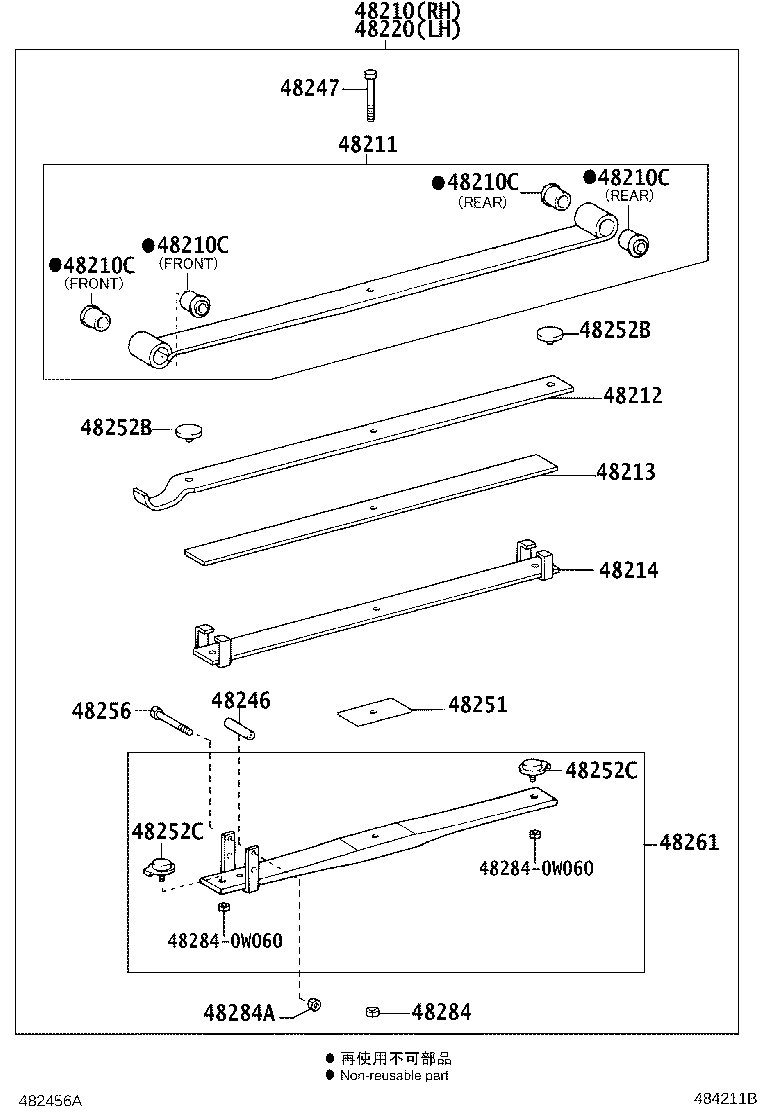

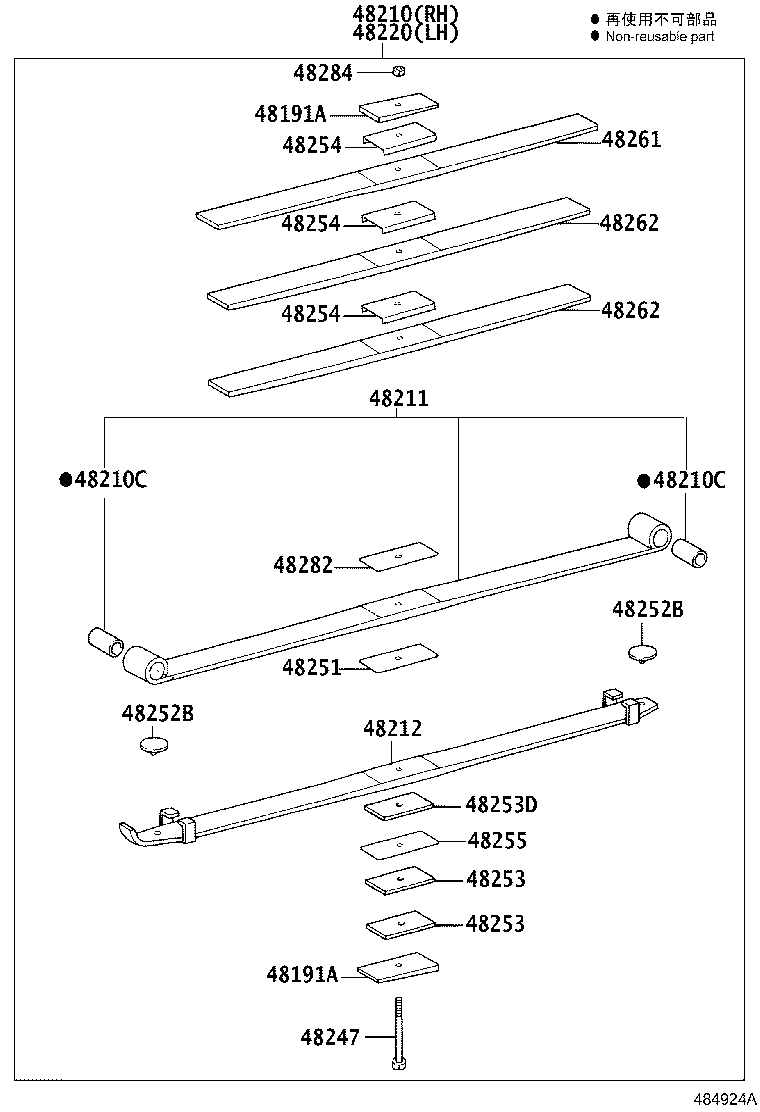

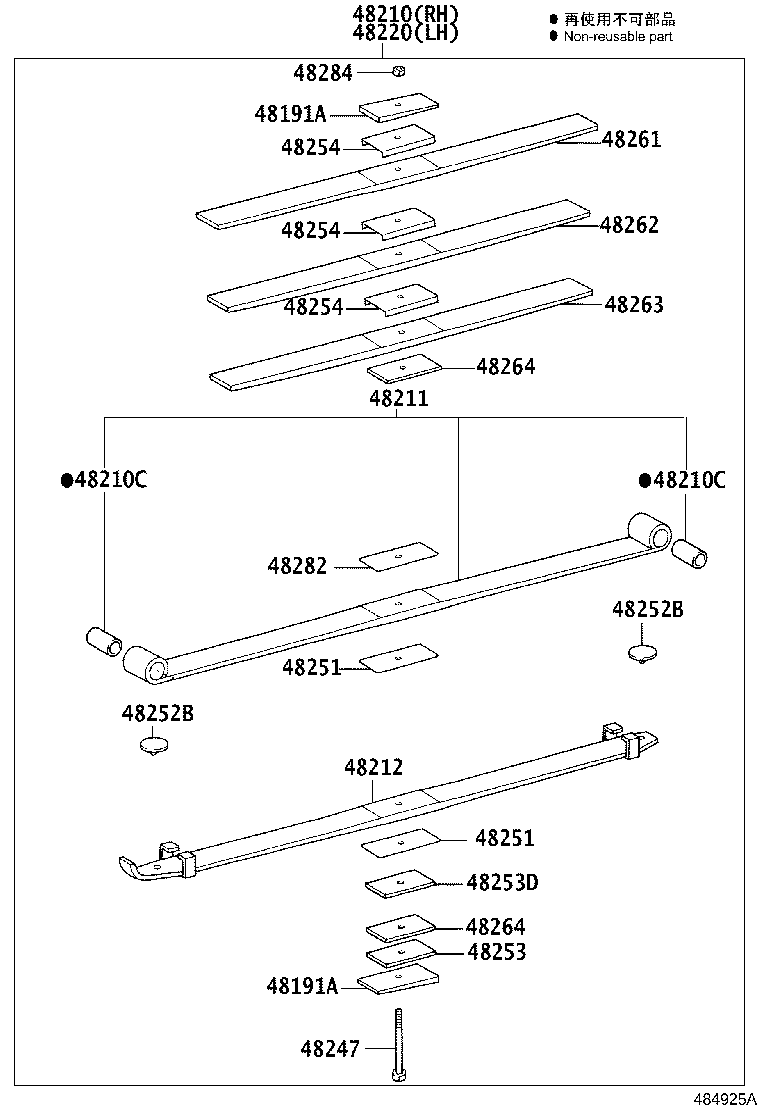

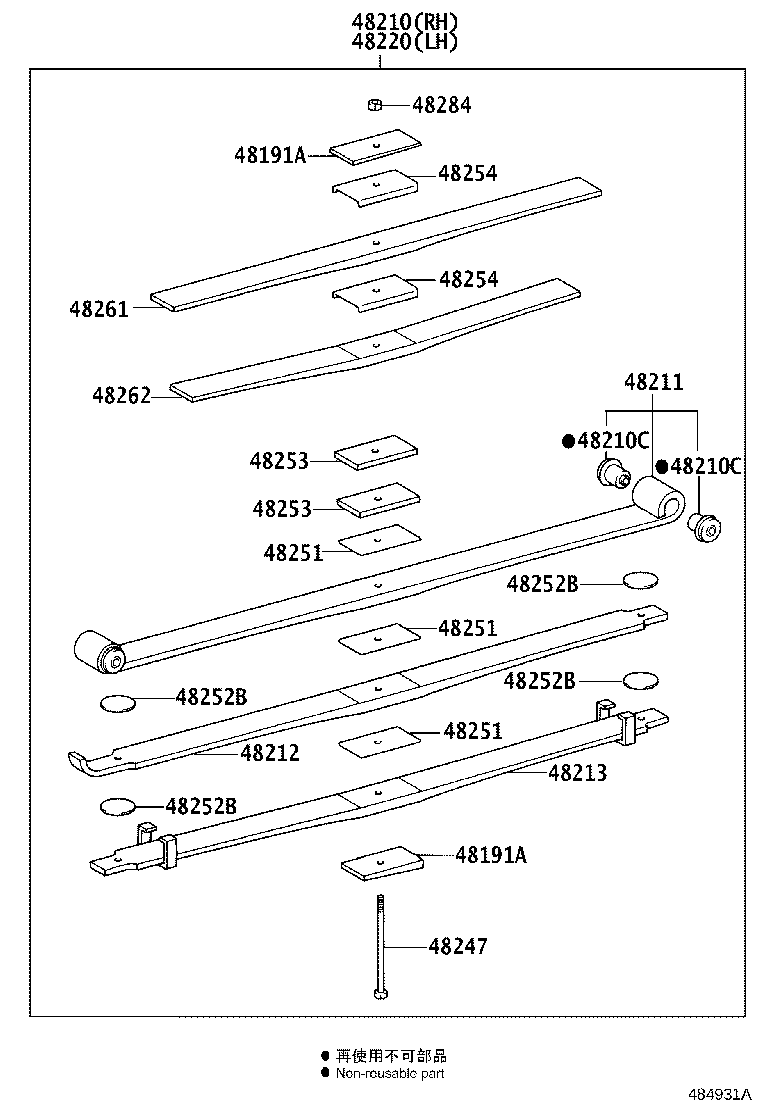

48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210M Nut(FOR REAR SPRING)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48252F Silencer, Rear Spring, NO.3
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48282 Seat, Rear Helper Spring
48284 Nut, Rear Spring Center Bolt
48284A Nut, Rear Spring Clip
48344 Stopper, Bumper, Rear
48422A Support, Rear Spring Pin
48424 Pin, Spring Bracket, NO.2
48435 Attachment, Helper Spring Bracket, NO.1
48473C Seat, Rear Spring U Bolt, RH
48473D Seat, Rear Spring U Bolt, LH
48481 Seat, Rear Spring, Upper

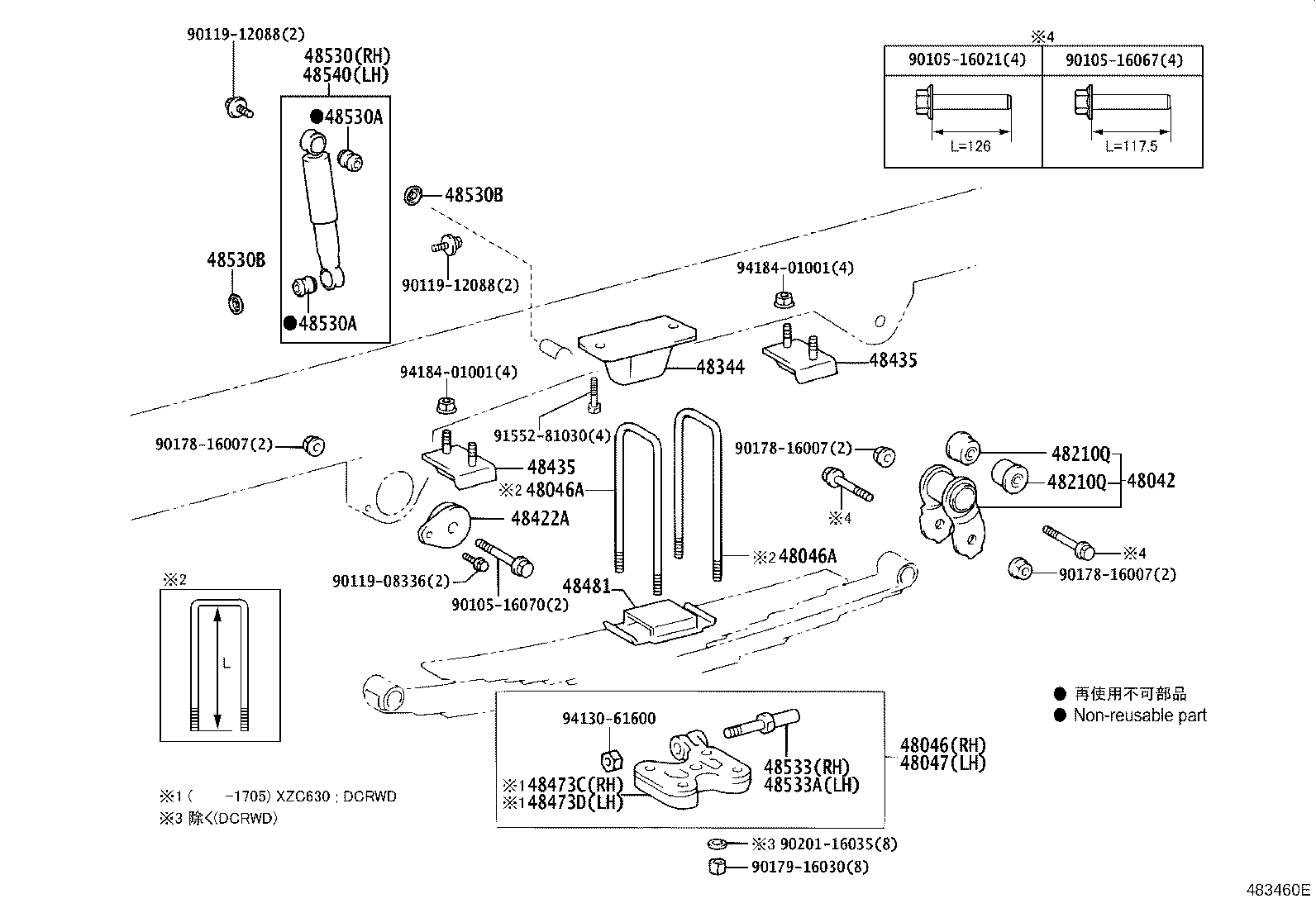

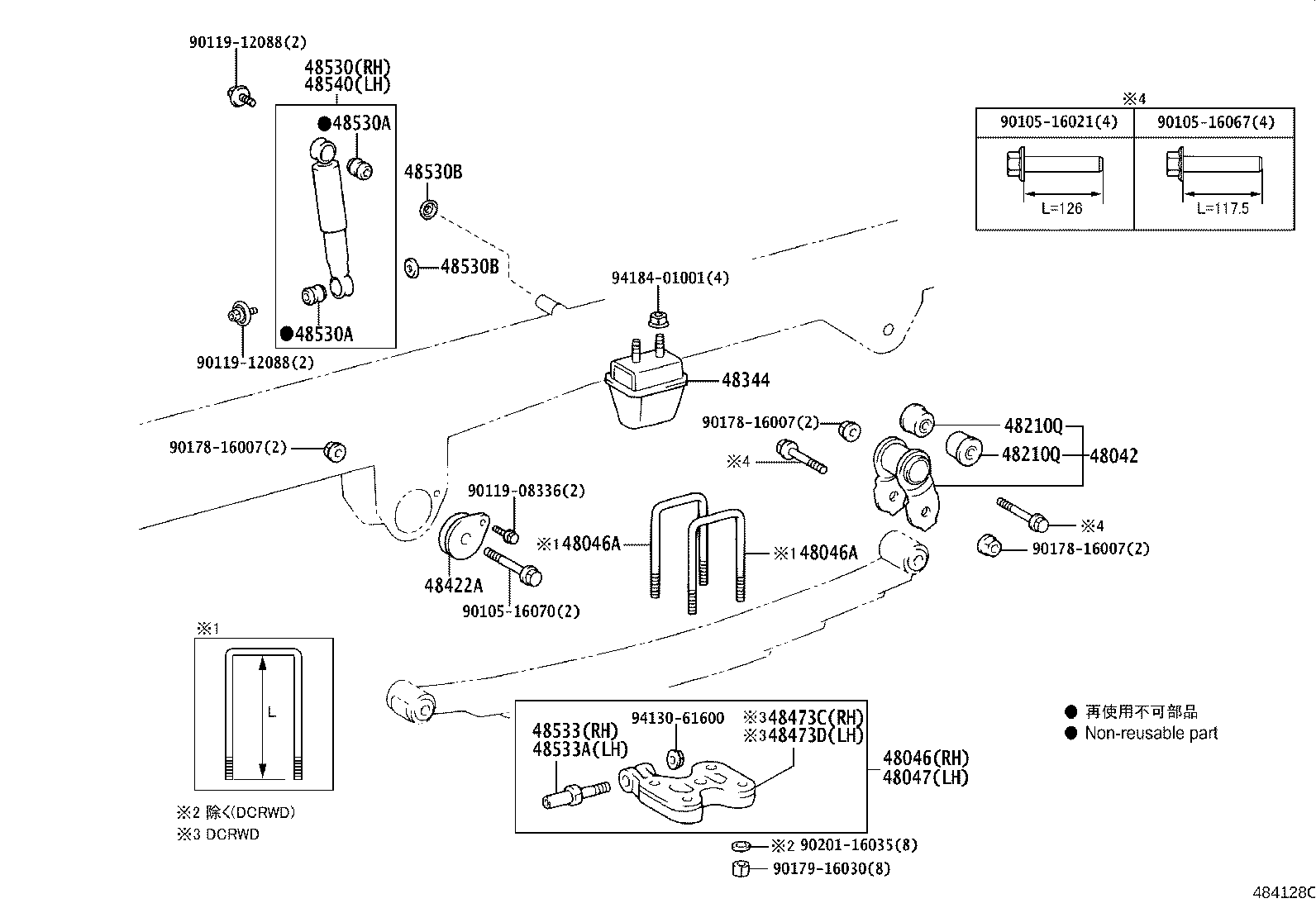

48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48533 Pin, Rear Shock Absorber Lower Pivot, RH
48533A Pin, Rear Shock Absorber Lower Pivot, LH
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48805A Bush(FOR REAR STABILIZER BAR)
48818 Bush, Stabilizer, Rear
48823R Cover, Stabilizer Link(FOR REAR)
48830C Spacer(FOR REAR STABILIZER LINK)
48830D Link Assy, Rear Stabilizer, RH
48832A Bracket, Rear Stabilizer Bar, NO.1
48840A Link Assy, Rear Stabilizer, LH
